SERVICE PARTS LIST
CATALOG NO. 2013R-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Rechargeable Low Prole Magnetic Task Light
SERIAL NO.
DATE
Feb. 2024
WIRING INSTRUCTION
P57A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
6 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or name
plate.

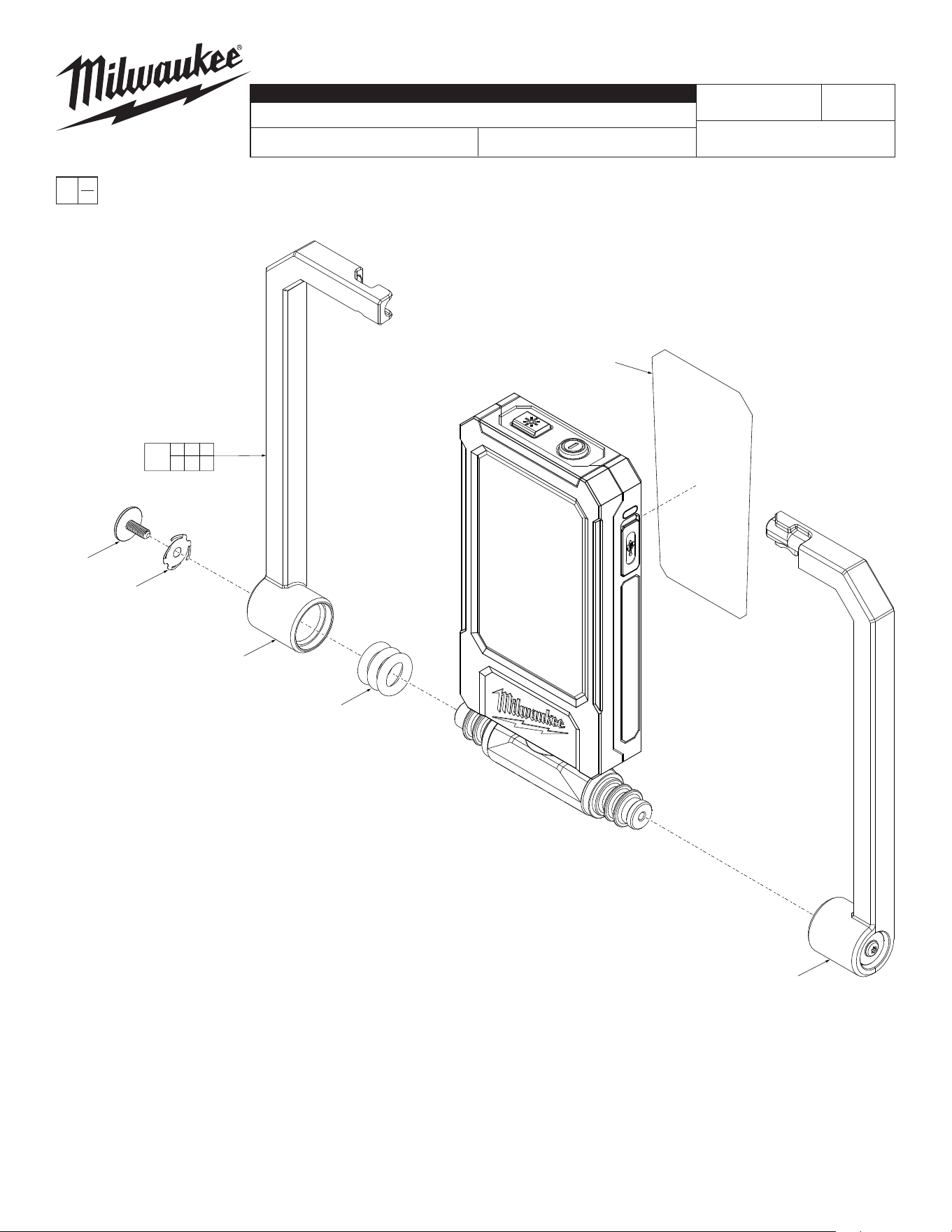

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Left Frame Assembly (1)
2 --------------- Right Frame Assembly (1)
3 --------------- M3 x 8mm Screw (2)
4 --------------- Washer (2)
5 --------------- O-ring (6)
6 12-20-2008 Service Nameplate (1)
7 14-46-2013 Frame Service Kit (1)
1
6
7
1 2 3
4 5
2
3
(2x)
4
(2x)
5
(6x)
