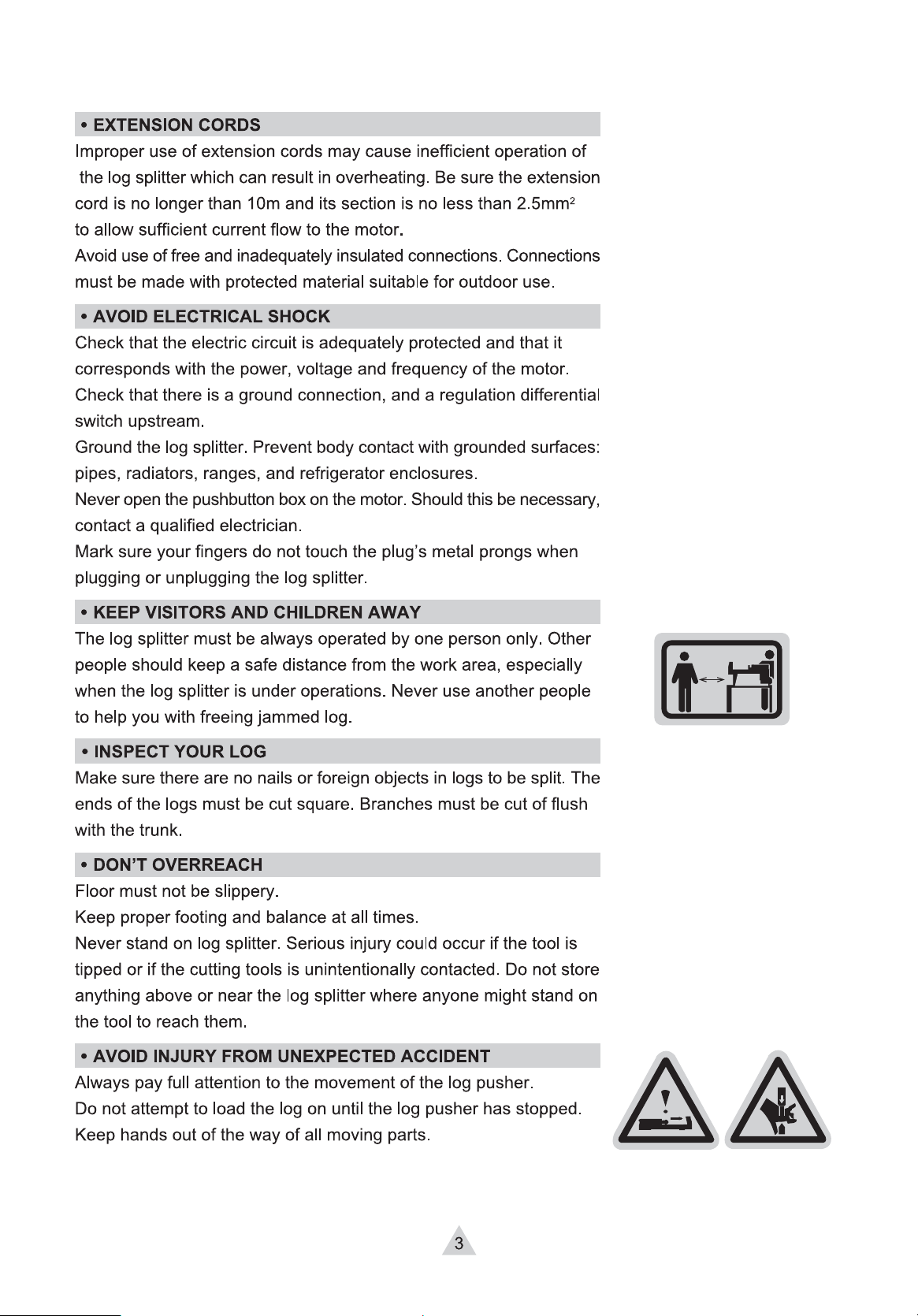

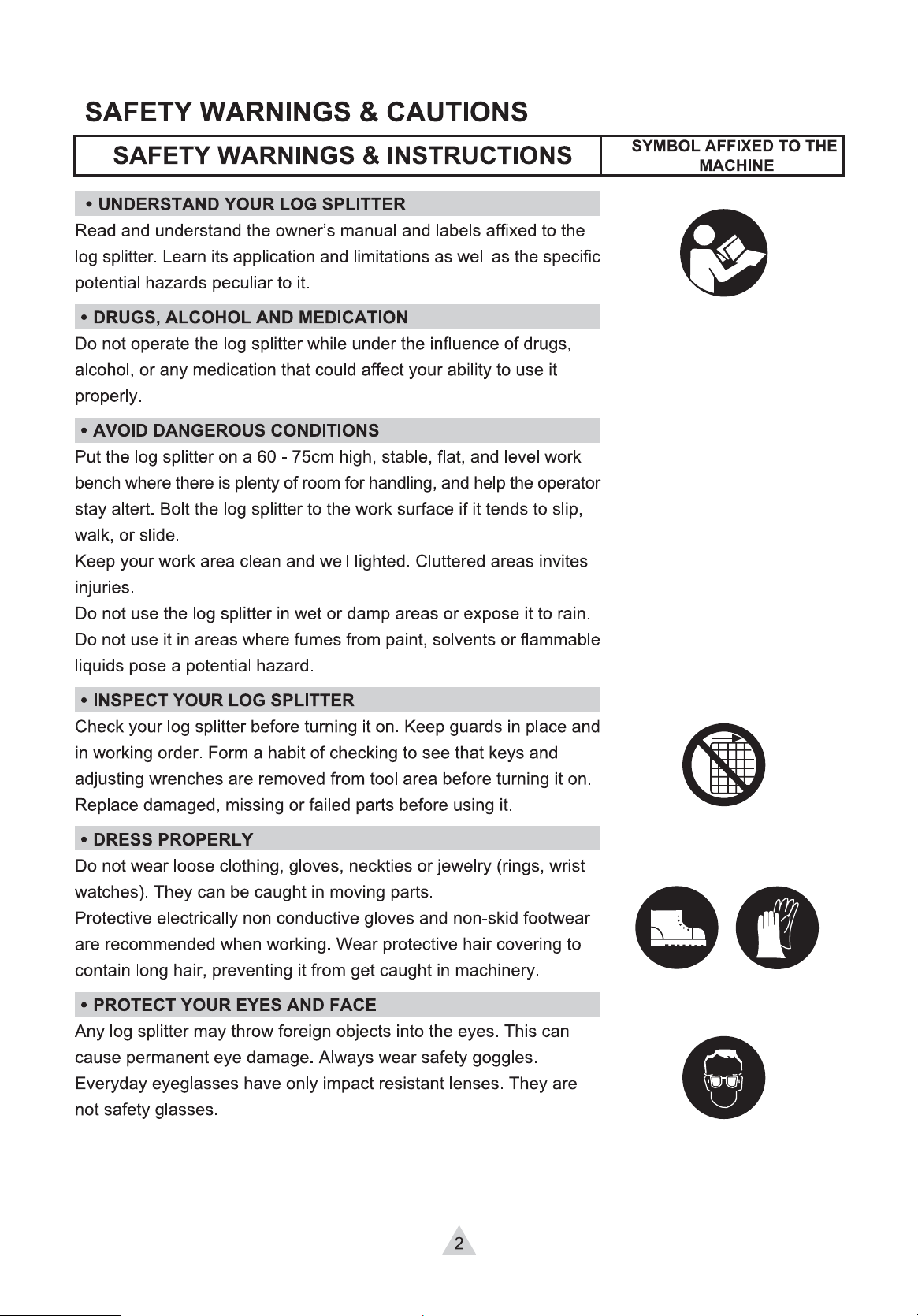

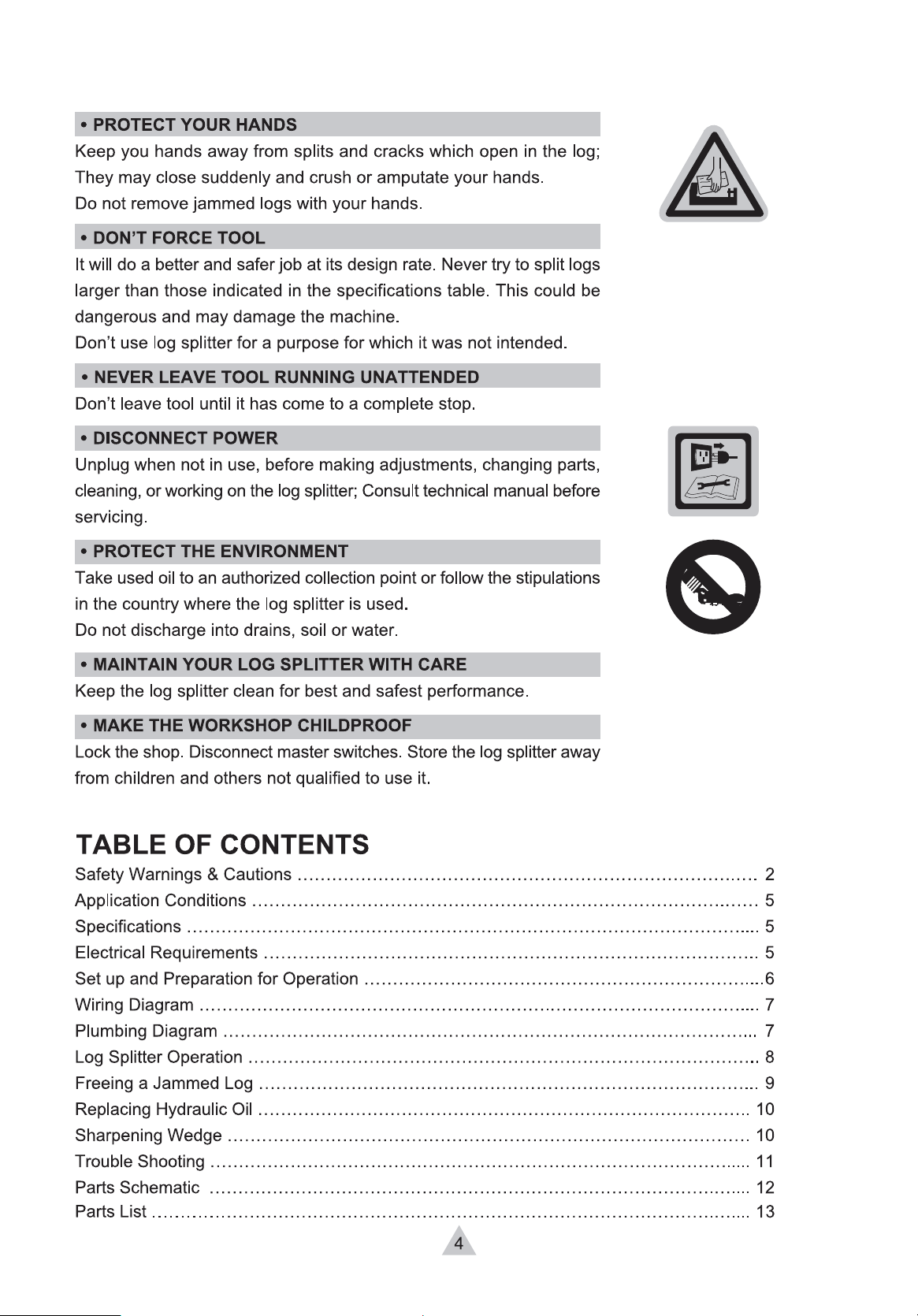

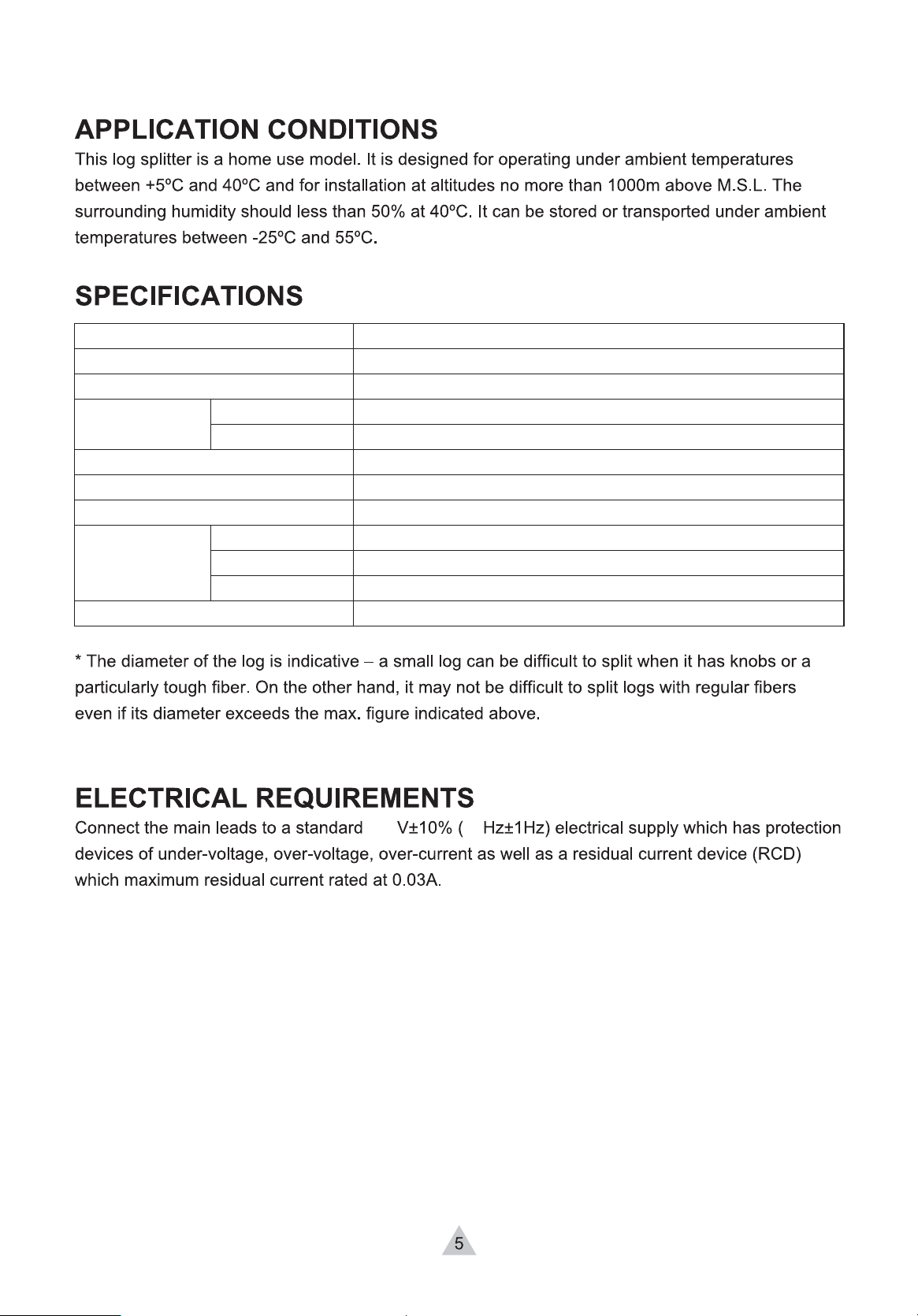

SKU TLA-0101
WS6T
120V-60Hz 15A
1.97-9.84inch
20.47inch
6.5t
24MPa
0.9gal
36.42inch
10.43inch
18.31inch
44.5kg
Model Number
Motor
Log Capacity
Diameter＊
Length
Length
Width
Height

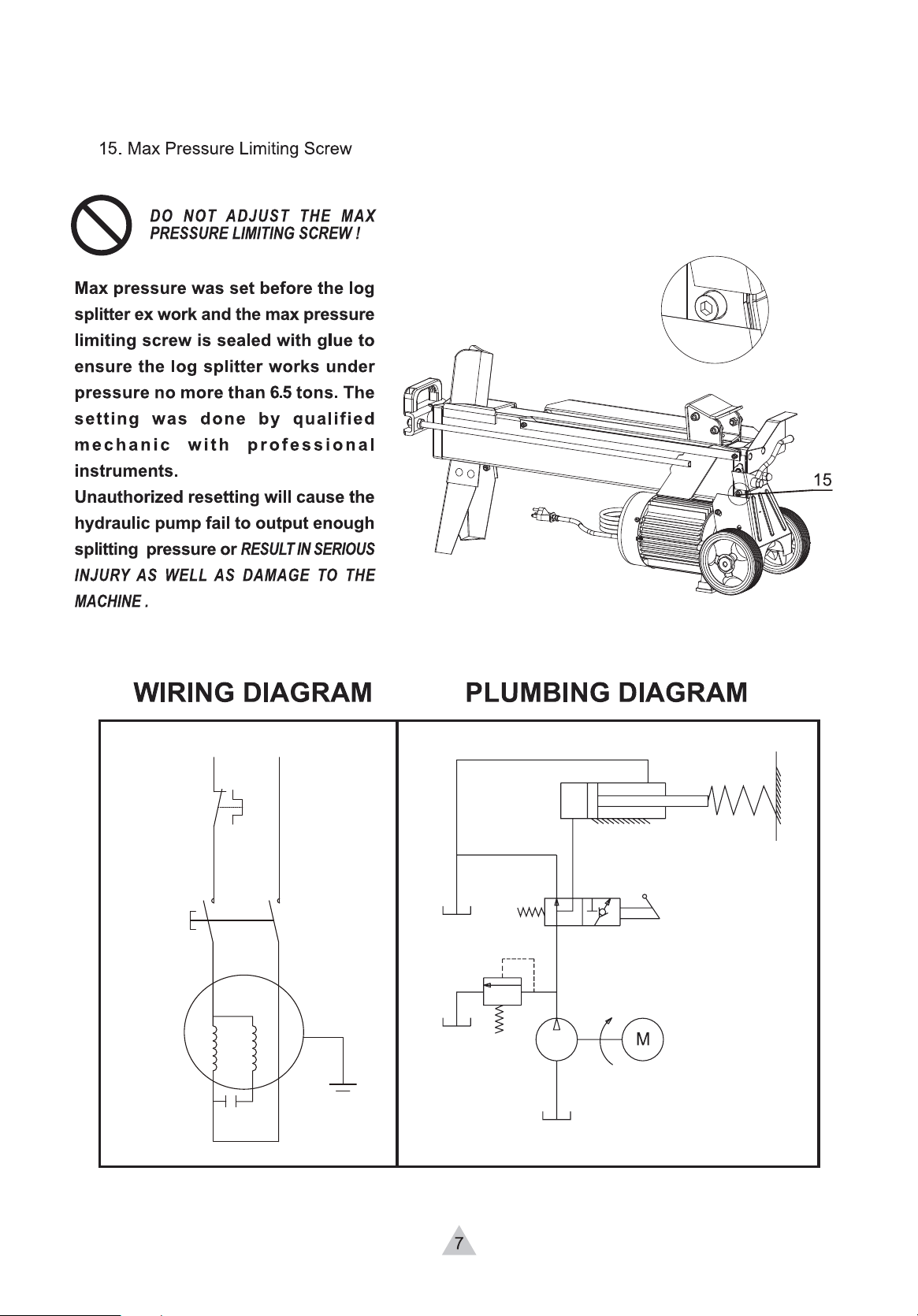

Splitting Force
Hydraulic Pressure

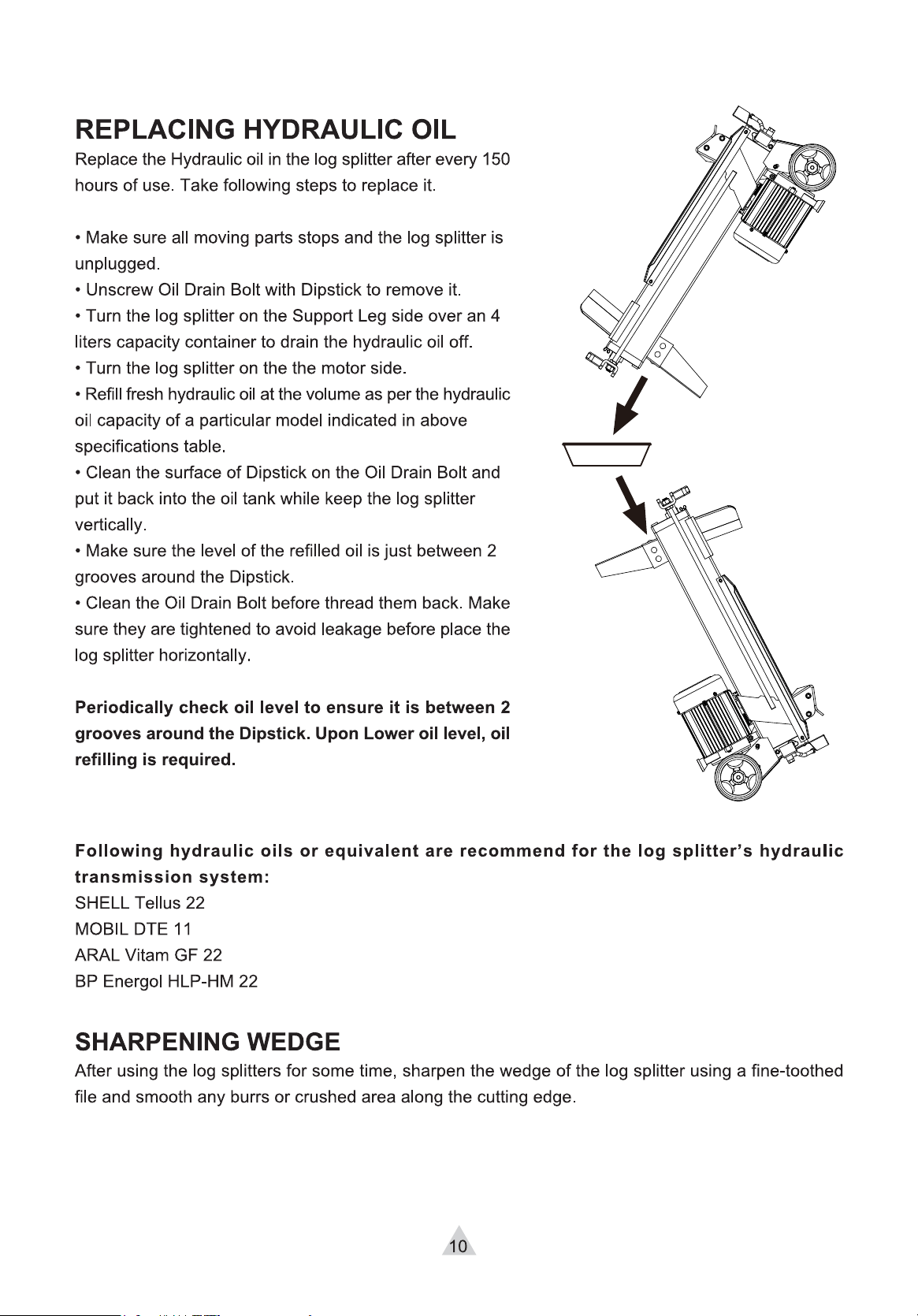

Hydraulic Oil
Overall Size
Weight
120 60
L
KH
SB
M
C
PE
N

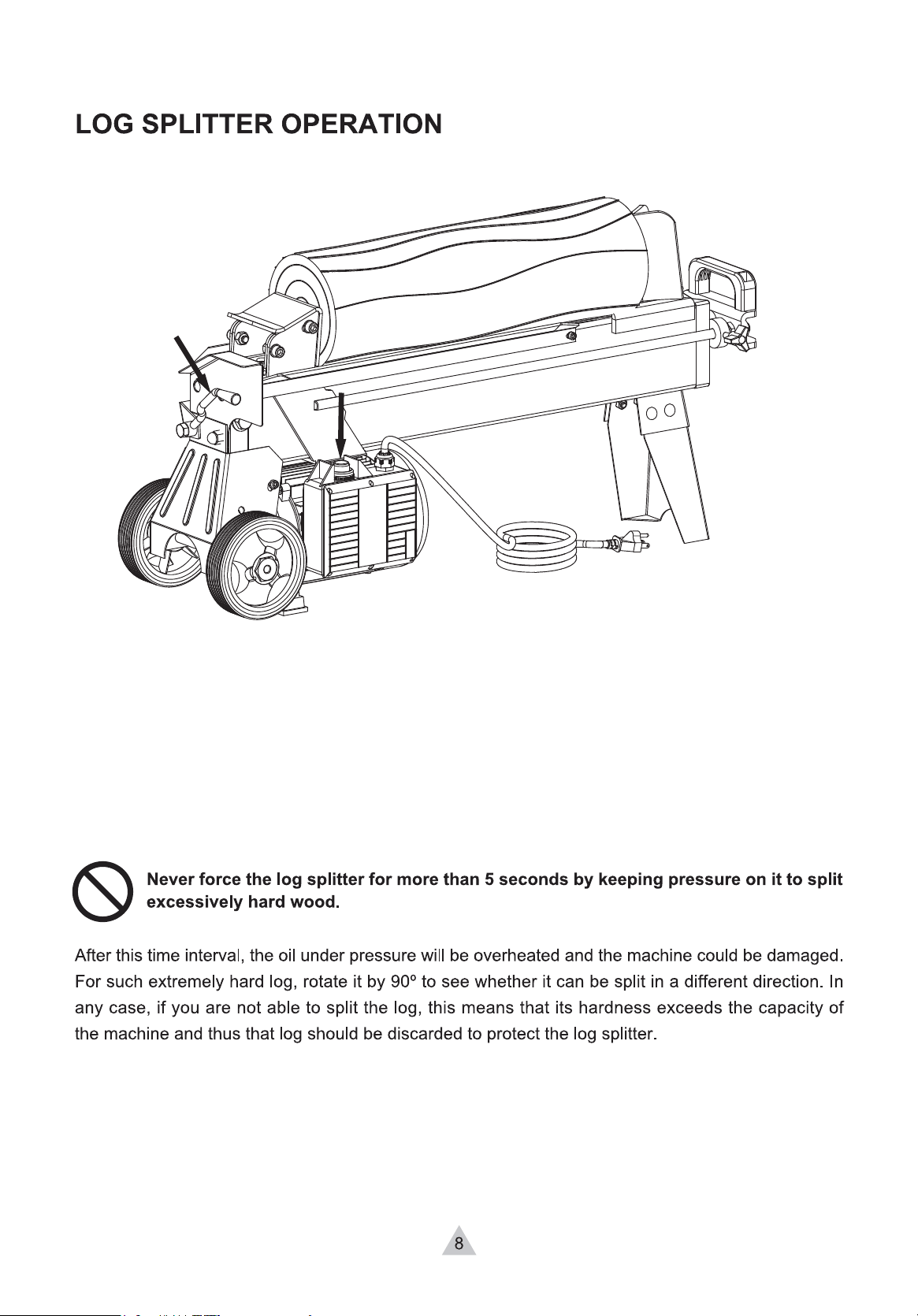

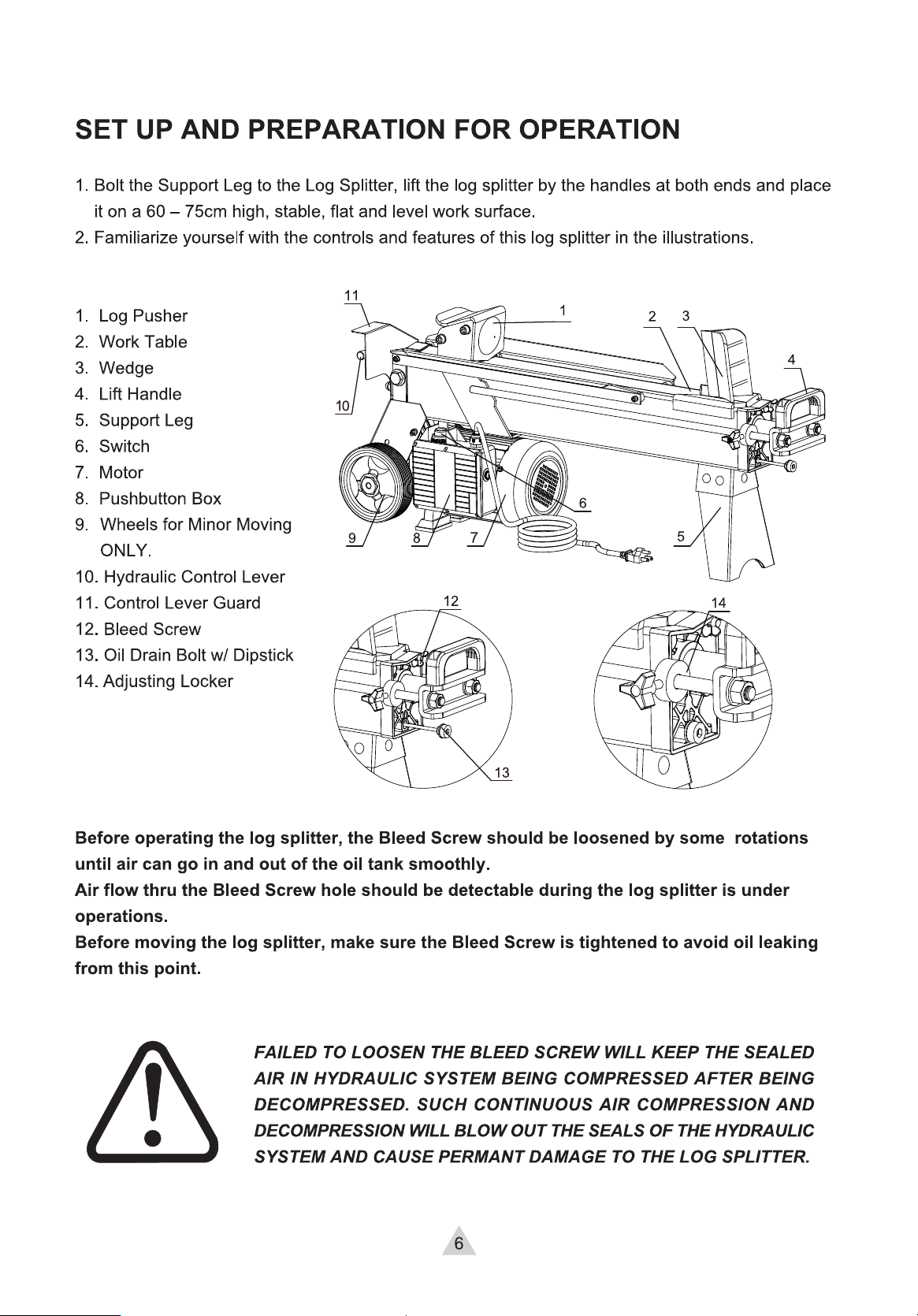

This log splitter is equipped with a “ZHB” control system that requires to be operated by both hands
of the user. The left hand controls the hydraulic control lever, while the right hand controls the push-
button switch. First push down and hold the pushbutton switch to start the motor, while continuing to
hold down the pushbutton switch, press and hold the hydraulic control lever downward to engage the
log pusher. The log push will freeze upon absence of either hand. Only after both hands release the
controls will the log pusher start to return to the starting position.

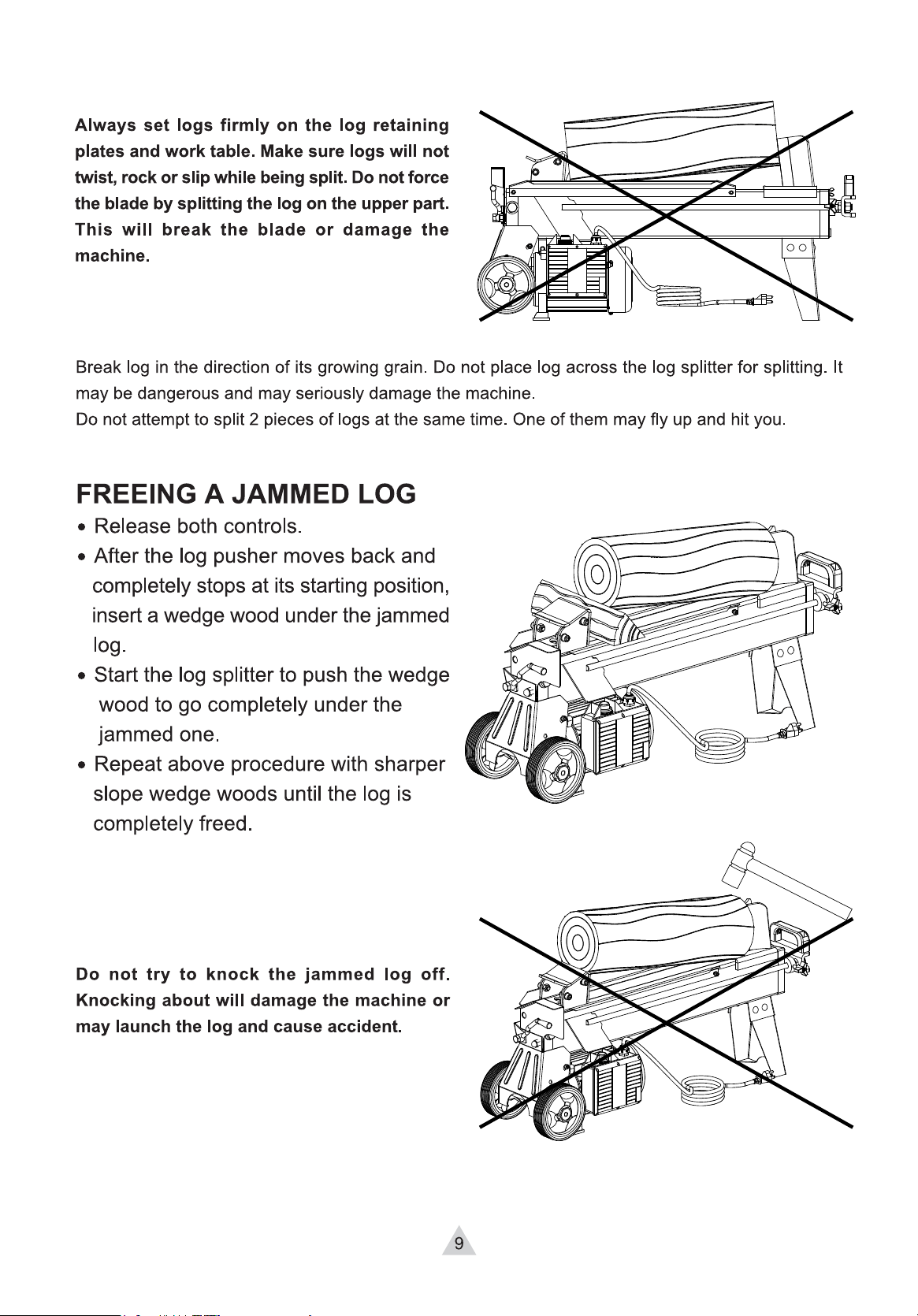

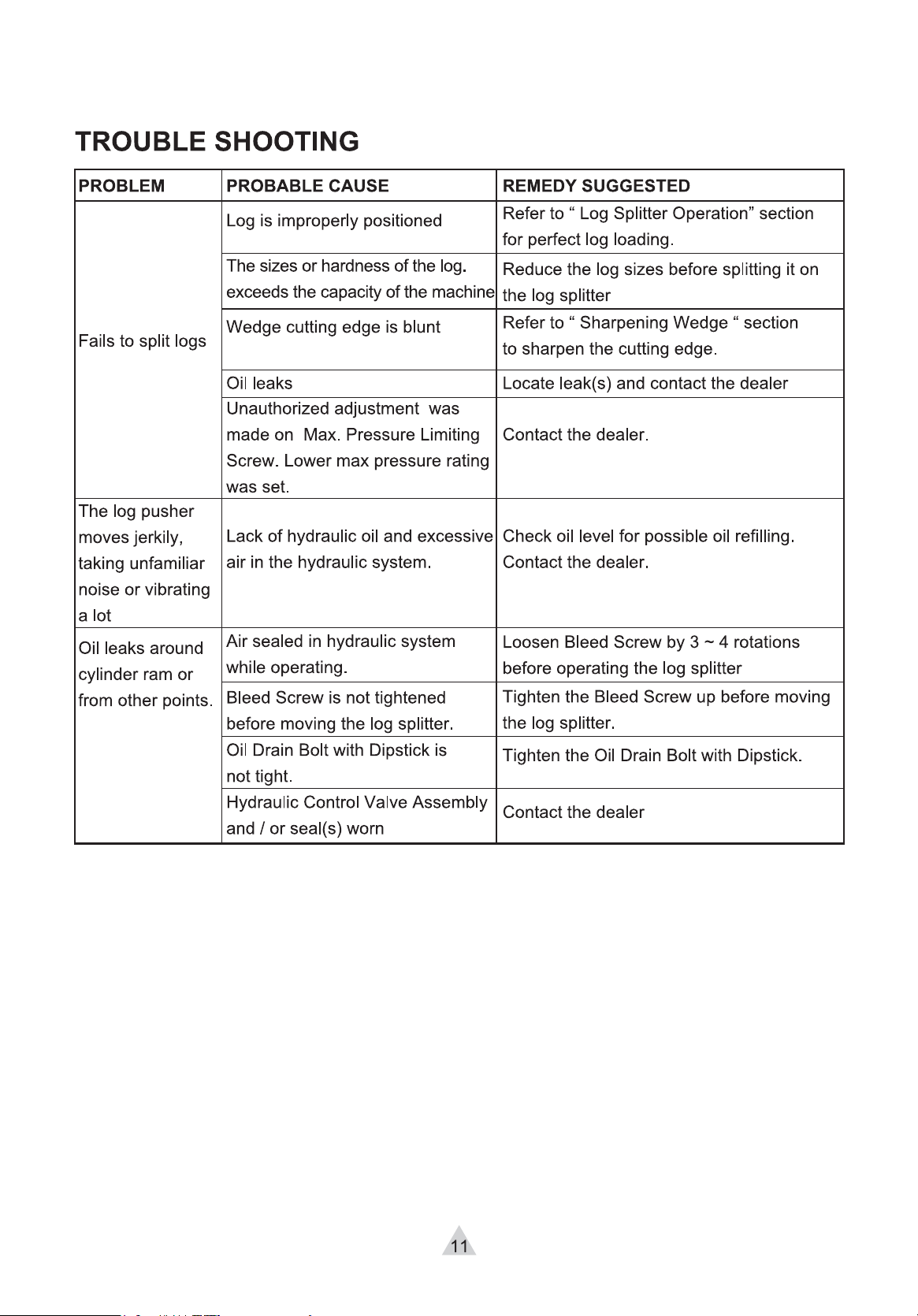

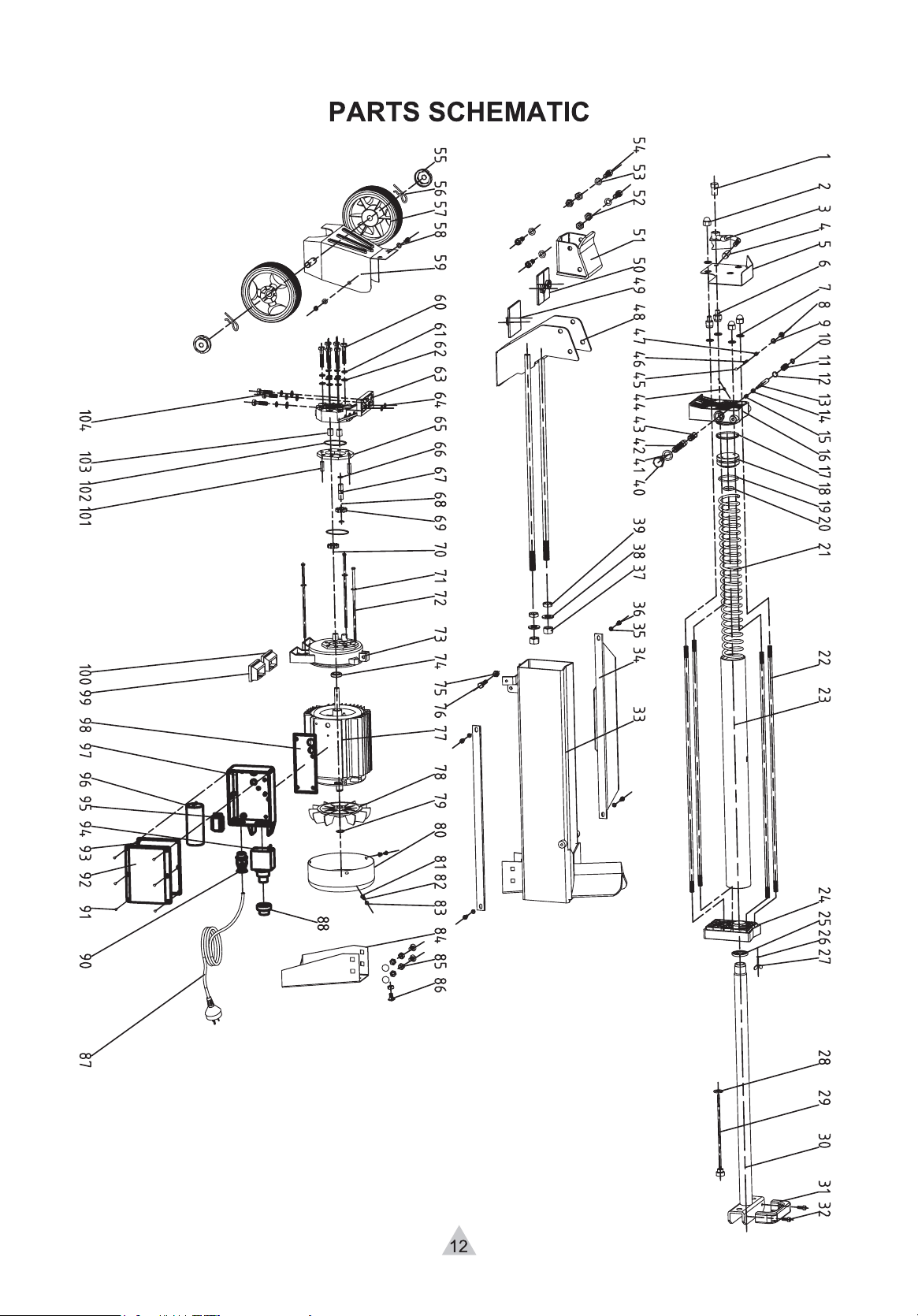

PARTS LIST
No. Description Q'ty
1 Lever Mount Nut 1
2 Nut Cap, M10 3
3 Lever 1
4 Lever Knob 1
5 Guard Plate 1
6 Nut 2
7 Copper Gasket 10 4
8 Safety Valve Screw M8 1
9 O-Ring 5.5x2 1
10 Snap Washer 6 1
11 Valve Retract Spring 1
12 O-Ring 6x1.5 1
13 Valve Core Rod
114 Sliding Pressure Sensor Sleeve
42 Valve Sleeve
15
Sliding Pressure Sensor Sleeve
Spring
1
40 Nut Plug 1
41 Washer Groupware 16 1
43 O-Ring 14x1.9 5
44 Adjusting Screw M5x8 1
16 Aluminum Cover ( Rear ) 1
117 O-Ring 55X3.1
18 Piston
1
19 Piston Ring 55
20 O-Ring 32X3.5 1
21 Spring 1
22 Stud 4
23 Hydraulic Cylinder 1
24 Aluminum Cover ( Front) 1
25 Piston Rod Seal 30 1
26 O-Ring 7x1.9 1
27 Bleed Screw M5X12 1
28 Washer Groupware 14 1
29 Dipstick 1
30 Piston Rod 1
31 Lift Handle 1
32 Screw M6X16 2
33 Frame Tube 1
No. Description Q'ty
34 Support Plate 2
35 Lock Washer 6 4
36 Screw M6x10 2
37 Nut M14 2
38 Flat Washer, M14 2
39 Nut, M14 2
45 Steel Ball 1
46 Pressure Limited Valve Spring 1
47 Adjusting Screw M8x8 1
48
Log Pusher Connection
Weldment
1
49 Lower Plastic Insert 1
50 Upper Plastic Insert 1
51 Log Pusher 1
52 Nut, M10 4
53 Flat Washer, M10 5
54 Screw M10x25 4
55 Wheel Cover 2
56 Pin 2
57 Wheel 2
58 Washer, M6 2
59 Wheel Bracket 1
60 Bolt M8x55 6
61 Lock Washer, M8 9
62 Spring Washer, M8 9
63 Gear Pump Cover
1
103 Sliding Sleeve
64 O-Ring 10.6x2.65 2
65 Gear Housing Plate 1
66 Circlip 10 2
67 Gear Shaft 1
68 Steel Ball 2.5 1
69 Gear 2
70 Pin 2.5x4 1
71 Flat Washer, M5 6
72 Bolt M5x185 3
73 Motor Cover
1
103 Sliding Sleeve
74 Seal FB11x26x7 1
14
PARTS LIST
No. Description Q'ty
75 Nut, M8
1
76 Screw M8x35 1
77 Motor 1
78 Fan 1
79 Block Turn 17 2
80 Fan Shroud 1
81 Lock Washer, M5 3
82 Flat Washer, M5 3
83 Screw M5x10 3
84 Front Support Leg 1
85 Nut, M8 5
86 Bolt M8x12 5
87 Plug 1
88 Cover for Switch 1
No. Description Q'ty
90 Strain Relief 1
91 Screw, ST4x10 6
92 Switch Box Cover 1
93 Airproof Underlay 1
94 Switch 1
95 Connection Terminal 1
96 Capacitor 1
97 Switch Box 1
98 Waterproof Underlay 1
99 Motor Support Right Shoe 1
100 Motor Support Left Shoe 1
101 Pin 8X24 2
102 O-Ring, 46.2x1.8 2
104 Bolt M8x30 3
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Limited 90 Day Warranty
Our company makes every effort to assure that its products meet high quality and durability standards,
