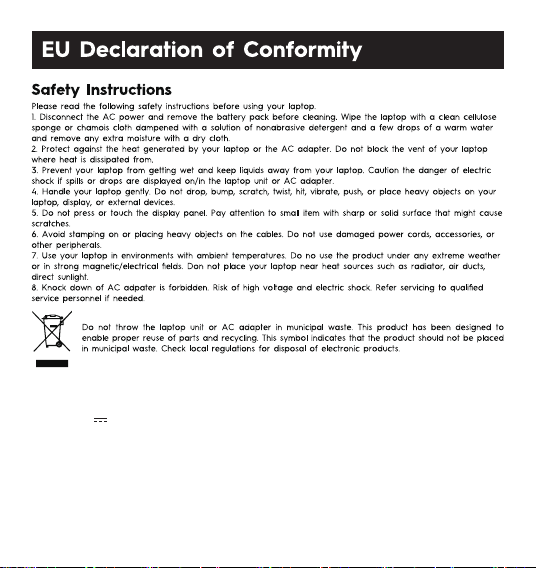

Hereby, Shenzhen Geekom Electronic Technology Co.，Ltd
declares that this laptop computer is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
M16
1. Power button
Press to turn on the laptop if it is turned off, in sleep state, or in hibernation state.
Press to put the laptop in sleep state if it is turned on.
Press and hold for 10 seconds to force shut-down the computer.
2. Left-click area
Press to left-click.
3. Right-click area
Press to right-click.
4. Caps Lock light(on the keyboard)
Click on capslock,light on means uppercase,
off means lowercase.
1. Right speaker
Provide audio output.
2. Left speaker
Provide audio output.
3. Rubber foot
Prevent scratches and enhance heat dissipation on the
bottom of the computer.
1/5. Microphone
Provide digital sound input for audio recording, voice calls,
and so on.
2. Camera-status indicator
Turn on when the camera is in use.
3. Camera shutter
Open or close the camera lens.
4. Light sensor
You can control the brightness of the screen, and the display
can change with the external environment.
Adapter: HKC10020050-0K2/HKC10020050-0K4
Input:100-240V~50/60Hz,2.5A
Ouput:20.0V 5.0A 100.0W
Frequency Range&Maximum Transmit Power:
BT: 2400-2483.5MHz Maximum Power：2.36dBm
Wi-Fi 2.4GHz(TX/RX): 2400-2483.5 MHz Maximum Power:14.08dBm
Wi-Fi 5G:
Band 1: 5150-5250 MHz(TX/RX) Maximum Power:15.27dBm
Band 2: 5250-5350 MHz(TX/RX) Maximum Power:14.70dBm
Band 3: 5470-5725 MHz(TX/RX) Maximum Power:14.60dBm
Wi-Fi 5.8G : 5725-5875MHz(TX/RX) Maximum Power:12.02dBm
SAR Warning Notice
RF exposure information
For the countries that adopt the SAR limit of 2.0 W/kg(Body) and 4.0 W/kg(Limbs) over 10 grams of
tissue. Device has also been tested against this SAR limit.
WiFi Warning Notice
This device may be restricted for use, depending on the local network.
The 5150 to 5350 MHz frequency ranges are restricted to indoor use in: AT, BE, BG, CH, CY,CZ, DE, DK,
EE, EL, ES, FI, FR, HR, HU, IE, IS, IT, LI, LT, LU, LV, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR, UK(NI). In
accordance with the relevant statutory requirements in the UK, the 5150 to 5350 MHz and 5945 to
6425 MHz frequency ranges are restricted to indoor use in the United Kingdom.
The WLAN function for this device is restricted to indoor use due to its operation in the 5.15 to 5.35
GHz frequency range.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and
the HDMI Logos are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.

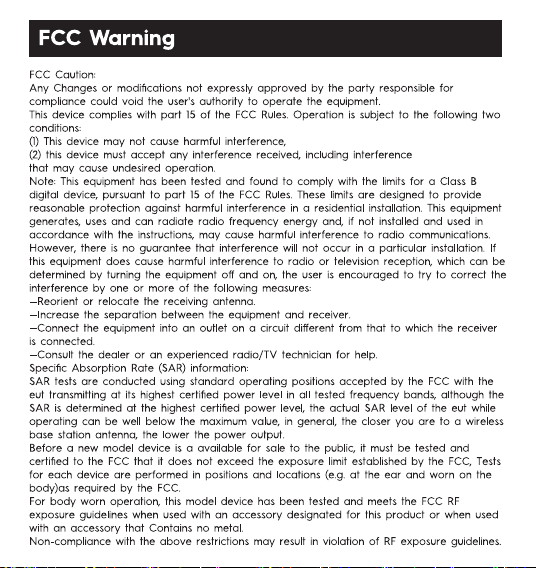

FCC RF Exposure Warning Statement
This equipment has been tested for SAR compliance. This equipment should be installed and
operated with minimum distance 0 mm between the radiator and your body. This transmitter
must not be collocated or operating in conjunction with any other antenna or transmitter.
For USA: The frequency stability of all transmission frequencies of U-NII-1, U-NII 2A, U-NII 2C
and U-NII-3 meets the requirements of 47 CFR FCC Part15.407(g), and the manufacturer
declares that their transmission is maintained at Band U-NII-1, U-NII 2A, U-NII 2C and U-NII-3.
ENERGY STAR
®
Program Requirements
for Computers
Partner Commitments
Following are the terms of the ENERGY STAR Partnership Agreement as it pertains to the manufacture
and labeling of ENERGY STAR certified products. The ENERGY STAR Partner must adhere to the
following partner commitments:
1. Partner shall adhere to the following product-specific commitments regarding use of the
ENERGY STAR certification mark on certified products:
1.1. Partner must use the ENERGY STAR mark in one of the following ways:
1) Via permanent or temporary label,. All temporary labeling must be affixed to the product
with an adhesive or cling-type application:
a. The label shall be on the top or front of the product if the top or front of the product
has a contiguous, copl
anar surface area not used for touch input or display that is
greater than or equal to 0.625 in square;
b. Otherwise, the label shall be on the reverse side of the screen; or
2) Via electronic labeling displayed on the screen such that the ENERGY STAR mark must
be at least 4% of the screen by area; must be greater than or equal to 76 pixels x 78
pixels; must be legible; must be in cyan, black, or white; and either
a. Must appear at system start-up, and must display for a minimum o
f 5 seconds; or
b. Must appear within the system power settings dialog window. EPA will consider
alternative proposals for electronic labeling on a case-by-case basis.
60 - 100
W
USB PD
1.the power deliveredby the charger must be between min 60 Watts required by the radio equipment,
and max 100 Watts in order toachieve the maximum charging speed
2.USB PD fast charging
