warranty
SAFETY NOTICE
Keep a safe distance between children and the inflator
while inflating. There is a built-in lithium battery inside the
product. Don't place the product in fire or dump the battery
This product is not a toy and should not be used by
Warm
children. Users should be above 16 years old.
.
Please store the product in temperature ranging from -10
~45
01
04
02 03
04 05
05 10
11
12
13
14
15
. Extremely hot or cold environments may damage
the battery and shorten the lifetime of the inflator.
Long-time storage of the product may decrease the
effectiveness of the battery. Charge the inflator at least
once every three months to maintain its performance.
The product has a built-in DC motor which may generate
sparks during operation. Do not use it in an environment
with dust or gas that is liable to explode.
The machine will produce more than 75dB noise when
working. Please take all safety precautions
seriously
The air compressor's air hose may get very
hot after inflating. To prevent injuries, exercise caution
when disconnecting it from a valve.
PRODUCT DIAGRAM
In the working state, long press the
button to stop inflating.
Turn on
Short press the "Power" button to
power on, then long press 2 seconds
to inflating.
Turn off
3. Turn On and Turn Off
5. Press "+/-" button to increase
or decrease the preset tire
6. Long press "Power" button to
start inflating, when it reaches
the preset tire pressure, it will
automatically stop.
pressure value
INSTRUCTION MANUAL
1. USB Charging
Long press the light button: turn on the
white light
Shot press again: SOS mode
Shot press again: flashing mode
Fully charge the inflator before first using it.
To charge, connect it to a certified 5.0V/2A
USB charger with the charging cable.
While charging:
1 bar flashing = under 25%
1 bar solid, 2nd bar flashing= 25%~50%
2 bars solid, 3rd bar flashing=50%~75%
3 bars solid, 4th bar flashing=75%~100%
All 4 bars solid = fully charged
Long press again to turn off the light
2. Lighting
Nozzle
PACKAGE CONTENTS
Nozzle
Air Neddle
Air Hose Tube
HOW TO USE
Charging Cable
1. Screw the air hose clockwise
2. Connect the air hose to the
car's inflation part
3. Press "Power" button to turn
on the inflator
4. Press the button " " to
switch modes, long press 2
seconds to switch units
Air Inflator
1. Light Button
2. "-" Button
3. Power Button
4. "+" Button
5. Model Button
6. LED Screen
7. Air Outlet
8. LED Light
9. Type-C Input
1. Charging indicator
2. Car inflation mode
3. Motorcycle inflation mode
4. Bicycle inflation mode
5. Basketball inflatable mode
6. Barometric pressure unit BAR
7. Barometric pressure unit KPA
8. Pressure unit PSI
9. Battery indicator light
4. Connect to Nozzle
Ai r N edd les
Air needles are required when inflating
balls such as basketballs and soccer
balls.
I
nflation: Screw the needle and American
nozzle interface and insert the needle
into the ball inflation hole to inflate it.
D
eflation: Plug the air needle derectly
into the ball inflation hole to delate
No zze ls
Swimming rings or inflatable boats will be
equipped with nozzles as showen here.
I
nflation: Screw the nozzle connecter and
insert the it into the swim ring or rubber
boat to inflate it.
D
eflation: Deflate by inserting the nozzle
directly into the swim ring or rubber boat.
In the inflator on state, connect inflator with the
object, the number displayed on the inflatable pump
5
. Detect AirPpressure
display is the current pressure
Tires for cars, bicycles and
motorcycles can withstand air
pressure ranged marked on the
side walls of the tires. The car tire
guidance air pressure is marked
near the inner wall of the driver's
side door. The level of inflation
pressure is related to the weight of
the load. For more details air
pressure recommendations, please
refer to the car manual.
Ti r e
Ba l l
The inflatable pressure of balls
such as football, basketball and
volleyball is marked around the
inflatable port.

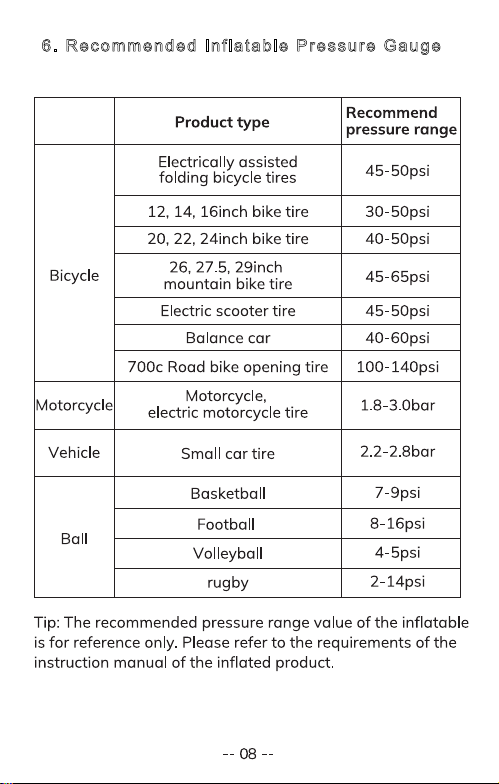

6. Re c om m en d ed In f la t ab l e P re s su r e G au g e

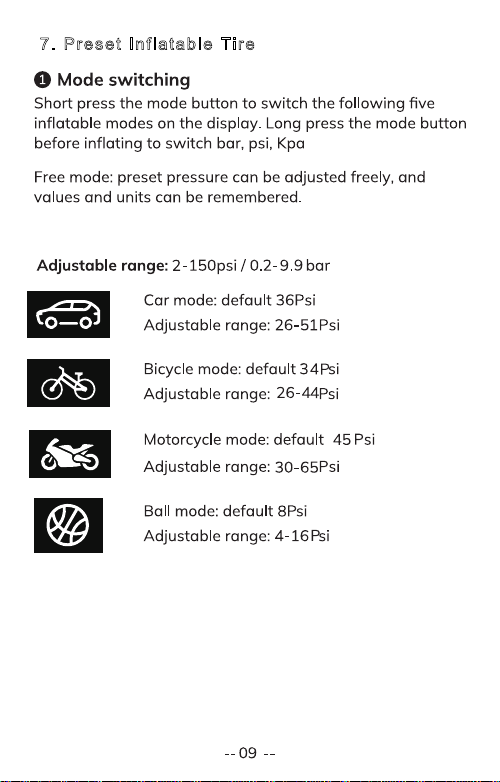

7. Pre se t In fla tab le Tir e
"+""-"Any button represents a manual
increase and decrease of the preset
tire pressure value. Each press
increase 0.1BAR or 1PSI or 10KAR
to the maximum and minimum value
alternatively. Current working states
do not change when setting the
preset pressure.
8. Un s cr e w t he no z zl e
The temperature of the high press air inflation
tube is hight after inflation. Please take the
necessary precaution to protect yourself when
disassembling the nozzle. There will be a slight
air leakage during disassenmly, please
disassemble quickly to reduce the amount of air
outlet
156×67×43

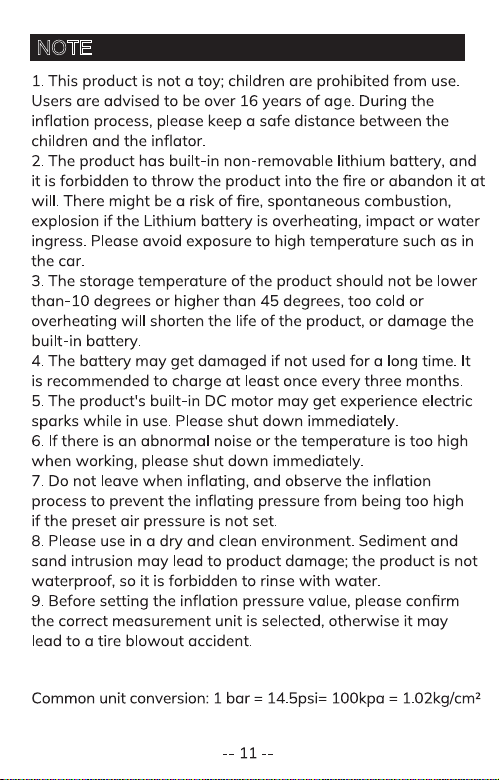

NOTE

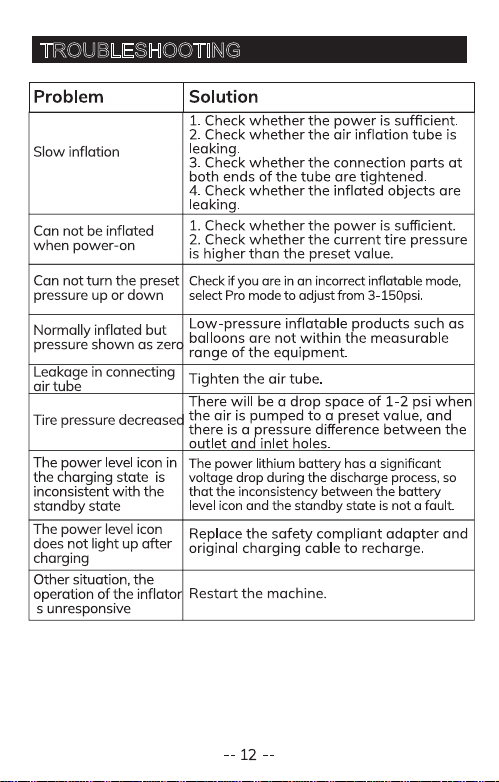

TROUBLESHOOTING

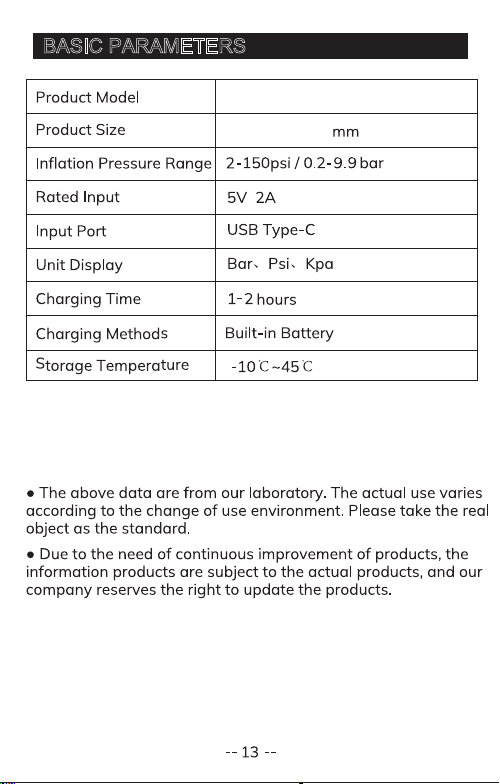

BASIC PARAMETERS

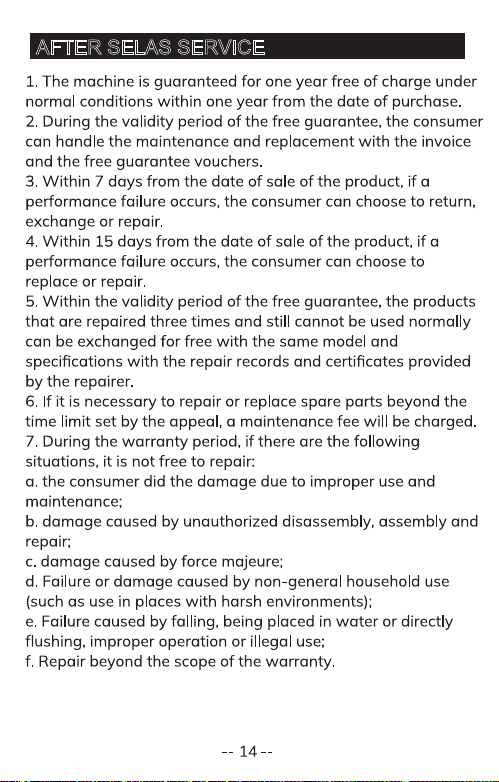

AFTER SELAS SERVICE

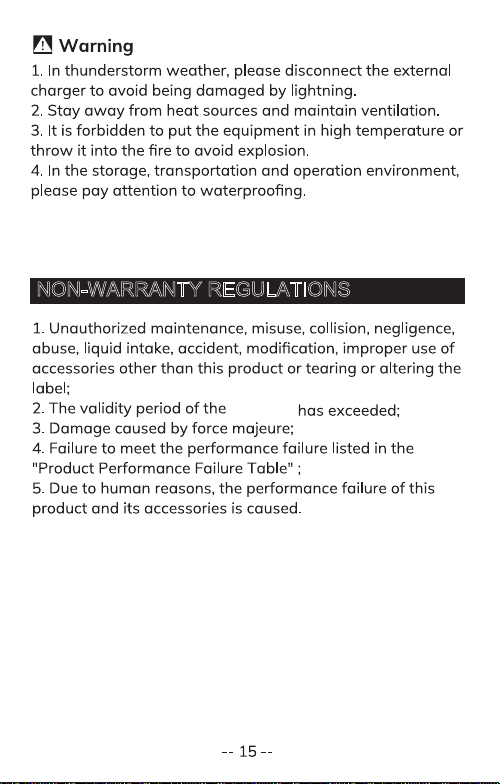

NON-WARRANTY REGULATIONS
support@acmount.net
Acmount
8
7
9
1
2
5
6
4
3
21
3 4
5 6
3
2
1 9
7
8
6
5
4
C10
