Know Your Product
LED Screen
Lighting Button
Mode Button
"-" Button
Inflate Button
Unit Button
1
Power Button
"+" Button
USB-C Input
USB1-OUT
USB2-OUT
Jump Start Port
LED Light
Air Hose Interface
Smart Clamp Plug
Red Jump Cable(+)
Indicator Light
Black Jump Cable(-)
Force Start Button
Charging Your Jump Starter
1.Please use the included USB-C charging cable and adapter (5V/2A and above) to
charge the product. (adapter is not included)
2.It will take about 5 hours to fully charge the unit when using a 5V/2A adapter. In order
to extend the battery life, please fully charge the unit every 3 months.
3.When using the product for the first time,please make sure the product is fully
charged.
Powering Your Devices
This portable jump starter is equipped with dual USB outputs
(Output1: 5V/2.4A Output2: 5V/2.4A, 9V/2A, 12V/1.5A) that can quickly charge
your portable electronic devices such as phones, tablets, etc.
LED Light
Short press the power button to turn on the device, then press the lighting button more
to turn on the light mode, then short press the lighting button to change the modes in
lighting, SOS, Strobe, press once more to turn it off.
Air Compressor
Built-in 150 PSI air pump, it supports 5 inflation modes: car inflation mode, motorcycle
inflation mode, bicycle inflation mode, basketball inflation mode, custom inflation mode;
3 kinds of unit switching, BAR, KPA, PSI.
Inflation Modes
Pressure Range
Car Inflation Mode
26~51 PSI, 1.8~3.5 Bar, 180~350 Kpa
Motorcycle Inflation Mode 26~44 PSI, 1.8~3.0 Bar, 180~300 Kpa
Bicycle Inflation Mode 30~65 PSI, 2.0~4.5 Bar, 200~450 Kpa
Basketball Inflation Mode
4~16 PSI, 0.2~1.1 Bar, 20~110 Kpa
Custom Inflation Mode
3~150 PSI, 0.2~9.9 Bar,20~990 Kpa
2
How to Inflate Car Tire
3
s
Jump Start Your Ca
1.Take out the device and connect the air hose and tighten it, press the Power button to
start the device, press the Mode button to enter the inflation mode
2.Press the Mode button to select the inflation mode, press the Unit button to switch 3
kinds of unit, press the "+" button / "-" button to adjust the airpressure value
3.Long press the Inflate button to start inflation
4. When the tire pressure reaches the preset value, it will automatically turn off.
r

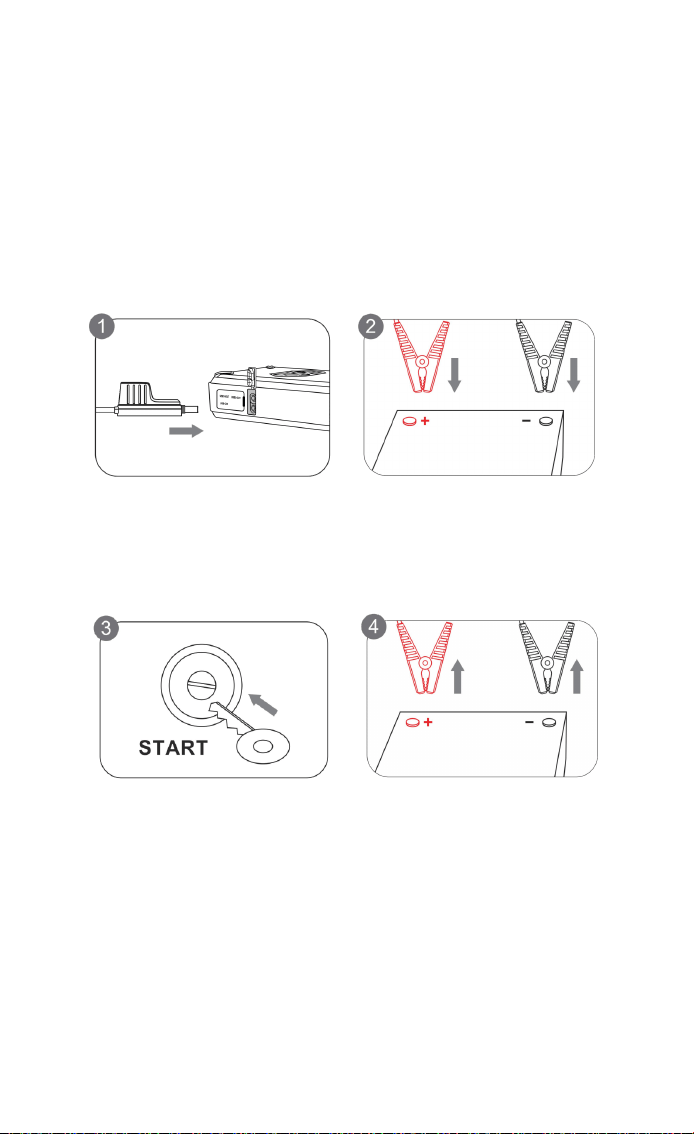

1. Insert the plug of the smart clamp into the jump starter, the indicator light of the smart
clamp will flash red and green alternately
2. Correctly clip the red and black clamps to the electrodes of the car battery (red to positive
and black to negative), the indicator light of the smart clamp is always green.
3.Start the vehide.
4.When the vehide is started, remove the jumper cable from the car battery
immediately.
Note:
1. If it does not start successfully, please wait for 60 seconds and then repeat the above
steps.
2. When using this product, please do not connect two clips together. Otherwise, this
product will be damaged.
Indicator Light Troubleshooting Guid
4
e
Phenomenon of Indicator Light
Method of Exclusion
The red light is always on, and the Please check whether the clips are reversed red
to positive and black to negativbuzzer beeps shortly e
The red light is always on and the
Please check whether the clips are connected
together or on the same metal conductobuzzer is always beeping r
The red light is always on, but the
Remove the clip from the car battery and
reconnect ibuzzer does not sound t
The red light is always on, and the
Smart dip failure,please contact us to replace the
smart dip
“E1”- Low temperature charging protection:Stop charging, it will automatically release
protection when the temperature rises above 2°C
“E2”- High temperature charging protection: Stop charging, it will automatically
release protection when the temperature is lower than 45°℃
“E3”- High temperature discharge protection: Stop charging, it will automatically
release protection when the temperature is lower than 65°C
“E7”- Cylinder over temperature protection: Automatically release the protection
when the temperature is lower than 70°℃. After the protection is released, please
wait for 10 minutes before continuing to operate
Error Message on Screen/ Cause/ Solution
.
Specifications
Mode
Acmount W160 Car Jump Starter
USBOutput1
5V/2.4A
USBOutput2 5V/2.4A,9V/2A,12V/1.5A
USB-CInput 5V/2A,9V/2A
Size 220*97*47mm
buzzer beeps quickly and briefly
Package Conten
5
t
Maintenanc
Acmount W160 Jump Starter with Air Compressor *1
Gas Nozzles *4
Air Pump Hose *1
Smart Jumper Clamps *1
USB-C Charging Cable *1
User Manual*1
Portable Storage Bag *1
e
1.Do not use the product to start an already expanded car battery.
2.Inflate continuously for more than 10 minutes. It is recommended to stop for 10
minutes and continue to use after the temperature of the machine drops!
3.When using this product, keep the surroundings well ventilated, do not block the
Warrant
·
cooling holes,and do not use it in the following environments:
·Damp places and places easily splashed by water.
·A place where it is easy to drop.
·A place subject to vibration, corrosion, dust, and chemical gas hazards.
A place where flammable and explosive materials are stored,and near a
4.Check the battery level at least once every 3 months and recharge it
in time. 5.Keep away from children and pets.
y
lf there is any problem or failure during use, pleas sen you questio and order number
to our email.
We will provide you with good after-sales service within 24 hours.
high-tem perature heat source.
