SZB-42
SZB-22
1. On/Off : Press to turn on the device. 2. Power off
：
Off.
3.Ice making: The ice machine has been starting to produce ice.
4.Ice Full: Once the ice is full, the "Ice Full" indicator light on the control panel will light up and
the ice maker will automatically stop. Once the ice in the bin is removed, work will resume.
4. Error: If an error or malfunction occurs, the "Error" indicator light will light up and the ice
making process will stop.
5. Water shortage: When the water is insufficient, the "low water" indicator light will light up and
the ice maker will automatically stop working.
6. Motor speed: Motor damaged or have some others problems..
7. High temperature: The temperature is too high.
8. High pressure: High pressure, no refrigerant.
9. Mode: fast freezing, Crossing diagnostic procedures,no need diagnosis,press to made the ice
machine to start the ice making immediately after turn on.
８

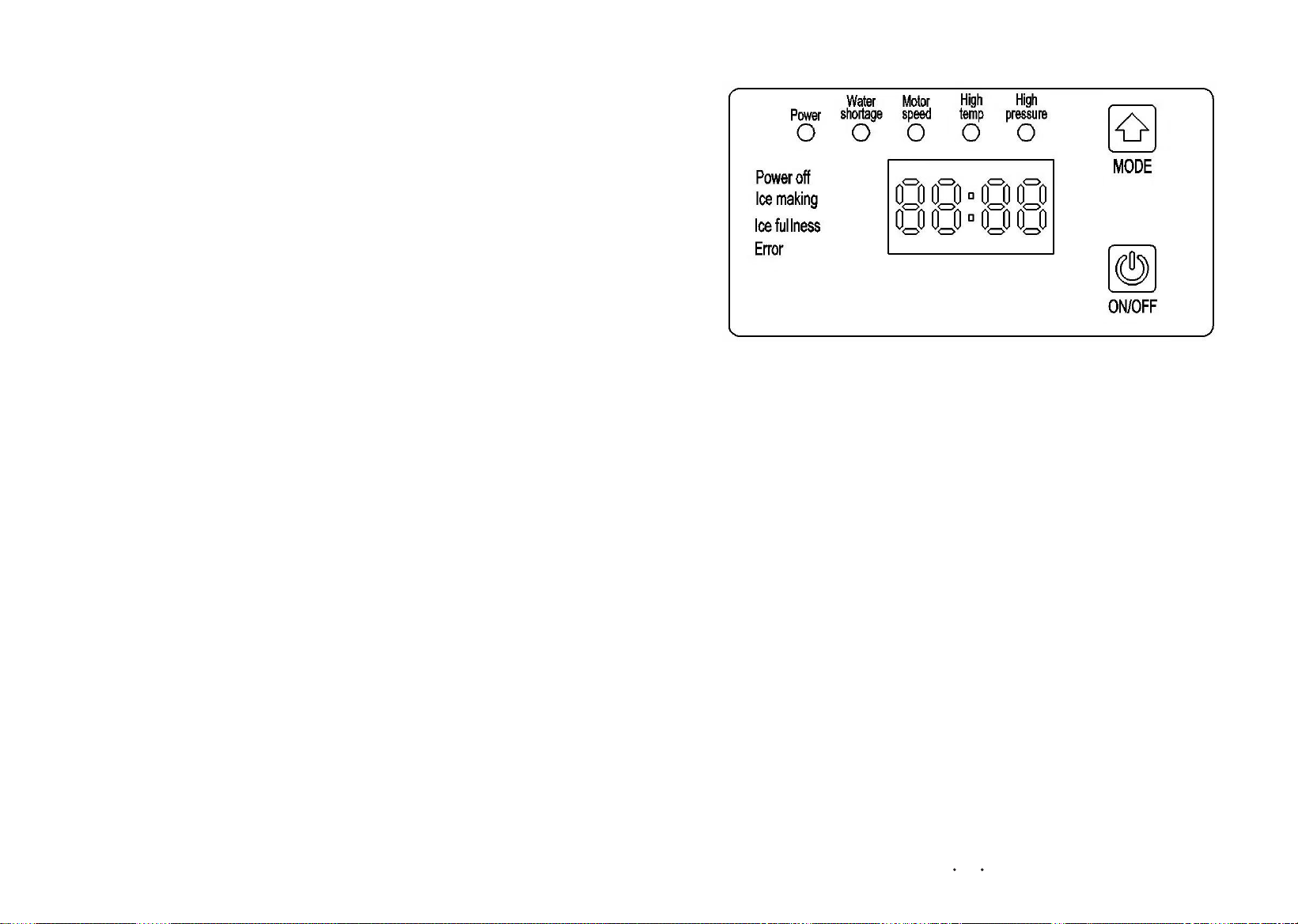

DISPLAY PANEL
８
SZB-22
20
5
378X415X615
SZB-42
40
10
Accordin
g to the
nameplat
398X545X720
