Technical Support and E-Warranty Certificate www.vevor.com/support
AIR HOSE REEL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and does not necessarily mean to cover
all categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually Saving
Half in comparison with the top major brands.
- 1 -
MODEL: NWA-J15
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
AIR HOSE REEL
- 2 -
PARAMETER
Model
Hose Length
Hose
Diameter
Fitting
Product Max
pressure
Type of Hose
NWA-J15
50ft/15.24m
3/8”
1/4"BSP
150psi/10.34bar
HYBRID HOSE
△
!
WARNING
Read the manual carefully before use
Not intended for use by children
Please retain instructions for future reference
Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product
property.
SAFETY
WARNING! Read and understand all instructions before using this tool. The operator
must follow basic precautions to reduce the risk of personal injury and/or damage to
the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.

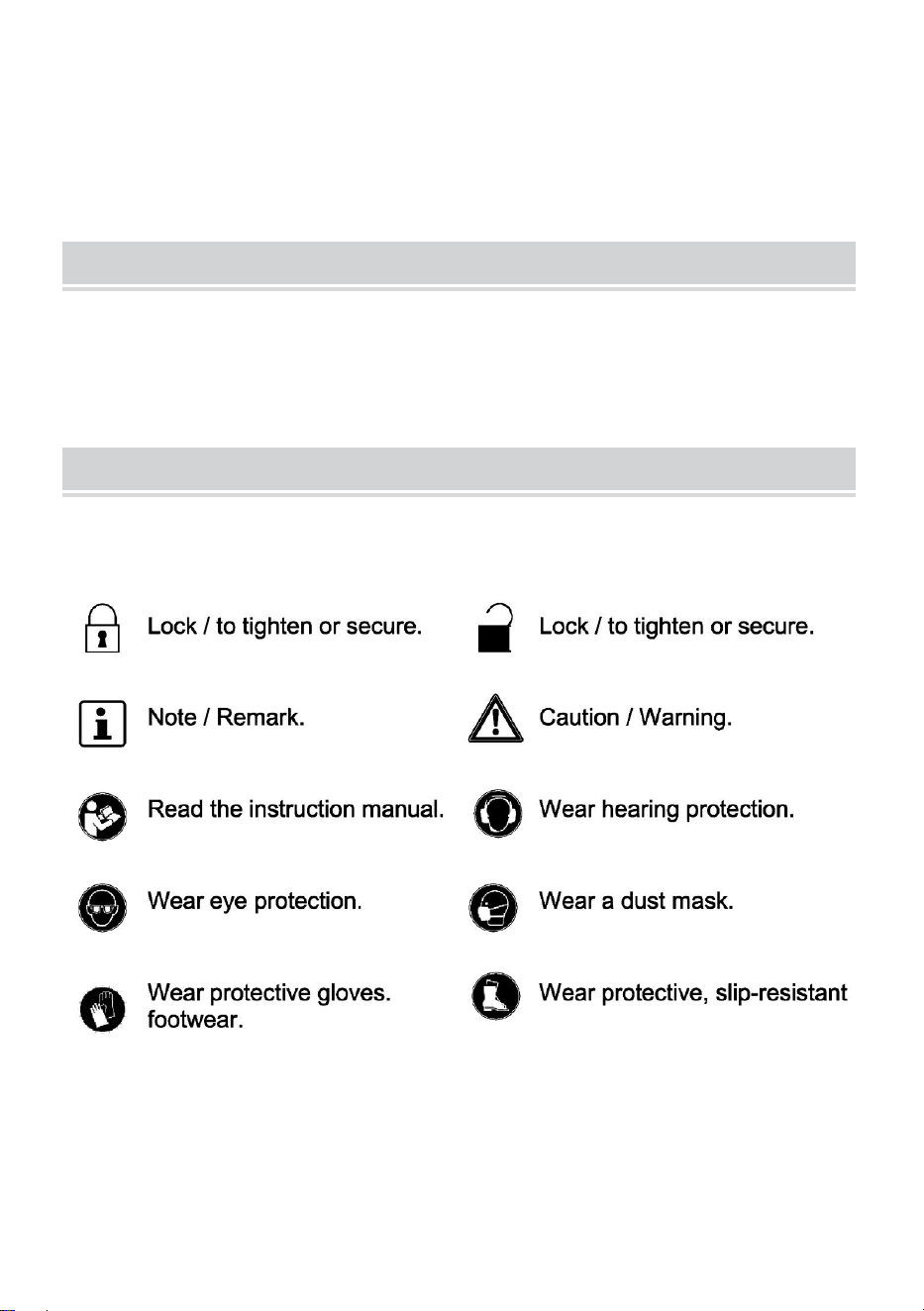

Please familiarize yourself with the hazard notices found in this manual. A notice is an
alert that there is a possibility of property damage, injury or death if certain instructions
are not followed.
DANGER! This notice indicates an immediate and specific hazard that will result in
severe personal injury or death if the proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that could result
in severe personal injury or death if the proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result in
minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will result in
equipment or property damage, but not personal injury.
WEEE symbol. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
- 3 -
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-lit and
free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
3. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection for
the eyes. Eye protection equipment should comply with CSAZ94.3-07 or ANS|
Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce
the effects of tool vibration.
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid personal
injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs,alcohol or
medications.
2. Avoid wearing clothes or jewelry that can become entangled with the moving
parts of a tool. Keep long hair covered or bound.
- 4 -
SPECIFIC SAFETY PRECAUTIONS
1. Use the correct tool for the job. This tool was designed for a specific function.
Do not modify or alter this tool or use it for an unintended purpose.
2. Ensure that the reel is properly installed before connecting the input and
output air hoses.
3. Remove system pressure immediately if a leak occurs in the hose or reel, or if
the reel ceases to wind and unwind.
4. Release the hose slowly and control it as it retracts.
WARNING! DO NOT let comfort or familiarity with product (gained from repeated
use) replace strict adherence to the tool safety rules. lf you use this tool unsafely or
incorrectly, you can suffer serious personal injury.
WARNING! Direct exposure of pressurized air or fluids to skin could result in
severe bodily injury.

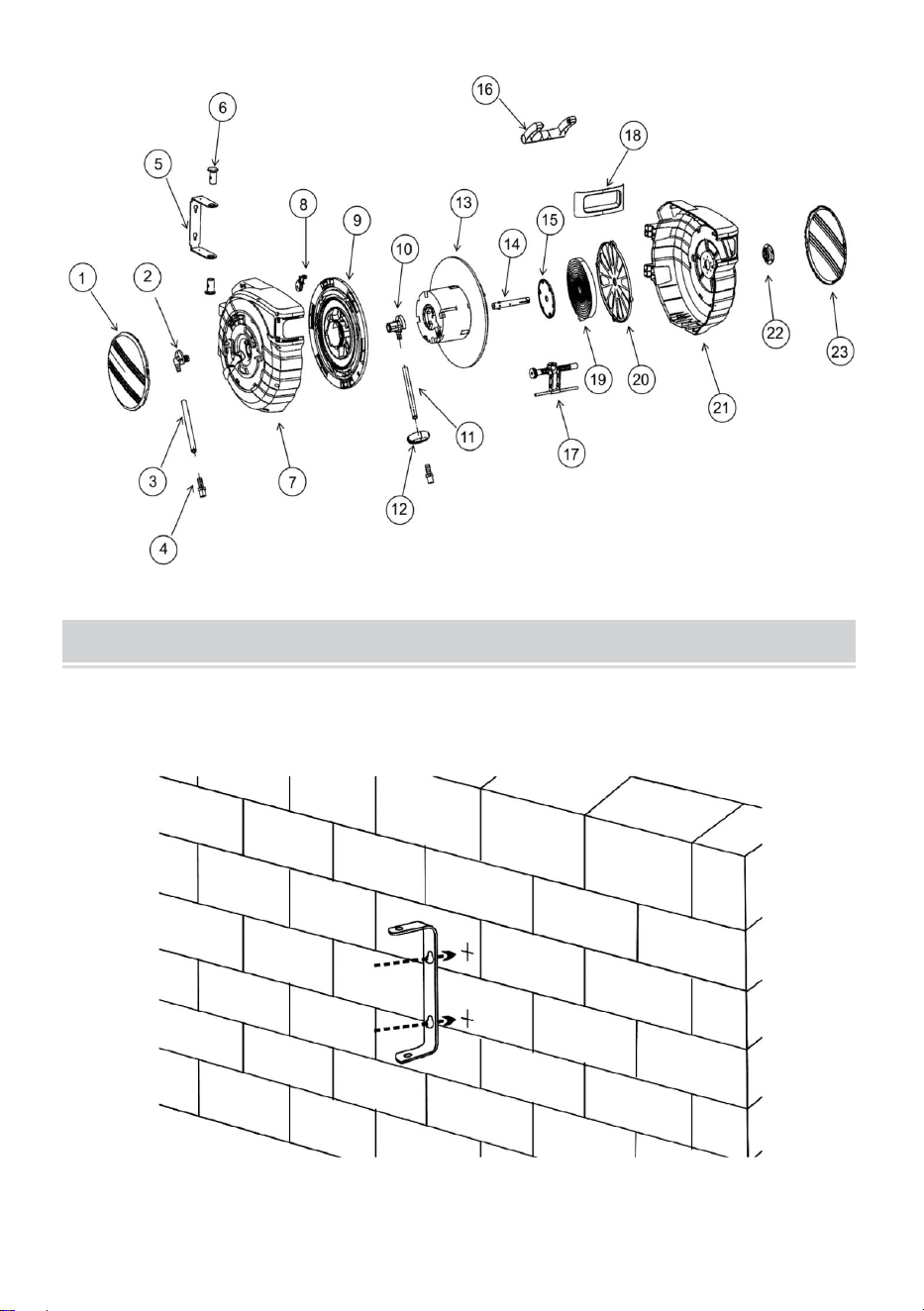

EXPLOSIVE VIEW
1.Right panel
12.Hose stopper
2.nlet hose connector
13.Left drum
3.nlet hose
14.Central shaft
4 Fitting
15.Drum cover
5.Wall bracket
16.Handle
6.Bracket holder
17.Hose guider
7.Right housing
18.Face panel
8.Lock pin
19.Spring
9.Right drum
20.Spring cover
10.0utlet hose connector
21.Left housing
11.0utlet hose
22.Pre-tension screw
23.Left panel
- 5 -
INSTALLATION
1. Choose a suitable position on your wall. Mark 2 holes to correspond with the
positions of the holes in the wall bracket.
- 6 -

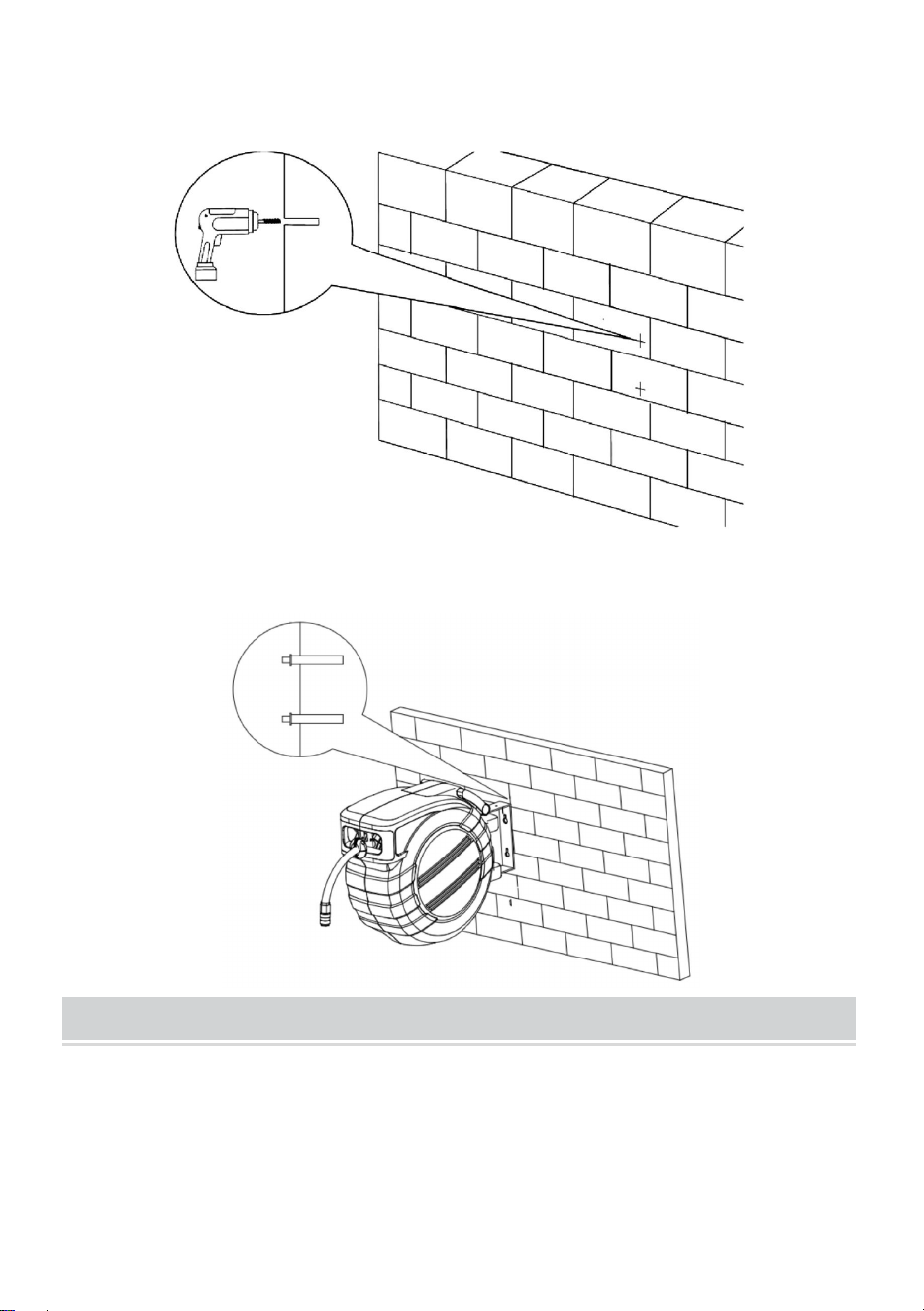

2. Dril 2 holes, ensure the holes size is suitable for the expansion screw
included.
3. insert the expansion screw into the wall.Use a wrench to fix the bracket onto
the wall with the bolts provided.
OPERATING INSTRUCTIONS
This reel is fitted with track lock wheel and detent design. Very easy to extend and
retract the hose. When pull out the hose, you can latch the hose at any length.
When you want to retract the hose please pull out the hose about 3-5cm more,
then it will retract automatically. During retraction,please hold the hose and follow
the retraction until it finishes. When the hose twist, it is necessary to extend the
- 7 -
hose to full length then allow retracting, so as to smooth the hose, let it evenly
retract back to the hose.
Attention: Please hold the hose and follow the retraction until it finishes,potential
dangerous will occur to bystander if you let the hose goes back to the case by
itself.
CARE AND MAINTENANCE
1. Always keeps the Hose clean after use.
2. It is recommended to turn off air before retracting the hose.
3. When not in use for long period, it is advisable to store your hose reel in a
covered area.
DISPOSAL
This products should be disposed of in accordance with local regulations If you are
unsure how to proceed, contact your local authority.
