AIR HOSE REEL
- 2 -
PARAMETER
Model
Hose Length
Hose
Diameter
Fitting
Product Max
pressure
Type of Hose
NT-A30
100ft/30.48m
3/8”
1/4"NPT
150psi/10.34bar
RUBBER HOSE
NT-A30
50ft/15.24m
1/2”
1/2"NPT
150psi/10.34bar
HYBRID HOSE
△
!
WARNING
Read the manual carefully before use
Not intended for use by children
Please retain instructions for future reference
Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product
property.

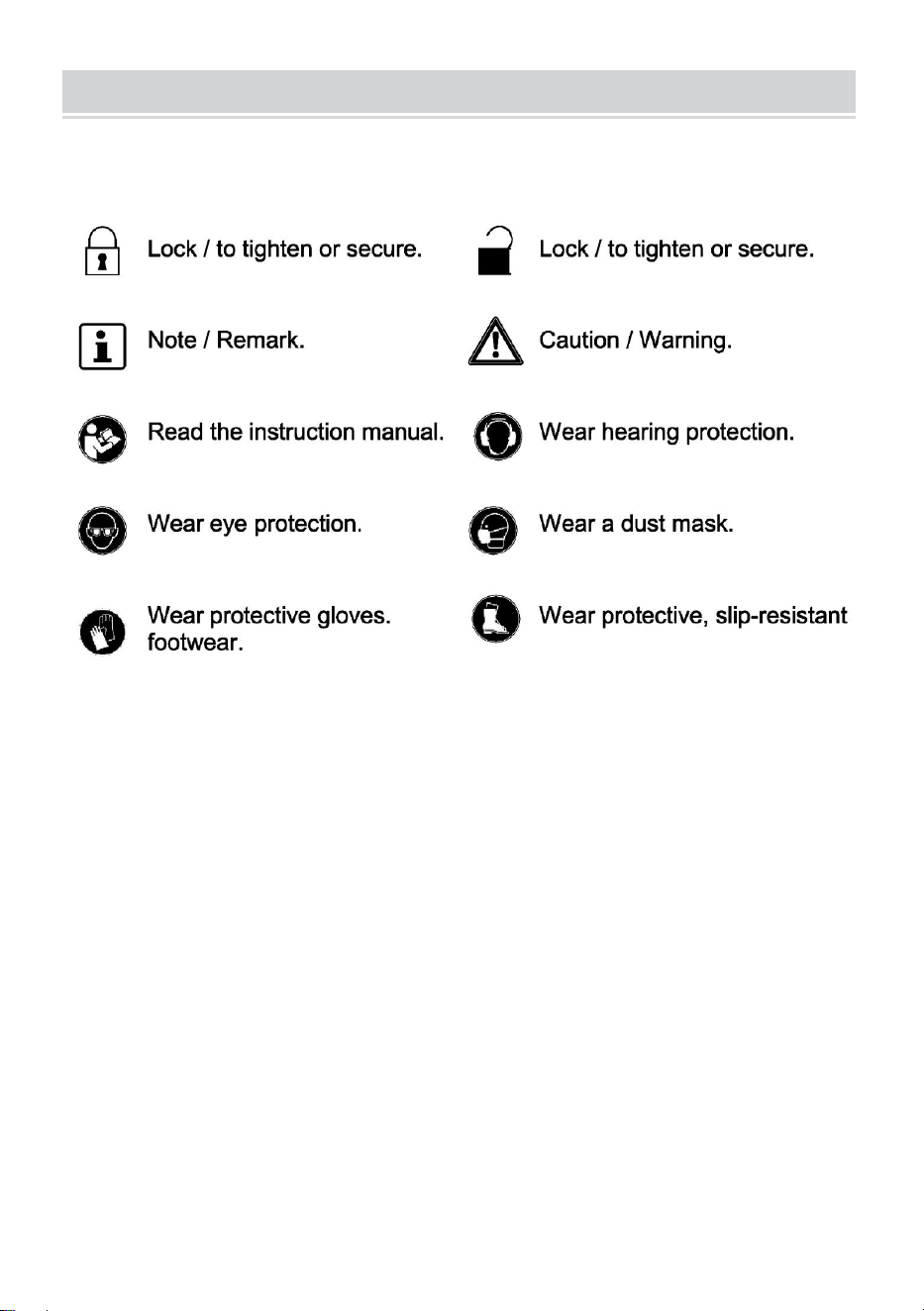

SAFETY
WARNING! Read and understand all instructions before using this tool. The operator
must follow basic precautions to reduce the risk of personal injury and/or damage to
the equipment.
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
Please familiarize yourself with the hazard notices found in this manual. A notice is an
alert that there is a possibility of property damage, injury or death if certain instructions
are not followed.
DANGER! This notice indicates an immediate and specific hazard that will result in
severe personal injury or death if the proper precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that could result
in severe personal injury or death if the proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result in
minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will result in
equipment or property damage, but not personal injury.
WEEE symbol. Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.
- 3 -
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well-lit and
free of distractions.
2. Keep anyone not wearing the appropriate safety equipment away from the
work area.
3. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the Canadian
Standards Association (CSA) or American National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side protection for
the eyes. Eye protection equipment should comply with CSAZ94.3-07 or ANS|
Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce
the effects of tool vibration.
3. Wear protective clothing designed for the work environment and tool.
4. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid personal
injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs,alcohol or
medications.
2. Avoid wearing clothes or jewelry that can become entangled with the moving
parts of a tool. Keep long hair covered or bound.
- 4 -
SPECIFIC SAFETY PRECAUTIONS
1. Use the correct tool for the job. This tool was designed for a specific function.
Do not modify or alter this tool or use it for an unintended purpose.
2. Ensure that the reel is properly installed before connecting the input and
output air hoses.
3. Remove system pressure immediately if a leak occurs in the hose or reel, or if
the reel ceases to wind and unwind.
4. Release the hose slowly and control it as it retracts.
WARNING! DO NOT let comfort or familiarity with product (gained from repeated
use) replace strict adherence to the tool safety rules. lf you use this tool unsafely or
incorrectly, you can suffer serious personal injury.
WARNING! Direct exposure of pressurized air or fluids to skin could result in
severe bodily injury.
INSTALLATION

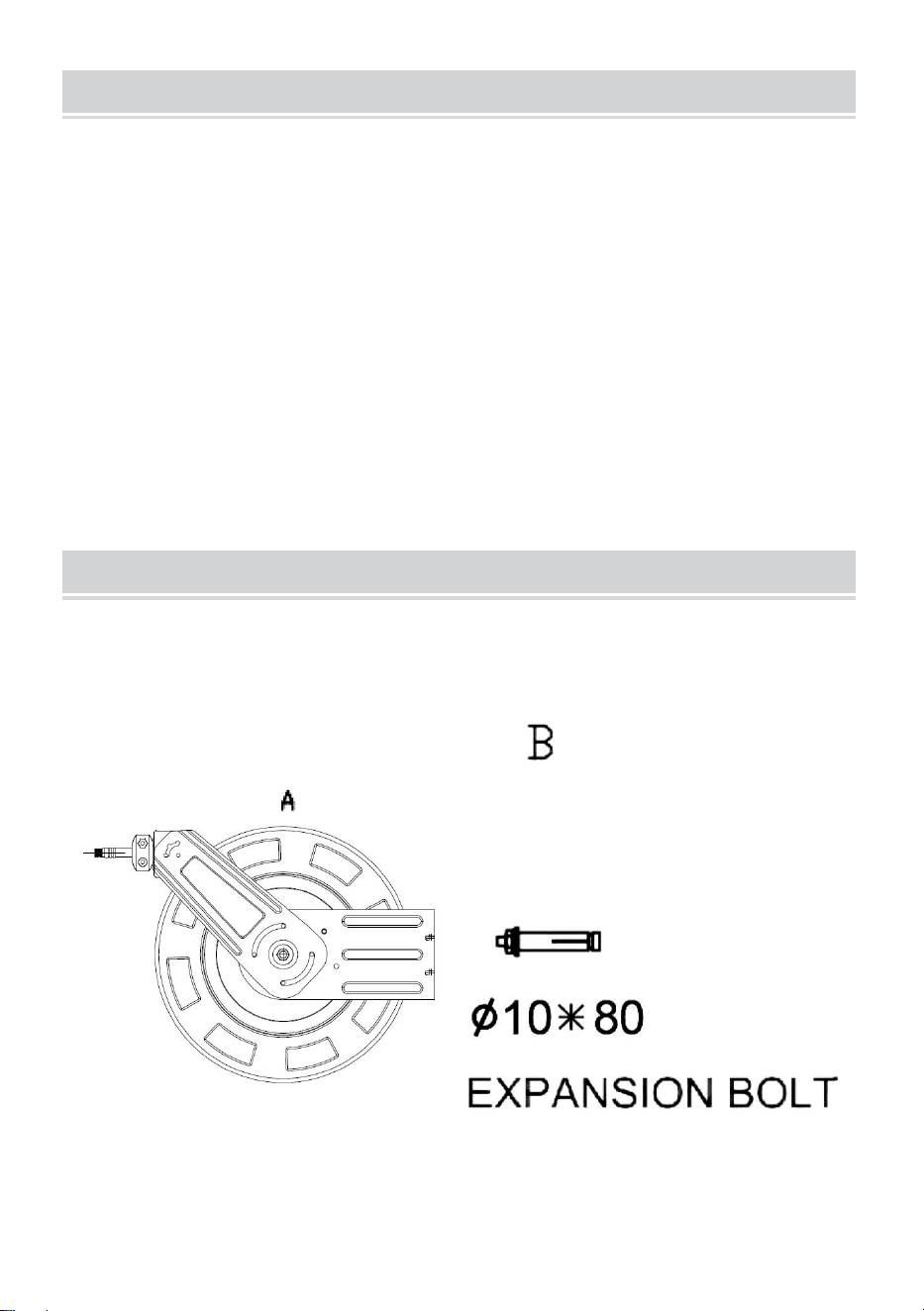

1. Take out all the spare parts from the box. ( The picture is only for
reference,Please make the object as the standard. )
- 5 -

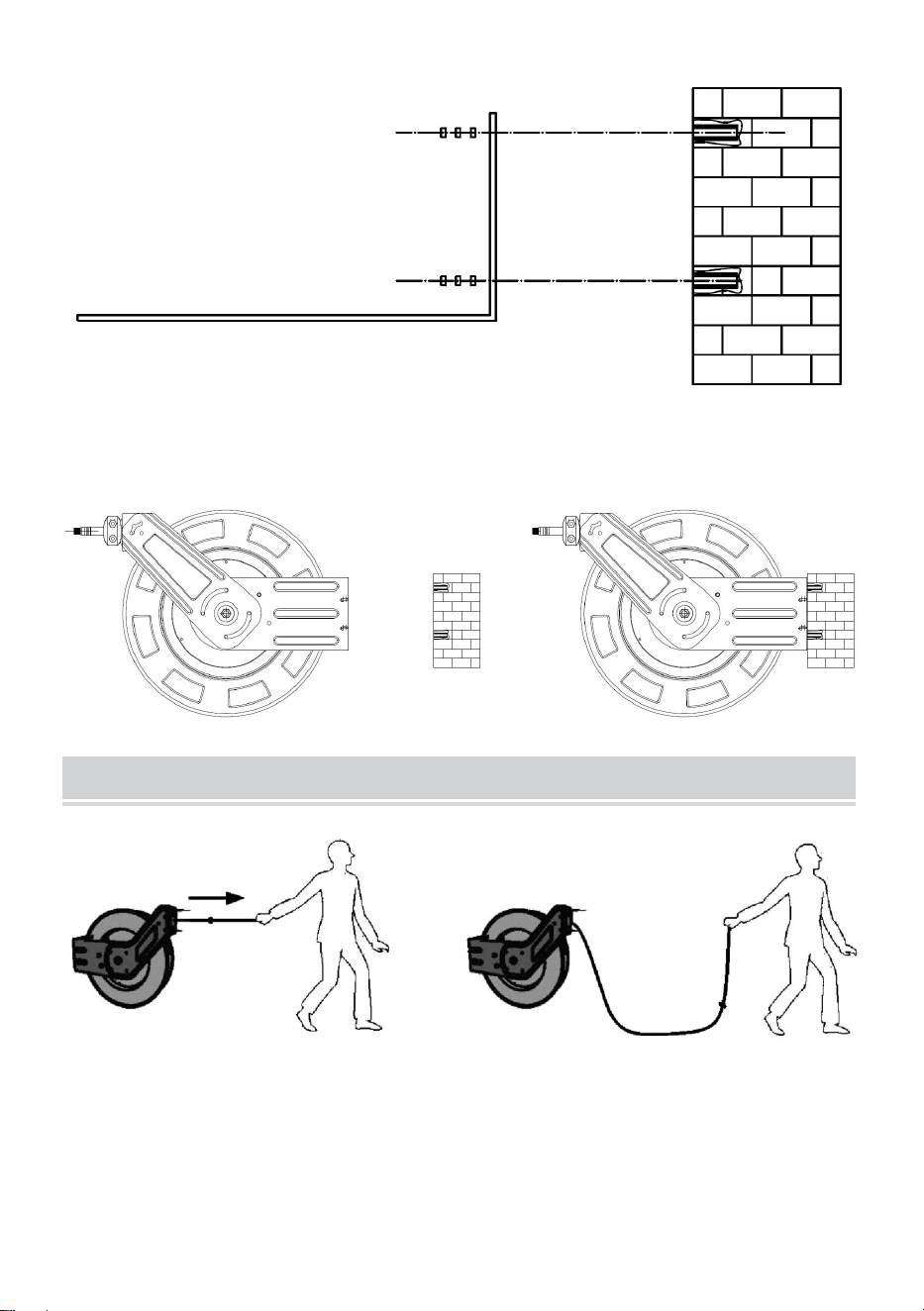

2. Choose a mounting location that is free of electrical wiring or other
obstructions, and is sturdy enough to support the weight of the Reel and hose
as well as the force used to extend and retract it. Make a paper template from
the Mounting Plate of the Reel. Mark the center of the bolt holes in the desired
mounting location.
- 6 -

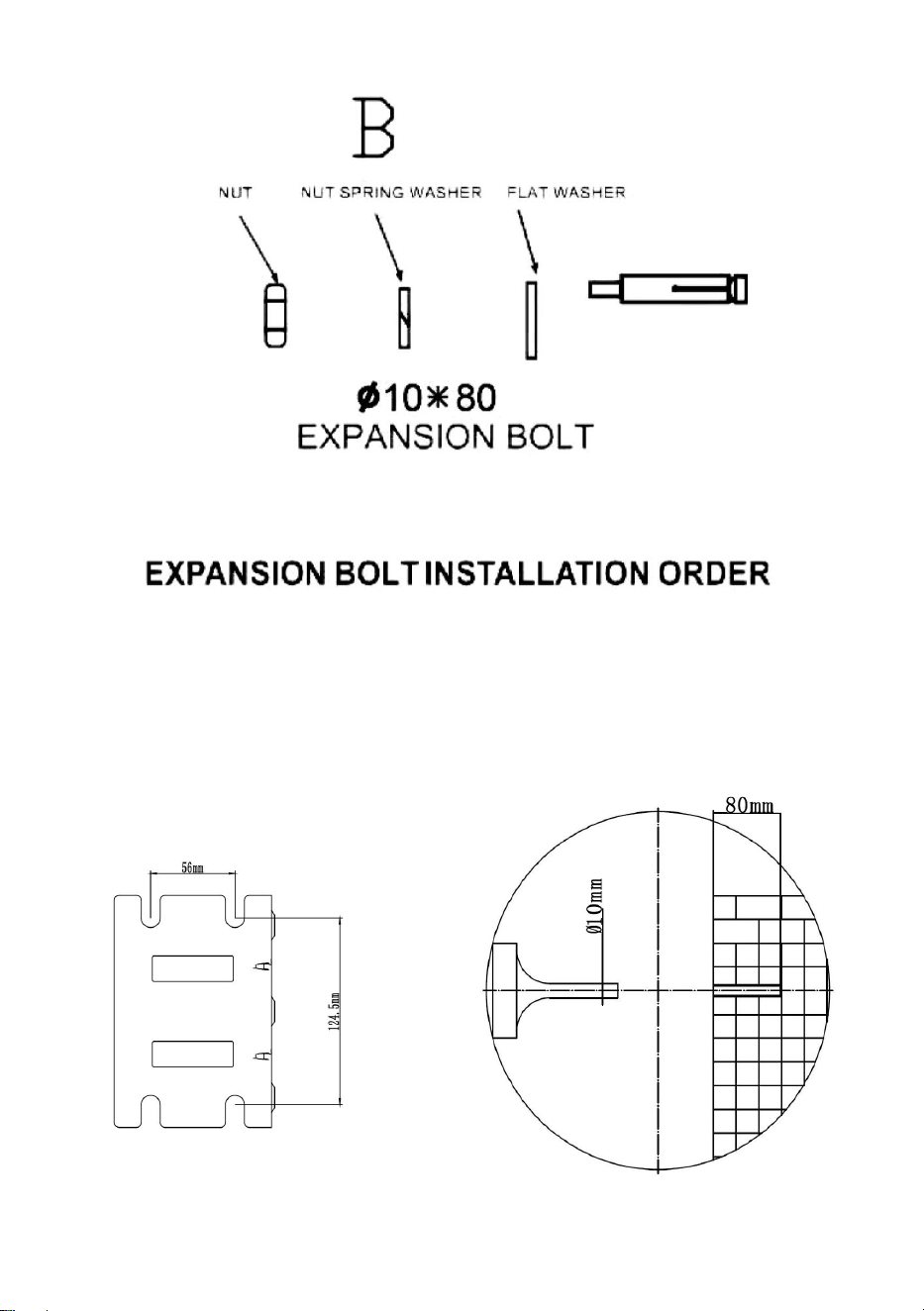

3. Mount the Reel with the Mounting Plate's holes to the back and secure in
place with four bolts.
OPERATING INSTRUCTIONS

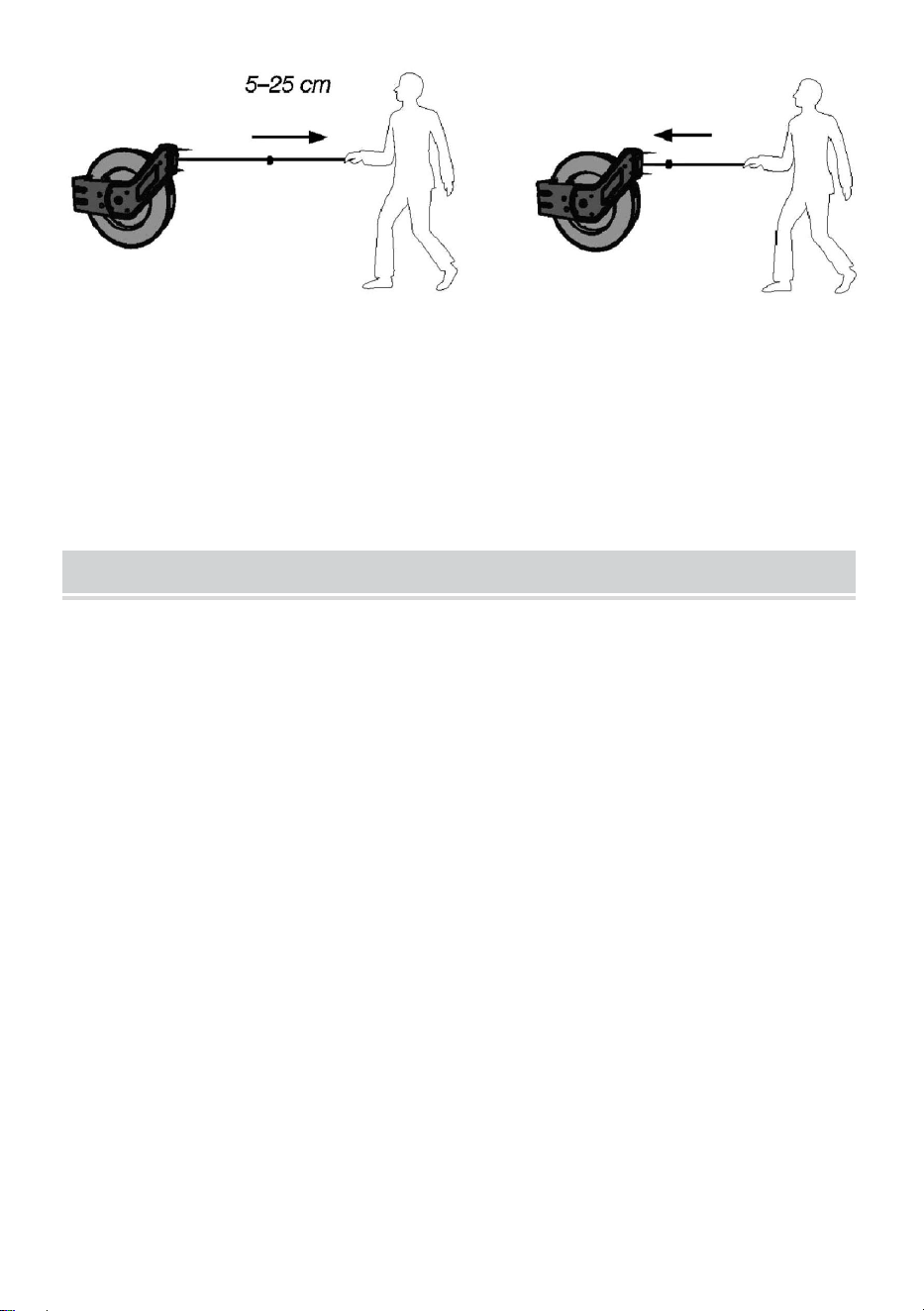

1. Pull the hose straight outward from
the reel. A clicking noise will be heard.
2. Extend the hose whilst the clicking
noise can be heard and stop at the
desired length
- 7 -
4. To unlock the hose and allow it to rewind, extend it further until the clicking
stops and then let it retract. Keep hold of the hose all the time. If you let go of
the hose it will rewind in an uncontrolled manner at high speed and could
cause an injury or damage surrounding objects. Note: It is easier for the hose
to retract if it is not under pressure. Turning off the air compressor makes this
easier.
CARE AND MAINTENANCE
1. Clean the air hose reel using a light moistened cloth. Only use mild cleaning
agents, never solvents or corrosive chemicals.
2. Never immerse the air hose reel in water for cleaning
3. lf the hose is dirty, wipe it clean before rewinding it on to the reel.
4. Do not use the air hose reel in extremely high or low temperatures since it may
become difficult to handle.
- 8 -
DISPOSAL
This products should be disposed of in accordance with local regulations If you are
unsure how to proceed, contact your local authority.
