User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
1
Table des matières
Technical Support .................................................................................................................. 3
Environmental recommendations .......................................................................................... 3
Warnings ............................................................................................................................. 3
COMPLIANCE TO FCC US .................................................................................................... 5
1 DUAL CORE MANAGEMENT(RTU) ............................................................................... 9

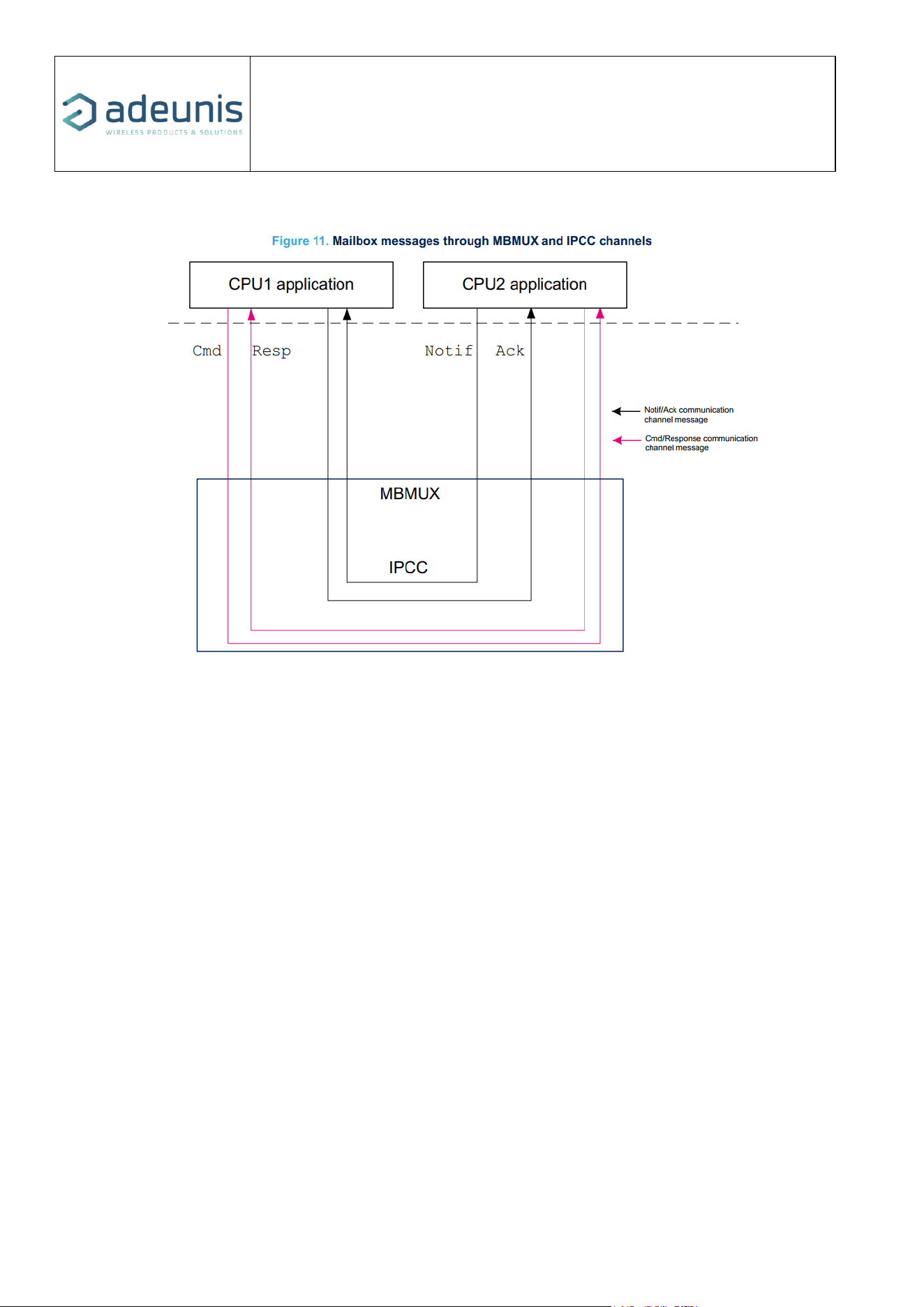

1.1 Mailbox mechanism ..............................................................................................12

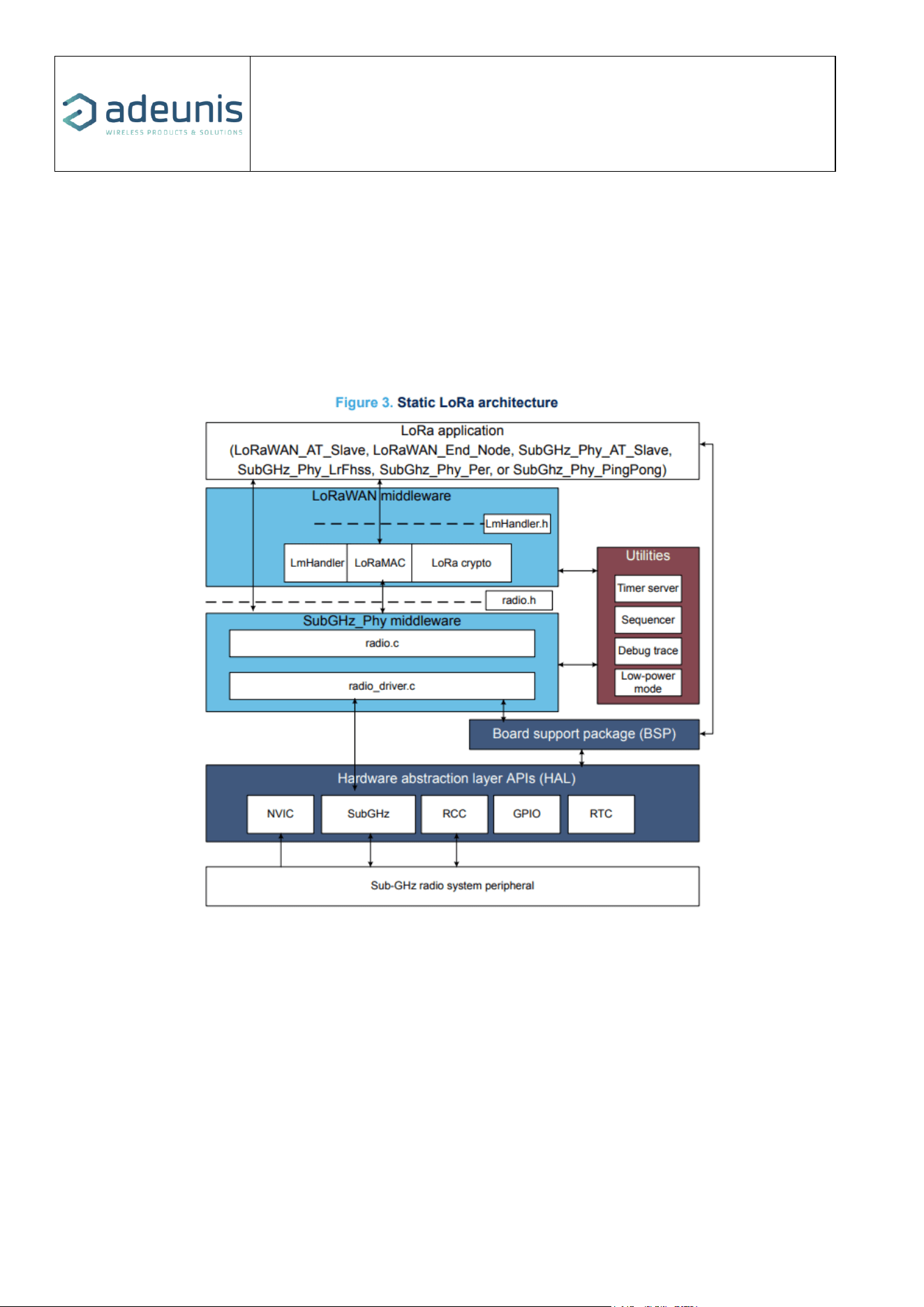

2 LoRaWAN stack description...........................................................................................11

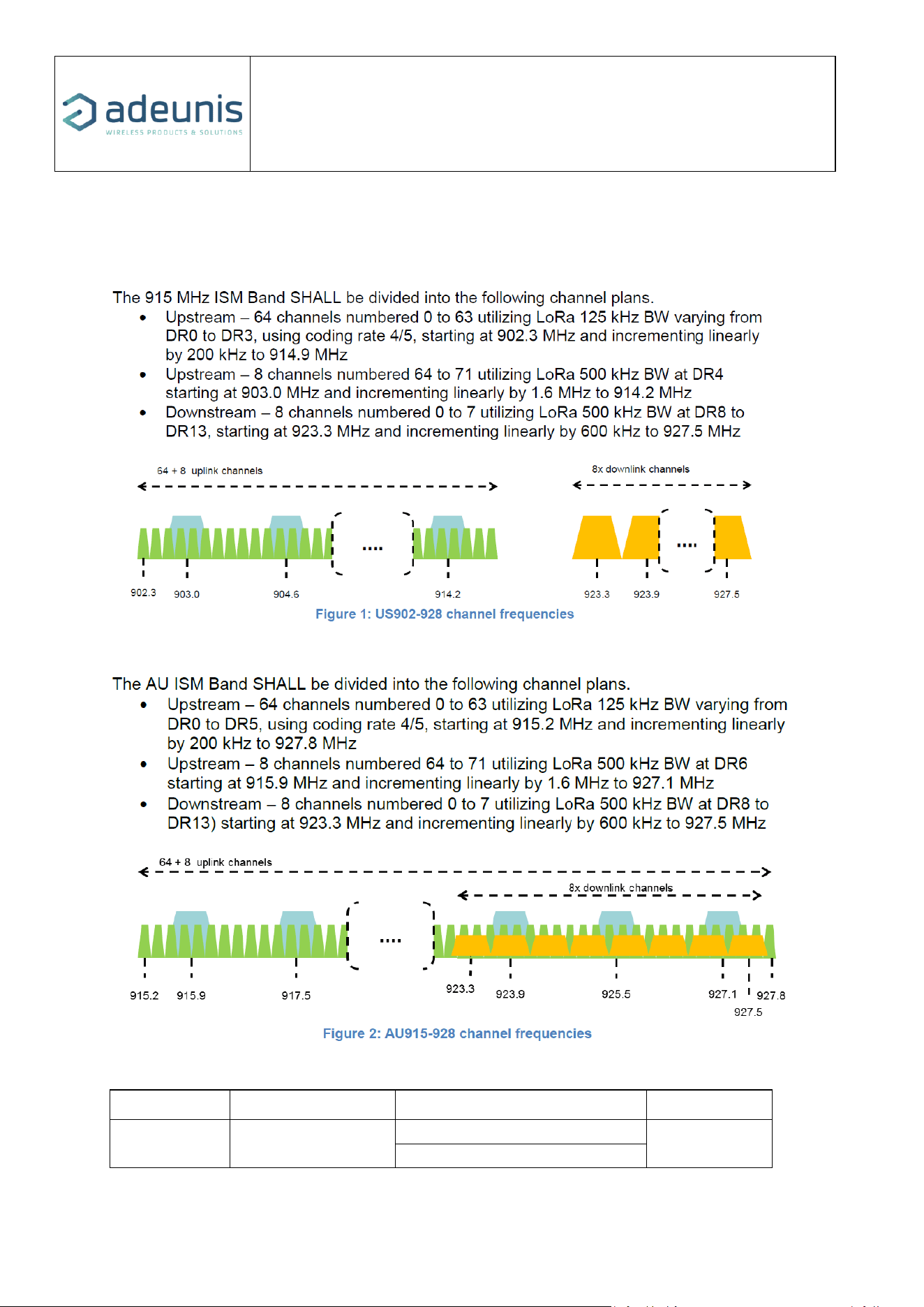

2.1 Channel description ..............................................................................................14
2.2 Module operation ..................................................................................................15
3 Specification ARFWL55 .................................................................................................. 9
4 AT command .................................................................................................................10
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
2
DISCLAIMER
This document and the use of any information contained therein, is subject to the acceptance
of the Adeunis RF terms and conditions. They can be downloaded from www.adeunis.com.
Adeunis makes no warranties based on the accuracy or completeness of the contents of this
document and reserves the right to make changes to specifications and product descriptions
at any time without notice.
Adeunis reserves all rights to this document and the information contained herein.
Reproduction use or disclosure to third parties without express permission is strictly
prohibited. Copyright © 2016, Adeunis. Adeunis is a registered trademark in the EU and
other countries.
All rights to this manual are the exclusive property of ADEUNIS All rights reserved. Copying
this manual (without written permission from the owner) via printing, copying, recording or by
any other means, translating this manual (in full or partially) into any other language,
including all programming languages, using any electrical, mechanical, magnetic or optical
devices, manually or any by other methods, is prohibited.
ADEUNIS reserves the right to change the technical specifications or functions of its
products, or to cease manufacturing any of its products, or to cease technical support for one
of its products without notice in writing and urges its customers to make sure that the
information they have is valid.
ADEUNISF configuration software and programs are available free of charge in a non-
modifiable version. ADEUNISF can make no guarantees, including guarantees concerning
suitability and applicability for a certain type of application. Under no circumstances can the
manufacturer, or the distributor of an ADEUNIS RF program, be held liable for any damage
caused by the use of the aforesaid program. Program names, as well as all copyright relating
to programs, are the exclusive property of ADEUNIS. Any transfer, granting of licenses to a
third party, leasing, hire, transport, copying, editing, translation, modification into another
programming language or reverse engineering are prohibited without ADEUNIS’s prior
written authorization and consent.
ADEUNIS
283, rue Louis Néel
38920 Crolles France
Telephone +33 (0)4 76 92 07 77
Fax +33 (0)4 76 04 80 87
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
3
Technical Support
Website
Our website contains much useful information: modules and stand-alone products information, user guides,
configuration software and technical documents which can be accessed 24 hours a day.
Email
If you have technical problems or cannot find the required information in the provided documents, contact our
Technical Support by email. Use our dedicated email address ([email protected])) rather than any personal
email address of our staff. This makes sure that your request is processed as soon as possible.
Helpful Information when Contacting Technical Support
When contacting Technical Support please have the following information ready:
• Product type (e.g. Wireless M-Bus),
• Firmware version (e.g. V3.03)
• Clear description of your question or the problem
• A short description of the application
• Your complete contact details
Environmental recommendations
All superfluous packaging materials have been eliminated. We have done everything possible to make it easy to
separate the packaging into three types of materials: cardboard (box), expanded polystyrene (filler material) and
polyethylene (packets, foam protective sheets). Your device is composed of materials that can be recycled and
reused if it is dismantled by a specialist company. Please observe local regulations concerning the manner in
which waste packaging material, used batteries and your obsolete equipment are disposed of.
Warnings
Valid for the following product: ARFWL55
+AA Read the instructions in the
manual
The safety of this product is only guaranteed when it is used in accordance
with its purpose. Maintenance should only be carried out by qualified
persons.
Please note, do not install the equipment close to a heat source or in damp conditions.
Warning: Do not open the product, risk of electric shock.
Please note: for your own safety, you must ensure that the equipment is switched off before carrying out any work on it.
Please note: For your safety, the power supply circuit must be SELV (Safety Extra Low Voltage) and must be a limited power
sources.
Please note: for you own safety, you must ensure that equipment is switched off before carrying out any work on it.
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
4
Recommendations regarding use
• Before using the system, check that the power supply voltage shown in the user manual corresponds to
your supply. If it doesn’t, please consult your supplier.
• Place the device against a flat, firm and stable surface.
• The device must be installed in a location that is sufficiently ventilated so that there is no risk of internal
heating and it must not be covered with objects such as newspapers, cloths, curtains, etc.
• The device’s aerial must be free and at least 10 cm away from any conducting material.
• The device must never be exposed to heat sources such as heating equipment.
• Do not place the device close to objects with naked flames such as lit candles, blowtorches, etc.
• The device must not be exposed to aggressive chemical agents or solvents likely to damage the plastic or corrode the
metal parts.
• Install your device close to its DC power supply.
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
5
COMPLIANCE TO FCC US
Important regulary information
FCC ID : U3Z-ARFWL55
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radiocommunication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment OFF
and ON, the user is encouraged to try to correct the interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lower) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not superior than
necessary for successful communication.
Cet équipement a été testé et déclaré conforme aux limites d’un appareil numérique de classe B, conformément à la partie
15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles
dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est
pas installé et utilisé conformément aux instructions, peut causer des interférences nuisibles aux radiocommunications. Il est
cependant toujours possible que des interférences se produisent dans le cadre d’une installation particulière.
Si cet appareil produit des interférences nuisibles à la réception des programmes de radio et de télévision –détectables lors
de la mise hors tension ou en tension de l’appareil-l’utilisateur est encouragé à mettre en œuvre une ou plusieurs des
mesures suivantes pour remédier à ces interférences :
•Réorienter ou déplacer l’antenne de réception.
•Augmenter la distance entre l’équipement et le récepteur.
•Branchez le matériel à une sortie sur un circuit différent de celui auquel le récepteur est branché.
•Prendre conseil auprès du commerçant ou d’un technicien de radio/TV expérimenté.
Tout changement ou modification non expressément approuvé par la partie responsable des mesures de conformité peut
amener l’utilisateur à se voir interdire l’usage de l’appareil.
Cet appareil est limité à l’exploitation des fréquences autorisées Partie 15, et ne peut pas être configuré par des utilisateurs
finaux ou des installateurs professionnels à fonctionner en dehors des bandes autorisées.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un
type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une
communication satisfaisante.
WARNING !
.
The OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or install module.
The module is limited to OEM installation ONLY
• This device complies with part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s).
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
6
Operation is subject to the following two conditions : (1). this device may not cause Harmful interference, and (2).this device
must accept any interference received, including interference that may cause undesired operation of the device
Le présent appareil est conforme aux règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage ;
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
.
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY ADEUNIS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
Tout changement ou modification non expressément approuvé par la partie responsable des mesures de conformité peut
amener l’utilisateur à se voir interdire l’usage de l’appareil.
This equipment complies with FCC’s and RSS102’s radiation exposure limits set forth for an uncontrolled environment under
the following conditions:
1. This equipment should be installed and operated such that a minimum separation distance of 20cm is
maintained between the radiator (antenna) and user’s/nearby person’s body at all times.
2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d’expositions de la CNR102 et de la FCC applicables pour un environnement non
contrôlé aux conditions suivantes:
1. Cet équipement devra être installé et fonctionner de telle manière qu’une distance minimale de
séparation de 20 cm soit maintenue entre la partie rayonnante (l’antenne) et l’utilisateur / les personnes à
proximité à tout moment.
2 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne ou émetteur.
The RF module has been certified for mobile and fixed applications. If the module will be used for portable application the
device must undergo SAR testing and the following instructions shall be reported on the User Manual:
Le module RF a été certifié pour les applications mobiles et fixes. Si le module est utilisé pour une application portable,
l'appareil doit subir un test DAS et les instructions suivantes doivent être consignées dans le manuel de l'utilisateur:
If SAR measurement is not required:
This portable equipment with it’s antenna complies with FCC’s and RSS102’s radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance, follow the instructions below :
1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. Avoid direct contact to the antenna, or keep contact to a minimum while using this equipment.
Si la mesure de DAS n’est pas requise:
Cet équipement portable avec ses antennes est conforme aux limites d’expositions de la FCC et de la CNR102 applicables
pour un environnement non contrôlé. Pour maintenir la conformité suivez les instructions ci-dessous:
1 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne ou émetteur.
2 Évitez tout contact direct avec l'antenne ou gardez le contact au minimum pendant l'utilisation de cet
équipement.
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
7
If SAR measurement is required:
This portable equipment with it’s antenna complies with FCC’s and RSS102’s radiation exposure limits set forth for an
uncontrolled environment. This equipment has shown compliance with FCC’s Specific Absorption Rate (SAR) limits. To
maintain compliance, follow the instructions below :
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Si la mesure de DAS est requise:
Cet équipement portable avec ses antennes est conforme aux limites d’expositions de la CNR102 applicables pour un
environnement non contrôlé. Cet équipement a démontré la conformité aux limites de Débit d’Absorption Spécifique (DAS).
Pour maintenir la conformité suivez les instructions ci-dessous:
1 Cet émetteur ne doit pas être co-localisé ou opérer en conjonction avec toute autre antenne ou émetteur.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.”
Pour réduire le brouillage radioélectrique potentiel causé aux autres utilisateurs, le type d’antenne et son gain doivent être
choisis de manière à ce que la puissance rayonnée isotropiquement équivalente (par exemple) ne soit pas supérieure à celle
autorisée pour une communication réussie."
this device has been designed to operate with the antenna listed below, and having a maximum gain of 6 dBi. Antennas not
included in this list or having a gain greater than 6 dBi are strictly prohibited for use with this device. The required antenna
impedance is 50 ohms.”
Adeunis 0 dBi+/-1dBgain PCB Antennas
Cet appareil a été conçu pour fonctionner avec les antennes répertoriées ci-dessous et avec un gain maximal de 6 dBi. Les
antennes ne figurant pas dans cette liste ou ayant un gain supérieur à 6 dBi sont strictement interdites d'utilisation avec cet
appareil. L'impédance d'antenne requise est de 50 ohms”
Antenne PCB Adeunis 0 dBi +/- 1dBgain
OEM Installation and Compliance Labeling
The ARF52840 module is labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed
inside another device, then the outside of the device into which the module is installed must also display a label referring to
the enclosed transmitter module.
This exterior label can use wording such as the following:
“Contains Transmitter Module Contains FCC ID: U3Z-ARFWL55
“This device complies with Part 15 of the FCC’s and RSS’s Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.”
(When the device is so small or for such use that it is not practicable to place the statement specified above on it, the
information required shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or,
alternatively, shall be placed on the container in which the device is marketed.)
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
8
Installation OEM et étiquetage de conformité
Le module ARF52840 est étiqueté avec son propre numéro d’identification FCC. Si l’ID FCC n’est pas visible lorsque le
module est installé dans un autre périphérique, l’extérieur du périphérique sur lequel il est installé doit également afficher
une étiquette faisant référence au module.
Cette étiquette extérieure peut utiliser les libellés suivants:
“Contains Transmitter Module“ Contient le FCC ID: U3Z-ARFWL55
Ce dispositif est conforme aux règles de la FCC part 15 et à la norme CNR-210 d’Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes : (1) le dispositif ne doit pas produire
de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an
example of which must be included in the application for equipment authorization, or, must provide adequate instructions
along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the
application for equipment authorization.
Toute formulation similaire exprimant le même sens peut être utilisée. Le bénéficiaire peut soit fournir une telle étiquette,
dont un exemple doit être inclus dans la demande d’autorisation d’équipement, soit fournir des instructions adéquates ainsi
que le module qui explique cette exigence. Dans ce dernier cas, une copie de ces instructions doit être incluse dans la
demande d'autorisation d'équipement
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
9

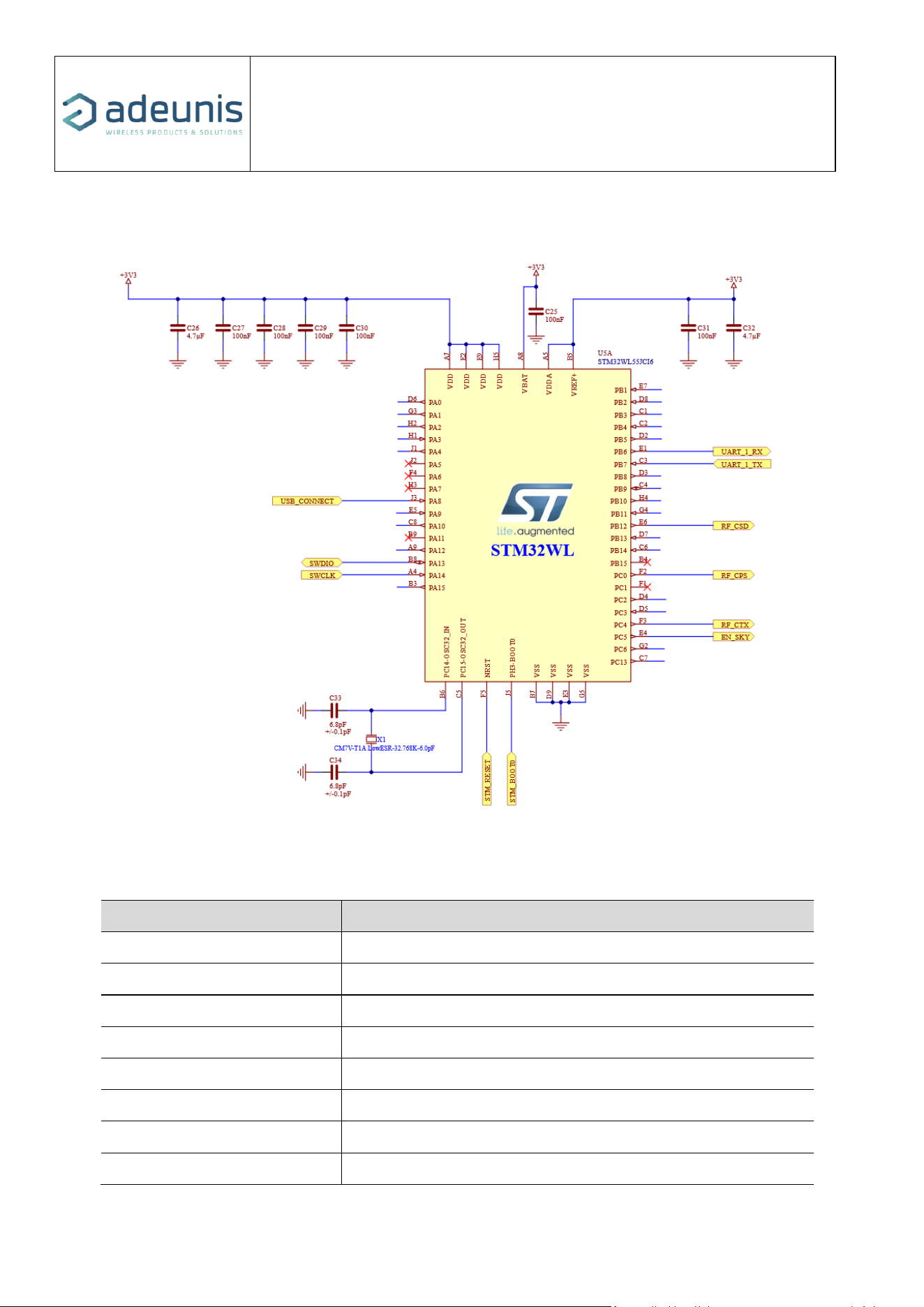

1 Hardware pinout
2 Specification ARFWL55
Parameter
Value
Power supply
1.8 - 3.6 V
Stand by consumption
3µA
TX consumption
87mA
RX consumption
4.82mA
Operational T°C
-40 / +85°C
RF output Power
20dbm(100mW)
Sensitivity
-148dBm
Frequency channels
ISM band 902-928MHz, AU915, AS923
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
10
UART setting
Default Value
Baud rate
115200
Data bits
8
Parity
None
Stop Bits
1
Flow Control
Disabled
3 AT commands
The module can be controlled by AT commands through UART
Command
Description
+++
Enter in commande mode
ATT10
- CW generation (continuous) using the values defined in the
registers below.
- Generation is continuous: no ON/OFF period (like ATT11)
- Use "ESC" to exit test mode
Command :
ATT10
Response :
O BEGIN TX FREQ: 868000000 PWR: 14 PA: OFF OFFSET: 0
ATT12
- Permanent modulated carrier using the values defined in the
registers below.
- Use "ESC" to exit test mode
Command :
ATT12
Response :
O BEGIN TX FREQ: 868000000 PWR: 14 PA: OFF OFFSET: 0
ATT15
- Pulsed modulated carrier (FCC mode): transmits a payload
ranging from 1 to 64 hexadecimal characters in LoRa mode.
- Use "ESC" to exit test mode.
- The SF used will be the default SF depending on the region
(SFmax per region: SF12 in the EU, S10: US915, etc.).
Command :
Lora [US/AU] : ATT15 [SYNC] [PWR] [NB]
[PAYLOAD][PA][MODE]
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
11
Example : ATT15 34C194C1 20 99 123! 0 1
ATT16
- Frame reception (LoRa or FSK mode depending on the registers
below). It returns the Data, RSSI level and SNR for each received
frame.
This command is used in response to ATT12, ATT13 or ATT15
(modulated carrier).
- Use "ESC" to exit test mode.
Commande : ATT16
Réponse : O BEGIN RX FREQ 868000000 SF 12
4 Firmware implementation
The firmware has been developed by following the ST application note : How to build a
LoRa® application with STM32CubeWL - Application note
4.1 DUAL CORE MANAGEMENT(RTU)
The STM32WL5x devices embed two Cortex:
• Cortex-M4 (named CPU1)
• Cortext-M0+ (named CPU2)
In the dual-core applications, the application part mapped on CPU1 is separated from the
stack and firmware low layers mapped on CPU2.
In a dual-core proposed model, two separated binaries are generated: CPU1 binary is placed
at 0x0800 0000 and CPU2 binary is placed at 0x0802 0000.
4.2 LoRaWAN stack description
• Middleware:
– LoRaWAN containing:
◦ LoRaWAN layer
◦ LoRa utilities
◦ LoRa software crypto engine
◦ LoRa state machine
– SubGHz_Phy layer middleware containing the radio and radio_driver interfaces
• LoRaWAN applications:
– LoRaWAN_AT_Slave (DualCore)
• SubGHz_Phy application:
– SubGHz_Phy_PingPong (SingleCore and DualCore)
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
12
– SubGHz_Phy_Per (SingleCore)
– SubGHz_Phy_AT_Slave (SingleCore)
– SubGHz_Phy_LrFhss (SingleCore)
In addition, this application provides an efficient system integration with the following:
• a sequencer to execute the tasks in background and to enter low-power mode when there
is no activity
• a timer server to provide virtual timers running on RTC (in Stop and Standby modes) to the
application.
4.3 Mailbox mechanism
The mailbox is a service implementing a way to exchange data between the two processors.
As shown in the figure below, the mailbox is built over two resources:
• IPCC: This hardware peripheral is used to trigger an interrupt to the remote CPU, and to
receive an interrupt when it has completed the notification. The IPCC is highly configurable
and each interrupt notification may be disabled/enabled. There is no memory management
inside the IPCC.
• Intercore memory: This shared memory can be read/written by both CPUs. It is used to
store all buffers that contain the data to be exchanged between the two CPUs.
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
13
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
14
5 Channel description
The AS ISM Band:
Modulation
Bandwidth (KHz)
Channel Frequency (MHz)
Nb Channels
LoRa
125
923,2
2
923,4
User Manual RTU LoRaWAN module
Adeunis ARFWL55
902-928MHz
15
6 Module operation

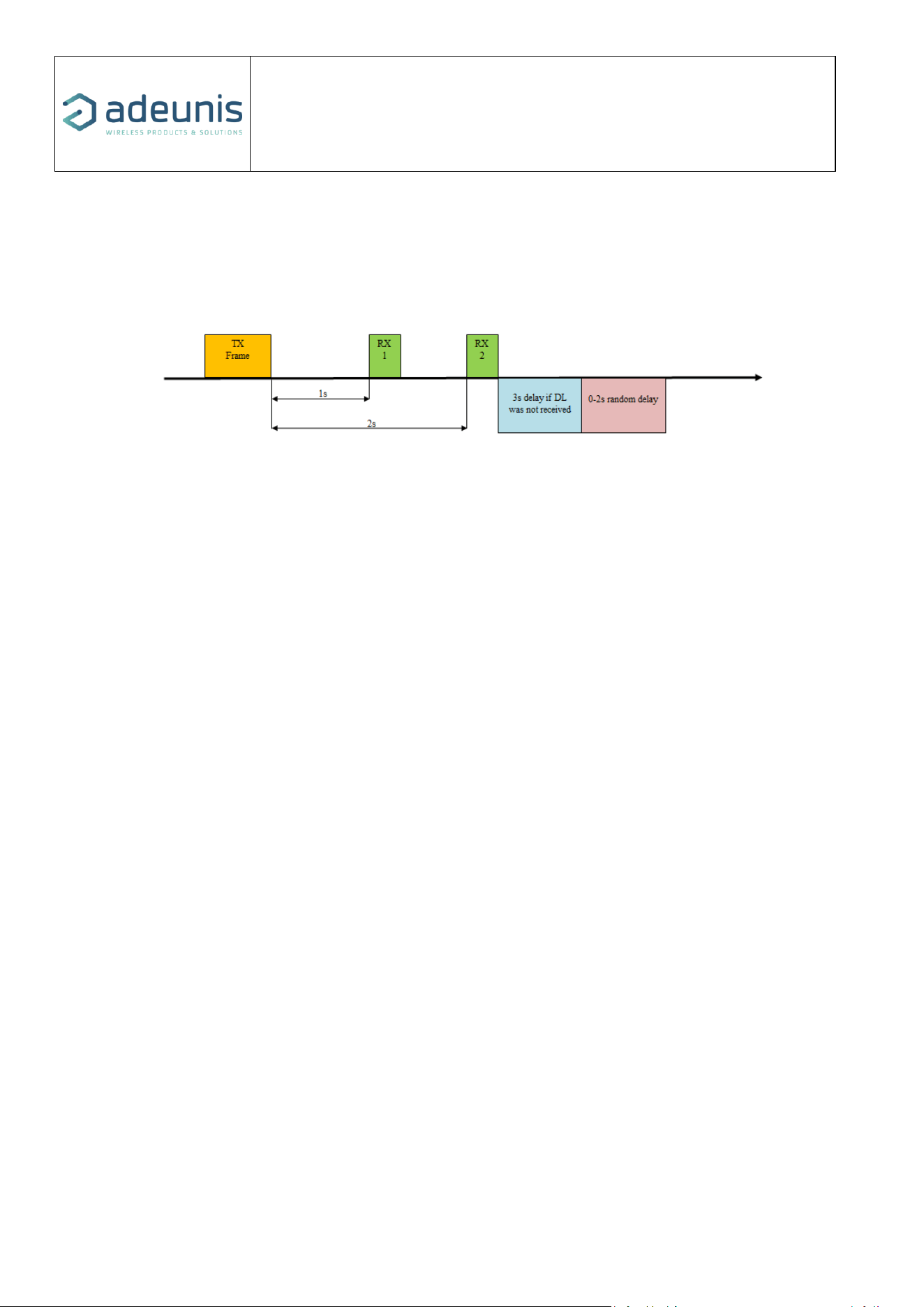

Different use cases can be expressed. In any case if the payload is at the maximum (see.
Maximum payload size) the frame duration never exceeds 400ms. The following diagram
shows a simplified description of a LoRa cycle.
The channel selection is managed by embedded software (with a LoraWAN Stack) which
controls and respects the frequency hopping described in section 3. The module can operate
in confirmed and in unconfirmed mode. In any case, there is always one frame sent by the
module during a transmission.
As the module is LoraWAN protocol certified, it covers the LoraWAN Specification and
regional parameters.
The module supports much functionality such as data cryptography, timing management to
open receive Windows, frequency channel hoping, data rate adaptation and max payload
handling. The transmission power, channel frequency plan and data rate can be changed by
a remote LoraWAN gateway located in the same range. The module can refuse any of those
parameters if there are not compliant with LoraWAN protocol and not respecting FCC
requirements.
The module supports two main activation methods: Over-The-Air Activation (OTAA) and
Activation-By-Personalized (ABP). During OTAA mode, the module has two phases of
operation: a join phase and a data transmission phase. In ABP there is no Join phase, the
module sends data directly.
Below we give some examples about how the two phases operate taking into account the
channel plan (presented in section 4) that we be used for each region US 902-928, AU 915
and AS 923.
