Install
Example to install LoRa module
Diagram
Step1:

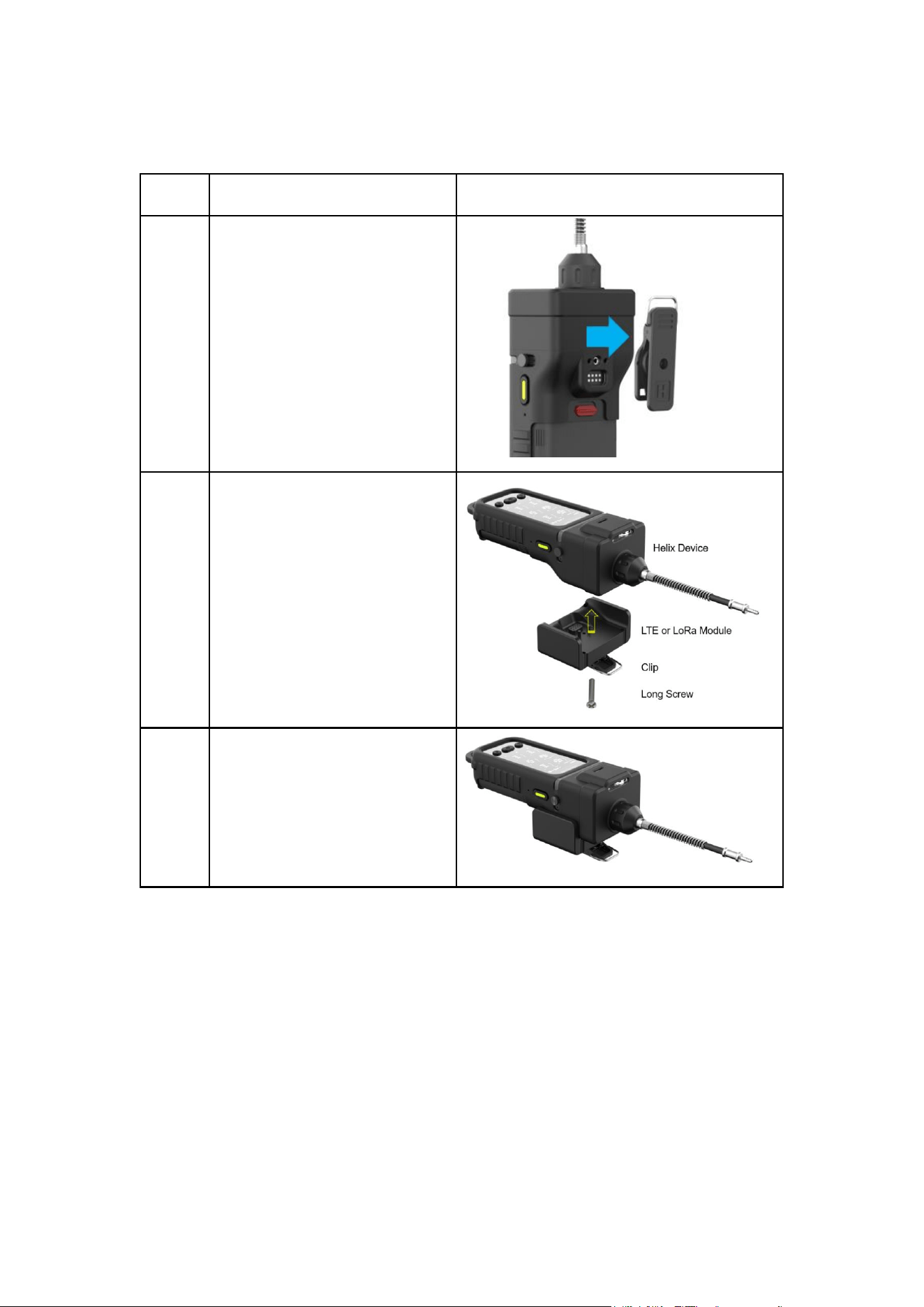

1. Remove the Clip
Step2
2. Install the Clip, LoRa module,
and long screws onto the
original Clip position of the
Helix according to the diagram.
Step3
3. install LoRa Module ready
Active
Preparation

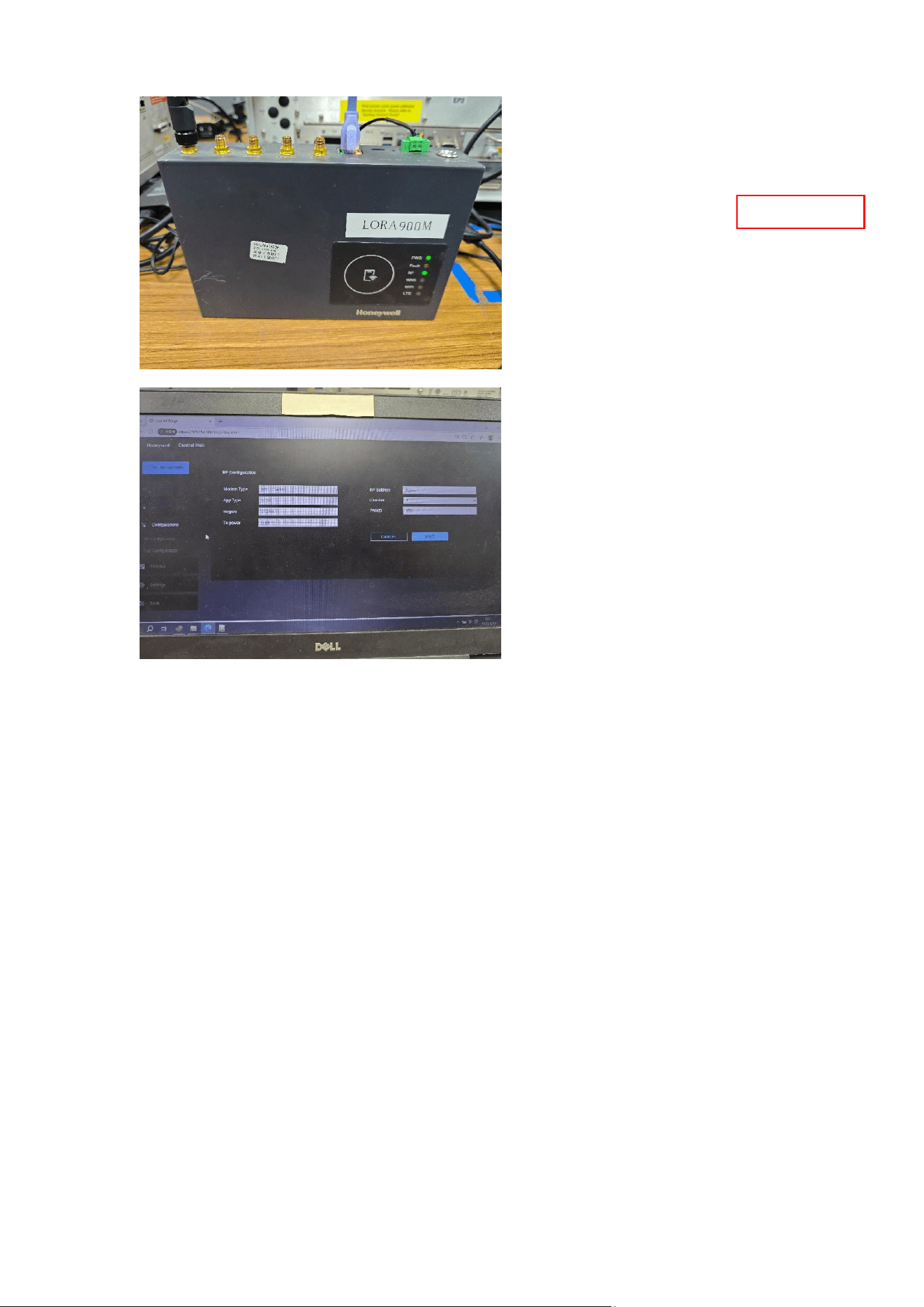

Centra Hub
The lora module uses private protocol, so you need a host (centra Hub) to receive device’s
data.
Remeter the configuration of centra hub, which will be used same at device side.
SSRT
You need to get SSRT account from Honeywell and add the centra Hub to your account, so
after device connects with centra hub, you can see the real time data at SSRT.
Module Install Check

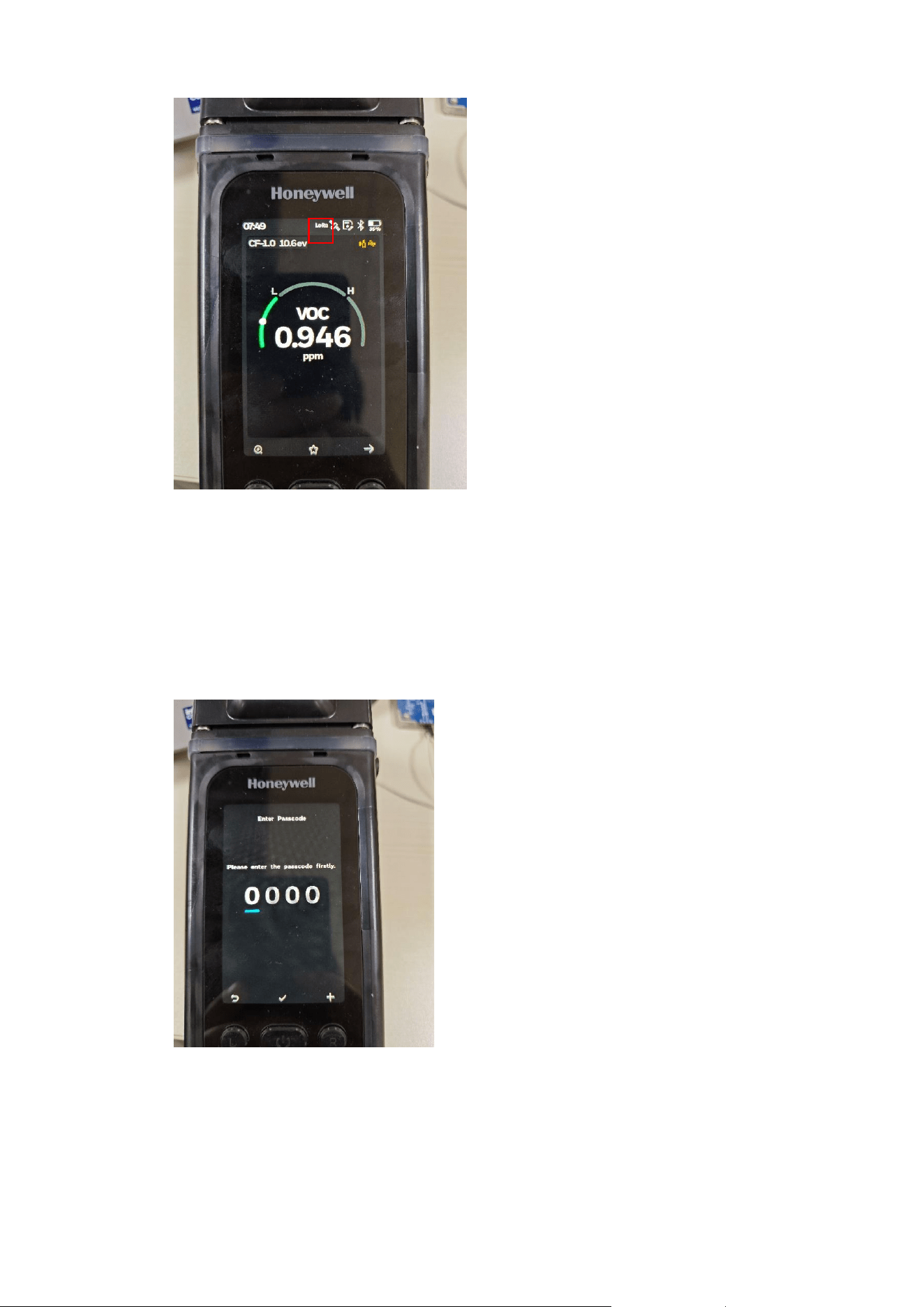

Enter reading UI, check whether show “LoRa” icon.
Configuration
⚫ Press power and R key at same time for 5 seconds
⚫ Enter password

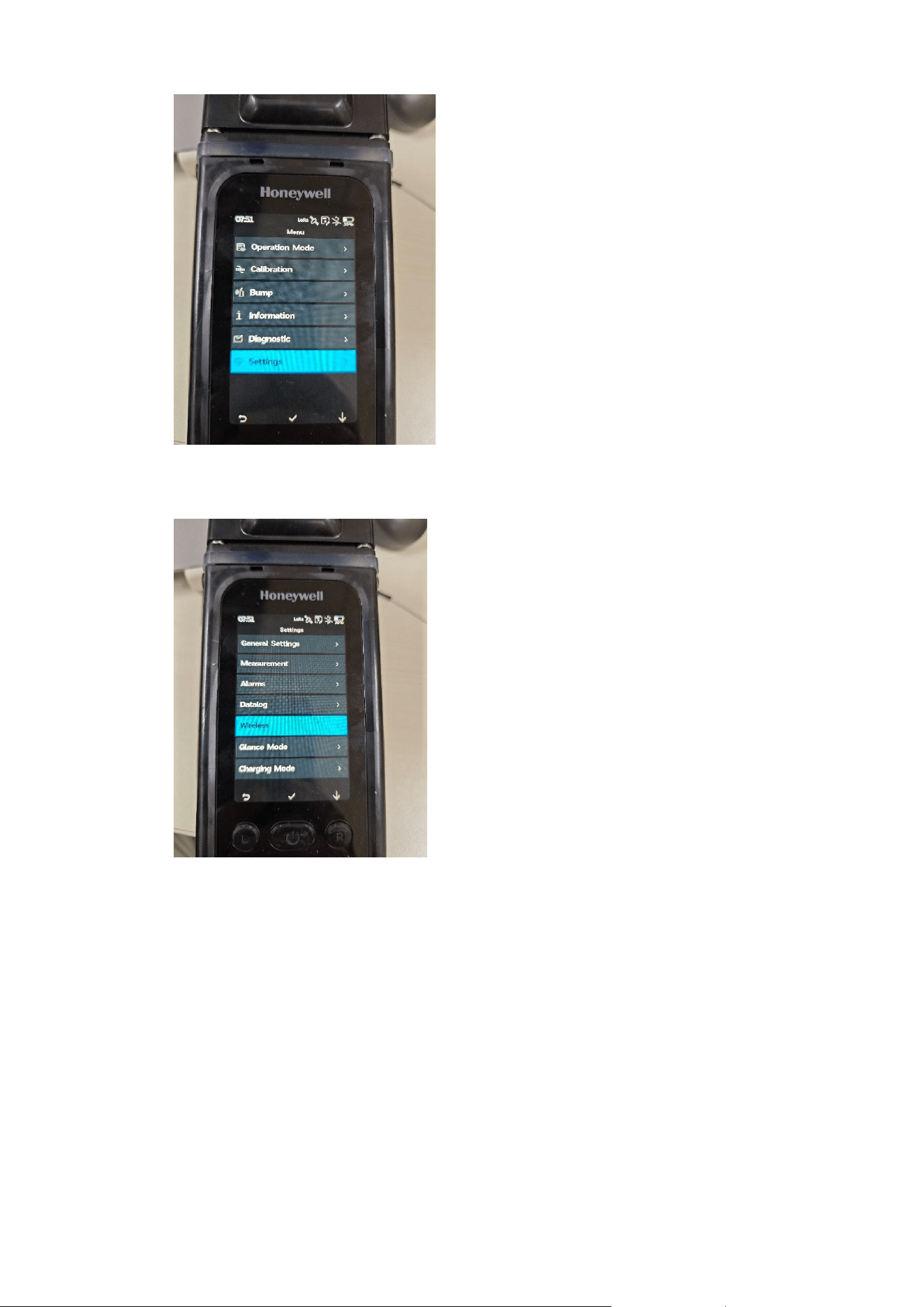

⚫ Enter setting menu

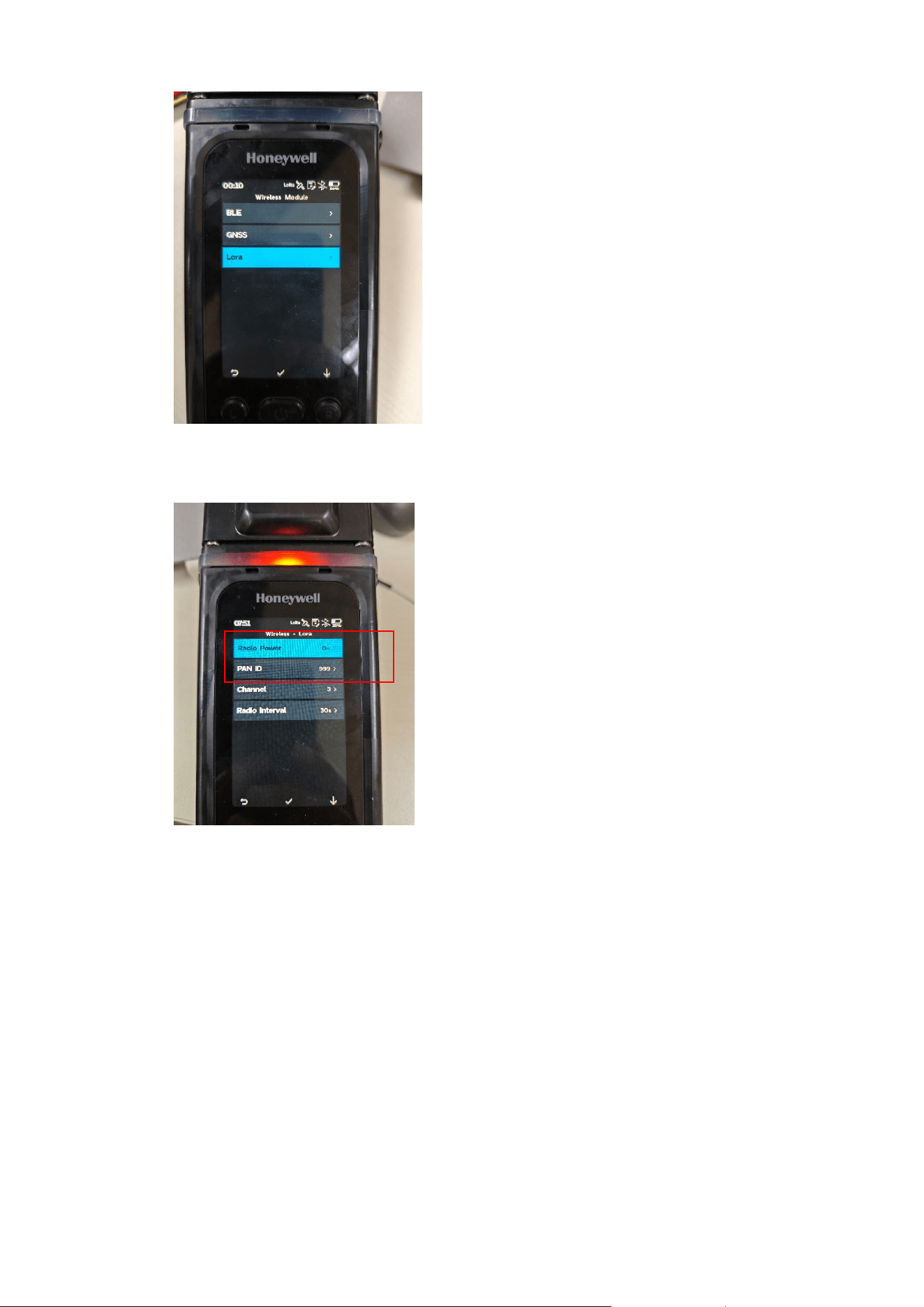

⚫ Enter Wireless menu
⚫ Enter Lora menu
⚫ Check PANID and channel whether same with centra hub.
⚫ If it is not same with centra Hub, change it to same and save configuration, then back to
main menu.
Real time data

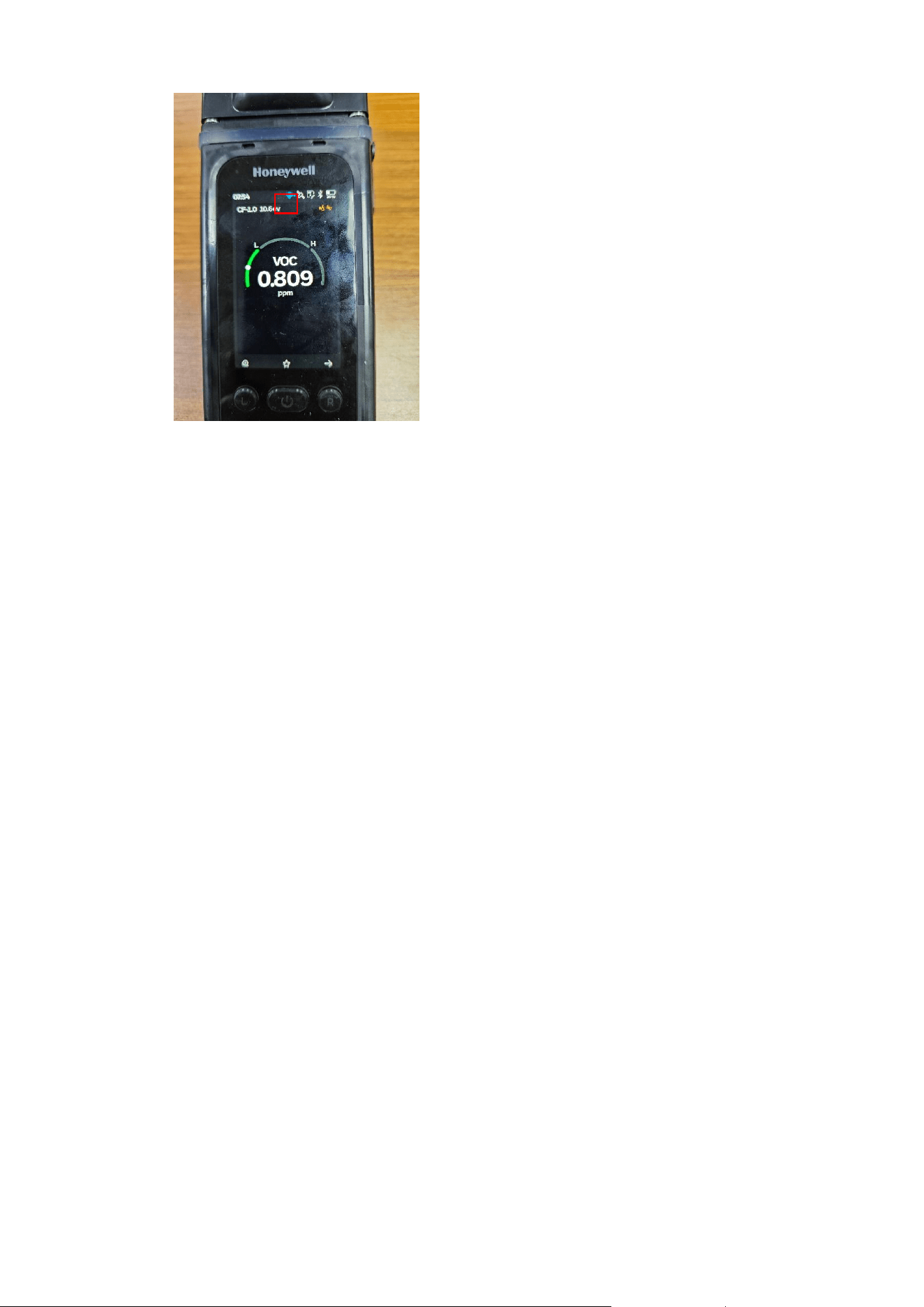

⚫ Wait a few seconds, check the color of Lora icon whether change
⚫ Check the real time data at SSRT.
