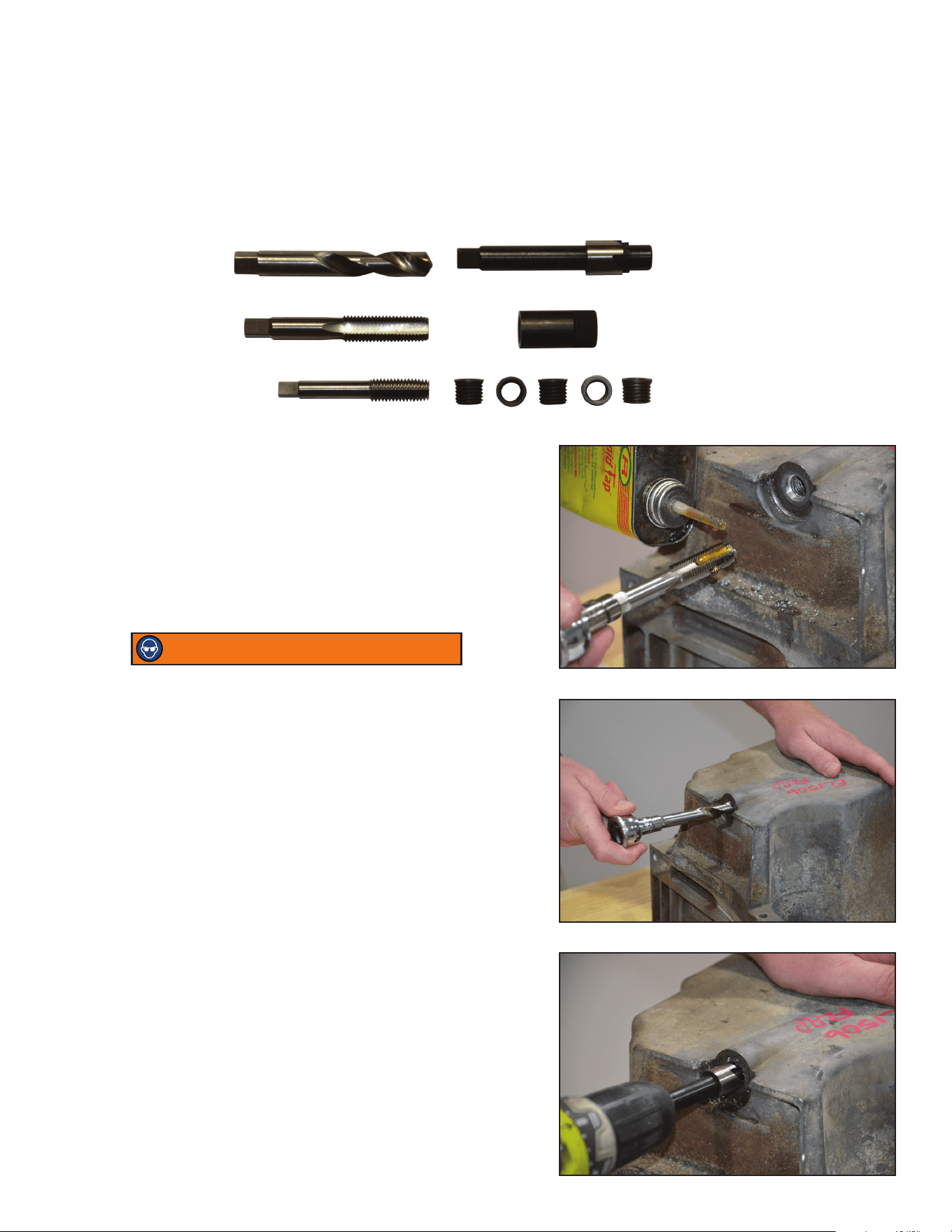

Counter Bore
Drill
Tap Guide
Tap
M12 x 1.75 Insert
Insert Installer
OIL PAN DRAIN PLUG REPAIR KIT INSTRUCTIONS
M12x1.75
Common Applications: Ford, GM, and Mazda.
Note: There are other applications for different makes and models. If unsure of drain plug size
consult your local dealer. If a previous repair has been made, this kit may not work. Check for
installed inserts before use.
Important: Grease on the drill and tap will help pre-
vent chips from falling into the drain pan while work
is performed. Using a low RPM drill or drilling by hand
will also reduce the risk chips falling into the pan. Also
pouring old oil through the drain pan when job is com-
plete can help to remove any small chips. Note: Any
time there is drilling, counter boring, or tapping it is
recommended to use cutting oil.
Step 1: Using included drill remove damaged threads of
oil pan drain hole. Be sure to drill square to surface of the
hole.
Step 2: Use the included counter bore to remove material.
The counter bore has a built in stop. When bore stop is
seated all the way around hole this step is complete. Take
care to be square and not go too far.
Instructions:
WEAR SAFETY GOGGLES

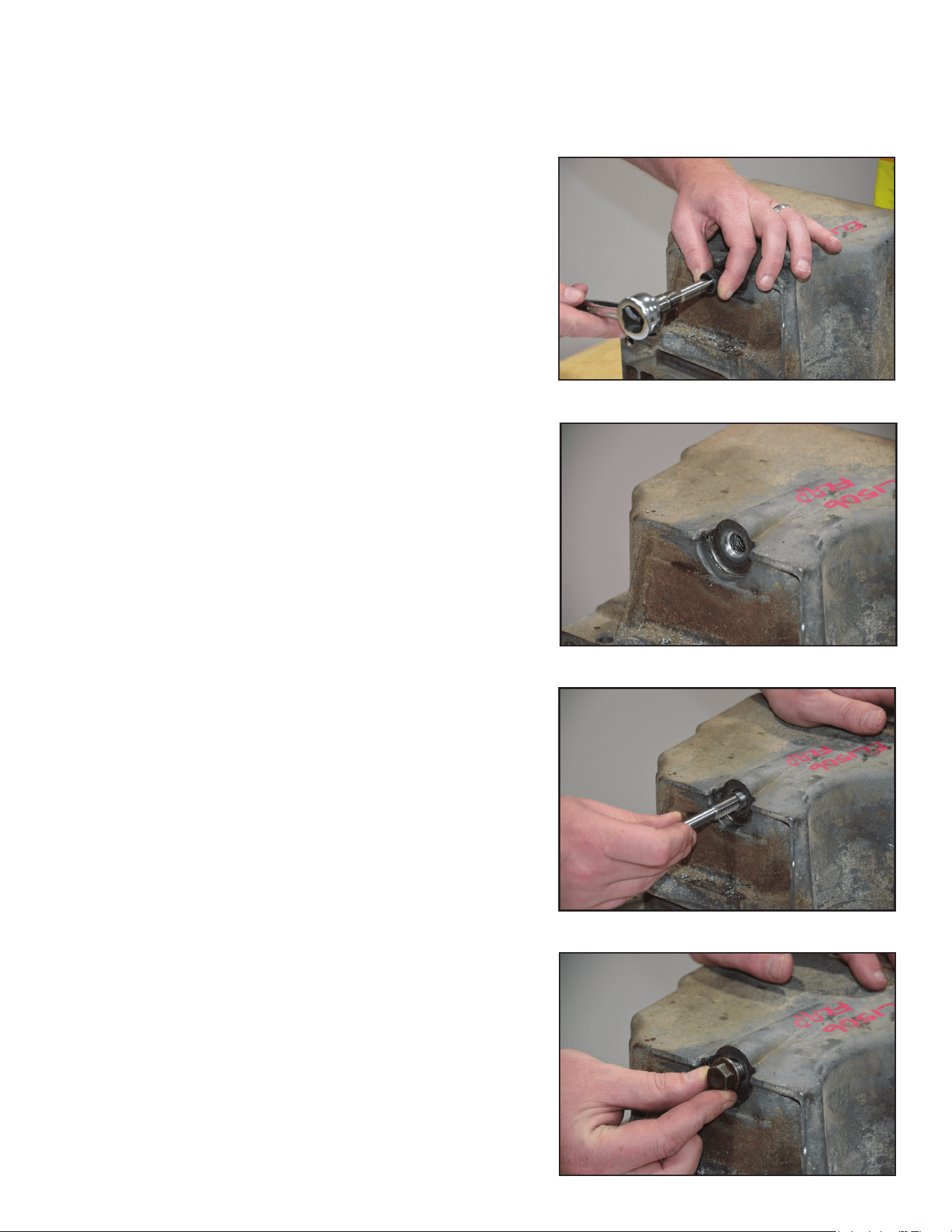

Step 5: Screw included insert a few turns into new hole.
Step 6: Thread the included insert installer. Turn until
installer is seated and tightens up. Continue to turn with
a little added force until installer loosens.
Step 4: Using shop air blow any remaining chips from
surface and hole.
Step 7: Remove Installer and install drain plug.
Step 3: Assure tap guide is seated ush and square in
counter bore area, insert tap and slowly turn with moder-
ate pressure to cut new threads. Maintain guide at against
surface.
