Download the app

& activate product

Refrigerator

FRENCH DOOR SERIES

MDRF692FIC*

USER MANUAL

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and speciﬁcations are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read

this manual thoroughly to ensure that you know how to operate the features and

CONTENTS

THANK YOU LETTER

------------------------------------------- 01

SPECIFICATIONS

------------------------------------------------- 02

PRODUCT OVERVIEW

------------------------------------------ 03

PRODUCT INSTALLATION

------------------------------------ 04

OPERATION INSTRUCTIONS

--------------------------------- 08

APP SETUP AND OPERATION

------------------------------- 13

CLEANING AND MAINTENANCE

---------------------------- 15

TROUBLESHOOTING

------------------------------------------- 16

APPENDIX

---------------------------------------------------------- 20

DOC AND CERTIFICATIONS

--------------------------------- 21

SPECIFICATIONS

Product model MDRF692FIC

Rated Voltage/Frequency 220-240V~/50Hz

Rated Current 1.9A

Total Volume 516L

Fresh Food Storage Compartment Volume 347L

Four-star Compartment Volume 169L

Freezing Capacity 12kg/24h

Temperature Rise Time 10h

Overall Dimension (W x D x H) 833x653x1898mm

Wireless Network module model MWB-S-WB01

Standard IEEE 802.11b/g/n

Antenna Type Printed PCB antenna

Frequency Band 2400-2483.5 MHz

Operating Temperature

℃

~ 85

℃

Operation humidity: 10%~85%

Power Input

DC5V/500mA Maximum

Transmission power: <20dBm

Importer / Address: MIDEA HOME APPLIANCES UK LTD

Conavon Court Ground Floor, 12 Blackfriars Street, Salford,

Manchester M3 5BQ UK

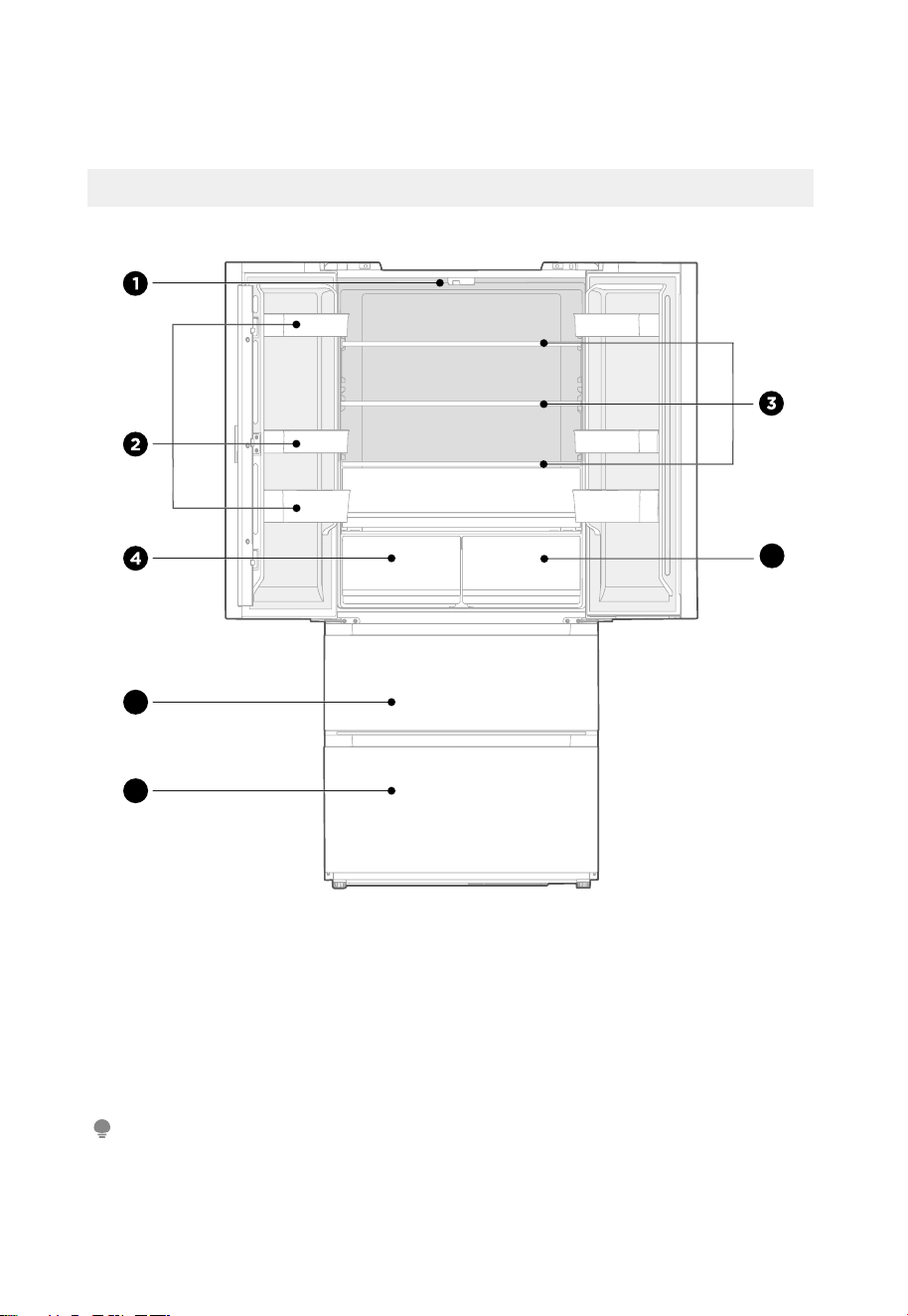

PRODUCT OVERVIEW

Names of components

Normal type

LED Lamp

Upper freezer drawer

Door Tray

Lower freezer drawer

Glass Shelf

Fruit and vegetable box

Variable Zone

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, this refrigerating appliance is intended to be

used at ambient temperatures range as speciﬁed following table.

• The climate class can be found on the rating plate. The product may not

operate properly at temperatures outside of the speciﬁc range.

• You can ﬁnd the climate class on the product label.

• The product is designed to operate normally in the temperature range speciﬁed

by its class rating.

Class Symbol

Ambient temperature range °C

IEC 62552 (ISO 15502) ISO 8561

Extended temperate SN + 10 to + 32 + 10 to + 32

Temperate N + 16 to + 32 + 16 to + 32

Subtropical ST + 16 to + 38 + 18 to + 38

Tropical T + 16 to + 43 + 18 to + 43

>100mm

75mm

Top View

Required space

for air circulation

ATTENTION

The picture above is only for reference. The actual conﬁguration will depend on the physical

product or statement by the distributor.

Dimensions and Clearances

• Keep the air circulation free around the cabinet. When installing the unit,

ensure 10cm of free space at both sides, 10cm at the top of the unit, and not

more than 7.5cm at the rear of the unit.

Space requirement diagram (when the door is open and when the door is closed)

Width

Overall

Height

Depth

without door

Width

doors open

135

Depth

doors open

135

A B C C1 E D

833 1898 653 570 1400 1000

Notice: All dimensions in mm

135 ˚

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven ﬂoor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise

to raise the unit, clockwise to

lower it.

Leveling doors

• Precautions before operation:

Before operation of accessories,it shall be ensured that the refrigerator is

disconnected from power.

Before adjusting the door ,precautions shall be taken to prevent any personal

injury.

• Schematic diagram of leveling the door body

：

• Raise the lower door up to the level of the higher door;

• Insert the supplied fastener-ring by using plier in the gap between the hinge-

grommet and the lower hinge.The number of fasten-rings you will need to

insert depends on the gap.

Moving the appliance

1. Remove all food from inside the appliance.

2. Pull the power plug out, insert and ﬁx it into the power plug hook at the rear or

on top of the appliance.

3. Tape parts such as shelves and the door handle to prevent from falling o while

moving the appliance.

4. Move the appliance with more than two people carefully. When transporting

the appliance over a long distance, keep the appliance upright.

5. After installing the appliance, connect the power plug into a socket out to

switch on the appliance.

Precautions before operation:

Before making changes the refrigerator must be disconnected from power.

precautions should be taken to prevent any personal injury.

ATTENTION

Lower hinge

Hinge

grommet

Fastener-ring

Pliers

Changing the light

• Any replacement or maintenance of the LED lamps is intended to be made by

the manufacturer, its service agent or similar qualiﬁed person.

ATTENTION

This product contains a light source of energy eciency class (G).

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you

put food into the appliance. If you add food before the appliance has cooled completely, your

food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the

ambient temperature is high, the compressor will run more frequently and for longer,

resulting in increased energy consumption.

• Ensure that there is sucient ventilation at the base of the appliance, on the sides of

the appliance and at the back of the appliance. Never cover ventilation openings.

• Please also observe the spacing dimensions in the chapter “Installation”.

• The arrangement of drawers, shelves and racks as shown in the illustration oers the

most ecient use of energy and should therefore be retained as far as possible. All

drawers and shelves should remain in the appliance to keep the temperature stable

and save energy.

• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the

middle drawers can be removed. The top and bottom drawers and shelves should be

removed last if necessary.

• An evenly ﬁlled refrigerator/freezer compartment contributes to optimal energy use.

Therefore, avoid empty or half-empty compartments.

• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has

already cooled down increases energy eciency.

• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food

reduces the energy consumption in the refrigerator compartment and thus increases

the energy eciency.

• Open the door only as brieﬂy as necessary to minimise cold loss. Opening the door

brieﬂy and closing it properly reduces energy consumption.

• Setting the temperature no colder than necessary contributes to optimal energy use.

The optimum temperature in the refrigerator is +7°C. It should be measured as far

forward as possible in the top compartment of refrigerators.

• The door seals of your appliance must be perfectly intact so that the doors close

properly and energy consumption is not increased unnecessarily.

OPERATION INSTRUCTIONS

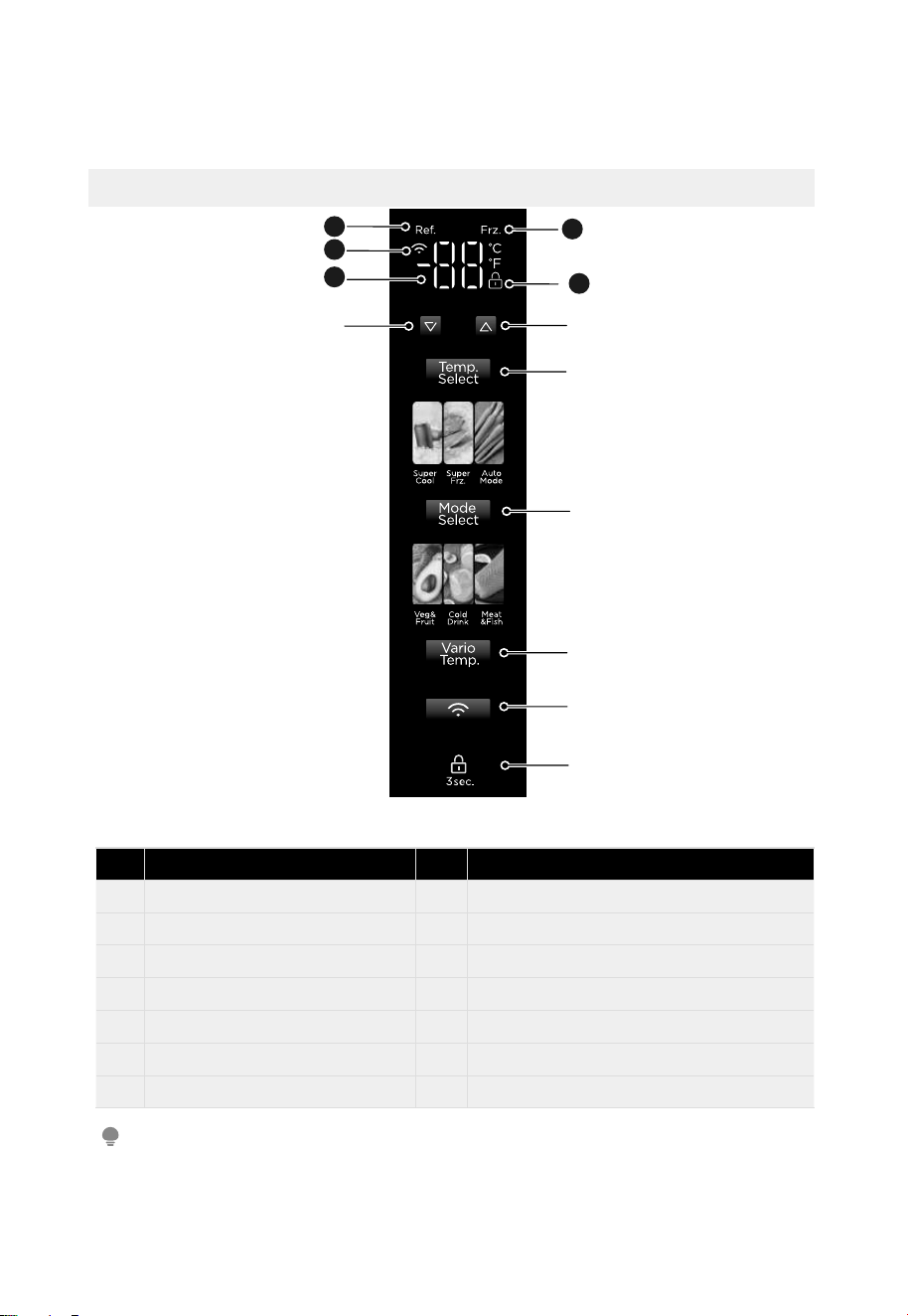

Control panel

Display Button

Refrigerating icon

Temperature down button

Freezer icon

Temperature up button

Temperature display icon

Temperature zone selection button

Wireless connection icon

Mode selection button

Lock and unlock icon

Variable temperature selection button

Wireless connection button

Lock and unlock button

The actual control panel may dier from model to model.

The control panel will turn o automatically for energy saving.

ATTENTION

Display

• When electrify the refrigerator,the display screen will total display for 3

seconds. Meanwhile the starting up bell rings and then the screen enters the

normal display of the operation.

• When the error occurs, the display shows the error code (see next page);

during normal running, the display shows the set temperature of the

refrigerating chamber or freezing chamber.

• Under normal circumstances, if there is no operation on display panel

or door opening action within 30s, then the display is lock, and the logo

lights up.

Lock /unlock

• In the unlocked state, long press the lock button for 3 seconds, enter the

lock s

tate,the logo

lights up and buzzer sounds, it means the display panel

is locked, at this time, button operation cannot be implemented;

• In the locked state, long press the lock button for 3 seconds, enter the

unlocked state, The logo

lights o and buzzer sounds, it means the display

panel is unlocked, at this time, button operation can be implemented;

Temperature setting of refrigerating chamber

• Press temperature zone selection button to choose the setting

temperature zone of refrigerating chamber, and then press or to

adjust the setting temperature of refrigerating chamber. The temperature

setting range for refrigerating chamber is 2°C ~ 8°C.

Temperature setting of freezing chamber

• Press temperature zone selection button to choose the setting

temperature zone of freezing chamber, and then press or to adjust

the setting temperature of freezing chamber.The temperature setting range for

freezing chamber is -24°C~-16°C.

Temperature setting of variable temperature chamber

• Press Variable temperature button to adjust the setting temperature

of the chamber, the adjusting range is Fruit/vegetable, drink and chilled.

Fruit/vegetable suitable for storing all kinds of fruits and vegetables;

Drink suitable for storing dry goods and drinks;

Meat suitable for a small amount of meat stored for 1-2 days.

Mode setting

• Press mode selection button to choose super cooling mode and super

freezing mode or auto mode.

Super cooling mode

• The icon lamp is lit. The temperature of the refrigerating chamber is set

to 2

℃

and automatically exit the super cooling mode after 6h. After exiting

the super cooling mode, the temperature of the refrigerator will automatically

return to the temperature set before the super cooling mode. At this time,

the icon lamp is o.

Super freezing mode

• The Icon lamp is lit. The temperature of the freezing chamber is

set to -24

℃

and automatically exit the super cooling mode after 24h. After

exiting the super freezing mode, the temperature of the freezing chamber will

automatically return to the temperature set before the super freezing mode.

At this time, the Icon lamp is o.

Auto mode

• The icon lamp is lit. The temperature of the refrigerating chamber is

automatically set to 5

℃

and the temperature of the freezing chamber is

automatically set to -18

℃

. When exiting the Auto mode, the temperature of the

refrigerator and freezing chamber will automatically return to the temperature

set before the auto mode.

The Super freezing function is designed to maintain the nutritional value of the food in the

freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one

time, it is recommended that the user turn on the Super-freezing function and put the food

in. At this time, the freezing speed of the freezer compartment is increased, which can quickly

freeze the food, eectively lock the nutrition of the food, and facilitate storage.

Storage upon power failure

• In case of power failure, the instant working state will be locked and maintained

till re-electriﬁcation.

Opening warning and alarm control

• When the refrigerator door is opened, a prompt sounds. If the door has not

closed after two minutes, the buzzer will sound and then every second until the

door closes. Press any button to cancel the beep alarm.

• Disable the door opener: Press and hold the

and keys at the same

time for 3 seconds to disable or set the door opener sound.

• Disable the door opening alarm sound: Not possible.

Fault indication

• The following warnings appearing on the display indicate corresponding faults

of the refrigerator. Though the refrigerator may still have cold storage function

with the following faults, the user shall contact a maintenance specialist for

maintenance, so as to ensure optimized operation of the appliance.

Fault Code Fault Description

E1 Temperature sensor failure of refrigerating chamber

E2 Temperature sensor failure of freezing chamber

E3 Temperature sensor failure of variable temperature chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Circulation of temperature detection circuit error

EH Moisture sensor error

ATTENTION

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature,

long-term storage of frozen food, and for the production of ice.

• Only use the shelves in the door of the freezer to store frozen food, not for storing

hot food designated for freezing.

• Do not put fresh and frozen food next to each other. The frozen food may thaw.

• When freezing fresh food (such as meat, ﬁsh or chopped meat), cut them into parts

that can be used at the same time.

• Storing frozen food: instructions are usually stated on the packages, which must be

followed. If there is no information on the packaging, food should not be stored for

longer than three months from the date of purchase.

• When purchasing frozen food, make sure that it was frozen at a suitable temperature

and that the packaging is not damaged.

• Frozen food should be kept in suitable packages to retain the quality and should be

returned to the freezer compartment as soon as possible.

• If a package of frozen food shows moisture or abnormal bulging, it is probable that

it was stored at the wrong temperature and the content is spoiled.

• The storage period for frozen food depends on the room temperature, the

thermostat setting, the frequency of opening the door of the freezer, the type of

food and the time of transporting the product from the shop to the household.

Always follow the instructions printed on the packaging and never exceed the

maximum storage time stated on the package.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the

refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts

of the evaporator. Storing uncovered liquids results in a more frequent need for

defrosting.

• Never put warm foods in the refrigerator. These should ﬁrst cool down at room

temperature and then be placed so as to ensure adequate air circulation in the

refrigerator.

• Foods or food containers should not touch the back wall of the refrigerator because

they could freeze to the wall. Do not keep regularly opening the door of the

refrigerator.

• Meat and clean ﬁsh (packed in a package or plastic foil) can be placed in the

refrigerator, which can be used in 1–2 days.

• Fruit and vegetables without packaging can be placed in the part designated for

fresh fruit and vegetables.

Recommended Temperature

The optimal temperature setting for food storage:

• Fridge: 4 °C , Freezer: -18 °C

The optimal temperature setting of each compartment depends on the ambient temperature.

Above optimal temperature is based on the ambient temperature of 25 °C.

ATTENTION

Order

Compartments

TYPE

Target stor-

age temp.

[°C]

Appropriate food

1 Fridge +2

≤

Eggs, cooked food, packaged food, fruits and vegetables,

dairy products, cakes, drinks and other foods not suitable

for freezing.

Four-star rating

frozen

≤

-18

With freezing capacity, fast freezing speed, caWith freezing

capacity, fast freezing speed, can quickly freeze and store

food. Suitable for frozen fresh food such as seafood (ﬁsh,

shrimp, shellﬁsh), freshwater aquatic products and meat

products. Recommended for 3 ~ 6 months, the longer the

storage time, the worse the taste and nutrition.

Three-star rating

frozen

≤

-18

With freezing capacity. Suitable for frozen fresh food such

as seafood (ﬁsh, shrimp, shellﬁsh), freshwater aquatic

products and meat products. Recommended no more than

3 months.

Two-star rating

frozen

≤

-12

Only suitable for medium-term storage of already frozen

food, e.g. ice cream. Recommended no more than 1 month.

One-star rating

frozen

≤

-6

Only suitable for refrigeration, and short-term storage of

small quantities of already frozen food. Recommended no

more than 1 week.

6 0-star -6

≤

Fresh pork, beef, ﬁsh, chicken, some packaged processed

foods, etc. (Recommended to eat within the same day,

preferably no more than 3 days).

Partially encapsulated processed foods (non-freezable

foods).

7 Chill -2

≤

Fresh/ frozen pork, beef, chicken, freshwater aquatic

products, etc. (7 days below 0°C and above 0°C is

recommended for consumption within that day, preferably

no more than 2 days).

Seafood less than 0 for 15 days, it is not recommended to

store above 0°C.

8 Fresh food 0

≤

Fresh pork, beef, ﬁsh, chicken, cooked food, etc.

(Recommended to eat within the same day, preferably no

more than 3 days)

9 Wine +5

≤

+20

Red wine, white wine, sparkling wine, etc.

ATTENTION

your purchased.

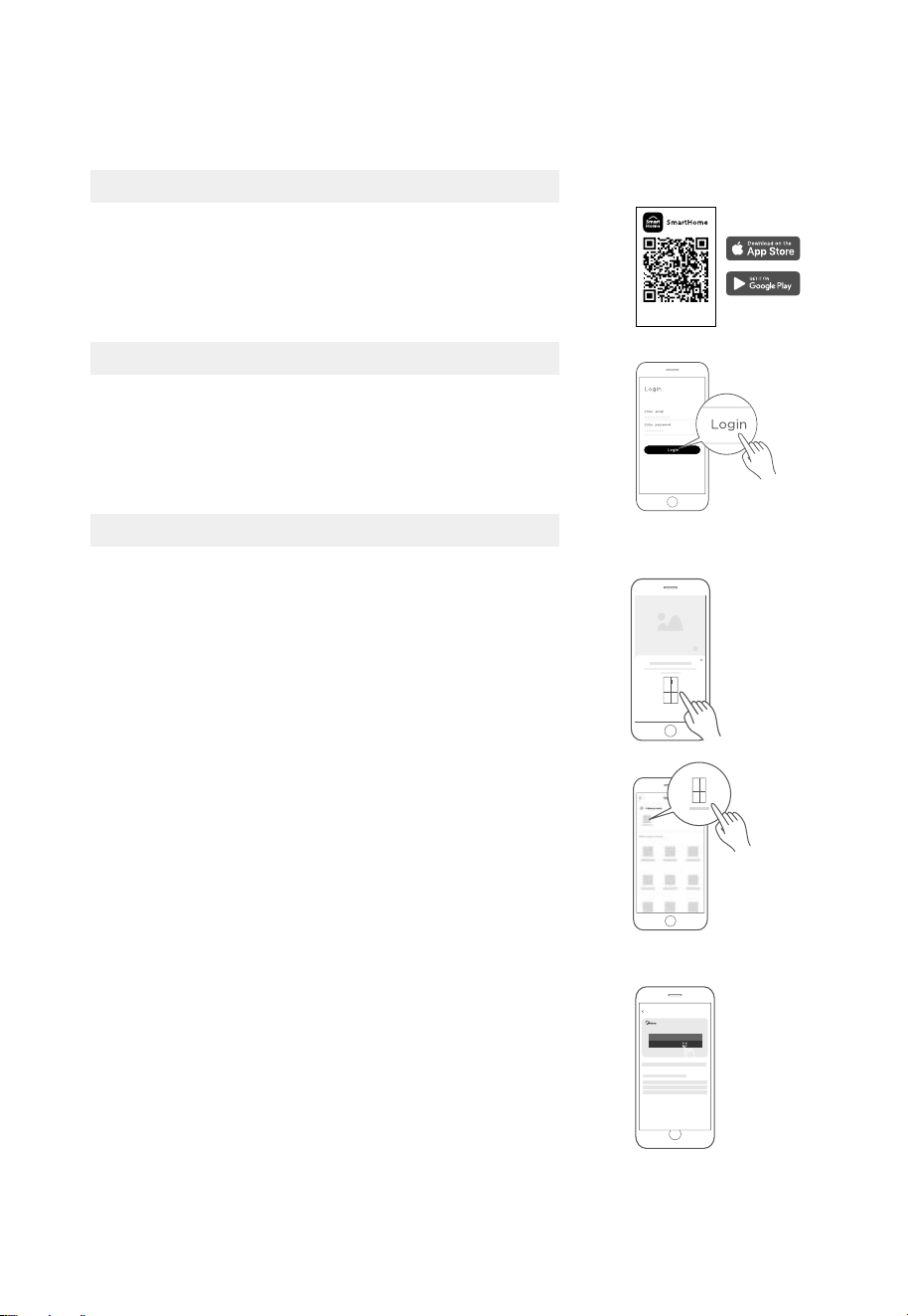

APP SETUP AND OPERATION

Download the SmartHome App

On an app market (Google Play Store, Apple App Store),

search for “SmartHome” and ﬁnd the SmartHome app.

Download and install it on your phone. You can also

download the app by scanning the QR code below.

Open the SmartHome app, and create a new account

to start (you can also register through a third-party

account). If you already have an existing account, use

the account to log in.

Connect your devices to SmartHome

1. Please make sure your mobile phone is connected

to a wireless network. If it is not, go to Settings

and enable wireless networks and Bluetooth.

2. Please power on your devices.

3. Open SmartHome App on your phone.

4. If a message of "Smart devices discovered

nearby" appears, click to add.

Washing machine

...

5. If no message appears, select “+” on the page and

select your device in the list of nearby devices

available. If your device is not listed, please add

your device manually by the device category and

device model.

6. Connect your device to the wireless network

according to instructions on app. If the connection

fails, please follow the instructions provided by

the app to continue with the operation.

Add device

8:88

Download the app

& activate product

NOTE

1. Make sure your devices are powered on.

2. Keep your mobile phone close enough to your device when you are connecting

your device to the network.

3. Connect your mobile phone to the wireless network at home, and make sure

you know the password of the wireless network.

4. Check if your wireless router supports 2.4 GHz band and turn it on. If you are

not sure whether the router supports 2.4 GHz band, please contact the router

manufacturer.

5. The device cannot connect to the wireless network that requires authentication,

and it usually appears in public areas such as hotels, restaurants, etc. Please

connect to a wireless network that does not require authentication.

6. Turn o the WLAN+ (Android) or WLAN Assistant (iOS) function of your

mobile phone when connecting your device to the network.

7. In the case that your device connected to a wireless network before but it

needs to reconnect, please click “+” on the app Home page, and add your

device again by the device category and model according to the instructions

on app.

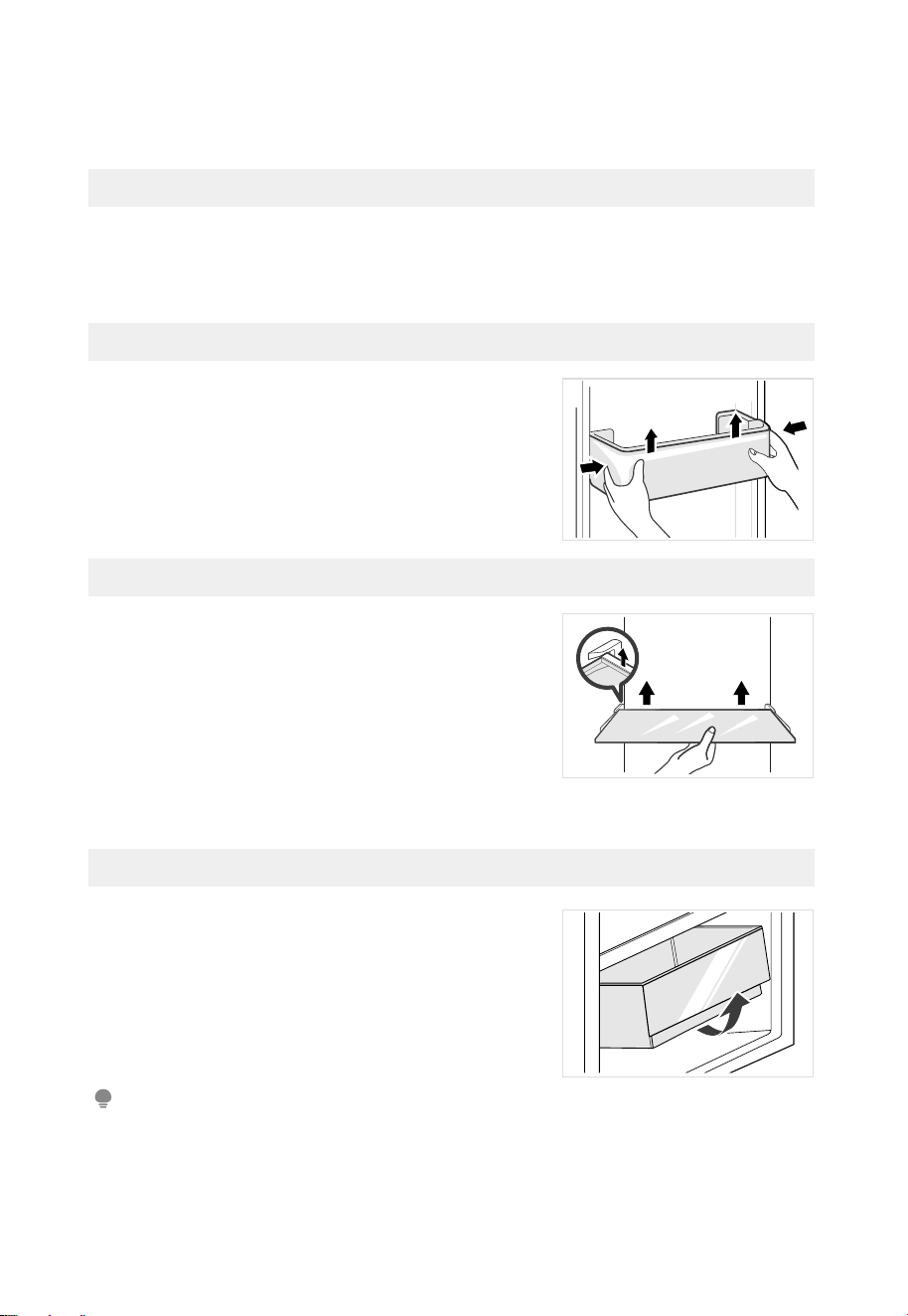

CLEANING AND MAINTENANCE

Defrosting

• The refrigerator is made based on the air-cooling principle and thus has

automatic defrosting function. Frost formed due to change of season or

temperature may also be manually removed by disconnection of the appliance

from power supply or by wiping with a dry towel.

Cleaning of door tray

• According to the direction arrow in the ﬁgure

below, use both hands to squeeze the tray, and

push it upward, then you can take it out.

• After washing the tray having been taken

out, you can adjust its installing height in

accordance with your requirement.

Cleaning of glass shelf

• As the innermost part of the refrigerator liner

where contacting the shelves has a backstop,

you shall raise the shelves upward, then you can

be able to take it out.

• Adjust or clean the shelves according to your

requirement.

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the

handle of the vegetable drawer and pull it out

completely until it stops.

2. Lift the vegetable drawer up and remove it by

pulling it out.

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested

for cleaning. The freezer of shall be ﬁnally cleaned with clean water and dry cloth. Open the

door for natural drying before the power is turned on. Do not use hard brushes, clean steel

balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,

banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this

may damage the fridge surface and interior.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale

service department if the issues are not solved.

Problem Possible reason

Failed operation

• Check whether the appliance is connected to power or

whether the plug is in well contact

• Check whether the voltage is too low

• Check whether there is a power failure or partial circuits have

tripped

Odor

• Odorous foods shall be tightly wrapped

• Check whether there is any rotten food

• Clean the inside of the refrigerator

Long-time operation

of the compressor

• Long operation of the refrigerator is normal in summer

• when the ambient temperature is high It is not suggestible

having too much food in the appliance at the same time

• Food shall get cool before being put into the appliance

• The doors are opened too frequently

Light fails to get lit

• Check whether the refrigerator is connected to power supply

and whether the illuminating light is damaged

• Have the light replaced by a specialist

Door can not be

properly closed

• The door is stuck by food packages too much food is placed

• The refrigerator is tiltedr.

Loud noises

• Check whether the ﬂoor is level and whether the refrigerator

is placed stably

• Check whether accessories are placed at proper locations

Problem Possible reason

Door seal fails to be

tight

• Remove foreign matters on the door seal

• Heat the door seal and then cool it for restoration (or blow it

with an electrical drier or use a hot towel for heating)

Water pan overﬂows

• There is too much food in the chamber or food stored

contains too much water,resulting in heavy defrosting

• The doors are not closed properly, resulting in frosting due to

entry of air and increased water due to defrosting

Hot housing

• Heat dissipation of the built-in condenser via the housing,

which is normal when housing becomes hot due to high

ambient temperature, storage of too much food or shutdown

of the compressor is shut down, provide sound ventilation to

facilitate heat dissipation

Surface

condensation

• Condensation on the exterior surface and door seals of the

refrigerator is normal when the ambient humidity is too high.

Just wipe the condensate with a clean towel.

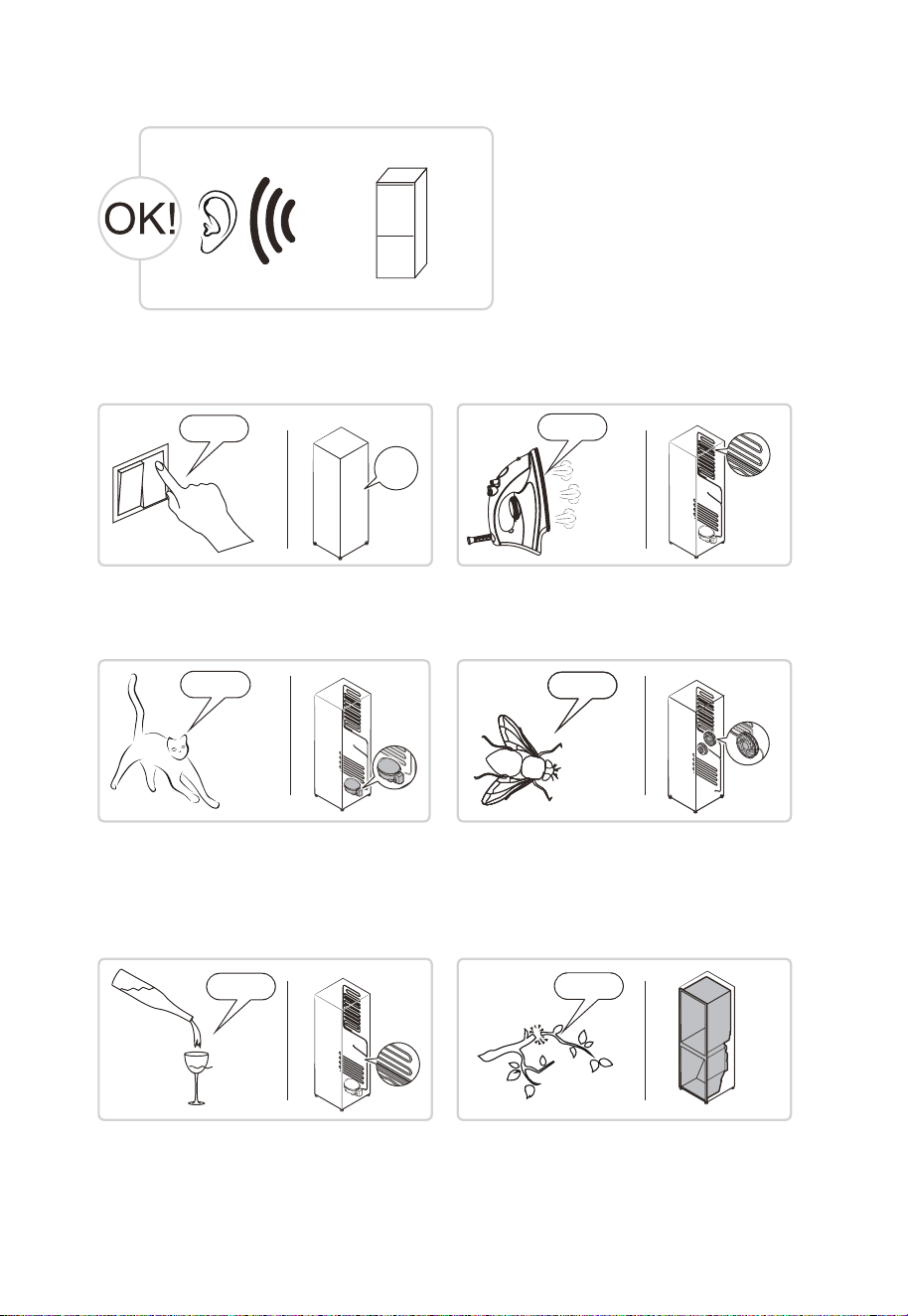

Do you hear these abnormal sounds as below? Usually these sounds are normal.

SRR

HISSS!

BLUBB!

BRRR!

CRA

CK!

CLICK:

Some electrical parts in the

refrigerator, such as electric valve will

make this noise when working. This is

normal.

HISSS:

When the refrigerant ﬂows into the

evaporator, it will make this noise. This is

normal.

CLICK

HISSS!

BRRR:

The compressor will make this noise

when working, and the buzzes are loud

particularly upon start or stop. This is

normal.

SSSRRR:

The fan motor in the No frost

refrigerator will make this noise when

working. This is normal.

BRRR!

SSSRRR!

BLUBB:

Refrigerant ﬂowing through the

pipes in the refrigerator will make this

noise. This is normal.

CRACK

：

Cracking sound or broken

ice sound: the overall structure of the

refrigerator, air duct frost will be with the

thermal expansion and contraction of the

expansion sound, these are also normal

physical phenomenon.

BLUBB!

CRACK!

Midea hereby declares that the appliance with

SmartHome functionality meets the essential

requirements and other relevant provisions of the

Directive 2014/53/EU. A detailed RED Declaration

of Conformity can be found online at www.midea.

com among the additional documents on the

product page for your appliance.

2.4 GHz band:100mW max.

5 GHz band: 100mW max.

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider

channel

Ordered part Provided by

Minimum time required for Provision

Thermostats Professional maintenance

personnel
