Microwave Oven
INSTRUCTION MANUAL
EN
Read these instructions
carefully before using your
microwave oven, and keep
it carefully.
If you follow the instructions,
your oven will provide you
with many years of good
service.
POWER SUPPLY: 120V~60Hz
POWER CONSUME: 1400W
/global
EM9P022CV-PMB
EN-2
(a) Do not attempt to operate this oven with the door
open since open door operation can result in harmful
exposure to microwave energy.
It is important not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the oven front
face and the door or allows soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
1) DOOR (bent)
2) HINGES AND LATCHES (broken or loosened)
3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by
anyone except properly qualified service personnel.
SPECIFICATIONS
01
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
Model EM9P022CV-PMB
Rated Voltage: 120V~60Hz
Rated Input Power(Microwave): 1400 W
Rated Output Power(Microwave):
900W
EN-3
When using electrical appliances basic safety
precautions should be followed, including the following:
▲
WARNING
To reduce the risk of burns, electric shock, fire, injury to
persons or exposure to excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific: "PRECAUTIONS
TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" found on page 2.
3. This appliance must be grounded. Connect only
to properly grounded outlet. See "GROUNDING
INSTRUCTIONS" found on page 6.
4. Install or locate this appliance only in accordance
with the provided installation instructions.
5. Some products such as whole eggs and sealed
containers - for example, closed glass jars - are able
to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as
described in the manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook or dry
food. It is not designed for industrial or laboratory
use.
7. As with any appliance, close supervision is necessary
when used by children.
IMPORTANT SAFETY
INSTRUCTIONS
02
EN-4
8. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
9. This appliance should be serviced only by qualified
service personnel. Contact nearest authorized
service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store this appliance outdoors. Do not use
this product near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or
similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surface.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
nonabrasive soaps, or detergent applied with a
sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag
before placing bag in oven.
- If material inside of the oven ignite, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
EN-5
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
17. Liquids, such as water, coffee, or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUID
SUDDENLY BOILING OVER WHEN THE CONTAINER
IS DISTURBED OR A UTENSIL IS INSERTED INTO
THE LIQUID.
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
SAVE THESE INSTRUCTIONS
EN-6
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.
▲
WARNING
Improper use of the grounding can result in a risk of
electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade
grounded plug, and 3-slot receptacle that will accept
the plug on the appliance. The marked rating of the
extension cord shall be equal to or greater than the
electrical rating of the appliance.
▲
DANGER
Electric Shock Hazard
Touching some of the internal components can cause
serious personal injury or death. Do not disassemble
this appliance.
GROUNDING INSTRUCTIONS
03
EN-7
▲
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is
properly installed and grounded.
1. A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a grounding-type
3-wire cord.
3) The longer cord should be arranged so that it will
not drape over the counter top or tabletop where
it can be pulled on by children or tripped over
unintentionally.
EN-8
1. Operation of the microwave oven may cause
interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or
eliminated by taking the following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or
television.
3) Relocate the microwave oven with respect to the
receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so
that microwave oven and receiver are on different
branch circuits.
This device complies with part 18 of the FCC
Rules.
RADIO INTERFERENCE
04
EN-9
▲
CAUTION
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers
should be opened and plastic pouches should be
pierced before cooking.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
▲
UTENSIL TEST:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
▲
MATERIALS YOU CAN USE IN MICROWAVE OVEN
Utensílios Remarks
Browning dish
Follow manufacturer* instructions. The bottom
of browning dish must be at least 3/16 inch
(5mm) above the turntable. Incorrect usage may
cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's
instructions. Do not use cracked or chipped
dishes.
UTENSILS
05
EN-10
Utensílios Remarks
Glass jars
Always remove lid. Use only to heat food until
just warm. Most glass jars are not heat resistant
and may break.
Glassware
Heat-resistant oven glassware only. Make sure
there is no metallic trim. Do not use cracked or
chipped dishes.
Oven cooking bags
Follow manufacturer* instructions. Do not close
with metal tie. Make slits to allow steam to
escape.
Paper plates and
cups
Use for short*erm cooking/warming only. Do not
leave oven unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing
fat. Use with supervision for a short-term
cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap
for steaming.
Plastic
Microwave-safe only. Follow the manufacturer*
instructions. Should be labeled "Microwave Safe".
Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed
plastic bags should be slit, pierced or vented as
directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during
cooking to retain moisture. Do not allow plastic
wrap to touch food.
Thermometers
Microwave-safe only (meat and candy
thermometers).
Wax paper
Use as a cover to prevent splattering and retain
moisture.
▲
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
Utensils Remarks
Aluminum tray
May cause arcing. Transfer food into microwave-
safe dish.
EN-11
Utensils Remarks
Food carton with
metal handle
May cause arcing. Transfer food into microwave-
safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy.
Metal trim may cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the
oven.
Paper bags May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid
inside when exposed to high temperature.
Wood
Wood will dry out when used in the microwave
oven and may split or crack.
EN-12
SETTING UP YOUR OVEN
06
▲

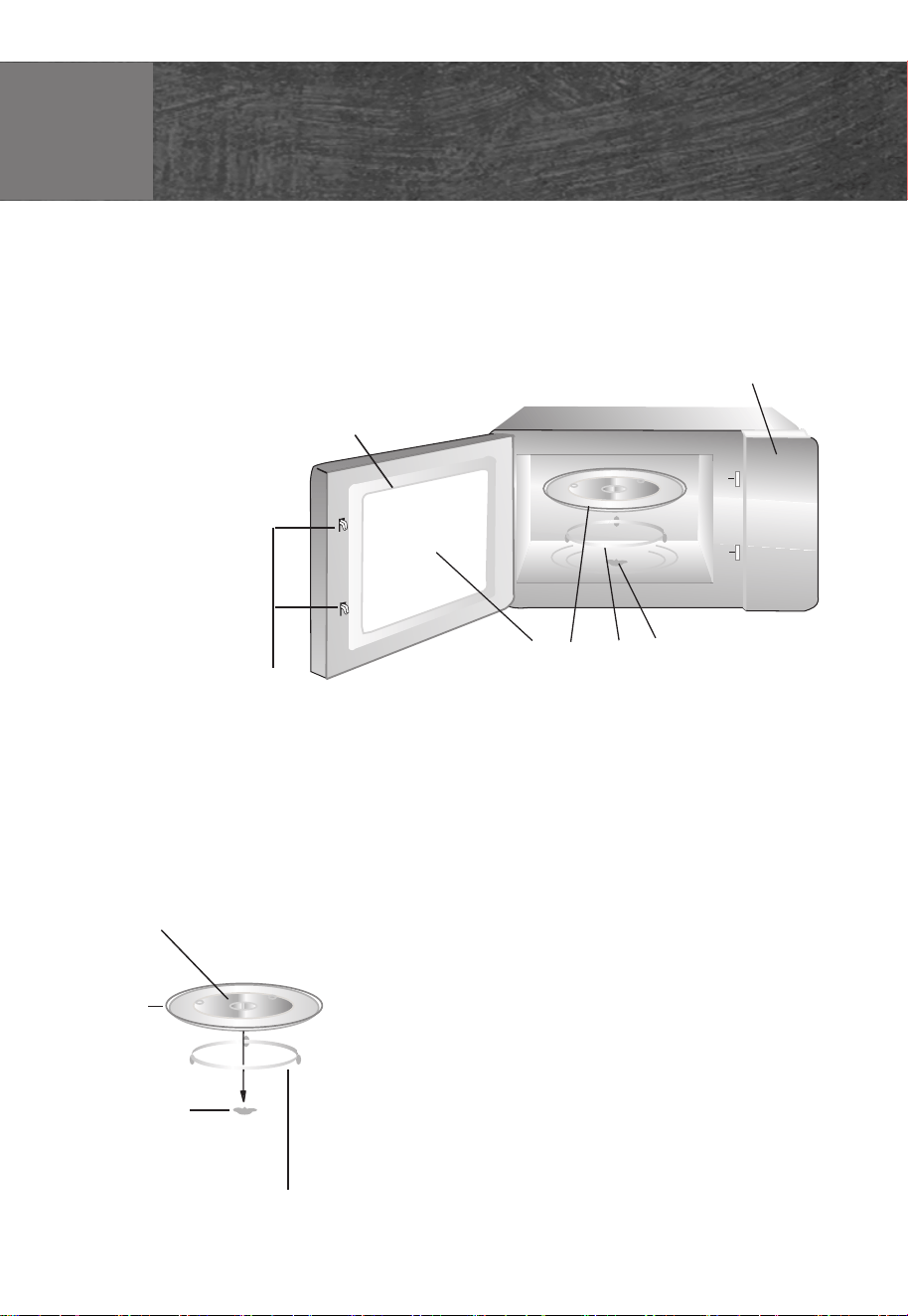

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
F
G
A
A)Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
C B
E
D
▲
Turntable Installation
Turntable ring assembly
a.
b.
c.
d.
Never place the
glass tray
upside down. The glass
tray should never be restricted.
Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
All food and containers of food are always placed
on the
glass tray
for cooking.
If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Hub (underside)
Glass tray
Turntable shaft
EN-13
INSTALLATION
07
▲
Countertop Installation
Remove all packing material and accessories. Examine the oven for
any damage such as dents or broken door. Do not install if oven is
damaged.
Cabinet: Remove any protective film found on the microwave oven
cabinet surface. Do not remove the light brown Mica cover that is
attached to the oven cavity to protect the magnetron.

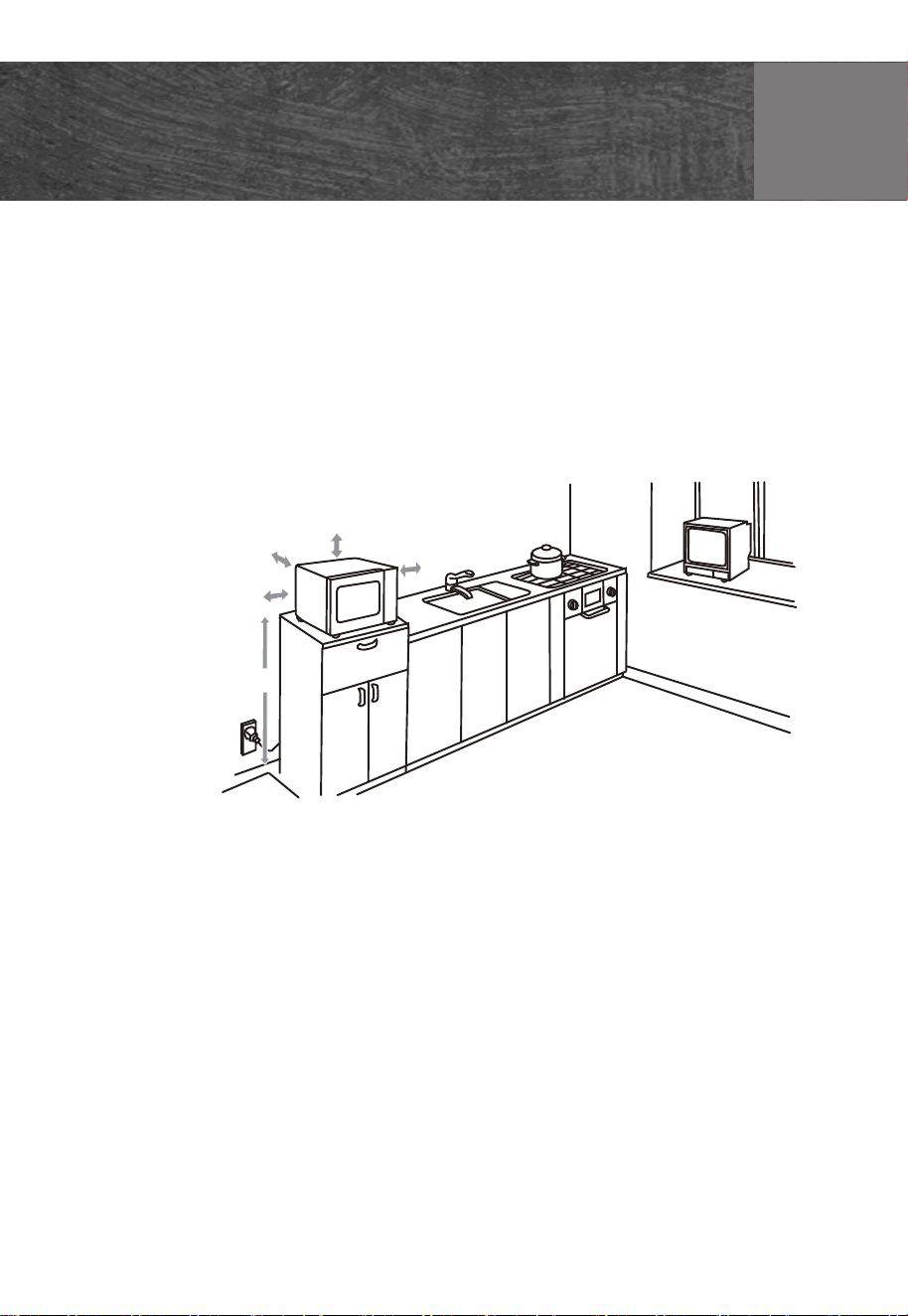

1. Select a level surface that provide enough open space for the
intake and/or outlet vents.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
>3.0ft(91.6cm)
12 inch(30cm)
OPEN
A minimum clearance of 3.0 inches (7.5cm) is required between the
oven and any adjacent walls. One side must be open.
The minimum installation height is 3.0ft(91.6cm).
1) Leave a minimum clearance of 12 inches (30cm) above the oven.
2) Do not remove the legs from the bottom of the oven.
3) Blocking the intake and/or outlet openings can damage the
oven.
4) Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your
radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the
voltage and the frequency is the same as the voltage and the
frequency on the rating label.
EN-14
▲
WARNING
Do not install oven over a range cooktop or other heat-producing
appliance. If installed near or over a heat source, the oven could be
damaged and the warranty would be void.
The accessible surface may be hot during operation.
EN-15
OPERATION
▲
Power Level
11 power levels are available.
Level Power Display
10 100% PL10
9 90% PL9
8 80% PL8
7 70% PL7
6 60% PL6
5 50% PL5
4 40% PL4
3 30% PL3
2 20% PL2
1 10% PL1
0 0% PL0
▲
Clock Setting
1. Press "CLOCK" once, "00:00" will display.
2. Press the number keys and enter the current time. For example,
time is 1 2:10 now, please press "1, 2, 1, 0" in turn.
3. Press "CLOCK" to finish clock setting. ":" will flash and the clock
will be lighted.
4. If the numbers input are not within the range of 1:00--12:59, the
setting will be invalid until valid numbers are input.
Note:
a. In the process of clock setting, if the "STOP/CANCEL/ECO" button
is pressed or if there is no operation within 1 minute, the oven will
go back to the former setting automatically.
b. If the clock need to be reset, please repeat step 1 to step 3.
EN-16
▲
Kitchen Timer
1. Press "TIMER" once, the screen will display 00:00, and the first
hour figure flash.
2. Press the number keys and enter the timer time. (The maximum
cooking time is 99 minutes and 99 seconds.)
3. Press " START/+30SEC. " to confirm setting.
4. When the timer time arrives, the buzzer will ring 5 times.
If the clock has been set (12-hour system), the screen will display
the current time.
Note:
a. The kitchen time is different from 12-hour system. Kitchen Timer is
a timer.
b. During kitchen timer, any program cannot be set.
▲
Microwave cook
1. Press "TIME COOK" once, the screen will display "00:00".
2. Press number keys to input the cooking time, The maximum
cooking time is 99 minutes and 99 seconds.
3. Press "POWER" once, the screen will display "PL10". The default
power is 100% power. Now you can press number keys to adjust
the power level.
4. Press "START/+30SEC." to start cooking.
Example: To cook the food with 50% microwave power for 15 minutes.
1. Press "TIME COOK" once. "00:00" displays.
2. Press "1", "5", "0", "0" in order.
3. Press "POWER" once, then press "5" to select 50% microwave
power.
4. Press "START/+30SEC." to start cooking.
Note:
a. In the process of setting, if the "STOP/CANCEL/ECO" button is
pressed or if there is no operation within 1 minute, the oven will go
back to the former setting automatically.
b. If "PL0" selected, the oven will work with fan for no power. You can
use this level to remove the odour of the oven.
c. During microwave cooking, "POWER" can be pressed to change
the power you need. After pressing "POWER", the current power
flash for 3 seconds. Now you can press number button to change
the power. The oven will work with the selected power for the rest
time.
EN-17
▲
Speedy Cooking
1. In waiting state, instant cooking at 100% power level can be
started by selecting a cooking time from 1 to 6 minutes by
pressing number pads1 to 6. Press "START/+30SEC." to increase
the cooking time. The maximum cooking time is 99 minutes and
99 seconds.
2. In waiting state, instant cooking at 100% power level with
30 seconds' cooking time can be started by pressing
"START/+30SEC". Each press on the same button will increase
cooking time by 30 seconds. The maximum cooking time is 99
minutes and 99 seconds.
Note: During microwave cooking and time defrost, time can be added
by pressing "START/+30SEC." button.
▲
Weight Defrost Function
1. Press " WEIGHT DEFROST "once, and then the screen will display
"dEF1".
2. Press numerical buttons to input weight to be defrosted. Input the
weight ranged between 4~100 Oz.
3. Press "START/+30SEC." to start defrosting and the cooking time
remained will be displayed.
▲
Time Defrost Function
1. Press " TIME DEFROST " once, and then the screen will display
"dEF2".
2. Press number pads to input defrosting time. The range of effective
time is 0:01~99:99.
3. The default microwave power is power level 3. If you want to
change the power level, press " POWER " once, and the screen will
display "PL 3", then press the number pad of the power level you
wanted.
4. Press "START/+30SEC." to start defrosting. The remained cooking
time will be displayed.
▲
POPCORN
1. Press "POPCORN" repeatedly until the number you wish appears
in the display, "1.75", "3.2- " ,"3.5 -"Oz will display in order.
For example, press " POPCORN" once, "1.75" appears.
2. Press "START/+30 SEC." to cook, bu zzer sounds once. When
cooking finishes, buzzer will sound five times and then turn back
to waiting state.
EN-18
▲
POTATO
1. Press "POTATO" repeatedly until the number you wish appears in
the display, "1", "2", "3" will display in order.
"1"SET: 1 potato (approximate 8 Oz)
"2"SETS: 2 potatoes (approximate 16 Oz)
"3"SETS: 3 potatoes (approximate 24 Oz)
For example, press "POTATO" once, "1" appears.
2. Press "START/+30 SEC." to cook, buzzer sounds once. When
cooking finishes, buzzer sounds five times and then turn back to
waiting state.
▲
FROZEN VEGETABLE
1. Press "FRZ.VEG." repeatedly until the number you wish appears in
the display, "4.0 -", "8.0- ", "16.0 - " Oz will display in order.
For example, press "FRZ.VEG." once, "4.0- " appears.
2. Press " START/+30 SEC. " to cook, buzzer sounds once. When
cooking finishes, buzzer sounds five times and then turn back to
waiting state.
▲
BEVERAGE
1. Press "BEVERAGE" repeatedly until the number you wish appears
in the display, "1- ", "2 -", "3 -" cup will display in order. One cup is
about 120ml. For example, press " BEVERAGE " once, "1- " appears.
2. Press "START/+30 SEC." to cook, buzzer sounds once. When
cooking finish es, buzzer sounds five times and then turn back to
waiting state.
▲
DINNER PLATE
1. Press "DINNER" repeatedly until the number you wish appears in
the display, "9.0- ", "12.0 - ", "18.0- " Oz will display in order.
For example, press "DINNER PLATE " once, "9.0- " appears.
2. Press " START/+30 SEC." to cook, buzzer sounds once. When
cooking finishes, buzzer sounds five times and then turn back to
waiting state.
▲
PIZZA
1. Press "PIZZA" repeatedly until the number you wish appears in the
display, "4.0- ", "8.0- ", "14.0- " Oz will display in order.
For example, press "PIZZA" once, "4.0- " appears.
2. Press "START/+30 SEC." to cook, buzzer sounds once. When
cooking finishes, buzzer sounds five times and then turn back to
waiting state.
EN-19
▲
MEMORY FUNCTION
1. Press "0/MEMORY" to choose memory 1-3 procedure. The screen
will display 1, 2, 3.
2. If the procedure has been set, press " START/ +30 SEC. " to use it.
If not, continue to set the procedure. Only one or two stages can
be set.
3. After finishing the setting, press "START/ +30 SEC." once to save
the procedure. If press "START/ +30 SEC." again, it will start
cooking.
Example: To set the following procedure as the second memory, that
is memory 2.
To cook the food with 80% microwave power for 3 minutes and 20
seconds.
The steps are as follow:
1. In waiting states, press "0/MEMORY " twice, stop pressing until the
screen displays "2".
2. Press "TIME COOK" once, then press "3", "2", "0" in order.
3. Press " POWER" once, "PL10" displays, then press "8" and "PL8"
displays.
4. Press "START/ +30 SEC." to save the setting. Buzzer sounds once
and the screen will display "2". If you press "START/+30SEC."
again, the procedure will be saved as the memory 2 and operated.
5. If you want to run the saved procedure, in waiting state, press
"0/MEMORY" twice, screen displays "2", then press
"START/+30SEC." to run.
▲
Multi-stage cooking
At most 2 stages can be set for cooking. In multi-stage cooking, if one
stage is defrosting, then defrosting shall be placed at the first stage
automatically.
Note: Auto cooking cannot work in the multi-stage cooking.
Example: if you want to cook with 80% microwave power for 5
minutes + 60% microwave power for 10 minutes, you can follow these
cooking steps:
1. Press "TIME COOK" once, then press "5", "0", "0" to set the
cooking time;
2. Press "POWER" once, then press "8" to select 80% microwave
power.
3. Press "TIME COOK" once, then press "1", "0", "0", "0" to set the
cooking time;
4. Press "POWER" once, then press "6" to select 60% microwave
power.
EN-20
5. Press "START/ +30 SEC." to start cooking.
▲
LOCK FUNCTION FOR CHILDREN
Lock: In waiting state, press "STOP/CANCEL/ECO" for 3 seconds.
There will be a long "beep" denoting the entering into the children-
lock state; meanwhile, screen will display "
".
Lock quitting: In locked state, press "STOP/CANCEL/ECO " for 3
seconds. There will be a long "beep" denoting that lock is released.
▲
INQUIRING FUNCTION
1. In cooking state, if the clock has been set, press "CLOCK", and the
oven will display clock for three seconds.
2. In the microwave cooking state, press "POWER" to inquire
microwave power level, and the current microwave power will
be displayed. After three seconds, the oven will turn back to the
previous state. In multi-stage state, the inquiring way can be done
by the same way as above.
▲
COOKING END REMINDING FUNCTION
When the cooking is over, the buzzer will sound 5 "beep"s to alert
user the cooking is finished.
▲
OTHER SPECIFICATIONS
1. In standby state , if the set clock digital tube displays current time,
the icon " : " would flash; otherwise, it shows " 0:00 ".
2. In setting function state, the screen displays corresponding setting.
3. In working or pause state, the screen displays surplus cooking
time.
EN-21
MAINTENANCE
08
▲
Troubleshooting
Check your problem by using the chart below and try the solutions
for each problem. If the microwave oven still does not work properly,
contact the nearest authorized service center.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
(1). Electrical cord for
oven is not plugged
in.
(2). Door is open.
(3). Wrong operation is
set.
(1). Plug into the outlet.
(2). Close the door and try again.
(3). Check instructions.
Arcing or sparking
(1). Materials to be
avoided in microwave
oven were used.
(2). The oven is operated
when empty.
(3). Spilled food remains
in the cavity.
(1). Use microwave-safe cookware
only.
(2). Do not operate with oven
empty.
(3). Clean cavity with wet towel.
Unevenly cooked
foods
(1). Materials to be
avoided in microwave
oven were used.
(2). Food is not defrosted
completely.
(3). Cooking time, power
level is not suitable.
(4). Food is not turned or
stirred.
(1). Use microwave-safe cookware
only.
(2). Completely defrost food.
(3). Use correct cooking time,
power level.
(4). Turn or stir food.
Overcooked foods
Cooking time, power
level is not suitable.
Use correct cooking time,
power level.
EN-22
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Undercooked foods
(1). Materials to be
avoided in microwave
oven were used.
(2). Food is not defrosted
completely.
(3). Oven ventilation
ports are restricted.
(4). Cooking time, power
level is not suitable.
(1). Use microwave-safe cookware
only.
(2). Completely defrost food.
(3). Check to see that oven venti-
lation ports are not restricted.
(4). Use correct cooking time,
power level.
Improper defrosting
(1). Materials to be
avoided in microwave
oven were used.
(2). Cooking time, power
level is not suitable.
(3). Food is not turned or
stirred.
(1). Use microwave-safe cookware
only.
(2). Use correct cooking time,
power level.
(3). Turn or stir food.
PA:16170000A86904
EN-23
