Refrigerator
BOTTOM MOUNTED FREEZER SERIES
MDRB379FGD*
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER
------------------------------------------- 01
SPECIFICATIONS
------------------------------------------------- 02
PRODUCT OVERVIEW
------------------------------------------ 03
PRODUCT INSTALLATION
------------------------------------ 04
OPERATION INSTRUCTIONS
--------------------------------- 11
CLEANING AND MAINTENANCE
---------------------------- 15
TROUBLESHOOTING
------------------------------------------- 17
APPENDIX
---------------------------------------------------------- 19
02
SPECIFICATIONS
Product model MDRB379FGD
Rated Voltage / Frequency 220-240V~/50Hz
Rated Current 1.2A
Rated Lamp Power MAX 3W
Fresh Food Storage Compartment Volume 173L
Four-star Compartment Volume 100L
Temperature Rise Time 11h
Freezing Capacity 7kg/24h
Overall Dimension (WxDxH) 547x632x1800mm
Importer / Address: MIDEA HOME APPLIANCES UK LTD
Conavon Court Ground Floor, 12 Blackfriars Street, Salford,
Manchester M3 5BQ UK
03
PRODUCT OVERVIEW

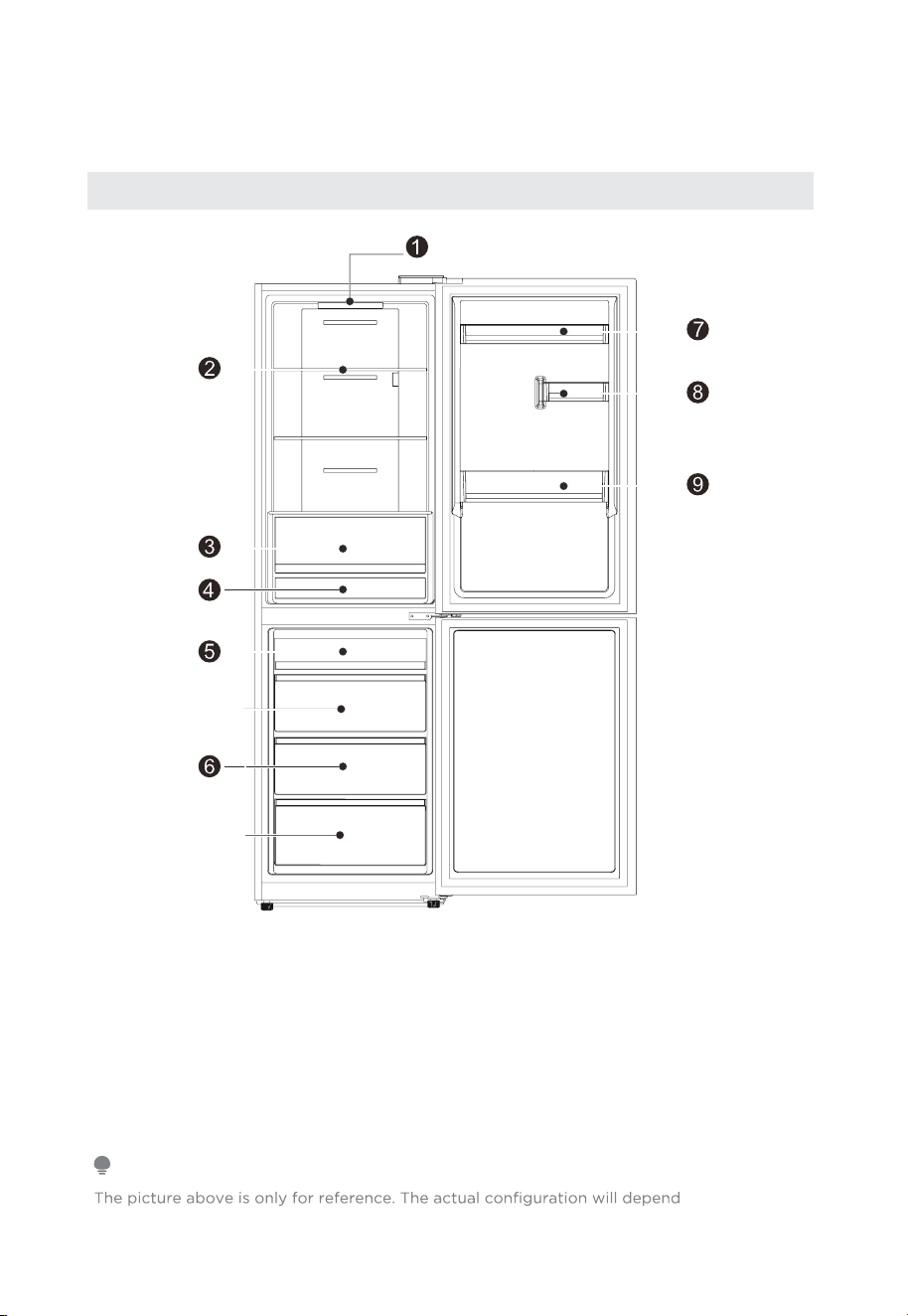

Names of components
1
LED Lamp
6
Drawer
2
Shelf
7
Door tray
3
Fruits and vegetables box
8
Small Door tray
4
Multifunctional space
9
Big Door tray
5
Pizza box
ATTENTION
on the physical
product or statement by the distributor
04
PRODUCT INSTALLATION

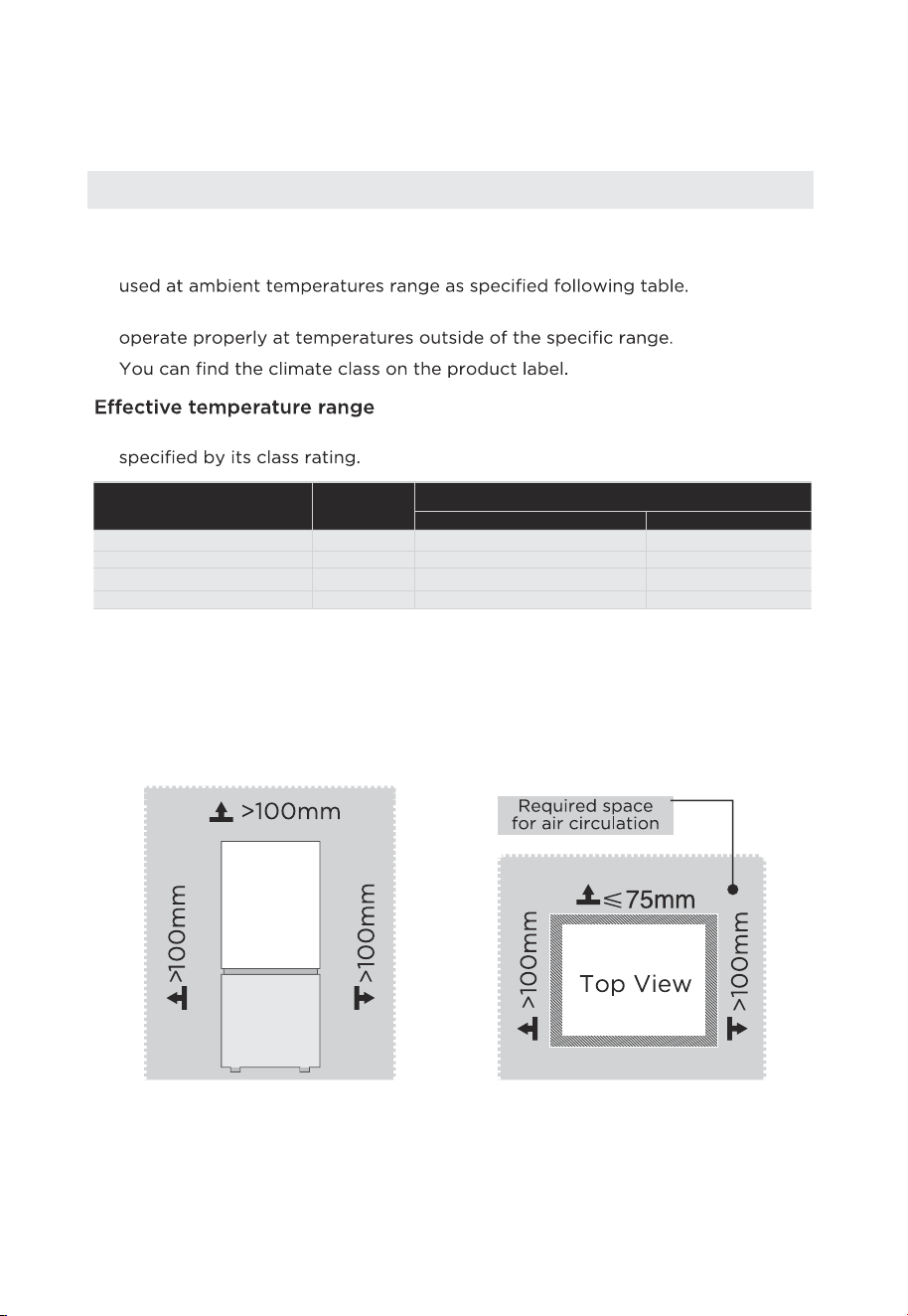

Install Instruction
For refrigerating appliances with climate class
• Depending on the climate class, this refrigerating appliance is intended to be
• The climate class can be found on the rating plate. The product may not
•
• The product is designed to operate normally in the temperature range
Class Symbol
Ambient temperature range °C
IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN + 10 to + 32 + 10 to + 32
Temperate N + 16 to + 32 + 16 to + 32
Subtropical ST + 16 to + 38 + 18 to + 38
Tropical T + 16 to + 43 + 18 to + 43
Dimensions and Clearances
• Too small of a distance from adjacent items may result in the degradation of
freezing capability and increased electricity costs. the refrigerator both sides
should be placed against the wall with a free distance more than 100mm, and
the refrigerator back against the wall distance not more than 75 mm.
05
•
product or statement by the distributor.
• To avoid injury to yourself or your property, we recommend that someone assist you during
the door reversal process.
Space requirement diagram (when the door is open and when the door is closed)
Width
Overall
Height
Depth
Width
doors open
125
o
Depth
doors open 125
o
A B C D E
547 1800 632 1040 865
Notice: All dimensions in
ATTENTION
125˚
06

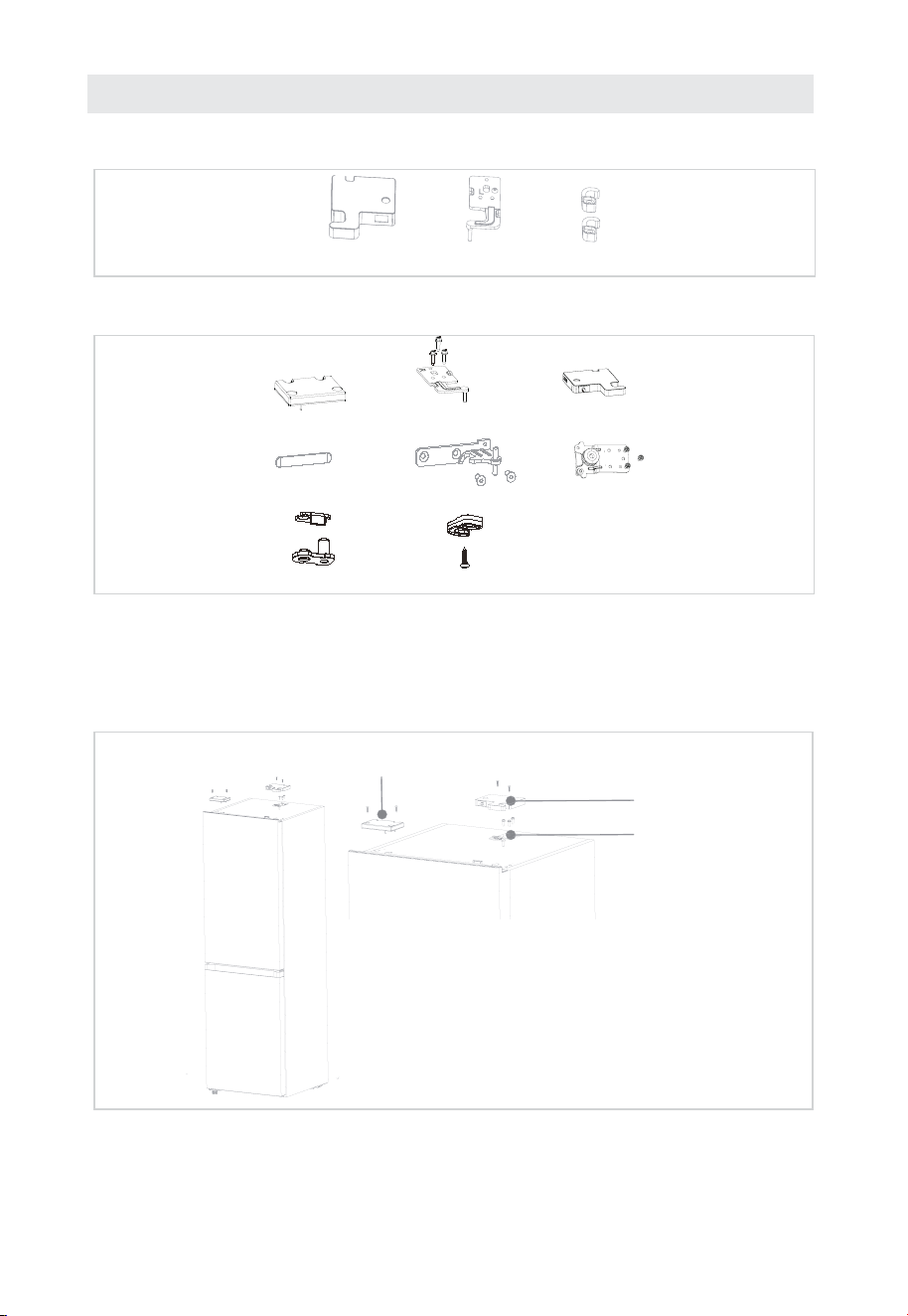

Doors reversal
Parts included with the hinge kit:
Parts already mounted on the refrigerator (as shipped):
Steps:
1. Power off the refrigerator, and remove all articles from the door trays.
2. Remove the upper left hinge cover decorative cover, upper right hinge cover
and upper right hinge,and disconnect the signal line at the top of the box
body.
3. Remove the refrigerated door body (be careful not to lose small parts such as
the shaft sleeve and stop on the door);
4. Remove the middle hinge and remove the decorative cover of hinge hole on
the other side.
L:Top hinge
R:Top hinge cover
Self-locking
L:Decorative cover
R:Top hinge
R:Top hinge cover
Middle hinge
Bottom hinge
M:Decorative cover
Door stop
Self-locking
R:Upper hinge cover
R:Upper hinge
L:Decorative cover
07

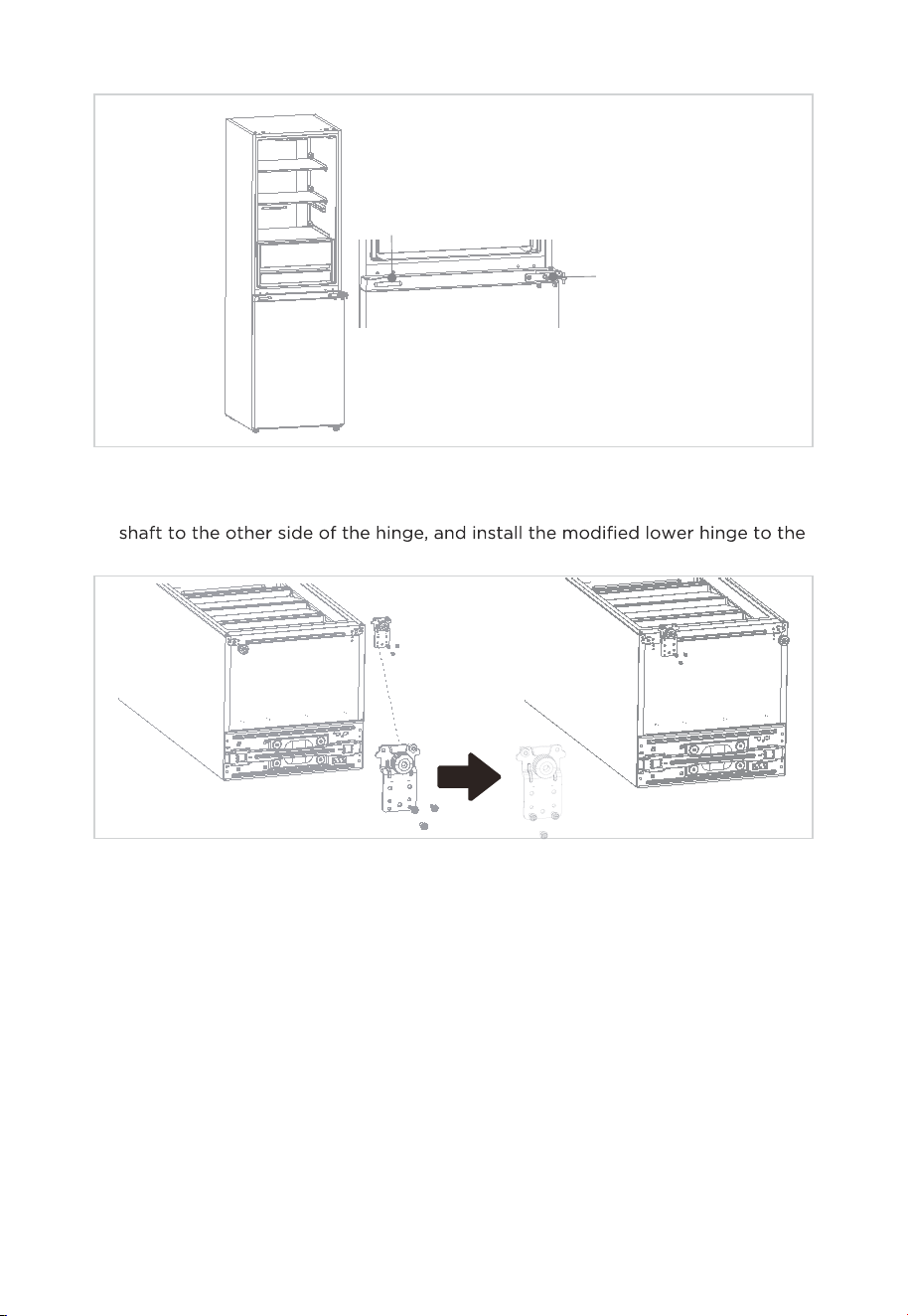

5. Remove the freezing door body (be careful not to lose small parts such as the
shaft sleeve and stop on the door);
6. Remove the hinge and adjust the angle. Remove and install the lower hinge
other side of the box.

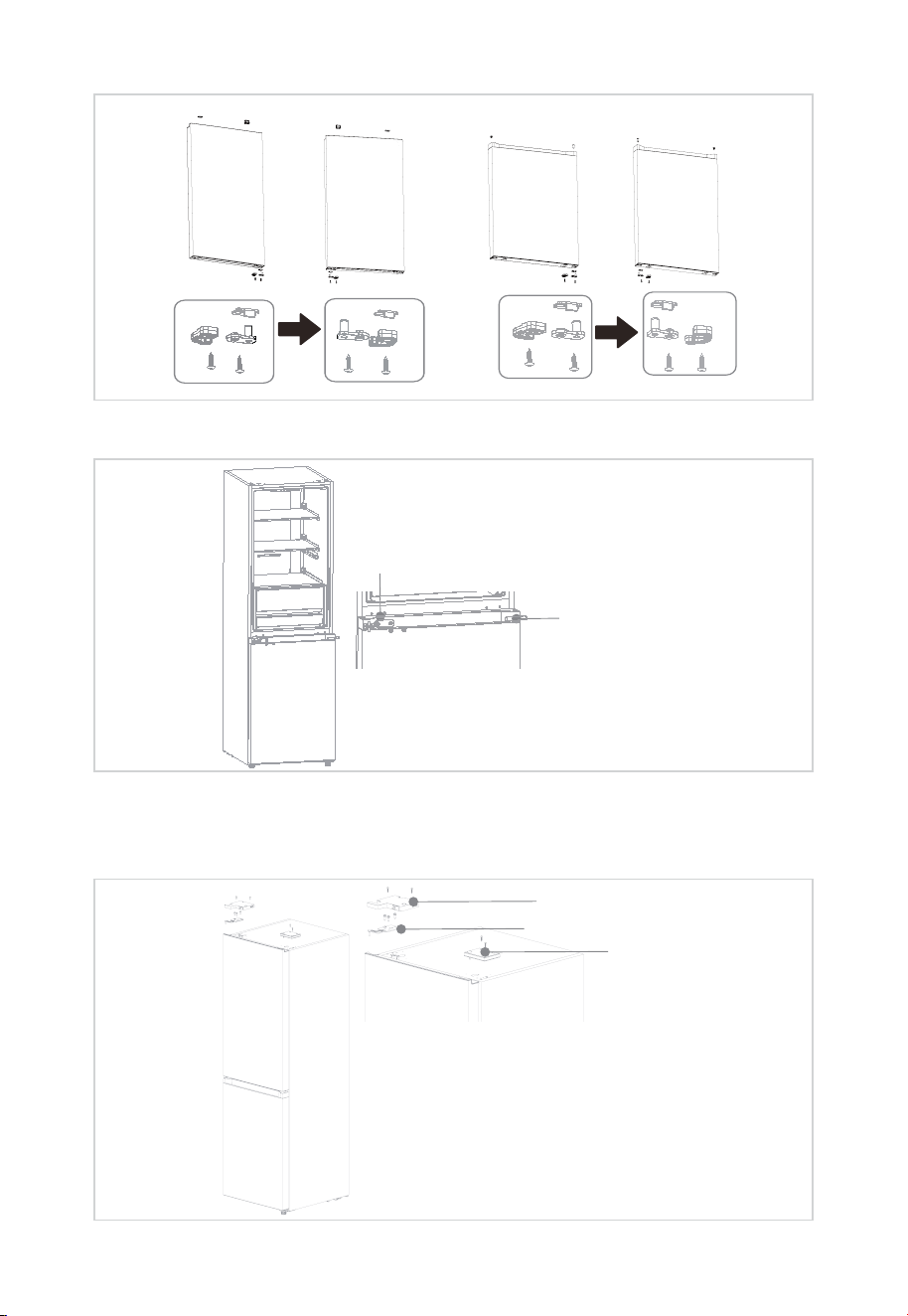

7. Change the refrigerator door:
• Remove the door stop and cap of the upper end cover of the refrigeration
door and install them at the left and right swap positions.
• Remove the door self-locking, door stop and shaft sleeve of the refrigeration
door, install them on the other side of the refrigeration door.
8. Change the freezing door:
• Remove the shaft sleeve and cap of the upper end cover of the freezing door
and install them at the left and right swap positions.
• Remove the door self-locking, door stop and shaft sleeve of the freezing door,
install them on the other side of the freezing door.
Middle hinge
M:Decorative cover
08
9. IInstall the replaced freezing door on the lower hinge, then install the middle
hinge and cover the hinge hole decorative cover.
10. Remove the shaft sleeve and cap of the upper end cover of the freezing door
and install them at the left and right swap positions.
11. Remove the door self-locking, door stop and shaft sleeve of the freezing door,
install them on the other side of the freezing door.
L:Upper hinge
L:Upper hinge cover
R:Decorative cover
M:Decorative cover
Middle hinge
09
Adjustable foot
• To avoid vibration, the applicance must placed horizontal.
• If required, adjust the adjustable foot to keep the applicance horizontal.
• The front should be slightly higher than the rear to avoid the door open.
• Adjustable foot can be turned easily by raise the applicance slightly.
• Turn the adjustable foot counterclockwise
to raise the unit, clockwise
to lower it.
Moving the appliance
• Remove all food from the appliance.
•
or on top of the appliance.
• Fix parts with tape to prevent sheves and the door handle from falling off while
moving the appliance.
• Move the appliance carefully with more than two person. If move the appliance
over a long distance, keep the appliance upright.
• After installing the appliance, put the power plug on a socket again.
ATTENTION
Precautions before operation:
Before making changes the refrigerator must be disconnected from power.
precautions should be taken to prevent any personal injury.
Changing the light
• Any replacement or maintenance of the LED lamps is intended to be made by
•
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
10
Tips for energy saving
• Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for
longer, resulting in increased energy consumption.
•
ppliance, on the sides
of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter “Installation”.
• The arrangement of drawers, shelves and racks as shown in the illustration offers the
s far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should
be removed last if necessary.
• s to optimal energy
use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
• oss. Opening the door
• The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
11
OPERATION INSTRUCTIONS

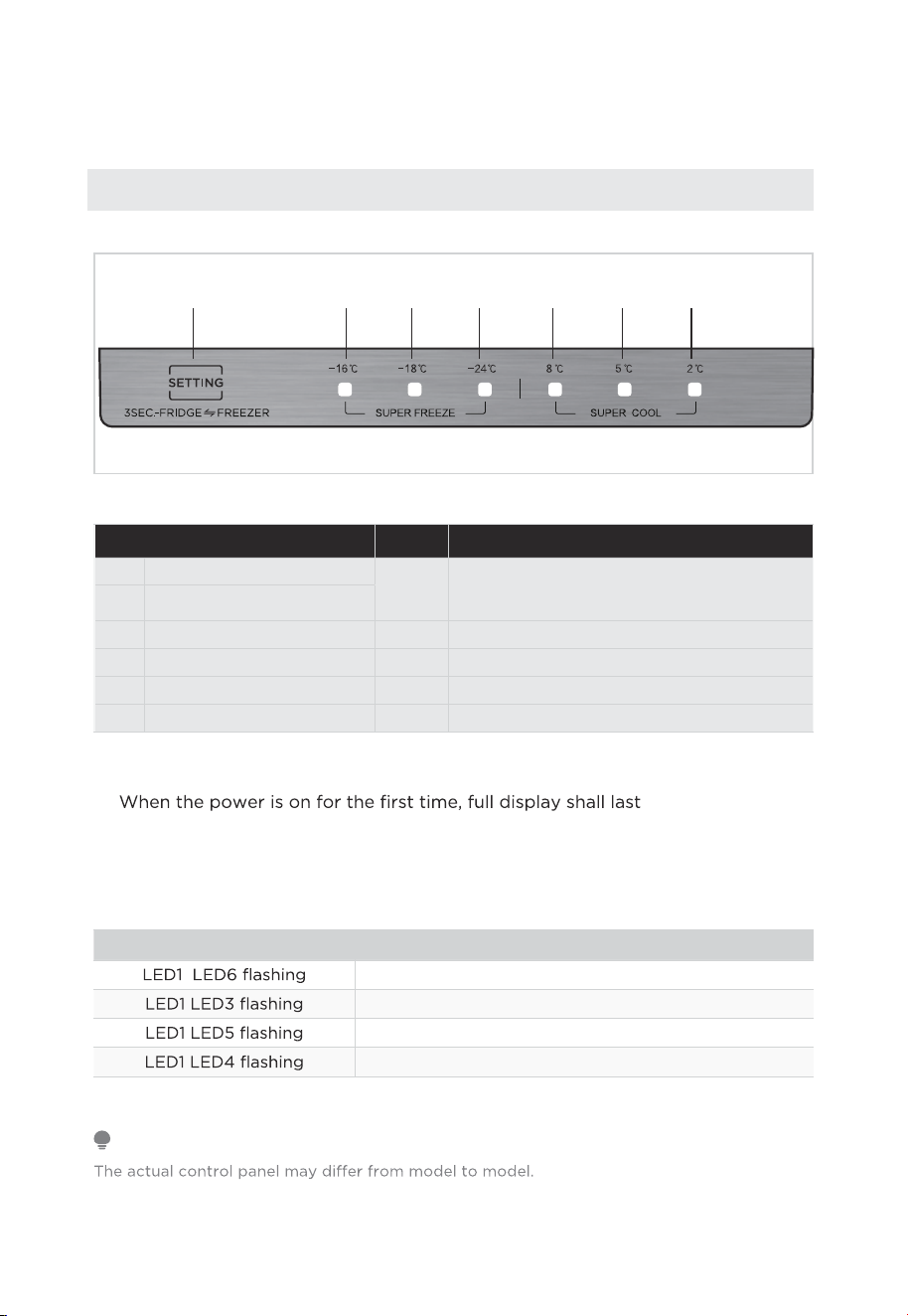

Control panel
Display Button
1
LED 1 : -16
℃
A
Temperature setting
2
LED 2 : -18
℃
3
LED 3 : -24
℃
4
LED 4 : 8
℃
5
LED 5 : 5
℃
6
LED 6 : 2
℃
Display
•
for 3 seconds, then
enter into the normal operation display;In case of a failure, the corresponding
LED blinks.
• In case of no failures, it shows the actual temperature setting of refrigerator.
Fault Code Fault Description
Refrigerator temperature sensor fault
Freezer temperature sensor fault
Frozen defrosting sensor fault
Ambient temperature fault
ATTENTION
LED 1
LED2 LED3
LED4 LED 5
LED6
Setting key
12
Temperature setting
• After each key operation of temperature adjustment , the corresponding set
• In the refrigeration temperature setting mode, long press the setting key
for 3S to switch to the freezing temperature setting mode
.
• When setting the freezer temperature, the temperature will cycle in the
following order each time the setting key is pressed. In the super freeze state,
LED1 and LED3 will light up at the same time,as shown below:
• In the freezing temperature setting mode, long press the setting key for
3S to switch to the refrigeration temperature setting mode.
• When setting the refrigerating temperature, the temperature will cycle in the
following order each time the setting key is pressed. In the super cool state,
LED4 and LED6 will light up at the same time as shown below:
ATTENTION
The Super freeze function is designed to maintain the nutritional value of the food in the
freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one
time, it is recommended that the user turn on the Super freeze function and put the food in.
At this time, the freezing speed of the freezer compartment is increased, which can quickly
5℃ 8℃
2℃
24 -18 -16
13
Tips on storing food
Freezer compartment
• The freezer is designated for the storage of food frozen at very low temperature,
long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing
hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• ut them into parts
that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be
followed. If there is no information on the packaging, food should not be stored for
longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable
temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be
returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that
it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the
thermostat setting, the frequency of opening the door of the freezer, the type of
food and the time of transporting the product from the shop to the household.
Always follow the instructions printed on the packaging and never exceed the
maximum storage time stated on the package.
• To freeze fresh food activate the Super freeze function at least 12 hours before
placing the food to complete pre-freezing.
Cooling compartment
• To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
• ool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
• e placed in the
refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
Recommended Temperature
The optimal temperature setting for food storage:
• Fridge: 5 °C , Freezer: -18 °C
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
ATTENTION
14

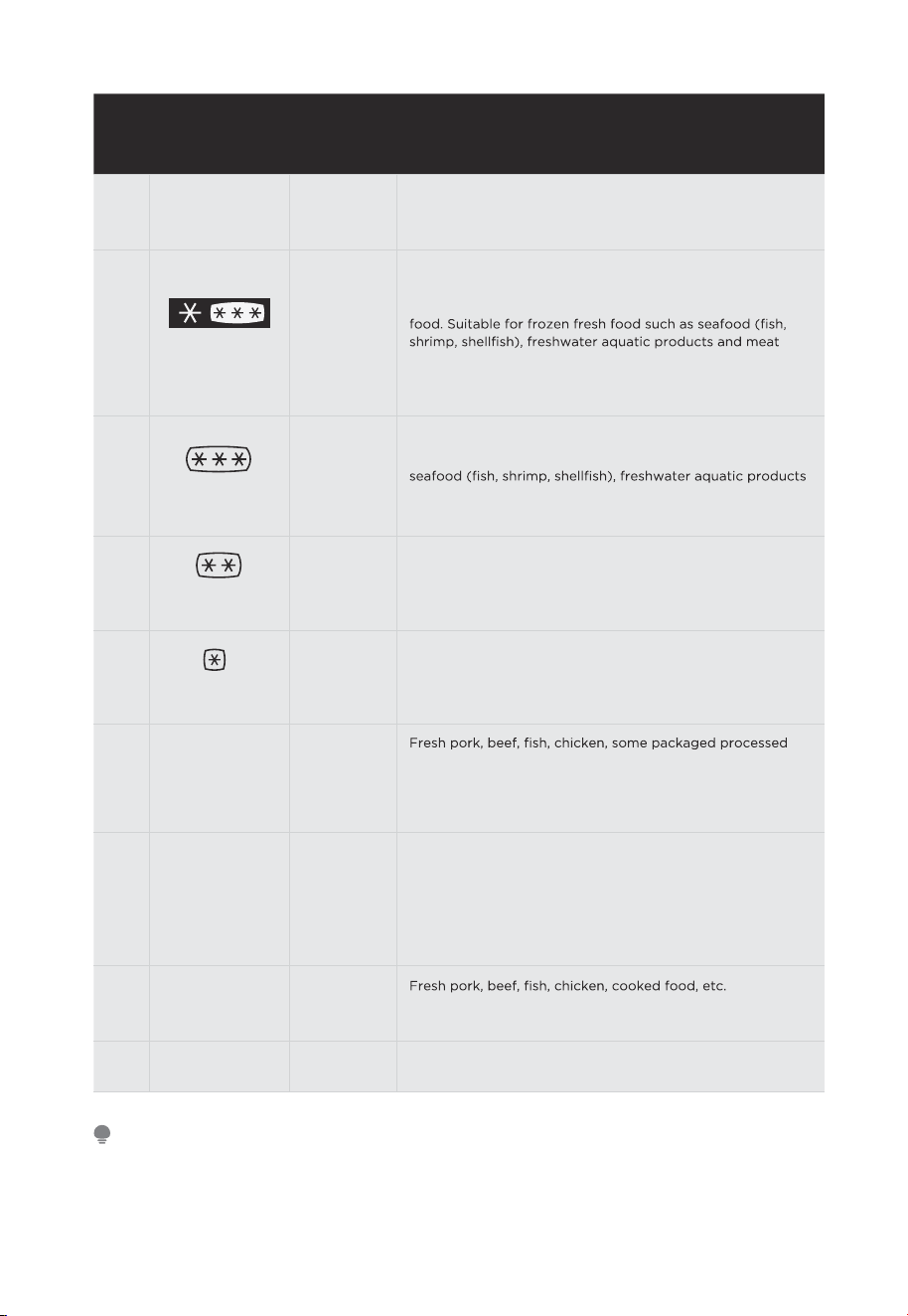

Order
Compartments
TYPE
Target stor-
age temp.
[°C]
Appropriate food
1 Fridge +2
≤
x
≤
+8
Eggs, cooked food, packaged food, fruits and vegetables,
dairy products, cakes, drinks and other foods not suitable for
freezing.
2
Four-star rating
frozen
x
≤
-18
With freezing capacity, fast freezing speed, caWith freezing
capacity, fast freezing speed, can quickly freeze and store
products. Recommended for 3 ~ 6 months, the longer the
storage time, the worse the taste and nutrition.
3
Three-star rating
frozen
x
≤
-18
With freezing capacity. Suitable for frozen fresh food such as
and meat products. Recommended no more than 3 months.
4
Two-star rating
frozen
x
≤
-12
Only suitable for medium-term storage of already frozen
food, e.g. ice cream. Recommended no more than 1 month.
5
One-star rating
frozen
x
≤
-6
Only suitable for refrigeration, and short-term storage of
small quantities of already frozen food. Recommended no
more than 1 week.
6 0-star -6
≤
x
≤
0
foods, etc. (Recommended to eat within the same day,
preferably no more than 3 days).
Partially encapsulated processed foods (non-freezable
foods).
7 Chill -2
≤
x
≤
+3
Fresh/ frozen pork, beef, chicken, freshwater aquatic
products, etc. (7 days below 0°C and above 0°C is
recommended for consumption within that day, preferably
no more than 2 days).
Seafood less than 0 for 15 days, it is not recommended to
store above 0°C.
8 Fresh food 0
≤
x
≤
+4
(Recommended to eat within the same day, preferably no
more than 3 days)
9 Wine +5
≤
x
≤
+20
Red wine, white wine, sparkling wine, etc.
ATTENTION
please store different foods according to the compartments or target storage temperature of
your purchased
15
CLEANING AND MAINTENANCE
Defrosting
• Refrigerator shall be manually defrosted.
• Disconnect the plug from the wall socket, open the door and remove all the
food to a cool place. It is recommended to remove the frost by a plastic
scraper, or let
• the temperature rise naturally until the frost melts. Then wipe away the
remaining ice and water, and plug in socket for switching on the refrigerator.

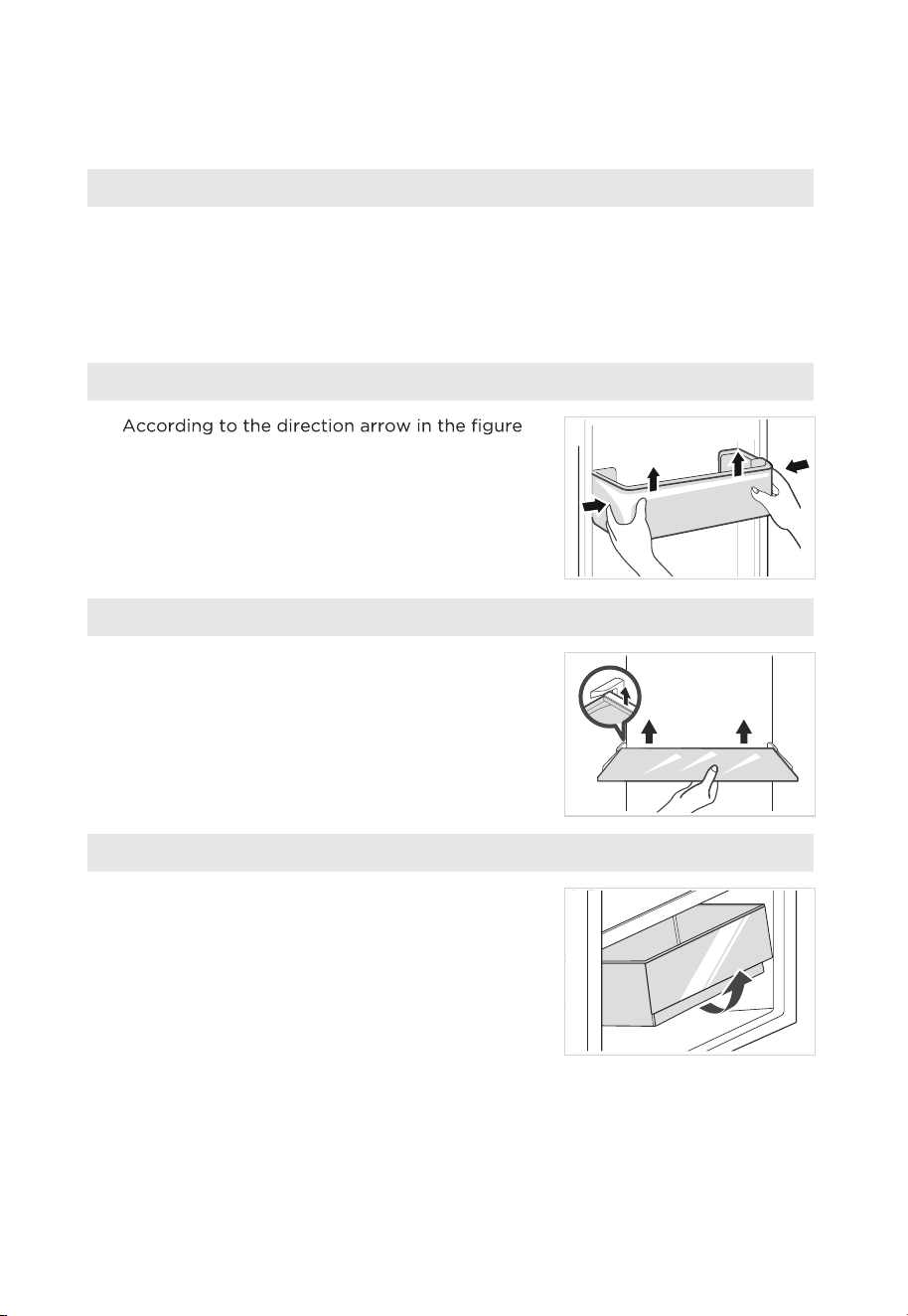

Cleaning of the door tray
•
below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
• After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of the glass shelf
• As the innermost part of the refrigerator liner
where contacting the shelves has a backstop,
you shall raise the shelves upward, then you
can be able to take it out.
• Adjust or clean the shelves according to your
requirement.
Cleaning of the Fruits and vegetables box
• Remove the contents of the drawer. Hold the
handle of the vegetable drawer and pull it out
completely until it stops.
• Lift the vegetable drawer up and remove it by
pulling it out.
16
Out of operation
Power failure:
• In case of power failure, even if it is in summer, foods inside the appliance can
be kept for several hours; during the power failure, the times of door opening
shall be reduced, and no more fresh food shall be put into the appliance.
Long-time nonuse:
• The appliance shall be unplugged and then cleaned; then the doors are left
open to prevent odor.
Moving:
•
partitions, vegetable holder, freezing chamber drawers and etc. with tape,
and tighten the leveling feet; close the doors and seal them with tape. During
moving, the appliance shall not be laid upside down or horizontally, or be
vibrated; the inclination during movement shall be no more than 45°.
CAUTION
The appliance shall run continuously once it is started. Generally, the operation of the
appliance shall not be nterrupted; otherwise the service life may be impaired.
Foods can be preserved for a couple of hours even in summer in case of power failure; it
is recommended to reduce the frequency of opening door.
17
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact
• Check whether the voltage is too low
• Check whether there is a power failure or partial circuits have
tripped
Odor
• Odorous foods shall be tightly wrapped
• Check whether there is any rotten food
• Clean the inside of the refrigerator
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer
• when the ambient temperature is high it is not suggestible
having too much food in the appliance at the same time
• Food shall get cool before being put into the appliance
• The doors are opened too frequently
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged
• Have the light replaced by a specialist
Door can not be
properly closed
• The door is stuck by food packages too much food is placed
• The refrigerator is tiltedr.
Loud noises
•
is placed stably
• Check whether accessories are placed at proper locations
18
Problem Possible reason
Door seal fails to be
tight
• Remove foreign matters on the door seal
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating)
• There is too much food in the chamber or food stored
contains too much water, resulting in heavy defrosting
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal when housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during operation,
and the buzzes are loud particularly upon start or stop. This is
normal.
•
produce creak, which is normal.
19
APPENDIX
Special for new European standard
The ordered parts in the following table can be acquired from Service provider
channel
Ordered part Provided by
Minimum time required for Provision
Thermostats Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Temperature
sensors
Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Printed circuit
boards
Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Light sources Professional maintenance
personnel
At least 7 years after the last model is
launched on the market
Door handles Professional repairers and
At least 7 years after the last model is
launched on the market
Door hinges Professional repairers and
At least 7 years after the last model is
launched on the market
Trays Professional repairers and
At least 7 years after the last model is
launched on the market
Baskets Professional repairers and
At least 7 years after the last model is
launched on the market
Door gaskets Professional repairers and
At least 10 years after the last model is
launched on the market
Dear customer
1. If you want to return or replace the product, please contact the store where you
buy.
(Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales
service provider.
ATTENTION
The model information inthe product database, as well as the model identi
obtained througha weblink scanned by a QR code, if any, on the
product.
s://ec.europa.eu
and search using the model name
.
The model name can be found on the rating label of the appliance.
