SAFETY PRECAUTIONS
INSTALLATION
INTRODUCTION
OPERATION
CLEANING & MAINTENANCE
TROUBLESHOOTING
WARRANTY
01
05
07
10
11
14
15
SAFETY PRECAUTIONS
This manual contains the product’s basic knowledge, use instruction, fault diagnosis and basic
troubleshooting methods. In order to better understand and use this product, please take good care
of this manual and read it carefully.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to
minimize risks that could cause serious damage and injury.
Warnings and important instructions appearing in this guide are not meant to cover all possible
conditions and situations that may occur. Common sense, caution, and care must be exercised
when installing, maintaining, or operating your appliance.
Basic Safety & Warning
Take care during operation, maintenance or repairs to avoid cuts or pinching from any part /
component of the cabinet.
Ensure the unit is properly installed and located in accordance with this User Manual before use.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervi-
sion or instruction concerning use of the appliance by a person responsible for their safety.
DO NOT allow children to play with the appliance or climb, stand, or hang on the unit’s shelves to
prevent damage to the refrigerator and personal injury.
Cleaning and user maintenance shall not be made by children without supervision.
When the cooler will be not be used for a long time, disconnect the power and clean it. Please
examine the circuit before reuse.
Strong base, strong acid, organic solvent and corrosive goods or those are easy to pollute to food
are prohibited storing in the cooler, otherwise, it can cause corrosive problem or accident.
DO NOT use other electrical appliances inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
Refrigerant Safety & Warning Information
CAUTION! Keep all ventilation openings clear of obstruction in the appliance enclosure or in
the structure housing the appliance.
DANGER! Risk of fire or explosion. Flammable refrigerant used. Do not damage the
refrigerant circuit. Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
DANGER! Risk of fire or explosion. Flammable refrigerant used. Read this User Manual
before attempting to service this product. All safety precautions must be followed. Dispose of
properly in accordance with local and federal regulations. Follow all safety precautions.
CAUTION! Do not store any explosive substance such as aerosol cans with a flammable
propellant into this appliance.
Risk of Electric Shock!
ATTENTION! As long as the power plug is in the electrical socket the appliance is connected to the
electric grid.
The appliance shall be disconnected from its power source during cleaning or maintenance and when
replacing parts.
The LED light must not be replaced directly by the user! If the light is damaged, please contact the
customer service for assistance.
Make sure the power cable is free from entanglement, or come in contact with sharp or hot objects
and keep away from open fire.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Risk of Explosion!
DO NOT store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
Precautions for Installation
DANGER! RISK OF CHILD ENTRAPMENT
Before you throw away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
The symbol is a warning and indicates the refrigerant and insulation blowing
gas are flammable.
Warning - Risk of fire / flammable materials.
Warning - Do not store explosive substances such as aerosol cans with a
flammable propellant in the unit.
Warning - Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
Warning - The refrigerant and insulation blowing gas are flammable. When
disposing of the appliance, do so only at an authorized waste disposal center.
Do not expose to flame.
Installation should be performed only by the dealer or a qualified expert. Attempting
to install the unit yourself could result in water leakage, refrigerant leakage,
electrical shock, or fire.
Precautions for Use
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform these
yourself could result in a fire, malfunction,
and injury.
Never splash water directly onto the
product or wash with water as short-circuit
and electrical leakage could result.
Never put flammable or volatile
substances into the unit as explosion
and fire could result.
Use a dedicated wall outlet. Do not use
extension cords or convenience
receptacles as this could result in
electrical shock, overheating and a fire.
The cooler is intended for storage and
display of beverages for sale. Do not use
for other purpose than intended as this
could adversely affect items placed in
the unit.
For indoor use only. Using the unit in a
location exposed to rain could result in
electrical leakage and electrical shock.
Never place heavy objects or items
containing water on top of the unit.
Objects could fall down and cause injury
and spilled water could deteriorate the
insulation of electrical components and
result in electrical leakage.
Never attempt to insert fingers, sticks,
etc. Into the cold air suction outlet while
a circulation fan is rotating at high speed
inside the outlet. Injury, electrical shock
and improper operation could result.
Never use flammable spray cans or leave
flammable substances near the unit.
Sparks from electrical switches could
result in explosion and fire.
Do not damage, modify, excessively bend,
strain, twist, or bundle up the power cord.
Also, placing heavy objects the power
cord or squeezing it in a tight place could
damage it, possible resulting in electrical
shock or fire.
Install the unit in a location where the
floor is sturdy enough to support the load
of the unit. If the floor is not sturdy
enough or installation is incorrectly
performed, the unit could tip over and
falling shelves and products could cause
personal injury.
If you find gas leakage, please don't
touch the appliance. Turn it off and open
the doors and windows for ventilation.
Gas leakage could cause explosion, fire,
and fire injury.
Store the unit in a location where it is not
exposed to rain. Using a unit that has
been exposed to rain could result in
electrical leakage and electrical shock.
WELL VENTILATED PLACE
Please make sure there is more than
10cm / 4” space between UPRIGHT COOLER
and the wall. If there Is no space, cooling
capacity can drop down.
Keep away from hot air sources. Cooling
performance is reduced if the unit is
placed near heat sources such as hot
plates and stoves and if it is exposed to
direct sunlight.
Should the unit need temporary storage,
make sure not to store the unit in a
location where children play and take
precautions so that the door cannot be
completely closed. This will minimize the
risk that a child becomes trapped inside
the compartment.
Leave disassembly and disposal of the
unit to qualified experts.
If installation in a damp location is
unavoidable, also install an electrical
leakage circuit breaker. If no electrical
leakage circuit breaker is installed,
electrical shock could result.
Never hang from the door or climb onto
the unit. The unit could tip over or fall
and cause material damage or injury.
Disconnect the power cord plug from the
wall outlet before moving the unit and
make sure that the power cord is not
damaged during transport. A damaged
power cord could result in electrical
shock and/or fire.
Grasp the handle when closing the door.
Holding at other positions could result in
pinched fingers and injury.
When disconnecting the power cord plug
from the wall outlet, hold at the plug
main body close to the outlet. Pulling the
cord could cause wire breakage,
possibly resulting in overheating and fire.
Do not push hand against or apply
excessive force to glass surfaces as
the glass could break and cause
injury.
Make sure that the unit does not tip
over or fall when it is moved. A falling
unit could cause serious injury.
Be sure to attach and secure shelves
correctly. An improperly attached
shelf could fall down and cause injury.
Do not throw items onto the shelves and
do not place items totaling more than
25kg / 55lb on each shelf. The shelf could
fall down, possibly causing injury.
INSTALLATION
Unpacking
Guides to Choose Location
● There are M6 screws on the front and back of the pallet to fix the product. You need to use a spanner to
remove the screws before move the product from the pallet.
● Remove shipping package, tape, etc, and leave doors open to ventilate for a while.
● The unit is for indoor application only. Outdoor use may cause decreased efficiency and a damage to the unit.
● To ensure the refrigerant and oil in the cooling system has precipitated properly, keep the appliance in the
upright position for several hours before switching it on. If the appliance was tilted horizontally prior to or during
delivery, keep it upright for at least 48 hours before switching it on.

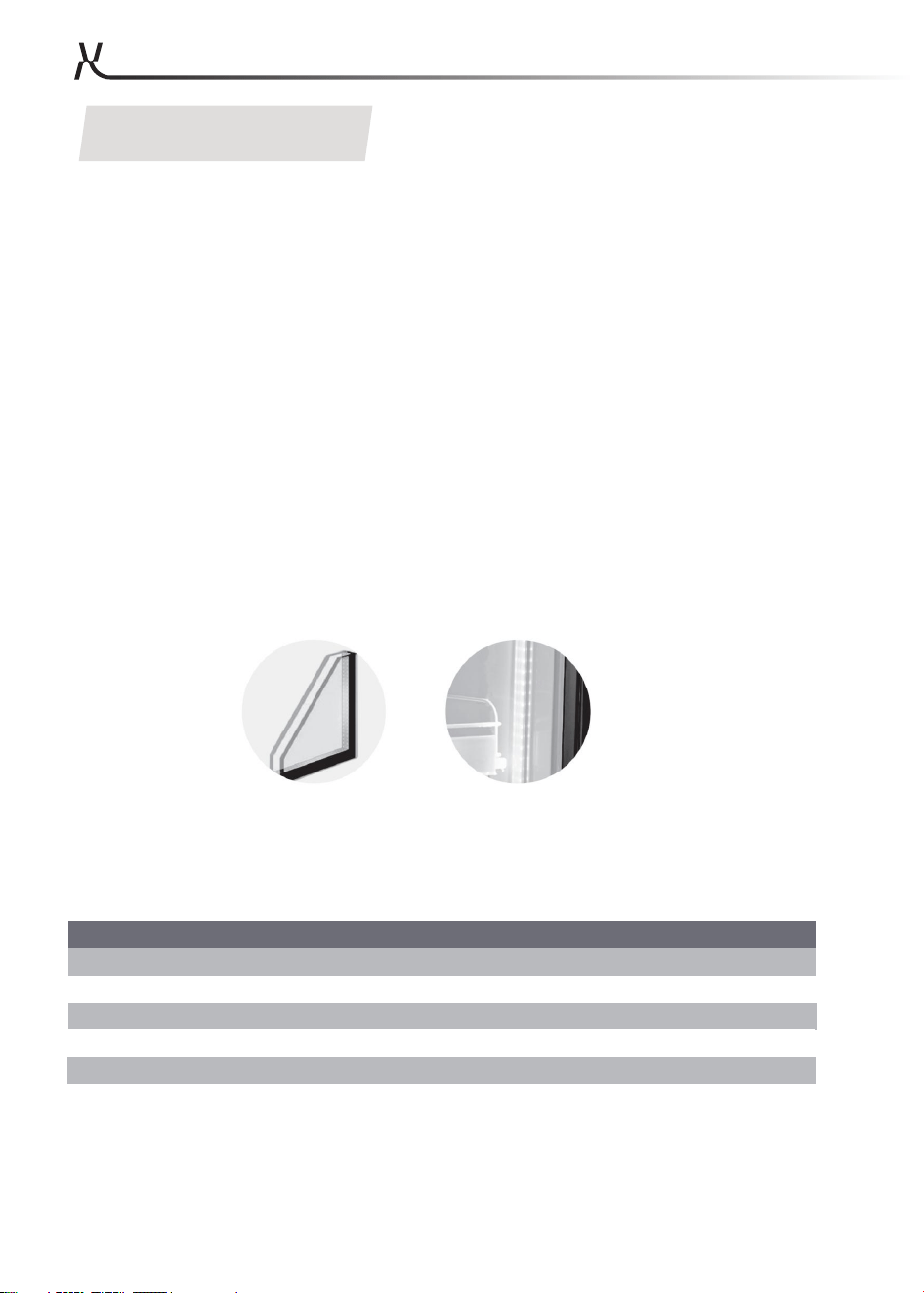

Due to the fact that the unit has a glass door, its performance is highly influenced by environmental conditions.
To minimize the effects on the unit’s performance, the following are recommended:
● The appliance must be positioned on a flat and stable surface. If the surface is uneven, the unit may be
noisy. The unit may malfunction if the surface is uneven.
● The unit is not exposed to direct sunlight, or is not to be placed near any kind of heat source such as a
cooker, oven or radiator. Place the refrigerator in the coolest and best ventilated part of the room.
● The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/or
windows.
● When positioning the appliance, maintain a distance of 10 cm / 4” between the appliance and walls or other
objects for ventilation and ease of use.
● Keep all ventilation openings in the appliance enclosure or in the structure clear of obstruction.
● In order to reduce fire hazard, the installation of this appliance must be carried out only by a suitably
qualified person.
● Position the appliance in such a way that the plug is accessible at all times.

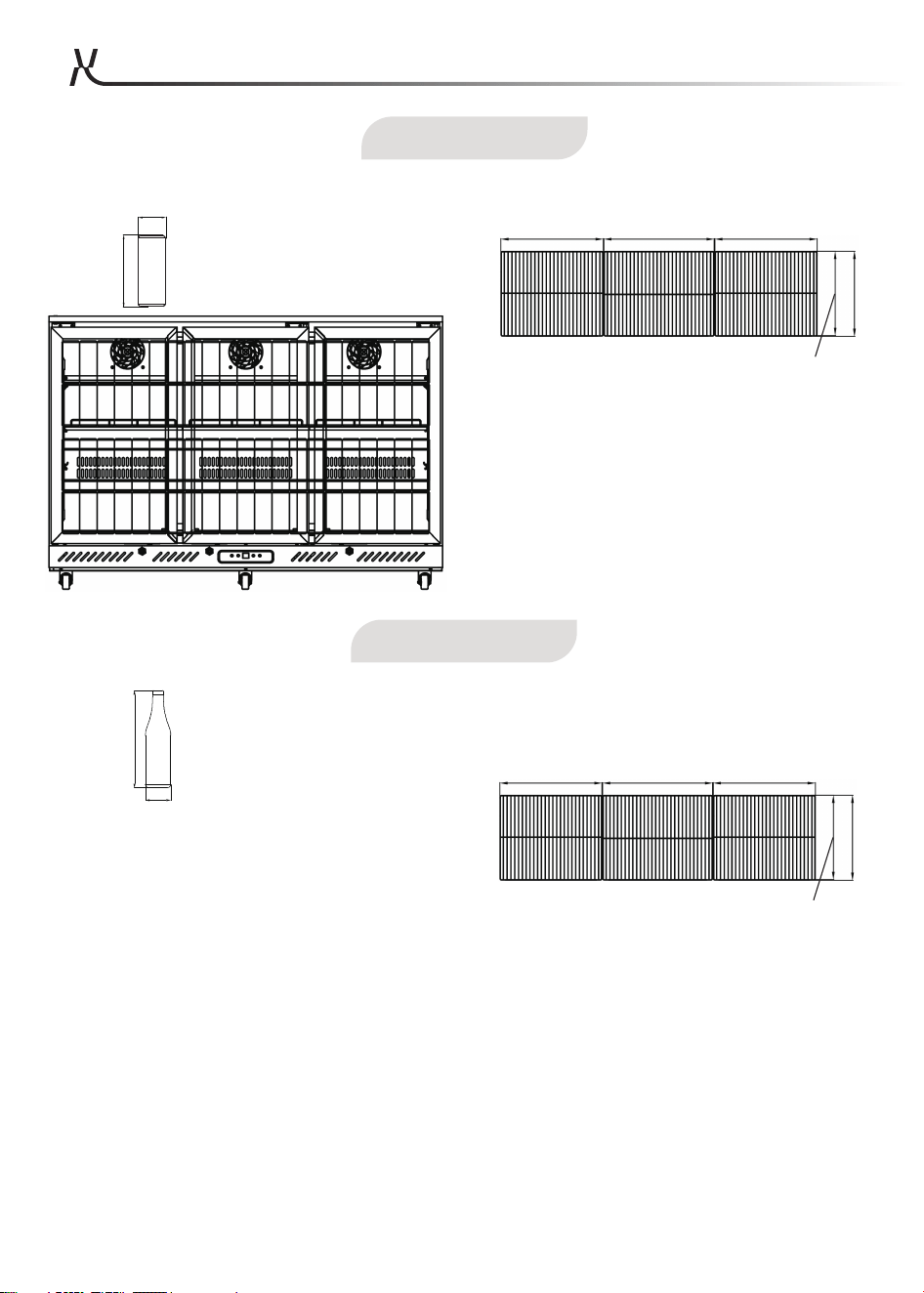

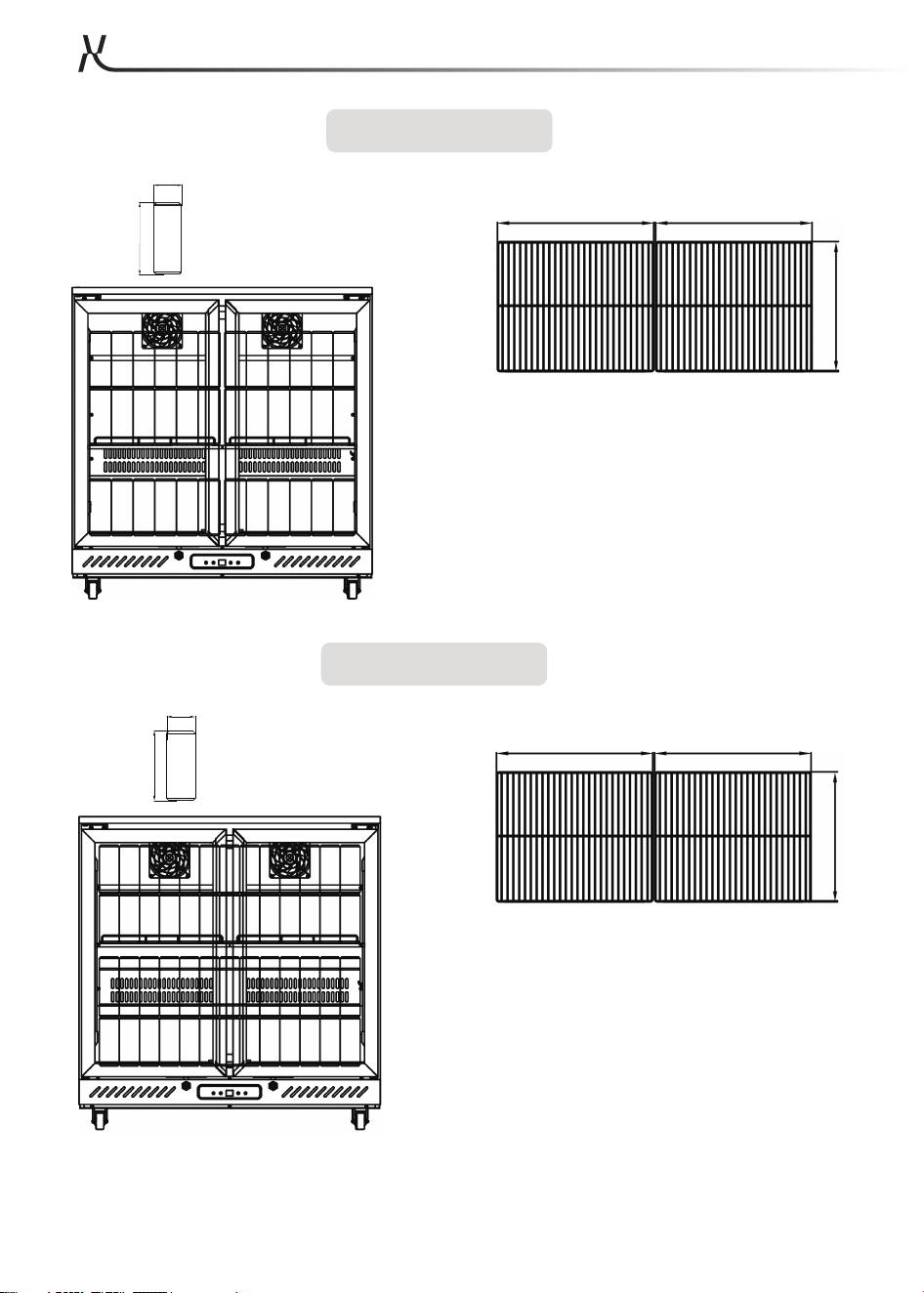

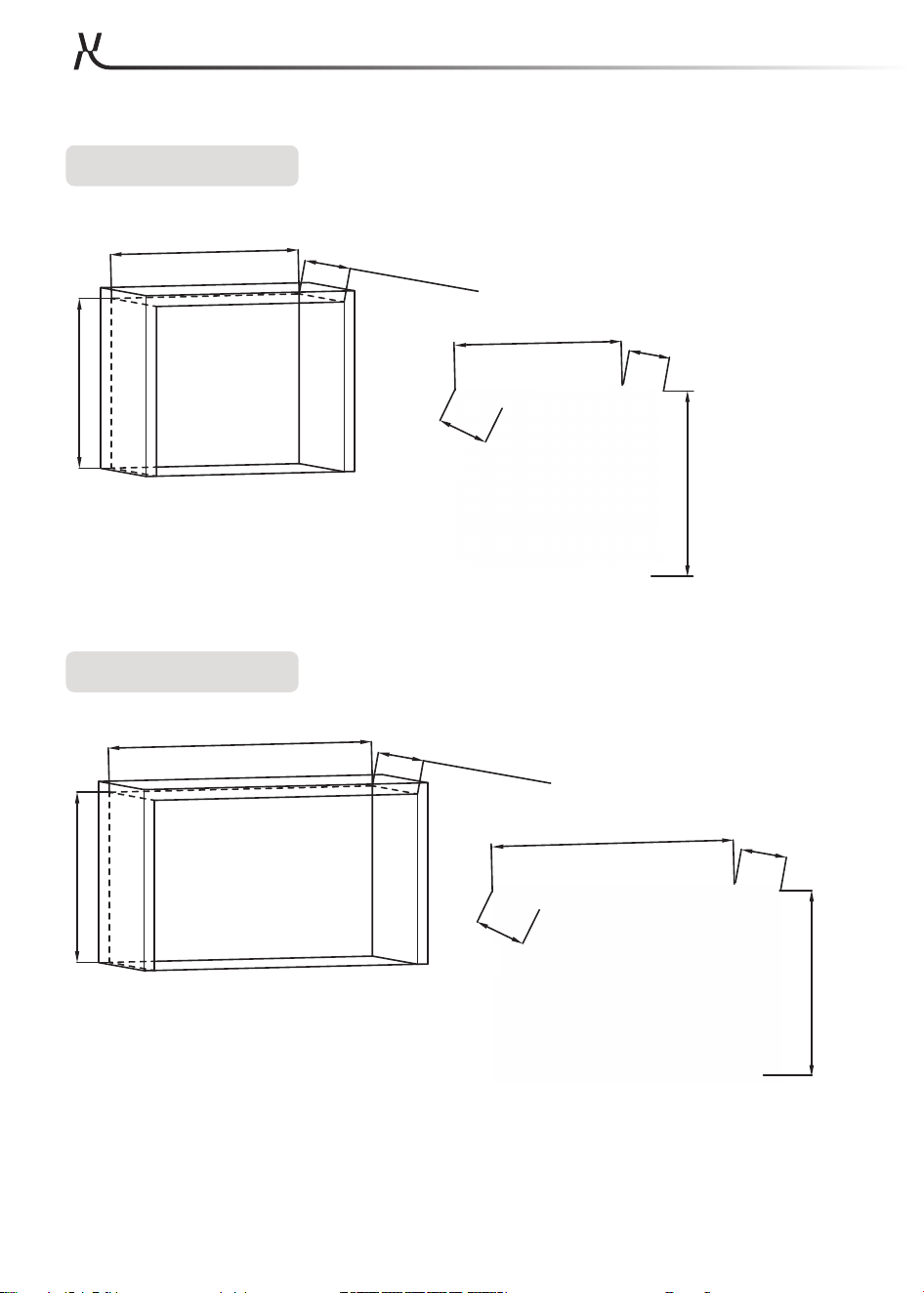

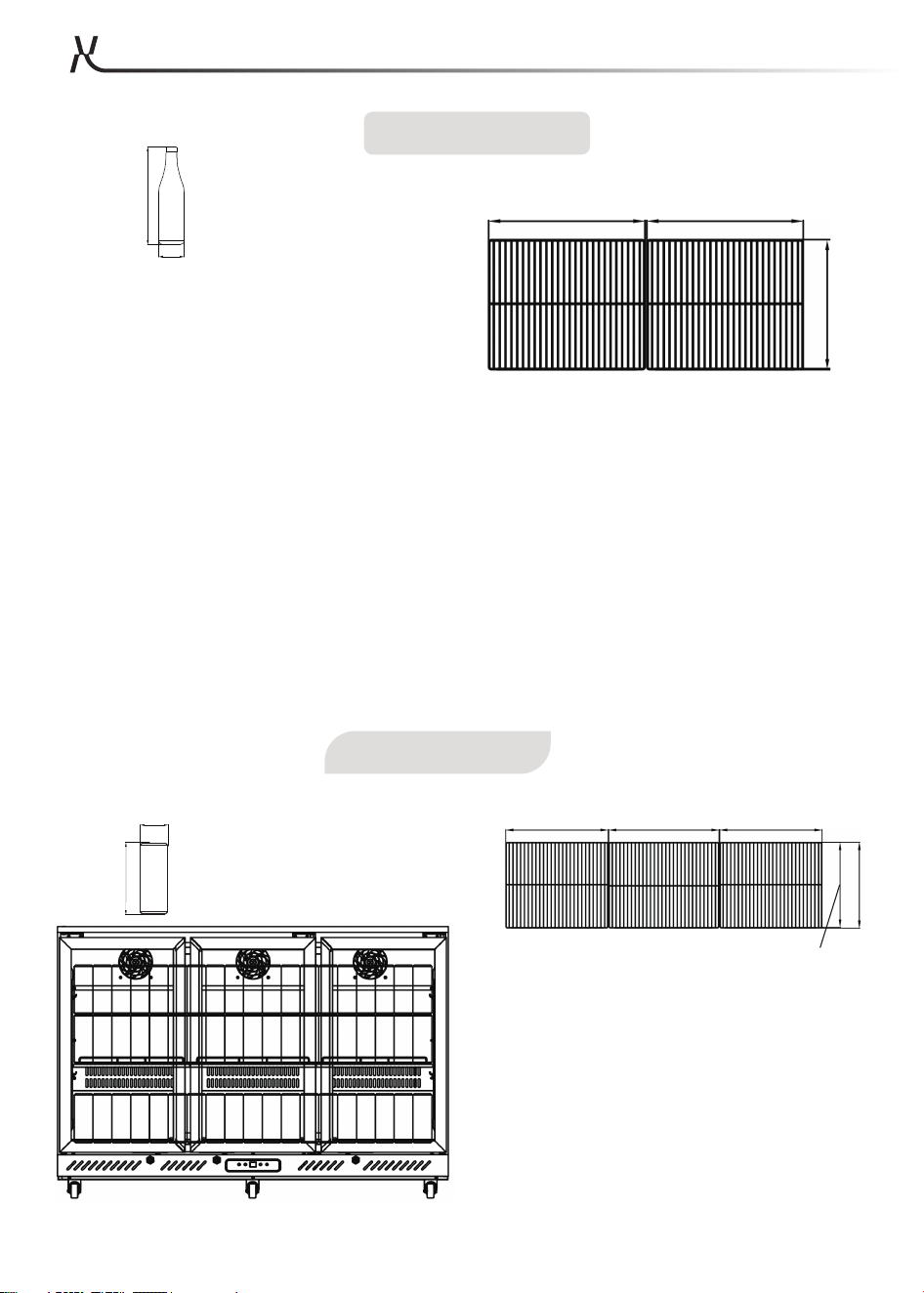

Openings & Plan Views
MODEL: BTC-210FC
1000mm/39.37inch 1000mm/39.37inch
1550mm/60.02inch
1100mm/43.31inch
645mm/25.39inch
645mm/25.39inch
530mm/20.87inch
MODEL: BTC-320FC
935mm/36.81inch
1350mm/53.15inch
545mm/
21.46inch
530mm/20.87inch
935mm/36.81inch
900mm/35.43inch
545mm/
21.46inch
Electrical Safety

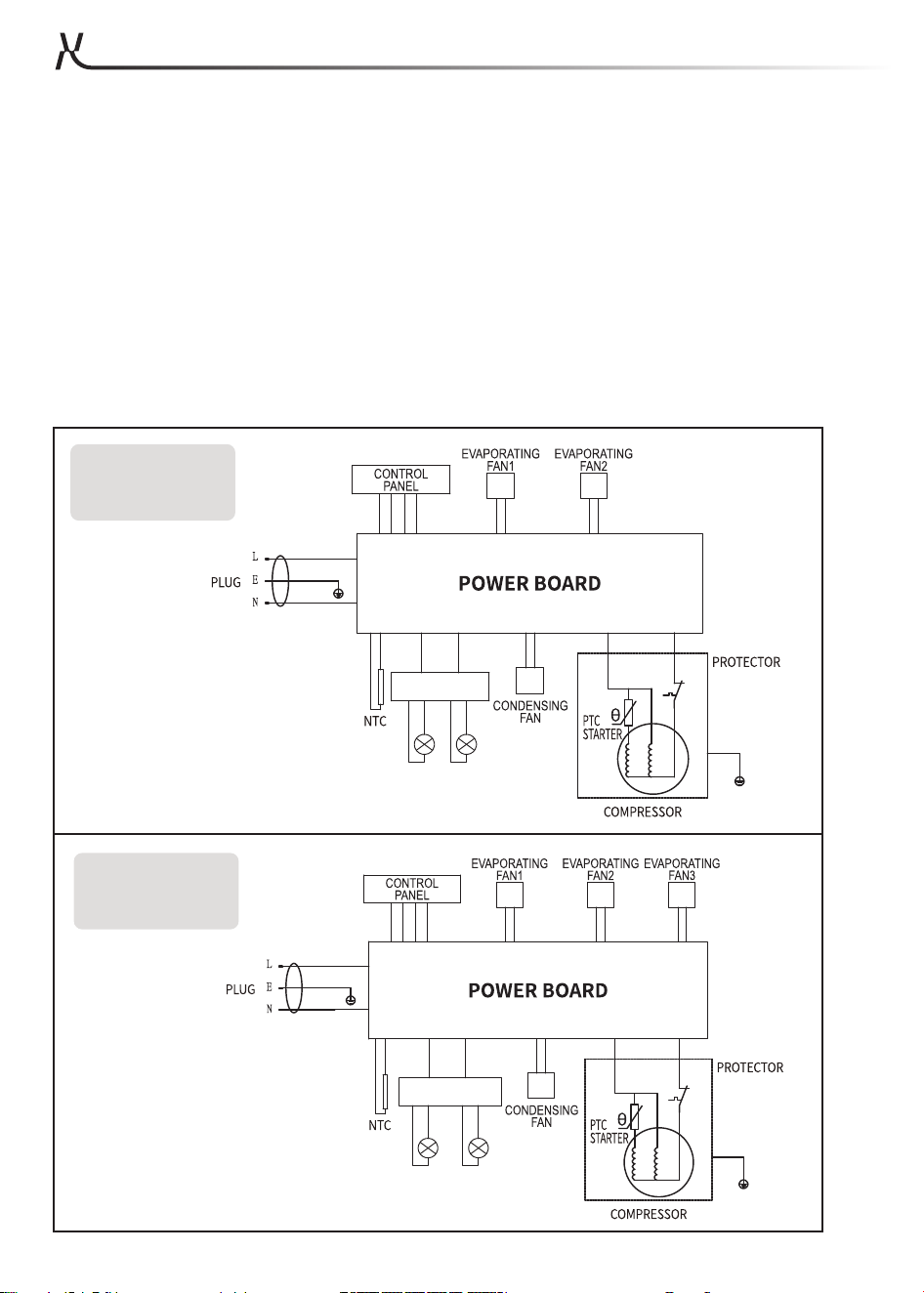

Electronic Diagram
● Be sure to follow the National Electrical Code, as well as local codes and ordinances, when installing the
receptacle.
● Before your new unit is connected to a power supply, check the incoming voltage. Please refer to the
electrical requirements on the unit’s nameplate.
● Do not use an extension cord with this appliance. If the power cord is too short, have a qualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively
affect the performance of the unit.
● Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
● Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged,
have it replaced by an authorized service center.
● NEVER unplug your refrigerator/freezer by pulling on the power cord. Always grip the plug firmly and pull
straight from the outlet.
● Plug the power plug into a grounded and compatible socket.
MODEL:
BTC-210FC
MODEL:
BTC-320FC
ADAPTER
LED1 LED2
ADAPTER
LED1 LED2

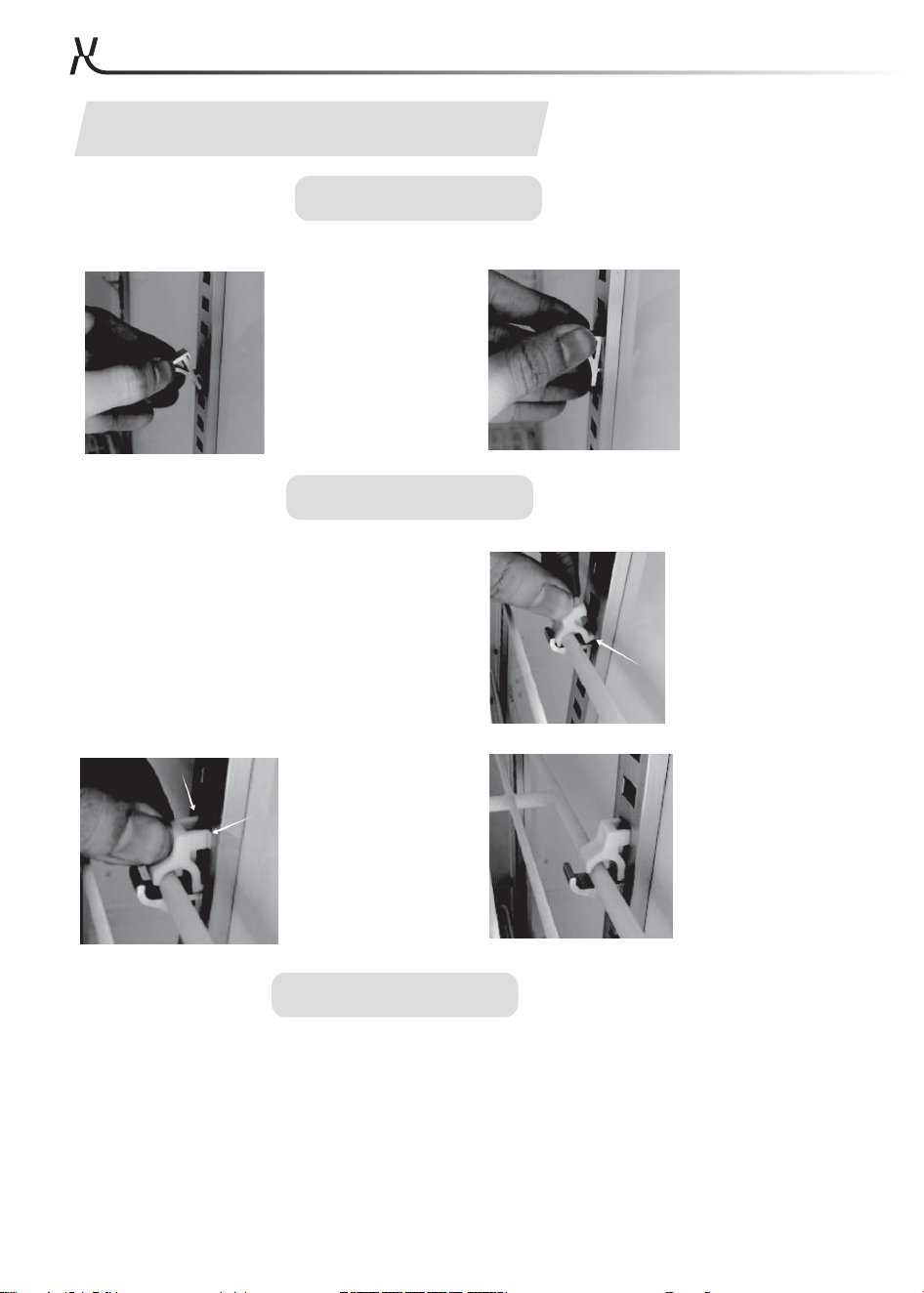

INSTALLATION OF SHELVES
Install the K-clip
The k-clip serves as a shelf stand.
Step 2
Place both sides into the
hole simultaneously.
Step 1
Take out the k-clip and
align it with the hole.
Install the Fixer
The fixer is used to fix the shelf, in conjunction with the k-clip.
Step 1
Put on the shelf
first.
Step 3 Insert the
fixer’s top to the
adjacent hole.
Step 4
Finished.
Step 2
Place the fixer's bottom
into the identical hole
as the k-clip.
Uninstall the Fixer
Step 1 Squeeze the fixer and pull it out.
Step 2 Take out the fixer.
Before changing shelf height, remove the fixer.
INTRODUCTION
The Merchandising Refrigerators are essential for the display and sale of packaged goods. This
makes them invaluable for a variety of commercial businesses, including convenience stores,
offices, supermarkets, restaurants, bars, hotels and any other place where grab-and-go food and
beverage options are readily available.
The Display Coolers are attractive, eye-catching display refrigerators and designed to store, cool
and display bottled or canned beverages. The presence of glass doors on each cooler allows
customers to easily view the contents, leading to a boost in impulse sales. Plus, with bright lighting
and an illuminated advertising panel on top where you can advertise brands, sales, and more. You’ll
also find that most of our glass-door fridges are equipped with casters for convenient mobility,
allowing you to easily clean the floor.
Product Features:
● Environmental Refrigerant
● Adjustable Shelves
● Low-E Double-layer Glass Door
● Interior Light & Illuminated Canopy
● Temperature range: -9°C ~ 50°C (16°F ~ 99°F)
● Automatic defrost system
● 4 Strong Casters (front 2 with brake)
Technical Specifications
Model
BTC-210FC
115V~
60Hz
1.5A
160W
191L/201.83QT/6.75Cu.Ft.
219L/231.41QT/7.73Cu.Ft.
BTC-320FC
115V~
60Hz
2.0A
200W
295L/311.72QT/10.42Cu.Ft.
339L/358.22QT/11.97Cu.Ft.
RATED VOLTAGE
RATED INPUT POWER
RATED FREQUENCY
RATED CURRENT
NET VOLUME
GROSS VOLUME
Dynamic Cooling
Low-E Double-layer Glass Door
Interior Light
Adjustable shelves
Details of Product
Door Lock
The cooler provides a lock and key combination.
● You can find the key(s) inside the plastic bag that contains the User Manual.
● When locking the door, make sure metal pin is engaged completely.
● Remove the key and place it in a secure place for safekeeping.
● For safety precaution, do not keep the key near the appliance or within reach of children.
The component specifics for the BTC-210FC and BTC-320FC models are the same. Below, we will illustrate
this using the BTC-210FC as an example.
Evaporator fan
Adjustable shelf
Windshield
Caster
Caster
with brake
Lock
Control Panel
Glass door
K-clip
LED light
24 cans
108 cans
52 cans
39 cans
117 cans
402mm/15.83inch
402mm/15.83inch
330mm/12.99inch
TIP:
You can change the height of the shelf according to your needs.
This will reduce the stated bottle capacity.
170mm
6.69inch
This model can
store about 130
standard beer cans
This model can
store about
208
standard soda cans
65mm/2.56inch
60mm/2.36inch
146mm
5.75inch
402mm/15.83inch
402mm/15.83inch
330mm/12.99inch
MODEL: BTC-210FC
MODEL: BTC-210FC
38 cans
171 cans
MODEL: BTC-210FC
26 bottles
39 bottles
52 bottles
TIP:
You can change the height of the shelf according to your needs.
This will reduce the stated bottle capacity.
This model can
store about 117
standard bottles
402mm/15.83inch
402mm/15.83inch
330mm/12.99inch
MODEL: BTC-320FC
60mm/2.36inch
230mm
9.06inch
170mm
6.69inch
This model can store
about 209
standard beer cans
65mm/2.56inch
402 mm
15.8 inch
433 mm
17.1 inch
402 mm
15.8 inch
330 mm
13.0 inch
333 mm / 13.1 inch
63 cans
84 cans
189 cans
MODEL: BTC-320FC
MODEL: BTC-320FC
This model can
store about 189
standard bottles
60mm/2.36inch
230mm
9.06inch
402 mm
15.8 inch
433 mm
17.1 inch
402 mm
15.8 inch
330 mm
13.0 inch
333 mm / 13.1 inch
170mm
6.69inch
This model can store
about 336
standard soda cans
65mm/2.56inch
63 cans
42 cans
84 cans
402 mm
15.8 inch
433 mm
17.1 inch
402 mm
15.8 inch
330 mm
13.0 inch
333 mm / 13.1 inch
Placing Items in the Showcase
Control Panel
Hints and Tips
Before Use
This showcase employs a forced circulation of cold air system. If circulation
of cold air is obstructed, the items will not be adequately refrigerated.
Pay attention to the following points:
● Do not let items obstruct the cold air inlet and suction outlet.
● Place items so that they do not protrude from the shelves. The gap
between the shelves and the door is used for circulation of cold air.
● Place items evenly on all shelves.
● This equipment is intended for the storage and display of non-potentially
hazardous bottled or canned products only.

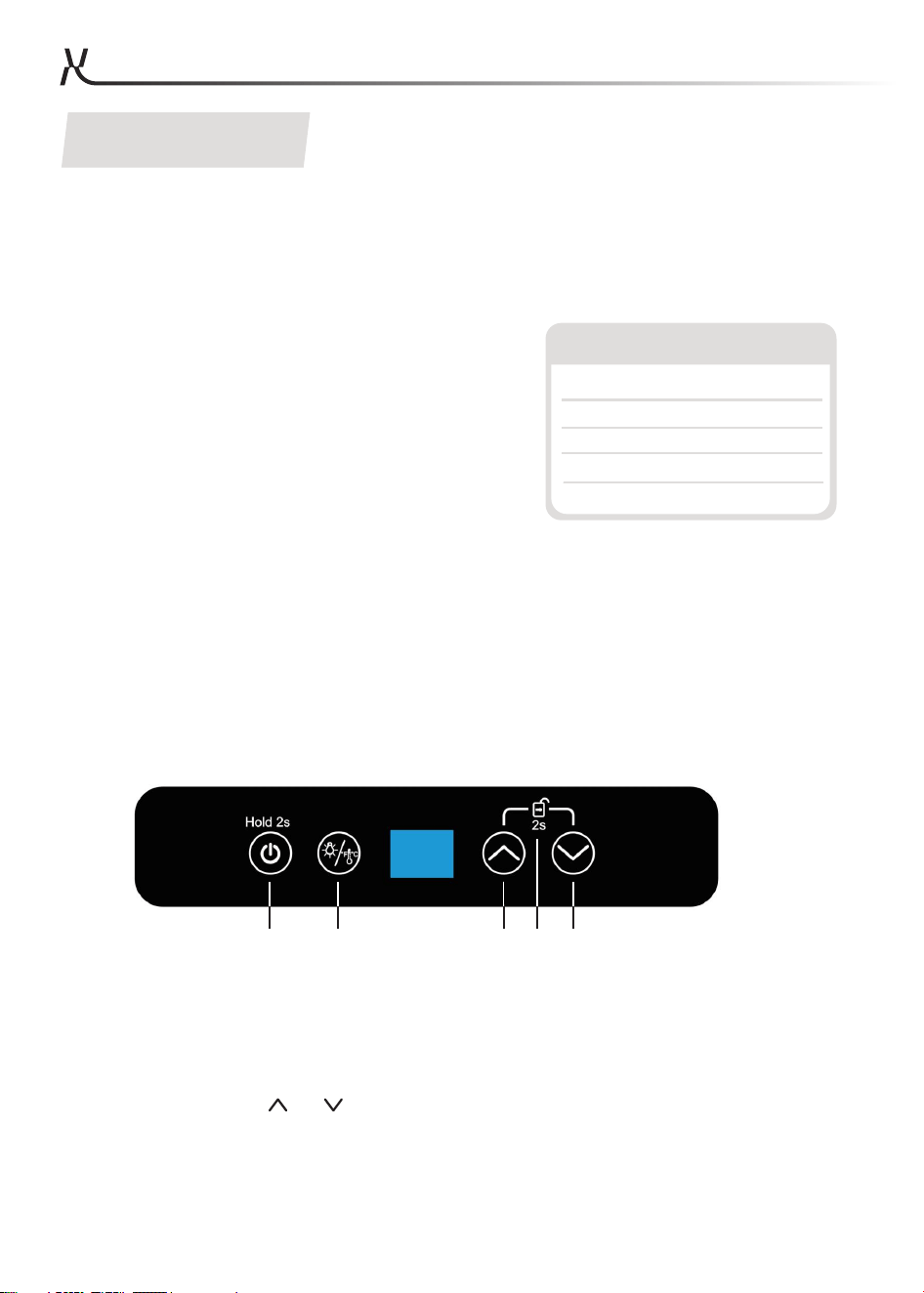

Key Function
1. ON/OFF button: Hold down the button for 2 seconds to power on/off.
2. Light/CF button: Short press the button to turn on/off the light; hold down the button for 2 seconds to toggle
between Fahrenheit and Celsius display.
3. Add key: temperature setting
4. Minus key: temperature setting
5. Unlock key: Hold down the and at the same time for 2 seconds to unlock the control panel.
Temperature range: -9°C ~ 50°C (16°F ~ 99°F)
● The appliance should be located in the coolest area of the room,
away from heat producing appliances, and out of the direct sunlight.
● Ensure that the unit is adequately ventilated. Never cover air
vents. Clean dust and dirt from the condenser at regular intervals.
● Only open the door for as long as necessary and for as short a
time as possible.
● Store the content in an organized way.
● If you're interested in wine collection, the chart on the right side is
a useful resource.
● Allow the appliance to run for about 1 hour to cool before placing items in the cooler.
● Ensure all shelves are sitting level and properly secured before loading products.
● Wait for 5 minutes or more before re-starting. Restarting the unit immediately after it has been turned off
may cause fuses to blow and activate the circuit-breaker, the compressor may be overloaded, and/or other
damage may occur.
OPERATION
Sommelier's Advise
Wine Conservation
Sparkling wines
5-8
10-11
9-14
15-22
40-47
49-51
48-57
58-72
Rose wines
Dry/white wines
Red wines
°C
°F
1 2
5
3 4
Mandatory defrosting
Cleaning
Cleaning the Surface
Cleaning the Interior Parts
Clean the refrigerator with mild detergent and then dry it
with a soft cloth.
● When cleaning the cabinet interior, use a soft and dry cloth.
● If very soiled, wipe with a cloth that has been moistened with a detergent.
● Dry with a soft cloth.
● Wash door gaskets on a regular basis. Simply remove the door gasket from the frame of the door, soak it in warm
water and soap for 30 minutes, then dry with soft cloth and install.
NOTE: Check door gaskets for proper seal after they are replaced.
The smooth operation and life of the equipment are mainly determined by correct and regular maintenance.
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
CLEANING & MAINTENANCE
To prevent any electrical shock hazards or injury by rotating
circulation fan, always disconnect the power cord plug from the
wall outlet before cleaning.
Do not use abrasive detergents!
The internal temperature differential is to prevent the compressor from frequently turning on and off
in short cycles. The differential operates by activating the compressor at the designated
temperature setting to cool the cabinet until it reaches the set temperature, at which point it will
automatically turn off.
It will begin operating again after a temperature difference of 4°C (a difference of 7.2°F).
Overworking the compressor can result in it burning out, similar to how quickly flickering a light
switch can burn out the light bulb. The compressor functions identically, so it must be taken into
account when changing the set temp.
NOTE
After unlocking, press the and keys for 2 seconds at the same time to activate the mandatory defrosting
procedures. When the mandatory defrosting is activated, the screen will flash for 3 seconds.
Locking mechanism
If the machine is left idle for 20 seconds, the control panel will become locked on its own.
ATTENTION! Never hose down the appliance or immerse it in water
or any other liquid, instead wipe the exterior with a damp cloth.
Short-circuit and electrical shock could result.
ATTENTION! Never use aggressive cleaning agents or abrasives.
Do not use solvents or petrol based cleaning agents. Some cleaning
agents may leave harmful residues or cause damage to the
appliance. Use a food safe detergent instead.
ATTENTION! Do not use any scourer and sharp or pointed objects
during cleaning, this may cause damage to the appliance.
Maintenance
Power Failure
When not Used for a Long Period
Transportation
● Periodically remove the shelves from the unit, and clean them with a mild soap and warm water. Rinse
under tap afterwards to remove any soap residues.
NOTE: Always dry the shelves before placing them back inside the chamber.
● To ensure the safety, perform the following checks after cleaning.
1. Is the power cord plug firmly inserted into a dedicated wall outlet? Confirm that the plug is not abnormally hot.
2. Check the power cord for cracks and damage. Should the slightest irregularity be observed, contact the dealer
from whom you purchased this unit or our customer’s service.
● Most power failures are corrected within a few hours and should not affect the temperature of your appliance if
you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you
need to take the proper steps to protect your contents.
● Avoid placing new items in the cooler as this will raise the temperature inside the compartment.
● ATTENTION! Never let the power cable or power plug get wet or damp.
● Regularly check the power plug and power cable for damage. If either is damaged do not use the appliance.
Instead, have it repaired by a certified electrical engineer.
● Remove all items from the compartment and disconnect the power cord plug from the wall outlet. Clean the
compartment interior and wipe away all water.
● To prevent mold formation and bad smell, leave the door open to dry the compartment completely.
● Disconnect the power cord plug from the wall outlet.
● When moving the cooler, make sure that the feet do not damage the power cord.
● Do not let the feet hit against floor steps, thresholds, etc.
Temporary Storage
● Affix a piece of wood, etc. Between the door and main unit to prevent complete closing of he door.
● Make sure not to store the unused cooler at a location where children play.
● Should a child enter the compartment and the door is closed, the child may not be able to open the door from
the inside.
Replacing the Fan
Step 1
Detach the screws from the fan panel.
To prevent electric shock, first switch off and unplug the appliance.
Replace the fan as specified to ensure that it is not damaged by incorrect procedures or unsuitable tools.
Figure 1
Figure 2
Step 2
Unplug the fan, and then remove the fan panel.
Step 3
Unscrew the fan panel and attach the new fan
using those screws.
Figure 3
Figure 4
Step 4
Bind the wires together with zip ties (not
provided).
Step 5
Connect the new fan.
Figure 5
Figure 6
Step 6
Reinstall the fan panel.
TROUBLESHOOTING
Fault
Manual temperature
controller malfunction/flicker
LED lights is not working
Fan is not working
No cooling/poor cooling
Abnormal noise
Magnetic door gasket is
not working
Inclined door
There is a peculiar smell
in the cabinet
1. The insulation material in the
newly-purchased product.
2. The items in the cabinet have
expired and deteriorated.
3. The cabinet is polluted.
1. Place the product in a ventilated place, and open
the door for ventilation.
2. Regularly check and clean up spoiled items.
3. Regularly clean the cabinet to ensure the water
and pollutants are removed, keeping it clean and tidy.
1. Resonance caused by uneven location
2. Blades encounter barriers
3. Loosed screws of compressor or
drainage sink
1. Magnetic door gasket distorted
1. Door hinge screws loosed
1. Heat up the gasket with hair drier and reshape it.
1. Adjust the upper and lower door hinges, and
tighten screws.
1. Open traverse or bad connection.
2. Insufficient power voltage.
3. Compressor is not started.
4. The door is not closed.
5. The door gasket does not seal properly.
1. Check wires to ensure a good connection.
2. Operate cooler at rated voltage.
3. Consult the after-sales service.
4. Close the door properly.
5. Check the door gasket.
1. Locate cooler on an even surface
2. Read the section Replacing the Fan in CLEANING
& MAINTENANCE. Check and remove the barriers.
3. Tighten screws.
1. Open traverse or bad connection.
2. Tube/starter/ballast fault.
1. Open traverse or bad connection.
2. Fan fault.
3. The fan is interfered by other parts.
1. Check wires to ensure a good connection.
2. Consult the after-sales service.
1. Check wires to ensure a good connection.
2/3. Read the section Replacing the Fan in
CLEANING & MAINTENANCE. Check the wire
connection and adjust the interfered parts.
Cause
Solution
1. Open traverse or bad connection.
2. Have a fault on indicator.
1. Check wires to ensure a good connection.
2. Change the electronic controller.
If the problem persists, consult the after-sales service for assistance.
15
