BEVERAGE COOLER
BRAND: BODEGACOOLER
MODEL: YC-150E
BEVERAGE COOLER
1
3
4
7
111
13
10
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
● Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (1 1 5 /120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
● Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
● To protect against electric shock, do not immerse the Beverage cooler
, plug or cord in
water or other liquids.
● Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
● Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
● Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler wit
h wet hands, while standing on a wet surface or while standing in water.
● Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
● When moving the Beverage cooler, be careful not to roll over or damage the power cord.
● Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the v
icinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
● Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
● An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never al
low children to operate, play with or crawl inside this Beverage
cooler.
IMPORTANT SAFETY INSTRUCTIONS
1
● Do not use this beverage cooler for other than its intended purpose. For indoor,
household use only.
● To prevent back and other types of injuries, use at least two people to move and install the
wine cooler
● Place this beverage cooler in a well-ventilated area with temperatures above 15°C (60°F)
and below 32°C (90°F).
● To ensure proper ventilation for your beverage cooler, the front of the cooler must be
completely unobstructed.
● This beverage cooler must be installed in an area away from wind, rain, water spray or
drips.
● The beverage cooler should not be located next to
ovens, grills or other sources of high
heat.
● Do not kink or pinch the power supply cord of beverage cooler.
● It is important for the beverage cooler to be leveled in order to work properly. You may
need to make several adjustments to level it.
● This beverage cooler is designed for storing and cooling wines. Do not store perishable
food or medical products inside the cooler.
● When disposing of refrigeration beverage coolers, special handling is often required. It is
the consu
mer’s responsibility to comply with federal and local regulations when
disposing of this product.
● WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk o
f fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
2
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.

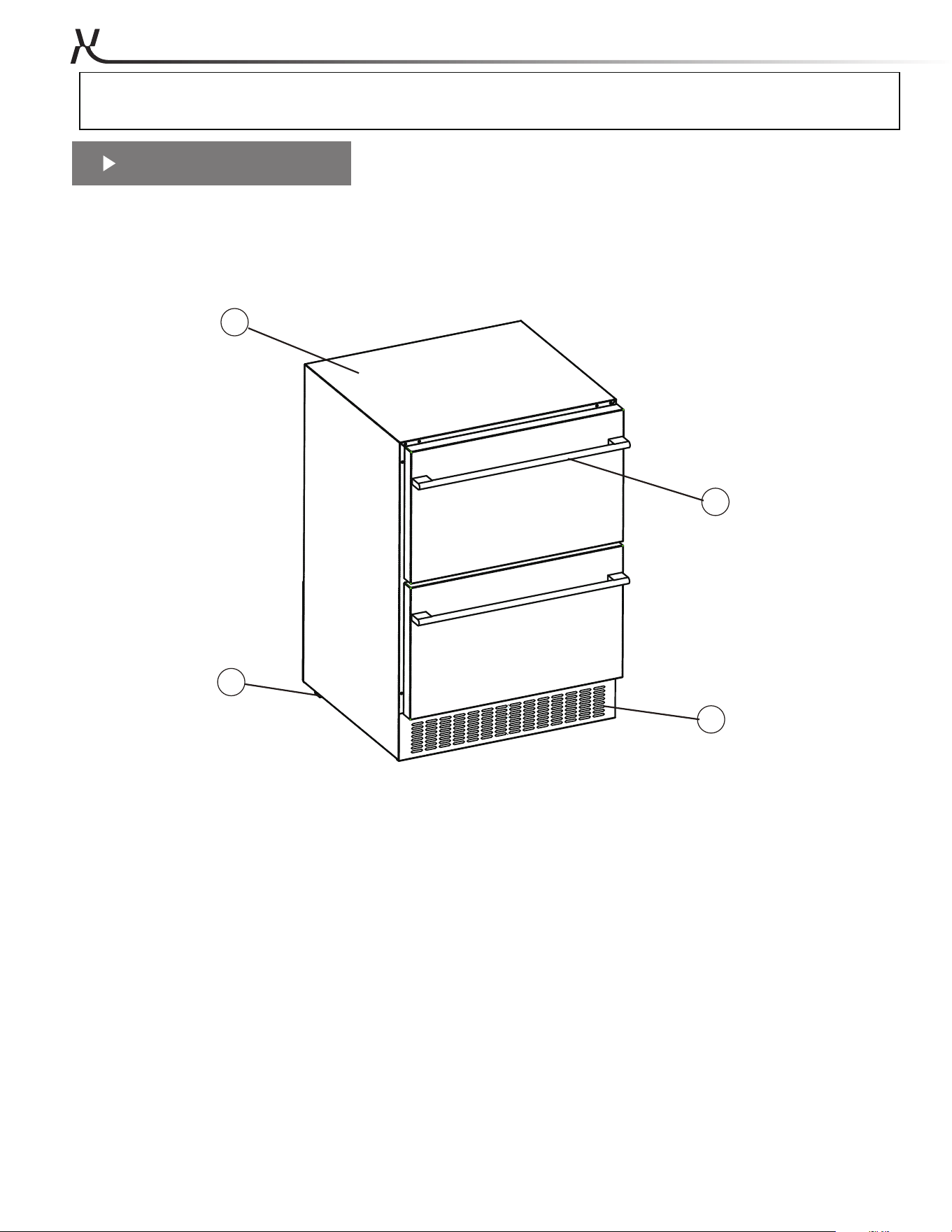

PRODUCT DIAGRAM
1 2 Leveling feet
3 4Handle
1
2
3
4
Front vent
Cabinet
PRODUCT DIAGRAM
3
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
o
Instruction Manual
o
2 Extra Screws for Installing Handle
IMPORTANT:
Before you plug the beverage refrigerator into a power supply, be sure to let
it stand upright for at least 12 hours
to allow the compressor’s oils to settle.
Clean the interior surface with lukewarm water using a
soft cloth.
Install the handle on th
e left side of the door.
To Ins tall Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly And flush a
g
ainst the door frame, as Illust
ration #2.
(Do NOT
over tighten as this will cause damage
to the handle assembly).
3) Carefully press the door gasket into its original position.
Note: This Beverage cooler includes stainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.
-
-
-
-
-
INSTALLATION INSTRUCTIONS
4
Illustration #1 Illustration #2

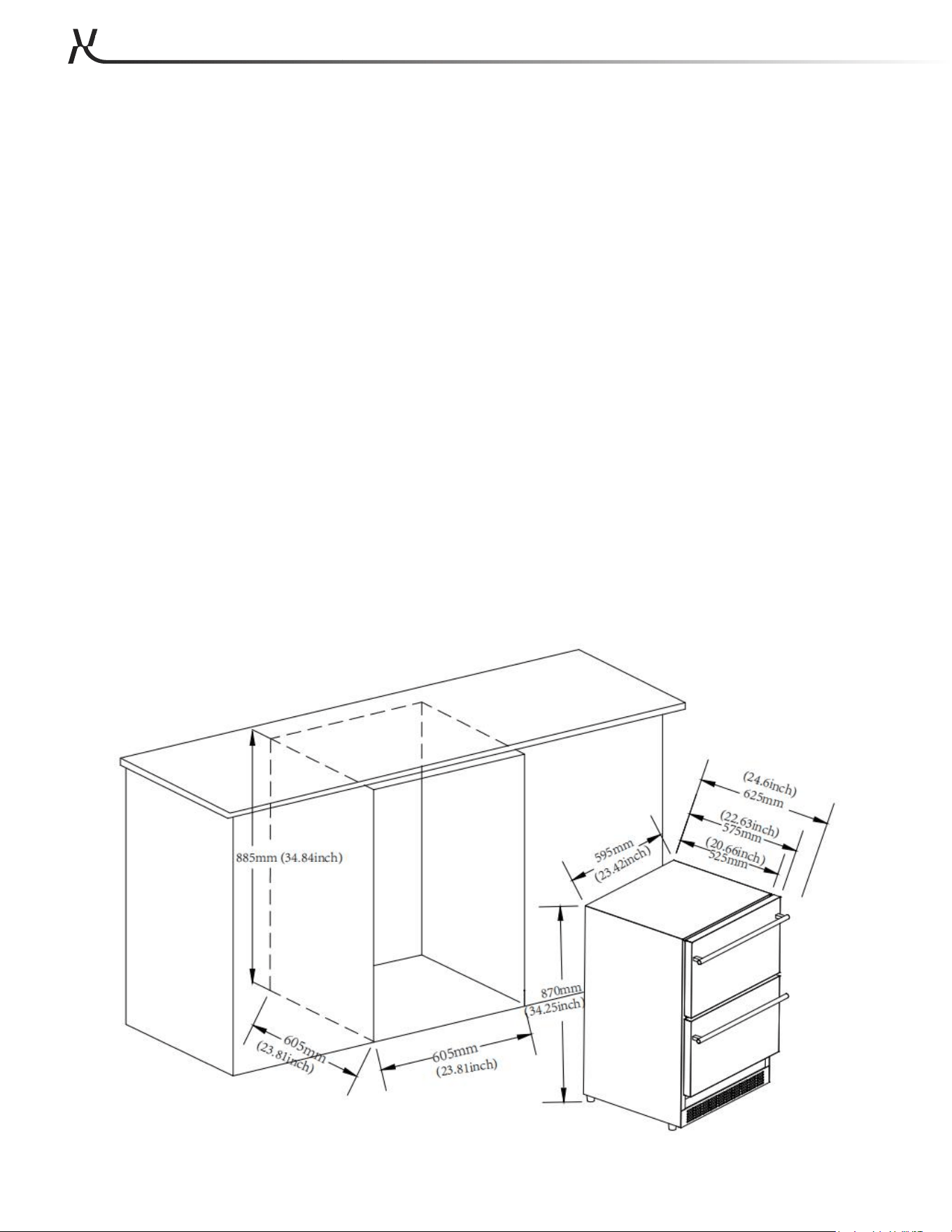

This Beverage cooler is designed for free standing or built-in (fully recessed) installation.
To Install Your Beverage cooler
-
5
Place your Beverage cooler on a solid and level floor that is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
feet in and out to stabilize the cooler horizontally. If the feet are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunligh
t m
ay affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also cause the cooler not
to perform properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), a
nd hu
midity is under 60%. If the ambient temperature is
-
-
-
-
above or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115 V A C only, 60 Hz), in accordance with the National Electrica
l Code and local codes and
ordinances. Any questions co
ncerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
-
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevents overloading house wiring circuits that
could cause a fire hazard from overheated.
.
6
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length
or at either end
.
If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
OPERATION INSTRUCTIONS
TEMPERATURE SETTING RANGE：3°C(37°F) and 18°C ( 65°F)
Recommended temperature settings
Beverage: 3°C -10°C (37°F - 50°F)
Sparkling wines:5°C - 8°C (41°F - 46°F)
.
.
.
.
Dry/white wines: 9°C - 14°C (48°F - 57°F)
Rose Wines 10°C - 11°C ( 50°F - 52°F)
Red wines: 15°C - 18°C (59°F - 64°F)
Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and
the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 ho urs
before placing wine bottles in the Beverage cooler.
OPERATION INSTRUCTIONS
7
Press once to turn the interior light ON or OFF.
Press to increase or press to decrease the temperature in 1 degree
increments between 3°C and 18°C or between 37°F and 65°F.
Press to begin adjusting the temperature.
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF
the cooler.
Switch the temperature display between Celsius and Fahrenheit.
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary.
This model can store about 180 standard cans.

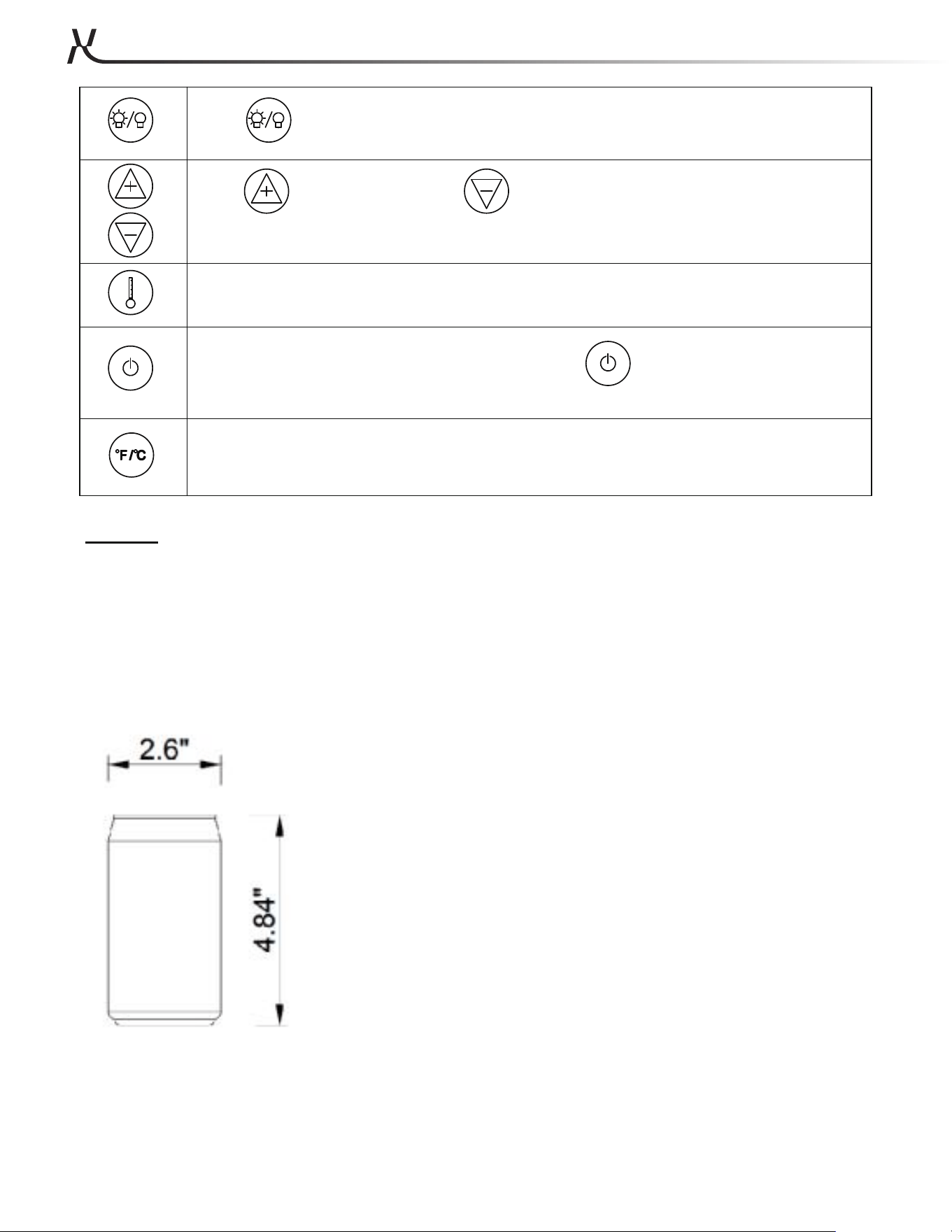

The standard can as below:
The stated loading capacity is
based on the standard-size
soda drink with 2.6” in
diameter and 4.84” in height.
8
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.
Each drawer contains a movable grid organizer to keep your
food and drinks neat and tidy.
9
TECHNICAL DATA
Model YC-150E
Total Volume 5.30Cu.Ft.
Power 115V 60Hz
Amps 0.9A
Start-Up Amps 10A
Power Input 75W
Pressure High Side 105PSI
Pressure Low Side 55PSI
Refrigerant R600a
Amount 0.82oz.
Dimensions(HxWxD)
34.2 "x23.4
"x22.6
"
Brand BODEGA
Moving Your Beverage cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Beverage cooler stays securely in the upright position during transportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
Ensure that the cooler is adequately ventilated. Never cover air vents.
Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
-
-
-
-
-
-
-
-
TECHNICAL DATA
10
TROUBLESHOOTING GUI DE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The power outlet has power.
The Beverage cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Replace the broken fuse in your fuse
box or reset the breaker. Make sure the
outlet has sufficient amperage. Reduce
the number of items sharing the circuit.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Bevera
ge cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door
openings.
Do not open the door too frequently or
for a long period of �me.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is higher
than the recommended ambient
environment
Run the cooler at the appropriate ambi-
ent temperature.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Bevera
ge cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
TROUBLESHOOTING GUIDE
11
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too muc
h
noise.
The cooler is not level.
Check to make sure that the Cooler is level,
and that it is not in contact with another
appliance or furniture.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
completely.
Check d
oor gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed. Contact the customer service
12
17
MANUFACTURER:ZhongshanYEHOS ElectricalApplianceCo.,Ltd
No. 9, Yuan lin Rd, Nantou Town,Zhongshan city, Guangdong province，China
Contact：Mickey Tel： +1（313）913-7585 E-Mail：[email protected]
