UPRIGHT DISPLAY COOLER
BRAND: BODEGA
MODEL: SS-P238WD
SAFETY PRECAUTIONS ...........................................................................................................................................3
INSTALLATION ............................................................................................................................................................9

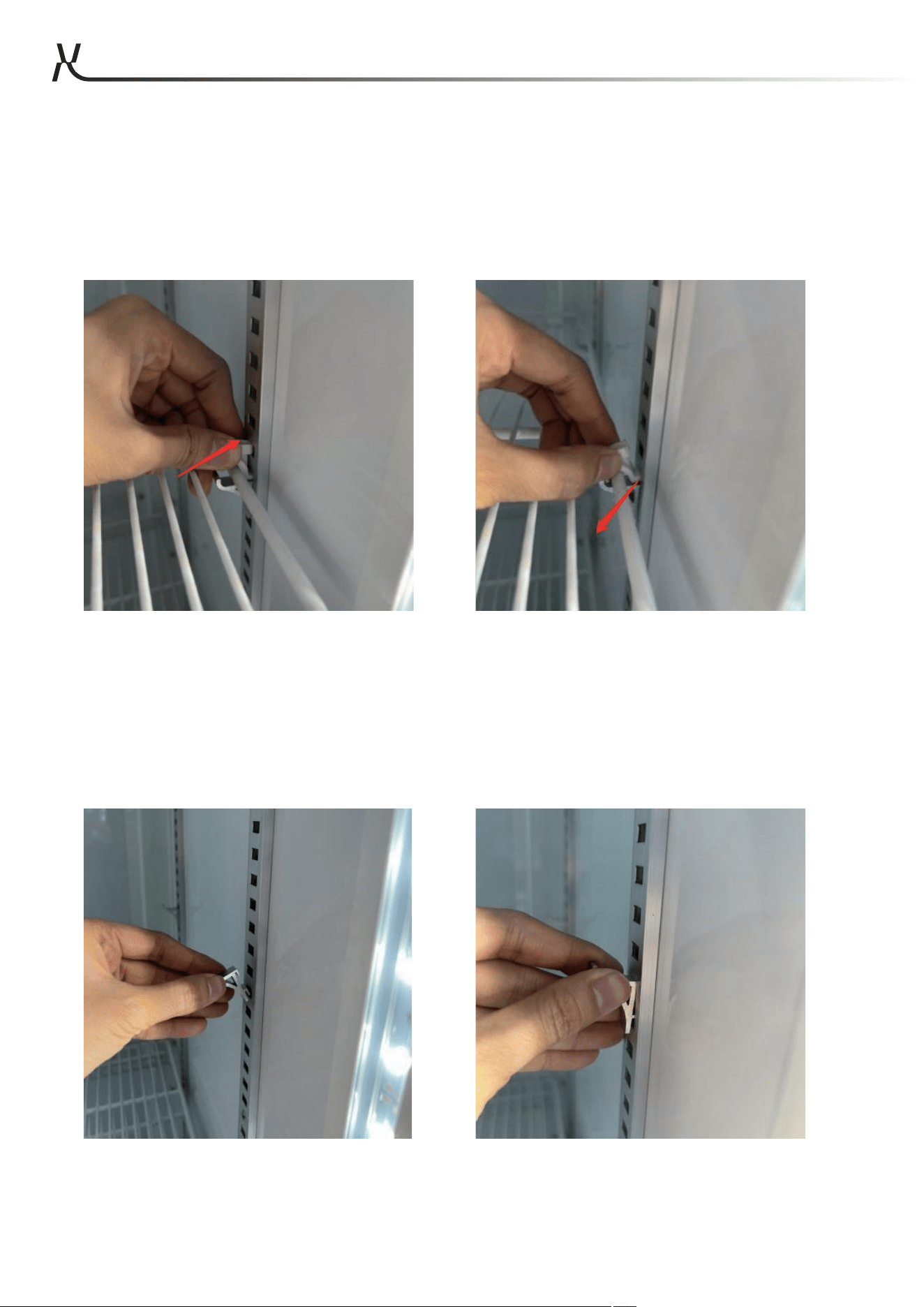

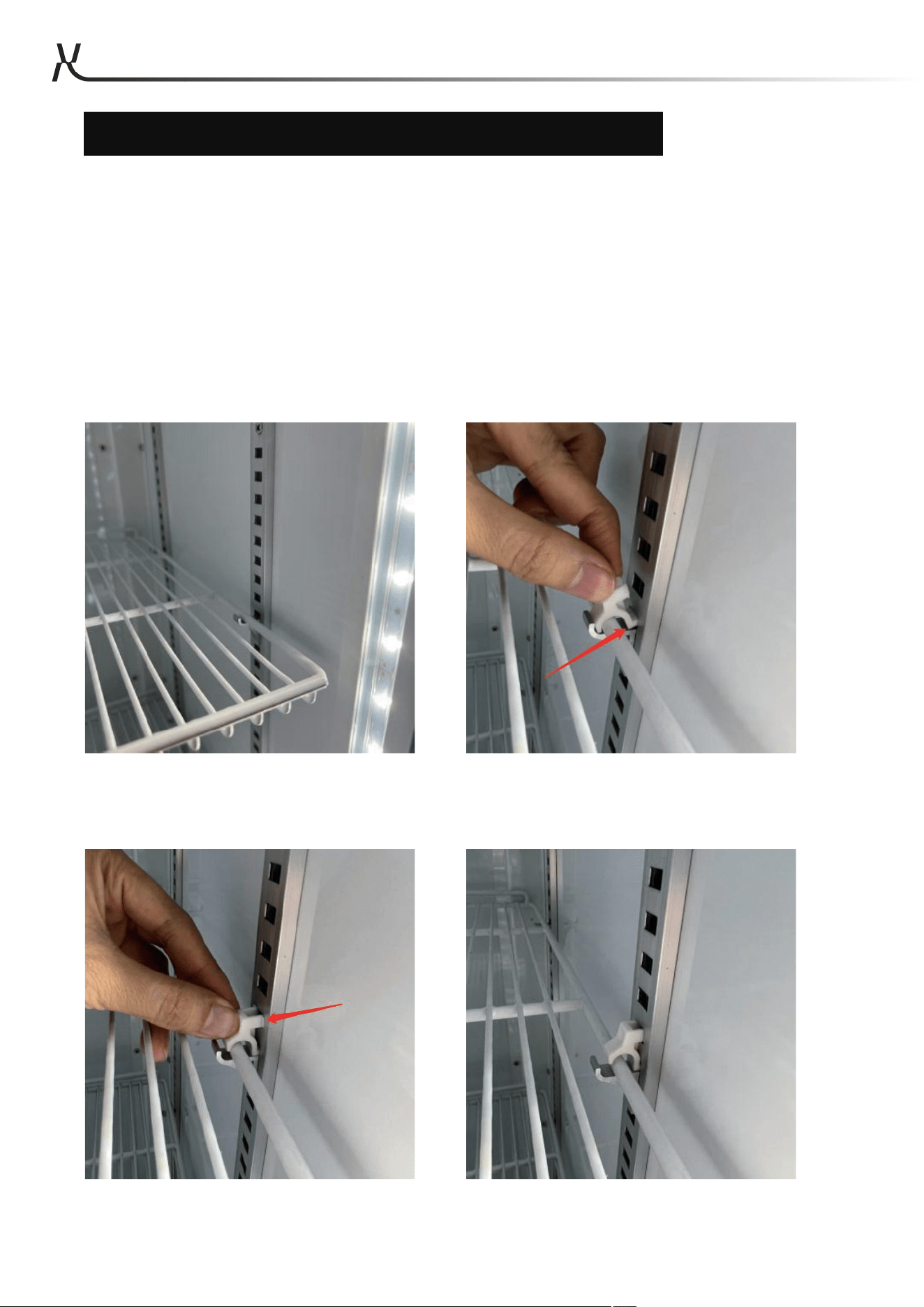

INSTALL AND ADJUSTABLE SHELF ...................................................................................................................15
OPERATION ................................................................................................................................................................17
MAINTENANCE & CLEANING ................................................................................................................................19
TROUBLE SHOOTING ..............................................................................................................................................21

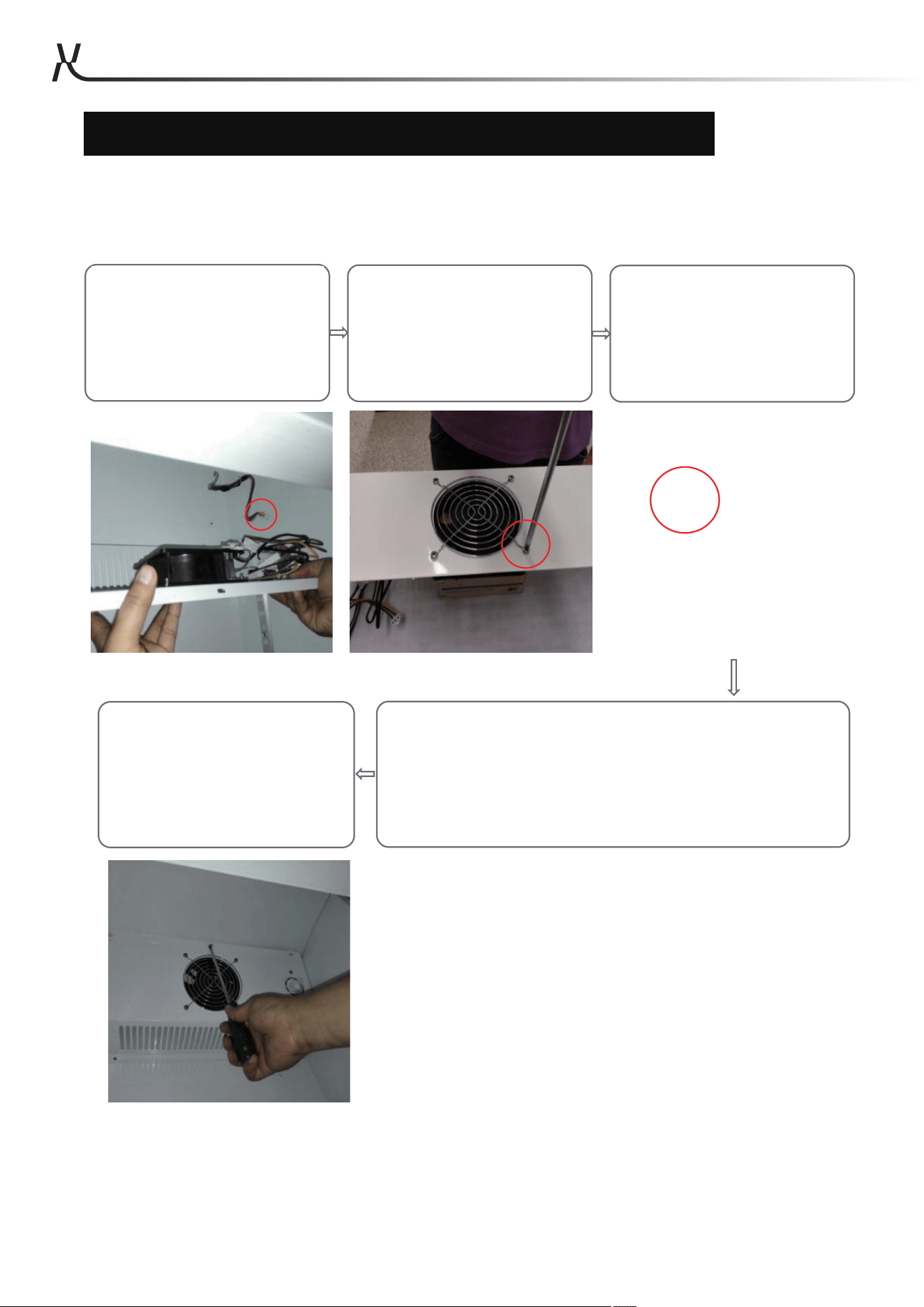

PROCEDURES OF REPLACING PARTS .............................................................................................................22
WARRANTY ................................................................................................................................................................23
1
UPRIGHT DISPLAY COOLER
2
SAFETY PRECAUTIONS
This manual contains the product’s basic knowledge, use instruction, fault diagnosis and basic trouble
shooting methods. In order to better understa nd and use this product, plea se take good care of this
manual and read it carefully.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to
minimize risks that could cause serious damage and injury. These safety precautions are divided into
WARNINGS and CAUTION
S. Cases where improper ha n
ding of the unit could lead to death or serious
injury are listed under the "WARNING" heading. Howeve r, the cases listed under the "CAUTION" heading
could also lead to serious results, to ensure the safety, adhere strictly to both types of safety precautions.
Refrigerant Safety & Warning Information
CAUTION! Keep al l ventilation openings clear of obstruction in the appliance en closure or in the
structure housing the appliance.
DANGER! Risk of fire or explosion, Flammable refrigerant used, Do not damage the refrig erant
circuit.Do no
t use mecha nical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
DANGER! Risk of fire or explosion, Flammable refrigerant used, consult repair manual/owner’s
guide befor e attempting to service this product. All safety precautions must be followed. Disp ose of
properly in accordance with local and federal regulat
ions. Follow all safety precautions.
CA
UTION! Do not store any explosive substance such as aerosol cans with a flammable
propellant into this appliance.
Basic Safety & Warning
Take care during operation, mainte nance or repairs to avoid cuts or pinching from any part /component
of the cabinet.
Ensure the unit is properly installed and located in accordance with the Installation Instructions before
use.
This applianc e is not intended for use by persons(Including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
DO NOT allow children to play with the appliance or climb, stand, or hang on the unit’s shelv es to
3
prevent damage to the refrigerator and personal injury.
The appliance shall be disconnected from its power source during clean ing or maintenance and when
replacing parts.
When the cooler will be not be used for a long time, disconnect the power and clean it. Please examine
the c irc uit before reuse..
DO NOT store or use gasoline, or other flamm able vapors and liquids, in the vicinity of this or any other
appliance.
DO NOT store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
Strong base, s trong acid, organic solvent and corrosive goods or those are easy to pollut e to food are
prohibited storing in the cooler, otherwise, it can cause corrosive problem or accident.
DO N OT use other electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
The LED light must not be replaced directly by the user! If the light is damaged, please contact the
customer service for assistance.
This appl iance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they hav e been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by c hildre n without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
When disposing of the appliance, do s o only at an authorized waste disposal centre. Do not expose to
flame.
When positioning the applia nce, ensure the supply cord is not trapped or damaged.
Make sure the power cable does not come in contact with sharp or hot objects and keep away
from open fi re.
If the suppl y cord is damaged, it m ust be replaced by a special cord or assembly available from
the manufacturer or it s service agent.
ATTENTION! As long as the power plug is in the electrical socket the appliance is connected to the
electric grid.
Before you scrap the applian ce, please take off the doors to prevent children trapped.
DANGER! RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past.
4
NOTE:
Text set off by the exclamation mark contains information that should be strictly adhered to.
After read ing the instruction manual, store it an easily accessible place where the user(s) of this product
can easily find it.
Precautions for Installation
The symbol is a warning an d indicates the refrigerant and insulation blowing gas are
flammable.
Warning - Risk of fire / f lammable materials.
Warning - Do not s tore explosive substances such as aerosol cans with a f lammable propellant
in the unit.
Warning - Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance
Warning - The refrigerant and insulation blowing gas are flammable. When disposin g of the
appliance, do so only at an
authorized waste disposal centre. Do not expo
se to flame.
WARNING
Improper handling of the unit could lead to death or serious injury.
CAUTION Improper handling of the unit could lead to serious results depending on
the c irc umstances.
Installation should be performed only by the dealer or a qualified expert. Attempting to
install the unit yoursel f could result in water leakage, refrigerant leakage, electrical
shock, or fire.
5
Precautions for Use
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform these
yourself could result in a fire, malfuncti on,
and injury.
Never splash water directly on to the
product or wash with water as short-
circuit and electrical leakage could result.
Do not damage, modify, excessively
bend, strain, twist or bundle up the power
cord. Also, placing heavy objects the
power cord or squeezing it in a tight place
could damage it, possible resulting in
electrical shock or fire.
Never use flamm able spray cans or
leave flammable s ubstances near the
unit. Sparks from electrical switches
could resu lt in exp losion and fire.
The cooler is intended f or storage and
display of beverages for sale. Do not
use for other purpose than intended as
this could adversely affect item s placed
in the unit.
Use a dedicated wall outlet. Do not use
extension cords or convenience
receptacles as this could resu lt in
electrical shock, overheating and a fire.
Never put flammable or volatile
substances into the unit as explosion
and fire could result.
Never attempt to insert fingers , sticks, etc.
Into the cold air suction outlet as a
circulation fan is rotating at high speed
inside the outlet. Injury, electri cal shock
and improper operatio n could result.
Never place heavy objects or items
containing water on top of the unit.
Objects could fall down and cause injury
and spilled water could deteriorate the
insulation of electrical components and
result in electrical leakage.
For indoor use only. Using the unit in a
location exposed to rain c ould result in
electrical leakage and electrical shock.
6
Install the unit in a loc ati on where the
floor is sturdy enough to support the load
of the unit. If the floor is not sturdy
enough or installation is incorrectly
performed, the unit could tip over and
falling shelves and products could cause
personal injury.
If you find gas leakage,please don't touch
the appl iance. Turn it off and open the
doors an d windows for ventil ation.Gas
leakage could cause explosion, fire, and
fire injury.
Store the unit in a location where it is not
exposed to rain, Using a unit that has
been exposed to rain could result in
electrical leakage and electrical shock.
Leave disassembly and disposal of the
unit to qualified experts.
WELL VENTILATED PLACE
Please make sure there Is m ore than 10cm
space between UPRIGHT COO LER and the
wall. If there Is no space, cooling capacity can
drop down.
Never hang from the door or climb onto
the unit. The unit could tip over or fall and
cause material damage or injury.
Keep away from hot air sources. Cooli ng
performance is reduced if the unit is
placed near heat sources such as hot
plates and stoves and if it is exposed to
direct sunlight.
If installat ion in a damp loca tion is
unavoidable, also install an elec trical
leakage circuit breaker. If no electrical
leakage circuit breaker is installed,
electrical shock could result.
Should the unit need tem porary storage,
make s ure not to store the unit in a
location where children play and take
precautions so that the door cannot be
completely closed. This will minimize the
risk that a child becomes trapped inside
the c ompartment.
Disconnect the power cord plug from the
wall outlet before moving the unit and
make s ure that the power cord is not
damaged during transport. A damaged
power cord could result in electrical
7
Grasp the handle when closing the door.
Holding at other positions could result in
pinched fingers and injury.
When disconnecting the power cord plug
from the wall outlet, hold at the plug main
body close to the outlet. Pulling the cord
could cause wire breakage, possibly
resulting in overheating and fire.
Make sure that the unit does not tip over
or fall when it is moved. A falling unit
could cause serious injury.
Do not push hand against or apply
excessive force to glass surfaces as the
glass could break and cause injury.
Do not throw items onto the shelves and
do not place items totaling more than 25
kg on each shelf. The shelf could fall
down, possibly causing injury.
Be sure to attach and secure shelves
correctly. An improperly attach ed shelf
could fall down an d cause injury.
8
INTRODUCTION
Product Features:
R0D Environmental Refrigerant
Adjustable Shelv es
Double-layer Glass Door with Low-E
Interior Light & Illuminated Can opy
4 Strong Castors (front 2 with brake)
Low temperature range: 34°F - 50°F
The Merchandi sing R efrigerators are essential for
the display and sale of packaged goods. This
makes them invalua ble for a variety of commercial
businesses, includi ng convenience stores, offices,
supermarkets, restaurant, bar, hotel and any other
place where grab-and-go food and beverage
options are readily available.
The Display Coolers are attractive, eye-catching
display refrigerators and designed to store, cool
and display bottled or canned beverages. Sin
ce
each cooler is fitted with a glass door s, customers
can easily see their con
tents, which helps increase
impulse sales, Plus, with bright lighting and an
illuminated advertising panel on top where you c an
advertise brands, sales, and more. You ’ ll also
appreciate that a majority of our fridges with glass
doors come with casters, so you can easily move
them to keep the floor clean.
9
Technical Specifications
Details of Product
Model
RATED VOLTAGE
RATED FREQUENCY

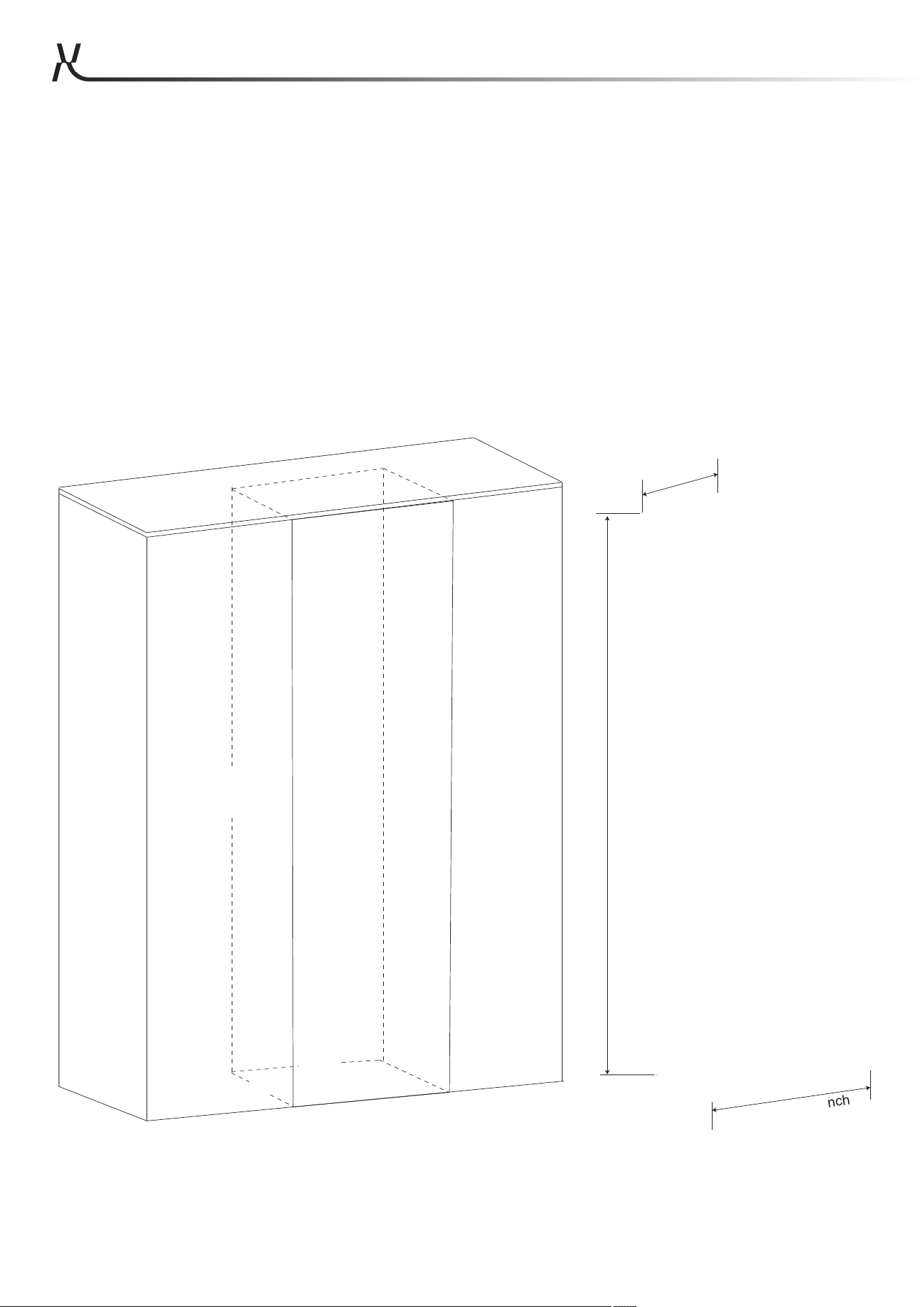

Dimensions(L*W*H)
TOTAL CAPACITY
RATED INPUT POWER
D
RATED CURRENT
HIGH PRESSURE
D
LOW PRESSURE
REFRIGERANT
D
ENERGY CONSUMPTION
NET WEIGHT 125lbs
SS-P238WD
115V~
60Hz
D
7.95 ft³
165W
D
1.7A
320Psig
D
130Psig
R600a(0.10 Ibs)
D
1.36kWh/24h
10
10
Casters with Brake
Casters
Front Grill Panel
Door Lock
Adjustable Shelf
Handle
Inner Light
Lamp Box
Glass Door

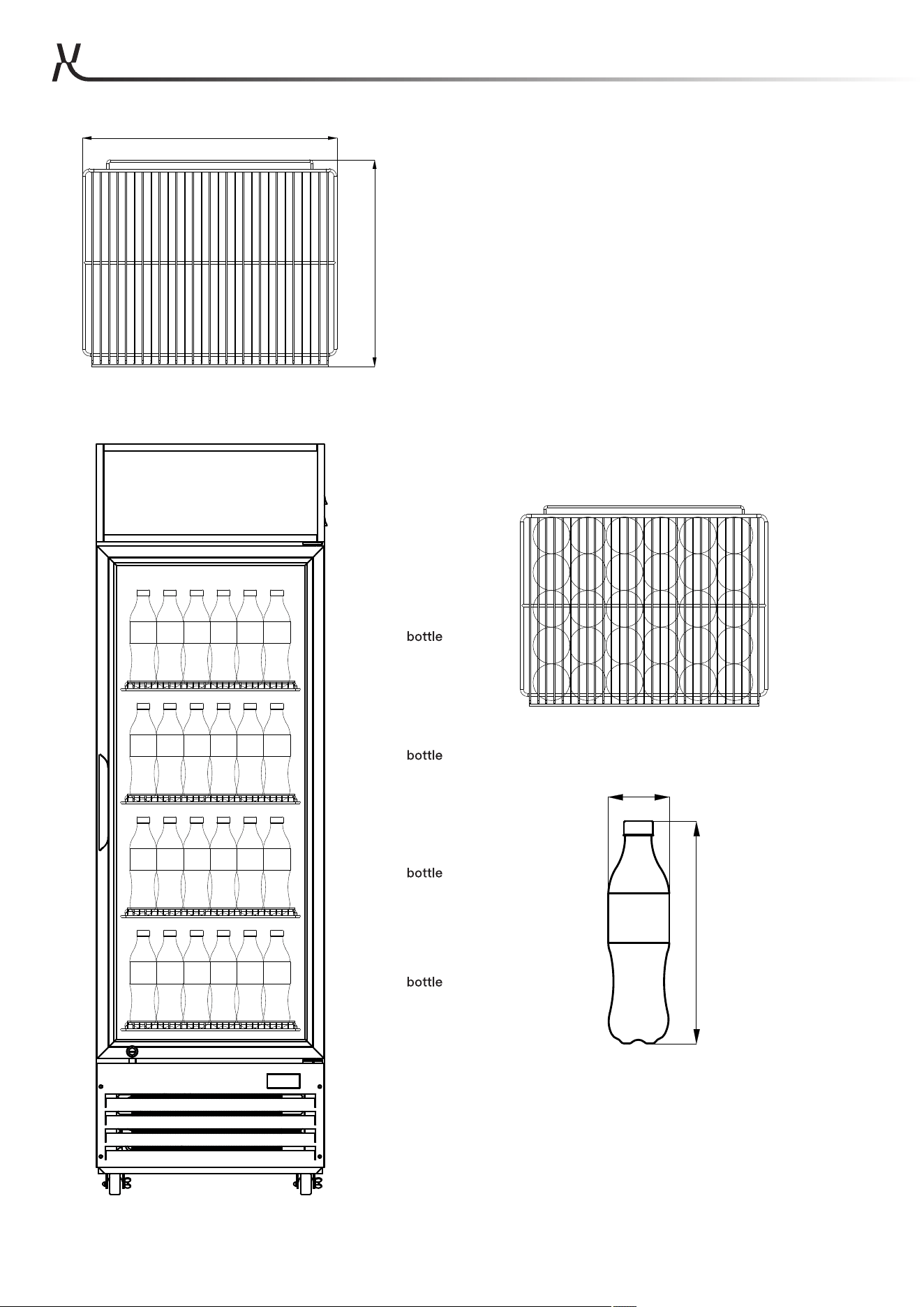

This model can store about standard bottles.
11
425mm/16.7inch
345mm/13.6inch
11
30
30
30
30
63mm/2.48inch
230mm/9.06inch
120

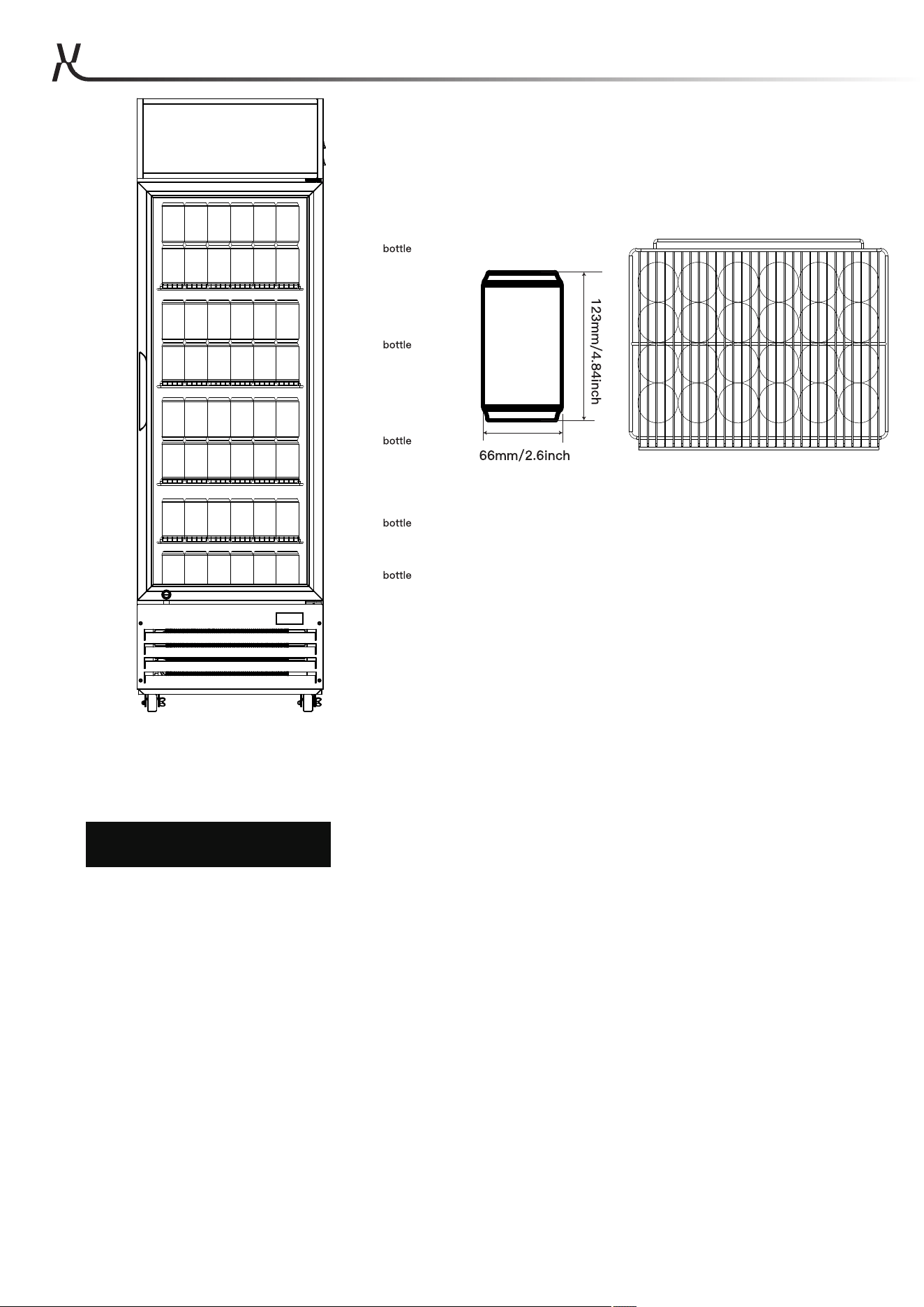

This model can store about standard bottles.
TIP:
You can change the height of the shelf according to your needs.
This will reduce the stated bottle capacity.
Guides to Choose Location
1. The unit is for indoor application only. Outdoor use may cause decreased efficiency and a damage to
the unit.
2. Due to the fact that the unit has a glass door, its performance is highly influenced by environmental
conditions. To minimize the effects on the unit’s performance, the following are recommended:
The appliance must be positioned on a flat and stable surface. If the surface is uneven, the unit may
be noisy. The unit m ay malfunction if the surface is uneven.
The unit is not exposed to direct sunlight, or is not to be placed near any kind of heat source such as
a cooker, oven or radiator. Place the refrigerator in the coolest and best ventilated part of the room.
The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/
or windows.
INSTALLATION
12
192
48
48
48
24
24
12
When positioning the appliance, maintain a distanc e of 10 cm (4 inches) between the appliance and
walls or other obj ects for ventilation and ease of use.
Keep all ventilation openings in the appliance enclosure or in the structure clear of ob struction.
In order to reduce fire hazard, the installation of this applianc e must be carried out only by a suitably
qualified person.
Position the appliance in such a way that the plug is accessible at all times.
Openings & Plan Views
13
1779mm
70.0inch
537mm/21.1inch
1769mm/69.6inch
547mm
21.5inch
13
525mm/20.7inch
535mm
21.1inch
Electrical Safety
Be sure to follow the National Electrical Code, as well as local codes and ordinances, when installing
the receptacle.
Before your new unit is connected to a power supply, check the incoming vo ltage. Please refer to the
electrical requirements on the unit’s nameplate.
Do not use an extension cord with this appliance . If the power cord is too short, have a qualif ied
electrician or service techni cian install an outl et near the ap pliance. Use of an extension cord can
negatively affe
ct the perform ance of the unit.
Do not, under any circumstances, cut or remove the third ground prong from the power cord suppli ed.
Improper use of the ground ed plug can result in the risk of electrical shock . If the power cord is
damaged, have it replaced by an authorized servic e center.
NEVER unplug your refrigerator/freezer by pullin g on the power cord. Always grip the plug firmly and
pull straight from the outlet.
Plug the power plug into a grounded and compa tib le sock et.

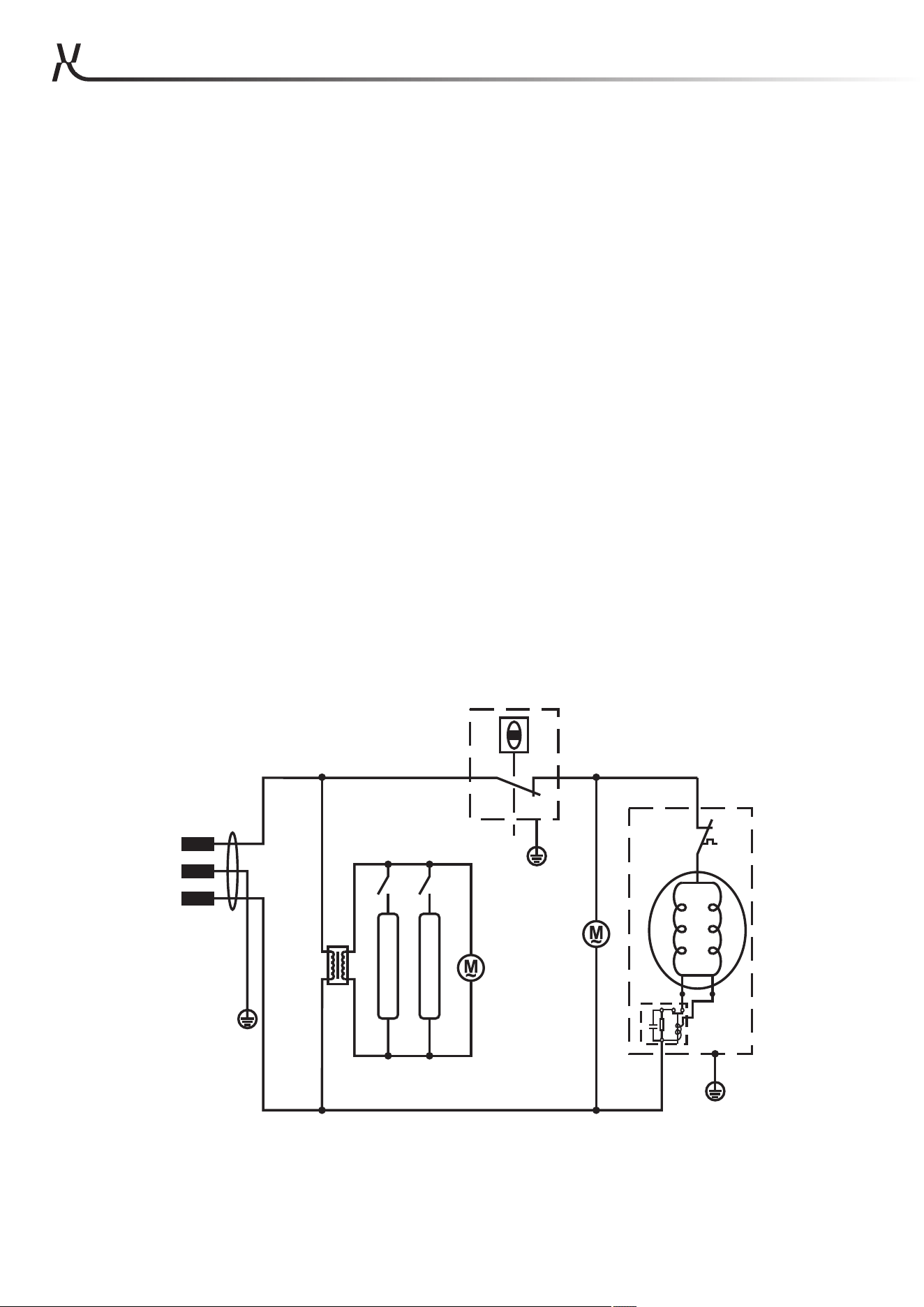

Electronic Diagram
Compressor
Over load
Protector
C
S M
RELAY
STARTUP
WH
BK
FAN MOTOR
BK
WH
LED Light Bar
MAX 2W
DC 12V
GN
BK
WH
GN
L
E
N
GND
C
R
Temperature controller
L C
H
GN
LED Light Bar
MAX 4W
FAN MOTOR
14
INSTALL AND ADJUSTABLE SHELF
Shelf height adjustment.
The shelf height can be adjusted.
Arrange the shelves in accordance with the dimensions of the items to be placed in the cooler.
How to Install the Fixer of Shelf
Step 1 Put on the shelf. Step 2 Insert the bottom of a fixer to the hole
for the height that you need.
Step 3 Insert the top of the fixer to the hole
above step 2
Step 4 Finished
15
How to Discharge the Fixer of Shelf
Step 1 When discharge the fixer, push the fixer
to one side and let another side gets away
from the hole
Step 2 Take the other side off the hole
How to Install the K-Type Fixer of Shelf
Step 1 Take out k-clip and align with hole.
Step 2 Insert the 2 side into h o l e at the same time.
16
OPERATION
Before Use
Remove shipping package, tape, etc, and leave doors open to ventilate for a while.
The unit is cleaned before shipment. However, clean the compartment interior using warm water then
dry it with a sof t-cloth after delivery, for the glass parts only use specific pro ducts, avoiding the use of
water which can leave on the glass residues.
Allow the unit to run for about 1 hour to cool before placing items in the cooler.
Ensure all shelves are sitting level and properly secured before loading products.
To ensure the refrigerant and oil in the cooling system has pre cipitated properly, keep the applianc e in
the upright position for several hours before switching it on. If the appliance was tilted horizon tally prior
to or during delive ry, keep it upright for at least 48 hours before switching it on.
Wait 5 minutes or more before re-starting. Restarting the unit immediately after it has been turned off
may cause fuses to blow and activate the circuit-breaker, the com
pressor may be overloaded, and/or
other damage may occur.

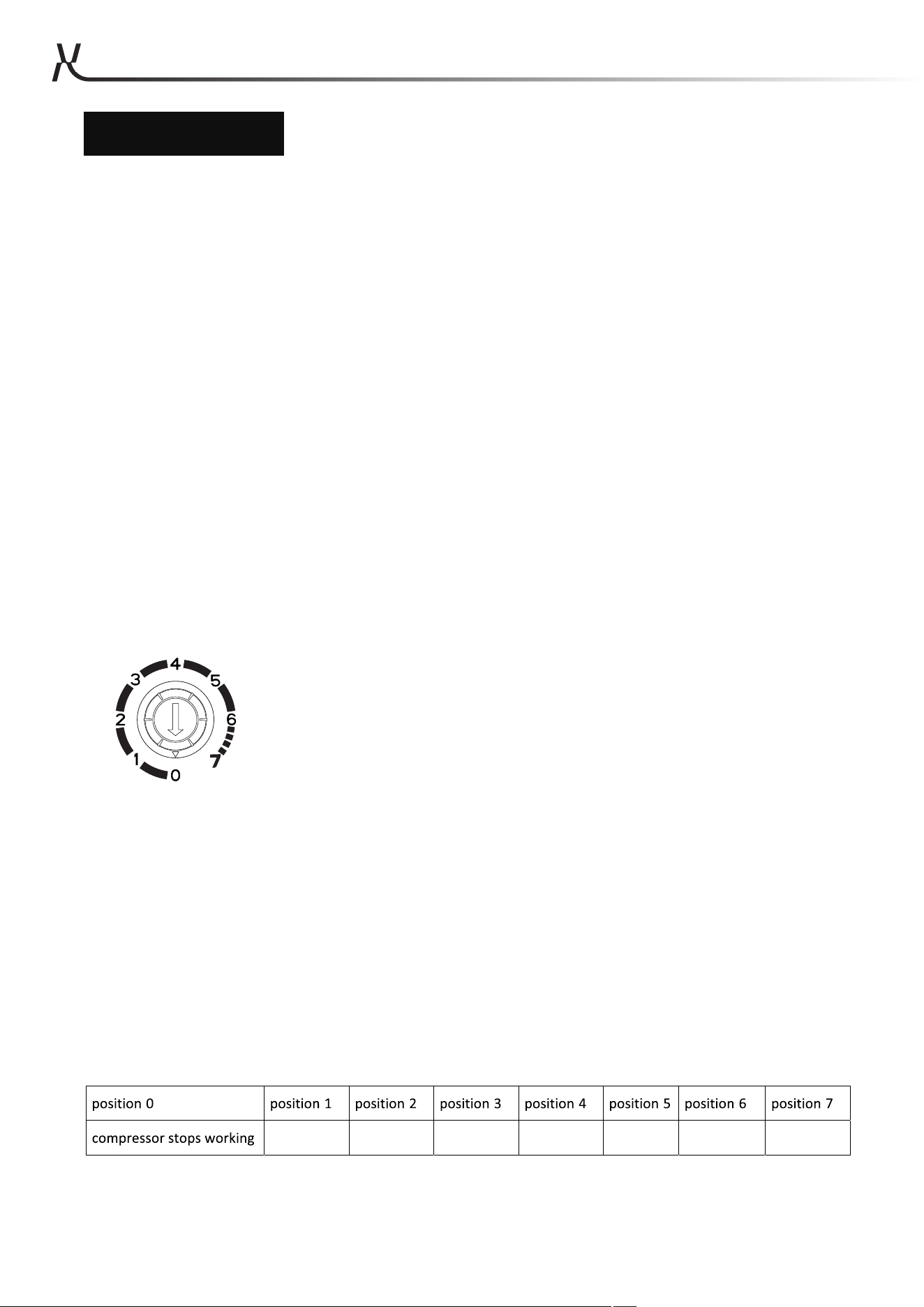

Temperature Adjustment
1. The thermostat could be adjusted the temperature inside the cabinet.
2. Turn the knob in clockwise.
3. The position 3 or 4 is suitable.
4. The position 0, the compressor stops working all the time.
5. To save energy, the door should not be frequently opened or left open for a long time.
6. The surface and the inside of the refrigerator should be dry and clean. Long term
moisture wilcause the refrigerator rust slowly. (There will be some stains on the surface).
7. Periodical clean is suggested for your reference. Generally, 30-45 days once is best.
When cleaning, it is best to wipe the inside and the surface of the refrigerator with the
soft cloth in neutrasoapsuds or detergent.
Caution: To ensure safety, the power plug must ne pulled out before cleaning.
17
49.2°F±35.6°F 47.3°F±35.6°F 45.5°F±35.6°F 45.5°F±34.7°F 41.9°F±35.6°F 38.3°F±35.6°F 34.7°F±35.6°F
NOTE: This m achine has an internal temperature differential that works as a protection for the
compressor. The way the differential works is that at whatever temperature the unit will be set at, the
compressor will work and cool the cabinet down until it reaches the chosen set point then it will shut
itself up. It will allow a differential of 4 degrees before start ing its operation bac k.
The reason is to protect the compressor from doing short cycles (on / off) repetitively. Do
ing so can
burn ou t the comp
ressor, the same as flickering a light switch very fast, it will burn the light bulb. T he
compressor works exa ctly the same so it should be considered when adjusting the set point.
Drain Tray
Defrosting is performed autom atica lly and drain water is collected in the drain tray.
Water in the drain tray is evaporated automatically, In humid environments, there will be a large amount
of water in the drain tray, so please throw away drain water once a day.
Placing Items in the Showcase
This s howcase employs a forced c irc ulation of cold air system. If circulation of cold air is ob structed, the
items will not be adequately refrigerated.
Pay attention to the following points:
Do not let items obstruct the cold air inlet and suction outlet.
Place items so that they do not protrude from the shelves. The gap between the shelv es and the door is
used for circulation of cold air.
Place items evenly on all shelves.
This equipment is intended for the storage and display of non-potentially-hazardous bottled or canned
products only.
18
MAINTENANCE & CLEANING
The smooth operation and life of the equipment are mainly determined by correct and regular
maintenance. It is much easier to clean on a regular basis than to have to remove stains on ce they
have built up.
Cleaning
Cleaning the Refrigerator Surface
Cleaning the inside of the refrigerator
When cleaning the cabinet interior, use a soft and dry cloth.
If very soiled, wipe with a cloth that has been moistened with a detergent.
Dry with a soft cloth.
Wash door gaskets on a regular basis. Simply remove the do or gasket from the frame of the door, soak
it in warm water and soap for thirty (30) minutes, then dry with soft cloth and install.
NOTE: Che ck door gaskets f or proper seal after they are replaced.
To prevent any electrical shock hazards or injury by rotating circulation fan,
always disconnect the power cord plug from the wall outlet before cleaning.
WARNING
Do not use abrasive detergents!
Clean the refrigerator with m ild detergent and then dry it
with a soft cloth.
NOTE: ATTENTION! Never hose down the appliance or immerse it in water or any other liquid,
instead wipe the exterior with a damp cloth. Short-circuit and electrical shock could result.
ATTENTION! N ever use aggressive cleaning agents or abrasives. Do not use solvents or
petrol based cleaning agents. Some cleaning agents may leave harmful residues or cause
damage to the appliance. Use a food
safe detergent instead.
ATTENTION! Do not use any scourer
and sharp or pointed objects du ring
cleaning, this may cause damage to
the appl iance.
19
Periodically rem ove the shelves from the unit, and clean them with a mild soap and warm water. Rinse
under tap afterwards to remove any soap residues.
NOTE: Always dry the shelves before placing them back inside the chamber.
To ensure the safety, perform the following checks after cleaning.
1. Is the power cord plug firmly inserted into a dedicated wall outlet? Confirm that the plug is not
abnormally hot.
2. Check the power cord for cracks and damage. Should the slightest ir
regularity be observed, contact
the deal er fro
m whom you purchased this unit or our custo mer’s service.
Maintenance
Power Failure
Keep opening and closing of the door to a minimum.
Avoid placing new items in the cooler as this will raise the temperature inside the compartment.
ATTENTION! Neve r let the power c able or power plug get wet or damp.
Regularly check the power plug and power cable for damage. If either is damaged do not use the
appliance. Instead, have it repaired by a certified electrical engineer.
When not Used
for a Long Period
Remove all ite ms from the compartment and disconnect the power cord plug from the wall outlet. Clean
the c ompartment interior and wipe away all water.
To prevent mold formation and bad s mell, leave the door open to dry the compartment completely.
Transportation
Disconnect the power cord plug from the wall outl et.
When moving the cooler, make sure that the feet do not damage the power cord.
Do not let the feet hit against floor steps, thresholds, etc.
Temporary Storage
Affix a piece of wood, etc. Between the door and main unit to prevent complete closing of the door.
Make sure not to store the unused cooler at a location where children play.
Should a child enter the compartment and the door is closed, the child may not be able to open the door
from the inside.
20
TROUBLE SHOOTING
Fault Cause Resolution
1.Manual t
emperature
controller dis-function/flicker
Open traverse or bad connection
Have a fault on indicator
Check wires to ensure a good connection
Change the electronic controller
2. Unlighted fluorescent
light strip
Open traverse or bad connection
Tube fault
Starter fault
Ballast fa ult
Check wires to ensure good connection
Change tube
Change starter
Change ballast
3. Fan is out of work
Open traverse or bad connection
Fan fau lt
Blades int erfere d by other parts
Check wires to ensure good contact
Change fan
Adj ust po sitions of interfered parts
4. No cooling/poor cooling
Open traverse or bad connection
Insufficient power voltage
Temperature controller at “0”
Compressor not started
Compressor locked (current
increases sharply whe n connecting
power, the function o f protector)
Power switch fault
Protector fault
Leakage of co oli ng system
Poor hea t dissipation due to tightly
closing t o wall
Check wires to ensure good contact
Operate cooler at rated voltage, adjust
temperature controller to right poi nt
Change compressor
Turning off the power, shaking the
compressor and re-starting on, repe at for
2-3 times. If i t still doesn't work, replace the
compressor
Change switch
Change protector
Find the point of leakage and weld, vacuu m
and pour into refrigerant
Move cooler to keep normal heat
dissipation.
5. Non-stop
Deformation and damage of th e door
seal l ead to cooling le akage
Thermostat set to maximum
Repair (see fault 7) or re place the door seal
Operating cooler at rated voltage, adjust
temperature controller to right gear
6. Abnormal noise
Resonance caused by uneven
location
Blades encounter barriers
Loosed screws of c ondenser or
drainage sink
Locate cooler to ensure its four casters on
an even surface
Remove barriers
Tighten screws
7. Magnetic door gasket is
not working
Magnetic door gasket distorted
Blow sunk position with hair drier until door
gasket reshapes
8. Inclined d oor
Door hinge screws loosed
Adj ust the position upper and lower door
hinges, tighten screw
21
Change Air Fan
Step 5
Hold up fan board slowly to
connect fan wires, collect wire
units and tighten fan board.
Step 4
Change the new fan motor, adjust the motor, fan board and
fan cover to superpose 4 holes, tig hten screws and turn over
fan board to connect motor wires and fixed the sensor clip.
Step 3
Remove the screws of the
sensor, take off it and the
fixed clip.
Step 2
Remove these 4 screws and
take off the fan cover.
Step 1
Remove screws on the fan
board, put the whole board
down slowly, and disconnect
the wire.
PROCEDURES OF REPLACING PARTS
22
23
