BACK BAR COOLER
BRAND: BODEGA
MODEL: LG-330HA
SAFETY PRECAUTIONS ........................................................................................................................................
INSTALLATION........................................................................................................................................................
OPERATION ..............................................................................................................................................................
MAINTENANCE & CLEANING ..............................................................................................................................
TROUBLE SHOOTING ............................................................................................................................................

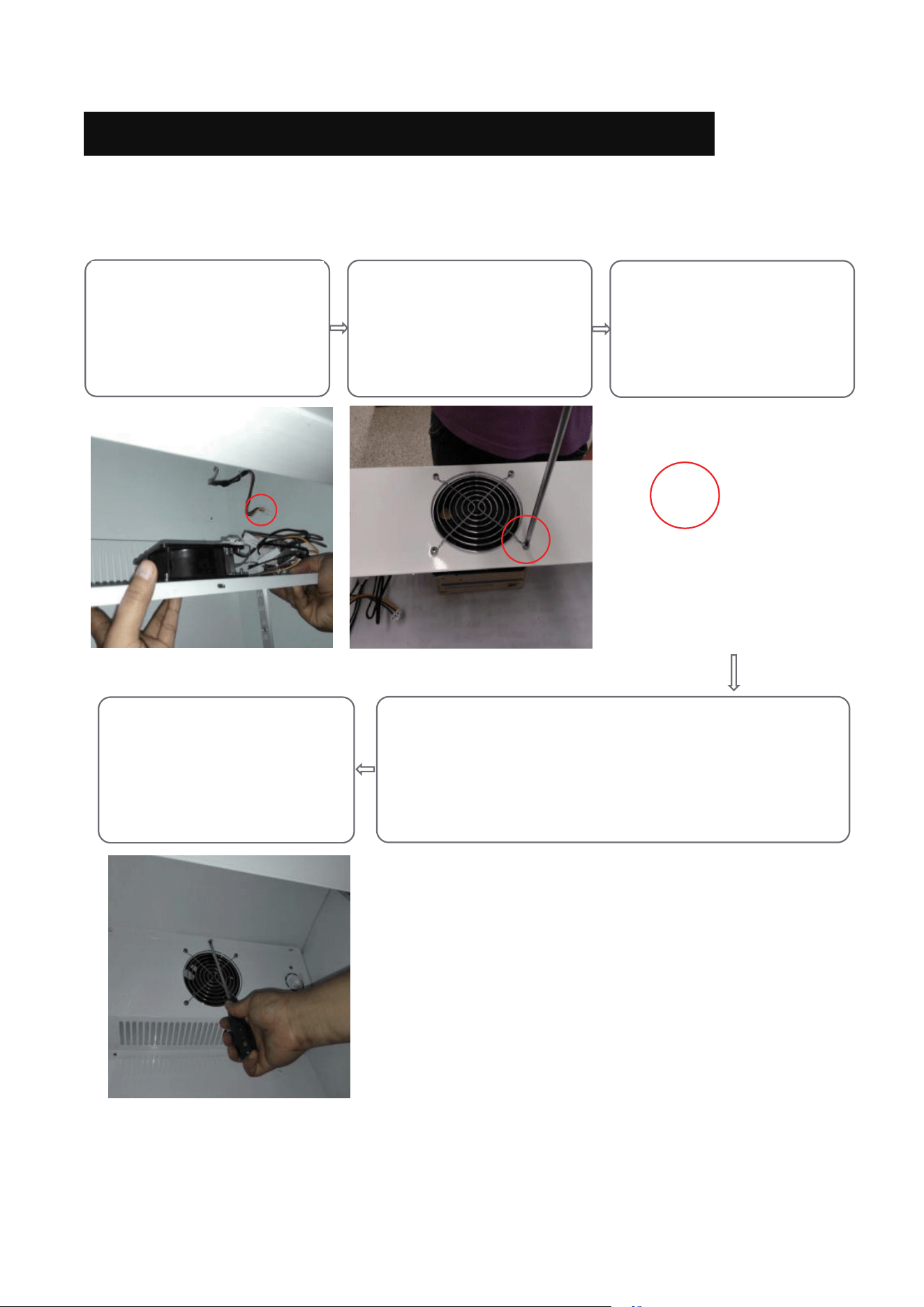

PROCEDURES OF REPLACING PARTS ............................................................................................................

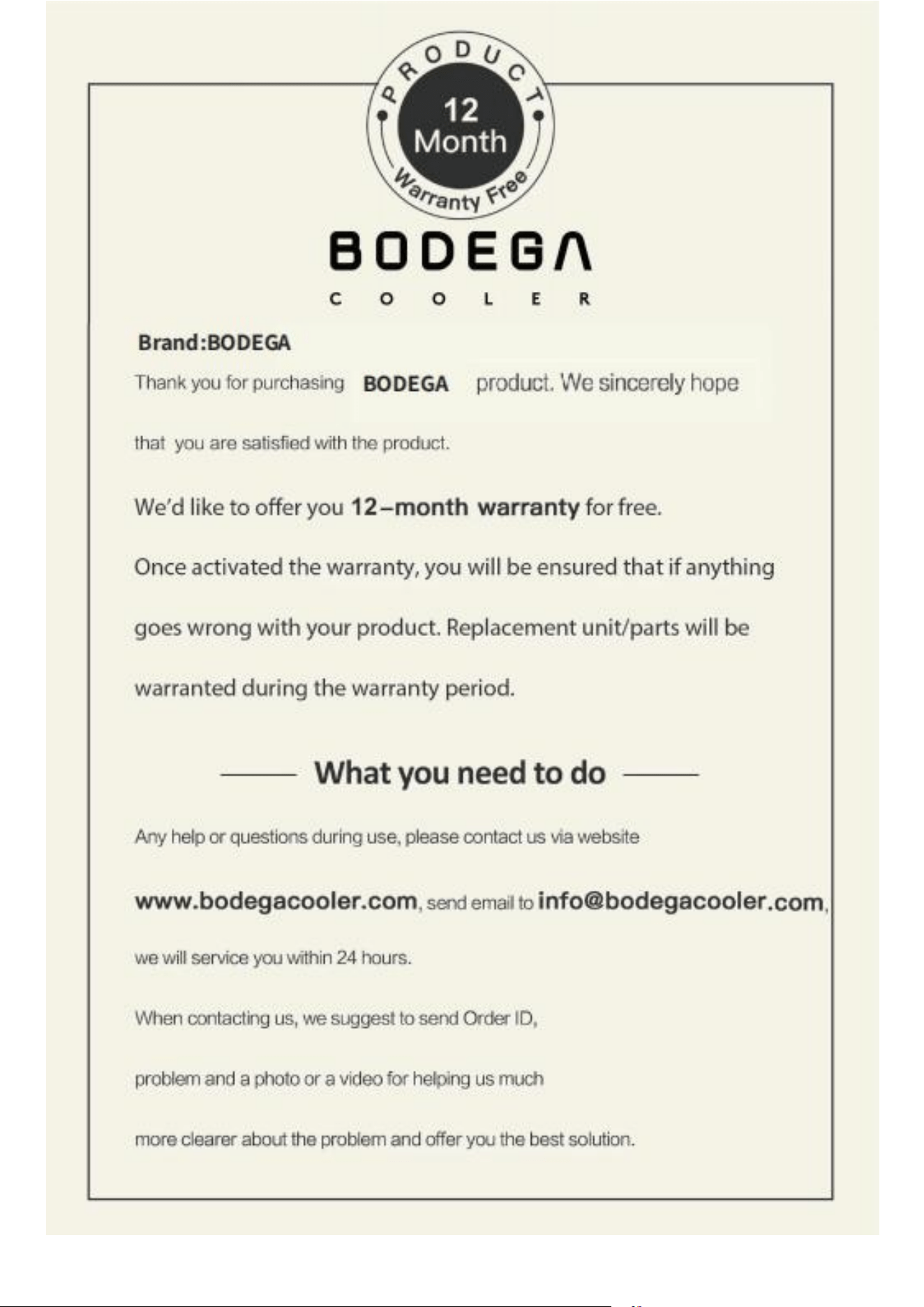

WARRANTY ...............................................................................................................................................................
1
7
11
13
15
17
18
BACK BAR COOLER
SAFETY PRECAUTIONS
This manual contains the product’s basic knowledge, use instruction, fault diagnosis and basic trouble
shooting methods. In order to better understand and use this product, please take good care of this
manual and read it carefully.
The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to
minimize risks that could cause serious damage and injury. These safety precautions are divided into
WARNINGS and CAUTIONS. Cases where improper handing of the
unit could lead to death or serious
injury are listed under the "WARNING" heading. However, the cases listed under the "CAUTION" heading
could also lead to serious results, to ensure the safety, adhere strictly to both types of safety precautions.
Refrigerant Safety & Warning I nformation
CAUTION! Keep all ventilation openings clear of obstruction in the appliance enclosure or in the
structure housing the appliance.
DANGER! Risk of fire or explosion, Flammable refrigerant used, Do not damage t
he refrigerant
circuit.Do not use mechanical devices or other means to accelerate the defrosting process, other
than those recommended by the manufacturer.
DANGER! Risk of fire or explosion, Flammable refrigerant used, consult repair manual/owner’s
guide before attempting to service this product. All safety precautions must be followed. Dispose of
properly in accordance with local and federal regulations. Follow all safety precautions.
CAUTION! Do not store any explosive substance such as ae
rosol cans with a flammable
propellant into this appliance.
Basic Safety & Warning
Take care during operation, maintenance or repairs to avoid cuts or pinching from any part /component
of the cabinet.
Ensure the unit is properly installed and located in accordance with the Installation Instructions before
use.
This appliance is not intended for use by persons(Including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have bee
n given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
DO NOT allow children to play with the appliance or climb, stand, or hang on the unit’s shelves to
1
prevent damage to the refrigerator and personal injury.
The appliance shall be disconnected from its power source during cleaning or maintenance and when
replacing parts.
When the cooler will be not be used for a long time, disconnect the power and clean it. Please examine
the circuit before reuse..
DO NOT store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or any other
appliance.
DO NOT store explosive substances such as aerosol cans withaflammable propellant in this
appliance.
Strong base, strong acid, organic solvent and corrosive goods or those are easy to pollute to food are
prohibited storing in the cooler, otherwise, it can cause corrosive problem or accident.
DO NOT use other electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
The LED light must not be replaced directly by the user! If the light is damaged, please contact the
customer service for assistance.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to
flame.
When positioning the appliance, ensure the supply cord is not trapped or damaged.
Make sure the power cable does not come in contact with sharp or hot objects and keep away
from open fire.
I�he supply cord is damaged , it must be replaced by a special cord or assembly available from
the manufacturer or its service agent.
ATTENTION! As long as the power plug is in the electrical socke�h e applian ce is connected to the
electric grid.
Before you scrap the appliance, please take o�he doors to prevent children trapped.
DANGER! RIS K OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past.
2
NOTE:
Text set off by the exclamation mark contains information that should be strictly adhered to.
After reading the instruction manual, store it an easily accessible place where the user(s) of this product
can easily find it.
Precautions for Installation
The symbol is a warning and indicates the refrigerant and insulation blowing gas are
flammable.
Warning - Risk of fire / flammable materials.
Warning - Do not store explosive substances such as aerosol cans with a flammable propellant
in the unit.
Warning - Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance
Warning - The refrigerant and insulation blowing gas are flammable. When disposing of the
appliance, do so only at an authorized wast
e disposal centre. Do not expose to flame.
WARNING Improper handling of the unit could lead to death or serious injury.
CAUTION Improper handling of the unit could lead to serious results depending on
the circumstances.
Installation should be performed only by the dealer or a qualified expert. Attempting to
install the unit yourself could result in water leakage, refrigerant leakage, electrical
shock, or fire.
3
Precautions for Use
All repairs, disassembly and modifications
should be performed only by qualified
technicians. Attempting to perform these
yourself could result inafire, malfunction,
and injury.
Never splash water directly onto the
product or wash with water as short-
circuit and electrical leakage could result.
Do not damage, modify, excessively
bend, strain, twist or bundle up the power
cord. Also, placing heavy objects the
power cord or squeezing it in a tight place
could damage it, possible resulting in
electrical shock or fire.
Never use flammable spray cans or
leave flammable substances near the
unit. Sparks from electrical switches
could result in explosion and fire.
The cooler is intended for storage and
display of beverages for sale. Do not
use for other purpose than intended as
this could adversely affect items placed
in the unit.
Use a dedicated wall outlet. Do not use
extension cords or convenience
receptacles as this could result in
electrical shock, overheating andafire.
Never put flammable or volatile
substances into the unit as explosion
and fire could result.
Never attempt to insert fingers, sticks, etc.
Into the cold air suction outlet as a
circulation fan is rotating at high speed
inside the outlet. Injury, electrical shock
and improper operation could result.
Never place heavy objects or items
containing water on top of the unit.
Objects could fall down and cause injury
and spilled water could deteriorate the
insulation of electrical components and
result in electrical leakage.
For indoor use only. Using the unit in a
location exposed to rain could result in
electrical leakage and electrical shock.
4
Install the unit in a location where the
floor is sturdy enough to support the load
of the unit. If the floor is not sturdy
enough or installation is incorrectly
performed, the unit could tip over and
falling shelves and products could cause
personal injury.
If you find gas leakage,please don't touch
the appliance. Turn it off and open the
doors and windows for ventilation.Gas
leakage could cause explosion, fire, and
fire injury.
Store the unit inalocation where it is not
exposed to rain, Usingaunit that has
been exposed to rain could result in
electrical leaka
g
e and electrical shock.
Leave disassembly and disposal of the
unit to qualified experts.
WELL VENTILATED PLACE
Please make sure there Is more than 10cm
space between UPRIGHT COOLER and the
wall. If there Is no space, cooling capacity can
drop down.
Never hang from the door or climb onto
the unit. The unit could tip over or fall and
cause material damage or injury.
Keep away from hot air sources. Cooling
performance is reduced if the unit is
placed near heat sources such as hot
plates and stoves and if it is exposed to
direct sunlight.
If installation in a damp location is
unavoidable, also install an electrical
leakage circuit breaker. If no electrical
leakage circuit breaker is installed,
electrical shock could result.
Should the unit need temporary storage,
make sure not to store the unit in a
location where children play and take
precautions so that the door cannot be
completely closed. This will minimize the
risk that a child becomes trapped inside
the compartment.
Disconnect the power cord plug from the
wall outlet before moving the unit and
make sure that the power cord is not
damaged during transport. A damaged
power cord could result in electrical
5
Grasp the handle when closing the door.
Holding at other positions could result in
pinched fingers and injury.
When disconnecting the power cord plug
from the wall outlet, hold at the plug main
body close to the outlet. Pulling the cord
could cause wire breakage, possibly
resulting in overheating and fire.
Make sure that the unit does not tip over
or fall when it is moved. A falling unit
could cause serious in
j
ur
y
.
Do not push hand against or apply
excessive force to glass surfaces as the
glass could break and cause injury.
Do not throw items onto the shelves and
do not place items totaling more than 25
kg on each shelf. The shelf could fall
down, possibly causing injury.
Be sure to attach and secure shelves
correctly. An improperly attached shelf
could fall down and cause injury.
6
INTRODUCTION
Product Features:
Fan-assisted cooling
Ene
Adjustable shelves
rgy efficient Low-E multi glass doors
Interior light with an independent switch
32 °F 50 °F
Automatic defrost
Locks and keys
A great addition to any operation with bar service, this
back bar cooler is the perfect place to chill bottles of
beer and cider. Featuring glass doors, durable
construction, and eco-friendly refrigerant, this back
bar cooler makes it easy to provide patrons with their
favorite beverage quickly and easily. Whether full of
specialty options or popular customer favorites, this
unit is engineered to support your business and
make it easier to serve customers with the quality
and attention yo
u strive to provide.
Designed to maximize your drinks sales is the back
bar cooler, keeping your best sellers attractively
merchandised and ready to serve thanks to the

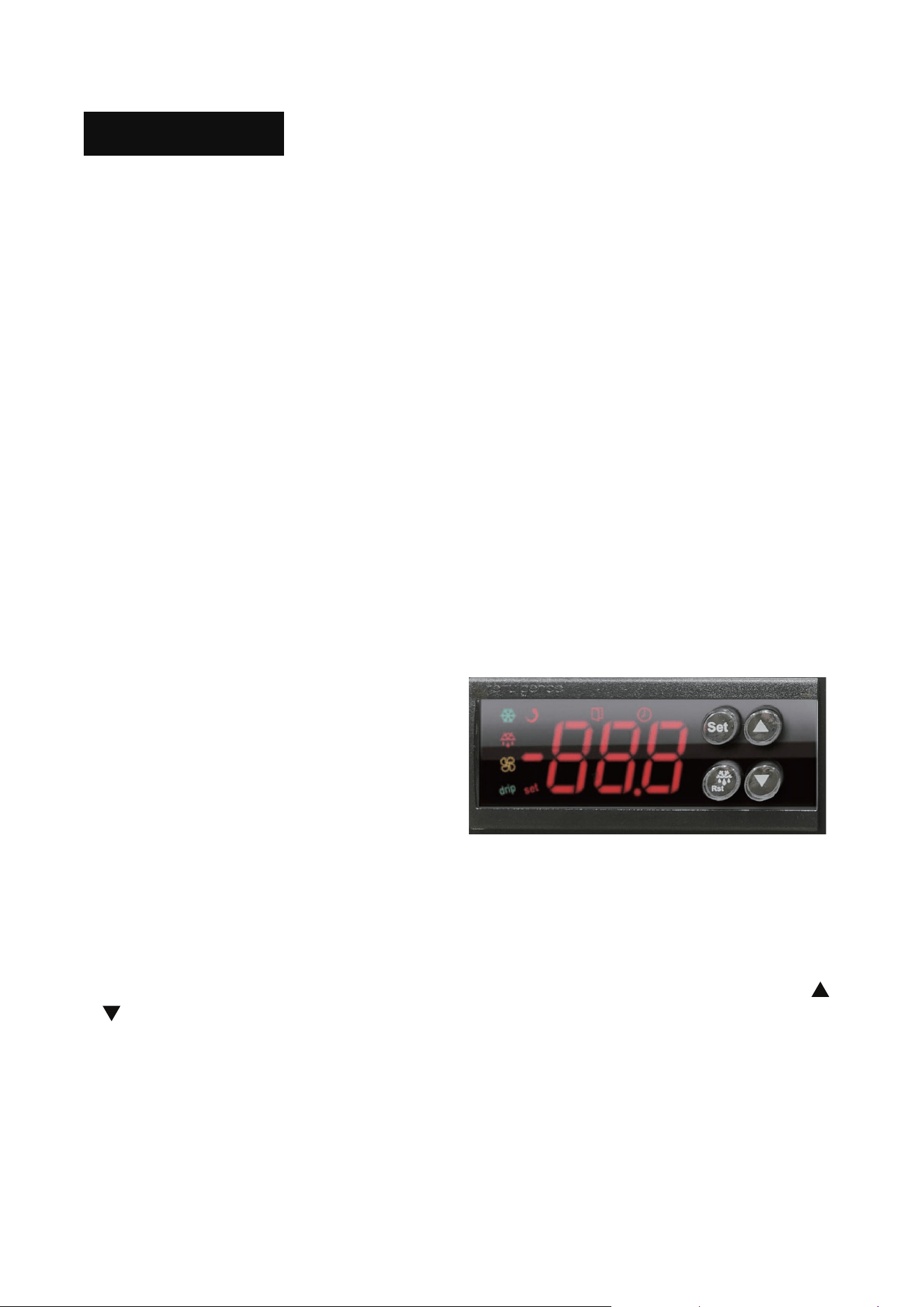

internal LED light and easy to use digital controls and
display. Plus, back bar coolers can store other
items such as milk and cream, along with food
ingredients for beverage garnishes, including olives,
onions, pickles and more.
° °
6
7
Technical Specifications
Details of Product
MODEL LG-330HA
RATED VOLTAGE
115V~
RATED FREQUENCY
60Hz
TOTAL CAPACITY
11.4 ft3
RATED INPUT POWER 146W
RATED CURRENT 1.4A
HIGH PRESSURE 215Psig
LOW PRESSURE 50Psig
REFRIGERANT
R600a(0.08 Ibs)
ENERGY CONSUMPTION 1.75kWh/24h
NET WEIGHT
Low-E Glass Door
Electronic Controller
Inner Light
Adjustable Shelves
Drainage Hole
Dynamic Cooling
Lock
160 lbs

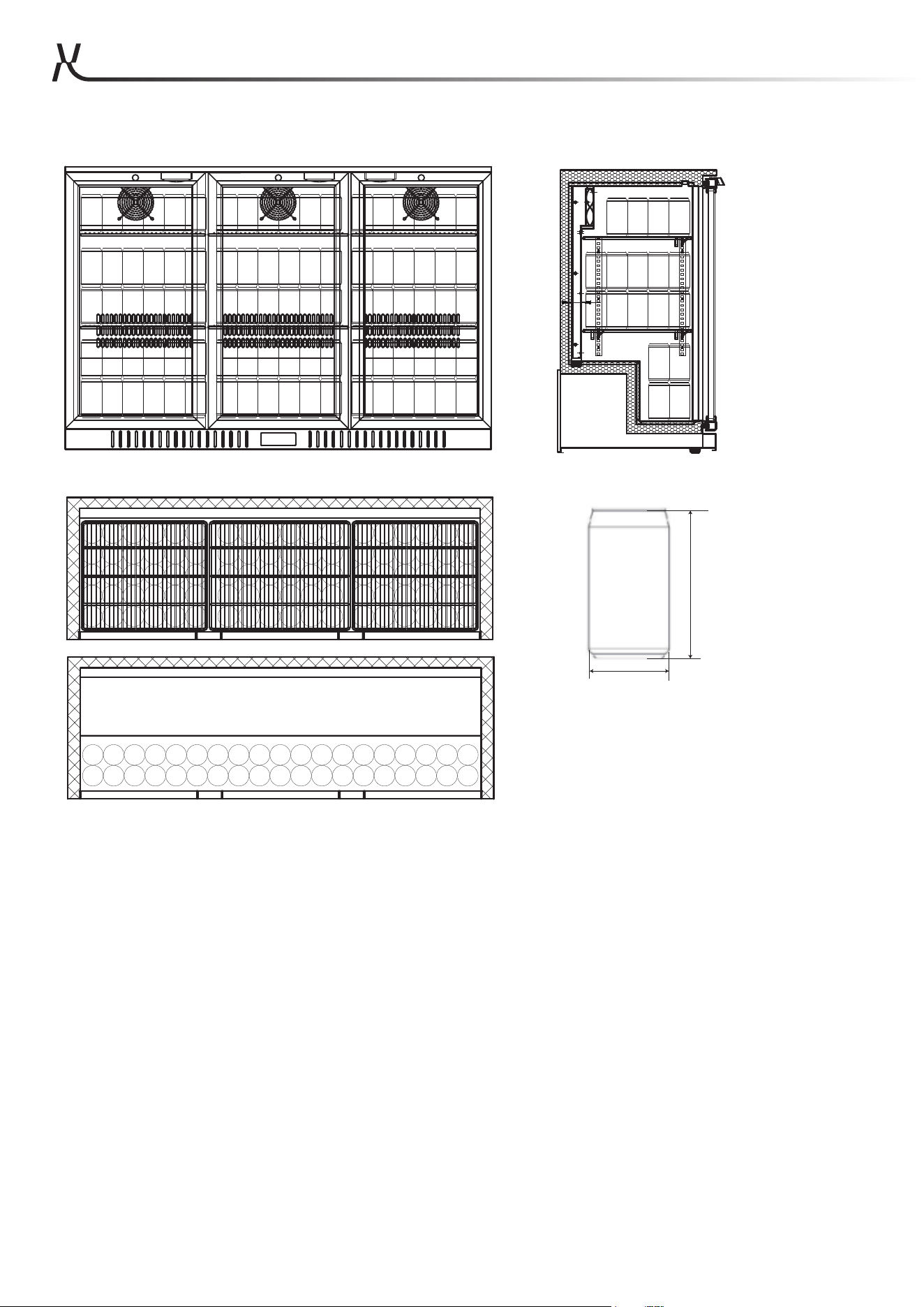

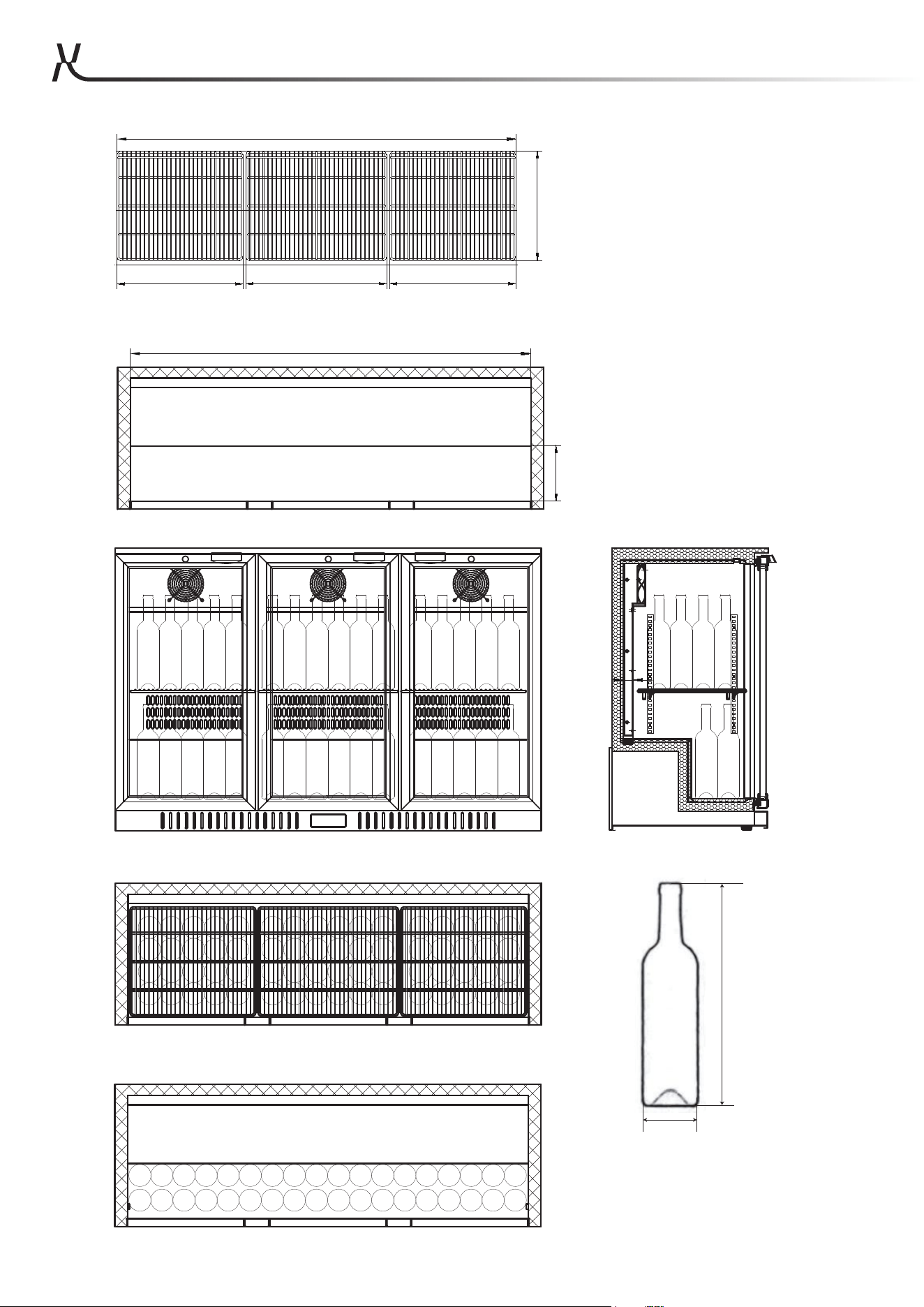

8
1270mm/50.0inch
346mm
13.6inch
399mm
15.7inch
446mm
17.6inch
399mm
15.7inch
1270mm/50.0inch
64 bottle
36 bottle
This model can store about
100
standard bottles.
300mm/11.8inch
70mm/2.75inch
178mm
7.0inch
9
123mm/4.84inch
66mm/2.6inch
72 bottle
180 bottle
76 bottle
This model can store about 328
standard bottles.
TIP:
You can change the height of the shelf according to your needs.
This will reduce the stated bottle capacity.
10
INSTALLATION
Guides to Choose Location
Due to the fact that the unit has a glass door, its performance is highly influenced by environmental
conditions. To minimize the effects on the unit’s performance, the following are recommended:
The appliance must be positioned on a flat and stable surface. If the surface is uneven, the unit may
be noisy. The unit may malfunction if the surface is uneven.
The unit is not exposed to direct sunlight, or is not to be placed near any kind of heat source such as
a coo
ker, oven or radiator. Place the refrigerator in the coolest and best ventilated part of the room.
The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/
or windows.
When positioning the appliance, maintainadistance of 10 cm (4 inches) between the appliance and
walls or other objects for ventilation and ease of use.
Keep all ventilation openings in the appliance enclosure or in the structure clear of obstruction.
In order to reduce fire hazard, the installation of this appliance must be carried out only by a suitably
qualified person.
Position the appliance in suchaway that the plug is accessible at all times.

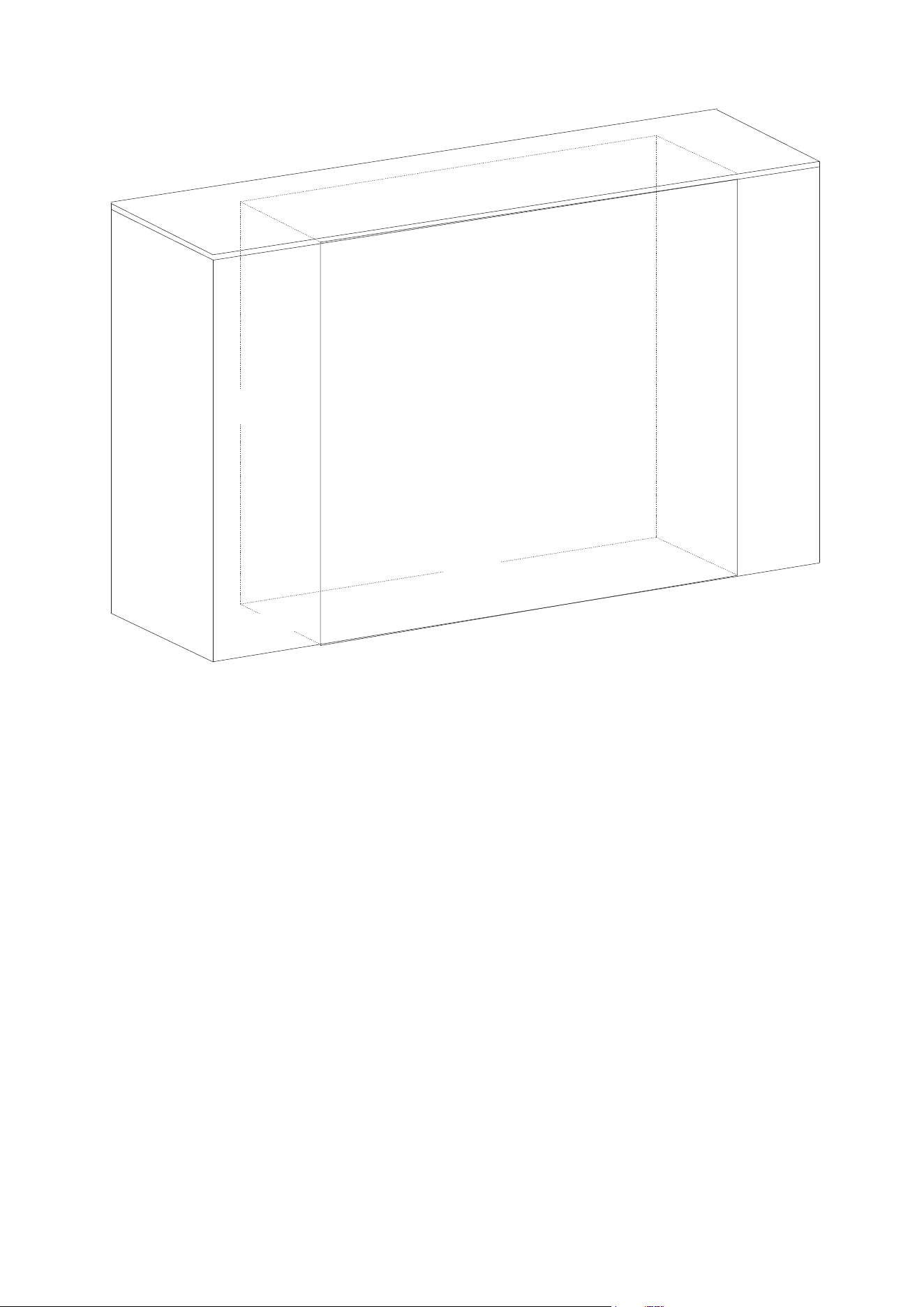

Openings & Plan Views
1350mm/53.1inch
530mm/20.9inch
900mm/35.4in
11
Electrical Safety
Be sure to follow the National Electrical Code, as well as local codes and ordinances, when installing
the receptacle.
Before your new unit is connected to a power supply, check the incoming voltage. Please refer to the
electrical requirements on the unit’s nameplate.
Do not use an extension cord with this appliance. If the power cord is too short, haveaqualified
electrician or service technician install an outlet near the appliance. Use of an extension cord can
negative
ly affect the performance of the unit.
Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
NEVER unplug your refrigerator/freezer by pulling on the power cord. Always grip the plug firmly and
pull straight from the outlet.
Plug the power plug intoagrounded and compatible socket.
1360mm
53.4inch
540mm
21.3inch
910mm
35.8inch
12
OPERATION
Before Use
Remove shipping package, tape, etc, and leave doors open to ventilate for a while.
The unit is cleaned before shipment. However, clean the compartment interior using warm water then
dry it withasoft-cloth after delivery, for the glass parts only use specific products, avoiding the use of
water which can leave on the glass residues.
Allow the unit to run for about 1 hour to cool before placing items in the cooler.
Ensure all shelves are sitting level and properly secur
ed before loading products.
To ensure the refrigerant and oil in the cooling system has precipitated properly, keep the appliance in
the upright position for several hours before switching it on. If the appliance was tilted horizontally prior
to or during delivery, keep it upright for at least 48 hours before switching it on.
Wait 5 minutes or more before re-starting. Restarting the unit immediately after it has been turned off
may cause fuses to blow and activate the circuit-breaker, the com
pressor may be overloaded, and/or
other damage may occur.
Temperature Adjustment
User Parameter Setting
In the status o�emperature measuring and controlling press Set key for three seconds to enter user menu, it
displays the cod e St, then press Set key a gain, display the value of St. It could be modified by pressing the key
or se�emperature, and then press Set key to return to m enu item St.
The electronic controller has been set to the
best temperature for cooling beverages and
drinks at the lowest temperature of 32-50
Fahrenheit.
Should you want to set the temperature you
need, please adopt the following procedure.
13
Manually Forced Operation
In the status o�emperature measuring and controlling, press
for three seconds to force the switch between
refrigera�on, def rost/defrost delay, defrost dripping.
Drain Tray
Defrosting is performed automatically and drain water is collected in the drain tray.
Water in the drain tray is evaporated automatically, In humid environments, there will be a large amount
of water in the drain tray, so please throw away drain water onceaday.
16
Placing Items in the Showcase
This showcase employs a forced circulation of cold air system. If circulation of cold air is obstructed, the
items will not be adequately refrigerated.
Pay attention to the following points:
Do not let items obstruct the cold air inlet and suction outlet.
Place items so that they do not protrude from the shelves. The gap between the shelves and the door is
used for circulation of cold air.
Place items evenly on all shelves.
This equipment is intended for the storage and display of non-potentially-hazardous bottled or canned
products only.
14
MAINTENANCE & CLEANING
The smooth operation and life of the equipment are mainly determined by correct and regular
maintenance. It is much easier to clean on a regular basis than to have to remove stains once they
have built up.
Cleaning
Cleaning the Refrigerator Surface
Cleaning the inside of the refrige rator
When cleaning the cabinet interior, useasoft and dry cloth.
If very soiled, wipe with a cloth that has been moistened with a detergent.
Dry with a soft cloth.
Wash door gaskets on a regular basis. Simply remove the door gasket from the frame of the door, soak
it in warm water and soap for thirty (30) minutes, then dry with soft cloth and install.
NOTE: Check door gaskets for proper seal after they are replaced.
To prevent any electrical shock hazards or injury by rotating circulation fan,
always disconnect the power cord plug from the wall outlet before cleaning.
WARNING
Do not use abrasive detergents!
Clean the refrigerator with mild detergent and then dry it
withasoft cloth.
NOTE: ATTENTION! Never hose down the appliance or immerse it in water or any other liquid,
instead wipe the exterior with a damp cloth. Short-circuit and electrical shock could result.
ATTENTION! Never use aggressive cleaning agents or abrasives. Do not use solvents or
petrol based cleaning agents. Some cleaning agents may leave harmful residues or cause
damage to the appliance. Use a food
safe detergent instead.
ATTENTION ! Do not use any scourer
and sharp or pointed objects during
cleaning, this may cause damage to
the appliance.
18
15
Periodically remove the shelves from the unit, and clean them with a mild soap and warm water. Rinse
under tap afterwards to remove any soap residues.
NOTE: Always dry the shelves before placing them back inside the chamber.
To ensure the safety, perform the following checks after cleaning.
1. Is the power cord plug firmly inserted intoadedicated wall outlet? Confirm that the plug is not
abnormally hot.
2. Check the power cord for cracks and damage. Should the slightest irregularity be ob
served, contact
the dealer from whom you purchased this unit or our customer’s service.
Maintenance
Power Failure
Keep opening and closing of the door toaminimum.
Avoid placing new items in the cooler as this will raise the temperature inside the compartment.
ATTENTION! Never let the power cable or power plug get wet or damp.
Regularly check the power plug and power cable for damage. If either is damaged do not use the
appliance. Instead, have it repaired byacertified electrical engineer.
When n
ot Used for a Long Period
Remove all items from the compartment and disconnect the power cord plug from the wall outlet. Clean
the compartment interior and wipe away all water.
To prevent mold formation and bad smell, leave the door open to dry the compartment completely.
Transportation
Disconnect the power cord plug from the wall outlet.
When moving the cooler, make sure that the feet do not damage the power cord.
Do not let the feet hit against floor steps, thresholds, etc.
Tem porary Storag
e
Affix a piece of wood, etc. Between the door and main unit to prevent complete closing of the door.
Make sure not to store the unused cooler at a location where children play.
Should a child enter the compartment and the door is closed, the child may not be able to open the door
from the inside.
19
16
TROUBLE SHOOTING
Fault Cause Resolution
1. Electronic temperature
controller dis-function/flicker
Open traverse or bad connection
Have a fault on indicator
Check wires to ensure a good connection
Change the electronic controller
2. Unlighted fluorescent
light strip
Open traverse or bad connection
Tube fault
Starter fault
Ballast fault
Check wires to ensure good connection
Change tube
Change starter
Change ballast
3. Fan is out of work
Open traverse or bad connection
Fan fault
Blades interfered by other parts
Check wires to ensure good contact
Change fan
Adjust positions of interfered parts
4. No cooling/poor cooling
Open traverse or bad connection
Insufficient power voltage
Temperature controller at “0”
Compressor not started
Compressor locked (current
increases sharply when connecting
power, the function of protector)
Power switch fault
Protector fault
Leakage of cooling system
Poor heat dissipation due to tightly
closing to wall
Check wires to ensure good contact
Operate cooler at rated voltage, adjust
t
emperature controller to right point
Change compressor
Turning off the power, shaking the
compressor and re-starting on, repeat for
2-3 times. If it still doesn't work, replace the
compressor
Change switch
Change protector
Find the point of leakage and weld, vacuum
and pour into refrigerant
Move cooler to keep normal heat
dissipation.
5. Non-stop
Deformation and damage of the door
seal lead to cooling leakage
Thermostat set to maximum
Repair (see fault 7) or replace the door seal
Operating cooler at rated voltage, adjust
temperature controller to right gear
6. Abnormal noise
Resonance caused by uneven
location
Blades encounter barriers
Loosed screws of condenser or
drainage sink
Locate cooler to ensure its four casters on
an even surface
Remove barriers
Tighten screws
7. Magnetic door gasket is
not working
Magnetic door gasket distorted
Blow sunk position with hair drier until door
gasket reshapes
8. Inclined door
Door hinge screws loosed
Adjust the position upper and lower door
hinges, tighten screw
20
17
PROCEDURES OF REPLACIN G PARTS
Change Air Fan
Step 5
Hold up fan board slowly to
connect fan wires, collect wire
units and tighten fan board.
Step 4
Change the new fan motor, adjust the motor, fan board and
fan cover to superpose 4 holes, tighten screws and turn over
fan board to connect motor wires and fixed the sensor clip.
Step 3
Remove the screws of the
sensor, take off it and the
fixed clip.
Step 2
Remove these 4 screws and
take off the fan cover.
Step 1
Remove screws on the fan
board, put the whole board
down slowly, and disconnect
the wire.
21
18
22
