2200 PSI ELECTRIC
PRESSURE WASHER
Instruction Manual
MODEL PW2200
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Pressure Washer Safety Warnings ................................................................... 6
Electrical Information ....................................................................................... 8
BEFORE OPERATING 9
Unpacking & Packing List .................................................................................9

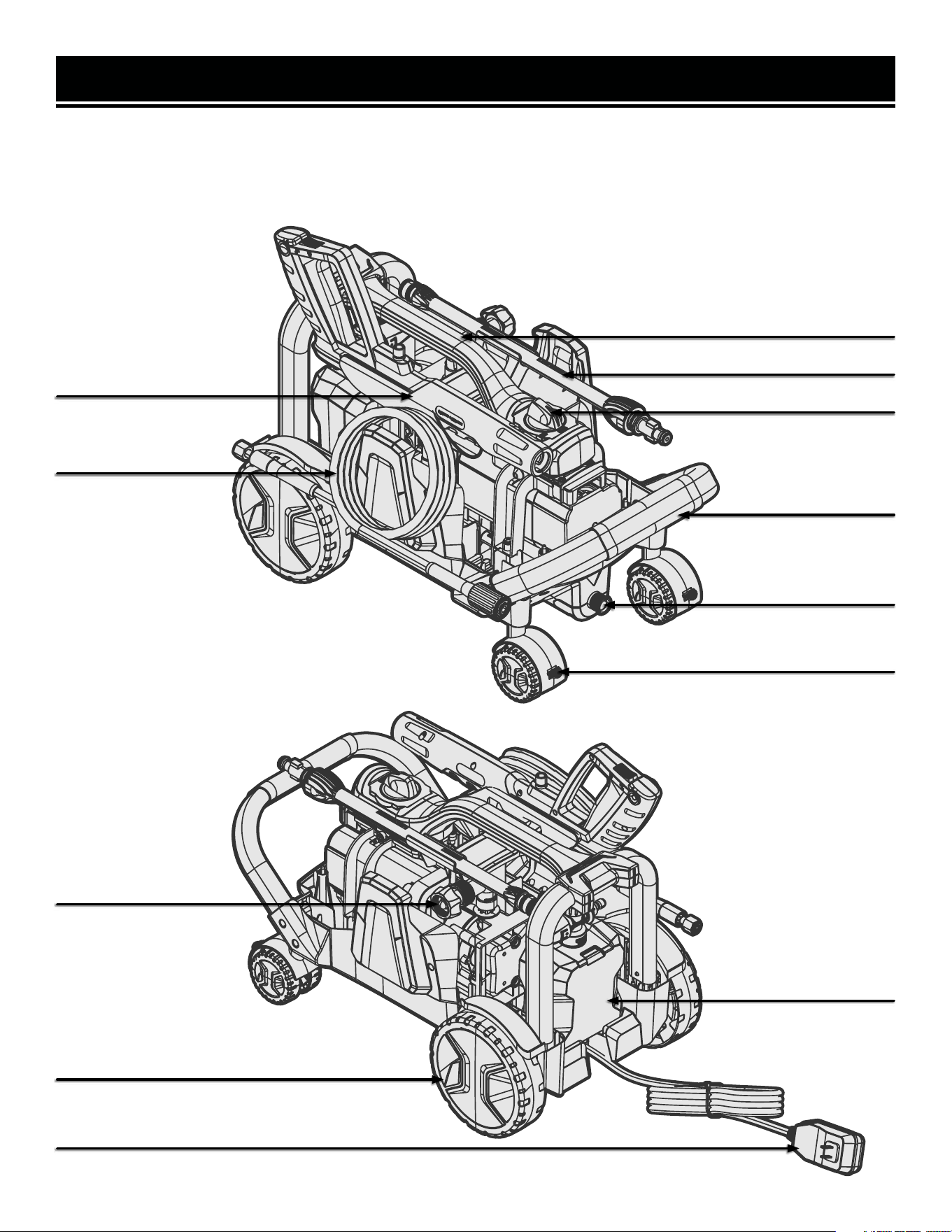

Know Your Pressure Washer ..........................................................................10

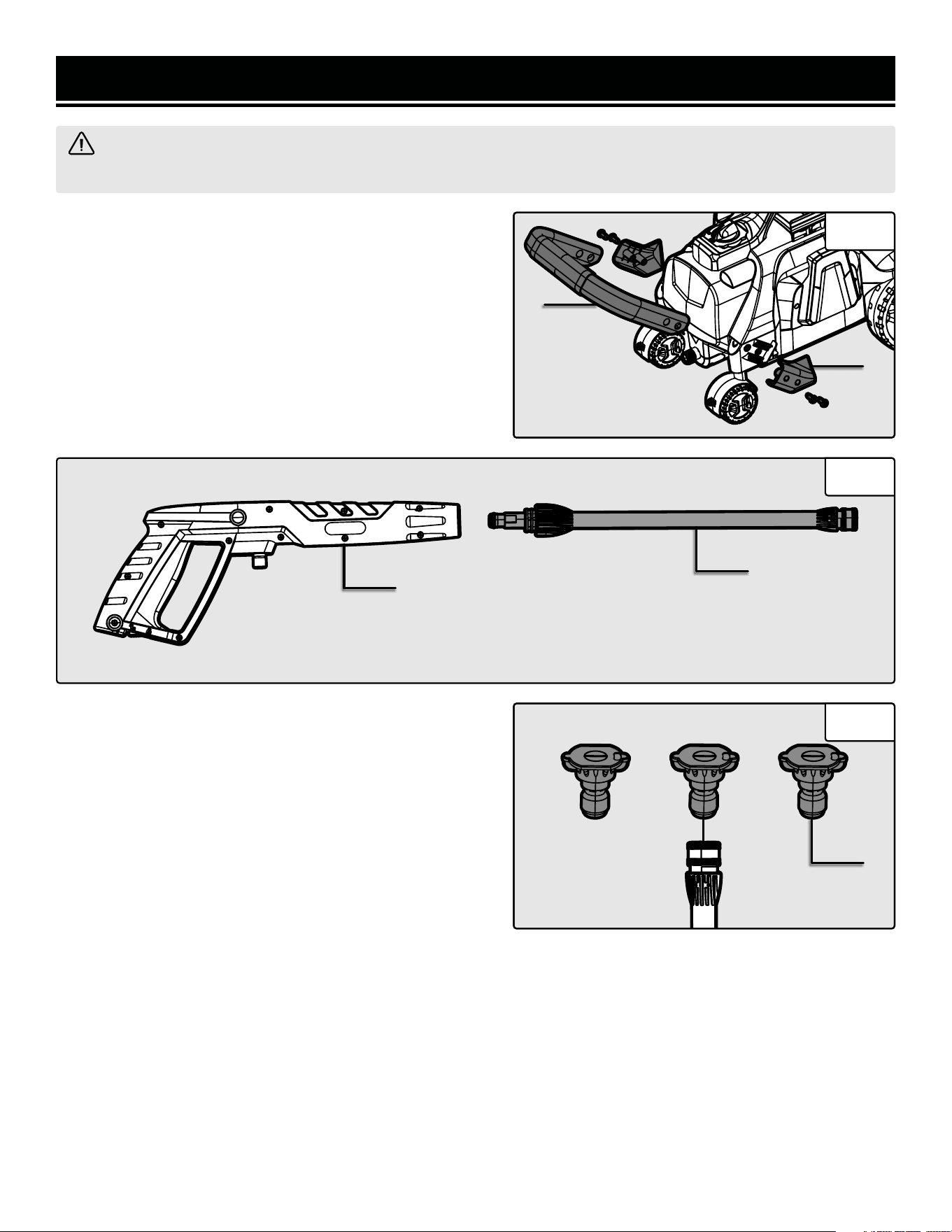

Assembly & Adjustments ................................................................................11
OPERATION & MAINTENANCE 13
Operation ....................................................................................................... 13
Transportation & Storage ................................................................................16
Cleaning & Maintenance .................................................................................17
Troubleshooting Guide ....................................................................................18

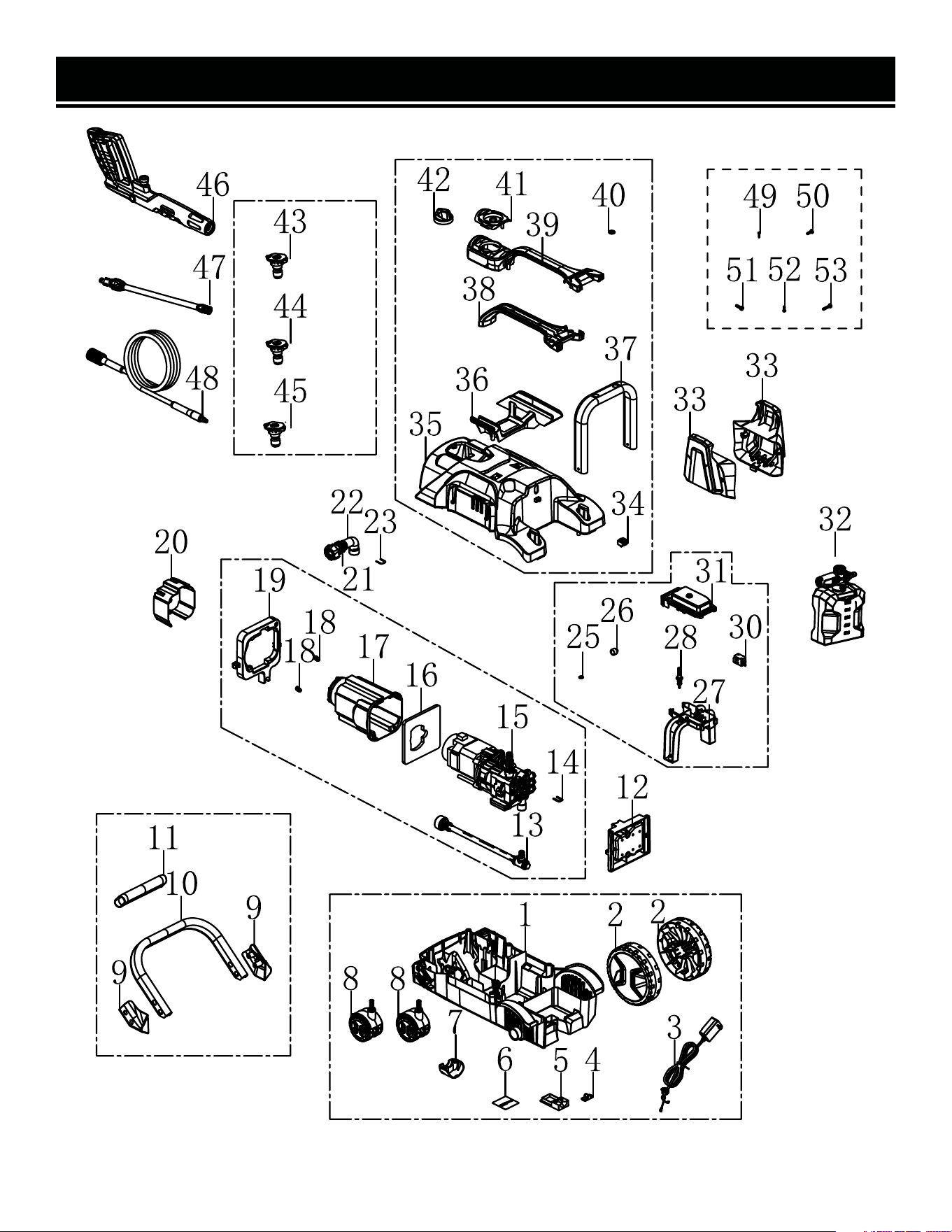

Exploded View & Parts List .............................................................................19
Warranty Statement ........................................................................................21
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
2
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Electric Pressure Washer. We know you are excited to put your tool to work, but
first, please take a moment to read through the manual. Safe operation of this tool requires that you read and un-
derstand this operator’s manual and all the labels affixed to the tool. This manual provides information regarding
potential safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
Model Number PW2200
Motor 120V, 60 Hz, 13A
Rated Pressure 1700 PSI
Maximum Pressure 2200 PSI
Rated Flow Rate 1.20 GPM
Maximum Flow Rate 1.65 GPM
Maximum Inlet Pressure 101 PSI
High Pressure Hose Length 20 Feet
Power Cord Length 35 Feet
Minimum Garden Hose Inner Diameter 5/8 in.
Detergent Bottle Capacity 33.81 fl. oz. (1L)
Product Dimensions 22.40 in. x 12.87 in. x 13.82 in.
Product Weight 22.05 Pounds
3
4
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
6
PRESSURE WASHER SAFETY WARNINGS
WARNING! Do not operate the power station until you have read and understood the following instructions
and the warning labels.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
BEFORE OPERATION
1. Know Your Tool. Be thoroughly familiar with the con-
trols of your pressure washer. Know how to stop the wa-
ter pressure quickly by releasing the trigger, shutting off
the unit, and turning off the water supply.
2. Use Suitable Components. This system is capable
of producing pressure up to 2200 PSI. To avoid rupture
and injury, do not operate this pressure washer with
components rated less than 2200 PSI working pres-
sure (including but not limited to spray guns, hoses, and
hose connections).
3. Operating Environment. Keep bystanders, children,
and animals at a safe distance away from the work area.
To reduce the risk of injury, close supervision is neces-
sary when the pressure washer is used near children.
Do not operate near flammable materials or explosive
vapors. Never point the spray gun at any people or ani-
mals.
4. Wear Safety Equipment. For protection against in-
jury, wear safety goggles and ear protection. Wear rub-
ber-soled shoes during operation to reduce the risk of
electric shock.
5. Preliminary Unit Inspection. Thoroughly inspect the
unit and accessories prior to operation. Make sure all
the parts are secured and installed correctly. Do not use
plugs or cords that show signs of damage, such as bro-
ken or cracked insulation. Have damaged items repaired
or replaced as necessary. Always perform a test run the
first time you use the tool or after replacing parts to en-
sure that the unit is functioning properly.
• This product is provided with a ground fault circuit in-
terrupter built into the power cord plug. If replacement
of the plug or cord is needed, use only identical replace-
ment parts.
6. Malfunctioning Switch. Do not use the tool if the
switch does not turn on and off. Any electrical appliance
that cannot be controlled by the switch is not safe to use
and must be repaired.
7. Detergent Safety. Always be aware of the dangers as-
sociated with the detergents and chemicals that you are
working with. Follow the warnings and instructions that
come with your detergent for proper use.
WATER SUPPLY REQUIREMENTS
1. Cold water ONLY. Use the pressure washer with cold
water only. The water supply temperature must not ex-
ceed 104°F/40°C.
2. Potable Water Restrictions. When connecting the
water inlet to the water supply mains, local regulations
of your water company must be observed. In some ar-
eas, the unit must not be connected directly to the pub-
lic drinking water supply. This is to ensure that there is
no feedback of chemicals into the water supply. If con-
nection is made to a potable water system, the system
MUST be protected against backflow. Direct connection
via a receiver tank or backflow preventer, for example, is
permitted.
3. Avoiding Dirt. Always prevent debris from being
drawn into the unit by using a clean water source. Dirt in
the feed water will damage the unit. Your washer is pre-
installed with a water filter inside the water inlet. Inspect
and clean the filter regularly. Never use the pressure
washer to draw in water contaminated with solvents,
e.g. paint thinners, gasoline, oil, etc.
4. Water Flow. The garden hose must be at least 5/8
inch in diameter. Flow rate of water supply must not fall
below 2 GPM (gallons per minute).
7
OPERATING THE PRESSURE WASHER
1. Stay Alert. Watch what you are doing and use com-
mon sense when operating your tool. Do not use the
tool while you are tired or under the influence of drugs,
alcohol, or medication. A moment of inattention during
operation may result in serious bodily injury.
2. Injection Hazard. The high pressure stream of wa-
ter can cut through skin and cause serious injury. Keep
clear of the nozzle. Never direct the discharge stream at
any bystanders, animals, or yourself.
3. Risk of Explosion. Do not operate the pressure wash-
er in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Do not spray flam-
mable liquids.
4. Risk of Electric Shock. Do not spray electrical appa-
ratus and wiring. Do not spray the power source or the
outlet. Don’t pressure wash the pressure washer.
5. Tool Purpose. Learn your pressure washer’s appli-
cations and limitations as well as the specific potential
hazards related to this machine. Only use the pressure
washer for its intended purposes. Otherwise, you may
cause mechanical defects, serious damage or personal
injury.
6. Do not Overreach. Keep proper footing and balance
at all times. This enables better control of the unit in un-
expected situations and will also prevent you from falling
down and embarrassing yourself in front of your cool
neighbor Greg. When stepping backwards, be cautious
of any obstacles beneath your feet or behind you in order
to avoid falling.
7. Avoid Accidental Start-ups. Make sure the power
switch is in the OFF position before connecting the plug
to a power source or carrying the pressure washer. En-
gage the gun safety lock whenever the machine is not in
use.
8. Gun Kicks Back. Hold the gun firmly with both hands.
Kickback from operation can cause the user to fall down.
Always operate the pressure washer on a level and non-
elevated surface to prevent the risk of falling.
9. Shut Down The Unit. Never leave your unit running
while unattended. Unplug the unit before leaving for ex-
tended periods of time.
10. Maintenance. Before cleaning, changing accesso-
ries, or performing any maintenance, shut off and dis-
connect the unit from the electrical supply, then relieve
pressure in the washer by squeezing the trigger to empty
the washer of any residual water.
11. Storage. Store your machine and accessories in-
doors. Never store the pressure washer outdoors. If the
pump freezes, permanent damage may result. Always
keep tools clean and in good working order.
12. Replacement Parts. Use only identical replacement
parts. Use of any other part can cause personal injury
and damage to the tool. Only have your pressure washer
serviced by a qualified repair person.
PRESSURE WASHER SAFETY WARNINGS
WARNING! Do not operate the power station until you have read and understood the following instructions
and the warning labels.
WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch
the plug with wet hands.
CAUTION! To prevent damage to the pressure washer, do not allow it to operate dry. Before starting the
pressure washer, make sure that it has a steady supply of water.
8
ELECTRICAL INFORMATION
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
2. GROUND FAULT CIRCUIT INTERRUPTER PROTECTION (GFCI). This pressure washer is provided with a ground-
fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection
from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical
replacement parts that include GFCI protection.
3. Use of an extension cord with this product is NOT RECOMMENDED. If an extension cord must be used, use
only a UL-, CSA-, or ETL-certified extension cord that is certified for outdoor use, in order to prevent electric shock.
These cords are usually identified by a marking, “Acceptable for use with outdoor appliances; store indoors when
not in use.
4. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
If using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
DOUBLE-INSULATED TOOL
The tool’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
13A 14 gauge 12 gauge Not Recommended
UNPACKING & PACKING LIST
UNPACKING
Carefully remove the electric pressure washer from the packaging and place it on a sturdy, flat surface. Make sure to
take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing
list below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact
customer service at 1-847-429-9263 (M-F 8-5 CST), or email [email protected].
DESCRIPTION QNTY.
Electric Pressure Washer 1
High Pressure Hose 1
Spray Gun 1
Lance 1
0º Nozzle (Red) 1
15º Nozzle (Yellow) 1
40º Nozzle (White) 1
Screws 4
Handle 1
Handle Connectors 2
Garden Hose Adapter 1
9
Water Outlet
(High Pressure Hose Connection)
KNOW YOUR PRESSURE WASHER
TOOL PURPOSE
Put the stains and unwanted buildup in your life under pressure with your WEN Electric Pressure Washer. Refer to
the following diagrams to become familiarized with all the parts and controls of your pressure washer. The compo-
nents will be referred to later in the manual for assembly and operation instructions.
Adjustable Handle
Caster Lock
Power Switch
Handle
Lance
Spray Gun
High Pressure Hose
Water Inlet
(Garden Hose Connection)
Wheels
Detergent Tank
Power Cord
10
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and disconnected
from the power supply before performing assembly, inspection or adjustments.
ASSEMBLY & ADJUSTMENTS
INSTALLING THE HANDLE
1. Using a Phillips-head screwdriver (not included), secure
the handle (Fig. 1 - 1) to the body of the pressure washer
using the two handle connectors (Fig. 1 - 2) and the four
included ST4.8x16 screws as shown in Fig. 1.
Fig. 1
Fig. 2
Fig. 3
ASSEMBLING THE SPRAY GUN
1. Align the tabs in the lance (Fig. 2 - 1) with the notches in
the end of the spray gun (Fig. 2 - 2). Insert the lance into the
gun, then rotate approximately 1/4 turn to secure the lance
in place.
2. Snap one of the three included nozzles (Fig. 3 - 1) onto
the quick-connect collar of the spray lance until it clicks into
place.
Your pressure washer includes three nozzles:
White (40º), Yellow (15º), and Red (0º).
For general cleaning use the 40º spray tip. This option is for
cement walkways.
For stripping, spot cleaning, blasting, and hard to reach ar-
eas, use the 15º or 0º spray tip. These options are for remov-
ing paint, rust, mildew, marine growth on boats, or grease
stains. These options can be used for reaching second story
surfaces, or for the removal of paint, rust, oil stains, tar,
gum, and other stubborn substances. Use extreme caution
when using these nozzles.
1
2
1
2
1
11
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and disconnected
from the power supply before performing assembly, inspection or adjustments.
ASSEMBLY & ADJUSTMENTS

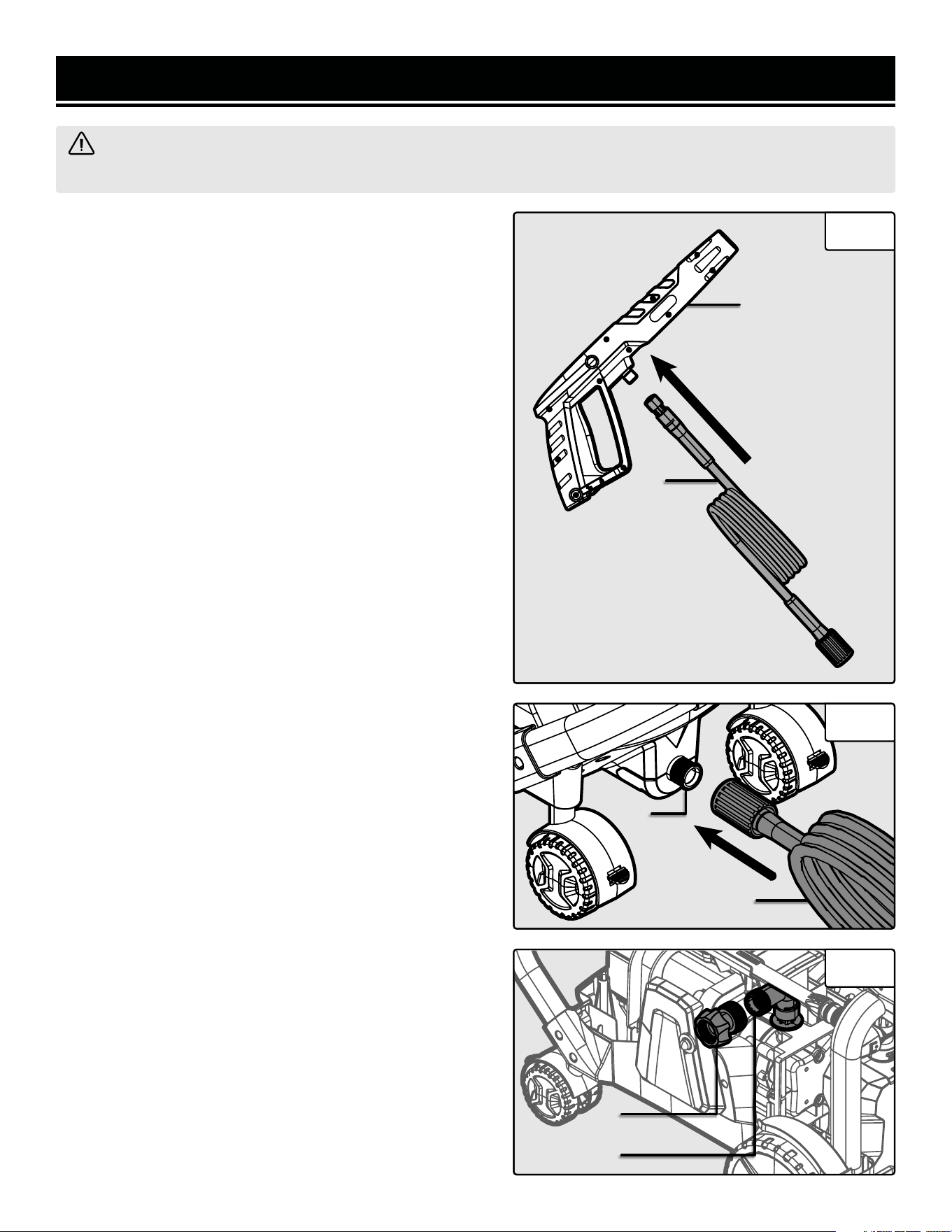

CONNECTING THE HIGH PRESSURE HOSE
1. Connect the silver end of the high pressure hose (Fig.
4 - 1) to the spray gun (Fig. 4 - 2) and twist the lock nut to
secure the connection.
2. Connect the other end of the high pressure hose (Fig. 5 -
1) to the water outlet (Fig. 5 - 2) on the washer and twist the
black end piece to secure the connection.
CONNECTING THE GARDEN HOSE
1. Connect the garden hose adapter (Fig. 6 - 1) to the water
inlet (Fig. 6 - 2) on the pressure washer. Thread the garden
hose into the garden hose adapter.
2. Connect the other end of the garden hose to the water
supply.
Fig. 4
Fig. 5
Fig. 6
1
2
1
2
1
2
12
OPERATION
BEFORE BEGINNING OPERATION
Bleed the device as follows prior to operation:
1. Connect the spray gun to the pressure washer. Connect
the garden hose to the pressure washer and turn ON the
water supply.
2. Ensure that no nozzles are installed in the end of the lance.

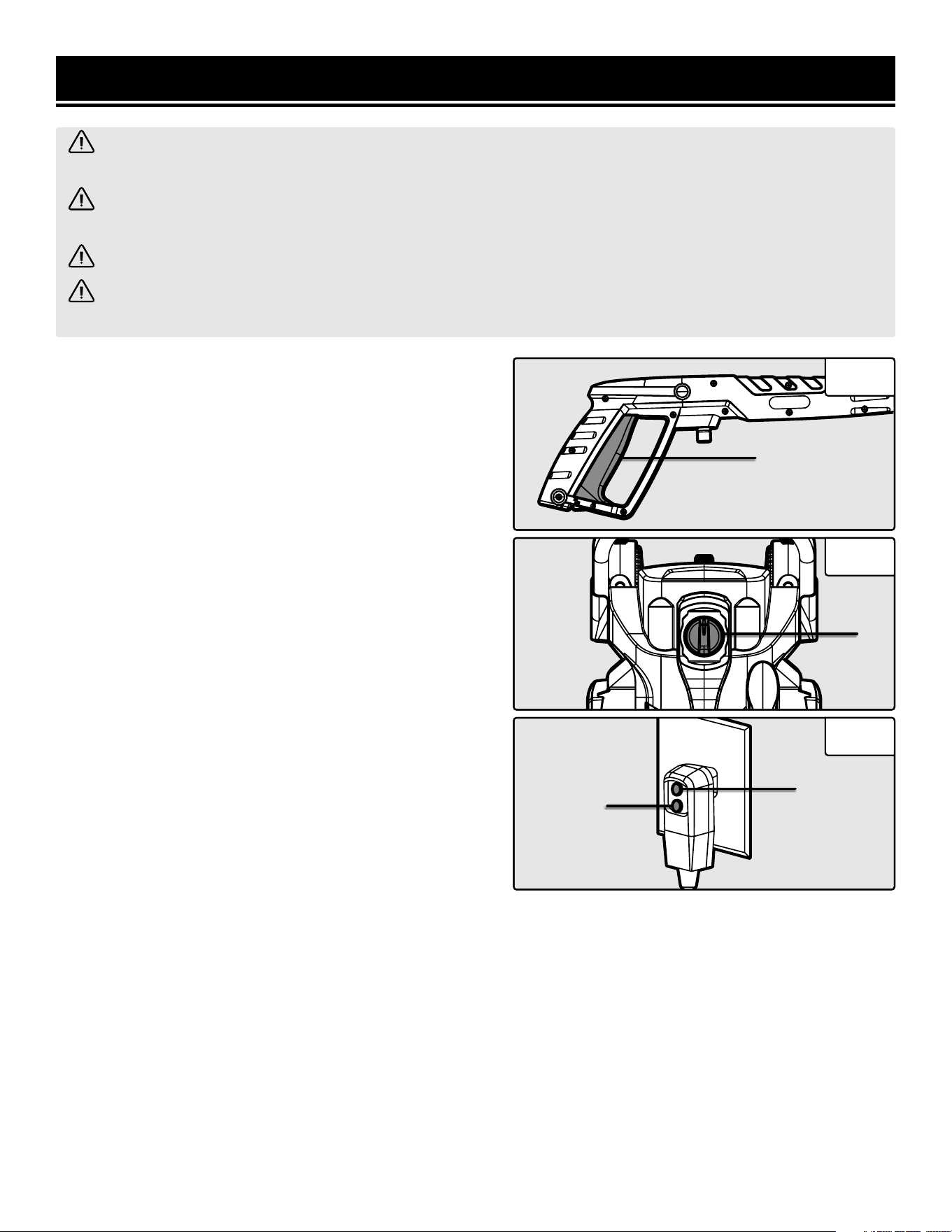

3. Unlock the power trigger (Fig. 7 - 1) on the spray gun.
4. Pull the trigger. Allow the water to run for approximately
2 minutes until there are no bubbles present in the water
stream, indicating that air has been bled from the system.
5. Release and lock the power trigger.
OPERATING THE PRESSURE WASHER
Before operating the pressure washer, make sure it is in the
horizontal position. Lock the casters in place using the tab
on the outside of the casters.
1. Make sure that the power switch (Fig. 8 - 1) is switched to
the OFF position before plugging the pressure washer into
the power source.
2. Plug the GFCI into a matching receptacle (see p. 8 for im-
portant electrical information). We recommend that you test
the GFCI as part of the startup procedure each time you use
the pressure washer. Press the RESET button (Fig. 9), and
the power indication light should turn ON. Press the TEST
button, and the power indication light should turn OFF. DO
NOT use if the test fails. Press the RESET button again after
completing the test to enable operation.
3. Make sure that the high pressure hose and the garden
hose are securely connected to the pressure washer. See the
“CONNECTING THE HIGH PRESSURE HOSE” and the “CON-
NECTING THE GARDEN HOSE” sections on page 12. Turn on
the water supply.
Fig. 7
WARNING! To prevent serious injury, make sure all the warnings and instructions have been read and
understood before operating this tool.
CAUTION! Do not connect the pressure washer to a potable water system without a backflow prevention
method installed, if required by your local jurisdiction.
CAUTION! The water supply must not exceed 101 PSI.
CAUTION! The washer must only be used with clean water. Using unfiltered water containing corrosive
chemicals will damage the pressure washer.
Fig. 8
1
1
4. Unlock the power trigger (Fig. 7 - 1) on the spray
gun. Hold the spray gun with two hands and be sure
to point it in a safe direction away from animals, by-
standers, and yourself. Press the power trigger until
a consistent stream of water flows through the lance,
to allow air trapped in the hose to escape. Install the
nozzle of your choice.
5. Turn the power switch (Fig. 8 - 1) ON.
6. Hold the spray gun with both hands and aim it at
the object that you would like to clean.
7. To stop the water, release the power trigger.
13
Fig. 9
Reset
Test
OPERATION

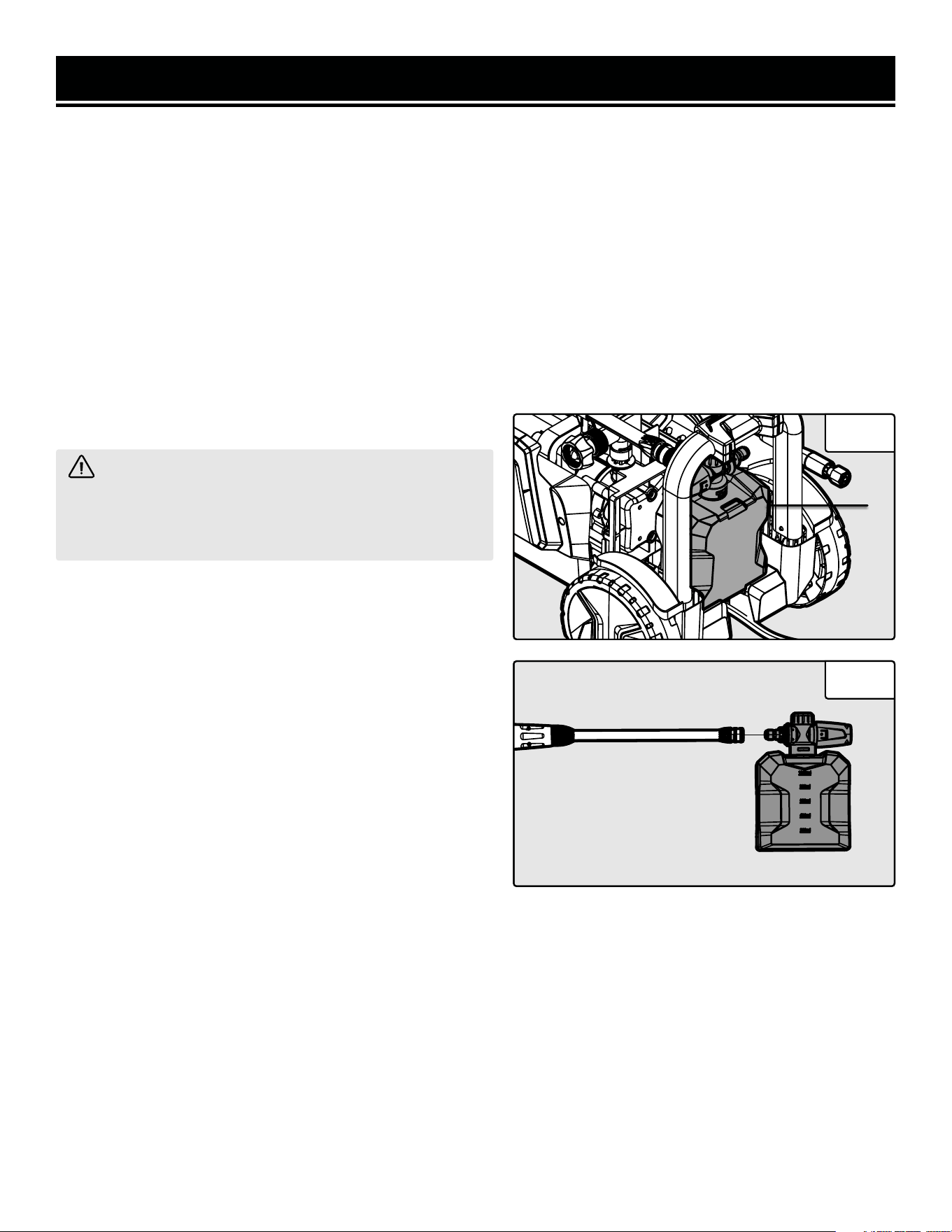

OPERATING WITH DETERGENT
Fig. 8
1
WARNING! When using detergents, the material
data safety sheet issued by the detergent manufacturer
must be adhered to, especially the instructions regarding
personal protective equipment.
1. Gently remove the detergent tank (Fig. 8 - 1) from the
pressure washer.
2. Fill the tank with detergent designed specifically for use
with pressure washers. If required, dilute the detergent ac-
cording to the manufacturer’s instructions.
3. Connect the detergent tank to the quick-connect collar
of the spray lance as shown in Fig. 9. Make sure that the
detergent tank clicks into place securely before beginning
operation.
4. Use the knob on top of the detergent tank to adjust the
flow, as desired.
5. Once operation is complete, remove the detergent tank
from the spray lance. Rinse out any extra detergent in the
detergent tank. Spray the spray gun to flush out all of the
soap remaining in the unit. Close the cap of the detergent
tank, and fit it back onto the pressure washer.
Fig. 9
AUTOMATIC PUMP SHUTOFF / TTS (TOTAL STOP SYSTEM)
The pressure washer is equipped with an automatic pump shutoff function that senses the water flow in the pump.
The pump will only run when the power switch is in the ON position and the trigger pulled. When the trigger is
released and no water is flowing through the pump, the motor will automatically shut off to protect the pump from
overheating, thus saving energy and prolonging pump life.
So don’t worry if the pump shuts off when the trigger is released. Your pressure washer is still okay. Simply squeeze
the trigger again to resume pressure washing.
THERMAL PROTECTOR
Your pressure washer is also equipped with a motor thermal protector. When the motor is experiencing overload
and overheats, the thermal protector will trip to shut down and protect the motor. Wait a few minutes for the motor
to cool down and the thermal protector will reset automatically.
14
WARNING! Only separate the high pressure hose from the spray gun or the device when there is no pressure
in the system.
CAUTION! When disconnecting the supply or high pressure hose, warm water may leak from the connection
after operation.
5. Turn off the water supply, then detach the pressure washer from the water supply.
OPERATION
PRESSURE WASHING TIPS
1. Before pressure washing any surface, test spray an inconspicuous area. Adjust the spray pattern and spraying
distance to achieve the optimal cleaning result and prevent damaging the surface.
2. Use caution when spraying chipped or peeling paint, as the high pressure may remove the loose paint from the
surface.
3. Pre-rinse the surface with fresh water before applying detergent.
4. When using detergent, follow the instructions that come with your detergent. In general, allow the detergent to
remain on the surface about 1 - 3 minutes. Do not allow detergent to dry on the surface.
5. Keep the spray nozzle approximately 6 inches from the cleaning surface. The spraying distance may vary accord-
ing to the treated surface (be sure to increase the distance when rinsing sensitive or fragile surfaces). Rinse the
surface in a long sweeping motion.
6. Clean from top to bottom. When moving on to a new section of the cleaning surface, overlap the previous section
to eliminate stop marks and ensure a more even cleaning result.
7. When pressure washing surfaces that may come in contact with food, flush surfaces with plenty of drinking water
after pressure washing. However, WEN does not recommend eating off of your driveway.
TURNING OFF THE PRESSURE WASHER
1. Release the power trigger.
2. Turn the power switch OFF.
3. Unplug the pressure washer from the power outlet.
4. Press the trigger gun to release any pressure still in the high pressure hose.
15

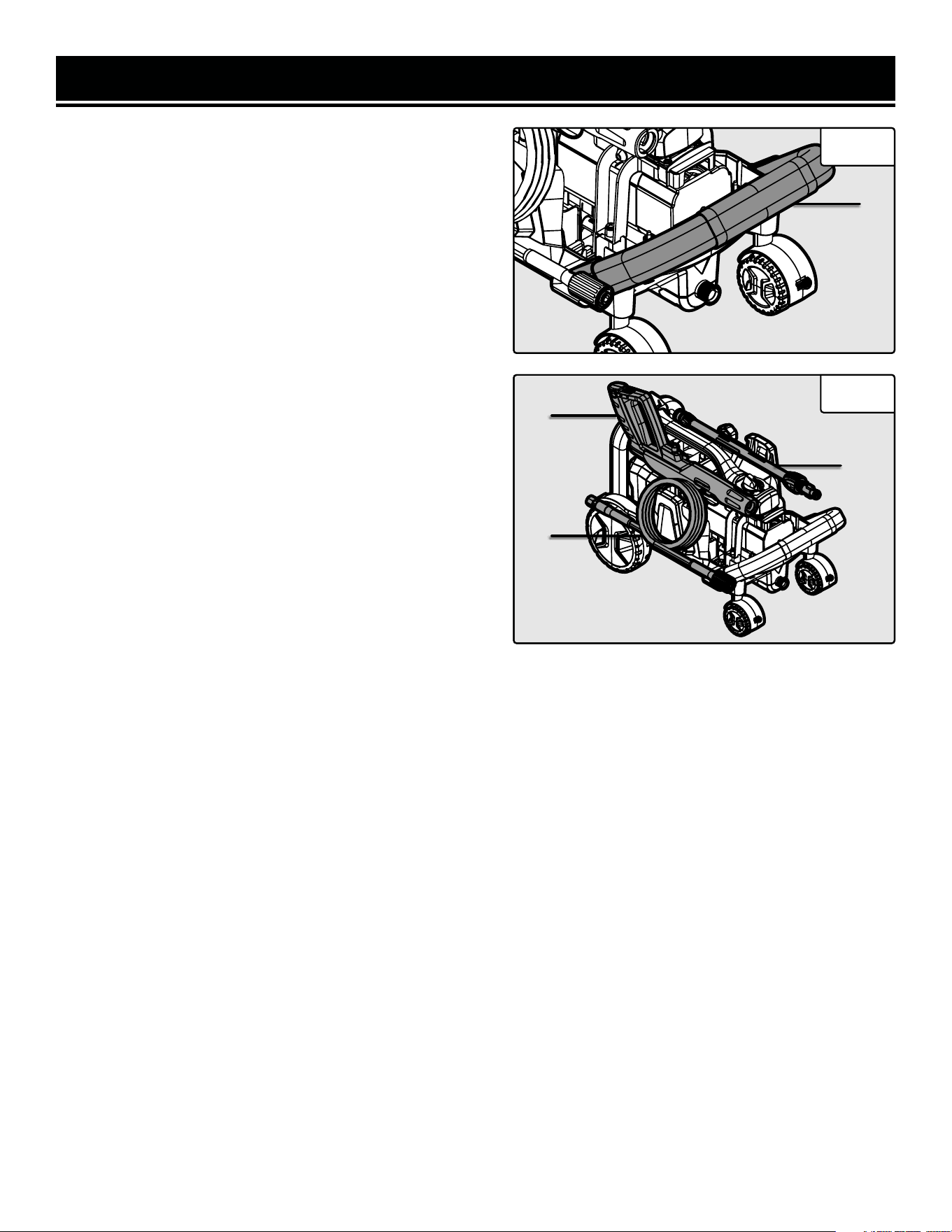

TRANSPORTATION & STORAGE
Fig. 10
1
TRANSPORTING THE PRESSURE WASHER
1. Switch the pressure washer OFF and disconnect it from
the water and power supply.
2. Use the auxiliary handle (Fig. 10 - 1) to transport the pres-
sure washer. Make sure that the handle locks into place be-
fore moving the unit.
STORING THE PRESSURE WASHER
1. Make sure that the pressure washer is stored on secure,
level ground. You can store the unit standing upright for
more compact spaces.
2. Detach the lance (Fig. 11 - 1) from the spray gun (Fig.
11 - 2). Detach the spray gun from the high pressure hose.
Store both the lance (Fig. 11 - 1) and the spray gun (Fig. 11
- 2) on the pressure washer as shown in Fig. 11.
3. Neatly wrap and store the high pressure hose (Fig. 11 - 3)
on the pressure washer as shown in Fig. 11.
When storing the pressure washer for extended periods
of time:
1. Clean the spray nozzle and water inlet filter before stor-
ing the unit. Refer to the “SPRAY NOZZLES” and “GAR-
DEN HOSE ADAPTER” sections on the following page.
2. To protect and extend the life of your pressure washer,
we recommended running the unit with a pump antifreeze
or pump protector or a pump conditioner before storing
the unit for long periods of time. Follow the directions on
your preferred pump protector for proper use.
3. Store your pressure washer and accessories indoors
where the temperature will stay above freezing (32°F /
0°C). Do not store it near the furnace or other sources of
heat as it may dry out the pump’s seals.
4. Keep the pressure washer upright on a level surface.
Cover the machine to protect it from dust. Do not allow
high pressure hose to become kinked during storage.
Fig. 11
1
2
3
16
CLEANING & MAINTENANCE
HIGH PRESSURE HOSE
The high pressure hose can easily be damaged and should
be stored carefully. Do not kink the hose. Do not drive ve-
hicles over the hose. Do not expose the hose to sharp ob-
jects. Inspect the hose for cuts, bulges, or leaks. These can
develop from kinking or wear. If damaged, replace the hose
immediately.
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and disconnected
from the power supply before performing assembly, inspection or adjustments.
WARNING! If the hose is damaged, do not use the
unit or try to repair the hose. Always replace with an
identical part before operation.
SPRAY NOZZLES
Regularly clean the nozzles, preferably after every use, to
prevent the nozzles from clogging and to ensure good per-
formance of the machine.
1. Remove the nozzle from the spray lance.
2. Use a sturdy pin, piece of wire, or metal pick (not includ-
ed) to dislodge any buildup in the spray tip as shown in Fig.
12. Flush water through the back end of the nozzle and spray
wand with your garden hose for 30-60 seconds to remove
any buildup.
GARDEN HOSE ADAPTER
Check the garden hose adapter periodically for deposits.
Clean this filter regularly for maximum performance. Re-
move the garden hose adapter (Fig. 13 - 1) and rinse it with
warm water to clean out debris and buildup before operating
the pressure washer.
PRODUCT DISPOSAL
Used pressure washers should not be disposed of with
household waste. This product contains electric compo-
nents that should be recycled. Please take this product to
your local recycling facility for responsible disposal and to
minimize its environmental impact.
Fig. 12
Fig. 13
1
17
NOTE: This pressure washer is supplied with a closed lubrication system, so no addition of oil is needed.
PROBLEM CAUSE SOLUTION
The machine doesn’t
turn on.
1. The GFCI plug is tripped. 1. Press the “RESET” button on GFCI plug.
2. The thermal protector is tripped.
2. Switch the machine OFF. Wait a few minutes for the motor
to cool down and the protector will reset automatically.
3. The machine is not plugged in or the outlet
does not have adequate power.
3. Plug the machine into a working outlet suitable for the
pressure washer.
4. The power cord or extension cord is dam-
aged.
4. Check the power cord, extension cord, and power plug.
Do not use if cords are damaged.
5. The power switch is defective. 5. Stop using the tool and contact customer service.
6. The circuit fuse is blown. 6. Have the fuse replaced by a certified electrician.
The machine stops
during operation.
1. The thermal protector is tripped.
1. Switch the machine OFF. Wait a few minutes for the motor
to cool down and the protector will reset automatically.
2. The nozzle is partially blocked. 2. Clean the nozzle.
The machine is
pulsating.
1. There is air trapped in the inlet hose.
1. Allow the machine to run while holding the trigger until
adequate pressure returns.
2. The water supply is insufficient.
2. Make sure the water supply is opened as far as possible.
Check for leaks, kinks, or blockages.
3. The nozzle is blocked. 3. Clean the nozzle.
4. The water filter is blocked. 4. Clean the water inlet adapter filter.
5. The hose is kinked. 5. Unkink the hose.
There is fluctuating
pressure.
1. The pump is bringing in air.
1. Tighten the hose connections and make sure they are air
tight. Turn the machine OFF and purge the pump by squeez-
ing the spray gun until a steady flow of water emerges
through the nozzle.
2. The valves are dirty or broken. 2. Clean/replace the valves.
3. The pump seals are worn out. 3. Order replacement seals (1-847-429-9263).
The water stream
starts and stops by
itself.
1. The pump or spray gun is leaking.
1 & 2. Call 1-847-429-9263 for assistance.
2. The trigger on the spray gun is broken.
3. There is a ghost in the machine. 3. Persuade the ghost to leave.
The water pressure
isn’t high enough.
1. The spray width is too wide. 1. Use a different nozzle.
2. The garden hose diameter is too small. 2. Replace with a 5/8 in. or larger garden hose.
3. The water supply is insufficient.
3. Open the water inlet and check the garden hose for leaks,
kinks, or blockages.
4. The pump or hose is frozen. 4. Thaw out the frozen pump / hose.
5. The water inlet filter is clogged. 5. Remove the filter and rinse it out in warm water.
6. The nozzle is blocked. 6. Unblock and clean the nozzle.
There is no detergent
coming out.
1. The detergent bottle nozzle is clogged. 1. Clean the nozzle.
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replace-
ments should only be performed by an authorized technician. For any questions, please contact our customer
service at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
18
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
19
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
No. Part No. Description Qty.
1 PW2200-001 Base Housing 1
2 PW2200-002 Wheel 2
3 PW2200-003 Power Cord, GFCI 1
4 PW2200-004 Small Cord Clamp 1
5 PW2200-005 Large Cord Clamp 1
6 PW2200-006 Label 1 1
7 PW2200-007 Connector Cover 1
8 PW2200-008 Caster 2
9 PW2200-009 Handle Cover 2
10 PW2200-010 Handle 1
11 PW2200-011 Handle Grip 1
12 PW2200-012 Pump Base 1
13 PW2200-013 Outlet Tube 1
14 PW2200-014 U-pin 1
15 PW2200-015
Motor/Pump
Assembly
1
16 PW2200-016 Air Filter 1
17 PW2200-017 Motor/Pump Cover 1
18 PW2200-018
Cover Waterproof
Insert
2
19 PW2200-019 Cover Cap 1
20 PW2200-020 Fan Cover 1
21 PW2200-021 Garden Hose Adapter 1
22 PW2200-022 Inlet Tube
23 PW2200-023 U-pin 1
25 PW2200-025 O-ring, 8mm x 2mm 1
26 PW2200-026 Waterproof Cap 1
27 PW2200-027 Switch Housing Base 1
28 PW2200-028 Switch Lever 1
30 PW2200-029 Switch 1
31 PW2200-030 Switch Cover 1
No. Part No. Description Qty.
32 PW2200-031 Soap Tank 1
33 PW2200-032 Cord Hook 2
34 PW2200-033 Soap Tank Hook 1
35 PW2200-034 Housing Cover 1
36 PW2200-035
Spray Gun Mounting
Base
1
37 PW2200-036 U-handle 1
38 PW2200-037 Handle Base 1
39 PW2200-038 Handle Cover 1
40 PW2200-039
O-ring,
16.5mm x 2.5mm
1
41 PW2200-040 Switch Knob Insert 1
42 PW2200-041 Switch Knob 1
43 PW2200-042 0-degree Nozzle, Red 1
44 PW2200-043
15-degree Nozzle,
Yellow
1
45 PW2200-044
40-degree Nozzle,
White
1
46 PW2200-045 Spray Gun 1
47 PW2200-046 Wand 1
48 PW2200-047 High-pressure Hose 1
49 PW2200-048
Self-tapping Screw,
ST2.9x13
2
50 PW2200-049
Self-tapping Screw,
ST3.5x13
7
51 PW2200-050
Self-tapping Screw,
ST4.8x16
35
52 PW2200-051
Self-tapping Screw,
ST4.8x25
2
53 PW2200-052
Phillips-head Screw,
M5x18
2
20
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN
consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which a
re
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair
, abuse, neglect, normal wear and tear,
improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this
product.
Contact [email protected] or 1-847-429-9263 with the following information to make arrangements:
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged
or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITAT
ION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER
COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
W
ARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL
SHIPPING
CHARGES MAY APPLY.
21
NOTES
22
NOTES
23
THANKS FOR
REMEMBERING
V. 2023.11.16
