6-GALLON OIL-FREE
AIR COMPRESSOR
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL AP6092
2
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Air Compressor Safety Warnings ..................................................................... 6
Electrical Information ....................................................................................... 7
BEFORE OPERATING 8

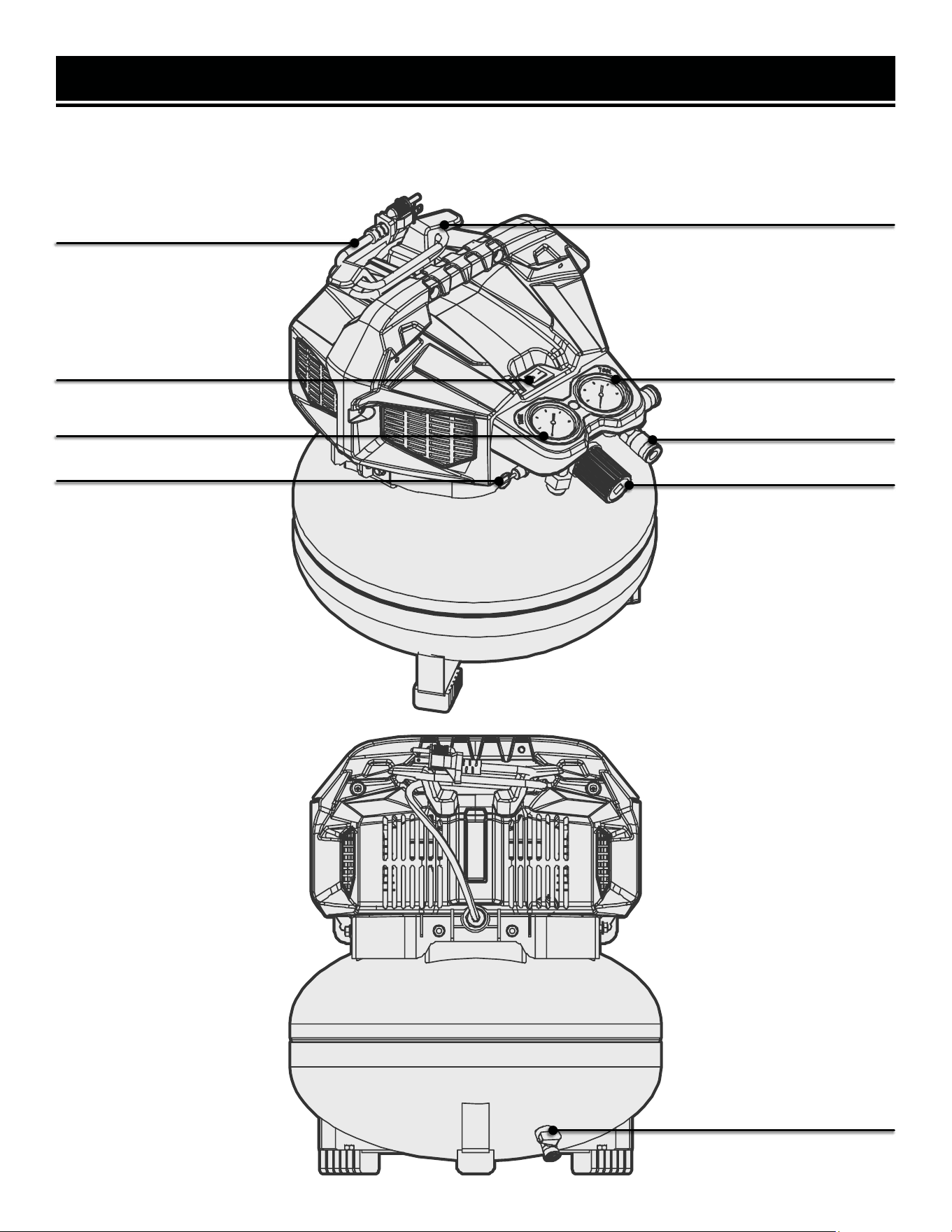

Know Your Air Compressor ...............................................................................8
Assembly & Adjustments ................................................................................. 9
OPERATION & MAINTENANCE 10

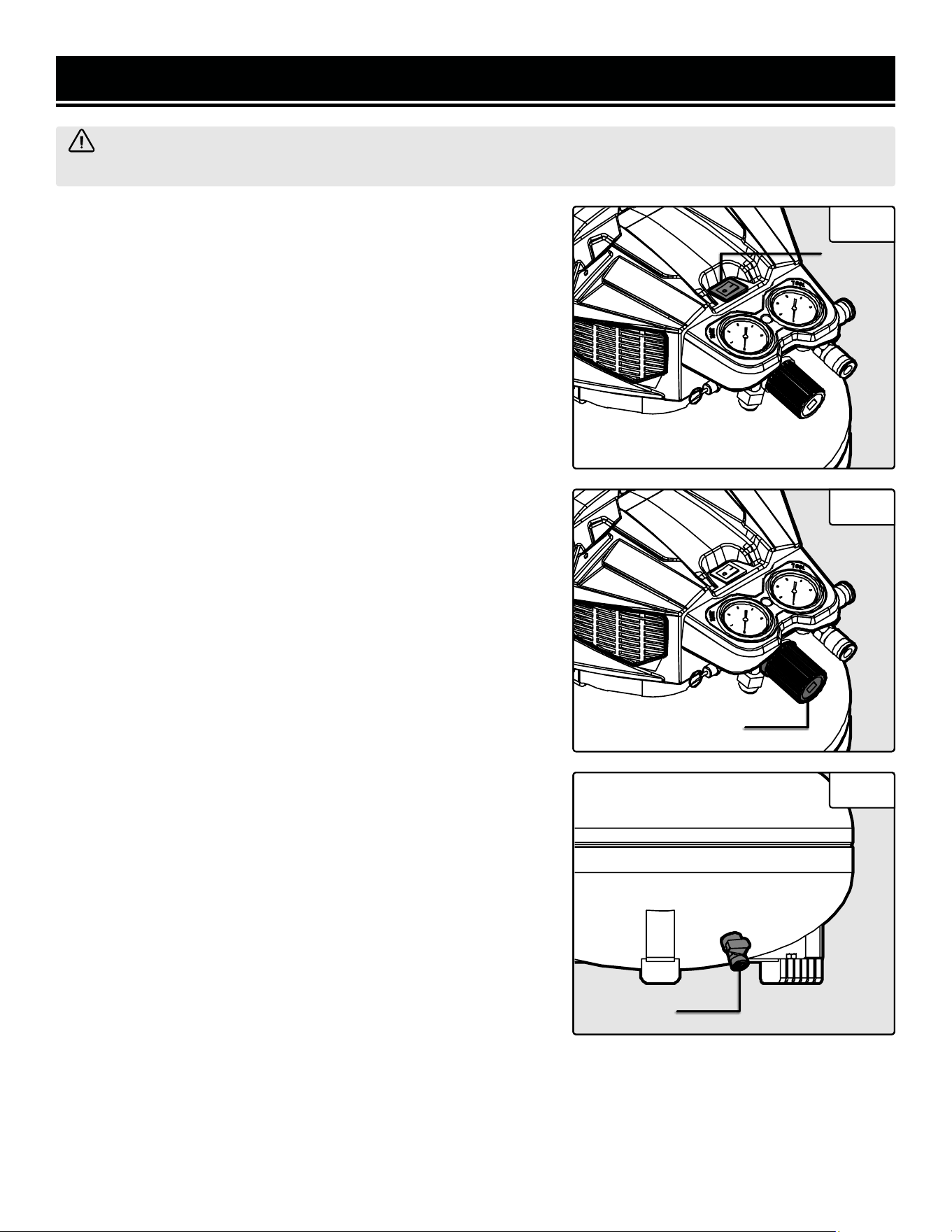

Operation ....................................................................................................... 10

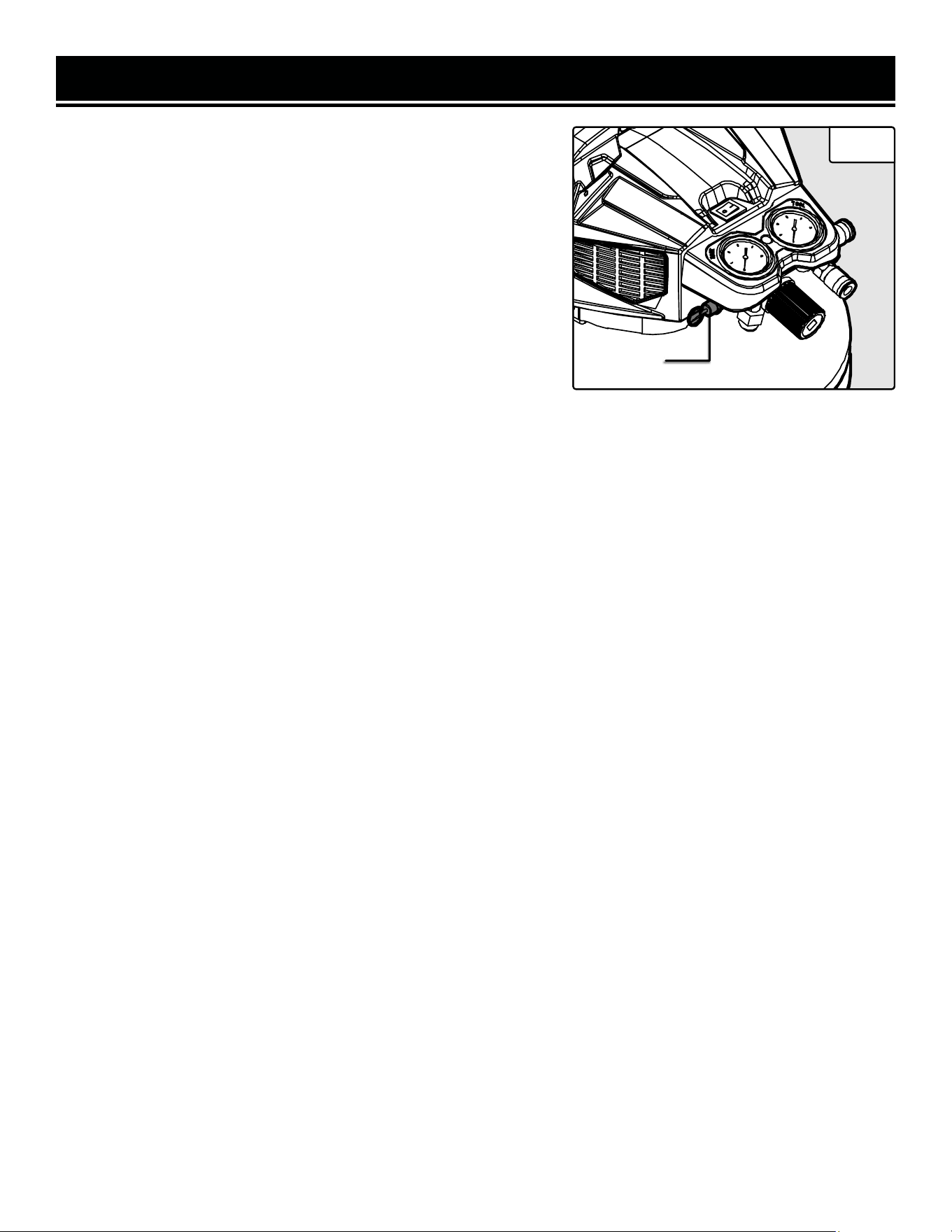

Maintenance ....................................................................................................12
Troubleshooting Guide ....................................................................................13

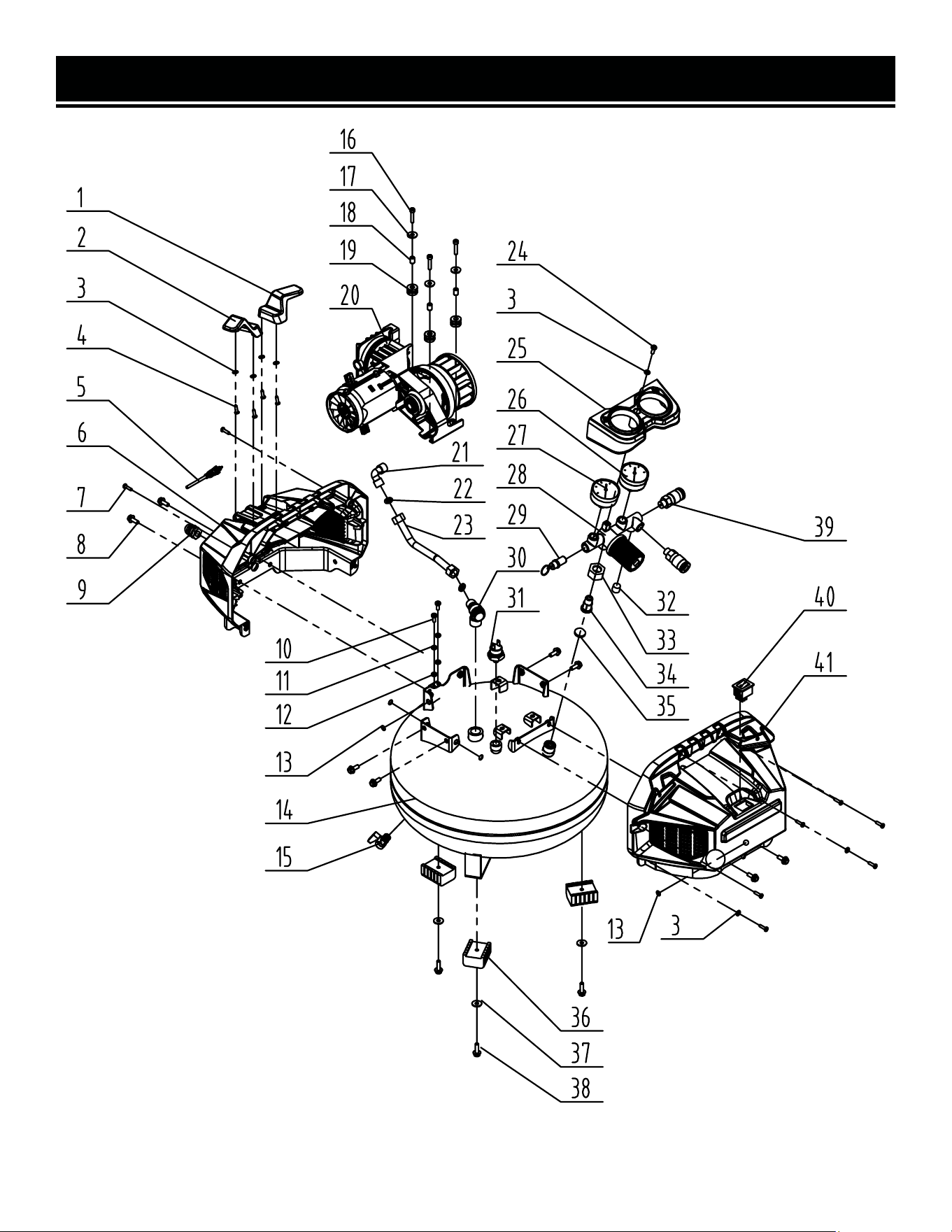

Exploded View & Parts List .............................................................................14
Warranty Statement ........................................................................................16
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
WEN offers a full range of nailers and staplers that are compatible with your air compressor. Check out the ever-
expanding lineup of pneumatic tools at wenproducts.com.
50 ft. 12-Gauge Heavy-Duty SJTW Outdoor Extension Cord (Model PC5043R)
50 ft. 14-Gauge Heavy-Duty SJTW Outdoor Extension Cord Reel (Model PC5043R)
25-Foot by 3/8-Inch 300 PSI Hybrid Polymer Pneumatic Air Hose (Model AH3825)
50-Foot by 3/8-Inch 300 PSI Hybrid Polymer Pneumatic Air Hose (Model AH3850)
100-Foot by 3/8-Inch 300 PSI Hybrid Polymer Pneumatic Air Hose (Model AH3800)
3
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Air Compressor. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
Model Number AP6092
Motor 120V, 60 Hz, 11.5A
Maximum Air Pressure 150 PSI
Air Outlet Size 1/4 in. NPT
Air Tank Capacity 6 Gallons
Air Flow Capacity
3.6 CFM at 40 PSI
2.6 CFM at 90 PSI
Sound Level 86 dB
Approximate Cut-In Pressure 120 PSIG
Approximate Cut-Out Pressure 150 PSIG
Product Weight 31 Pounds
Product Dimensions 17.13 in. x 15.94 in. x 18.82 in.
4
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
AIR COMPRESSOR SAFETY WARNINGS
AIR COMPRESSOR SAFETY
Work Area Safety
1. Keep your work area clean and well lit.
2. Do not operate the compressor in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases, or dust.
3. The air compressor motor may produce sparks which
may ignite dust or fumes.
4. Keep children and bystanders away from an operating
air compressor.
Electrical Safety
1. The air compressor plugs must match the outlet. Nev-
er modify the plug in any way. Do not use any adapter
plugs with grounded compressors. Standard plugs and
matching outlets will reduce the risk of electric shock.
2. Do not expose the air compressor to rain or wet con-
ditions. Water entering an air compressor will increase
the risk of electric shock.
3. Do not abuse the cord. Never use the cord for unplug-
ging the compressor. Keep the cord away from heat, oil,
sharp edges, and moving parts. Damaged or entangled
cords increase the risk of electric shock.
Electrical Safety
1. Stay alert, watch what you are doing and use common
sense when operating this compressor. Do not use this
compressor while you are tired or under the influence
of drugs, alcohol, or medication. A moment of inatten-
tion while operating a compressor may result in serious
personal injury.
2. Use personal protective equipment. Always wear AN-
SI-approved eye protection during setup and use.
3. Prevent unintentional starting. Ensure the switch is in
the OFF position before connecting the air compressor
to the power source or moving the compressor.
Compressor Use and Care
1. Do not use the air compressor if the power switch is
not operational.
2. Disconnect the plug from the power source before
making any adjustments, changing accessories, or stor-
ing the compressor. Such preventive safety measures
reduce the risk of accidental start-ups.
3. Store an idle air compressor out of the reach of chil-
dren and do not allow persons unfamiliar with the air
compressor or these instructions to operate it. An air
compressor is dangerous in the hands of untrained us-
ers.
4. Maintain the air compressor. Keep the air compressor
clean for better and safer performance. Follow instruc-
tions for lubricating and changing accessories.
5. Keep dry, clean, and free from oil and grease. Check
for misalignment or binding of moving parts, breakage
of parts, and any other condition that may affect the
compressor’s operation. If damaged, have the compres-
sor repaired before use. Many accidents are caused by a
poorly maintained compressor.
6. Use the compressor in accordance with these instruc-
tions. Use of the air compressor for operations different
from those intended could result in a hazardous situa-
tion.
Service
1. Have your compressor serviced by a qualified repair
technician using only identical replacement parts. This
will ensure that the safety of the compressor is main-
tained.
These safety instructions can’t possibly warn of every
scenario that may arise with this tool, so always make
sure to stay alert and use common sense during op-
eration.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
6
ELECTRICAL INFORMATION
3. Check with a licensed electrician or service personnel if you do not completely under-
stand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords that have three-pronged plugs and outlets that
accept the tool’s plug. Repair or replace a damaged or worn cord immediately.
CAUTION! In all cases, make certain the outlet in question is properly grounded. If you
are not sure, have a licensed electrician check the outlet.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current
and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding
conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is properly installed and
grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a licensed electri-
cian.
2. Improper connection of the equipment grounding conductor can result in electric shock. The conductor with the
green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or replacement of
the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor to a live terminal.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should
have a 25A fuse or higher. Before connecting the motor to the power line, make sure the switch is in the OFF position
and the electric current is rated the same as the current stamped on the motor nameplate. Running at a lower
voltage will damage the motor.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
Fig. 1
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
11.5A 16 gauge 16 gauge 14 gauge 12 gauge
7
KNOW YOUR AIR COMPRESSOR
Refer to the following diagram to become familiarized with all the parts and controls of your air compressor. The
components will be referred to later in the manual for assembly and operation instructions.
Tank Gauge
Outlet Gauge
Power Switch
Safety Valve
Air Outlets
Regulator Knob
Drain Valve
Power Cord
Power Cord Holder
8
ASSEMBLY & ADJUSTMENTS
BREAKING IN THE AIR COMPRESSOR
1. Turn the power switch (Fig. 2 - 1) to the OFF position and unplug
the power cord (Fig. 2 - 2).
2. Turn the regulator knob (Fig. 3 - 1) to the “+” position to fully open
the pressure regulator valve.
3. Fully open the drain valve (Fig. 4 - 1).
4. Plug in the power cord and turn the power switch to the ON posi-
tion.
6. Let the unit run for 15 minutes. Air will expel freely through the
drain valve.
7. Turn the power switch to the OFF position, unplug the power cord,
and close the drain valve.
WORK AREA SETUP
1. Designate a work area that is clean and well-lit. Make sure that the
air compressor is out of the reach of children.
2. Place the air compressor on a flat, level surface to prevent damage
to the unit. Keep at least 12” of space around the unit to allow for air
circulation.
3. Route the power cord from the air compressor to a grounded wall
outlet, along a safe path without creating a tripping hazard or expos-
ing the power cord to possible damage.
AIR CONNECTION SETUP
1. Connect a 1/4” air hose with industrial (T-Style) or automotive (M-
Style) plug (both sold separately) to the air outlet. The air hose must
be long enough to reach the work area with enough extra length to
allow free movement while working.
2. Consult your pneumatic tool’s user manual for needed accesso-
ries.
BEFORE EACH USE
Inspect the general condition of the air compressor before each use.
Check for:
1. Loose hardware
2. Misalignment or binding of moving parts
3. Cracked or broken parts
4. Damaged electrical wiring
5. Any other condition that may affect its safe operation
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and disconnected
from the power supply before inspecting the unit, making adjustments, or changing accessories.
1
Fig. 2
Fig. 3
Fig. 4
9
1
1
OPERATION
OPERATING THE AIR COMPRESSOR
1. Make sure that the power switch is turned to the OFF position be-
fore making any adjustments.
2. Close the drain valve.
3. Turn the regulator knob to the “-” position to close the pressure
regulator valve.
4. Plug the power cord into a grounded 120V AC electrical outlet.
5. Turn the power switch to the ON position.
6. Allow the air compressor to build up pressure until it cycles off.
WARNING! Read the entire important safety information section at the beginning of this manual including
all text under subheadings therein before set up or use of this product.
• To prevent serious injury and death from explosion, do not adjust the internal pressure switch.
• Any change to the automatic pressure levels may cause excess pressure to accumulate, causing a hazardous
situation.
• Do not use damaged equipment. If abnormal noises or vibrations occur, have the problem corrected before
further use.
10

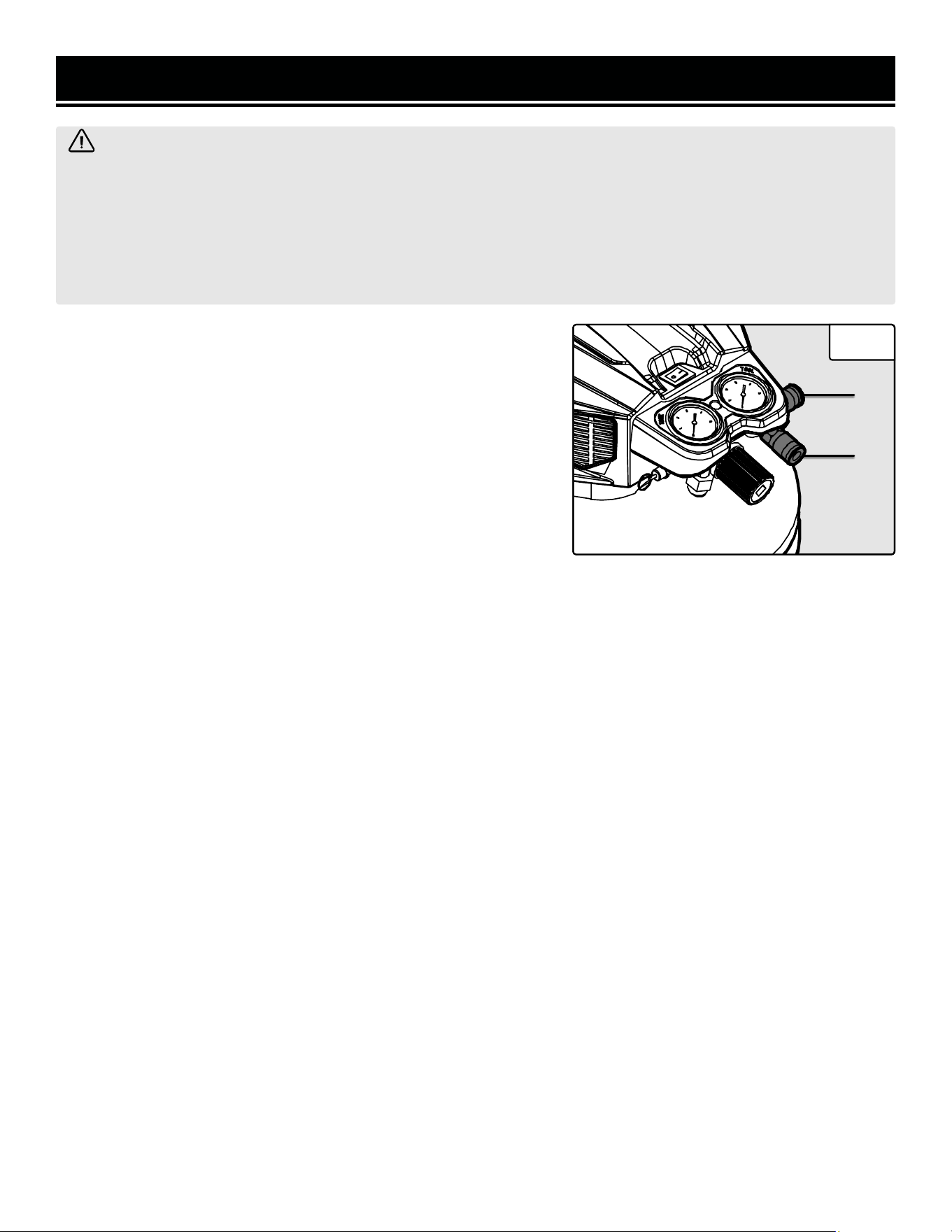

Fig. 5
NOTE: When using the air compressor for the first time, check for air leaks by applying soapy water to connection
points while the air compressor is pumping and after pressure cut-out. Look for air bubbles. If air bubbles are pres-
ent at connection points, tighten the connections. Do not use the air compressor unless all connections are air tight.
The extra air leaking out will cause the air compressor to operate too often, increasing wear on the air compressor.
NOTE: As long as the power switch is ON, the operation of the air compressor is automatic, controlled by an internal
pressure switch. The air compressor will turn ON automatically when the air pressure drops to 120 PSI, and will
turn OFF automatically when the air pressure reaches 150 PSI.
7. Make sure the pneumatic tool’s throttle or switch is in the OFF position. Connect the air hose to the air outlet (Fig.
5 - 1) and connect the air tool to the air hose.
NOTE: There are two air outlets that can be used simultaneously.
8. Turn the regulator knob clockwise to increase the pressure and counter-clockwise to decrease pressure. Adjust
the pressure gradually, while checking the outlet pressure gauge to set the pressure.
9. Once operation has completed, turn the power switch to the OFF position and unplug the air compressor.
10. Bleed air from the pneumatic tool and then disconnect it from the air compressor.
11. Drain the tank according to the “DRAINING MOISTURE FROM AIR TANK” section on page 12.
12. Clean and then store the air compressor indoors, in the upright position, and out of the reach of children.
1
1
OPERATION
EMERGENCY DEPRESSURIZATION
If it is necessary to quickly depressurize the air compressor, turn the
power switch to the OFF position and pull on the ring on the safety
valve (Fig. 6 - 1) to quickly release stored air pressure.
AUTOMATIC SHUT OFF SYSTEM
1. If the air compressor automatically shuts off before reaching its
normal cutoff pressure:
a. Shut OFF all tools.
b. Turn the air compressor power switch to the OFF position.
c. Unplug the air compressor.
d. Wait until the air compressor cools down (about 10 minutes).
e. Plug the air compressor back in.
f. Turn the air compressor power switch to the ON position.
g. Resume operation.
2. Possible causes of repeated automatic shut off of the air compres-
sor are:
a. Using an extension cord that is too long or narrow.
b. An air leak or an open hose causing the air compressor to
cycle too often and build up heat.
c. Turning the air compressor ON and OFF too quickly.
3. Correct any issues before further use to avoid damage to the air
compressor.
1
Fig. 6
11
1
MAINTENANCE
AFTER EACH USE
Wipe all external surfaces of the air compressor with a clean cloth. Store the compressor indoors, in the upright
position, and out of the reach of children.
Fig. 7
WARNING! To avoid injury from accidental startups, be sure that the tool is switched OFF and disconnected
from the power supply before inspecting the unit, making adjustments, changing accessories, or performing
any maintenance.
MAINTENANCE INTERVAL MAINTENANCE POINT
Every Use
1. Make sure all nuts and bolts are tight.
2. Drain moisture from air tank.
3. Check for abnormal noises or vibrations.
4. Check for air leaks. To check for air leaks, apply soapy water to
joints while the air compressor is pressurized. Look for air bubbles.
5. Wipe off any oil or dirt from the air compressor.
Monthly 1. Inspect the safety valve.
DRAINING MOISTURE FROM AIR TANK
The drain valve (Fig. 7 - 1) is located under the tank. It must be used
every use to release all trapped air and moisture from the tank. Doing
this will eliminate condensation and prevent tank corrosion.
1. Turn the power switch to the OFF position.
2. Unplug the air compressor.
3. Tilt the compressor and turn the drain valve to open it.
4. Once all pressure and moisture has been released, close the drain
valve.
12
TESTING FOR LEAKS
Make sure all connections are tight and secure before testing for leaks. A small leak in any hoses or connectors will
greatly reduce the abilities of the compressor. To locate a leak, simply spray a mixture of soap and water across the
entire surface of both the tank and the hose (wherever the leak is believed to be). Bubbles will begin to appear if
a leak is indeed present. Fix immediately. Try to avoid getting soapy water near any of the inlets on the tank or the
pump.
STORAGE
Before storing the compressor, drain the tank by opening the tank drain valve on the underside of the compressor.
This will drain the compressor to prevent moisture from collecting and rusting the inside of the tank. Pulling on
the air release valve located next to the tank pressure gauge will quickly empty out the tank. Do not store in cold
climates, as cold climates may create problems with the motor while possibly freezing water condensation.
PROBLEM POSSIBLE CAUSE SOLUTION
Compressor does not start
or restart.
1. Power cord not plugged in
properly.
1. Check that cord is plugged in securely.
2. Incorrect power supply. 2. Check that the circuit matches the air compressor requirements.
3. Thermal overload switch
tripped.
3. Turn OFF the air compressor and unplug it from the power source. Wait
for the air compressor to cool down. Resume operation.
4. Cord wire size is too small
or cord is too long to properly
power compressor.
4. Use larger diameter or shorter extension cord or eliminate extension
cord. See page 7 for extension cord recommendations.
5. Compressor needs service. 5. Have the unit inspected by a qualified technician.
Compressor builds
pressure too slowly.
1. Incorrect power supply. 1. Check that the circuit matches the air compressor requirements.
2. Work environment is too cold. 2. Move the air compressor to a warmer location.
3. Safety valve is leaking.
3. Listen for air leaking from the safety valve. If leaking, replace with identi-
cal valve with the same rating. Do not seal or tamper with safety valve.
4. Loose fittings.
4. Reduce air pressure. With a soapy solution, check all fittings for air leaks
and tighten as needed. Do not overtighten.
Compressor not building
enough air pressure.
1. Check valve needs service. 1. Have a service technician clean or replace as needed.
2. Compressor not large enough
for the job.
2. Check if the accessory’s CFM is met by the air compressor. If the air com-
pressor cannot supply enough air flow (CFM), use a larger air compressor.
3. Loose fittings.
3. Reduce air pressure. With a soapy solution, check all fittings for air leaks
and tighten as needed. Do not overtighten.
4. Hose or hose connections are
too narrow.
4. Replace with a wider hose and / or hose connections.
5. High altitude reducing air
output.
5. Higher altitudes require air compressors with greater output.
Overheating 1. Extension cord use. 1. Remove the extension cord.
Compressor starts and
stops excessively.
1. Loose fittings.
1. Reduce air pressure. With a soapy solution, check all fittings for air leaks
and tighten as needed. Do not overtighten.
2. Compressor not large enough
for the job.
2. Check if the accessory’s CFM is met by the air compressor. If the air com-
pressor cannot supply enough air flow (CFM), use a larger air compressor.
Excessive noise. 1. Loose fittings.
1. Reduce air pressure. With a soapy solution, check all fittings for air leaks
and tighten as needed. Do not overtighten.
Moisture in the
discharged air.
1. Too much moisture in the air.
1. Install an inline air filter / dryer, and / or relocate to a less humid environ-
ment.
Safety Valve “pops”. 1. Safety valve needs service. 1. Pull the ring on the safety valve. If it still pops, replace it.
Air leaks from the pump
or fittings.
1. Loose fittings.
1. Reduce air pressure. With a soapy solution, check all fittings for air leaks
and tighten as needed. Do not overtighten.
Air leaks from the tank. 1. Defective or rusted tank.
1. Have the tank replaced by a qualified technician. Drain moisture from tank
every use to prevent future corrosion.
TROUBLESHOOTING GUIDE
WARNING! Stop using the air compressor immediately if any of the following problems occur or risk serious
personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),
or email [email protected].
13
EXPLODED VIEW & PARTS LIST
14
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
No. Part No. Description Qty.
1 AP6092-001 Reel Bracket-I 1
2 AP6092-002 Reel Bracket-II 1
3 AP6092-003
Flat Washer ф5
7
4 AP6092-004 Screw 4.2x13 4
5 AP6092-005 Power Cord 1
6 AP6092-006 Rear Shroud 1
7 AP6092-007 Screw 4.2x19 8
8 AP6092-008 Bolt M6x16 8
9 AP6092-009 Power Cord Clamp 1
10 AP6092-010 Bolt M4x12 2
11 AP6092-011
Flat Washer ф4
2
12 AP6092-012
Spacer ф4
2
13 AP6092-013 Bushing 4
14 AP6092-014 Tank Assembly 1
15 AP6092-015 Drain Valve 1
16 AP6092-016 Bolt M5x25 3
17 AP6092-017
Flat Washer ф5
3
18 AP6092-018 Bushing 3
19 AP6092-019 Cushion 3
20 AP6092-020
Motor and Pump
Assembly
1
No. Part No. Description Qty.
21 AP6092-021 Elbow 1
22 AP6092-022
Sealing ф14.5xф8.5
2
23 AP6092-023 Inlet-tube 1
24 AP6092-024 Bolt M5x12 1
25 AP6092-025 Manifold shroud 1
26 AP6092-026 Pressure Gauge 1
27 AP6092-027 Pressure Gauge 1
28 AP6092-028 Regulator 1
29 AP6092-029 Safety Valve 1
30 AP6092-030 Check Valve 1
31 AP6092-031 Pressure Switch 1
32 AP6092-032 End Cap 1
33 AP6092-033 Nut 1
34 AP6092-034 Joint Conector 1
35 AP6092-035
O-ring ф15.5x2
1
36 AP6092-036 Rubber Foot 3
37 AP6092-037 Flat Washer 3
38 AP6092-038 Bolt M6x20 3
39 AP6092-039 Quick Coupler 2
40 AP6092-040 Power Switch 1
41 AP6092-041 Front Shroud 1
EXPLODED VIEW & PARTS LIST
15
WARRANTY STATEMENT
V. 2023.09.26
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN
consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which a
re
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepair
, abuse, neglect, normal wear and tear,
improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this
product.
Contact [email protected] or 1-847-429-9263 with the following information to make arrangements:
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged
or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITAT
ION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER
COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
W
ARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL
SHIPPING
CHARGES MAY APPLY.
16
