2000 PSI ELECTRIC
PRESSURE WASHER
Instruction Manual
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-800-232-1195 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
MODEL PW1900
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Pressure Washer Safety Warnings ................................................................... 6
Electrical Information ....................................................................................... 8
BEFORE OPERATING 9
Unpacking & Packing List .................................................................................9
Know Your Pressure Washer ............................................................................9
Assembly & Adjustments ................................................................................10
OPERATION & MAINTENANCE 12
Operation ....................................................................................................... 12
Maintenance ....................................................................................................14
Troubleshooting Guide ....................................................................................15
Exploded View & Parts List .............................................................................16
Warranty Statement ........................................................................................18
To purchase accessories and replacement parts for your tool, visit WENPRODUCTS.COM
2
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Electric Pressure Washer. We know you are excited to put your tool to work, but
first, please take a moment to read through the manual. Safe operation of this tool requires that you read and un-
derstand this operator’s manual and all the labels affixed to the tool. This manual provides information regarding
potential safety concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
Model Number PW1900
Motor AC 120V, 60 Hz, 13A
Rated Pressure 1300 PSI
Maximum Pressure 2000 PSI
Maximum Flow Rate 1.6 GPM
Rated Water Temperature 32ºF to 104ºF
Maximum Inlet Pressure 60 PSI
Minimum Inlet Pressure 30 PSI
High Pressure Hose Length 16.5 Feet
Power Cord Length 36 Feet
Detergent Bottle Capacity 13 fl. oz.
Product Dimensions 15-3/4 in. x 9 in. x 12 in.
Product Weight 14.3 Pounds
3
4
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
6
PRESSURE WASHER SAFETY WARNINGS
WARNING! Do not operate the power station until you have read and understood the following instructions
and the warning labels.
BEFORE OPERATION
1. Know Your Tool. Be thoroughly familiar with the con-
trols of your pressure washer. Know how to stop the wa-
ter pressure quickly by releasing the trigger, shutting off
the unit and turning off the water supply.
2. Use Suitable Components. This system is capable of
producing pressure up to 2000 PSI/13,800 kPa. To avoid
rupture and injury, do not operate this pump with com-
ponents rated less than 2000 PSI/13,800 kPa working
pressure (including but not limited to spray guns, hoses
and hose connections).
3. Operating Environment. Keep bystanders, children
and animals at a safe distance away from the work area.
Do not operate near flammable materials or explosive
vapors.
4. Wear Safety Equipment. For protection against in-
jury, wear safety goggles and ear protection. Wear rub-
ber-soled shoes during operation to reduce the risk of
electric shock.
5. Preliminary Unit Inspection. Thoroughly inspect the
unit and accessories prior to operation. Make sure all
the parts are secured and installed correctly. Do not use
plugs or cords that show signs of damage such as bro-
ken or cracked insulation. Have damaged items repaired
or replaced as necessary. Always perform a test run the
first time you use the tool or after replacing parts to en-
sure that the unit is functioning properly.
6. Malfunctioning Switch. Do not use the tool if the
switch does not turn on and off. Any electrical appliance
that cannot be controlled by the switch is not safe to use
and must be repaired.
7. Detergent Safety. Always be aware of the dangers as-
sociated with the detergents and chemicals that you are
working with. Follow the warnings and instructions that
come with your detergent for proper use.
WATER SUPPLY REQUIREMENTS
1. Cold water ONLY. Use the pressure washer with cold
water only. The water supply temperature must not ex-
ceed 104°F/40°C.
2. Potable Water Restrictions. When connecting the
water inlet to the water supply mains, local regulations
of your water company must be observed. In some ar-
eas the unit must not be connected directly to the pub-
lic drinking water supply. This is to ensure that there is
no feedback of chemicals into the water supply. If con-
nection is made to a potable water system, the system
MUST be protected against backflow. Direct connection
via a receiver tank or backflow preventer, for example, is
permitted.
3. Avoiding Dirt. Always prevent debris from being
drawn into the unit by using a clean water source. Dirt in
the feed water will damage the unit. Your washer is pre-
installed with a water filter inside the water inlet. Inspect
and clean the filter regularly. Never use the pressure
washer to draw in water contaminated with solvents,
e.g. paint thinners, gasoline, oil, etc.
4. Water Flow. The garden hose must be at least 5/8
inch in diameter. Flow rate of water supply must not fall
below 2 GPM (gallons per minute).
7
OPERATING THE PRESSURE WASHER
1. Stay Alert. Watch what you are doing and use com-
mon sense when operating your tool. Do not use the
tool while you are tired or under the influence of drugs,
alcohol, or medication. A moment of inattention during
operation may result in serious bodily injury.
2. Injection Hazard. The high pressure stream of wa-
ter can cut through skin and cause serious injury. Keep
clear of the nozzle. Never direct the discharge stream at
any bystanders, animals or your foot.
3. Risk of Explosion. Do not operate power tools in ex-
plosive atmospheres, such as in the presence of flam-
mable liquids, gases or dust. Do not spray flammable
liquids.
4. Risk of Electric Shock. Do not spray electrical appa-
ratus and wiring. Do not spray the power source or the
outlet. Don’t pressure wash the pressure washer.
5. Tool Purpose. Learn your tool’s applications and limi-
tations as well as the specific potential hazards related
to this machine. Only use the pressure washer for its
intended purposes. Otherwise, you may cause mechani-
cal defects, serious damage or personal injury.
6. Do not Overreach. Keep proper footing and balance
at all times. This enables better control of the unit in un-
expected situations and will also prevent you from falling
down and embarrassing yourself in front of your cool
neighbor Greg. When stepping backwards, be cautious
about any obstacles beneath your feet or behind you in
order to avoid falling.
7. Avoid Accidental Start-ups. Make sure the power
switch is in the OFF position before connecting the plug
to a power source or carrying the tool. Engage the gun
safety lock whenever the machine is not in use.
8. Gun Kicks Back. Hold the gun firmly with both hands.
Kickback from operation can cause the user to fall down.
Always operate the pressure washer on a level and non-
elevated surface to prevent the risk of falling.
9. Shut Down The Unit. Never leave your unit running
while unattended. Unplug the unit before leaving for ex-
tended periods of time.
10. Maintenance. Before cleaning, changing accesso-
ries, or performing any maintenance, shut off and dis-
connect the unit from the electrical supply, then relieve
pressure in the washer by squeezing the trigger to empty
the washer of any residual water.
11. Storage. Store your machine and accessories in-
doors. Never store the pressure washer outdoors. If the
pump freezes, permanent damage may result. Always
keep tools clean and in good working order.
12. Replacement Parts. Use only identical replacement
parts. Use of any other part can cause personal injury
and damage to the tool. Only have your power tool ser-
viced by a qualified repair person.
PRESSURE WASHER SAFETY WARNINGS
WARNING! Do not operate the power station until you have read and understood the following instructions
and the warning labels.
ELECTRICAL INFORMATION
IMPORTANT: Servicing a double-insulated product requires extreme care and knowledge of the system, and
should be done only by qualified service personnel using identical replacement parts. Always use original factory
replacement parts when servicing.
1. Polarized Plugs. To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse
the plug. If it still does not fit, contact a qualified electrician to install a proper outlet. Do not modify the machine
plug or the extension cord in any way.
1. Ground fault circuit interrupter Protection (GFCI). This pressure washer is provided with a ground-fault circuit-
interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the
risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement
parts that include GFCI protection.
2. Service and repair. To avoid danger, electrical appliances must only be repaired by a qualified service technician
using original replacement parts.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
Use of an extension cord with this product is NOT recommended. If an extension cord must be used, use only a
UL-, CSA- or ETL-rated extension cord that are intended for outdoor use to prevent electric shock. These cords are
identified by a marking, “Acceptable for use with outdoor appliances, store indoors while not in use.”
1. Only use extension cords that can handle the voltage and amperage rating of this product. The extension cord
must be 14 gauge or heavier, and the length must not exceed 25 feet.
2. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
3. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
4. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
DOUBLE-INSULATED TOOL
The tool’s electrical system is double-insulated where two systems of insulation are provided. This
eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need
to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are
isolated from the internal metal components with protecting insulation.
8
UNPACKING & PACKING LIST
UNPACKING
Carefully remove the electric pressure washer from the packaging and place it on a sturdy, flat surface. Make sure to
take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing
list below to make sure you have all of the parts and accessories. If any part is missing or broken, please contact
customer service at 1-800-232-1195 (M-F 8-5 CST), or email [email protected].
Carrying Handle
Power Switch
Water Outlet
Water Inlet & Filter
High Pressure Hose
Adjustable Nozzle Spray Lance
Trigger
Safety Lock
Pressure Hose
Connector
NO. DESCRIPTION QNTY.
1 Electric Pressure Washer 1
2 High Pressure Hose 1
3 Spray Lance 1
4 Detergent Bottle (13 fl. oz.) 1
5 Water Inlet Filter (Pre-Installed Inside Water Inlet) 1
6 Water Inlet Connector 1
7 Nozzle Cleaner 1

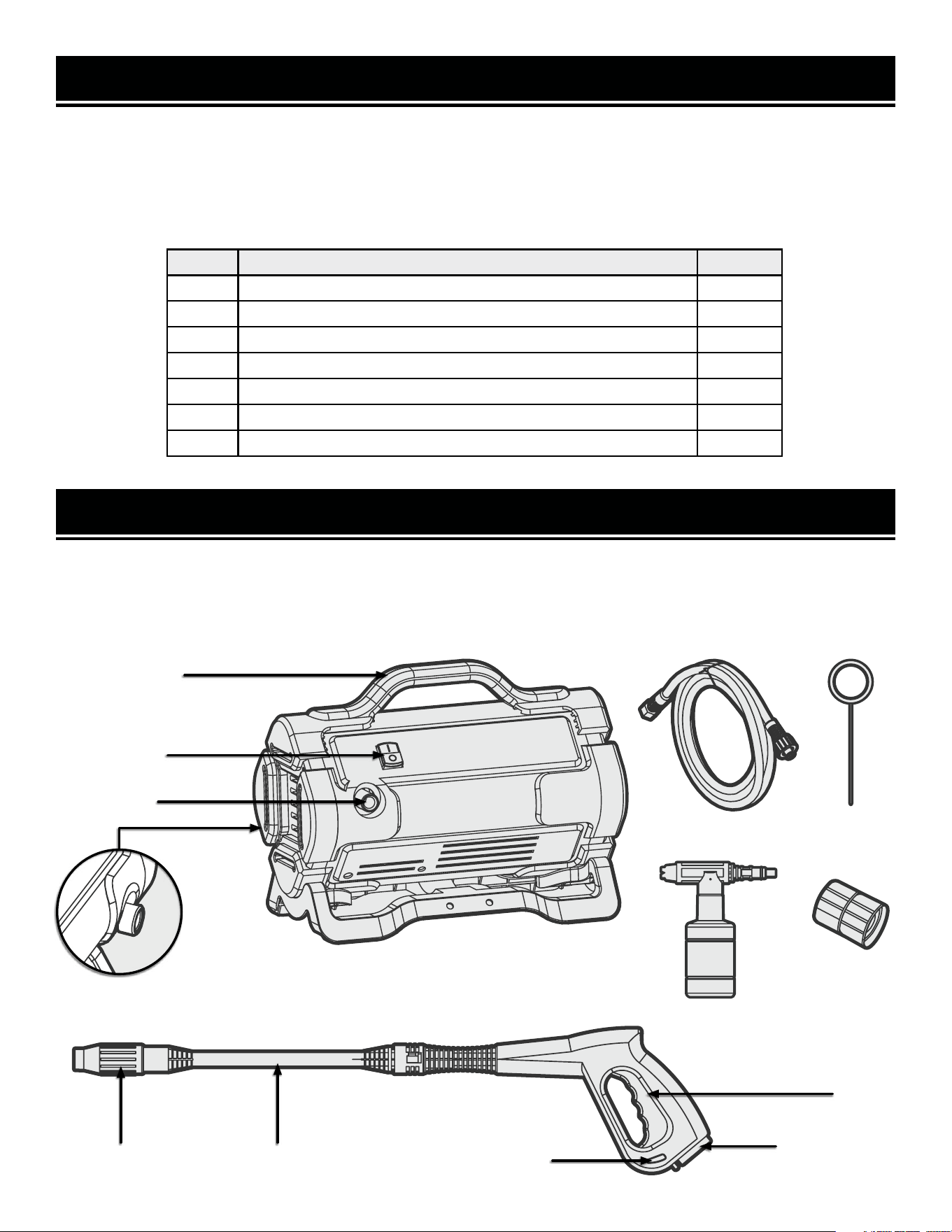

KNOW YOUR PRESSURE WASHER
TOOL PURPOSE
Put the stains and unwanted buildup in your life under pressure with your WEN Electric Pressure Washer. Refer to
the following diagrams to become familiarized with all the parts and controls of your pressure washer. The compo-
nents will be referred to later in the manual for assembly and operation instructions.
9
Detergent Bottle
Nozzle
Cleaner
Water Inlet
Connector
ASSEMBLY & ADJUSTMENTS
WARNING! To avoid injury from accidental startups, be sure that the tool is switched off and disconnected
from the power supply before performing assembly, inspection or adjustments.

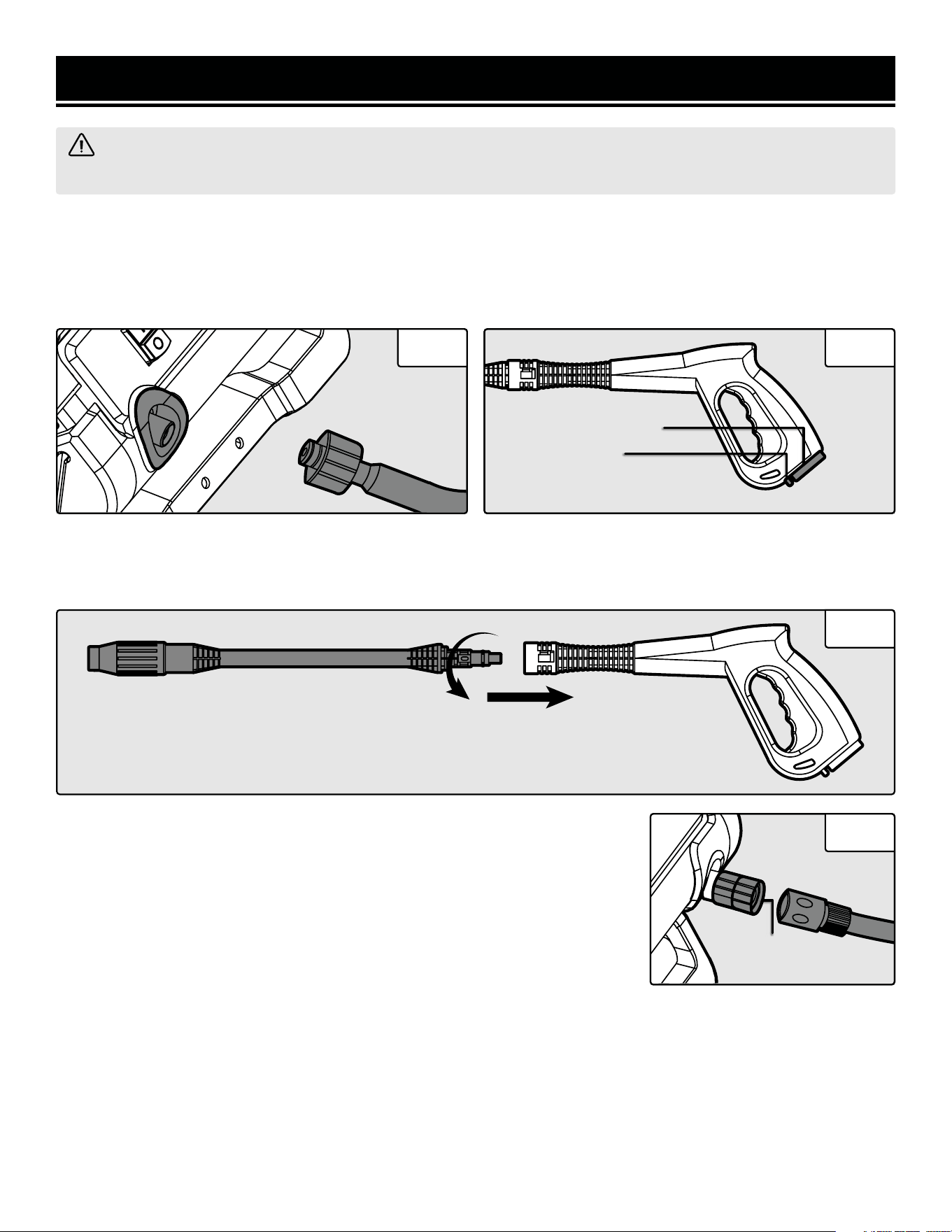

ASSEMBLING THE HIGH PRESSURE HOSE
1. Remove the white cap. Connect the coupler end of the
high pressure hose to the pressure washer water outlet
(Fig. 1). Rotate the coupler clockwise to fully tighten.
2. Connect the opposite end of the high pressure hose
into the connector located on the back of the gun. Push
up the lock catch to secure the hose (Fig. 2).
ASSEMBLING THE SPRAY GUN
Insert the spray lance into the trigger gun (Fig. 3). Press in the lance against the spring tension and twist it counter-
clockwise (viewing from the back) into the locked position.
CONNECTING THE GARDEN HOSE TO THE PRESSURE WASHER
1. Connect a garden hose (at least 5/8 inch in diameter) to a cold water supply.
Make sure your water supply meets the requirements stated in “Water Supply
Requirements” on page 6.
2. Run water through the garden hose for a few seconds to flush any debris
from the hose. Turn off the water supply.
3. With the water source turned off, remove the white cap and thread the inlet
adapter onto the water inlet. Connect the garden hose into the inlet adapter and
tighten the connector to secure the hose connection (Fig. 4).
NOTE: The inlet filter is pre-installed inside the water inlet on the back of the
machine. Inspect the inlet screen and remove debris if there is any.
NOTE: There should be a minimum of 10 feet of unrestricted hose between the
pressure washer and the water supply. Do not let the hose kink.
Fig. 1 Fig. 2
Hose Connector
Lock Catch
Fig. 3
Fig. 4
Water Inlet
Adapter
10
ASSEMBLY & ADJUSTMENTS

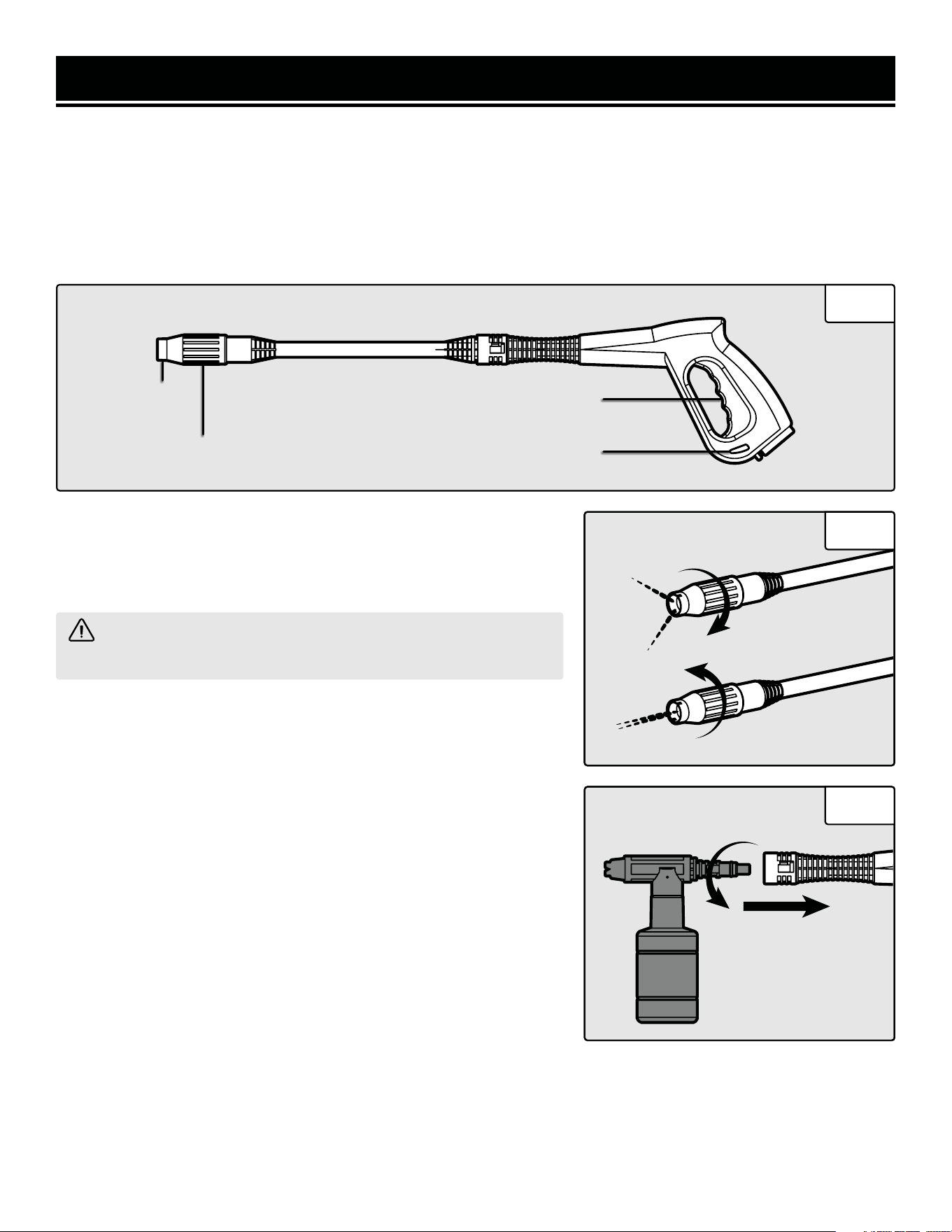

USING THE SPRAY GUN
1. The spray gun is equipped with a safety lock on the bottom of the handle. To engage safety, push out the safety
lock. To release safety, push in the safety lock. To prevent risk from accidental startups, always engage the safety
lock when not using the pressure washer (Fig. 5).
2. The trigger starts and stops the water flow. Disengage the safety lock and pull back the trigger to begin operating
the pressure washer. Release the trigger to stop the water flow (Fig. 5).
USING THE ADJUSTABLE NOZZLE
The spray gun features an adjustable nozzle that lets you adjust the
spray pattern from a full fan spray (widest spray width) to a direct
stream spray (narrowest spray width) (Fig. 6).
WARNING! Make sure the spray tip is pointed away from any
people or animals when adjusting the nozzle.
Always begin by spraying a testing area of the work surface using the
fan spray (widest spray width) to avoid damaging the surface.
Rotate the adjustable nozzle counterclockwise to increase the spray
width. Rotate the adjustable nozzle clockwise to decrease the spray
width.
USING PRESSURE WASHER DETERGENT
1. Fill the detergent bottle with your preferred liquid pressure washer
detergent. The bottle capacity is 13 fl. oz.
CAUTION: Use only detergents designed for pressure washers. Follow
the instructions included with your detergent about how it should be
prepared and used.
2. Remove thespray lance. Insert the detergent bottle into the trigger
gun. Press in against the spring tension and twist it counterclock-
wise into the locked position (Fig. 7).
3. Pull the trigger to apply detergent onto the work area. Do not allow
detergent to dry on the surface.
Spray
Tip
Adjustable
Nozzle
Trigger
Safety Lock
Fig. 5
Fig. 6
Fig. 7
11
OPERATION
WARNING! To prevent serious injury, make sure all the warnings and instructions have been read and
understood before operating this tool.
PREPARING THE PRESSURE WASHER
1. Place the pressure washer on a secure, stable surface to prevent it from tipping during operation.
2. Check that all connections have been properly installed and secured according to the instructions on page 10.
• The high pressure hose is properly fastened to the machine water outlet and the gun hose connector.
• The spray lance is properly attached to the trigger gun.
• The garden hose is properly fastened to the pressure washer’s water inlet adapter.
CAUTION: This unit is intended to be used with cold water only. Do not use hot water in this pressure washer.
3. Turn on the water supply to its maximum flow.
4. It is very important to bleed all the air out of the pressure washer before using it. Release the safety lock and
pull the trigger for a few seconds until the water flow is steady. This will allow air to escape and discharge any pre-
existing pressure from the gun and the hose. Then turn off the water.
OPERATING THE PRESSURE WASHER
1. Make sure the on/off switch is in the off position. Plug the Ground Fault Circuit
Interrupter (GFCI) into a matching receptacle (see page 10 for important electrical
information). We recommend that you test the GFCI as part of your startup procedure
each time you use your pressure washer as instructed below.
Press the RESET button (top), and the power indication light should turn on. Press
the TEST button (bottom), and the power indication light should turn off. Do not use
if test fails. Press RESET button again after completing the test to enable operation
(Fig. 8).
2. Point the gun at a safe direction, aimed away from any bystanders or animals. Set
the ON/OFF switch to ON (Fig. 9).
3. Hold the gun firmly and pull the trigger to begin pressure washing. Beware of kick-
back when pressing the trigger.
WARNING! Never direct the water steam at people, animals or electrical
devices. The high-pressure spray can cause severe injury.
AUTOMATIC PUMP SHUTOFF/ TTS (TOTAL STOP SYSTEM)
The pressure washer is equipped with an automatic pump shutoff function that senses the water flow in the pump.
The pump will only run when the power switch is in the ON position and the trigger pulled. When the trigger is
released and no water is flowing through the pump, the motor will automatically shut off to protect the pump from
overheating, thus saving energy and prolonging pump life.
So don’t worry if the pump shuts off when the trigger is released. Your pressure washer is still okay. Simply squeeze
the trigger again to resume pressure washing.

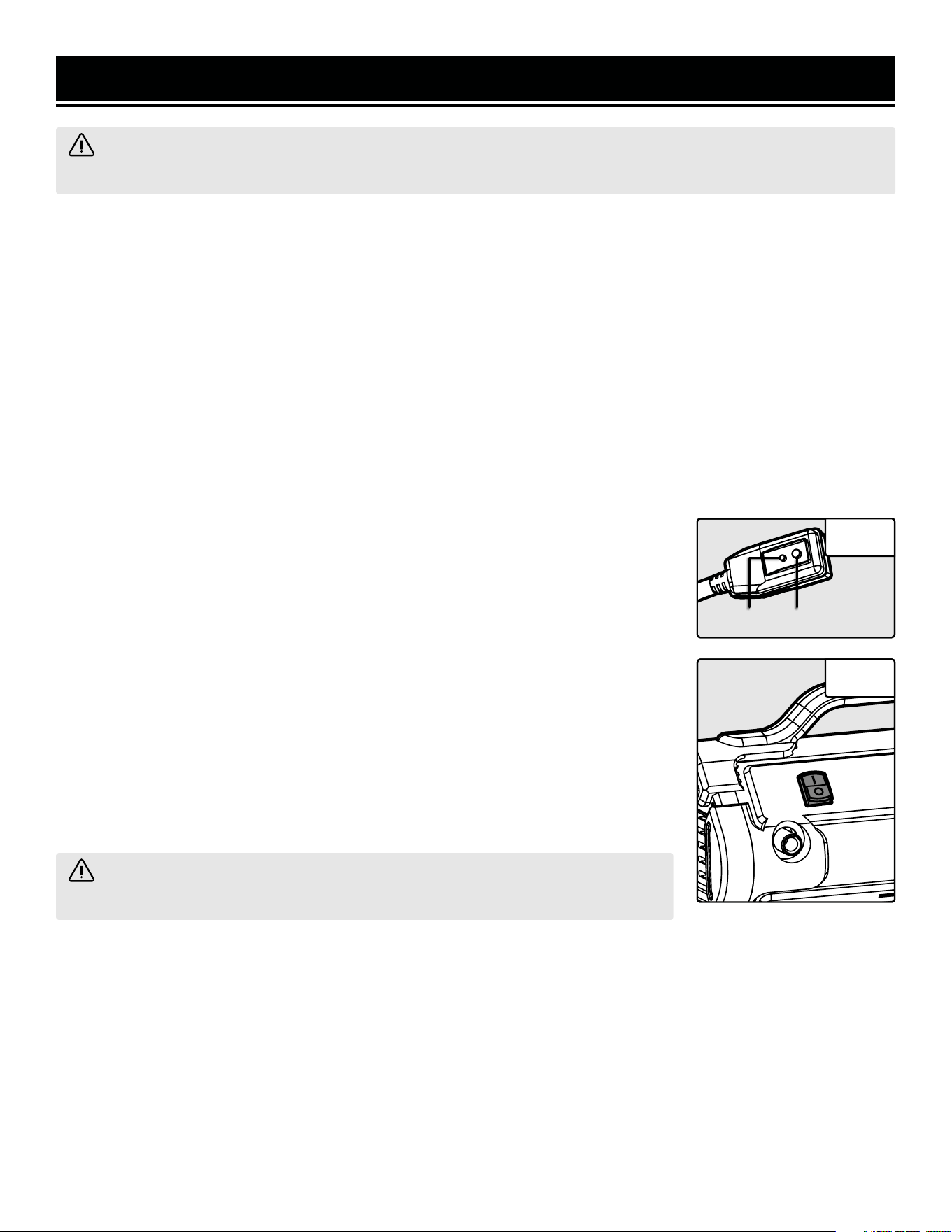

Fig. 8
12
Fig. 9
ResetTest
OPERATION
THERMAL PROTECTOR
Your pressure washer is also equipped with a motor thermal protector. When the motor is experiencing overload
and over heats, the thermal protector will trip to shut down and protect the motor. Wait a few minutes for the motor
to cool down and the thermal protector will reset automatically.
PRESSURE WASHING TIPS
1. Before pressure washing any surface, test spray an inconspicuous area. Adjust the spray pattern and spraying
distance to achieve the optimal cleaning result and prevent damaging the surface.
2. Use caution when spraying clipped or peeling paint, as the high pressure may remove the loose paint from the
surface.
3. Pre-rinse the surface with fresh water before applying detergent.
4. When using detergent, follow the instructions that come with your detergent. In general, allow the detergent to
remain on the surface about 1-3 minutes. Do not allow detergent to dry on the surface.
5. Keep the spray nozzle approximately 6 inches from the cleaning surface. The spraying distance may vary accord-
ing to the treated surface (be sure to increase the distance when rinsing sensitive or fragile surfaces). Rinse the
surface in a long sweeping motion.
6. Clean from top to bottom. When moving on to a new section of the cleaning surface, overlap the previous section
to eliminate stop marks and ensure a more even cleaning result.
7. When pressure washing surfaces that may come in contact with food, flush surfaces with plenty of drinking water
after pressure washing. However, WEN does not recommend eating off of your driveway.
SHUTTING DOWN THE UNIT
When the pressure washing task has been completed, follow the steps below to shut down the unit.
1. Turn off the ON/OFF switch and unplug the power plug from the outlet.
2. Turn off the water supply.
3. Pull the high pressure gun trigger to relieve all the built-up pressure in the machine.
4. Release the trigger and engage the gun safety lock.
NOTE: To maximize safety, always engage the safety lock when the gun is not in use.
5. Disconnect the garden hose from the water inlet on the back of the unit.
6. Disconnect the high pressure hose from the pressure washer outlet.
7. Follow the instructions on the next page for properly maintaining and storing your pressure washer.
13
MAINTENANCE & STORAGE
NOTE: Replacement parts can be ordered from wenproducts.com by searching the part number (refer to the ex-
ploded view and parts list on pages 16 & 17). Use only identical replacement parts designated from your pressure
washer. Parts that wear down over the course of normal use (such as hoses, filters, nozzles, etc.) are not covered
by the two-year warranty.
HIGH PRESSURE HOSE
The high pressure hose (PW19-016) can be damaged easily and should be carefully stored. Do not kink the hose.
Do not drive vehicles or place heavy objects over the hose. Do not expose the hose to sharp objects. Don’t chew on
it either. Regularly inspect the hose for cuts, bulges, or leaks which can develop from kinking or wear. If damage is
found, replace the hose immediately to prevent serious injuries.
WARNING! Risk of electric shock - Always switch off the pressure washer, disconnect the power plug and
turn off the water before performing any adjustments or maintenance.
WATER INLET FILTER
Check the water inlet filter (PW19-025) periodically for deposits. Clean this
filter regularly for maximum performance. Remove the water inlet filter
(Fig. 10) and rinse it with warm water to clean out debris and buildup before
operating the pressure washer.
SPRAY NOZZLE
Regularly clean the spray tip on the spray lance and detergent bottle to pre-
vent the nozzle from clogging.
Make sure the power plug is disconnected, the water is turned off and all
pressure is relieved from the unit. Turn the adjustable nozzle counterclock-
wise to move the metal plates apart. Use a nozzle cleaner (Fig. 11) or a
needle to dislodge any foreign materials that are clogging or restricting the
spray tip.
STORING THE PRESSURE WASHER FOR EXTENDED PERIODS
1. Clean the spray nozzle and water inlet filter before storing the unit.
2. To protect and extend the life of your pressure washer, we recommended running the unit with a pump antifreeze
or pump protector or a pump conditioner before storing the unit for long periods of time. Follow the directions on
your preferred pump protector for proper use.
3. Store your pressure washer and accessories indoors where the temperature will stay above freezing (32°F/0°C).
Do not store it near the furnace or other sources of heat as it may dry out the pump’s seals.
4. Keep the pressure washer upright on a level surface. Cover the machine to protect it from dust. Do not allow high
pressure hose to become kinked during storage.
PRODUCT DISPOSAL
Used pressure washers should not be disposed of with household waste. This product contains electric compo-
nents that should be recycled. Please take this product to your local recycling facility for responsible disposal and
to minimize its environmental impact.

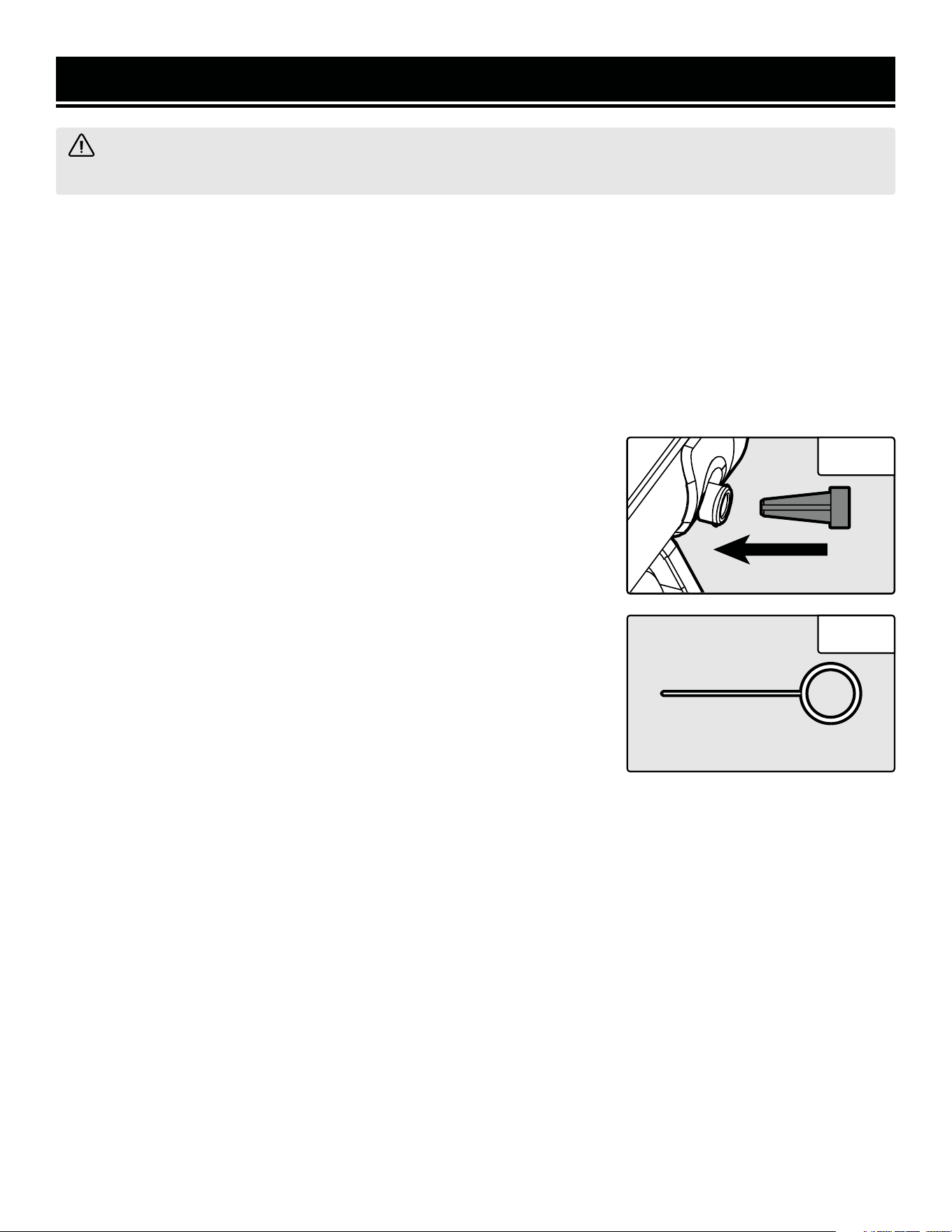

Fig. 10
Nozzle Cleaner
14
Fig. 11
NOTE: This pressure washer is supplied with a closed lubrication system, so no addition of oil is needed.
PROBLEM CAUSE SOLUTION
Machine doesn’t turn on.
1. GFCI plug is tripped 1. Press “Reset” button on GFCI plug (p. 12).
2. Thermal protector is tripped.
2. Switch off the machine. Wait a few minutes
for motor to cool down and protector will
reset automatically.
3. Machine is not plugged in or the outlet does
not have adequate power.
3. Plug machine into a working outlet suitable
for the pressure washer.
4. Damaged power cord or extension cord.
4. Check power cord, extension cord, and
power plug. Do not use if cords are damaged.
5. Defective power switch.
5. Stop using the tool and contact customer
service.
6. Circuit fuse is blown. 6. Have fuse replaced by a certified electrician.
Machine stops during operation.
1. Thermal protector is tripped.
1. Switch off the machine. Wait a few min-
utes for motor to cool down and the thermal
protector will reset automatically.
2. Nozzle partially blocked. 2. Clean the nozzle (p. 14).
Machine pulsating
1. Air trapped in the inlet hose.
1. Allow the machine to run while holding the
trigger until adequate pressure returns.
2. Insufficient water supply.
2. Make sure water supply is opened as far as
possible. Check for leaks, kinks or blockage.
3. Blocked nozzle. 3. Clean the nozzle (p. 14).
4. Blocked water filter. 4. Clean water inlet adapter filter (p. 14).
5. Kinked hose. 5. Unkink the hose.
Fluctuating
Pressure
1. Pump bringing in air.
1. Tighten hose connections and make sure
they are air tight. Turn off machine and purge
pump by squeezing trigger gun until a steady
flow of water emerges through the nozzle.
2. Dirty or broken valves. 2. Clean/replace the valves.
3. Pump seals are worn out. 3. Order replacement seals (1-800-232-1195).
Water stream starts and stops by
itself.
1. Leaking pump/spray gun.
1 & 2. Call 1-800-232-1195 for assistance.
2. Broken trigger on spray gun.
3. Ghost in machine. 3. Persuade the ghost to leave.
Water pressure isn’t high enough
1. Spray width too wide. 1. Adjust spray width (p. 11).
2. Garden hose diameter too small. 2. Replace with a 5/8 in. or larger garden hose.
3. Insufficient water supply.
3. Open the water on full and check the garden
hose for leaks, kinks or blockage.
4. Frozen pump/hose. 4. Thaw out your frozen stuff.
5. The water inlet filter is clogged. 5. Remove filter and rinse out in warm water.
6. The nozzle is blocked. 6. Unblock and clean the nozzle (p.14).
No detergent is coming out. Detergent Bottle nozzle is clogged. Clean the nozzle.
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replace-
ments should only be performed by an authorized technician. For any questions, please contact our customer
service at 1-(800) 232-1195, M-F 8-5 CST or email us at [email protected].
15

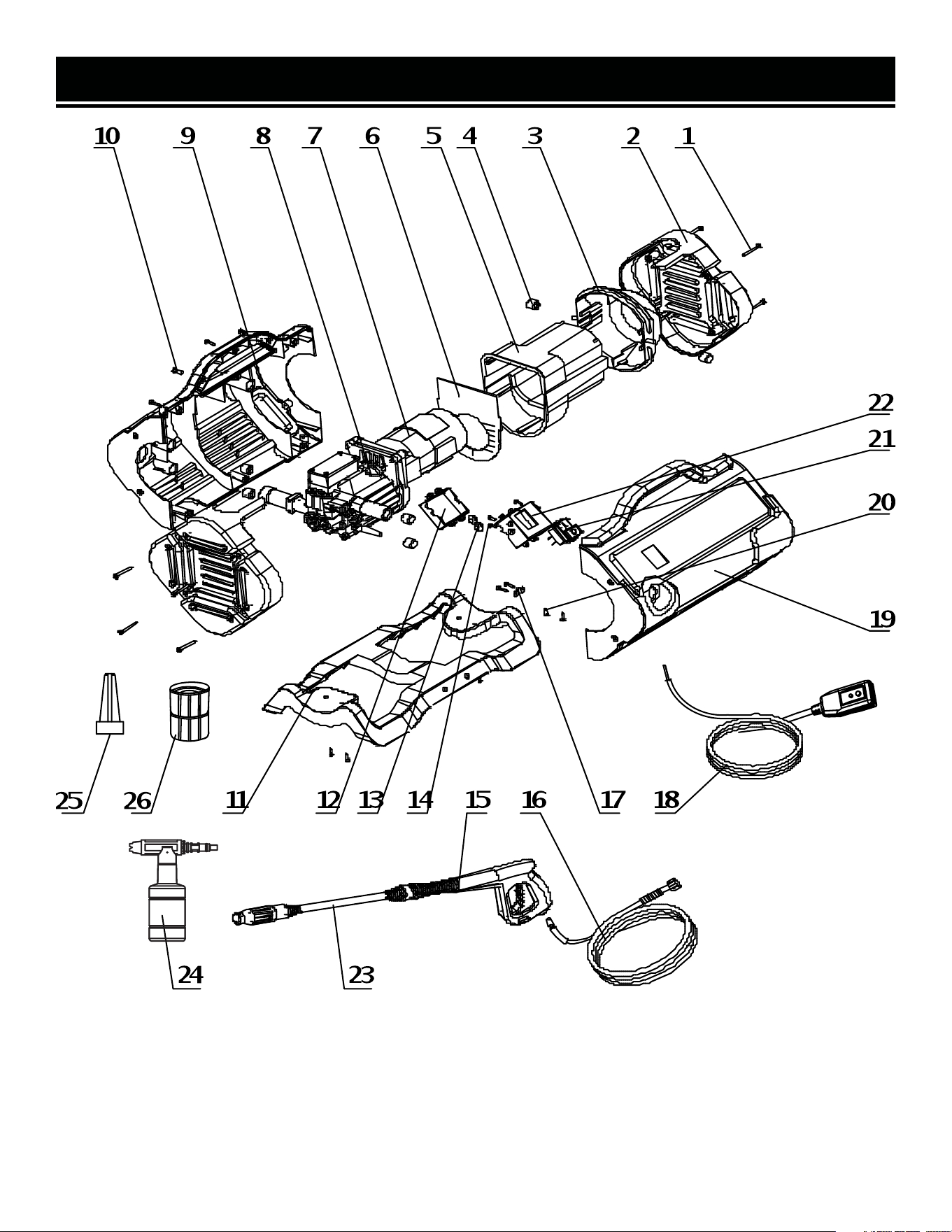

EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
16
No. Part No. Description Qty.
1 PW19-001 Screw ST3.5x32 8
2 PW19-002 Housing (Left & Right) 2
3 PW19-003 Motor Cover A (Right) 1
4 PW19-004 Support Ring 6
5 PW19-005 Motor Cover B (Right) 1
6 PW19-006 Motor Case 1
7 PW19-007 Motor 1
8 PW19-008 Pump 1
9 PW19-009 Housing (Back) 1
10 PW19-010 Screw ST3.5x16 11
11 PW19-011 Support Base 1
12 PW19-012 On/Off Switch Case (Back) 1
13 PW19-013 Power Wire Sleeve 2
14 PW19-014 Screw ST2.9x13 8
15 PW19-015 High Pressure Gun 1
16 PW19-016 High Pressure Hose 1
17 PW19-017 Electric Wire Clamp 1
18 PW19-018 Power Cord with GFCI Plug 1
19 PW19-019 Housing (Front) 1
20 PW19-020 Screw ST4x20 4
21 PW19-021 On/Off Switch 1
22 PW19-022 On/Off Switch Case (Front) 1
23 PW19-023 Spray Lance 1
24 PW19-024 Detergent Bottle 1
25 PW19-025 Water Inlet Filter 1
26 PW19-026 Water Inlet Adapter 1
EXPLODED VIEW & PARTS LIST
NOTE: Not all parts may be available for purchase. Parts and accessories that wear
down over the course of normal use are not covered under the warranty.
17
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GRE
AT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN
consumer
power tools will be free from defects in material or workmanship during personal use for a period of two (2) years
used
for professional or commercial use. Purchaser has 30 days from the date of purchase to report missing or
damaged parts.
SELLER’S
SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which a
re
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepai
r, abuse, neglect, normal wear and tear,
improper maintenance, or other conditions adversely affecting the
Product
or the component of the Product, whether by accident or intentionally, by persons other than Seller. To
make
a claim under this Limited Warranty, you must make sure to keep a copy of your proof of purchase that
clearly
-
dor
of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but not limited to garage
sales,
pawn shops, resale shops, or any other secondhand merchant, voids the warranty included with this
product.
Contact [email protected] or 1-800-232-1195 with the following information to make arrangements:
your
shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged
or
defective parts and products may need to be sent to WEN before the replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
BELTS, BRUSHES, BLADES, BATTERIES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED IN
DUR
ATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN
PROVINCES
DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMI-
TAT
ION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITAT
ION
OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANA-
DA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER
COUNTRIES,
CONT
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER
W
ARRANTY SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL
SHIPPING
CHARGES MAY APPLY.
18
NOTES
19
THANKS FOR
REMEMBERING
V. 2022.04.26
