Pressure Washer
Operator’s Manual
Model Number _____________________________
Revision __________________________________
Serial Number ______________________________
Date Purchased ____________________________
Copyright © 202 All rights reserved.
Husqvarna® is a registered trademark of Husqvarna Outdoor
Products and is used under license to J.D. North America Corp.
Milwaukee, WI, USA.
1-855-566-9776
www.husqvarna.com/us

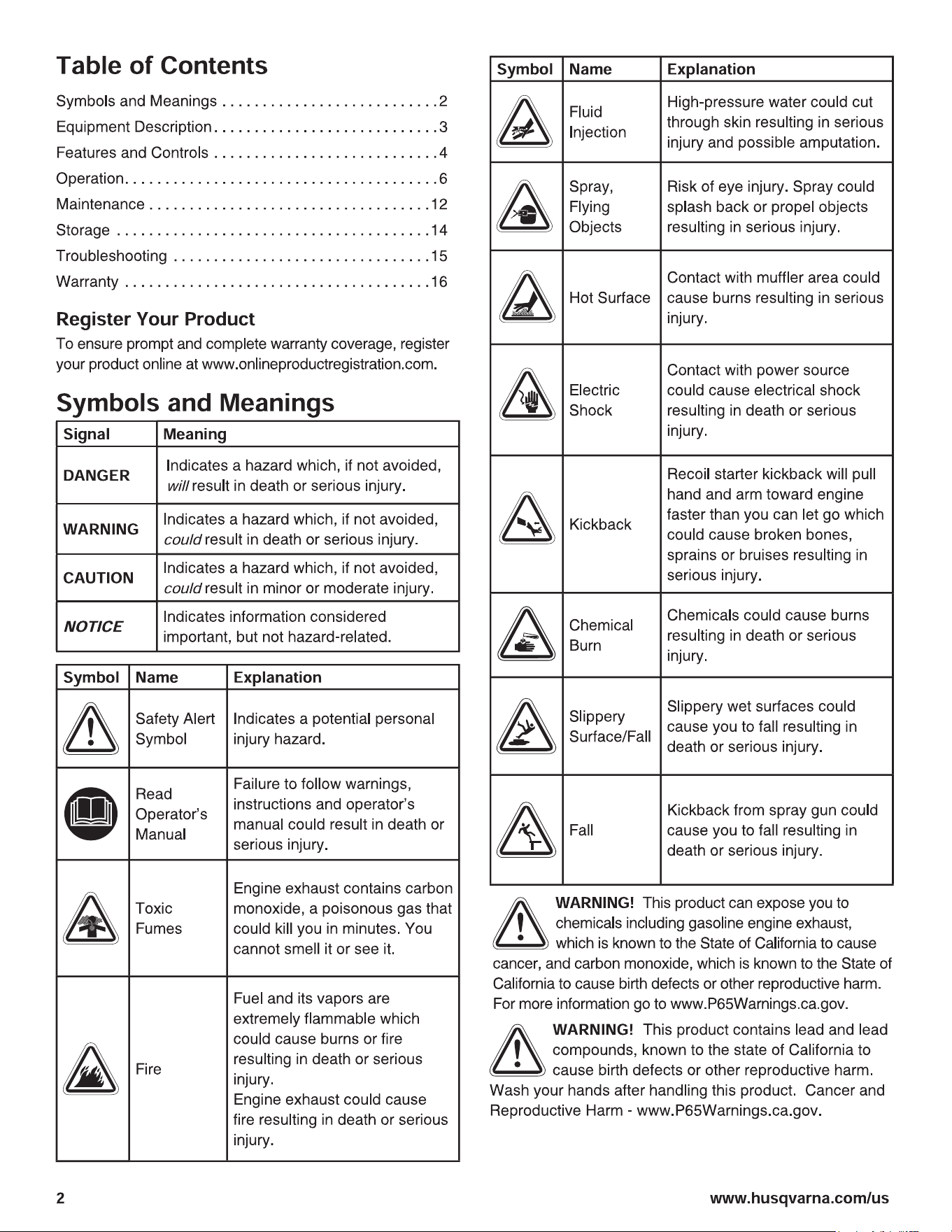

3
Identification Label — Provides model and serial number of
pressure washer.
Oil Drain Plug — Drain engine oil here.
Oil Fill/Dipstick — Check and fill oil here.
Pump — Stainless steel piston, axial cam pump that
develops high pressure.
Recoil Starter — Used to start the engine.
Water Inlet — Connection for garden hose.
Equipment Description
Read this manual carefully and become familiar
with your product. Know its applications, its
limitations, and any hazards involved. Save these
original instructions for future reference.
To aid in outdoor cleaning projects, this engine-driven,
high-pressure cleaning machine uses a
patterns and detergent.
Know how to stop the product and reduce pressure
quickly. Keep operating area clear and do not allow
children to operate pressure washer.
Stay alert—watch what you are doing. Do not operate
pressure washer when fatigued or under the influence of
alcohol or drugs.
Every effort has been made to ensure that information in
this manual is accurate and current. However, we reserve
the right to change, alter, or otherwise improve the product
and this document at any time without prior notice.
NOTICE If you have questions about intended use,
contact an authorized service dealer. This equipment is
designed to be used with authorized parts only.
This spark ignition system complies with the Canadian
Standard CAN ICES-2/NMB-2.
Fuel Cap
Control Touch
Air Filter
High Pressure Hose
Pump
Recoil Starter
Identification Label
High Pressure Outlet
Choke Lever
Fuel Shut Off
Lever
Oil Fill/
Dipstick
Water Inlet
Oil Drain Plug
Air Filter — Filters engine intake air.
Choke Lever — Prepares a cold engine for starting.
Fuel Cap — Add unleaded fuel here.
Fuel Shut-off Lever— Used to turn fuel supply on and off to
engine.
High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
High Pressure Outlet — Connection for high pressure
hose.
Control Touch - Varies pressure of high pressure spray.
usq rn com us
e tures n ontro s

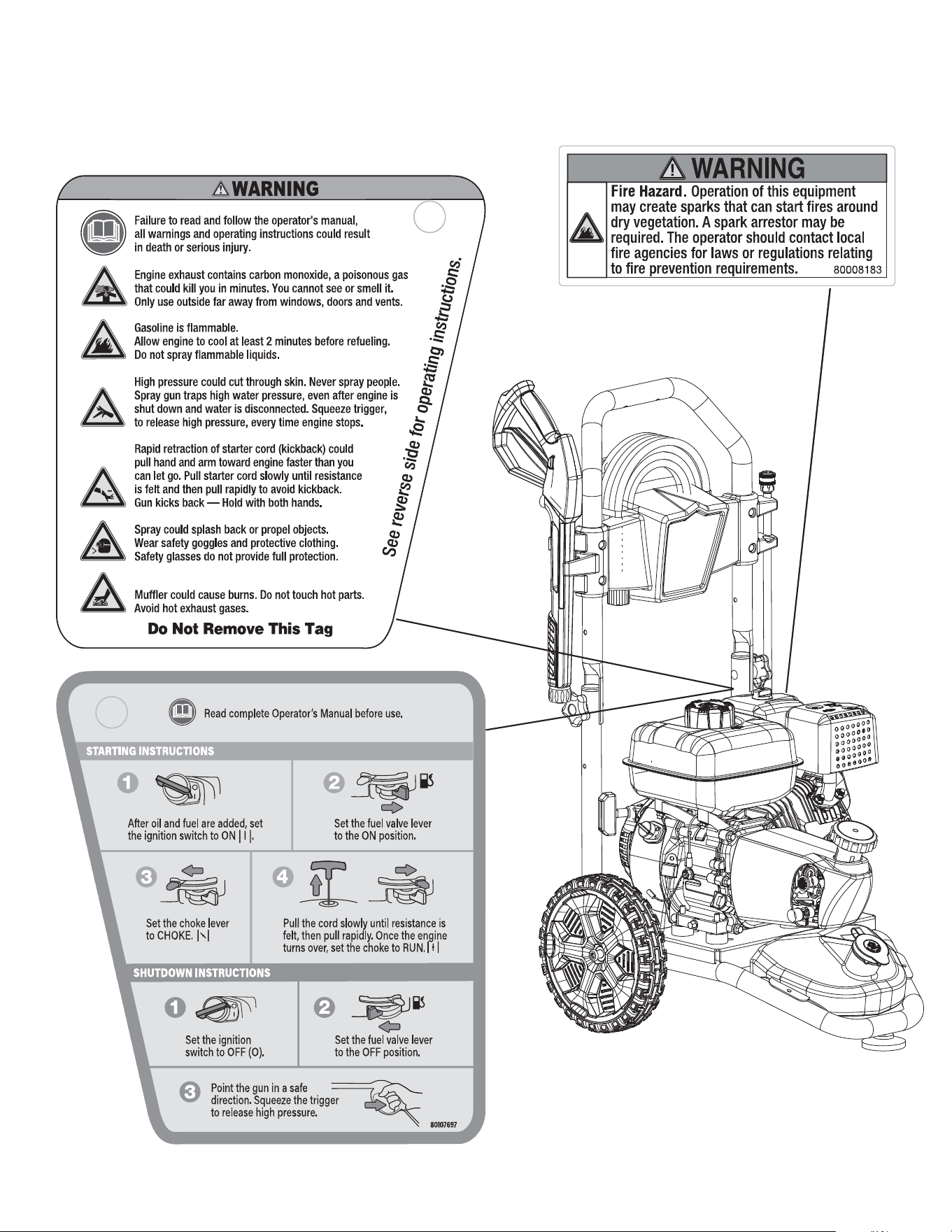

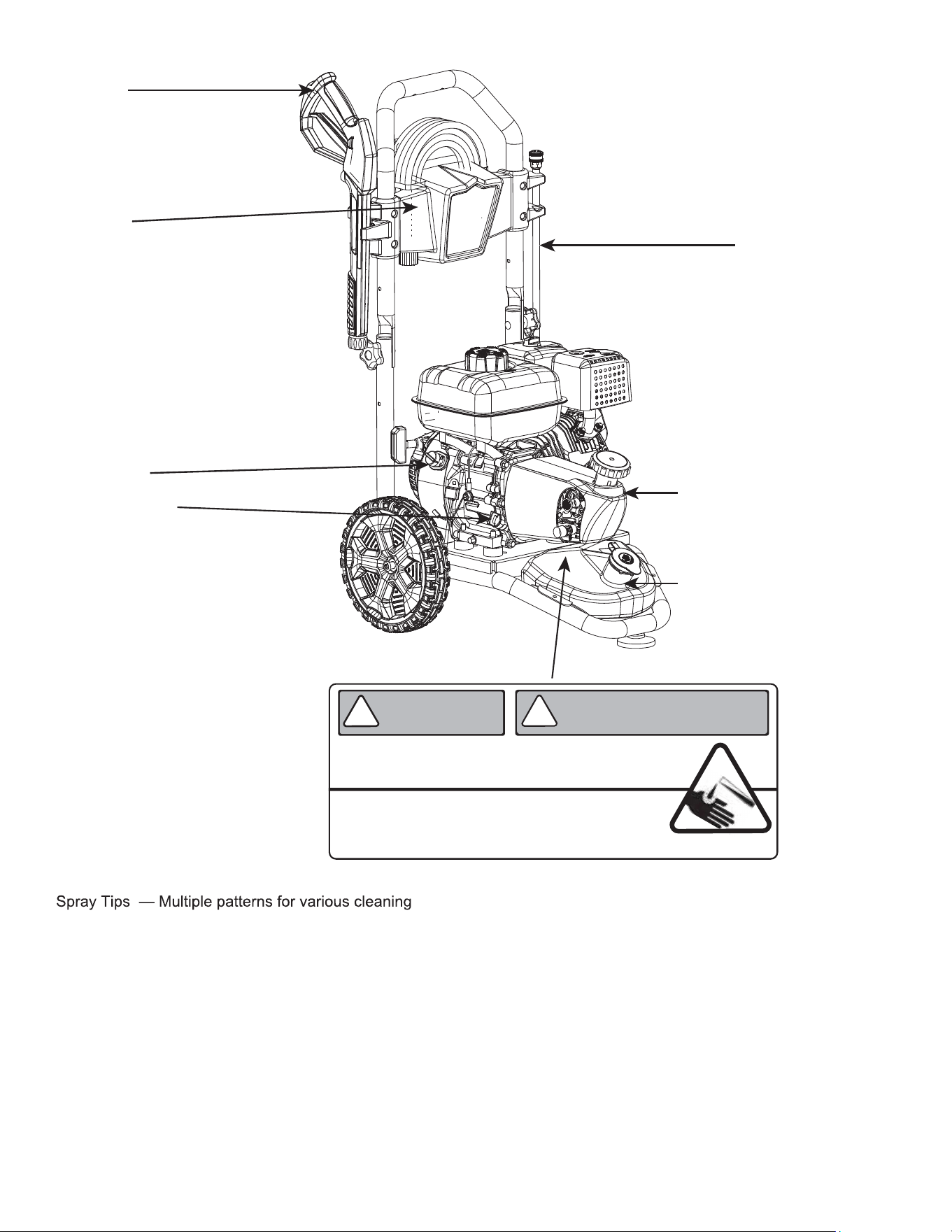

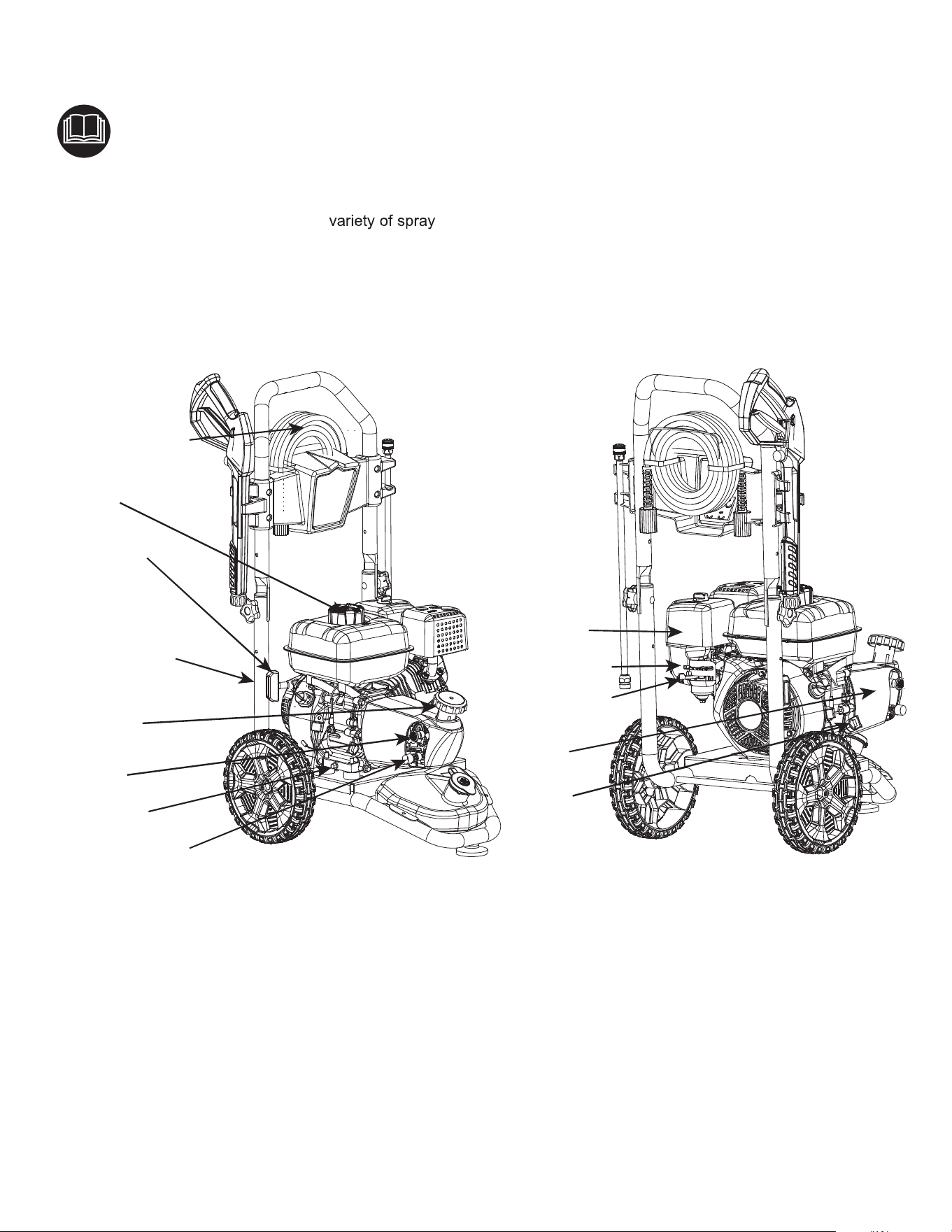

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
product warnings.
applications.
Automatic Cool Down System — Prevents internal pump
damage by discharging warm water to the ground.
Detergent Tank — Holds pressure washer safe detergent.
Engine Switch — Set switch to ON I before starting
engine. Set switch to OFF to shut off engine.
Spray Wand — Allows you to switch between nozzles and
optional accessories.
Spray un — Controls spray using trigger. Includes trigger
lock.
Low Oil Shutdown — This unit is equipped with a low oil
protection device. Oil must be at proper level for engine to
run. If the engine oil drops below a preset level, an oil
switch will stop the engine. Check oil level
with dipstick.
Spray Tips
Engine Switch
Spray Wand
Spray un
Automatic Cool Down
System
Detergent Tank
Low Oil Shutdown
WARNING
AVERTISSEMENT
Chemicals could cause burns resulting in death or serious injury.
• Follow all chemical manufacturer’s label instructions .
• Only use products marketed for use with pressure washers.
Les produits chimiques peuvent causer des brûlures risquant d'entraîner
la mort ou des blessures graves.
• Suivez les instructions sur l'étiquette du fabricant de produits chimiques.
• N'utilisez que des produits qui sont conçus pour être utilisés avec des laveuses à pression.
0361
!
!
NOTICE .

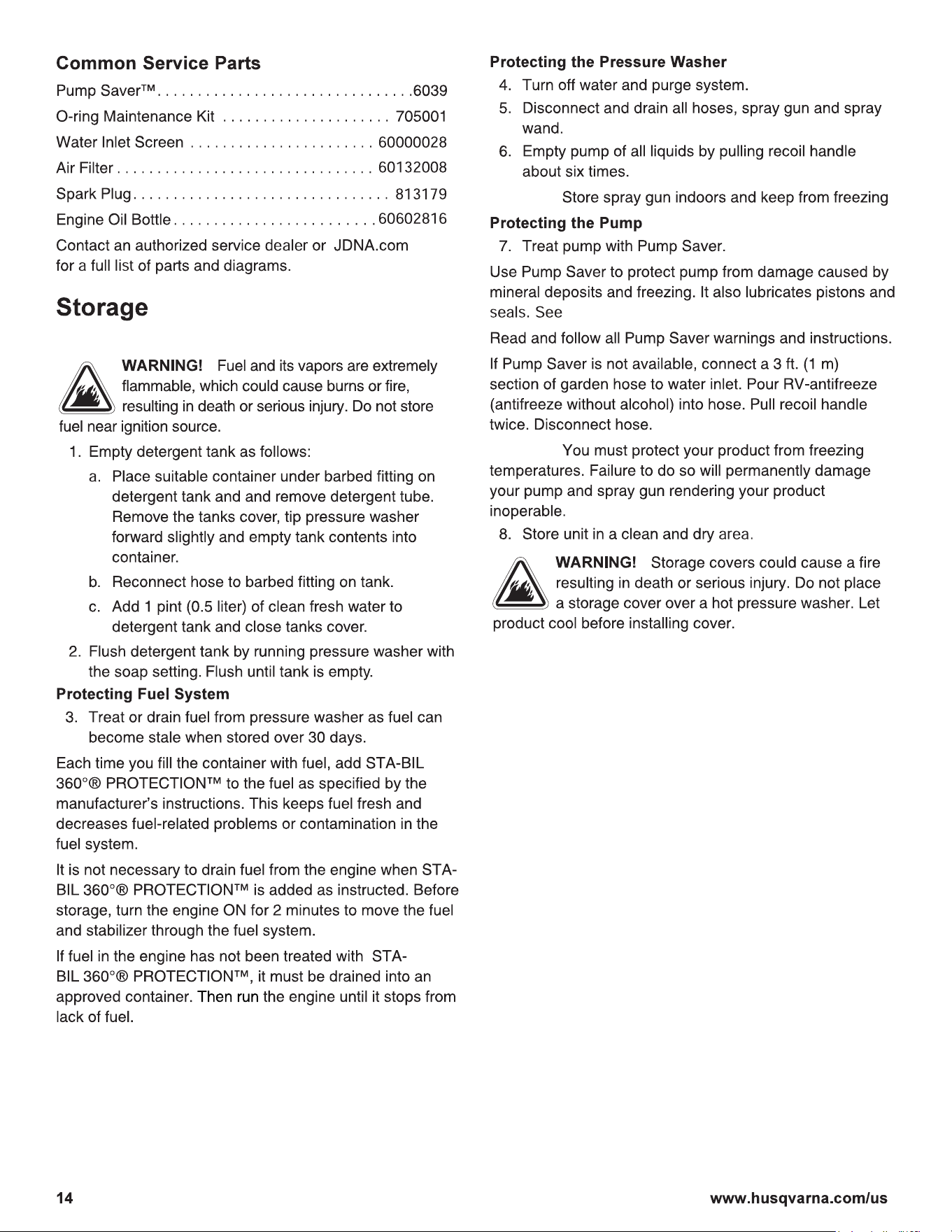

Common Service Parts.
NOTICE
