Contents
Before Use 4
Precautions ................................................................... 4
How to read this manual .........................................4
Basic Operations 5
Functions of the Buttons on the Front Panel ... 5
Turning on the Unit ................................................... 5
Getting Started............................................................ 6
Adjusting the volume ............................................... 7
Touch screen operations ......................................... 7
HOME screen descriptions ...................................... 8
Source selection screen descriptions .................. 8
Source control screen descriptions ...................10

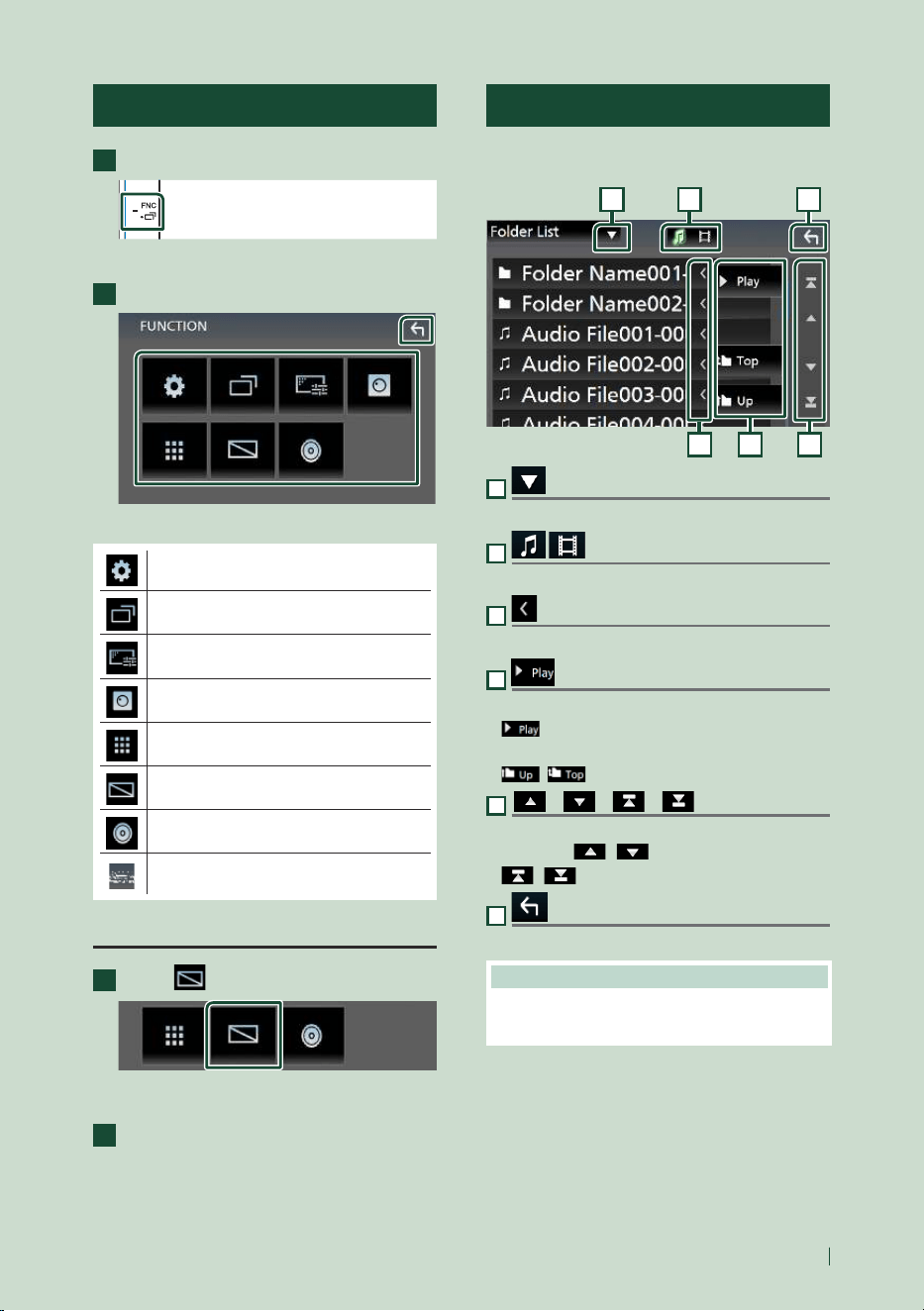

FUNCTION screen ..................................................... 11
List screen ...................................................................11
APPS 12

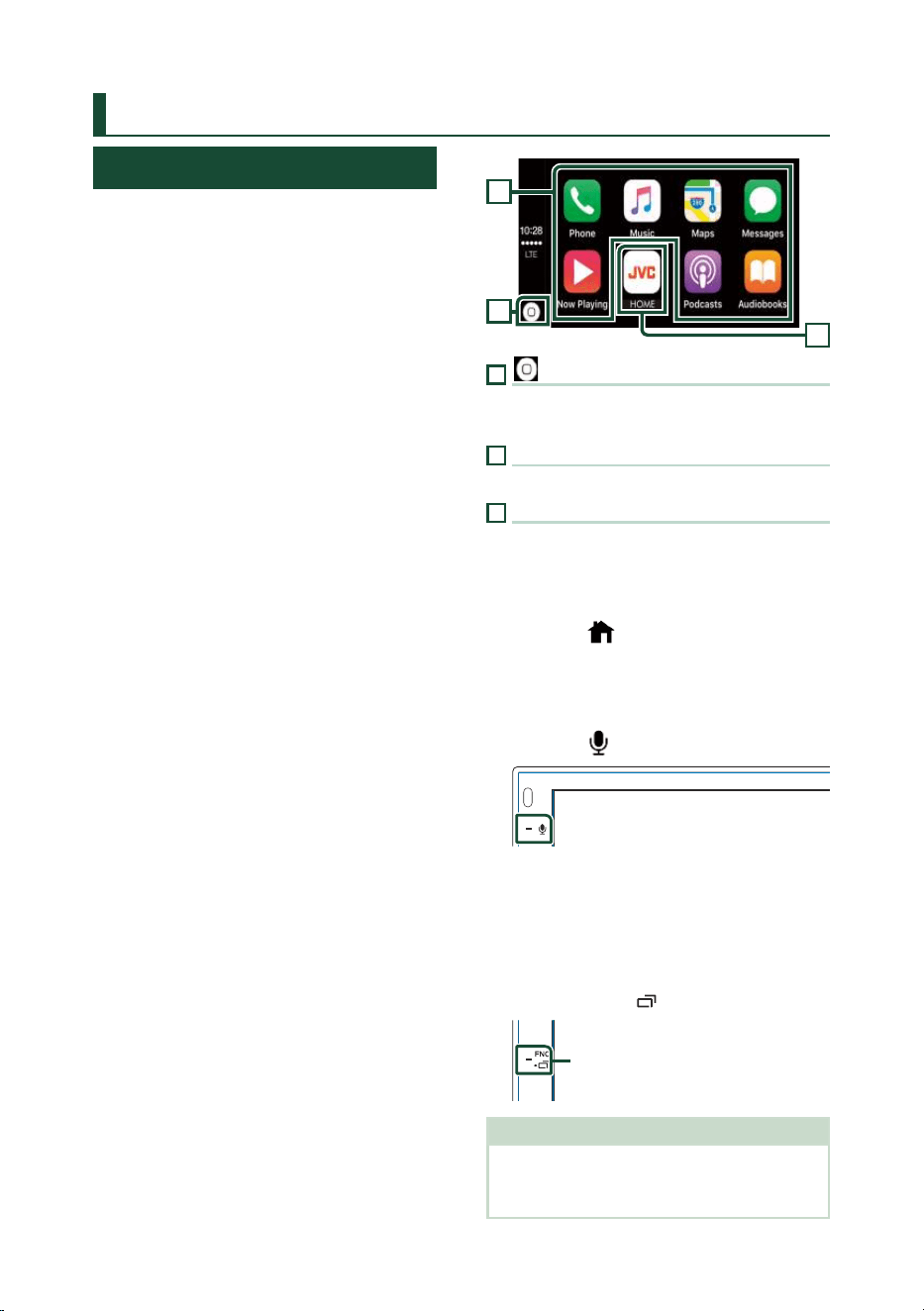

Apple CarPlay Operation .......................................12

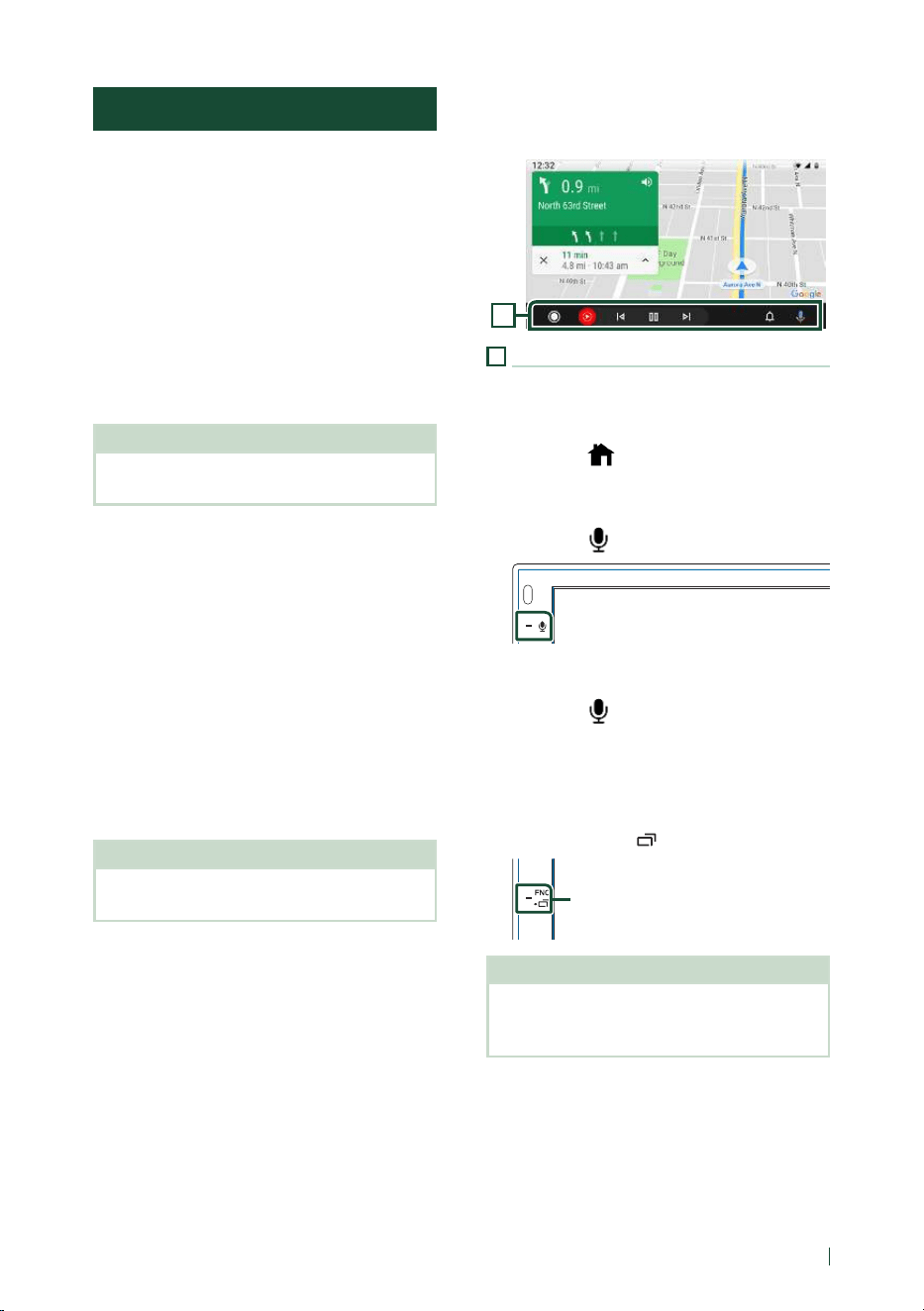

Android Auto Operation ........................................13

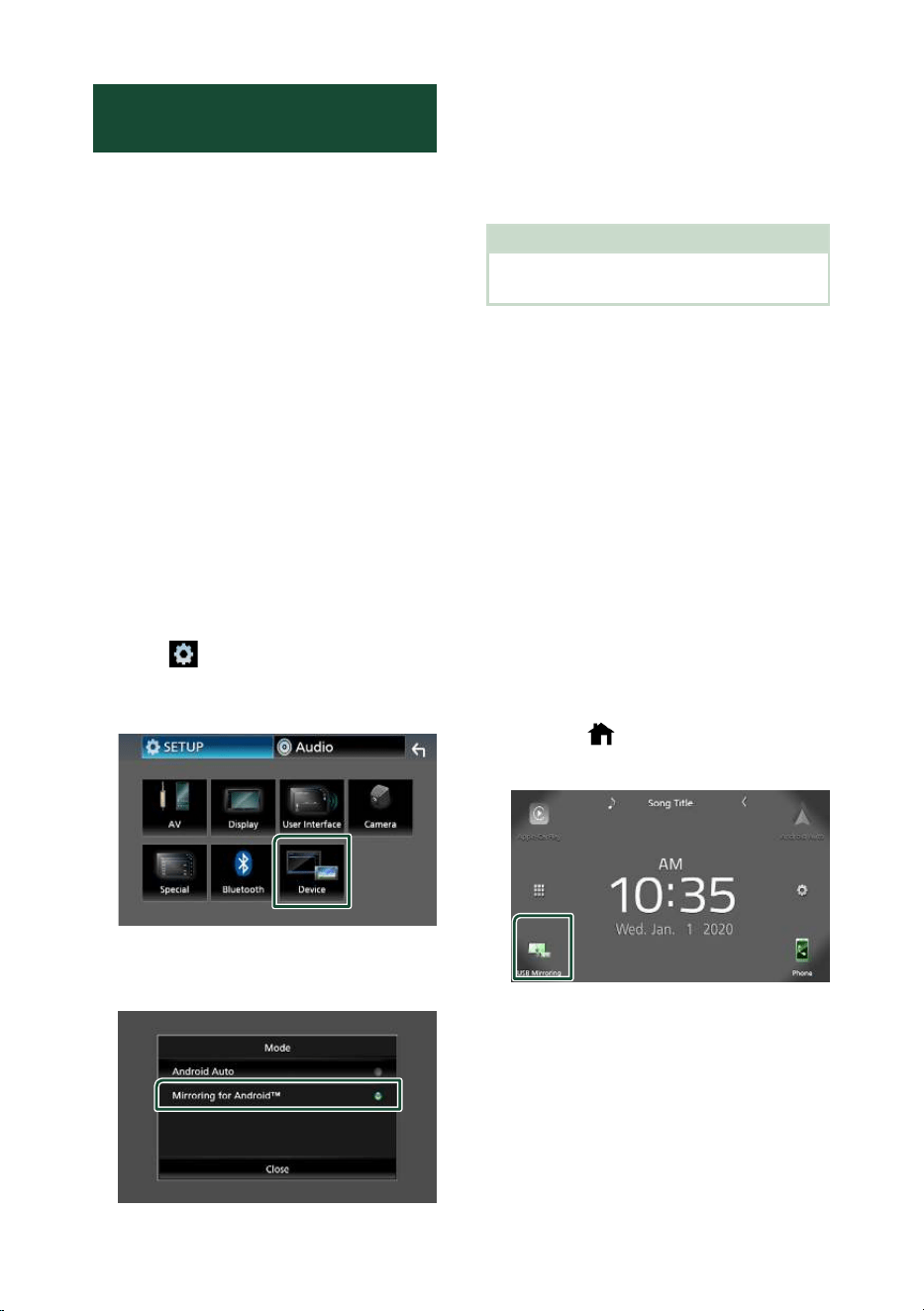

USB Mirroring Operation .......................................14
USB 15

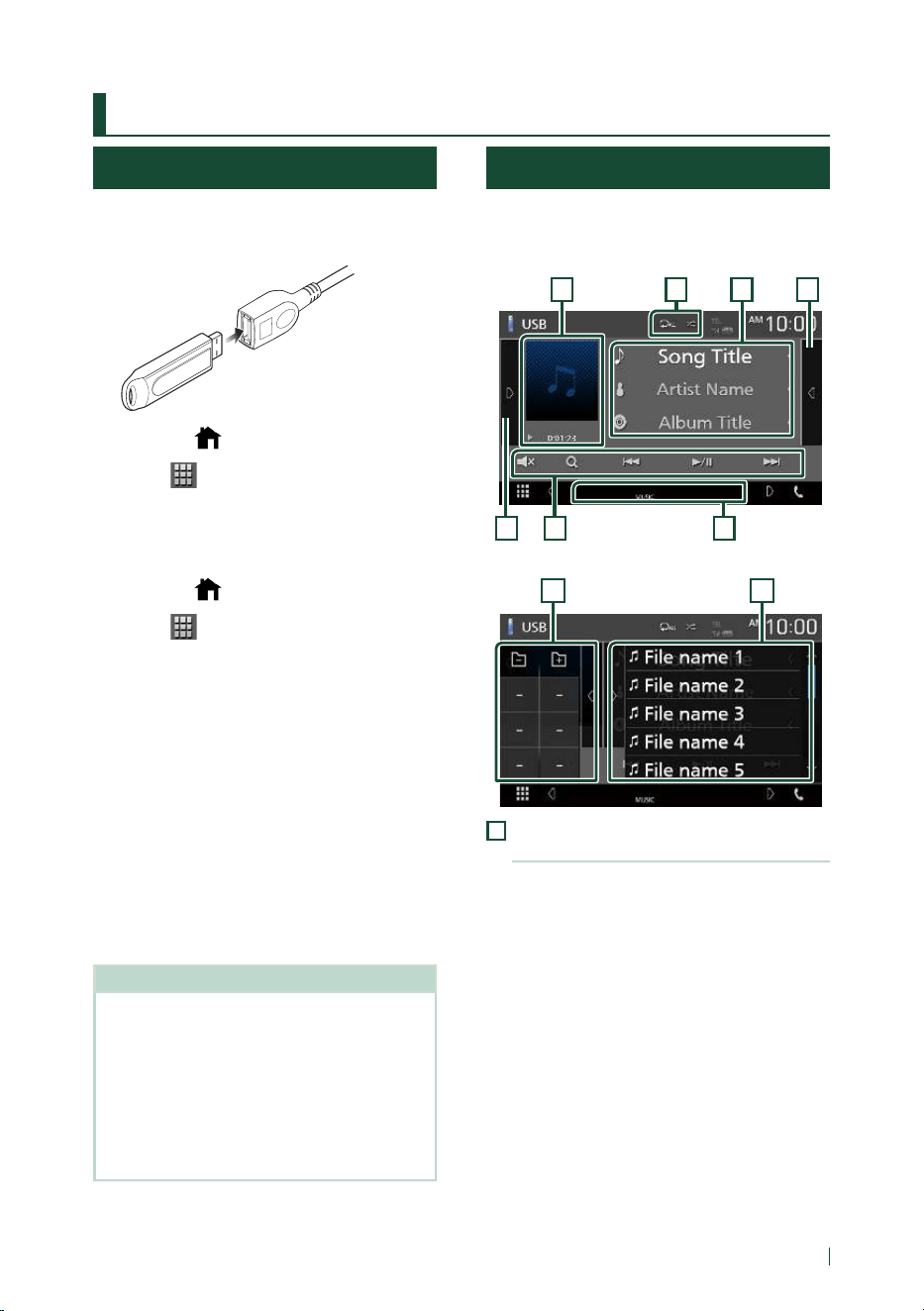

Connecting a USB device ......................................15
USB Basic Operation ................................................15
Search Operation ......................................................17
Tuner 18

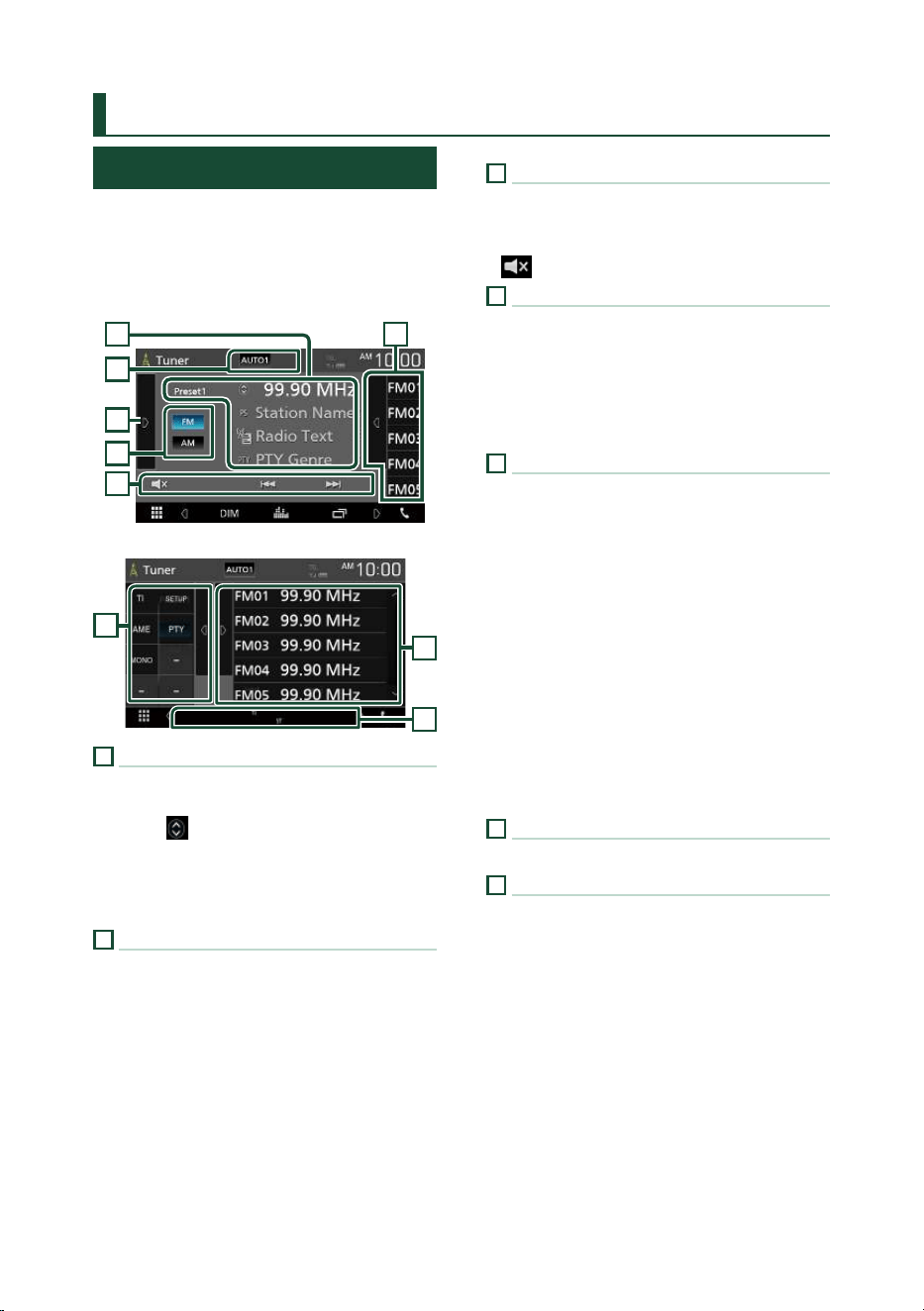

Tuner Basic Operation ............................................18
Memory Operation ..................................................19
Selecting Operation ................................................19

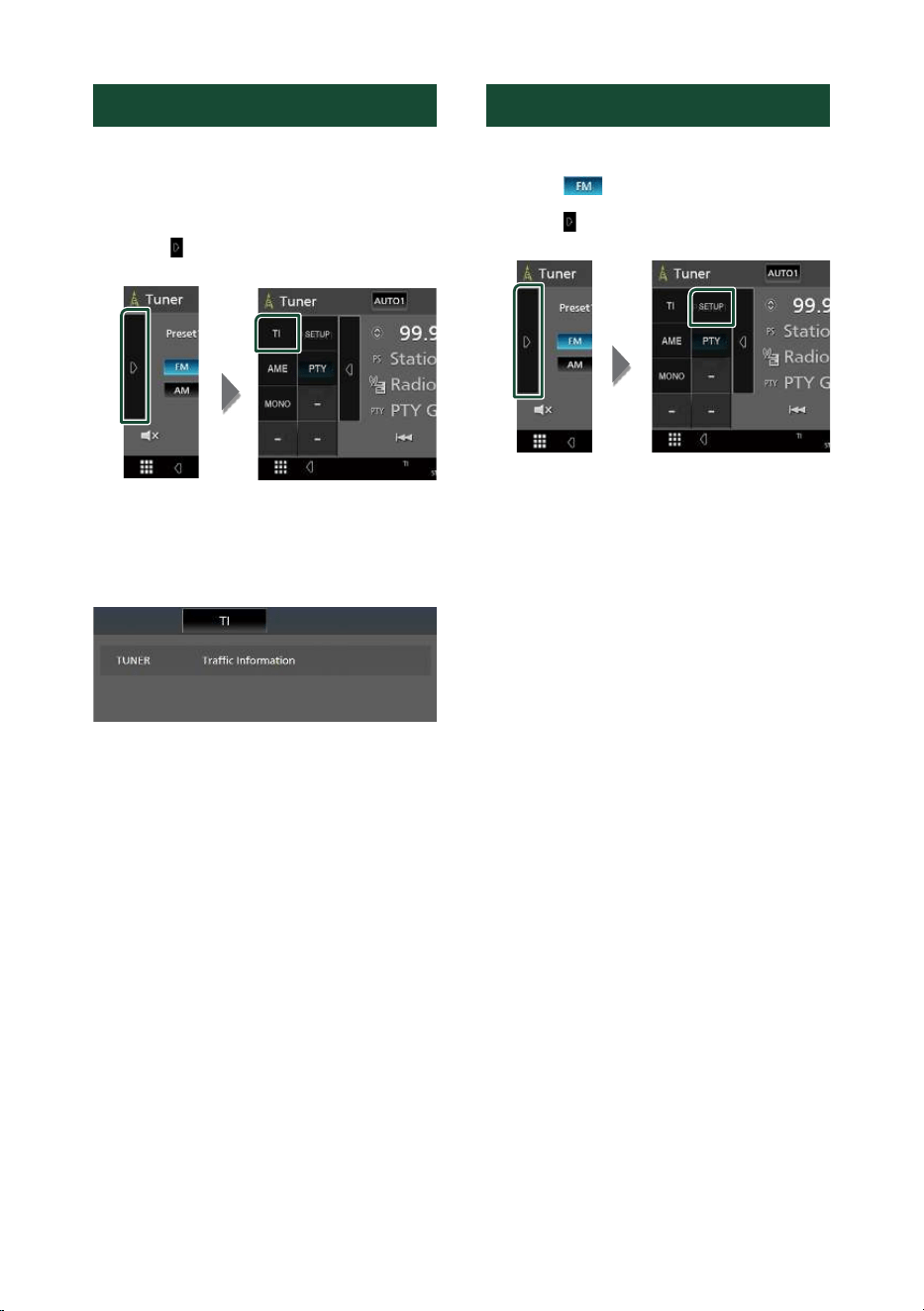

Traffic Information ...................................................20
Tuner Setup ................................................................20

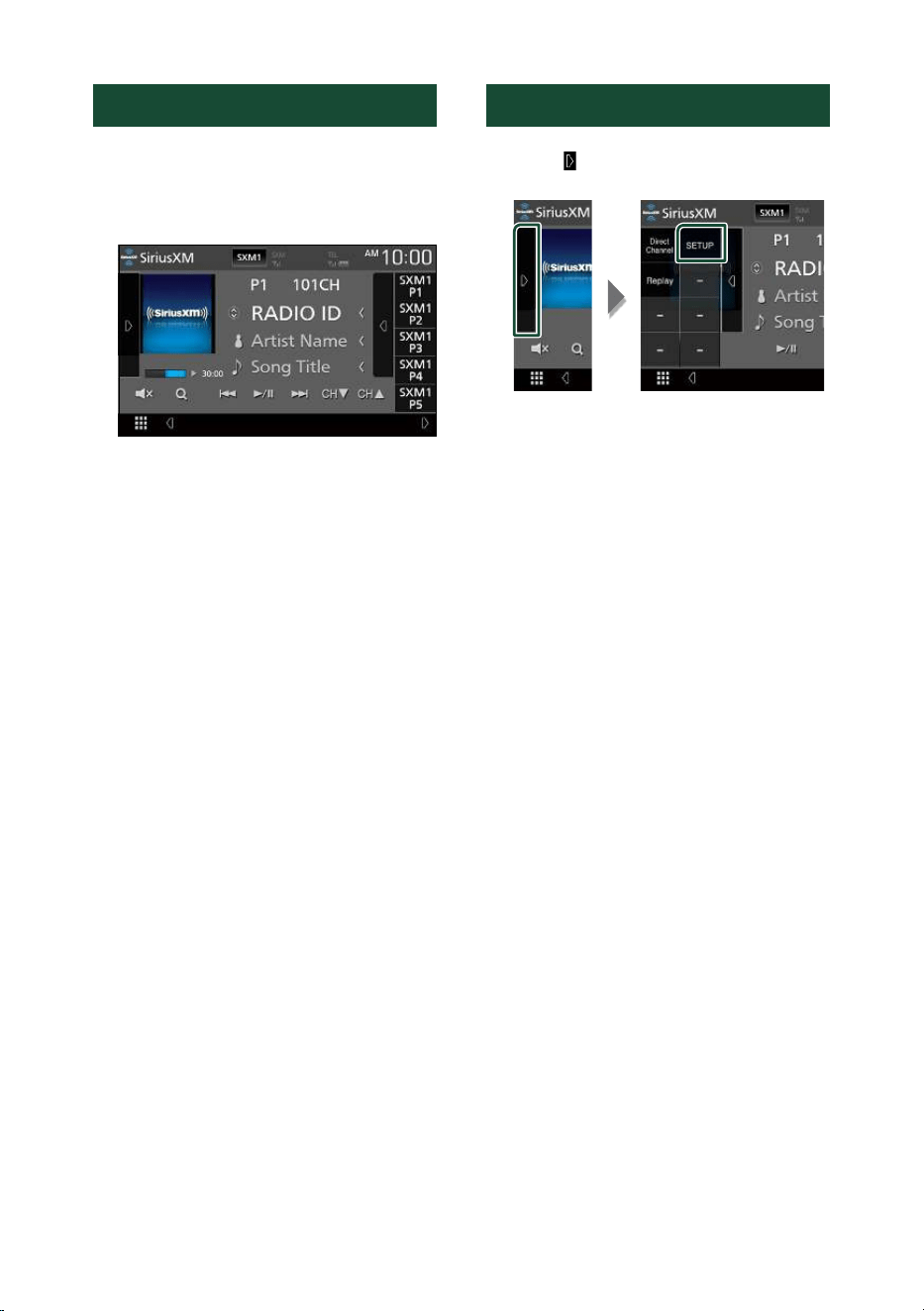

SiriusXM® 21
SiriusXM® Basic Operation ....................................21
Storing Channels in Preset Memory ..................22
Preset select ...............................................................22

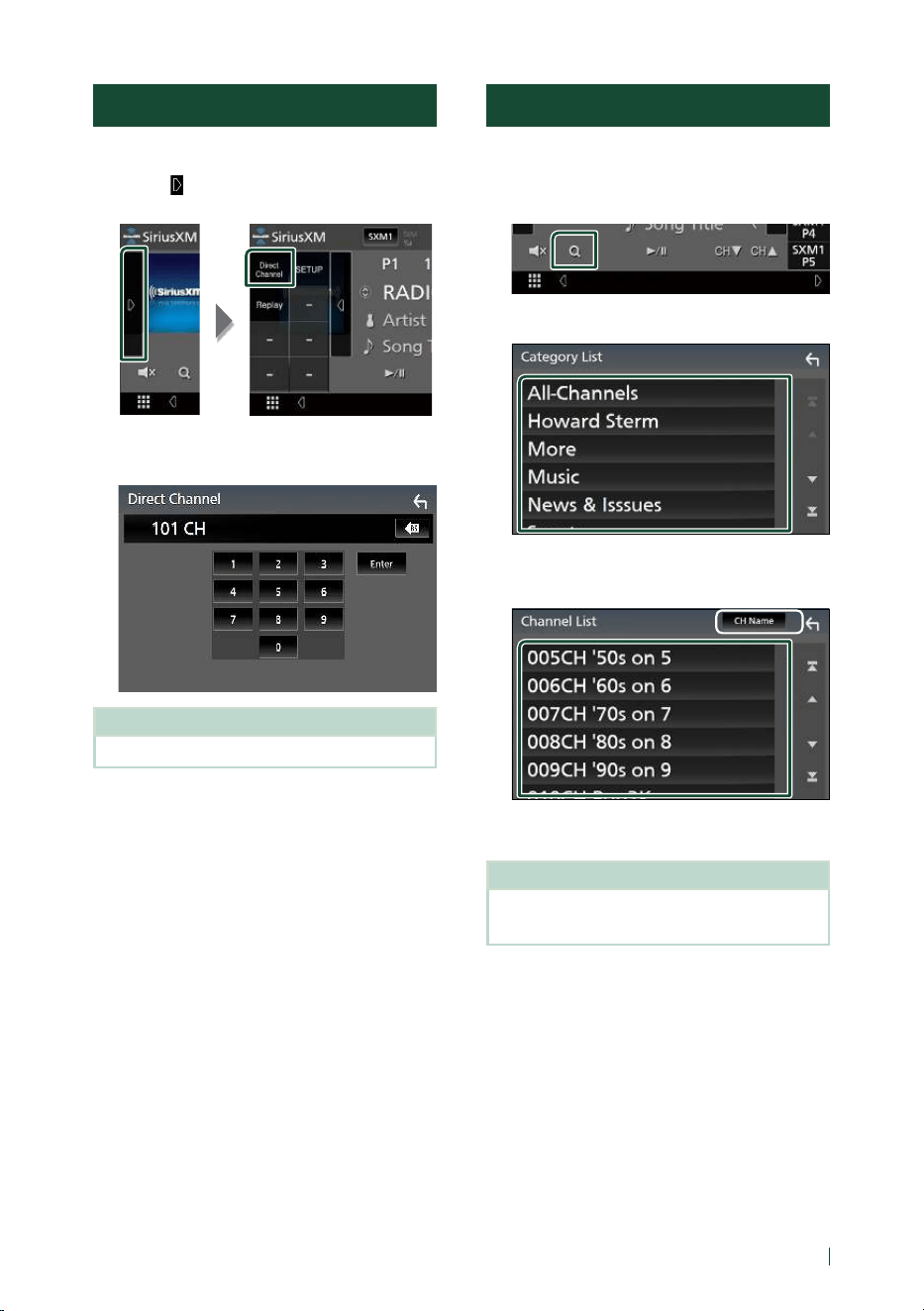

Direct search ..............................................................23
Category/Channel search ...................................... 23
Replay ...........................................................................24

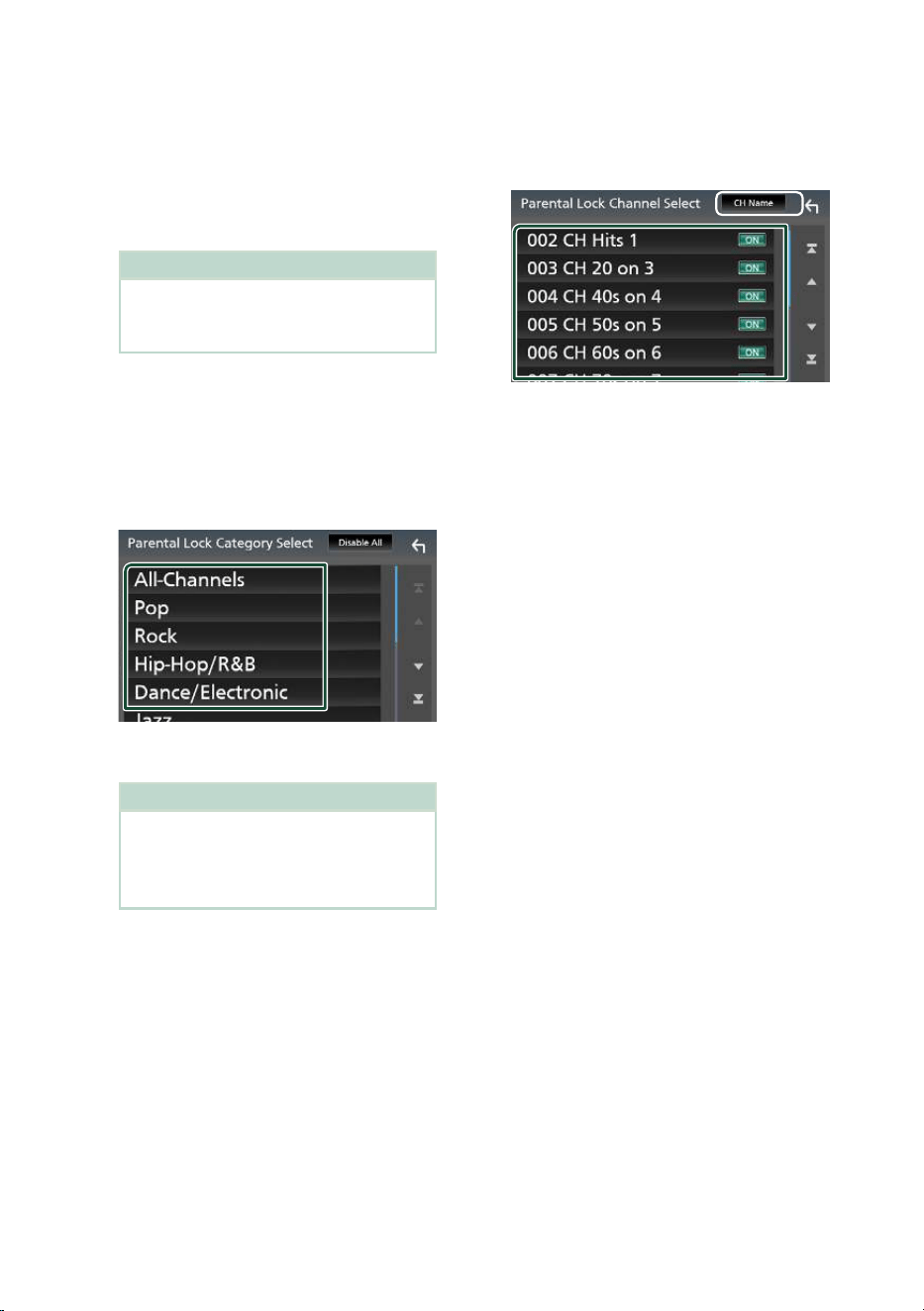

SiriusXM Setup ..........................................................24
Bluetooth Control 27
Information for using Bluetooth® devices .......27

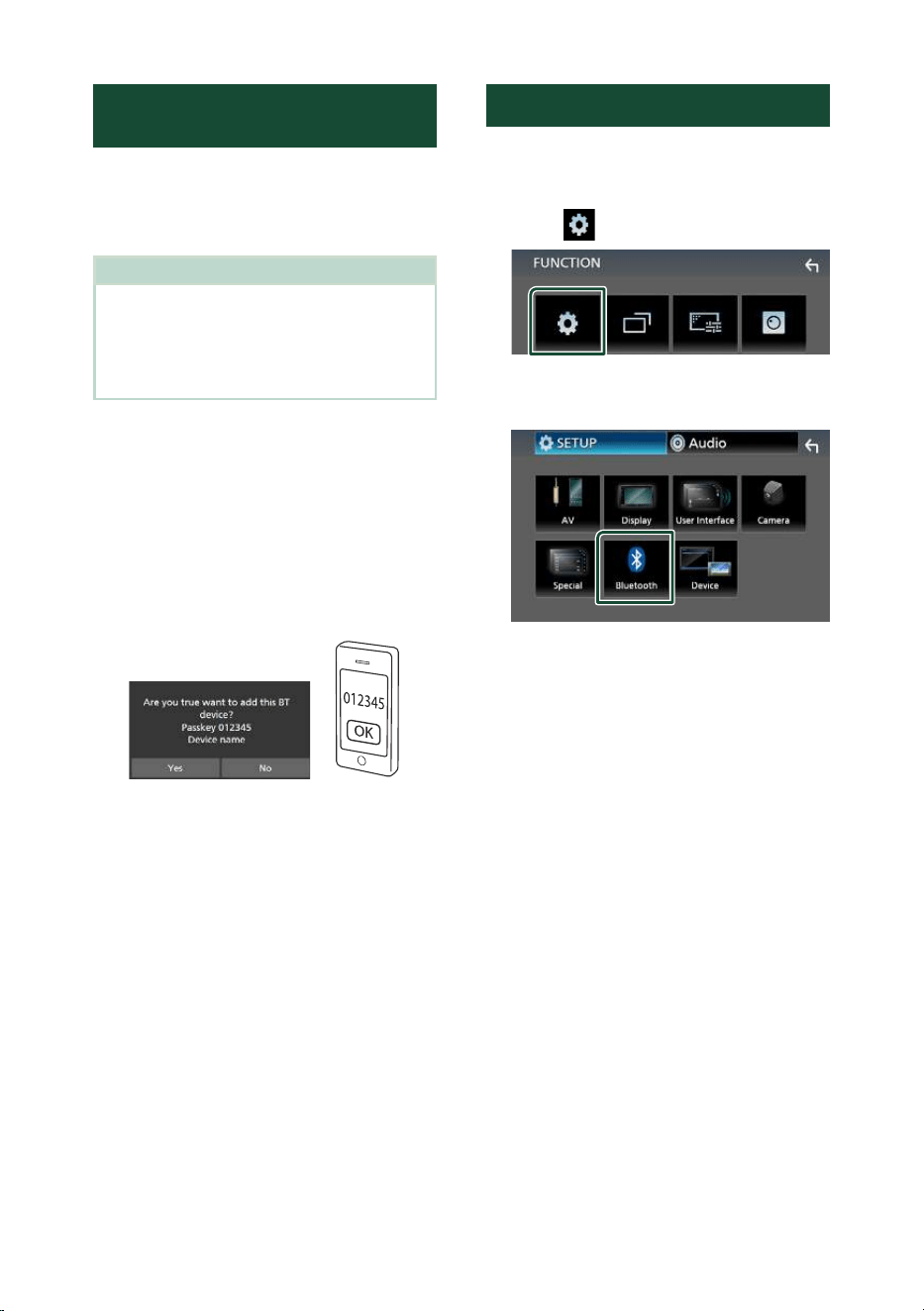

Register from the Bluetooth device ...................28

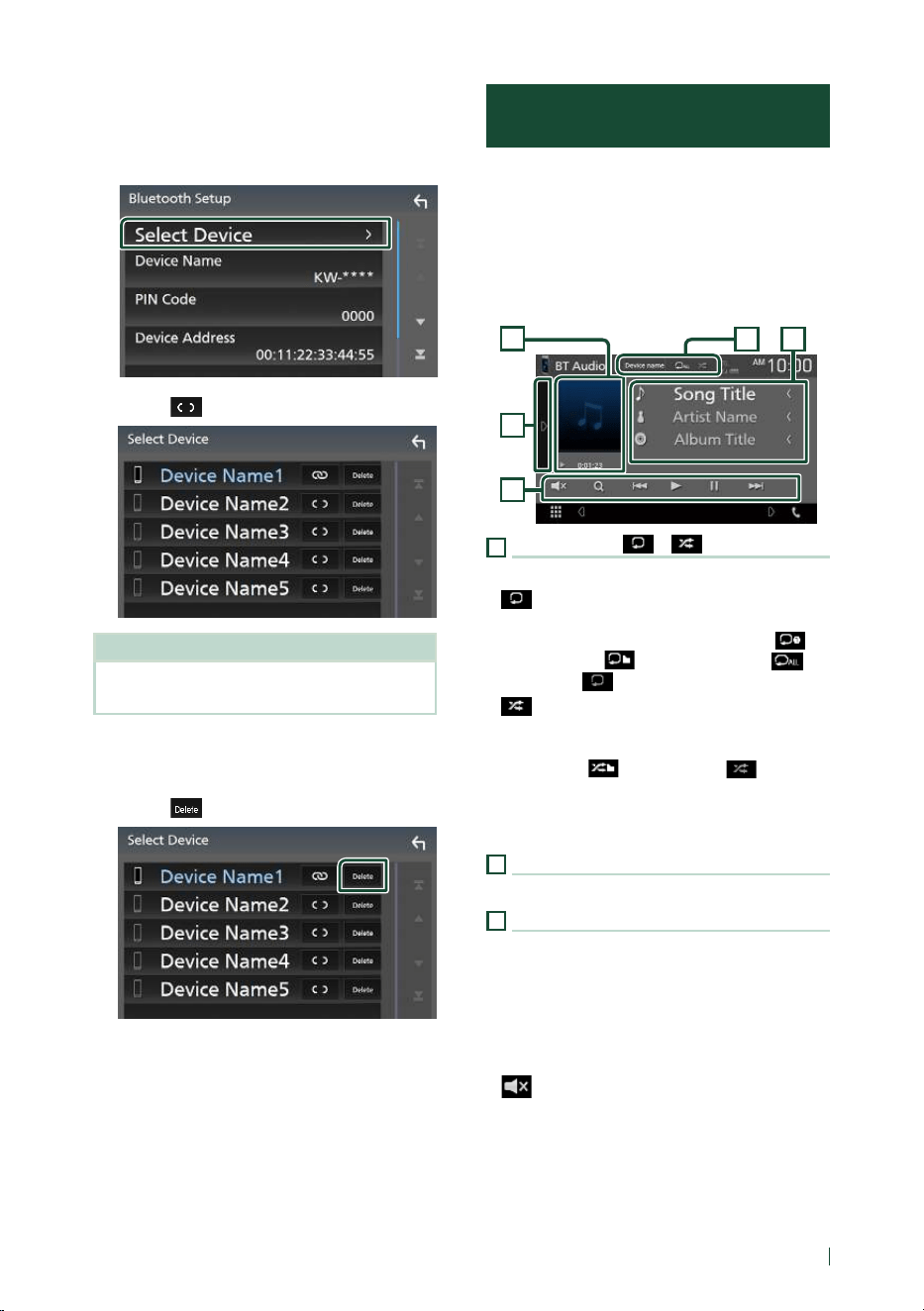

Bluetooth Setup ........................................................ 28

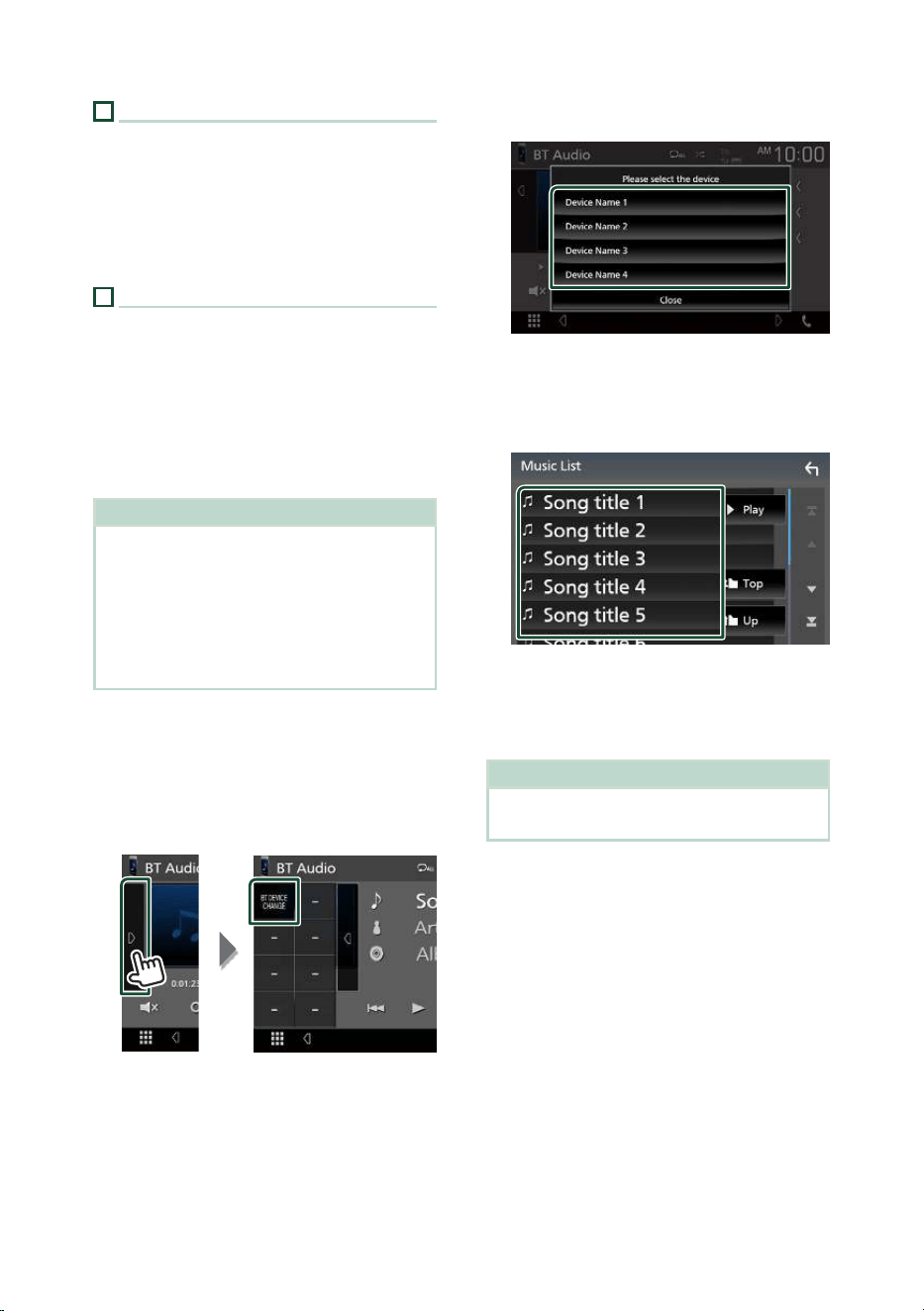

Playing Bluetooth Audio Device .........................29

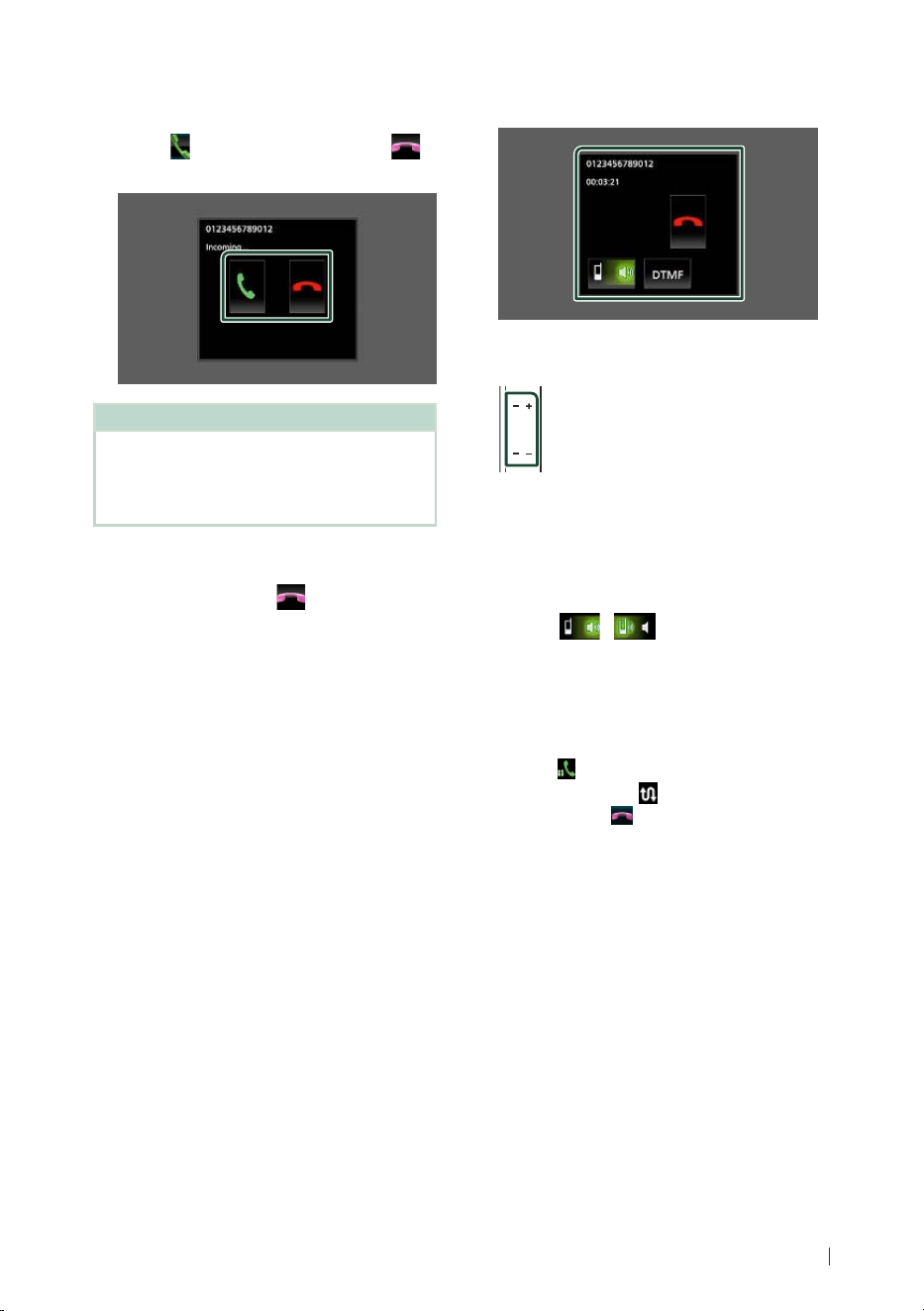

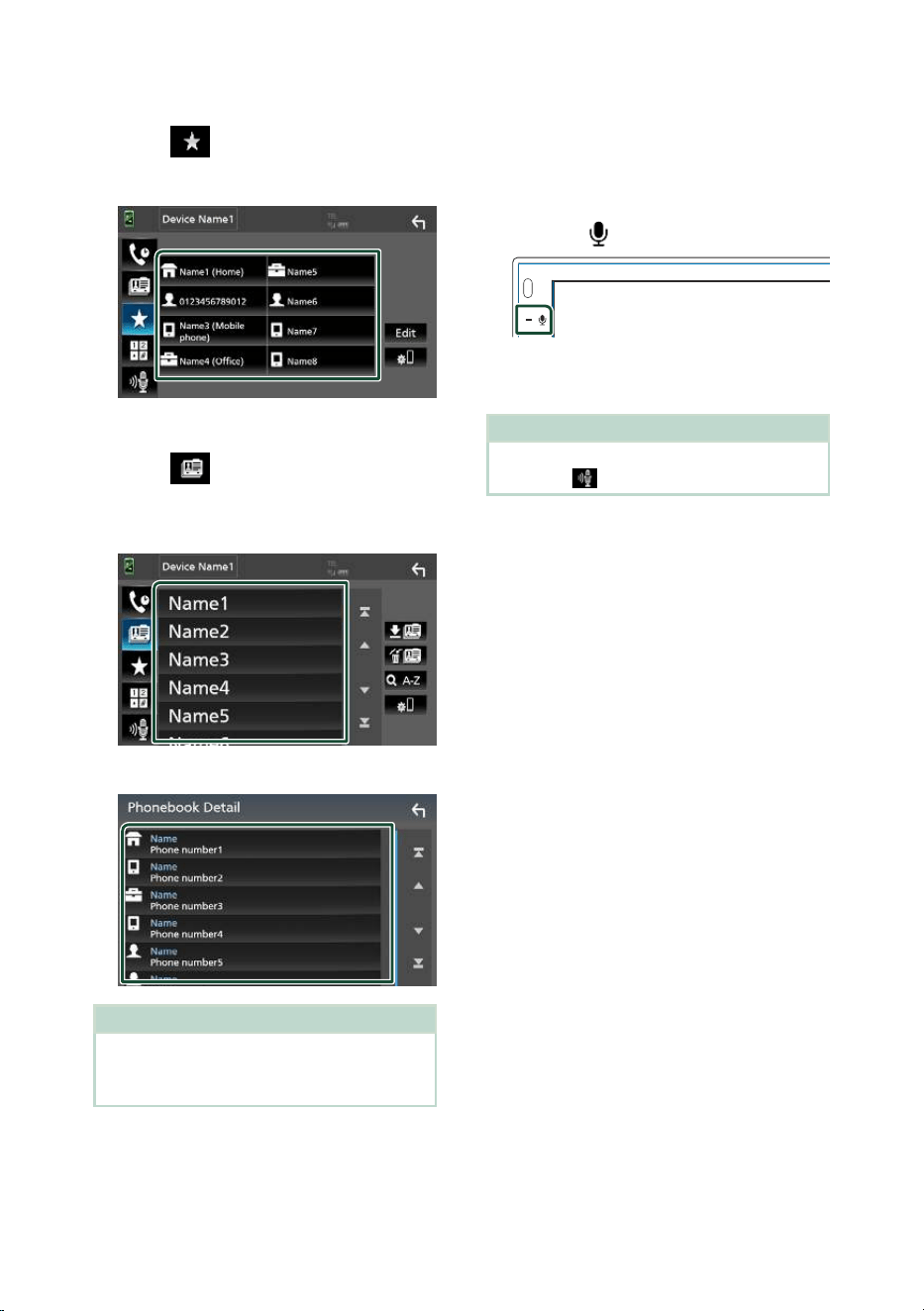

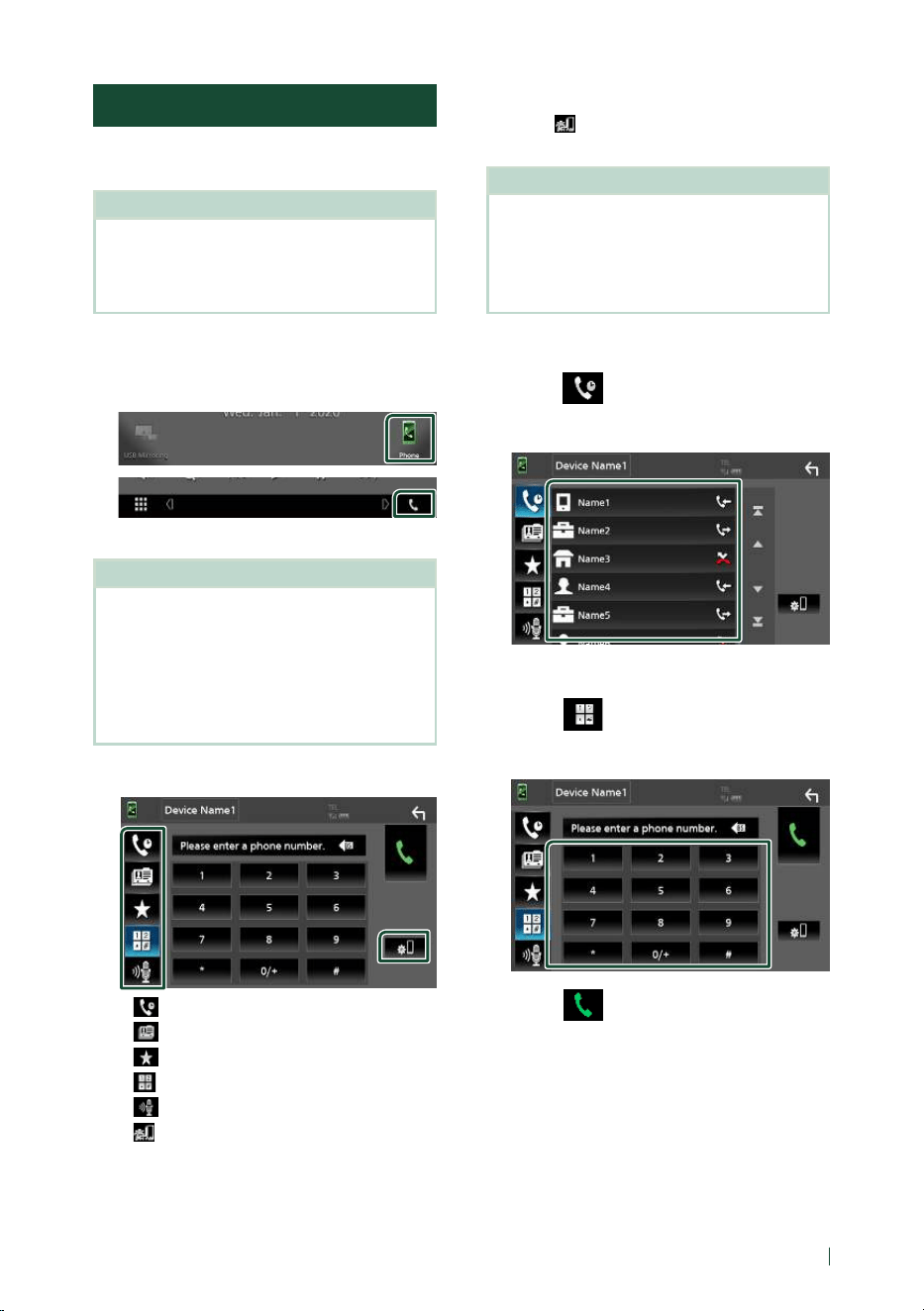

Using Hands-Free Unit ............................................31
Other External Components 35

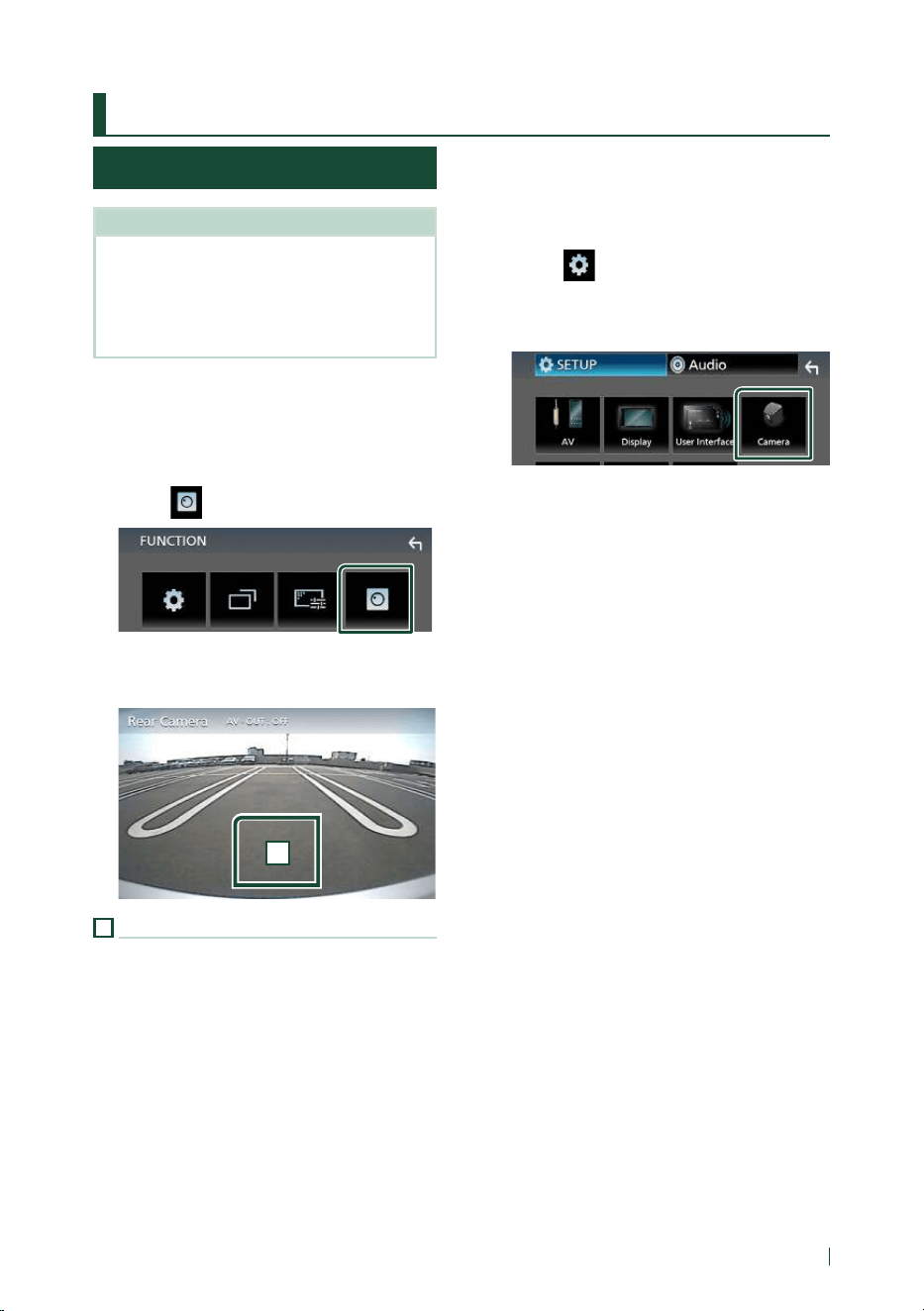

View Camera ..............................................................35
External audio/video players—AV-IN ...............36
3English
Setting Up 37
Monitor Screen Setup ............................................. 37
System Setup .............................................................37

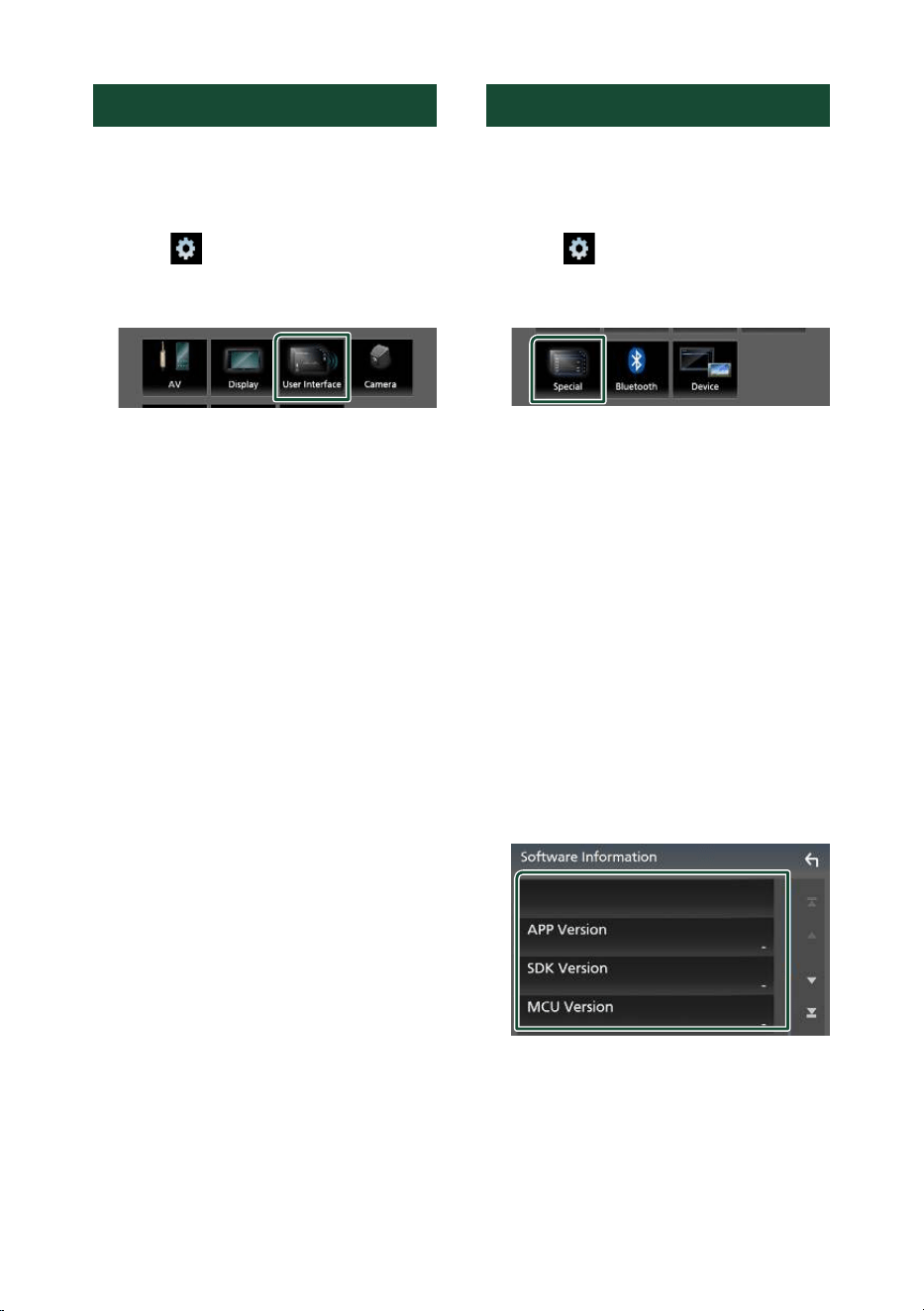

User Interface Setup ................................................ 38
Special Setup .............................................................38
Display Setup .............................................................39
AV Setup ......................................................................40
Controlling Audio 41

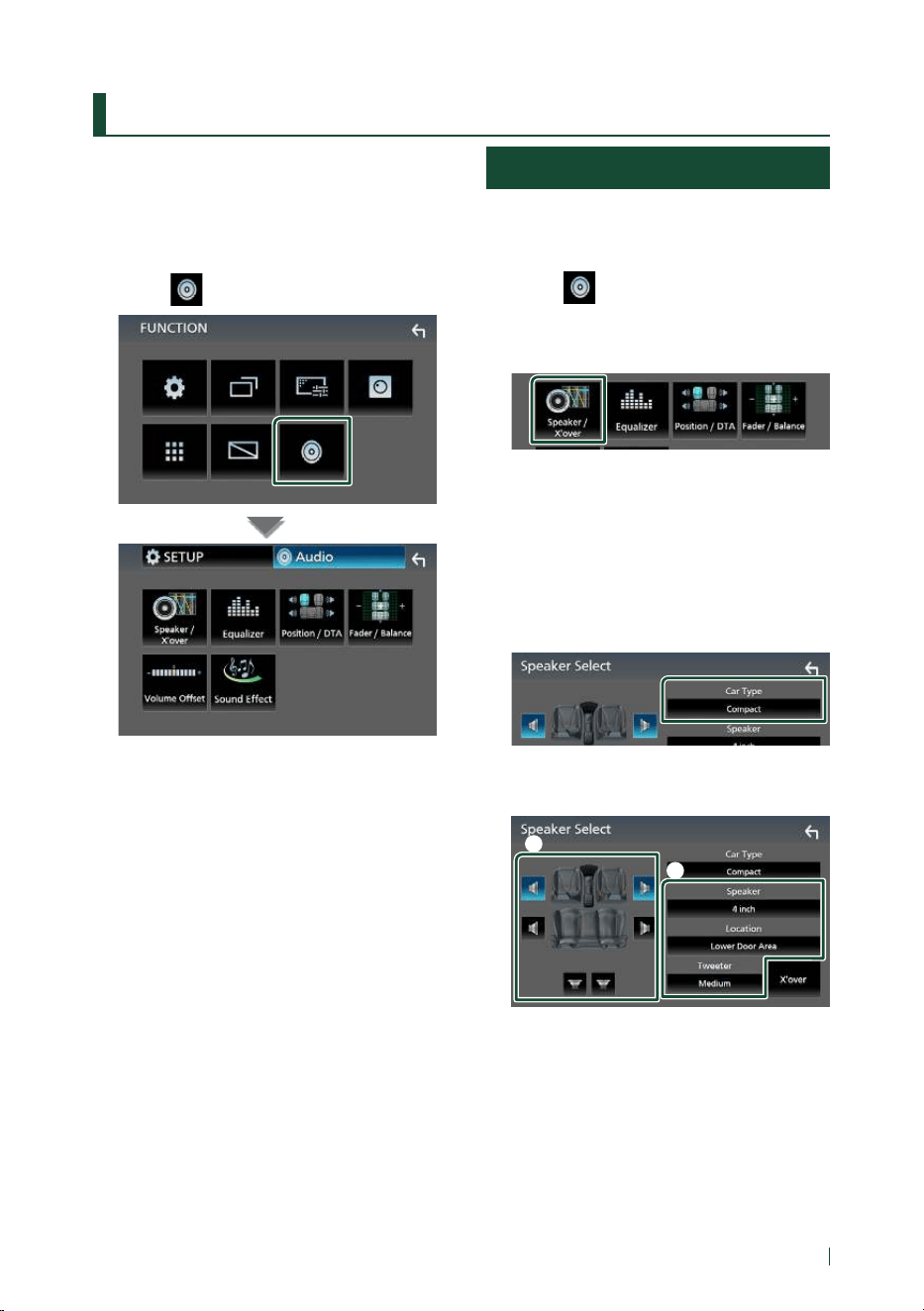

Speaker/ X’over setup .............................................41
Controlling General Audio ....................................42

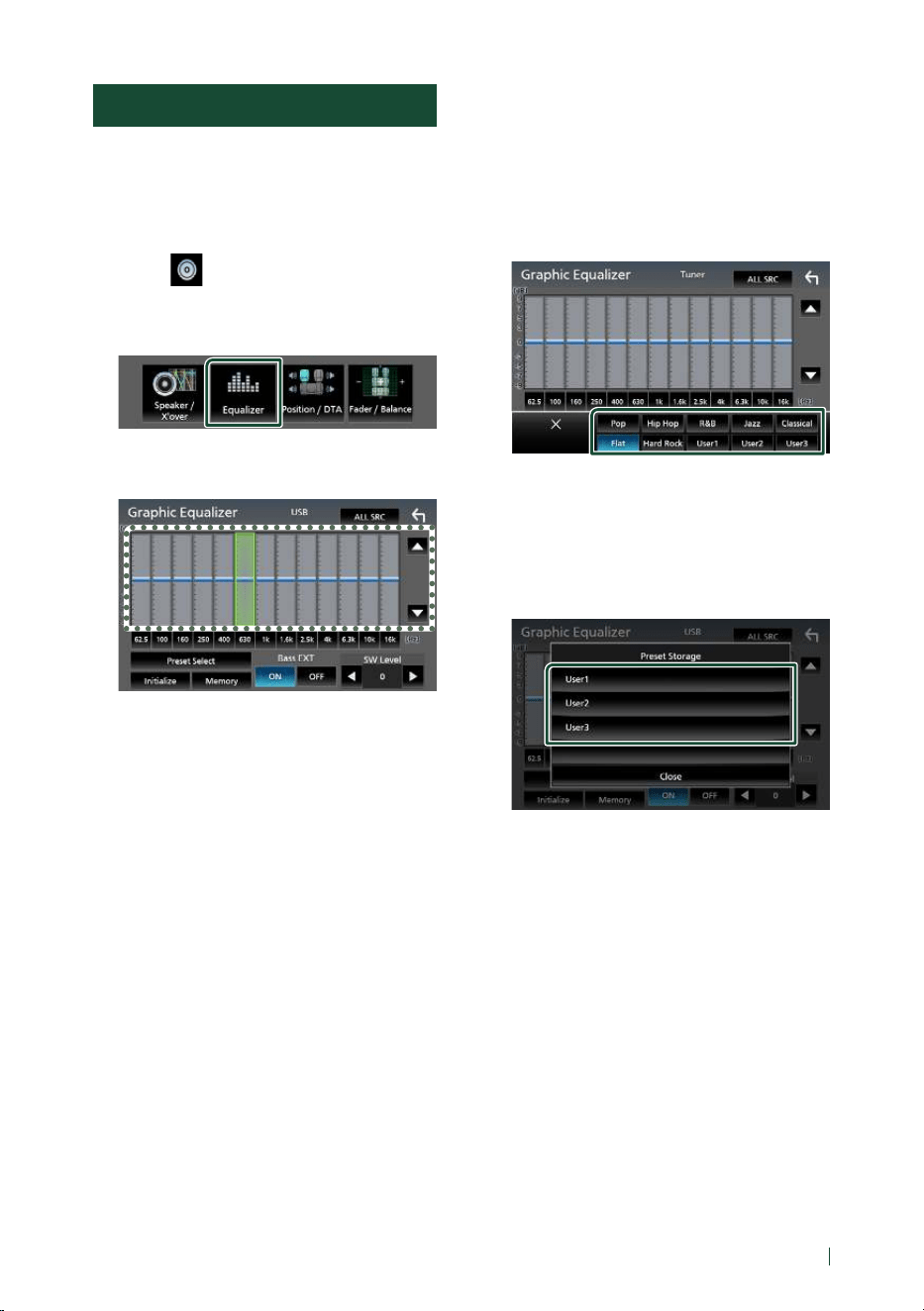

Equalizer Control ......................................................43

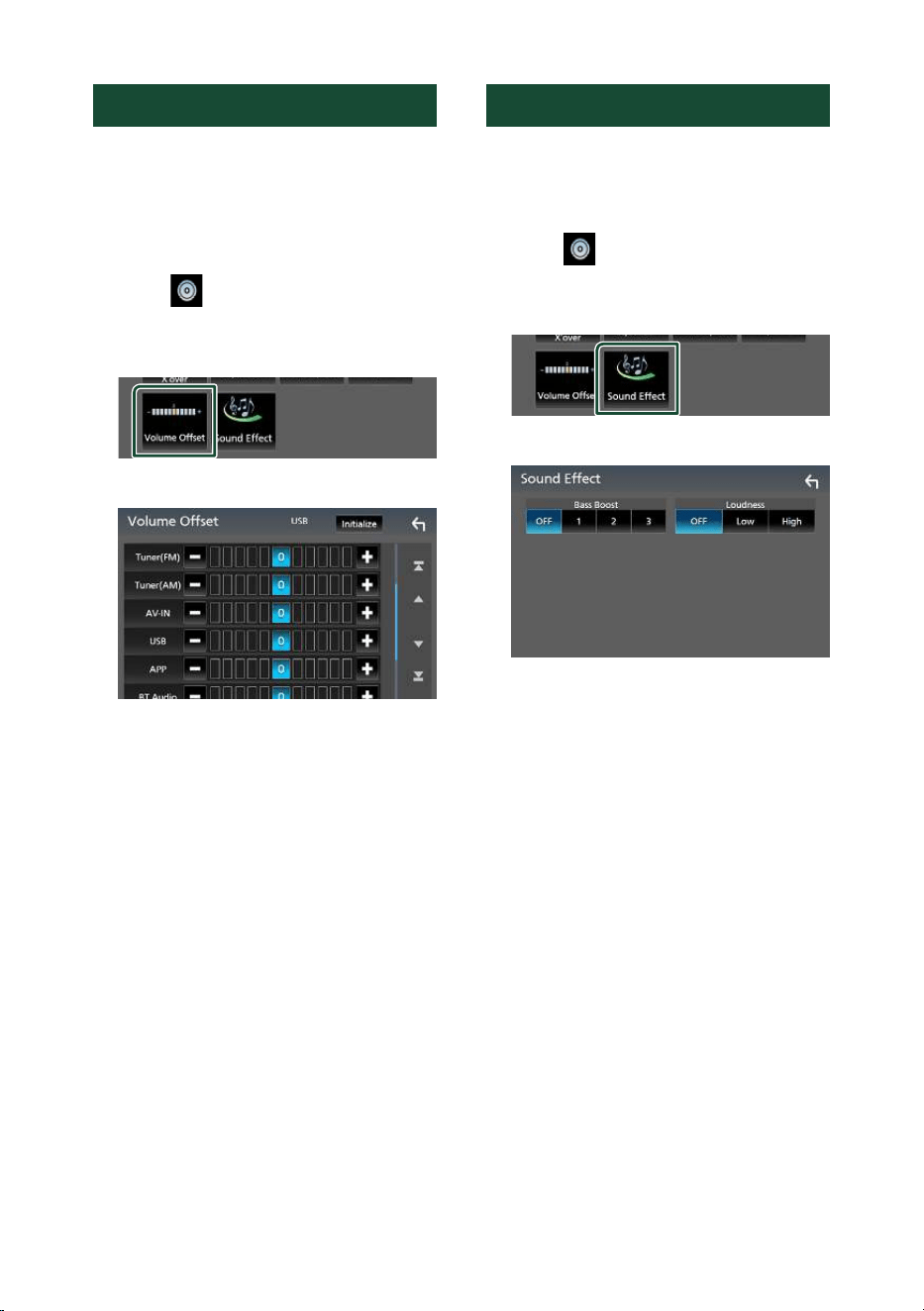

Volume Offset ............................................................44
Sound Effect ...............................................................44

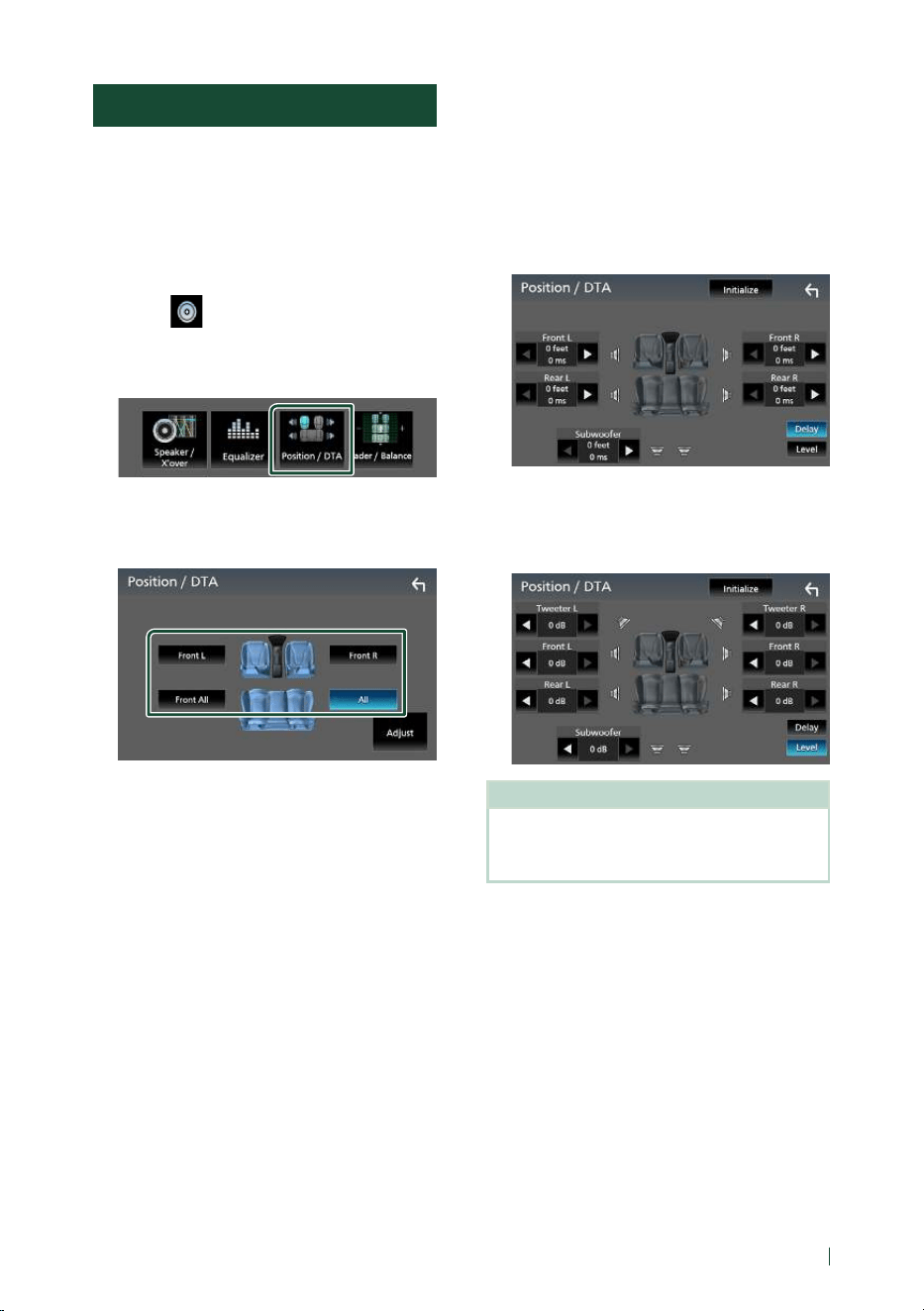

Listening Position/ DTA ..........................................45

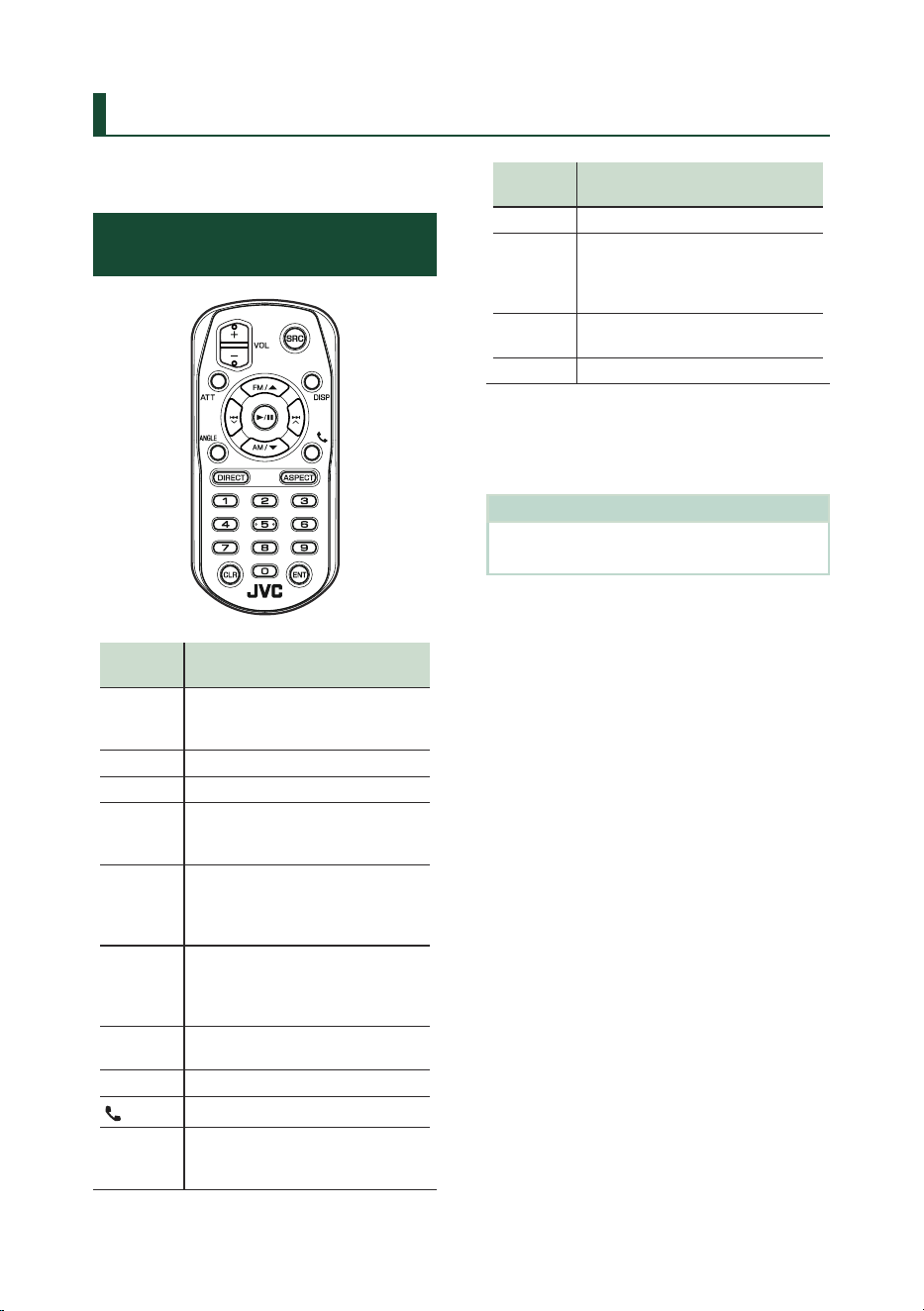

Remote control 46
Functions of the Remote control Buttons .......46

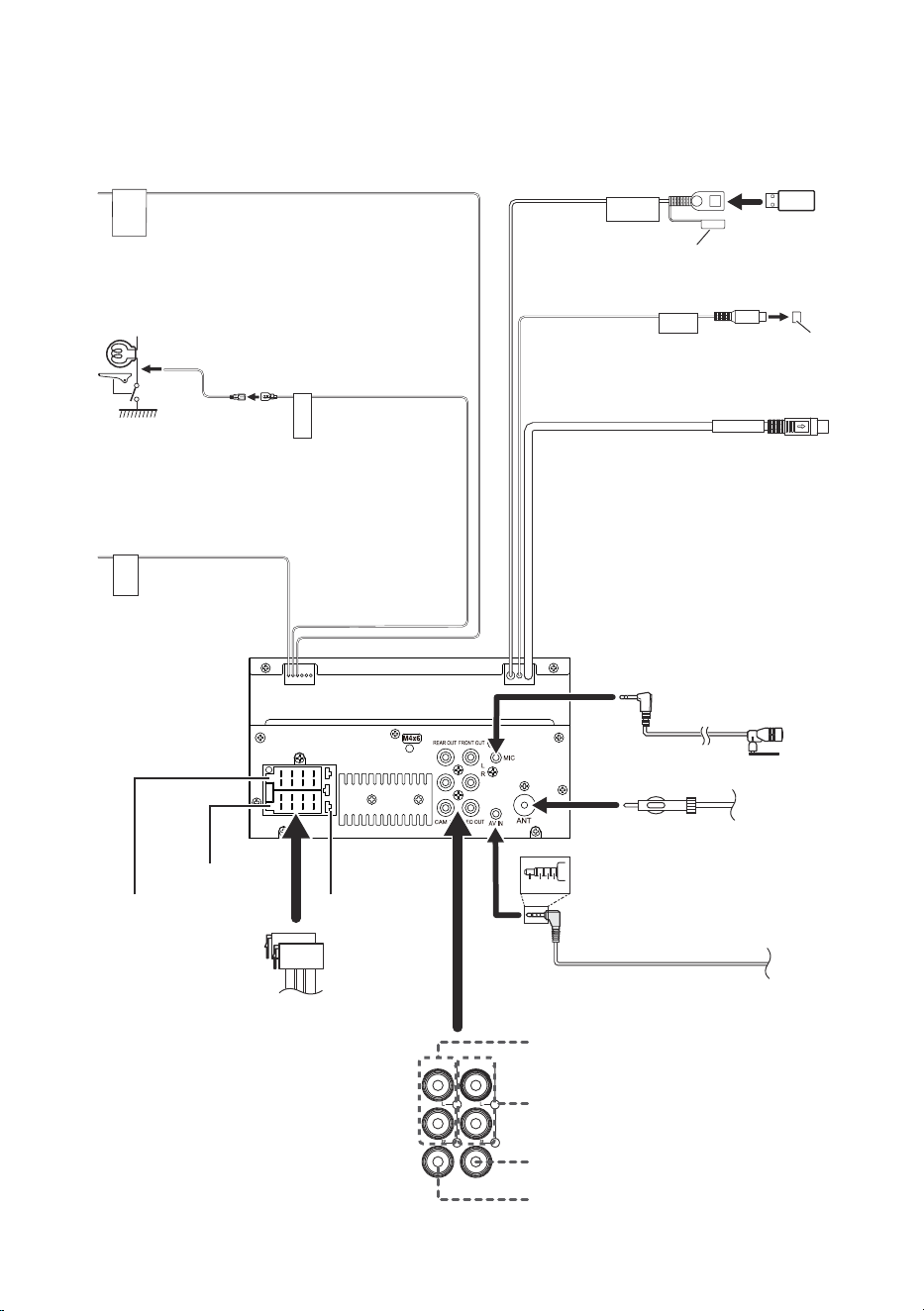

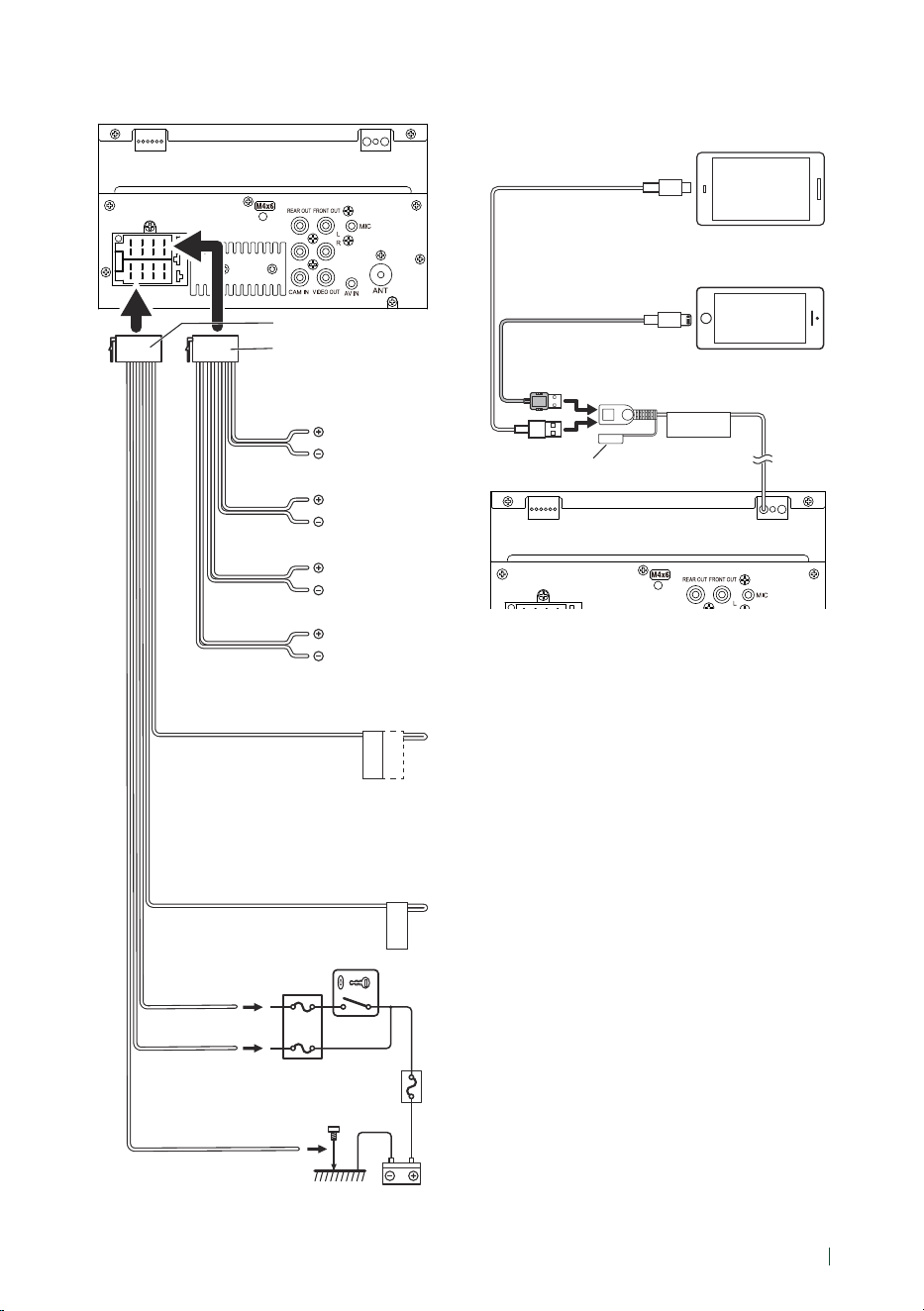

Connection/Installation 47
Before Installation ....................................................47

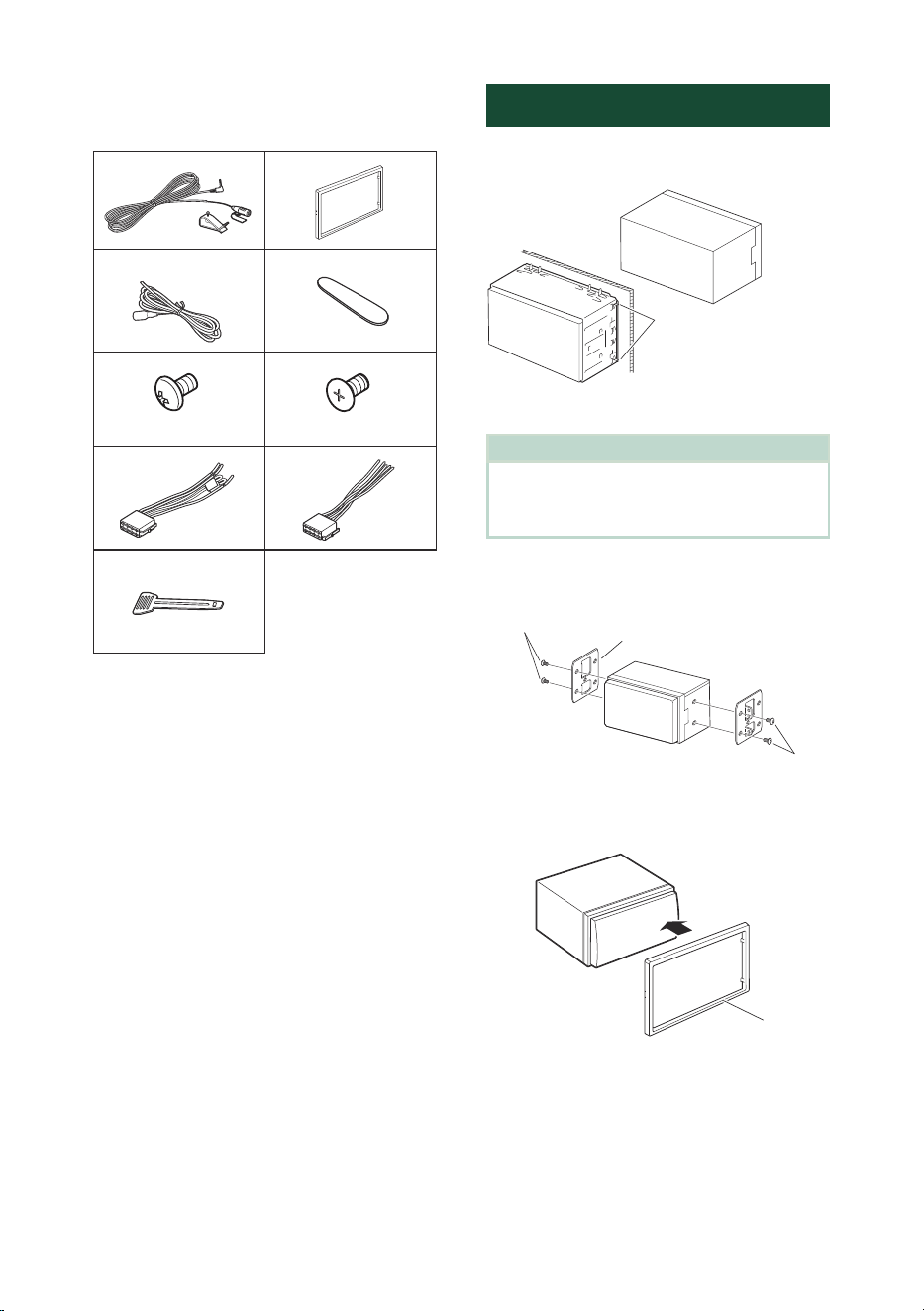

Installing the unit .....................................................48
Troubleshooting 52
Problems and Solutions .........................................52
Error Messages ..........................................................52
Appendix 54
Playable Media and Files........................................54
Specifications ............................................................. 55
About this Unit ..........................................................57
Before Use
4
Before Use
Precautions
# WARNINGS
Ñ To prevent injury or re, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your JVC dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your JVC dealer to make sure that
they work with your model and in your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.38).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe the
stain off with a cloth moistened with neutral
cleaner, then wipe it again with a clean soft
dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ How To Reset Your Unit
• If the unit or the connected unit fails to
operate properly, reset the unit. Press the
<Reset> button. The unit returns to factory
settings.
Reset button
NOTE
• Disconnect the USB device before pressing the
<Reset> button. Pressing the <Reset> button
with the USB device connected can damage
the data stored in the USB device. For how to
disconnect the USB device, see Disconnect the
USB device (P.15).
• When the unit is turned on after resetting, the
Initial SETUP screen appears. See Initial setup
(P.6).
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP] menu. See
User Interface Setup (P.38).
Basic Operations
5English
Basic Operations
Functions of the Buttons on
the Front Panel
1
2
3
4
5
6
NOTE
• The panels shown in this guide are examples
used to provide clear explanations of the
operations. For this reason, they may be different
from the actual panels.
Name
• Motion
1
Remote Sensor
• Receives the remote control signal.
2
[ ]
• Displays the Voice Recognition screen
( P.32).
3
[FNC] / [ ]
• Displays the FUNCTION screen.
• Pressing for 1 second displays the APP
(Apple CarPlay/ Android Auto) screen.
4
[＋], [−] (Volume)
• Adjusts volume.
The volume will go up until 15 when you
keep pressing ＋.
5
[ ] / [ ]
• Displays the HOME screen ( P.8).
• Pressing for 1 second turns the power off.
• When the power off, turns the power on.
6
Reset
• If the unit or the connected unit fails to
operate properly, the unit returns to initial
settings when this button is pressed.
Turning on the Unit
1
Press the [ ] button.
hh The unit is turned on.
● To turn off the unit:
1
Press the [ ] button for 1 second.
NOTE
• If it is your first time turning the unit on after
installation, it will be necessary to perform Initial
setup (P.6).
Basic Operations
6
Getting Started

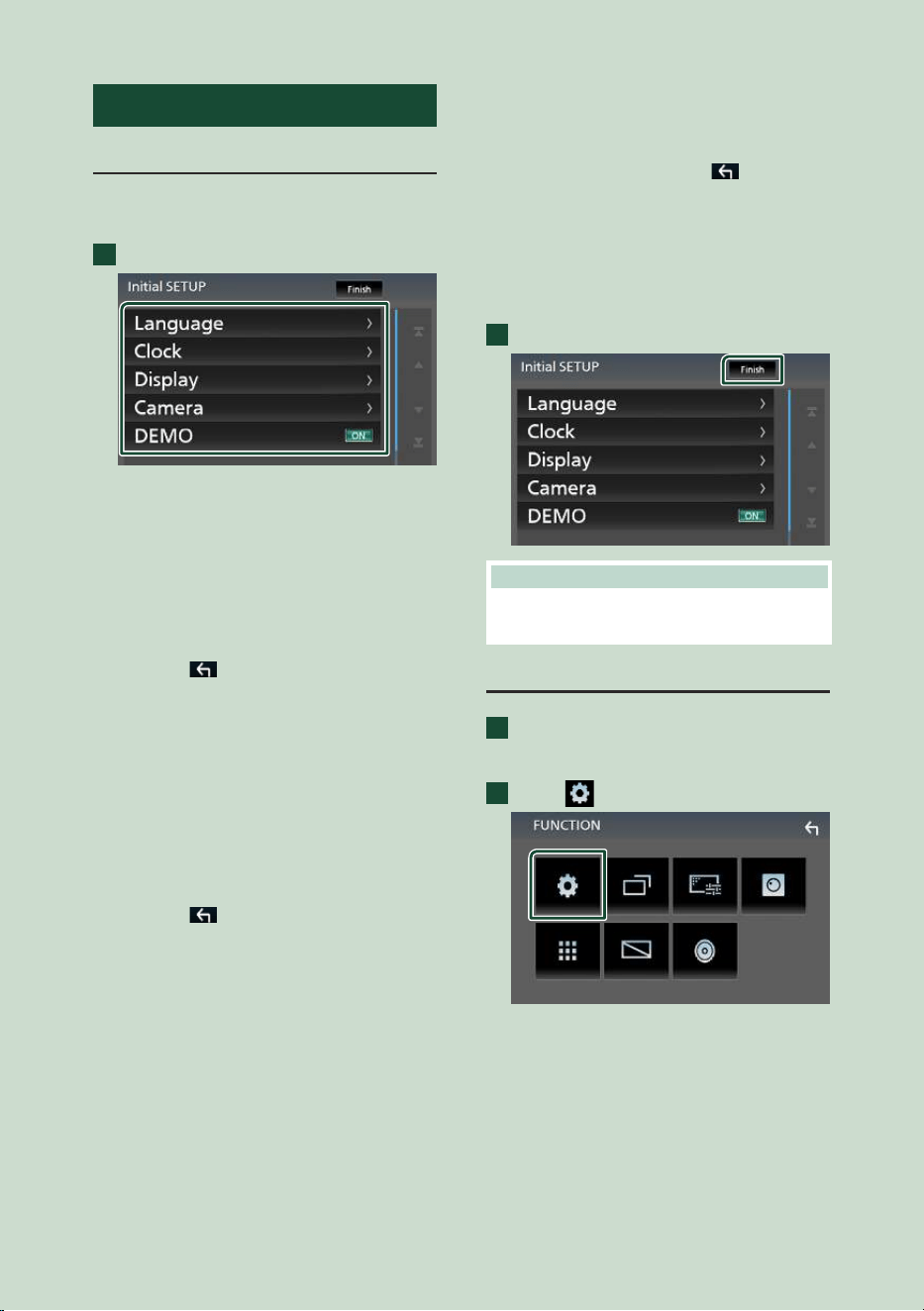

Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■ [Language]
Select the language used for the control
screen and setting items. Default is
“[American English(en)]”.
1Touch [Language].
2Touch [Language].
3Select the desired language.
4Touch [
].
■ [Clock]
Adjusts clock.
For detailed operation, see Calendar/clock
settings (P.6).
■ [Display]
Set the image on the screen.
1Touch [Display].
2Touch [Background].
3Select the image.
4Touch [
].
For detailed operation, see Display Setup
( P.39).
■ [Camera]
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For detailed operation, see Camera Setup
( P.35).
■ [DEMO]
Set the demonstration mode. Default is “ON”.
1Touch [DEMO] and set [ON] or [OFF].
2
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu.
See Setting Up (P.37).

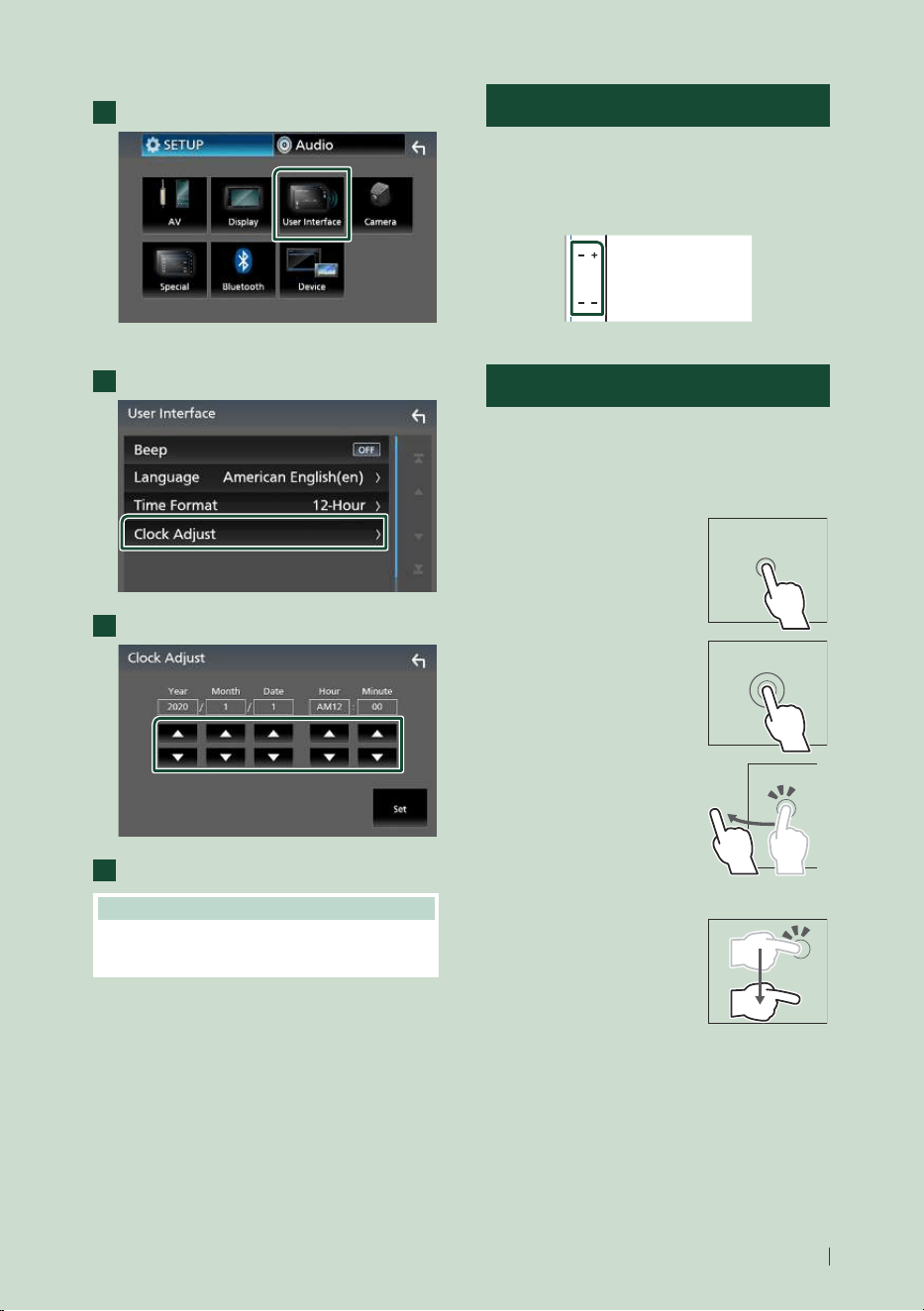

Calendar/clock settings
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP Menu screen appears.
Basic Operations
7English
3
Touch [User Interface].
hh User Interface screen appears.
4
Touch [Clock Adjust].
5
Adjust the date, then adjust the time.
6
Touch [Set].
NOTE
• Deactivate [RDS CT] before adjusting the clock.
See Tuner Setup (P.20).
Adjusting the volume
To adjust the volume (0 to 40),
Press [＋] to increase, and press [−] to decrease.
Holding [＋] increases the volume continuously
to level 15.
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to select
an item, display setting menu screen or to
change the page, etc.
● Touch
Touch the screen gently to
select an item on the screen.
● Touch and hold
Touch the screen and keep
your finger in place until the
display changes or a message
is displayed.
● Flick
Slide your finger quickly to
the left or right on the screen
to change the page.
You can scroll the list screen
by flicking the screen up/
down.
● Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Basic Operations
8

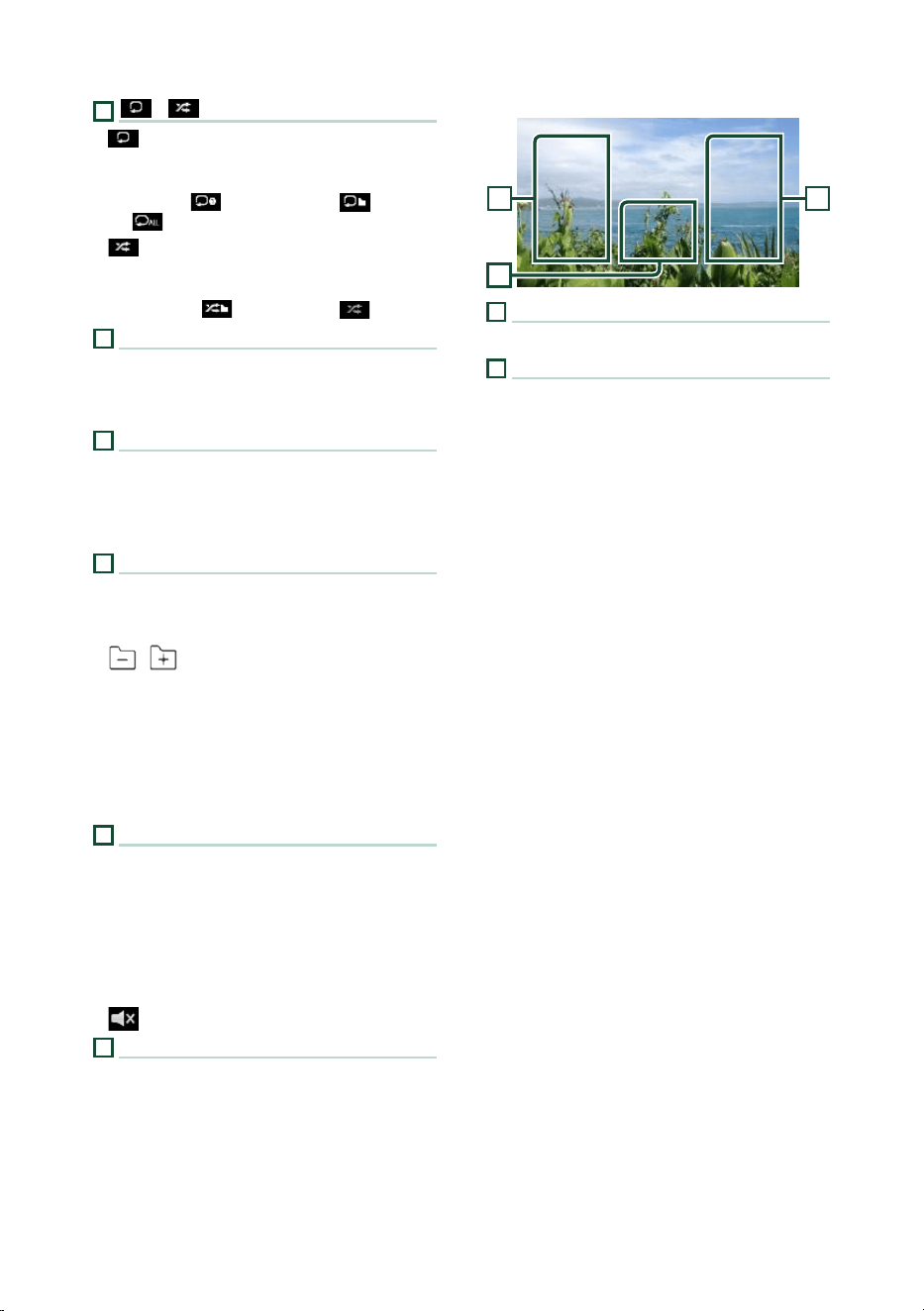

Gesture Touch Control:
You can also control playback by moving your
finger on the touch panel as follows (for some
sources, the gesture control is not available).
• Sliding the finger towards up/down:
- Functions same as pressing [
] / [ ]
(Media) in the USB Control screen.
- For the Tuner, tuner preset broadcast stations
are switched.
• Sliding the finger towards left/right: Functions
same as pressing [E] / [F].
• Moving your finger clockwise or counter-
clockwise: increases/decreases the volume.

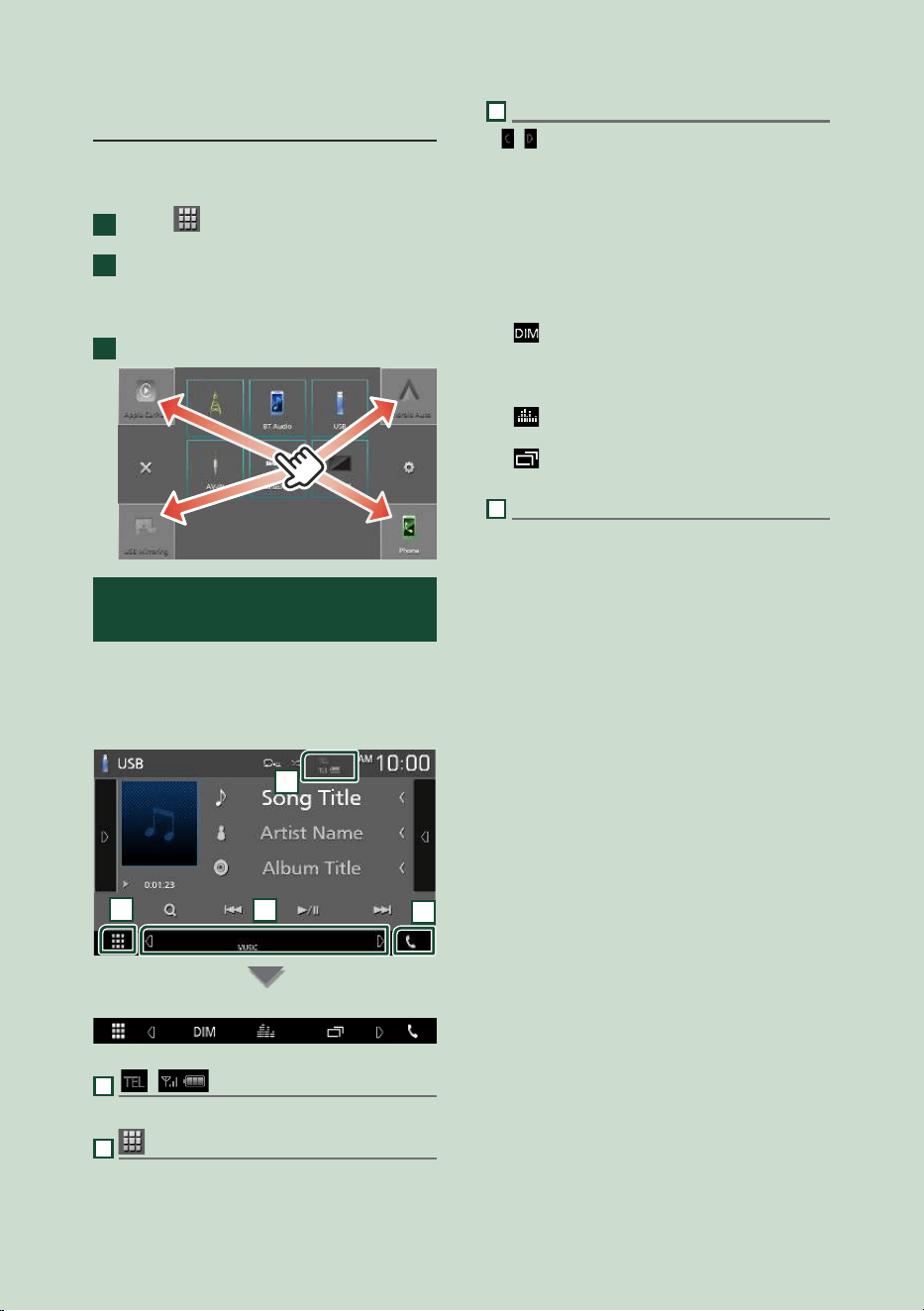

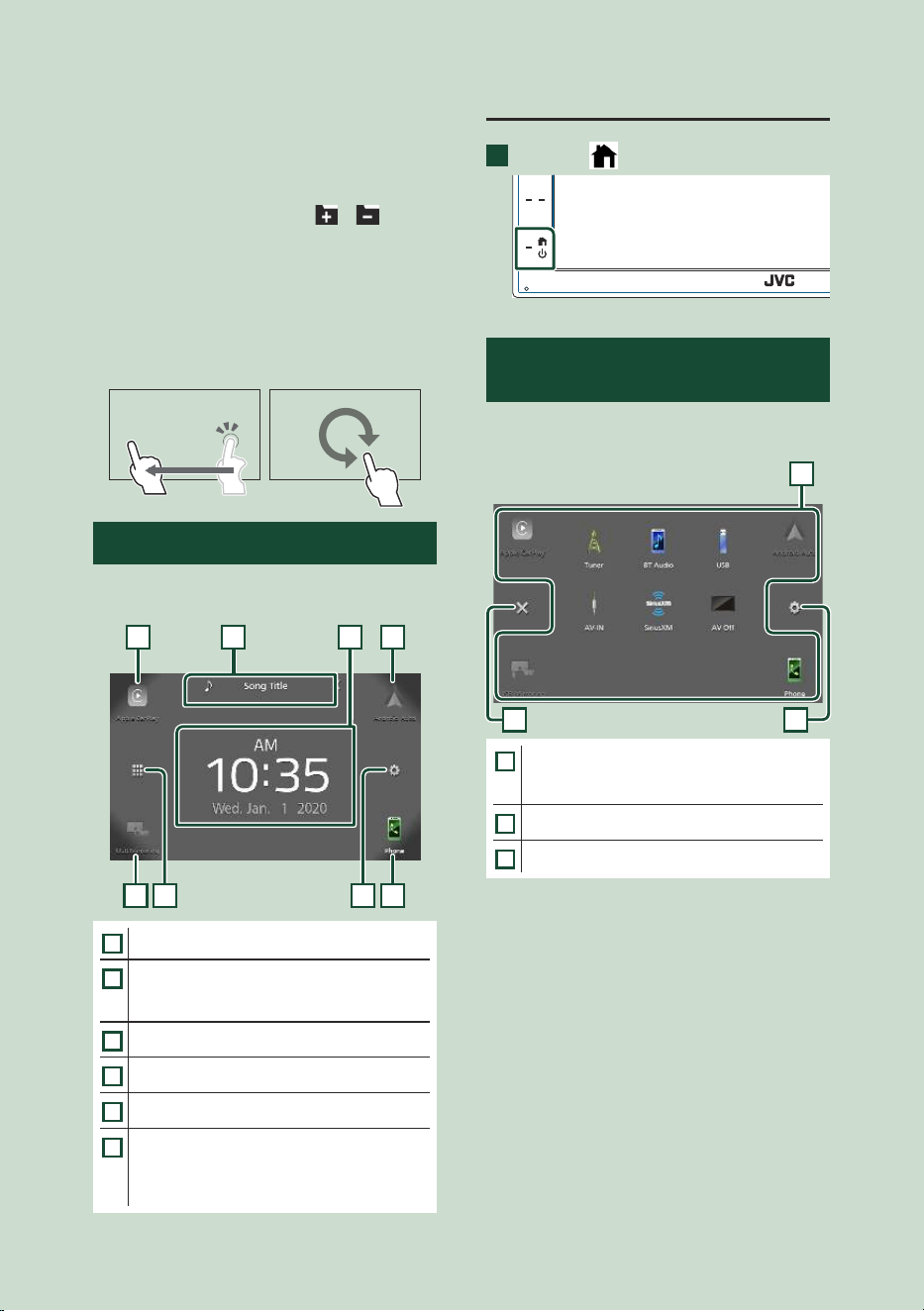

HOME screen descriptions
Most functions can be performed from the
HOME screen.
41 5 6
1 2 3 1
1
• Short-cut playback source icons. (P. 9)
2
• Current source information.
• Touch to display the control screen of current
source.
3
• Widget
4
• Displays the source selection screen. ( P.9)
5
• Displays the SETUP Menu screen. ( P. 37)
6
• Displays the Hands Free screen. ( P.31)
• When connecting as Apple CarPlay or
Android Auto, it works as a phone provided
in Apple CarPlay or Android Auto.
Display the HOME screen
1
Press the [ ] button.
hh HOME screen appears.
Source selection screen
descriptions
You can display all playback sources and options
on the source selection screen.
2 3
1
1
• Changes the playback source.
For playback sources, see Select the
playback source (P.9).
2
• Returns to previous screen.
3
• Displays the SETUP Menu screen. ( P. 37)
Basic Operations
9English

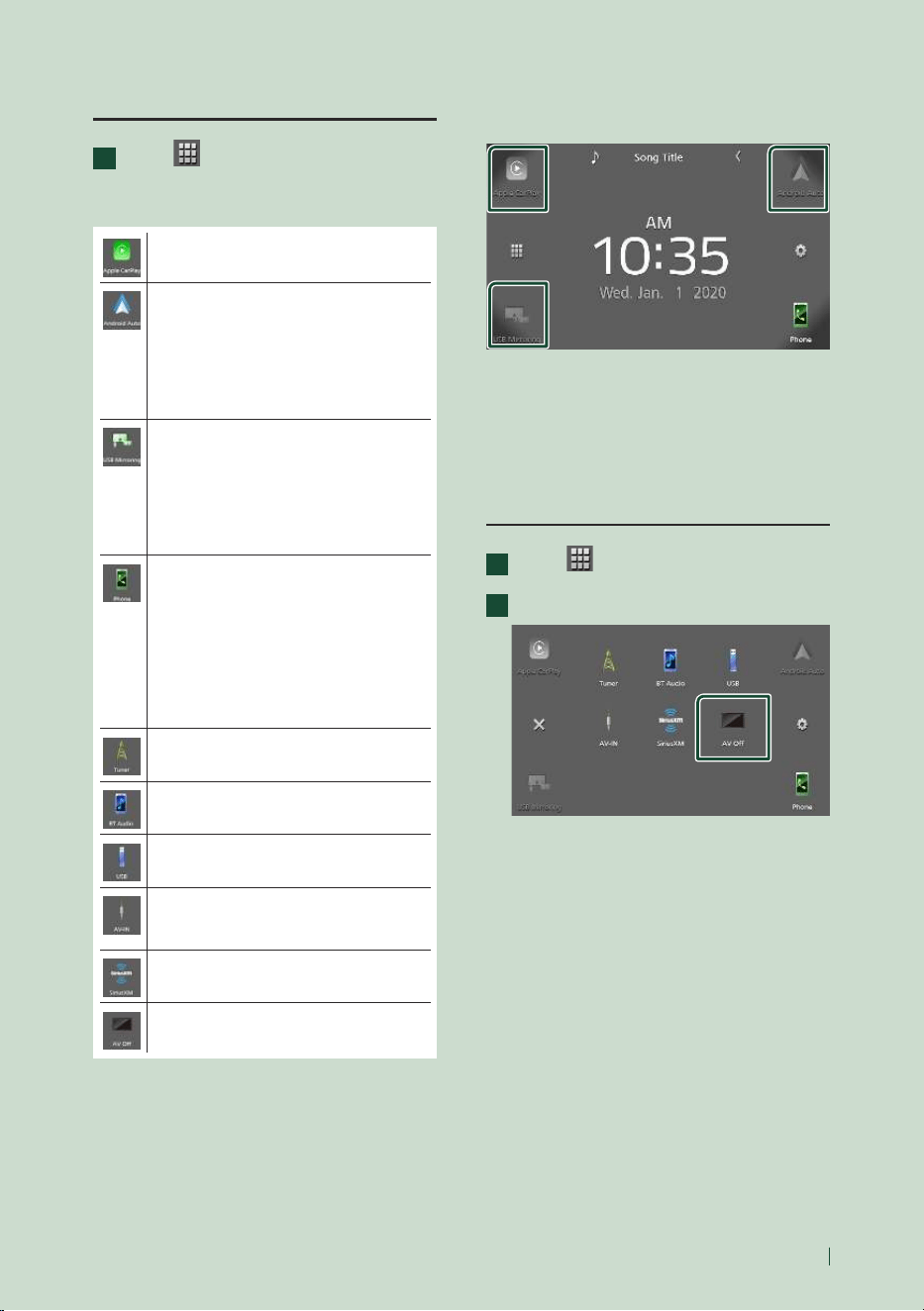

Select the playback source
1
Touch [ ] on the HOME screen.
From the screen, you can select the
following sources and functions.
• Switches to the Apple CarPlay screen from
the connected iPhone. ( P.12)
• Switches to the Android Auto screen from
the connected Android smartphone.
( P.13)
It is necessary to connect Android
smartphone compatible with
Android Auto and to set [Mode] to
[Android Auto]. ( P. 14)
• Switches to the USB Mirroring screen
from the connected Android smartphone.
( P.14)
It is necessary to connect Android
smartphone with “Mirroring OA for JVC”
application installed and to set [Mode] to
[Mirroring for Android™]. ( P. 14)
• Displays the Hands Free screen. ( P.31)
When neither Apple CarPlay, Android
Auto, nor a Bluetooth Hands-Free phone
is connected, displays "[Disconnected]"
message in the TEL screen.
When connecting as Apple CarPlay
or Android Auto, it works as a phone
provided in Apple CarPlay or Android
Auto.
• Switches to the Radio broadcast. ( P.18)
• Plays a Bluetooth audio player. ( P. 27)
• Plays files on a USB device. ( P.15)
• Switches to an external component
connected to the AV-IN input terminal.
( P.36)
• Switches to the SiriusXM® satellite radio
broadcast. ( P.21)
• Turns off the AV source. ( P.9)
To select the playback source on the
HOME screen
The 3 items displayed on the source selection
screen as the large icons are shown on the
HOME screen.
You can change items displayed on this area
by customizing the source selection screen.
(P.10)
To turn o the AV source
1
Touch [ ] on the HOME screen.
2
Touch [AV Off].
Basic Operations
10
Customize Short-cut buttons on
HOME screen
You can arrange the position of the source icons
as you like.
1
Touch [ ] on the HOME screen.
2
Touch and hold the icon which you want
to move to go into the customizing
mode.
3
Drag it where you want to move.
Source control screen
descriptions
There are some functions which can be
operated from most screens.
Indicators
1
2
3
4
Sub menu
1
[ ]/[ ]
Connected Bluetooth device information.
2
All sources icon
Displays all sources.
3
Secondary screen
• [
]/[ ] : The Secondary screen changes every
time you touch it. You can also change the
Secondary screen by flicking left or right on
the screen.
• Indicators: Displays the current source
condition and so on.
– [MUTE]: The mute function is active.
– [LOUD]: The loudness control function is on.
• Sub menu
– [
]: Operation when the icon is touched:
The first touch darkens the screen, the second
touch darkens the screen further, and the third
touch restores the screen to its original brightness.
– [
]: Displays the Graphic Equalizer screen.
(P.43)
– [
]: Displays the APP (Apple CarPlay/ Android
Auto) screen (P.12).
4
[Û]
Touch to display the Hands Free screen.
(P.31)
When connecting as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
Basic Operations
11English

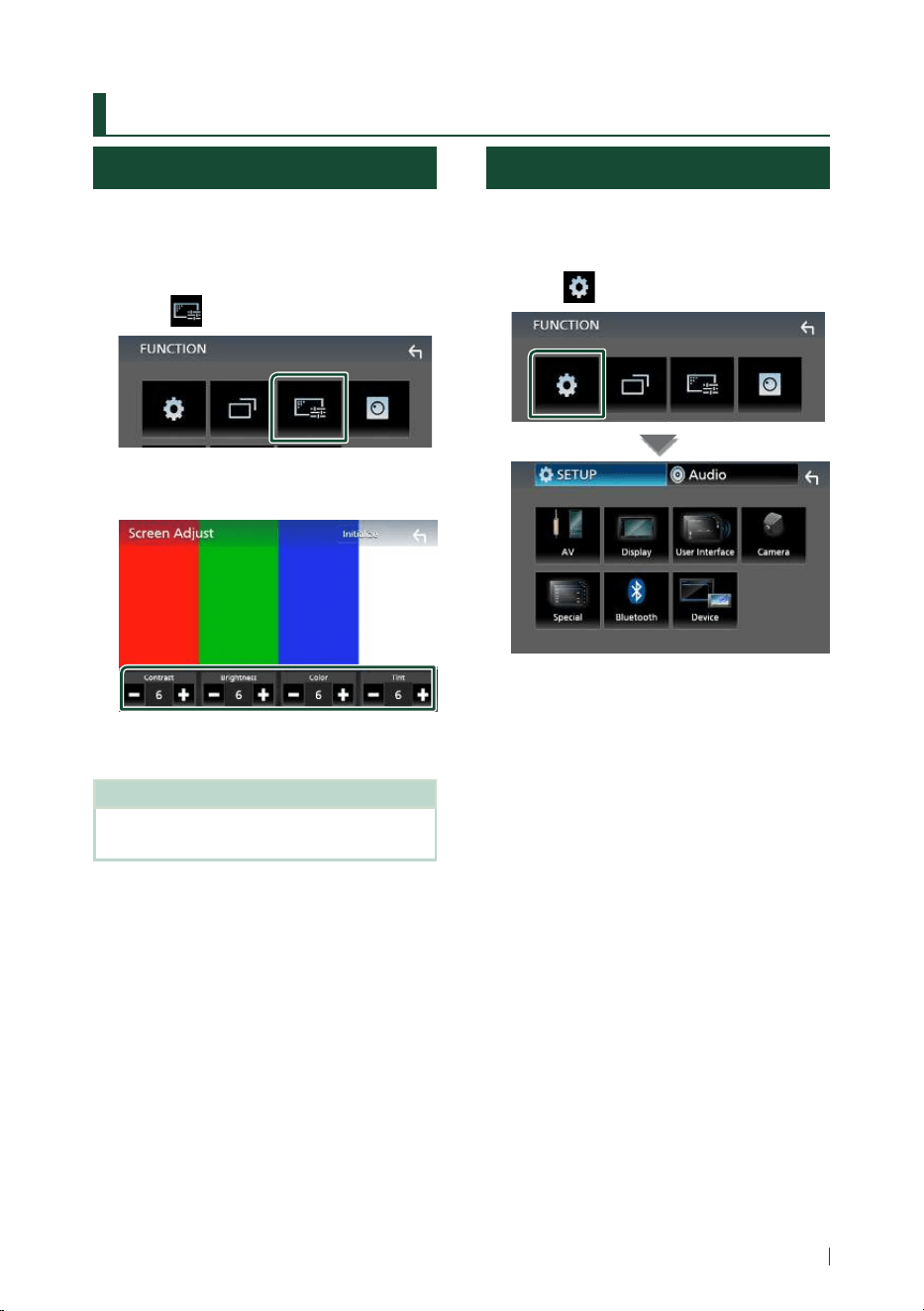

FUNCTION screen
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch to display the FUNCTION screen.
The contents of the menu are as follows.
• Displays the SETUP Menu screen. ( P. 37)
• Displays the APP (Apple CarPlay/ Android
Auto) screen. (P. 12)
• Displays the Screen Adjust screen.
( P.37)
• Displays the view camera. ( P. 35)
• Displays the source selection screen.
( P.9)
• Turns the display off. ( P. 11)
• Displays the Audio screen. (P. 41)
• Close the FUNCTION screen.
Turn o the screen
1
Select [ ] on the FUNCTION screen.
● To turn on the screen
1
Touch the display.
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays list type selection window.
2
Displays music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• [
] : Plays all tracks in the folder containing
the current track.
• [
] [ ] : Moves to the upper hierarchy.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change the page to display more items
by pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
APPS
12
APPS
Apple CarPlay Operation
Apple CarPlay is a smarter, safer way to use your
iPhone in the car. Apple CarPlay takes the things
you want to do with iPhone while driving and
displays them on the screen of the product. You
can get directions, make calls, send and receive
messages, and listen to the music from iPhone
while driving. You can also use Siri voice control
to make it easier to operate iPhone.
For details about Apple CarPlay, visit
https://www.apple.com/ios/carplay/.
Compatible iPhone devices
You can use Apple CarPlay with the following
iPhone models.
• iPhone 11 Pro Max
• iPhone 11 Pro
• iPhone 11
• iPhone XR
• iPhone XS Max
• iPhone XS
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
Ñ Preparation
1
Connect iPhone using KS-U62 via USB
terminal. (P. 51)
When iPhone compatible with Apple
CarPlay is connected to the USB terminal,
the Bluetooth smartphone currently
connected is disconnected.
2
Unlock your iPhone.
Ñ Operation buttons and
available Apps on the home
screen of Apple CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used on
the screen differ among the connected devices.
To enter Apple CarPlay mode, touch
[Apple CarPlay] icon in the source selection
screen. (P.9)
3
1
2
1
[ ]
• Displays the home screen of Apple CarPlay.
• Touch and hold to activates Siri.
2
Application buttons
Starts the application.
3
[HOME]
Exits the Apple CarPlay screen and displays the
Home screen.
To exit the Apple CarPlay screen
1
Press the [ ] button.
Ñ Use Siri
You can activate Siri.
1
Press the [ ] button.
2
Talk to Siri.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1
Press the [FNC] / [ ] button for 1 second.
Press for 1 second
NOTE
• If sound is output using Apple CarPlay when the
Apple CarPlay screen is displayed, the source is
switched to Apple CarPlay.
APPS
13English
Android Auto™ Operation
Android Auto enables you to use functions
of your Android smartphone convenient
for driving. You can easily access route
guidance, make calls, listen to music, and
access convenient functions on the Android
smartphone while driving.
For details about Android Auto, visit
https://www.android.com/auto/ and
https://support.google.com/androidauto.
Compatible Android smartphone
You can use Android Auto with Android
smartphone of Android version 5.0 or later.
NOTE
• Android Auto may not be available on all devices
and is not available in all countries or regions.
Ñ Preparation
1
Connect an Android smartphone via USB
terminal. (P. 51)
To use the hands-free function, connect the
Android smartphone via Bluetooth.
When an Android smartphone compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
smartphone currently connected is
disconnected.
2
Unlock your Android smartphone.
NOTE
• To use the Android Auto, It is necessary to set
[Mode] to [Android Auto]. (P.14)
Ñ Operation buttons and
available Apps on the Android
Auto screen
You can perform the operations of the Apps of
the connected Android smartphone.
The items displayed on the screen differ among
the connected Android smartphone.
To enter Android Auto mode, touch
[Android Auto] icon in the source selection
screen. (P.9)
1
1
Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
1
Press the [ ] button.
Ñ Using voice control
1
Press the [ ] button.
To cancel
1
Press the [ ] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1
Press the [FNC] / [ ] button for 1 second.
Press for 1 second
NOTE
• If sound is output using Android Auto when the
Android Auto screen is displayed, the source is
switched to Android Auto.
APPS
14
USB Mirroring Operation
(Android only)
You can display and control the App on the unit
while your smartphone is connected to the USB
terminal.
Ñ Preparation
1
Download Mirroring App from the Google
Play.
Install the latest version of the Mirroring
application “Mirroring OA for JVC” on your
Android.
2
Pair your smartphone with the unit via
Bluetooth.
See Register from the Bluetooth device
( P.28) and Connect the Bluetooth device
( P.29).
Ñ Select a Device Mode
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP screen appears.
3
Touch [Device].
4
Touch [Mode].
5
Touch [Mirroring for Android™].
Ñ Compatible Android
smartphone
• Android version 7.0 or later
• Linux Kernel version 3.5 or later
• Bluetooth support
NOTE
• This unit may not work for some Android
smartphone's.
Ñ Connecting an Android
smartphone
1
Connect an Android smartphone via the
USB terminal.
2
Launch Mirroring App on your Android
Smartphone.
Touch [OK] to start Mirroring App.
Touch [Start now] to start capturing your
Android screen.
3
Start to enjoy Mirroring.
Ñ Mirroring OA Operation
1
Operate your smartphone to activate
Mirroring App, then connect to this unit.
2
Press the [ ] button.
3
Touch [USB Mirroring].
• You can display the same screen of the
Android smartphone on the monitor of
the unit.
USB
15English
USB
Connecting a USB device
1
Connect the USB device with the USB
cable. (P.50)
2
Press the [ ] button.
3
Touch [ ].
4
Touch [USB]. ( P.9)
Ñ Disconnect the USB device
1
Press the [ ] button.
2
Touch [ ].
3
Touch a source other than [USB].
4
Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device on
this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
● About file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
Control screen
4
5
3
6
2
7
1
Open the drawer
45
1
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• [D], [B], etc.: Current play mode indicator
The meanings of each icon are as follows;
[D] (play), [B] (fast forward), [A] (fast
backward), [H] (pause).
USB
16
2
[ ] / [ ]
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
File repeat ([
]), Folder repeat ([ ]), Repeat
all ([
])
• [
] : Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
File random ([
]), Random off ([ ])
3
Track information
Displays the information of the current file.
Only a file name and a folder name are
displayed if there is no tag information.
4
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
Displays the playing list. When you touch a
track/file name on the list, playback will start.
5
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
] [ ] : Searches previous/next folder.
• [ASPECT](Only during video playback): Select
screen mode.
[Full]: Changes the aspect ratio of video and
displays fully on the screen.
[Normal]: Display with 4:3 ratio.
[Auto]: Displays video fully on vertical or
horizontal with no ratio change.
6
[Operation keys
• [1] : Searches track/file. For details on search
operation, see Search Operation (P.17).
• [E] [F] : Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward.
• [D/H] : Plays or pauses.
• [
] : Touch to mute or not to mute.
7
Indicator Items
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
9
88
8
Searching file area (Video file only)
Touch to search the next/previous file.
9
Key display area (Video file only)
Touch to display the control screen.
USB
17English

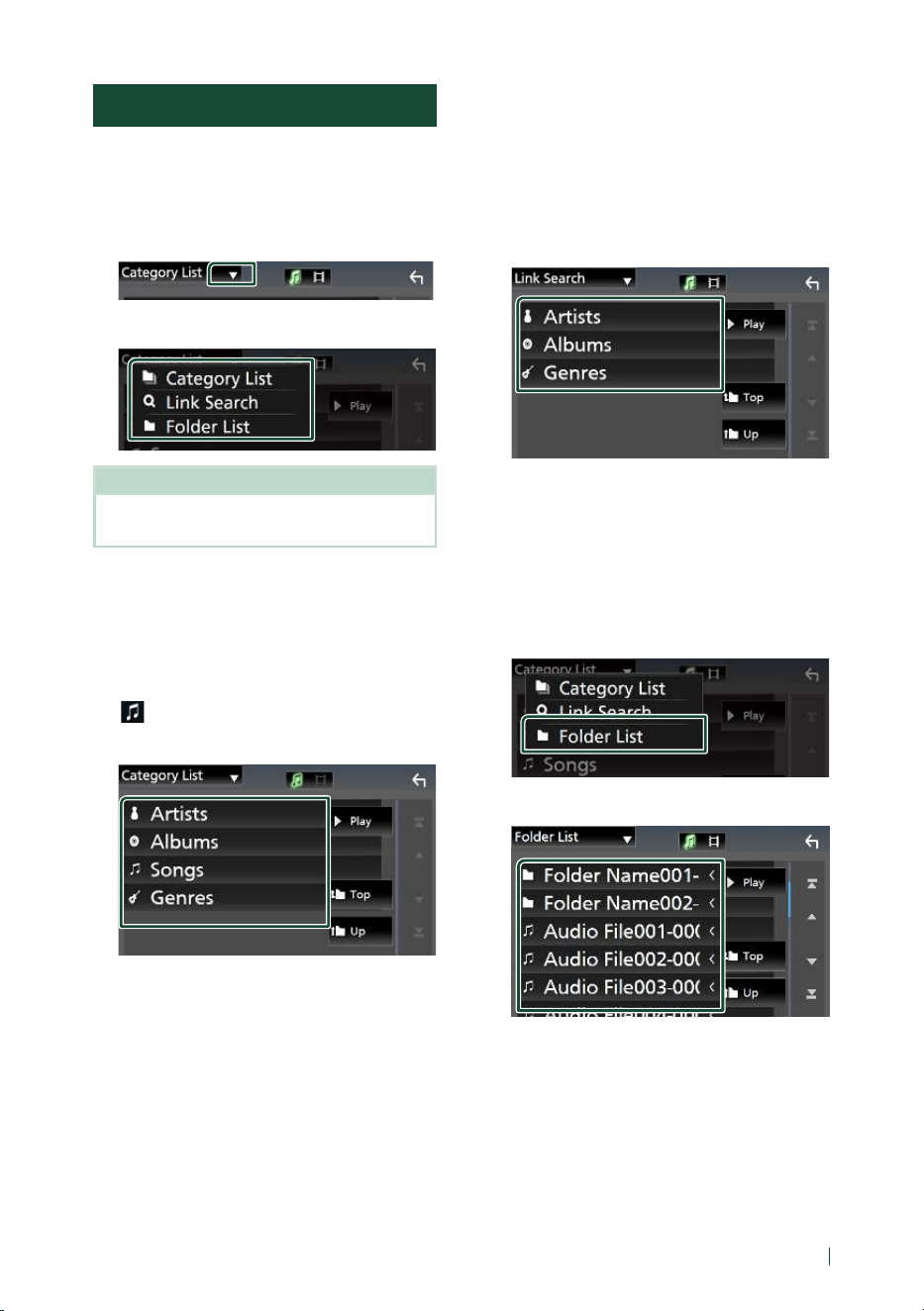

Search Operation
You can search music or video files by the
following operations.
1
Touch [1].
2
Touch [S].
3
Select the list type.
NOTE
• For operations in the list screen, see List screen
(P.11).
Ñ Category search
You can search a file by selecting category.
1
Touch [Category List].
2
Select whether you search by audio files
[
]
.
3
Touch the desired category.
hh The list corresponding to your selection
appears.
4
Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Ñ Link search
You can search a file of same artist/album/genre
as the current track.
1
Touch [Link Search].
2
Touch the desired tag type. You can select
from artist, album and genre.
hh The list corresponding to your selection
appears.
3
Touch desired item from the content list.
Ñ Folder search
You can search a file according to hierarchy.
1
Touch [Folder List].
2
Touch the desired folder.
When you touch a folder its contents are
displayed.
3
Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Tuner
18
Tuner
Tuner Basic Operation
Most functions can be controlled from the
source control screen.
To enter Tuner source, touch [Tuner] icon in the
source selection screen. (P.9)
Control screen
4
6
5
3
1
2
Open the drawer
4
7
5
1
Information display
Displays the information of the current station:
Frequency
Touching [
] allows you to switch between
Content A and Content B.
– Content A: PS name, Radio Text, PTY Genre
– Content B: Radio Text plus, Title Artist
[Preset#]: Preset number
2
Seek mode
Switches the seek mode in the following
sequence; [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in stations in memory one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Operation keys
• [E] [F] : Tunes in a station. The method of
frequency switching can be changed (see 2
in table).
• [
] : Touch to mute or not to mute.
4
Preset list
• Touch on the right side of the screen to
display the Preset list. Touch again to close
the list.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
current receiving station in memory.
5
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [TI] (FM only): Sets the traffic information
mode on. For details, see Trac Information
(P.20).
• [SETUP]: Displays the Tuner SETUP screen. For
details, see Tuner Setup (P.20).
• [AME]: Presets stations automatically. For
details, see Auto memory (P.19).
• [PTY] (FM only): Searches a program by setting
program type. For details, see Search by
program type (P.19).
• [MONO] (FM only): Select the Monaural
reception.
6
[FM] [AM]
Switches the band.
7
Indicator Items
• [ST]: A stereo broadcast is being received.
• [MONO]: The forced monaural function is on.
• [TI]: Indicates the reception state of traffic
information.
White: TP is being received.
Orange: TP is not being received.
Tuner
19English

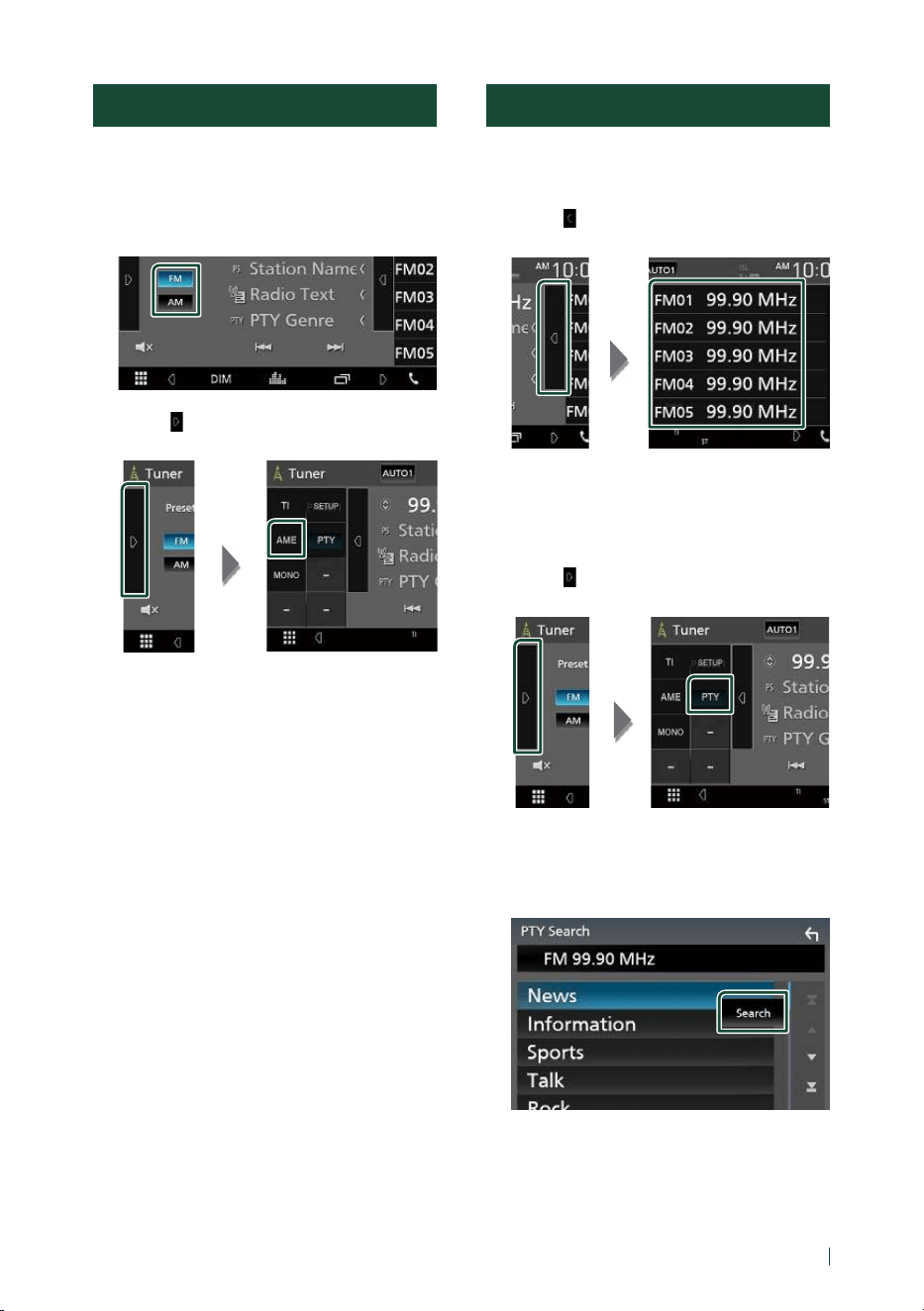

Memory Operation
Ñ Auto memory
You can store stations with good reception in
memory automatically.
1
Touch desired band key.
2
Touch [ ] on the left side of the screen.
Touch [AME].
hh A confirmation screen appears.
3
Touch [Ye s ].
hh Auto memory starts.
Ñ Manual memory
You can store the current receiving station in
memory.
1
Select a station you wish to store in
memory.
2
Touch [FM#] (#: 1-24) or [AM#] (#: 1-12) in
which you want to store the station for 2
seconds.
Selecting Operation
Ñ Preset select
You can list and select memorized station.
1
Touch [ ] on the right side of the screen.
Select a station from the list.
Ñ Search by program type
(FM only)
You can tune to a station with a specific
program type when listening to FM.
1
Touch [ ] on the left side of the screen.
Touch [PTY].
hh PTY Search screen appears.
2
Select a program type from the list.
3
Touch [Search].
You can search a station of the selected
program type.
Tuner
20
Trac Information (FM only)
You can listen and watch the traffic information
automatically when a traffic bulletin starts.
However, this feature requires a Radio Broadcast
Data System that includes the TI information.
1
Touch [ ] on the left side of the screen.
Touch [TI].
hh Traffic information mode is set.
Ñ When the trac bulletin starts
The Traffic Information screen appears
automatically.
Tuner Setup
You can set tuner related parameters.
1
Touch [ ].
2
Touch [ ] on the left side of the screen.
Touch [SETUP].
hh Tuner SETUP screen appears.
3
Set each item as follows.
■ [RDS CT] (FM only)
Synchronizing the Radio Data System station
time data and this unit’s clock.
“ON” (Default), “OFF”
■ [Area Setting]
The tuner channel interval changes
depending on the area where you use this
unit.
[North America] (Default): Select this when
using in North America. FM/AM intervals
are set to 200 kHz/10 kHz.
[South America]: Select this when using in
South America. FM/AM intervals are set to
50 kHz/10 kHz.
[Europe]: Select this when using in any other
areas. FM/AM intervals are set to 50 kHz/9
kHz.
SiriusXM®
21English
SiriusXM®
SiriusXM® Basic Operation
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music
plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite
radio. A SiriusXM Vehicle Tuner and Subscription
are required. For more information, visit
www.siriusxm.com.
To listen to the SiriusXM source, touch the
[SiriusXM] icon on the source selection screen.
(P.9)
Activating subscription
• Check your Radio ID.
The SiriusXM Satellite Radio ID is required
for activation and can be found by tuning in
Channel 0 as well as on the label found on the
SiriusXM Connect tuner and its package.
The Radio ID does not include the letters I, O,
S or F.
• Activate the SiriusXM Connect Vehicle Tuner
using either one of the two methods below:
– For users in U.S.A.
Online: Visit www.siriusxm.com/activatenow
Phone:
Call SiriusXM Listener Care at 1-866-635-2349
– For users in Canada:
Online: Visit
https://www.siriusxm.ca/help/activation-help/
Phone:
Call XM customer Care at 1-877-438-9677
NOTE
• To use SiriusXM® Satellite Radio, the optional
accessory is necessary.
Control screen
2
3
1
5
4
Open the drawer
5
3
1
Information display
• Displays the information on the current
channel: Channel Name
[P#]: Preset number
[#CH]: Channel number
Touching [
] allows you to switch between
Content A and Content B.
– Content A: Artist Name, Song Title
– Content B: Content Info, Category Name
NOTE
• While getting contents, "Waiting" is showing on
the display.
2
Band button
Switches among bands. (SXM1/SXM2/SXM3)
SiriusXM®
22
3
Artwork / Function panel
• Displays the album artwork for most SiriusXM
music channels.
• Touch [
] of the screen to display the function
panel. Touch [
] to close the panel.
– [Direct Channel]: Touch and enter the desired
number. For details, see Direct search (P.23).
– [SETUP]: Touch to display the SiriusXM SETUP
screen. For details, see SiriusXM Setup (P.24).
– [Replay/Live]: Touch to turn on or off the replay
mode. See Replay (P.24).
4
Operation keys
• [1] : Display the Category search screen. For
details on search operation, see Category/
Channel search (P.23).
• [D/H] : Plays or pauses. See Replay (P.24).
• [CHS] [CHR] : Selects a channel.
• [
] : Touch to mute or not to mute.
5
Preset list
• Touch [
] of the screen to display the preset
list. Touch [
] to close the list.
• Recalls the memorized channel.
• When touched for 2 seconds, stores the
currently being received channel in the
memory.

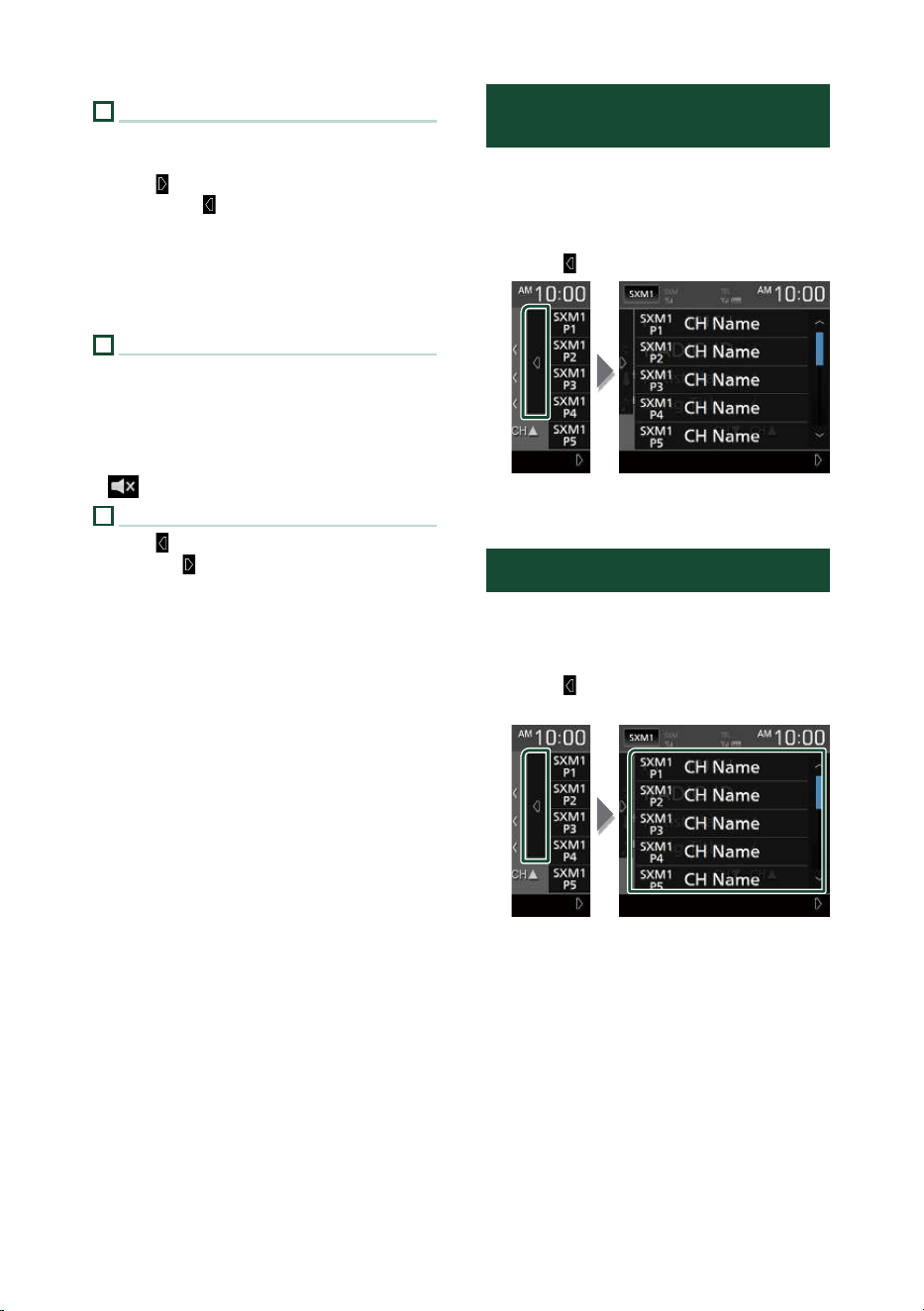

Storing Channels in Preset
Memory
You can store the current channel in memory.
1
Tune in the channel you wish to store in
the memory.
2
Touch [ ] on the right side of the screen.
3
Touch [SXM(1-3)] [P(1-6)] in which you
want to store the channel for 2 seconds.
Preset select
You can list and select memorized channels.
To select from the preset list
1
Touch [ ] on the right side of the screen.
Select a channel from the list.
SiriusXM®
23English
Direct search
You can tune in a channel directly.
1
Touch [ ] on the left side of the screen.
Touch [Direct Channel].
2
Enter the channel number and touch
[Enter].
NOTE
• To clear the number you entered, touch [BS].
Category/Channel search
You can specify the desired category and select
a channel.
1
Touch [1].
2
Select a category.
hh Channel list appears.
3
Select the desired content from the list.
*
1
*
1
Select a desired item ([Info], [CH Name],
[Artist], [Title]).
NOTE
• All channels in the selected category appear.
• Touching [All-Channels] displays all channels.
SiriusXM®
24
Replay
You can replay the last 60 minutes of the
program from the current channel.
1
Touch [L] or [Replay] on the function
panel.
■ [E] [F]
Press to skip to the previous/next track.
Press and hold to rewind or fast forward.
■ [DH]
Plays or pauses.
■ Replay time bar/Play mode indicator
Displays the recorded data capacity and
playback position.
[D], [B], etc.: Current play mode indicator
To return to live music/content
1
Touch the left side of the screen.
2
Touch [Live].
SiriusXM Setup
1
Touch [ ] on the left side of the screen.
Touch [SETUP].
hh SiriusXM SETUP screen appears.
See the following sections for each
setting.
• Set up the Parental Code ( P.25)
• Set up the Parental Control (P. 25)
• Set up the Parental Lock Channel
( P.26)
• Reset to the default settings ( P.26)
SiriusXM®
25English

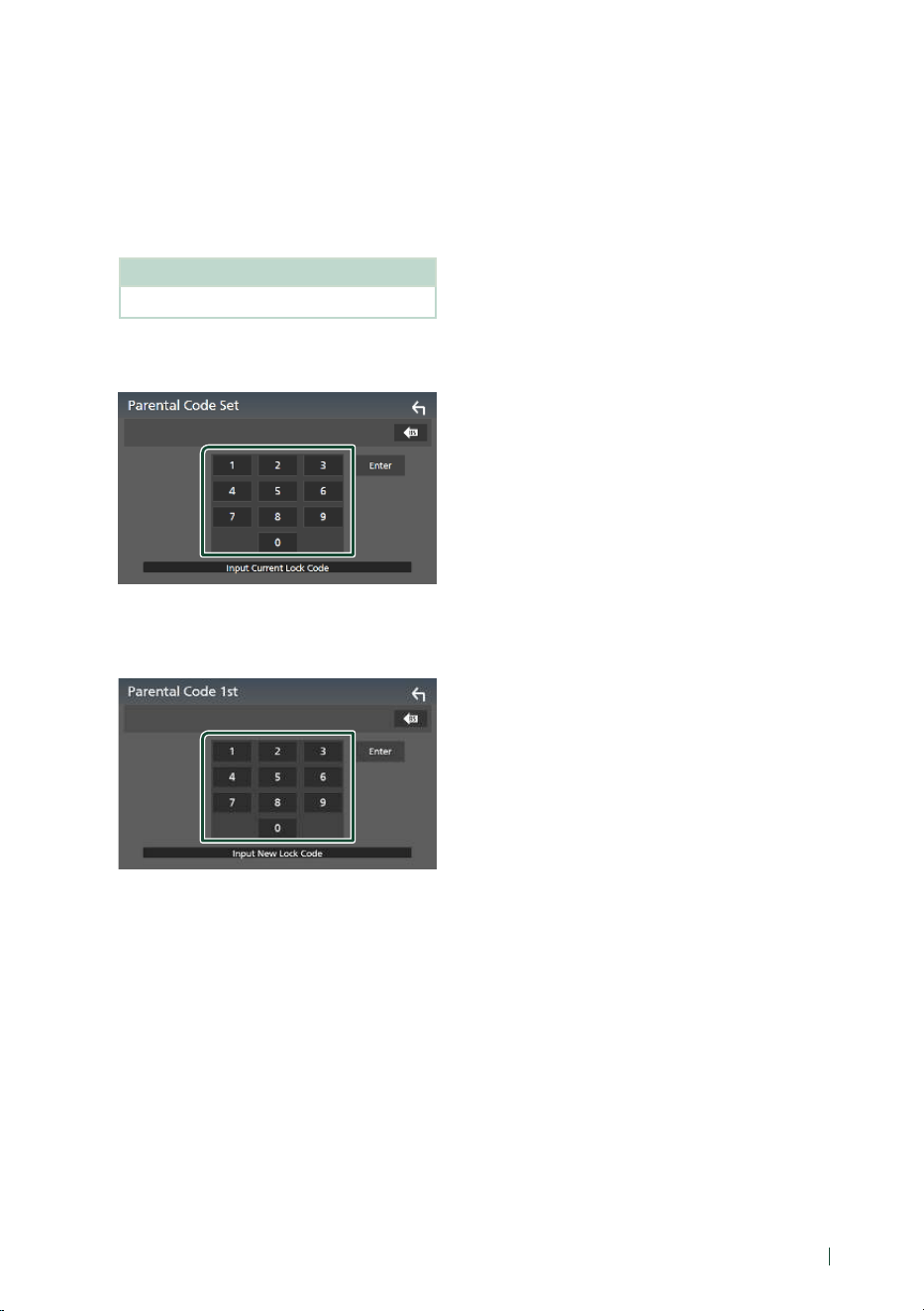

Ñ Parental code
You can set a SiriusXM parental code for Parental
Control.
1
Touch [Parental Code] on the SiriusXM
SETUP screen.
hh Parental Code Set screen appears.
NOTE
• The code number is set to “1111” as default.
2
Enter the current code number and touch
[Enter].
hh Parental Code 1st screen appears.
3
Enter the new code number and touch
[Enter].
hh Parental Code 2nd screen appears.
4
Enter the same code number as that you
entered in step 3 and touch [Enter].
hh The code number is confirmed and the
SiriusXM parental code is now set.
Ñ Parental Control
The Parental Control feature allows you to limit
access to any SiriusXM channels, including
those with mature content. When enabled, the
Parental Control feature requires you to enter a
Parental Code to tune to the locked channels.
1
Touch [Parental Control] on the SiriusXM
SETUP screen.
2
Touch [User], [Mature] or [OFF].
■ [User]
Locks only the selected channels.
■ [Mature]
Locks channels classified as “mature” only.
■ [OFF]
Deactivates the parental mature and user
locks.
3
Enter the parental code you originally
input in as stated in Parental code
( P.25) and touch [Enter].
SiriusXM®
26
When selecting [User]
This allows you to limit access to any SiriusXM
channel (Parental Lock Channel).
1
Touch [Parental Lock Channel Selection]
on the SiriusXM SETUP screen.
hh Parental Lock Code screen appears.
NOTE
• You need to set up a parental code
beforehand as stated in Parental code
(P.25).
2
Enter the parental code you originally
input as stated in Parental code (P.25)
and touch [Enter].
hh Parental Lock Category Select screen
appears.
3
Touch the desired category in the list.
hh Displays all channels in the selected
category.
NOTE
• Touch [All-Channels] to display all channels.
• To delete the parental lock channel setting,
touch [Disable All] and then touch [Yes] on
the confirmation screen.
4
Touch each channel on the list and set to
[ON] or [OFF].
[ON]: Locks the channel.
[OFF]: Unlocks the channel.
*
1
*
1
Select a desired item ([Info], [CH Name],
[Artist], [Title]).
Ñ Reset
1
Touch [SiriusXM Reset] on the SiriusXM
SETUP screen.
hh Confirmation screen appears.
2
Touch [Ye s ].
hh All SiriusXM settings are reset to defaults.
Bluetooth Control
27English
Bluetooth Control
Using the Bluetooth function, various functions
can be used: listening to the audio file, making/
receiving a call.
Information for using
Bluetooth® devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices
such as mobile phones, portable PCs, and other
devices.
Bluetooth devices can be connected without
cables and communicate with each other.
NOTE
• While driving, do not perform complicated
operations such as dialing numbers, using the
phone book, etc. When you perform these
operations, stop your car in a safe place.
• Some Bluetooth devices may not connect to
this unit depending on the Bluetooth version of
the device.
• This unit may not work for some Bluetooth
devices.
• Connecting conditions may vary depending on
your environment.
• For some Bluetooth devices, the device is
disconnected when the unit is turned off.
Ñ About the cell-phone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 4.1
Profile
Cell-phone:
HFP (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
Sound codec
SBC, AAC
NOTE
• The units supporting the Bluetooth function
have been certified for conformity with the
Bluetooth Standard following the procedure
prescribed by Bluetooth SIG.
• However, it may be impossible for such units to
communicate with your cell-phone depending
on its type.
Bluetooth Control
28
Register from the Bluetooth
device
It is necessary to register the Bluetooth audio
player or cell-phone to this unit before using the
Bluetooth function.
You can register up to 7 Bluetooth devices.
NOTE
• Up to 7 Bluetooth devices can be registered. If
an attempt is made to register the 8th Bluetooth
device, the Bluetooth device connected on the
earliest date will be deleted to register the 8th
one.
1
Turn on the Bluetooth function on your
smartphone/cell-phone.
2
Search the unit (“KW-M*****”) from your
smartphone/cell-phone.
3
Operate your smartphone/cell-phone
according to the displayed messages.
■ Confirm the request on the
smartphone/cell-phone.
■ If a PIN code is required, enter the PIN
code (“0000”).
4
Touch [Ye s ].
When data transmission and connection
have completed, the Bluetooth connection
icon appears on the screen.
Bluetooth Setup
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP Menu screen appears.
3
Touch [Bluetooth].
hh Bluetooth SETUP screen appears.
See the following section for each
setting.
• Connect the Bluetooth device ( P.29)
Bluetooth Control
29English
Ñ Connect the Bluetooth device
1
Touch [Select Device] in the Bluetooth
SETUP screen.
2
Touch [ ] you want to connect.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
To delete the registered Bluetooth
device
1
Touch [ ].
hh Confirmation message appears.
2
Touch [Ye s ].
Playing Bluetooth Audio
Device
Most function can be controlled from the
source control screen.
To enter Bluetooth source, touch [BT Audio]
icon in the source selection screen. (P.9)
Ñ Bluetooth basic operation
Control screen
3
4
5
21
1
Device name/ [ ] / [ ]
• Connected device name.
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence; File repeat ([
]),
Folder repeat ([
]), All songs repeat ([ ]),
Repeat off ([
])
• [
] : Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
All random ([
]), Random off ([ ])
• Operations and display indications may
differ according to their availability on the
connected device.
2
Information display *
Displays the name of the track information.
3
Operation keys *
• [1]: Searches file. See File search (P.30).
• [E] [F]: Searches the previous/next
content. Touch and hold to fast forward or fast
backward.
• [D]: Plays.
• [H]: Pauses.
• [
] : Touch to mute or not to mute.
Bluetooth Control
30
4
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [BT DEVICE CHANGE] : Selects the device
to connect via Bluetooth audio (A2DP) or APP
(SPP). See Connect the Bluetooth audio
(P.30).
5
Play mode indicator/ Playing time
[D], [H]: Current play mode indicator
The meanings of each icon are as follows;
[D] (play), [B] (fast forward), [A] (fast
backward), [H] (pause).
* These items appear only when the audio
player which supports AVRCP profile is
connected.
NOTE
• If the operation keys do not appear, operate
from the player.
• Depending on your cell-phone or audio player,
audio may be heard and controlled but text
information may not appear.
• If the volume is too low, raise it on your cell-
phone or audio player.
Ñ Connect the Bluetooth audio
Selects the device to connect via Bluetooth
audio (A2DP) or APP (SPP).
1
Touch on the left side of the screen.
Touch [BT DEVICE CHANGE].
2
Touch the device name you want to
connect.
Ñ File search
1
Touch [1].
2
Touch the desired file or folder.
When you touch a folder its contents are
displayed.
3
Touch desired item from the content list.
hh Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.11).
Bluetooth Control
31English
Using Hands-Free Unit
You can use telephone function by connecting
the Bluetooth telephone to this unit.
NOTE
• While Apple CarPlay or Android Auto is being
connected, Bluetooth Hands-Free function
cannot be used. Only Apple CarPlay or Android
Auto Hands-Free function can be used.
Ñ Make a call
1
Touch [Phone]/[Û].
hh Hands Free screen appears.
NOTE
• If your mobile phone supports PBAP, you can
display the phone book and call lists on the
touch panel screen when the mobile phone is
connected.
– Phone book: up to 1000 entries
– Up to 20 entries including dialed calls,
received calls, and missed calls
2
Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
• [
]: Voice Recognition (P.32)
• [ ]: Bluetooth SETUP
● Bluetooth SETUP
1) Touch [
].
Bluetooth SETUP screen appears.
NOTE
• The status icons such as battery and antenna
displayed may differ from those displayed on the
cell-phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Call using call records
1
Touch [ ].
2
Select the phone number from the list.
Call by entering a phone number
1
Touch [ ].
2
Enter a phone number with number keys.
3
Touch [ ].
Bluetooth Control
32
Call using the preset number
1
Touch [ ].
2
Touch the Name or phone number.
Call using the phonebook
1
Touch [ ].
2
Select the person you want to call from
the list.
3
Select the phone number from the list.
NOTE
• If no Phonebook has been downloaded,
touching [Download Phonebook Now] will
start downloading the Phonebook.
Ñ Voice Recognition
You can access the voice recognition function of
the cell-phone connected to this unit. You can
search the cell-phone phonebook by voice. (The
functionality depends on the cell-phone.)
1
Press the [ ] button.
hh Voice Recognition screen appears.
2
Start speaking.
NOTE
• You can use voice recognition function by
touching [
] on the Hands Free screen.
Bluetooth Control
33English
Ñ Receive a call
1
Touch [ ] to answer a phone call or [ ]
to reject an incoming call.
NOTE
• While monitoring the view camera, this screen
does not appear even if a call comes in. To
display this screen, return the shift knob of car to
the driver position.
To end call
1
While talking, touch [ ].
Ñ Operations during a call
● Adjust the receiver volume
Press the [−] or [＋] button.
● Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys on
the screen.
● Switching the speaking voice output
Touching [
]/ [ ] each time switches the
speaking voice output between cell-phone and
speaker.
● Call-waiting
When you receive a call while talking on another
call, you can answer the newly received call by
touching
[
]
. The current call is on hold.
Each time you touch
[
]
, the caller will change.
When you touch
[
]
, the current call will end
and switch to the call in hold.
Bluetooth Control
34

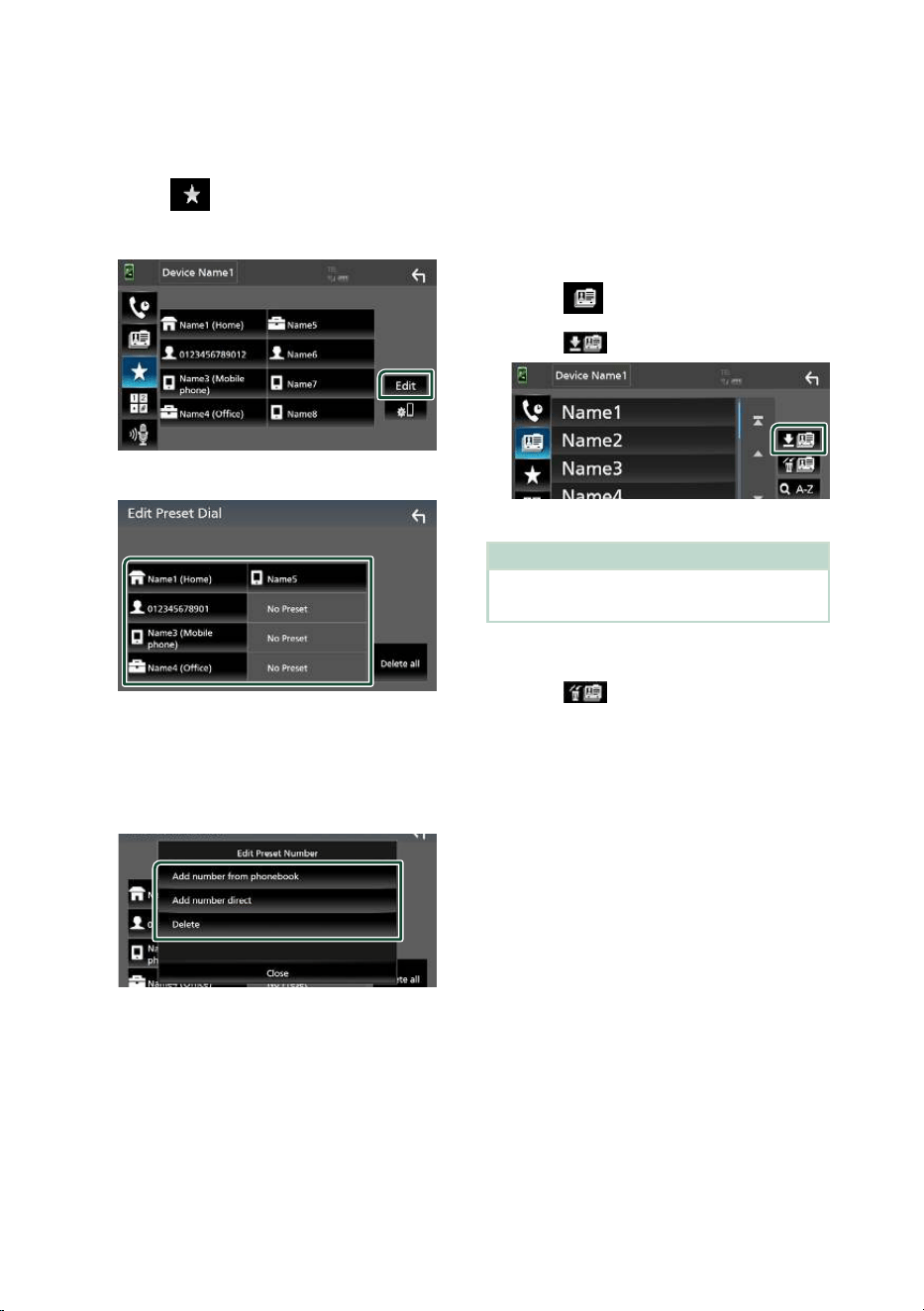

Ñ Phone number preset
You can register frequently used phone
numbers to this unit.
1
Touch [ ].
2
Touch [Edit].
3
Select where to preset.
■ [Delete all]
To delete all preset numbers, touch
[Delete all] and then touch [Yes ] on the
confirmation screen.
4
Select how to preset.
■ [Add number from phonebook]
Select the number to preset from the
phonebook. See Call using the phonebook
( P.32).
■ [Add number direct]
Enter the telephone number directly and
touch [SET]. See Call by entering a phone
number (P.31).
■ [Delete]
To delete a preset number, touch [Delete]
and then touch [Ye s ] on the confirmation
screen.
Ñ Phonebook transfer
You can transfer the phonebook in your
Bluetooth smartphone via PBAP.
1
Touch [ ].
2
Touch [ ].
hh The phonebook data transmission starts.
NOTE
• If the Phonebook contains more than 1000
entries, Phonebook data cannot be transferred.
Phonebook deletion
1
Touch [ ].
hh Confirmation message appears.
2
Touch [Ye s ].
Other External Components
35English
Other External Components
View Camera
NOTE
• To connect a camera, see P.50.
• To use a rear view camera, a REVERSE lead
connection is required. (P.50)
• The rear view screen is displayed when you shift
the gear to the reverse (R) position.
Ñ Display the camera screen
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh View camera screen appears.
3
Adjust each item as follows.
1
1
Camera off
Touch to exit the camera screen.
Ñ Camera Setup
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP Menu screen appears.
3
Touch [Camera].
hh Camera screen appears.
4
Set each item as follows.
■ [Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ [Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
adjust the parking guidelines. See To adjust
the parking guidelines (P.36).
Other External Components
36
External audio/video players—
AV-IN
1
Connect an external component to the
AV-IN input terminal. (P. 50)
2
Select [AV-IN] as the source. (P. 9)
3
Turn on the connected component and
start playing the source.
To adjust the parking guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instructions supplied
with the rear view camera.
• When adjusting the parking guidelines, make
sure to use the parking brake to prevent the car
from moving.
1
Touch [ON] of [Parking Guidelines] in the
Camera screen. (P. 35)
2
Touch [Guidelines SETUP] in the Camera
screen.
3
Adjust the parking guidelines by
selecting the [
] mark.
4
Adjusting the position of the selected
mark.
A
B
C
D
Make sure that A and B are horizontally
parallel, and that C and D are the same
length.
NOTE
• Touch [Initialize] and after touch [Yes] to set all
the [
] marks to the initial default position.
Setting Up
37English
Setting Up
Monitor Screen Setup
You can adjust image quality in video screen.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Screen Control screen appears.
3
Adjust each item as follows.
■ [Contrast] / [Brightness] / [Color] / [Tint]
Adjusts each item.
NOTE
• Adjusting items are different depending on the
current source.
System Setup
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh See the following section for each
setting.
• Set up AV ( P.40)
• Set up display ( P.39)
• Set up the user interface ( P. 38)
• Set up camera ( P.35)
• Set up special ( P. 38)
• Set up Bluetooth ( P.28)
• Set up Device ( P. 14)
Setting Up
38
User Interface Setup
You can setup user interface parameters.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP screen appears.
3
Touch [User Interface].
hh User Interface screen appears.
4
Set each item as follows.
■ [Beep]
Turns the key touch tone on or off.
Default is “[OFF]”.
■ [Language]
Selects a language.
■ [Time Format]
Select the time display format.
"[12-Hour]" (Default)/ "[24-Hour]"
■ [Clock Adjust]
Adjust the date and time manually. ( P.6)
Special Setup
You can setup Special parameters.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP screen appears.
3
Touch [Special].
hh Special screen appears.
4
Set each item as follows.
■ [DEMO]
Set the demonstration mode. Default is “[ON]”.
■ [Software Information]
Check the software version of this unit.
( P.38)
■ [Open Source Licenses]
Displays the open source licenses.
■ [Initialize]
Touch [Initialize] and then touch [Ye s ] to set
all the settings to the initial default settings.
Ñ Software Information
Check the software version of this unit.
1
Touch [Software Information] in the
Special screen.
2
Confirm the software version.
Setting Up
39English
Display Setup
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP screen appears.
3
Touch [Display].
hh Display screen appears.
4
Set each item as follows.
■ [Dimmer]
Select dimmer mode.
[OFF]: The display and buttons do not dim.
[ON]: The display and buttons dim.
[SYNC] (Default): Turns the dimmer function
on or off when the vehicle light control
switch is turned on or off.
■ [OSD Clock]
Select if you want to display the clock while
the screen is off, or while watching video files
on USB, etc.
"[ON]" (Default)/"[OFF]"
■ [Screen Adjust]
Displays the Screen Adjust screen. ( P. 37)
■ [Background]
Changing background image. (P. 39)

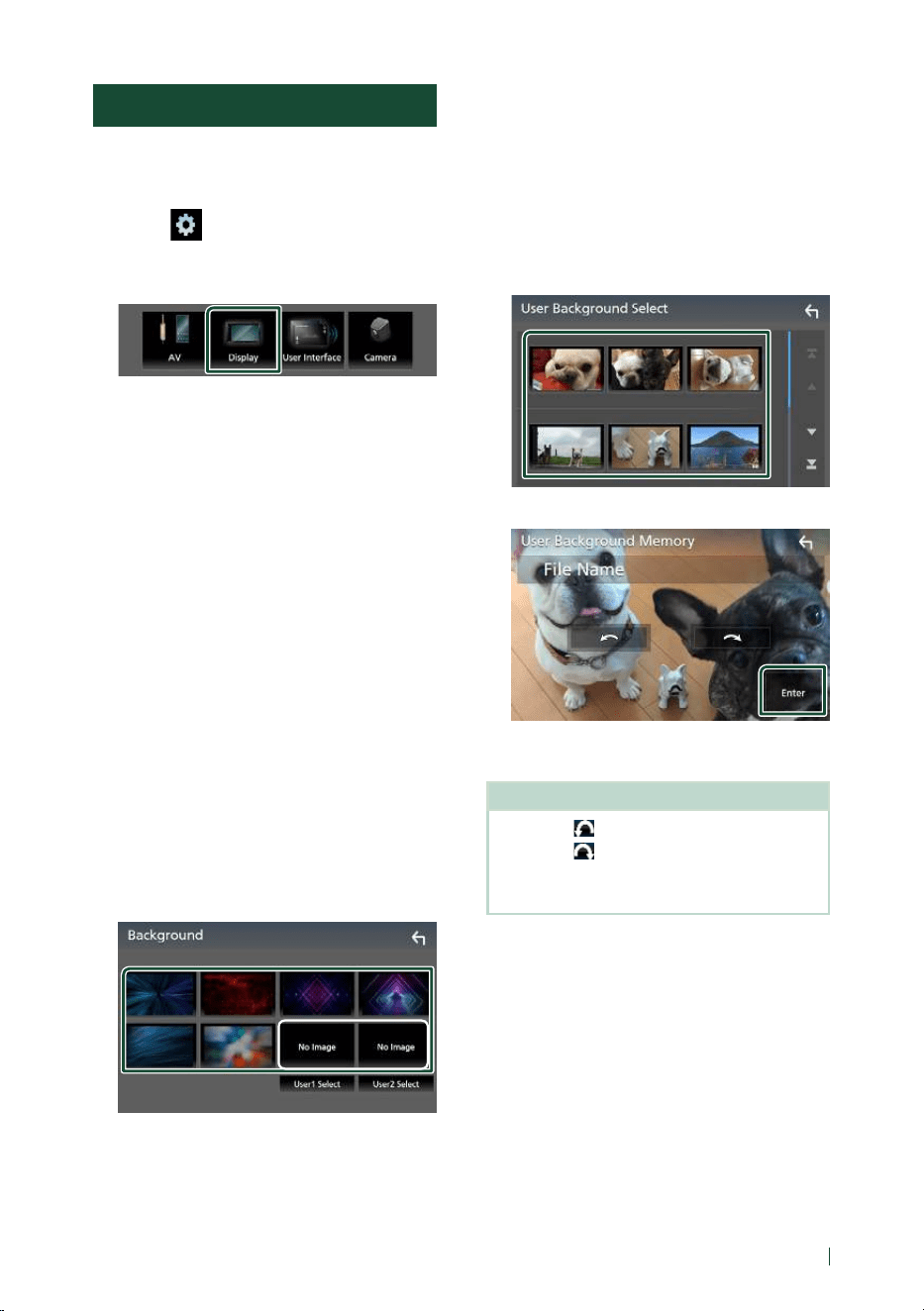

Ñ Change background image
1
Touch [Background] in the Display screen.
2
Select an image.
*
1
*
1
Select an original image in advance.
To register original image
You can load an image from the connected USB
device and set it for the background image.
Before operating this procedure, it is necessary to
connect the device which has the image to load.
1
Touch [User1 Select] or [User2 Select] in
the Background screen.
2
Select the image to load.
3
Touch [Enter].
hh The selected image is loaded and the
display returns to the Background screen.
NOTE
• Touching [
] rotates counter clockwise.
• Touching [
] rotates clockwise.
• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP
(.bmp)
Setting Up
40

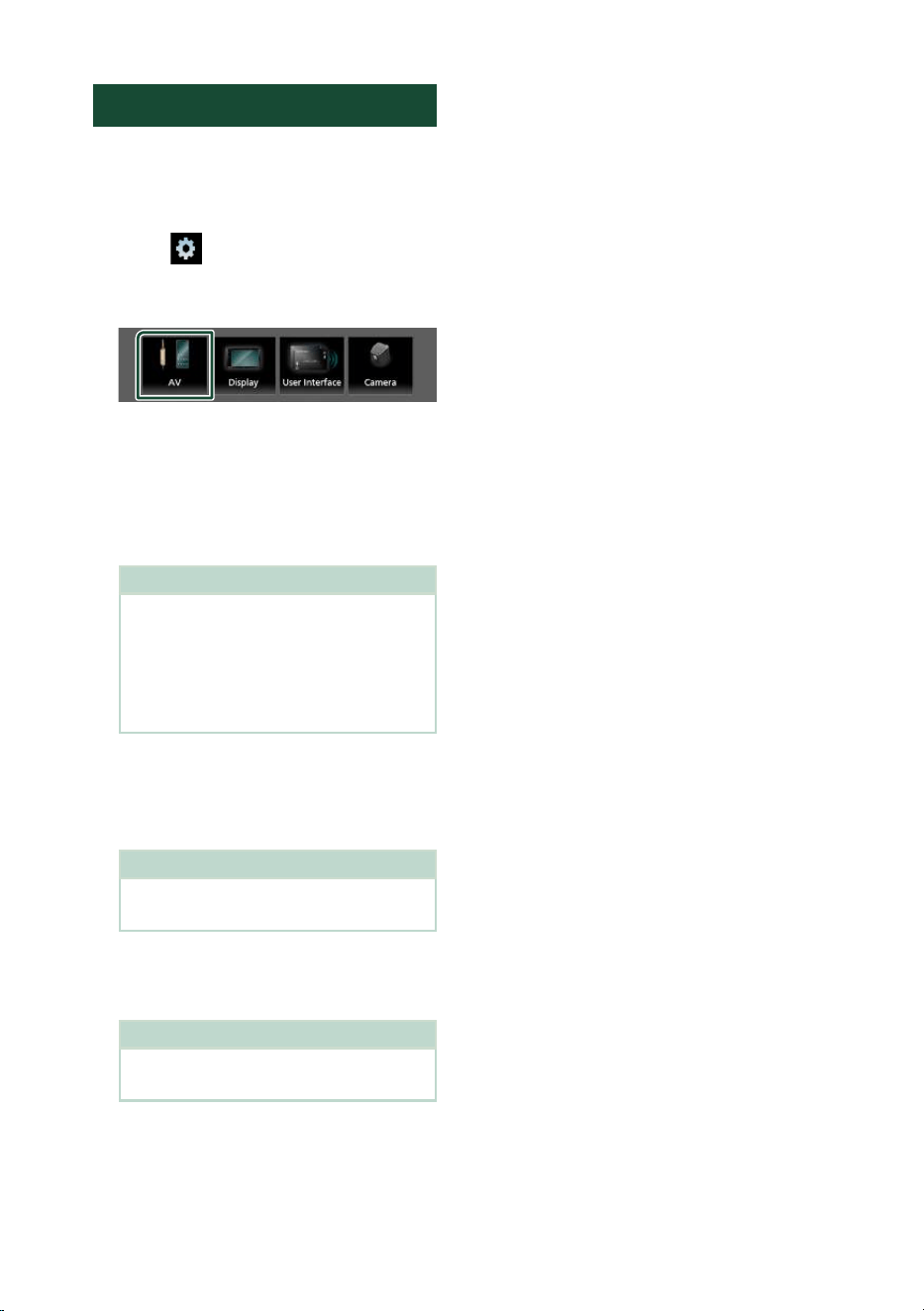

AV Setup
You can set AV parameters.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh SETUP screen appears.
3
Touch [AV].
hh AV screen appears.
4
Set each item as follows.
■ [AV-OUT]
Specify whether to output the current source
signal from the VIDEO OUT terminal.
“[ON]”/ “[OFF]” (Default)
NOTE
• Images can be output only from the AV IN
and USB (video file) source.
• If display of the rear view camera image is
selected when the AV-IN source is being
played, no image is output from the VIDEO
OUT terminal.
■ [CarPlay Sidebar]
Select the position of the control bar (left or
right) shown on the touch panel.
“[Left]” (Default)/ “[Right]”
NOTE
• The setting is available when an iPhone is
disconnected.
■ [AV Color Adjust]
You can adjust image quality in video screen.
( P.37)
NOTE
• Adjusting items are different depending on
the current source.
Controlling Audio
41English
Controlling Audio
You can adjust the various settings such as
audio balance or subwoofer level.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh See the following section for each
setting.
• Set up speaker/ X’over ( P.41)
• Controlling equalizer (P. 43)
• Set listening position/ DTA (P. 45)
• Controlling general audio (Fader /
Balance) ( P.42)
• Set volume offset ( P.44)
• Set sound effect ( P. 44)
Speaker/ X’over setup
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Speaker/Xʼover].
4
Select a car type.
You can setup the car type and speaker
network, etc.
If your car type is selected, the Delay Time
Alignment is set automatically (for timing
adjustment of sound output for each
channel) to have the highest surround
effects.
5
Touch the speaker (1) you wish to adjust
and set each item (2) as follows.
1
2
■ [Speaker]
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are set,
the speaker crossover network is set
automatically.
■ [Location] (Only for Front, Rear)
Select the speaker position you have fixed.
Controlling Audio
42
■ [Tweeter] (Only for Front)
You can set the tweeter when you are
selecting front speakers.
[None], [Small], [Medium], [Large]
■ [Xʼover]
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was
set automatically when you selected the
speaker type.
For details, see Crossover network setup
( P.42)
Ñ Crossover network setup
You can set a crossover frequency of speakers.
1
Touch [Xʼover].
2
Touch the speaker to set.
3
Set each item as follows.
■ [HPF FREQ]
High Pass Filter adjustment. (When front or
rear speaker is selected on Speaker Select
screen)
■ [LPF FREQ]
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
■ [Slope]*
1
Sets a crossover slope.
■ [Gain]
Adjusts the front speaker, rear speaker, or
subwoofer level.
■ [TW] (Tweeter) [Gain]*
2
Adjusts the tweeter level. (When front is
selected on Speaker Select screen)
■ [Phase Inversion]*
3
Sets the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When subwoofer is selected
on Speaker Select screen)
*
1
Only when “[LPF FREQ]”/“[HPF FREQ]” is
set to a mode other than “[Through]” in
[Xʼover].
*
2
Only when “[Tweeter]” is set to “[Small]”,
“[Medium]”, “ [Large]” in [Speaker Setup].
*
3
Only when “[Subwoofer]” is set to a mode
other than “[None]” in [Speaker Setup].
Controlling General Audio
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Fader / Balance].
4
Set each item as follows.
■ [Fader] / [Balance]
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■ [Center]
Clear the adjustment.
Controlling Audio
43English
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Equalizer].
4
Touch the screen and set the Graphic
Equalizer as desired.
■ [ALL SRC]
Apply the adjusted equalizer to all sources.
Touch [ALL SRC] and then touch [OK] on the
confirmation screen.
■ Gain level (dotted frame area)
Adjust the gain level by touching the each
frequency bar.
You can select frequency bar and adjust its
level by [R], [S].
■ [Preset Select]
Displays the screen to recall the preset
equalizer curve.
■ [Initialize]
The current EQ curve returns to flat.
■ [Memory]
Saves the adjusted equalizer curve from
“[User1]” to “[User3]”.
■ [Bass EXT] (Bass Extend Settings)
When turned on, the frequency lower than
62.5 Hz is set to the same gain level as 62.5
Hz.
■ [SW Level]
Adjusts the subwoofer volume.
Ñ Recall the EQ curve
1
Touch [Preset Select].
2
Select EQ curve.
Ñ Save the EQ curve
1
Adjust the EQ curve.
2
Touch [Memory].
3
Select where to save.
Controlling Audio
44
Volume Oset
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Volume Offset].
4
Touch [＋] or [−] to adjust the level.
■ [Initialize]
Returns to the initial settings.
* If you have increased the volume first, then
reduced the volume using the “Volume
Offset”, the sound generated if you suddenly
switch to another source may be extremely
loud.
Sound Eect
You can set sound effects.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Sound Effect].
4
Set each item as follows.
■ [Bass Boost]
Sets the amount of bass boost among
“[OFF]”/ “[1]”/ “[2]”/ “[3]”.
■ [Loudness]
Sets the amounts of boost of low and high
tones.
“[OFF]”, “ [Low]”, “ [High]”
Controlling Audio
45English
Listening Position/ DTA
Adjust the sound delay time as nearer speakers
to the selected seat have more delay time,
so that the sound from each speaker arrive a
listener at the same time.
1
Press the [FNC] button.
hh FUNCTION screen appears.
2
Touch [ ].
hh Audio screen appears.
3
Touch [Position/DTA].
4
Select listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All].
Position DTA control
You can fine-adjust your listening position.
1
Touch [Adjust].
2
Touch [Delay].
3
Touch [T] or [U] to adjust the delay time of
the selected speaker.
4
Touch [Level].
5
Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To return to the initial setting of Delay and Level,
touch [Initialize] and [Yes] in the confirmation
screen.
Remote control
46
Remote control
This unit can be operated using the remote
control RM-RK258 (optional accessory).
Functions of the Remote
control Buttons
Key
Name
Function
[SRC]
Switches to the source to be played.
In hands-free mode, hangs up the
phone.
[VOL] [+] [–]
Adjusts the volume.
[AT T]
Mutes/restores the sound.
[DISP]
Switches the screen between the
current source and the App screen
from the connected iPhone/Android.
[FM/][R]
[AM/][S]
During tuner source, select FM/ AM
band to be received.
For the SiriusXM source, selects the
band to be received.
[E] [2]
[F] [3]
Selects the track or file to be played.
For the tuner and SiriusXM sources,
switches to broadcast stations
received by the unit.
[D/H]
For the tuner, switches the seek mode.
For the USB, BT audio, Plays or pauses.
[ANGLE]
Not used.
[
]
When a call comes in, answers the call.
[DIRECT]
Switches to the direct search mode.
For details on the direct search mode,
see Direct search mode (P.46).
Key
Name
Function
[ASPECT]
Changes the aspect ratio.
Numeric
Keypad
Specifies the number to search in
direct search.
For details on the direct search mode,
see Direct search mode (P.46).
[CLR]
Deletes a character while in direct
search mode.
[ENT]
Performs the selected function.
Ñ Direct search mode
Using the remote control, you can jump directly
to the tuner frequency.
NOTE
• This operation cannot be performed for USB
device.
1
Press the [SRC] button several times until
the desired content appears.
The available contents are different
depending on the source type.
■ Tuner
Frequency value
■ SiriusXM
Channel number
2
Press the [DIRECT] button.
3
Press number buttons to enter a
frequency.
4
Press the [ENT] button to confirm the
entry.
Connection/Installation
47English
Connection/Installation
Before Installation
Before installation of this unit, please note the
following precautions.
# WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
# CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check
the connections.” is displayed), the speaker
wire may have a short-circuit or touched
the chassis of the vehicle and the protection
function may have been activated. Therefore,
the speaker wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire
to a power source with a constant voltage
supply, such as with battery wires, the battery
may be drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape
or other similar material. To prevent a short
circuit, do not remove the caps on the ends of
the unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤ wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤ connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit
Connection/Installation
48
Ñ Supplied accessories for
installation
1
(3 m)
x1
2
x1
3
(2 m)
x1
4
x1
5
(M5 × 6 mm)
x6
6
(M5 × 8 mm)
x6
7
x1
8
x1
9
x2
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B (accessory 8) on the
wiring harness and connect it to the speaker
connector in your vehicle.
5) Take Connector A (accessory 7) on the wiring
harness and connect it to the external power
connector on your vehicle.
6) Connect the wiring harness connector to the
unit.
7) Install the unit in your car.
8) Reconnect the ¤ terminal of the battery.
9) Press the reset button.
Installing the unit
Ñ Non-Japanese cars
Bend the tabs of the
mounting sleeve with
a screwdriver or similar
utensil and attach it in
place.
NOTE
• Make sure that the unit is installed securely
in place. If the unit is unstable, it may
malfunction (eg, the sound may skip).
Ñ Japanese cars
5 or 6
5 or 6
Car Bracket
Ñ Trim plate
1) Attach accessory 2 to the unit.
2
Connection/Installation
49English

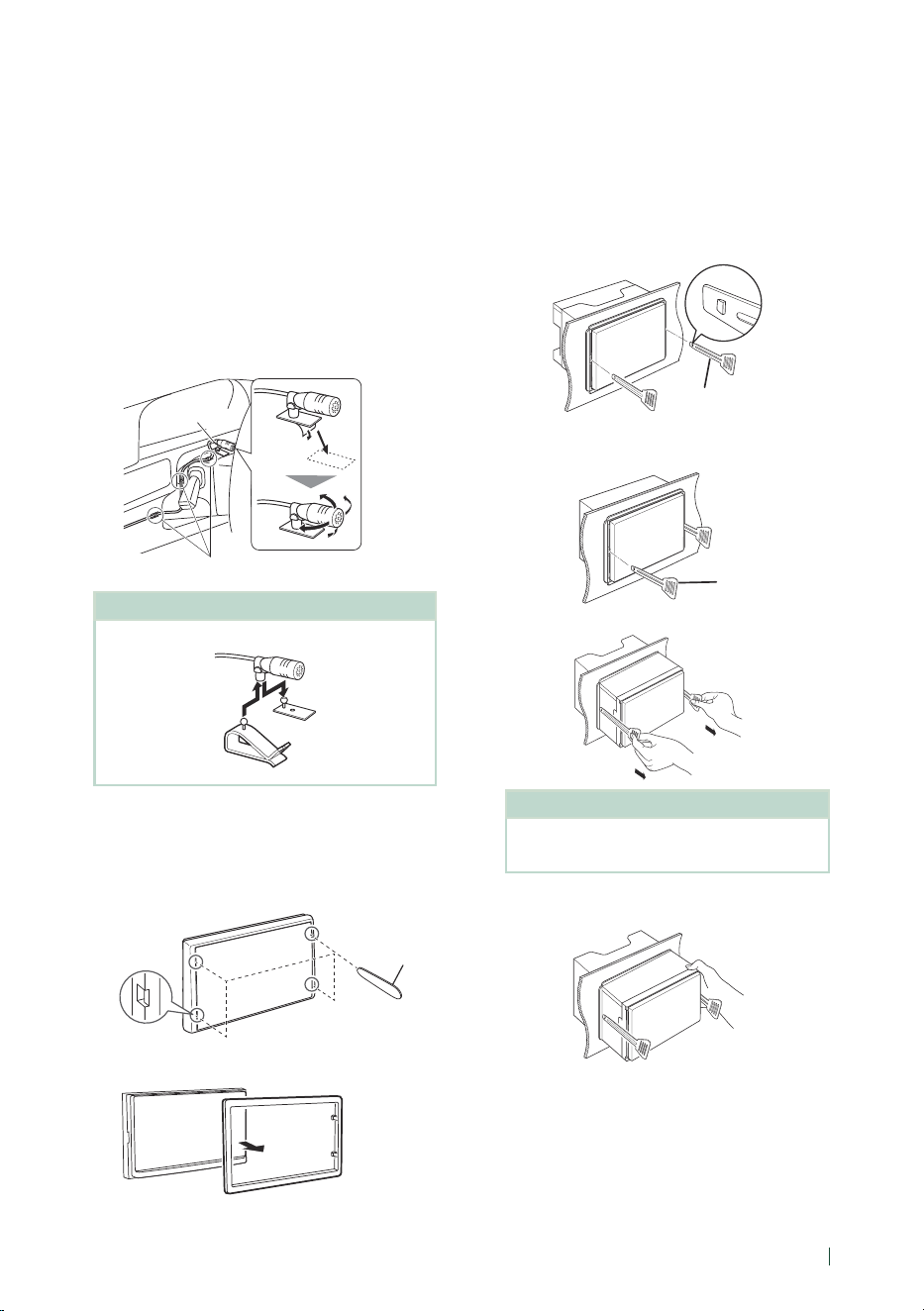

Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 1).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 1), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 1) to the driver.
1
Fix a cable with a commercial item of tape.
NOTE
• Swap the clips if necessary.
Ñ Removing the trim plate
1) Use the extraction key (accessory 4) to lever
out the four tabs (two on the left part, two on
the right part).
4
2) Pull the trim plate forward.
Ñ Removing the unit
1) Remove the trim plate by referring to step 1 in
“Removing the trim plate”.
2) Insert the extraction key (accessory 9) deeply
into the slot as shown. (The protrusion at the
tip of the extraction key must face toward
the unit.)
9
3) With the inserted extraction key secured,
insert the other extraction key into the slot.
9
4) Pull out the unit halfway.
NOTE
• Be careful to avoid injury from the catch
pins on the extraction key.
5) Pull the unit all the way out with your hands,
being careful not to drop it.
Connection/Installation
50
Sirius XM
PRK SW
STEERING
WHEEL
REMOTE
INPUT
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
REVERSE
SUB
WOOFER
1 2 3 4
5V
=
1.5A
Connect to the vehicle’s
parking brake detection
switch harness.
For best safety, be sure
to connect the parking
sensor.
Light Green (Parking sensor wire)
Accessory 3: Parking Extention cable
Purple/White (Reverse sensor wire)
For more information on how to install the
SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
To steering remote
To use the steering wheel remote control feature,
you need an exclusive remote adapter (not
supplied) matched to your car.
Connect to vehicle’s
reverse lamp harness
when using the
optional rear view
camera.
Light Blue/Yellow (Steering remote control wire)
Fuse (15A)
Ñ Connecting wires to terminals
Subwoofer Preout
Cap
Cap
FM/AM antenna
Connector A
Connector B
USB device
[2]
USB terminal
[1]
(1.0 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
Accessory 7
Accessory 8
FRONTOUTREAROUT
VIDEOOUTCAMIN
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Visual Output (Yellow)
Rear view camera input (Yellow)
SiriusXM Connect Vehicle Tuner connector
AV-IN
[2]
(1; Left audio, 2; Composite
video, 3; Ground, 4; Right audio).
Accessory 1:
Bluetooth Microphone
Connection/Installation
51English
Ñ Connecting an iPhone/Android
5V
=
1.5A
KS-U62 (0.8m)
[3]
USB cable
[2]
iPhone
[2]
Lightning connector
Android smartphone
[2]
Cap
USB terminal
[1]
(1.0 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
P.CONT
ANT.CONT
ILLUMI
Accessory 8
Accessory 7
Blue
(Power control/ Antenna control wire)
Connect either to the power
control terminal when using the
optional power amplifier, or to
the power terminal for the booster amplifier
of the film-type or short pole type antenna.
(Max. 150mA, 12V)
White/Black
Gray/Black
Green/Black
Purple/Black
To car light control switch
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To front left
speaker
To front right
speaker
To rear left
speaker
To rear right
speaker
Red (Ignition wire)
Orange/ White (Dimmer control wire)
Black (Ground wire) ¤
(To car chassis)
Yellow (Battery wire)
Ignition key switch
Car fuse box
Battery
Troubleshooting
52
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following
table for possible problems.
NOTE
• Some functions of this unit may be disabled by
some settings made on this unit.
• What might seem to be a malfunction in your
unit may just be the result of slight misoperation
or miswiring.
Ñ About settings
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass lter.
• Cannot set up the high pass lter.
Subwoofer is not set to on.
h Set the subwoofer to on. See Speaker/ X’over
setup (P.41).
Ñ About audio operations
Radio reception is poor.
The car antenna is not extended.
h Pull out the antenna all the way.
The antenna control wire is not connected.
h Connect the wire correctly. See Connecting wires
to terminals (P.50).
Cannot select a folder.
The random play function is enabled.
h Turn off the random function.
The sound skips when an audio le is being
played.
The recording condition is bad.
h Record the file again or use another USB memory.
Ñ Other
The Touch Sensor Tone doesn’t sound.
The preout jack is being used.
h The Touch Sensor Tone cannot be output from the
preout jack.
Error Messages
When you fail to operate the unit correctly, the
cause of the failure appears as the message on
the screen.
[No Device] (USB device)
The USB device is selected as a source although no
USB device is connected.
h Change the source to any source other than USB.
Connect a USB device, and change the source to
USB again.
[Disconnected] (Bluetooth audio player)
The Bluetooth audio player is selected as a source
although no Bluetooth audio player is connected.
h Change the source to any source other than
Bluetooth. Connect an Bluetooth audio player, and
change the source to Bluetooth again.
[No Media le]
The connected USB device contains no playable audio
file. Media was played that doesn’t have data recorded
that the unit can play.
h See Playable Media and Files (P.54) and try
another USB device.
Troubleshooting
53English
Ñ SiriusXM
[Check Tuner]
A SiriusXM tuner is not connected to this unit.
h Verify that the SiriusXM Connect Vehicle Tuner
cable is securely connected to the radio.
[Subscription Updated - Press Return To Continue]
The SiriusXM subscription has been renewed.
h Touching [Return] on the popup screen will clear
the message.
[Channel *** Not Available]
The currently selected channel is unavailable.
h Visit www.siriusxm.com for more information
about the SiriusXM channel lineup.
[Channel *** Not Subscribed /
Call SiriusXM to Subscribe]
The currently selected channel is not subscribed to.
h In the U.S.A., visit www.siriusxm.com or call
1-866-635-2349 if you have questions about your
subscription package or would like to subscribe to
this channel.
h In Canada, visit www.siriusxm.ca or call 1-877-438-
967 7.
[Check Antenna]
No antenna is connected to the SiriusXM tuner.
h Check that an antenna is connected to the SiriusXM
tuner. Check antenna for damages.
[No Signal]
No SiriusXM radio signal is received.
h Verify that your vehicle is outdoors with a clear
view of the sky.
[Channel *** Locked /
Please Enter the Lock Code _ _ _ _]
The selected channel has been locked by the parental
controls.
h Enter the unlock code when you are asked. See
Parental Control (P.25).
[Incorrect Pass Code entered]
The selected channel is a mature or parental lock
channel, and locked by the parental lock or user lock
code.
h Enter the correct lock code.
Appendix
54
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
Ñ About les
The following audio and video files are supported.
■ Playable Audio files
Format Bit rate Sampling frequency Bit count
AAC-LC (.m4a) MPEG2/4 AAC LC
HE-AAC(V1,V2)
8 – 320kbps, VBR 16 – 48 kHz 16 bit
MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma) Windows Media Audio Standard
L3 profile (Version 7,8,9)
8 – 320kbps 16 – 48 kHz 16 bit
Linear PCM
(WAVE) (.wav)
RIFF waveform Audio Format –
16 – 192 kHz 16/ 24 bit
FLAC (.flac) flac – 16 – 192 kHz 16/ 24 bit
Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit
NOTE
• WMA and AAC of which is covered with DRM cannot be played.
• Although the audio files are complied with the standards listed above, the play may be impossible depending
on the types or conditions of media or device.
■ Acceptable Video files
Profile Max. Picture size Max. bit rate Audio format
MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2
H.264/MPEG-4 AVC
(.mp4, .m4v, .avi, .flv)
Baseline Profile, Main
Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
MPEG-4 (.mp4, .avi) Advanced Simple Profile 1920 × 1080 (30 fps) 8 Mbps MP3, AAC
WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA
MKV (.mkv) Video Format follows H.264/MPEG-4 AVC, MPEG-4 MP3, AAC
■ Limitation of structure for the file and the folder
USB device
Maximum number of folder layers 8
Maximum number of files (per folder) 999
Maximum number of folders (per folder) 9999
Maximum number of folders (per device) –
NOTE
• You can enter a folder name and file name with 255 or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.
Appendix
55English
Specications
■ Monitor section
Picture Size
: 6.75 inches (diagonal) wide
: 151.8 mm (W) × 79.7 mm (H)
5-15/16 × 3-1/8 inch
Display System
: Transparent TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H × 480V × RGB)
Effective Pixels
: 99.99%
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■ USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT 16/ 32, exFAT
Maximum Power Supply Current
: DC 5 V
1.5 A
D/A Converter
: 16 bit
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
Frequency Response
• 192 kHz : 20 – 20,000 Hz
• 96 kHz : 20 – 20,000 Hz
• 48 kHz : 20 – 20,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.2% (1 kHz)
Signal to Noise Ratio
: 75 dB
Dynamic Range
: 75 dB
■ Bluetooth section
Technology
: Bluetooth Ver. 4.1
Frequency
: 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.)
: +8 dBm (Avg.), Power Class 1
Maximum Communication range
: Line of sight approx. 10 m (32.8 ft)
Audio Codec
: SBC/ AAC
Profile (Multi Profile support)
• HFP (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
■ DSP section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/
6.3k/ 10k/ 16k Hz
Gain
: -9/ -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0/
+1/ +2/ +3/ +4/ +5/ +6/ +7/ +8/ +9 dB
2Way X'Over
High pass lter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/
100/ 120/ 150/ 180/ 220/ 250 Hz
Slope: -6/ -12/ -18/ -24 dB/ Oct.
Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Low pass lter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/ -12/ -18/ -24 dB/ Oct.
Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position
Front / Rear /Subwoofer Delay
: 0 – 20.01 ft (0.03 or 0.04 ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -40 – +6 dB
Appendix
56
■ FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Usable Sensitivity (S/N: 30 dB)
: 16.2 dBf (1.8 μV/75 Ω)
Frequency Response (± 3.0 dB)
: 30 Hz – 14 kHz
S/N (dB)
: 50 dB (MONO)
Stereo Separation
: 35 dB (1 kHz)
■ AM tuner section
Frequency Range (step)
: 530 – 1700 kHz (10 kHz)
Usable Sensitivity
: 99 μV (40 dBμ)
■ Video section
Color System of External Video Input
: NTSC/ PAL
External Video Input Level (Mini jack)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (RCA jack)
: 1.5 V/ 25 kΩ
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
■ Audio section
Maximum Power Output (Front & Rear)
: 45 W × 4
Full Bandwidth Power (at less than 1% THD)
: 21 W × 4
Output Frequency Band
: 20 – 20,000 Hz
Preout Level (V)
: 2 V/ 10 kΩ
Preout Impedance
: 1.4 kΩ
Speaker Impedance
: 4 – 8 Ω
■ General
Operating Voltage
: 12V DC Car Battery
Installation Dimensions (W × H × D)
: 182 × 112 × 75 mm
7-3/16 × 4-7/16 × 2-15/16 inch
Main Unit Installation size (W × H × D)
: 178 × 100 × 75 mm (w/o sleeve)
7 × 3-15/16 × 2-15/16 inch
Weight
: 1.3 kg (2.8 lbs)
(Including Sleeve and Trim plate)
NOTE
• Although the effective pixels for the liquid
crystal panel is given as 99.99% or more, 0.01% of
pixels may not light or may light incorrectly.
Specications subject to change without
notice.
Appendix
57English
About this Unit
■ Copyrights
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by JVCKENWOOD Corporation is under
license. Other trademarks and trade names are those of
their respective owners.
• Windows Media is a registered trademark or trademark
of Microsoft Corporation in the United States and/or
other countries.
• This product is protected by certain intellectual
property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited
without a license from Microsoft.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with an Apple product may affect
wireless performance.
• Apple, iPhone and Lightning are trademarks of Apple
Inc., registered in the U.S. and other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are
trademarks of Apple Inc., registered in the U.S. and other
countries.
• App Store is a service mark of Apple Inc., registered in
the U.S. and other countries.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• IOS is a trademark or registered trademark of Cisco in
the U.S. and other countries and is used under license.
• Google, Android, Google Play and Android Auto are
trademarks of Google LLC.
• To use Android Auto on your car display, you’ll need an
Android Auto compatible vehicle or aftermarket stereo,
an Android phone running Android 5.0 or higher, and
the Android Auto app.
• Linux® is the registered trademark of Linus Torvalds in
the U.S. and other countries.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE PERSONAL USE OF A
CONSUMER OR OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO (¡)ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”)
AND/OR (¡¡)DECODE AVC VIDEO THAT WAS ENCODED BY
A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/
OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED
TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
AND NON-COMMERCIAL USE OF A CONSUMER FOR
(¡) ENCODING VIDEO IN COMPLIANCE WITH THE
MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/
OR (¡¡) DECODING MPEG-4 VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO
PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC.
SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE
VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL AND NON-COMMERCIAL ACTIVITY AND/
OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED
TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
• libFLAC
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007
,2008,2009 Josh Coalson
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that
the following conditions are met:
– Redistributions of source code must retain the above
copyright notice, this list of conditions and the
following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other materials provided with the distribution.
– Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
• libvorbis
Copyright (c) 2002-2008 Xiph.org Foundation
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that
the following conditions are met:
– Redistributions of source code must retain the above
copyright notice, this list of conditions and the
following disclaimer.
Appendix
58
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other materials provided with the distribution.
– Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation Redistribution
and use in source and binary forms, with or without
modification, are permitted provided that the following
conditions are met:
– Redistributions of source code must retain the above
copyright notice, this list of conditions and the
following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or
other materials provided with the distribution.
– Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
■ FCC CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
• This equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
Appendix
59English
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
■ ISED CAUTION
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
# CAUTION
This equipment complies with FCC/ISED radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the ISED radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20cm or more away from person’s body.
Supplier’s Declaration of Conformity
Trade Name: JVC
Products: MONITOR WITH RECEIVER
Model Name: KW-M560BT / KW-M56BT
Responsible Party: JVCKENWOOD USA
CORPORATION
2201 East Dominguez Street,
Long Beach, CA 90810, U.S.A.
PHONE: 310 639-9000
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
■ Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■ Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
■ Para cumplimiento de la IFT:
“La operación de este equipo esta sujeta a las siguientes
dos condiciones:
(1) es posible que este equipo o dispositivo no cause
interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su
operación no deseada.”
60
Important Notice on Software
Ñ Software License on This Product
The software embedded in this product comprises a
number of independent software components, each
of which is copyrighted by JVCKENWOOD Corporation
or by a third party.
This product uses software components that
are based on an End-User License Agreement
(hereinafter called “EULA”) stipulated by JVCKENWOOD
Corporation and by third parties.
The EULA dictates the availability of the source codes
of free-software components as a prerequisite to
distributing them in executable form under the
terms of the GNU General Public License or the Lesser
General Public License (hereinafter called “GPL/LGPL”).
To get information about the software components
that are subject to the terms of the GPL/LGPL, please
visit the following Website:
Website URL
https://www3.jvckenwood.com/english/download/gpl/
Queries concerning the contents of the source code or
the like will not be accepted.
Please note that software components based on a
EULA that is not subject to the terms of the GPL/LGPL
or those that have been developed or created by
JVCKENWOOD Corporation will be excluded from the
scope of source code disclosure.
Because licenses to use software components
distributed under the GPL/LGPL are offered to the
customers for free of charge, no warranty is granted to
the customers, whether explicitly or implicitly, to the
extent of the applicable laws.
Unless otherwise stipulated by the applicable laws
or agreed upon in writing, the copyright holders or
those who are entitled to modify and redistribute the
software components are not held responsible for
any and all damages resulting from their use or from
inability to use them. For more information about the
terms of use of the software components, required
items of compliance and so on, please refer to the
GPL/LGPL.
Customers wishing themselves to use a software
component that is subject to the GPL/LGPL embedded
in this product are encouraged to read the terms of
the corresponding license before use. Because each
individual license is prescribed by a third party other
than JVCKENWOOD Corporation, the original (English)
of the license is presented.
EULA
Ñ Software License Agreement
JVCKENWOOD Corporation (hereinafter called
“Licensor”) holds either the copyright to the
embedded software or the right to sublicense it. This
agreement establishes the conditions under which the
customer uses this “Licensed Software.”
The customer shall agree to the terms of this license
agreement before proceeding to use Licensed
Software.
This agreement is deemed to have taken effect when
the customer (hereinafter called “User”) has used a
product implementation of Licensed Software.
The Licensed Software may contain software Licensor
has been licensed to use by third parties directly
or indirectly. Some third parties may have terms of
use prescribed for their customers, apart from this
Software License Agreement. This agreement does not
apply to such software. Be sure to consult “Important
Notice on Software” as presented separately.
Article 1 (General)
Licensor grants to User a non-exclusive, non-
assignable right of use Licensed Software within
the country where the User purchases the Product
(hereinafter the "Country") (except for the exception
provided for in Paragraph 1, Article 3).
Article 2 (Right of Use)
1. The rise of use granted under this agreement is the
right to use Licensed Software in this product.
2. User may not duplicate, copy, modify, add to,
translate or otherwise alter, or loan licensed Software
and the associated literature in whole or in part.
3. Use of Licensed Software is limited to a private
extent , and Licensed Software may not be
distributed, licensed or sublicensed for any purposes
whatsoever, including commercial use.
4. User shall use Licensed Software as per the
instruction manual or instructions given in the help
file and may not use or duplicate data in violations
of the regulations of the Copyright Law or other
governing laws by using Licensed Software in whole
or in part.
61
Article 3 (Terms of License)
1. In assigning this product, User may not retain
the original copy of the embedded Licensed
Software (including associated literature, updates
and upgrades) and any duplicates and associated
literature with regard to the license to use Licensed
Software. User may transfer Licensed Software only
to the condition of binding the assignee to abide by
the terms of this Software License Agreement.
2. User may not reverse-engineer, disassemble,
decompile or otherwise analyze the source code of
Licensed Software.
Article 4 (Rights to Licensed Software)
All rights to Licensed Software and the associated
literature, including copyrights, shall reside with
Licensor or the original right holder who has granted
the Right of Use and right to sublicense to Licensor
(hereinafter referred to as “Original Right Holder”), and
User does not have any rights other than Right of Use
granted hereunder with regard to Licensed Software
and the associated literature.
Article 5 (Exemption Granted to Licensor)
1. Licensor and Original Right Holder do not assume
any responsibility for damages caused to User or
third parties resulting from the exercise by User of
the license granted hereunder, unless otherwise
provided by any law to the contrary.
2. Licensor does not warrant Licensed Software to
be merchantable, compatible and fit for specific
purposes.
Article 6 (Responsibility for Third Parties)
If disputes over the infringement of third parties’
intellectual property rights, such as copyrights and
patent rights, arise out of the use of Licensed Software
by User, User shall resolve these disputes at User’s
own expenses while keep Licensor and Original Right
Holder harmless.
Article 7 (Secrecy Obligation)
User shall keep confidential Licensed Software
provided hereunder, information contained in the
associated literature or the like and those provisions of
this agreement not yet in public knowledge and may
not disclose or leak these to third parties without prior
written consent from Licensor.
Article 8 (Cancellation of the Agreement)
Licensor reserves the right to cancel this agreement
forthwith and claim compensation from User for the
damages caused by such cancellation when User:
(1) Breaches any of the provisions of this agreement, or
(2) Has received a petition for seizure, provisional
seizure, provisional disposition or any other kind of
compulsory execution.
Article 9 (Destruction of Licensed Software)
If this agreement is terminated under the provision of
the foregoing paragraph, User shall destroy Licensed
Software, along with all associated literature and its
duplicates, within two (2) weeks from the date of
termination.
Article 10 (Copyright Protection)
1. Copyrights and all other intellectual property
rights relating to Licensed Software shall reside
with Licensor and Original Right Holder and in no
circumstances with User.
2. User shall abide by the laws relating to copyrights
and intellectual property rights in using Licensed
Software.
Article 11 (Export Control)
1. Licensed Software and the associated literature or
the like may not be exported to places outside the
Country (including transmission outside the Country
over the Internet or the like).
2. User agrees that Licensed Software is subject to
export controls imposed by the Country and the
United States of America.
3. User agrees to comply with all the international
and domestic laws that apply to this software (U.S.
Export Administration Regulations and regulations
established by the U.S., the Country and their
governmental agencies regarding usage by end
users and export destinations).
Article 12 (Miscellaneous)
1. Even if this agreement is invalidated in part by law,
all other provisions shall remain in effect.
2. Licensor and User shall consult each other in
good faith to resolve any matters not provided for
in this agreement or questions arising from the
interpretation of this agreement.
3. Licensor and User agree that this agreement is
governed by the law of Japan and that all disputes
involving claims and obligations that may arise out
of this agreement will be settled by arbitration at the
Tokyo District Court as the court of first instance.
