Setup Instructions
Product No. 3519001
BRUSH
CUTTER
2
Need further help?
suppor[email protected]
See our full range at
www.vonhaus.com
Besoin d’aide supplémentaire ?
suppor[email protected]
Découvrez notre gamme complète sur
www.vonhaus.com
Benötigen Sie weitere Hilfe?
suppor[email protected]
Entdecken Sie unser gesamtes
Sortiment auf
www.vonhaus.com
Necesita más ayuda?
suppor[email protected]
Descubra toda nuestra gama en
www.vonhaus.com
Hai bisogno di ulteriore assistenza?
suppor[email protected]
Scopri tutta la nostra gamma su
www.vonhaus.com
3
Parts & Components
A
B
C
E
A. Cordless Brushcutter
B. Mounting Screws x 2
C. T-Key with Hexagon x 1
D. Cutting Blade x 1
E. Carrying Belt x 1
F. P rotective Guard x 1
G. Aluminum Handlebar Frame x 1
H. Batteries x 2
I. B attery Charger x 1
J. On/OFF Trigger x 1
K. Allen Key
L. L ine Spool
F
H
J
I
G
D
K
L
4
Assembly
1
Handle Assembly:
• Align handlebar with aluminum
frame
• Secure upper clamp with 4 bolts
G
J
5
Assembly
2
Shaft Tube Installation:
• Insert aluminum tube into hole
• Tighten locking knob
6
Assembly
3
Attach the protective cover to the motor housing
with two screws using the hexagon wrench (t
he T-wrench with hexagon)
B
7
Assembly
4

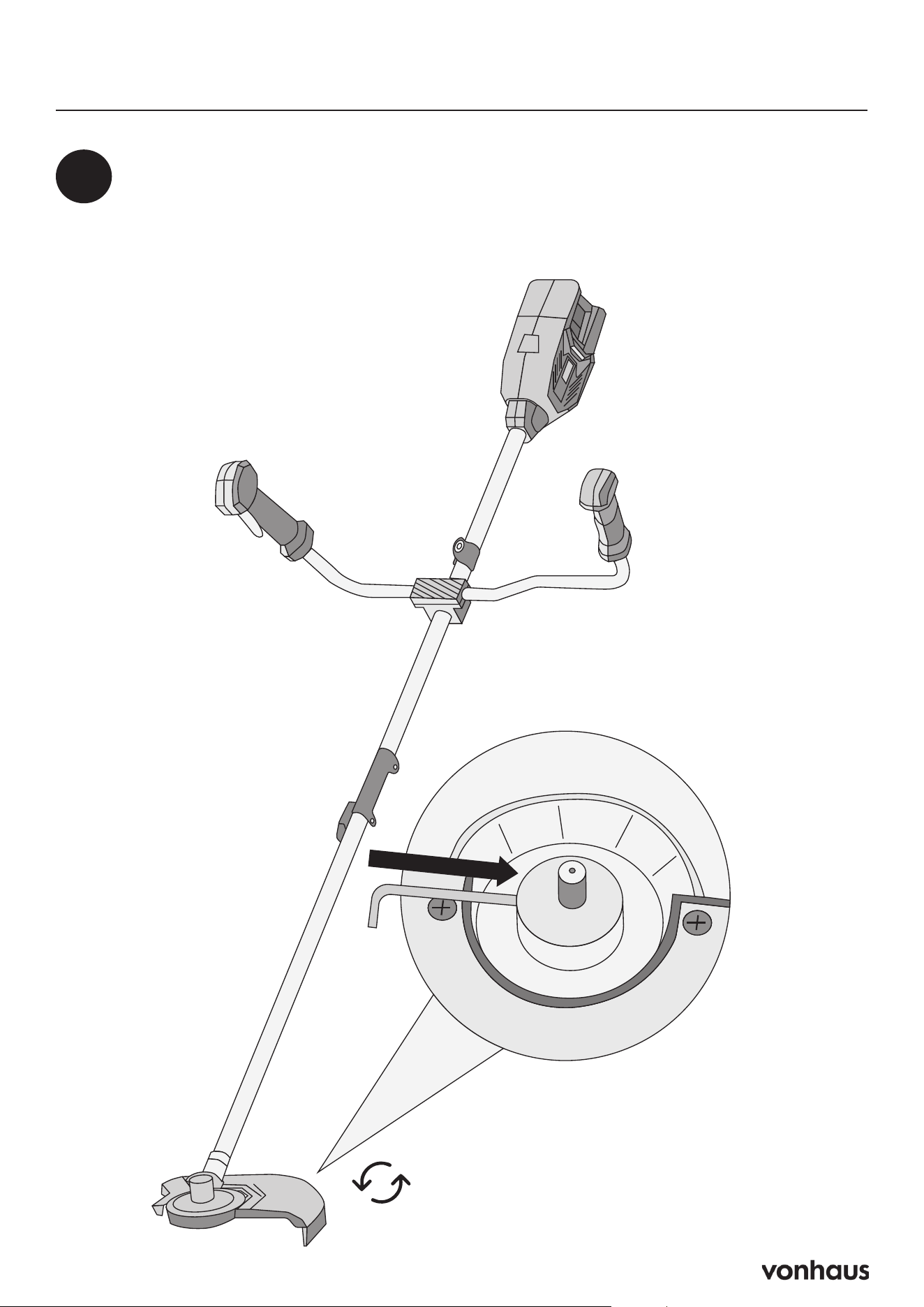

Spindle lock:
In order to mount a reel / knife, the
spindle must always be locked.
To lock the spindle, press the spindle
locking pin and keep it pressed while
tightening or loosening.
8
Assembly
5

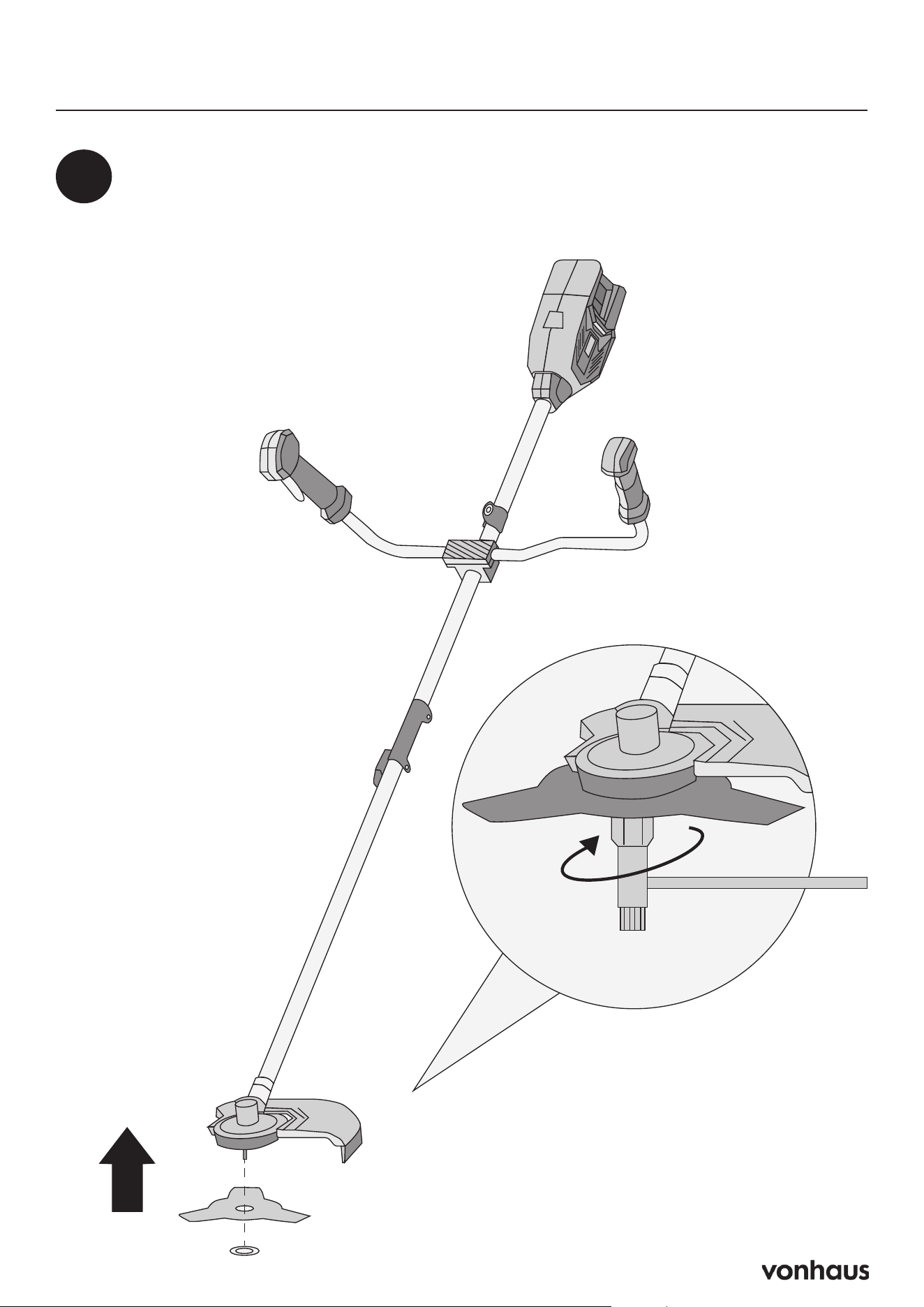

Mount the mower blade
1. Put blade onto lower blade holder
2. Add upper blade holder, convex
side out
3. Hold s pindle l ock, t ighten n ut
clockwise
Safety: Wear gloves, keep blade
clean, use blade cover when not in
use.
9
Assembly
6

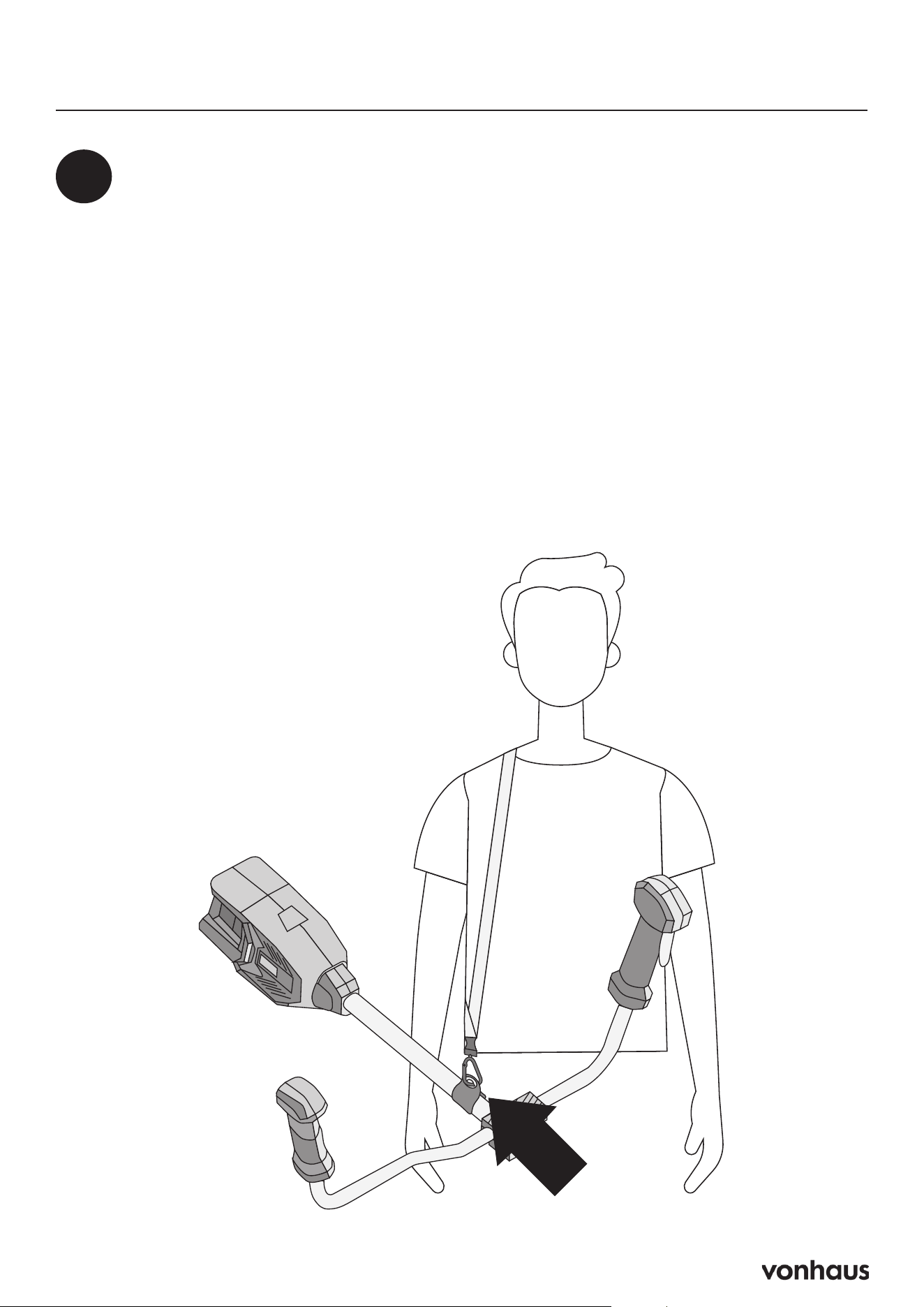

Attach the strap
• Connect the strap to the mount on
top of the main unit
• Place the strap over your RIGHT
shoulder only
• Keep the motor unit on your right
side
Adjust for comfort
• Adjust strap length until comfortable
• Practice swinging without starting
the motor
• Find your balance point
SAFETY WARNING:
• Never wear the strap diagonally
across chest
• Keep it on one shoulder only
• This allows quick removal in
emergencies
TIP: Before starting work, do a
few practice movements to ensure
everything feels balanced and se-
cure.
10
General Safety
This 2-in-1 cordless brush cutter functions as
both a grass trimmer and a brush cutter. It can
trim grass edges after mowing or cut tall grass
and bushes. Simply switch between the 4m
double line spool and the 3-tooth blade.
As a grass trimmer, it has a 340mm cutting
circle, and as a brush cutter, a 255mm cutting
circle. The 36V batteries allow unrestricted use
without a power cord.
Intended Use
This 2-in-1 cordless brush cutter is designed
for private, non-commercial use. It serves two
functions:
• Mowing lawns, weeds, and long grass
• Trimming shrubs and bushes
Important Notes:
• Adult use only
• Any other use is considered improper
• Manufacturer accepts no liability for
improper use
Safety Instructions
WARNING: Read all safety instructions. Failure
to follow instructions may result in electric shock,
fire, or serious injury.
Workspace Safety
• Keep area clean and well-lit
• Avoid explosive environments
• Keep children away
Electrical Safety
• Use proper plugs and outlets
• Avoid wet conditions
• Use appropriate extension cords
• Install residual current circuit breaker in
damp conditions
Personal Safety
• Stay alert while operating
• Use protective equipment
• Prevent accidental starts
• Maintain proper posture
• Wear appropriate clothing
Tool Use and Care
• Don’t overload the device
• Maintain tools properly
• Keep cutting tools sharp
• Use appropriate accessories
• Store safely away from children
Battery Care
• Use only recommended chargers
• Keep battery away from metal objects
• Avoid contact with battery fluid
• Service only by qualified professionals
• Keep all safety information for future
reference.
• Ensure tool is off before inserting battery
• Charge batteries indoors only
• Allow hot batteries to cool before charging
• Operating temperature: 4° to 40°C
• Storage temperature: 0° to 50°C
• Remove battery before storing
Information
11
Brush Cutter Safety
When operating in brush cutter mode:
• Always wear heavy gloves when handling
blades
• Never touch rotating blades
• Keep both hands on handles until blade
stops completely
• Check blades before each use; replace if
damaged
• Use only manufacturer-approved blades
• Cut from right to left for better control
• Always use both hands to operate
• If you hit an obstacle, this technique helps
minimize blade kickback
CAUTION: Moving blades can cause serious
injury.
Cleaning Instructions
When operating in brush cutter mode:
• Keep v entilation s lots d ust-free
to p revent m otor o verheating
Clean the housing with a soft cloth after each
use if possible
• For stubborn dirt, use a soft cloth dampened
with soapy water
• Keep device and charger connections clean
CAUTION: Never use solvents like gasoline,
alcohol, or ammonia water as they can damage
plastic parts.
Technical Specifications
Nominal Voltage: 36V DC (2 x 18V DC)
Rotation Speed (First Gear): 6000 RPM
Grass Trimmer (Wire Spool): 340mm
Brush Cutter (Blade): 255mm
Information
Grass Sweeper No. 350036112
Usage & Safety
Maintain a safe distance
from bystanders
Do not use in
wet conditions
Protect your ears
Protect your eyes
Wear suitable footwear
Protect your hands
Protective clothing
must be worn
Beware of
kickback
Sharp edges
Potential finger
trap points
13
Legal
DISPOSAL INFORMATION
Please recycle where facilities exist. Check with
your local authority for recycling advice.
CUSTOMER SERVICE
If you are having difficulty using this product
and require support, please contact support@
vonhaus.com
WARRANTY
To register your product and find out if you
qualify for a free extended warranty please go
to www.vonhaus.com/warranty.
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the warnings
page of this manual, and all other instructions
have been followed accurately.
Any abuse of the product or the manner in which
it is used will invalidate the warranty.
RETURNS
Returned goods will not be accepted unless
re-packaged in its original packaging and
accompanied by a relevant and completed
returns form. This does not affect your statutory
rights.
No rights are given under this warranty to a
person acquiring the appliance second-hand
or for commercial or communal use.
COPYRIGHT
All material in this instruction manual are
copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
THANK YOU
Thank you for purchasing your product/
appliance.
Should you require assistance with your
purchase, please contact us at
suppor[email protected]
VonHaus is a registered trademark of DOMU
Brands Ltd.
Made in China for DOMU Brands.
Unit 30, Stakehill Industrial Estate,
Middleton, Manchester, M24 2RW
AUTHORISED REPRESENTATIVE
Authorised Representative Service
77 Camden Street Lower
Dublin, D02 XE80, Ireland
Product No. 3519001
