USE AND CARE GUIDE
BURGESS 52-INCH CEILING FAN
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Item #1007 799 317
Model #56058
UL Model #52-LASO
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
2
Table of Contents ................................................................ 2
Safety Information ...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation ............................................................................6
Assembly ..............................................................................7
Operation ...........................................................................14
Care and Cleaning ............................................................. 17
Troubleshooting .................................................................17
1. To reduce the risk of electric shock, ensure the electricity has been
turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code
ANSI/NFPA 70 and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted and
capable of reliably supporting 35 lb (15.9 kg). Use only UL Listed
outlet boxes marked “Acceptable for Fan Support of 35 lb (15.9 kg)
or less.”
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) clearance
from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before you
reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use
caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the instructions packaged with the light kits
and switches for proper assembly.
9. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
10. All set screws must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: Remove the rubber motor stops on
the bottom of the fan before installing the blades or
testing the motor.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference
only. Optional use of any light kit shall be UL Listed
and marked suitable for use with this fan.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or
less,” and use the screws provided with the outlet
box.
Safety Information
Table of Contents
READ AND SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of re or electric
shock, this fan should only be used with fan speed
control part no. MR225A, manufactured by Chungear
Industrial Co., Ltd.
WARNING: To reduce the risk of electric shock, this
fan must be installed with an isolating wall switch.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
□ Reorient or relocate the receiving antenna.
□ Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
□ Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
The distance between user and products should be no less than 20 cm.
3
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.

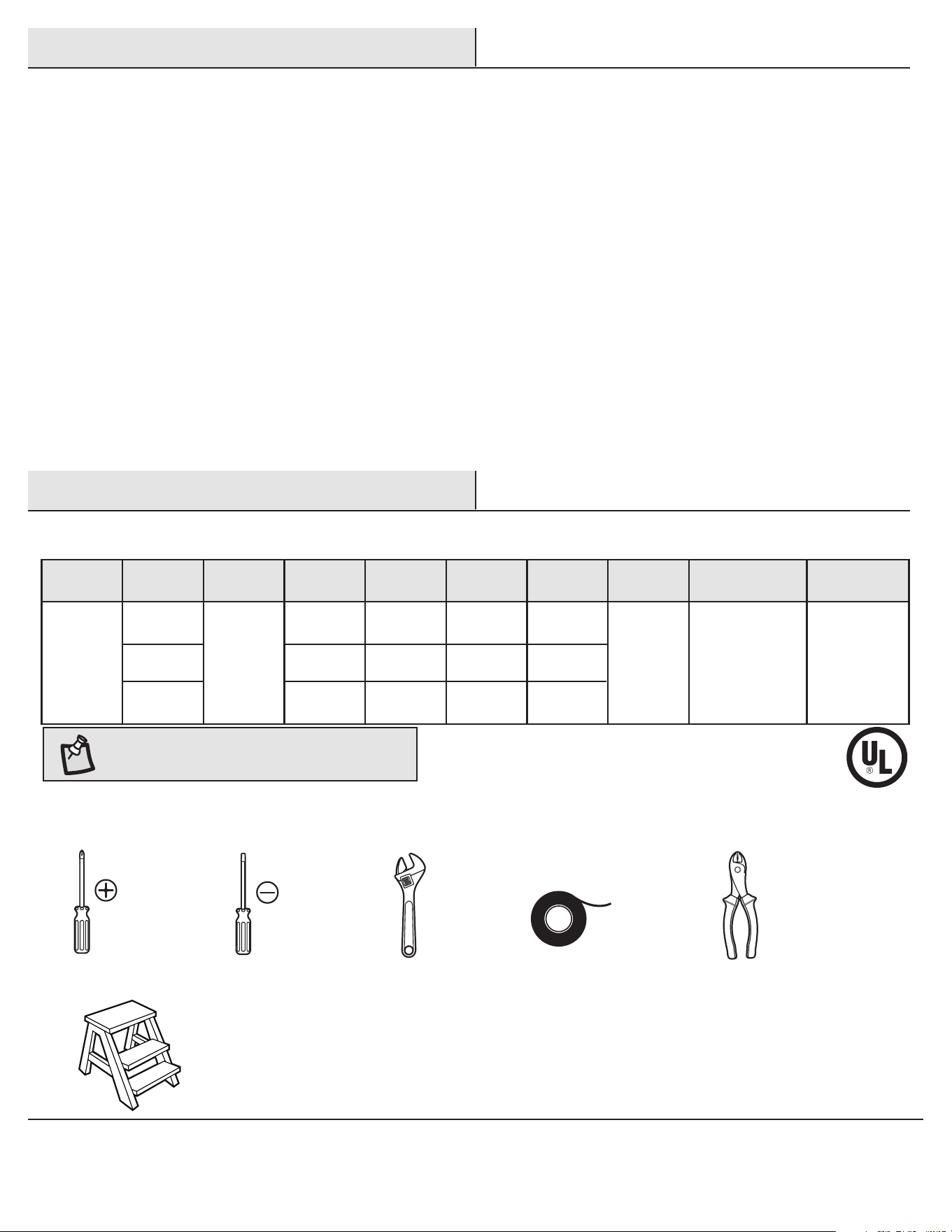

Pre-Installation
Warranty
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the amps and wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter /
stripper
Step ladder
Size Speed Volts Amps Watts RPM CFM
Net
Weight
Gross
Weight
Cube Feet
52 in.
Low
Medium
High
120
0.2
0.35
0.5
8
27
58
50
100
150
1611
3169
4626
20.28 lb
(9.2 kg)
27.45 lb
(12.45 kg)
2.33 cu.ft.
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a
lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in
workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at
the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects
without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present
a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as by
accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their
longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection
hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the express warranty.
Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may otherwise
be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not
apply to you. This warranty gives specic legal rights, and you may also have other rights which vary from state to state. This warranty supersedes
all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-877-592-5233 or visit www.HomeDepot.com/hubspace.
4
Part Description Quantity
AA Extra blade bracket screw 1
BB Plastic wire connector 3
CC Hanger pin 1
DD Locking pin 1
EE Blade screws 16
Pre-Installation (continued)

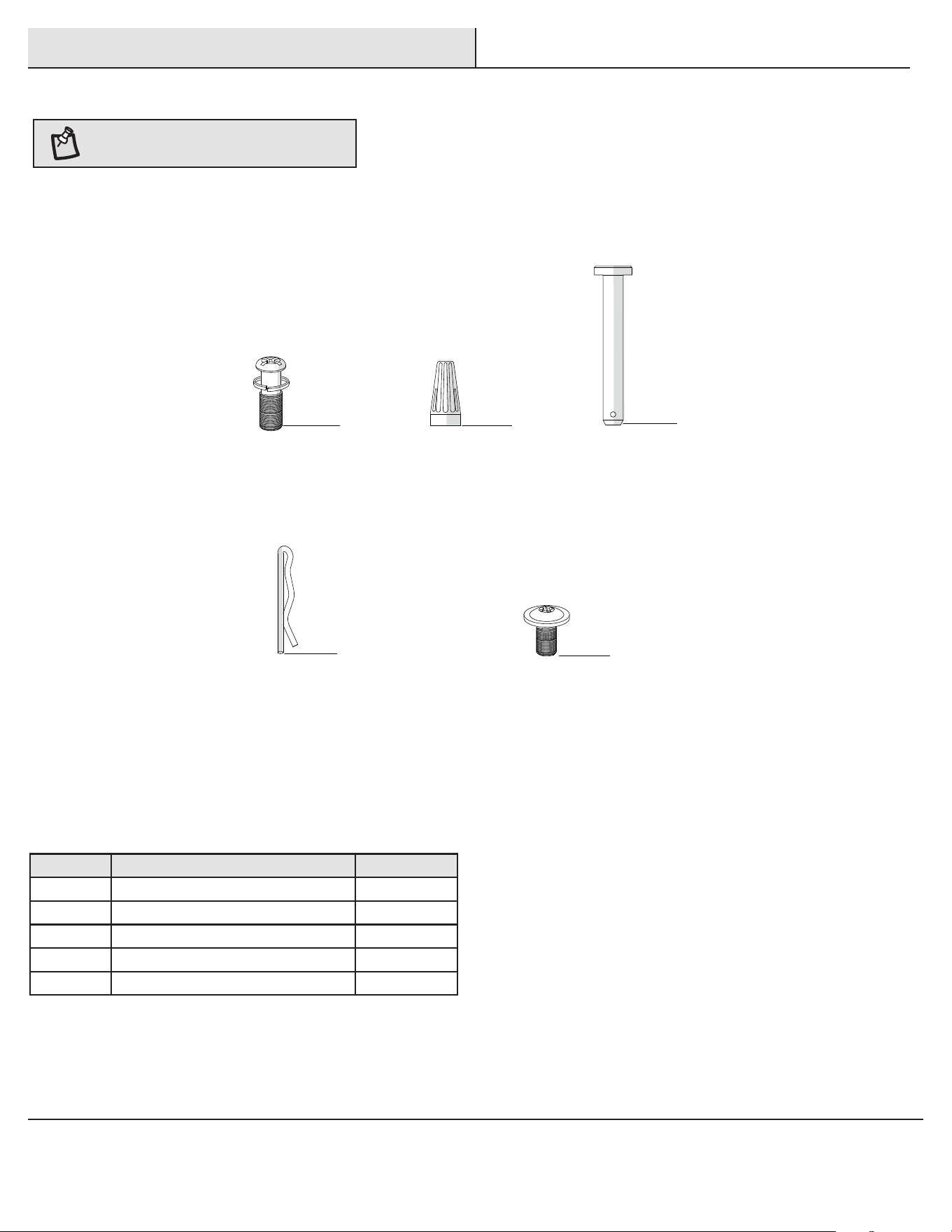

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
BB
CC
DD
AA
EE
5
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy 1
D Decorative motor collar cover 1
E Fan motor assembly 1
F Light kit tter assembly 1
Part Description Quantity
G Blade 5
H Blade bracket (with pre-installed screws) 5
I Glass shade 4
J LED bulbs (9.5w, Maximum) 4
K Receiver 1
L Remote control 1
M Lead wire 1
N Battery 2
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)

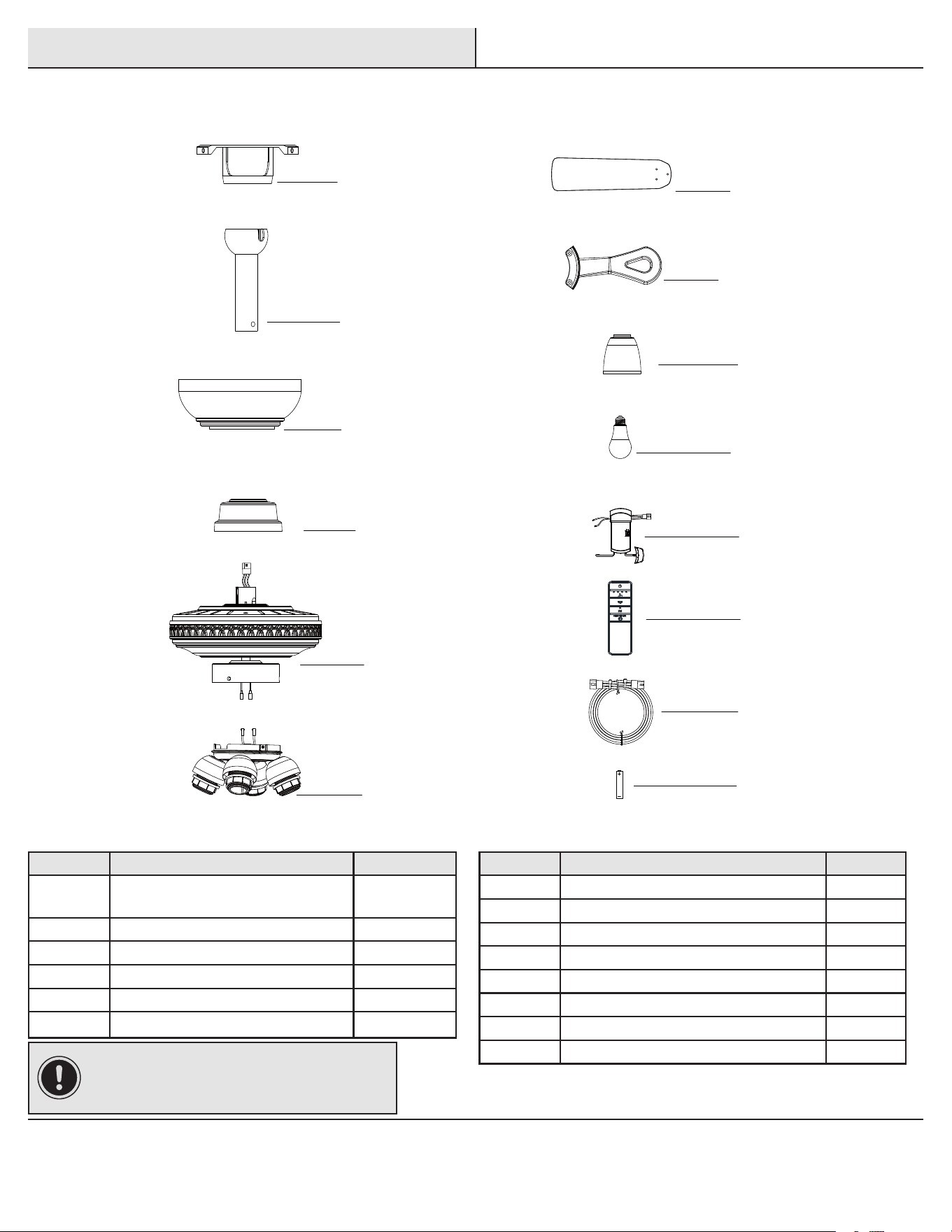

PACKAGE CONTENTS
A
B
C
E
F
G
H
D
1 2
3
4
O
N
D
I
P
I
J
K
L
M
N
6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less,”
and use the screws provided with the outlet box. An
outlet box commonly used for the support of lighting
xtures may not be acceptable for fan support and may
need to be replaced. If in doubt, consult a qualied
electrician.
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
□ Disconnect the power by removing the fuses or turning off
the circuit breakers.
□ Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight of
the moving fan (at least 35 lb). Do not use a plastic outlet
box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy (C) touches the ball/downrod assembly (B), then remove
the decorative canopy bottom cover and turn the canopy (C) 180°
before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above (available at
any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 20° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar
7
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.

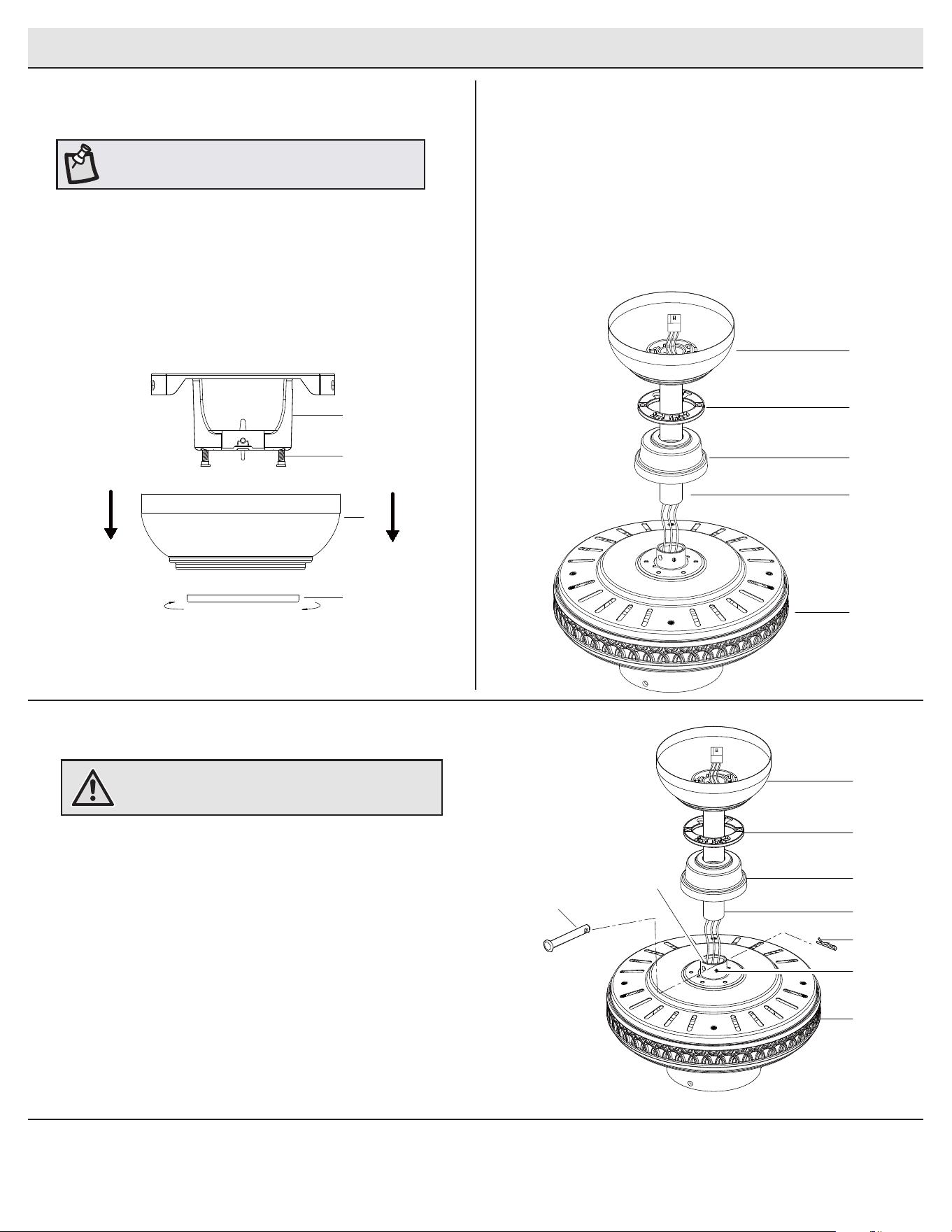

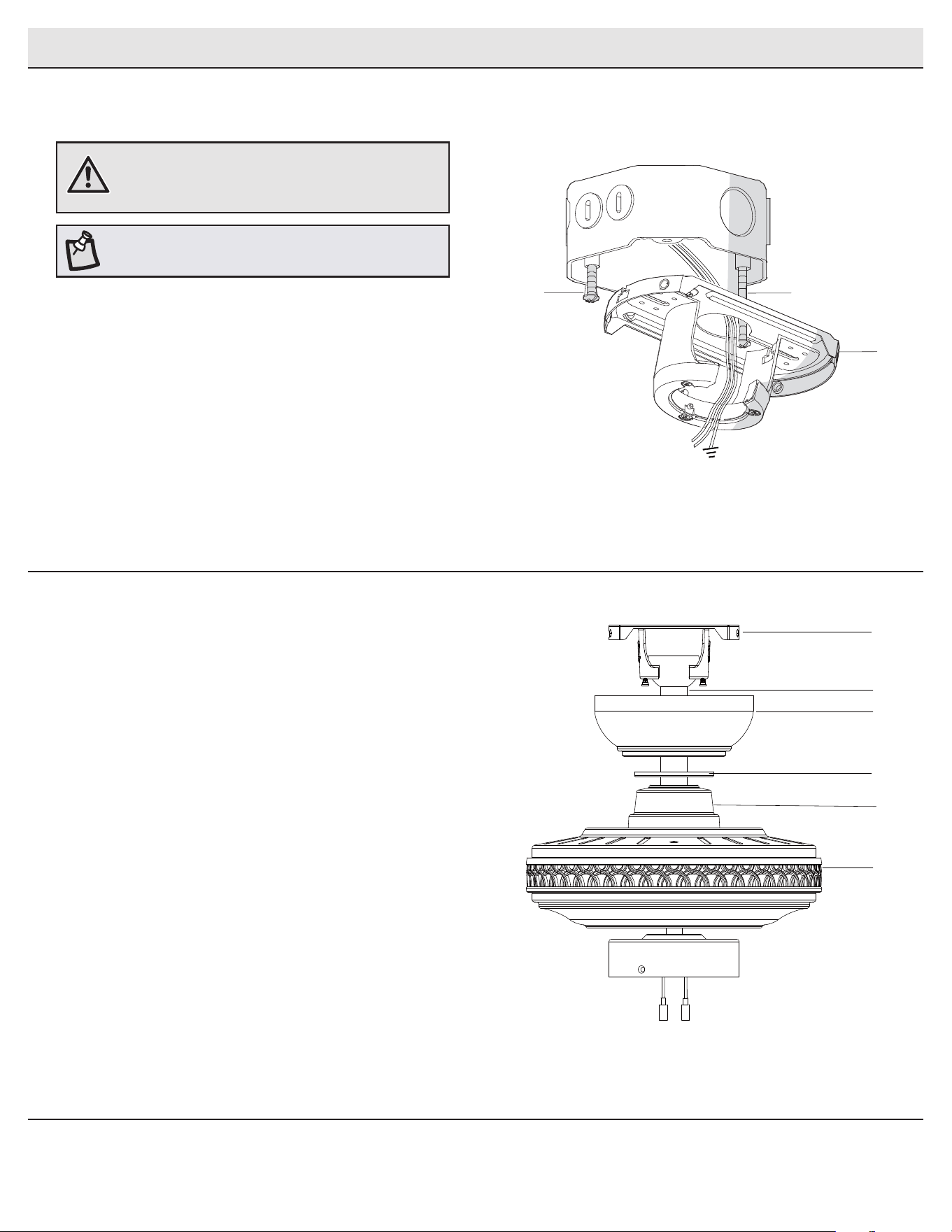

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparing for standard mounting
□ Loosen, but do not remove, the set screws (JJ) on the
collar (MM) on top of the fan motor assembly (E).
□ Align the holes at the bottom of the ball/downrod
assembly (B) with the holes in the collar (MM) on top of
the fan motor assembly (E).
□ Carefully insert the hanger pin (CC) through the holes
in the collar (MM) and ball/downrod assembly (B). Be
careful not to jam the hanger pin (CC) against the wiring
inside the ball/downrod assembly (B).
□ Insert the locking pin (DD) through the hole near the
end of the hanger pin (CC) until it snaps into its locked
position.
□ Re-tighten the set screws (JJ) on the collar (MM) on top
of the fan motor assembly (E).
2
3
1
WARNING: Failure to properly install the locking pin (DD)
could result in the fan becoming loose and possibly
falling.
□ Remove the magnetic canopy bottom cover (FF) from the
canopy (C) by pulling it off.
□ Loosen the two canopy screws (II) located in the bottom of the
mounting bracket (A).
□ Turn the canopy (C) counterclockwise to remove the mounting
bracket (A) from canopy (C).
NOTE: The magnet is pre-attached on the canopy
bottom cover for you to remove and install easily.
□ Route the wires exiting the top of the fan motor assembly (E)
through the decorative motor collar cover (D) and then the
center of the canopy bottom cover (FF).
□ Make sure the opening of canopy (C) is on top and insert the
ball/downrod assembly (B) through the canopy (C).
□ Route the wires exiting the top of the fan motor assembly (E)
through the downrod as shown.
C
A
II
FF
C
D
E
B
FF
C
D
E
B
FF
CC
DD
JJ
MM
8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box
□ Pass the 120-Volt supply wires through the center hole in the
slide-on mounting bracket (A).
□ Install the slide-on mounting bracket (A) on the outlet box by
sliding the slide-on mounting bracket (A) over the two screws (LL)
provided with the outlet box. If necessary, use leveling washers
(not included) between the slide-on mounting bracket (A) and
the outlet box. The at side of the slide-on mounting bracket (A)
should face toward the outlet box, as shown.
□ Securely tighten the two mounting screws (LL).
1
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to an outlet box marked
“Acceptable for fan support of 35 lb (15.9 kg) or less,”
and use the screws provided with the outlet box.
Hanging the fan
2
□ Carefully lift the fan motor assembly (E) up to the slide-on
mounting bracket (A).
□ Insert the ball portion of the ball/downrod assembly (B) into
the socket of the slide-on mounting bracket (A).
□ Turn the ball/downrod assembly (B) clockwise until it is
seated with the tab of the slide-on mounting bracket (A)
aligned with the slot in the ball.
NOTE: The mounting bracket (A) is designed to slide into
place on an outlet box with the outlet box screws (LL).
LL
LL
A
A
C
D
E
FF
B
9
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Hanging the Fan (continued)

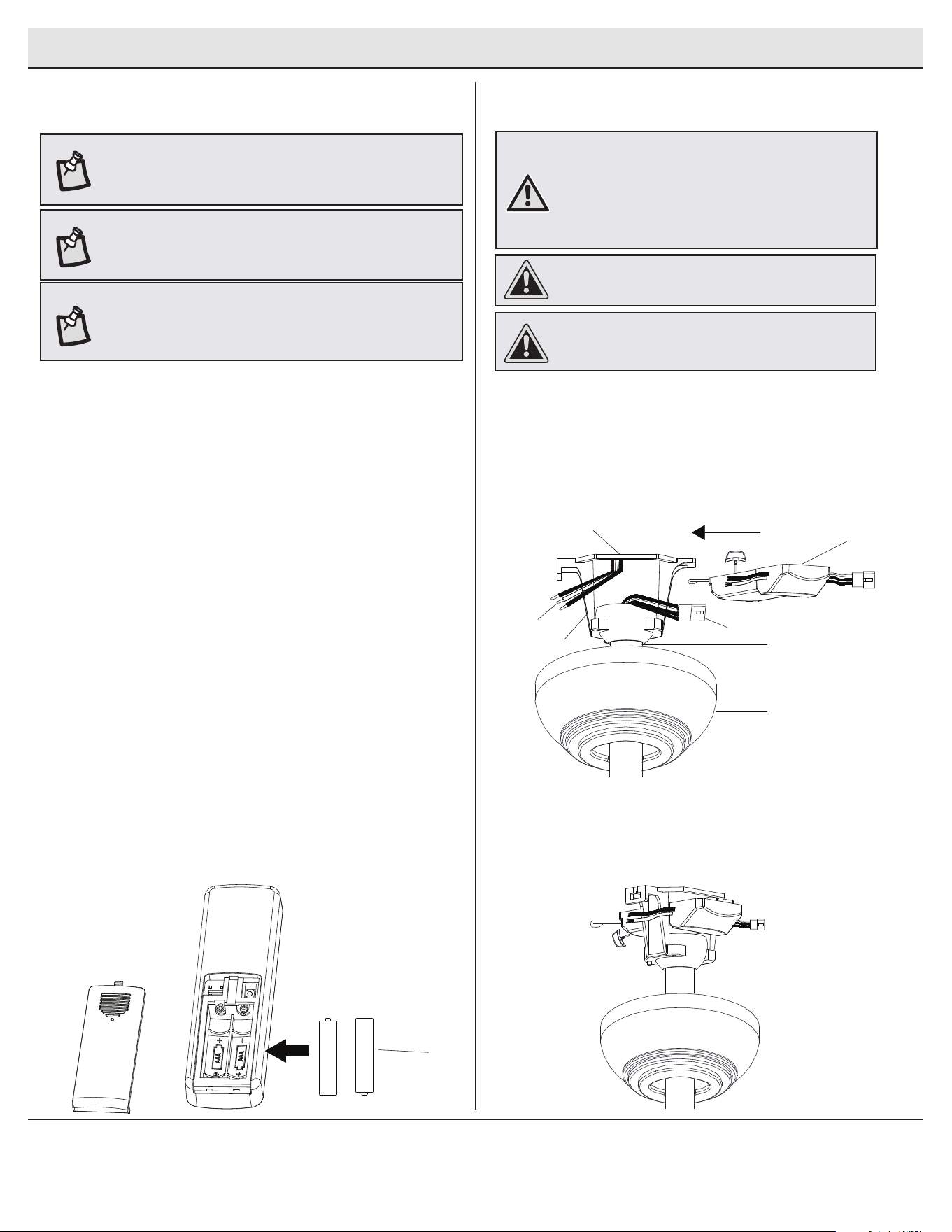

Preparing the remote control
3
□ Conrm that the power to the fan is off at either the wall switch or
breaker box.
□ Remove the battery cover by pressing rmly on the arrow and
sliding the cover off.
□ Install two 1.5V AAA batteries (N).
□ Return power to the fan at the wall switch or breaker box.
□ If the remote control doesn’t work as normal, press then release
the “Learn” button for 1-2 seconds (located in the remote’s battery
compartment) within 30 seconds of turning on the power.
□ If pairing is successful, the fan’s light kit will ash and the blades
will begin to spin.
□ Replace the battery cover on the remote control.
1 to 3 mode
□ To use more than one remote control for your fan, press the “Learn”
button for 10 seconds and release within 30 seconds of turning on the
power. Once pairing is successful, the fan’s light kit will ash and the
blades will begin to spin.
□ Repeat the above process for the remote controls you want to work
with this fan.
□ The fan can be only controlled by 3 remote controls maximum at the
same time after “Learning”. If you use a fourth remote control to handle
the fan, the rst remote control will be replaced.
1 to 1 mode
□ To use only one remote control for your fan, press and release the
“Learn” button for 1-2 seconds within 30 seconds of turning on the
power. The “1 to 3” mode will be cleared and returned back to “1 to
1” mode.
NOTE: The remote control has already been paired to the
ceiling fan for your convenience. If you have two of the same
model fans in your home, please follow the steps below to
control each fan independently.
NOTE: The remote control battery will weaken with age and
should be replaced before leaking takes place, as this will
damage the remote control. Dispose of used battery properly
and keep the battery out of the reach of children.
NOTE: The switch marked “O/D” controls the dimming
function of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to “O” to
disable the dimming function. If using dimmable bulbs, set
the switch to “D” to enable the dimming function.
LEARN
K7
N
Installing the receiver
□ Position the house supply wires (AAA) to one side of the
slide-on mounting bracket (A). Position the fan wires to the
opposite side.
□ Insert the narrow end of the receiver (K) (as shown, at side
towards the ceiling) into the slide-on mounting bracket (A)
until it rests on top of the ball/downrod assembly (B).
4
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring
must meet all local and national electrical code
requirements. The electrical source and fan must
be 110/120 volts, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect
wire connection can damage this receiver.
CAUTION: If other fan wires are a different color, have
this unit installed by a licensed electrician.
CAUTION: Do not install in a damp location or immerse
in water (for indoor use only). Do not pull on or cut leads
shorter. Do not drop or bump the unit.
C
B
BBB
AAA
A
A
View after installation
K
10
Assembly - Hanging the Fan (continued)

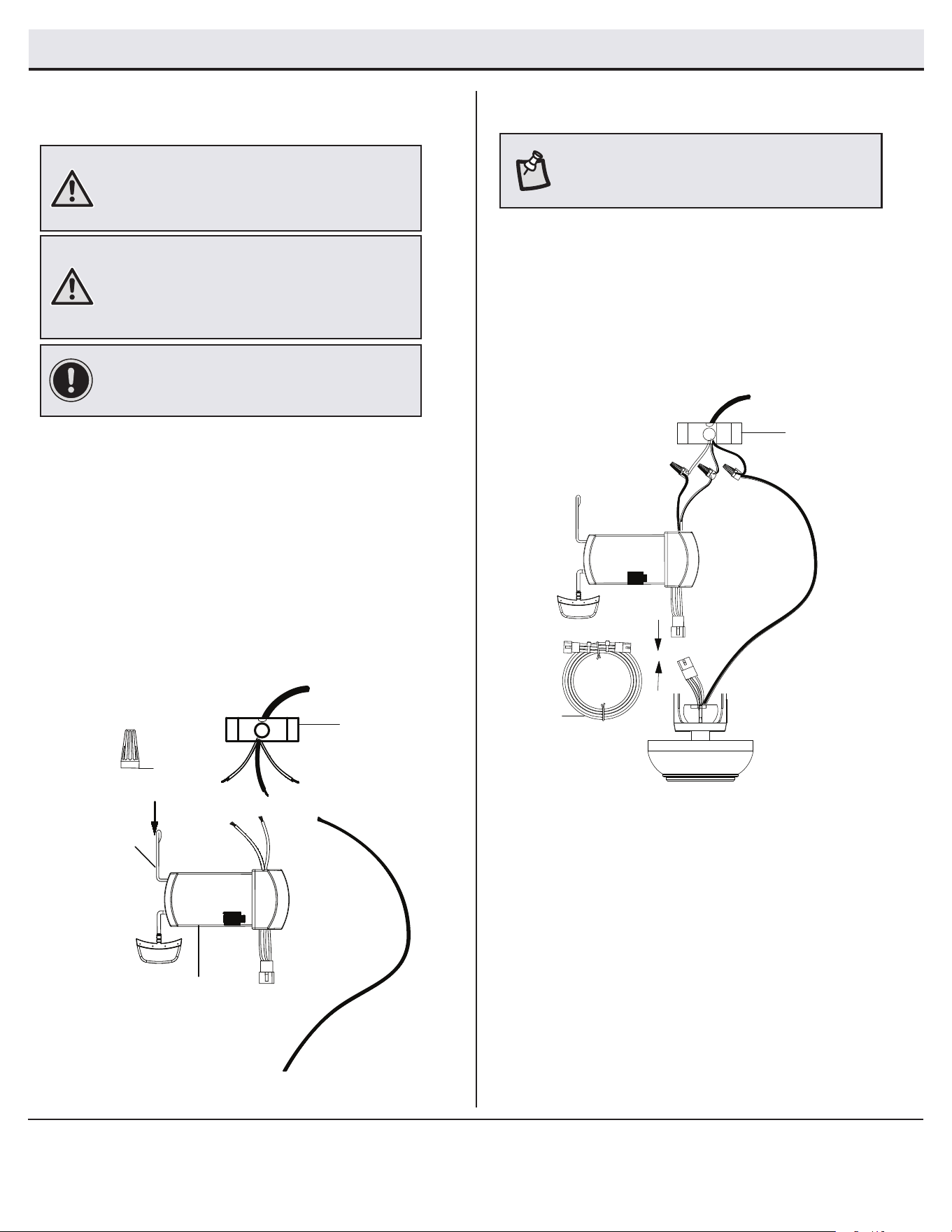

Wiring the fan to the receiver
6
□ If using the 4.5 in. ball downrod assembly (B) provided,
wire the receiver to the fan wires by connecting the molded
adaptor plug from the receiver (K) with the molded adaptor
of the fan motor assembly (E) together.
□ If you wish to use longer downrod, you can use the extension
lead wire (42 in.)(M) provided by connecting the molded
adaptor together.
Wiring the receiver to the
household wiring
5
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Each wire nut supplied with this fan is
designed to accept up to one 12-gauge house wire
and two wires from the fan. If you have larger than
12-gauge house wiring or more than one house wire to
connect to the fan wiring, consult an electrician for the
proper size wire nuts to use.
IMPORTANT: Use the wire connecting nuts (BB)
supplied with your fan. Secure the connectors with
electrical tape and ensure there are no loose strands or
connections.
□ Spread the wires apart so that the green and white wires
are on one side of the outlet box and the black wire is on the
other side.
□ Connect the green fan wires to the household ground wire
(this may be a green or bare wire) using a wire connecting
nut (BB).
□ Connect the receiver (K) black (or red) wire to the household
black (hot) wire using a wire connecting nut (BB).
□ Connect the receiver (K) white wire to the household white
wire (neutral) using a wire connecting nut (BB).
□ Secure each wire connecting nut using electrical tape.
NOTE: The fan comes with 12 in. lead wires for use with
the provided 4.5 in. ball/downrod assembly (B). If you
wish to use longer downrod, you can use the extension
lead wire (42 in.) (M) provided.
Black
Black
Green (or Bare)
Green
Outlet Box
Receiver
Antenna
White
Receiver (K)
BB (x3)
DIP
Antenna
Wi-Fi
Outlet box
in the ceiling
(SS)
Green
1 2
3
4
O
N
DIP
M
11
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Assembly - Attaching the Fan Blades

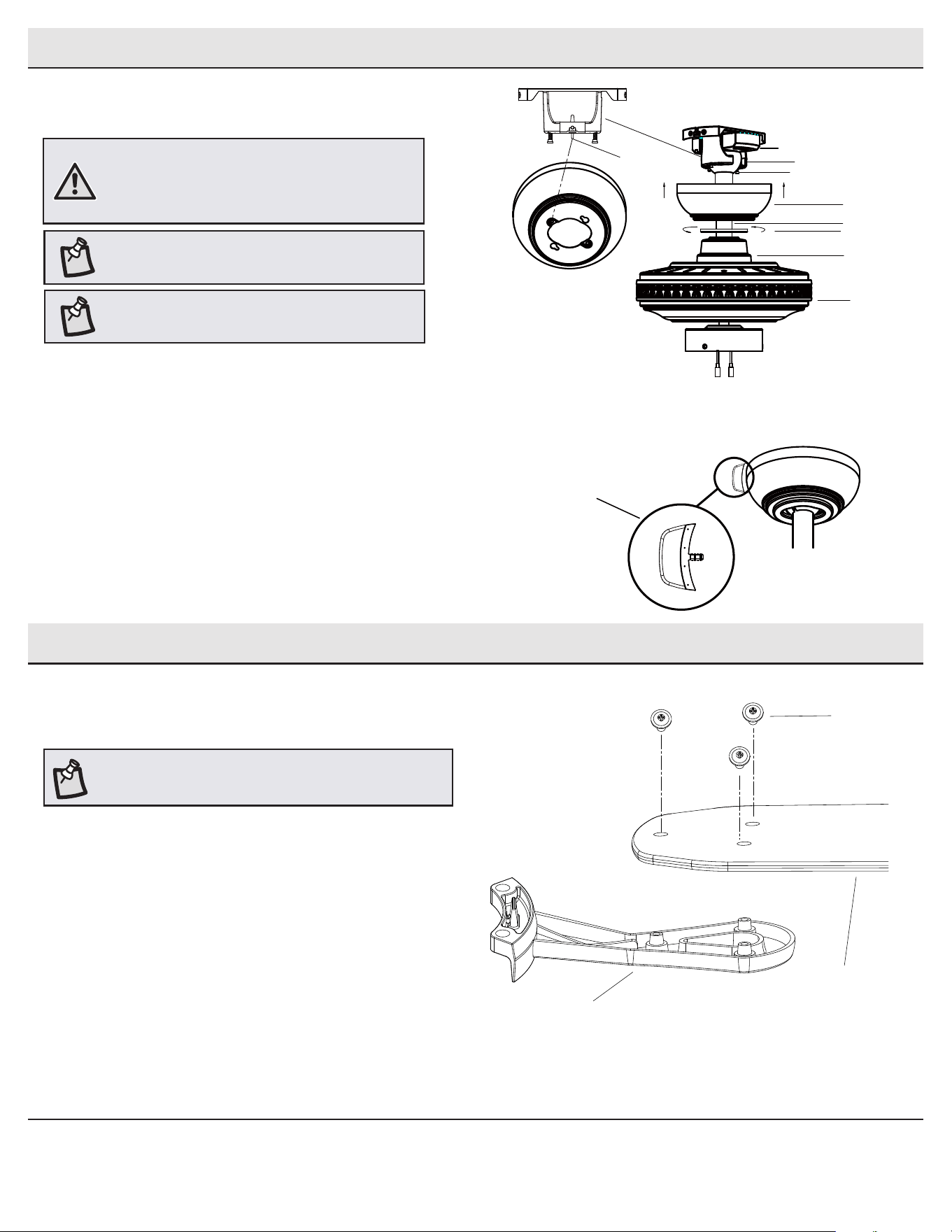

Mounting the fan motor assembly
(standard mount)
7
Attaching the blades to the
blade arms
1
NOTE: Your fan blades are reversible. Select the blade side
nish which best accentuates your decor.
Assembly - Hanging the Fan (continued)
□ Attach a blade (G) to blade bracket (H) by inserting the screws
(EE) into the holes in the blade (G) and through the blade
bracket (H).
□ Tighten each screw securely.
□ Repeat this step for each blade and blade bracket.
WARNING: When using the standard ball/downrod
mounting, the tab in the ring at the bottom of the
mounting bracket must rest in the groove of the
hanger ball. Failure to properly seat the tab in the
groove could cause damage to the wiring.
NOTE: The magnet is pre-attached on the canopy bottom
cover for you to remove and install easily.
□ Align the locking slots of the canopy (C) with the two screws
(HH) and alignment post (KK) in the mounting bracket (A).
□ Push up the canopy (C) and turn it clockwise until the
alignment post (KK) engages to the round hole and the screws
(HH) engage to the key slots.
□ Firmly tighten the two mounting screws (HH).
□ Align the oval shape on the canopy (C) with canopy bottom
cover (FF).
□ Push up the canopy bottom cover (FF) until the screw (HH)
heads engage to the slots on the canopy bottom cover (FF) so
that the magnetic canopy bottom cover (FF) can be attached
to the bottom of the canopy (C) properly.
NOTE: For better performance with the Wi-Fi system, the
Wi-Fi antenna must be mounted to the ceiling outside of
the fan’s ceiling canopy.
E
C
FF
B
KK
WiFi antenna mount
outside of the canopy
View after installation
D
K
A
HH
G
EE
H
12
Assembly - Attaching the Fan Blades (continued)

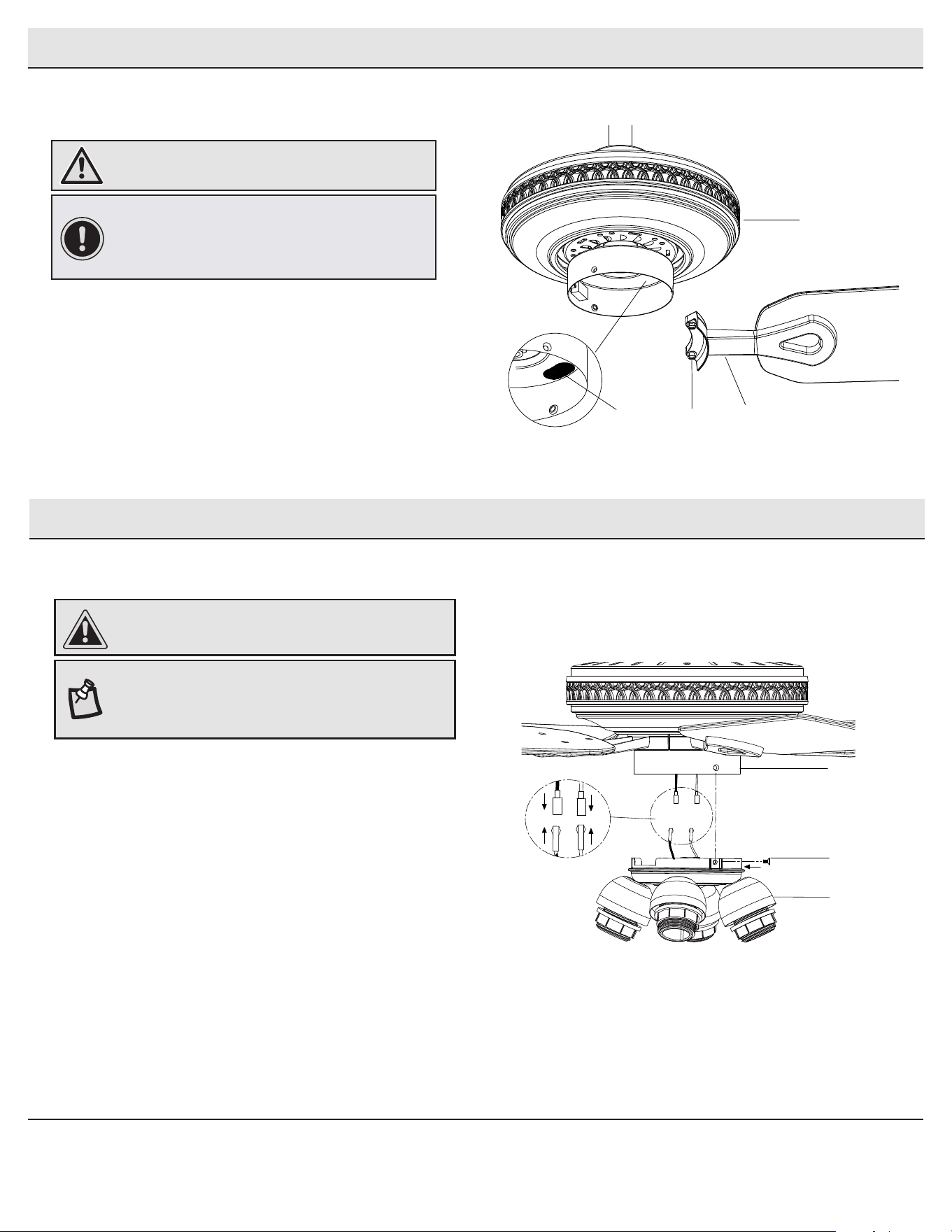

Fastening the blade assemblies to
the motor
2
□ Fasten the blade/blade bracket assembly to the fan motor
assembly (E) by inserting the alignment post into the slot on
the bottom of the motor and tightening the pre-installed blade
bracket screws (OO) by inserting a screw driver through the
access hole (ZZ).
□ Repeat this step for the remaining blade assemblies by rotating
the motor until the next blade bracket screw can be accessed
through the access hole (ZZ) in the switch cup.
Assembly - Attaching the Lights
Attaching the light kit tter assembly
1
□ Remove the three screws (VV) on the switch cup cover of the
light kit tter assembly (F).
□ Connect the wires from the light kit tter assembly (F) to the
wires from the switch cup of the fan motor assembly (E) by
connecting the molded adaptor plugs together (blue to black,
white to white). Carefully tuck all wires and splices into the
switch cup.
□ Align the three holes in the switch cup cover of the light kit
tter assembly (F) with the three holes in the switch cup of the
fan motor assembly (E). Make sure the notch in the switch cup
cover of the light kit tter assembly (F) clears the reversing
switch in the switch cup of the fan motor assembly (E). Position
the light kit tter assembly (F) and re-install the three screws
(VV) that were removed in rst step to secure the light kit tter
assembly (F).
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.

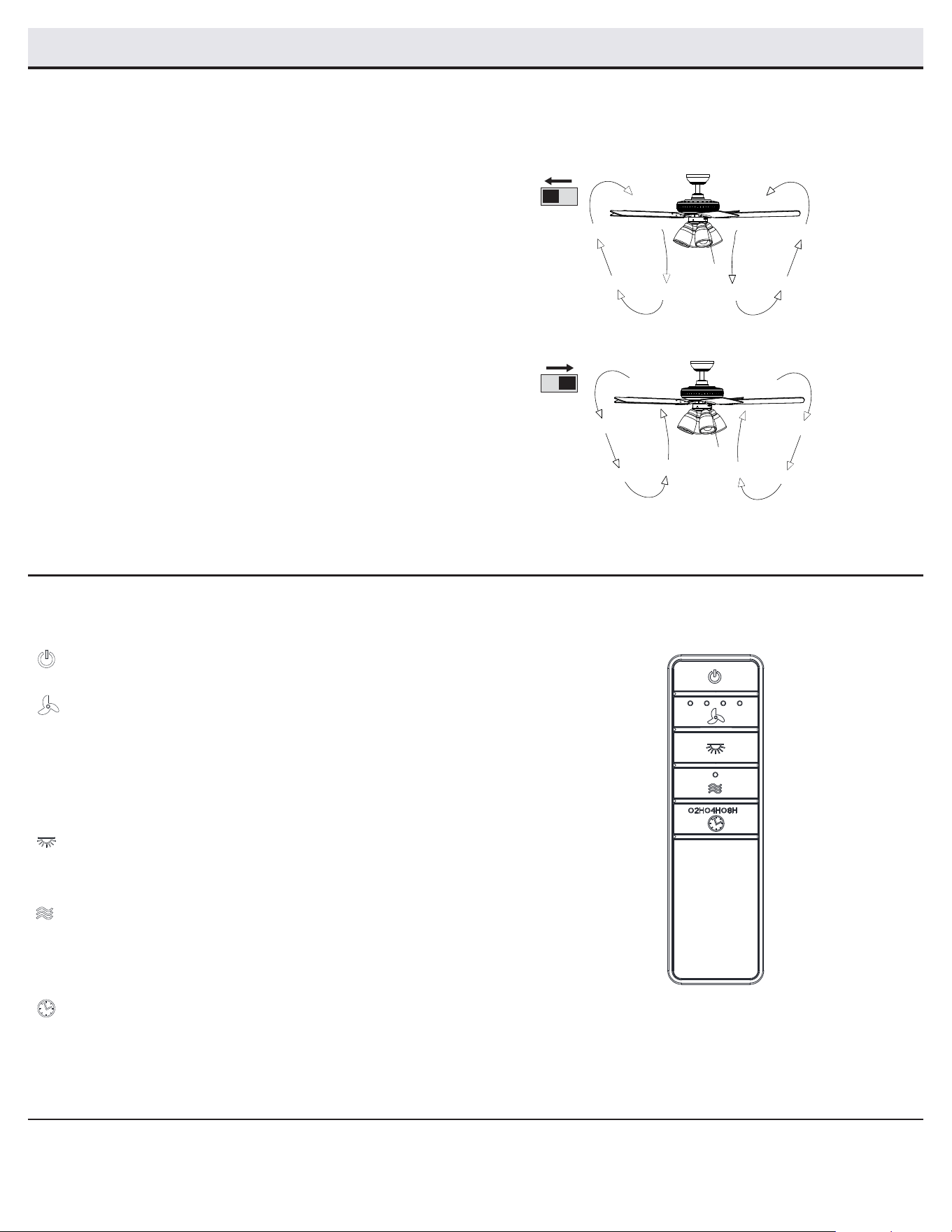

NOTE: Notice the location of the fan’s slide switch. This is the
switch used to change the fan’s directional rotation. For more
information on the operation of this switch, see Operating
Your Fan on page 14.
IMPORTANT: The switch cup has an access hole (ZZ) to
allow the screwdriver to reach the screws in the blade
bracket. Position the blade bracket on the motor and
tighten by inserting the screwdriver through the access
hole (ZZ).
WARNING: Remove the rubber motor stops on the bottom
of the fan before installing the blades or testing the motor.
ZZ
E
H
OO
VV
F
E
13
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.

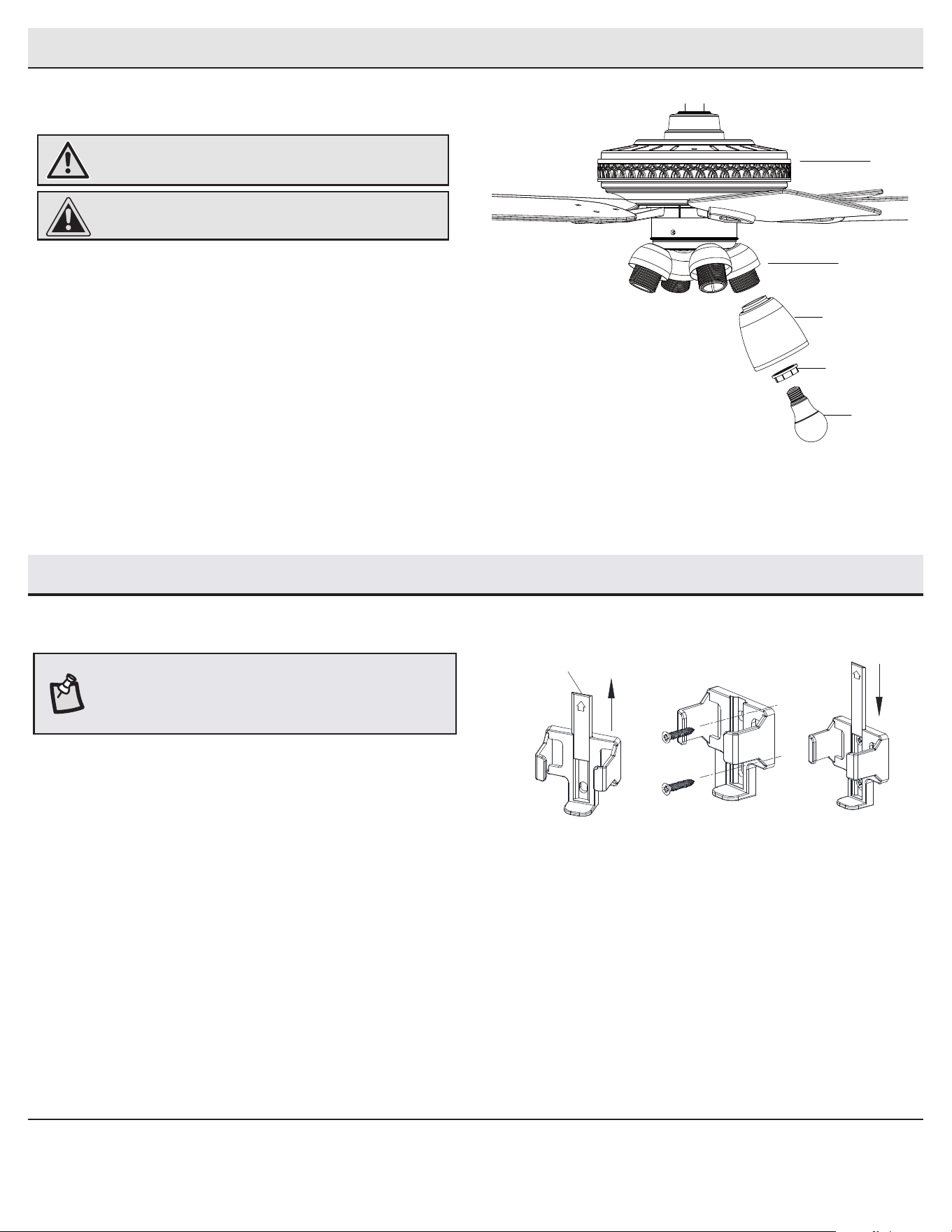

Assembly - Attaching the Lights (continued)
Installing the bulbs and glass shade
2
□ Remove the compressing ring (WW) from the threaded
socket of the light kit by turning the compressing ring
counterclockwise until it unlocks.
□ Insert the glass shade (I) into the light kit cowling and turn
the compressing ring (WW) clockwise to tighten and secure
the glass shade. Repeat for the remaining shades.
□ With power off, screw the LED bulbs (J)(9.5W, maximum) into
the sockets.
CAUTION: Make sure the power is off before attaching or
removing the glass shade.
WARNING: Allow the glass shade to cool completely before
removing.
Assembly - Attaching the Accessories
Mounting the remote control holder
□ Slide the screw cover plate up to remove it from the wall
cradle.
□ Position the wall cradle in the desired position and attach it to
the wall using the included wall cradle screws.
□ Slide the screw cover plate back onto the wall cradle to
conceal the screws.
Screw cover plate
NOTE: Screw wall anchors are included for extra support. The
included screws are designed to screw easily into the wall. If
you would like a more permanent or secure hold, install the wall
anchors prior to attaching the wall cradle to the wall.
I
WW
J
E
F
14
Remote Control - Your fan is equipped with a remote control to operate
the speed and lights of your new ceiling fan. Speed setting for warm
or cool weather depends on factors such as the room size, ceiling
height, number of fans and so on. The fan is shipped from the factory
with the reversing switch (XX) positioned to circulate air downward. If
airow is desired in the opposite direction, turn your fan off and wait
for the blades to stop turning, then slide the reversing switch (located
underneath the motor collar cover on the switch box on top of the
motor housing) to the opposite position, and turn the fan on again. The
fan blades will turn in the opposite direction and reverse airow.
Warm weather - (Forward)
A downward airow creates a cooling effect. This allows you to set
your air conditioner on a higher setting without affecting your comfort.
Cool weather - (Reverse)
An upward airow moves warm air off of the ceiling. This allows you to
set your heating unit on a lower setting without affecting your comfort.
OPERATING YOUR FAN
Warm Weather
Cool Weather
Operating Your Fan and Remote Control
1
Operating the remote control
Power ON/OFF: Press and release the power button to turn the fan
and light on or off.
Fan speed: LEDs on the fan speed button will illuminate to the
corresponding speed.
Press and release 1 time: turns the fan speed to 4.
Press and release 2 times: turns the fan speed to 3.
Press and release 3 times: turns the fan speed to 2.
Press and release 4 times: turns the fan speed to 1.
Press and release 5 times: turns the fan off.
Light ON/OFF:
Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function.
Comfort Breeze: Press the button to enable Comfort Breeze; this
will change your fan randomly, simulating a relaxing breeze. To
cancel this features press fan speed button or power button.
Timer:
While the fan is on press 1 time: turns on a 2 hour run timer.
While the fan is on press 2 times: turns on a 4 hour run timer.
While the fan is on press 3 times: turns on a 8 hour run timer.
XX
XX
15
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.

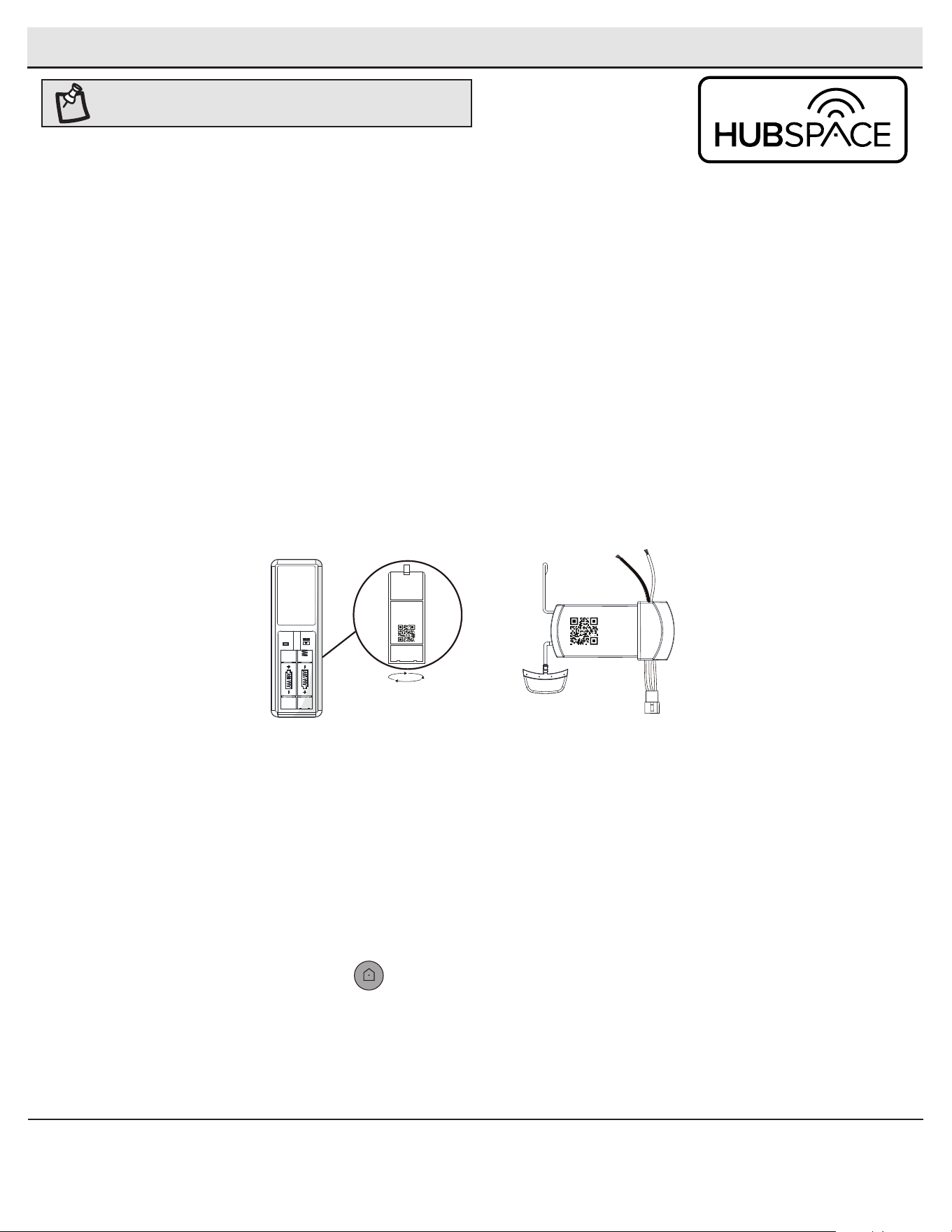

Application Set-Up
□ Download the Hubspace™ app from the App Store or the Google Play Store to your mobile device.
□ Launch the app.
□ To register, enter your email address and a password. Or, login if you already have an account.
□ Bluetooth access is required for device setup.
Getting started
1
□ Hubspace only shows WiFi networks that your device can use. Check your network only if an option does not appear during set up.
□ This Hubspace device requires a 2.4GHz Wi-Fi channel.
□ Most routers provide a 2.4 GHz WiFi channel.
□ If you do not see your Wi-Fi network name when you attempt to connect your device, please check your router settings.
Verify your network
2
□ In the Hubspace app, tap the plus sign in the upper right corner.
□ Scan your product’s QR code. You can nd the QR code on the remote receiver, inside the battery
compartment cover of the remote, and on the Quick Start Guide paper included with the fan.
Add a device
3
If you are unable to access the QR code for your light, you can put it into discovery mode with the following sequence:
□ Switch the device off and on 5 times. The light will pulse to show that it can now be discovered.
□ In the Hubspace app, tap the plus sign in the upper right corner and follow the instructions to discover devices. More than one device can be
added at a time using this method.
Set up your voice assistant
4
□ In the Hubspace app, tap the Hubspace button.
□ Select the Integrations tab, choose your voice assistant and follow the instructions.
Problems connecting to Hubspace device, see “troubleshooting” on page 17.
NOTE: For more information on smart remote set up, please refer
to the quick start guide located in the remote pack.
Questions, problems missing parts?
Please call Hubspace Customer service
8 a.m. - 7 p.m. EST, Monday - Friday;
9 a.m. - 6 p.m., EST, Saturday
(877) 592-5233
Scan problem?
If the QR code cannot be scanned for some reason, you can enter the code manually. Tap Enter Code and follow the instructions.
□ Connect your device to power and follow the instructions on screen.
(For lighting and fan products only)
D O
16
Voice Commands
When you want to... Ask Alexa to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Make <device name> dimmer.
… Make <device name> brighter.
… Dim <device name>.
… Brighten <device name>.
… Dim <group name>.
… Brighten <group name>.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>
Alexa
When you want to... Ask Google to...
Turn on the fan only. … turn on <device name> fan power.
Turn off the fan only. … turn off <device name> fan power.
Turn on the light only. … turn on <device name> light power.
Turn off the light only. … turn off <device name> light power.
Change the brightness. ... Set <device name> brightness to 75%.
… Set <device name> light to 25%.
… Brighten <device name>.
… Dim <device name>.
… Brighten <room name>.
… Dim <room name>.
Change the fan speed. … Set <device name> speed to fastest.
… Set <device name> speed to fast.
… Set <device name> speed to medium.
… Set <device name> speed to slow.
… Increase <device name> speed.
… Decrease <device name> speed.
Turn on Comfort Breeze. … Turn on Comfort Breeze on <device name>
Google
The Burgess 52 in. LED Indoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant.
This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/.
17
HOMEDEPOT.COM/HUBSPACE
Please contact 1-877-592-5233 for further assistance.
Troubleshooting
Problem Solution
The fan will not start. □ Check the main and branch circuit fuses or breakers.
□ Check to make sure the wall switch is in the on position if applicable.
□ Check the line wire connections to the fan and switch wire connections in the switch housing.
□ Check the battery in the transmitter.
□ Ensure you are in the normal range of 10-20 feet.
□ Ensure the dip switch settings are the same on the transmitter and receiver.
□ Remember to turn off the power supply before checking the dip switches settings.
The fan is noisy. □ Ensure all motor housing screws are snug.
□ Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□ Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□ Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□ If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light bulbs are also secure.
□ Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□ Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □ Check that all blade and blade arm screws are secure.
□ Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip
of one of the blades. Measure from a point on the center of each blade to the point on the ceiling. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. Any measurement deviation should be within 1/8 inch. Run the fan for ten minutes.
If the fan continues to wobble please contact customer service and a balancing kit will be sent to you at no charge.
Hubspace
TM
Troubleshooting
My hubspace device is not
connecting to Wi-Fi.
□ Make sure your device is connected to a power source.
□ Your Internet connection or Wi-Fi network may be down.
My device cannot nd any Wi-Fi
networks.
□ Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add.
My device is in a location that does
not have Wi-Fi. Can I still use it with
the Hubspace app?
Yes:
□ Use the app on a phone with an Internet connection like LTE.
□ The phone must be within Bluetooth range of your Hubspace device.
I cannot nd the QR code. □ Look for it where other stickers are on the product. A copy of the QR code is also included in your device’s documentation.
The QR code has become damaged.
How do I add the device?
□ Under the QR code are numbers. You can enter those in manually instead of scanning the code.
How do I reset the device? □ Remove the device from your account, then add it back. Devices also reset when they transfer to a new account.
A device is on another account.
How do I transfer it?
□ Scan the QR code and it will transfer to your account.
My device is ofine for long periods
of time.
□ Make sure your Wi-Fi signal strength is sufcient. You may need to move your router, use mesh Wi-Fi, or Wi-Fi extenders.
The device is on and I scanned
the QR code, but the app cannot
connect to it.
□ Turn off Bluetooth on your phone and turn it back on. Then, scan the QR code.
Can I scan the same QR code to add
multiple products?
□ No. Each product has a unique QR code.
□ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□ Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□ You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□ You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
Retain this manual for future use.
