SMART COMPACT MINI ELLIPTICAL
SF-E324029
USER MANUAL
DO NOT STAND ON THE UNIT.
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if you
are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 cm) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The equipment is not suitable for therapeutic use.
10. To avoid bodily injury and/or damage to the product or property, proper lifting and moving
are required.
11. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
12. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

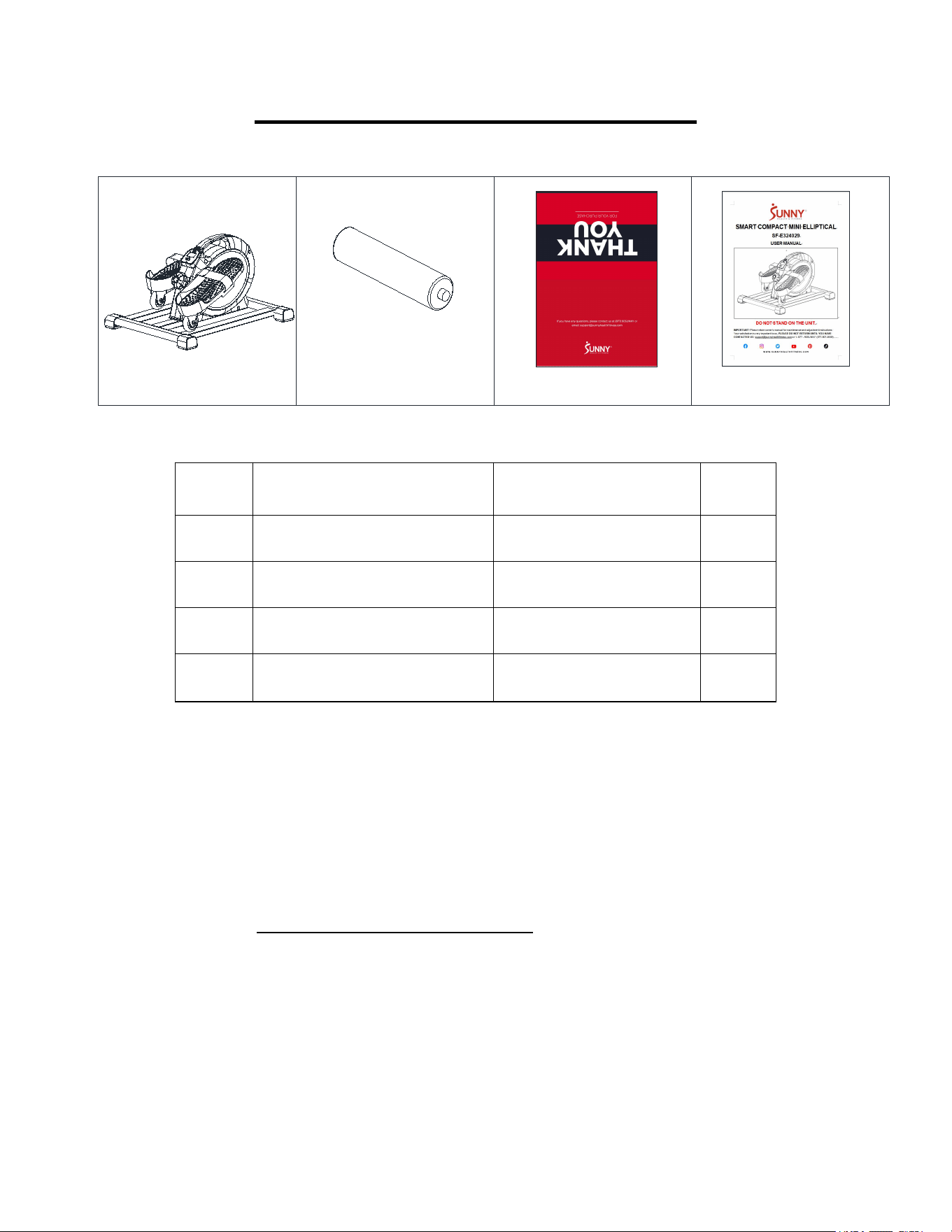

PRE-ASSEMBLY CHECK LIST
1
E:\2022年工作\Mini Bike\中文说明书\ 彩色感谢卡300G-覆哑膜 V1.png
A
B
C
No.
Description
Spec.
Qty.
1
Main Frame
1
A
Battery
AAA, 1.5V
2
B
Thank You Card
1
C
User Manual
1
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” (page 9) and “PARTS LIST”
(page 8).
3

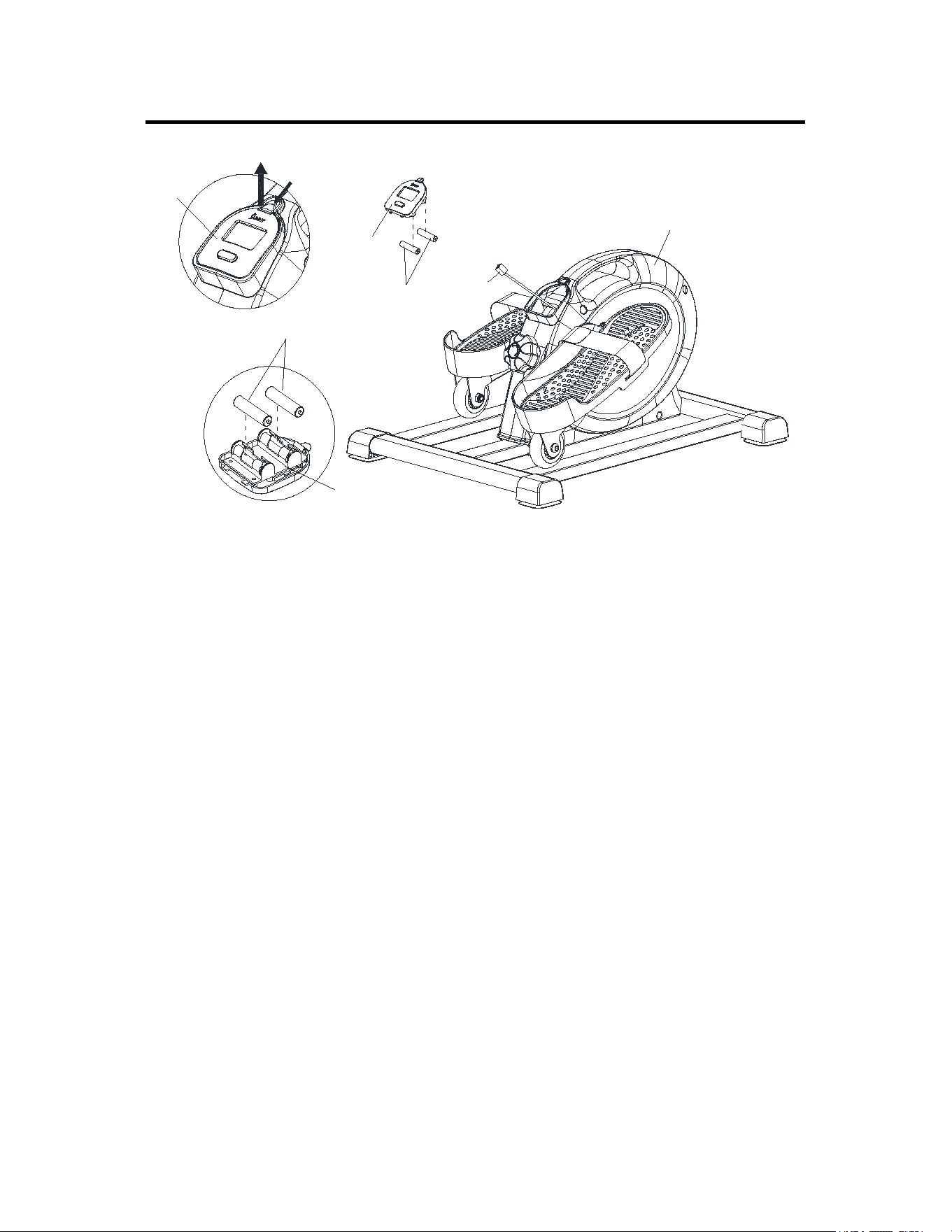

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION:
1. Take out 2 AAA batteries from the manual bag.
2. Remove the Meter (No. 32) from Main Frame (No. 1). Then disconnect the Sensor Wire
(No. 33) from the Meter (No. 32).
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 32). Pay
attention to the battery + and - poles before installing.
4. Insert the Sensor Wire (No. 33) into the hole on the back of Meter (No. 32).
5. Attach the Meter (No. 32) onto the Main Frame (No. 1).
The installation is complete!
BATTERY REPLACEMENT:
1. Remove the Meter (No. 32) from Main Frame (No. 1). Then disconnect the Sensor Wire
(No. 33) from the Meter (No. 32).
2. Remove the 2 old AAA batteries from the battery case and install 2 new AAA batteries into
the battery case on the back of the Meter (No. 32). Pay attention to the battery + and
–
poles before installing.
3. Insert the Sensor Wire (No. 33) into the hole on the back of Meter (No. 32).
4. Attach the Meter (No. 32) onto the Main Frame (No. 1).
The replacement is complete!
NOTE: Dispose battery according to your state and regional guidelines.
Battery
32
32
32
Battery
33
1
4
EXERCISE METER
BLUETOOTH :
1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no
Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE :
1. The wireless heart rate icon will flash when the meter is on. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
3. When the meter wakes from sleep mode, the wireless heart rate icon will flash. If the heart
rate monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate
monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with SunnyFit
Heart Rate Monitor HR200. HR200 can only connect to the computer when the wireless heart
rate icon is flashing.
KEY GUIDE:
MODE:
1. Press the Mode key to select the function you want.
2. Hold the MODE key for 2 seconds to reset all values except ODO when the Bluetooth is not
connected.
Press and hold the MODE key for 6 seconds to disconnect from both the SunnyFit APP and
the heart rate monitor; then, the meter will enter sleep mode.
5
FUNCTIONS:
TMR (TIME): Press the key until "TMR" is displayed on the screen, the meter will display the
time elapsed during exercise.
SPD (SPEED): Press the key until "SPD" is displayed on the screen, the meter will display the
speed during exercise.
DIS (DISTANCE): Press the key until "DIS" is displayed on the screen, the meter will display
the distance travelled during exercise.
CAL (CALORIE): Press the key until "CAL” is displayed on the screen, the meter will display
the calories burned during exercise.
P (PULSE): The data comes from the matching Bluetooth heart rate monitor. When the heart
rate is detected, the real-time value of the heart rate is displayed, the heart rate icon flashes.
When there is no heart rate, P is displayed. The heart rate icon change from flashing to off.
ODO: Counts the total distance from when batteries was installed. If the batteries are replaced,
the value will reset to zero.
NOTE:
1. The meter will shut off automatically and disconnect the heart rate monitor if there is no
activity for 4 minutes when the Bluetooth is not connected. All function values will be saved.
You can press any key or restart exercising to wake up the meter.
2. If the display on the meter does not show properly, please re-install or replace the batteries.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
6
ADJUSTMENTS & USAGE GUIDE

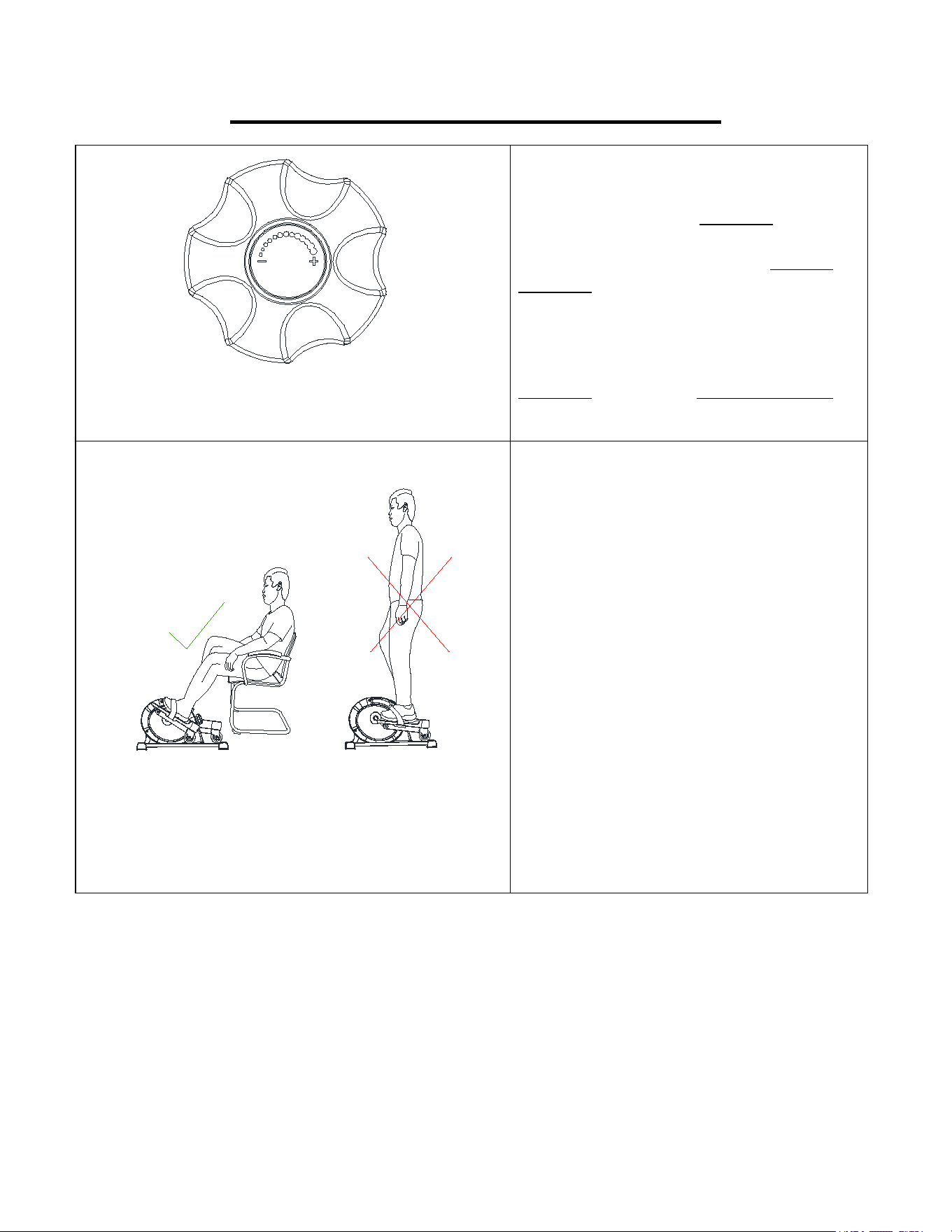

ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Control Knob (No. 29) clockwise to
increase the level of resistance. Rotate the
Tension Control Knob (No. 29) counter-
clockwise to decrease the level of
resistance.
NOTE: The Tension Control Knob (No. 29)
can be stepless adjustment, just turn it
clockwise to the end or counter-clockwise to
the end.
USE ONLY WHILE SITTING.
DO NOT STAND ON THE
MACHINE!
WARNING
The machine is intended to be used in a
sitting position only, do not stand on the
machine.
Failure to follow all warnings and instructions
could result in serious injury or death.
7
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register
for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session, and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
8
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
21
Sleeve
4
2
Crank Arm
1
22L
Left Belt Cover
1
3L
Left Bolt
Φ16*89*L23
1
22R
Right Belt Cover
1
3R
Right Bolt
Φ16*89*L23
1
23L
Left Pedal
1
4
Adjust Plate
1
23R
Right Pedal
1
5
Fixing Plate
1
24
Bolt
M8*45 S14
4
6
Belt Wheel
1
25
Nut
M8
6
7
Spring
1
26
End cap
25*50
4
8
Adjust Bolt
1
27
Bearing Clamp
Φ55*5
2
9
Spring Clip
1
28
Flywheel Clamp
Φ33.5*Φ16*4
1
10
R Shape Latch
1
29
Tension Control Knob
Φ60*Φ8*41
1
11
Bearing
608ZZ
4
30
Belt
L520*W18
1
12L
Left Nylon Nut
1/2"*20, S19
1
31
End Cap
Φ70*Φ29*12
2
12R
Right Nylon Nut
1/2"*20, S19
1
32
Meter
XT-2366
1
13
Nylon Nut
M6
3
33
Sensor Wire
200mm
1
14
Screw
M4*8
3
34
Flat Washer
Φ16.25*Φ28*1
2
15
Screw
M6*12
8
35
Screw
ST4.2*13
4
16
Screw
M6*20
3
36
Wheel
2
17
Screw
M6*15
1
37
Bolt
M8*39, S6
2
18
Screw
ST2.9*10
2
38
Flat Washer
Φ8.2*Φ16*1.5
2
19
Screw
ST4.2*16
5
39
Spring Washer
Φ13*B2
2
20
Pedal Strap
2
40
Oval Inner Tube Plug
50*25
4
9

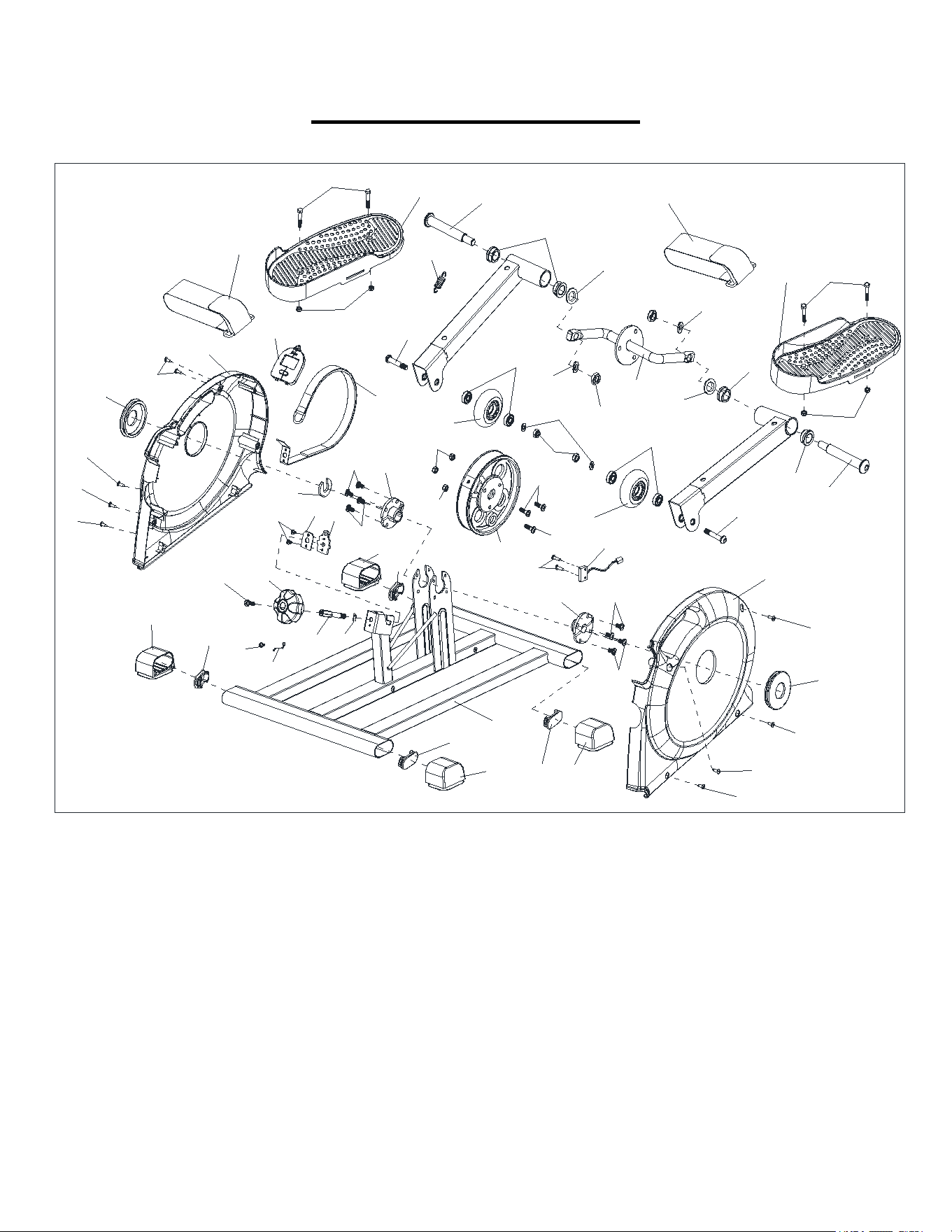

EXPLODED DIAGRAM
Version 1.0
16
16
33
18
12L
12R
11
21
3R
21
3L
11
37
37
25
24
25
23L
20
20
24
10
8
29
17
14
9
14
5
4
26
1
2
6
7
26
26
26
35
19
35
31
19
22R
15
1527
27
15
28
15
35
19
35
31
19
32
30
25
23R
34
34
36
36
38
39
39
22L
21
13
13
40
40
40
40
