PARTS
To learn about other Suncast products, please call
1-800-846-2345 or 1-630-879-2050.
Product Feedback? Go To: Suncastcommercial.com/feedback
OR email us at: [email protected]
ITEM NUMBER: TTTOWRACKHD

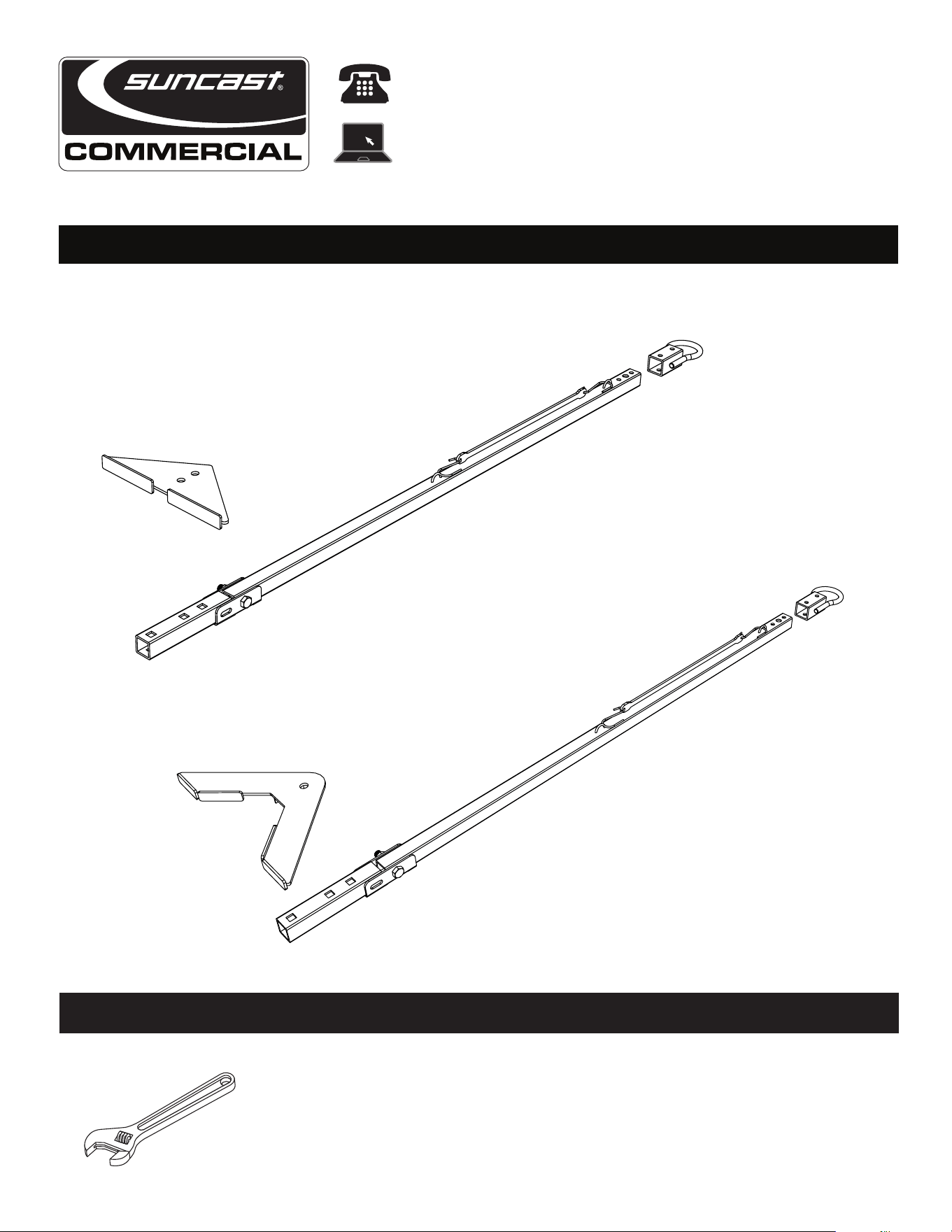

TOOLS NEEDED
Standard Duty/Heavy Duty Tow Rack
To be used with Standard or Heavy Duty Tilt Truck
Light Duty Tow Rack
To be used with Light Duty Tilt Truck
Once set of hardware is included for
both Light Duty Plate and Standard
Duty / Heavy Duty Plate.
x2
0660194
2
HARDWARE
Bolt
x2
Washer
x3
Nut
x2
Bolt
Cotter pin
Washer

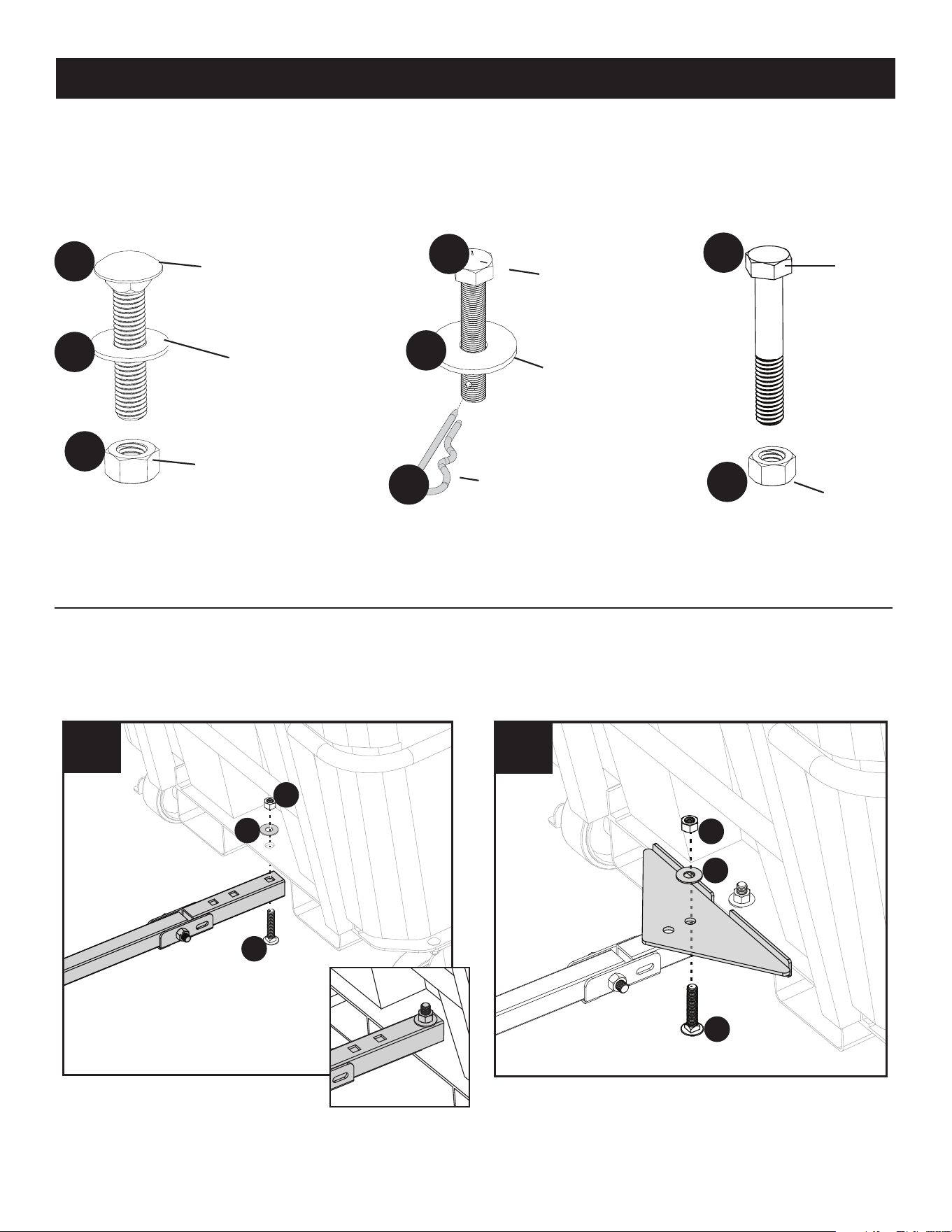

*How to attach Tow Rack to Standard Duty/Heavy Duty Tilt Truck:
1
A
B
C
2
B
A
C
Attach triangle plate to bar using one bolt (A), one washer (B),
and one nut (C).
A
B
C
D
B
F
Bolt
x2
Nut
x2
G
H
* Standard / Heavy Duty / Light
Duty Hardware (Pgs. 2 and 3)
Tow Rack to Tilt Truck
Hardware (Pg. 3 top)

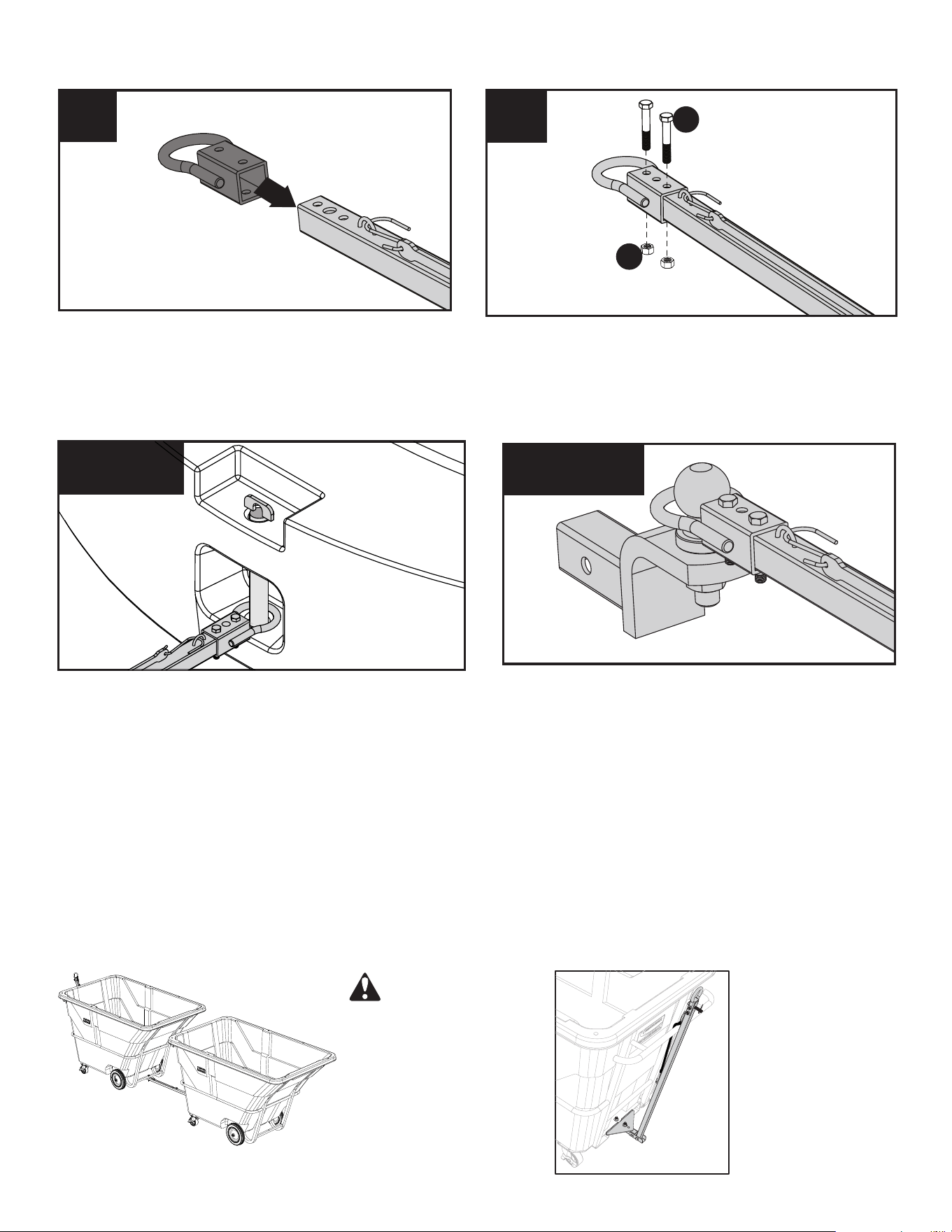

Hitch Attachment
Hardware (Pg.4)
Attach bar to Tilt Truck using one bolt (A), one washer (B) and
one nut (C).
3

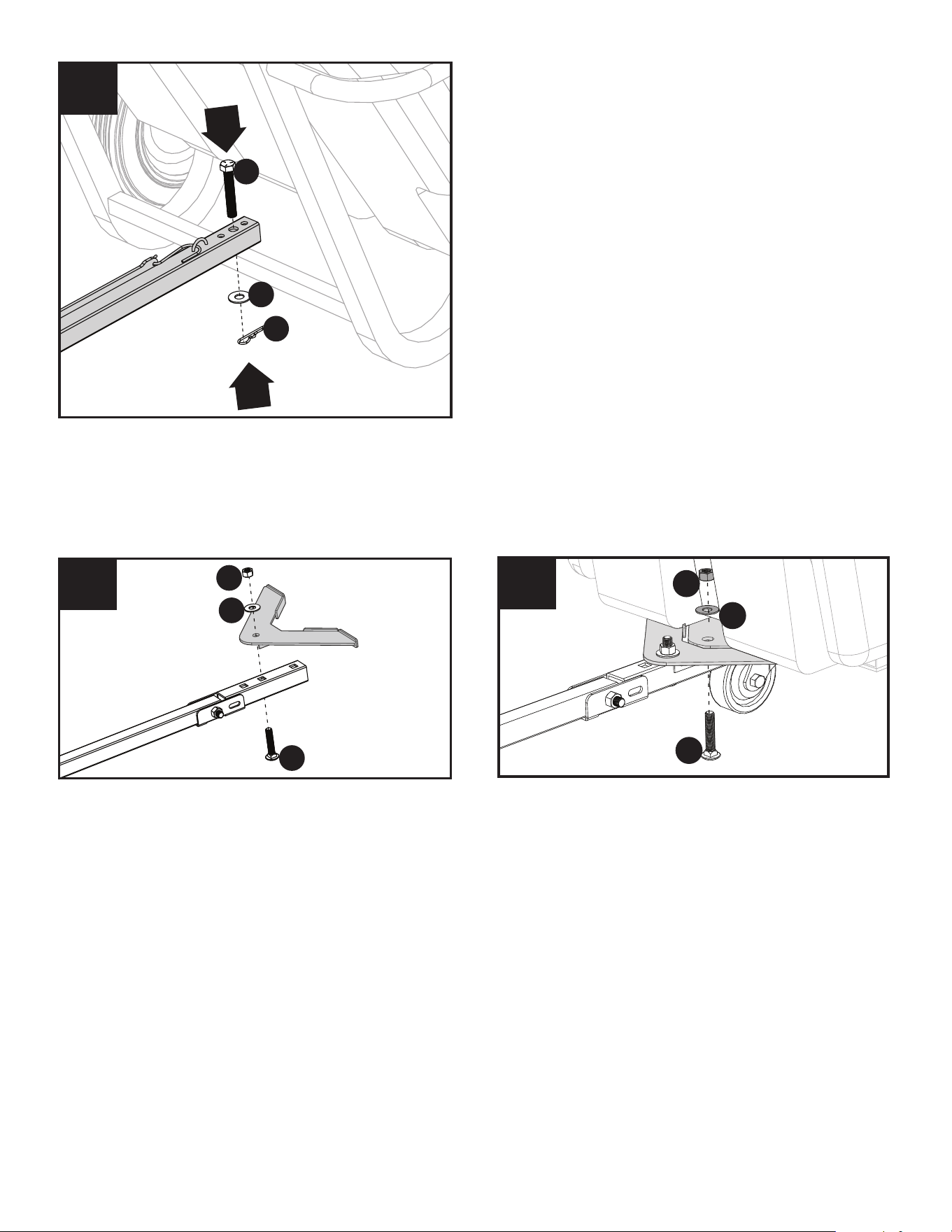

*How to attach Light Duty Tow Rack to a Light Duty Tilt Truck:
1
A
B
C
A
B
C
2
Attach Light Duty bracket to bar using one bolt (A) , one
washer (B), and one nut (C).
Attach bar with bracket to Light Duty Tilt Truck using one
bolt (A), one washer (B) and one nut (C) .
3
F
E
D
Attach other end of standard tow rack to another tilt truck
using the end without the bracket sleeve as shown here.
Attach using one bolt (D), one washer (E), and one cotter pin
(F).
Hitch Attachment
Hardware (Pg.4)
4
Slip bracket over bar. Attach bracket using two bolts (G) and two nuts (H).
Ball Hitch
Ball hitch attachment as shown. Suncast Commercial is
not responsible for improper attachment or materials not
included for proper assembly to Ball Hitch.
When not in use, move
tow rack to a vertical
position. Un-hook bungee
cord from top of tow rack
and run underneath han-
dle to attach back onto
tow rack. Bungee should
be in a vertical position.
It is recommended to
hitch a maximum of two to
three tilt trucks together,
depending on aisle size.
Use caution if attaching
additional tilt trucks.
1
G
H
2
How to attach Tow Rack to a Fork Lift / Ball Hitch
Forklift
Forklift shown in this step uses a pin style attachment method.
Consult the fork lift manufacturer’s product manual for proper
attachment. Suncast Commercial is not responsible for improp-
er attachement or materials not included for proper assembly to
Forklift.
