PDPT2436 / PDPT2448 / PDPT3060 Platform Cart
Tools Required
9/16”
© 2023 Suncast Corporation, Batavia, IL 0361402B
Please visit www.suncastcommercial.com or email us at [email protected].
2
3/8” x 1.5” Lag Bolt
x9
E
3/8” Lock Washer
x9
F
3/8” Flat Washer
x9
G
Handle
PDPT2436 - 0280679
PDPT2448 - 0280679
PDPT3060 - 0280678
H
PDPT2436 - 0510720
PDPT2448 - 0510718
PDPT3060 - 0510719
PDPT2436 - 0280680
PDPT2448 - 0280681
PDPT3060 - 0280682
Platform
A
Frame Support
B
0441035
Fixed Caster
D
0441036
Swivel Caster
C

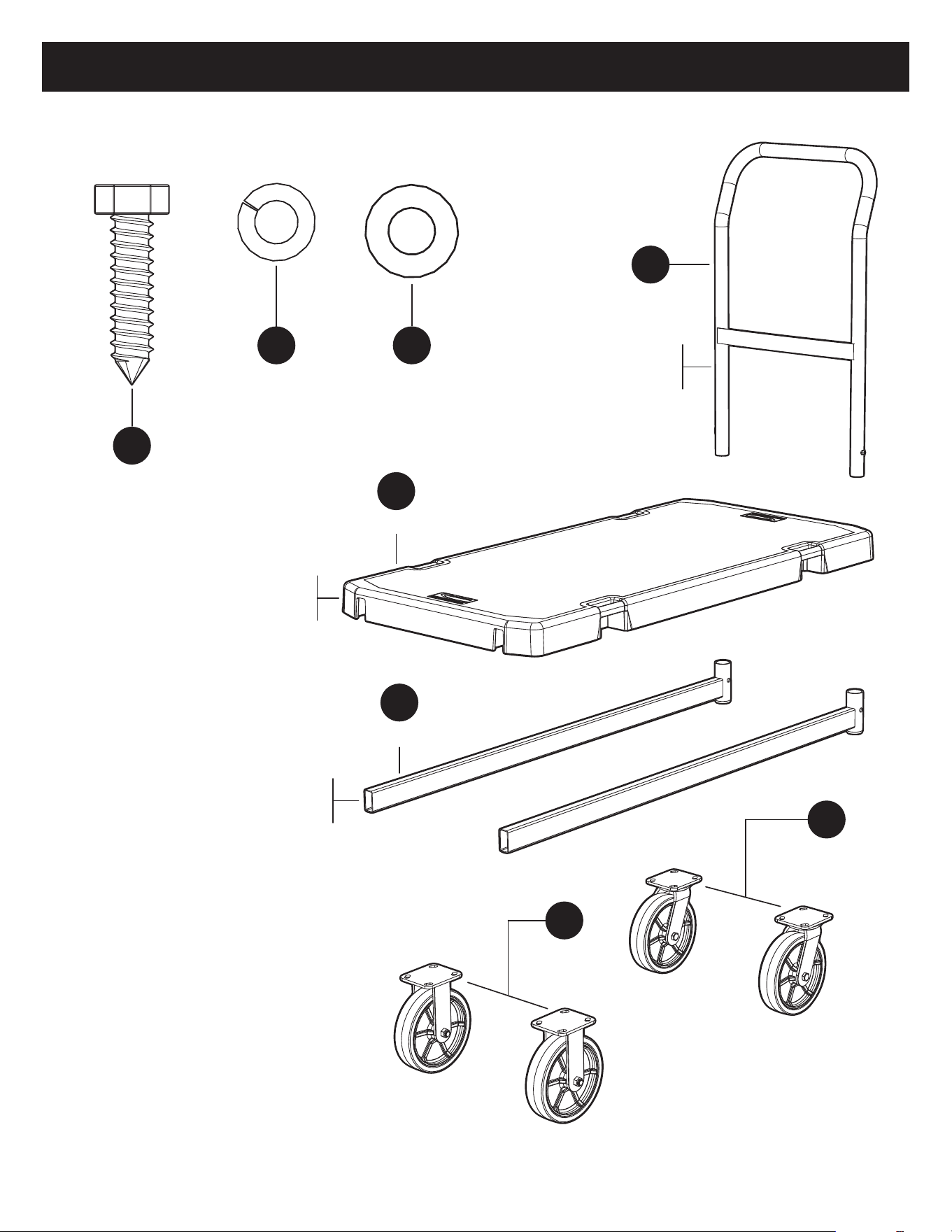

Parts
0480576 - Hardware Bag
Hardware shown at actual size. Extra hardware provided. Not all are used.
3
Before You Begin...
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Check for all parts before you begin assembly.
Using the provided parts check list, verify that you have all the parts required to construct your cabinets.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
Caution
• Not intended for usage by children.
• Exercise caution when moving fully loaded product.
• Do not store near excessive heat.
• This contains parts that can be damaged if assembled incorrectly or in the wrong sequence. Repair or
replace broken parts immediately.
• Do not sit or stand on platform.
• Max load 1,600 lbs.
Care Instructions
Suncast recommends cleaning your product with soap and water. Rinse and dry well before using
Assembly
B
B
B
A
A

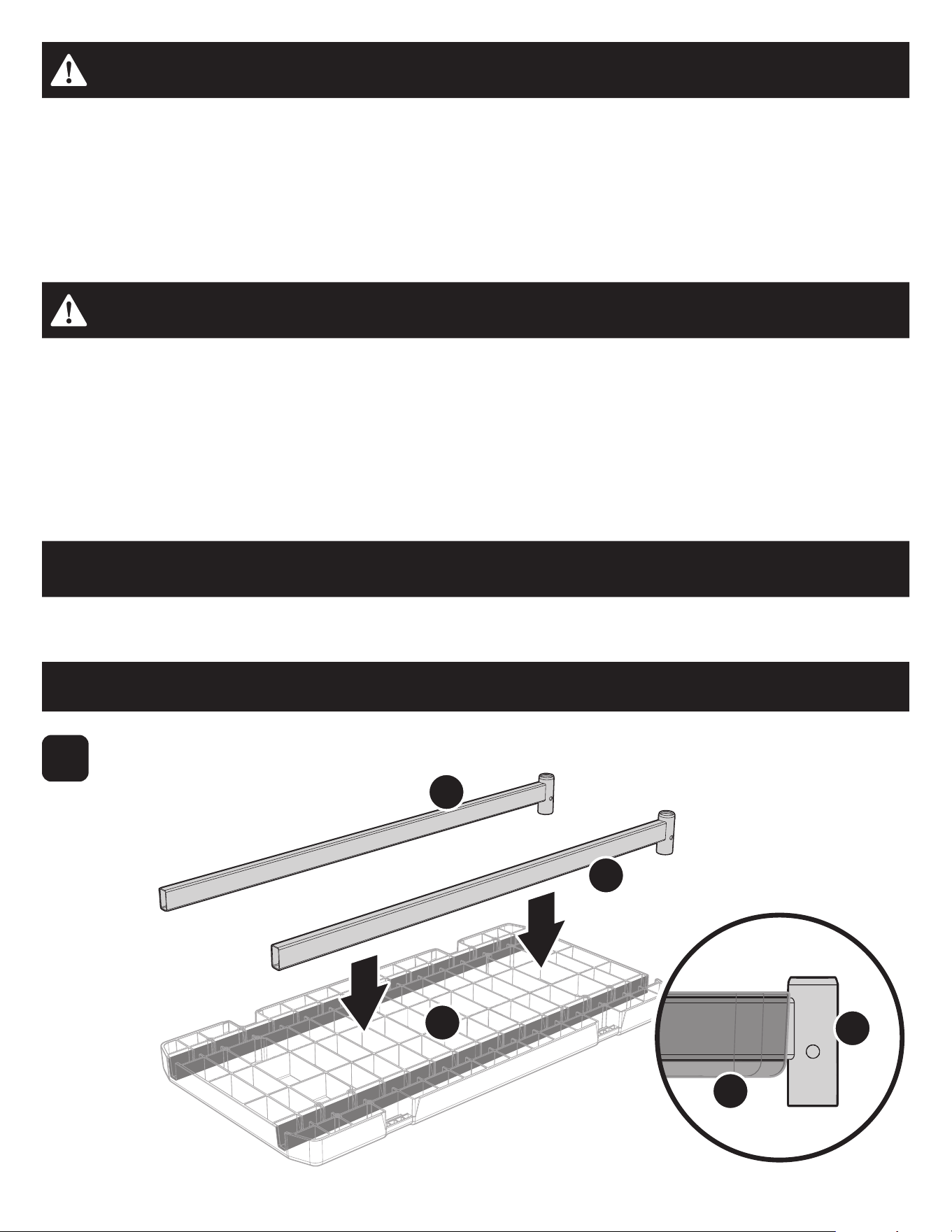

With the bottom of the platform (A) facing up, place the frame supports (B) into the channels as shown.
1
4
C
C
A
F
G
E
D
D
F
G
E

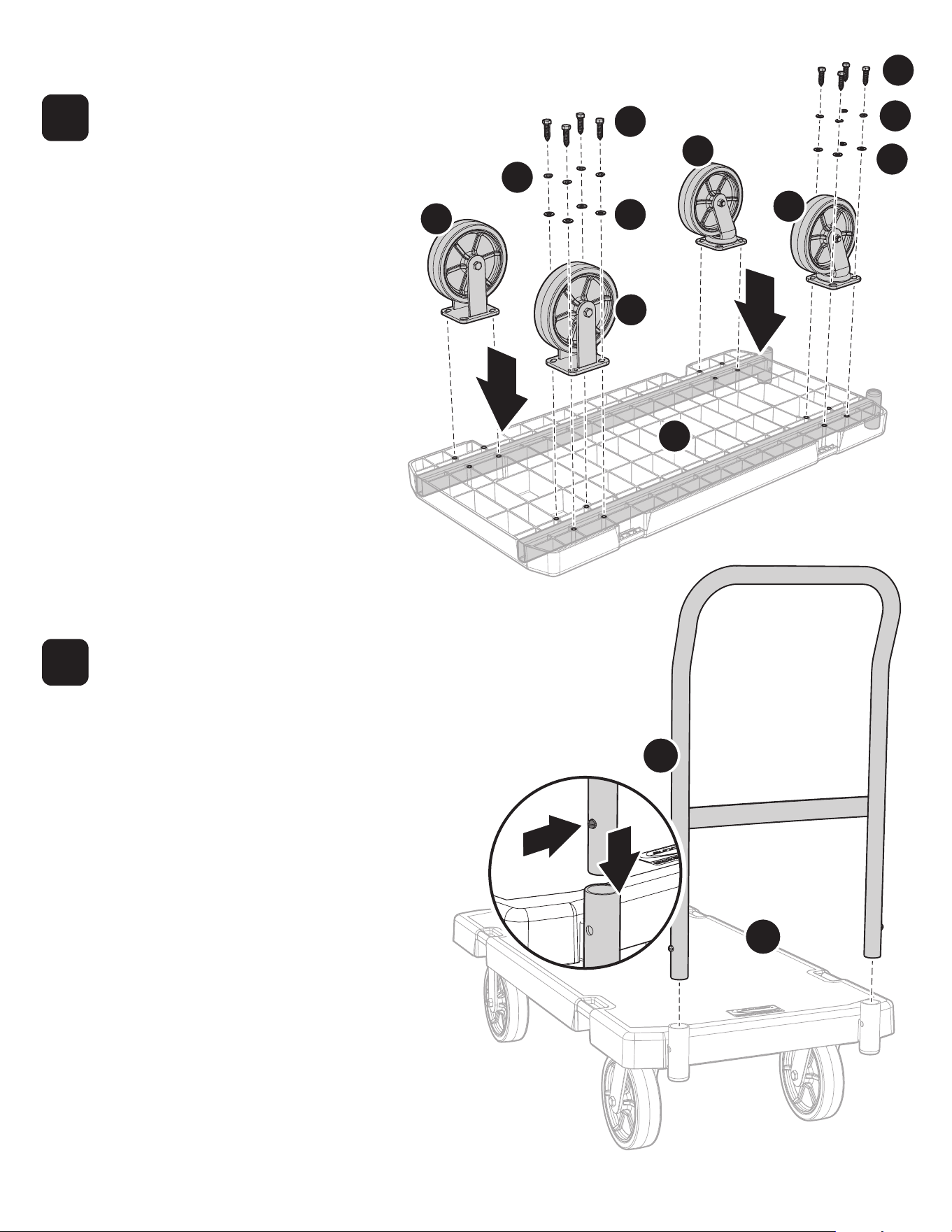

At the locations indicated, assemble each swivel (C)
and fixed (D) caster to the platform (A) using four lag
bolts (E), lock washers (F) and flat washers (G).
Do not overtighten.
2
Assembly (continued)
A
H
1
2
Turn the platform (A) over and insert the handle (H) into the base.
