IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL
GAS GRILL
Thank you for purchasing this product! If you have questions about the product such as
missing parts,damaged products,product assembling and operation etc., please contact
us
via Amazon Message or customer service phone:213-4467172 or 661-4358826.
TABLE OF CONTENTS
Safety Information ......................................................................................................................... 2
Package Contents ..........................................................................................................................4
Hardware Components ................................................................................................................ 8
Assembly Instructions ................................................................................................................ 9
Operation Instructions ................................................................................................................. 19
Troubleshooting ........................................................................................................................... 24
Assembler/Installer:
This manual contains important information that is necessary for the proper
assembly and safe use of this appliance. Read and follow all warnings and instructions before
assembling and using this appliance.
Leave these instructions with the consumer .
Consumer/User: Follow all warnings and instructions when using this appliance.
Retain these instructions for future reference.
WARNING
DANGER
1. Do not store or use gasoline,
vapors, or other flammable fluids
close to this or any other appliance.
2. An LP (liquid propane) cylinder
not connected for use shall not be
stored close to this or any other
appliance.
3. This grill is only for outdoor use
and shall not be used in a building,
garage, under overhangs or any
other enclosed area.
4. Do not leave a lit grill unattended.
Keep children and pets away from
the grill at all times.
If you smell gas:
1.Cut off the gas to the appliance.
2. Extinguish any open flame.
3.Ope
n the lid.
4. If the odor continues, keep away
from the appliance and immediately
call your local fire department.
1
mbustion of such fuels contain
chemicals, including Benzene, known to the State of California to cause cancer, birth defects or
other reproductive harm. This product contains chemicals, including lead and lead compounds,
known to the State of California to cause cancer, birth defects or other reproductive harm. Wash
hands after handling.
CALIFORNIA PROPOSITION 65
DANGER
• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible
SAFETY INFORMATION
CAUTION
• Do not use gasoline, kerosene or alcohol for lighting.
•
The L
P gas cylinder used with this appliance must be:
of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission, as applicable; and
(c) Provided with a cylinder connection device compatible with the connector for outdoor
cooking appliances. This grill is not intended to be used in or installed on recreational
vehicles and/or boats.
•
increase, may open the relief valve and leak the gas.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can hurt
you severel
y.
Thank you for purchasing this product! If you have questions about the product such as
missing parts,damaged products,product assembling and operation etc.,please contact us
via Amazon Message or customer service phone:213-4467172 or 661-4358826.
2
SAFETY INFORMATION

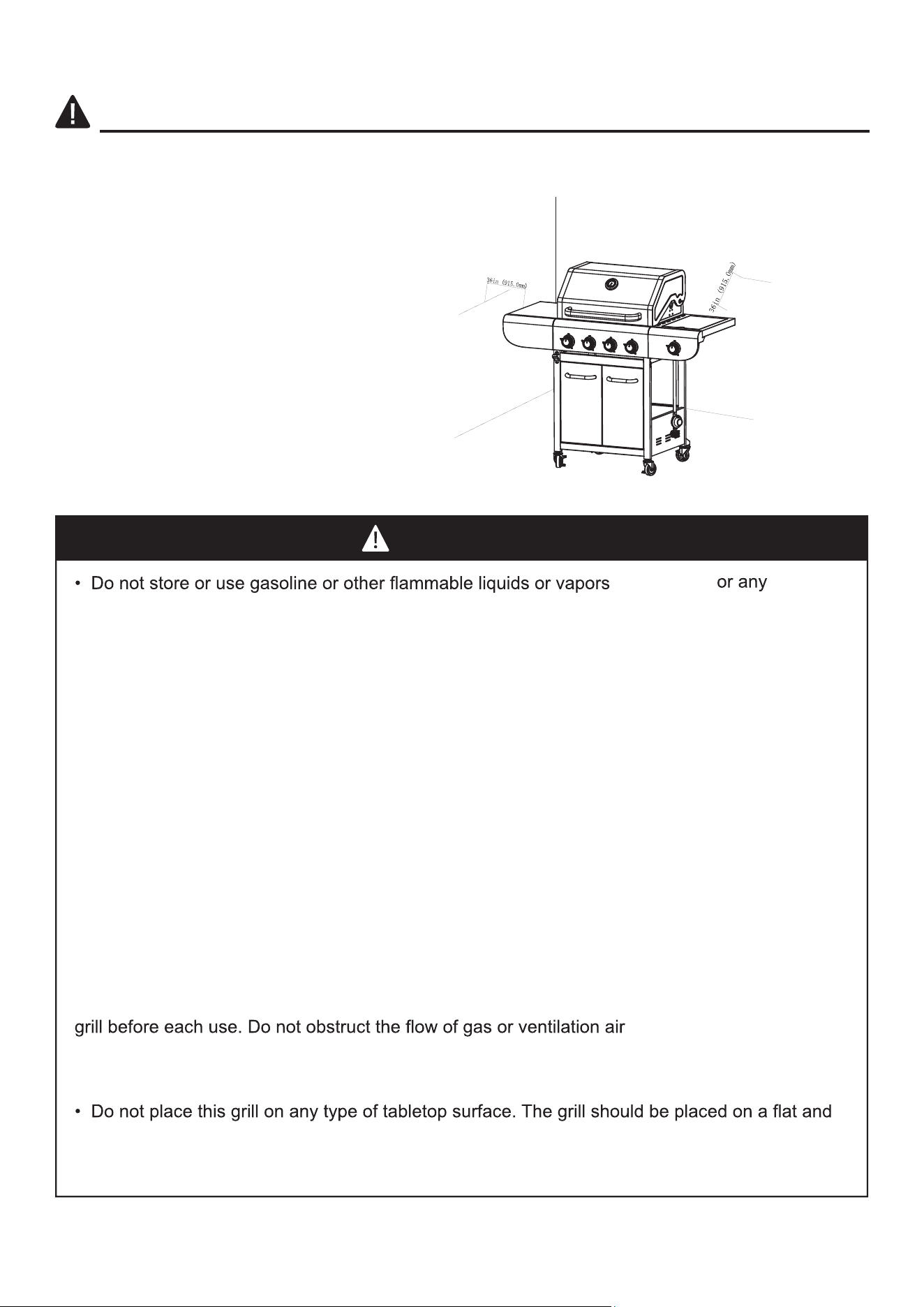

Do not place the grill under overhead
combustible construction or awnings.
The minimum clearance between the side/back
of the unit and any other construction is
36 inches (915.0mm).
NOTE: The installation must conform with
local codes or, in the absence of local
codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural
Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and
Handling Code, B149.2.
WARNING
CAUTION
other appliance.
• An L
P cylinder not connected for use shall not be stored close to this or any other
appliance.
• This grill is for using with propane gas only (proane cylinder not included).
• Never attempt to attach this grill to the self-con
tained propane system of a boat, camper trailer
,
motor home or house.
• Do not attempt to move the grill while it is lit or
when it is hot.
The casters should be locked
down when not moving the grill.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and
tightened.
• Keep all combustible items and surfaces at least 36 inches (91.50 cm) away from the grill at all
times.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid
burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is obvious abrasion, wear
, cuts, or
leaks, the hose must be replaced prior to operating the appliance. The replacement hose
• Move gas hoses as far away as possible from the hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the
.
• The use of alcohol, prescription or non-prescri
ption drugs may influence the operator’
s ability
to properly assemble or safely operate the grill.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
level surface.
•
Do not use the grill in strong winds.
close to this
shall be in accordance with supplier’s standard.
3

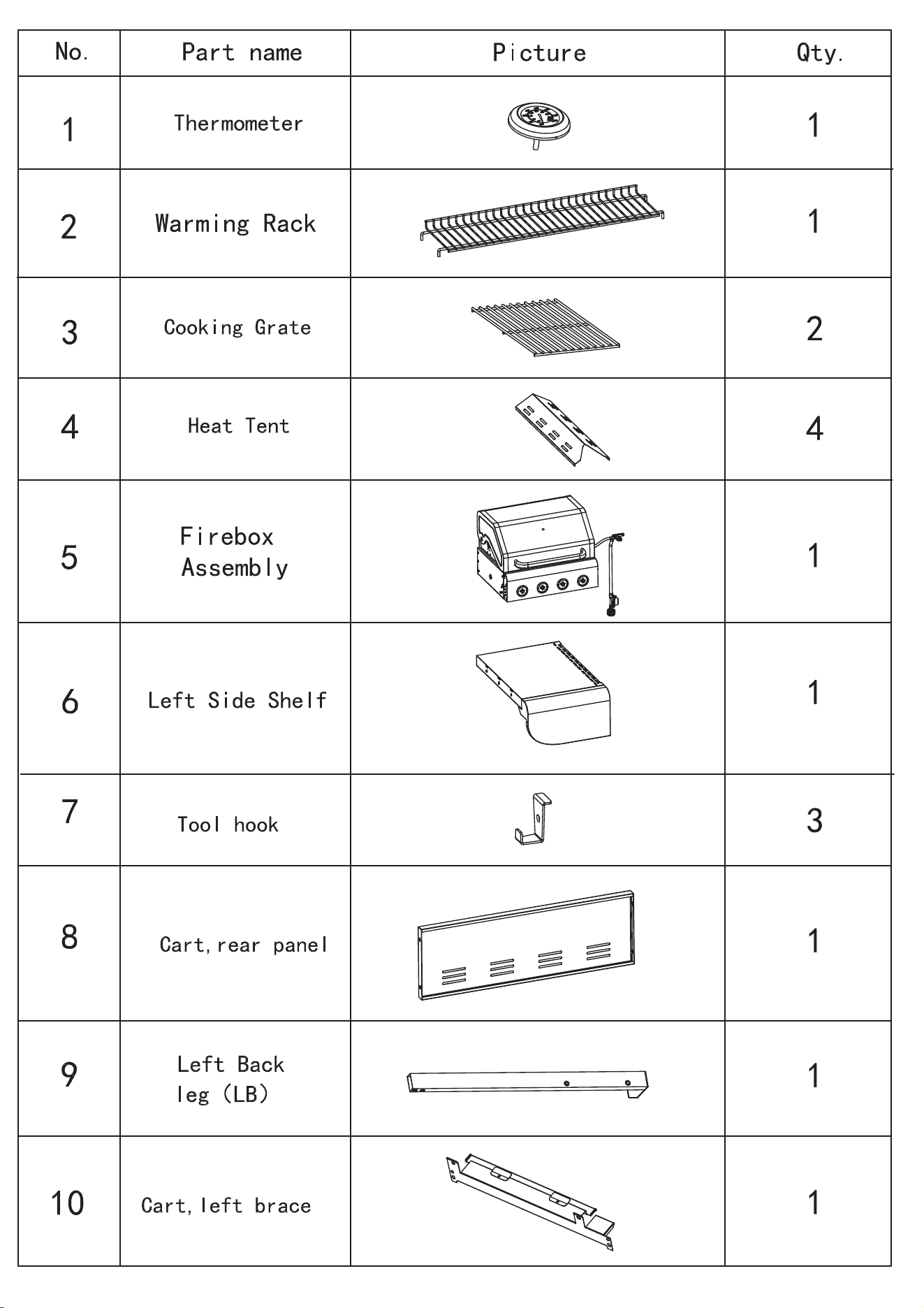

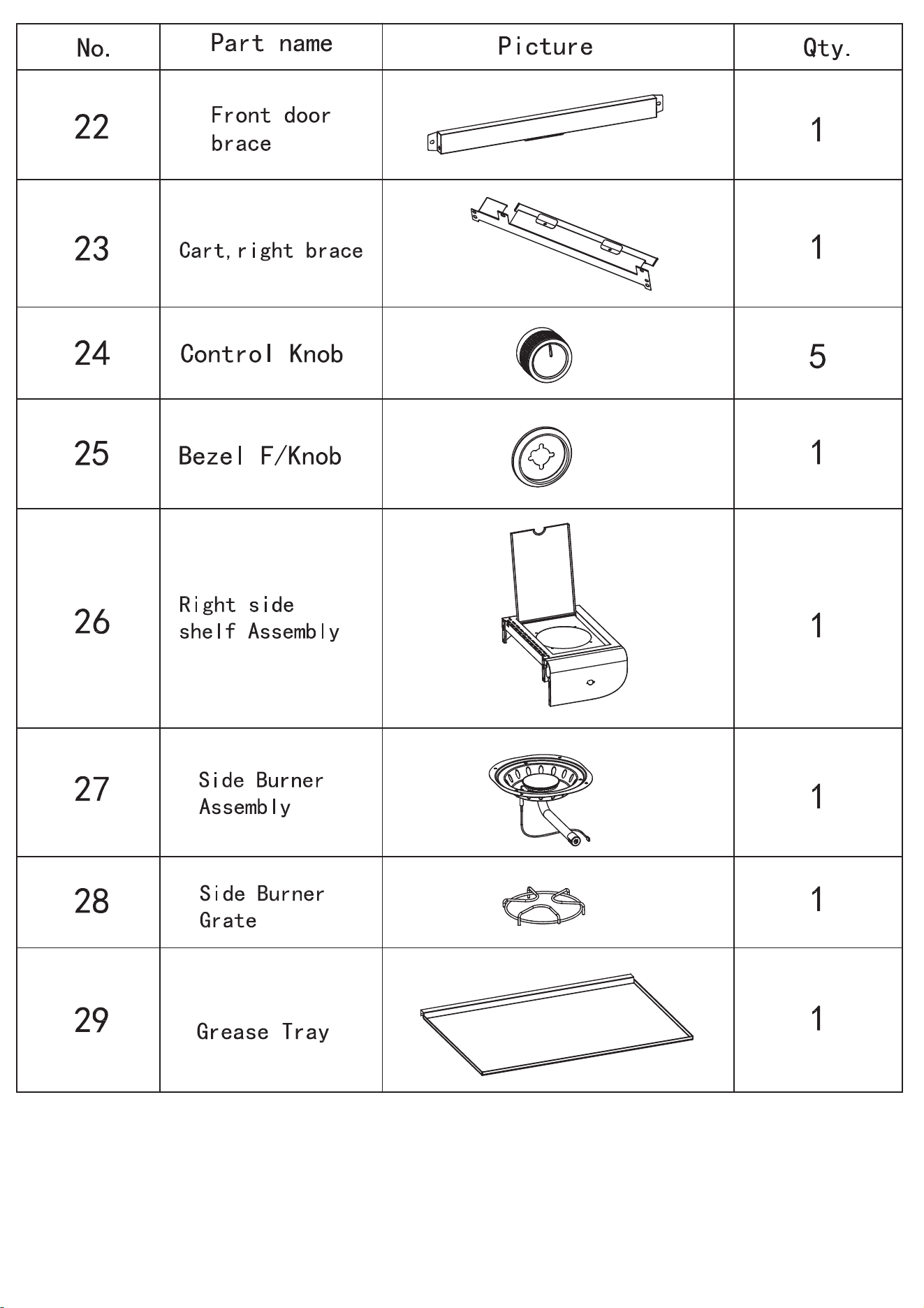

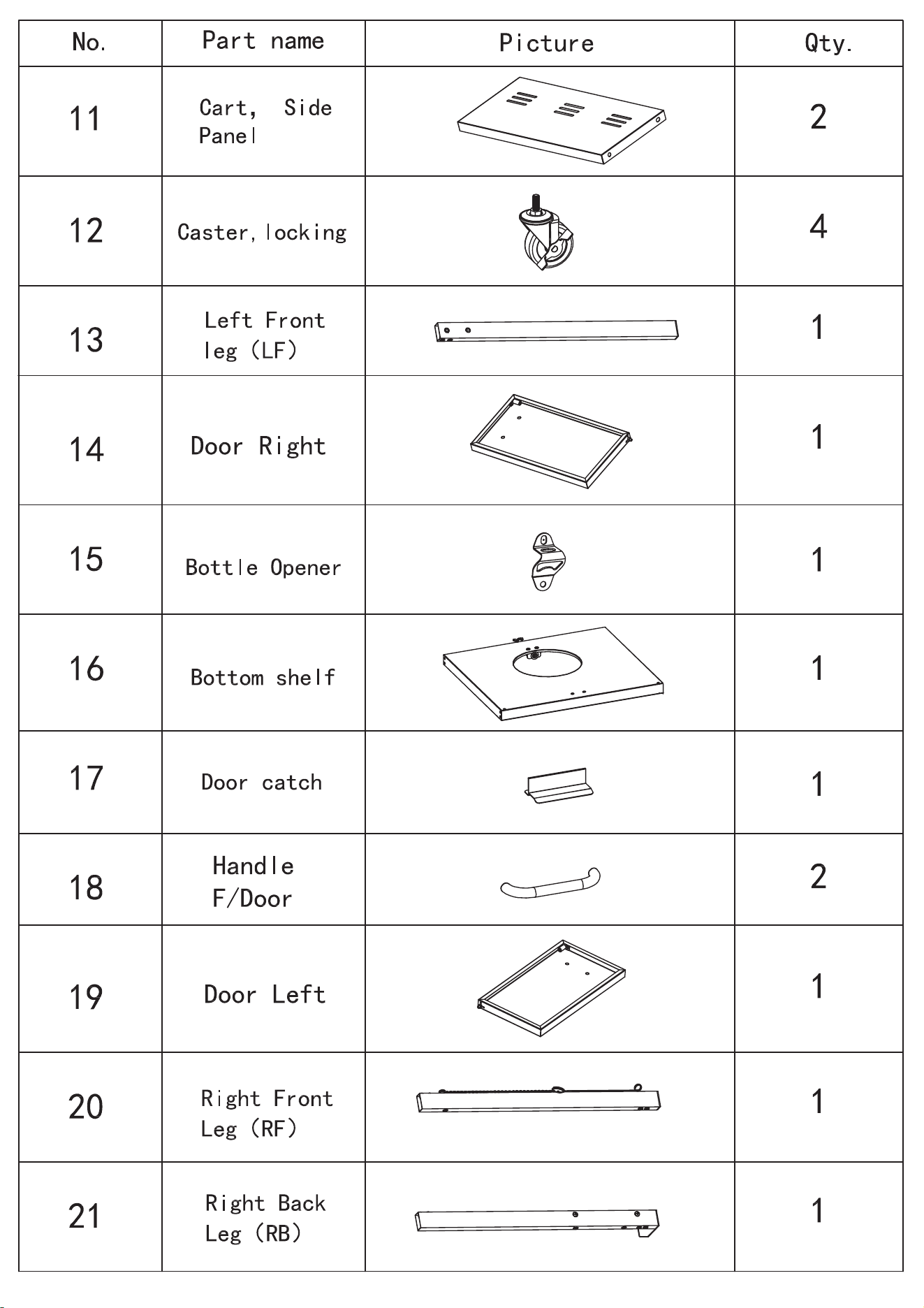

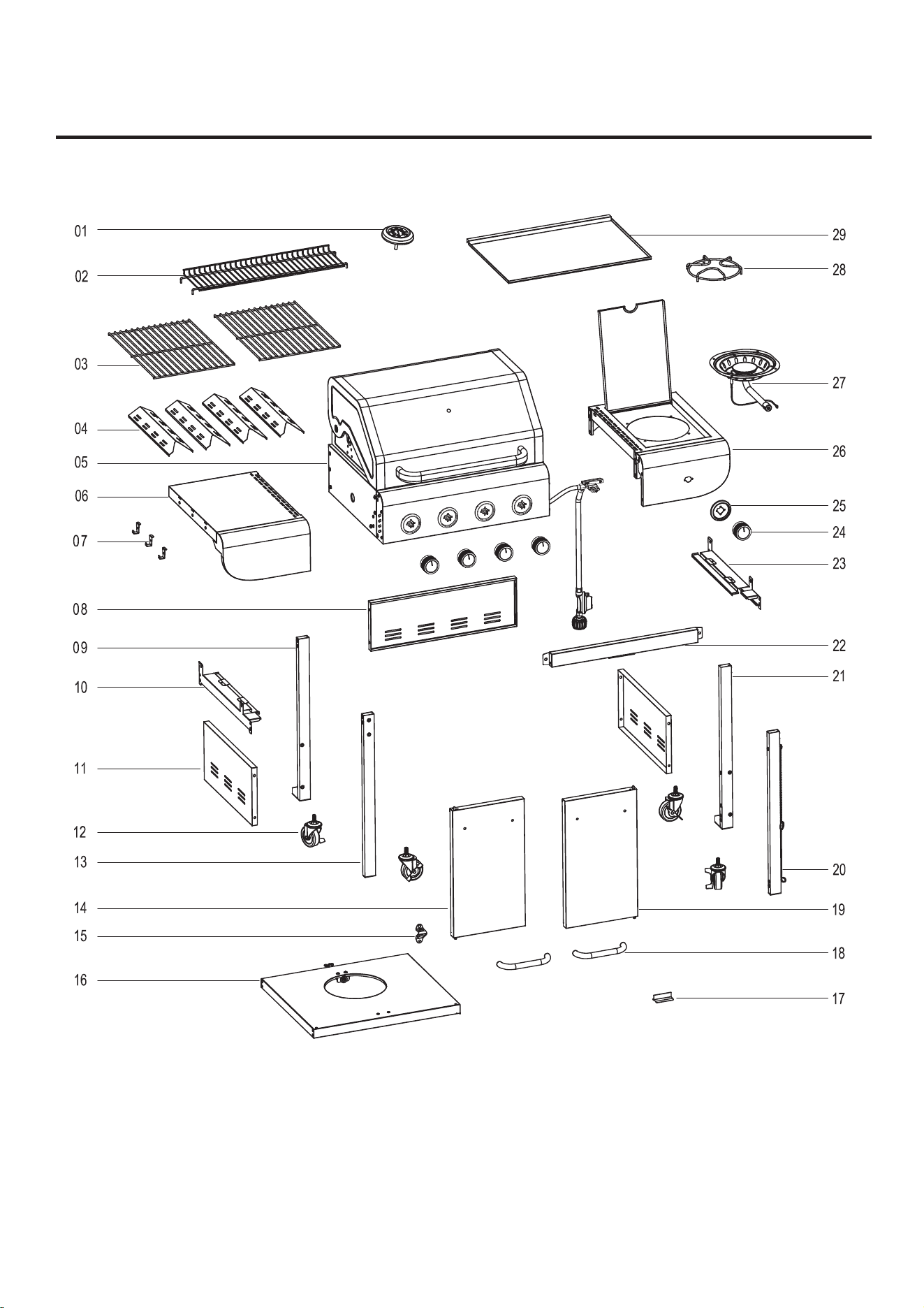

PACKAGE CONTENTS
4
5
6
7
Estimated Assembly Time: 50 minutes with 2 people.

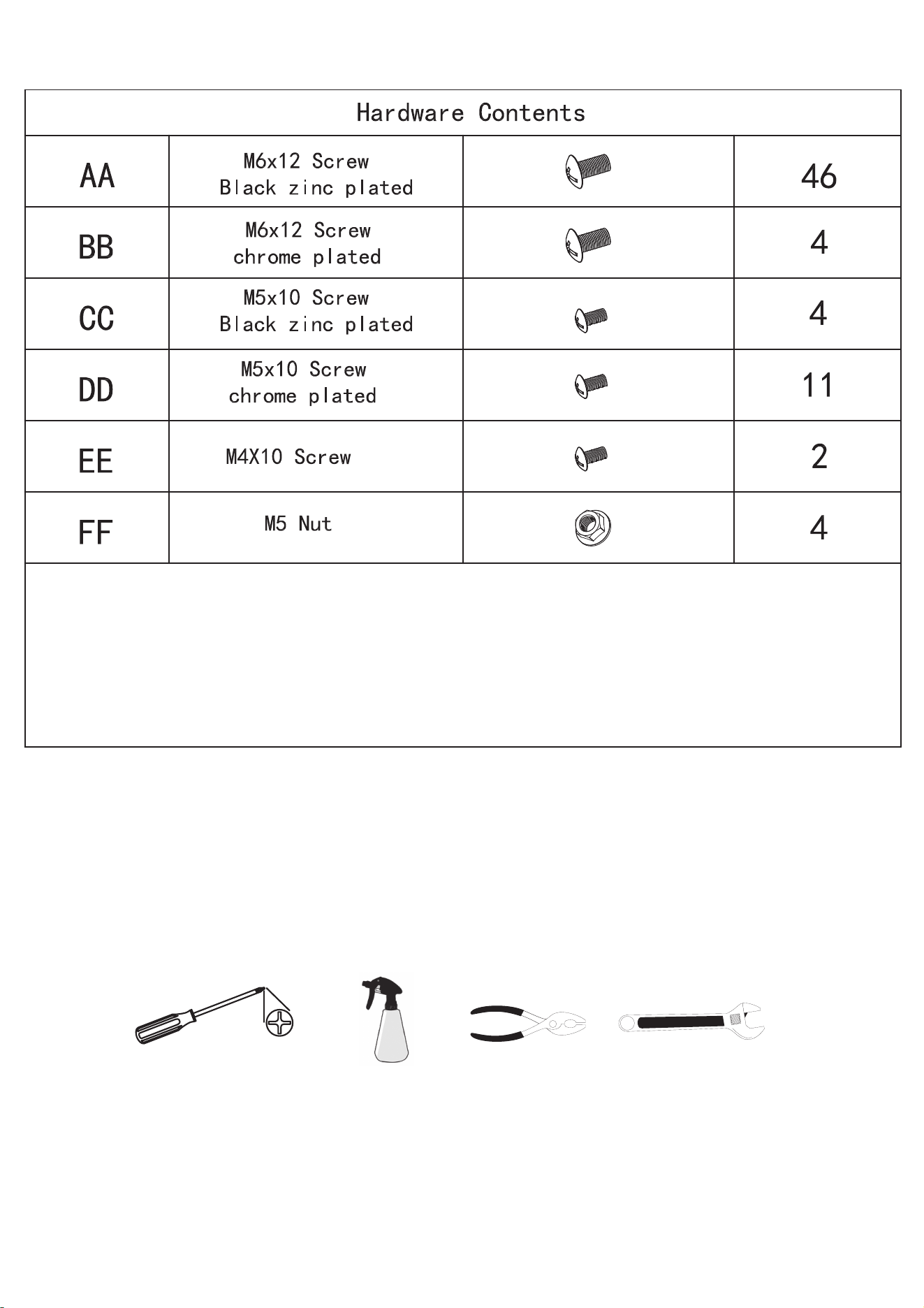

Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver,
Spray bottle, Pliers, Adjustable Wrench
8
Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list on previous page and hardware
contents above. If any part is missing or damaged, do not attempt to assemble
the product. Contact customer service for replacement parts.

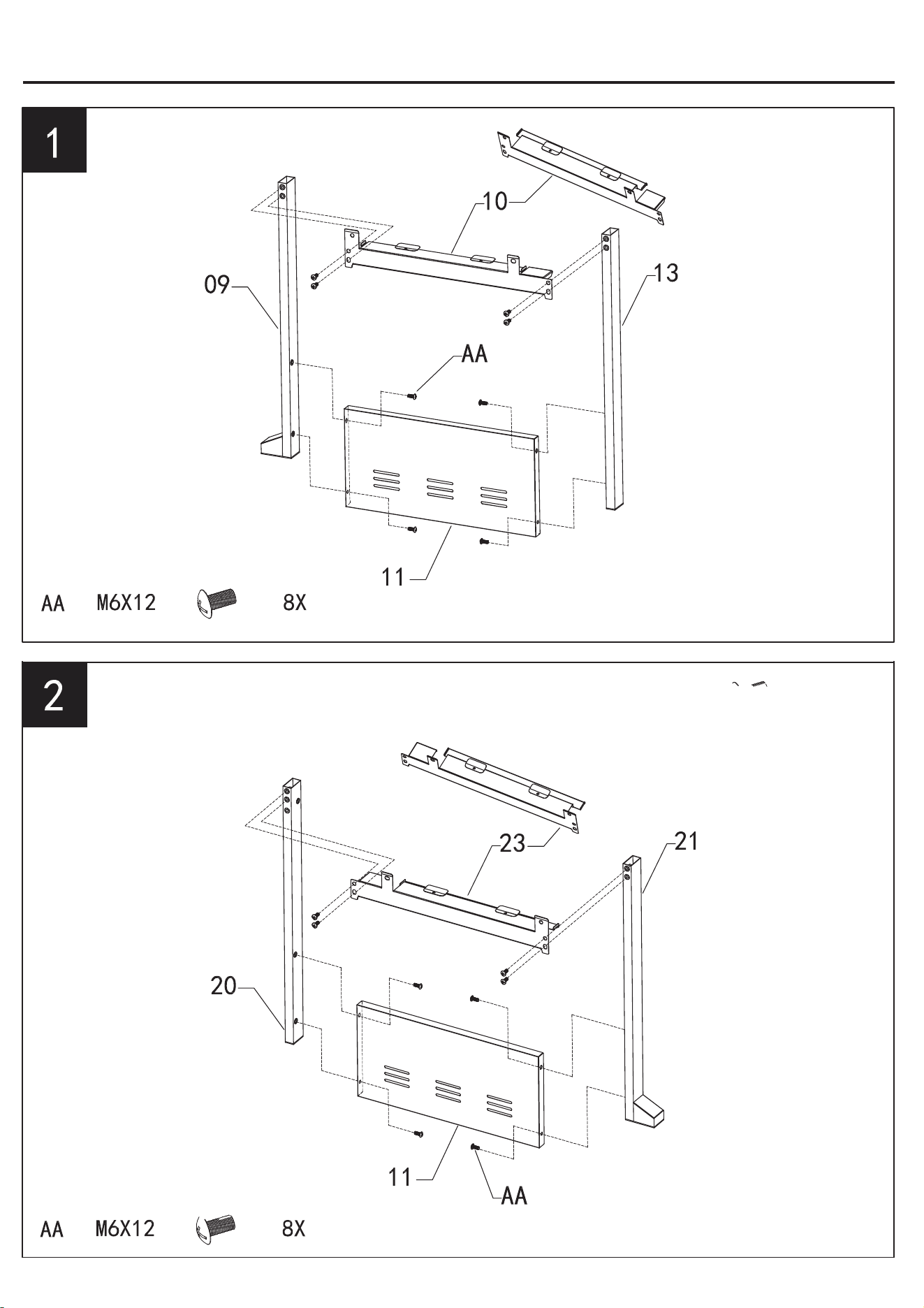

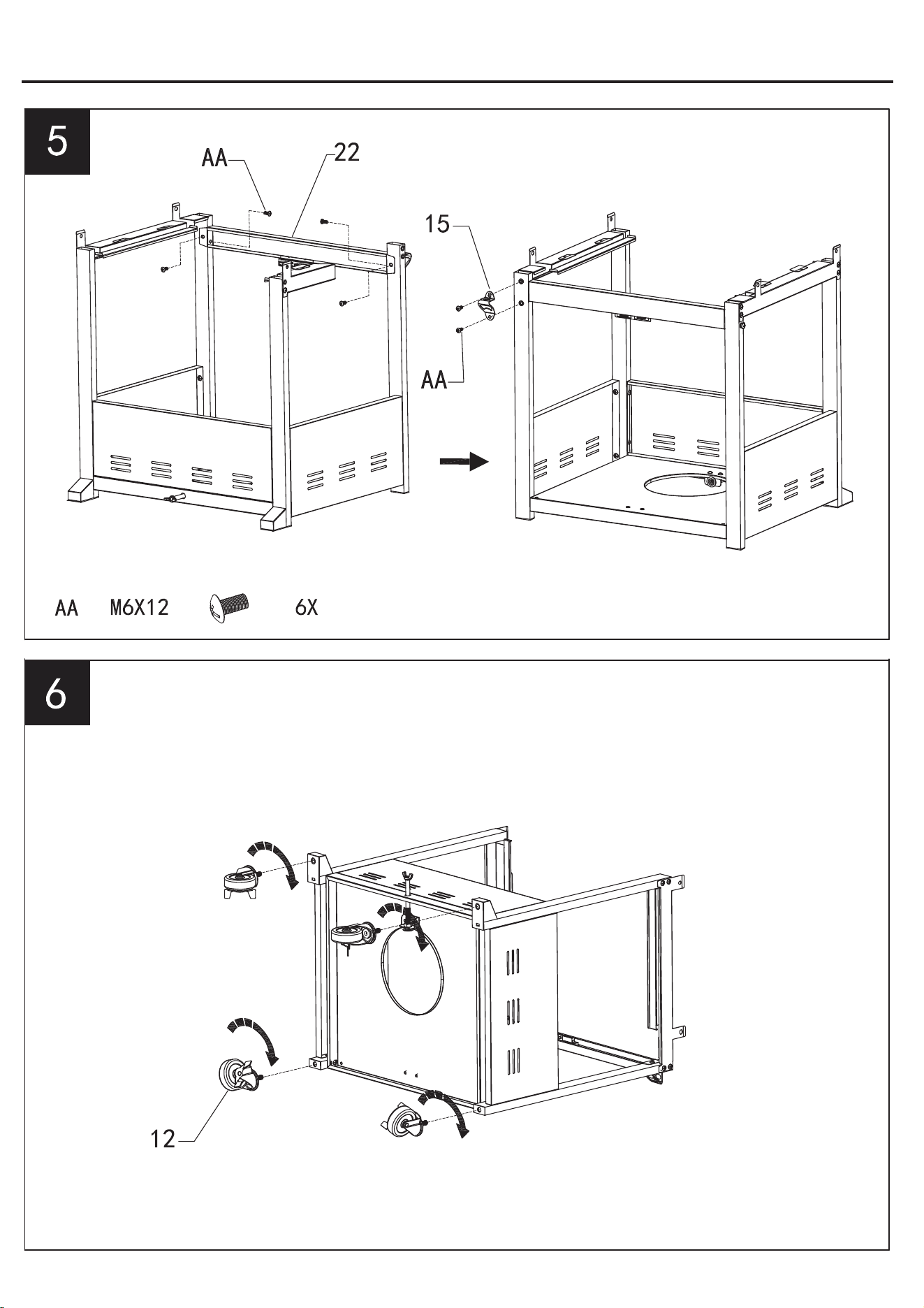

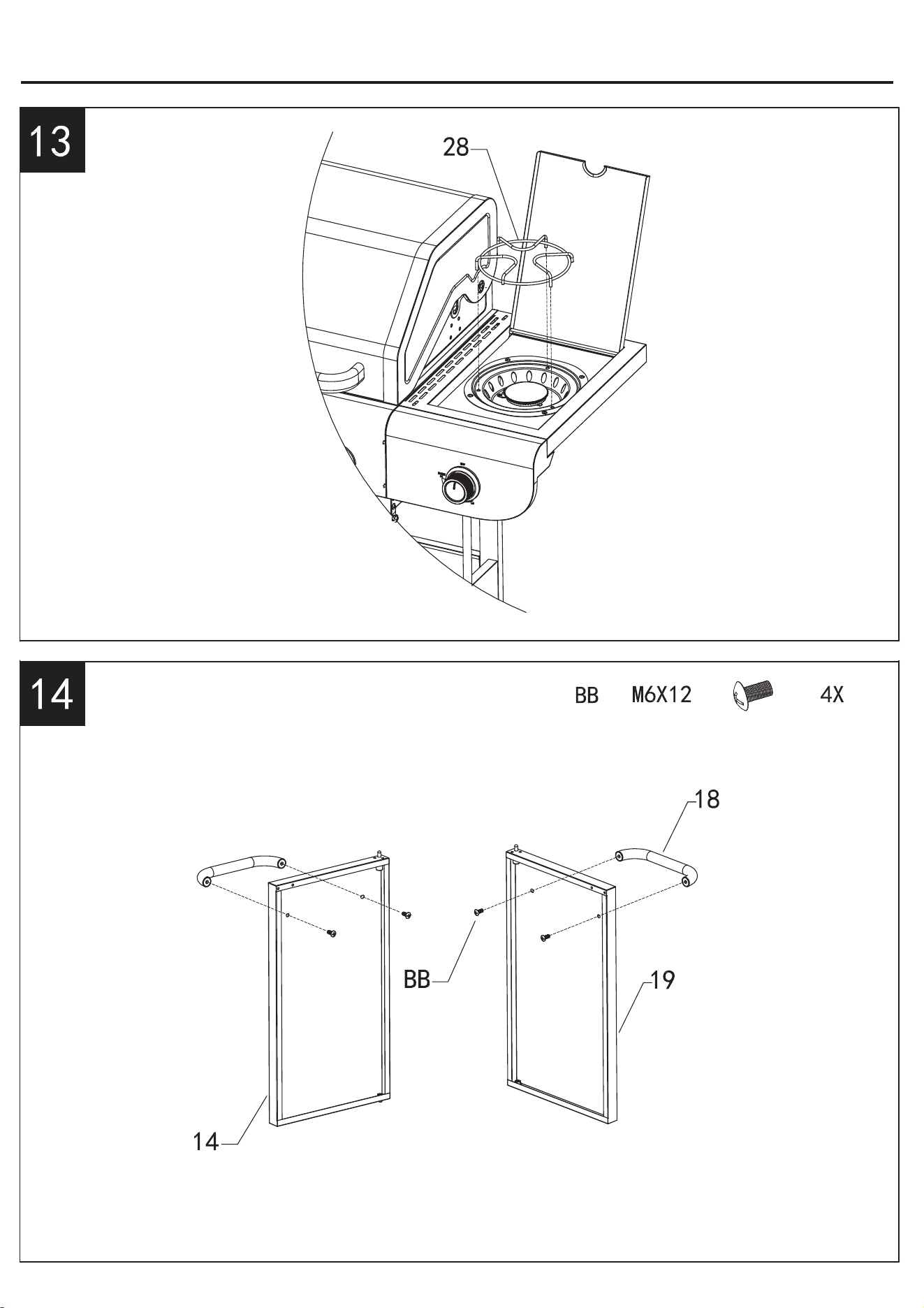

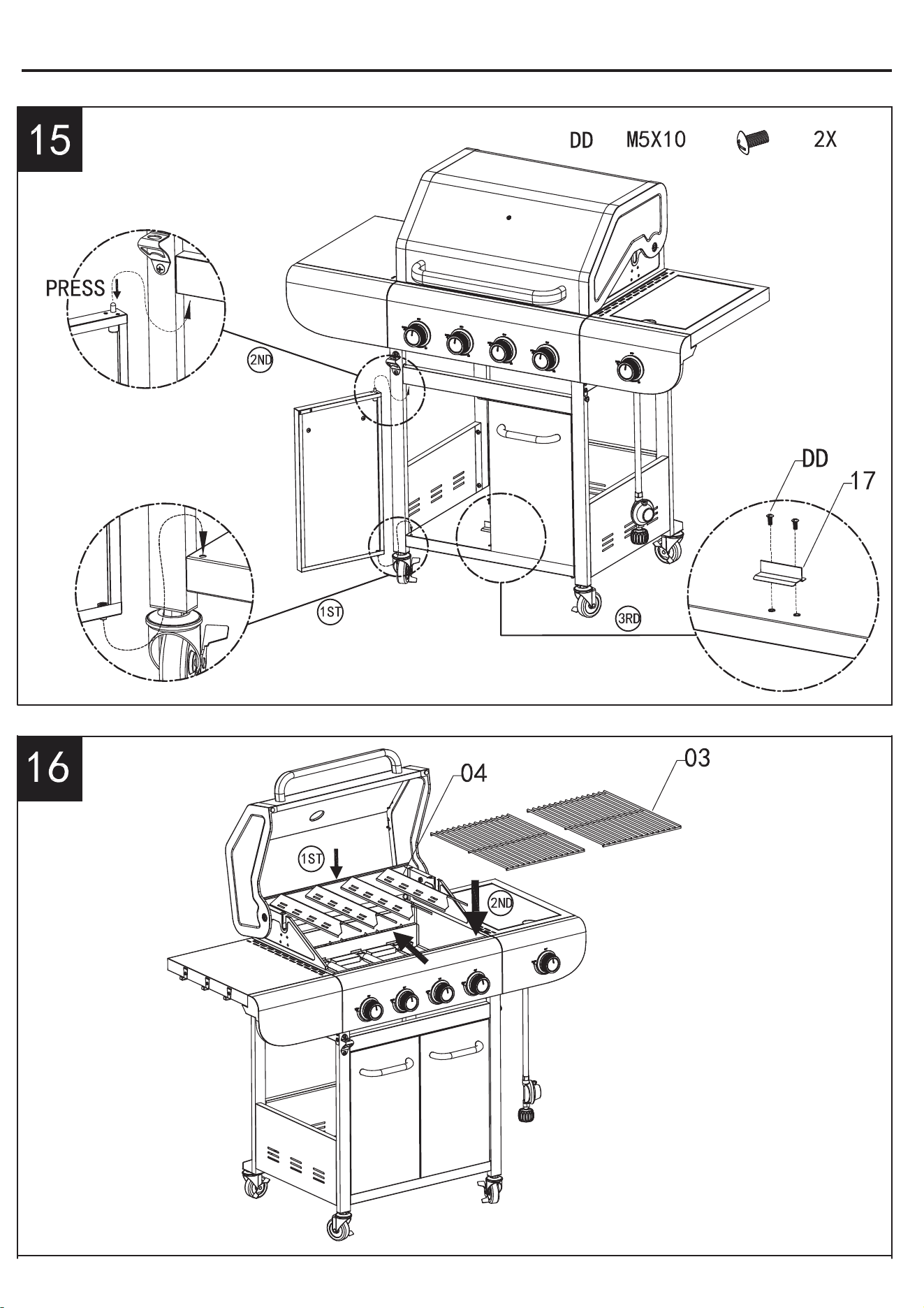

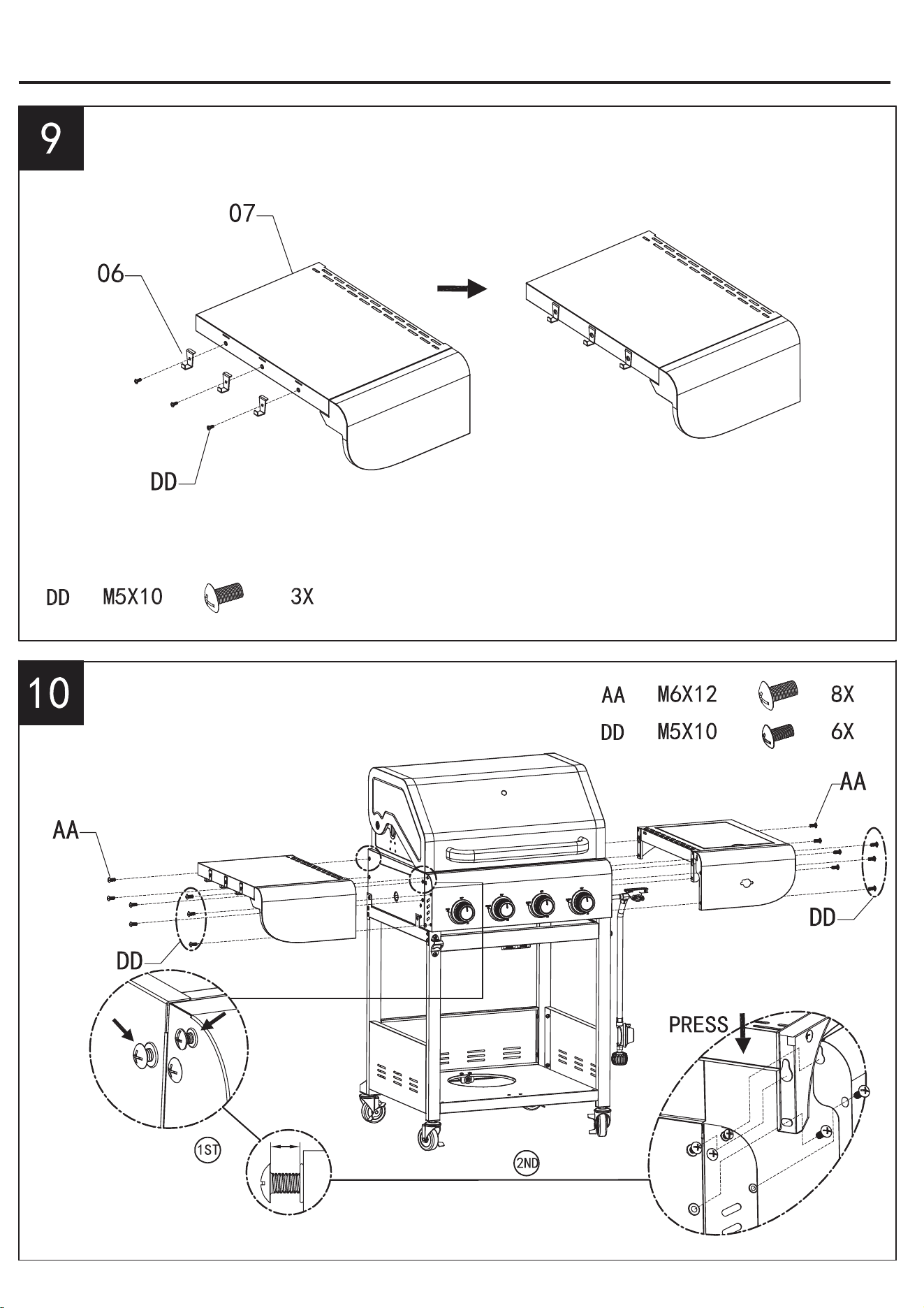

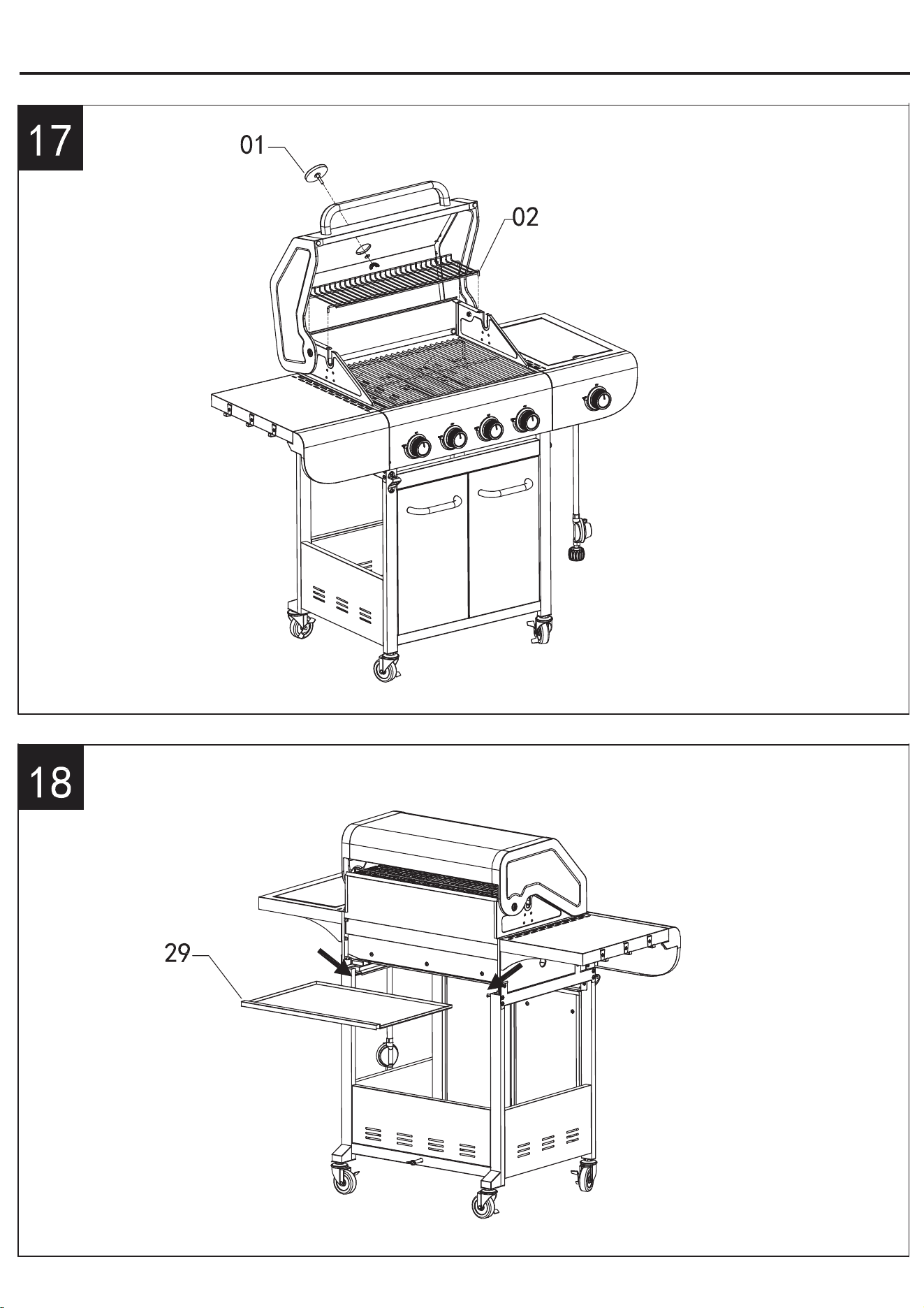

ASSEMBLY INSTRUCTIONS
9
ASSEMBLY INSTRUCTIONS
10

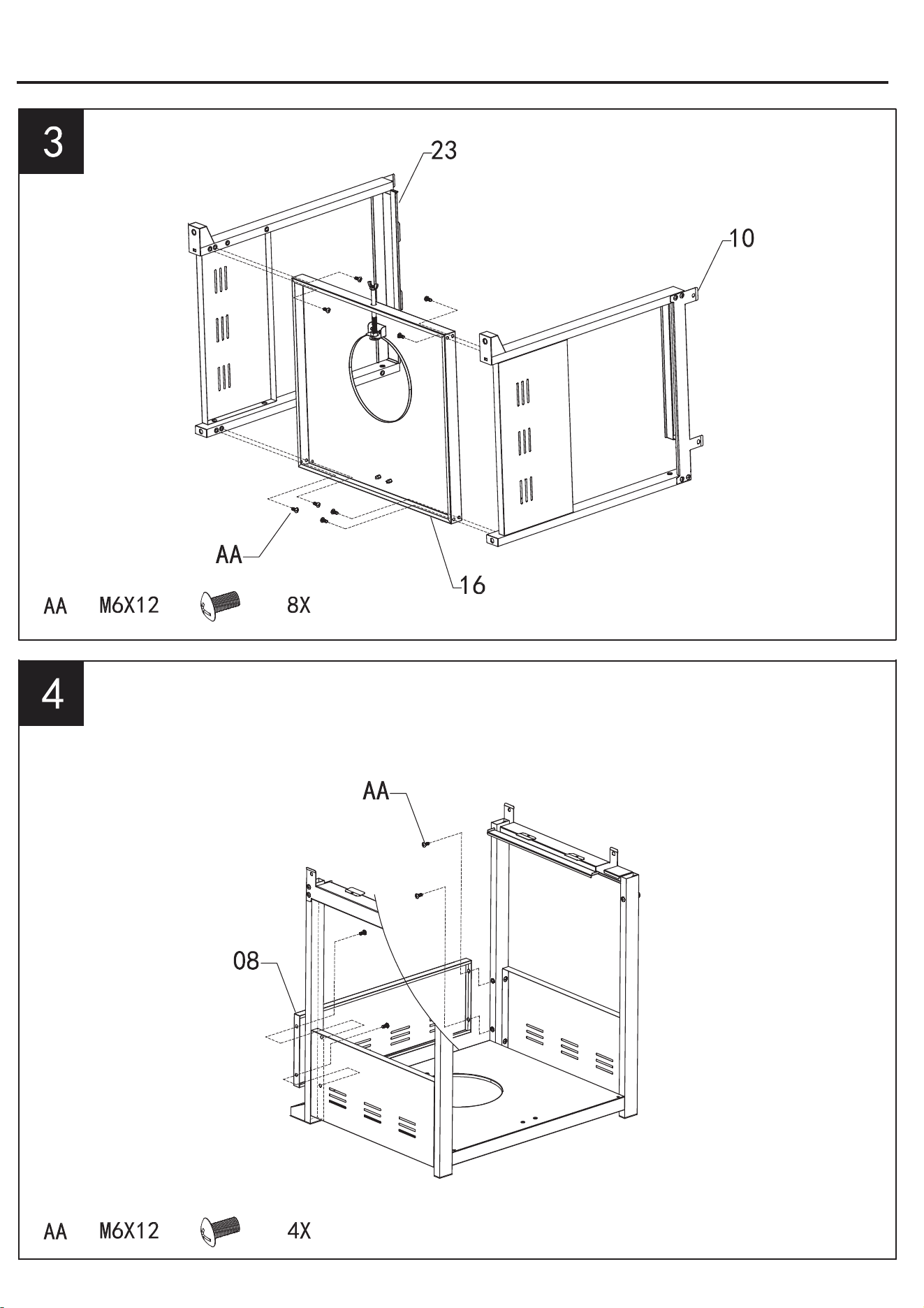

ASSEMBLY INSTRUCTIONS
11
ASSEMBLY INSTRUCTIONS
12

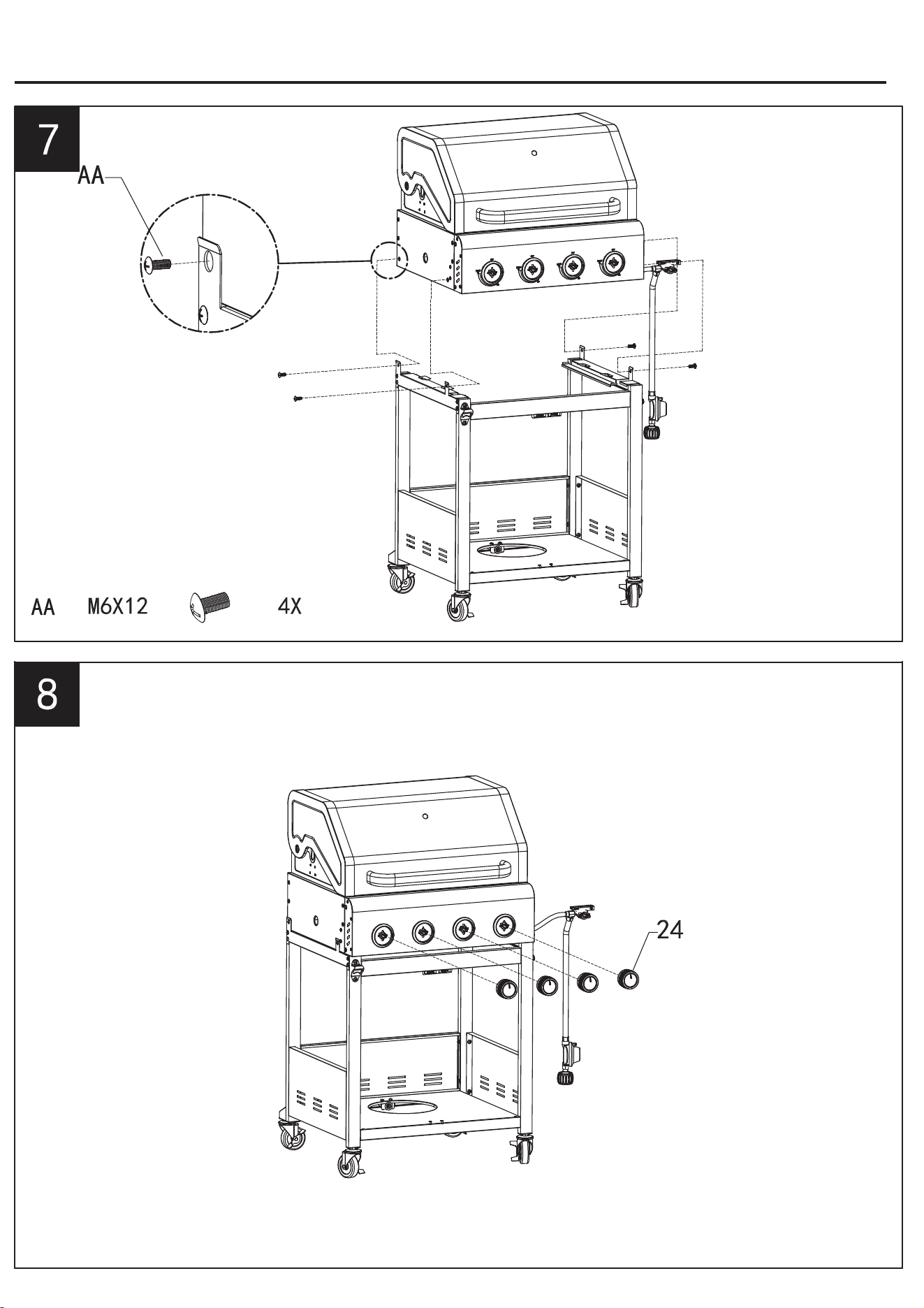

ASSEMBLY INSTRUCTIONS
13
ASSEMBLY INSTRUCTIONS
14

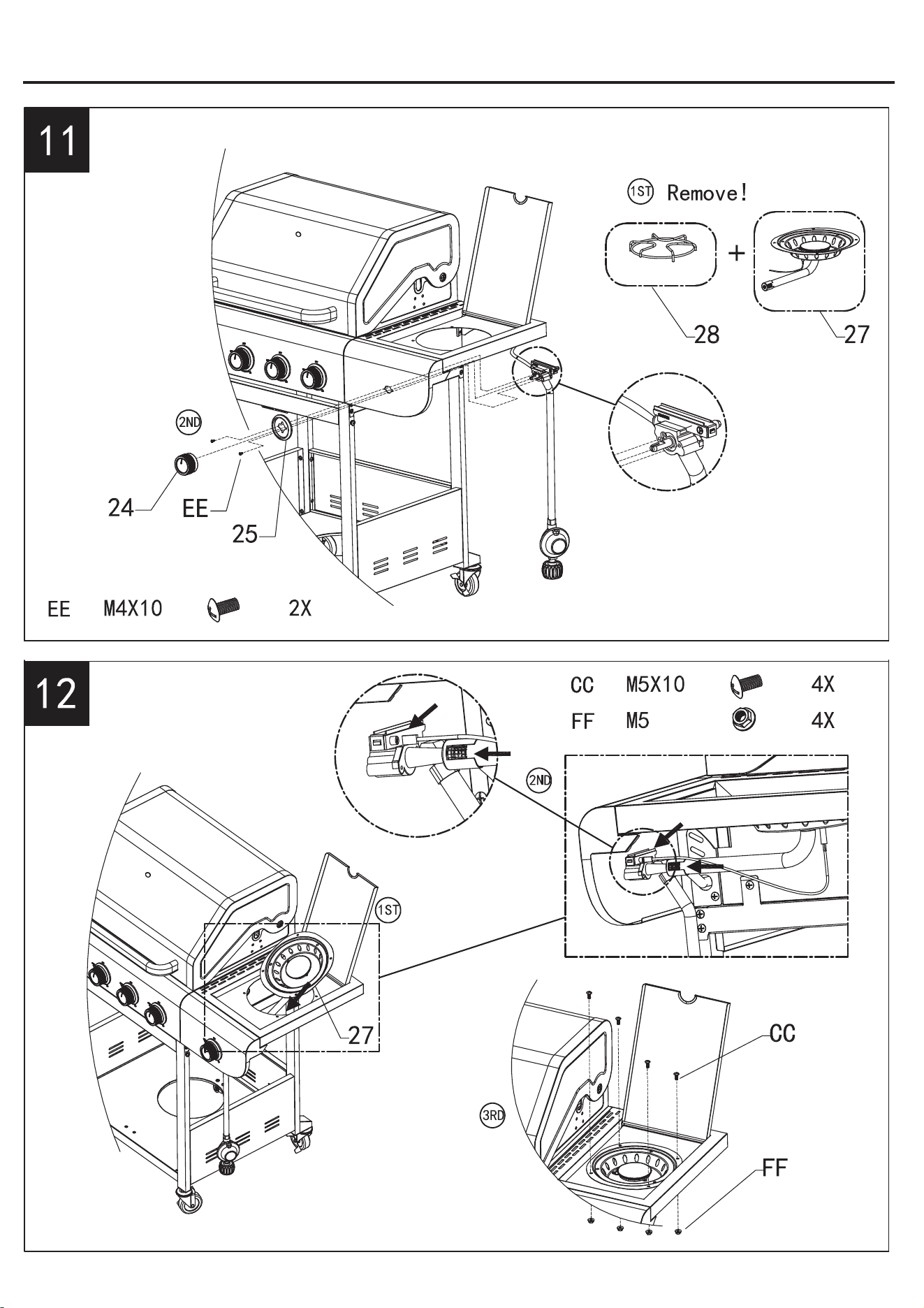

ASSEMBLY INSTRUCTIONS
15
ASSEMBLY INSTRUCTIONS
16
ASSEMBLY INSTRUCTIONS
17
ASSEMBLY INSTRUCTIONS
18
OPERATION INSTRUCTIONS
CHECKING FOR LEAKS
gs on the LP gas tank valve, gas hose
and regulator for leaks with a water and soap solution.
• Always perform leak test prior to lighting the grill.
• Do not smoke while testing for a leak.
• Always perform leak tests outdoors in a well-ventilated area.
• Do not use the grill until any and all leaks are corrected.
• If you are unable to correct a leak, disconnect the propane supply and call a gas appliance service
dealer.
PERFORM LEAK TEST
• Prepare leak test solution by 50/50 ratio of liquid dish soap and water.
Total solution required is approximately 2-3 ounces (70 - 90 ml).
Put leak test solution in a spray bottle.
• Ensure all control knobs are in the “ 0 ” (OFF) position.
• Connect the gas hose to the gas supply.
• Open the LP gas tank valve.
• Spray leak t
est solution on all gas-carrying connections an
of applied test solution indicates a gas leak. If leaks are detected or you smell or hear gas, shut off the
gas supply valve immediately and repair or replace the defective part. Do not use the grill until
all leaks are corrected.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
CAUTION
Only use the regulator and hose assembly provided! If a replacement is necessary, please call
our customer service center. Do not use replacement parts that are not intended for this grill.
19
OPERATION INSTRUCTIONS
CONNECTING GAS CYLINDER
The propane gas supply cylinder to be used must be constructed and marked in accordance with the
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods; and Commission, as applicable; and provided with a liste
Use only 20-pound cylinders (height: 18.11 inches, tank diameter: 9.84 inches, foot diameter: 8.03 inches)
equipped with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
The cylinder must include a collar to pr
otect the cylinder valve. The gas cylinder should not be dropped
or handled roughly!
If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors
is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must
be stored outdoors out of the reach of children and can not be stored in a building, garage or any
other enclosed area. Your cylinder must never be stored where temperatures can reach over 125°F.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the t
ype of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs
may result in leakage of propane.
Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the
regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and
the regulator valve when the grill is not in use.

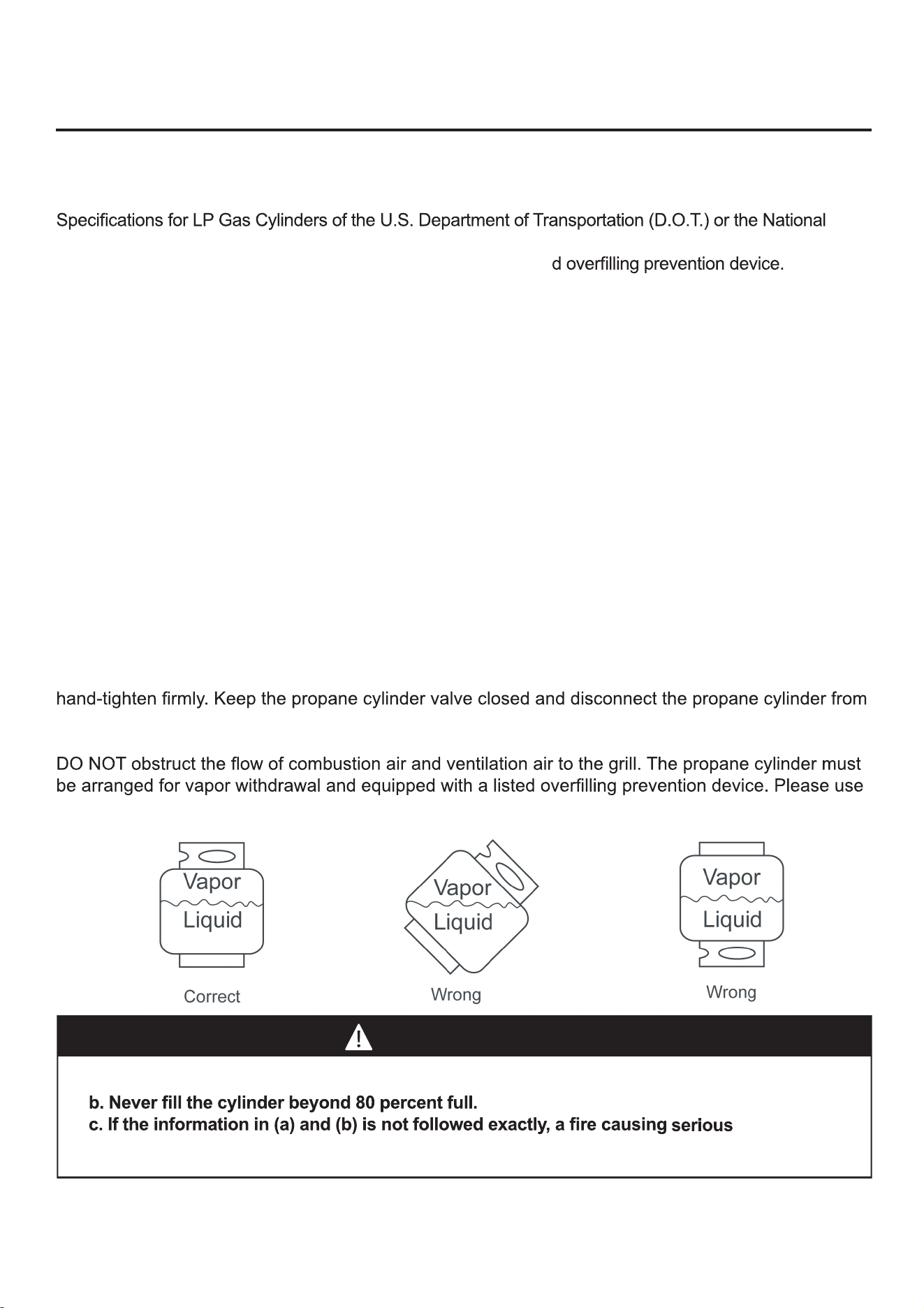

the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be fully upright
for the cylinder to have vapor withdrawal only.
CAUTION
a. Do not store a spare LP-gas cylinder under or near this appliance.
injury may occur.
20
NOTE: Other cylinders may be acceptable for use with this appliance If
they are compatible with the
OPERATION INSTRUCTIONS
appliance
nesting hol e and retention means.

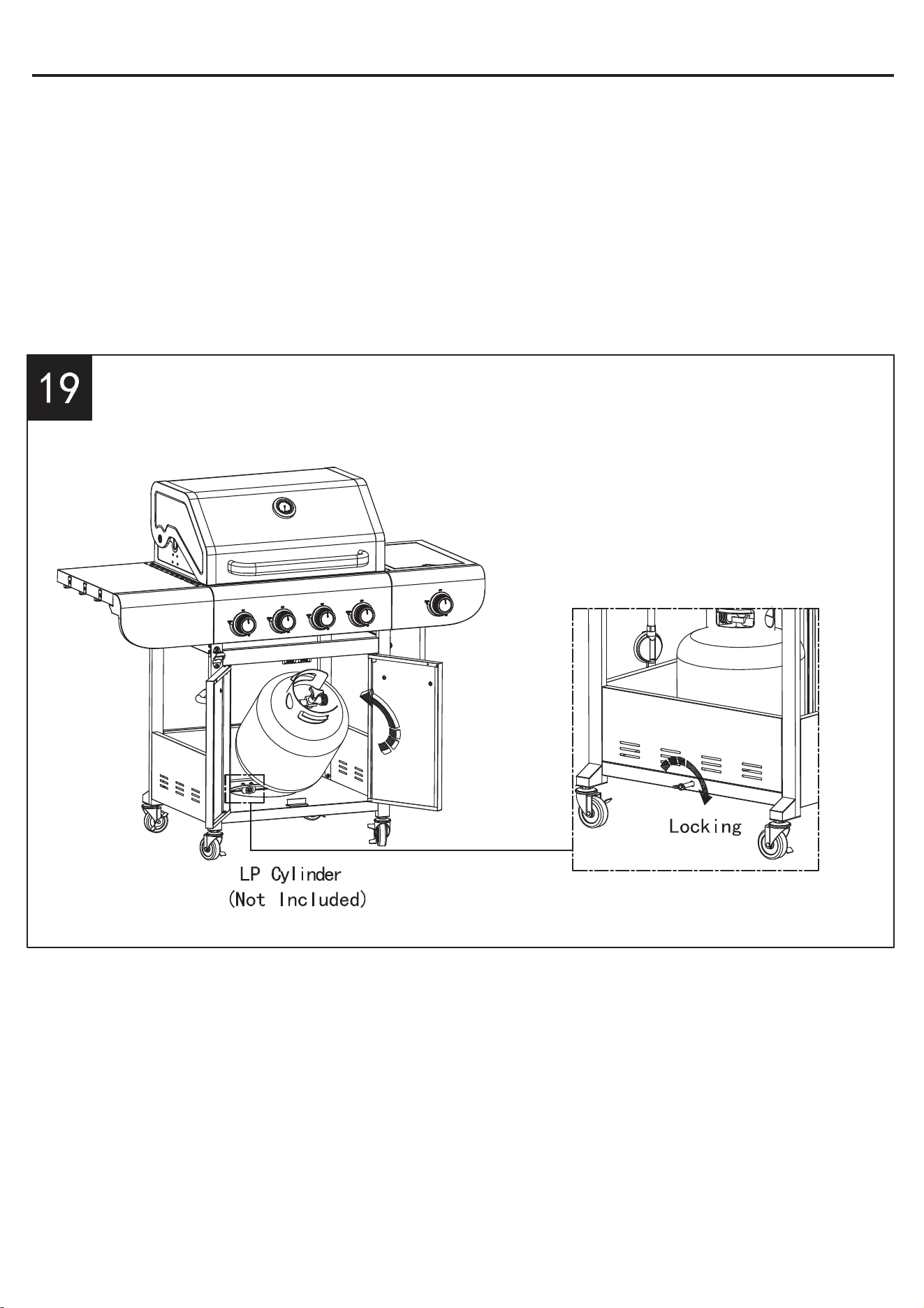

Refer to the Assembly Instructions of Page18for
correcting the cylinder to the cylinder holder connection.
WARNING
ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO
PREVENT FIRE, DAMAGE AND/OR INJURY.
WARNING
In the connection process, make sure:
• the regulator inlet connector mates with the cylinder valve o

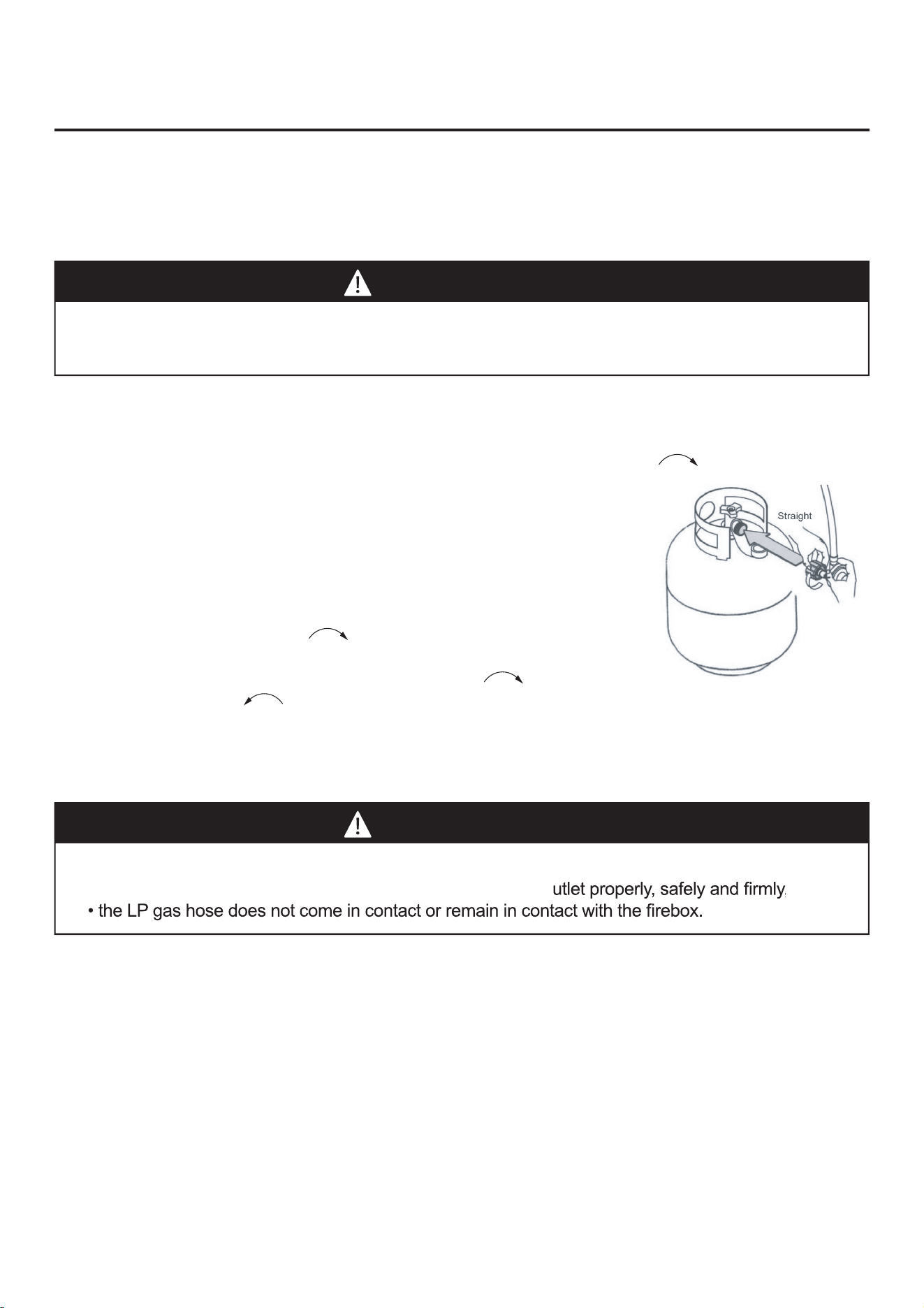

CONNECTING THE LP TANK
1. The knob on the LP tank must be closed. Make sure that the knob is turned
clockwise to a
full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned off.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve
outlet. Be sure the nipple is centered in the valve outlet. Connect the
coupling to the large outside threads on the valve outlet. Use care– do
not cross thread the connection.
5. Hand-tighten the coupling nut
clockwise until it comes to a full
stop. Firmly tighten by hand only. Do not use tools.
To Disconnect: Fully close the tank valve by turning
clockwise.
Turn the coupling nut
counterclockwise until the regulator assembly detaches.
21
4. Push ignitor down 3 to 4 seconds while turning right side control knob to the
high position. The burner should ignite. If ignition does not take place within 5
seconds, immediately turn the control knob to the “ 0 ” OFF position. Wait 5
minutes and repeat step 4 above or refer to match lighting instructions in the
manual.
5. Repeat step 4 above to ignite all other burners. If the burner still does not light,
check that there is gas in the cylinder andfollow the match lighting instructions.
Check the Troubleshooting Guide on page 20 for more information.
counterclockwise.
OPERATION INSTRUCTIONS

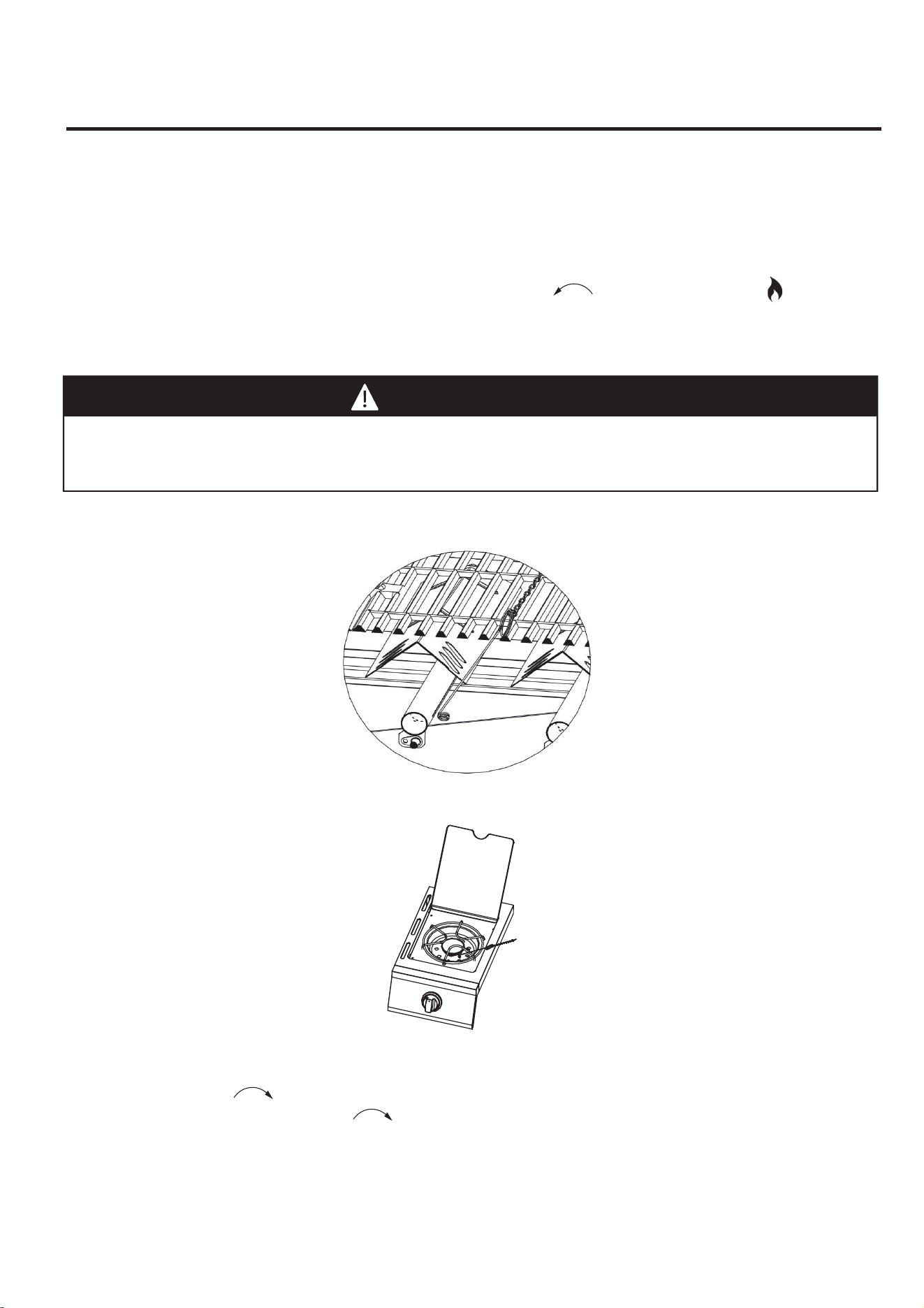

Lighting The Grill
Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important
to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed
and the control knob in the highest position. This will clean the internal parts by burning off any residue
and odor from the manufacturing process.
WARNING
Do not lean over grill when lighting. Read instructions before lighting.
CAUTION
ion, immediately TURN OFF the
cylinder valve and then TURN OFF the control knob.
1. Check that the control knobs are at the
OFF position.
2. Open valve at tank fully by turning
.
3. Open the lid during lighting.
22
OPERATION INSTRUCTIONS
SHUTDOWN INSTRUCTIONS
1. Turn control knobs
clockwise to the OFF position.
2. Close valve at tank fully by turning
3. Close the lid.
clockwise.
Turn off LP supply at the cylinder when the appliance is not in use.
CAUTION
Make sure all burners controls are off except for the burner being lit and the
burners that have been lit.
Main Burner Match Lighting
Side Burner Match Lighting
LIGHTING THE GRILL WITH A MATCH
1. Open the lid.
2. Insert a match in the end of the match holder that is installed on the right door assembly.
3. Light the match.
4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner
between the heat tents as shown. Make sure the lit match is close to the burner ports.
5. Press in the control knob that operates the burner and rotate
counter-clockwise to High
position and burner should light immediately.
6. Repeat 2–5 steps to light
the remaining burners.
7. Adjust burners to desired cooking settings.
23
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Low Heat.
Excessive
Flare Up.
1.
The igniter electrode may be
covered with grease or residue.
2.
the unit.
1.
2.
3.
1.
2.
any loose or disconnected wires.
3.Replace the ignition electrode.
4.
Perform any of the following:
The igniter electrode may have
1.
Clean the grill components.
2. Shed the fat from meat and use non
-
oil based marinades.
3.
Lower temperature accordingly.
a loose or disconnected wire.
Cracked or broken ignition elect-
rode .
Dead battery or faulty battery con-
nection.
3.
4.
Grease and/or residue build-up
on heat tents or in firebox.
Excessive dripping of fat or m-
arinade from food.
Cooking temperature too high.
Call a qualified service agency to check
the gas supply pressure and correct the
pressure.
Clean the ignitor electrode.
Check the connection and reconnect
a.Replace the battery.
b.Check to see if the battery is
inserted correctly.
c.Check for any corrosion around ba-
ttery terminals.
d.Check wire connections as stated a-
bove
The burner does not
light
by using
the ig-
nitor procedure (we-
ak or no sparkbeing
generated).
If you have any questions regarding the product, please call customer service at 213-4467172 or 661-
4358826.
24
1. Tank valve not on or fully opened.
2. Empty tank.
3. Poor connection between the
valve regulator and the LP cylinder
coupling.
4. Burner inlet blocked.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The burner will not
light wi
No gas flow or
anobstructed
gas flow.
th a match.
NOTICE: Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not
which may vary from state to state.
1. The match not reaching burners
(when holding the match with
hand).
2. Empty tank.
3. Poor connection between the
valve regulator and LP cylinder
coupling.
4. Burner inlet blocked.
1. Use the match holder found in right door.
2. Check the fuel level and refill the tank if
necessary.
3. Turn off grill knobs, close the cylinder valve
at top of the cylinder and check the
connection between the regulator valve and
the cylinder coupling.
Disconnect and reconnect, if necessary.
4. Clean the burner inlet (venturi) and the
burner as described by Care and
Maintenance section in the manual.
1. Fully open the tank valve by turning
counterclockwise.
2. Check the fuel level and replace the fuel if
necessary.
3. Turn off grill knobs, close the LP cylinder
valve at top of the cylinder and check the
regulator valve and the cylinder coupling.
Disconnect and reconnect, if necessary.
4. Clean the burner inlet (venturi) and burners
as described by Care and Maintenance
section in the manual.
25
Item Name：�+�Burner LP Gas Grill With Side Burner
Model：G������
Main Burner Total rated BTU:��,���BTU/Hr
Side Burner rated BTU:9,000BTU/Hr
Thank you for purchasing this product! If you have questions about the
product such as missing parts, damaged products, product assembling
and operation etc., please contact us via Amazon Message or customer
service phone: 213-4467172 or 661-4358826
IMPORTANT
Simply call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o i
nquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
26
