CHARBROIL
2-BURNER GAS GRILL
FOR OUTDOOR USE ONLY
• This grill is designed for use with LP gas only.
If you have questions or need assistance during assembly, please call 1-800-241-7548
PRODUCT GUIDE
©
2024 Char-Broil, LLC. Columbus, GA, 31904. Printed in Vietnam. 80034071
MODEL
463664325
SERIAL NUMBER
• See rating Label on grill for serial number.
DATE PURCHASED
TOOLS REQUIRED FOR ASSEMBLY:
• Adjustable wrench (not provided)
• Screwdriver (not provided)
• 7/16” Combination wrench (not provided)
CHARBROIL.COM
Page 2
TABLE OF CONTENTS
SAFETY SYMBOLS
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout the
manual.
CAUTION
WARNING
WARNING
DANGER
DANGER
CAUTION: Indicates a potentially hazardous situation or unsafe prac-
tice which, if not avoided, may result in minor or moderate injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
1. Do not store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
3. Minimum ambient operating temperature: 0°F ( -18°C).
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame.
3. Open lid.
4. If oduor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
IMPORTANT SAFETY
INFORMATION
For Your Safety......................................2-3
Use and Care .......................................4-10
Limited Warranty ...................................... 11

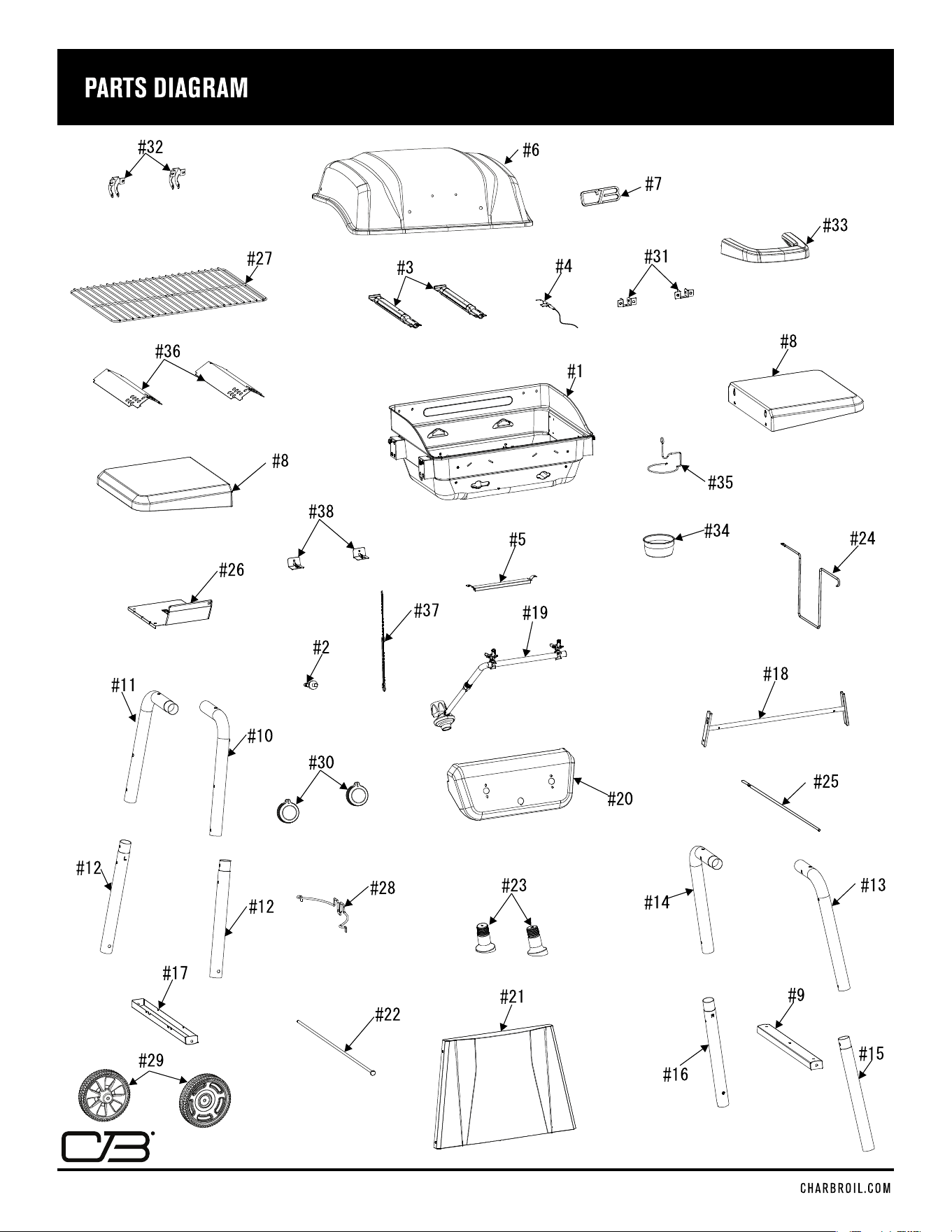

Parts Diagram......................................... 12

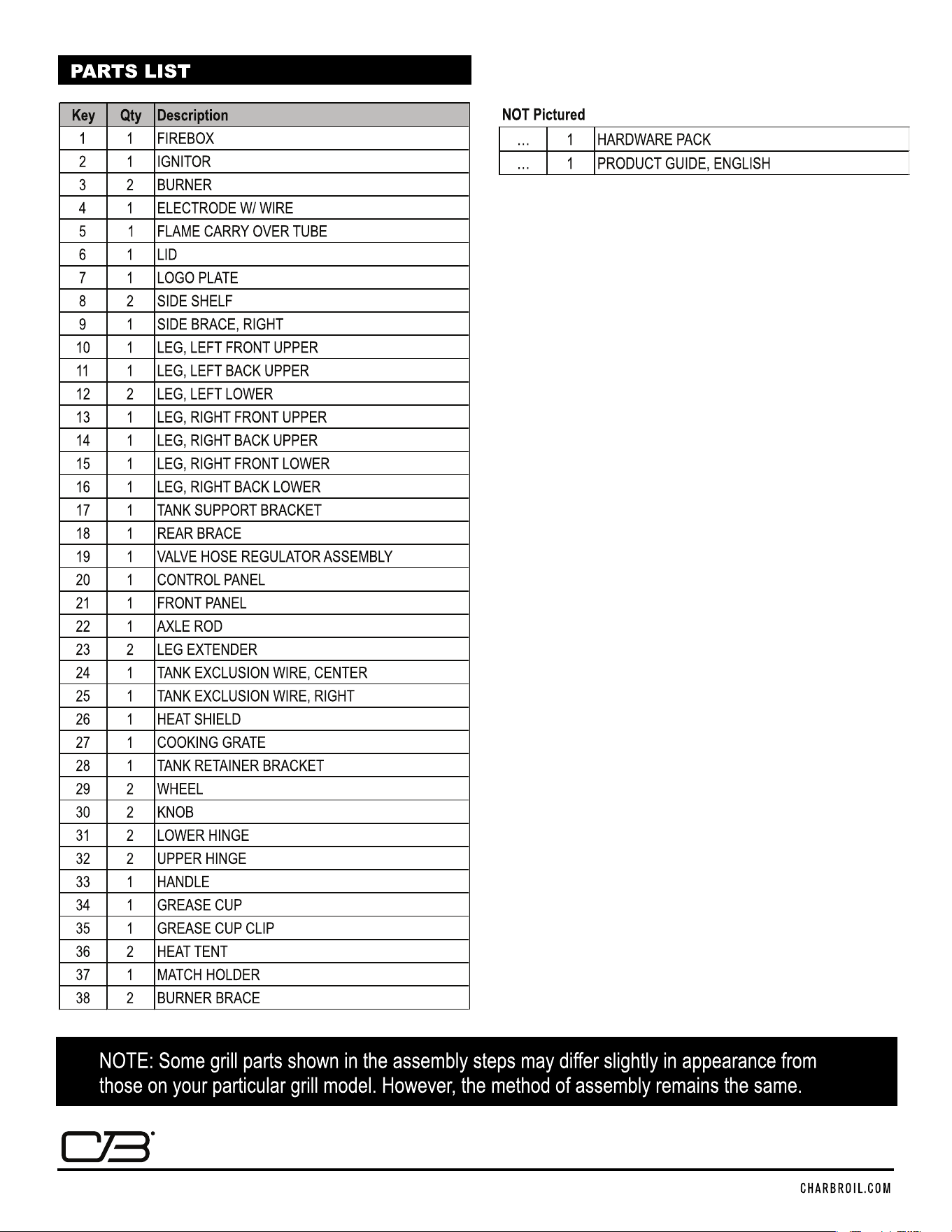

Parts List............................................. 13

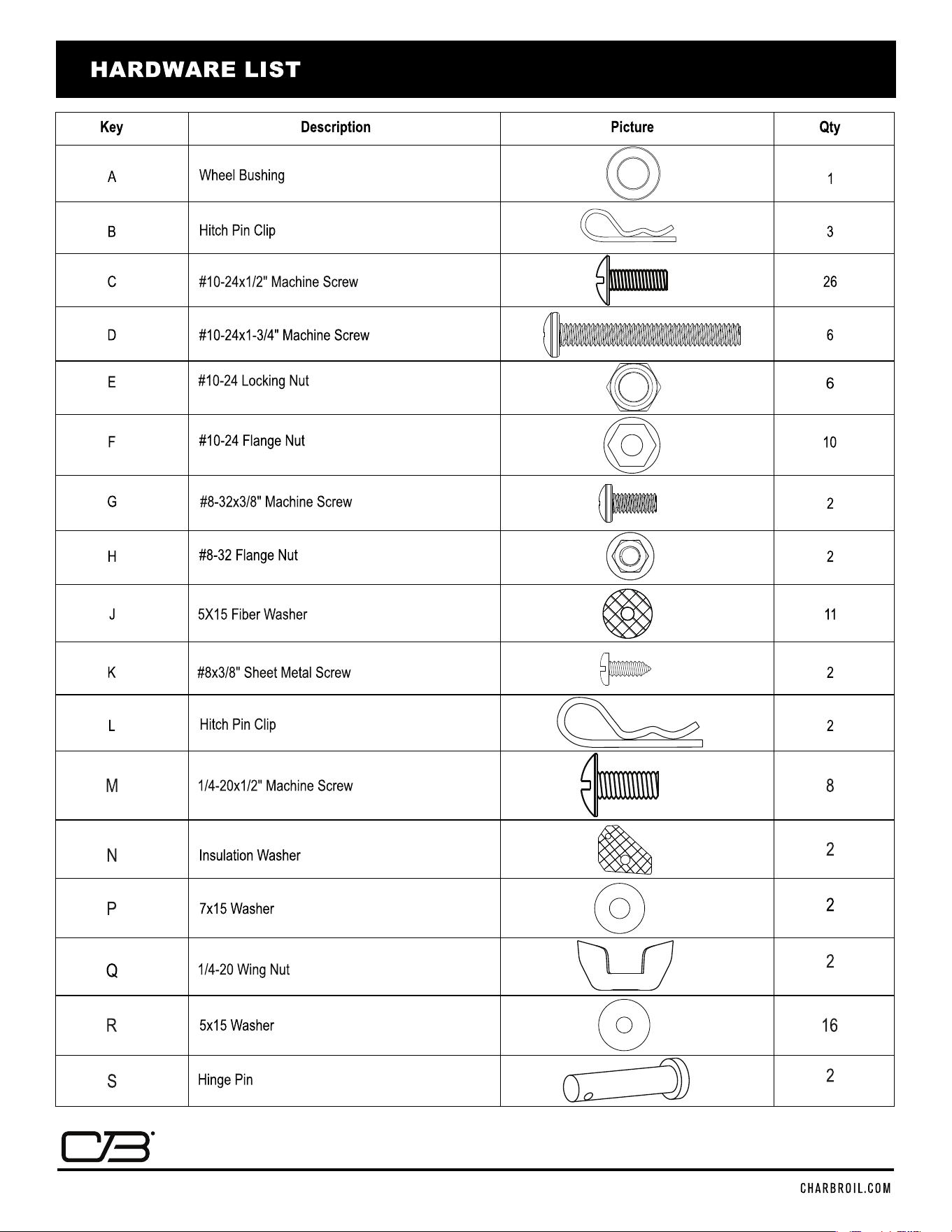

Hardware List ......................................... 14

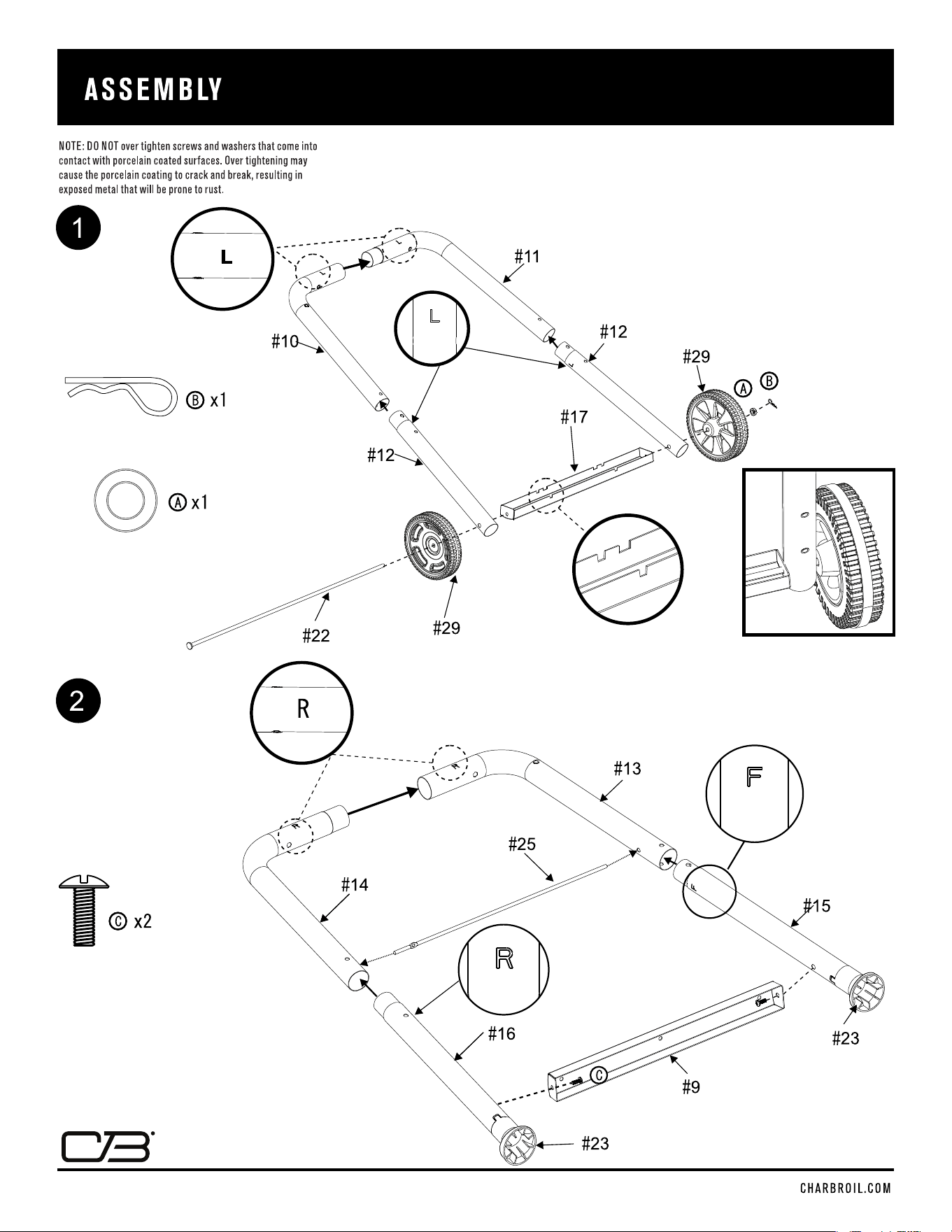

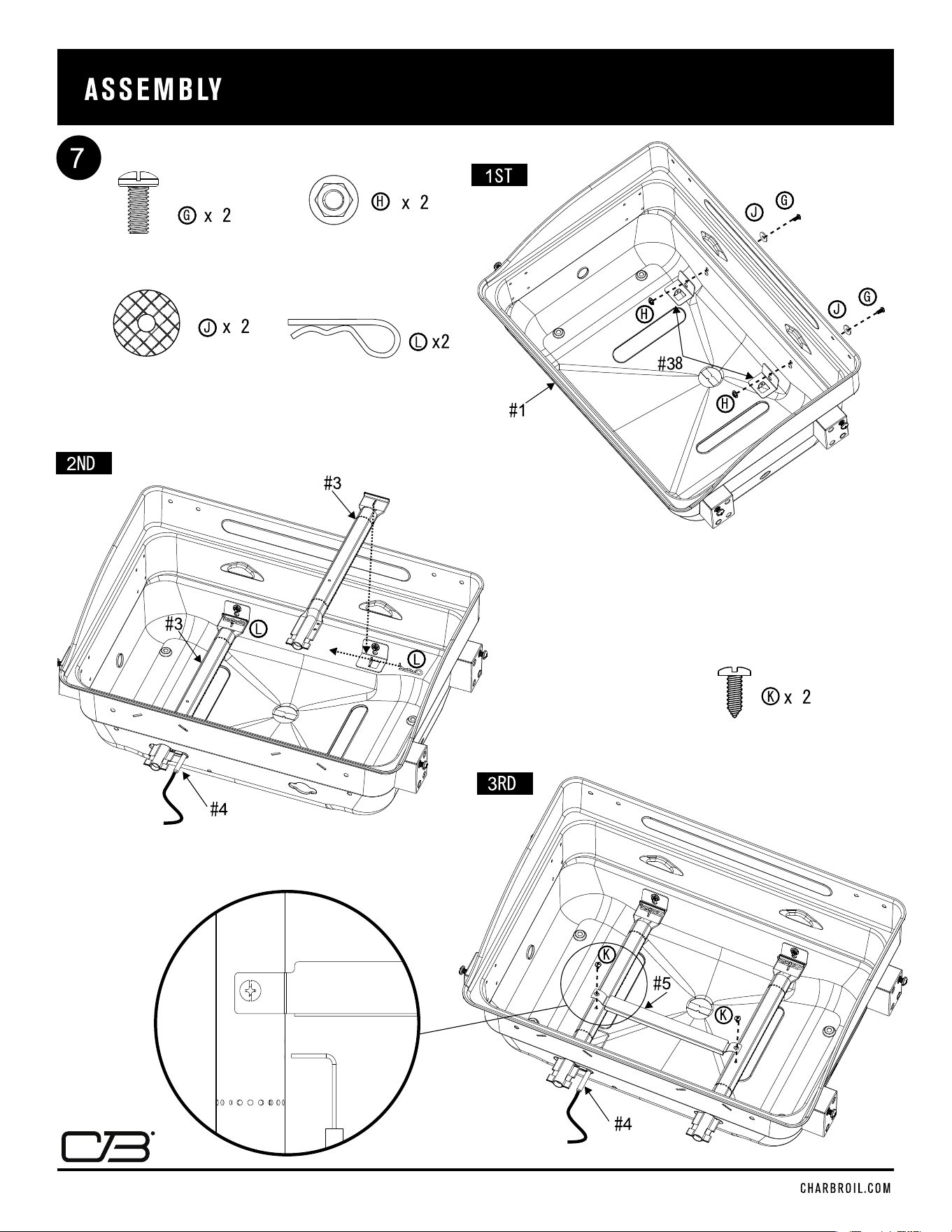

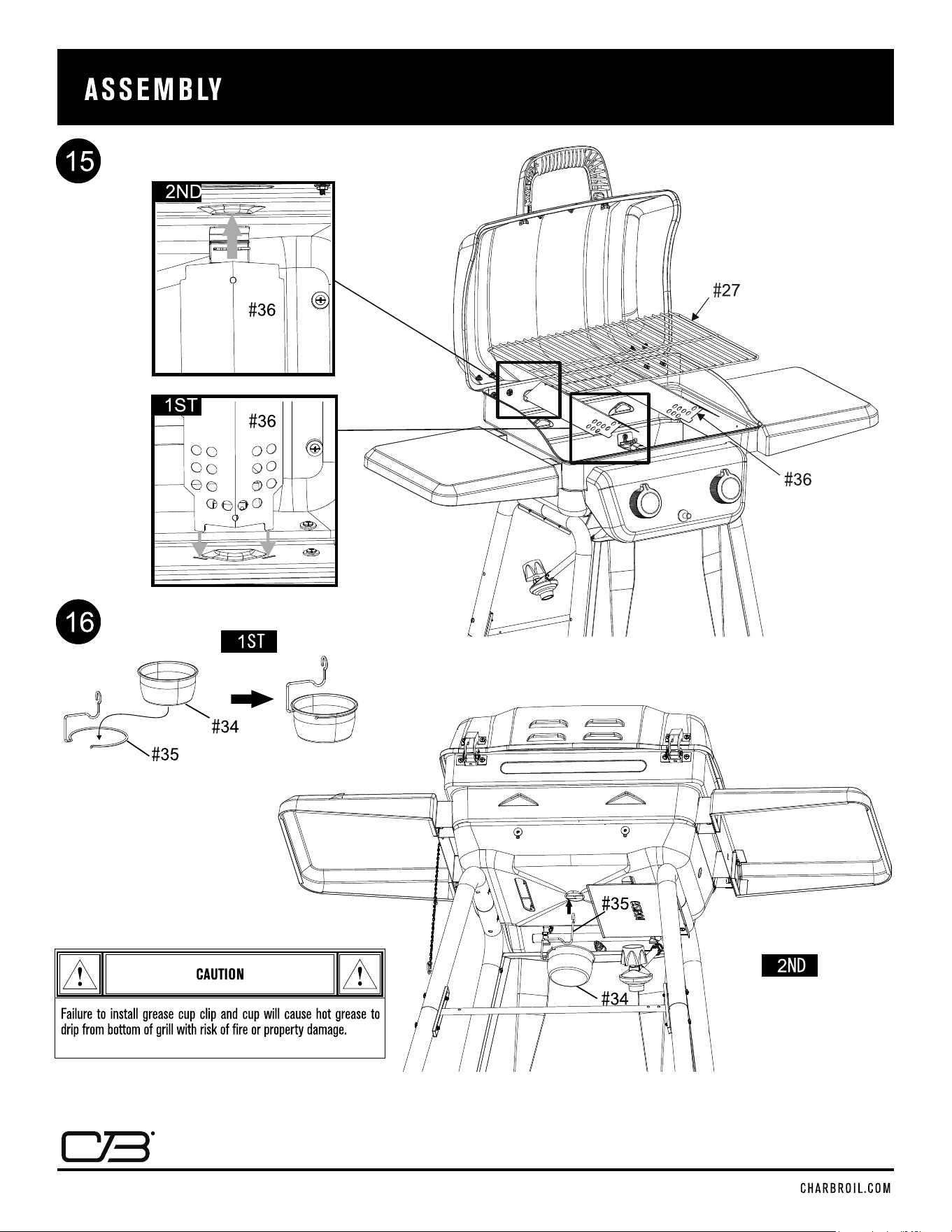

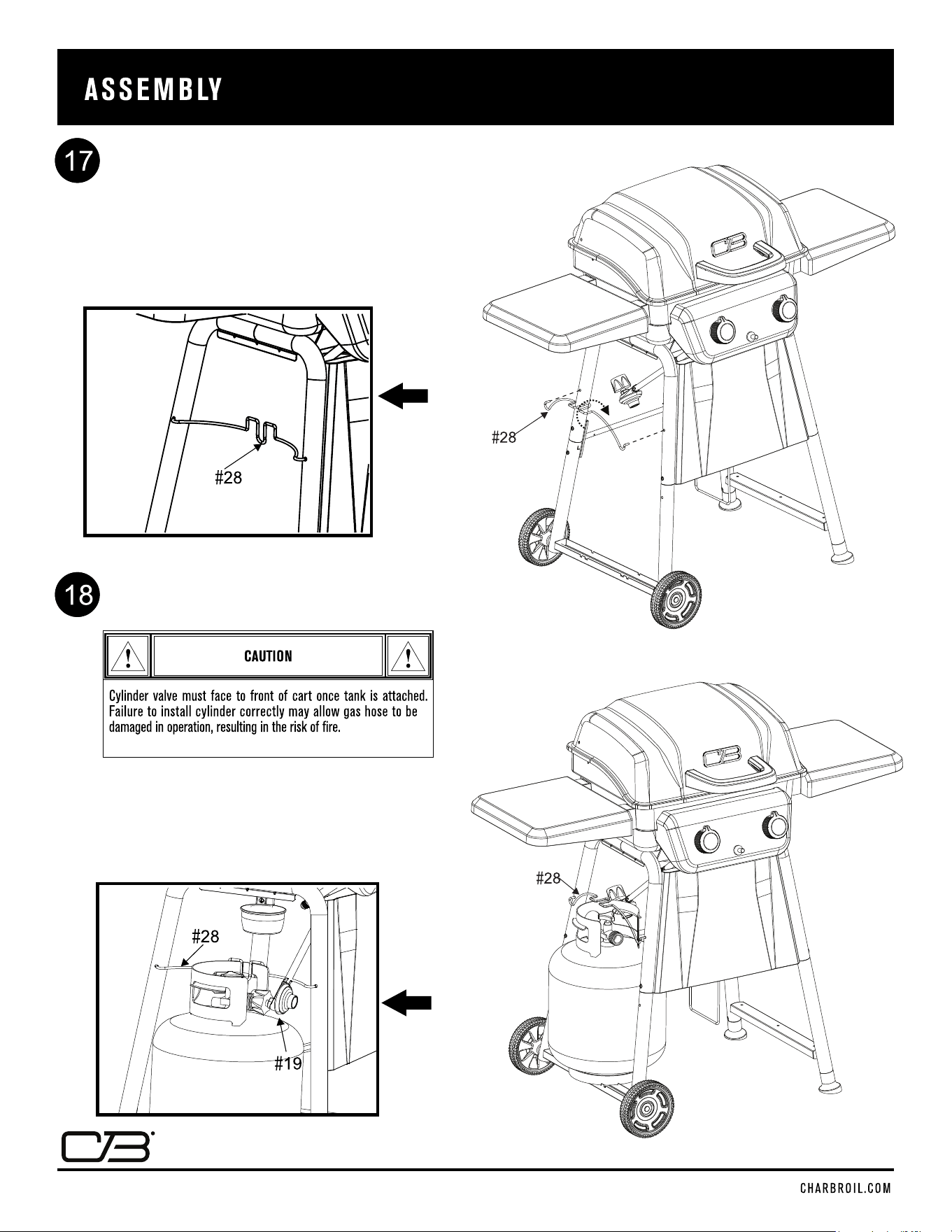

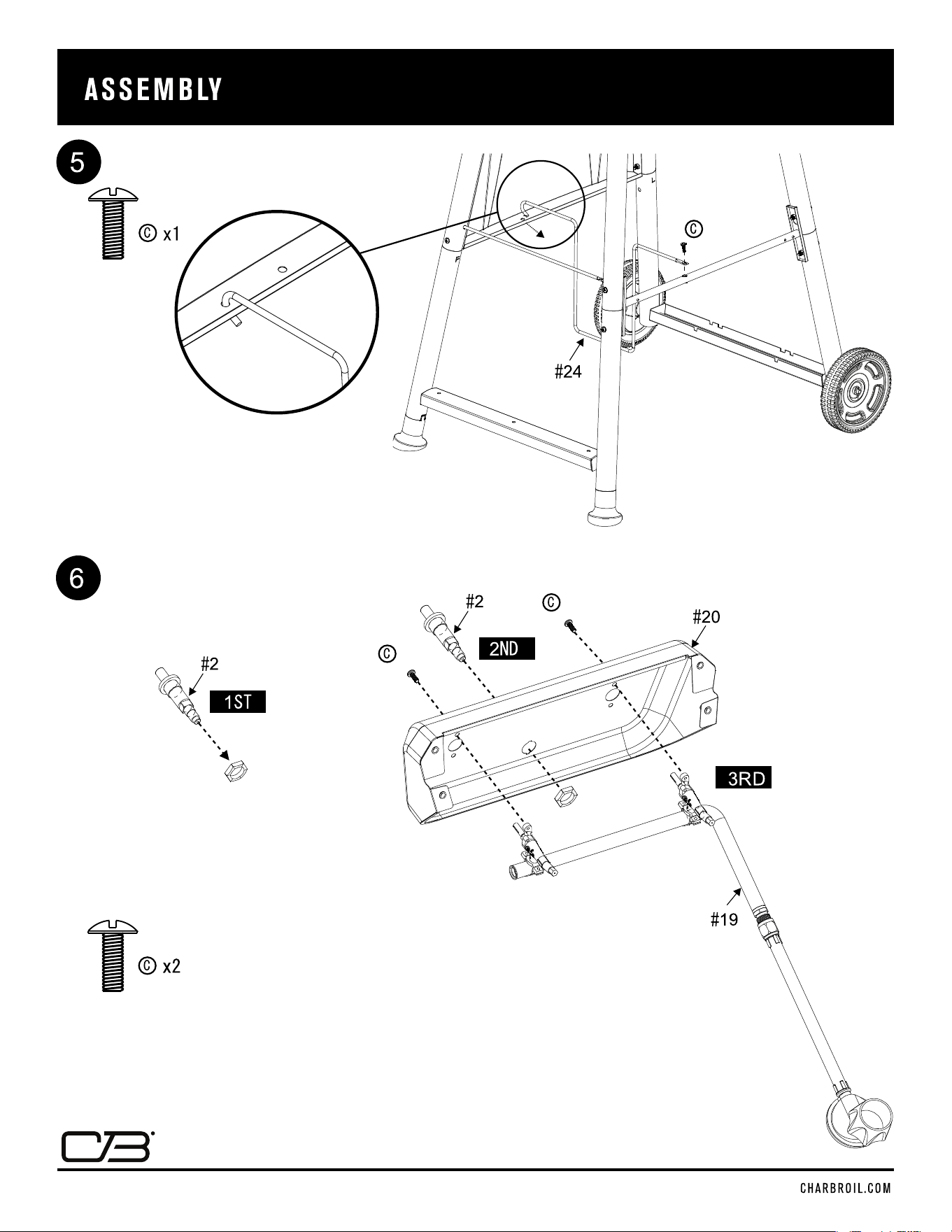

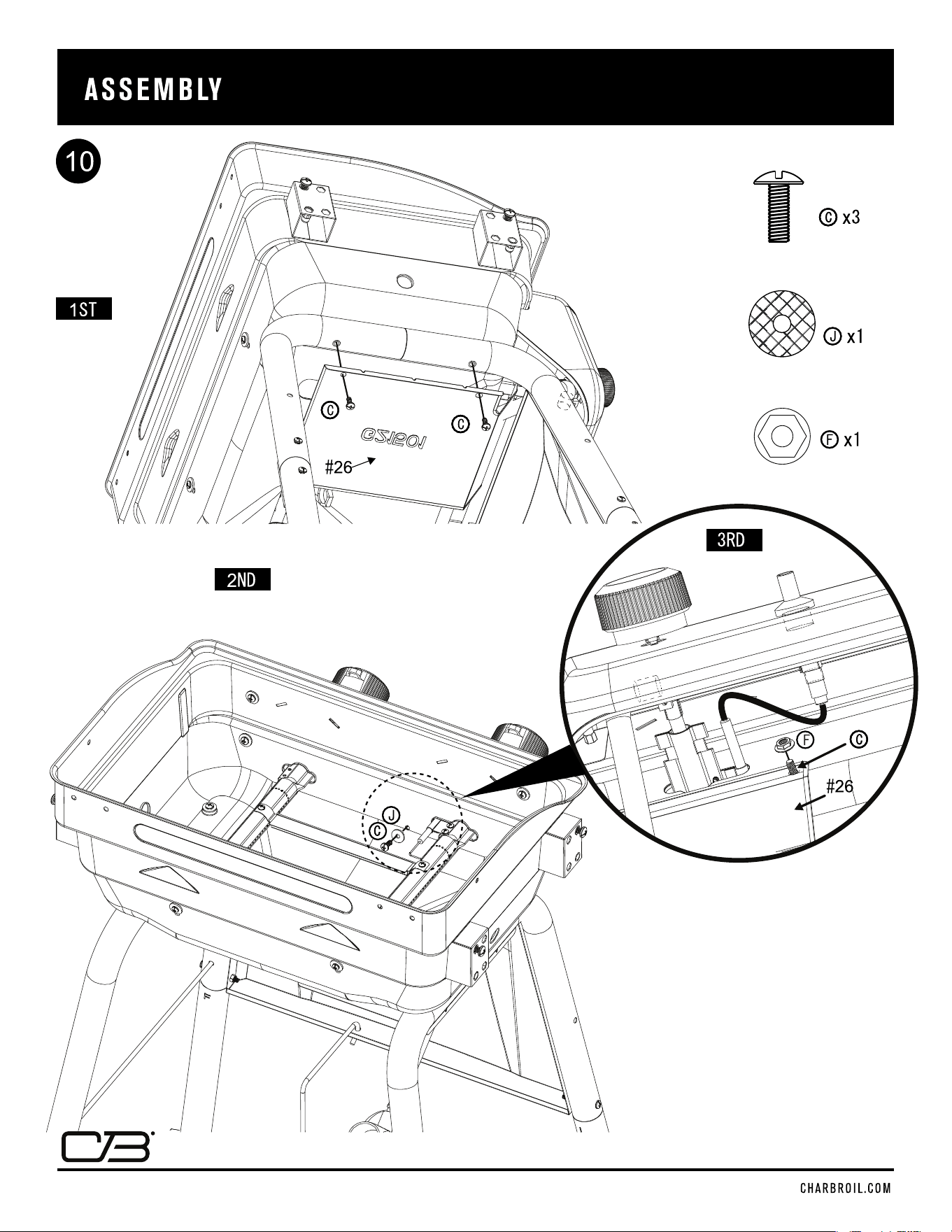

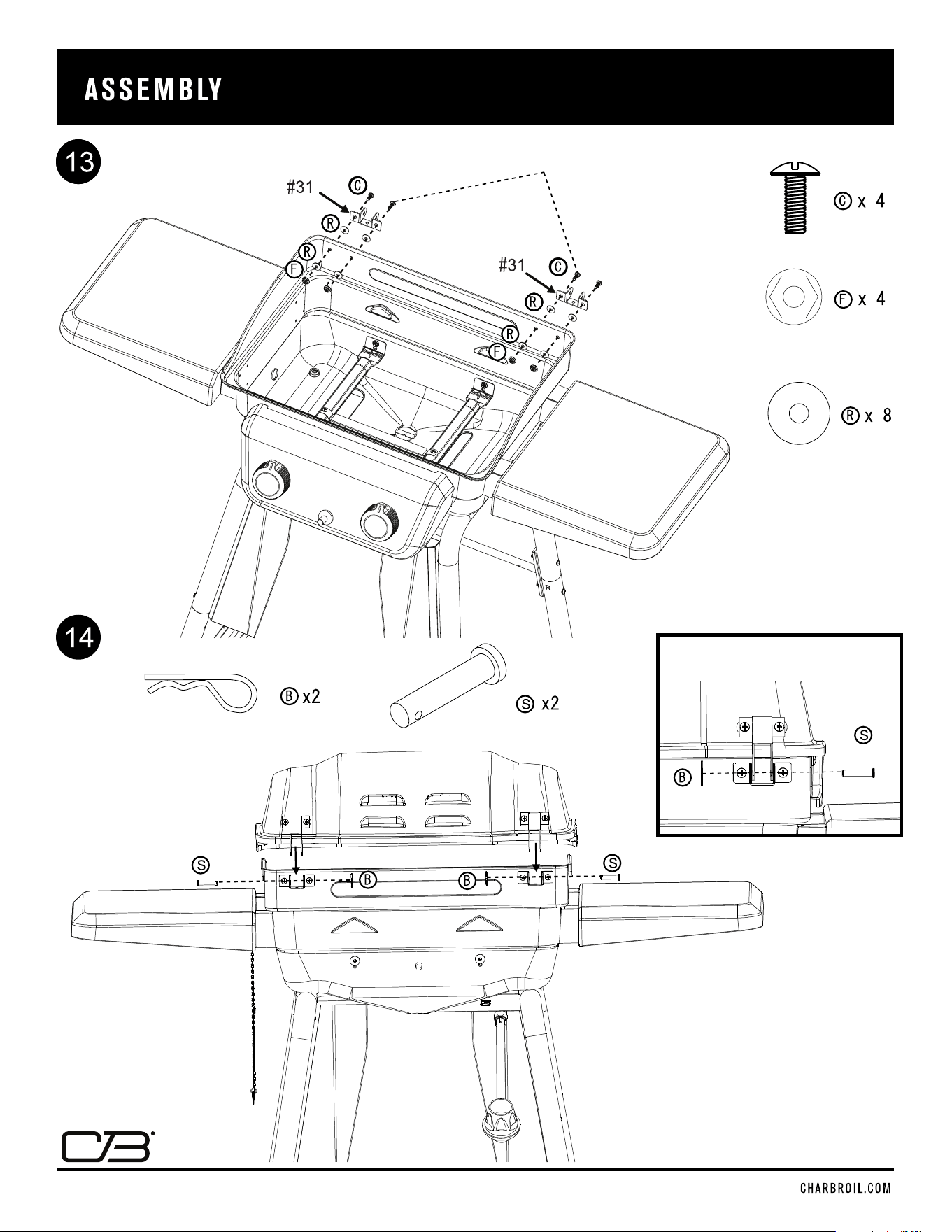

Assembly..........................................15-25
Grilling Guide ......................................26-29
Troubleshooting.....................................30-31
Registration Card ...................................... 35
07/19/24
!
!
!
!
!
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT
INFORMATION NECESSARY FOR THE PROPER ASSEMBLY
AND SAFE USE OF THE APPLIANCE.
READ AND FOLLOW ALL WARNIONGS AND INSTRUC-
TIONS BEFORE ASSEMBLING AND USING THE APPLI-
ANCE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN
USING THE APPLIANCE.
CHARBROIL.COM
Page 3
FOR YOUR SAFETY - INSTALLING YOUR GRILL
CAUTION DANGER
For residential use only. Do not use for commercial
cooking.
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
Some parts may contain sharp edges. Wear protective
gloves if necessary.
Grease Fires
• Putting out grease fires by closing the lid is not
possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury
may result. If a grease fire develops, turn knobs and
LP tank off.
• If grill has not been regularly cleaned, a grease
fire can occur that may damage the product. Pay
close attention while preheating or burning off food
residue to insure that a grease fire does not develop.
• The best way to prevent grease fires is regular
cleaning of the grill following instructions on General
Grill Cleaning and Cleaning The Burner Assembly.

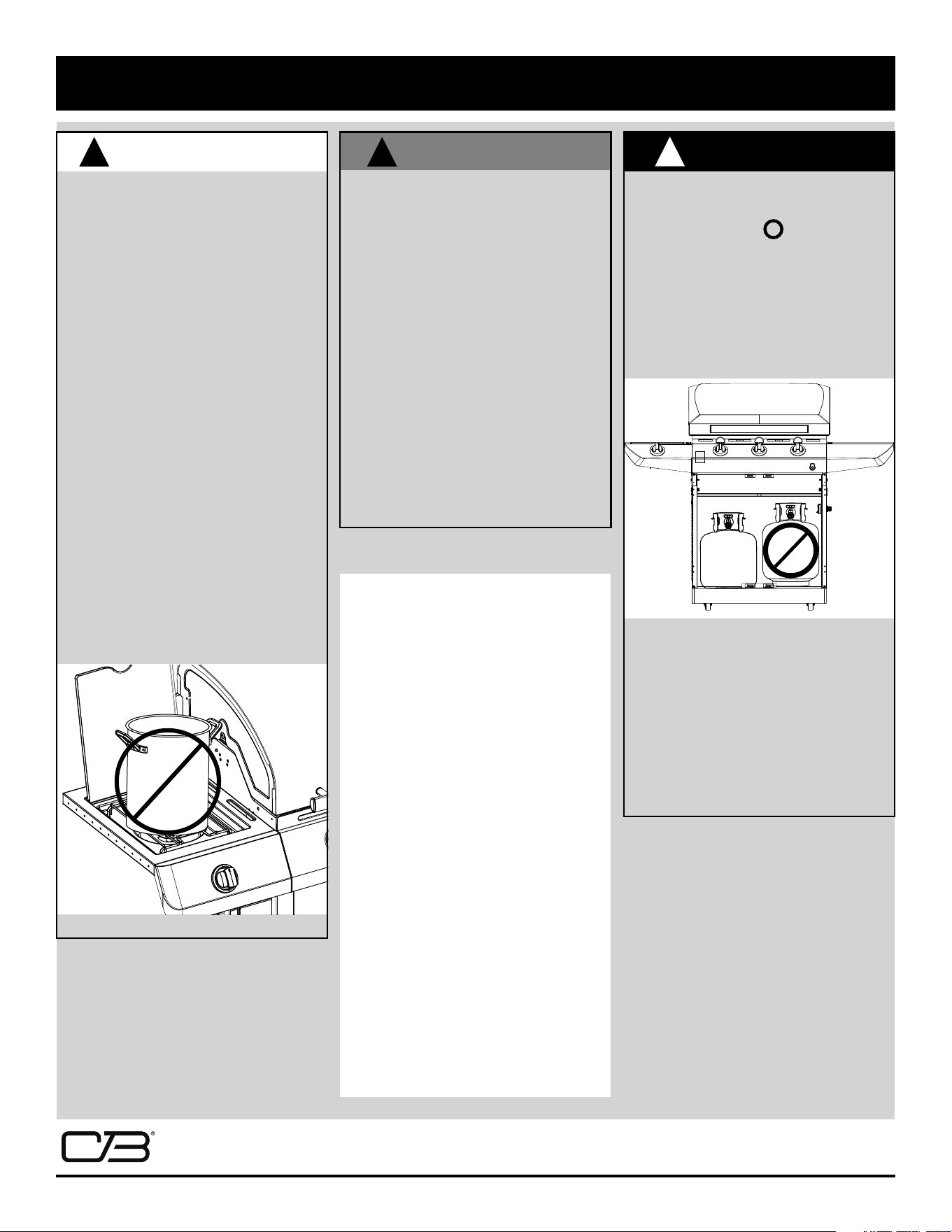

Using pots larger than 6 quarts in capacity could
exceed weight limit of the side burner shelf or side
shelf, resulting in failure of grill cart components.
If during operation the flames go out (You smell
gas or cannot see the flame)
1. Turn the burner controls OFF
2. Open lid.
3. Wait 5 minutes and repeat the lighting procedure.
If the burner goes out, gas will continue to flow
out of the burner and could accidently ignite with
risk of injury.
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a
hazard due to possible gas release from the safety
relief valve. This could cause an intense fire with
risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately
get away from the LP cylinder/appliance and call
your fire department.
If the information above is not follow exactly, a fire
causing death or serious injury could occur.
WARNING
Failure to follow all manufacturer’s instructions could
result in serious personal injury and/or property
damage.
Do not attempt to repair or alter the hose/valve/
regulator for any “assumed” defect. Any modification
to this assembly will void your warranty and create
the risk of a gas leak and fire. Use only authorized
replacement parts supplied by manufacturer.

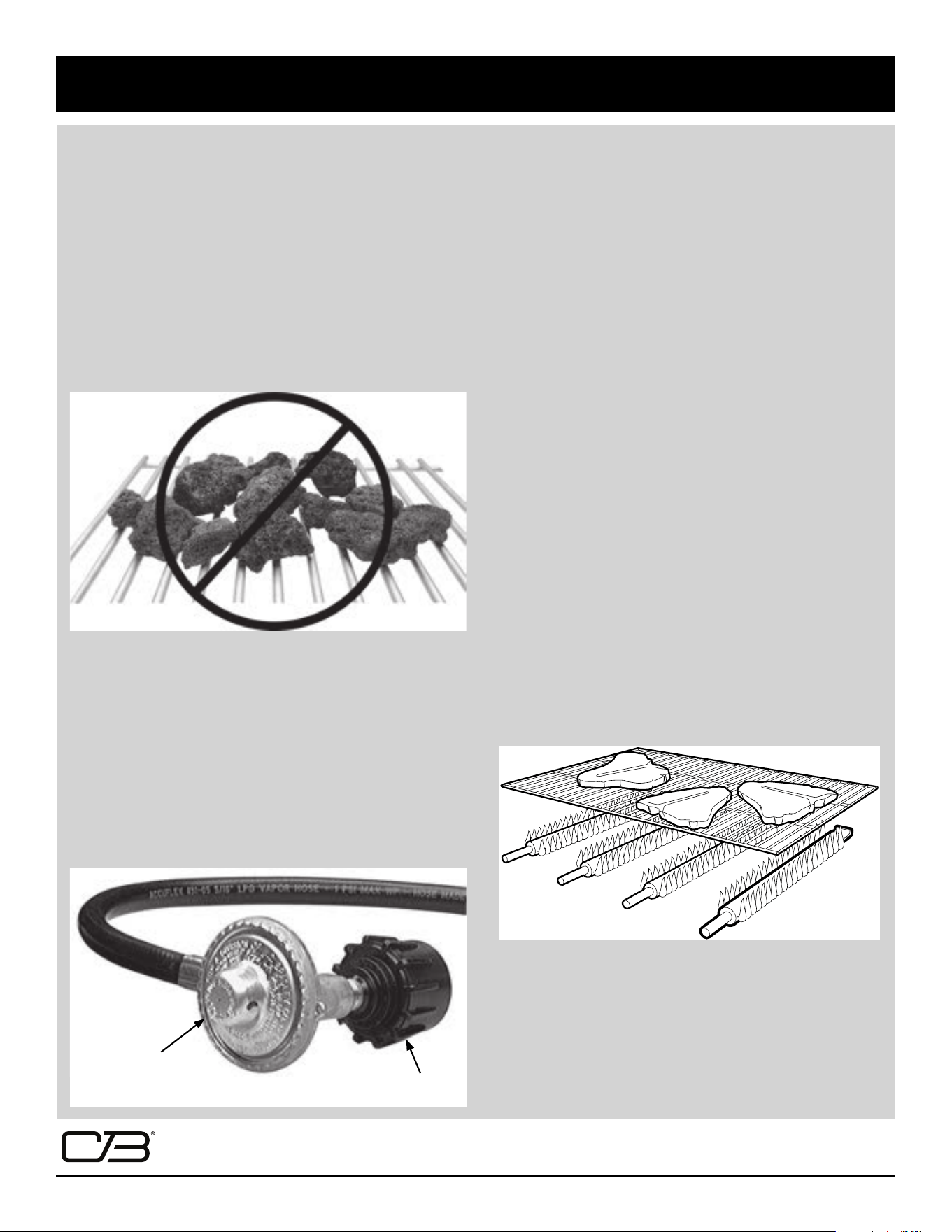

Do not cover grates with aluminum foil or any other
material. This will block burner ventilation and create
a potentially dangerous condition resulting in property
damage and/or personal injury.
This product can expose you to chemicals including
Lead, which is known to the State of California to cause
cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.

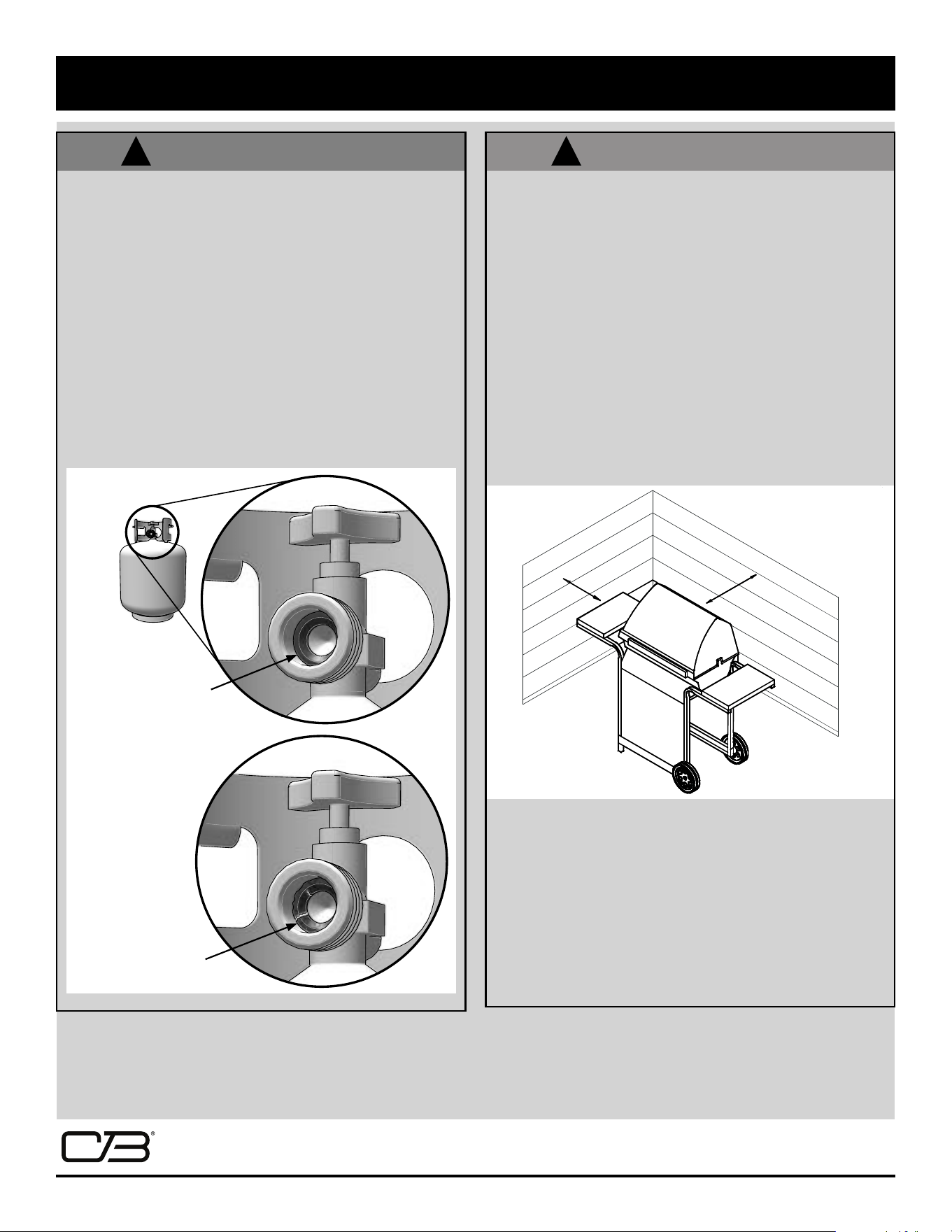

OUTDOOR
• An appliance is considered to be outdoors if installed with
shelter no more inclusive than with walls on three sides, but
with no overhead cover; all openings must be permanently
open; sliding doors, garage doors, windows, or screened
openings are not considered as permanent openings;
• An appliance is considered to be outdoors if installed with
shelter no more inclusive than within a partial enclosure that
includes an overhead cover and no more than two sidewalls.
The sidewalls may be parallel, as in a breezeway, or at right
angles to each other; all openings must be permanently
open; sliding doors, garage doors, windows, or screened
openings are not considered as permanent openings; or
• An appliance is considered to be outdoors if installed with
shelter no more inclusive than within a partial enclosure
that includes an overhead cover and three sidewalls, as long
as 30% or more of the horizontal periphery of the enclosure
is permanently open. All openings must be permanently
open; sliding doors, garage doors, windows, or screened
openings are not considered as permanent openings.
! !
!
CHARBROIL.COM
Page 4
USE AND CARE
Installation Safety Precautions
• Use grill, as purchased, only with LP (propane) gas and the regulator/valve
assembly supplied. If your grill is Dual Fuel ready, a conversion kit must be
purchased for use with natural gas.
• Grill installation must conform with local codes, or in their absence of local codes,
with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and
Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2.
• All electrical accessories (such as rotisserie) must be electrically grounded in
accordance with local codes, or National Electrical Code, ANSI / NFPA 70 or
Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel supply
hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or Canada only. Do
not modify for use in any other location. Modification will result in a safety hazard.
LP (Liquefied Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced. For Your Safety, LP
gas has been given an odor (similar to rotten cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when mixed with air.
LP Cylinder Filling
• Use only licensed and experienced dealers.
• LP dealer must purge new cylinder before filling.
• Dealer should NEVER fill LP cylinder more than 80% of LP cylinder volume.
Volume of propane in cylinder will vary by temperature.
• A frosty regulator indicates gas overfill. Immediately close LP cylinder valve and
call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous
practice.
• To remove gas from LP cylinder, contact an LP dealer or call a local fire department
for assistance. Check the telephone directory under “Gas Companies” for nearest
certified LP dealers.
LP Cylinder Removal, Transport and Storage
• Turn OFF all control knobs and LP cylinder valve. Turn coupling nut counterclockwise
by hand only - do not use tools to disconnect. Loosen cylinder screw beneath
bottom shelf or disconnect other retention means, then lift LP cylinder up and
and out of cart. Install safety cap onto LP cylinder valve. Always use cap and
strap supplied with valve. Failure to use safety cap as directed may result in
serious personal injury and/or property damage.
• A disconnected LP cylinder in storage or being transported must have a safety cap
installed (as shown). Do not store an LP cylinder in enclosed spaces such as a
carport, garage, porch, covered patio or other building. Never leave an LP cylinder
inside a vehicle which may become overheated by the sun.
• Cylinder shall be restored outdoors out of the reach of children and shall not be
stored in a building, garage, or any other enclosed area.

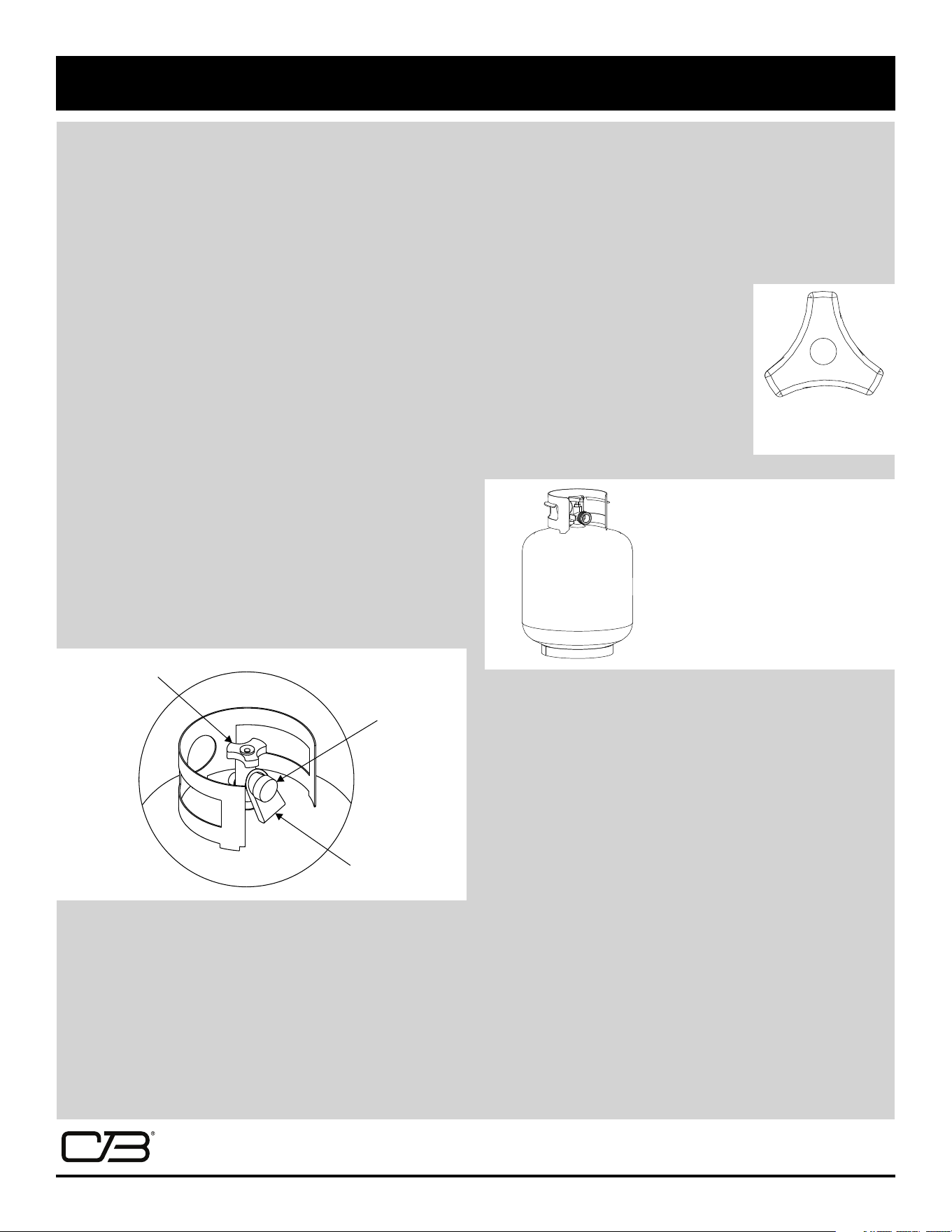

LP Cylinder
• The LP cylinder used with your grill must meet the following requirements:
• Use LP cylinders only with these required measurements: 12” (30.5cm) (diameter)
x 18” (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.
• LP cylinders must be constructed and marked in accordance with specifications
for LP cylinders of the U.S. Department of Transportation (DOT) or for Canada,
CAN/CSA-B339, cylinders, spheres and tubes for transportation of dangerous
goods, Transport Canada (TC). See LP cylinder collar for marking.
• LP cylinder valve must have:
• Type 1 outlet compatible with regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection Device (OPD). This
OPD safety feature is identified by a unique
triangular hand wheel. Use only LP cylinders
equipped with this type of valve.
• LP cylinder must be upright for vapor withdrawal
and include collar to protect LP cylinder valve.
Always keep LP cylinders in upright position
during use, transit or storage.
LP cylinder in upright position
for vapor withdrawal
LP Cylinder Valve
SAFETY CAP
RETAINER STRAP
OPD Hand Wheel
CHARBROIL.COM
Page 5
USE AND CARE

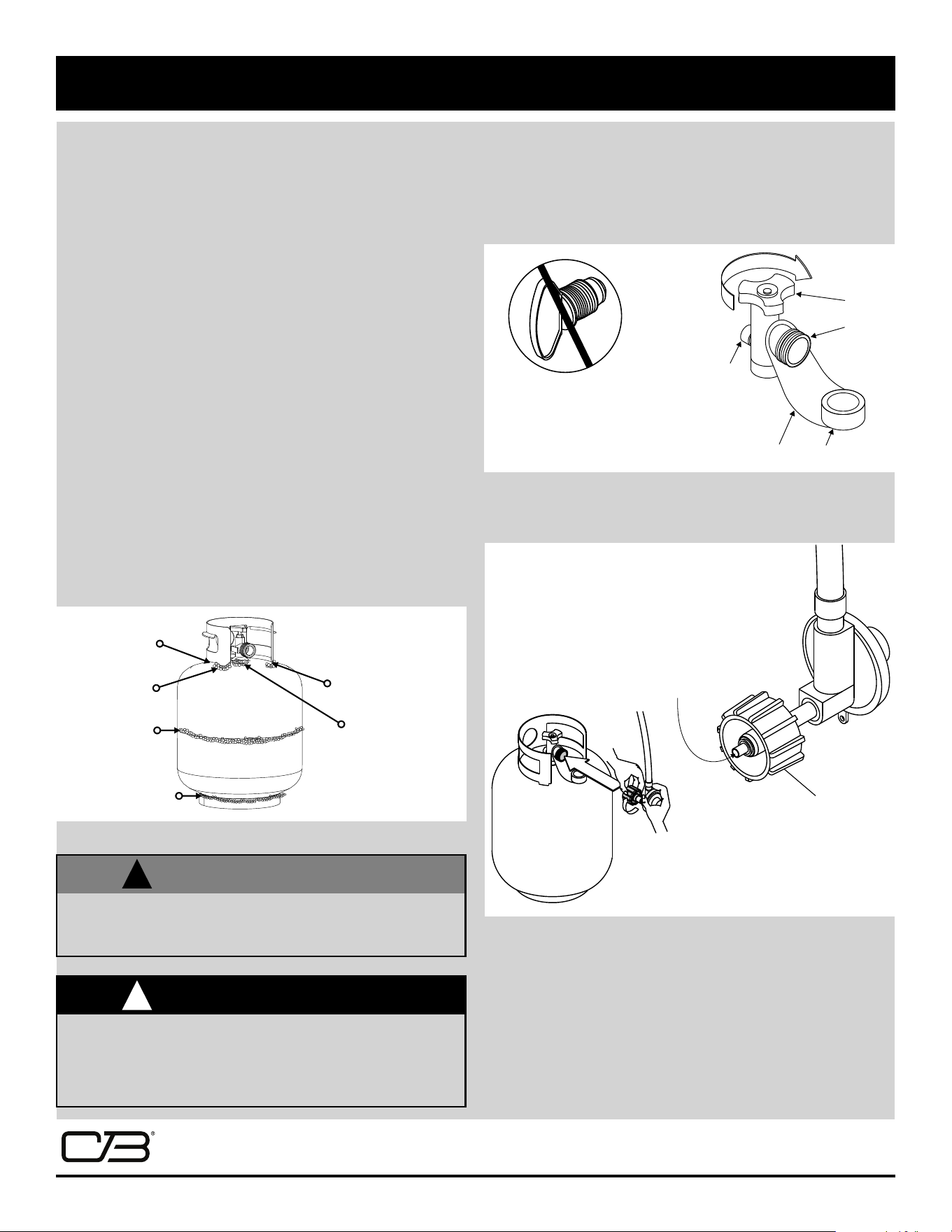

LP Cylinder Exchange
• Many retailers that sell grills offer you the option of replacing your empty LP cylinder
through an exchange service. Use only those reputable exchange companies that
inspect, precision fill, test and certify their cylinders. Exchange your cylinder
only for an OPD safety feature-equipped cylinder as described in the “LP
Cylinder” section of this manual.
• Always keep new and exchanged LP cylinders in upright position during use,
transit or storage.
• Leak test new and exchanged LP cylinders BEFORE connecting to grill.
• Place safety cap on cylinder valve outlet whenever the cylinder is not in use. Only
install the type of safety cap on the cylinder valve outlet that is provided with the
cylinder valve. Other types of caps or plugs may result in leakage of propane.

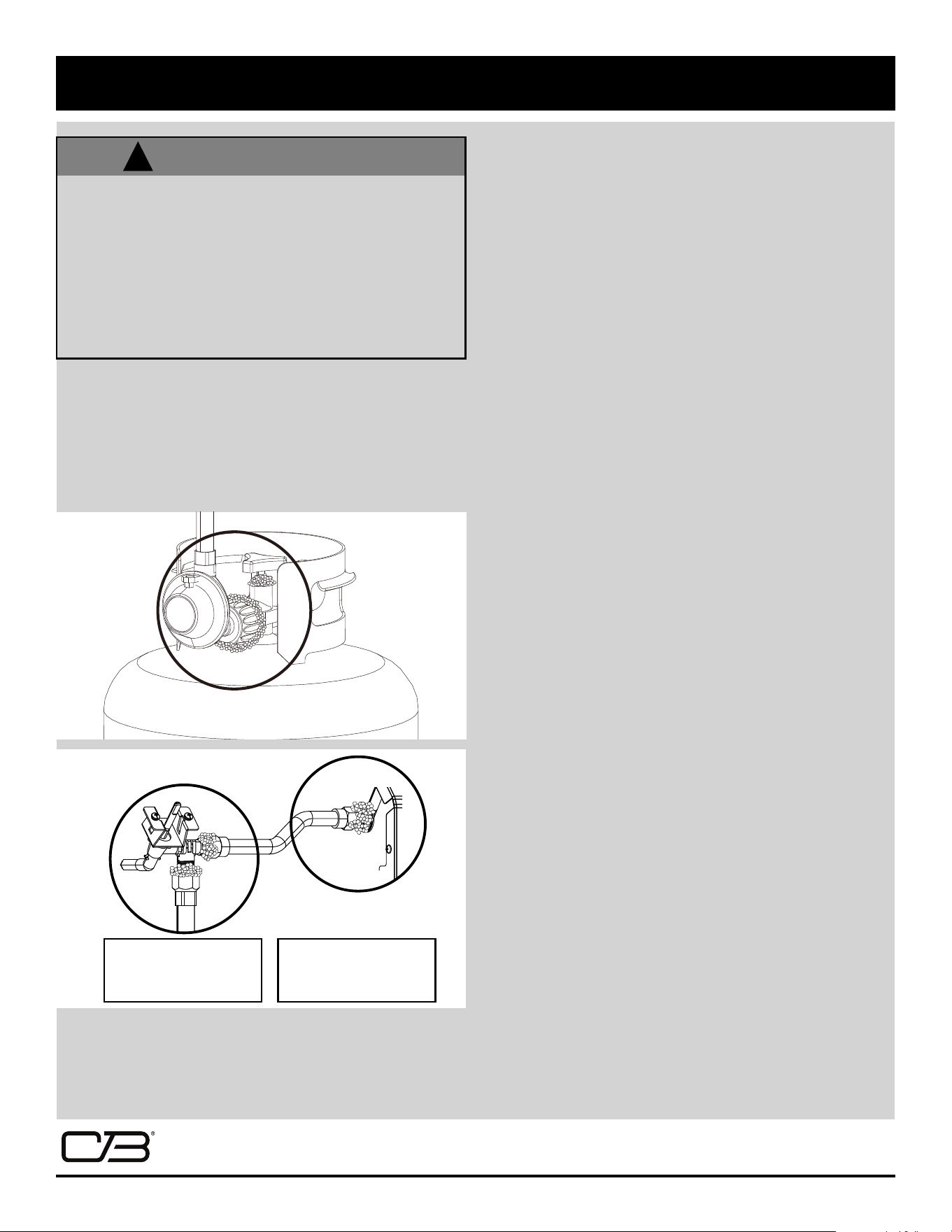

LP Cylinder Leak Test
For your safety
• Leak test must be repeated each time LP cylinder is exchanged or
refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area, away
from ignition sources such as gas fired or electrical appliances.
During leak test, keep grill away from open flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water solution.
Brush soapy solution onto areas indicated by arrows in figure below.
• Do not use household cleaning agents. Damage to gas train
components can result.
Connecting Regulator to the LP Cylinder
1. LP cylinder must be properly secured onto grill. (Refer to assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a full stop.
4. Remove the safety cap from LP cylinder valve. Always use cap and strap if supplied
with valve.
5. Hold regulator and insert nipple into LP cylinder valve. Hand-tighten the coupling
nut, holding regulator in a straight line with LP cylinder valve so as not to cross-
thread the connection.
6. Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal
on the back-check feature in the LP cylinder valve, resulting in some resistance.
An additional one-half to three-quarters turn is required to complete the
connection. Tighten by hand only – do not use tools.
NOTE:
If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6.
If you are still unable to complete the connection, do not use this regulator!
If “growing” bubbles appear, do not use or move the LP cylinder. Contact
an LP gas supplier or your fire department!
c
k
w
o
l
i
s
C
e
f
f
O
Safety Relief
Valve
Strap and Cap
OPD Hand
Wheel
Type 1 outlet
with thread
on outside
Nipple has to be centered into
the LP cylinder valve.
Coupling nut
Straight
Hold coupling nut and regulator as
shown for proper connection to LP
cylinder valve.
• Do not insert any tool or foreign object into the valve outlet or
safety relief valve. You may damage the valve and cause a leak.
Leaking propane may result in explosion, fire, severe personal
injury, or death.
WARNING
Do not use a POL transport
plug (plastic part with external
threads)! It will defeat the
safety feature of the valve.
DANGER
!
!
CHARBROIL.COM
Page 6
USE AND CARE
• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP! Turn off gas at source and correct leak.
• If you cannot stop a gas leak by closing the LP cylinder valve leave area and call
your fire department!
• Outdoor gas appliance is not intended to be installed in or on a boat.
• Outdoor gas appliance is not intended to be installed in or on an RV.
• Never attempt to attach this grill to the self-contained LP gas system of a camper
trailer or motor home.
• CHOKING HAZARD-Small parts. Not for children under 3 years.
Leak Testing Valves, Hose and Regulator
1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP cylinder.
3. Completely open LP cylinder valve by turning hand wheel counterclockwise. If
you hear a rushing sound, turn gas off immediately. There is a major leak at the
connection. Correct before proceeding.
4. Brush soapy solution onto areas circled below, or other similar fittings on your grill.
5. If “growing” bubbles appear, there is a leak. Close LP cylinder valve immediately
and retighten connections. If leaks cannot be stopped do not try to repair.
Call for replacement parts.
6. Always close LP cylinder valve after performing leak test by turning hand wheel
clockwise.
Safety Tips
• Before opening LP cylinder valve, check the coupling nut for tightness.
• When grill is not in use, turn off all control knobs and LP cylinder valve.
• Never move grill while in operation or still hot.
• Some surfaces will be hot during use. Use long-handled barbecue utensils and
oven mitts to avoid burns and splatters.
• Maximum load for sideburner and side shelf is 10 lbs.
• The grease tray or cup must be installed during use and emptied after each use.
Do not remove grease tray or cup until grill has completely cooled.
• Clean grill often, preferably after each cookout. If a bristle brush is used to clean
any of the grill cooking surfaces, ensure no loose bristles remain on cooking
surfaces prior to grilling. It is not recommended to clean cooking surfaces while
grill is hot.
• If you notice grease or other hot material dripping from grill onto valve, hose or
regulator, turn off gas supply at once. Determine the cause, correct it, then clean
and inspect valve, hose and regulator before continuing. Perform a leak test.
• Keep ventilation openings in cylinder enclosure (grill cart) free and clear of debris.
• Do not store objects or materials inside the grill cart enclosure that would block
the flow of combustion air to the underside of either the control panel or the
firebox bowl.
• The regulator may make a humming or whistling noise during operation. This will
not affect safety or use of grill.
• If you have a grill problem see the “Troubleshooting” Section.
• If the regulator frosts, turn off grill and LP cylinder valve immediately. This
indicates a problem with the cylinder and it should not be used on any product.
Return to supplier!
NOTE: Sideburner shelf fascia
and other parts not shown for
clarity.
NOTE: Your grill may NOT be
equipped with a sideburner.
WARNING
!
CHARBROIL.COM
Page 7
USE AND CARE
WARNING
LP GAS CYLINDER RUBBER SEAL INSPECTION.
• Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior
to each use. A damaged rubber seal can cause a gas leak, possibly resulting in an
explosion, fire, or severe bodily harm.
• It is recommended that you inspect the rubber seal each time the LP gas cylinder
is connected to the appliance, each time it has been refilled, or if it has not been
used for more than 60 days.
• DO NOT use a LP gas cylinder with a damaged rubber seal. The rubber seal
CANNOT be repaired or replaced. Purchase a new cylinder or exchange the
cylinder. You should inspect the seal before accepting a new or exchanged
cylinder. DO NOT insert tools or foreign objects into the cylinder valve opening as
this could damage the rubber seal.
• The leak check procedure outlined in the product guide/assembly manual MUST
be followed each time the LP gas cylinder is connected to the appliance. Consult
the product guide/assembly manual for the proper procedure and locations for
leak checking.
WARNING
For Safe Use of Your Grill and to Avoid Serious Injury:
• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Keep appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
• Do not block holes in sides or back of grill. Not obstructing the flow of combustion
and ventilation air.
• Check burner flames regularly.
• Use grill only in well-ventilated space. NEVER use in enclosed space such as
carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas grill.
• Do not cover grates with aluminum foil or any other material. This will block
burner ventilation and create a potentially dangerous condition resulting in
property damage and/or personal injury.
• Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance
to objects that can catch fire or sources of ignition such as pilot lights on water
heaters, live electrical appliances, etc.
• NEVER attempt to light or re-light burner with lid closed. A buildup of
non-ignited gas inside a closed grill is hazardous.
• Never operate grill with LP cylinder out of correct position specified in
assembly instructions.
• Always close LP cylinder valve and remove coupling nut before moving LP
cylinder from specified operation position.
• Apartment Dwellers:
Check with management to learn the requirements and fire codes for using an
LP gas grill in your apartment complex. If allowed, use outside on the ground
floor with a three (3) foot clearance from walls or rails. Do not use on or under
balconies.
3 ft.
3 ft.
Example of good rubber seal.
Example of damaged rubber seal.
! !
CHARBROIL.COM
Page 8
USE AND CARE
WARNING
Ignitor Lighting
• Do not lean over grill while lighting.
1. Turn gas burner control valves to (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn IGNITION BURNER knob to HIGH. Immediately,
push IGNITOR button rapidly.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off , wait
5 minutes and repeat the lighting procedure.
6. To ignite other burner, push and turn knob to the HIGH position.

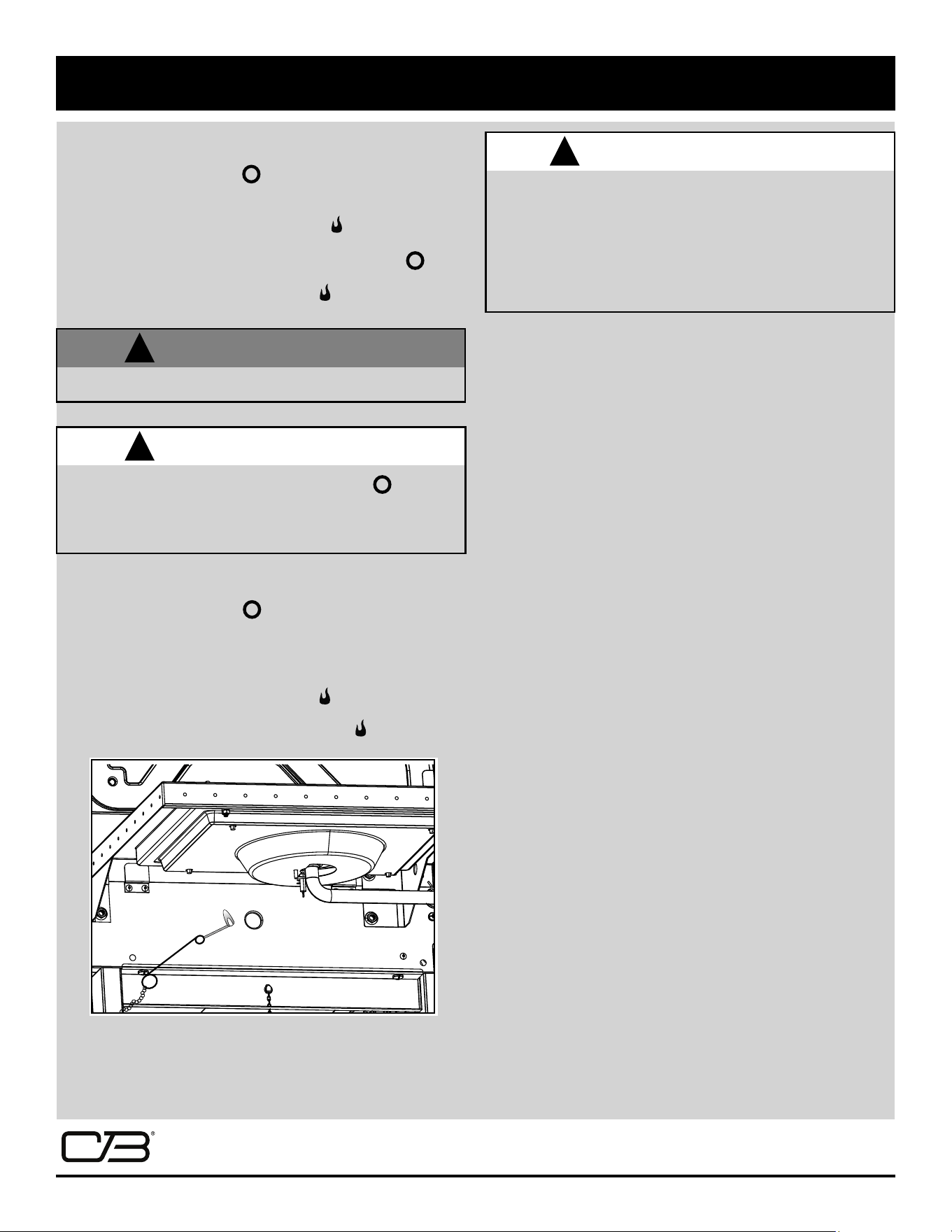

Match-Lighting
• Do not lean over grill while lighting.
1. Turn gas burner control valves to (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place match into match holder (hanging from side panel of grill). Light match;
then light burner by placing match through the match light hole on side of grill.
Immediately push in and turn burner knob to the HIGH position. Be sure
burner lights and stays lit.
5. Light other burner by pushing knob in and turning to the HIGH position.
Turn controls and gas source or tank OFF when not in use.
If ignition does NOT occur in 5 seconds, turn the burner controls off, wait 5
minutes and repeat the lighting procedure. If the burner does not ignite with the
valve open, gas will continue to flow out of the burner and could accidently ignite
with risk of injury.
CAUTION
• Putting out grease fires by closing the lid is not possible. Grills are well
ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may result. If a grease fire
develops, turn knobs and LP cylinder off.
• Do not leave grill unattended while preheating or burning off food residue on HI.
If grill has not been regularly cleaned, a grease fire can occur that may damage
the product.
CAUTION
!
!
!
CHARBROIL.COM
Page 9
USE AND CARE

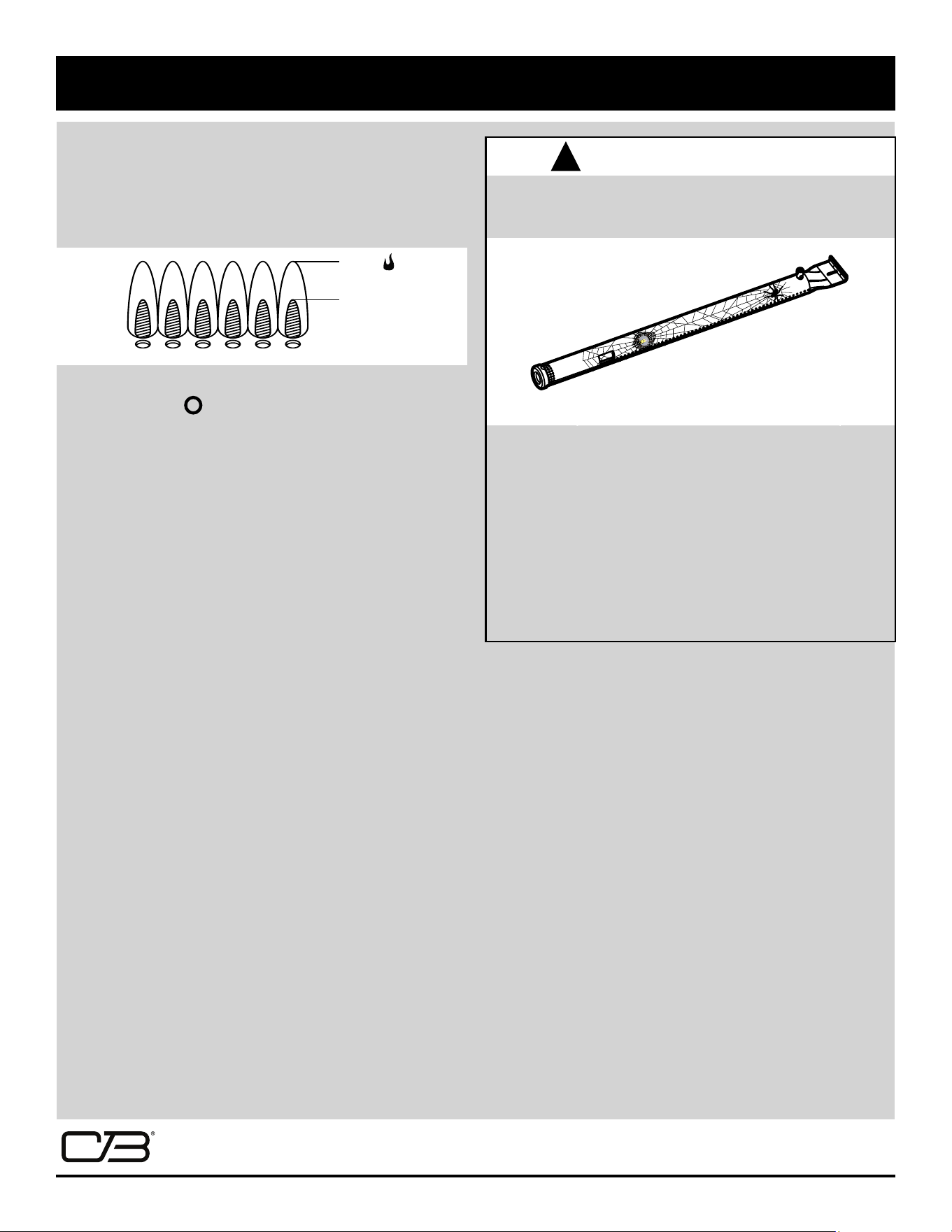

Burner Flame Check
• Remove cooking grates and heat tents. Light burners, rotate knobs from HIGH
to LOW. You should see a smaller flame in LOW position than seen on HIGH.
Perform burner flame check on side burner, also. Always check flame prior to
each use. If only low flame is seen refer to “Sudden drop or low flame” in the
Troubleshooting Section.
Turning Grill Off
• Turn all knobs to the off position. Turn LP cylinder off by turning hand-
wheel clockwise to a full stop.
Ignitor Check
• Turn gas off at LP cylinder. Press and hold electronic ignitor button. “Click”
should be heard and spark seen each time in each collector box or between
burner and electrode. See “Troubleshooting” if no click or spark.
Valve Check
• Important: Make sure gas is off at LP cylinder before checking valves. Knobs
lock in off position. To check valves, first push in knobs and release, knobs
should spring back. If knobs do not spring back, replace valve assembly before
using grill. Turn knobs to LOW position then turn back to off position. Valves
should turn smoothly.
Hose Check
• Before each use, check to see if hoses are cut or worn or kinked. Replace
damaged hoses before using grill. Use only valve/hose/regulator specified by
manufacturer.
Storing Your Grill
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-ventilated space
and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by
Char-Broil at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed
from grill and stored outdoors.
• If the outdoor cooking gas appliance is not in use, the gas shall be turned of at
the supply cylinder(s). An outdoor cooking gas appliance indoors may be stored
only if the cylinder(s) is (are) disconnected and removed from the outdoor
cooking gas appliance.
• When removing grill from storage, follow “Cleaning the Burner Assembly”
instructions before starting grill.
LOW
HIGH
General Grill Cleaning
• Do not mistake brown or black accumulation of grease and smoke for
paint. Interiors of gas grills are not painted at the factory (and should never
be painted). Apply a strong solution of detergent and water or use a grill
cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to
completely air dry. Do not apply a caustic grill/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
• Do not use citrisol, abrasive cleaners, degreasers or a concentrated grill
cleaner on plastic parts. Damage to and failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most residue can be
wiped away with baking soda/water solution or specially formulated cleaner.
Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm
soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill’s high quality appearance, wash
with mild detergent and warm soapy water and wipe dry with a soft cloth after
each use. Baked-on grease deposits may require the use of an abrasive plastic
cleaning pad. Use only in direction of brushed finish to avoid damage. Do not
use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill cooking
surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It
is NOT recommended to clean cooking surfaces while grill is hot.
SPIDER ALERT!
Checking and cleaning burner/venturi tubes for insects and insect nests. A clogged
tube can lead to a fire beneath the grill.
If your grill is getting hard to light or the flame is weak, check and clean the venturis
and burners.
Spiders or small insects are known to create “flashback” problems by building nests
and laying eggs in the grill’s venturi or burner, obstructing the flow of gas. The
back-up gas can ignite behind the control panel. This flashback can damage your
grill and cause injury. To prevent flashbacks and ensure good performance the
burner and venturi tube assembly should be removed and cleaned when ever the
grill has been idle for an extended period of time.
SPIDER AND WEBS
INSIDE BURNER
Your burner might be different
CAUTION
!
CHARBROIL.COM
Page 10
USE AND CARE

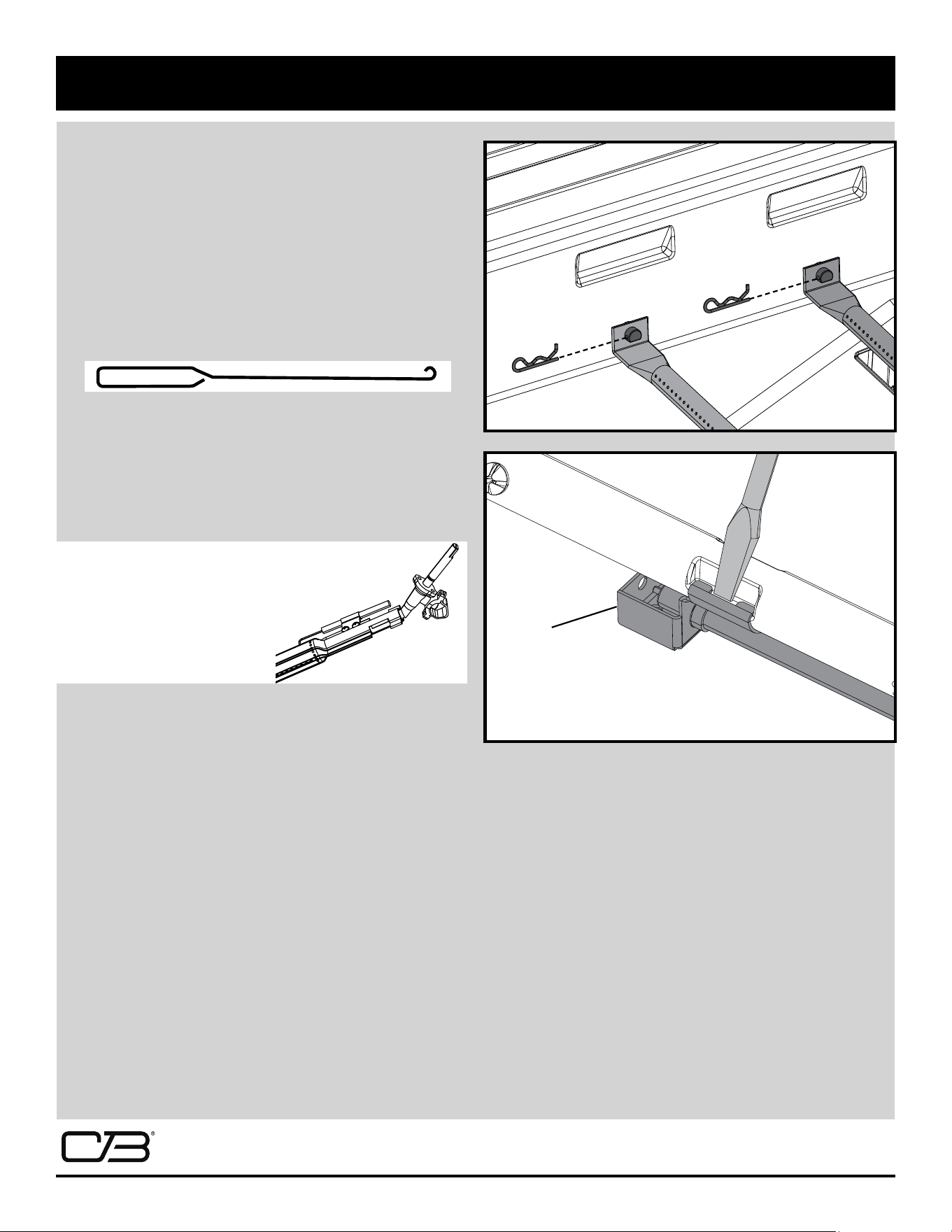

Cleaning the Burner Assembly
Follow these instructions to clean and/or replace parts of burner assembly or if you
have trouble igniting grill.
1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove hardware securing burners.
4. Detach electrode from burner.
NOTE: Removal/Detachment method will depend on the burner configuration.
See different configurations in illustrations below.
5. Carefully lift each burner up and away from valve openings.
We suggest three ways to clean the burner tubes. Use the one easiest for you.
(A) Bend a stiff wire (a light weight coat hanger works well) into a small hook.
Run the hook through each burner tube several times.
(B) Use a narrow bottle brush with a flexible handle (do not use a brass wire
brush). Run the brush through each burner tube several times.
(C) Wear eye protection: Use an air hose to force air into the burner tube and
out the burner ports. Check each port to make sure air comes out each hole.
6. Wire brush entire outer surface of burner to remove food residue and dirt.
7. Clean any blocked ports with a stiff wire such as an open paper clip.
8. Check burner for damage due to normal wear and corrosion, some holes may
become enlarged. If any large cracks or holes are found, replace burner.
9. Attach electrode to burner.
10. Carefully replace burners.
11. Attach burners to brackets on firebox.
12. Reposition carryover tubes and attach to burners. Replace heat tents and
cooking grates.
13. Before cooking again on grill, perform a “Leak Test” and “Burner Flame Check”.
VERY IMPORTANT: Burner tubes must
reengage valve openings. See illustrations
at right.
Correct burner-to-valve
engagement
Firebox
Electrode
Pry off electrode with a flat blade screwdriver
CHARBROIL.COM
Page 11
This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from
defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The
manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.
*Note: A dated sales receipt WILL be required for warranty service.
The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.
This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires
proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manu-
facturer is not responsible for or required to retain proof of purchase records.
This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and
chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will
require touch up. RUST is not considered a manufacturing or materials defect.
This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.
ITEMS MANUFACTURER WILL NOT PAY FOR:
1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance,
installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.
DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES
Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the
right to substitute like or similar parts that are equally functional.
Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for
failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse,
transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with
local codes or printed manufacturer instructions.
THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREV-
ER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING
UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN
DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or
inconsistent with those stated above. Manufacturer’s maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.
NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This
limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or re-
placement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount
directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the
retail establishment selling this product in order to obtain performance under this limited warranty.
If you wish to obtain performance of any obligation under this limited warranty, you should
write to:
Consumer Relations
P. O. Box 1240
Columbus, GA 31904-1240
Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA
number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.
LIMITED WARRANTY
SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE
All Parts 1 year from date of purchase* PERFORATION, MANUFACTURING,
AND MATERIAL DEFECTS ONLY
Pa g e 12
Pa g e 13
Pa g e 14
You may have spare hardware after assembly is complete.
Pa g e 15

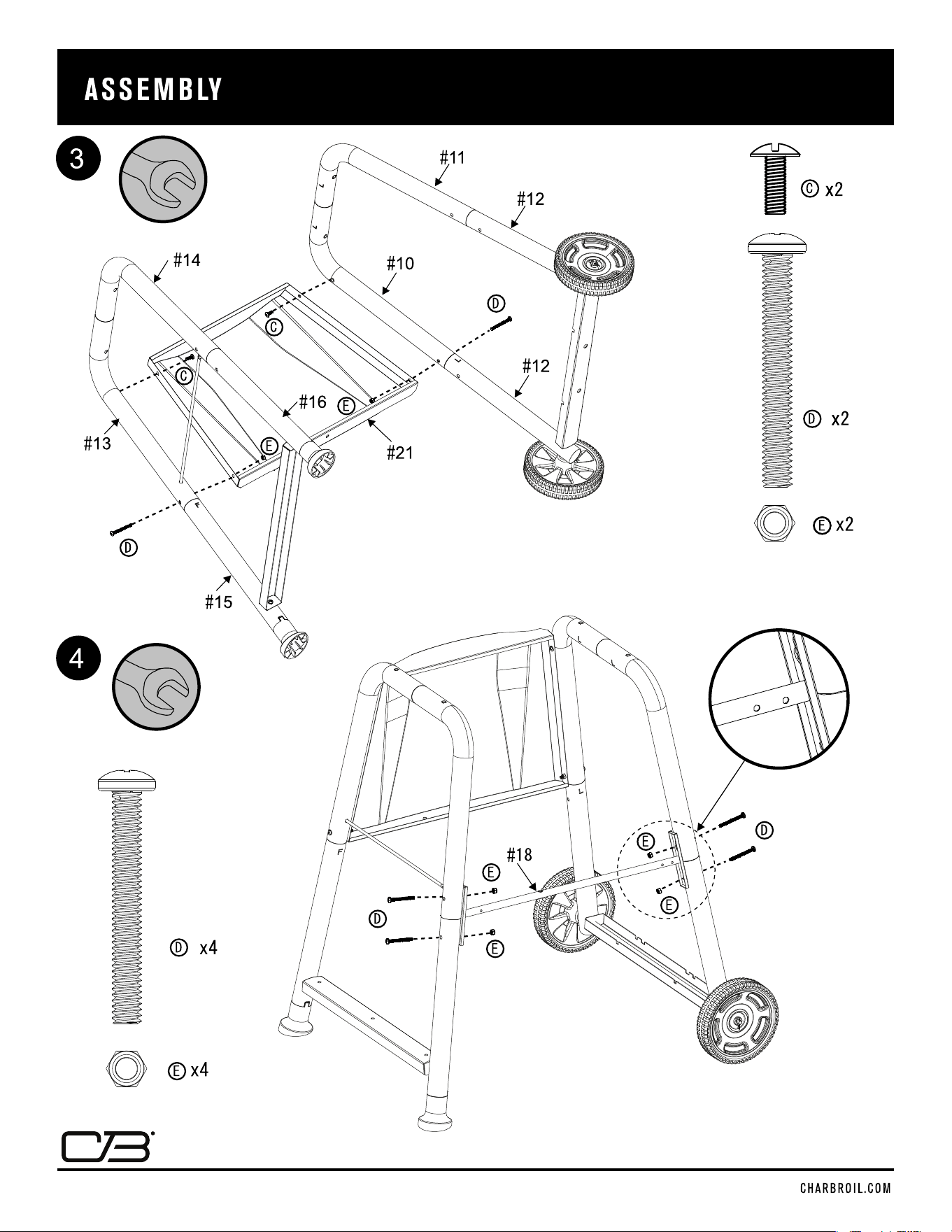

Pa g e 16
Pa g e 17
Pa g e 18

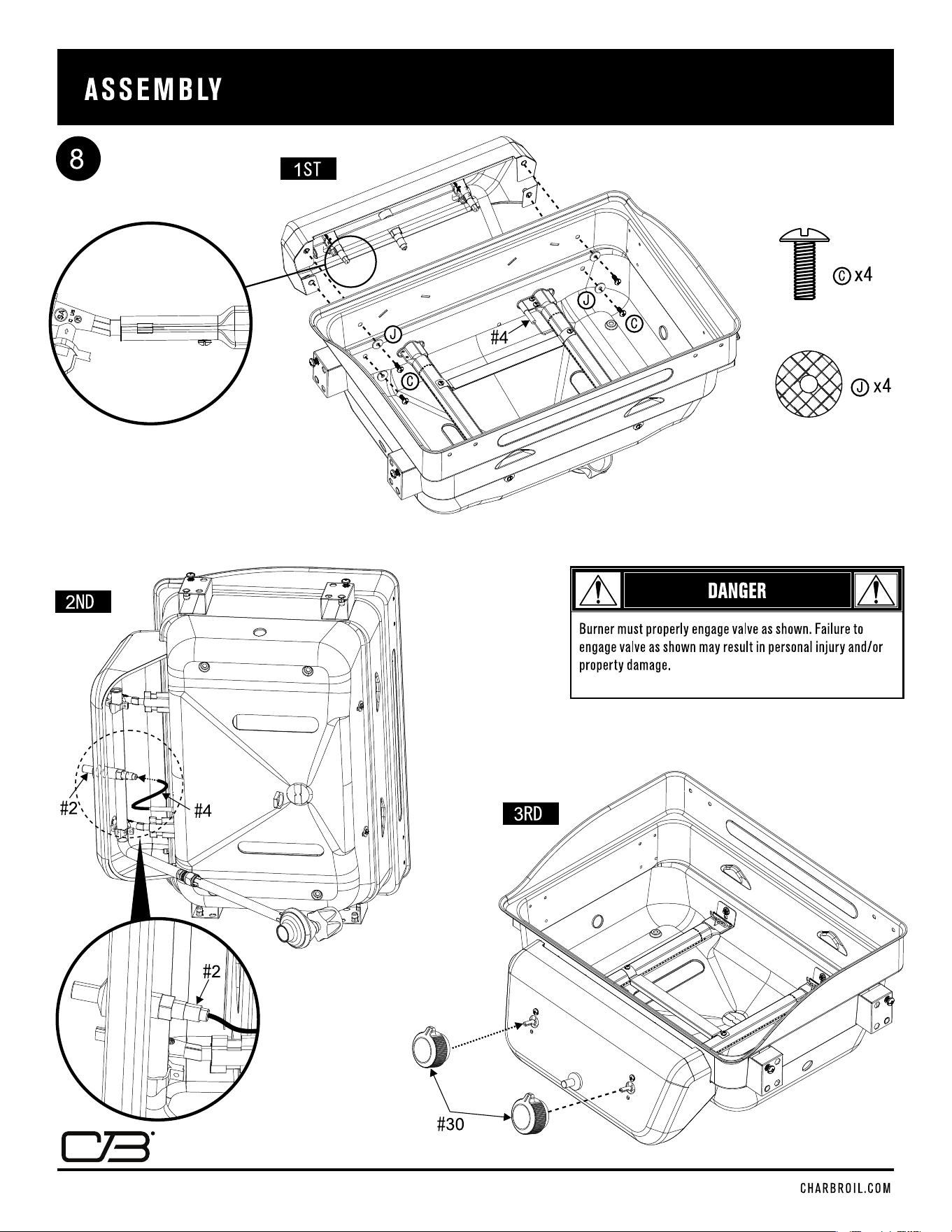

Pa g e 19

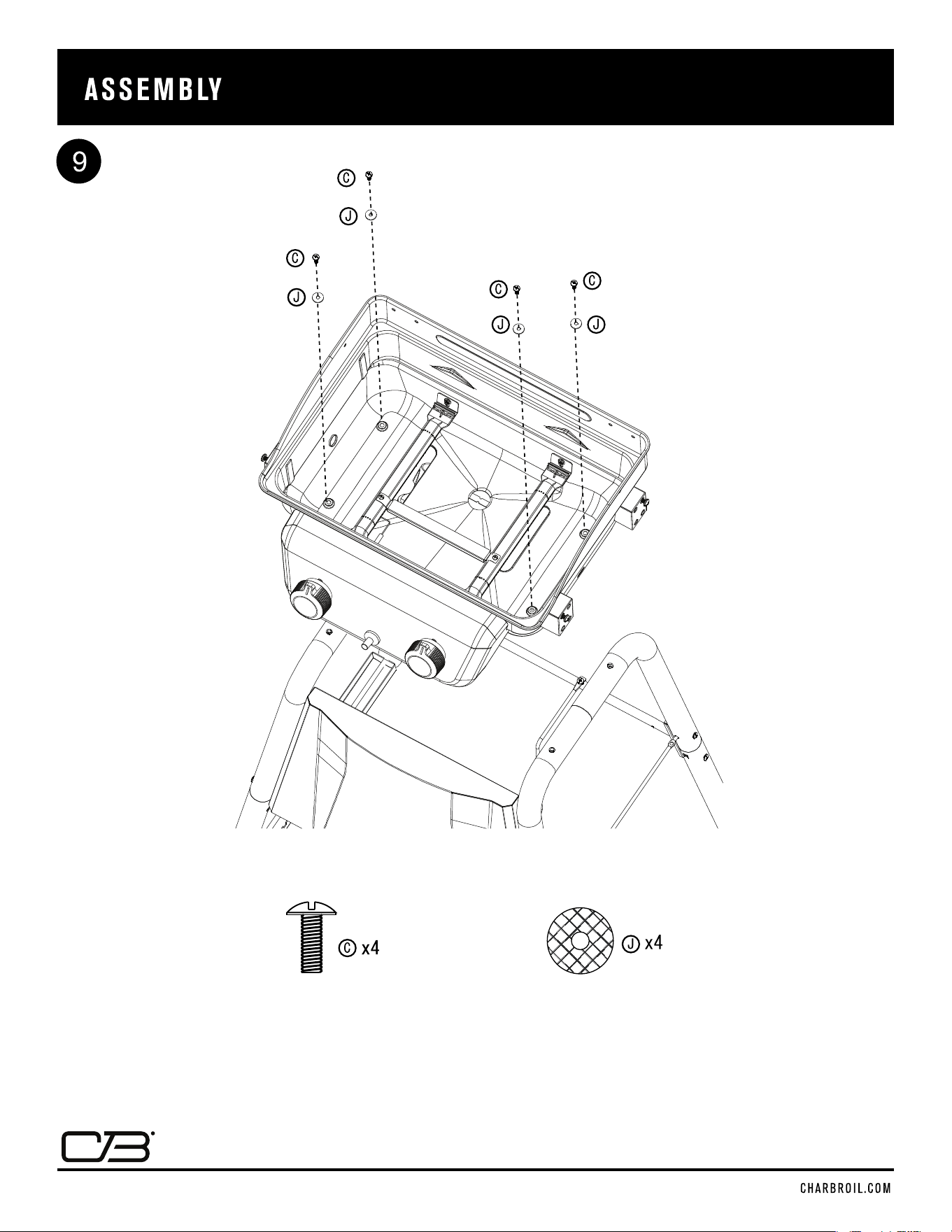

Pa g e 20
Pa g e 21
12
Pa g e 22
Tighten the screws
Pa g e 23

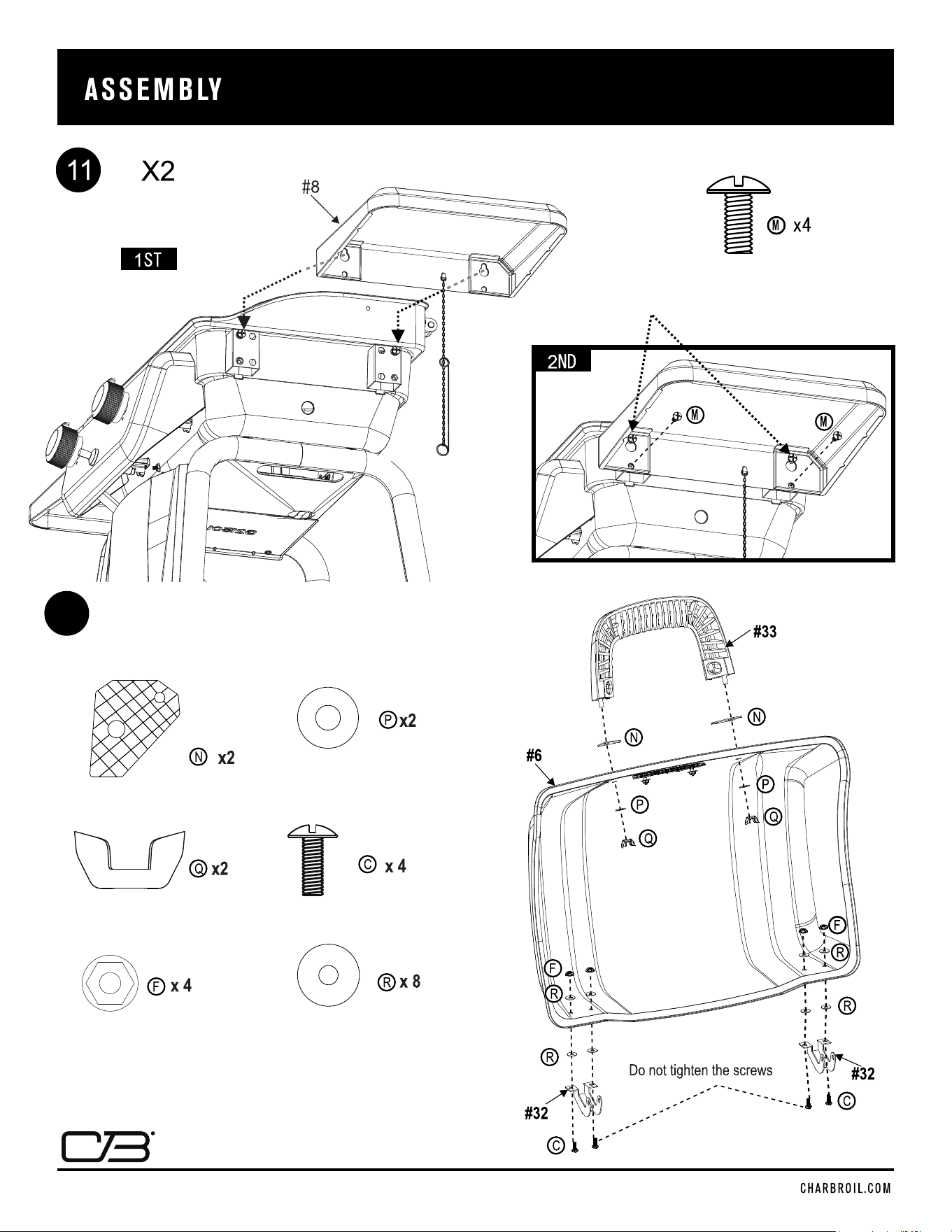

Do not tighten the screws
Tighten the screws
Pa g e 24
Pa g e 25
CHARBROIL.COM
Page 26
GRILLING GUIDE – Getting Started
First Time Use
Read your Assembly Manual and ensure the grill is put together properly. Remove all Point-
of-Purchase advertising material from all grill surfaces before first use. We recommend
operating your grill on its highest setting for 15-20 minutes prior to your first use. This aids
in removing the oils used during manufacturing.
Lava Rock / Briquettes
This gas grill has been designed, engineered, and tested to be used with heat tents to provide
more even heating, improve the cleaning process, and reduce flare-ups. The addition of
after market lava rocks, charcoal, or briquettes of any type will cause poor combustion and
increase the likelihood of a grease fire, and is not recommended. Using briquettes, lava rock,
or charcoal in this grill will void your warranty. For extra smoke flavor, we recommend using
a smoker box with wood chips.
Temperature
The temperature gauge in the hood of your new grill measures air temperature. The air
temperature inside your grill will never be as hot as the temperature at the cooking surface.
This gauge is calibrated to give a close indication of the grate temperature.
Note: Since 1995, all regulators (the part that attaches to the gas tank to regulate the flow of
gas) have included a safety feature that restricts gas flow in the event of a gas leak. You can
inadvertently activate this safety feature without having a gas leak. This typically occurs when
you turn on the gas using the grill control knob before you turn on the LP tank valve. If the
gas regulator safety feature activates, the grill will only reach temperatures between 250°F
and 300°F even with all burners on the high setting.
If your grill is not getting hotter than 250°F to 300°F these steps should
be taken first to reset the gas regulator safety device:
1. Open the grill lid.
2. Turn off all knobs on the control panel in front.
3. Turn off the tank knob.
4. Disconnect the regulator from the LP tank.
5. Wait 30 seconds.
6. Reconnect the regulator to the LP tank.
7. Slowly open the LP tank knob all the way. Do not put excessive force on the valve at the
full open position to avoid damaging the valve.
8. Turn on the appropriate control knob and light the grill per the instructions.
An illustration of this process is included in this Product Guide. See Troubleshooting section
for additional information.
Pre-Heating Your Grill
Just like your home oven, your grill should be pre-heated to provide optimum performance.
Pre-heat the grill on high for 10-15 minutes – longer if weather conditions require. Please
refer to the lighting instructions inside the Product Guide if you have questions about how to
light your grill. A match-light chain and hole is provided for your convenience.
Outdoor grilling is really quite simple. You’ll succeed with burgers, dogs, or steaks usually on
your very first try. With experience, you will learn how to work with your grill, creating more
imaginative meals all the time. This knowledge makes up the art of grilling. Before you start
grilling, organize your food according to cooking technique and required cooking time, and
optimize the use of your grilling area.
Direct Cooking
Direct cooking involves grilling your meat directly over high heat. It is perfect for searing
steaks, chops, and other smaller pieces of meat and vegetables that quickly make their way
to the table.
Regulator
Coupling Nut
CHARBROIL.COM
Page 27
GRILLING GUIDE – Getting Started

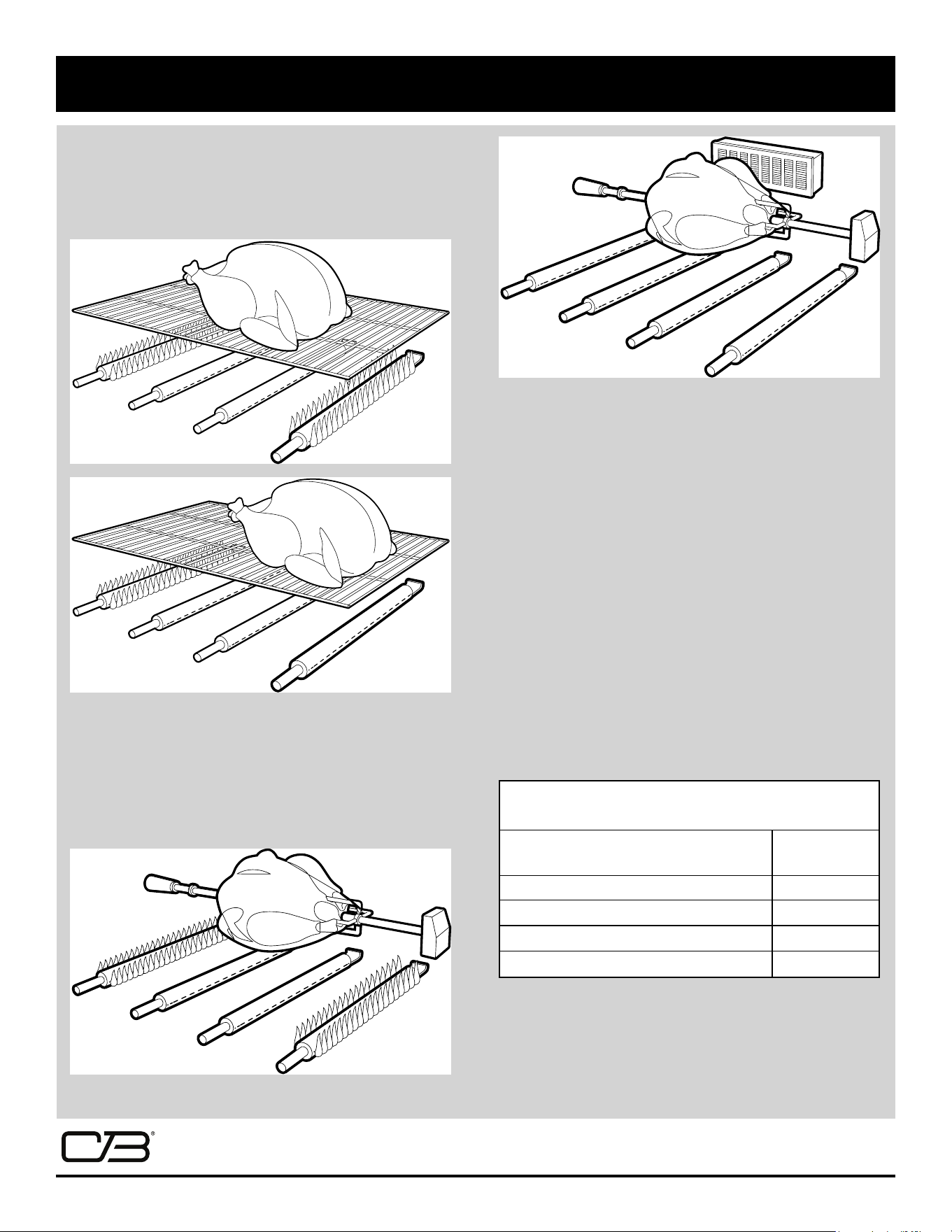

Indirect Cooking
Indirect cooking utilizes select burners to circulate heat throughout the grill, without direct
contact between the meat and the flame. The meat is placed over the burner that is ‘off’. This
method is generally used to slow cook large cuts of meat and poultry. A pan can be placed
underneath the meat to catch grease and food drippings, and helps minimize clean-up.
Rotisserie Cooking
Rotisserie cooking is best for ‘round’ meat, such as large roasts, whole poultry, and pork. It
generally requires an accessory motor and spit rod that allows the meat to be turned at a
constant speed. Rotisserie cooking is best done in front of a special rotisserie burner, or
utilizing an indirect cooking burner arrangement. A pan can be placed underneath the meat
to catch grease and food drippings, and helps minimize clean-up.
Food Safety
Food safety is a very important part of enjoying the outdoor cooking experience. To keep food
safe from harmful bacteria, follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling
raw meat.
Separate: Separate raw meats from ready-to-eat foods to avoid cross contamination. Use a
clean platter and utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a thermometer to ensure proper
internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.
Cooking on your new grill is a hands-on experience, and it is recommended to remain outside
with your grill while cooking. Grilling can be affected by many external conditions. In cold
weather, you will need more heat to reach an ideal cooking temperature, and grilling may take
longer. The meat’s internal temperature and thickness can also affect cooking times. Cold
and thicker meats will take longer to cook.
Internal Meat Temperatures
Meat cooked on a grill often browns very fast on the outside. Therefore, use a meat
thermometer to ensure it has reached safe internal temperatures.
Please refer to the USDA for complete, up-to-date information. Our internal temperature
chart is based on USDA standards for meat doneness. Check it out at www.isitdoneyet.gov
USDA Recommended Safe Minimum
Internal Temperatures
Beef, Veal, Lamb, Steak, Roasts, & Whole Pork
(with a 3 minute rest time)
145° F
Fish 145° F
Beef, Veal, Lamb, and Pork - Ground 160° F
Egg Dishes 160° F
Turkey, Chicken & Duck Whole, Pieces & Ground 165° F
CHARBROIL.COM
Page 28
GRILLING GUIDE – Tips & Tricks
Sauces
Sauces containing sugars and fats can cause flare-ups, and your food may burn. In general,
apply these sauces during the final 5 minutes of cooking. Keep in mind, use of excessive
sauces or glazes will also require extra cleaning afterwards.
Marinades and Rubs
To enhance the flavor of grilled foods, a liquid marinade or dry rub can be used prior to
cooking. Meat can be either soaked or injected with liquid marinade up to 24 hours prior to
grilling. Dry rubs can be applied directly to the meat immediately before grilling.
Wood Chips
For extra smoke flavor when grilling, try adding wood chips. Place smoke box or pan on
top of the cooking grate above the flame. Turn grill on high until the wood starts to smoke.
Reduce heat to desired temperature for cooking, and place food on cooking grate as desired.
Close lid to retain more smoke. Hardwood varieties that work particularly well with grilled
foods include Alder, Apple, Cherry, Hickory, Mesquite, and Pecan.
Skewers
Metal skewers should be flat, with long handles. Round skewers allow food to roll when
turned, so it may not cook as evenly. Use metal skewers when cooking meat kabobs.
Wooden skewers should be soaked in water for an hour before use, and are best used for
quick cooking foods such as vegetables and fruits.
Utensils
Use tongs or a spatula to handle the food instead of a fork, and don’t turn the food too often.
Piercing the food with a fork will release juices that you want in the meat, and may cause
flare-ups.
CHARBROIL.COM
Page 29
GRILLING GUIDE – Cleaning Your Grill
Why Clean?
We’ve all heard the saying ‘An ounce of prevention is worth a pound of cure’. This is great
advice when it comes to keeping your grill clean.
Routine Care
Periodic cleaning of this grill is necessary, as grill fires can occur when grease and food
debris collect in the bottom of the grill. After each use, remove any remaining food particles
from the cooking grate and inside of the grill using a grill brush. Do this after the grill has
cooled down. This grill is not designed to be ‘burned off’ by closing the lid and turning the
burners on High for an extended time. The excessive heat generated can cause leftover
grease to catch fire, and can cause permanent damage to your grill.
General Cleaning
Plastic parts: Wash with warm soapy water and wipe dry. Do not use abrasive cleaners,
degreasers or a concentrated grill cleaner on plastic parts. Damage to and failure of parts
can result.
Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with
baking soda/water solution or glass cleaner. Use non-abrasive scouring powder for stubborn
stains.
Painted surfaces: Wash with mild detergent or non-abrasive cleaner and warm water. Wipe
dry with a soft non-abrasive cloth.
Stainless steel surfaces: Stainless steel can rust
under certain conditions. This can be caused by
environmental conditions such as chlorine or salt
water, or improper cleaning tools such as wire
or steel wool. It can also discolor due to heat,
chemicals, or grease build-up. To maintain your
grill’s high quality appearance, wash with mild
detergent and warm water, or use a stainless
steel grill cleaner. Baked-on grease deposits may
require the use of an abrasive plastic cleaning
pad. Use only in direction of brushed finish to
avoid damage. Do not use abrasive pad on areas
with graphics.
Cooking surfaces: Ensure no loose bristles
remain on cooking surfaces prior to grilling. It
is not recommended to clean cooking surfaces
while grill is hot.
Storing Your Grill
• Clean cooking grates.
• Store grill in dry location.
• When LP cylinder is connected to grill, store outdoors in a well ventilated space and out
of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by Char-Broil
at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off, disconnected, and removed from grill.
Never store LP cylinder indoors.
• When removing grill from storage, follow the ‘Cleaning the Burner Assembly’ instructions
in the Use and Care section of the Product Guide.
Critters
Spiders like to make their homes in the venturi tubes of grills. These must be inspected and
cleaned regularly to ensure there are no blockages. Refer to the Use and Care portion of this
Product Guide for complete information.
CHARBROIL.COM
Page 30
EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.
Troubleshooting
Emergencies Possible Cause Prevention/Solution
Gas leaking from cracked/cut/
burned hose.
Gas leaking from LP cylinder.
Gas leaking from LP cylinder valve.
Gas leaking between LP cylinder and
regulator connection.
Fire coming through control panel.
Grease fire or continuous excessive
flames above cooking surface.
• Damaged hose.
• Mechanical failure due to rusting or mishandling.
• Failure of cylinder valve from mishandling or mechanical failure.
• Improper installation, connection not tight, and/or failure of
rubber seal in clyinder valve.
• Fire in burner tube section of burner due to blockage.
• Too much grease buildup in burner area.
• Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use
of product and replace valve/hose/regulator. Once valve/hose/regulator replaced
conduct complete leak check per manual.
• Replace LP cylinder.
• Turn off LP cylinder valve. Return LP cylinder to gas supplier.
• Turn off LP cylinder valve. Remove regulator from cylinder and visually inspect
rubber seal in cylinder valve for damage. If damage or cannot correct leak replace
cylinder. See LP Cylinder Leak Test and Connecting Regulator to the LP Cylinder.
• Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die
down. After fire is out and grill is cold, remove burner and inspect for spider nests
or rust. See Natural Hazard and Cleaning the Burner Assembly pages.
• Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die
down. After cooling, clean food particles and excess grease from inside firebox
area, grease tray, and other surfaces.
Problem Possible Cause Prevention/Solution
Burner(s) will not light using ignitor.
Continued on next page.
GAS ISSUES:
• Trying to light wrong burner.
• Burner not engaged with control valve.
• Obstruction in burner.
• No gas flow.
• Coupling nut and LP cylinder valve not fully connected.
ELECTRICAL ISSUES:
• Electrode cracked or broken; “sparks at crack.”
• Electrode tip not in proper position.
• Wire and/or electrode covered with cooking residue.
• Wires are loose or disconnected.
• Wires are shorting (sparking) between ignitor and electrode.
PIEZO PUSH-BUTTON AND ROTARY:
• Push-button sticks at bottom.
• Rotary knob rotates without clicking.
• Sparking between ignitor and electrode.
• See instructions on control panel and in Use and Care section.
• Make sure valves are positioned inside of burner tubes.
• Ensure burner tubes are not obstructed with spider webs or other matter. See
cleaning section of Use and Care.
• Make sure LP cylinder is not empty. If LP cylinder is not empty, refer to “Sudden
drop in gas flow” in Troubleshooting section.
• Turn the coupling nut approximately one-half to three-quarters additional turn until
solid stop. Tighten by hand only - do not use tools.
• Replace electrode(s).
Main Burners:
• Tip of electrode should be pointing toward gas port opening on burner. The
distance should be 1/8” to 1/4”. Adjust if necessary.
Sideburner (If featured):
• Tip of electrode should be pointing toward gas port opening on burner. the
distance should be 1/8” to 3/16”. Adjust if necessary.
• Clean wire and/or electrode with rubbing alcohol and clean swab.
• Reconnect wires or replace electrode/wire assembly.
• Replace ignitor wire/electrode assembly.
• Replace ignitor.
• Replace knob.
• Inspect wire insulation and proper connection. Replace wires if insulation is
broken.
Burner(s) will not match light. • See “GAS ISSUES:”.
• Match will not reach.
• Improper method of match-lighting.
• Use long-stem match (fireplace match).
• See “Match-Lighting” section of Use and Care.
CHARBROIL.COM
Page 31
Troubleshooting (continued)
Problem Possible Cause Prevention/Solution
Sudden drop in gas flow or low
flame.
• Out of gas.
• Excess flow valve tripped.
• Vapor lock at coupling nut/LP cylinder connection.
• Check for gas in LP cylinder.
• Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off
knobs and LP cylinder valve. Disconnect regulator. Reconnect regulator and leak-
test. Turn on LP cylinder valve, wait 30 seconds and then light grill.
• Turn off knobs and LP cylinder valve. Disconnect coupling nut from cylinder.
Reconnect and retry.
Flames blow out. • High or gusting winds.
• Low on LP gas.
• Excess flow valve tripped.
• Turn front of grill to face wind or increase flame height by turning gas valve to a
higher postion.
• Refill LP cylinder.
• Refer to “Sudden drop in gas flow” above.
Flare-up. • Grease buildup.
• Excessive fat in meat.
• Excessive cooking temperature.
• Clean burners and inside of grill/firebox.
• Trim fat from meat before grilling.
• Adjust (lower) temperature accordingly.
Persistent grease fire. • Grease trapped by food buildup around burner system. • Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in position and let fire
burn out. After grill cools, remove and clean all parts.
Flashback (fire in burner tube(s)).
• Burner and/or burner tubes are blocked. • Turn knobs to OFF. Clean burner and/or burner tubes. See burner cleaning
section of Use and Care.
One burner does not light from other
burner(s).
• Grease buildup or food particles in end(s) of carryover tube(s). • Clean carry-over tube(s) with wire brush.
CHARBROIL.COM
Page 32
NOTES
CHARBROIL.COM
Page 33
NOTES
CHARBROIL.COM
Page 34
NOTES
CHARBROIL.COM
Page 35
PRODUCT REGISTRATION
Two convenient ways to register your product:
Deux manières pratiques d’enregistrer votre produit:
Dos maneras convenientes de registrar su producto:
Online
En ligne
En línea
By Mail | Par la poste | Por correo
www.charbroil.com/product-registration/
1
2
Please fill out this card and attached a copy of your sales receipt. Return it within 10 days of purchase for warranty service. Proof of purchase will be required. The
warranty is not transferable.
Veuillez remplir cette carte et joindre une copie de votre reçu de vente. Renvoyez-le dans les 10 jours de l’achat pour le service de garantie. Une preuve d’achat sera
nécessaire. La garantie n’est pas transférable.
Por favor llene esta tarjeta y adjunte una copia de su recibo de compra. Devuelva en el plazo de 10 días de la compra para el servicio de la garantía. Se requerirá prueba
de compra. La garantía no es transferible.
*1. First Name | Prénom | Nombre Initial | Initiale | Inicial Last Name | Nom de famille | Apellido
Address | Adresse | Dirección Apt. No | No d’appt | No de appart
City | Ville | Ciudad State | Etat | Estado Zip Code | Code post | Código post
*2. E-mail Address | Adresse e-mail | Dirección de correo electrónico
*3. Phone Number | Numéro de téléphone | Número de Teléfono
*5. Attach copy of your sales receipt here.
Joignez une copie de votre reçu de vente ici.
Adjunte una copia de su recibo de venta aquí.
*4. Model Number | Numéro de modèle | Número de modelo
Serial Number | Numéro de série | Número de serie
6. Date of Purchase | Date d’achat | Fecha de compra
7. Store Name | Nom du magasin | Nombre de la tienda
8. Purchase Price | Prix d’achat | Precio de compra
9 Your Gender | Sexo | Sexe: Male | Masculin | Masculino Female | Femelle | Femenino
We respect your privacy | Nous respectons votre vie privée | Respetamos su
privacidad
Mail to: | Envoyer à: | Correo a:
Char-Broil Warranty Registration
P.O. Box 1240
Columbus, Ga 31902-1240
If you prefer not to receive special offers and promotions from Char-Broil, please
check here:
Si vous préférez recevoir des offres et promotions spéciales de Char-Broil, veuillez
vérifier ici:
Si estás buscando un lugar para alojarse en Char-Broil, compruebe aquí.
Thank you for completing this questionnaire | Merci d’avoir rempli ce questionnaire. | Gracias por completar este cuestionario
*Required | Obligatoire | Necesario **Please Print | Veuillez imprimer | Por favor imprima
Grill Purchased: Assembled? Boxed?
©
2024 Char-Broil, LLC. Columbus, GA, 31904. Printed in Vietnam.
©
2024 Char-Broil, LLC. Columbus, GA, 31904.
©
2024 Assembly instructions.
The product associated with this guide was manufactured in Vietnam.
