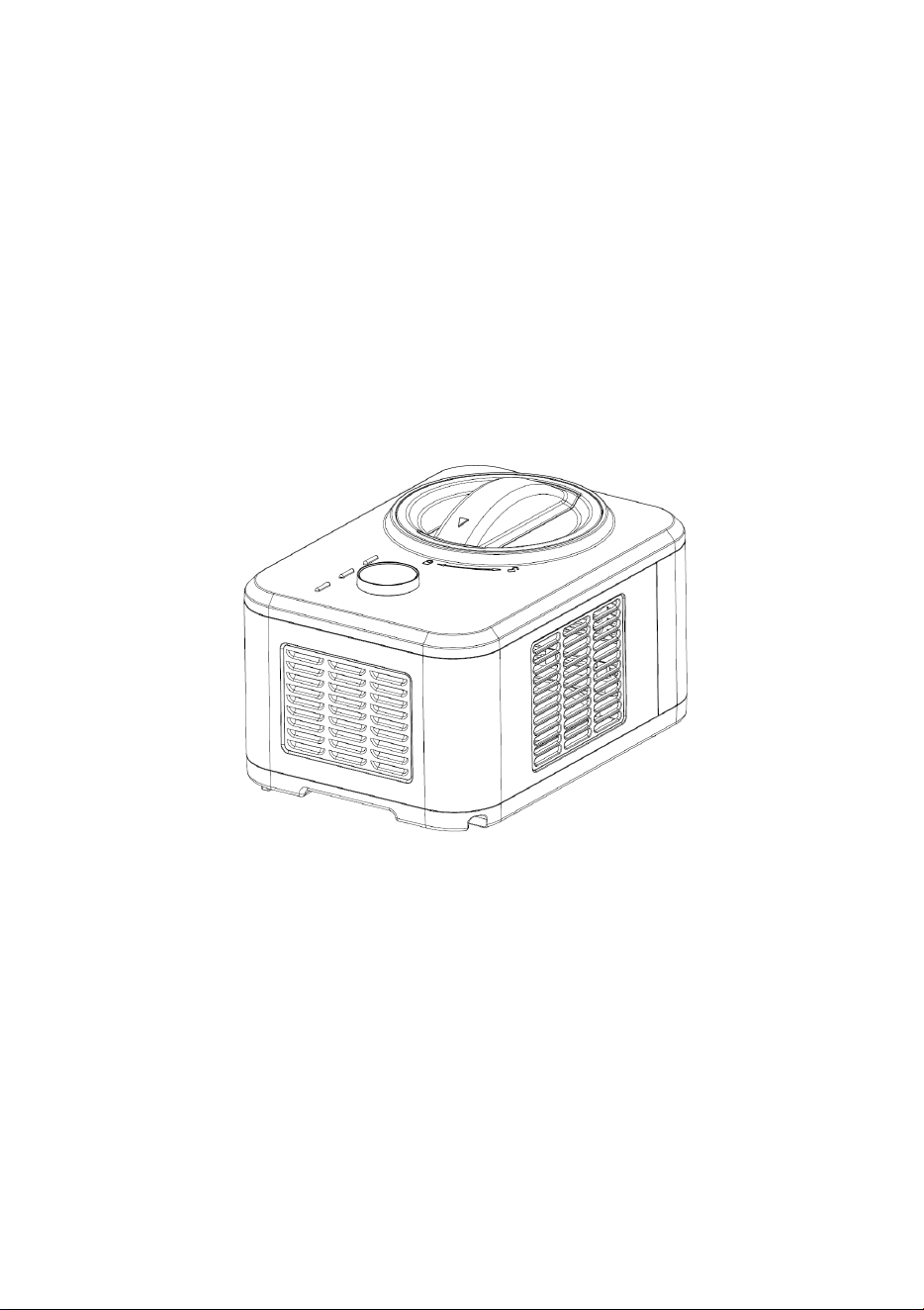

INSTRUCTION MANUAL
ICE CREAM MAKER
Thank you for purchasing this product! If you have any questions about the
product, such
as missing parts, damaged products, product assembling, or
operation, please contact us via Amazon Message or customer service number:
213-4467172 or 661-4358826.
Item No: IC3915SY
Model No:
ICE1532Y
- 2 -
IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1. Read all instructions befor
e using.
2. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
3. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This appliance can be used by children over the age of 8 and
persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in households and
similar applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
6. –Warning: Do not use electrical appliances inside the food
- 3 -
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
–WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
7. The plug must be removed before cleaning, maintaining or filling
the appliance.
8. Do not upend this product or incline it over a 45℃ angle.
9. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
10. Unplug the appliance after using or before cleaning.
11. Keep the appliance 8cm from other objects to ensure the good
heat releasing.
12. Do not use the accessories which are not recommended by
Manufacturer.
13. Do not use the appliance close to flames, hot plates or stoves.
14. Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
15. Metal sheets or other electric objects are not allowed to
be inserted into the appliance to avoid fire and short circuit.
16. When taking out the ice cream, do not knock the barrel or edge
of barrel to protect the barrel from damage.
17. Do not switch on the power before install well the barrel or
blender blade.
18. The initial temperature of the ingredients is 20±3℃.Do not put
the ingredients into freezer for pre-freeze, as it will easily make
the blender blade blocked before the ice cream is in good
condition.
19. Do not remove the blender blade when the appliance is on
working.
20. When you turn the ice cream maker on without adding ice cream
ingredients, you will slightly hear the mixing paddle scratching
- 4 -
the loading bowl, which is a normal phenomenon.
21. There are two round copper sheets at the motor assembly of the
transparent cover installed on the upper cover. When using,
please wipe the water stains on the transparent cover and on the
copper plates. If the machine is in use, the two copper plates will
be connected by water, which will lead to power failure of the
motor. Pull out the power line, wipe the water stains, and restart
it.
22. Do not use outdoors.
23. Never clean with scouring powders or hard implements.
24. Please keep the instruction manual.
SPECIFICATIONS
Item no: IC3915SY
Model no:ICE1532Y
Capacity: 1.5L
Voltage: 110-120VAC/60Hz
Anti-shock protection class: I
Climate type：N/SN
Electric current: 2A
Max overall dimensions: 380（L）X 270（W）X 242（H）mm
Max packing dimensions: 460（L）X 350（W）X 318（H）mm
N.W: 9.1kg
G.W: 10.2kg
- 5 -
PRODUCT FEATURE
1. Key and knob control, and LED display, simple and reliable
operation and won’t cost you much trouble.
2. Metal cover and housing, elegant, fashionable and lighter.
3. Upper mixing and low noise.
4. With a variety of quick freezing ice cream production methods.
5 .The parts are detachable, easy to clean, sanitary and safe.
- 6 -
.PRODUCT INSTRUCTION…… ……………….... .. ..
1) Structure
Transparent lid
Mixing blade
Loading bowl
Top lid
Housing
Motor
Base
- 7 -
2) Control panel
The product is subject to the actual object, and the picture is
for reference only.
Power button
Single mixing mode
Single cooling mode
Ice cream mode
Working time display
Yogurt mode
Increase working time
START/PAUSE
Reduce working time
(Counterclockwise rotation)
Function Selection
- 8 -
HOW TO MAKE ICE CREAM
NOTE: Please thoroughly clean all parts that will contact with ice
cream before use, including: cooling bowl, loading bowl, mixing fan
blade, transparent lid, etc.
Before cleaning, you must ensure that the power cord plug is
disconnected from the outlet. When making ice cream, keep the
machine flat on a level surface to ensure that the compressor of the
machine is working properly.
Here are the steps to make an ice cream:
Step 1.
Pour the well prepared recipe ingredients and water into the
loading bowl, then mix it uniformly.

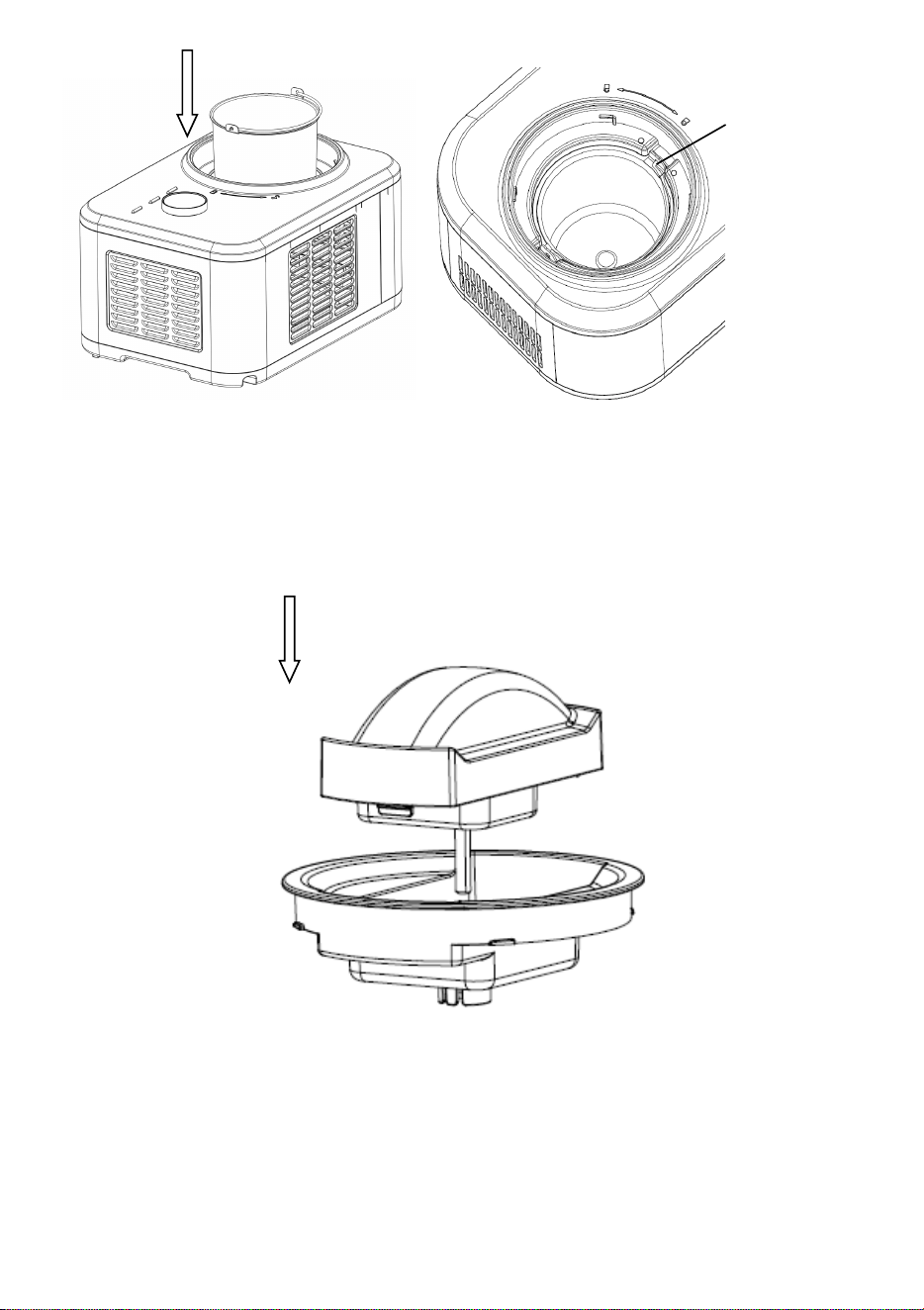

Step 2.
Then put the loading bowl into the ice cream machine, both ends of
the loading bowl handle shall be aligned with the groove of the upper
cover.
- 9 -
Step 3.
Install the transparent lid and motor components.
Step 4.
Install the mixing blade, transparent lid and motor components
Installation
position of
loading bowl
handle
- 10 -
Step 5.
Put the components installed in step 4 into the ice cream machine,
make sure that the center of the convex hull of the loading bowl and
the motor components of the mixing fan blade are in the same
straight line, lock the components clockwise, and make sure that the
triangle mark on the components rotates to the "LOCK" mark.
Lock
- 11 -
Step 6.
Plug in power, select the ice cream mode and working time, and
press the START/PAUSE button finally.
Step 7.
When the ice cream making is finished, there will be 10 short
beeps.
Step 8.
Turn the transparent lid and motor components anticlockwise. In
the process of spinning out, there will be a slight friction sound,
which is normal. When the triangle mark is aligned with the
unlocking mark, take out the components and then take out the
loading bowl.
- 12 -
OPERATION
1. Connect the power supply and plug the power cord into a suitable
socket. The shape and voltage of the socket shall be the same as
those indicated.
2. Operation process
1). Function description of buttons and display icons
POWER: Power button
: Single cooling function
: Ice cream making function
+: Increase working time
MENU: Function select
START/PAUSE: Start/Pause button
- 13 -
: Single mixing function
: Yogurt-making function
— : Reduce working time
3) Operation process of making ice cream
a. Press the POWER button to start the machine.
b. Press the MENU button, select the icon and enter the
ice-cream making mode.

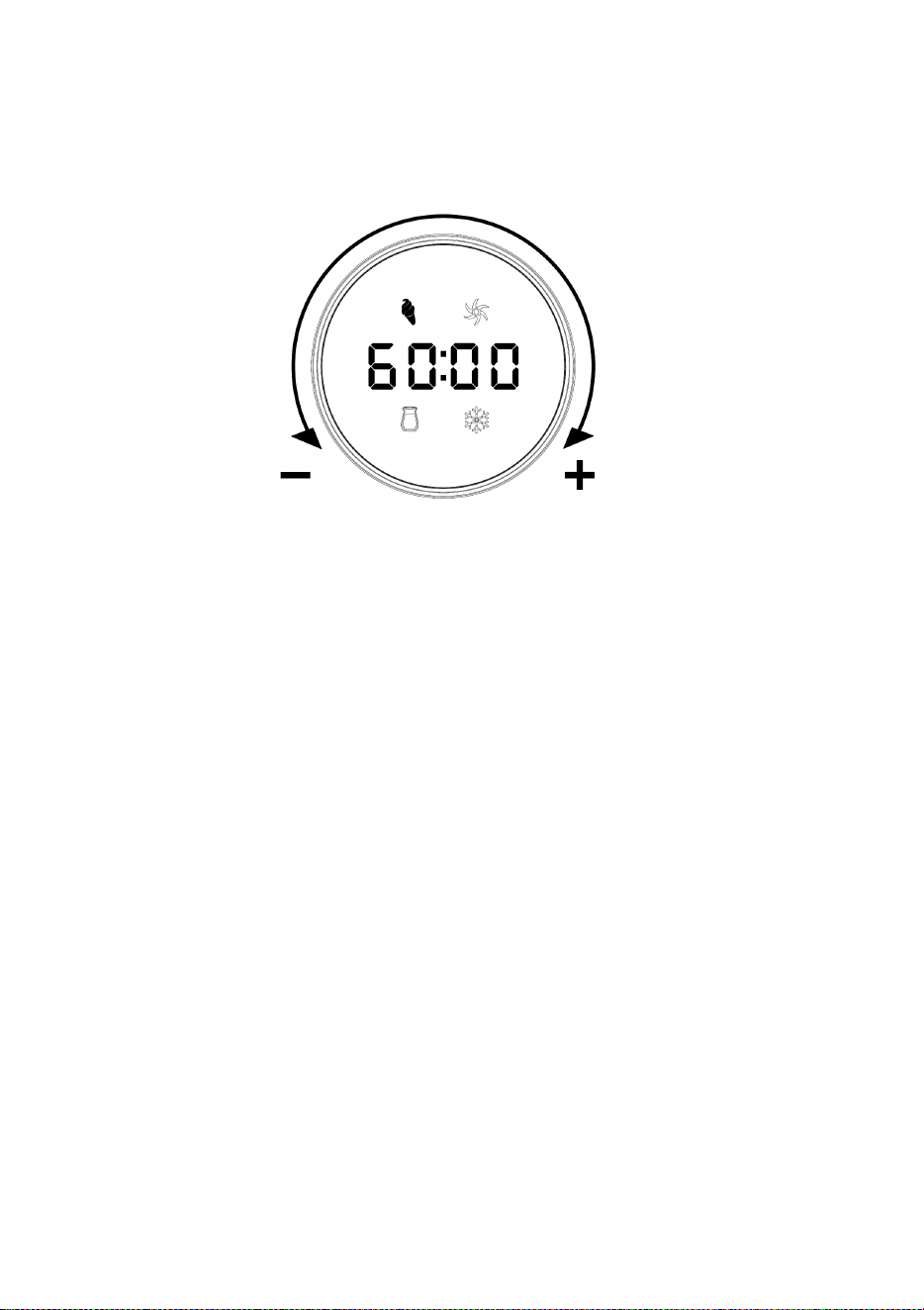

c. [Ice cream] the default production time is 60 minutes. If you
need to adjust the working time, turn the knob, turn 1 grid to
change for 1 minute, with the minimum of 5min and
maximum of 60min.
d. After setting the time, press the START/PAUSE button to
count down the time and start making ice cream at the same
time. In this process, if you press the START/PAUSE button,
the machine will stop working, and the screen will display the
time when it stops. If you press the START/PAUSE button
again, it will continue to work according to the currently set
mode and the remaining time. When the time or hardness
reaches the set value, 10 beeps will prompt completion.
e. After the production process is completed, if there is no other
operation, it will automatically enter the insulation program.
Please enjoy this delicious ice cream in time or keep it in the
refrigerator to avoid melting.
3) Operation process of single cooling function
a. Press the POWER button to start the machine.
b. Press the MENU button, select the icon and enter the
single cooling mode.
c. [Single cooling] the default production time is 30 minutes. If
- 14 -
you need to adjust the working time, turn the knob, turn
1 grid to change for 1 minute, with the minimum of 5min
and maximum of 60min.
d. After setting the time, press the START/PAUSE button to
start refrigeration, and select the time to start countdown. In
this process, if you press the START/PAUSE button, the
machine will stop working, and the screen will display the
time when it stops. If you press the START/PAUSE button
again, you will continue to work according to the currently set
mode and the remaining time. When the time reaches the
set value, 10 beeps will prompt completion.
4) Operation process of single mixing
a. Press the POWER button to start the machine.
b. Press the MENU button, select the icon and enter the
single mixing mode.
c. [Single mixing] the default production time is 10 minutes. If
you need to adjust the working time, turn the knob, turn 1
grid to change for 1 minute, with the minimum of 5min and
maximum of 60min.
d. After setting the time, press the START/PAUSE button to
start single mixing, and select the time to start the
countdown. In this process, if you press the START/PAUSE
button, the machine will stop working, and the screen will
display the time when it stops. If you press the
START/PAUSE button again, you will continue to work
according to the currently set mode and the remaining time.
When the time or hardness reaches the set value, 10 beeps
will prompt the completion of mixing.
5) Operation process of yogurt function
a. Press the POWER button to start the machine.
- 15 -
b. Press the button, select the icon and enter the
yogurt-making mode.
c. [Yogurt] mode the default production time is 8 hours. If
you need to adjust the working time, turn the knob, turn 1
grid to change for 1 hour, with the minimum of 4hours and
maximum of 24hours.
d. After setting the time, press the START/PAUSE button to
start mixing, and select the time to start countdown. In this
process, if you press the START/PAUSE button, the
machine will stop working, and the screen will display the
time when it stops. If you press the START/PAUSE button
again, you will continue to work according to the currently set
mode and the remaining time. When the time reaches the
set value, 10 beeps will prompt completion.
e. After the production process is completed, it will
automatically enter the cooling insulation state (COOL is
displayed). If there is no other operation, it will always be in
the insulation state (it will not automatically shut down).
3. KEEP COOL FUNCTION
Ice cream insulation function: In order to prevent you from leaving
during the ice-cream making process, and the ice-cream cannot
be eaten or stored in time after the completion of the production,
which causes the ice-cream to melt, we have added the following
humanized design: when the ice-cream making is completed but
no one operates, it will automatically enter the insulation program
(COOL is displayed). The insulation time is 1 hour. After 1 hour,
the machine will enter the standby state.
4. MOTOR SELF-PROTECTION FUNCTION
In the single mixing and ice cream modes, as the production time
becomes longer, the ice cream becomes harder and harder, and the
mixing motor will be locked in advance. At this time, the PCB will
monitor the motor and automatically stop the motor to ensure the
- 16 -
service life of the mixing motor.
5. CONTROLLING THE VOLUME OF THE INGREDIENTS
To avoid overflow and waste, please make sure that the ingredients
do not exceed 60% of capacity of the removable bowl (Ice cream
expands when formed).
6. COMPRESSOR SELF-PROTECTION FUNCTION
After the compressor stops during ice cream mode or cooling
only mode, if the ice cream mode or cooling only mode is selected
again, the compressor will have a protection time for about 3
minutes. However, after the power cord is plugged in, the machine
restart by default. At this time, there is no delay in selecting ice cream
mode or cooling only mode.
To prevent frequent startup of the compressor, press the pause
button under the ice cream and single cooling working modes, and
the compressor and condensing fan will shut down after a delay of 1
minute.
- 17 -

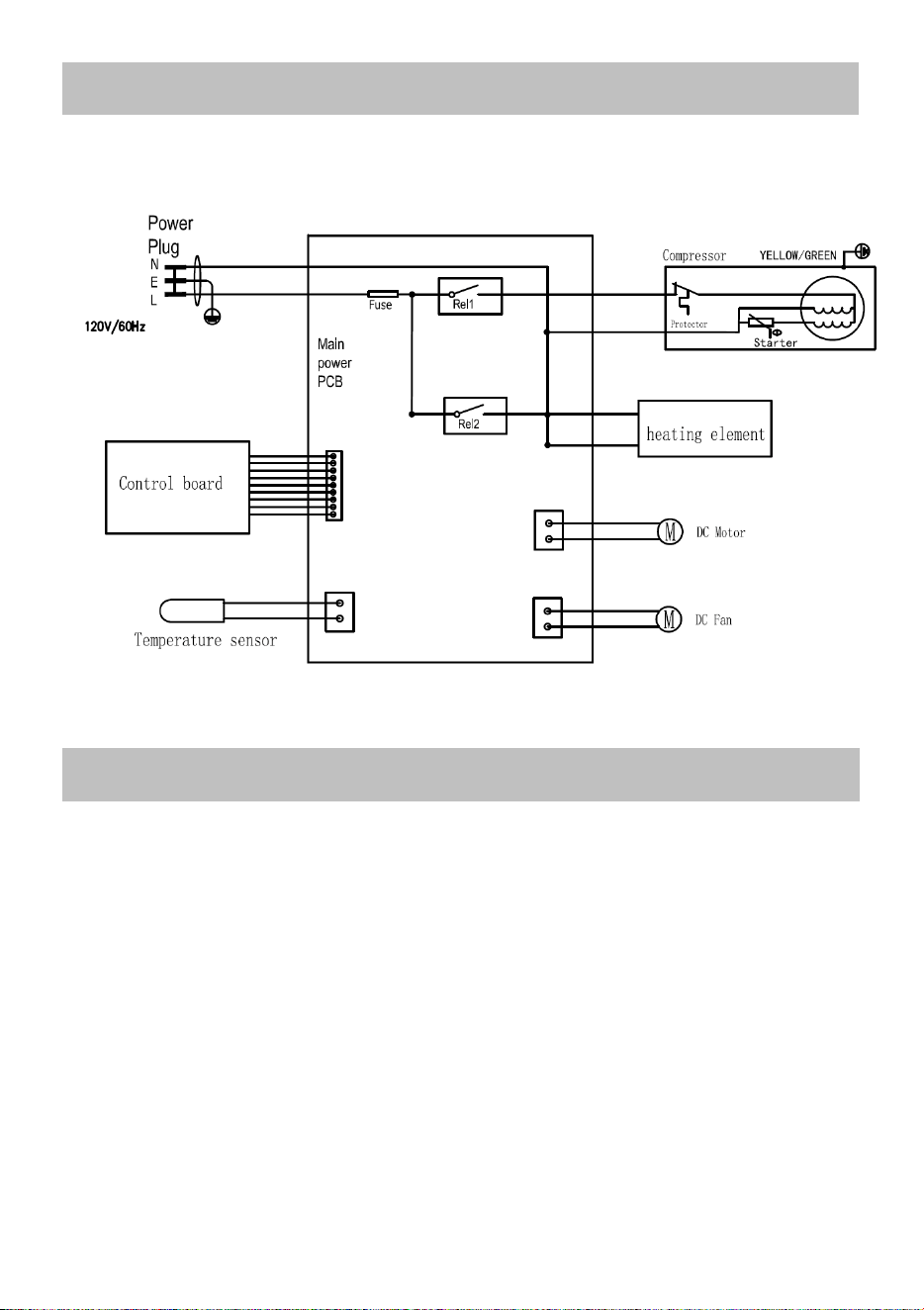

ELECTRICAL DIAGRAM
MAINTENANCE
Caution: The plug must be removed before cleaning to avoid electric
shock.
（1）Take out the mixing blade, wipe it with a dampened cloth.
（2）Take out the loading bowl, clean it with a dampened soft cloth.
（3）Wipe the transparent lid and refill lid with a dampened cloth.
（4）Remove the dirty on the body or other places with a dampened
cloth, and do not pour water on cord, plug and ventilation,
immerse the appliance in water or any other liquid.
（ 5 ） Allow drying thoroughly with a dry cloth, then return the
component to the home position.
- 18 -
COMMON PROBLEMS
No. Existing problems Reason analysis Resolutions
1
Can not take out
the loading bowl easily
after the ice cream is
finished.
There are water drops
between the cooling
bowl and the loading
bowl that have not been
wiped away, resulting
in
freezing.
Wait 3-8 minutes
before taking out
the loading bowl.
2
The transparent lid is
lifted to the mixing blade,
and it cannot be stuck in
place
The mixing blade not in
place, and pay attention
to the alignment of the
convex hull at the bottom
Put the mixing
blade
in place
and rotate the
transparent
cover in place
3
The loading bowl
cannot be placed in
the cooling bowl
Deformation caused by
improper use of loading
bowl
B
uy a new
loading bowl
4
At the beginning of
making ice cream, the
mixing blade seriously
scratched or jammed.
Deformation caused by
improper use of loading
bowl
Buy a new
loading bowl
AFTER SALES SERVICE
One -y
ear warranty service is available from the date of
purchase. The date of purchase of the invoice or after-sales
service warranty card is subject to the warranty service. The
problems you encounter when using our company's home
automatic ice cream machine can be helped and resolved through
the service hotline. We provide technical advice free of charge.
●One of the following conditions is not covered by the warranty;
1) Components are damaged due to improper use, maintenance and
storage;
- 19 -
2) Damage caused by non-Donlim WEILI maintenance personnel or
designated personnel to disassemble the product by themselves.
3) No purchase invoice or purchase invoice does not match the
product;
4) Damage caused by force majeure;
5) Exceeding the warranty period;
★ If you find any quality problems, please contact the service center
or special maintenance service point for repair. Do not
disassemble it by yourself. The company will not bear any
responsibility for quality problems or accidents caused by self-
disassembly.
★ If the product is not under warranty, the maintenance fee will be
waived and only the parts fee will be charged. Manufacturer
reserves the right of final interpretation of the above
commitments.
PART
S
Mixing blade 1 User manual 1
ICE CREAM RECIPE MANUAL
BASIC ICE CREAM
Make it according to the following formula. After mixing the formula
mixture evenly, it can be made into ice cream within 60 minutes.
300g cream
200g powdered milk
- 20 -
300g water
VANILLA ICE CREAM
340g whole milk
160g granulated sugar
250g heavy cream, well-chilled
2 – 3 teaspoons pure vanilla extract, to taste
In a medium bowl, use a hand mixer or a whisk to combine the milk and
granulated sugar until the sugar is dissolved, about 1 – 2 minutes on low
speed. Stir in the heavy cream and vanilla to taste. Turn machine on,
pour mixture into freezer bowl through ingredient spout and mix it until
thickened, about 50 – 60 minutes.
BASIC CHOCOLATE ICE CREAM
240g whole milk
115g granulated sugar
240g semi-sweet chocolate (your choice), broken into 1.2cm pieces
240g heavy cream, well-chilled
1 teaspoon pure vanilla extract
Heat the whole milk until it is just bubbling around the edges (this may be done
on the stovetop or in a microwave). In a blender or food processor fitted with
the metal blade, pulse to process the sugar with the chocolate until the
chocolate is very finely chopped. Add the hot milk, process until well blended
and smooth. Transfer to a medium bowl and let the chocolate mixture cool
completely. Stir in the heavy cream and vanilla to taste. It is best to pre-cooled
in the refrigerator for about 15 minutes before making.
Turn the machine on, pour the mixture into removable bowl through
ingredient spout and mix it until thickened, about 30 – 40 minutes.
FRESH STRAWBERRY ICE CREAM
250g fresh ripe strawberries, stemmed and sliced
52.5g freshly squeezed lemon juice
- 21 -
115g granulated sugar
240g whole milk
240g heavy cream
1 teaspoon pure vanilla extract
In a small bowl, combine the strawberries with the lemon juice and
115g granulated sugar, stir gently and allow the strawberries to macerate in
the juices for 2 hours.
In a medium bowl, use a hand mixer or a whisk to combine the milk and
granulated sugar until the sugar is dissolved.
Stir in the heavy cream plus any accumulated juices from the strawberries and
vanilla. Turn the machine on, pour mixture into removable bowl
through ingredient spout and mix it until thickened, about 30 – 40 minutes.
Add the sliced strawberries during the last 5 minutes of freezing.
FRESH LEMON SORBET
350g granulated sugar
420g pure water
120g freshly squeezed lemon juice
0.5 tablespoon finely chopped lemon zest *
Combine the granulated sugar and water in a medium saucepan and bring it
to a boil over medium-high heat. Reduce heat to low and simmer without
stirring until the sugar dissolves, about 3 – 5 minutes. Cool it completely. This
is called simple syrup, and could be made ahead in larger quantities to have
on hand for making fresh lemon sorbet. Keep it refrigerated until ready to use.
After cooling, add the lemon juice and zest; stir to combine. Turn the
machine on, pour the lemon mixture into freezer bowl through ingredient
spout and mix until thickened, about 50 – 60 minutes.
CHOCOLATE FROZEN YOGURT
240g whole milk
180g bittersweet or semisweet chocolate, chopped
- 22 -
400g low-fat vanilla yogurt
50g granulated sugar
Combine the milk and chocolate in a blender or food processor fitted with
the metal blade and process it until well-blended and smooth, 15 seconds.
Add the yogurt and sugar; process it until smooth, about 15 seconds. Turn
the machine on, pour mixture into removable bowl through ingredient spout
and mix it until thickened, about 50 – 60 minutes.
Correct Disposal of this product
This marking indicates
that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal of, recycle it responsibly to
promote the sustainable reuse of material
resources. To return your used device, please use
the return and collection systems or contact the
retailer where the product was purchased. They can
take this product for environmentally safe recycling.
Thank you for purchasing this product! If you have any questions about the
product, such as missing parts, damaged products, product
assembling, and operation,
please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO
GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC 28407
Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
