Operator's Manual
16" Reel Mower LMRM1602
Save this manual for future reference
EN p. 2
Read all safety rules and instructions carefully before operating this tool.
Distributed By: Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou - China

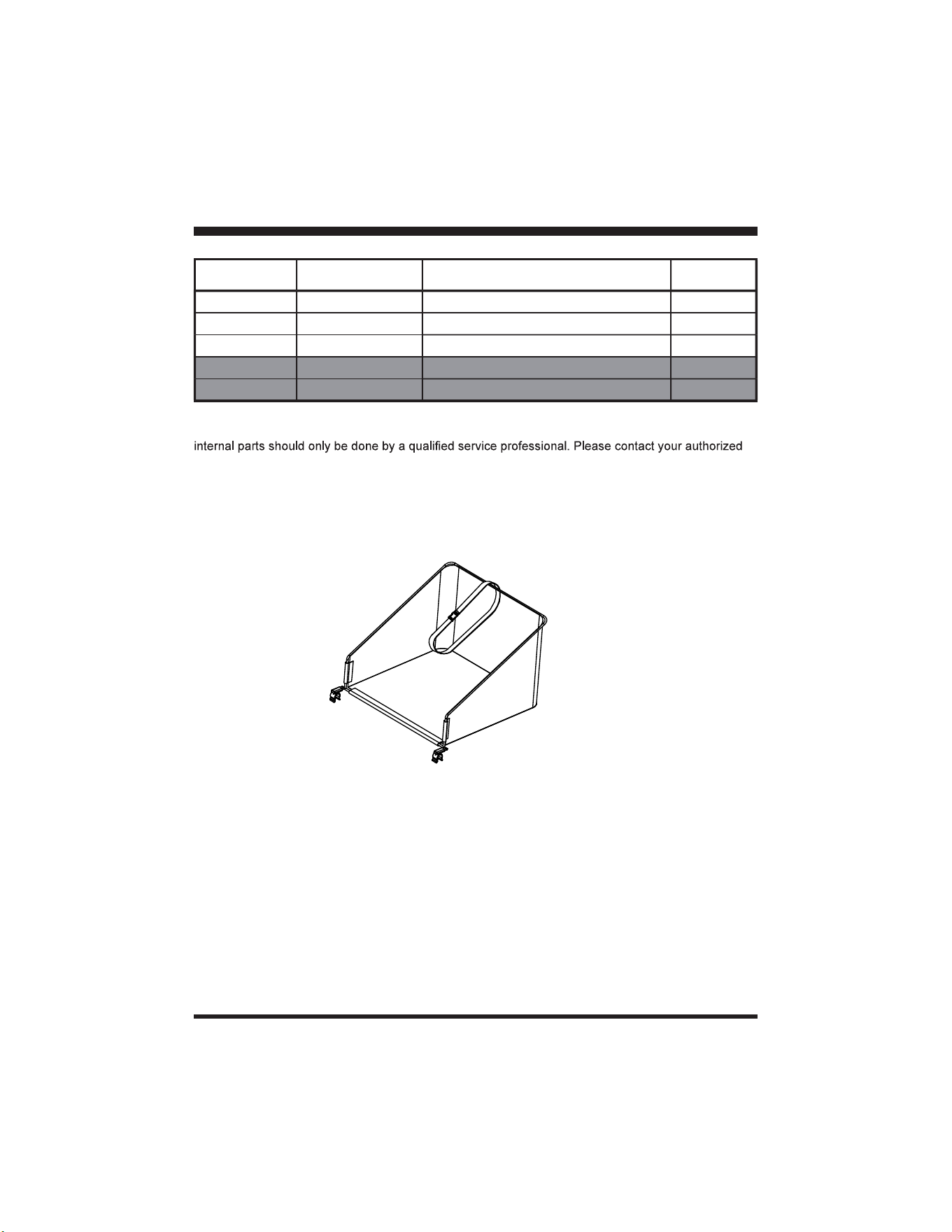

NOTE: Collection Bag Sold Separately
2
Number of Blades 5 Hardened Steel
Cutting Width 16'' (400 mm)
Cutting Height Adjustment 4 positions:
1
''
-
2
'' (
26
-
51
mm)
Wheel Size 10'' (254 mm)
Weight 26 lbs (12 kg)
SPECIFICATIONS
Reel Mower LMRM1602
Section Page
TABLE OF CONTENTS
TABLE OF CONTENTS 2
SPECIFICATIONS 2
IMPORTANT SAFETY INSTRUCTIONS 3-5
SYMBOLS 5-6
KNOW YOUR REEL MOWER 7
ASSEMBLY 8-10
OPERATION 11-12
MAINTENANCE 13-14
TROUBLESHOOTING 15
LAWNMASTER
®
WARRANTY 16
EXPLODED VIEW 17
PARTS LIST 18-19
NOTES 20

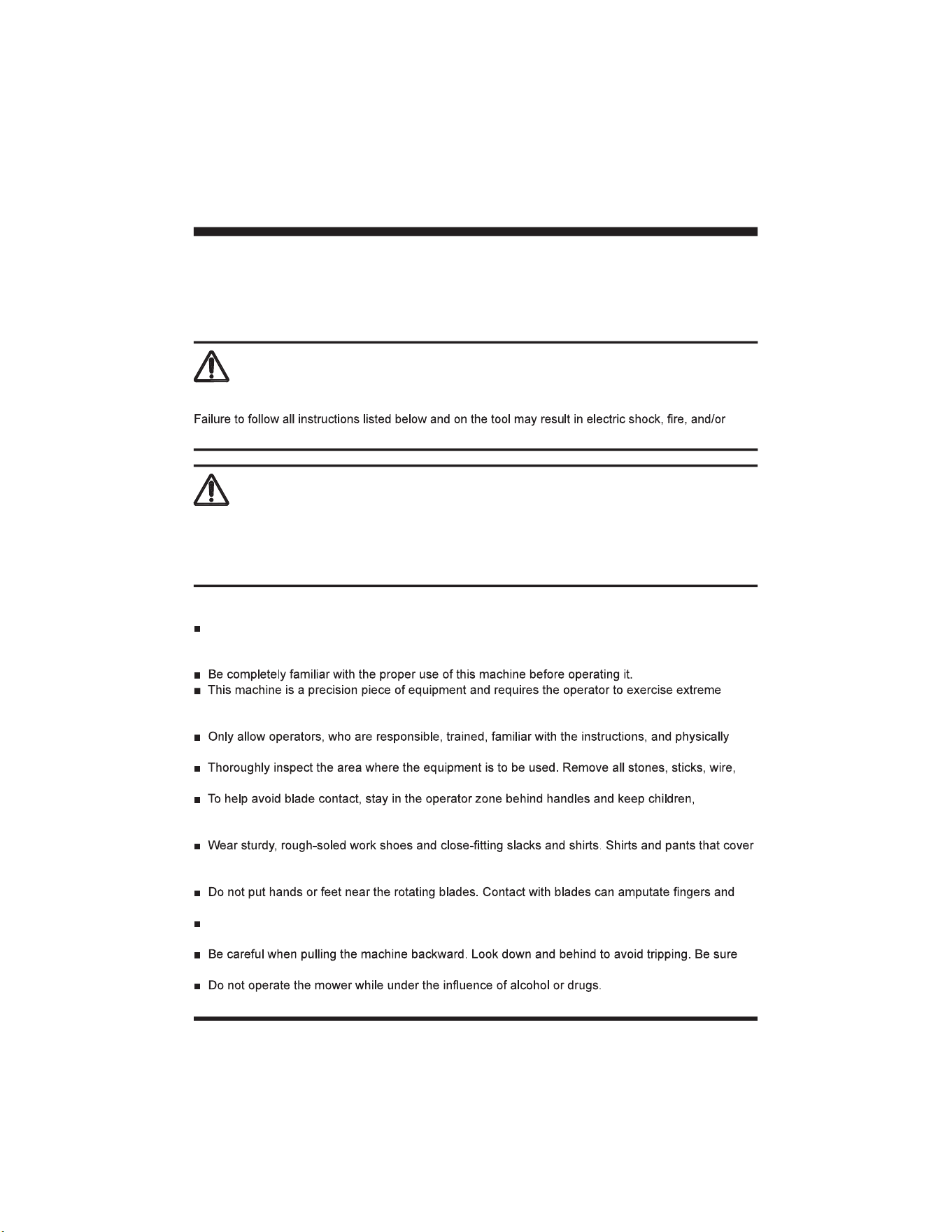

3
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand all
instructions in this manual before attempting to operate the mower. Failure to comply with these
instructions may result in personal injury.
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable.
Safety, performance, and dependability have been given top priority in the design of this product making
it easy to maintain and operate.
READ ALL INSTRUCTIONS
Read this Operator’s Manual carefully in its entirety before attempting to assemble this machine.
Read, understand, and follow all instructions on the machine and in the manual before operation.
Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
caution at all times. This machine has been designed to perform one job: to mow grass. Do not use
it for any other purpose.
capable to operate the mower.
bones, toys and other foreign objects.
bystanders, helpers and pets away from mower while it is in operation. Stop the machine if anyone
enters area.
the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet,
sandals, slippery or light-weight (e.g. canvas) shoes.
toes.
Many injuries occur as a result of the mower being pulled over the foot during a fall caused by slipping
or tripping. Do not hold on to the mower if you are falling; release the handle immediately.
you are well balanced with sure footing.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
READ AND UNDERSTAND ALL INSTRUCTIONS.
serious personal injury.
WARNING

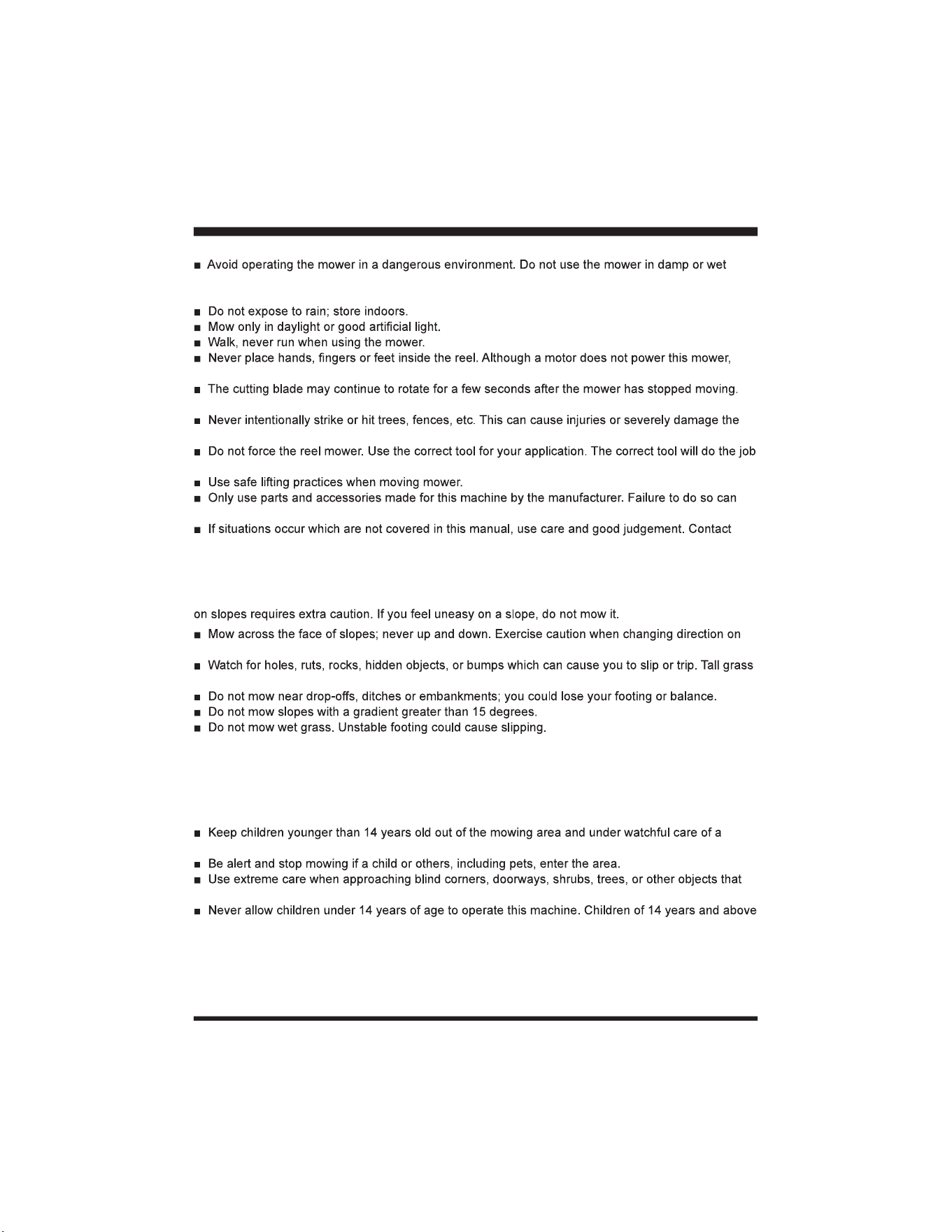

4
IMPORTANT SAFETY INSTRUCTIONS
conditions or operate in the rain. Always be sure of your footing. A slip and fall can cause serious
personal injury.
when the wheels turn the reel spins and can cut.
Never place any part of the body in the blade area until you are sure the blade has stopped rotating.
reel mower mechanisms.
better and safer at the rate for which it is designed.
result in personal injury.
Customer Service (Toll-free Helpline 1-866-384-8432) for assistance or the nearest service dealer.
OPERATING MOWER ON A SLOPE
Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation
slopes.
can hide obstacles.
CHILDREN
Tragic accidents can occur if the operator is not alert in the presence of small children. Children are
often attracted to the mower and the mowing activity. Children younger than 14 years old do not
understand the dangers. Never assume that children will remain where you last saw them.
responsible adult other than the operator.
may obscure your vision of a child who may run into the mower.
should read and understand the instructions and safe operation practices in this manual and on the
machine and be trained and supervised by an adult.
5
SAVE THESE INSTRUCTIONS
someone this appliance, loan them these instructions also.
SYMBOLS
Safety Alert Precautions that involve your safety
Read The
Operator’s
Manual
To reduce the risk of injury, user must read and
understand Operator’s Manual before using this
product.
Danger - Rotating
Blades
To reduce the risk of injury, keep hands and feet
away.
Some of the following symbols may be used on this product. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to operate the product
better and safer.
SYMBOL
NAME DESIGNATION/EXPLANATION
IMPORTANT SAFETY INSTRUCTIONS
6
SYMBOLS
SERVICE
technician. When servicing, use only identical replacement parts.
For troubleshooting or replacement, please call Customer Service for assistance (Toll free number
866-384-8432).
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand
completely the Operator’s Manual.
If you don't understand the warnings and instructions in the Operator’s Manual, do not use this product. Call
Customer Service for assistance (Toll free number 866-384-8432)
.
WARNING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
associated with this product.
SYMBOL SIGNAL MEANING
7

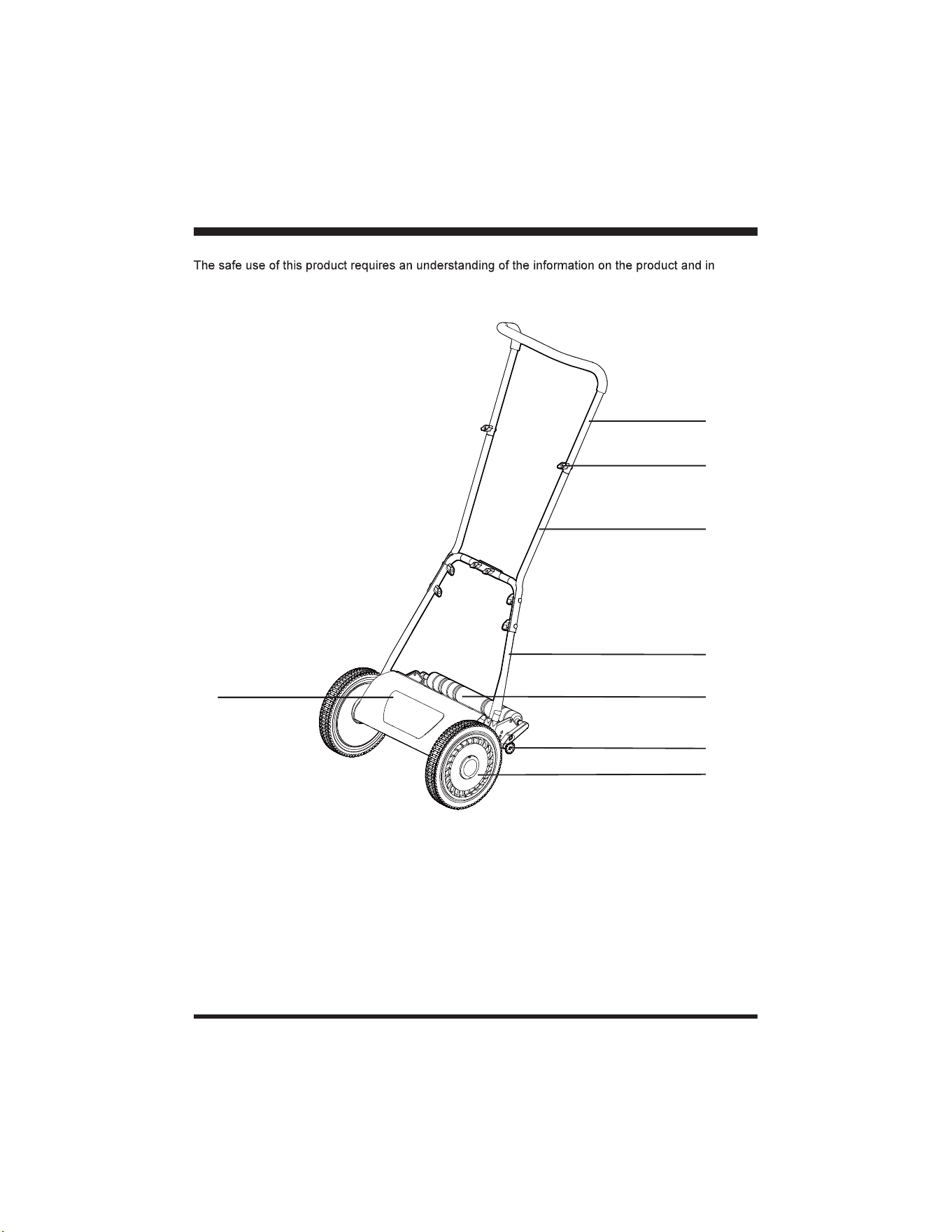

KNOW YOUR REEL MOWER
this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
Components
1. Upper Handle
2. Twist Knob (X8)
3. Middle Handle (X2)
4. Lower Handle (X2)
5. Rear Roller
6. Height Adjustment Knob (X2)
7. Wheel (X2)
8. Mower Cover
1
2
3
4
6
5
8
7
8

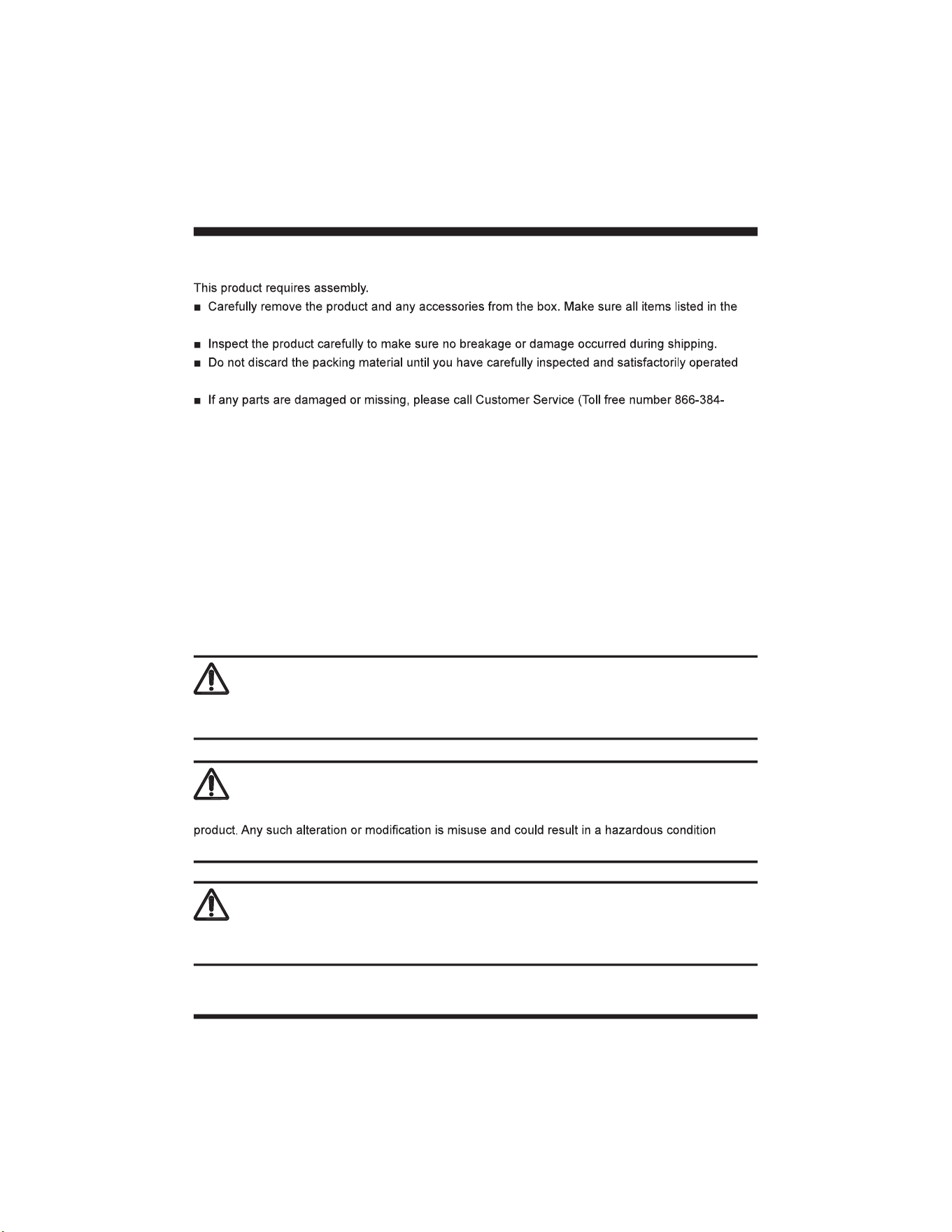

ASSEMBLY
WARNING
WARNING
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
Never operate the mower without the proper working safety devices in place. Never operate the mower
with damaged safety devices. Failure to heed this warning can result in serious personal injury.
UNPACKING
packing list are included.
the product.
8432).
PACKING LIST
(1) Upper Handle
(2) Middle Handles
(2) Lower Handles
(8) Bolts
(8) Twist Knobs
(1) Reel Mower Body (with blades, wheels and height adjustment knobs installed)
(1) Operator’s Manual

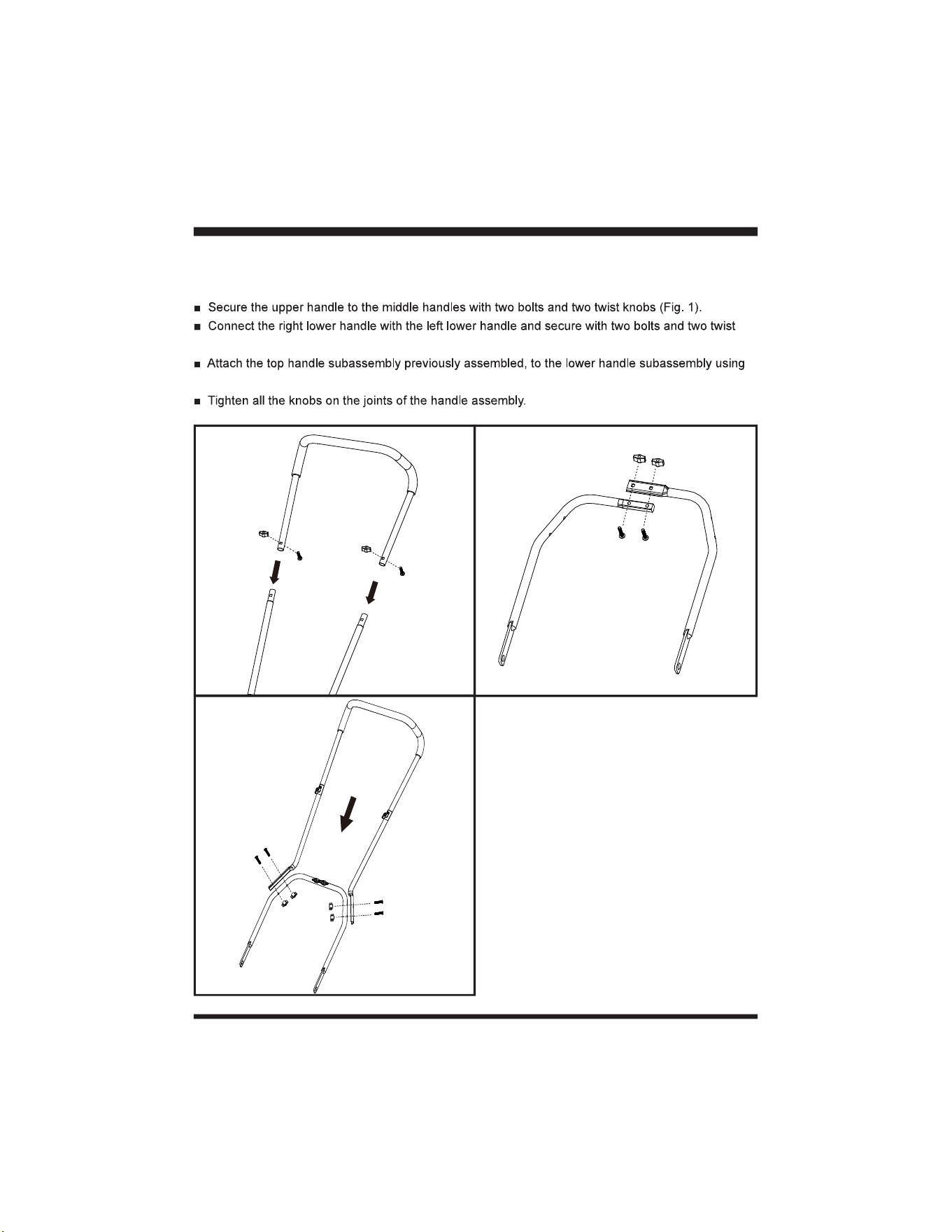

9
ASSEMBLING THE HANDLES
NOTE: Do not completely tighten bolts until assembly is complete.
knobs (Fig. 2).
four bolts and four twist knobs (Fig. 3).
ASSEMBLY
Fig. 1
Fig. 3
Fig. 2
10

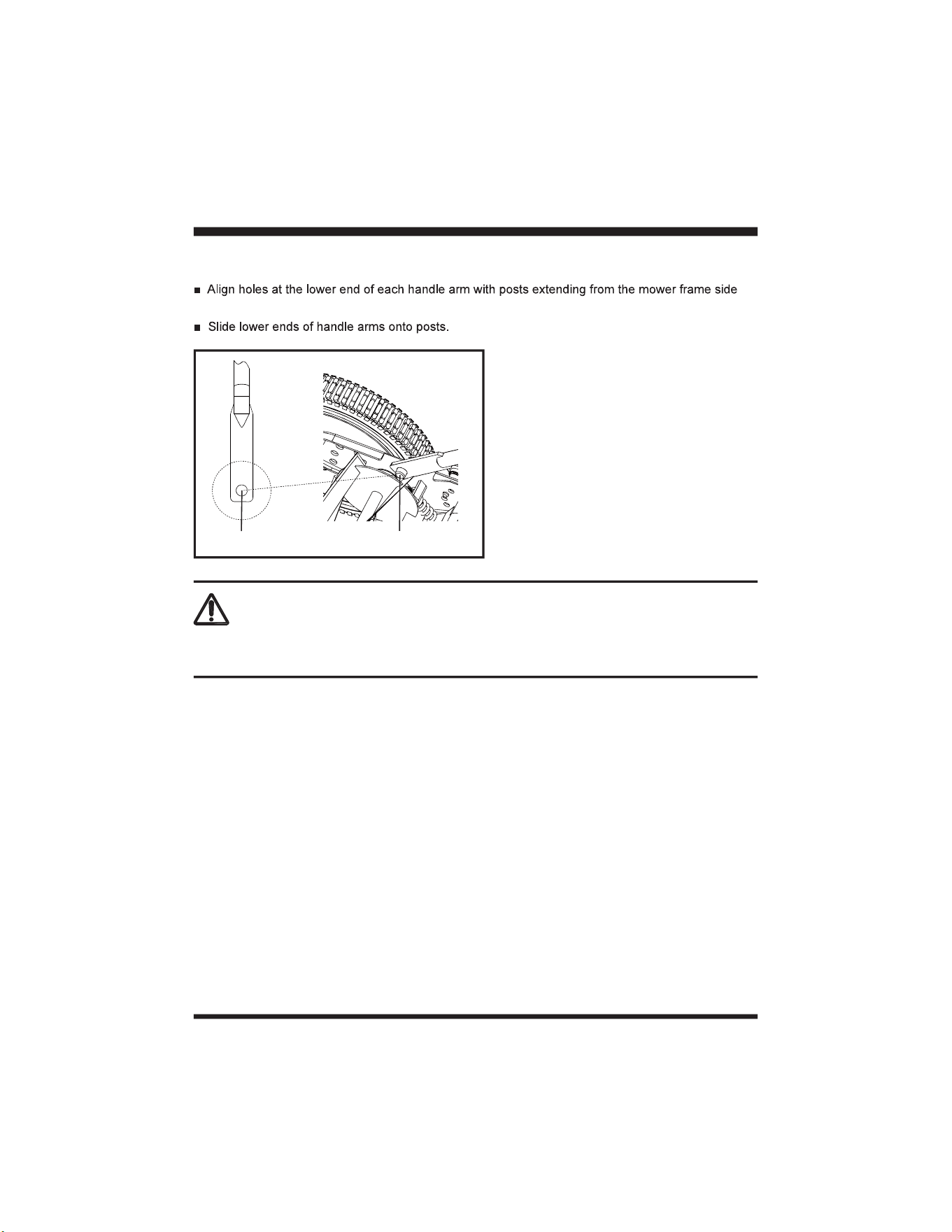

ATTACHING THE HANDLE TO THE MOWER FRAME
plates (Fig. 4).
Fig. 4
Post
Hole
ASSEMBLY
WARNING
Always keep hands clear of blades when attaching the handle to the frame. Not doing so can result in
serious injury!
11
OPERATION
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

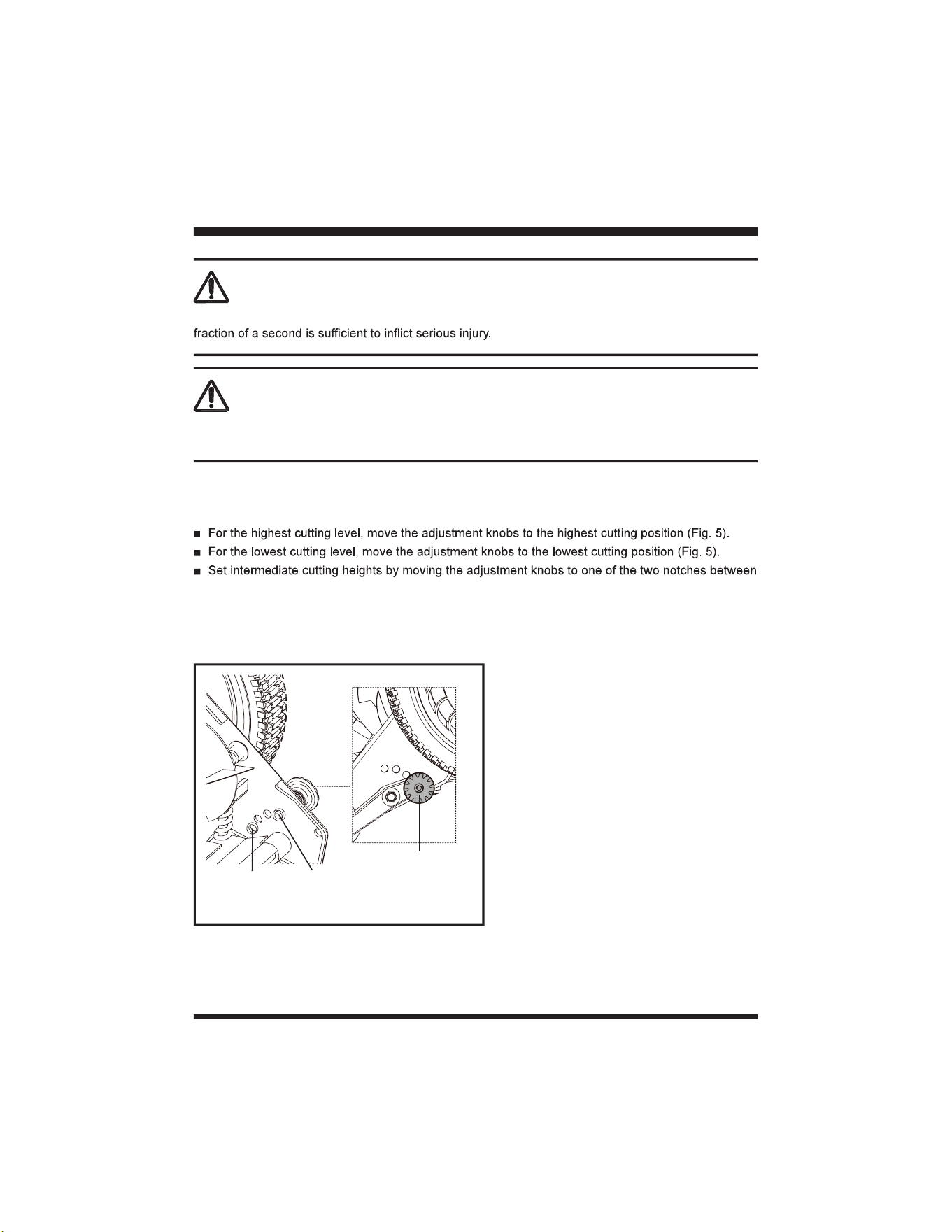

ADJUSTING THE CUTTING HEIGHT
The cutting height can be adjusted to four positions, from 1'' to 2'' (26mm to 51mm).
highest and lowest positions.
NOTE: The two adjustment knobs MUST be set to the same height.
For best performance, align the edge of the cutting blades to overlap the previously cut path. This will
ensure no grass is missed during the process.
USING THE MOWER
Please observe the following when operating your reel mower.
WARNING
Do not allow familiarity with this type of product to make you careless. Remember that a careless
Fig. 5
Height
Adjustment
Knob
Highest Cutting
Position
Lowest Cutting
Position

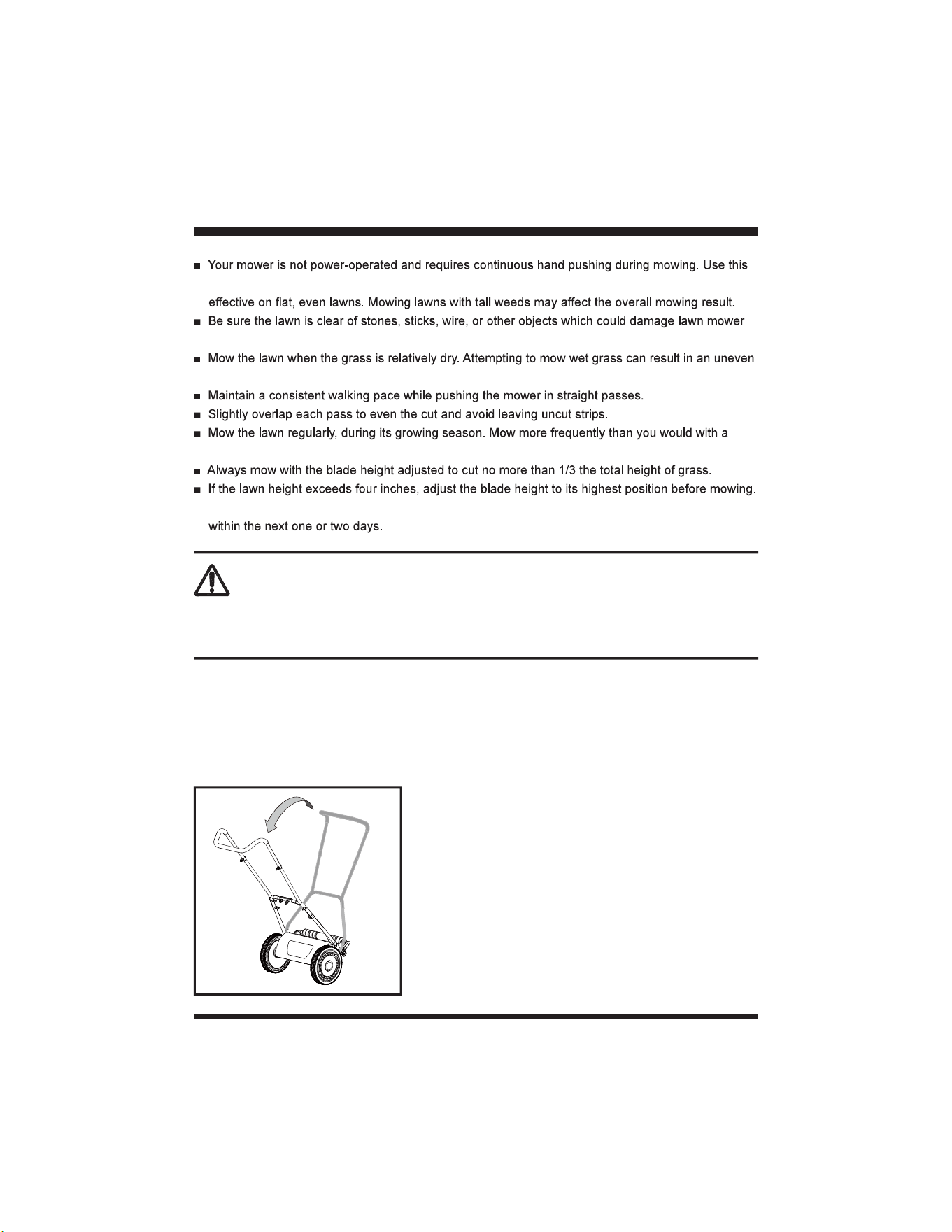

12
mower only on lawn that has been grown on a smoothly graded ground surface. This mower is most
or engine.
cut.
conventional rotary lawn mower.
After mowing, readjust the blade to your preferred cutting height and mow the lawn a second time
TRANSPORTING THE MOWER
During normal operation, the blade reel will turn while the mower’s front wheels are turning. To safely
move the mower from one location to another without the blade reel turning, simply pivot the handle
over the reel and push the mower from the opposite side (Fig. 6). Pushing the mower in this manner
(transport mode) prohibits the blade reel from turning.
WARNING
The operation of any lawn mower can result in debris being thrown into the eyes, which can damage
your eyes severely. Always wear safety glasses while operating the mower, or while performing any
adjustments or repairs on it.
OPERATION
Fig. 6

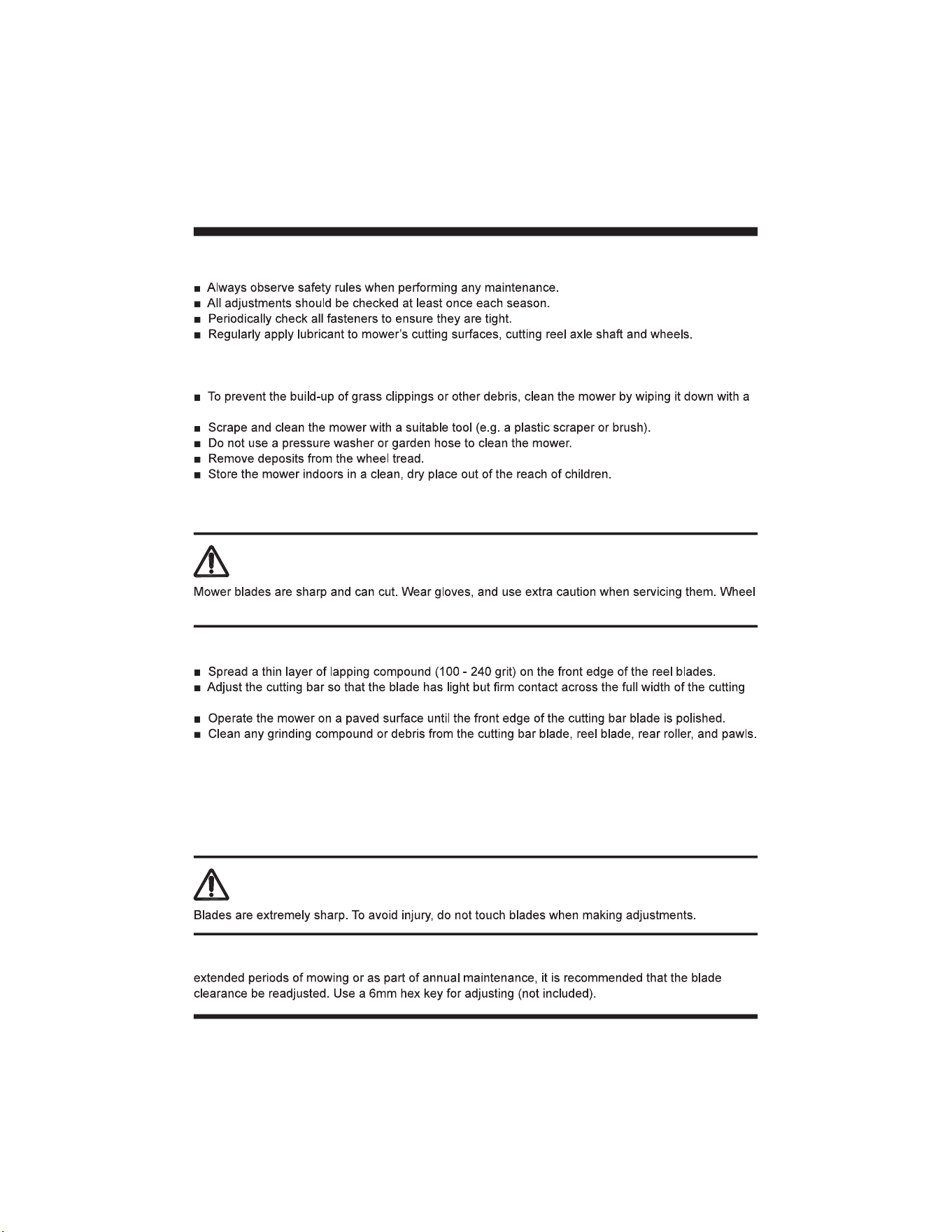

13
MAINTENANCE
GENERAL MAINTENANCE
CLEANING AND STORING THE MOWER
damp cloth after each use.
SHARPENING THE BLADES
Periodically sharpen the blades as follows:
bar. Refer to the Adjusting The Blades section in this manual.
NOTE: To prevent surface rust to mower blades, dry blades after use and apply a thin coat of
penetrating oil spray.
NOTE: Reel mower sharpening kits are available for purchase at your local home center, hardware
store, or online.

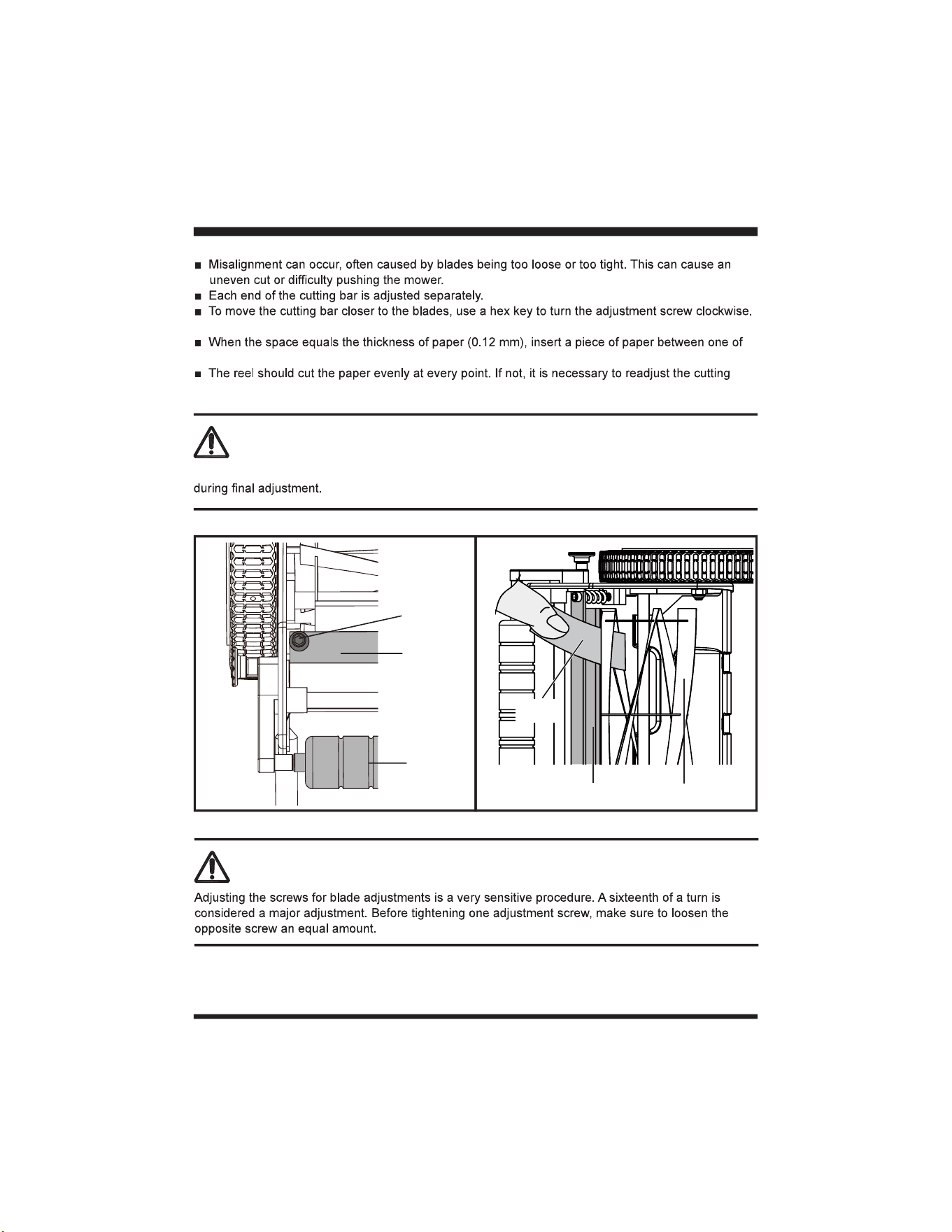

ADJUSTING THE BLADES
The blade reel is adjusted for proper clearance from the cutting bar at the factory. However, after
WARNING
rotation can cause the blade reel to rotate.
WARNING
14
To move the cutting bar away from the blades, turn the adjustment screw counterclockwise (Fig. 7).
the blades and the cutting bar, and slowly turn the wheel by hand (Fig. 8).
action.
MAINTENANCE
Adjustment
Screw
Cutting Bar
Rear Roller
Fig. 7
Paper
Cutting Bar
Blade
Fig. 8
WARNING
Do not over-tighten the adjustment screw, as this could damage the cutting bar. Tighten both screws
CAUTION
15
TROUBLESHOOTING
WARNING
Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed by an authorized service center
PROBLEM POSSIBLE CAUSE SOLUTION
Mower cuts unevenly.
Rough or uneven lawn. Check the mowing area.
Cutting height not set properly.
Set the mower at a higher position.
The blade is dull.
Sharpen the blades.
Mower is hard to
push.
High grass or low cutting
height makes rear roller and
blades trapped in heavy
grass.
Raise the cutting height.
The blades are jammed.
Check for grass and debris under the
mower cover, clean to make blades free
to move.
The cutting blades are not
assembled securely.
Tighten the blade bolts properly.
Mower makes
abnormal noise.
The blades are not balanced.
Sharpen and balance the blades
following instructions in this manual (see
page 13).
Lawn turns yellow, cut
not clean.
The blade is dull. Sharpen the blades.
Cutting height is too low. Use a slightly higher cutting height.
Mower leaves deep
tracks.
Ground is softened by water.
Lawn is too wet.
Allow lawn to dry. Do not mow if grass is
wet.
16
®
product carries a limited
two (2) year warranty against defects in workmanship and materials from date of purchase under normal
household use. If product is to be used for commercial, industrial or rental use,a 30 day limited warranty
will apply. Warranty does not apply to defects due to direct or indirect abuse, negligence, misuse,
accidents, repairs or alterations and lack of maintenance. Please keep your receipt/packing list as proof
from state to state. For product service call Customer Service at 1-866-384-8432.
Items not covered by warranty:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual;
4. Routine maintenance items such as lubricants, blade sharpening;
attachment are the responsibility of the purchaser. It is the purchaser's responsibility to pay transportation
writing by LawnMaster
®
.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
LAWNMASTER
®
WARRANTY
17

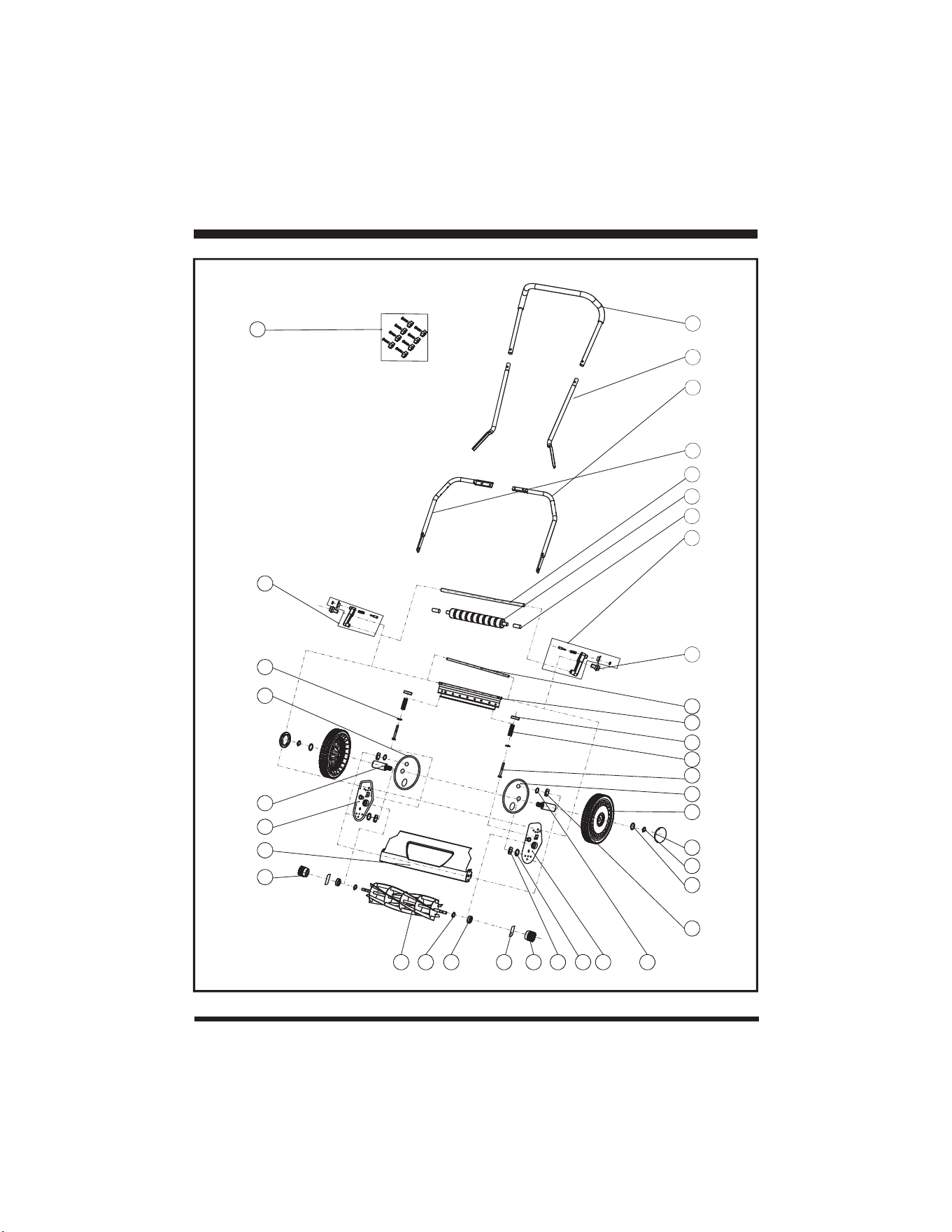

EXPLODED VIEW
35
16
2224 23
31
20
19
18
17
21
15
13
14
11
12
8
5
25262729
33
32
10
9
6
7
30
36
28
34
1
4
2
37
3
18
PARTS LIST
Key Number Part Number Description Quantity
1 Upper Handle 1
2 Middle Handle 2
3 Left Lower Handle 1
4 Right Lower Handle 1
5 Roller Shaft 1
6 Roller 1
7 Roller Shaft Sleeve 2
8 511002108 Height Adjustment Knob Assembly (L) 1
9 Bolt 2
10 Cutting Bar Pivot Rod 1
11 Cutting Bar Assembly 1
12 Blade Adjustment Nut 2
13 Blade Adjustment Spring 2
14 Blade Adjustment Bolt 2
15 Supporting Plate (L) 1
16 511002116 Wheel Assembly 2
17 Wheel Cover 2
18 C-Clip 2
19 Washer 2
20 Nut M8 2
21 Spring Washer 2
22 Supporting Assembly (L) 1
23 Washer 2
24 Lock Nut M10 2
25 Gear (L) 1
26 Pin/Pawl 2
27 Bearing 2
28 C-Clip 2
29 Cylinder-Blade Assembly 1
30 Gear (R) 1
31 Cover Assembly 1
32 Supporting Assembly (R) 1
19
PARTS LIST
Key Number Part Number Description Quantity
33 Wheel Shaft 2
34 Supporting Plate (R) 1
35 Washer 2
36 511002136 Height Adjustment Knob Assembly (R) 1
37 511002138 Twist Knob and Bolt Assembly (X8) 1
Replacement parts highlighted in grey are available for after sales purchase. Replacement of repair or
service dealer or Customer Service at 866-384-8432.
OPTIONAL COLLECTION BAG available, please call 866-384-8432 to order!
Model # 511002137
20
NOTES
