OWNER’S MANUAL
®
ʹ
Warning, Safety & Maintenance
Table of Contents

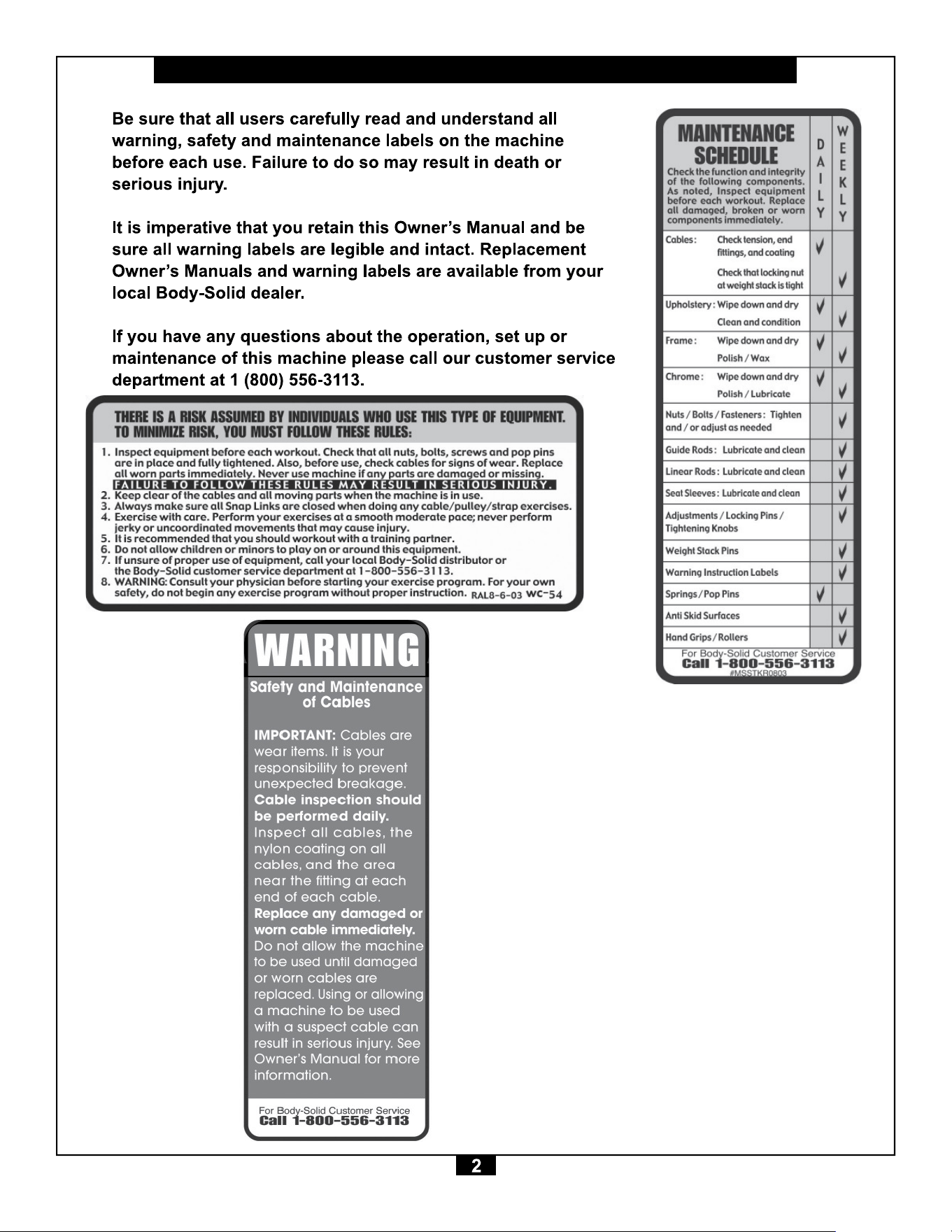

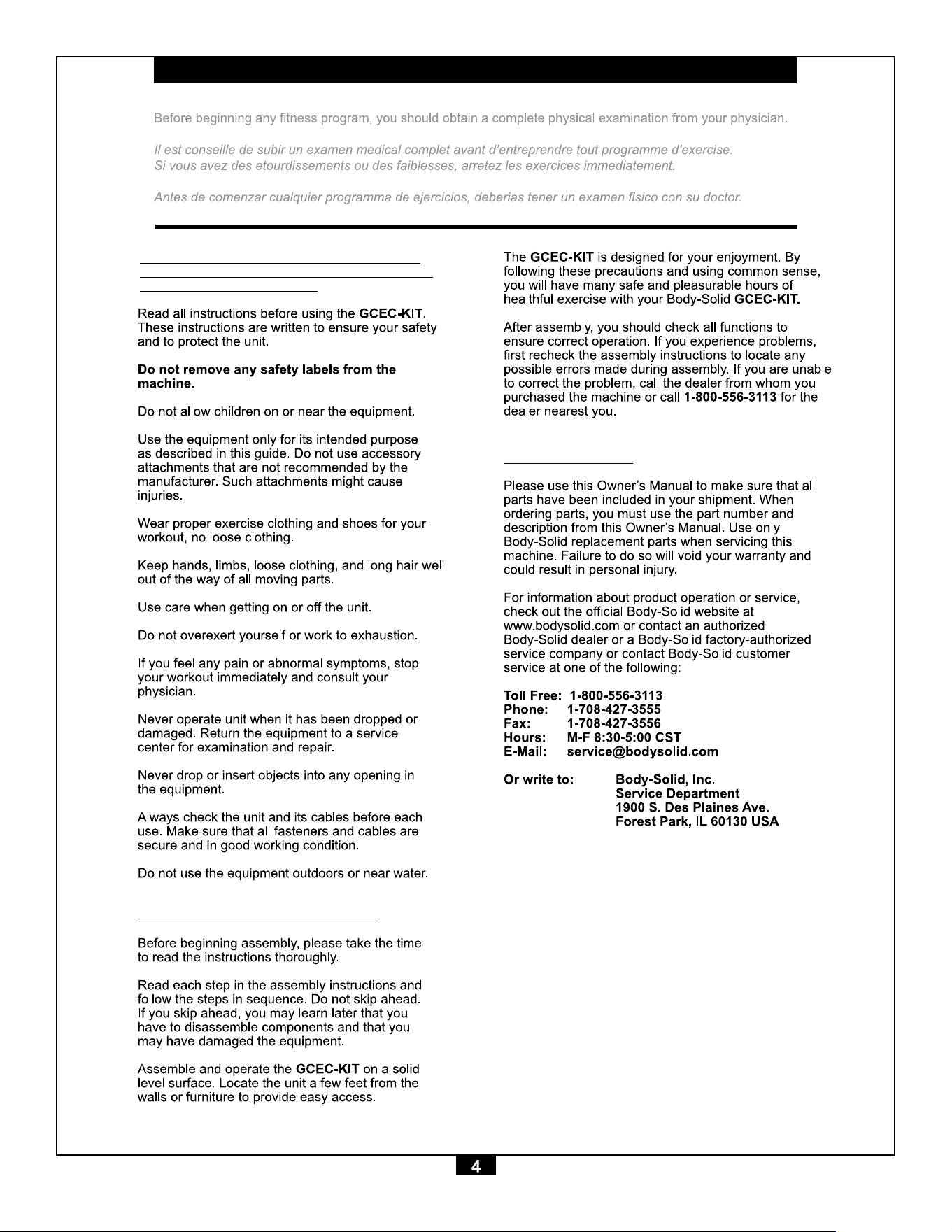

Important Safety Instructions
When using exercise equipment, you
should always take basic precautions,
including the following:
m
m
m
m
m
m
m
m
m
m
m
m
m
Personal Safety During Assembly
m
m
m
Obtaining Service
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

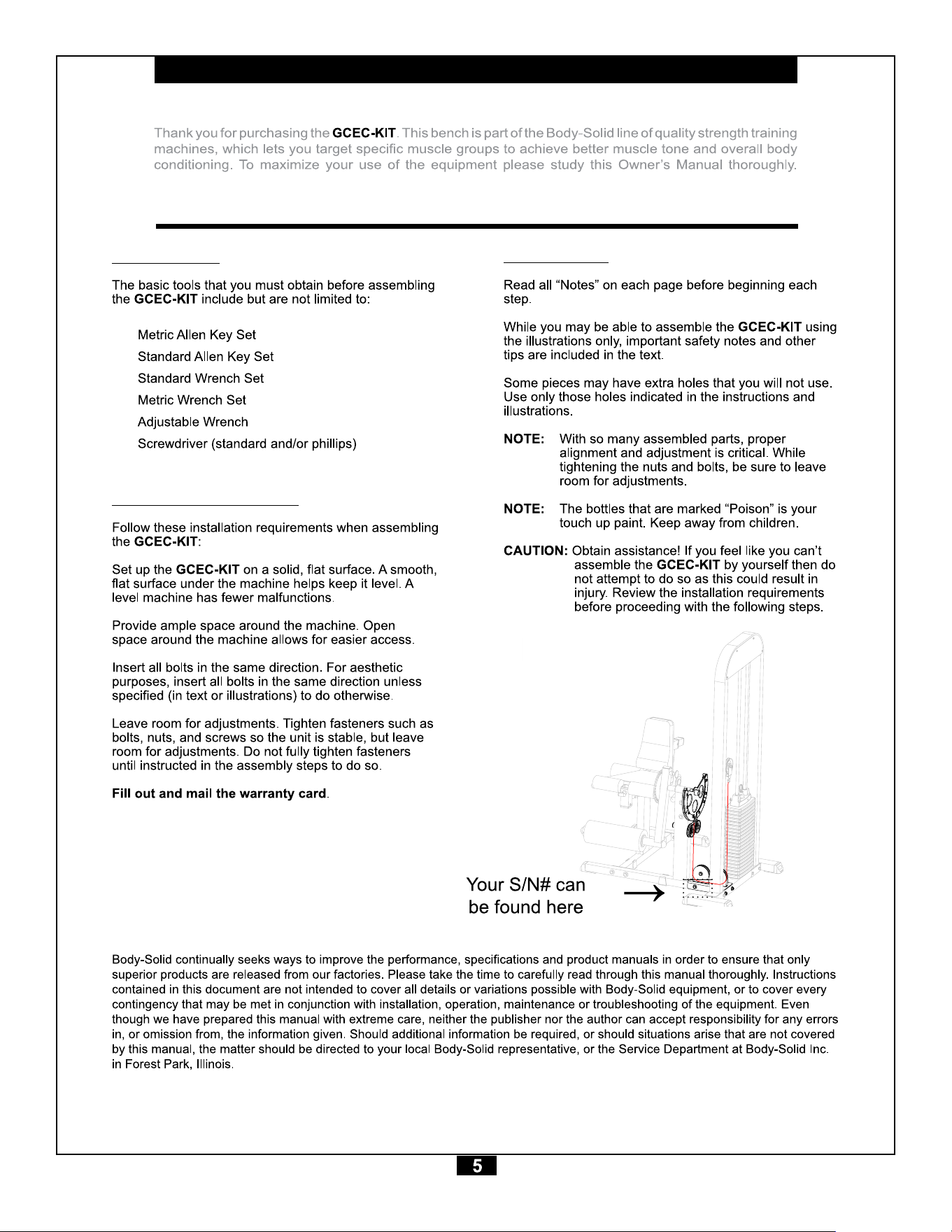

Required Tools
m
m
m
m
m
m
Installation Requirements
Assembly Tips
ʹ
Preparation
ʹ

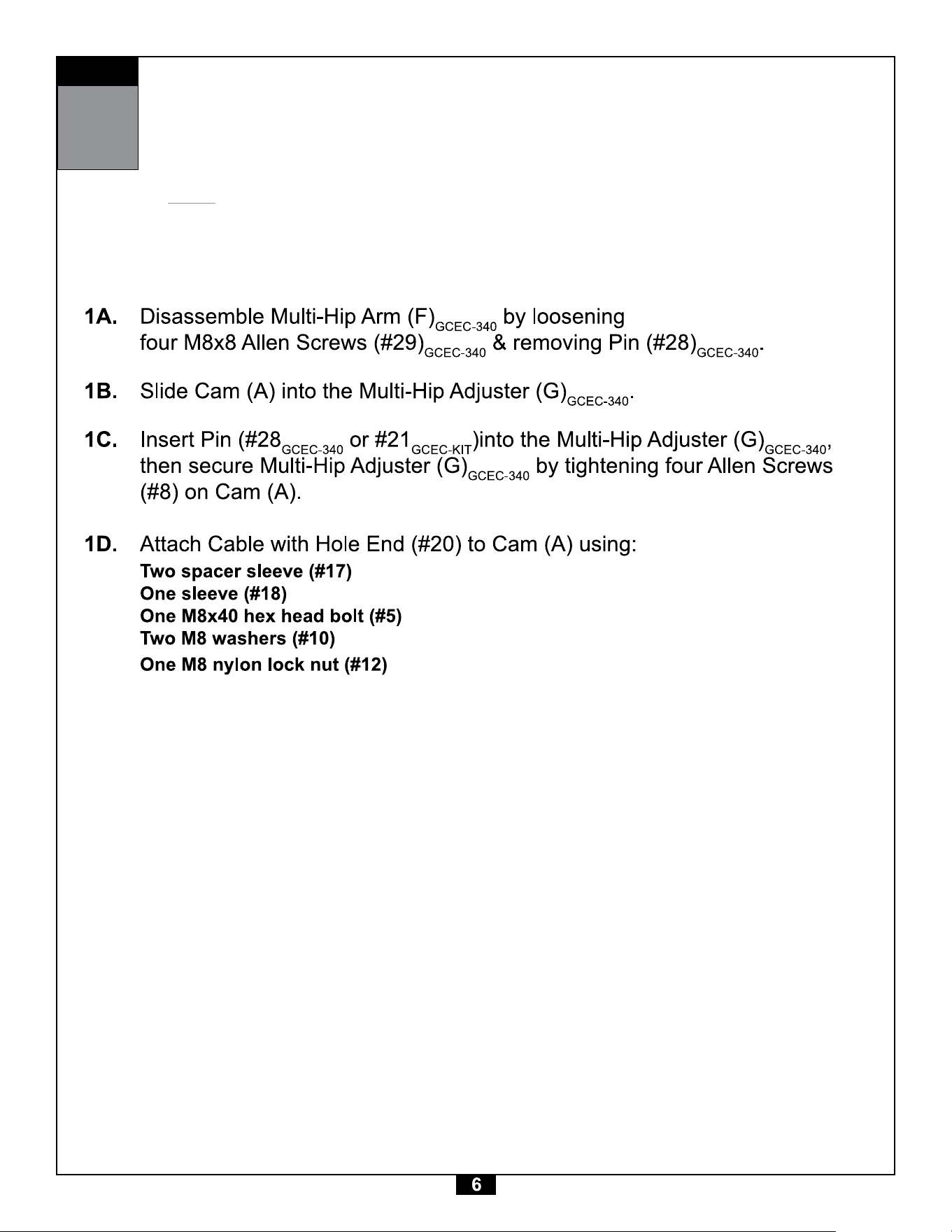

STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until the last step.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
STEP
1
STEP
1
GCEC-340
F
28
29
C-KIT
GCEC-KIT
A
8
17
20
5
10
17
8
8
8
10
18
12
21

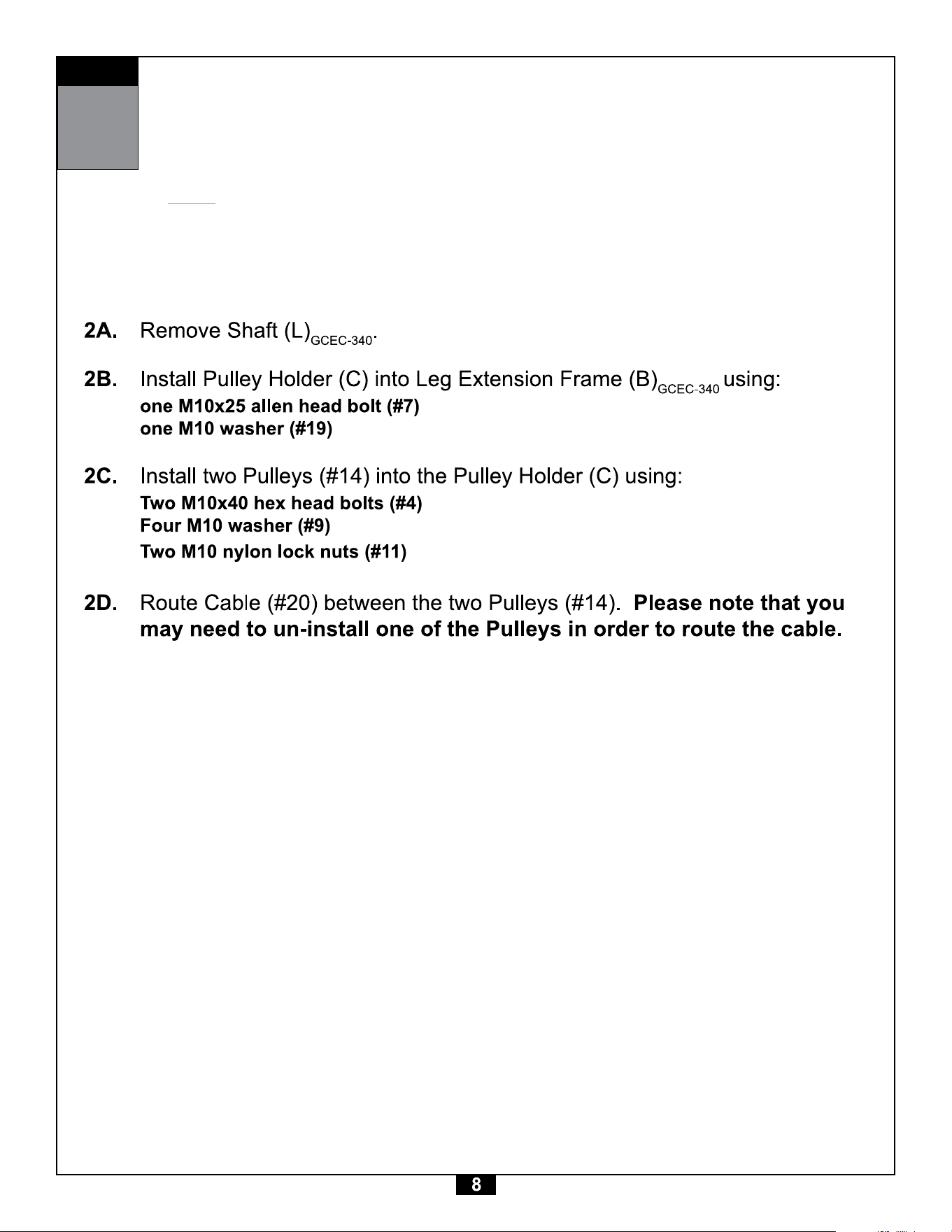

STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten until the last step.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.
STEP
2
STEP
2
L
17
GCEC340
GCEC-K
7
19
11
9
C
14
9
4
4
9
14
11
9
C-KIT
GCEC-KIT

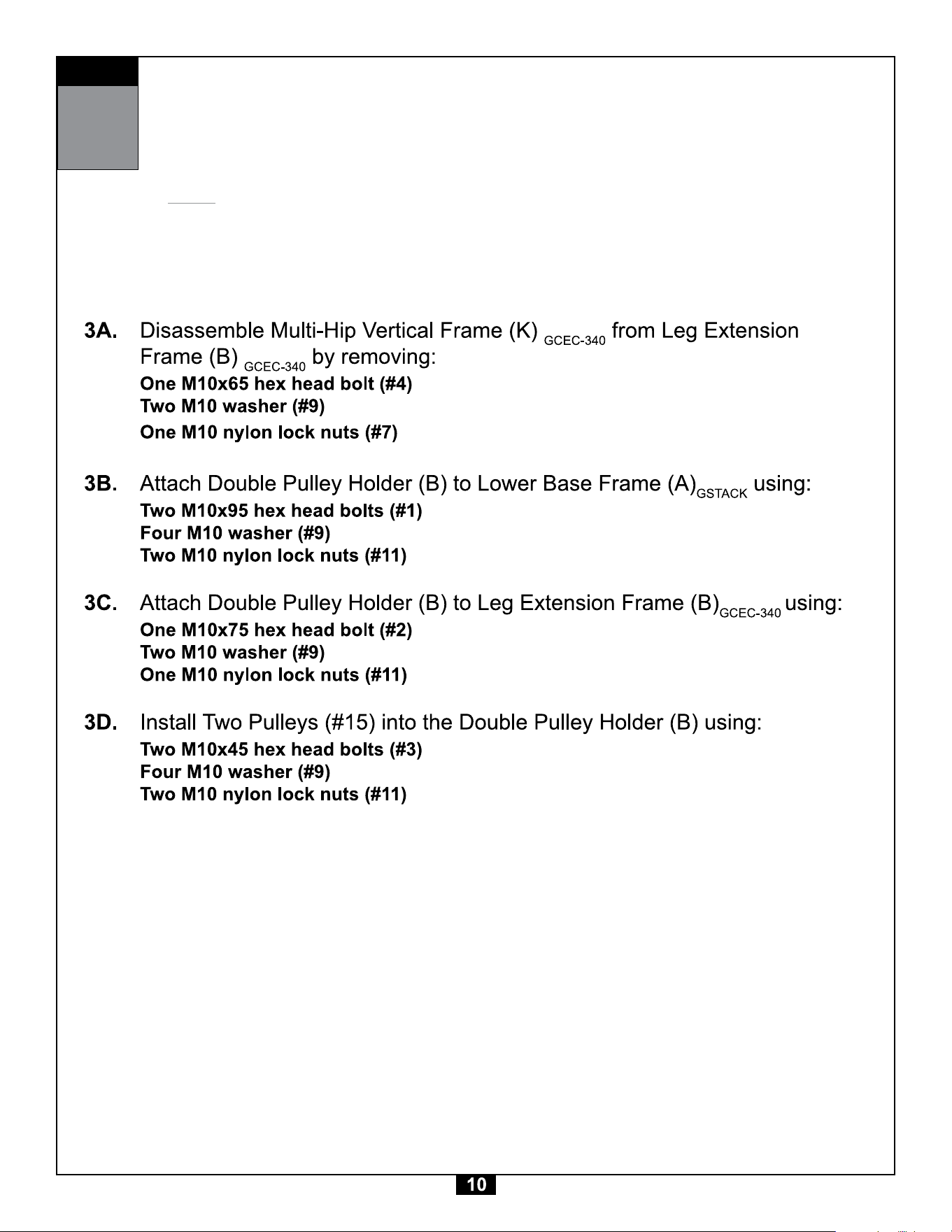

STEP
3
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware ! r st in this step. Wrench tighten ALL hardware at the end of
STEP 3D. Some components may be pre-assembled. Nylon lock nuts will not fully screw
onto bolts, they must be wrench tighten to fully go on.
STEP
3
STEP
3
K
4
9
9
7
GCEC-340
GCEC-KIT
1
9
2
9
3
9
3
9
15
15
1
9
11
9
9
11
11
9
GSTACK
11
9
11
9
B
IT

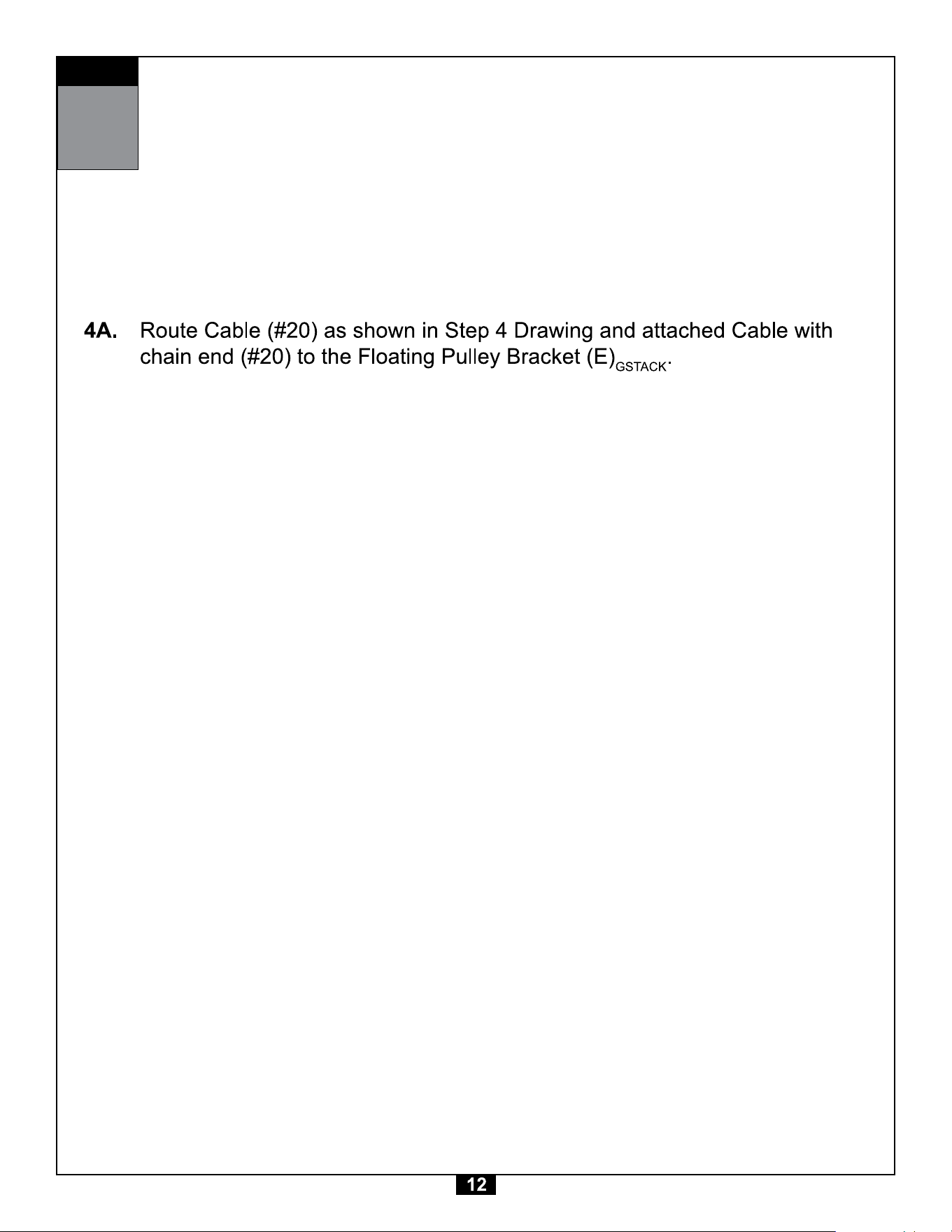

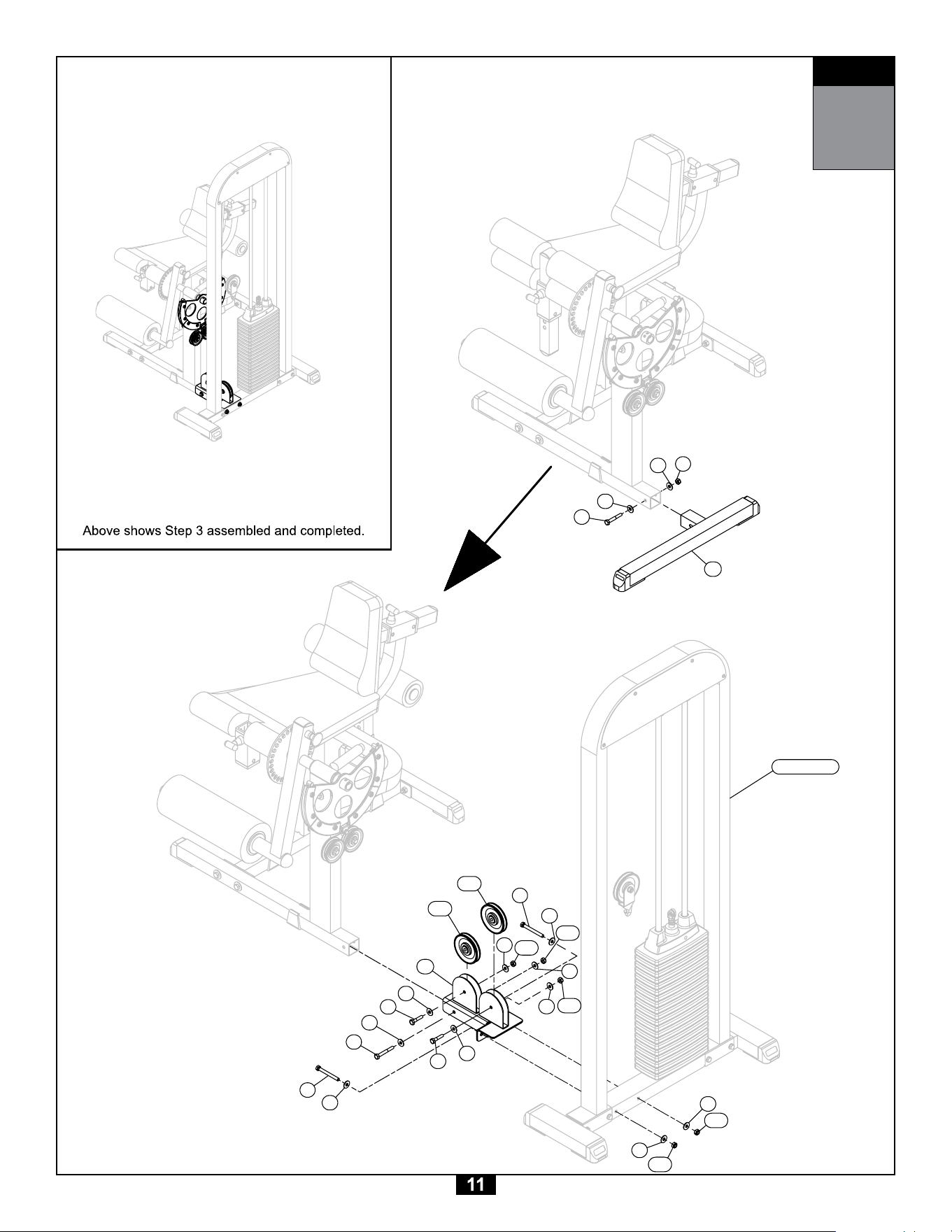

STEP
4
Be careful to assemble all components
in the sequence they are presented.

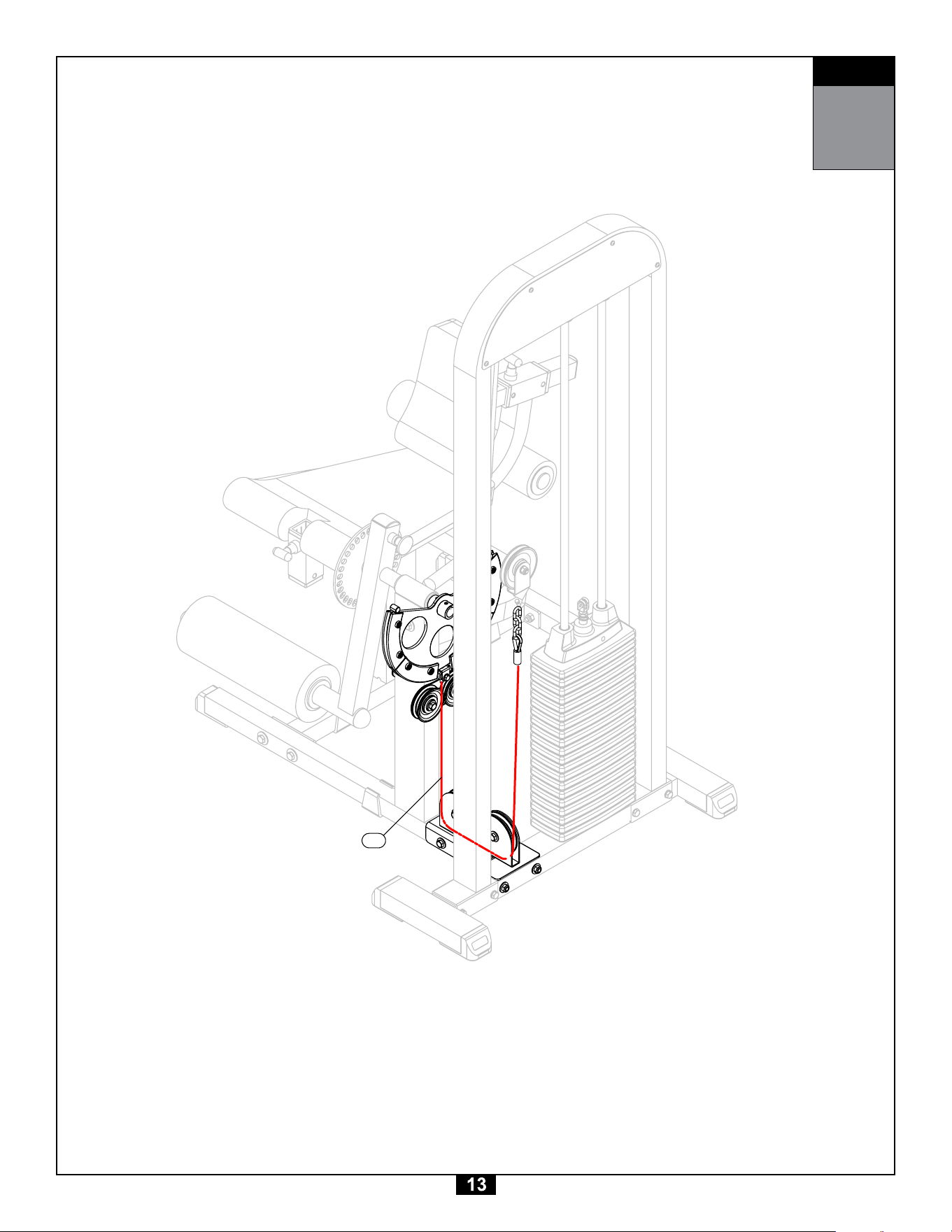

STEP
4
20
Part# Size Description Quantity
GCEC-KIT Hardware List
GCEC-KIT Mainframe Parts List

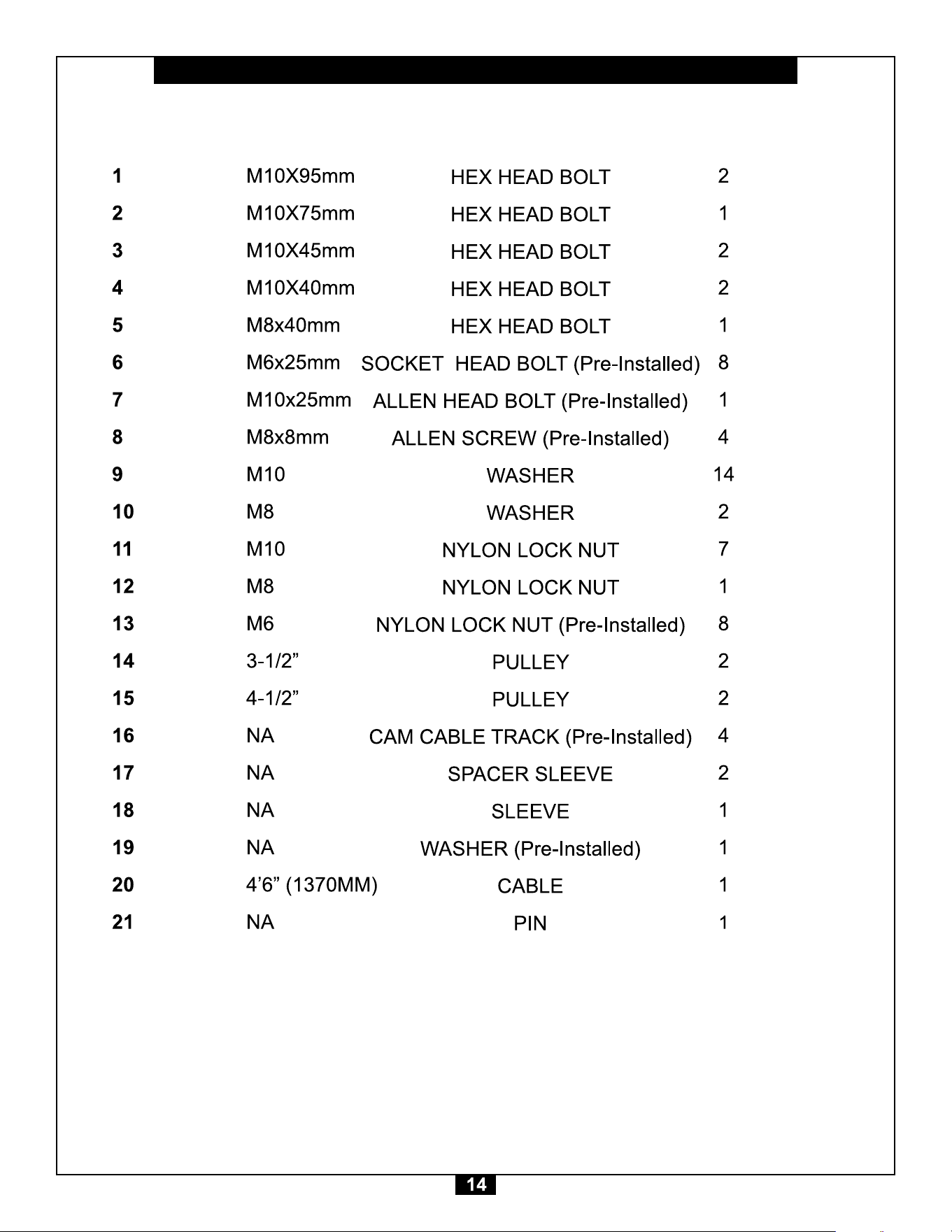

Part# Description Quantity
GCEC-KIT Hardware Illustration

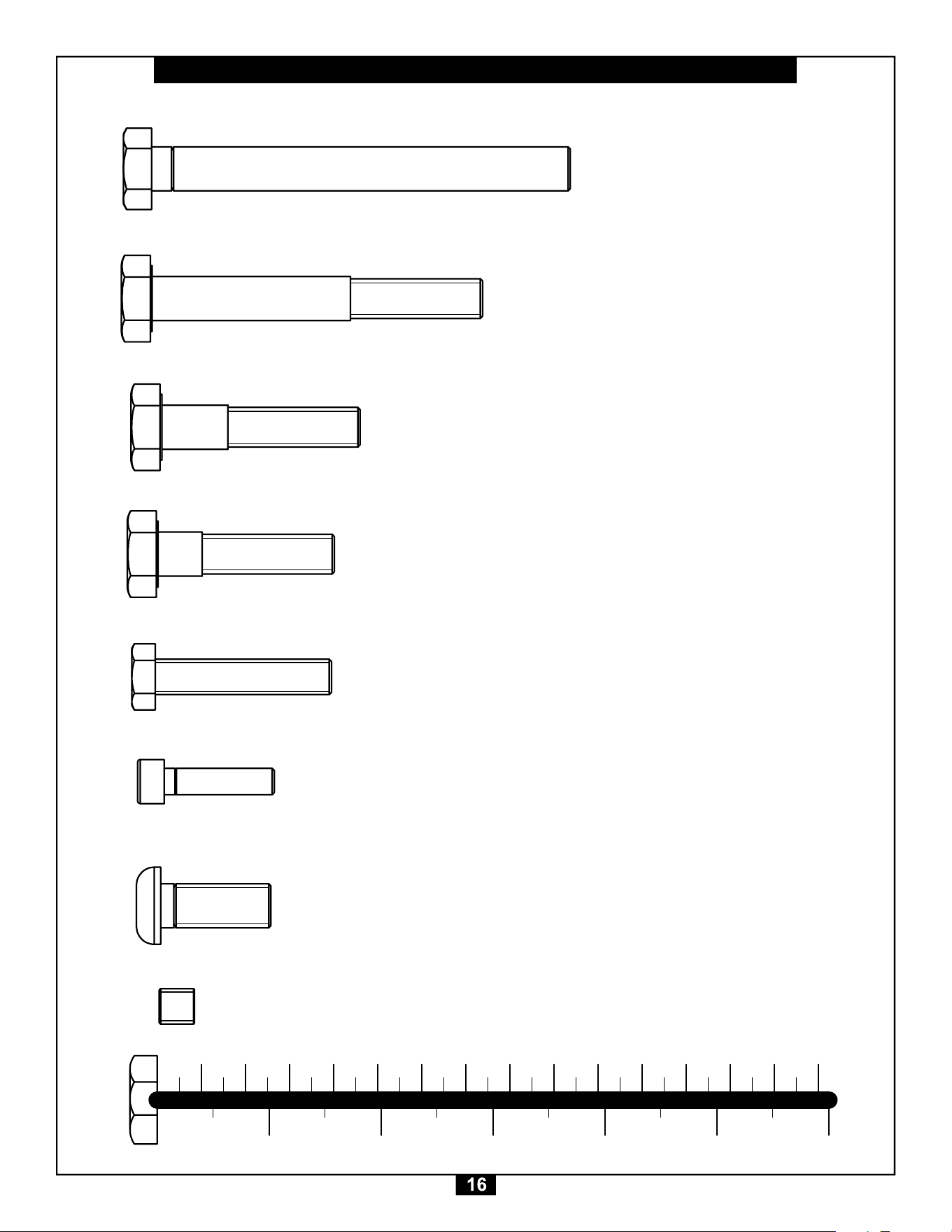

PART#1 HEX HEAD BOLT M10X95 QTY.2
PART#2 HEX HEAD BOLT M10X75 QTY.1
PART#3 HEX HEAD BOLT M10X45 QTY.2
PART#4 HEX HEAD BOLT M10X40 QTY.2
PART#5 HEX HEAD BOLT M8X40 QTY.1
PART#6 SOCKET HEAD BOLT M6X25 (Pre-installed) QTY.8
PART#7 ALLEN HEAD BOLT M10X25 (Pre-installed) QTY.1
PART#8 ALLEN SCREW M8X8 (Pre-installed) QTY.4
mm
inch
0
60
10
30
50
40
20
60
130120110
100
90
8070
140
150
10
1"
6"
4"
3"
5"
2"
0
0
GCEC-KIT Hardware Illustration

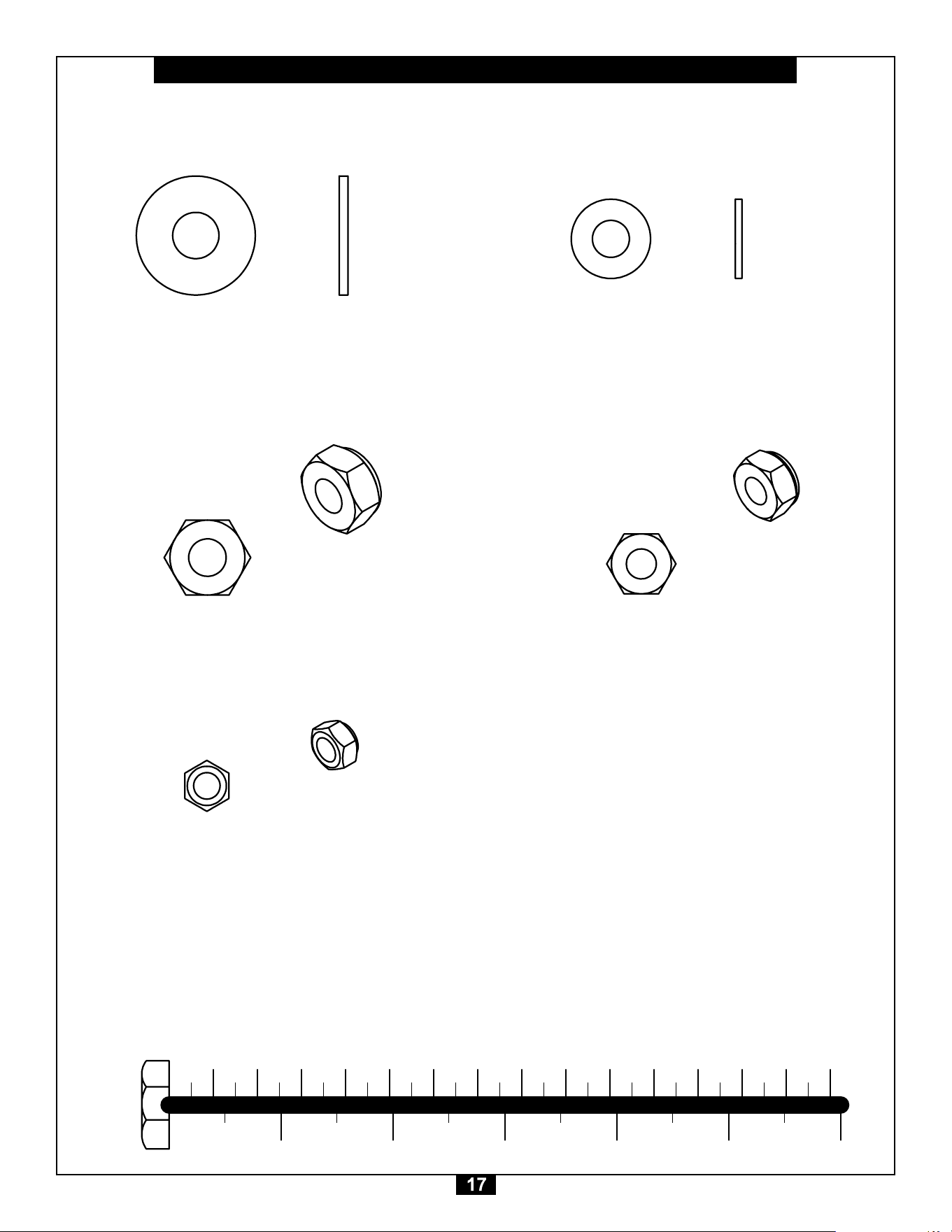

PART#9 M10 WASHER QTY.14
PART#10 M8 WASHER QTY.2
PART#11 M10 NYLON NUT QYT.7
PART#12 M8 NYLON NUT QYT.1
PART#13 M6 NYLON NUT QYT.8
(Pre-installed)
mm
inch
0
60
10
30
50
40
20
60 130120
110
10090
80
70
140
150
10
1"
6"
4"
3" 5"
2"
0
0

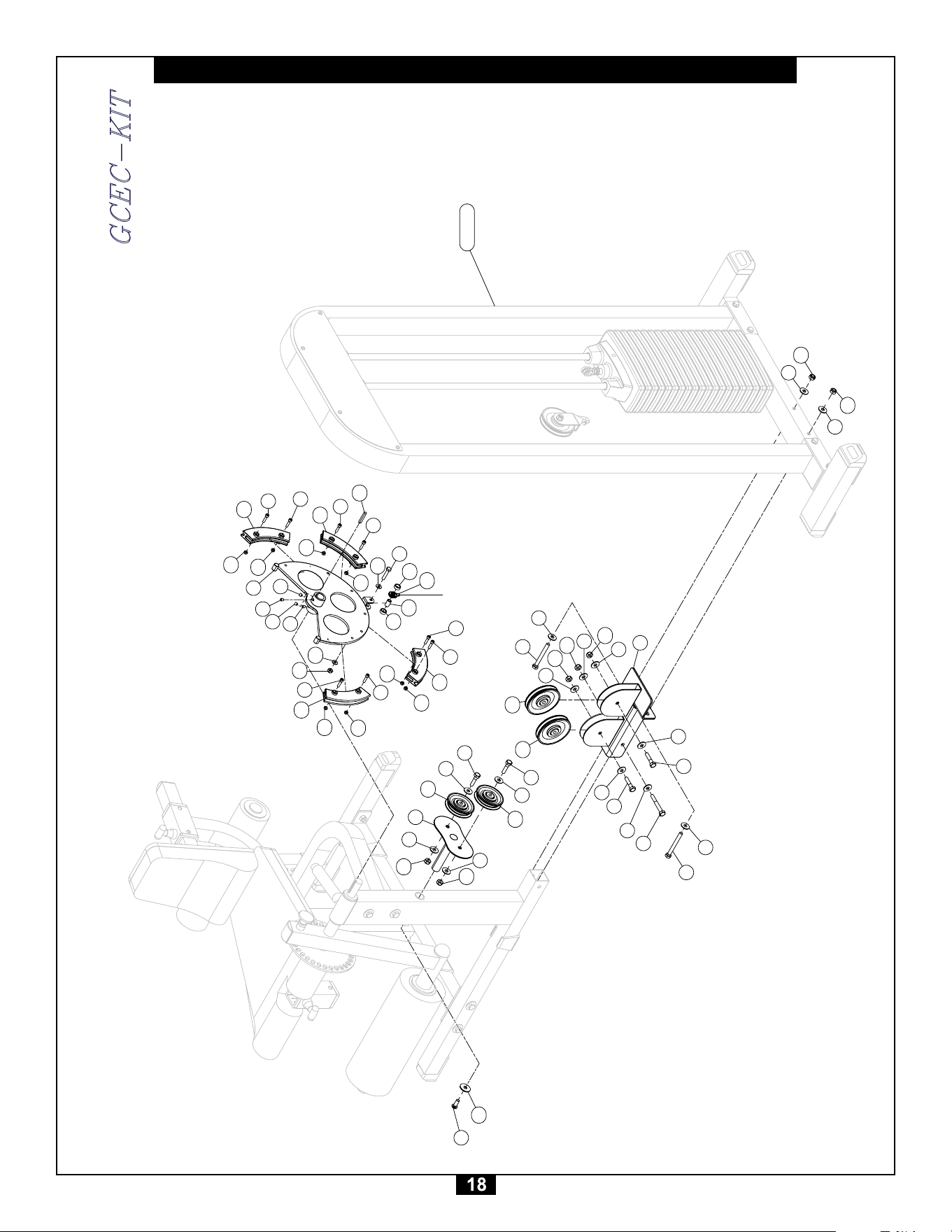

GCEC-KIT Exploded View
GCEC-KIT
7
19
4
9
14
C
11
9
9
3
2
9
1
9
B
11
9
16
6
6
13
13
A
8
5
10
17
18
12
10
15
1
9
15
4
9
14
9
11
3
9
9
11
11
9
6
16
13
6
13
6
6
16
13
13
6
6
16
13
13
17
9
11
9
11
GSTACK
8
8
8
20
21
Notes
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and speci! cations when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
®
GCEC-KIT
