Owner's Manual

This is the main product document for model DLEC-SF.

The file format is pdf, 27 pages, you can download this manual here .

background
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

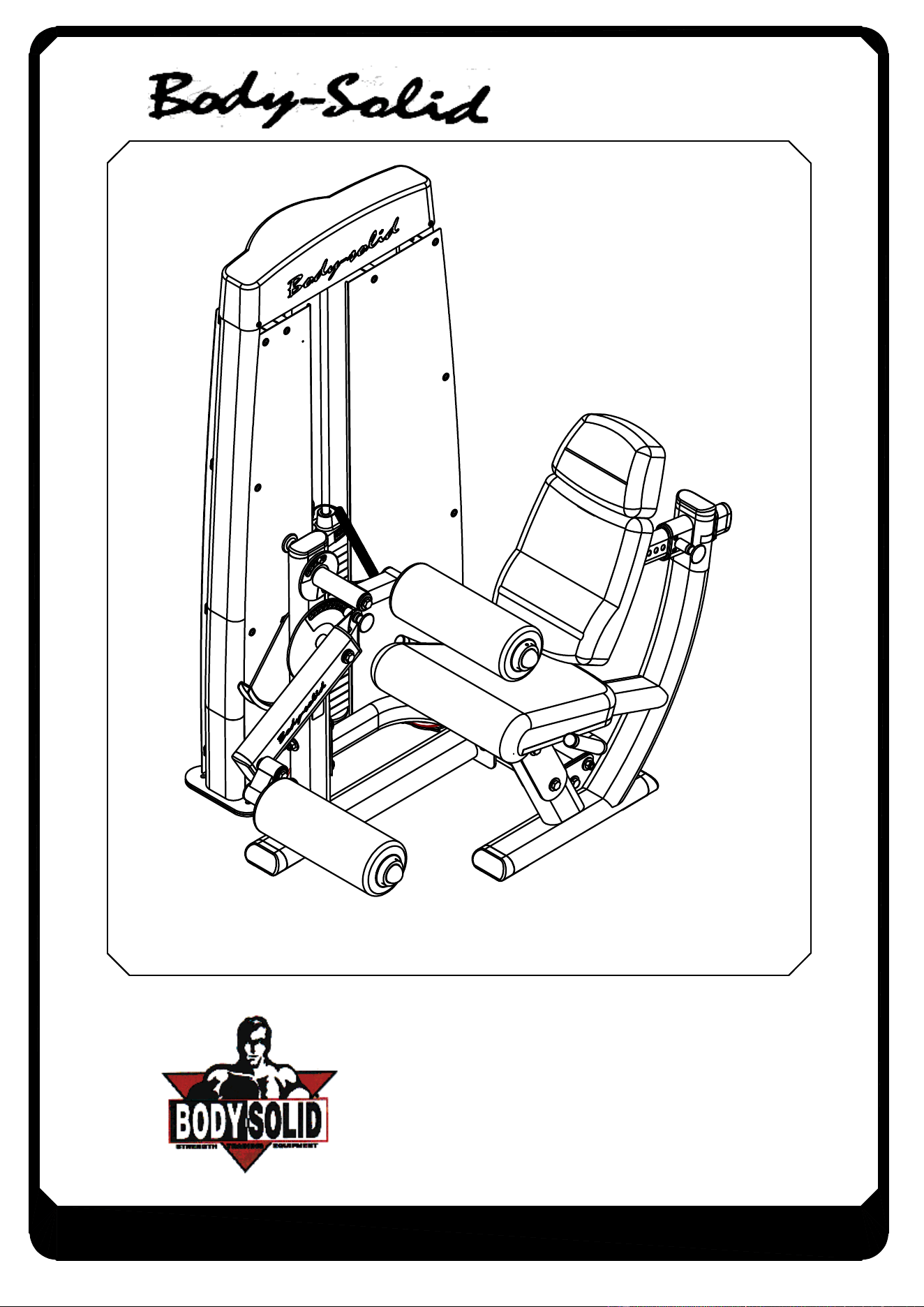

OWNER'S MANUAL
DLEC.3
background

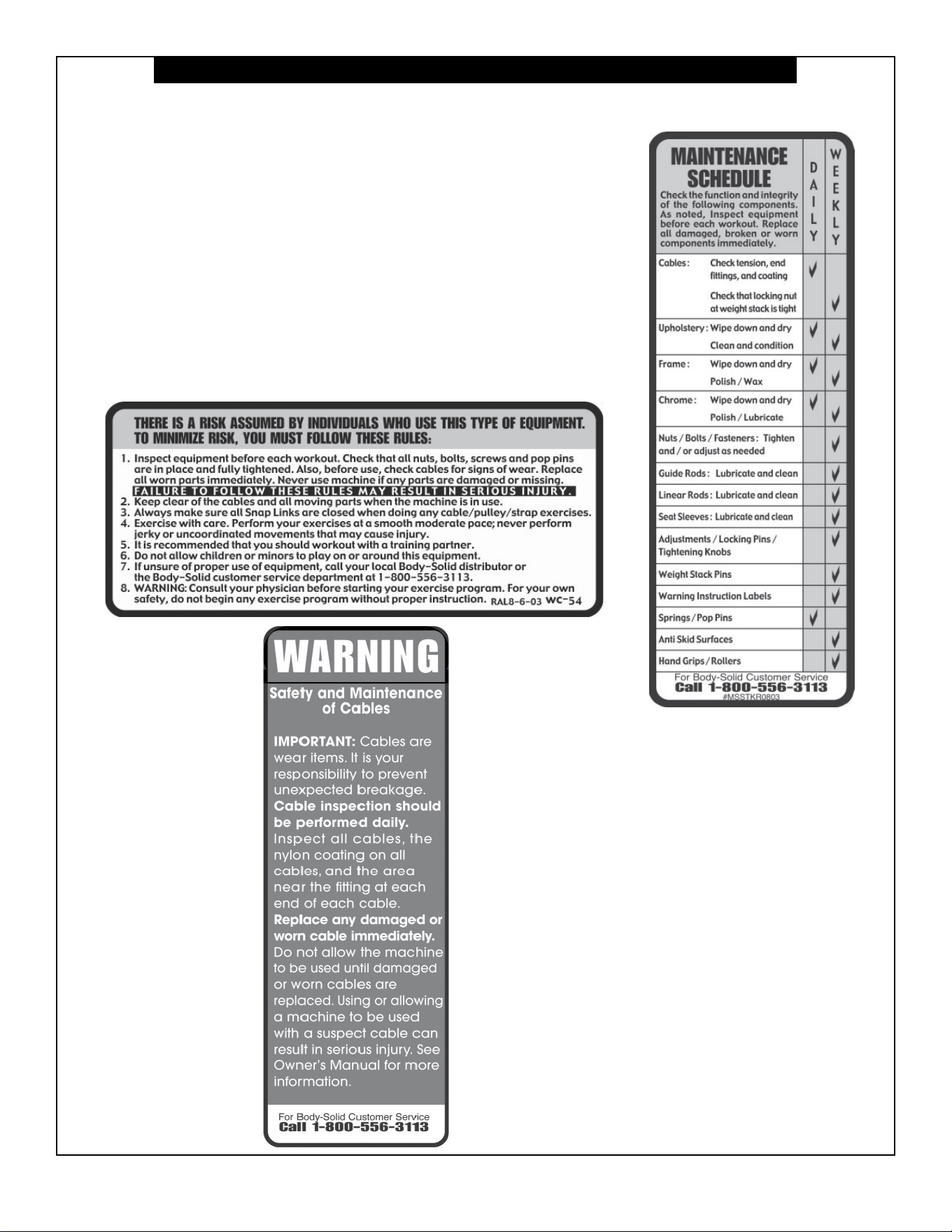

Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain
your Owner’s
Manual
and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.

#DWRULE-4

background
Important Safety Instructions
Beforebeginninganyfitnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen isico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m Readallinstructionsbeforeusingyour machine.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose as
describedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonorofftheunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice center
forexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin the
equipment.
m IMPORTANT: Cables are wear items. It is your
responsibility to prevent unexpected breakage.
Cable inspection should be performed daily. Inspect
all cables, and the area near the fitting at each end
of each cable. Replace any damaged or worn cable
immediately. Do not allow the machine to be used
until these are replaced.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperateyour machineonasolid,
levelsurface.Locatetheunitafewfeetfromthe
wallsorfurnituretoprovideeasyaccess.
Your machine isdesignedforyourenjoyment.By
followingtheseprecautionsandusingcommonsense,
youwillhavemanysafeandpleasurablehoursof
healthfulexercise.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseuseyourOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromyourOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheo󰀩cialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Proof of Purchase
3. Place of Purchase
4. Serial Number (S/N)
5. Part # and Description
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.1
DLEC.3-122008

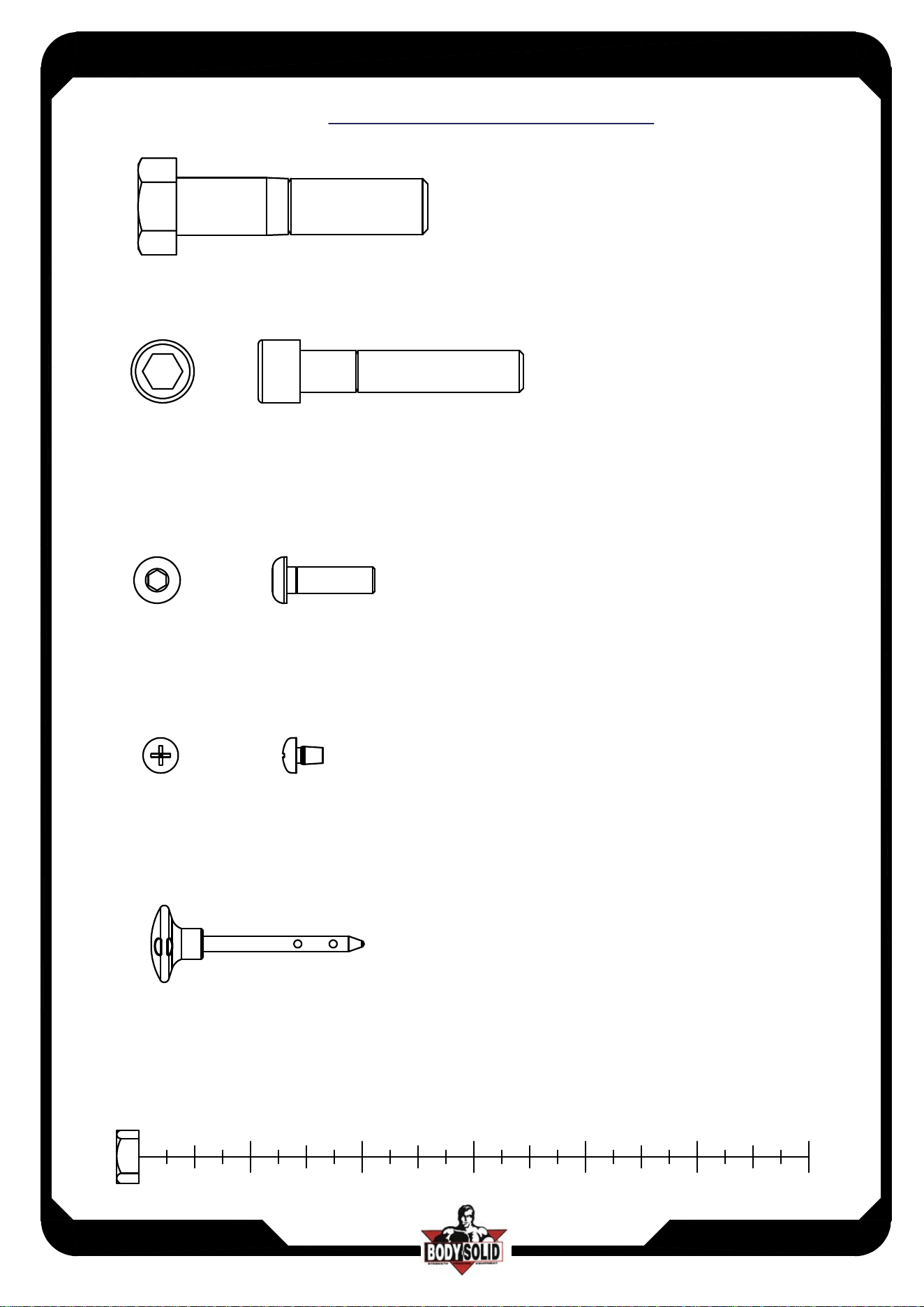

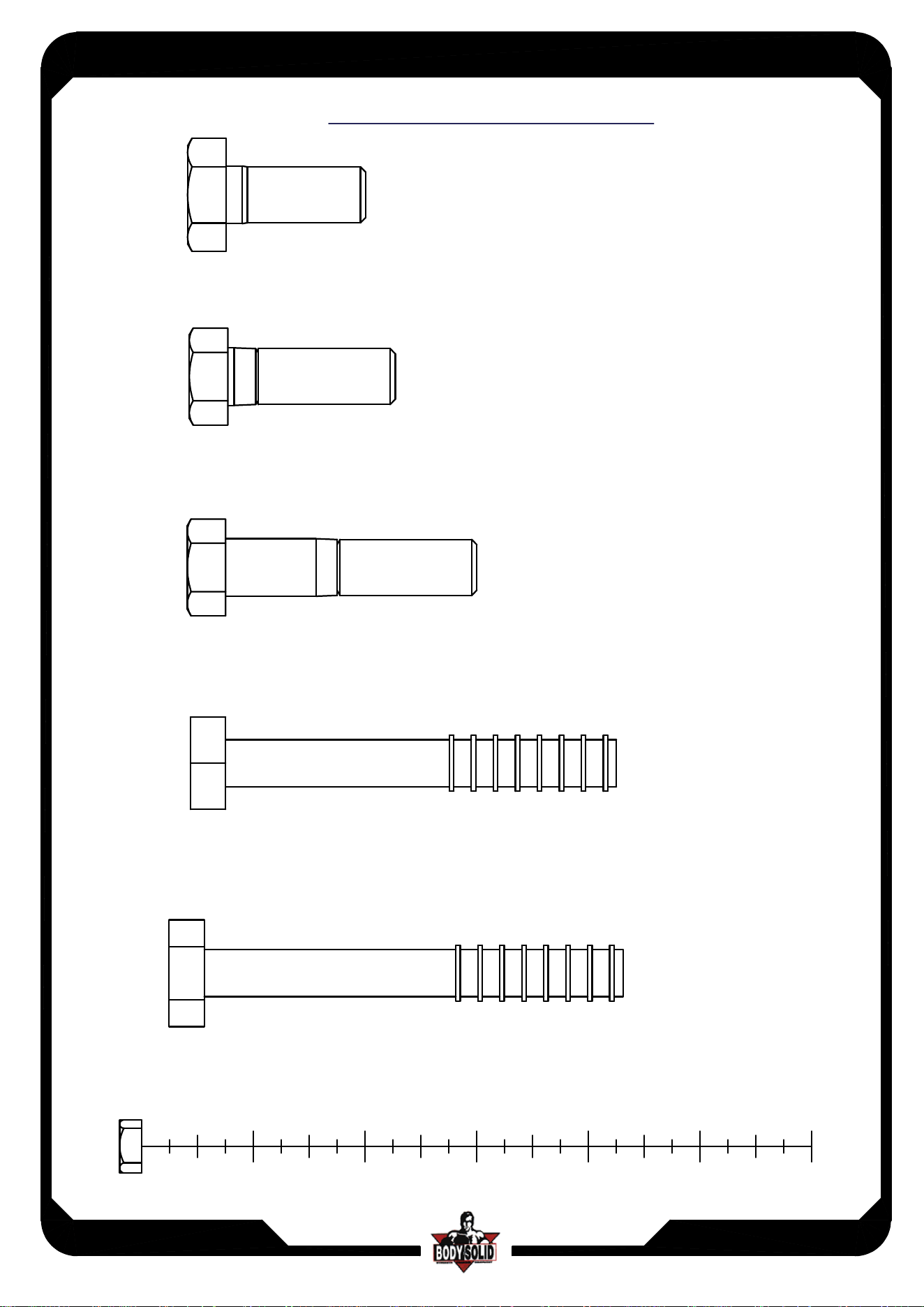

HARDWARE ILLUSTRATION
(A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.2
(A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.1
(A5)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY.1
(A2)HEX BOLT 1/2"X1-1/2"L PARTIAL QTY.3
(A4)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2
2
1
3
4
5
6
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.2DLEC.3-122008

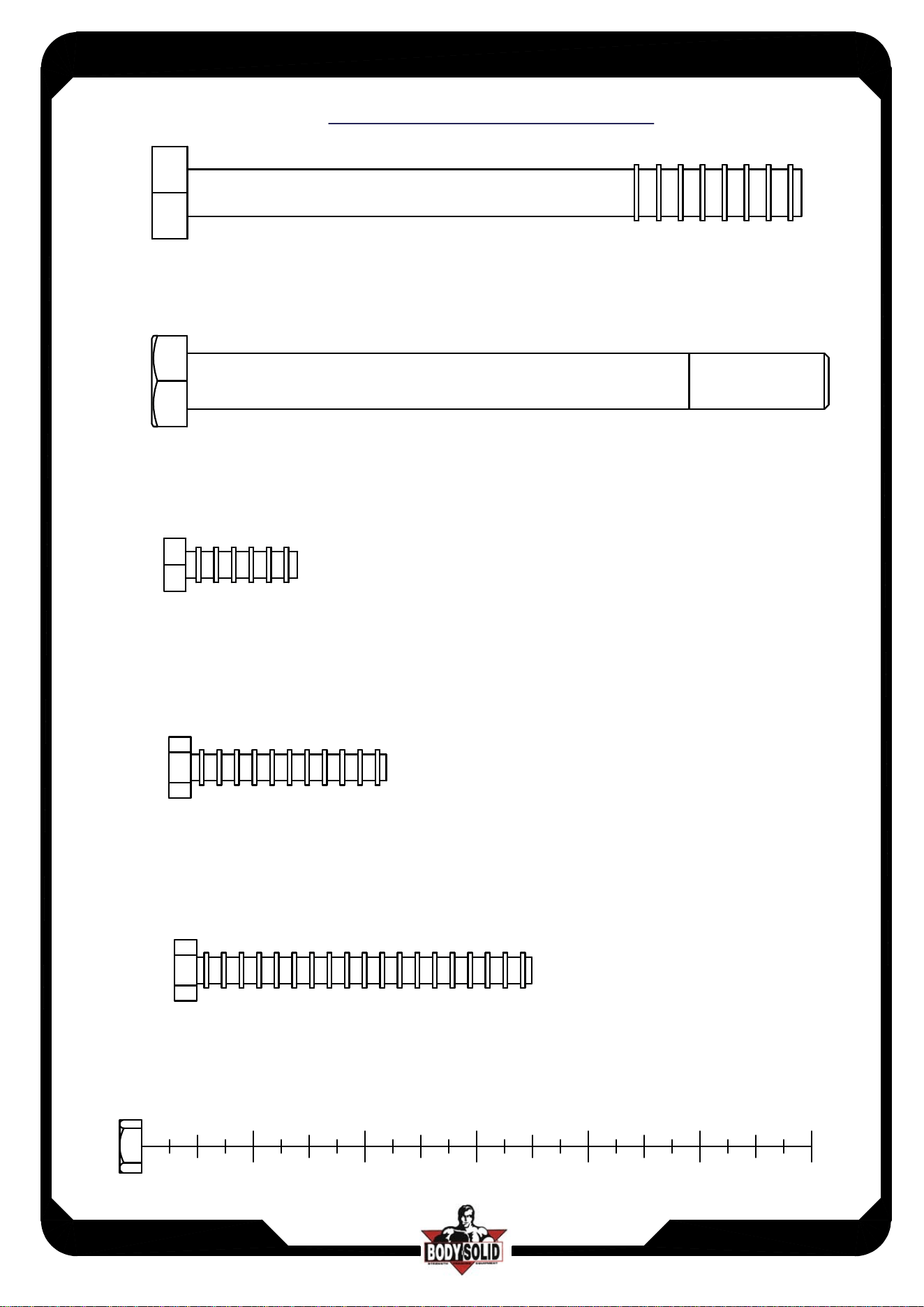

HARDWARE ILLUSTRATION
(A6)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY.2
(A8)HEX BOLT 5/16"X1"L PARTIAL QTY.6
(A10)HEX BOLT 5/16"X3"L PARTIAL QTY.1
(A7)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2
(A9)HEX BOLT 5/16"X1-3/4"L PARTIAL QTY.1
2
1
3
4
5
6
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.3
DLEC.3-022017

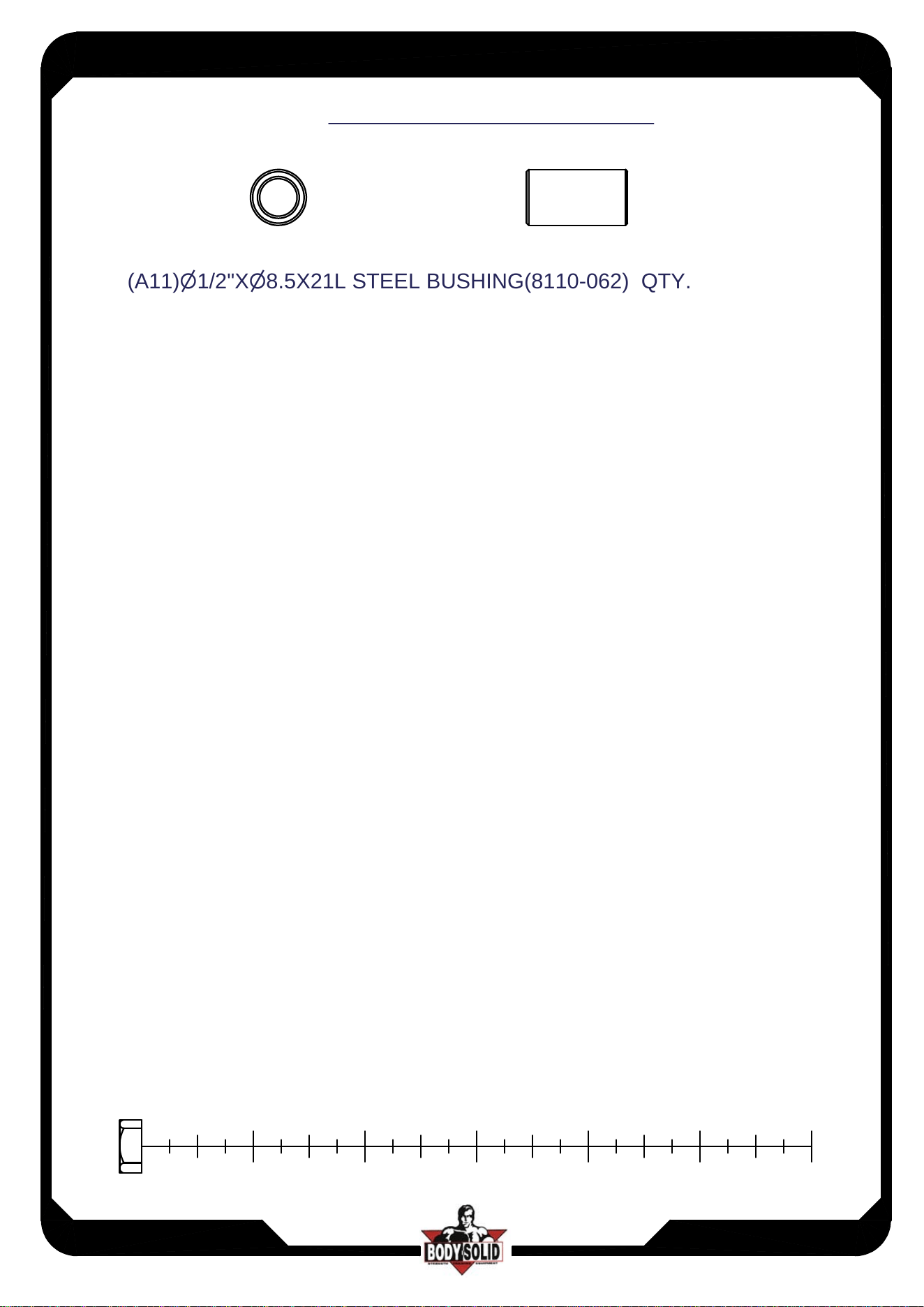

HARDWARE ILLUSTRATION
(A11)1/2"X8.5X21L STEEL BUSHING(8110-062) QTY.1
2
1
3
4
5
6
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.4
DLEC.3-122008
HARDWARE ILLUSTRATION
(B1)NYLON LOCK NUT1/2" QTY.13
(B2)NYLON LOCK NUT 5/16" QTY.1
(C1)1/2"(I.D.)FLAT WASHER
n34 QTY.20
(C2)1/2"(I.D.)FLAT WASHER
n25 QTY.6
(C3)5/16"(I.D.)FLAT WASHER
n16 QTY.2
(C4)5/16"(I.D.)FLAT WASHER
n24 QTY.7
(C5)SPRING WASHER 5/16" QTY.7
2
1
3
4
5
6
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.5
DLEC.3-122008
HARDWARE ILLUSTRATION
(AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1
(AA5)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.20
(AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3
(AA6)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4
2
1
3
4
5
6
(AA7)10LB PIN(8250-071) QTY.1
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
1.6
DLEC.3-122008
HARDWARE ILLUSTRATION
(AA8)ELASTIC BOLT QTY.1
(CC1)1/2"(I.D.)FLAT WASHER
n34 QTY.4
(BB2)NYLON LOCK NUT1/2" QTY.3
(CC5)SPRING WASHER 3/8" QTY.1
(CC2)M6(I.D.)FLAT WASHER
n13 QTY.20
(CC6)1/2"(I.D.)FLAT WASHER
n25 QTY.2
2
1
3
4
5
6
(AA10)ROUND INNER HEX SCREW
M10X30L PARTIAL QTY.1
(AA11)FIRM SHEATH(8890-046) QTY.1
(BB3)NYLON LOCK NUT M10 QTY.1
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
2
DLEC.3-122008
HARDWARE ILLUSTRATION
(D1)n3/4"X13.5X8L STEEL BUSHING(8110-014)
(D2)
n25.4Xn20.4X10L STEEL BUSHING(8120-040)
(D3)
n38"Xn25.2X27L STEEL BUSHING(8130-159)
(D4)
n30"Xn20X1.5t CU WASHER(8520-007)
(D5)
n38"Xn26X1.5t CU WASHER(8520-008)
(D6)
n50 ROUND END CAP(9211-074)
(D7)50X100 NYLON BUSHING(9211-107)
(D8)58X116X2.5tX65H FOOT CAP(9211-109)
(D9)58X116X2.5t END CAP(9211-112)
(D10)40X80X2t END CAP(9211-113)
(D11)Ø4" PULLEY(9213-017A)
(D12)Ø4 1/2" PULLEY(9213-010B)
(D13)
n50 END CAP(9211-020)
(D14)
n90Xn51X3t NYLON WASHER(9214-022)
(D15) 207X105X23 END CAP(9211-115)
(D16)
n131X30 END CAP(9211-116)
(D17)3580mm STEEL CABLE(FDLECA)
(D18)
n3/4" SHAFT COLLAR(9211-046)
(D19)
n4" RUBBER DOUNT(9310-017)
(D20)TOP PLATE(8400-006)
(D22)95X250 RUBBER PAD(9310-060)
(D23)DLEC FOR DGYM CABLE(FDLECB)
(D24)WEIGHT SELECTOR BAR(8210-042B)
--------------------------------[2PCS]
---------------------------[1PCS]
-----------------------------[1PCS]
----------------------------------[1PCS]
-------------------------------------[3PCS]
------------------------------------------ [2PCS]
----------------------------------------- [2PCS]
----------------------------------- [3PCS]
------------------------------------------- [4PCS]
-----------------------------------------------[1PCS]
-------------------------------------------------- [2PCS]
------------------------------------------------- [5PCS]
------------------------------------------------------- [2PCS]
-------------------------------- [4PCS]
------------------------------------------- [1PCS]
-----------------------------------------------[1PCS]
--------------------------------------------[1PCS]
-------------------------------------------[2PCS]
---------------------------------------------[2PCS]
--------------------------------------------------------[1PCS]
-------------------------------------------[2PCS]
-----------------------------------------[1PCS]
------------------------------------[1PCS]
D1 D2
D3
D4
D5
D6
D7 D8 D9
D11D10
D12 D13 D14 D15 D16
D18 D19D17
3580
D20
D24
D22
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
3
DLEC.3-122008

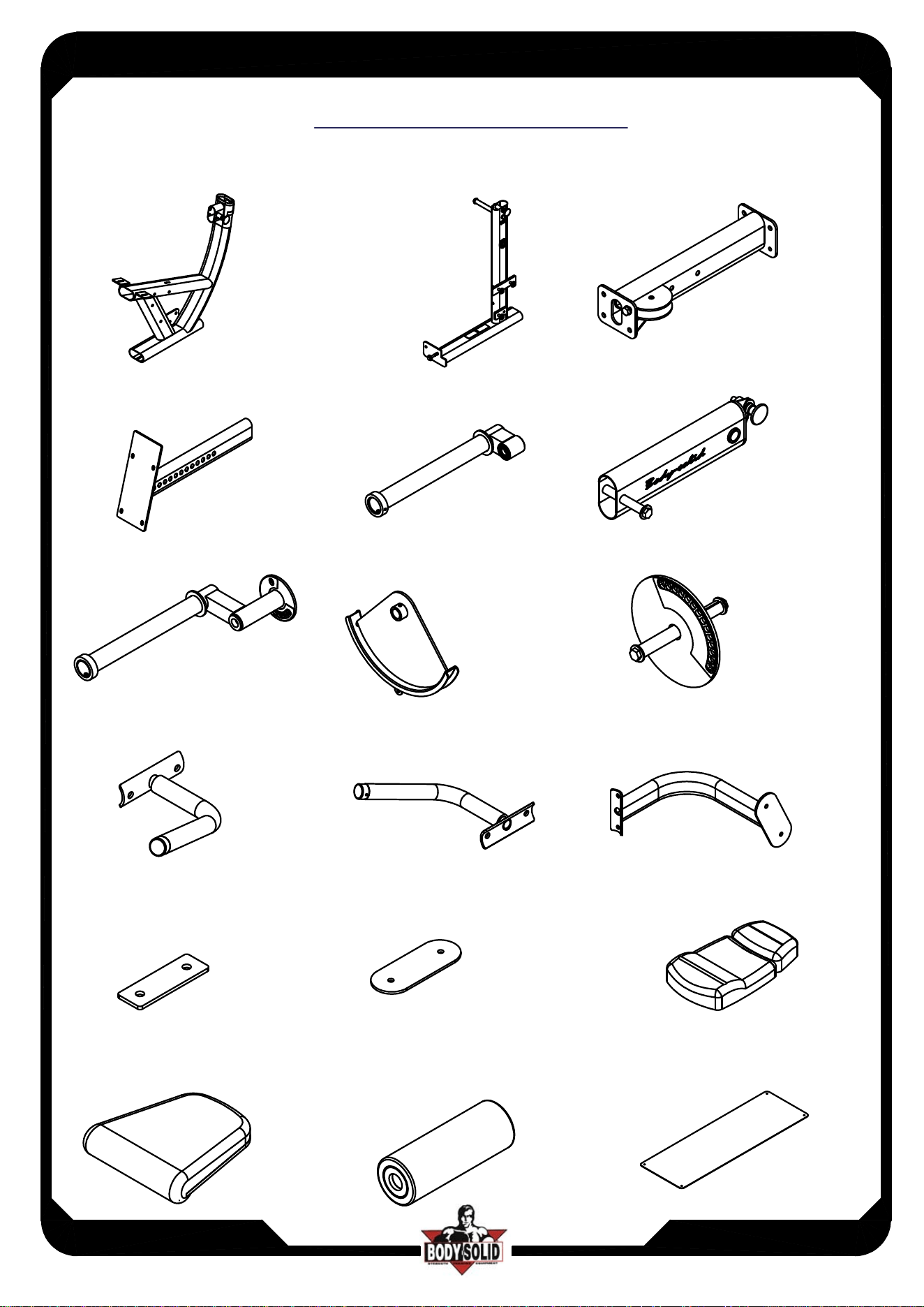

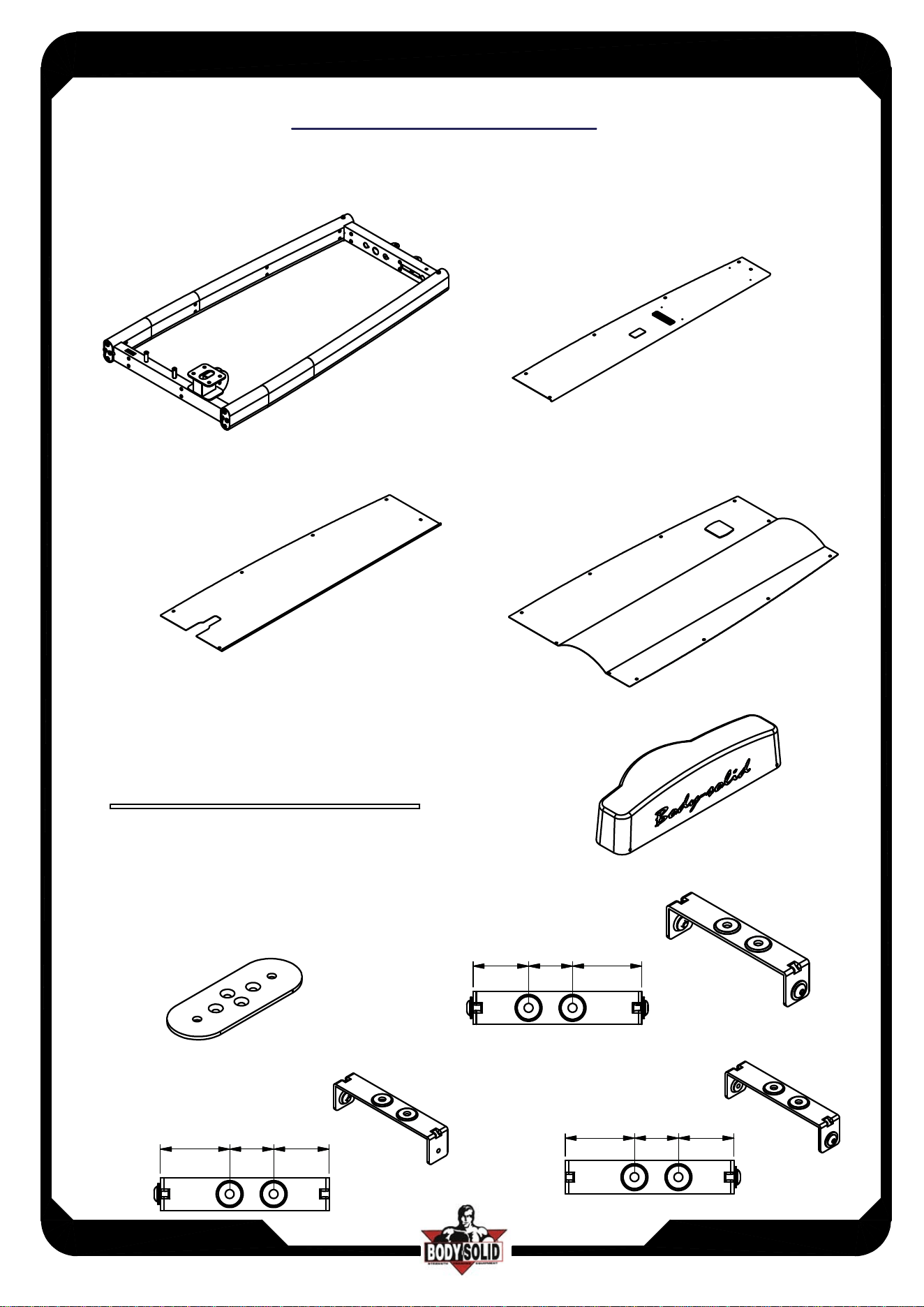

PARTS ILLUSTRATION
A2[1PCS]
B [1PCS]
D [1PCS] E[1PCS] F1 [1PCS]
H [1PCS]
J [1PCS]
C [1PCS]
M [1PCS]
8312-062
P [2PCS]
9121-053
O[1PCS]
9111-055
N [1PCS]
8313-135
I [1PCS]
K [1PCS]
Q [2PCS]
9161-034B
L [1PCS)
G1 [1PCS]
R [1PCS]
9440-161
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
4
DLEC.3-122008

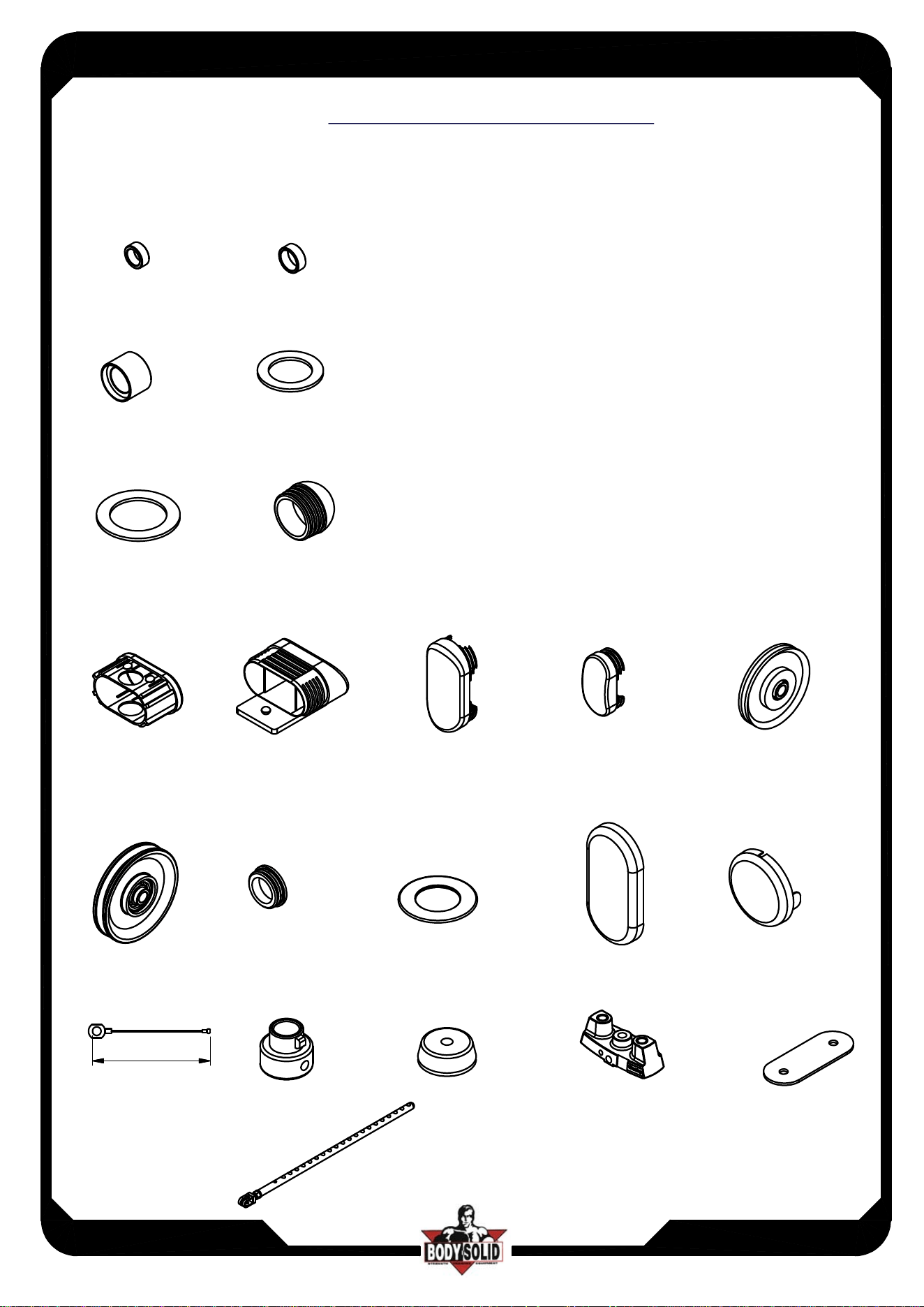

PARTS ILLUSTRATION
AA[1PCS]
6610-002
AB[1PCS]
8380-046
AC[1PCS]
8380-047
AD[1PCS]
8380-048
AE[2PCS]
260158A
AK[1PCS]
9211-111A
AG[2PCS]
8313-144
AH[9PCS]
8321-040
AI[1PCS]
8321-040
AJ[2PCS]
8321-040
63
50.5
40 50.5
50.5 40 63
4063
n3/4"X1.6tx1407L
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
5
DLEC.3-122008

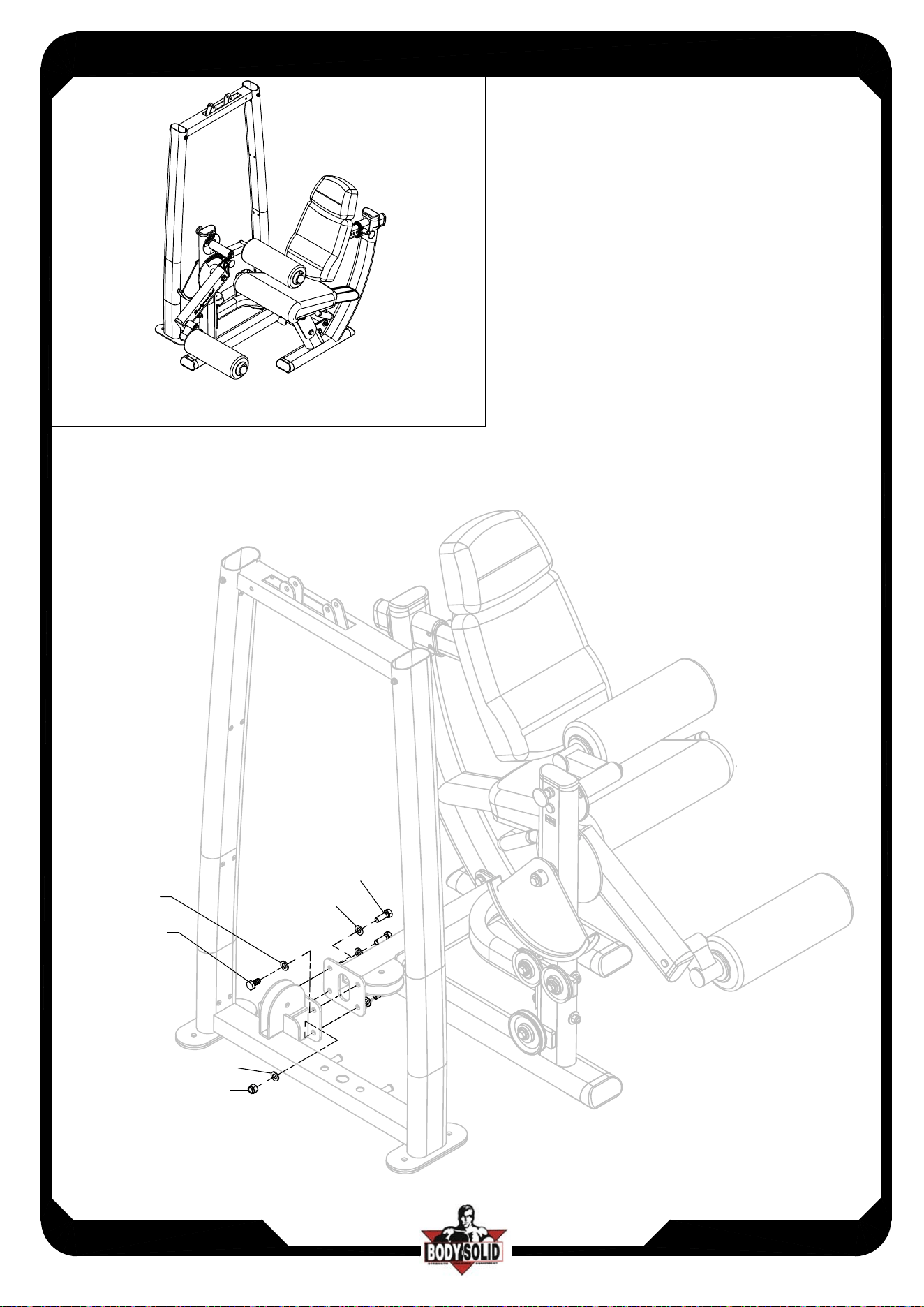

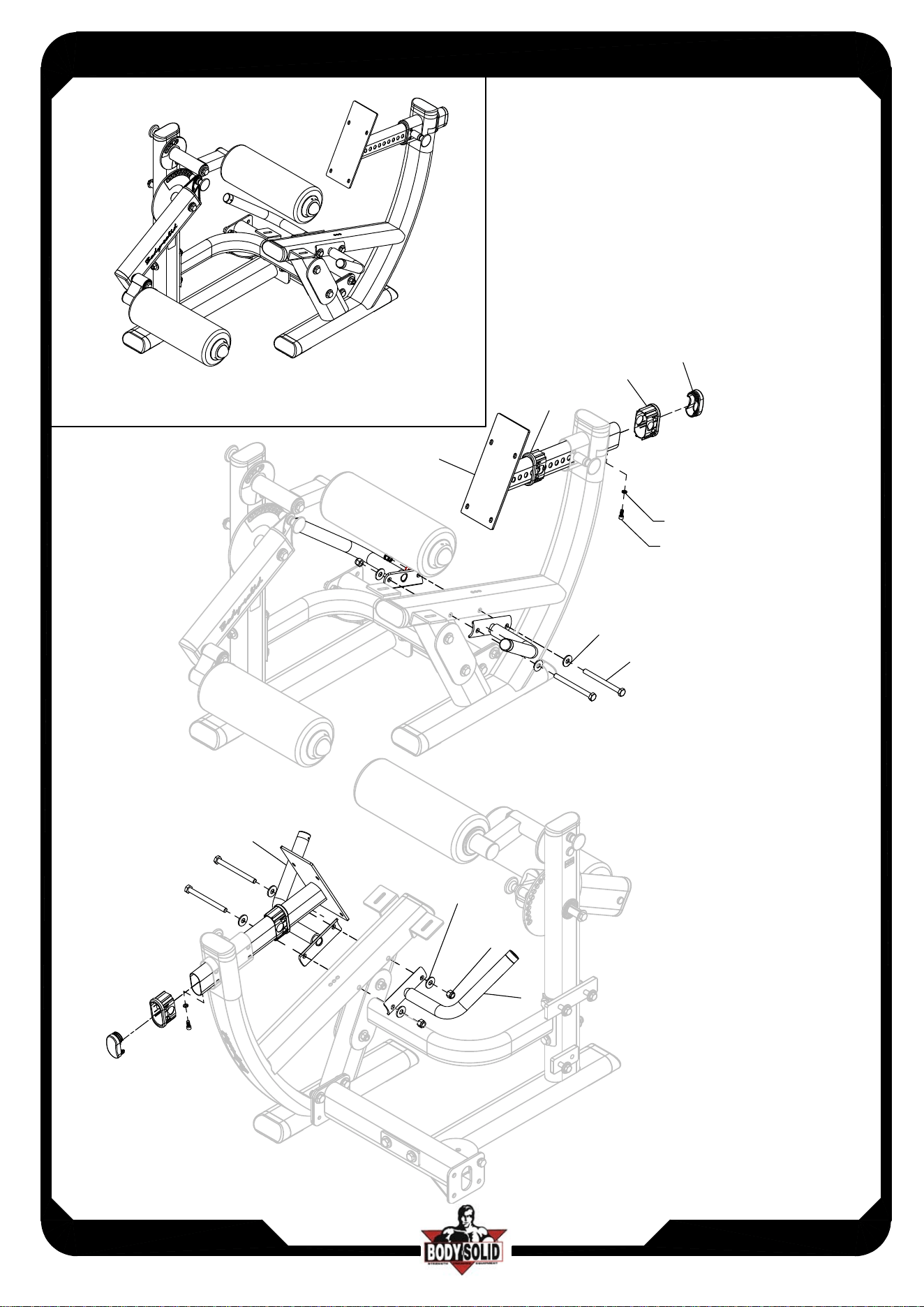

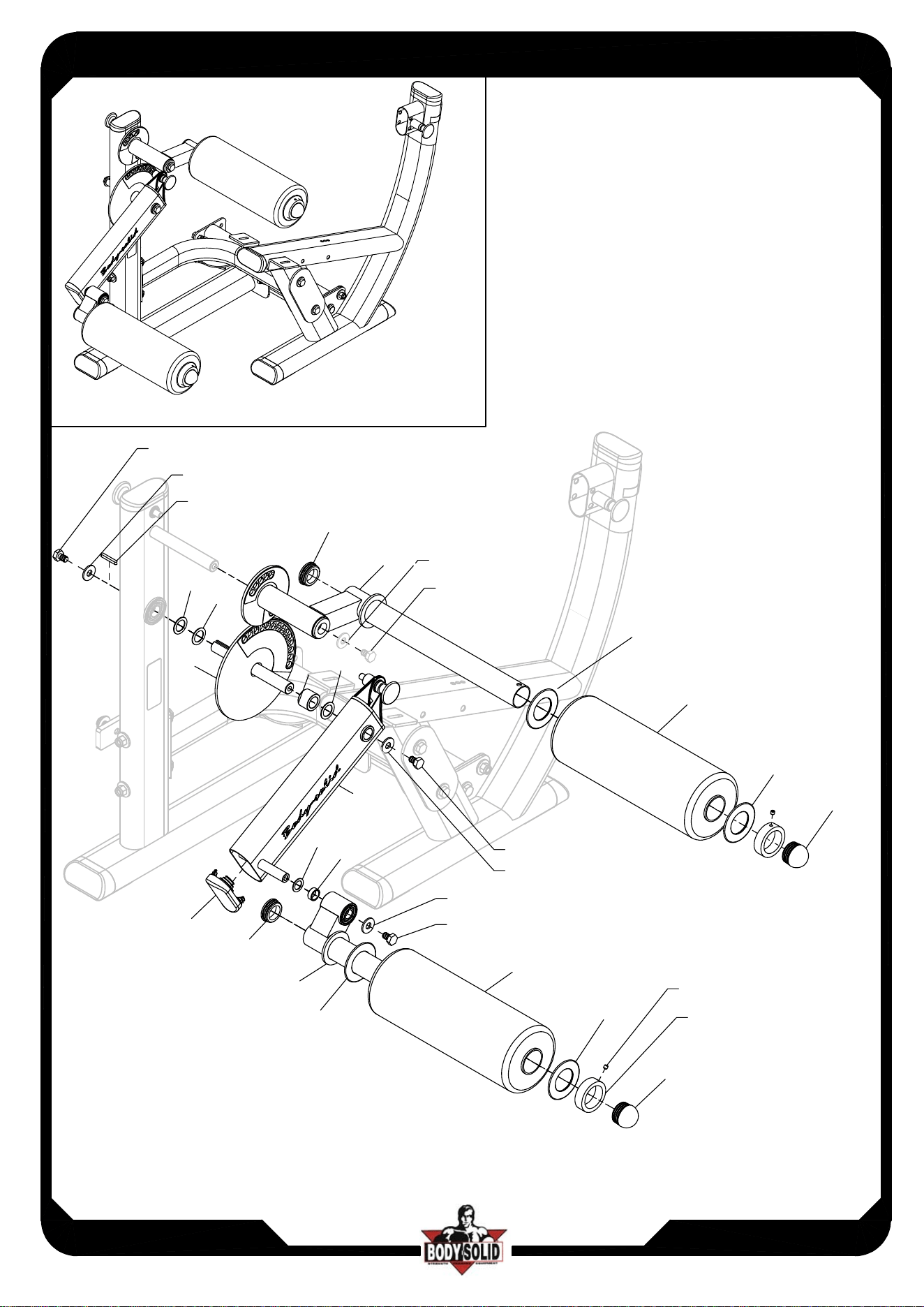

Above shows STEP 1
assembled and completed
A2
C
A1X2
D9
D8
D8
C1X2
D9
1/2"X1"L HEX Bolt
1/2" Washer
B1X2
C1X2
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
6
DLEC.3-122008

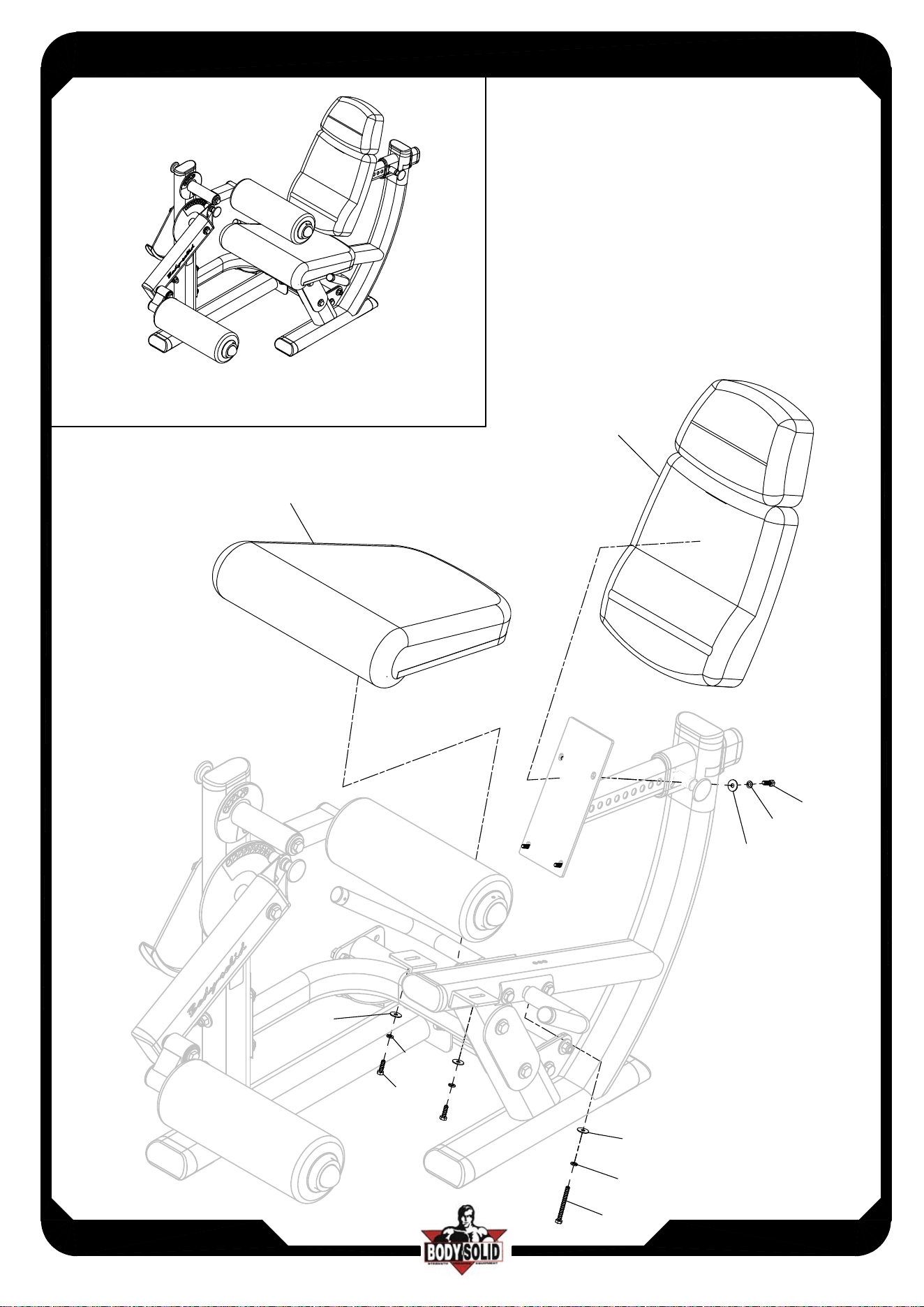

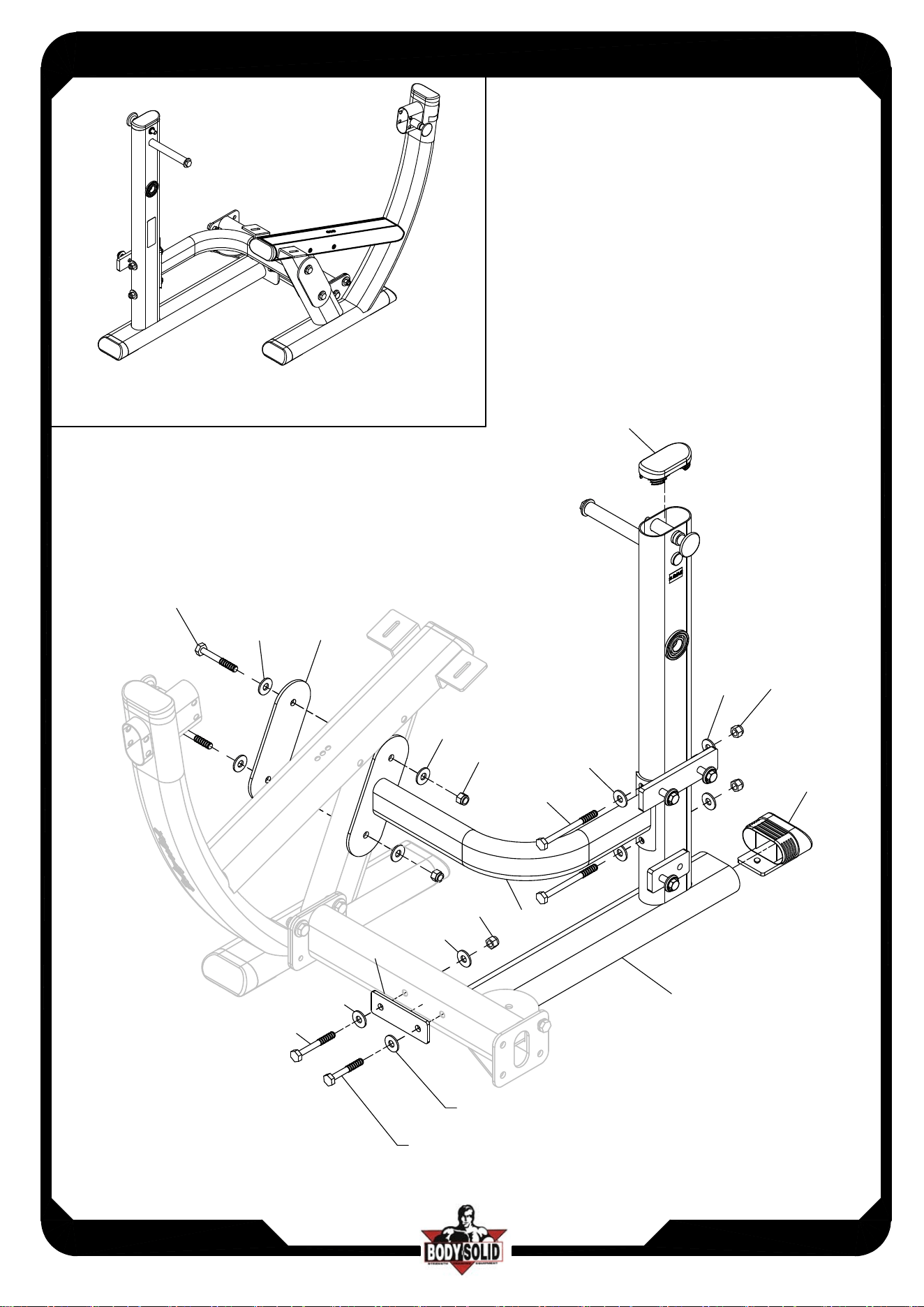

Above shows STEP 2
assembled and completed
A6X2
X2
X2
X2
X2
X2
A4
X2
X2
L
B
D8
C1
B1
C1
C1
B1
A5
C1
C1
B1
C1
N
D9
1/2" Washer
1/2"X3-1/4"L HEX Bolt
M
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
7
DLEC.3-122008

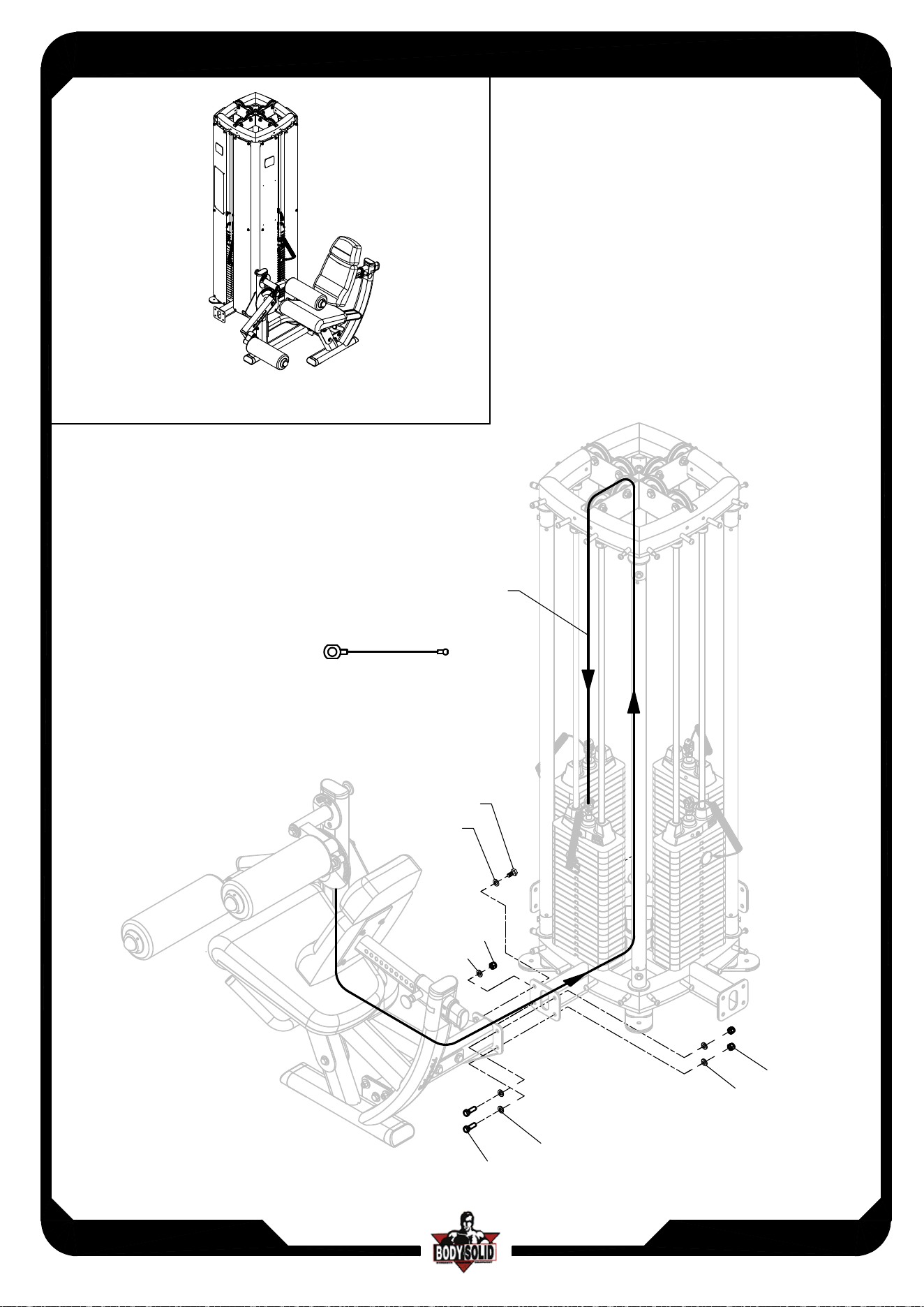

Above shows STEP 3
assembled and completed
Q
G1
I
F1
E
D5
D5
D13
D14
D14
D6
Q
D14
D6
D14
D13
D9
D4
D2
D3
D5
6X6X45L Key
1/2" Washer
1/2"X3/4"L HEX Bolt
5/16"X5/16" Allen Head Bolt X2
n2" Chrome Collar X2
1/2" Washer
1/2"X3/4"L HEX Bolt
1/2" Washer
1/2"X3/4"L HEX Bolt
1/2"X3/4"L HEX Bolt
1/2" Washer
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
8DLEC.3-122008
Above shows STEP 4
assembled and completed
A7
X2
K
C1X2
D10
D7
D7
C1X2
B1X2
5/16"x3/4"L Round Inner Head
5/16" Spring Washer
D
J
background

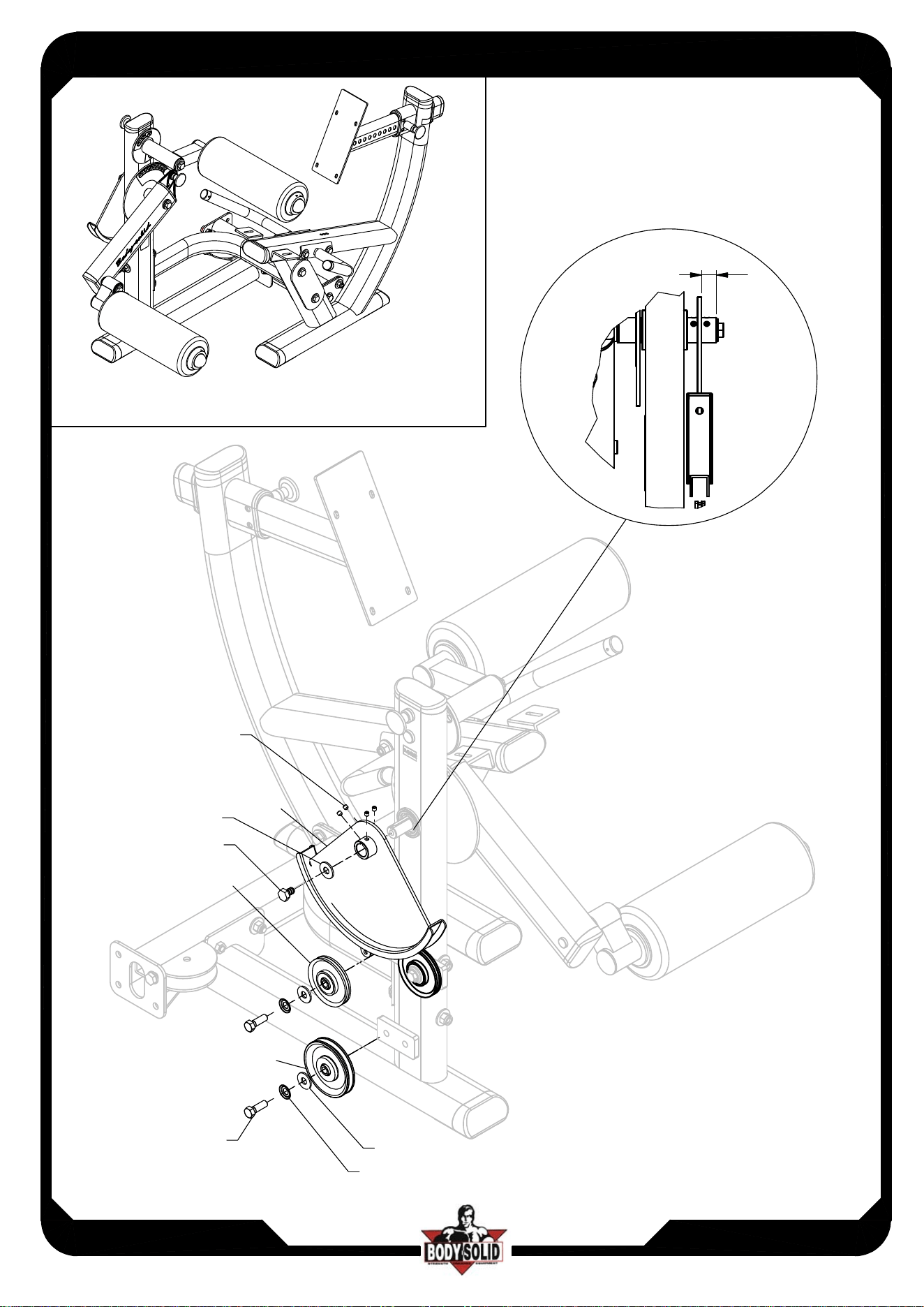

ASSEMBLY INSTRUCTIONS
Page
DLEC
9
DLEC.3-122008
Above shows STEP5
assembled and completed
H
D11
D12
1/2" Washer X2
1/2" Round End Cap Washer X2
1/2"X1-1/2"L HEX Bolt X2
5/16"X5/16"L Allen Head Bolt X4
1/2" Washer X2
1/2"X3/4"L HEX Bolt X2
23
Detail View
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
10
DLEC.3-122008
Above shows STEP 6
assembled and completed
P
O
C4
C5
A10
C4
C5
A8
X4
X4
X4
C4
C5
A8
X2
X2
X2
background
ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 7
assembled and completed
AGx2
D22x2
AA
DLEC
DLEC.3-122008
11
M10X25L Cone Bolt x8
AJ
AJ
M6X12 Round Bolt x4
M6 Washer x4
background

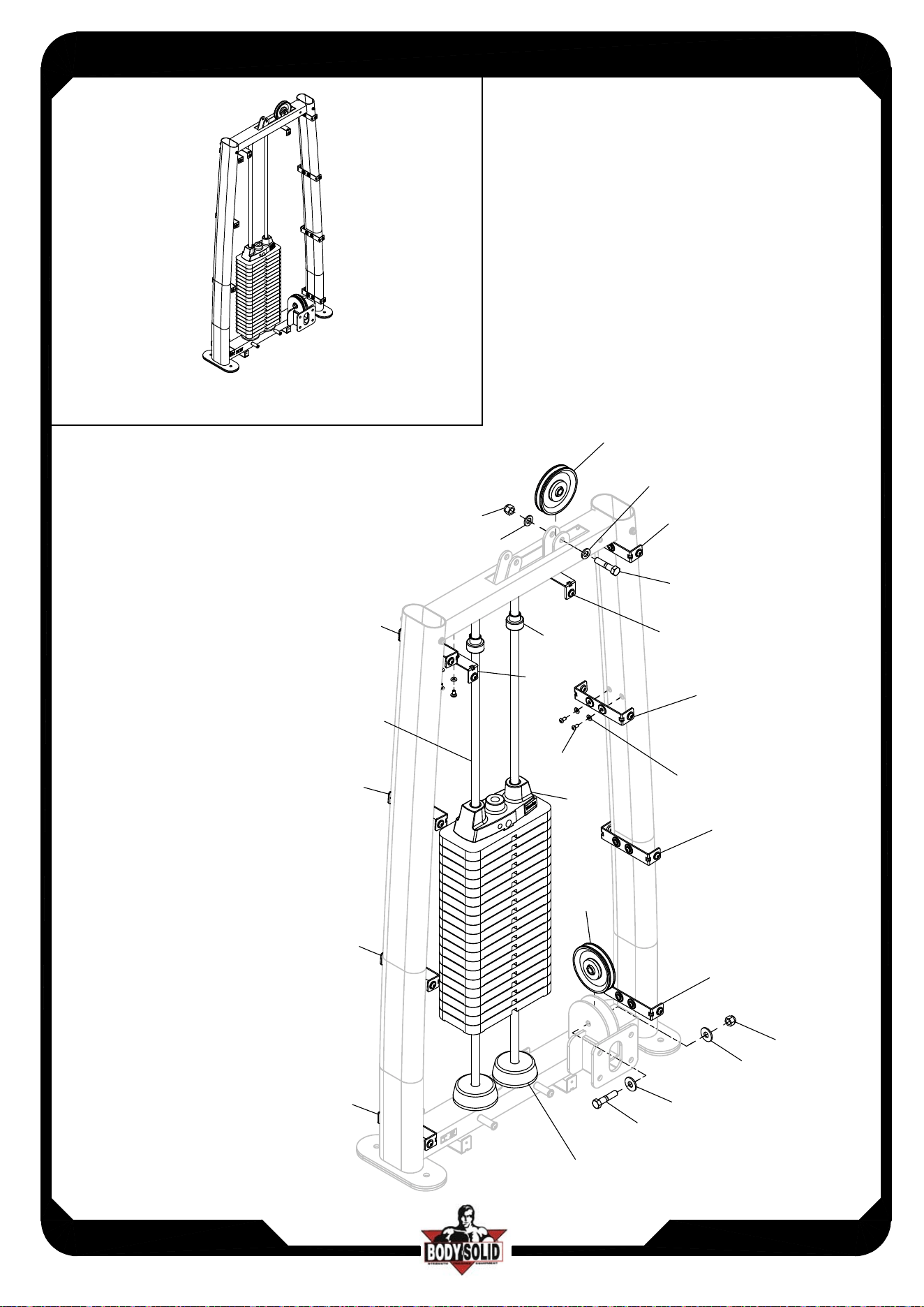

ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 8
assembled and completed
DLEC
DLEC.3-122008
12
D12
D12
AH
AI
D18X2
D20
D19X2
AEX2
AA5
X16
X16
AA2
BB2
BB2
CC1
AA2
CC1
CC2
AH
AH
AH
AH
AH
AH
AH
AH
CC6
CC6
background
ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 9
assembled and completed
AA8
AA7
DLEC
DLEC.3-122008
13
D12
BB2
CC1
CC1
AA2
CC5
AA4
D24
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
14
DLEC.3-122008
Above shows STEP 10
assembled and completed
A2X3
C2X3
C2X3
B1X3
1/2"X1"L HEX Bolt
1/2" Washer
background

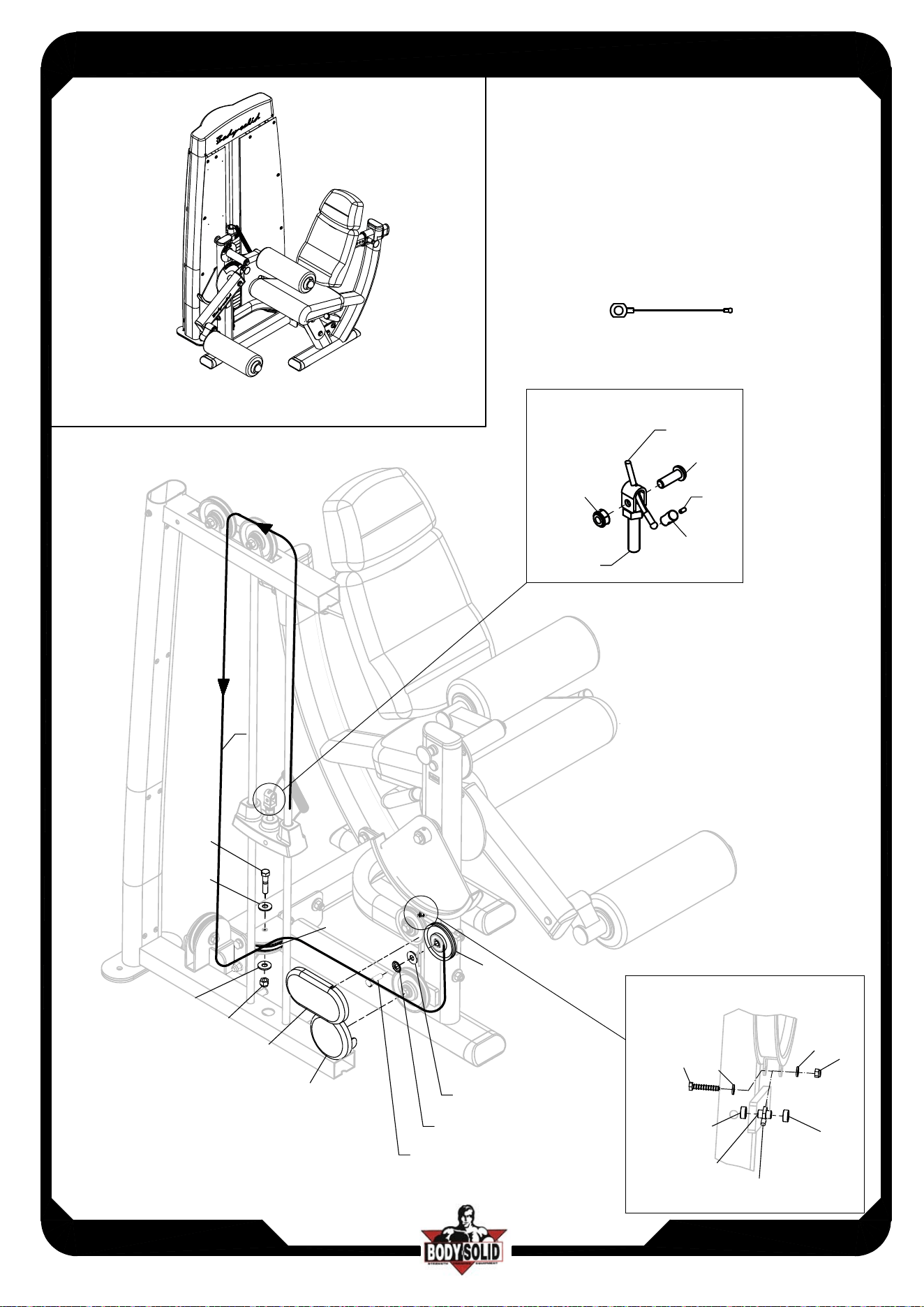

ASSEMBLY INSTRUCTIONS
Page
DLEC
15DLEC.3-122008
Above shows STEP 11
assembled and completed
A3
C1
C1
B1
D12
D11
D15
D16
D17
A9
C3
C3
B2
D1
D1
A11
Detail View
Detail View
D17
1/2" Washer
1/2" Round End Cap Washer
1/2"X1-1/2"L HEX Bolt
D17.
AA10
Selector Rod
BB3
AA11
M4 SCREW
WEIGHT STACK CABLE
background

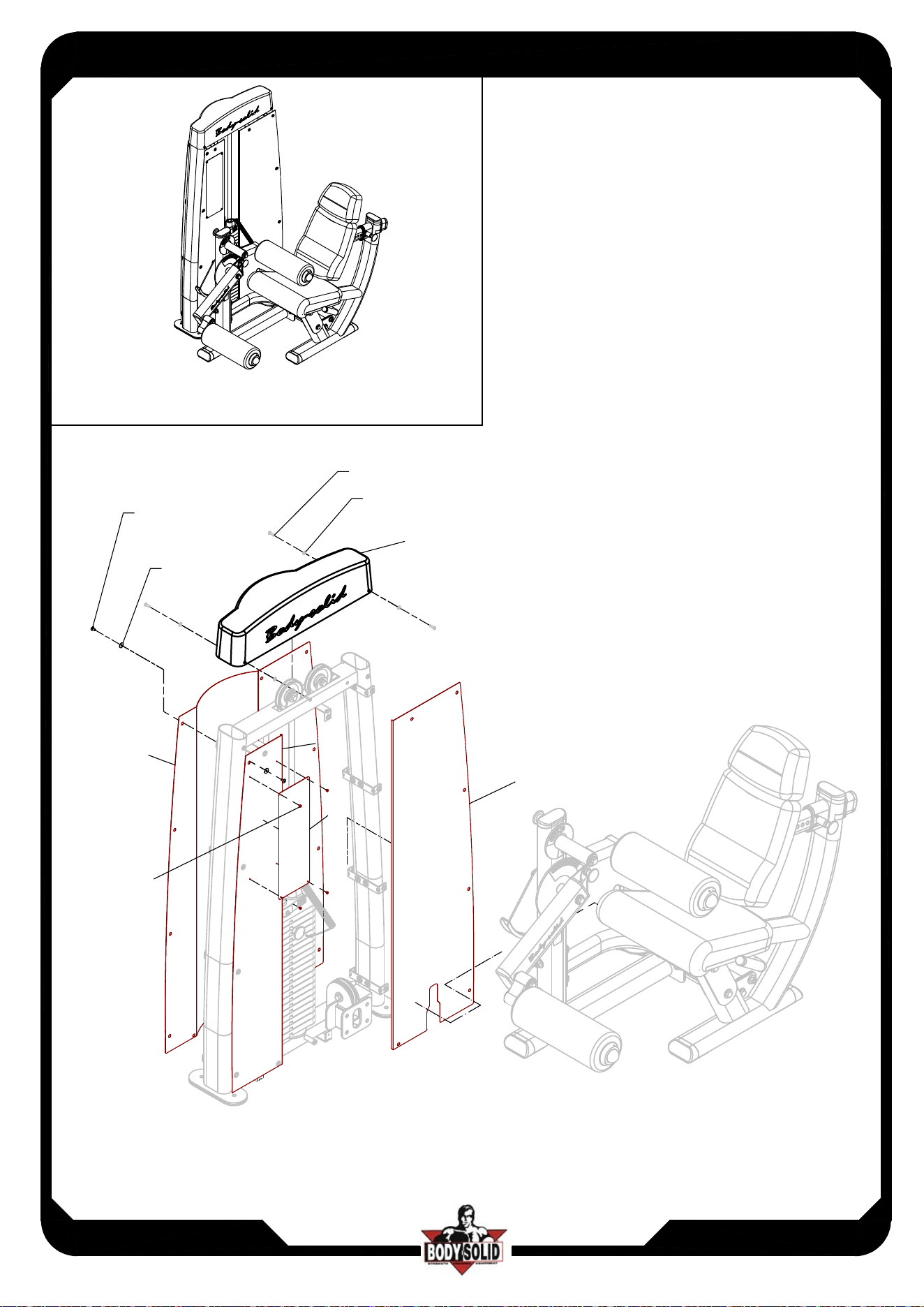

ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 12
assembled and completed
DLEC
DLEC.3-122008
16
AA6X4
M6X12L Round Bolt X21
M6 Washer X21
AB
R
AD
AC
M6X20L Round Bolt X4
M6 Washer X4
AK
background
ASSEMBLY INSTRUCTIONS
Page
DLEC
17DLEC.3-122008
Above shows STEP 13
assembled and completed
C2
X2
X2
C2
1/2"X1"L HEX Bolt
1/2" Washer
C2
X3
X3
B1
A2
B1
D23.
D23
background

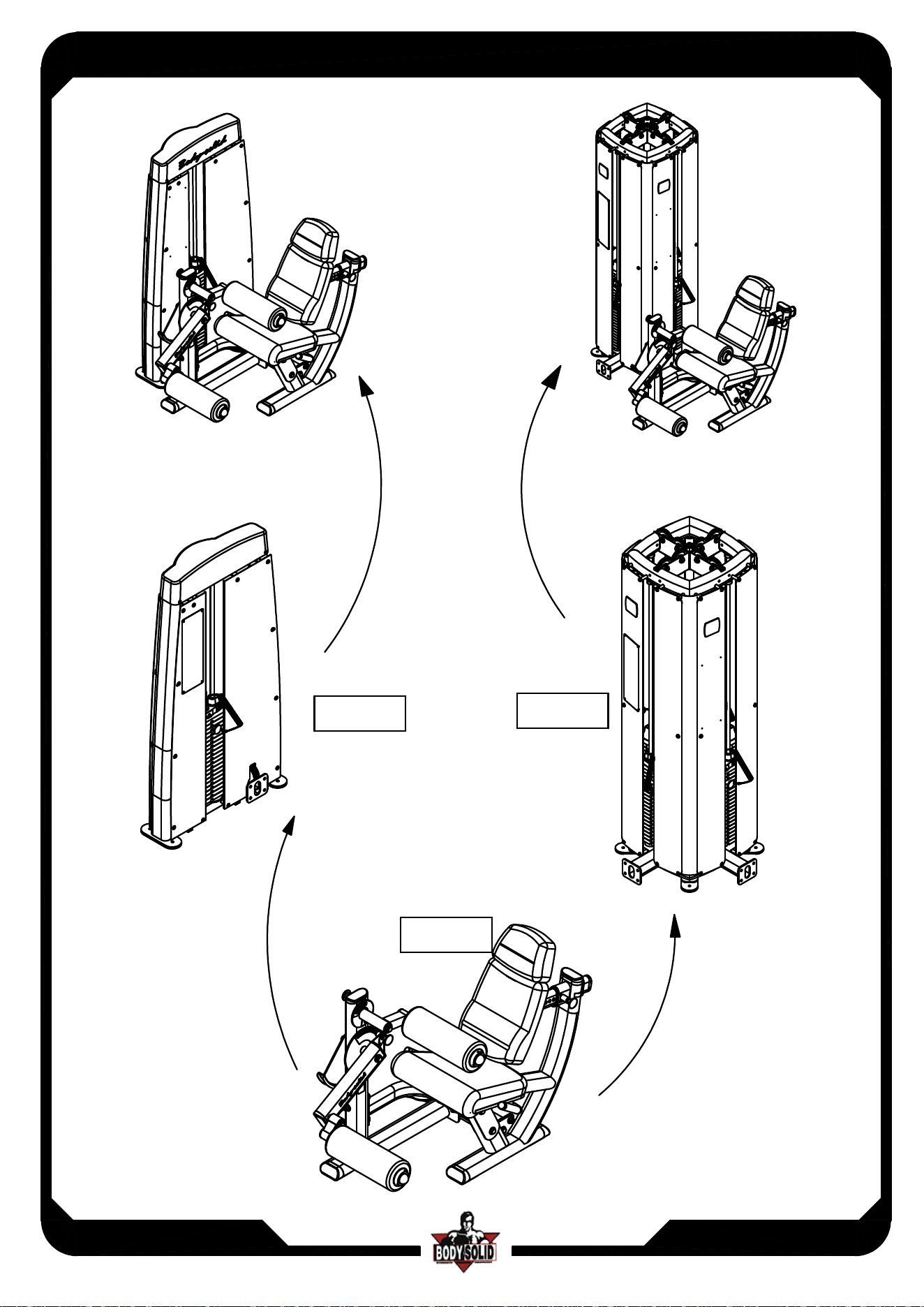

ASSEMBLY INSTRUCTIONS
Page
DLEC
18
DLEC.3-122008
DFA
DGYM
DLEC
background

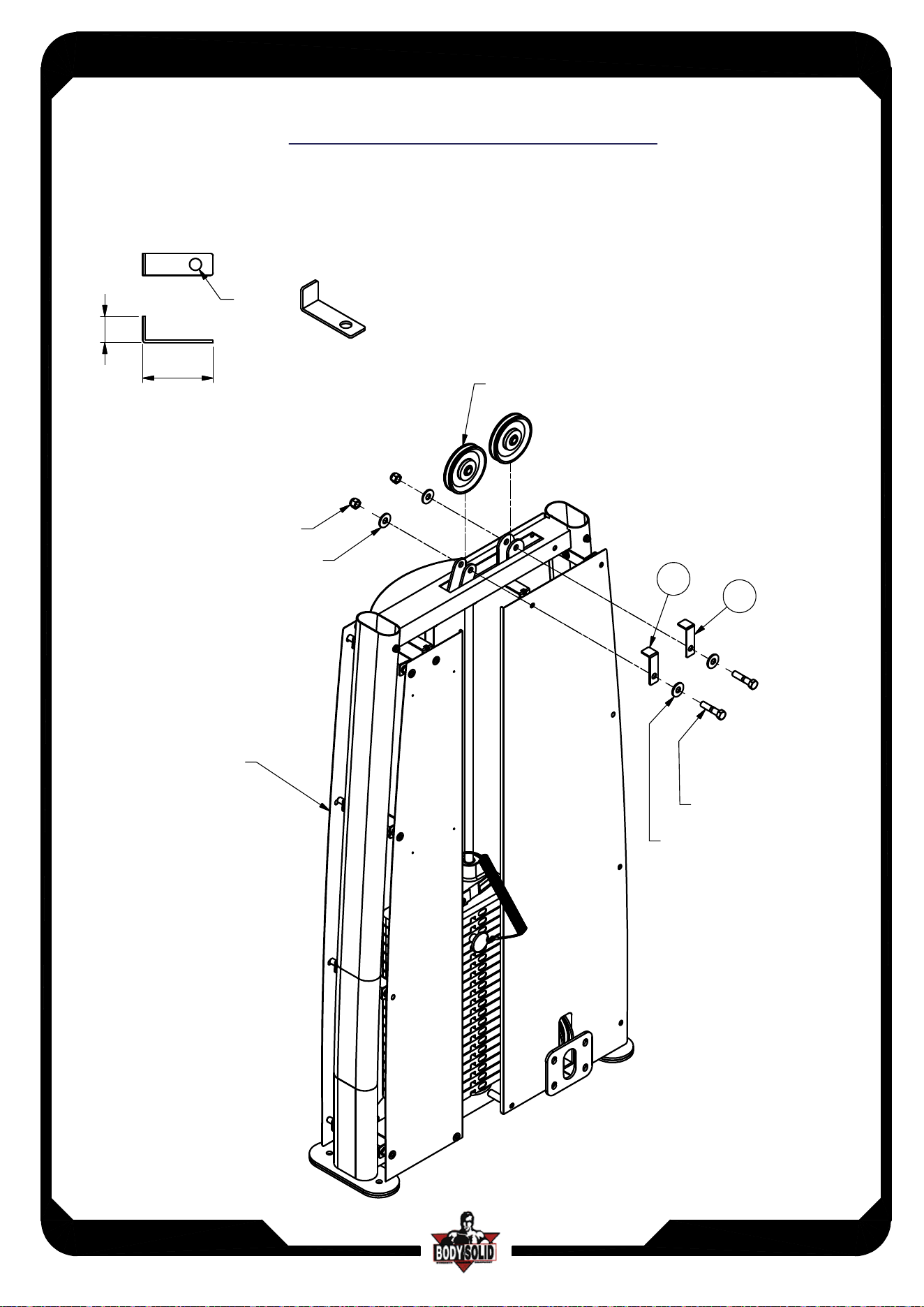

ASSEMBLY INSTRUCTIONS
Page
13.5
80
3
0
BA[2PCS]
8331-015
NYLON LOCK NUT 1/2"
1/2"(I.D.)FLAT WASHER n34
1/2"(I.D.)FLAT WASHER n34
HEX BOLT 1/2"x2 1/4"L
BA
BA
Anti-cable Break Up Supplement Page
DF-042017
DFA/DFD
PULLEY(9213-010B)

Specifications

Body-Solid DLEC-SF Questions and Answers

Find answers or ask new question.
See other models: F600 PFID125X GFID31 SLM300G/3 G5S
Questions and Answers
