When calling for parts or
service, please specify
the following number
:
Model#: 35-1215B
CAUTION:
Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N. Alliance, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN TAIWAN
©
2016 Stamina Products, Inc.
2017, 06
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
Owner’s Manual
TABLE OF CONTENTS
Safety Instructions ...................................... 2
Before You Begin ........................................ 4
Equipment Warning, Caution & Notice Labels
... 5
Hardware Identication Chart .................... 6
Assembly Instructions ................................ 7
Operational Instructions ........................... 11
Storage ....................................................... 13
Maintenance ............................................... 13
Conditioning Guidelines ........................... 14
Warm-Up and Cool-Down ......................... 15

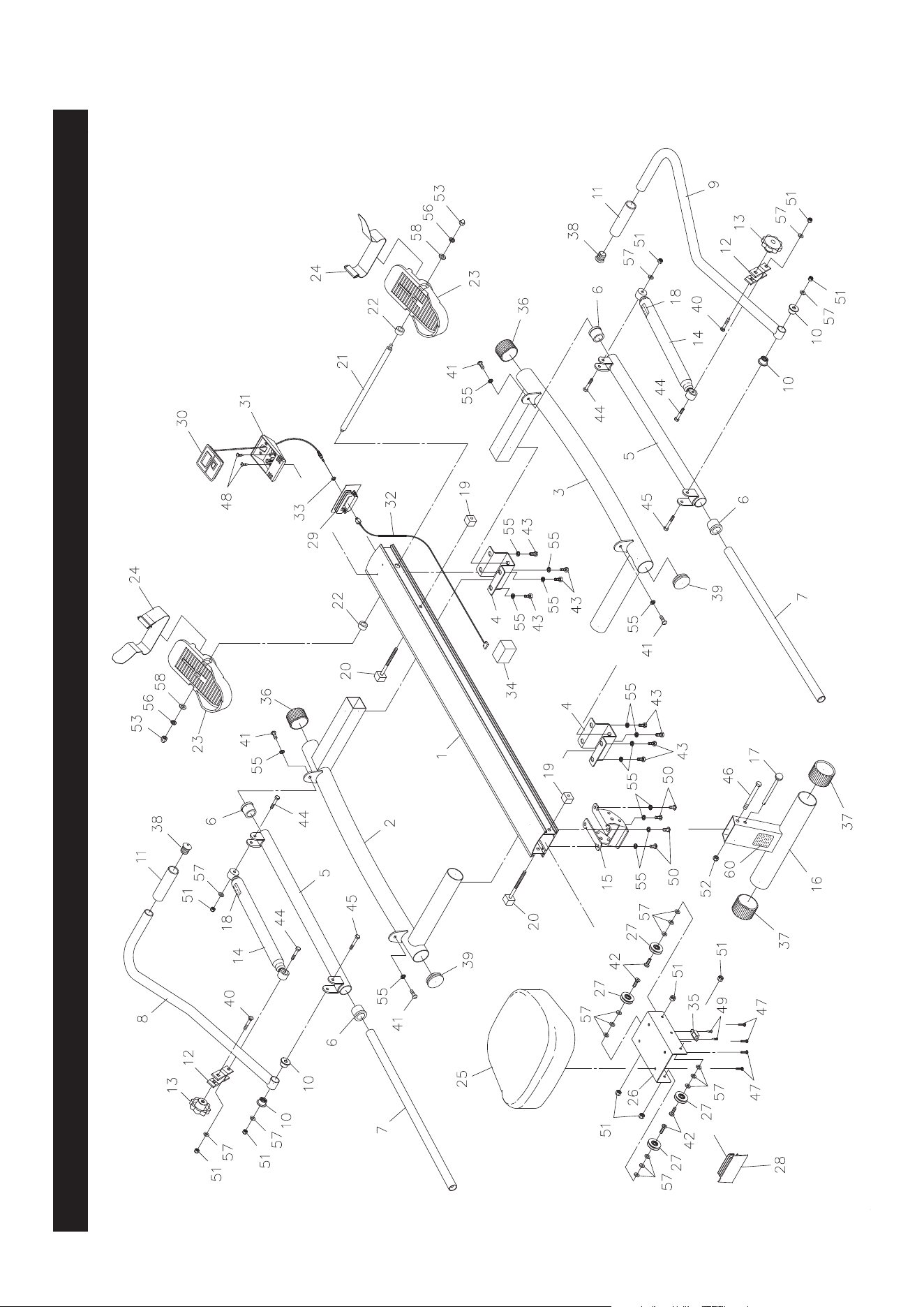

Product Parts Drawing .............................. 16
Parts List .................................................... 17
Warranty ..................................................... 19
Notes ........................................................... 20
Fax/Mail Ordering Form ............................ 22
SAFETY INSTRUCTIONS
2
1. Save these instructions and ensure that other exercisers read this manual prior to using the 1215
Orbital Rower for the rst time.
2. Read all warnings and cautions posted on the 1215 Orbital Rower.
3. The 1215 Orbital Rower should only be used after a thorough review of the Owner’s Manual.
Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the 1215 Orbital Rower. Do not allow children to use or play on the
1215 Orbital Rower. Keep children and pets away from the 1215 Orbital Rower when it is in use.
6. It is recommended that you place this exercise equipment on an equipment mat.
7. Set up and operate the 1215 Orbital Rower on a solid level surface. Do not position the 1215
Orbital Rower on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the 1215 Orbital Rower.
9. Keep ngers clear of all pinch points when folding and unfolding the 1215 Orbital Rower.
10. Before using, inspect the 1215 Orbital Rower for worn or loose components, and securely tighten
or replace any worn or loose components prior to use.
11. Shocks on rowers get HOT during use. To avoid burns, do not touch the shock until it has time to
cool.
12. Consult a physician prior to commencing an exercise program and follow his/her
recommendations in developing your tness program. If at any time during exercise you feel faint,
dizzy, or experience pain, stop and consult your physician.
13. Always choose the workout which best ts your physical strength and exibility level. Know your
limits and train within them. Always use common sense when exercising.
14. Do not wear loose or dangling clothing while using the 1215 Orbital Rower.
15. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or
cross training shoes that t well, provide foot support, and feature non-skid rubber soles.
16. Be careful to maintain your balance while using, mounting, dismounting, or assembling the 1215
Orbital Rower, loss of balance may result in a fall and bodily injury.
17. Do not use the seat to move the 1215 Orbital Rower. The Seat will move and the Seat Carriage
may pinch your hand or ngers.
18. The 1215 Orbital Rower should not be used by persons weighing over 250 pounds.
19. The 1215 Orbital Rower should be used by only one person at a time.
20. The 1215 Orbital Rower is for consumer use only. It is not for use in public or semipublic facilities.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the 1215 Orbital Rower.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
P.O. Box 1071
Springfield, MO 65801-1071
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
4
THE FOLLOWING TOOLS ARE REQUIRED FOR ASSEMBLY : Phillips Screwdriver
Adjustable Wrench
Adjustable Wrench
Rear
Support
Endcap
Seat
Left Handlebar
Shock
Locking Knob
Left Base Frame
Foam Grip
Pedal Strap
Meter
Pedal
Endcap
Shock
Locking Knob
Right Base Frame
Center Beam
Pull Pin
Foam Grip
Right
Handlebar
Pivot Support
Caution
Label
Shock Decal
Shock Decal
Thank you for choosing the 1215 Orbital
Rower. We take great pride in producing this
quality product and hope it will provide many hours
of quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The 1215 Orbital Rower
provides a convenient and simple method to begin
your journey of getting your body in shape and
achieving a happier and healthier lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled.
Read this manual carefully before using the
1215 Orbital Rower.
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your 1215 Orbital Rower,
please do not return the product. Contact us
FIRST!
If a part is missing or defective, please go to
staminaproducts.com under the Customer Care
section and order the part needed, or call us toll
free at 1-800-375-7520 (in the U.S.). Our Customer
Care Staff is available to assist you from 7:30
A.M. to 5:00 P.M. (Central Time) Monday through
Thursday and 8:00 A.M. to 3:00 P.M. (Central
Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
This chart is provided to help identify the warning, caution, and notice labels on the 1215 Orbital
Rower. Please take a moment to familiarize yourself with all of the warning, caution, and notice
labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(60)C1
Labels are larger than actual size
5
SHOCK DECAL(18)
D1
(2 locations)
CAUTION
!
Consult your physician before starting this or any exercise
program. This is especially important if you are over the
age of 35 or have any pre-existing health condition.
Always make sure all nuts and bolts are securely tightened
before using this product. This product should not be used
by person weighing more than 250 lbs. unless otherwise
stated in your Owner’s Manual.
Keep others including children & pets
away from equipment when in use.
For consumer use only. Failure to follow all warnings
and instructions could result in injury or property
damage. Before assembling or using this product, read
and follow the Owner’s Manual and all other warnings
and instructions that accompany this product. Replace
this caution label if damaged, illegible, or removed.
6
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1/2 1 1/2 2 1/2 3 1/2 4 1/2 5 1/2 6
6 8 10 12
3/16" 1/4" 5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
Part No. and Description Qty
43 Bolt, Hex Head (M8 x 1.25 x 16mm) 8
44 Bolt, Hex Head (M8 x 1.25 x 40mm) 4
45 Bolt, Hex Head (M8 x 1.25 x 55mm) 2
46 Bolt, Hex Head (M10 x 1.5 x 95mm) 1
48 Screw, Round Head (M4 x 10mm) 2
51 Nylock Nut (M8 x 1.25) 6
52 Nylock Nut (M10 x 1.25) 1
53 Acorn Nut (M10 x 1.25) 2
55 Lock Washer (M8) 8
56 Lock Washer (M10) 2
57 Washer (M8) 6
58 Washer (M10) 2
ASSEMBLY INSTRUCTIONS
7
STEP 1
Insert the PEDAL SHAFT(21) through holes located on the front end of the CENTER BEAM(1). Place
a SPACER(22) and a PEDAL(23) onto each end of the PEDAL SHAFT(21) and slide them toward the
CENTER BEAM(1). Then secure the PEDALS(23) with WASHERS(M10)(58), LOCK WASHERS (M10)
(56), and ACORN NUTS(M10x1.5)(53) at both sides of the PEDAL SHAFT(21).
NOTE: You need to use two wrenches to tighten the ACORN NUTS(M10x1.5)(53) at both ends of the
PEDAL SHAFT(21) at the same time.
STEP 2
Insert the PEDAL STRAPS(24) into the slots in the bottom of the PEDALS(23). When feet are in the
PEDALS(23), the ends of the PEDAL STRAPS(24) will be facing away from the CENTER BEAM(1) as
shown above.
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
ASSEMBLY INSTRUCTIONS
8
NOTE: Lay your partially assembled 1215 Orbital Rower upside down to complete STEP 3 and 4.
STEP 3
Place the LEFT and RIGHT BASE FRAMES(2, 3) on the CENTER BEAM(1), connect them with the two
MOUNTING BRACKETS(4), and secure with HEX BOLTS(M8x1.25x16mm)(43) and LOCK WASHERS(M8)
(55).
STEP 4
Attach the REAR SUPPORT(16) to the SUPPORT BRACKET(15) with HEX BOLT(M10x1.5x95mm)(46)
and NYLOCK NUT(M10x1.5)(52). Lock the REAR SUPPORT(16) in position by inserting the PULLING
PIN(17) through the holes in the SUPPORT BRACKET(15) and REAR SUPPORT(16).
ASSEMBLY INSTRUCTIONS
9
STEP 5
Attach the LEFT HANDLEBAR(8) to the bracket located on the rear of the LEFT BASE FRAME(2) with
HEX BOLT(M8x1.25x55mm)(45), WASHER(M8)(57), and NYLOCK NUT(M8x1.25)(51).
STEP 6
Attach the SHOCK(14) to the bracket located on the front of the LEFT BASE FRAME(2) with HEX BOLT
(M8x1.25x40mm)(44), WASHER(M8)(57), and NYLOCK NUT(M8x1.25)(51). Make sure you assembled
the shock allowing the shock to extend toward the LEFT HANDLEBAR(8). Connect the other end of the
SHOCK(14) to the TENSION ADJUSTER(12) with HEX BOLT (M8x1.25x40mm)(44), WASHER(M8)(57),
and NYLOCK NUT(M8x1.25)(51).
Repeat the above to attach the RIGHT HANDLEBAR(9) and SHOCK(14) to the RIGHT BASE FRAME(3).
ASSEMBLY INSTRUCTIONS
10
STEP 7
Slide the SEAT(25) onto the CENTER BEAM(1). Insert the STOPPER WITH BOLT(20) through the CENTER
BEAM(1) and lock in position by screwing on the STOPPER WITH NUT(19). Also, please verify that the
other STOPPER WITH BOLT(20) and STOPPER WITH NUT(19) have already been assembled at the
factory. If it has not been pre-assembled, then please assemble at this time. Press the CENTER BEAM
CAP(28) into the back end of the CENTER BEAM(1).
STEP 8
Pry the METER(30) from the CONSOLE(31). Attach the CONSOLE(31) to the CENTER BEAM(1) with
ROUND HEAD SCREWS(M4x10mm)(48).
STEP 9
Install an AA battery into the METER(30), the battery is not included. See page 12 for detailed battery
installation instructions. Run the connection wire of the METER(30) through the square hole on the
CONSOLE(31). Place the METER(30) back into the CONSOLE(31). Plug the connection wire of the
METER(30) into the socket located at the front end of the CENTER BEAM(1).
(Assembled at the factory)
SOCKET
OPERATIONAL INSTRUCTIONS
11
CAUTION: The shocks get HOT after a few minutes of use. To avoid burns, do not touch the shock until
it has time to cool.
A. B.
TO ADJUST THE REAR SUPPORT(16)
Pull out the PULL PIN(17) from the SUPPORT BRACKET(15). Fold the REAR SUPPORT(16) forward,
then you can set the 1215 Orbital Rower at on the oor. Lock the SUPPORT BRACKET(15) in the at
position by inserting the PULL PIN(17) back into the SUPPORT BRACKET(15). Refer to illustration B.
The seat can slide freely when the 1215 Orbital Rower is in the at position. In the incline position as shown
in illustration A, there will be more resistance as you slide backward, less resistance as you slide forward.
LOAD ADJUSTMENT
The resistance of the shocks can be adjusted by sliding the TENSION ADJUSTERS(12) to change
the position on the HANDLEBARS(8, 9). Loosen the LOCKING KNOB(13) and slide the TENSION
ADJUSTER(12) to the desired position. Using the number marks on the HANDLEBARS(8, 9), the
lowest position (#5) will provide the lowest resistance and the upper position (#1) will provide the higher
resistance. Tighten the LOCKING KNOB(13) after adjusting.
NOTE: Be sure to set the TENSION ADJUSTERS(12) at the same height on both sides then tighten the
LOCKING KNOBS(13) securely before using the 1215 Orbital Rower.
OPERATIONAL INSTRUCTIONS
12
FUNCTION BUTTON:
Press the button to select functions. Reset all functions to zero by
pressing the button and holding it down for four seconds.
FUNCTION MARKS ( On The Display ) :
POWER OFF :
POWER ON :
Seat movement or press the BUTTON.
Automatically shuts o after four minutes of
inactivity.
Scan
Speed
Distance
Timer
A :
S :
D :
T :
Count
Calories
Mile
Signal Mark
CO :
CA :
M :
:
HOW TO INSTALL AND REPLACE BATTERY:
Use hand or simple tool to pry the METER(30) from the CONSOLE
(31).
The meter operates with an AA battery. Refer to the illustration to
install or replace the battery.
1.
2.
NOTE:
AA Battery
USING THE FITNESS METER
SCAN:
SPEED:
DISTANCE:
TIMER:
COUNT:
CALORIES:
Press the button until “A” appears in the display. Automatically scans SPEED, DISTANCE,
TIMER, COUNT, and CALORIES in sequence with change every four seconds.
Press the button until “S” appears to display the current speed, from zero to 71 miles per hour.
Press the button until “D” appears to display the distance you are travelling, from zero to
99.99 miles.
NOTE: The distance shown is calculated by the length that the seat travels along the center
beam and should be used for comparative purposes between workouts.
Press the button until “T” appears to display the rowing time, from one second up to 99:59
minutes.
Press the button until “CO” appears to display the total number of rows you have taken, from
zero to 9999 rows.
Press the button until “CA” appears to display the calorie burned, from zero to 999.9 Kcal.
NOTE: The calorie readout is an estimate for an average user. It should be used only as a
comparison between workouts on this unit.
FUNCTIONS:
1. Rechargeable batteries are not recommended.
2. Ultimate disposal of battery should be handled according to
all state and federal laws and regulations.
3. Do not dispose of batteries in re.
1. To store the 1215 Orbital Rower, simply keep it in a clean dry place.
2. Fold The REAR SUPPORT(16) for easy storage, refer to page 11.
3. Grasp the Front and Rear Stabilizer to move the 1215 Orbital Rower. Do not use the Seat to move
the 1215 Orbital Rower. The Seat will move and the Seat Carriage may pinch your hand or ngers.
4. To avoid damage to the electronics, remove the batteries before storing the 1215 Orbital Rower for
one year or more.
The safety and integrity designed into the 1215 Orbital Rower can only be maintained when the 1215
Orbital Rower is regularly examined for damage and wear. Special attention should be given to the
following:
1. Pull on the HANDLEBARS(8, 9) and verify that the SHOCKS(14) provide tension.
2. Clean the roller tracks in the CENTER BEAM(1) with an absorbent cloth.
3. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts.
Tighten loose nuts and bolts.
4. Verify that the CAUTION LABEL(60) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(60) if it is missing or damaged.
5. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
6. Worn or damaged components must be replaced immediately or the 1215 Orbital Rower removed
from service until repair is made.
7. Only Stamina Products supplied components should be used to maintain/repair the 1215 Orbital
Rower.
8. Keep your 1215 Orbital Rower clean by wiping it o with an absorbent cloth after use.
STORAGE
MAINTENANCE
13
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
14
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
15
PRODUCT PARTS DRAWING
FRONT
BACK
16
PART# PART NAME QTY
PARTS LIST
17
1 Center Beam 1
2 Left Base Frame 1
3 Right Base Frame 1
4 Mounting Bracket 2
5 Pivot Support 2
6 Bushing 4
7 Shaft Tube 2
8 Left Handlebar 1
9 Right Handlebar 1
10 Bushing 4
11 Foam Grip 2
12 Tension Adjuster 2
13 Locking Knob 2
14 Shock 2
15 Support Bracket 1
16 Rear Support 1
17 Pull Pin 1
18 Shock Decal 2
19 Stopper with Nut 2
20 Stopper with Bolt 2
21 Pedal Shaft 1
22 Spacer 2
23 Pedal 2
24 Pedal Strap 2
25 Seat 1
26 Seat Carriage 1
27 Roller 4
28 Center Beam Cap 1
29 Center Beam Cap /with hole 1
30 Meter 1
31 Console 1
32 Sensor Wire 1
33 Thin Nut 1
34 Foam Block 1
35 Magnet 1
36 Endcap (50.8mm) 2
37 Endcap (60mm) 2
38 Round Plug (25mm) 2
39 Round Plug (50mm) 2
40 Carriage Bolt (M8 x 1.25 x 45mm) 2
41 Bolt, Button Head (M8 x 1.25 x 25mm) 4
42 Bolt, Flat Head (M8 x 1.25 x 25mm) 4
43 Bolt, Hex Head (M8 x 1.25 x 16mm) 8
44 Bolt, Hex Head (M8 x 1.25 x 40mm) 4
45 Bolt, Hex Head (M8 x 1.25 x 55mm) 2
46 Bolt, Hex Head (M10 x 1.5 x 95mm) 1
47 Screw, Round Head (M6 x 1 x 25mm) 4
PART# PART NAME QTY
PARTS LIST
18
48 Screw, Round Head (M4 x 10mm) 2
49 Screw, Round Head (M4 x 16mm) 2
50 Bolt, Button Head (M8 x 1.25 x 16mm) 4
51 Nylock Nut (M8 x 1.25) 10
52 Nylock Nut (M10 x 1.25) 1
53 Acorn Nut (M10 x 1.25) 2
55 Lock Washer (M8) 16
56 Lock Washer (M10) 2
57 Washer (M8) 18
58 Washer (M10) 2
59 Manual 1
60 Caution Label 1
LIMITED WARRANTY
MODEL 35-1215B
19
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071,
Springeld Missouri, USA, 65801-1071, or email us at customer[email protected], or call us
at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return the
product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
NOTES
20
NOTES
21
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
P.O. Box 1071
Springeld, MO 65801-1071
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
P.O. Box 1071
Springeld, MO 65801-1071
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
P.O. Box 1071 Springeld, MO. 65801-1071
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; P.O. Box 1071; Springeld, MO 65801-1071.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
