CAUTION:
Weight on this product should not exceed 300 lbs.
Owner's
Manual
Product May Vary Slightly From Pictured.
When calling for parts or
service, please specify
the following numbers
:
Model#: 55-5604
S/N: _____________
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
STAMINA PRODUCTS
MADE IN CHINA
© 2019 Stamina Products, Inc.
2020, 01
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
TABLE OF CONTENTS
3
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Operational Instructions ........................... 13
Storage ....................................................... 15
Maintenance ............................................... 16
Conditioning Guidelines ........................... 17
Warm-Up and Cool-Down ......................... 18
Warranty ..................................................... 19
Product Parts Drawing .............................. 20
Parts List .................................................... 21
Notes ........................................................... 22
Fax/Mail Ordering Form ............................ 23
SAFETY INSTRUCTIONS
1. Save these instructions and ensure that other exercisers read this manual prior to using the AeroPilates®
Precision Series Cadillac Studio Tower for the rst time.
2. Read all warnings and cautions posted on the AeroPilates® Precision Series Cadillac Studio Tower.
3. The AeroPilates® Precision Series Cadillac Studio Tower should only be used after a thorough review
of the Owner’s Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. When exercising on this product, do not exercise at an intensity that causes the product itself to move.
This could result in damage to your joints and to the product.
6. Keep children away from the AeroPilates® Precision Series Cadillac Studio Tower. Do not allow
children to use or play on the AeroPilates® Precision Series Cadillac Studio Tower. Keep children and
pets away from the AeroPilates® Precision Series Cadillac Studio Tower when it is in use.
7. It is recommended that you place this exercise equipment on an equipment mat.
8. Set up and operate the AeroPilates® Precision Series Cadillac Studio Tower on a solid level surface.
Do not position the AeroPilates® Precision Series Cadillac Studio Tower on loose rugs or uneven
surfaces.
9. Make sure that adequate space is available for access to and around the AeroPilates® Precision Series
Cadillac Studio Tower.
10. Before using, inspect the AeroPilates® Precision Series Cadillac Studio Tower for worn or loose
components, and tighten or replace any worn or loose components prior to use.
11. Consult a physician prior to commencing an exercise program and follow his/her recommendations in
developing your tness program. If at any time during exercise you feel faint, dizzy, or experience pain,
stop and consult your physician.
12. Always choose the workout which best ts your physical strength and exibility level. Know your limits and
train within them. Always use common sense when exercising.
13. Do not wear loose or dangling clothing while using the AeroPilates® Precision Series Cadillac Studio
Tower.
14. Be careful to maintain your balance while using, mounting, dismounting, or assembling the AeroPilates®
Precision Series Cadillac Studio Tower. Loss of balance may result in a fall and bodily injury.
15. The AeroPilates® Precision Series Cadillac Studio Tower should not be used by persons weighing
over 350 pounds.
16. The AeroPilates® Precision Series Cadillac Studio Tower should be used by only one person at a time.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. Failure to follow all warnings
and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the AeroPilates® Precision Series Cadillac Studio Tower.
!
WARNING
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
5
Locking Pin
Upright
Link
Hand/Foot Strap
Securing Strap
Locking Pin
Cushions
Lower Upright
Caution Label

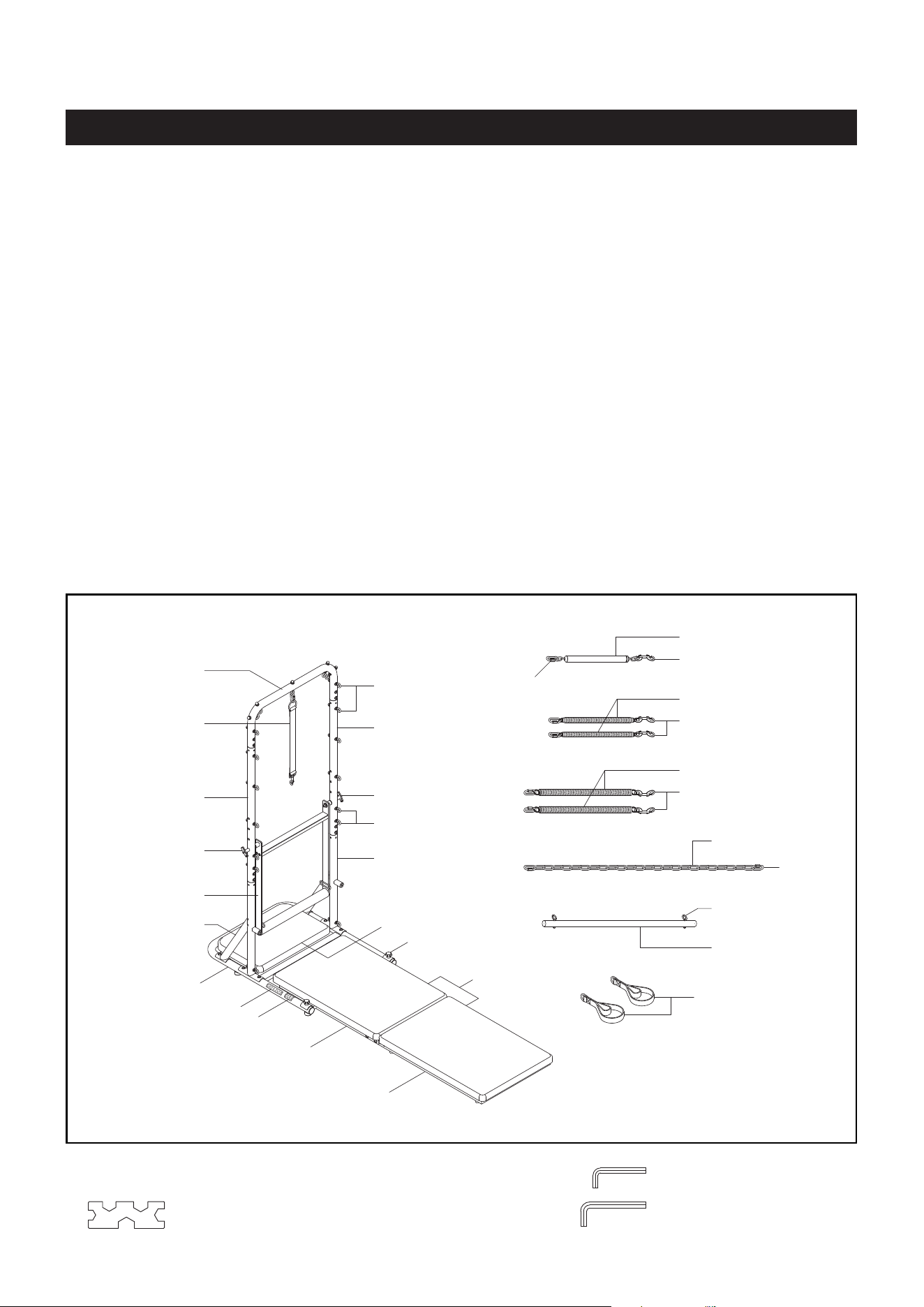

THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Allen Wrench (4mm)
Allen Wrench (6mm)
Short Eyehook
Leg Springs
Link
Serial Decal
Eyehooks
Roll-Down Bar
Double Ended Clips
Safety Chain
Eyehooks
Wrench
Upright
Top Cross Bar
Push-Thru Bar
Lower Upright
Arm Springs
Double Ended Clips
Push-Thru Spring
Double Ended Clips
Thank you for choosing the AeroPilates®
Precision Series Cadillac Studio Tower. We take
great pride in this quality product and hope it will
provide many hours of quality exercise to make you
feel better, look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The AeroPilates®
Precision Series Cadillac Studio Tower provides
a convenient and simple method to begin your
journey of getting your body in shape and achieving
a happier and healthier lifestyle.

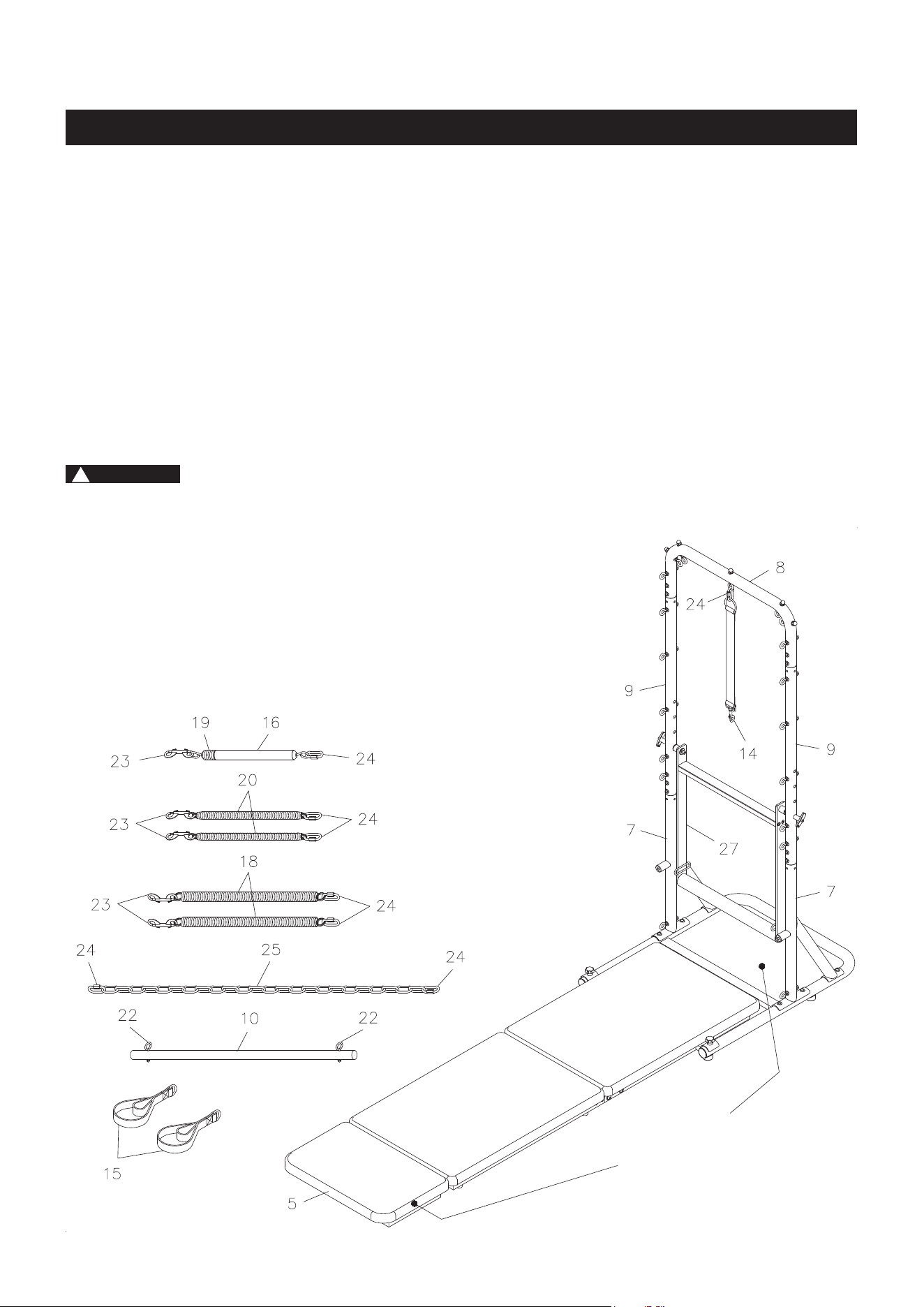

Before reading further, please review the drawing
below and familiarize yourself with the parts that
are labeled. Locate the serial decal on the product
and write the serial number on the cover of the
manual in the space provided. See page 6 for an
image of the serial decal. Model number and serial
number are required when calling for assistance.
Read this manual carefully before using the
AeroPilates® Precision Series Cadillac Studio
Tower.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your AeroPilates® Precision Series Cadillac
Studio Tower, please do not return the product.
Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Extension Cushion
Locking Knob
Base Frame
Front Cushion Frame
Rear Cushion Frame
6
This chart is provided to help identify the warning, caution, and notice labels on the AeroPilates®
Precision Series Cadillac Studio Tower. Please take a moment to familiarize yourself with all of the
warning, caution, and notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(32)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(48)
PULL-THRU BAR CAUTION DECAL(33)
TOP CROSS BAR CAUTION DECAL(34)
1 (800) 375-7520
Mon-Thurs • 7:30am - 5pm, Fri • 8am - 3pm CST
FAX: (417) 889-8064 • www.staminaproducts.com
MADE IN CHINA
Customer Care
55-5604
Model # Serial #
GUARANTEED PERFORMANCE
Part Number and Description Qty
7
40 Washer (M10) 4
44 Washer (M8) 10
36 Bolt, Button Head (M8 x 1.25 x 10mm) 10
41 Bolt, Button Head (M6 x 1 x 15mm) 16
46 Bolt, Button Head (M6 x 1 x 20mm) 12
length
length
mm.
in.
INCHES

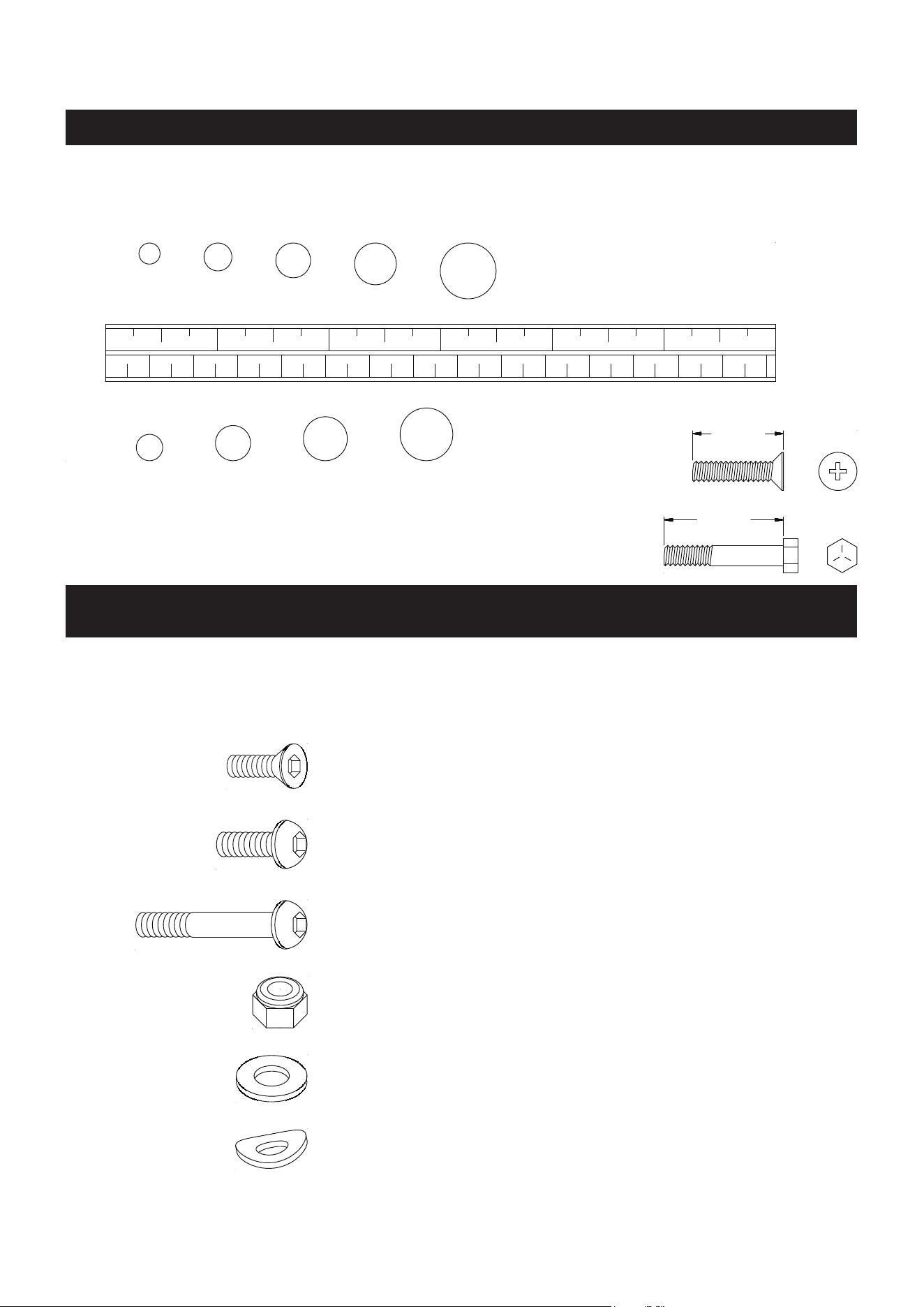

This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
35 Bolt, Flat Socket Head (M6 x 1 x 20mm) 8
38 Bolt, Button Head (M10 x 1.5 x 60mm) 2
45 Arc Washer (M6) 22
39 Nylock Nut (M10 x 1.5) 2
ASSEMBLY INSTRUCTIONS
8
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
NOTE: DO NOT SECURELY TIGHTEN ALL BOLTS UNTIL STEP 3.
STEP 1

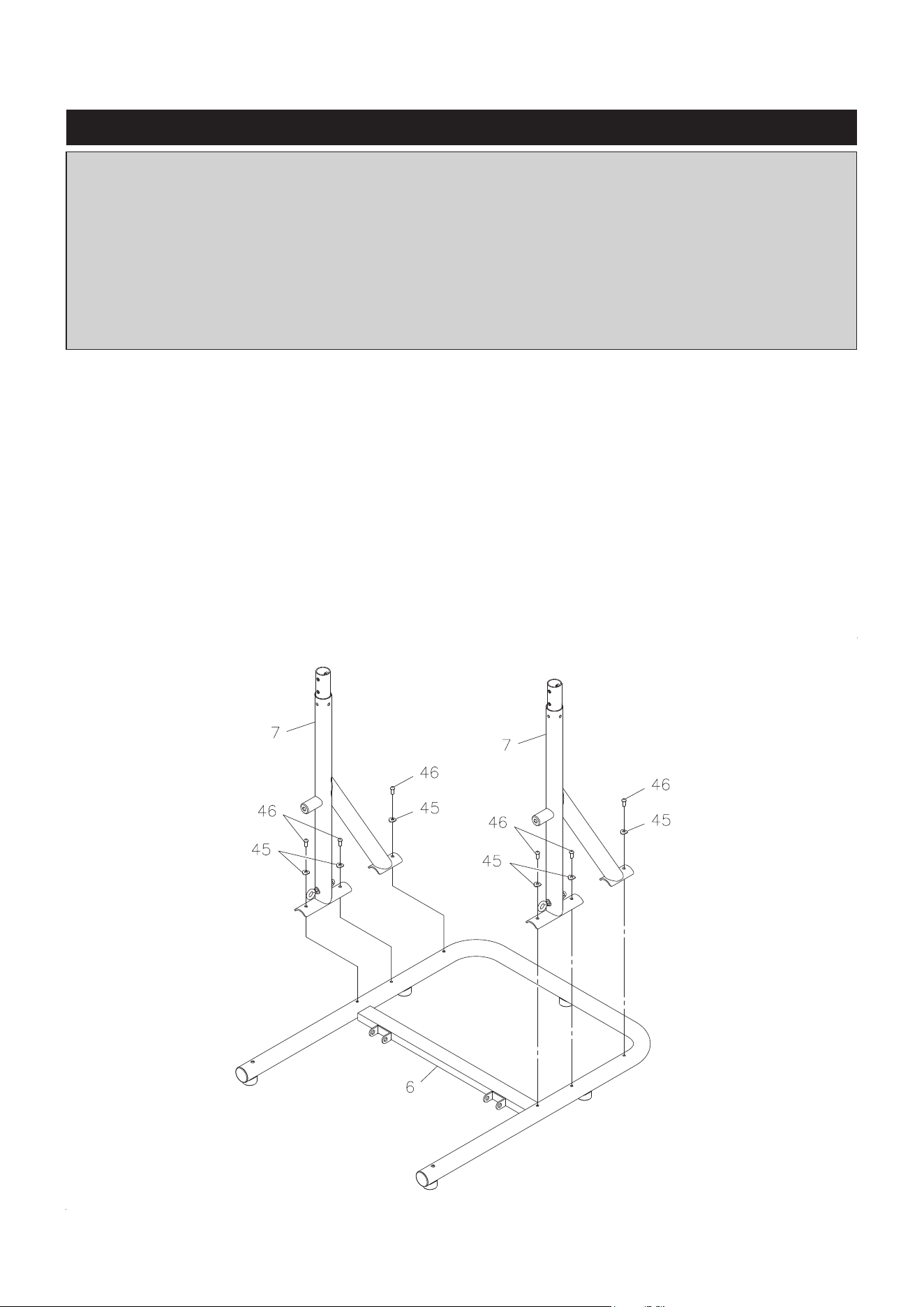

Attach the LOWER UPRIGHTS(7) to the BASE FRAME(6) with BUTTON HEAD BOLTS(M6x1x20mm)
(46) and ARC WASHERS(M6)(45).
ASSEMBLY INSTRUCTIONS
9
STEP 2

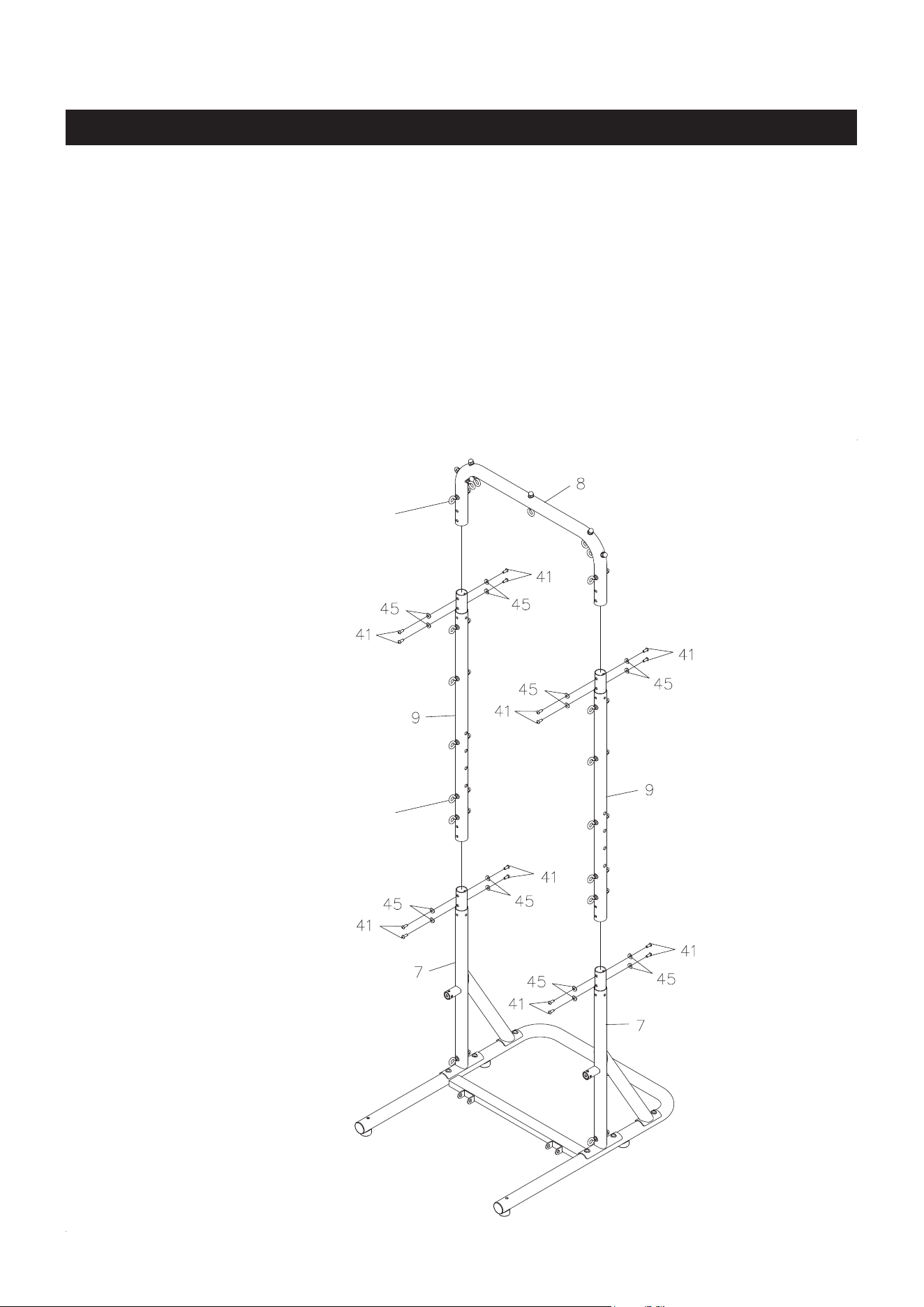

Make the EYEHOOKS(21) point to the front. Insert the UPRIGHTS(9) onto the LOWER UPRIGHTS(7)
and secure with BUTTON HEAD BOLTS(M6x1x15mm)(41) and ARC WASHERS(M6)(45).
STEP 3
Make the EYEHOOKS(21) point to the front. Insert the TOP CROSS BAR(8) onto the UPRIGHTS(9) and
secure with BUTTON HEAD BOLTS(M6x1x15mm)(41) and ARC WASHERS(M6)(45).
Securely tighten all of the bolts from STEP 1 to STEP 3.
Make the Eyehook(21)
point to the front.
Make the Eyehook(21)
point to the front.
FRONT
BACK
Button
A.
STEP 4
NOTE:
ASSEMBLY INSTRUCTIONS
10

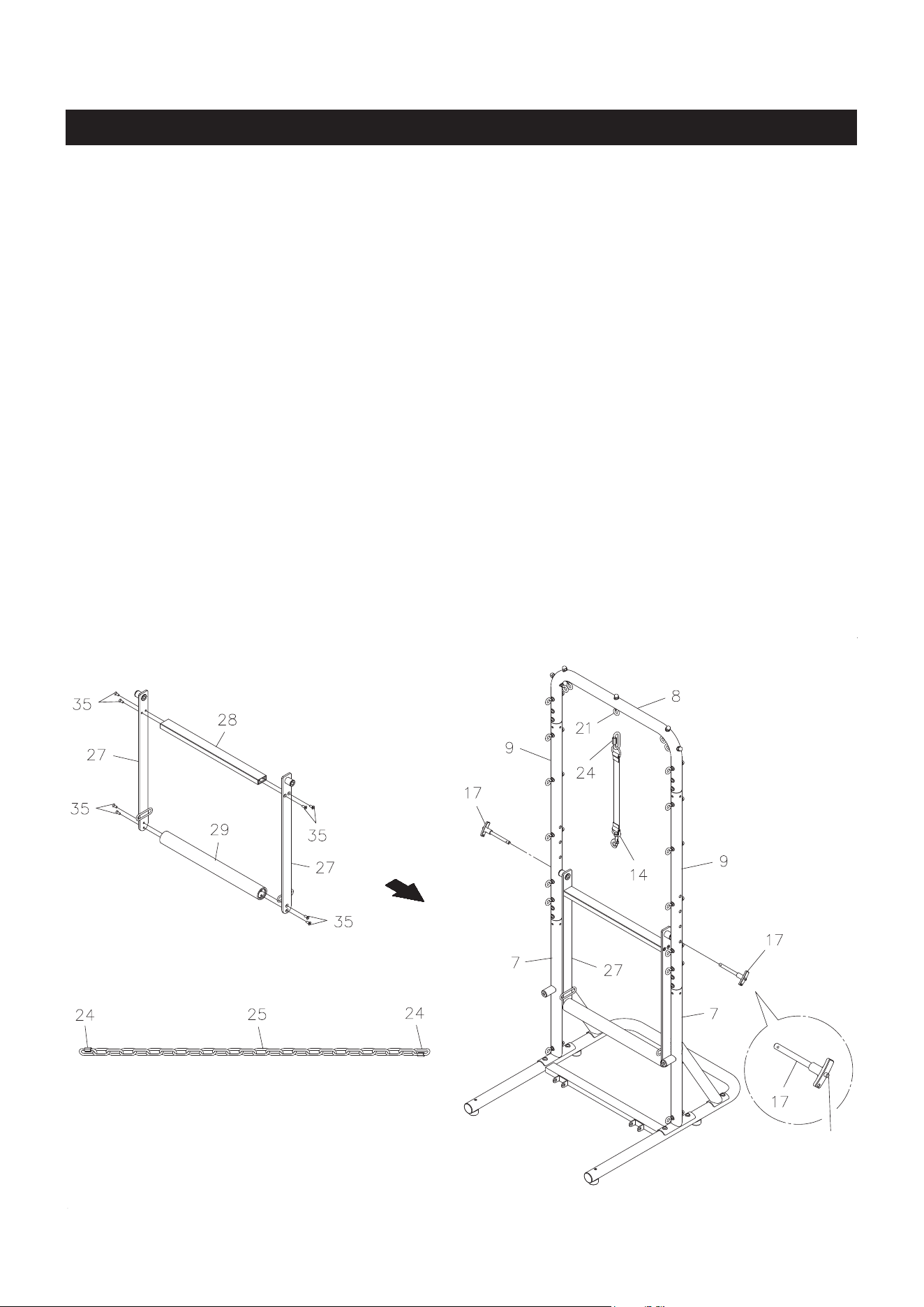

Refer to illustration A. Bolt the PUSH-THRU BARS(27), CROSSING BAR(28), and HANDLEBAR(29)
together with FLAT SOCKET HEAD BOLTS(M6x1x20mm)(35). Attach the PUSH-THRU BAR ASSEMBLY
(27) to one of the adjustment holes in the UPRIGHTS(9) with the LOCKING PINS(17). Always make sure
SAFETY CHAIN(25) is connected with the LINKS(24) when the PUSH-THRU BAR(27) is in use.
STEP 5
NOTE: Always use SECURING STRAP(14) to keep the PUSH-THRU BAR(27) in a secure position when
not in use.
Attach the SECURING STRAP(14) onto the center EYEHOOK(21) with the LINK(24) on the top of the
TOP CROSS BAR(8).
1. There are four adjustment holes in each UPRIGHT(9) that allow you to attach the PUSH-THRU
BAR(27) to four dierent heights.
2. Refer to the inset drawing. Push in the button on the “T” end of the LOCKING PIN(17) to release
the Steel Ball on the other end of the pin. Then you can insert the LOCKING PIN(17) into the
adjustment hole. Push the button to remove the pin.
ASSEMBLY INSTRUCTIONS
11
STEP 6

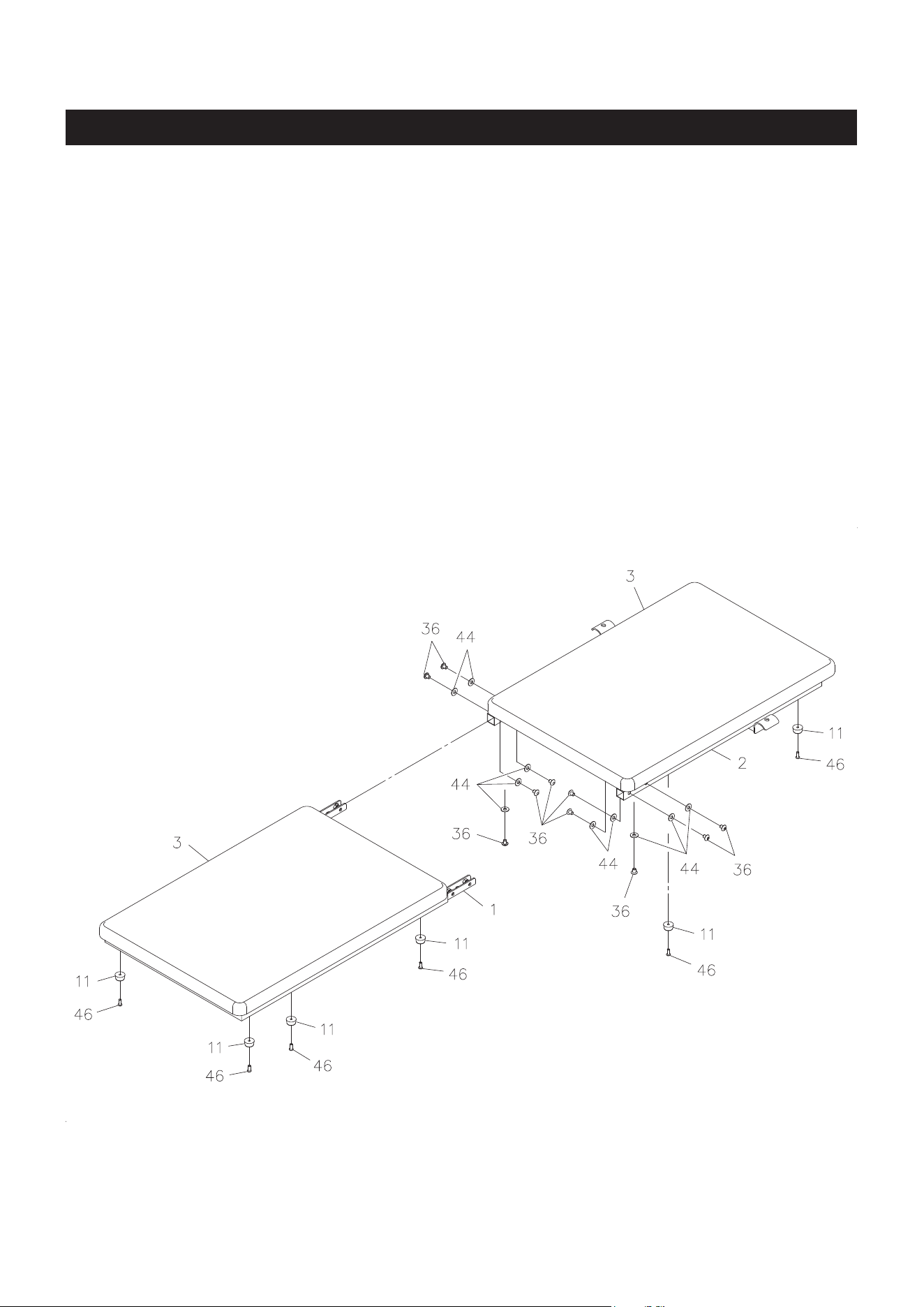

Attach the STANDS(11) to the FRONT CUSHION FRAME(1) and the REAR CUSHION FRAME(2) with
BUTTON HEAD BOLTS(M6x1x20mm)(46).
STEP 7
Insert the FRONT CUSHION FRAME(1) into the REAR CUSHION FRAME(2) and secure with BUTTON
HEAD BOLTS(M8x1.25x10mm)(36) and WASHERS(M8)(44).
ASSEMBLY INSTRUCTIONS
12
STEP 8
Refer to illustration B. Put a WASHER(M10)(40) onto each of the BUTTON HEAD BOLT(M10x1.5x60mm)
(38). Attach the REAR CUSHION FRAME(2) to the BASE FRAME(6) by inserting the BUTTON HEAD
BOLTS(M10x1.5x60mm)(38) with WASHERS(M10)(40) through the two brackets on the BASE FRAME(6)
and the REAR CUSHION FRAME(2).
STEP 9

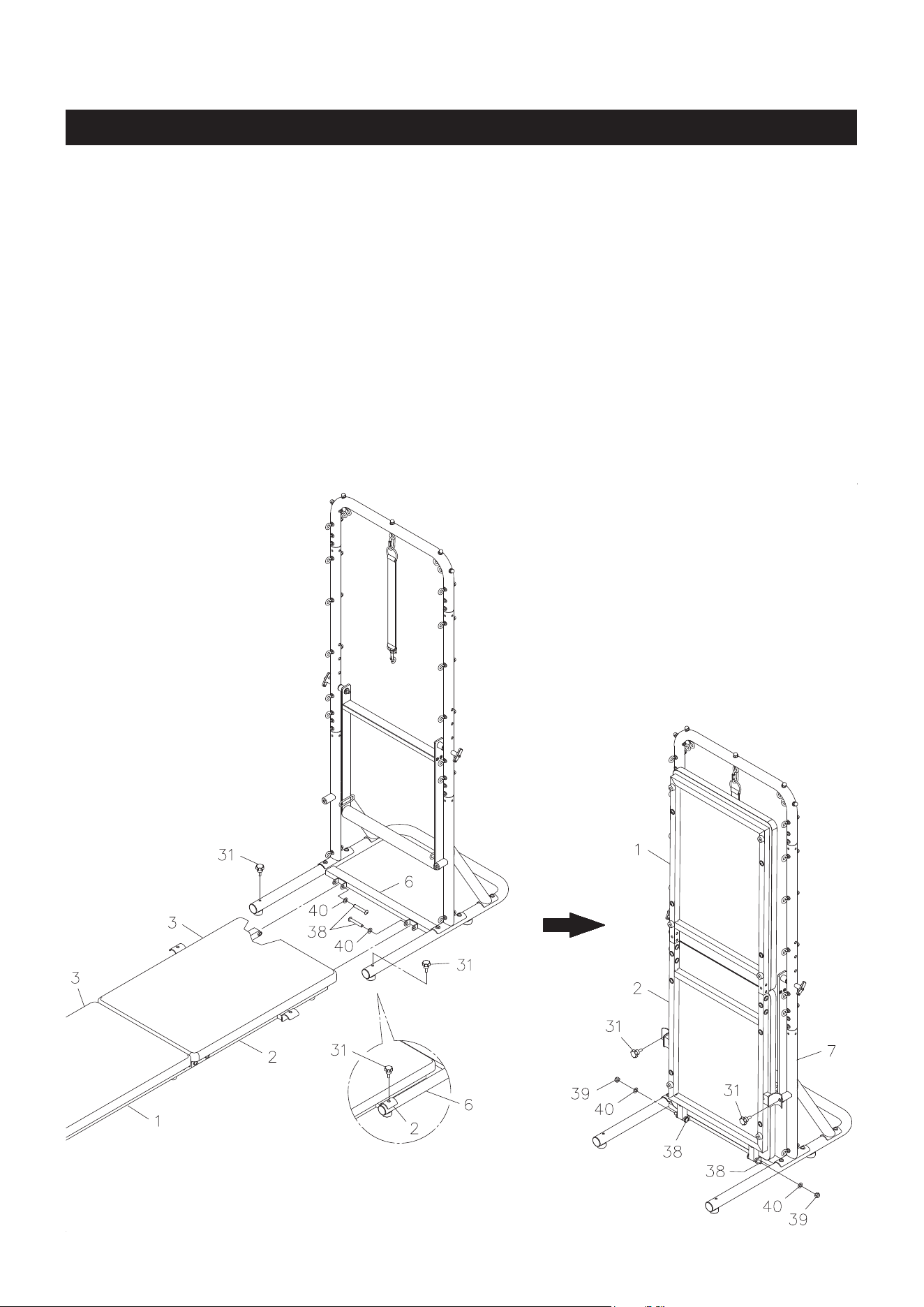

Refer to illustration C. Fold up the CUSHION ASSEMBLY(3) and lock in position by attaching the REAR
CUSHION FRAME(2) to the LOWER UPRIGHTS(7) with the LOCKING KNOBS(31). Secure the BUTTON
HEAD BOLTS(M10x1.5x60mm)(38) with NYLOCK NUTS(M10x1.5)(39) and WASHERS(M10)(40). Do not
over tighten the NYLOCK NUTS(M10x1.5)(39) to allow the CUSHION ASSEMBLY(3) to rotate.
Remove the LOCKING KNOBS(31) to fold down the CUSHION ASSEMBLY(3). Lock the CUSHION
ASSEMBLY(3) in its normal using position by attaching the REAR CUSHION FRAME(2) to the BASE
FRAME(6) with the LOCKING KNOBS(31). Refer to detail drawing D.
C.
B.
D.
TO USE THE ACCESSORIES:
NOTE:
Prior to adding the PUSH-THRU SPRING(19) to the PUSH-THRU BAR(27) make sure the SAFETY
CHAIN(25) is at a length that allows enough clearance to get under the PUSH-THRU BAR(27).
PUSH-THRU BAR
When doing exercises that require the spring resistance to come from above the bar, attach the PUSH-THRU
SPRING(19) to the hook on the upper side of the PUSH-THRU BAR(27) with the DOUBLE ENDED CLIP
(23). Attach the other end of the PUSH-THRU SPRING(19) to one of the eyehooks on the UPRIGHT(9)
with the LINK(24). When doing exercises that require the spring resistance to come from below the bar,
attach the PUSH-THRU SPRING(19) to the hook on the underside of the PUSH-THRU BAR(27) with the
DOUBLE ENDED CLIP(23). Attach the other end of the PUSH-THRU SPRING(19) to one of the eyehooks
on the LOWER UPRIGHT(7) with the LINK(24). Be sure that the SAFETY CHAIN(25) is always connected
to the PUSH-THRU BAR(27) when in use.
!
CAUTION
When using the PUSH-THRU SPRING(19) from below, you must hook the spring onto the
LOWER UPRIGHT(7) with the LINK(24) and make sure the SAFETY CHAIN(25) is connected. Ensure
that the SPRING SLEEVE(16) which covers the PUSH-THRU SPRING(19) is moved over the lower part
of the spring to avoid pulling the user’s hair or clothing.
13
EXTENSION CUSHION
Refer to the illustration below. For dierent exercises, you can place the
EXTENSION CUSHION(5) at the front of the CUSHIONS(3), or at the
back, inside the BASE FRAME(6).
OPERATIONAL INSTRUCTIONS
Place the Extension
Cushion(5) here for
some exercises.
OPERATIONAL INSTRUCTIONS
14
SAFETY CHAIN
The SAFETY CHAIN(25) must be used as follows:
When using the PUSH-THRU BAR(27) with spring attached from below to do arm or leg exercises, the
chain must be attached to the hook on the upper side of the bar on the same side as the spring and to an
EYEHOOK(21).
ROLL-DOWN BAR
The ROLL-DOWN BAR(10) attaches via the ARM SPRINGS(20) to the eyehooks on the TOP CROSS
BAR(8) between the two UPRIGHTS(9) with the LINKS(24). Attach the springs to the ROLL-DOWN
BAR(10) with the DOUBLE ENDED CLIPS(23). Ensure the links and clips are completely closed
and secure.
CAUTION: ROLL-DOWN BAR(10) can release at high velocity due to spring tension. Make sure a
secure grip is used at all times.
ARM EXERCISES
Attach ARM SPRINGS(20) to eyehooks at desired height with the LINKS(24). Attach the other ends of
the springs to the HAND/FOOT STRAPS(15) with the DOUBLE ENDED CLIPS(23). Ensure the links
and clips are completely closed and secured.
LEG EXERCISES
Attach LEG SPRINGS(18) to eyehooks at desired height with the LINKS(24). Attach the other ends of
the springs to the HAND/FOOT STRAPS(15) with the DOUBLE ENDED CLIPS(23). Ensure the links
and clips are completely closed and secured.
15

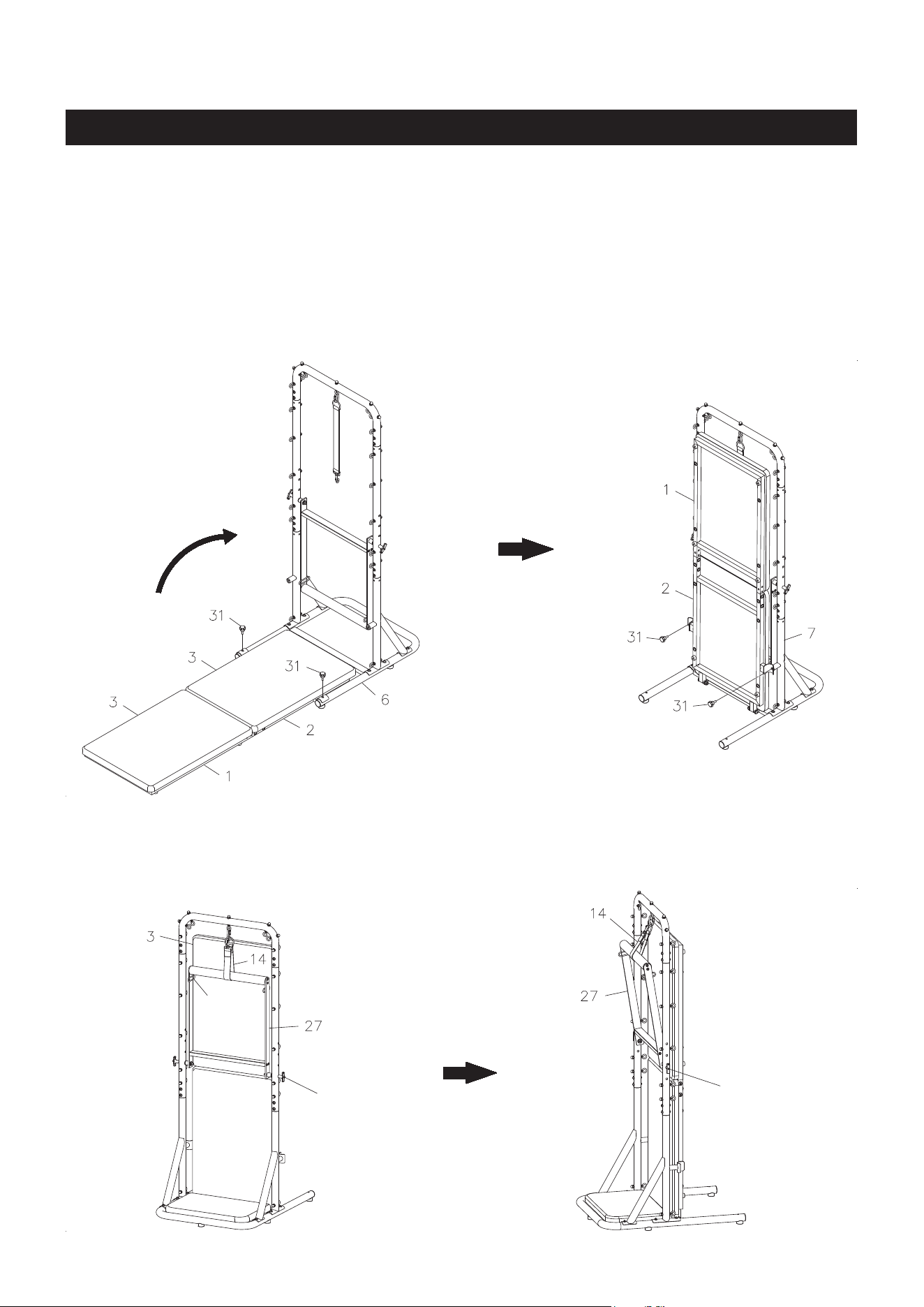

STORAGE
1. To store the AeroPilates® Precision Series Cadillac Studio Tower, simply keep it in a clean dry
place.
2. It is recommended that two people be available to move the AeroPilates® Precision Series Cadillac
Studio Tower. Fold the unit as instructed in the below diagrams, then lift to move.
3. Follow this process as described and illustrated to fold the AeroPilates® Precision Series Cadillac
Studio Tower for easy storage, or moving.
a. Remove the LOCKING KNOBS(31) from the REAR CUSHION FRAME(2).
b. Fold the CUSHION ASSEMBLY(3) upward and secure in folded position by attaching the REAR
CUSHION FRAME(2) to the LOWER UPRIGHTS(7).
NOTE: Refer to illustration E. When the PUSH-THRU BAR(27) is set at the lowest position and secured
with the SECURING STRAP(14) upward, then fold the CUSHION ASSEMBLY(3) up, the hook on the
PUSH-THRU BAR(27) may touch on the cushion and make a small dent.
We recommend to
set
the
PUSH-THRU BAR(27) at least one position higher than the lowest position
for folding the CUSHION
ASSEMBLY(3). Refer to illustration F.
F.
Hook
PUSH-THRU BAR
(27) be set at the
lowest position.
PUSH-THRU BAR
(27) be set at the
higher position.
E.
16
The safety and integrity designed into the AeroPilates® Precision Series Cadillac Studio Tower
can only be maintained when the AeroPilates® Precision Series Cadillac Studio Tower is regularly
examined for damage and wear. Special attention should be given to the following:
MAINTENANCE
1. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
2. Worn or damaged components must be replaced immediately or the AeroPilates® Precision Series
Cadillac Studio Tower removed from service until repair is made.
3. Verify that the CAUTION LABEL(32) is present and legible. Replace the CAUTION LABEL(32) if it is
missing or damaged.
4. Check the HAND/FOOT STRAPS(15) for damage. Replace damaged parts.
5. Check the FOAM GRIP(30). Replace if damaged or worn.
6.
Check the CUSHIONS(3) and the EXTENSION CUSHION(5), replace if any of them is damaged or worn.
7. Only Stamina Products supplied components should be used to maintain/repair the AeroPilates®
Precision Series Cadillac Studio Tower.
8. Keep your AeroPilates® Precision Series Cadillac Studio Tower clean by wiping with an absorbent
cloth after use.
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
17
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
18
LIMITED WARRANTY
MODEL 55-5604
19
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free
from defects in materials and workmanship that arise under normal use, service, proper assembly and
proper operation in accordance with product warnings/instructions for a period of 90 days on the parts
and five years on the frame from the date of the original purchase from an authorized retailer. THIS
WARRANTY SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO ABUSE,
MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY IMPROPER
ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT PROVIDED BY
STAMINA.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’s expense, to Stamina’s premises in Springeld, Missouri. Return of the enclosed warranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.

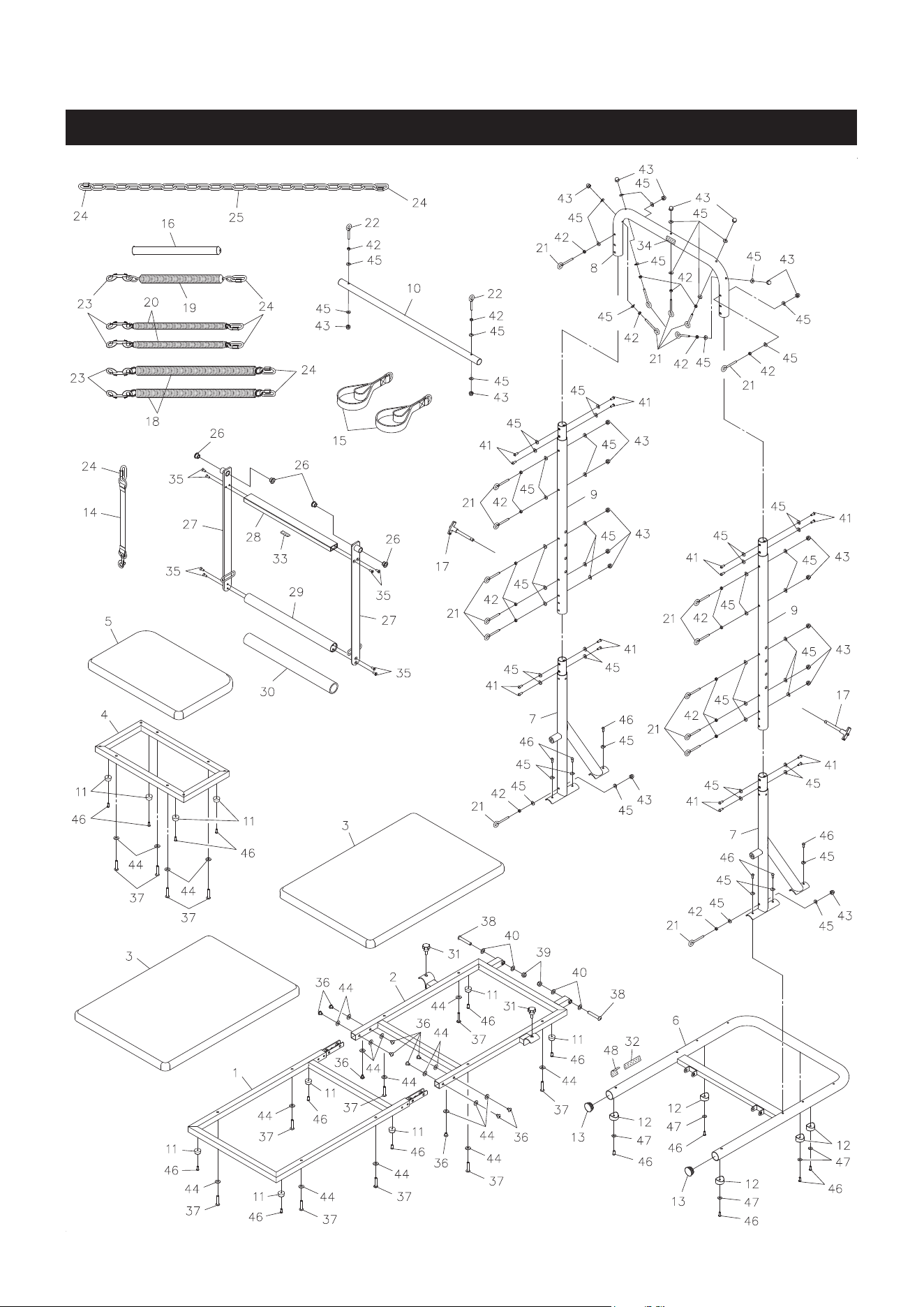

PRODUCT PARTS DRAWING
20
FRONT
BACK
PARTS LIST
21
1 Front Cushion Frame 1
2 Rear Cushion Frame 1
3 Cushion 2
4 Extension Cushion Frame 1
5 Extension Cushion 1
6 Base Frame 1
7 Lower Upright 2
8 Top Cross Bar 1
9 Upright 2
10 Roll-Down Bar 1
11 Stand 10
12 Base Stand 5
13 Round Plug (Ø38.1mm) 2
14 Securing Strap 1
15 Hand/Foot Strap 2
16 Spring Sleeve 1
17 Locking Pin 2
18 Leg Spring (Ø2.3 x Ø29.2 x 610mm) 2
19 Push-Thru Spring (Ø2.67 x Ø29 x 500mm) 1
20 Arm Spring (Ø2.0 x Ø23 x 477mm) 2
21 Eyehook (Ø6 x Ø26 x 80mm, M6 x 1 x 54mm) 19
22 Short Eyehook (Ø6 x Ø26 x 74mm, M6 x 1 x 47mm) 2
23 Double Ended Clip 5
24 Link 8
25 Safety Chain (Ø7 x 27mm x 52mm x 24 links) 1
26 Plastic Bushing 4
27 Push-Thru Bar 2
28 Crossing Bar 1
29 Handlebar 1
30 Foam Grip (Ø36 x Ø43 x 472mm) 1
31 Locking Knob 2
32 Caution Label 1
33 Pull-Thru Bar Caution Decal 1
34 Top Cross Bar Caution Decal 1
35 Bolt, Flat Socket Head (M6 x 1 x 20mm, with threadlocker) 8
36 Bolt, Button Head (M8 x 1.25 x 10mm, with threadlocker) 10
37 Bolt, Button Head (M8 x 1.25 x 40mm) 12
38 Bolt, Button Head (M10 x 1.5 x 60mm) 2
39 Nylock Nut (M10 x 1.5) 2
40 Washer (M10) 4
41 Bolt, Button Head (M6 x 1 x 15mm, with threadlocker) 16
42 Nut (M6 x 1) 21
43 Acorn Nut (M6 x 1) 21
44 Washer (M8) 22
45 Arc Washer (M6) 64
46 Bolt, Button Head (M6 x 1 x 20mm) 21
47 Washer (M6) 5
48 Serial Decal 1
49 Wrench 1
50 Allen Wrench(4mm) 1
51 Allen Wrench(6mm) 1
52 Manual 1
PART# PART NAME QTY
NOTES
22
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
