SAFETY INSTRUCTIONS
3
1. Save these instructions and ensure that other exercisers read this manual prior to using the
AeroPilates® Precision Pilates Chair for the rst time.
2. Read all warnings and cautions posted on the AeroPilates® Precision Pilates Chair.
3. The AeroPilates® Precision Pilates Chair should only be used after a thorough review of the
Owner’s Manual. Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the AeroPilates® Precision Pilates Chair. Do not allow children to
use or play on the AeroPilates® Precision Pilates Chair. Keep children and pets away from the
AeroPilates® Precision Pilates Chair at all times.
6. It is recommended that you place this product on an equipment mat.
7. Set up and operate the AeroPilates® Precision Pilates Chair on a solid level surface. Do not
position the AeroPilates® Precision Pilates Chair on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the AeroPilates® Precision
Pilates Chair.
9. Before using, inspect the AeroPilates® Precision Pilates Chair for worn or loose components,
and securely tighten or replace any worn or loose components prior to use.
10. Consult your physician before using this product. If you feel faint, dizzy, or experience pain during
use, stop immediately and consult with your physician.
11. Choose the intensity that ts your strength and exibility level. Know your body's limits and use
this product within them. Use common sense when using this product.
12. Do not wear loose or dangling clothing while using the AeroPilates® Precision Pilates Chair.
13. Be careful to maintain your balance while using, mounting, dismounting, or assembling the
AeroPilates® Precision Pilates Chair, loss of balance may result in a fall and serious bodily
injury.
14. The AeroPilates® Precision Pilates Chair should not be used by persons weighing over 250
pounds.
15. The AeroPilates® Precision Pilates Chair should be used by only one person at a time.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. Failure to follow all warnings
and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the
AeroPilates® Precision Pilates Chair
.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.

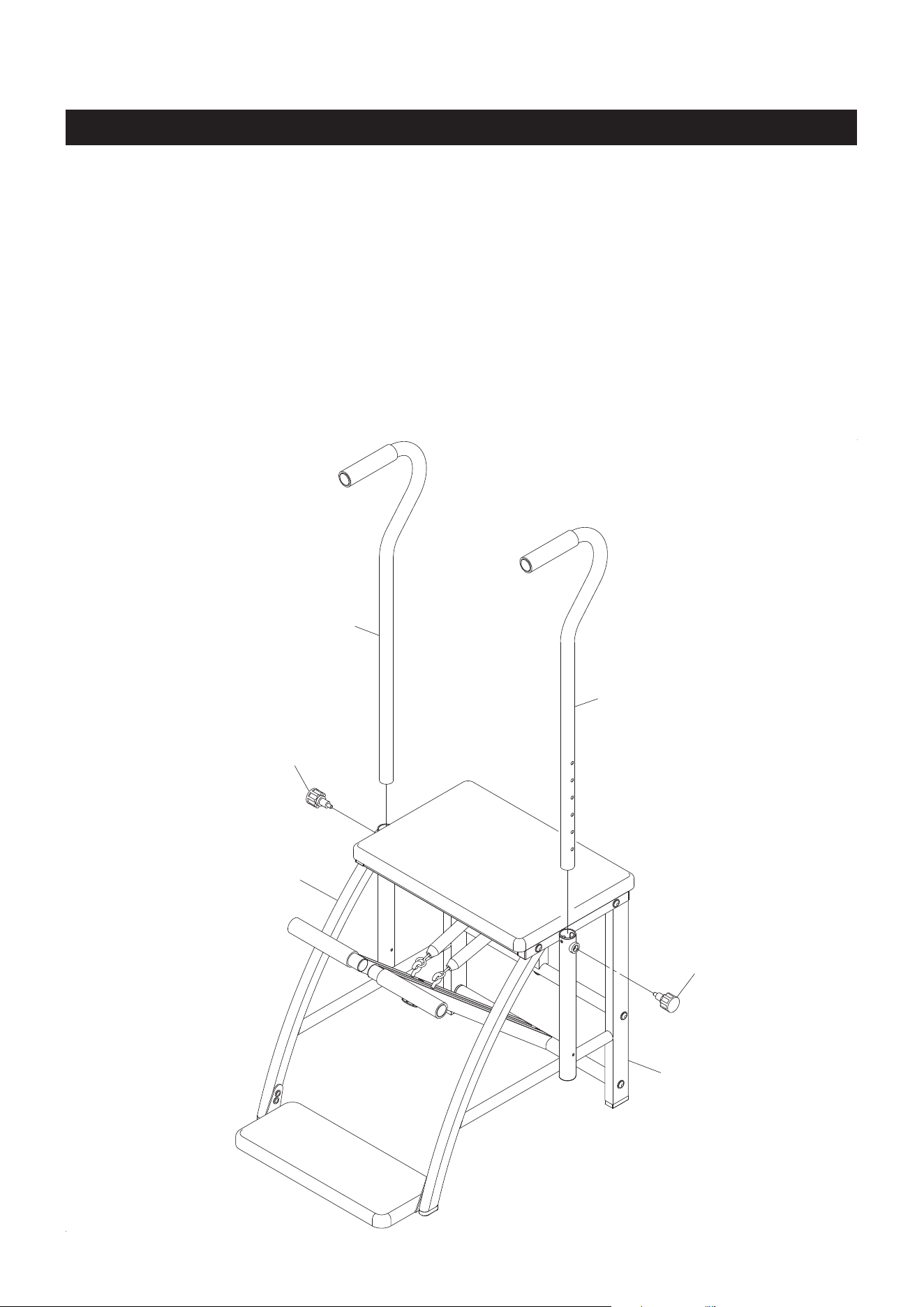

Left Frame
Spring
Right Handlebar
Cushion
Adjustment Knob
Left Handlebar
Foot Board
Adjustment Knob
Right Pedal Arm
Right Frame
BEFORE YOU BEGIN
Caution Label

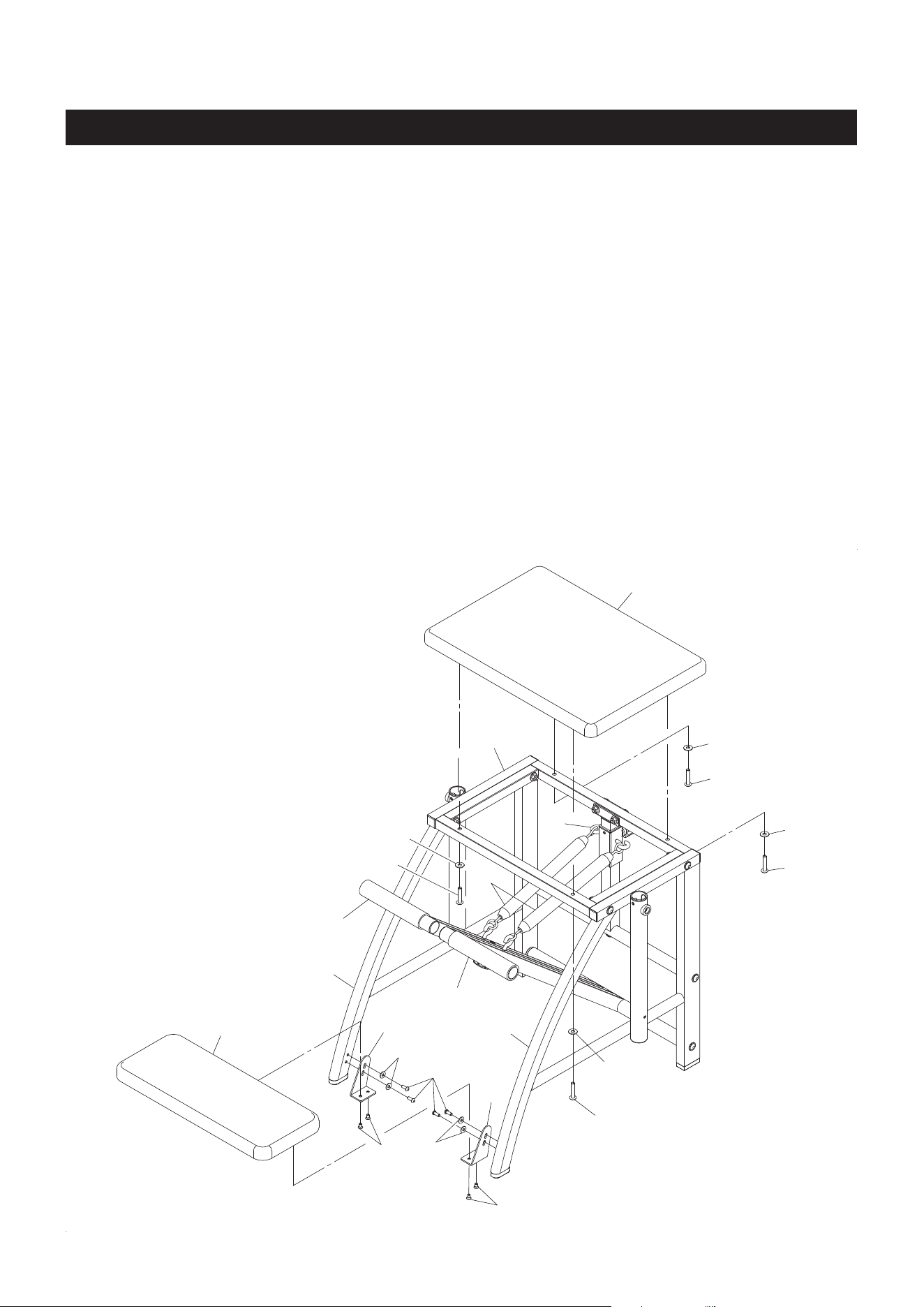

Thank you for choosing the AeroPilates®
Precision Pilates Chair. We take great pride in
this quality product and hope it will provide many
hours of quality exercise to make you feel better,
look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The AeroPilates®
Precision Pilates Chair provides a convenient
and simple method to begin your journey of getting
your body in shape and achieving a happier and
healthier lifestyle.

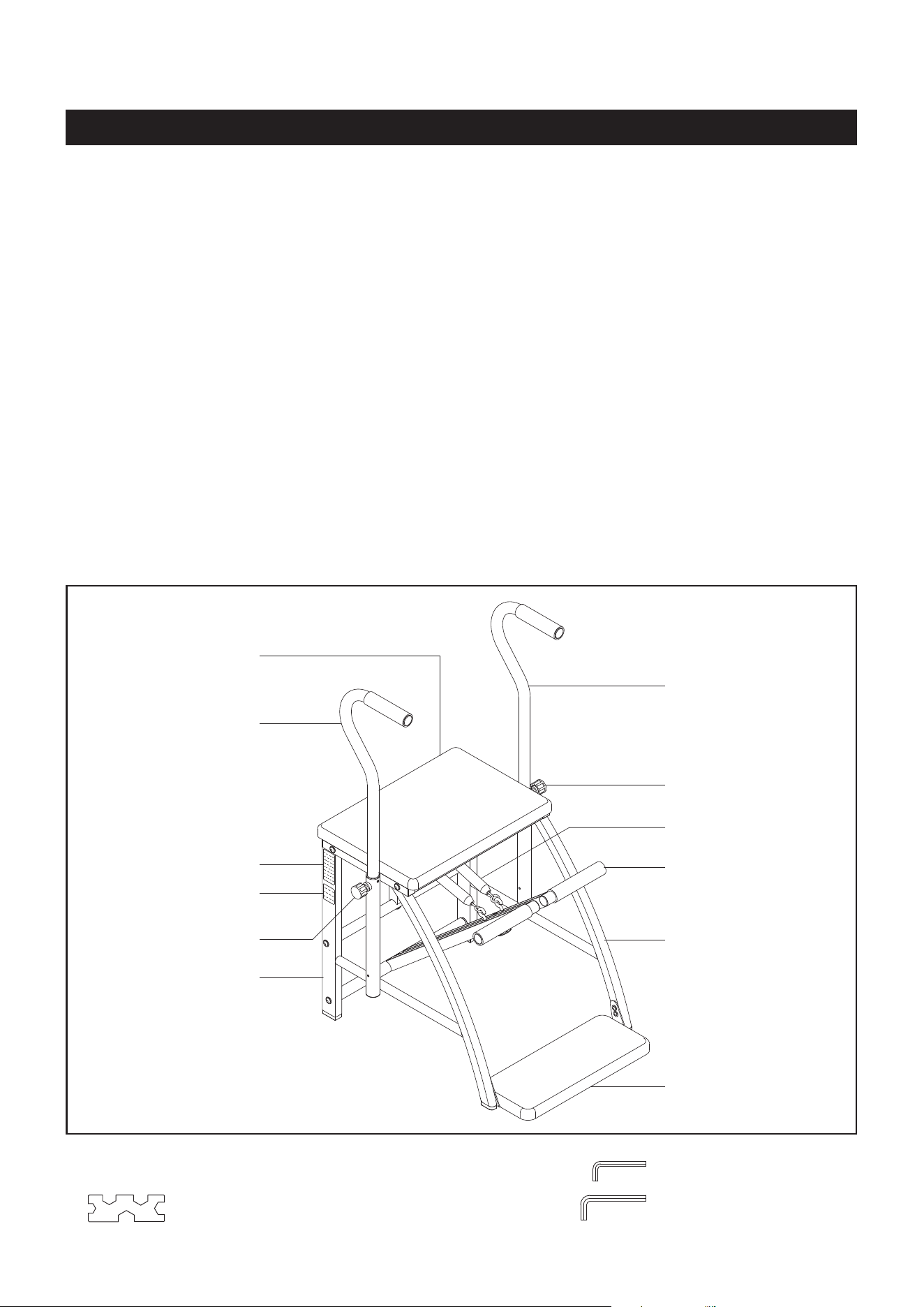

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See
page 6 for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
AeroPilates® Precision Pilates Chair.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be
a missing or incorrectly sized part. If you have
any questions or problems with the parts included
with your AeroPilates® Precision Pilates Chair,
please do not return the product. Contact us
FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Serial Decal
5
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Allen Wrench (4mm)
Allen Wrench (6mm)
Wrench
6

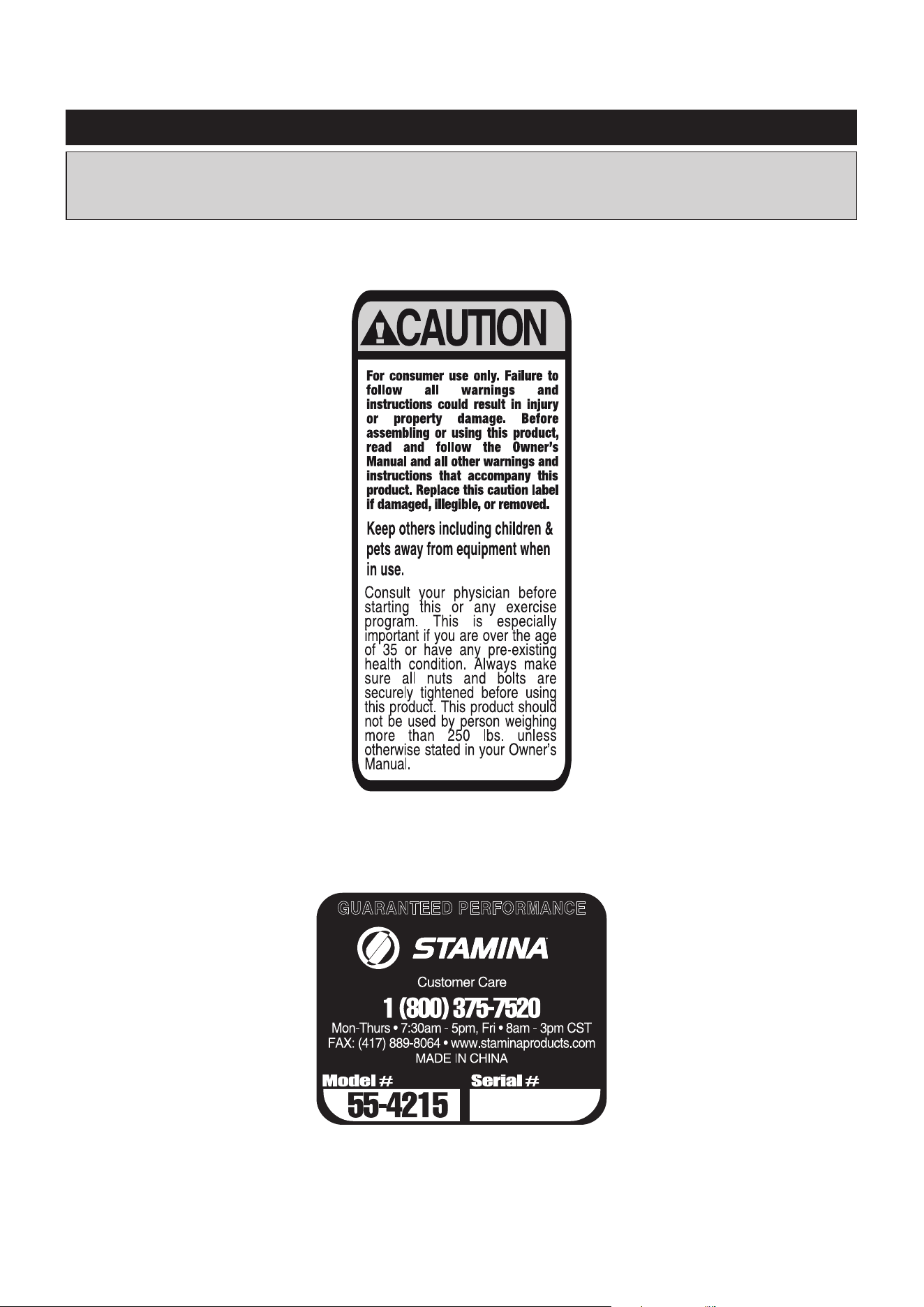

This chart is provided to help identify the warning, caution, and notice labels on the AeroPilates®
Precision Pilates Chair. Please take a moment to familiarize yourself with all of the warning, caution,
and notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(41)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(42)
11 Washer (M8) 20
19 Washer (M6) 4
34 Plastic Washer (ø32.5 x ø45 x 2mm thick) 1
15 Nylock Nut (M8) 6
Part Number and Description Qty
14 Bolt, Button Head (M8 x 1.25 x 20mm) 2
29 Bolt, Button Head (M6 x 1 x 15mm) 4
12 Arc Washer (M8) 1
18 Bolt, Flat Socket Head (M6 x 1 x 10mm) 4
7
length
length
mm.
in.
INCHES

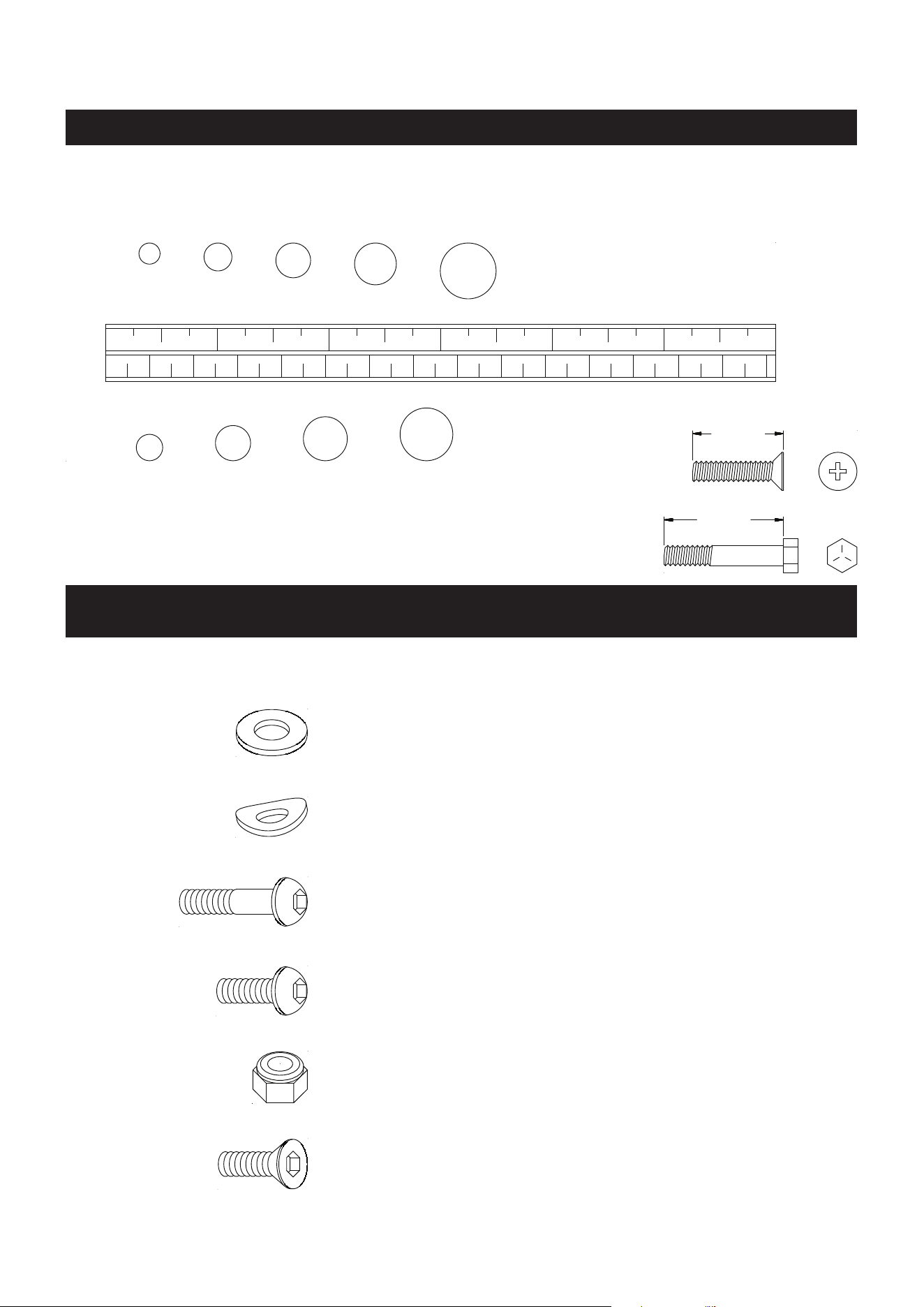

This chart is provided to help identify the fasteners used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
13 Bolt, Button Head (M8 x 1.25 x 70mm) 4
16 Bolt, Button Head (M8 x 1.25 x 40mm) 4
17 Bolt, Button Head (M8 x 1.25 x 45mm) 5
ASSEMBLY INSTRUCTIONS
8
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
1
2
14
13
11
15
11
11
4
13
11
NOTE: DO NOT SECURELY TIGHTEN ALL BOLTS UNTIL STEP 7.

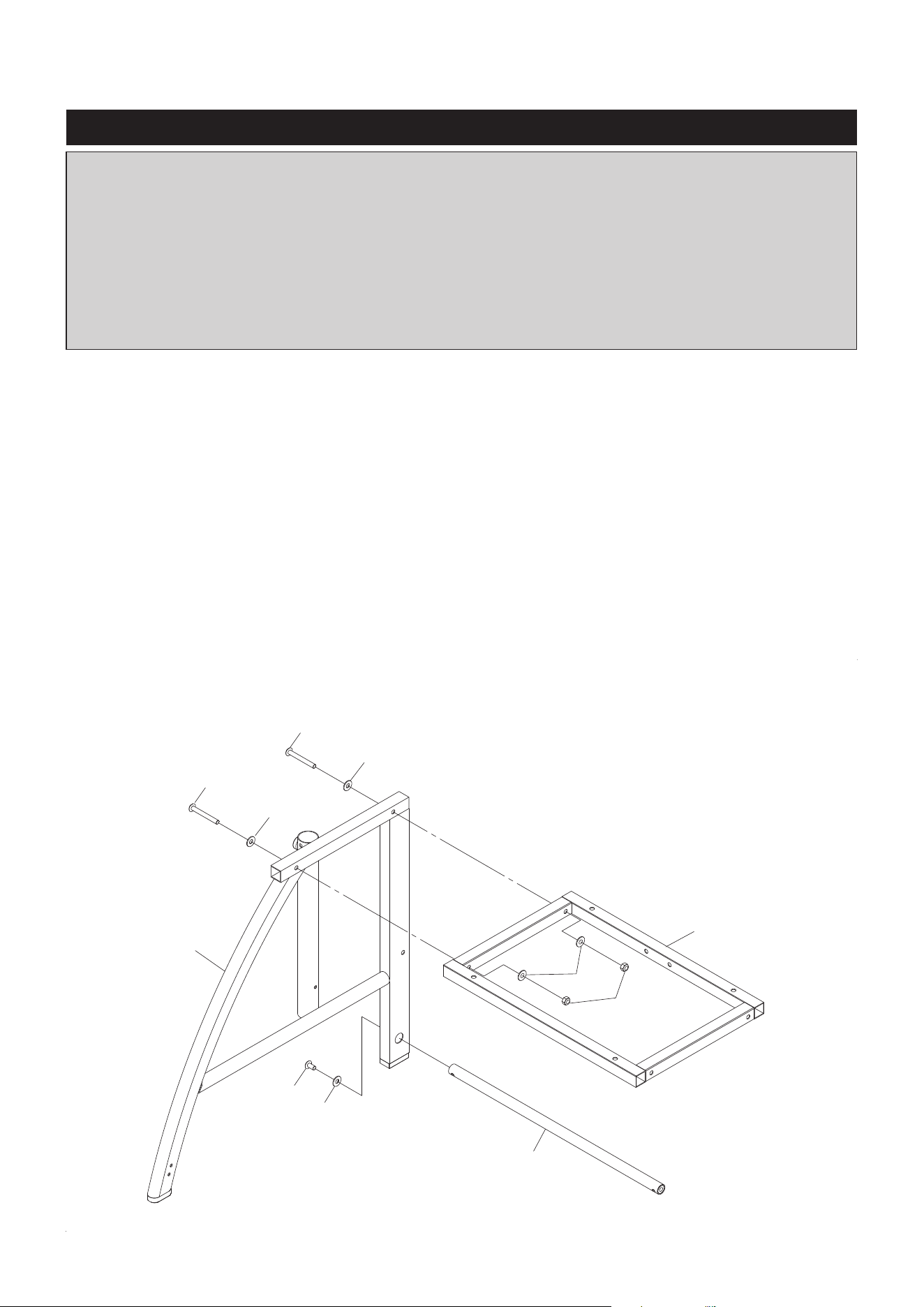

STEP 1
Attach the CUSHION FRAME(1) to the LEFT FRAME(2) with BUTTON HEAD BOLTS(M8x1.25x70mm)
(13), NYLOCK NUTS(M8x1.25)(15), and WASHERS(M8)(11).
STEP 2
Attach the PEDAL SHAFT(4) to the LEFT FRAME(2) with BUTTON HEAD BOLT(M8x1.25x20mm)(14)
and WASHER(M8)(11).
ASSEMBLY INSTRUCTIONS

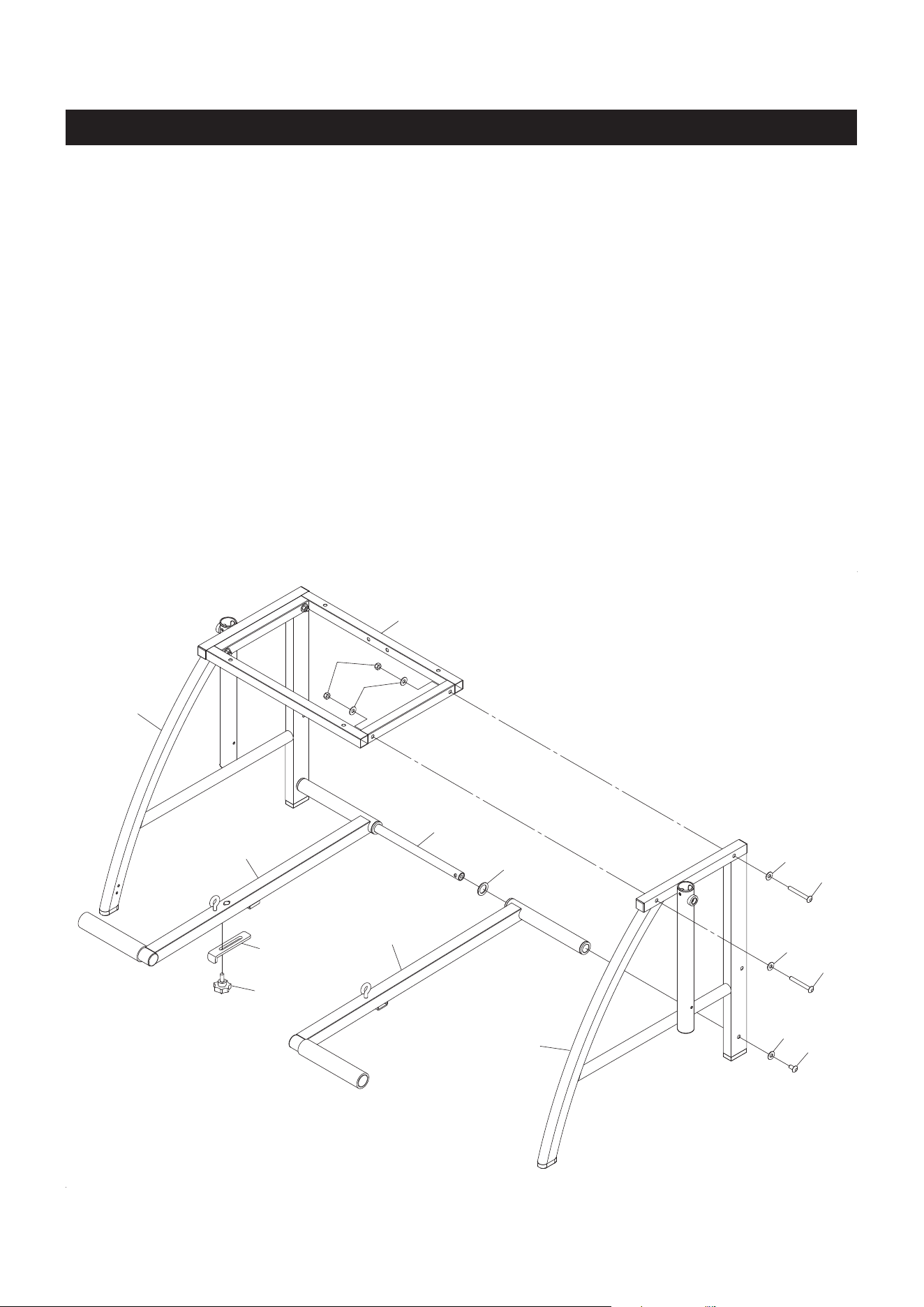

STEP 3

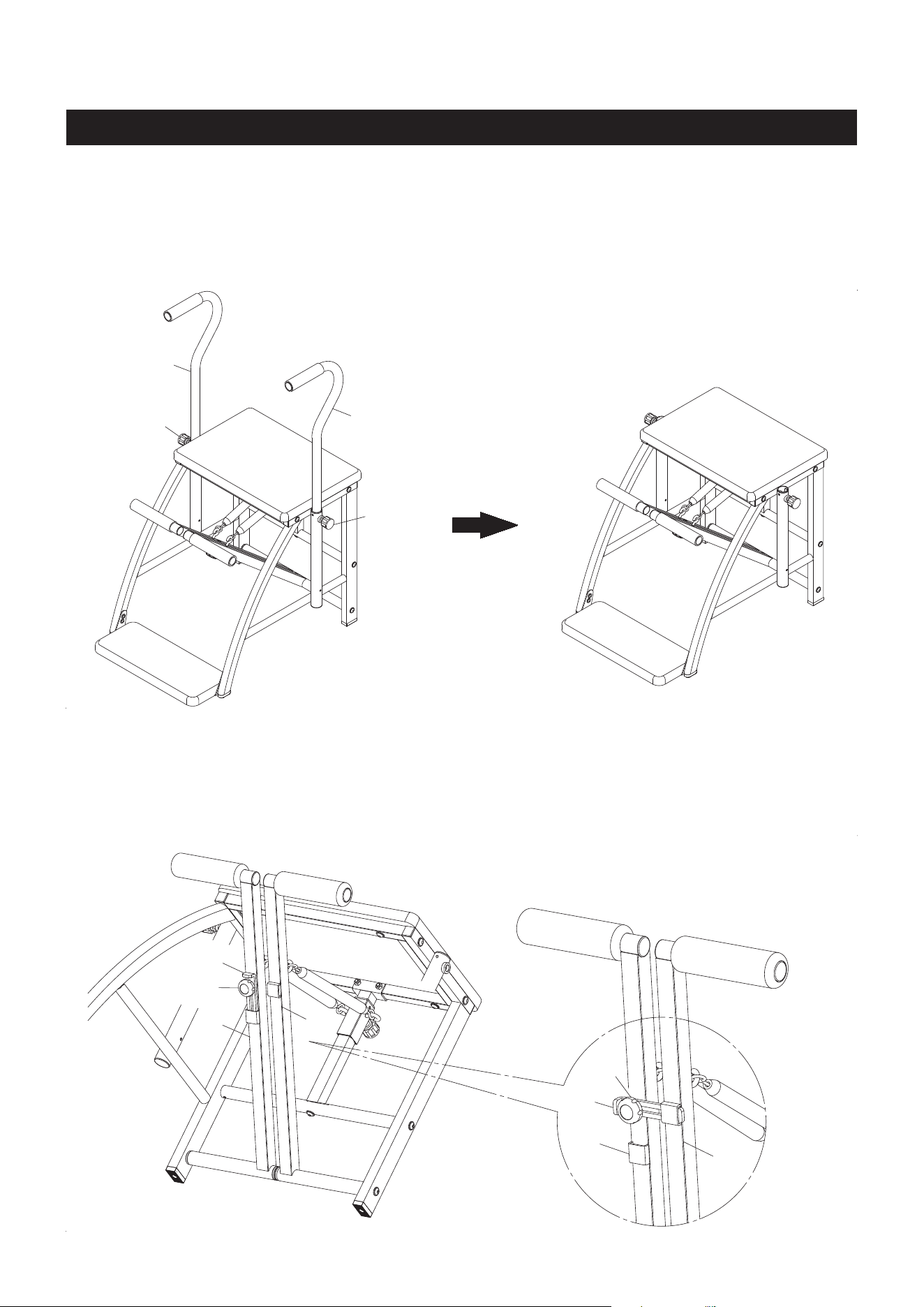

Insert the LATCH(37) into the bracket on the LEFT PEDAL ARM(33) and lock in position with the
LOCKING KNOB(36). Refer to the illustration. Slide the LEFT PEDAL ARM(33), PLASTIC WASHER
(34), and RIGHT PEDAL ARM(32) onto the PEDAL SHAFT(4).
STEP 4
Attach the CUSHION FRAME(1) to the RIGHT FRAME(20) with BUTTON HEAD BOLTS
(M8x1.25x70mm)(13), NYLOCK NUTS(M8x1.25)(15), and WASHERS(M8)(11). Attach the PEDAL
SHAFT(4) to the RIGHT FRAME(20) with BUTTON HEAD BOLT(M8x1.25x20mm)(14) and WASHER
(M8)(11).
9
14
15
11
11
13
11
13
11
1
2
4
34
37
36
33
32
20
ASSEMBLY INSTRUCTIONS

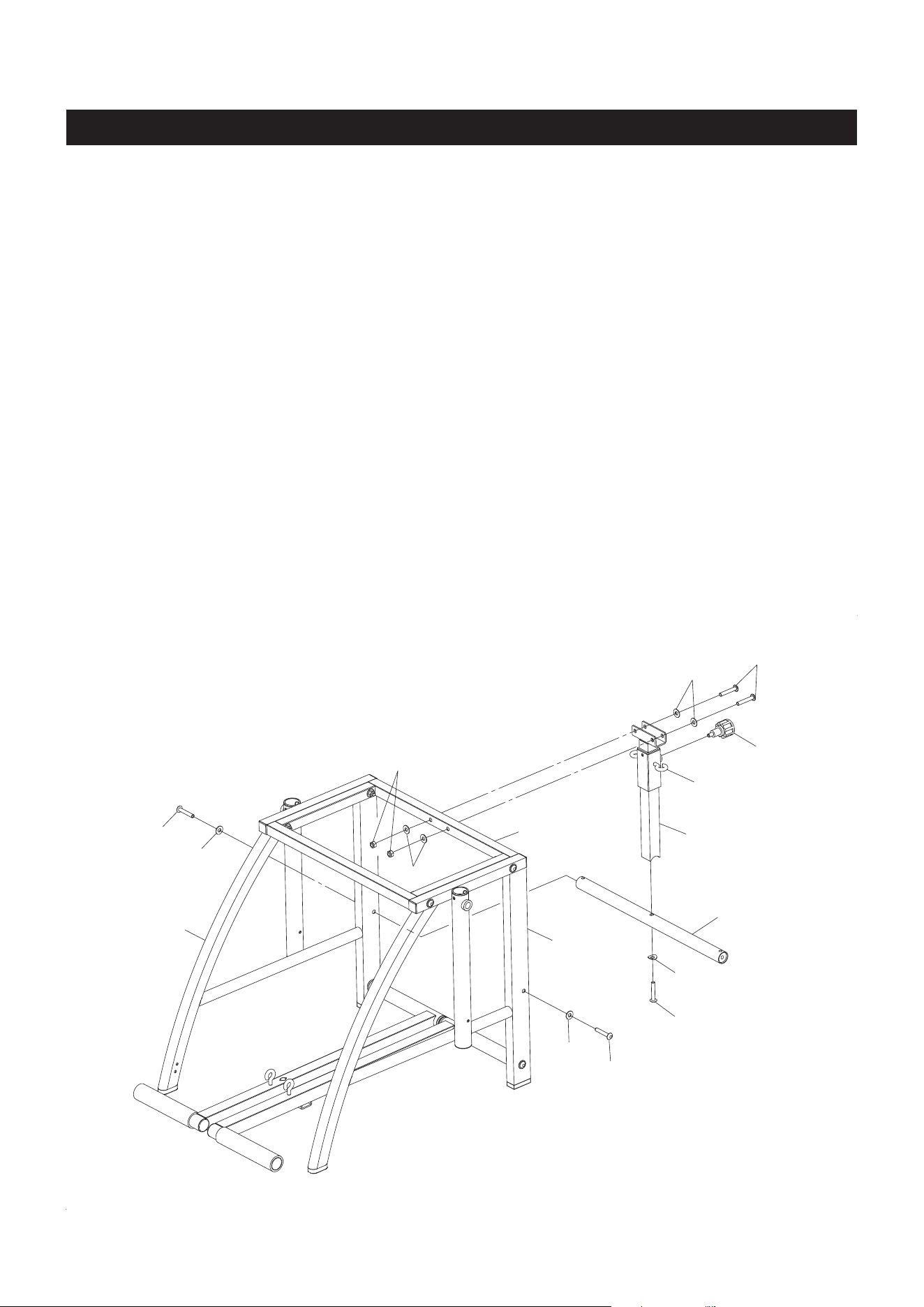

STEP 5
Slide the SLIDER(5) onto the SPRING SUPPORT(6) and lock in position with the ADJUSTMENT
KNOB(26). Make sure the pin of the ADJUSTMENT KNOB(26) catches in one of the adjustment holes
of the SPRING SUPPORT(6) and tighten the ADJUSTMENT KNOB(26).
STEP 6
Attach the SPRING SUPPORT(6) to the CUSHION FRAME(1) with BUTTON HEAD BOLTS
(M8x1.25x45mm)(17), NYLOCK NUTS(M8x1.25)(15), and WASHERS(M8)(11).
STEP 7
Refer to the illustration. Attach the CROSSING BAR(7) to the bottom of the SPRING SUPPORT(6)
with BUTTON HEAD BOLT(M8x1.25x45mm)(17) and ARC WASHER(M8)(12). Attach both
ends of the CROSSING BAR(7) to the LEFT and RIGHT FRAME(2, 20) with BUTTON HEAD
BOLTS(M8x1.25x45mm)(17) and WASHERS(M8)(11).
Securely tighten all of the bolts from STEP 1 to STEP 7.
10
17
11
17
11
17
15
11
11
5
6
26
17
7
12
1
2
20
ASSEMBLY INSTRUCTIONS
11
STEP 8
Attach the CUSHION(10) to the CUSHION FRAME(1) with BUTTON HEAD BOLTS(M8x1.25x40mm)(16)
and WASHERS(M8)(11).
STEP 9
Hook a SPRING(3) to the hooks on the RIGHT PEDAL ARM(32) and the SLIDER(5). Repeat on the left
side.
STEP 10
Attach the LEFT and RIGHT BRACKETS(8, 21) to the bottom of the FOOT BOARD(9) with FLAT
SOCKET HEAD BOLTS(M6x1x10mm)(18). Install the FOOT BOARD(9) by attaching the LEFT and
RIGHT BRACKETS(8, 21) to the LEFT and RIGHT FRAME(2, 20) with BUTTON HEAD BOLTS
(M6x1x15mm)(29) and WASHERS(M6)(19).
9
10
1
11
16
11
16
11
16
11
16
2
18
20
21
18
8
19
29
19
32
33
3
5
ASSEMBLY INSTRUCTIONS
12
STEP 11
Insert the RIGHT HANDLEBAR(31) into the RIGHT FRAME(20) and lock in position with the
ADJUSTMENT KNOB(26). Make sure the pin of the ADJUSTMENT KNOB(26) catches in one of the
adjustment holes of the RIGHT HANDLEBAR(31) and tighten the ADJUSTMENT KNOB(26). Repeat on
the lift side.
To adjust the height of the HANDLEBARS(30, 31), loosen the ADJUSTMENT KNOB(26) on the
right side, but do not remove, then pull the ADJUSTMENT KNOB(26) to release the pin. Slide the
RIGHT HANDLEBAR(31) up or down to the desired position. Release the ADJUSTMENT KNOB(26)
making sure the pin catches in one of the holes of the RIGHT HANDLEBAR(31). Always tighten the
ADJUSTMENT KNOB(26) after adjusting the RIGHT HANDLEBARS(31) to a new position. Repeat on
the left side, and make both HANDLEBARS(30, 31) the same height.
31
30
26
26
2
20
OPERATIONAL INSTRUCTIONS
13
CONNECTING THE PEDAL ARMS
Loosen the LOCKING KNOB(36), but do not remove, then pull the LATCH(37) out from the LEFT
PEDAL ARM(33). Turn the LATCH(37) 90 degrees and insert it into the bracket on the RIGHT PEDAL
ARM(32). Tighten the LOCKING KNOB(36) to lock the LATCH(37) in position. Refer to the detailed view.
USING THE AeroPilates® Precision Pilates Chair
The AeroPilates® Precision Pilates Chair can be used without the HANDLEBARS(30, 31). Loosen the
ADJUSTMENT KNOB(26) on the right side, but do not remove, then pull the ADJUSTMENT KNOB(26)
to release the pin for removing the RIGHT HANDLEBAR(31). Tighten the ADJUSTMENT KNOB(26).
Repeat on the left side.
32
37
36
33
32
37
36
33
31
30
26
26
OPERATIONAL INSTRUCTIONS
14

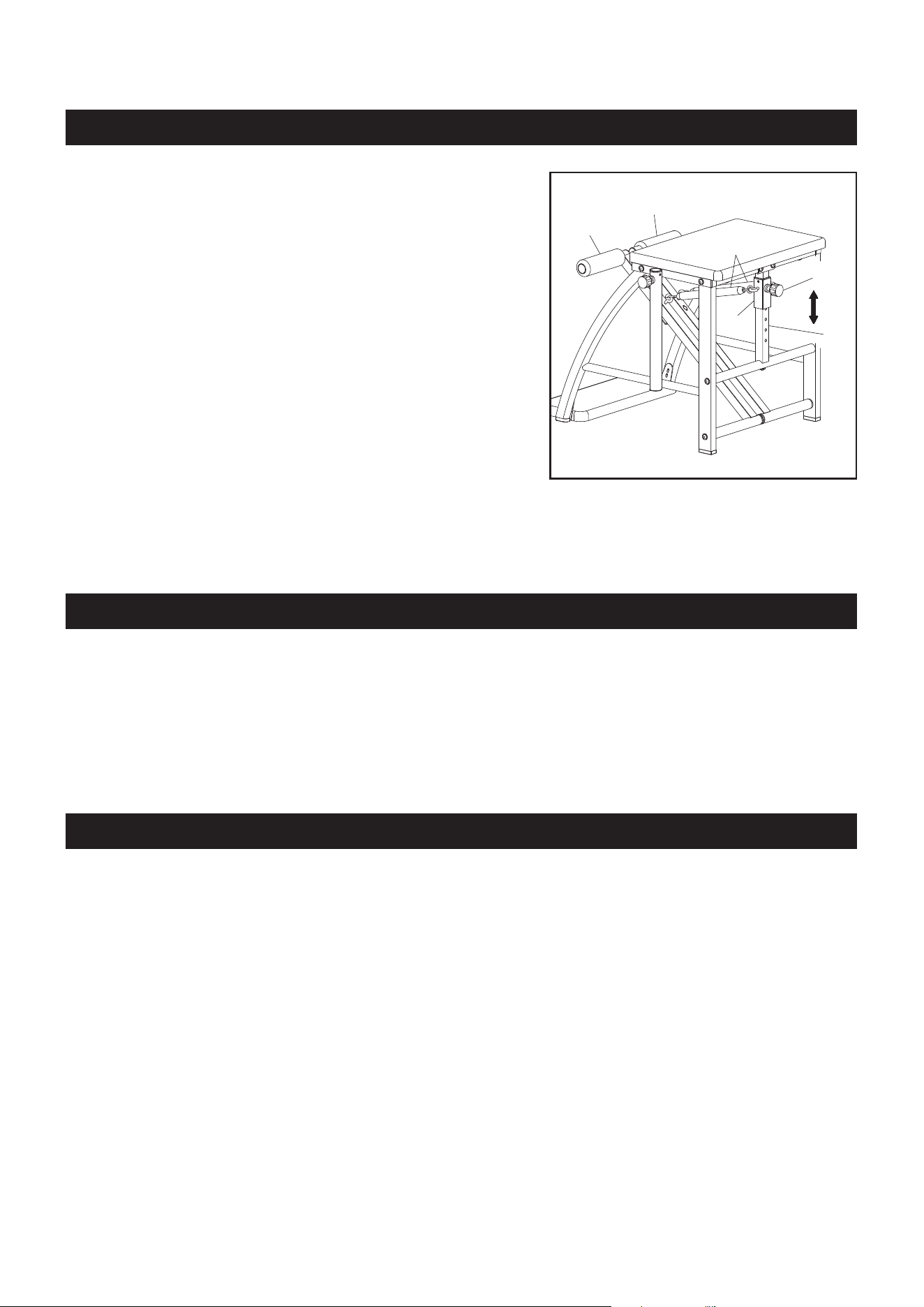

PEDAL ARM RESISTANCE ADJUSTMENT
Loosen the ADJUSTMENT KNOB(26), but do not remove,
then pull the ADJUSTMENT KNOB(26) to release the pin.
Slide the SLIDER(5) up or down to desired position. Release
the ADJUSTMENT KNOB(26) making sure the pin catches in
one of the holes of the SPRING SUPPORT(6). Always tighten
the ADJUSTMENT KNOB(26) after adjusting the SLIDER(5)
to a new position.
Move the SLIDER(5) to higher position for more spring tension
resistance. Move the SLIDER(5) to lower position for less
spring tension resistance. When the PEDAL ARMS(32, 33)
are connected you may choose to use only one SPRING(3)
if less resistance is desired.
STORAGE
1. To store the AeroPilates® Precision Pilates Chair, simply keep it in a clean dry place.
2. It is recommended that two people be available to move the AeroPilates® Precision Pilates Chair.
3. Lift from the LEFT and RIGHT FRAMES(2, 20) to move.
The safety and integrity designed into the AeroPilates® Precision Pilates Chair can only be maintained
when the AeroPilates® Precision Pilates Chair is regularly examined for damage and wear. Special
attention should be given to the following:
MAINTENANCE
1. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
2. Worn or damaged components must be replaced immediately or the AeroPilates® Precision Pilates
Chair removed from service until repair is made.
3. Verify that the CAUTION LABEL(41) is present and legible. Replace the CAUTION LABEL(41) if it is
missing or damaged.
4. Check the condition of the SPRINGS(3). Replace the springs that are damaged.
5. Check the FOAM GRIP(38) and HAND GRIP(39). Replace if damaged or worn.
6.
Check the CUSHIONS(10), replace if any of them is damaged or worn.
7. Only Stamina Products supplied components should be used to maintain/repair the AeroPilates®
Precision Pilates Chair.
8. Keep your AeroPilates® Precision Pilates Chair clean by wiping with an absorbent cloth after use.
32
33
26
6
5
3

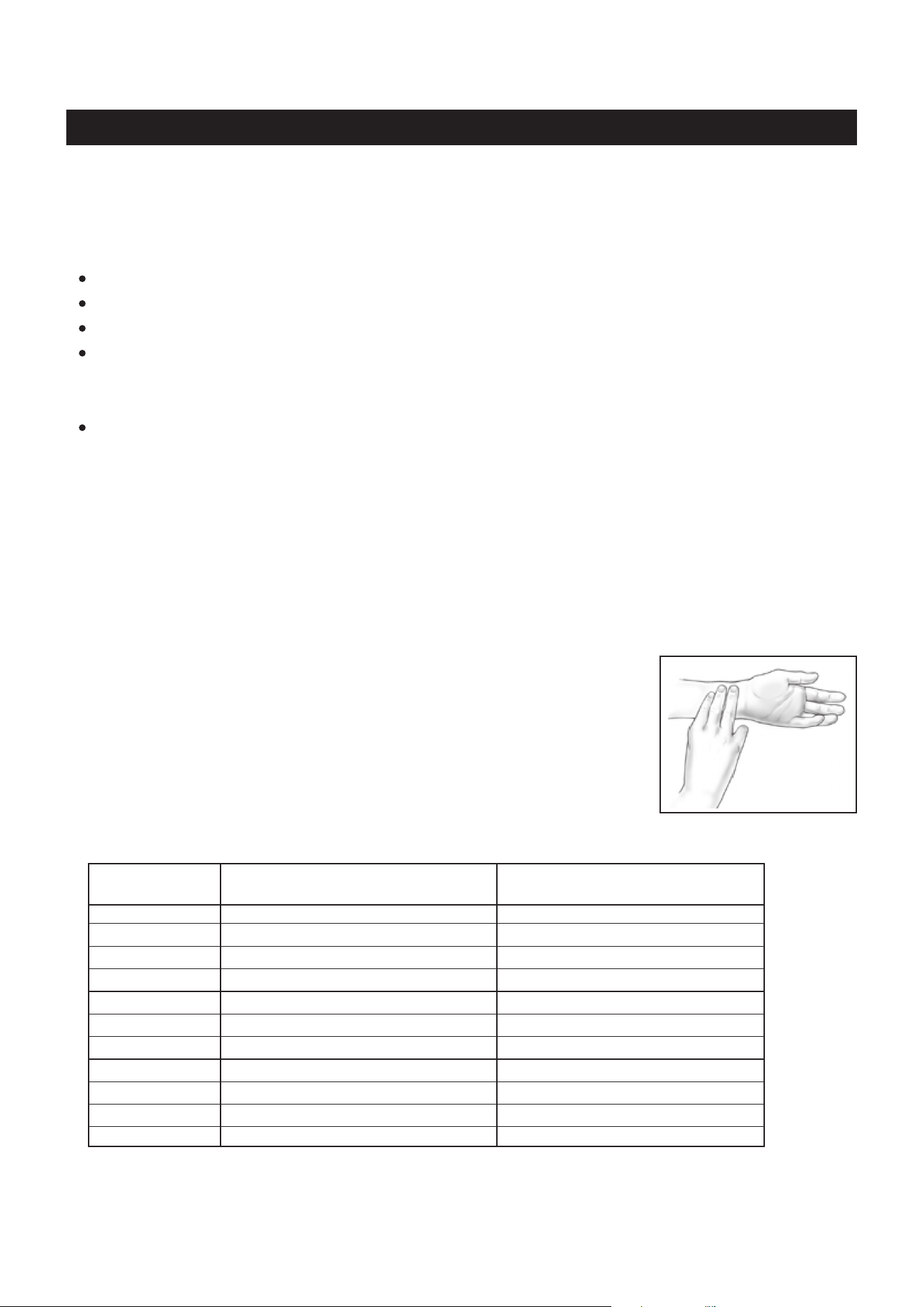

How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
15
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.

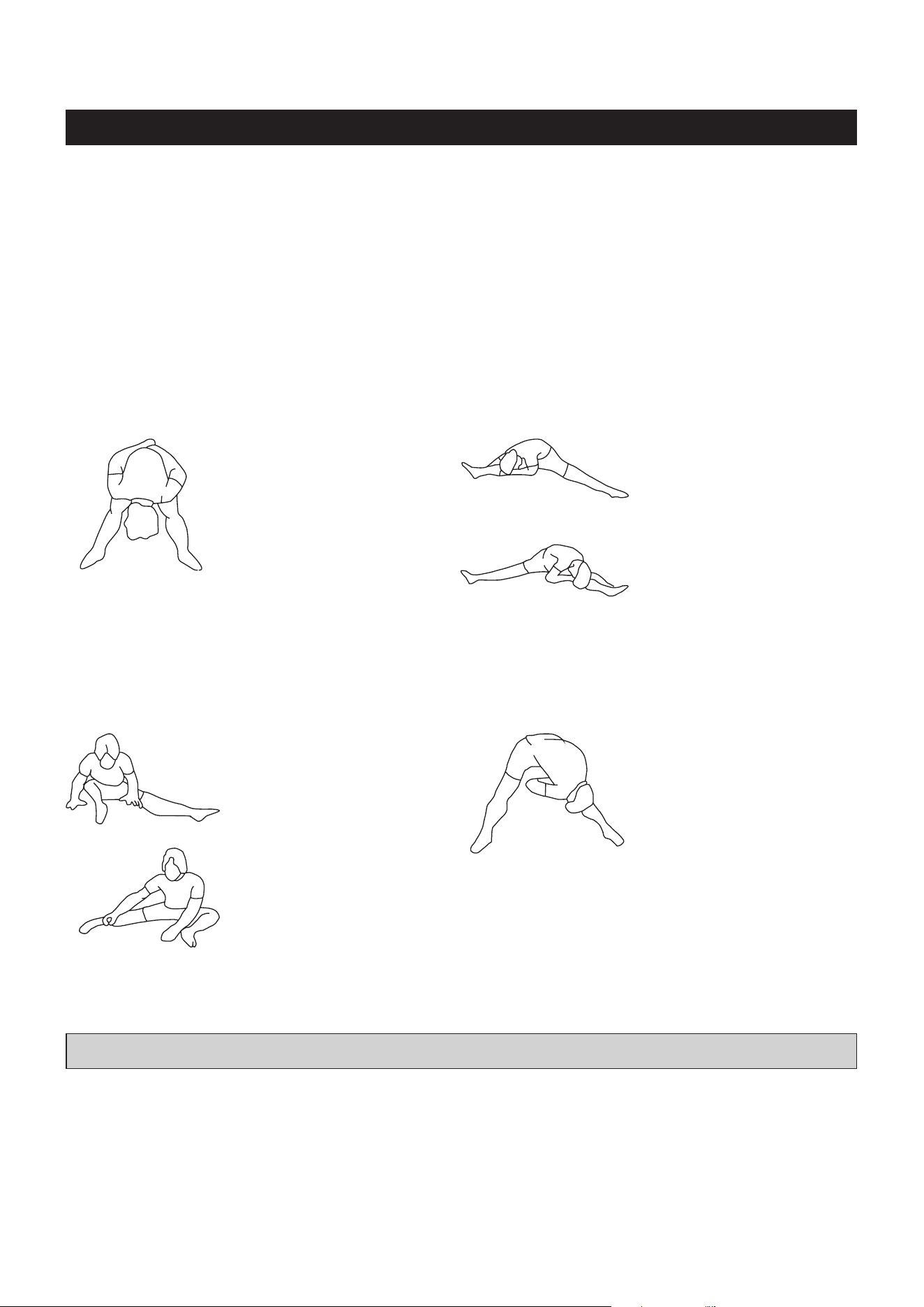

Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
16
17
LIMITED WARRANTY
WARRANTY
MODEL 55-4215
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free
from defects in materials and workmanship that arise under normal use, service, proper assembly and
proper operation in accordance with product warnings/instructions for a period of 90 days on the parts
and three years on the frame from the date of the original purchase from an authorized retailer. THIS
WARRANTY SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO ABUSE,
MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY IMPROPER
ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT PROVIDED BY
STAMINA.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These warranties
are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE WITH THIS LIMITED
WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR REPLACEMENT IS THE
EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any implied warranty, Stamina
reserves the right to require the product to be returned for inspection, at the purchaser’s expense, to
Stamina’s premises in Springfield, Missouri. Return of the enclosed warranty registration card is not
required for warranty coverage, but is merely a way of establishing the date and place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
10
1
2
3
5
9
13
13
14
14
15
17
17
18
20
21
11
11
16
13
18
15
11
16
11
16
11
16
11
11
22
39
31
30
22
39
6
40
26
7
12
11
25
24
26
11
25
15
11
17
11
27
29
23
28
29
8
19
29
22
38
22
33
37
36
22
38
22
32
19
29
34
35
35
35
35
11
4
28
29
23
25
25
27
29
11
11
24
15
11
17
11
26
13
11
41
42

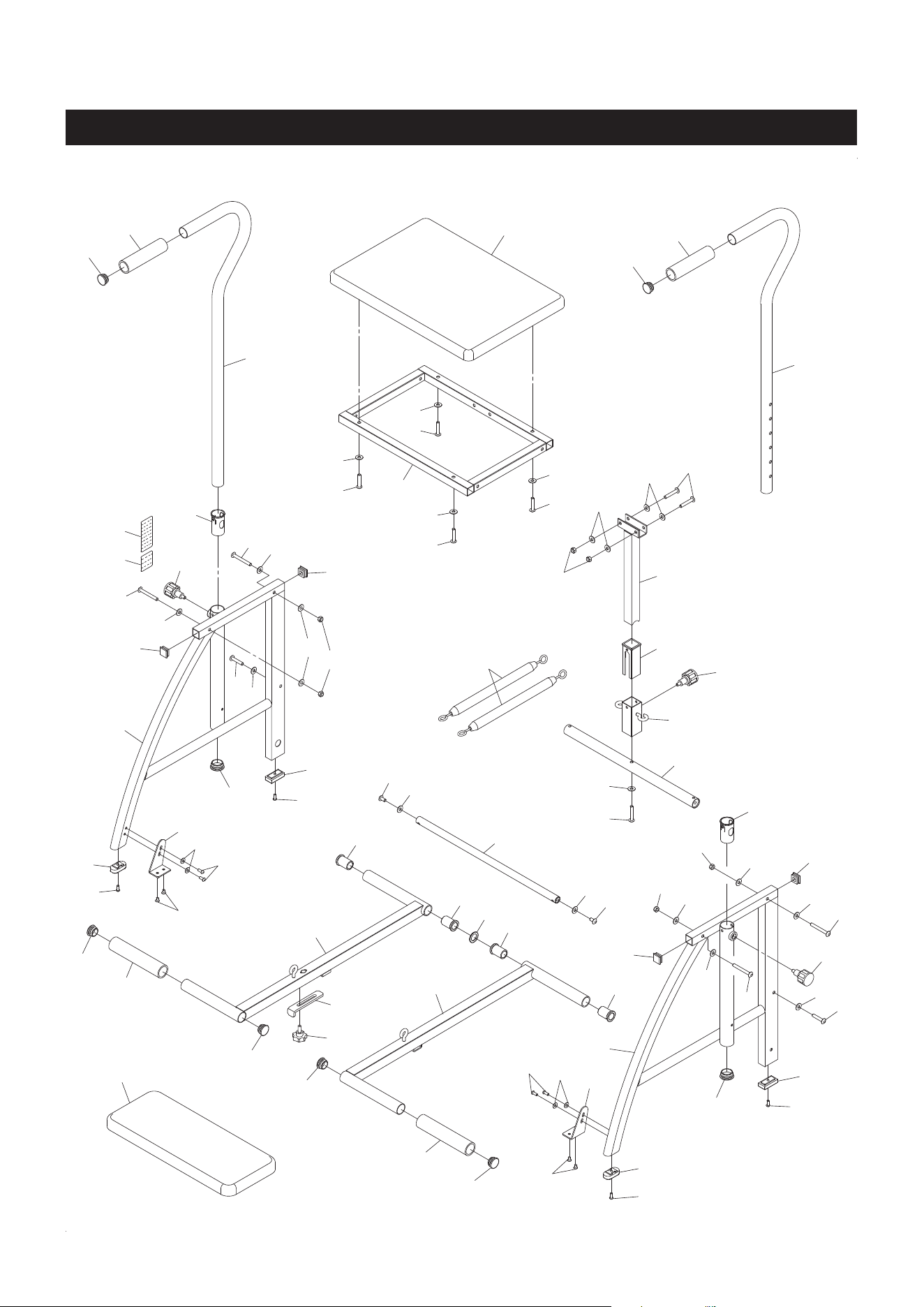

PRODUCT PARTS DRAWING
18
FRONT
BACK
PART# PART NAME QTY
PARTS LIST
19
1 Cushion Frame 1
2 Left Frame 1
3 Spring 2
4 Pedal Shaft 1
5 Slider 1
6 Spring Support 1
7 Crossing Bar 1
8 Left Bracket 1
9 Foot Board 1
10 Cushion 1
11 Washer (M8) 20
12 Arc Washer (M8) 1
13 Bolt, Button Head (M8 x 1.25 x 70mm) 4
14 Bolt, Button Head (M8 x 1.25 x 20mm) 2
15 Nylock Nut (M8 x 1.25) 6
16 Bolt, Button Head (M8 x 1.25 x 40mm) 4
17 Bolt, Button Head (M8 x 1.25 x 45mm) 5
18 Bolt, Flat Socket Head (M6 x 1 x 10mm) 4
19 Washer (M6) 4
20 Right Frame 1
21 Right Bracket 1
22 Round Plug (31.8mm) 6
23 Round Plug (38.1mm) 2
24 Bushing 2
25 Square Plug (25.4mm x 25.4mm) 4
26 Adjustment Knob 3
27 Stand 2
28 Oval Stand 2
29 Bolt, Button Head (M6 x 1 x 15mm) 8
30 Left Handlebar 1
31 Right Handlebar 1
32 Right Pedal Arm 1
33 Left Pedal Arm 1
34 Plastic Washer (ø32.5 x ø45 x 2mm thick) 1
35 Pedal Arm Bushing 4
36 Locking Knob 1
37 Latch 1
38 Foam Grip (ø31 x ø39 x 189mm) 2
39 Hand Grip (ø31 x ø39 x 150mm) 2
40 Sleeve 1
41 Caution Label 1
42 Serial Decal 1
43 Wrench 1
44 Allen Wrench(4mm) 1
45 Allen Wrench(6mm) 1
46 Manual 1
NOTES
20
NOTES
21
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
