CAUTION:
Weight on this product should not exceed 250 lbs.
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
©
2021 Stamina Products, Inc.
2021, 03
Owner's
Manual
When calling for parts or
service, please specify
the following numbers
:
Model#: 35-1399D
S/N: _____________
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
Quickstart Guide
Go to the App Store on your device or
scan the QR Code for quick access.
Smart Audio Workouts for Your Rower
Download the app and get moving!
IMPORTANT
Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service
mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC.
Assembly video included in app.
TABLE OF CONTENTS
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning & Notice Labels ........ 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Operational Instructions ........................... 13
Storage ....................................................... 14
Maintenance ............................................... 14
Conditioning Guidelines ........................... 15
Warm-Up and Cool-Down ......................... 16
Warranty ..................................................... 17

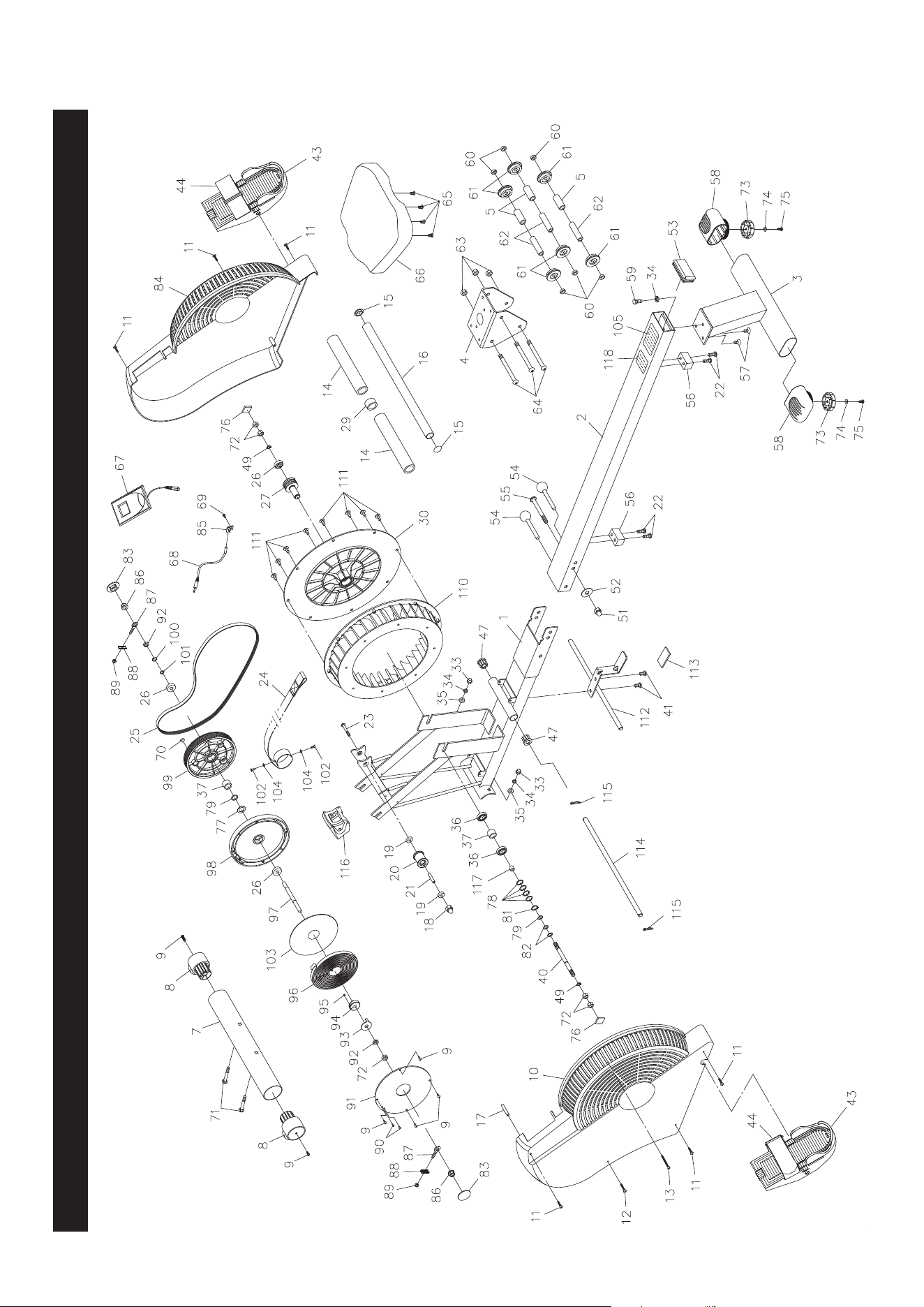

Product Parts Drawing .............................. 18
Parts List .................................................... 19
Notes .......................................................... 21
Fax/Mail Ordering Form ............................ 22
SAFETY INSTRUCTIONS
3
1. Save these instructions and ensure that other exercisers read this manual prior to using the 1399
Air Rower for the rst time.
2. Read all warnings and cautions posted on the 1399 Air Rower.
3. The 1399 Air Rower should only be used after a thorough review of the Owner’s Manual. Make
sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Keep children away from the 1399 Air Rower. Do not allow children to use or play on the 1399
Air Rower. Keep children and pets away from the 1399 Air Rower when it is in use.
6. It is recommended that you place this exercise equipment on an equipment mat.
7. Set up and operate the 1399 Air Rower on a solid level surface. Do not position the 1399 Air
Rower on loose rugs or uneven surfaces.
8. Make sure that adequate space is available for access to and around the 1399 Air Rower.
9. Before using, inspect the 1399 Air Rower for worn or loose components, and securely tighten or
replace any worn or loose components prior to use.
10. Before using, always check the RAIL(2) to be sure it is secure. The two PULL PINS(54) must be
inserted through the MAIN FRAME(1) and the RAIL(2).
11. Consult a physician prior to commencing an exercise program and follow his/her
recommendations in developing your tness program. If at any time during exercise you feel faint,
dizzy, or experience pain, stop and consult your physician.
12. Follow your physician’s recommendations in developing your own personal tness program.
13. Always choose the workout which best ts your physical strength and exibility level. Know your
limits and train within them. Always use common sense when exercising.
14. Do not wear loose or dangling clothing while using the 1399 Air Rower.
15. Never exercise in bare feet or socks; always wear proper footwear such as running, walking, or
cross training shoes that t well, provide foot support, and feature non-skid rubber soles.
16. Be careful to maintain your balance while using, mounting, dismounting, or assembling the 1399
Air Rower, loss of balance may result in a fall and serious bodily injury.
17. The 1399 Air Rower should not be used by persons weighing over 250 pounds.
18. The 1399 Air Rower should be used by only one person at a time.
19. The 1399 Air Rower is for consumer use only. It is not for use in public or semipublic facilities.
!
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
To reduce the risk of serious injury, read the following Safety Instructions
before using the 1399 Air Rower.
!
WARNING
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.car[email protected]om
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
5
Left Cover
Handlebar
Meter
Seat
Caution Label
Seat Carriage
Rear Stand
Oval Endcap
Pedal Cap
Pedal Strap
Front Stabilizer
Pull Pins
Right Cover
Pedal Cap
Rail
Oval Endcap
Pedal Strap
Front Endcap
Main Frame
Serial Decal
Thank you for choosing the 1399 Air Rower. We
take great pride in this quality product and hope it
will provide many hours of quality exercise to make
you feel better, look better, and enjoy life to its
fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The 1399 Air Rower
provides a convenient and simple method to begin
your journey of getting your body in shape and
achieving a happier and healthier lifestyle.

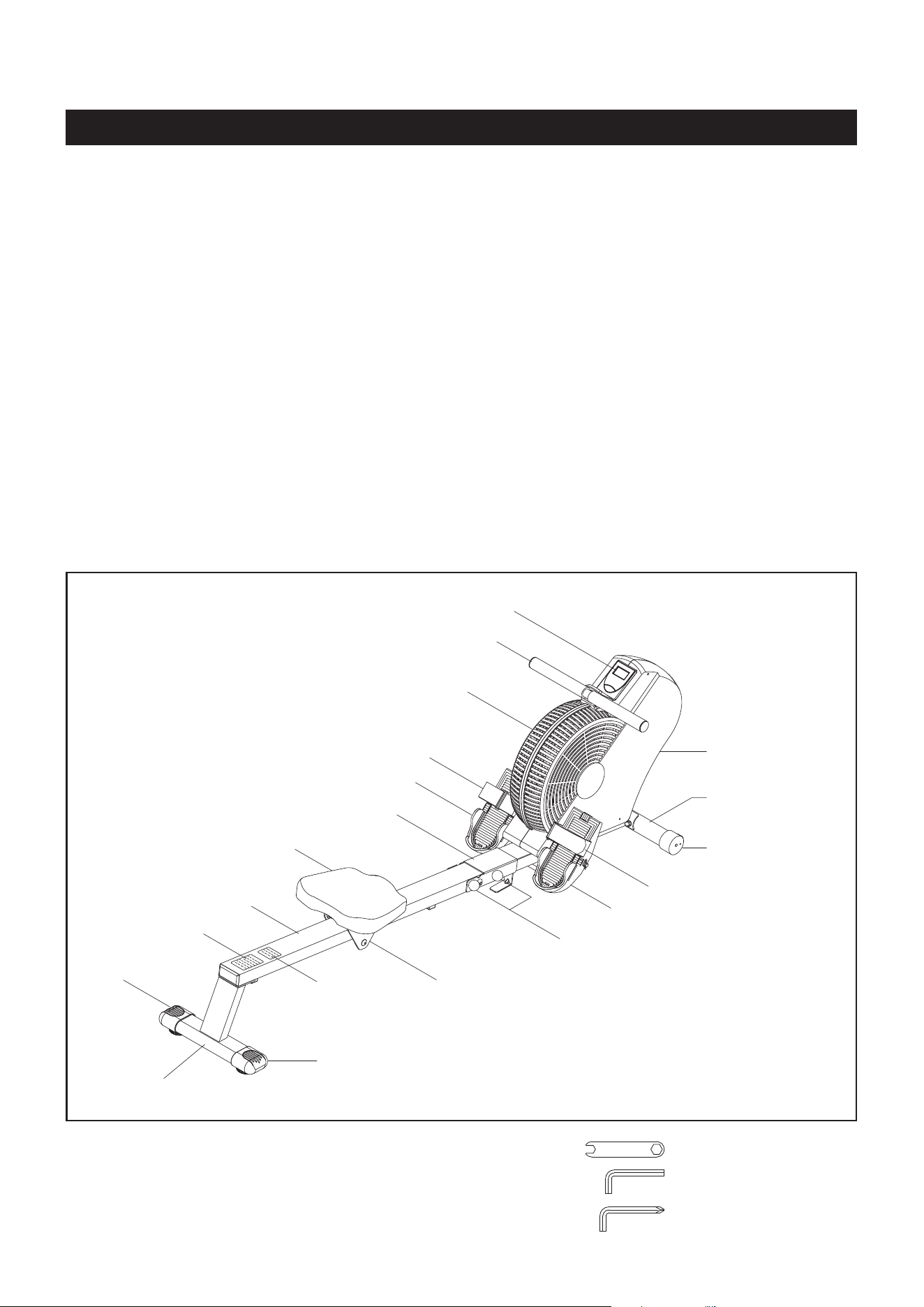

Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See the
next page for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
1399 Air Rower.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your 1399 Air Rower, please do not return the
product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com. Our Customer Care Sta is
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Wrench
Allen Wrench (5mm)
Allen Wrench (6mm)
6
This chart is provided to help identify the warning, caution, and notice labels on the 1399 Air Rower.
Please take a moment to familiarize yourself with all of the warning, caution, and notice labels.

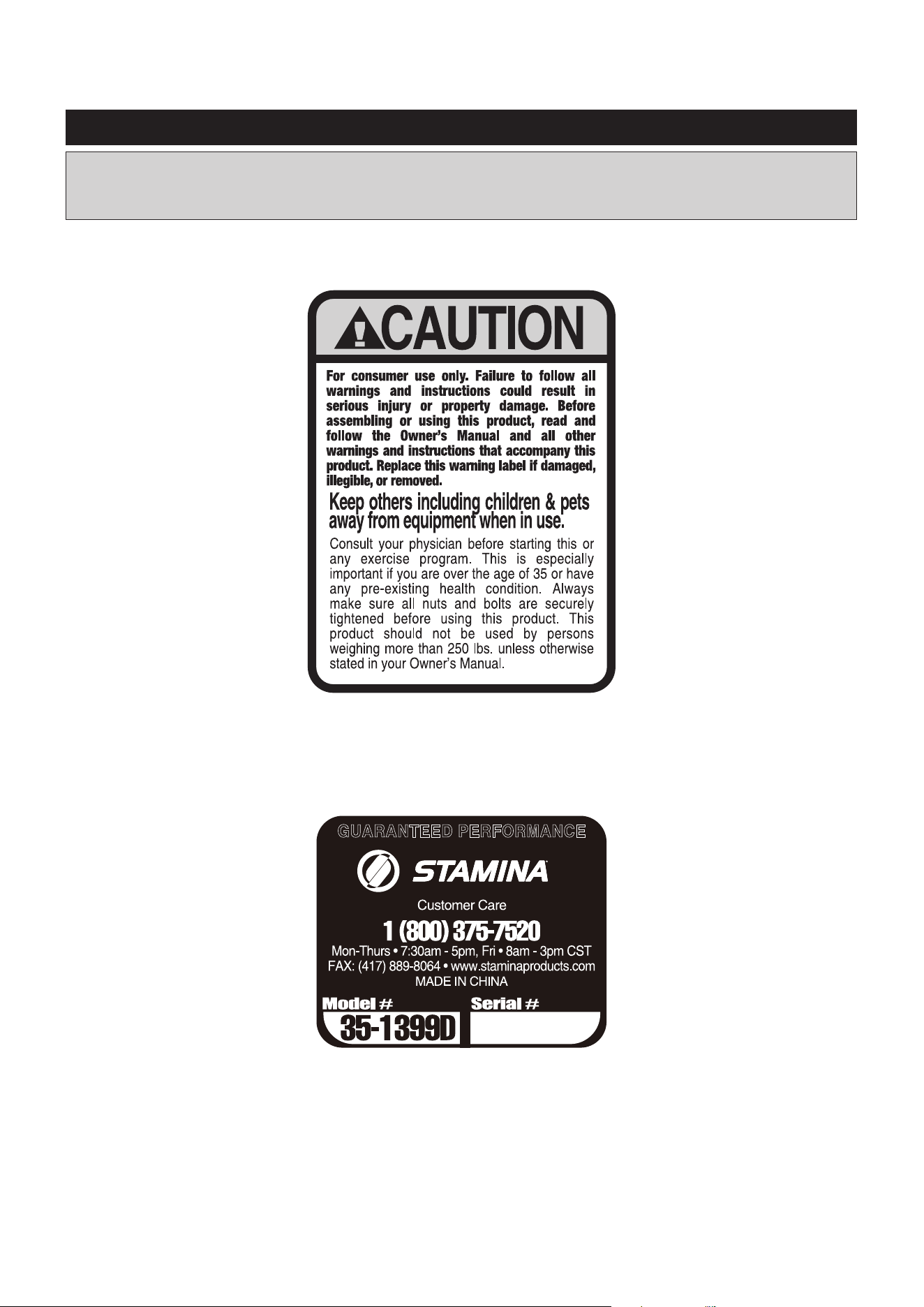

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(105)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(118)
34 Lock Washer (M8) 3
Part Number and Description Qty
33 Acorn Nut (M8 x 1.25) 2
51 Acorn Nut (M10 x 1.5) 1
22 Bolt, Button Head (M8 x 1.25 x 25mm) 2
41 Bolt, Button Head (M8 x 1.25 x 15mm) 2
7
59 Bolt, Hex Head (M8 x 1.25 x 15mm) 1
35 Arc Washer (M8) 2
55 Bolt, Button Head (M10 x 1.5 x 100mm) 1
57 Bolt, Flat Head (M8 x 1.25 x 15mm) 2
71 Carriage Bolt (M8 x 1.25 x 65mm) 2
52 Washer (M10) 1
length
length
mm.
in.
INCHES

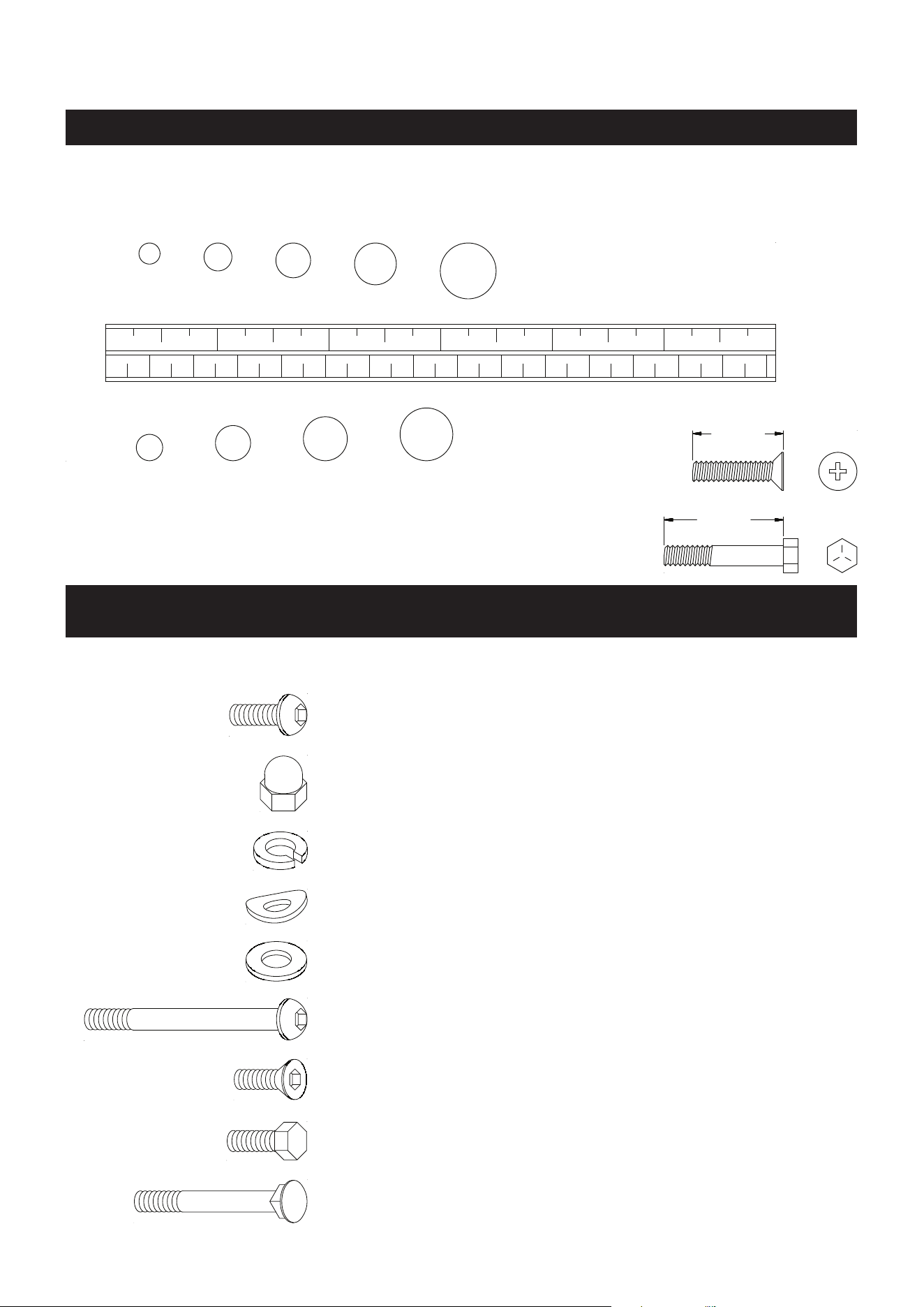

This chart is provided to help identify the fasteners used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following
fasteners. Some fasteners may be already attached to the parts.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
ASSEMBLY INSTRUCTIONS
8
NOTE: There are some packing parts attached on the 1399 Air Rower. Please follow the steps below
to remove them before any assembly. These parts are only for packing, do not dispose of the
packing materials until assembly is completed.

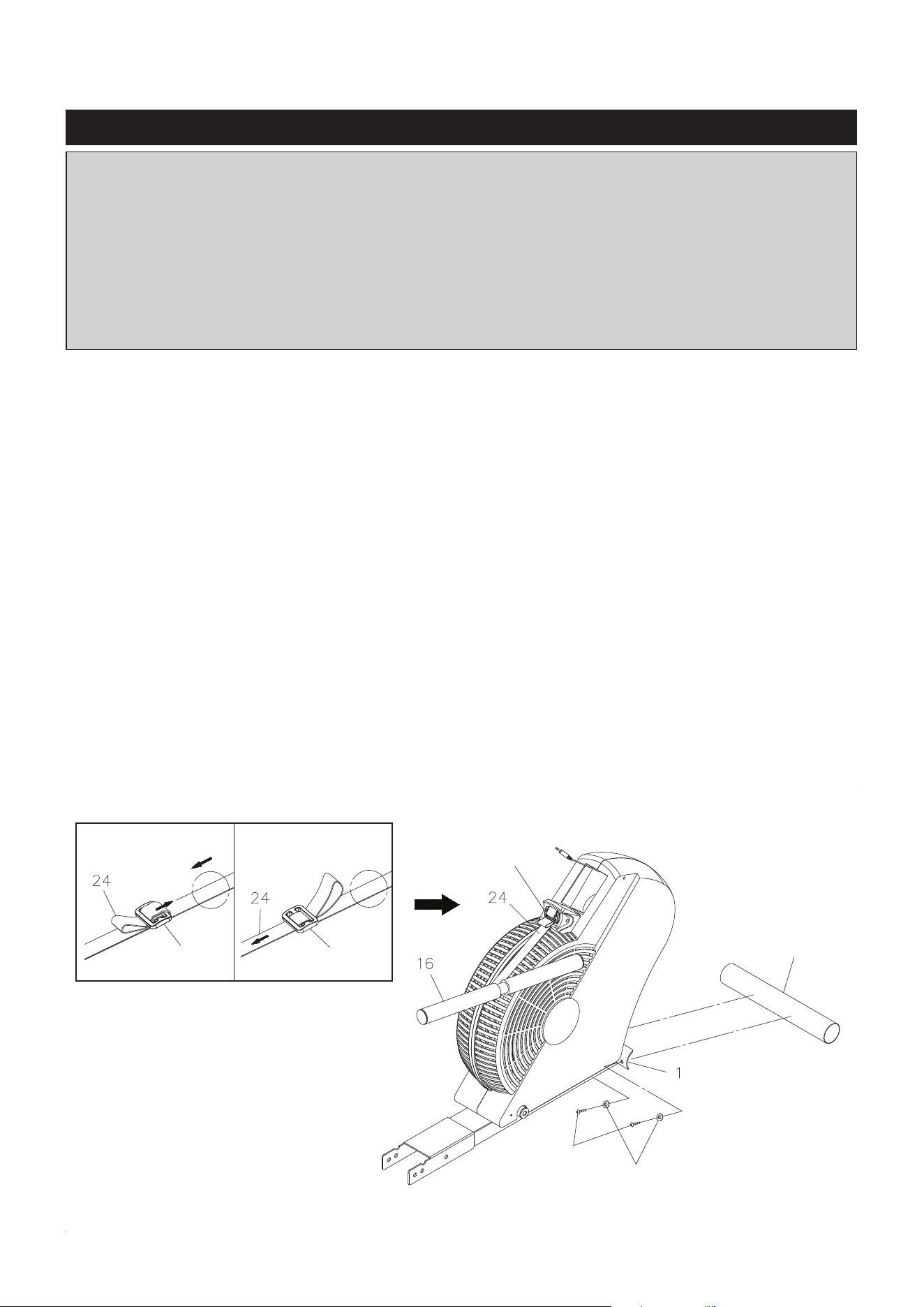

STEP 1
Remove the CARDBOARD ROLLER from the front of the MAIN FRAME(1) by removing the SCREWS
and WASHERS.
STEP 2
A BUCKLE has been attached to the STRAP(24) to prevent the STRAP(24) from returning into the main
body of the 1399 Air Rower during shipping. Remove the BUCKLE by following these steps:
1. Refer to detail view 1. Pull the STRAP(24) away from the main body about 8 inches. Use one hand to
hold the STRAP(24) at position A while using the other hand to pull the STRAP(24) loop on the top of
the BUCKLE to the position as shown in detail view 2.
2. Refer to detail view 2. Continue to hold the STRAP(24) at position A. Pull the STRAP(24) from
position B until the STRAP(24) is completely removed from the BUCKLE. Make sure the STRAP(24)
isn't twisted and let it return into the main body of the 1399 Air Rower. The STRAP(24) will hold the
HANDLEBAR(16) taut against the MAIN FRAME(1).
1. 2.
Cardboard Roller
A
B
Buckle
Buckle
Buckle
Screws
Washers
A
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
ASSEMBLY INSTRUCTIONS

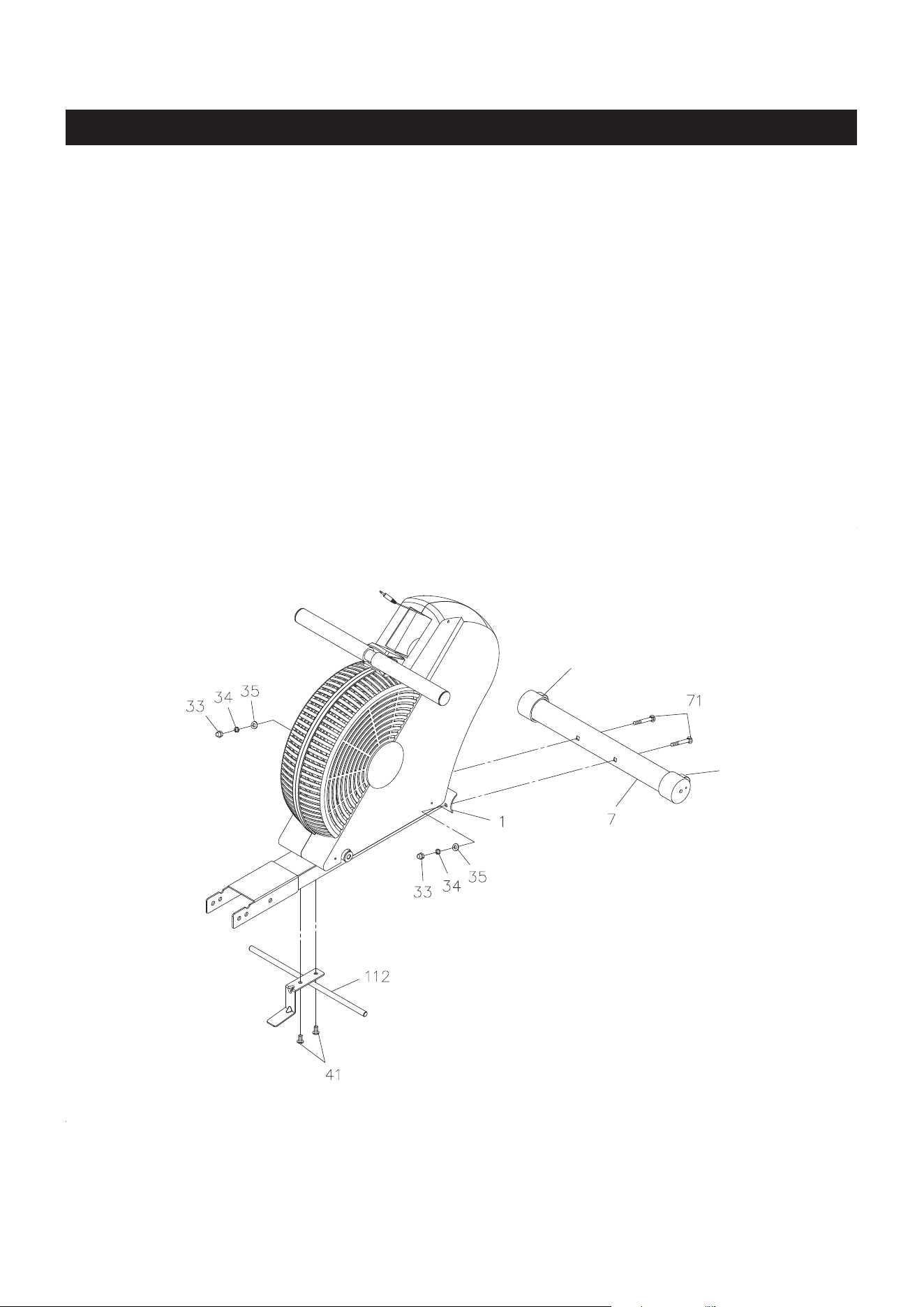

STEP 3
Make sure the Wheels on the FRONT STABILIZER(7) face the front. Attach the FRONT STABILIZER(7)
to the MAIN FRAME(1) with CARRIAGE BOLTS(M8x1.25x65mm)(71), ARC WASHERS(M8)(35), LOCK
WASHERS(M8)(34), and ACORN NUTS(M8x1.25)(33).
STEP 4
Attach the STOPPER BAR(112) to the bottom side of the MAIN FRAME(1) with BUTTON HEAD BOLTS
(M8x1.25x15mm)(41).
9
Wheel
Wheel
ASSEMBLY INSTRUCTIONS
10

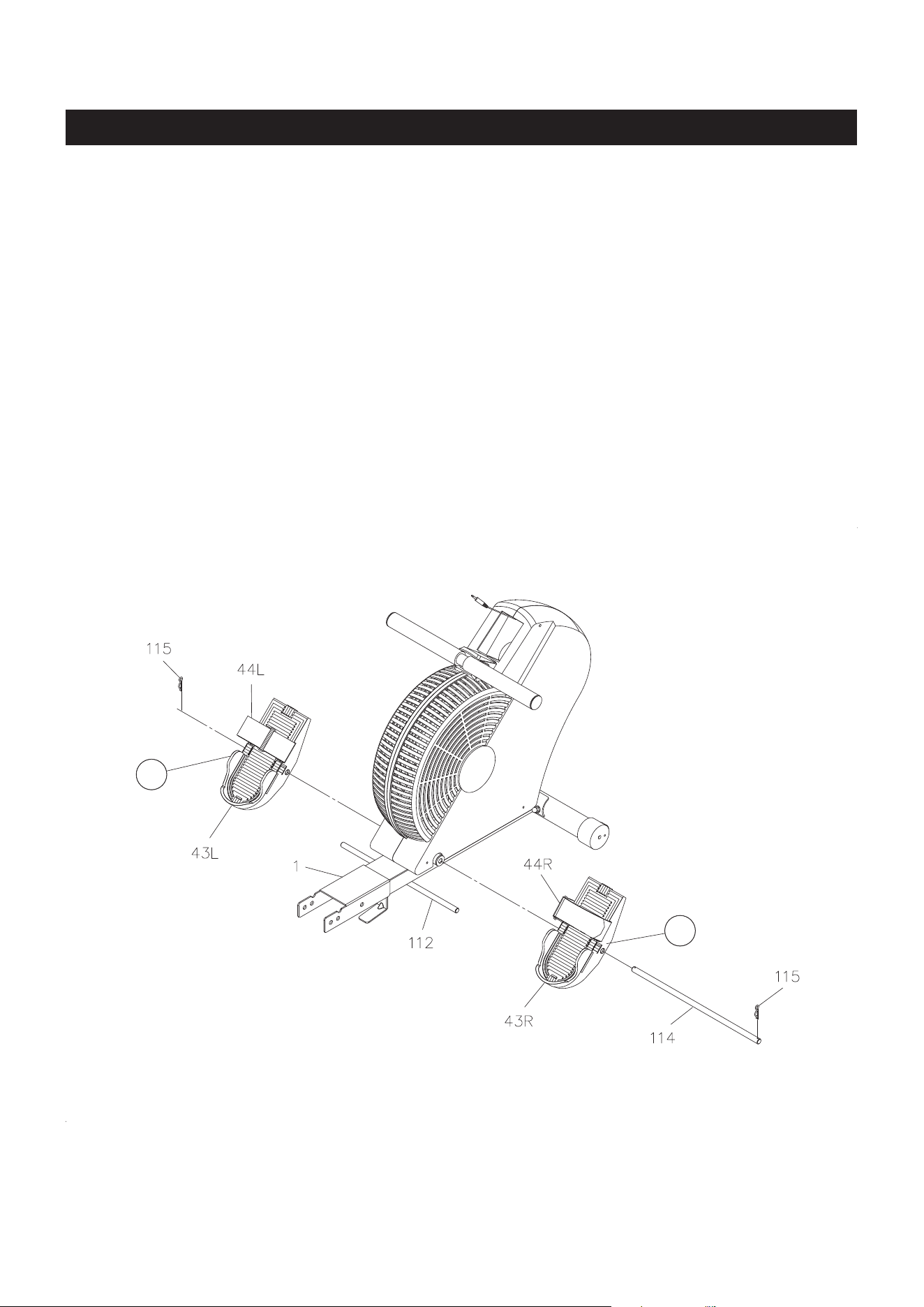

STEP 5
There is an “L” decal on the LEFT PEDAL CAP(43L), and an “R” decal on the RIGHT PEDAL CAP(43R).
Insert the R-CLIP(115) through the hole in one of the ends of the PEDAL SHAFT(114). Insert the other end
of the PEDAL SHAFT(114) through the holes in the RIGHT PEDAL CAP(43R) and the MAIN FRAME(1)
from the right side. Place the LEFT PEDAL CAP(43L) onto the left end of the PEDAL SHAFT(114), and
secure by inserting the R-CLIP(115) through the hole in left one of the PEDAL SHAFT(114).
L
R
ASSEMBLY INSTRUCTIONS
11
STEP 6
Slide the SEAT(66) onto the RAIL(2). Attach the STOPPER BUMPER(56) to the RAIL(2) with BUTTON
HEAD BOLTS(M8x1.25x25mm)(22). Also, please verify that the other STOPPER BUMPER(56) have already
been assembled at the factory. If it has not been pre-assembled, then please assemble at this time.
STEP 7
Attach the REAR STAND(3) to the RAIL(2) with a HEX BOLT(M8x1.25x15mm)(59) and a LOCK
WASHER(M8)(34) from inside the RAIL(2) and two FLAT HEAD BOLTS(M8x1.25x15mm)(57) from
underneath. Tighten all three bolts only after all three have been started. Press the RAIL CAP(53) into the
back end of the RAIL(2).
(Assembled at the factory)
ASSEMBLY INSTRUCTIONS
12

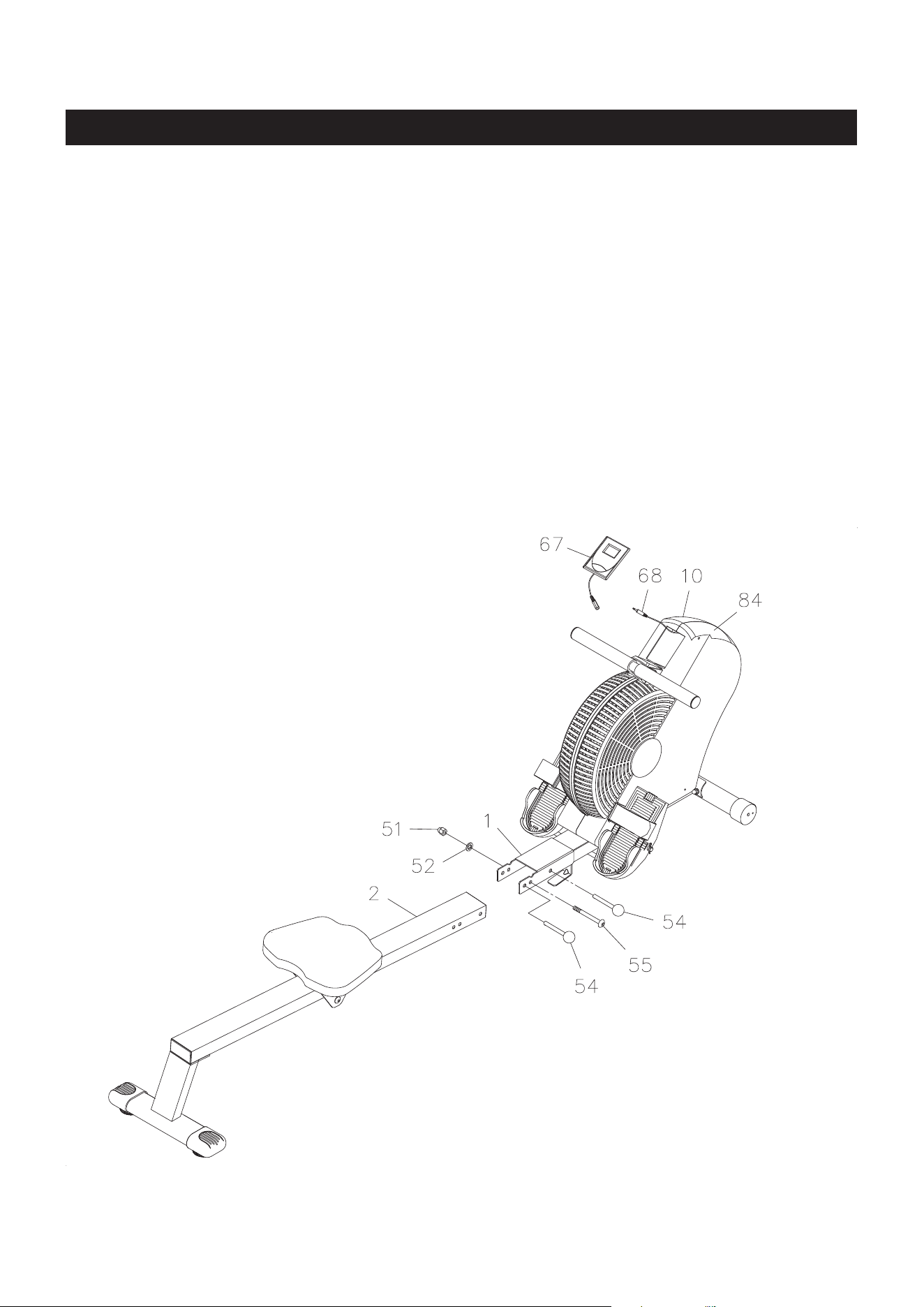

STEP 8
Attach the RAIL(2) to the MAIN FRAME(1) with BUTTON HEAD BOLT(M10x1.5x100mm)(55),
WASHER(M10)(52), and ACORN NUT(M10x1.5)(51). Lock the RAIL(2) in position with the two LOCKING
PINS(54).
STEP 9
Install two AA batteries into the METER(67), the batteries are not included. See page 13 for detailed battery
installation instructions. Connect the SENSOR WIRE(68) to the METER(67). Press the METER(67) into
the opening in the COVERS(10, 84).
OPERATIONAL INSTRUCTIONS
13

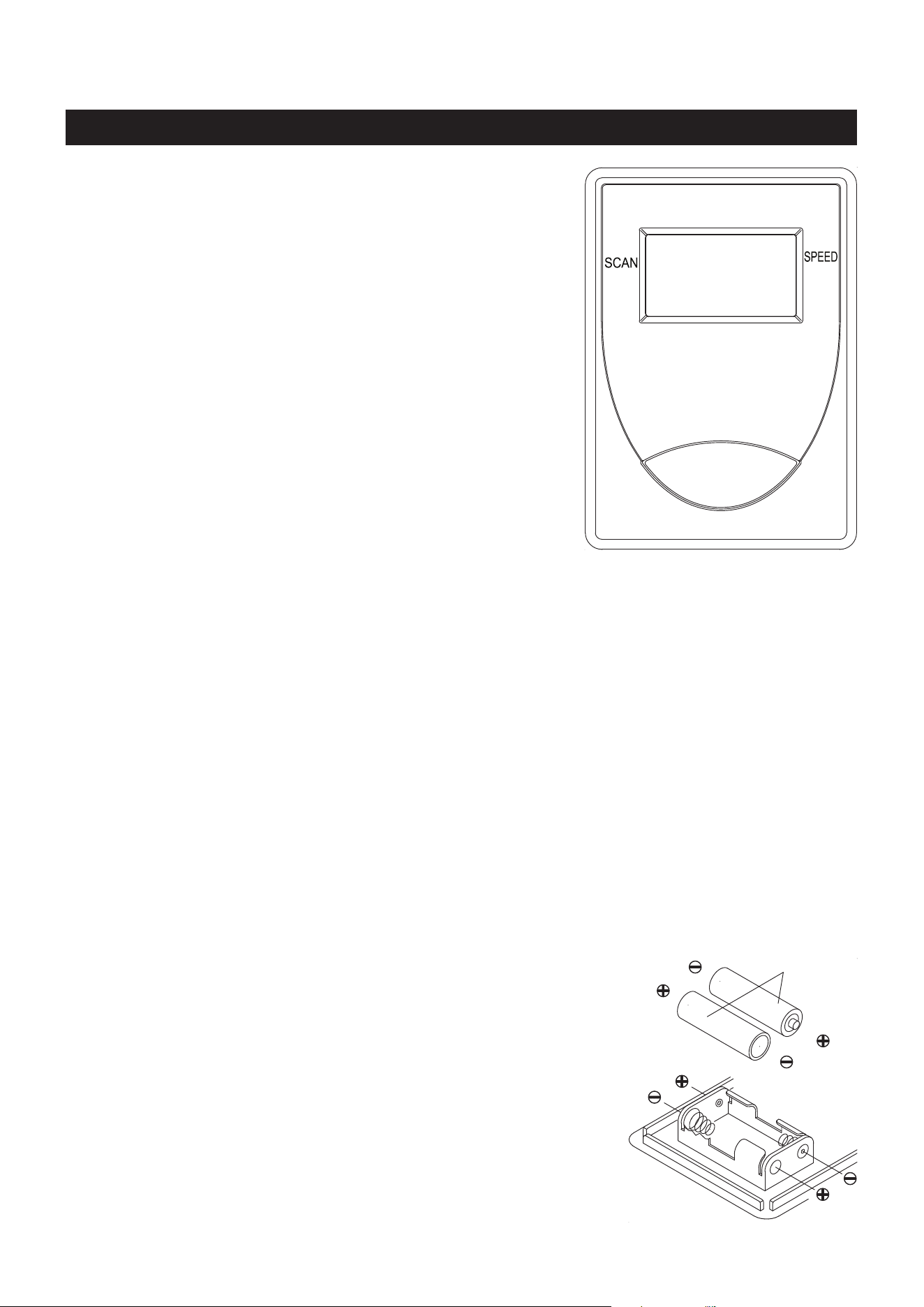

USING THE FITNESS METER
NOTE:
1. Use your hand or a simple tool to pry the METER(67) from the side
covers.
2. The meter operates with two AA batteries (1.5V each), the batteries
are not included. Refer to the illustration to install or replace the
batteries.
HOW TO INSTALL AND REPLACE BATTERIES:
FUNCTIONS:
Pull the HANDLEBAR(16) or push the
button.
Automatically shuts off after four minutes
of inactivity.
POWER OFF :
POWER ON :
FUNCTION BUTTON:
Press to select the function value displays of DISTANCE, TIME,
and CALORIES.
Reset all functions to zero by pressing the button and holding
it down for four seconds.
AA Batteries
The meter will shut o automatically after four minutes of inactivity. All function values will
be kept. Press the MODE button and hold it down for four seconds to reset all functions
to zero.
NOTE:
Displays the current speed on upper display from zero to 999.9 miles per hour.
Lower display automatically scans each function of DISTANCE, TIME, and CALORIES
in sequence every six seconds.
Displays the distance from zero to 99.9 miles.
Displays the time from one second up to 99:59 minutes.
Displays the calorie burned from zero to 999.9 Kcal.
The calorie readout is an estimate for an average user. It should be used only as a
comparison between workouts on this unit.
SPEED:
SCAN:
DISTANCE:
TIME:
CALORIES:
DIST
TIME
CAL
MODE
1. Do not mix a new battery with an old battery.
2. Use the same type of battery. Do not mix an alkaline
battery with another type of battery.
3. Rechargeable batteries are not recommended.
4. Ultimate disposal of battery should be handled
according to all state and federal laws and regulations.
5. Do not dispose of batteries in re.
The safety and integrity designed into the 1399 AIR ROWER can only be maintained when the 1399 AIR
ROWER is regularly examined for damage and wear. Special attention should be given to the following:
1. Sit on the SEAT(66) and pull on the HANDLEBAR(16) to verify that the Fan System provides resistance
and the Seat travel is smooth and stable.
2. Clean the roller tracks on the RAIL(2) with an absorbent cloth.
3. Verify that the CAUTION LABEL(105) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(105) if it is missing or damaged.
4. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
5. Worn or damaged components must be replaced immediately or the 1399 AIR ROWER removed from
service until repair is made.
6. Only Stamina Products supplied components should be used to maintain/repair the 1399 AIR ROWER.
7. Keep your 1399 AIR ROWER clean by wiping it o with an absorbent cloth after use.
STORAGE
MAINTENANCE
14
Lifting the
RAIL(2) slightly
1. To store the 1399 Air Rower, simply keep it in a clean dry place.
2. To avoid damage to the electronics, remove the batteries before storing the 1399 Air Rower for one
year or more.
3. Move the 1399 Air Rower with the moving wheels on the FRONT STABILIZER(7). Grasp and lift
the REAR STAND(3) to move the 1399 Air Rower. Do not use the SEAT(66) to move the 1399 Air
Rower. The SEAT(66) will move and the SEAT CARRIAGE(4) may pinch your hand or ngers.

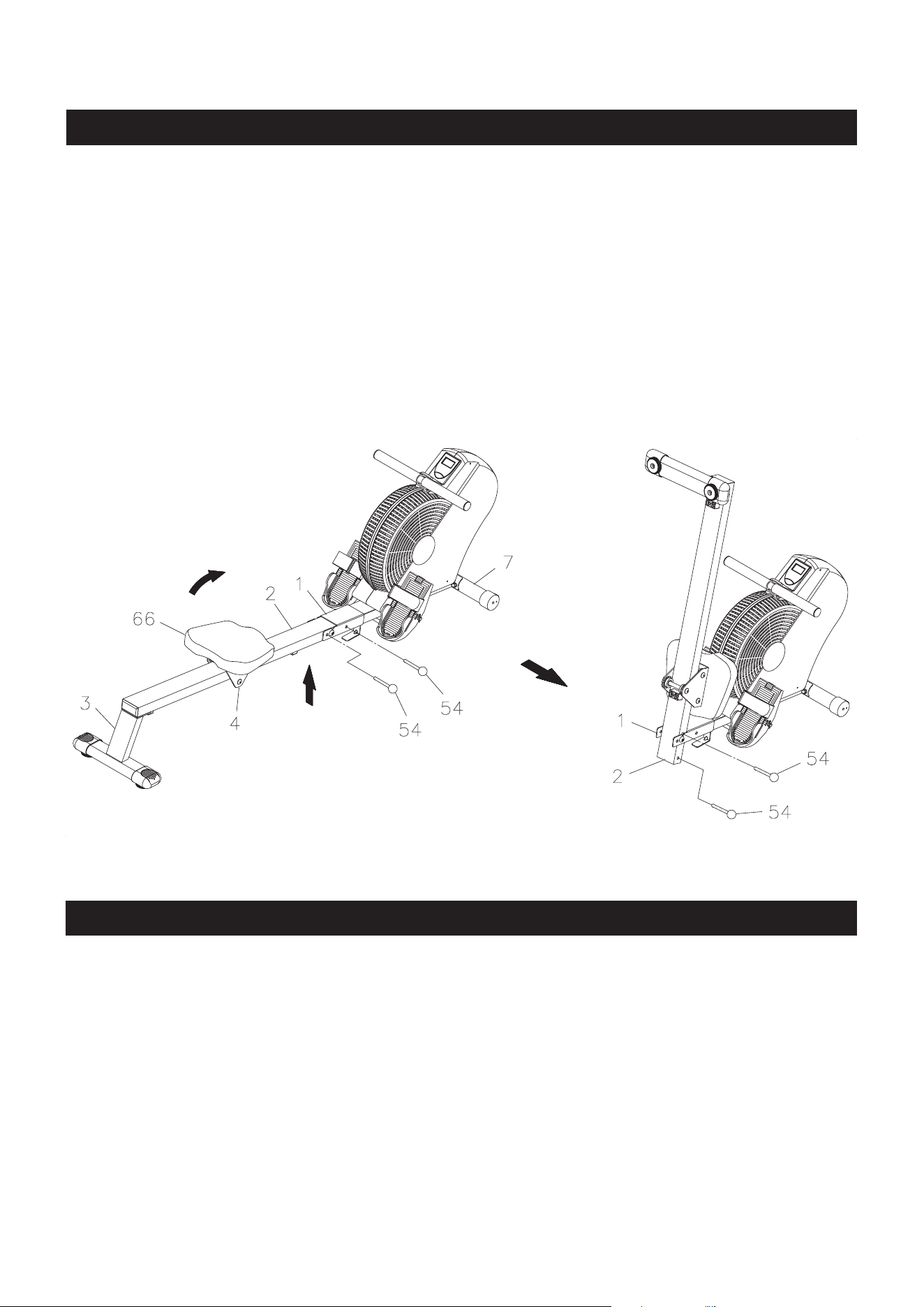

4. Follow this process as described and illustrated to fold the 1399 Air Rower for easy storage.
a. Remove the PULL PINS(54) from the MAIN FRAME(1).
NOTE: Lifting the RAIL(2) slightly will make it easier to remove the PULL PINS(54).
b. Fold the RAIL(2) upward. Secure the RAIL(2) in folded position by inserting a PULL PIN(54) into
the RAIL(2) at position A.
c. Insert another PULL PIN(54) into the lower end of the RAIL(2) at B for storage.
B
A
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
15
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
16
LIMITED WARRANTY
MODEL 35-1399D
17
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’s expense, to Stamina’s premises in Springeld, Missouri. Return of the enclosed warranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
PRODUCT PARTS DRAWING
FRONT
BACK
18
PART# PART NAME QTY
PARTS LIST
19
1 Main Frame 1
2 Rail 1
3 Rear Stand 1
4 Seat Carriage 1
5 Foam Spacer 3
7 Front Stabilizer 1
8 Front Endcap 2
9 Screw, Round Head (M4 x 12mm) 6
10 Left Cover 1
11 Screw, Round Head (M5 x 15mm) 6
12 Screw, Round Head (M5 x 25mm) 1
13 Screw, Round Head (M5 x 70mm) 1
14 Foam Grip 2
15 Round Plug (25.4mm) 2
16 Handlebar 1
17 Sleeve (ø16 x 80mm) 1
18 Nylock Nut (M8 x 1.25) 1
19 Bearing (698z) 2
20 Strap Roller 1
21 Spacer Sleeve (ø8.2 x ø10.5 x 26.2mm) 1
22 Bolt, Button Head (M8 x 1.25 x 25mm) 4
23 Bolt, Button Head (M8 x 1.25 x 65mm) 1
24 Strap 1
25 V Belt 1
26 Bearing (6000z) 3
27 Small Belt Pulley 1
29 Strap Bushing 1
30 Fan Plate 1
33 Acorn Nut (M8 x 1.25) 2
34 Lock Washer (M8) 3
35 Arc Washer (M8) 2
36 Bearing (6903z) 2
37 One Way Bearing (HF1716) 2
40 Fan Axle 1
41 Bolt, Button Head (M8 x 1.25 x 15mm) 2
43 Pedal Cap 2
44 Pedal Strap 2
47 Bushing (ø13 x ø25.4 x 20mm) 2
49 C Ring (10mm) 2
51 Acorn Nut (M10 x 1.5) 1
52 Washer (M10) 1
53 Rail Cap 1
54 Pull Pin 2
55 Bolt, Button Head (M10 x 1.5 x 100mm) 1
56 Stopper Bumper 2
57 Bolt, Flat Head (M8 x 1.25 x 15mm) 2
58 Oval Endcap (30mm x 60mm) 2
59 Bolt, Hex Head (M8 x 1.25 x 15mm) 1
60 Roller Spacer (ø10.2 x ø16 x 5.5mm) 6
61 Roller 6
62 Spacer Tube (ø10.2 x ø12 x 66mm) 3
63 Nylock Nut (M10 x 1.5 x 7mm Thick) 3
64 Bolt, Button Head (M10 x 1.5 x 105mm) 3
65 Bolt, Round Head (M6 x 1 x 15mm) 4
PART# PART NAME QTY
PARTS LIST
20
66 Seat 1
67 Meter 1
68 Sensor Wire 1
69 Screw, Round Head (M5 x 8mm) 1
70 Magnet 1
71 Carriage Bolt (M8 x 1.25 x 65mm) 2
72 Nut (3/8"-26 x 7mm thick) 5
73 Rubber Stand 2
74 Washer (M6) 2
75 Screw, Round Head (M5 x 20mm) 2
76 Foam Pad (25 x 25 x 5mm thick) 2
77 Nylon Washer (ø17.5 x ø25 x 1 mm thick) 1
78 Washer (ø17.2 x ø21 x 1 mm thick) 4
79 Nylon Washer (ø10.2 x ø16.5 x 1 mm thick) 2
81 C Ring (17mm) 1
82 Nylon Washer (ø10.2 x ø16 x 0.5 mm thick) 2
83 Protection Cap 2
84 Right Cover 1
85 Sensor Clip 1
86 Flange Nut (3/8"-26) 2
87 Eyelet Bolt (M6 x 1 x 35mm) 2
88 Tension Bracket 2
89 Nut (M6 x 1) 2
90 Screw, Round Head (M3 x 12mm) 2
91 Spring Box Cover 1
92 Thin Nut (3/8"-26, 0.16" thick) 2
93 Spring Holder 1
94 Spring Core 1
95 Set Screw (M4 x 0.7 x 6mm) 1
96 Spring 1
97 Pulley Axle 1
98 Spring Box 1
99 Belt Pulley 1
100 C Ring (9mm) 1
101 Washer (ø10.2 x ø13 x 0.5 mm thick) 1
102 Screw, Flat Head (M5 x 0.8 x 12mm) 2
103 Rubbing Disc 1
104 Washer (ø5 x ø11 x 1 mm thick) 2
105 Warning Label 1
106 Wrench 1
107 Allen Wrench (5mm) 1
108 Allen Wrench (6mm) w/ Screwdriver 1
109 Manual 1
110 Fan Wheel (32 blades) 1
111 Screw, Round Head (1/4”-20 x 5/8”) 8
112 Stopper Bar 1
113 Foam Pad 1
114 Pedal Shaft 1
115 R-Clip 2
116 Handlebar Holder 1
117 Spacer (ø10 x ø13 x 10mm) 1
118 Serial Decal 1
NOTES
21
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
