SMART TWIST STEPPER WITH
RESISTANCE BANDS
NO. 068SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected]m or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical condition that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kg).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extremely cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

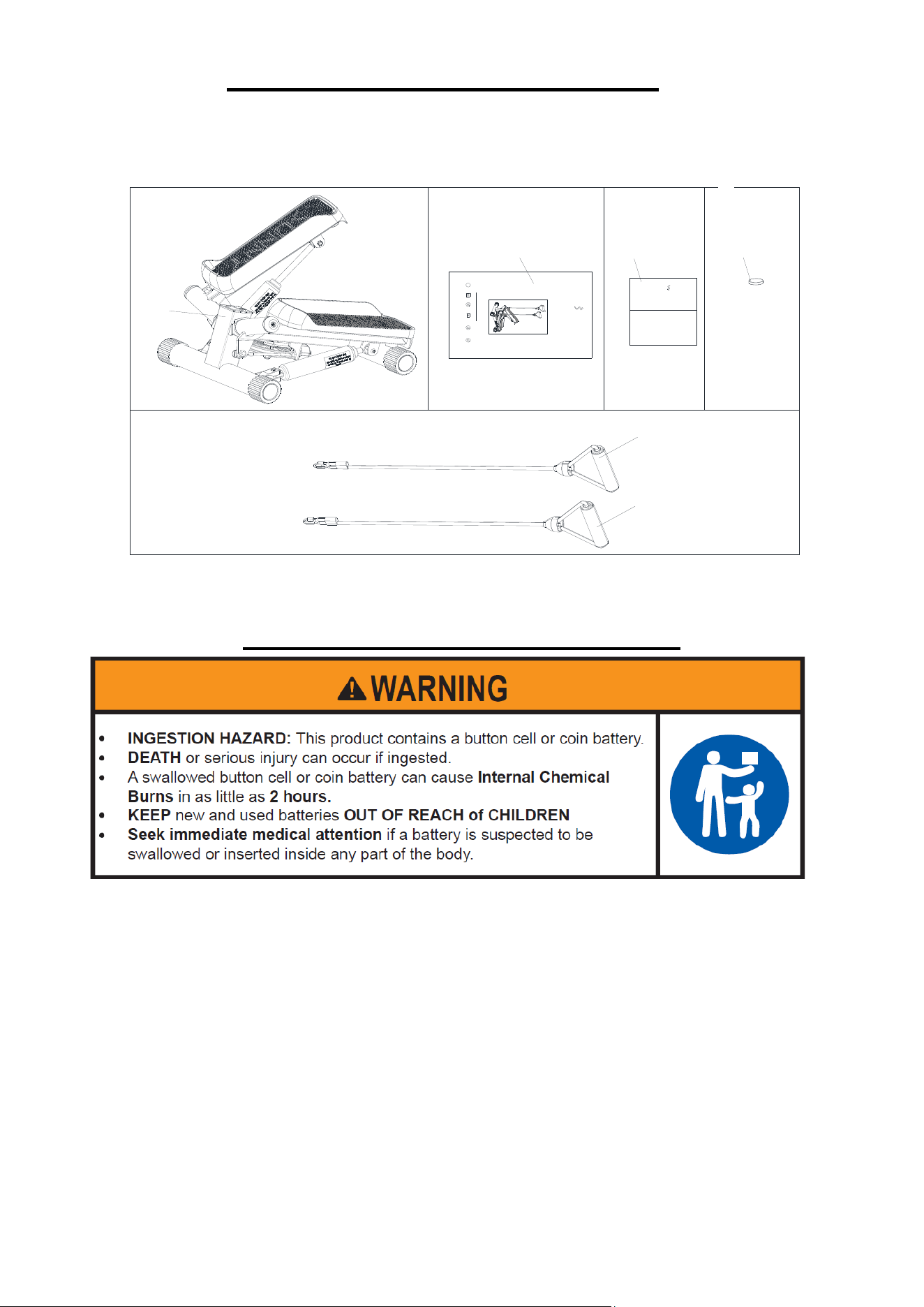

PRE-ASSEMBLY CHECKLIST
Before you start to assemble, please make sure all parts are included.
A
20
20
C
THANK
YOU
FOR YOUR PUR CHASE
If you have any questions, please contact us at (877) 90SUNNY or
email: supp ort@sunnyhe althfitness.com
UNNY
H E A L T H & F L T N E S S
UNNY
f
W W W.S U N N Y H E A L T H F I T N E S S.C O M
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEA SE DO NO T RET URN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
SMART TWIST STEPPER WITH
RESISTANCE BANDS
NO. 068 SMART
USER MANUAL
B
10
BATTERY SAFETY WARNING
NOTES:
1) Remove and immediately recycle or dispose of used batteries according to local regulations and
keep away from children. Do NOT dispose of batteries in household trash or incinerate.
2) Even used batteries may cause severe injury or death.
3) Call a local poison control center for treatment information.
4) The compatible battery type CR2032 3V.
5) Non-rechargeable batteries are not to be recharged.
6) Do not force discharge, recharge, disassemble, heat above 50°C/122°F, or incinerate. Doing so
may result in injury due to venting, leakage or explosion, resulting in chemical burns.
7) Ensure the batteries are installed correctly according to polarity (+ and -).
8) Remove and immediately recycle or dispose of batteries from equipment not used for an
extended period of time according to local regulations.
9) Always completely secure the battery compartment. If the battery compartment does not close
securely, stop using the product, remove the batteries, and keep them away from children.
3
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).
9
32
10
11
20
19

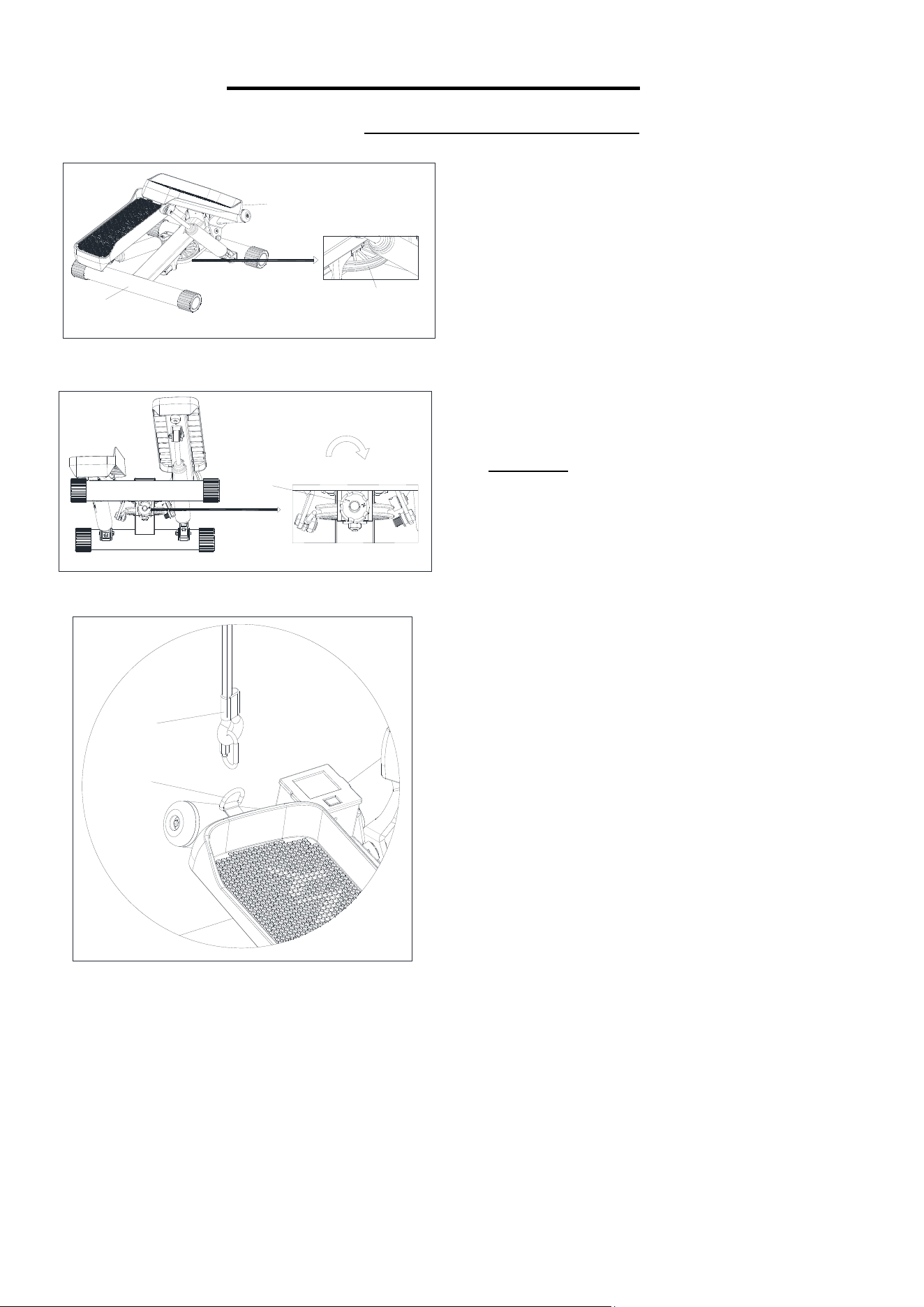

STEP 1
Remove the Main Frame (No. 10) from the
box.
Lift the Right Pedal (No. 32) up with your
hand and ensure that Cable (No. 22) is
inserted into the slot of the Pulley (No. 9) as
shown in the picture.
STEP 2
Turn the Adjustment Knob (No. 11)
clockwise " + " all the way right until it
reached its end point.
STEP 3
Connect 2 Exercise Bands (No. 20) to the
Exercise Band Buckles (No. 19) at the
front of the left and right pedals as shown
in the picture.
The assembly is complete!
4
MAINTENANCE & ADJUSTMENT GUIDE
3
2
5
1
1
1
0
ADJUSTING THE STEPPING HEIGHT
Turn the Adjustment Knob (No. 11) clockwise to increase
the stepping height.
Turn the Adjustment Knob (No. 11) counter-clockwise to
decrease the stepping height.
NOTE: Before turning the adjustment knob, you need to lift
one pedal of the Left or Right Pedals (No. 5 or No. 32) up
and ensure the cable is around the pulley. If the cable is not
properly positioned around the pulley, it can cause damage
to the main frame of the product or prevent the height from
adjusting correctly.
CLEANING
The stepper can be cleaned with a soft, clean, and damp cloth. Do not use abrasives or solvents on plastic
parts. Please wipe your perspiration off the stepper after each use. Be careful not get excessive moisture on
the computer display panel as this might cause electrical hazards or electronics failure.
Please keep the stepper, especially the computer, out of direct sunlight to prevent screen damage.
Please inspect all assembly bolts and pedals on the stepper for proper tightness every week.
STORAGE
Store the steppe
r
in a clean and dry environment, away from children.

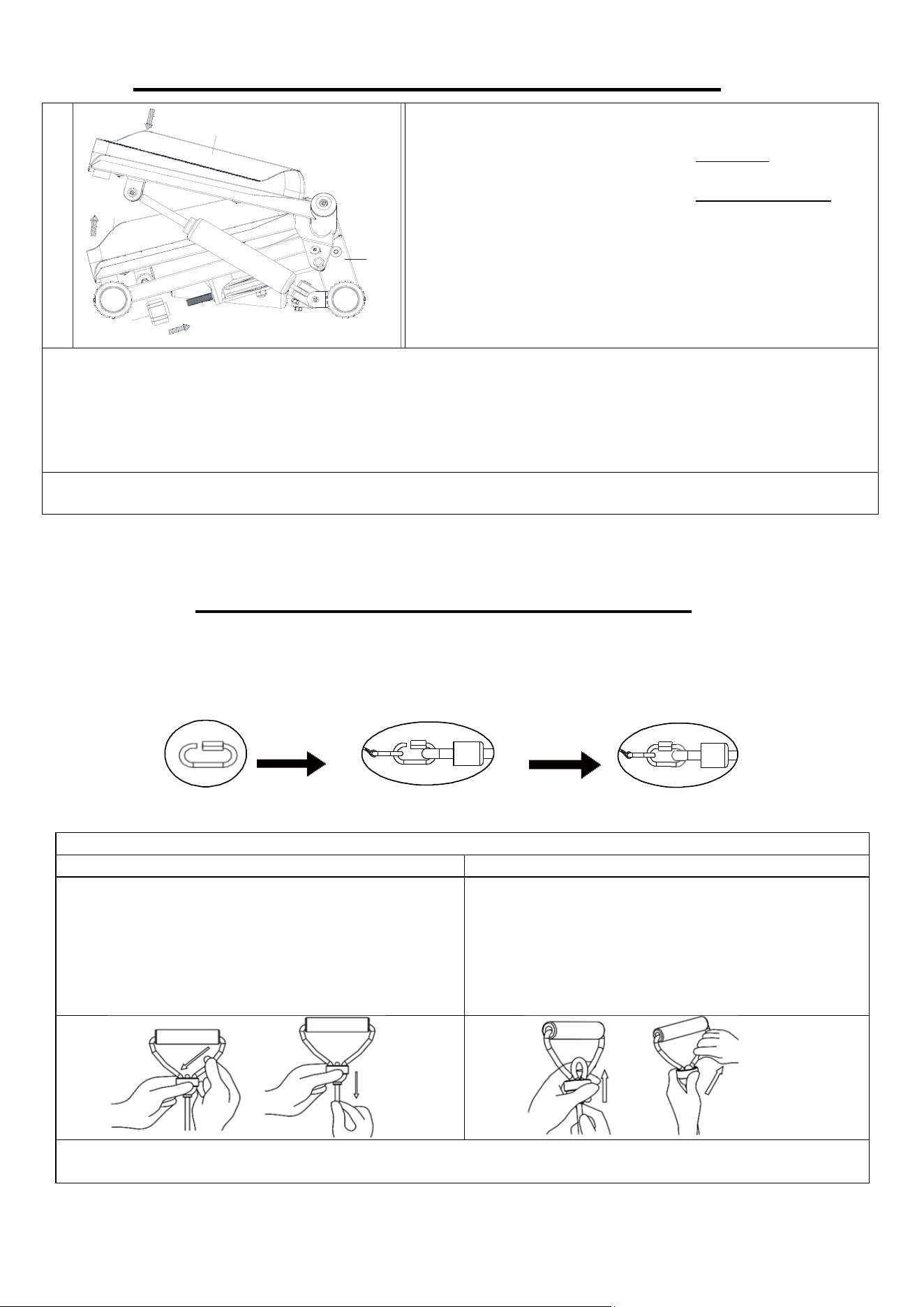

EXERCISE BAND INSTRUCTIONS
1. Unscrew the hook nut located on the band until the hook is open as shown in the picture below.
2. Attach the band hook onto the pedal hook and screw the hook nut closed until the pedal hook is
secured with the hook nut.
3.
Assembly is done
.
Adjusting the Rope Length
To Lengthen Rope To Shorten Rope
Push one side of the rope down and then pull the
bottom of the rope downward as shown in the
picture below.
Repeat this process until the rope is at the desired
length.
NOTE: This adjustment decreases the tension on
the bands.
Push the rope upward from the bottom and then pull
one side of the top rope up as shown in the picture
below.
Repeat this process until the rope is at the desired
length.
NOTE: This adjustment increases the tension on
the bands.
NOTE: When lengthening the rope; only one side of the rope can be pushed down. If the side that you are
trying to push down does not move; try the other side of the rope.
5
U-shaped iron
Cable

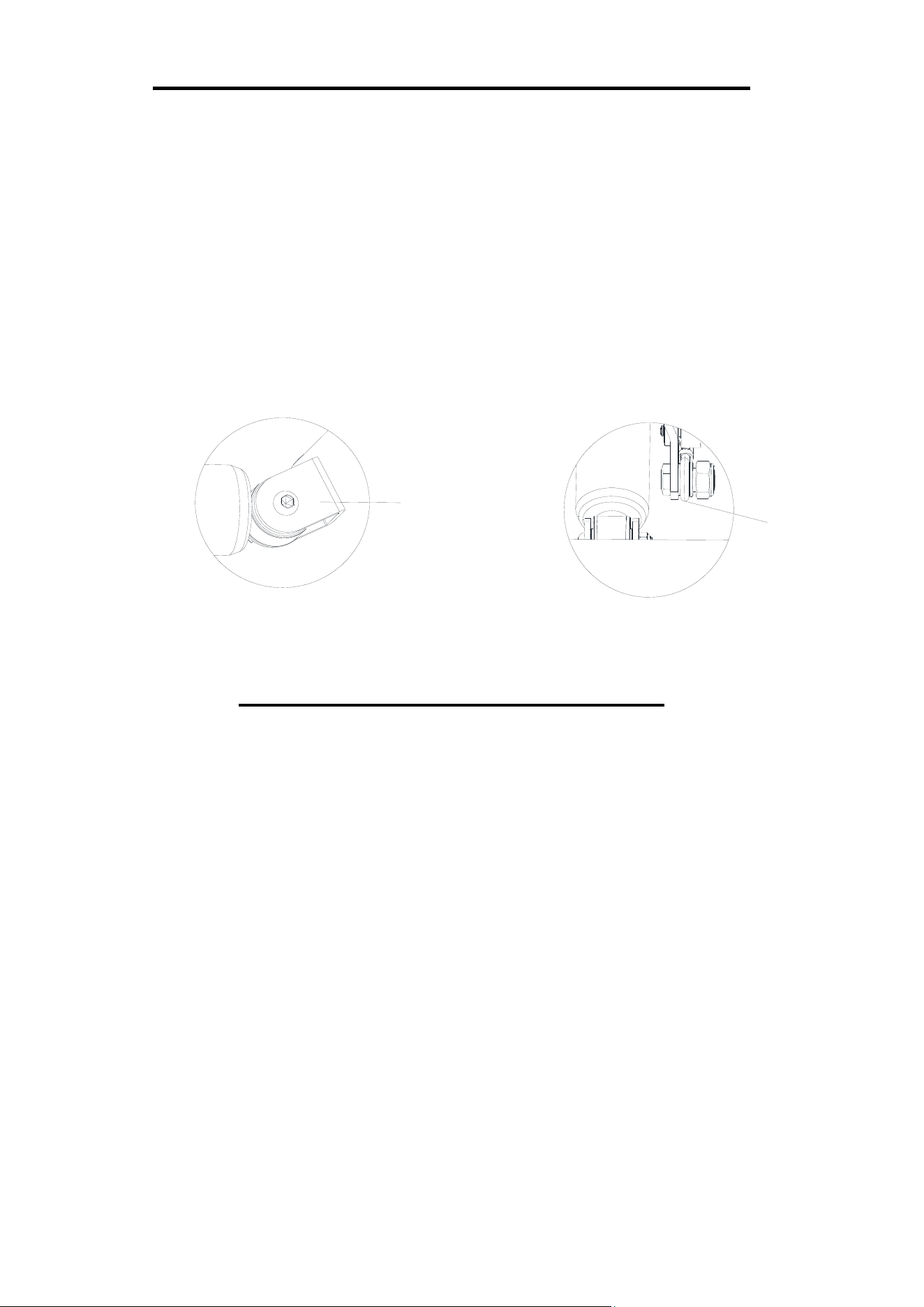

MAINTENANCE & CARE INSTRUCTIONS
1. If the stepper screeches during exercise, please discontinue use and do the following:
loosen the screw located on the U-Shaped iron then loosen the cable as shown in the
picture below. Next, lubricate both the U-Shaped iron and cable to improve the sliding
condition. Re-tighten and secure the screw and cable.
2. For safety and efficiency, please be sure to inspect and lubricate the U-Shaped iron and
cable regularly.
3. Always use dry cloth when cleaning the stepper, never clean the stepper using a wet or
damp cloth.
4. Store the stepper in a dry area free of moisture, do not store or leave outdoors.
5. During exercise the hydraulic cylinders may produce noise if they become too hot, it is
perfectly normal for this to occur.
6. To avoid injury to your hands, please refrain from touching the hydraulic cylinders during or
immediately after use.
OPERATING INSTRUCTIONS
1. During the use of the equipment, please make sure to follow all instructions carefully as any
improper techniques of usage and/or assembly may result in injury and/or damage to the
equipment.
2. The suggested exercise regimen for optimal results is 10-15 minutes per day, at least three
times a week.
3. Before beginning exercise, always inspect the equipment to ensure that all moving parts as
well as hardware are secured correctly and are in proper condition.
NOTES:
If you are having a hard time balancing on the stepper, please hold onto something for support.
The Hydraulic Cylinder (No. 16) may become excessively hot after prolonged use and may be
dangerous to touch. Allow the Hydraulic Cylinder (No. 16) to cool between uses.
6

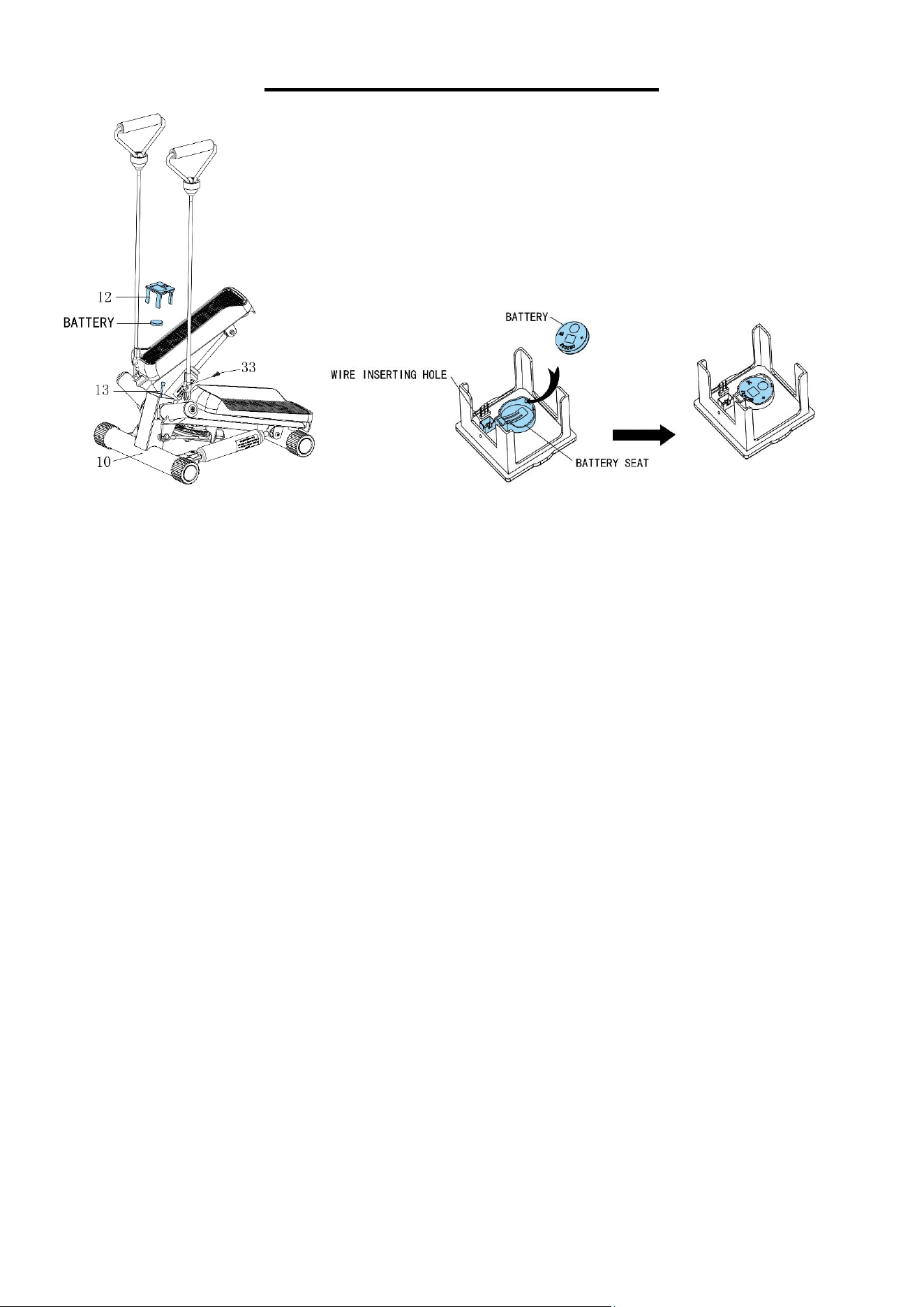

CHANGING THE BATTERY
1. Remove the Screw (No. 33) from the Main Frame (No. 10). Remove Meter (No. 12) from
Main Frame (No. 10) and disconnect the link wire of Sensor (No. 13) from the Meter (No.
12).
2. Remove the battery from the backside of Meter (No. 12).
3. Please insert the battery diagonally into the backside of Meter (No. 12). Please ensure the
positive (+) side is facing upward. and make sure the battery is under the obstruction as
shown in above diagram.
4. Note: If the battery is not installed properly, the Meter (No. 12) can’t be turned on.
5. Insert the link wire of Sensor (No. 13) into the wire inserting hole on the back of Meter
(No. 12).
6. Insert the Meter (No. 12) into Main Frame (No. 10) and secure the Screw (No. 33).
7

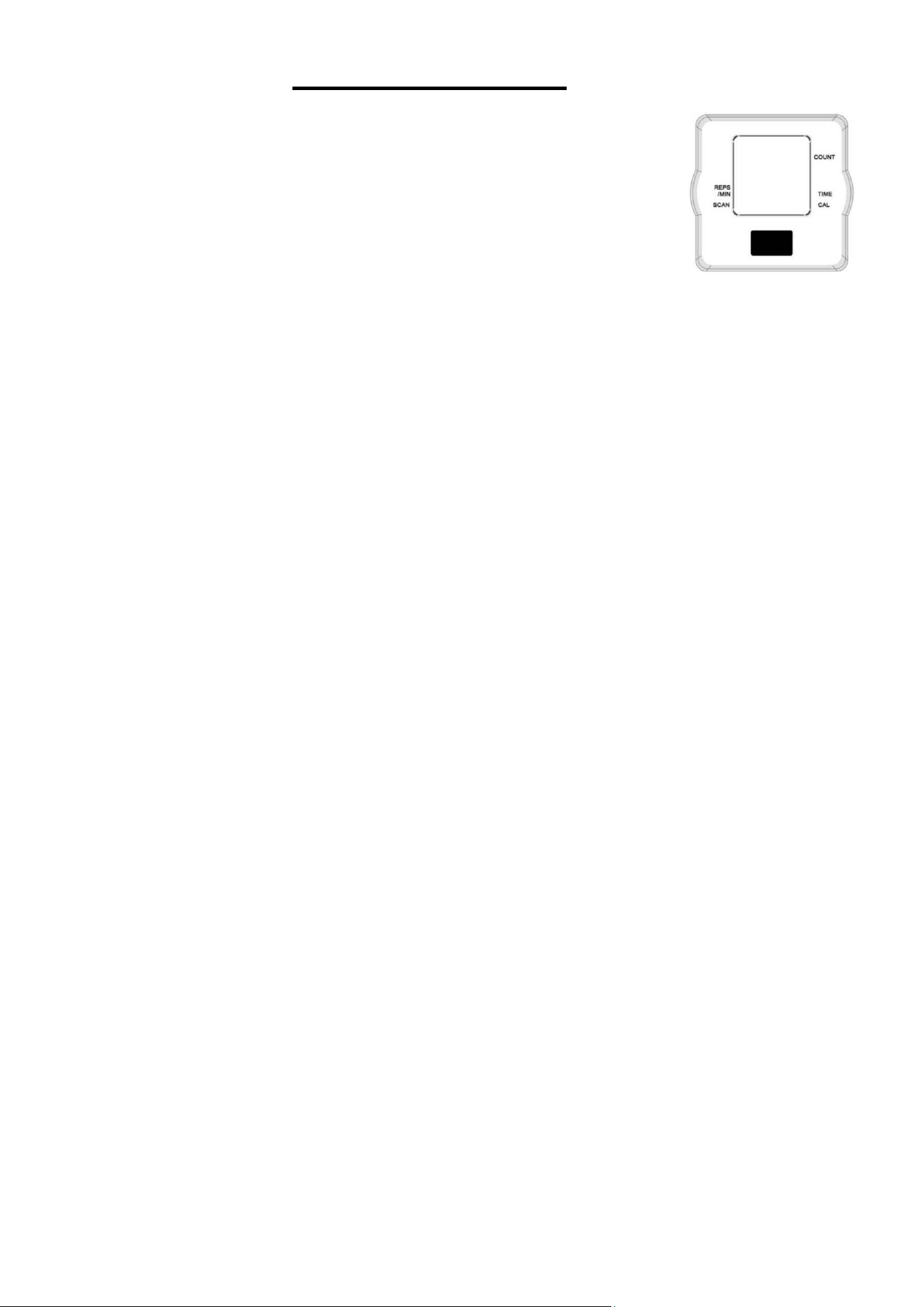

EXERCISE METER
AUTO ON/OFF:
KEY FUNCTIONS：
To select the LOCK MODE setting, press the red key when the pointer is on the function you
wish to lock (Time, Reps/Min, Count, Calorie and Scan). Once locked, only the selected
function will be displayed.
The meter can be reset by pressing and holding the red key for two seconds when Bluetooth
is not connected.
When Bluetooth is not connected, hold and press the red key for 6 seconds to enter sleep,
and all the values are still retained.
When Bluetooth is connected, press and hold the red key for 6 seconds to disconnect from the
SunnyFit APP then, all values will be reseted and the meter will enter sleep mode.
FUNCTIONS:
TIME: Counts the total time of an exercise from start to finish.
CALORIES: Counts the number of total calories burned during an exercise from start to finish.
COUNT: Automatically accumulates the count of steps taken during sessions. Meter counts 1
step after you step once with each foot.
REPS/MIN: Automatically displays the count of steps per minute.
SCAN: Press the red key until the indicator arrow points to SCAN. The indicator arrow will
continue to flash indicating that SCAN mode is active. SCAN mode will automatically scan
through each function in sequence.
NOTE:
If you have an inaccurate reading on the meter, please replace the battery immediately. (See
instructions below). Removing the batteries will also reset the meter and return all function
settings back to zero.
Please use one CR2032 battery.
All functions will automatically stop calculating when “STOP” appears in the upper left corner
of the meter. This occurs when there is no signal for a period of 4 seconds. Once the
exercise begins again, the meter will automatically begin to continue the calculation.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5Mhz
Transmitting Power: 0dBm
If the steps of the machine are put into motion or the red key is
pressed, the meter will activate and will remain active during
use. If it goes without signal for approximately 4 minutes, the
meter will turn off automatically when Bluetooth is not
connected.
8
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact support@sunnyfit.com
9

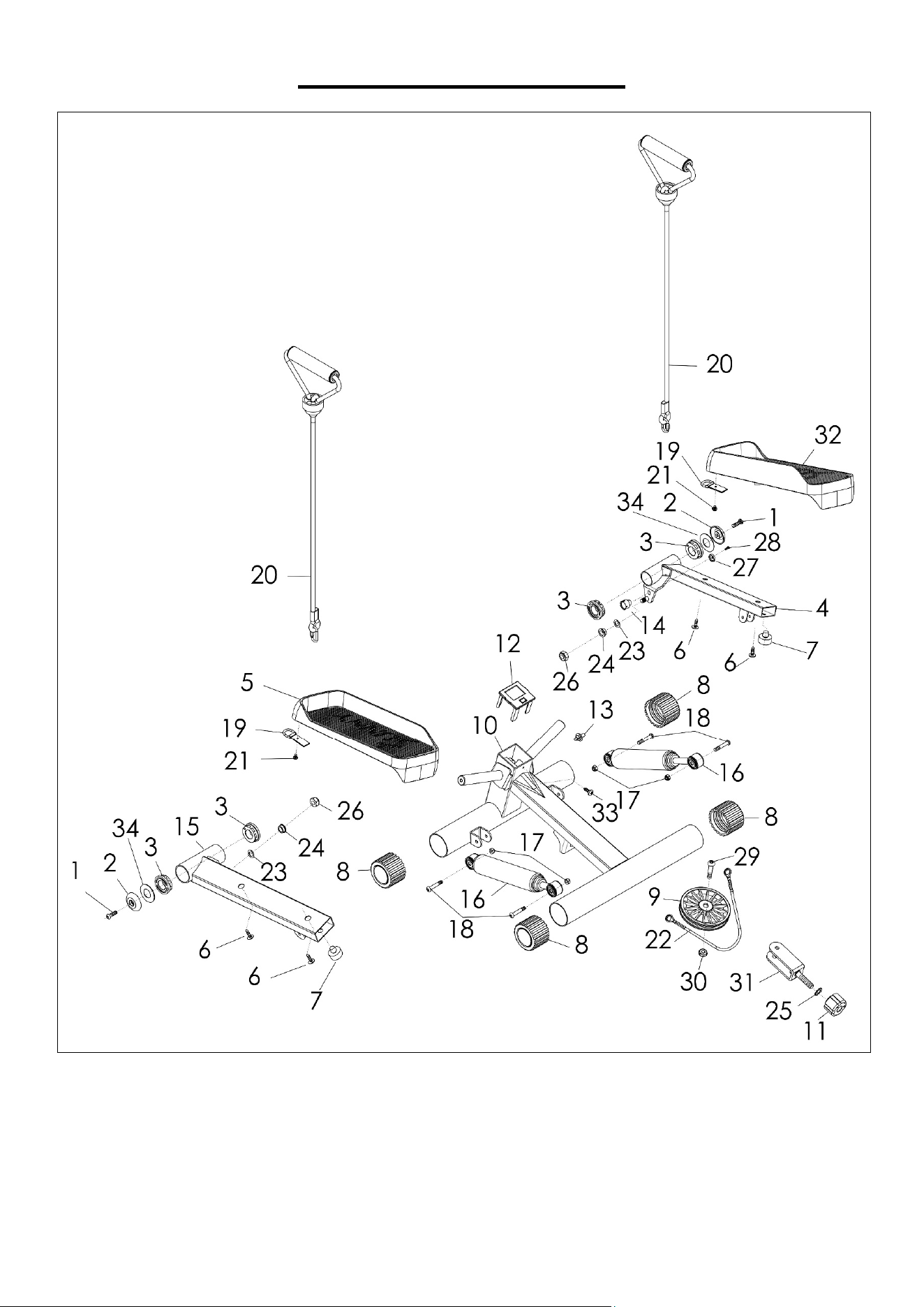

EXPLODED DIAGRAM
10
PARTS LIST
No. Description Spec. Qty. No. Description Spec. Qty.
1 Screw M6 2 18 Bolt M6*36 4
2 Bearing Cap Φ38*6.2*7.5 2 19
Exercise Band
Buckle
2
3 Bearing Sleeve Φ38*Φ19.1*12 4 20 Exercise Band Φ8*640 2
4
Right Pedal
Tube
1 21 Screw M5 2
5 Left Pedal 320*120*82.5 1 22 Cable Φ6*355 1
6 Screw M5 4 23 Plastic Gasket Φ16*Φ10.2*1 2
7 Stopper Φ25*22 2 24
Power
Metallurgy
Φ17*Φ10.1*6.5 2
8 Cap Φ50 4 25 Lock Washer Φ19*Φ12.9*1.0 1
9 Pulley Φ100*Φ8.2*20 1 26 Locknut M10 2
10 Main Frame 1 27 Magnet Cover Φ15*3.5 1
11
Adjustment
Knob
M12 1 28 Screw ST3*8 1
12 Meter DSC03605BL 1 29 Screw M8*40 1
13 Sensor 1 30 Locknut M8 1
14 Magnet 1 31 Pulley Block 1
15 Left Pedal Tube 1 32 Right Pedal 320*120*82.5 1
16
Hydraulic
Cylinder
Φ38（L220-
L350）
2 33 Screw ST4.2*12 1
17 Nut M6 4 34 Washer Φ38*Φ6.2*T1 2
Version：1.0
11
