SMART TOTAL BODY PINK STEPPER
MACHINE
P2000 SMART
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 feet (60 cm) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 330 lbs (150 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
2

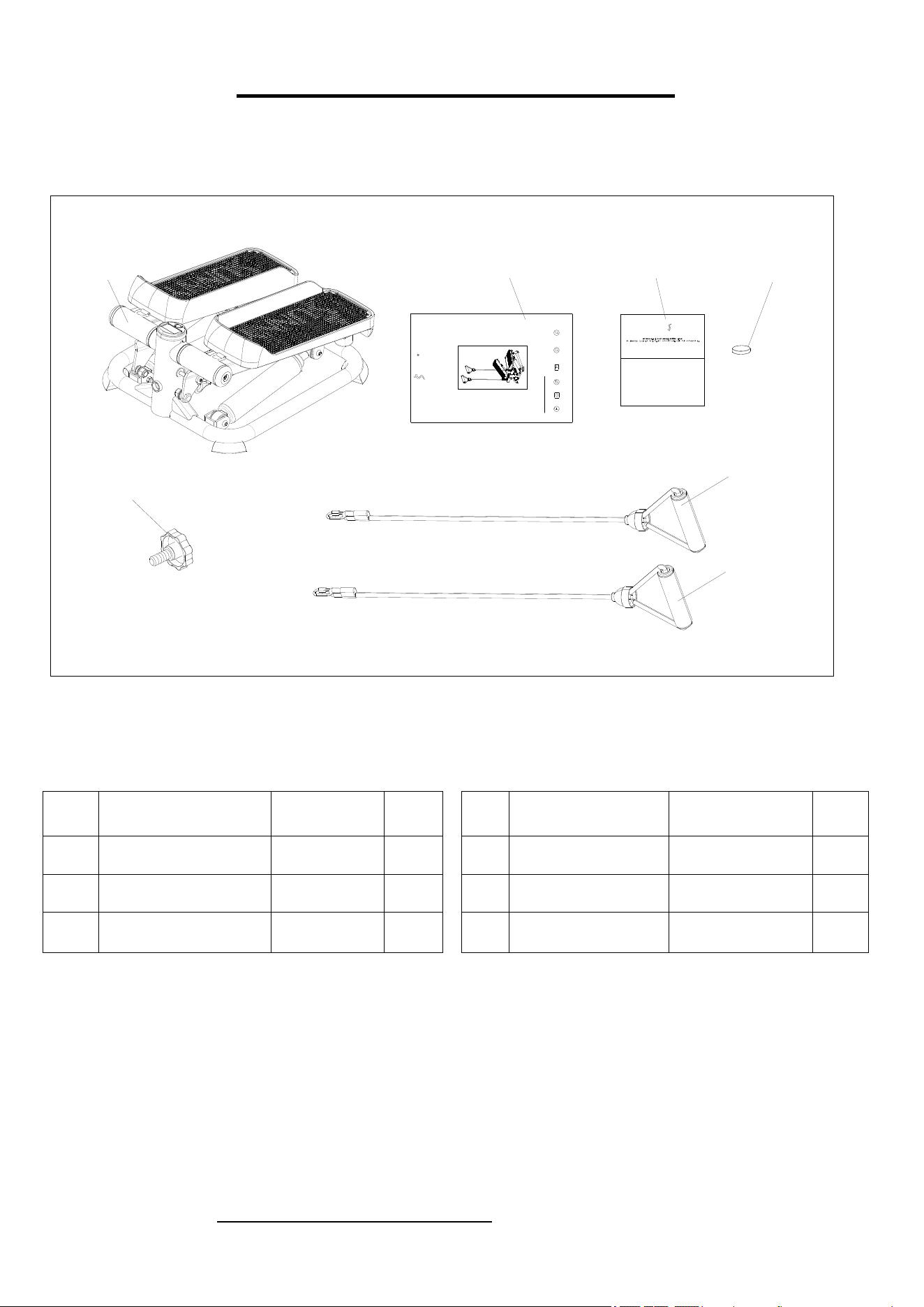

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
MACHINE
P2000 SMART
USER MANUAL
A
1
29
34
34
C
B
THANK
YOU
FOR Y OUR PURCHASE
UNNY
H E A L T H &
F L T N E S S
UNNY
W W W.S U N N Y H E A L T H F I T N E S S.C O M
IMPORTANT! Please retain owner’s manual for maintenance and ad justment instru ctions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90S UNNY (877-907-8669).
SMART TOTAL BODY PINK STEPPER
HEALTH＆FITNESS
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” (page 9) page and “PARTS LIST” (page
10)
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
No. Description Spec. Qty. No. Description Spec. Qty.
1 Main Frame 1 A Manual 1
29 Adjustment Knob Φ60*M14 1 B Thank You Card 1
34 Exercise Band Φ8*640 2 C Battery CR2032 1
3
BATTERY SAFETY WARNING
NOTES:
1) Remove and immediately recycle or dispose of used batteries according to local regulations and keep
away from children. Do NOT dispose of batteries in household trash or incinerate.
2) Even used batteries may cause severe injury or death.
3) Call a local poison control center for treatment information.
4) The compatible battery type CR2032 3V.
5) Non-rechargeable batteries are not to be recharged.
6) Do not force discharge, recharge, disassemble, heat above 50°C/122°F, or incinerate. Doing so may
result in injury due to venting, leakage or explosion, resulting in chemical burns.
7) Ensure the batteries are installed correctly according to polarity (+ and -).
8) Remove and immediately recycle or dispose of batteries from equipment not used for an extended period
of time according to local regulations.
9) Always completely secure the battery compartment. If the battery compartment does not close securely,
stop using the product, remove the batteries, and keep them away from children.
4

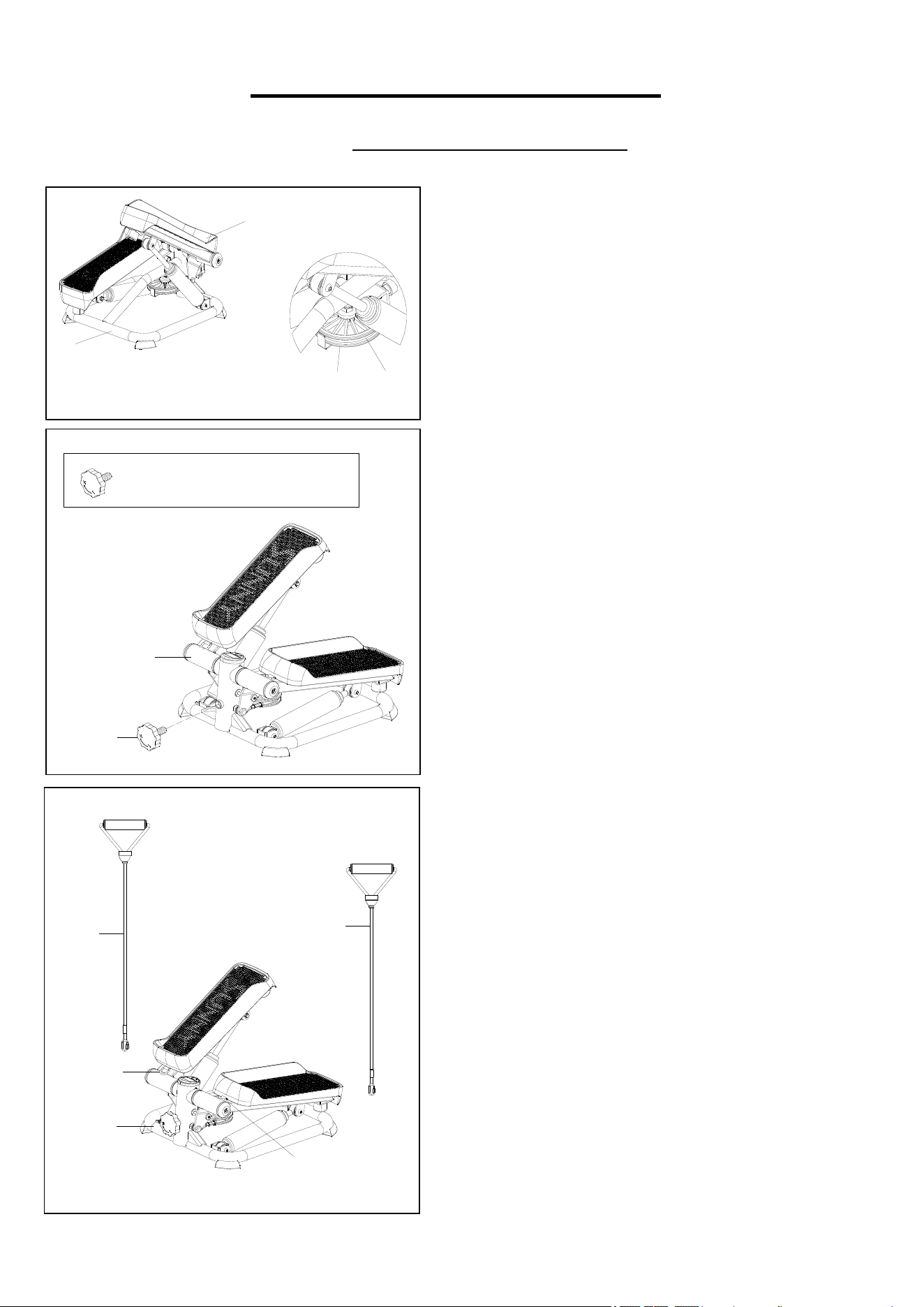

ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
STEP 2:
Get the Adjustment Knob (No. 29) from the
manual bag.
Then insert the Adjustment Knob (No. 29) into
the Main Frame (No. 1) and adjust the
tightness of the Adjustment Knob (No. 29) to
the desired position.
STEP 3:
Connect 2 Exercise Bands (No. 34) to the 2
Exercise Band Buckles (No. 21) at the front of
the left and right pedals as shown in the picture.
The assembly is complete
！
STEP 1:
Remove the Main Frame (No. 1) from the box.
Lift Right Pedal (No. 32) up with your hand
and ensure that the Wire Rope (No. 5) is put in
the slot of the Pulley (No. 6) as shown in the
picture.
1
5
6
32
1
29
#29 φ60*M14 1PCS
34
34
21
1
21
5
MAINTENANCE & ADJUSTMENT GUIDE
29
1
3
7
3
2

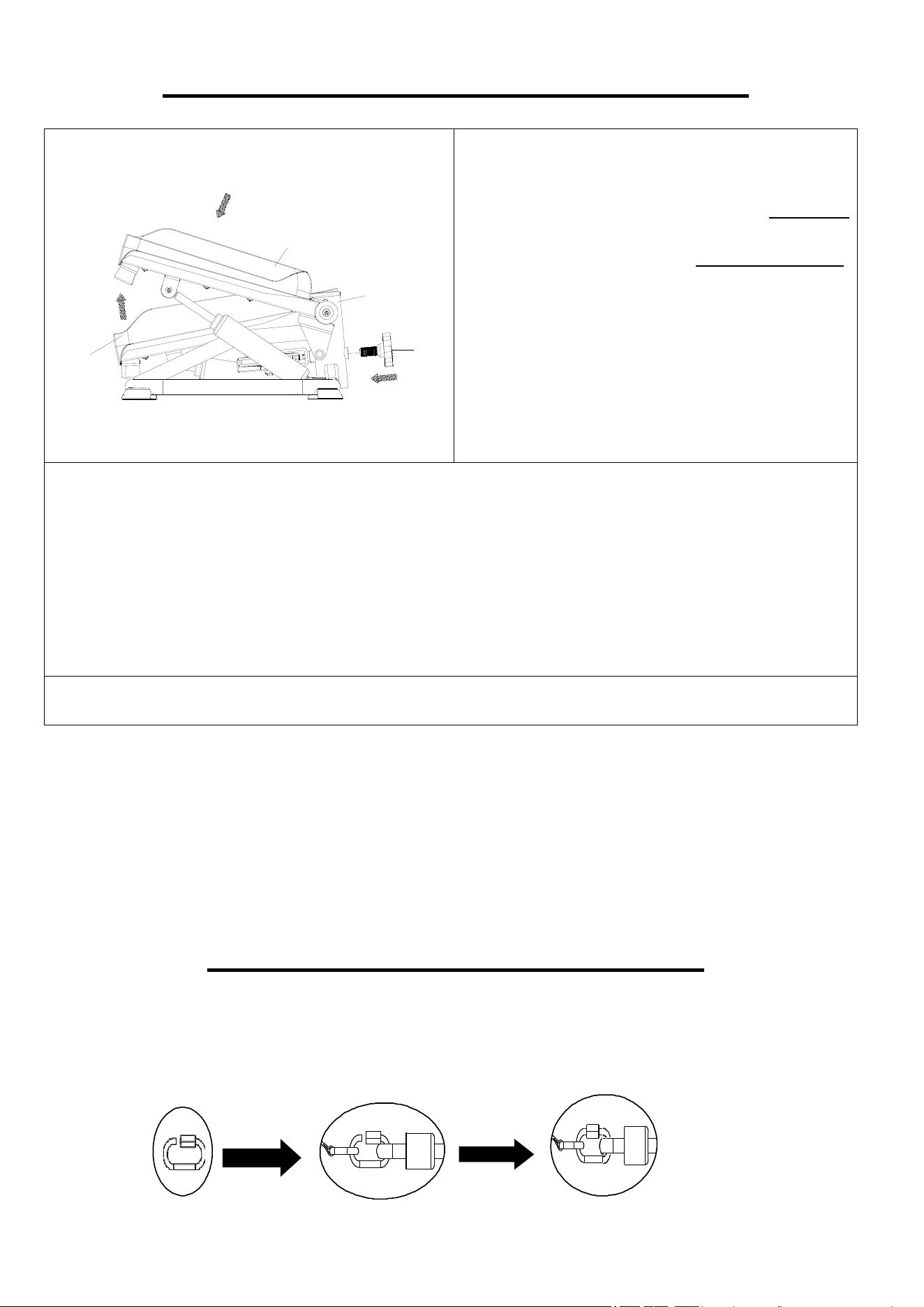

ADJUSTING THE PEDAL STEPPING
HEIGHT
Turn the Adjustment Knob (No. 29) clockwise
to increase the stepping height. Turn the
Adjustment Knob (No. 29) counter-clockwise
to decrease the stepping height.
NOTE: Before turning the adjustment knob, you
need to lift one pedal of the Left or Right Pedals
(No. 37 or No. 32) up and ensure the cable is
around the pulley. If the cable is not properly
positioned around the pulley, it can cause damage
to the main frame of the product or prevent the
height from adjusting correctly.
CLEANING
The stepper can be cleaned with a soft, clean, and damp cloth. Do not use abrasives or solvents
on plastic parts. Please wipe your perspiration off the stepper after each use. Be careful not get
excessive moisture on the computer display panel as this might cause electrical hazards or
electronics failure.
Please keep the stepper, especially the computer, out of direct sunlight to prevent screen
damage.
Please inspect all assembly bolts and pedals on the stepper for proper tightness every week.
STORAGE
Store the stepper in a clean and dry environment, away from children.
NOTES:
If you are having a hard time balancing on the stepper, please hold onto something for support.
The Hydraulic Cylinder (No. 23) may become excessively hot after prolonged use and may be
dangerous to touch. Allow the Hydraulic Cylinder (No. 23) to cool between uses.
EXERCISE BAND INSTRUCTIONS
1. Unscrew the hook nut located on the exercise band until the hook is open as shown in the picture
below.
2. Attach the exercise band hook onto the exercise band buckle and screw the hook nut closed until
the exercise band buckle is secured with the hook nut.
3. Assembly is done.
6

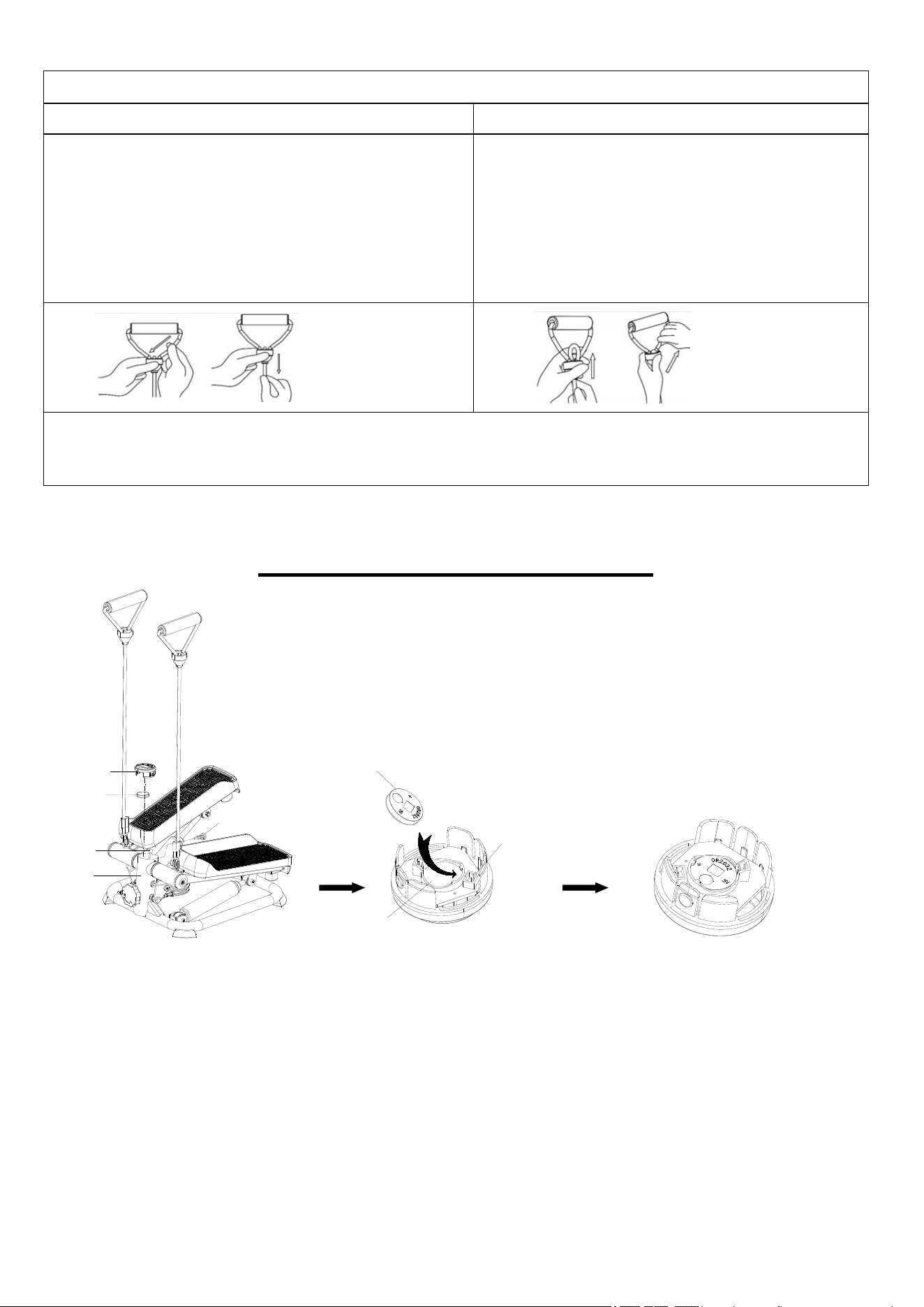

CHANGING THE BATTERY
38
10
33
BATTERY
1
WIRE INSERTING HOLE
BATTERY SEAT
BATTERY
1. Remove the Screw (No. 38) from the Main Frame (No. 1). Remove Computer (No. 33) from
Main Frame (No. 1) and disconnect the link wire of Sensor (No. 10) from the Computer (No.
33).
2. Remove the battery from the backside of Computer (No. 33).
3. Please insert the battery diagonally into the backside of Computer (No. 33). Please ensure the
positive (+) side is facing upward. and make sure the battery is under the obstruction as shown in
above diagram.
Note: If the battery is not installed properly, the Computer (No. 33) can’t be turned on.
4. Insert the link wire of Sensor (No. 10) into the wire inserting hole on the back of Computer (No.
33).
5. Insert the Computer (No. 33) into Main Frame (No. 1) and secure the Screw (No. 38).
Adjusting the Exercise Band Length
To Lengthen Exercise Band To Shorten Exercise Band
Push one side of the exercise band down and
then pull the bottom of the exercise band
downward as shown in the picture below.
Repeat this process until the exercise band is at
the desired length.
NOTE: This adjustment decreases the tension on
the exercise bands.
Push the exercise band upward from the
bottom and then pull one side of the top
exercise band up as shown in the picture
below.
Repeat this process until the exercise band is
at the desired length.
NOTE: This adjustment increases the tension
on the exercise bands.
NOTE: When lengthening the exercise band, only one side of the exercise band can be pushed
down. If the side that you are trying to push down does not move, try the other side of the exercise
band.
7
EXERCISE COMPUTER
FUNCTION BUTTONS:
SPECIFICATIONS:
CNT (COUNT) ------------------------------------------------------0~9999 TIMES
TMR (TIME) ---------------------------------------------------------00:00~99:59 MIN
CAL (CALORIES) -------------------------------------------------0~9999 KCAL
TOT. CNT (TOTAL COUNT) ------------------------------------0~9999 TIMES
FUNCTIONS & OPERATIONS:
1. CNT (COUNT):
Automatically accumulates the count of steps taken during exercise. The computer counts 1 step
after you step once with each foot.
2. TMR (TIME):
Counts the total time of an exercise from start to finish.
3. CAL (CALORIES):
Counts the number of total calories burned during an exercise from start to finish.
4. TOT. CNT (TOTAL COUNT):
Displays total counts of steps since the battery is installed. To reset TOT. CNT (TOTAL COUNT),
you need to remove the battery and reinsert.
5. S (SCAN):
Press the MODE button until the computer shows the flickering S. SCAN mode will automatically
scan each function in the following order: CNT- TMR- TOT. CNT- CAL.
BATTERY:
a) If you have an inaccurate reading on the meter, please replace the battery immediately.
b) The computer uses one CR2032 battery.
c) The computer is auto-powered. It turns on when exercise begins, and it turns off when no
movement is made between 4 to 5 minutes.
d) All functions will automatically stop calculating when 'STOP' appears in the bottom right corner of
the computer. This occurs when there is no signal for a period of 4 seconds. Once the exercise
begins again, the computer will automatically start recalculating.
MODE: This button lets you to select a function. The computer will be
reset by pressing the MODE button for 3~4 seconds except TOT. CNT
(TOTAL COUNT).
8
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your course/session,
and recorded in your account profile!
Troubleshooting:
If you are having trouble connecting your smart equipment, visit www.sunnyfit.com/guide or
scan the QR code below:
If you require additional support, please contact [email protected]
9

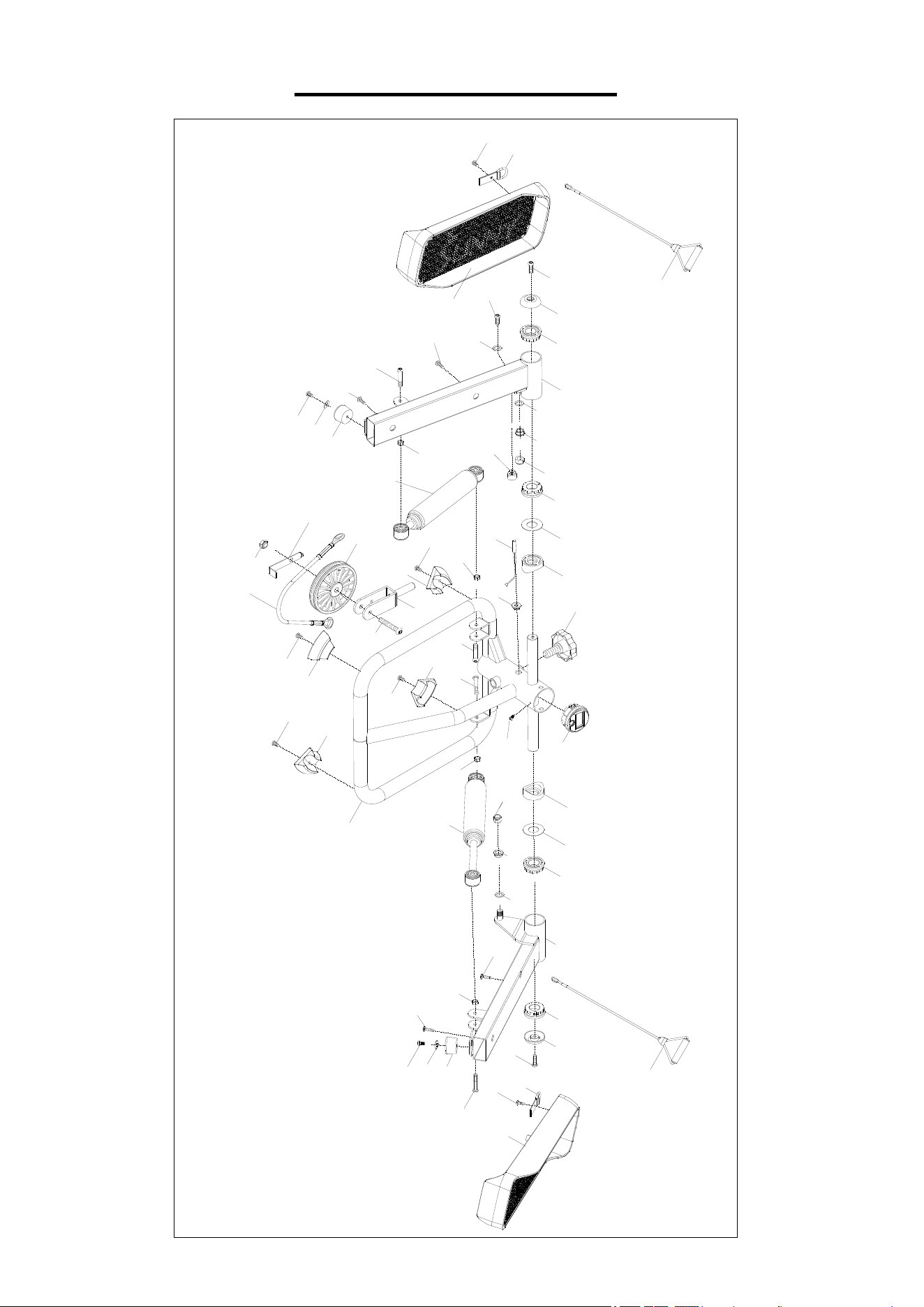

EXPLODED DIAGRAM
3
8
1
2
3
4
5
6
7
7
8
8
8
8
9
1
0
1
1
1
1
1
2
1
2
1
2
1
2
1
3
1
3
1
3
1
3
1
5
1
6
1
8
1
8
1
8
1
8
1
8
1
8
1
9
1
9
2
0
2
0
2
0
2
0
2
1
2
1
2
2
2
2
2
3
2
4
2
4
2
5
2
5
2
6
2
7
2
7
2
7
2
7
2
8
2
9
3
0
3
0
3
1
3
1
1
6
3
7
3
2
3
3
1
7
2
3
3
4
3
4
1
7
1
4
3
6
3
5
10
PARTS LIST
No. Description Spec. Qty. No. Description Spec. Qty.
1 Main Frame 1 20
Cross Countersunk
Head Tapping Screw
ST4.8*19 4
2 Right Foot Bar 1 21 Exercise Band Buckle 2
3 Left Foot Bar 1 22
Cross Countersunk
Head Tapping Screw
ST4.8*8 2
4
Pulley Fixed
Bracket
1 23 Hydraulic Cylinder Φ38 2
5 Wire Rope Φ6.5*355 1 24 Alloy Wrap 2
6 Pulley Φ100*Φ8.2*20 1 25 Plastic Gasket Φ16*Φ10.2*1 2
7 Cover 2 26 Magnet Φ17*Φ11*12 1
8 Bushing Φ38*Φ19.1*12 4 27 Foot Pad 58.4*33.7*20 4
9 Sensor Holder Φ17*Φ11*8 1 28 Limit Plate 1
10 Sensor 1 29 Adjustment Knob Φ60*M14 1
11 Hexagon Bolt M6*20*S5 2 30 Spacer Φ38*Φ19.1*17.25 2
12 Hexagon Bolt M6*36*8*S5 4 31 Washer Φ38*Φ19.1*1 2
13 Nylon Nut M6 4 32 Right Pedal 320*120*82.4 1
14 Hexagon Bolt M8*40*15*S6 1 33 Computer DSC03609-APP 1
15 Nylon Nut M8 1 34 Exercise Band Φ8*640 2
16 Nylon Nut M10 2 35 Magnet Cover Φ15*3.5 1
17 Flat Washer Φ12*Φ5.2*1 2 36
Cross Countersunk
Head Tapping Screw
ST3*8 1
18 Hexagon Bolt M5*10*S3 6 37 Left Pedal 320*120*82.4 1
19 Cushion Φ30*20 2 38 Screw ST4.2*12 1
Version：1.0
11
