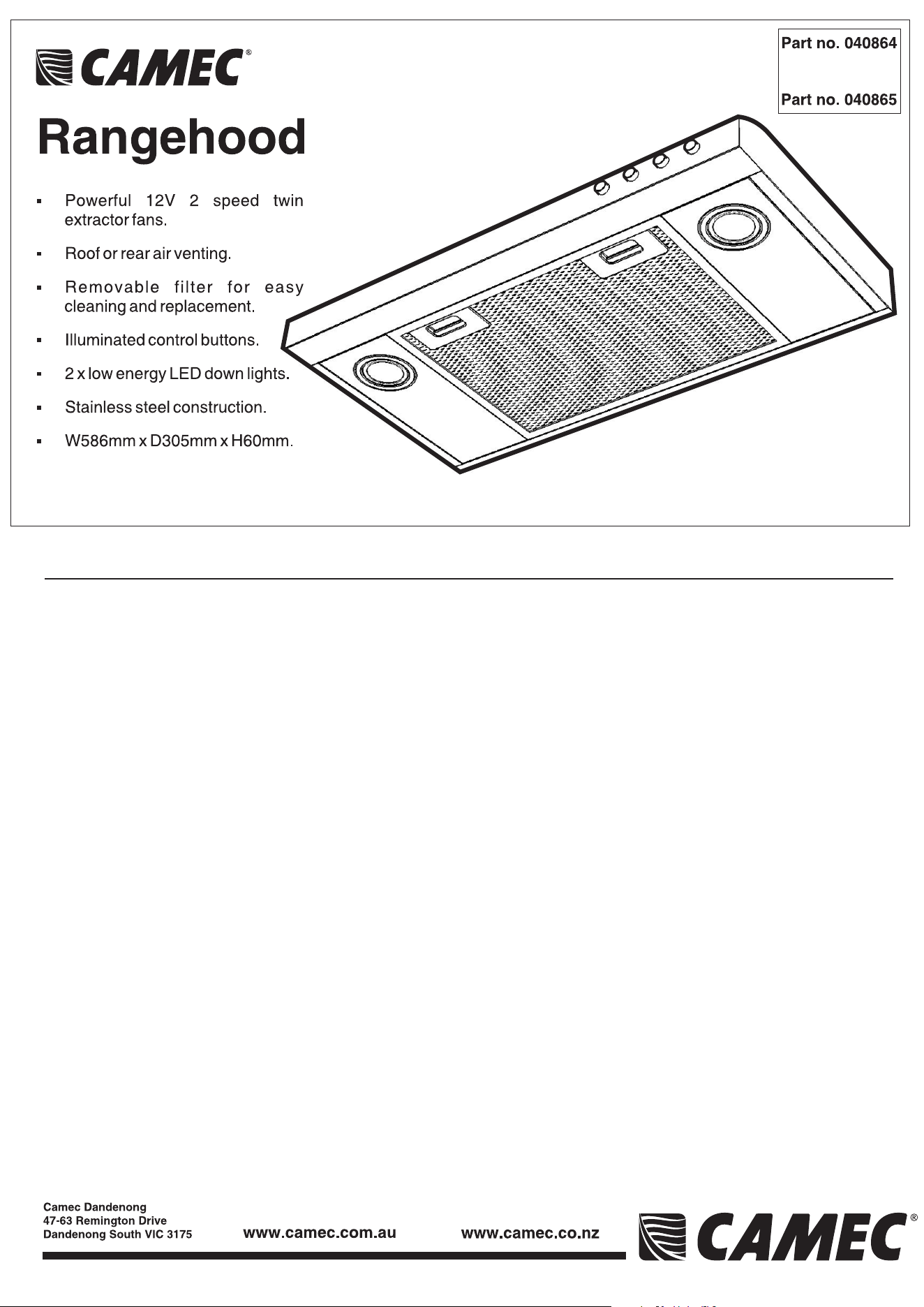

Camec RangeHood 001270612
APPLICATION
Camec's range-hood is suitable for most 12V applications,
including recreational vehicles, boats, cabins etc. It can
be wall or island mounted with the ability to vent the
exhaust gas through the roof or walls. It is especially
suitable where cabinet width is less than the 600mm.
PERFORMANCE
The unit is equipped with two high performance 2 speed
fans able to ensure the swift removal of cooking vapours,
odours and heat. The high speed selection is perfect for
the types of cooking renown for high vapour emissions
such as such as stir frying, griddle cooking and boiling, the
lower speed is perfect for simmers etc.
QUIETNESS
The motor/impellor encasements are smooth walled to
minimise air drag and noise.
SAFETY
The casing and mesh is made from non-flammable
stainless steel and aluminium with minimal plastic
components to minimise the risk of fire.
MAINTENANCE
Camec's range-hood is equipped with an Aluminium filter
that requires periodic cleaning. The filter can be cleaned by
unclipping it from the unit and either rinsing the filter under
hot water or washing it in a dish washer. The stainless steel
casing can by cleaned using most household surface
cleaners. (Check label for suitability before use)
DUCTING
Camec's range-hood extracts the vapours directly into the
atmosphere to ensure the maximum removal of
grease/oil/particle-laden vapours plus odours and
importantly heat, resulting in a cleaner, cooler and more
comfortable work environment.
RECIRCULATION
When exhaust vapours cannot be ducted to atmosphere, the
filtered air can be redirected back into the kitchen via a duct
pipe through the overhead cabinetry. However this is not
recommended by the manufacturer.
Camec Turbo 1 & 2 rangehoods
For and under mount installations 59cm wide.built-in
Note: When installing this unit in a Recreational Vehicle please note the minimum separation between the under face of
the rangehood and cooktop heating surfaces (ie gas flame aperture, electric element) must be a minimum of 450mm.
For Domestic applications a minimum of 600mm above heating surfaces must be maintained.
Technical specifications and product sizes can be varied by
the manufacturer without notice. Cutouts for appliances
should only be by physical product measurements.
The information is indicative only.
2 Powerful 12 Volt, twin speed extractor fans.
Roof or rear air venting -
Simply undo 4 screws to remove rear duct,
turn it upside down and replace.
Removable filter for easy cleaning and
replacement.
Illuminated control buttons -
On / Off , illumination and fan speed.
2 low energy LED down lights.
Stainless steel construction -
Laser welded seams and burnished polish
finish
Dimensions:-
W586mm, D305mm, H60mm
Camec RangeHood 001270612
