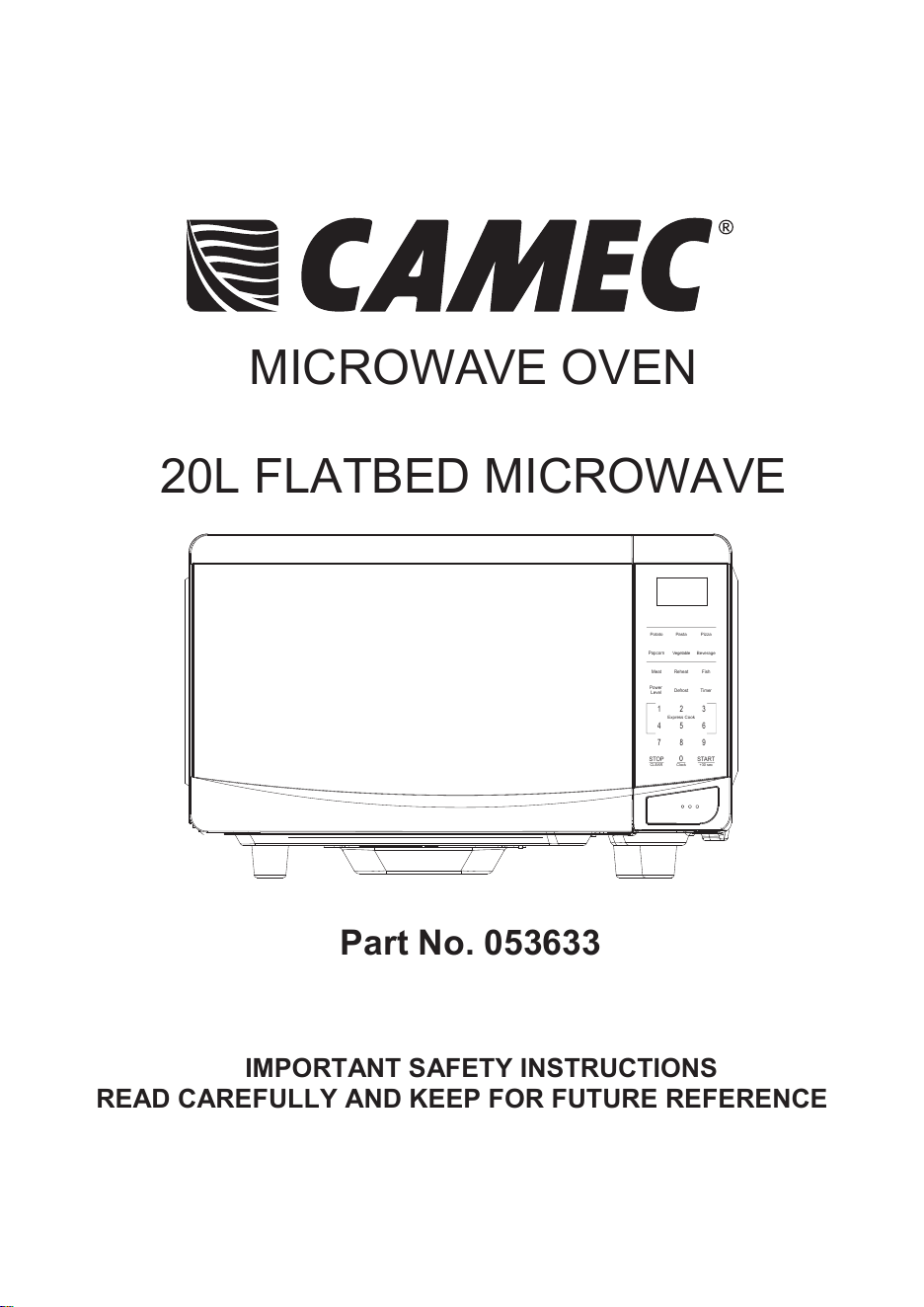

MICROWAVE OVEN
20L FLATBED MICROWAVE
Potato Pasta Pizza
Popcorn
Vegetable
Beverage
Meat Reheat Fish
Power
Level
Defrost Timer
1 2 3
Express Cook
4 5 6
7 8 9
STOP
0
START
CLEAR Clock
+30 sec
Part No. 053633
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
More information https://www.caravansplus.com.au
2

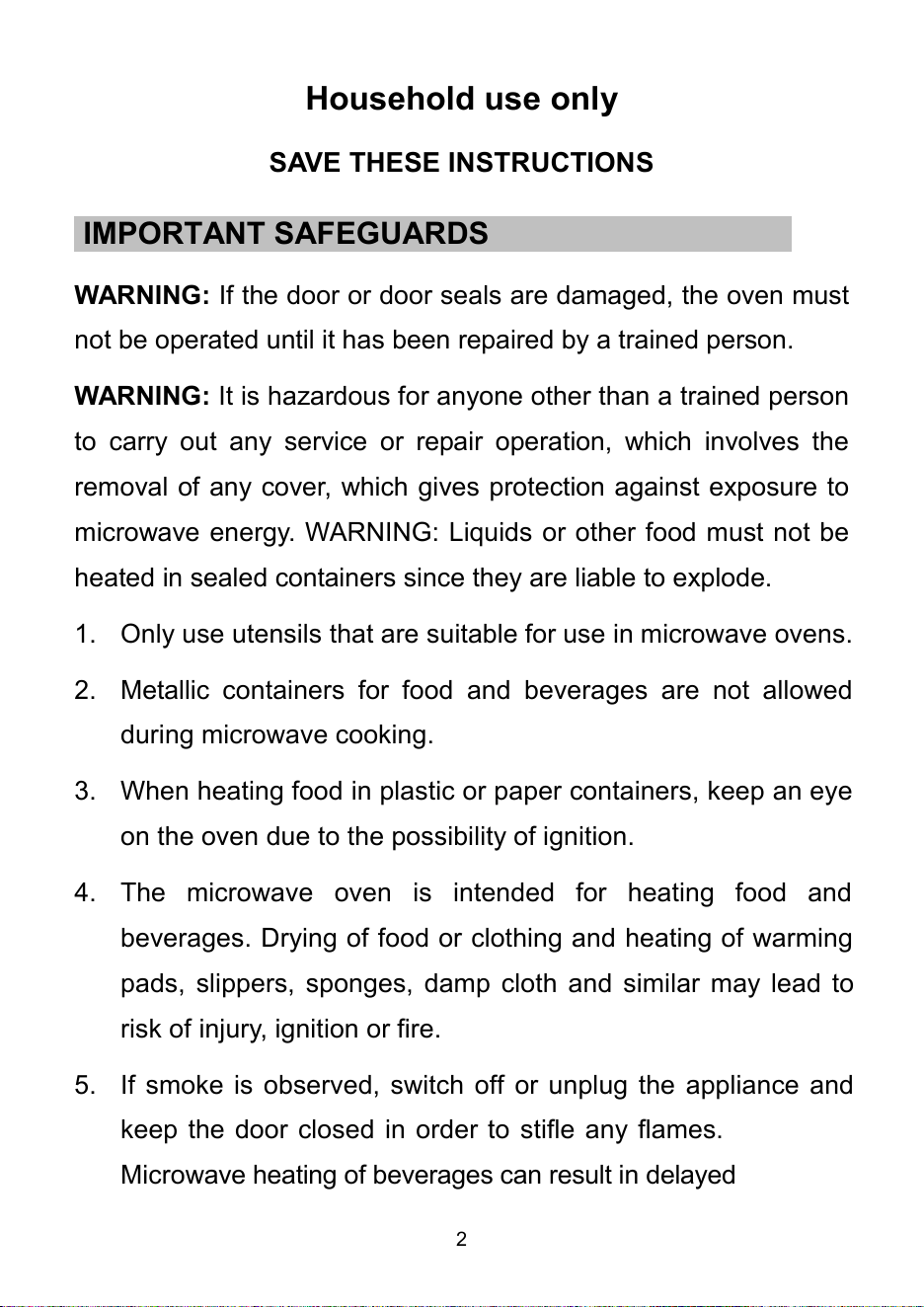

Household use only
SAVE THESE INSTRUCTIONS
.IMPORTANT SAFEGUARDS… ……………… …… ..
WARNING: If the door or door seals are damaged, the oven must
not be operated until it has been repaired by a trained person.
WARNING: It is hazardous for anyone other than a trained person
to carry out any service or repair operation, which involves the
removal of any cover, which gives protection against exposure to
microwave energy. WARNING: Liquids or other food must not be
heated in sealed containers since they are liable to explode.
1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed
during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to
risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed
More information https://www.caravansplus.com.au
3

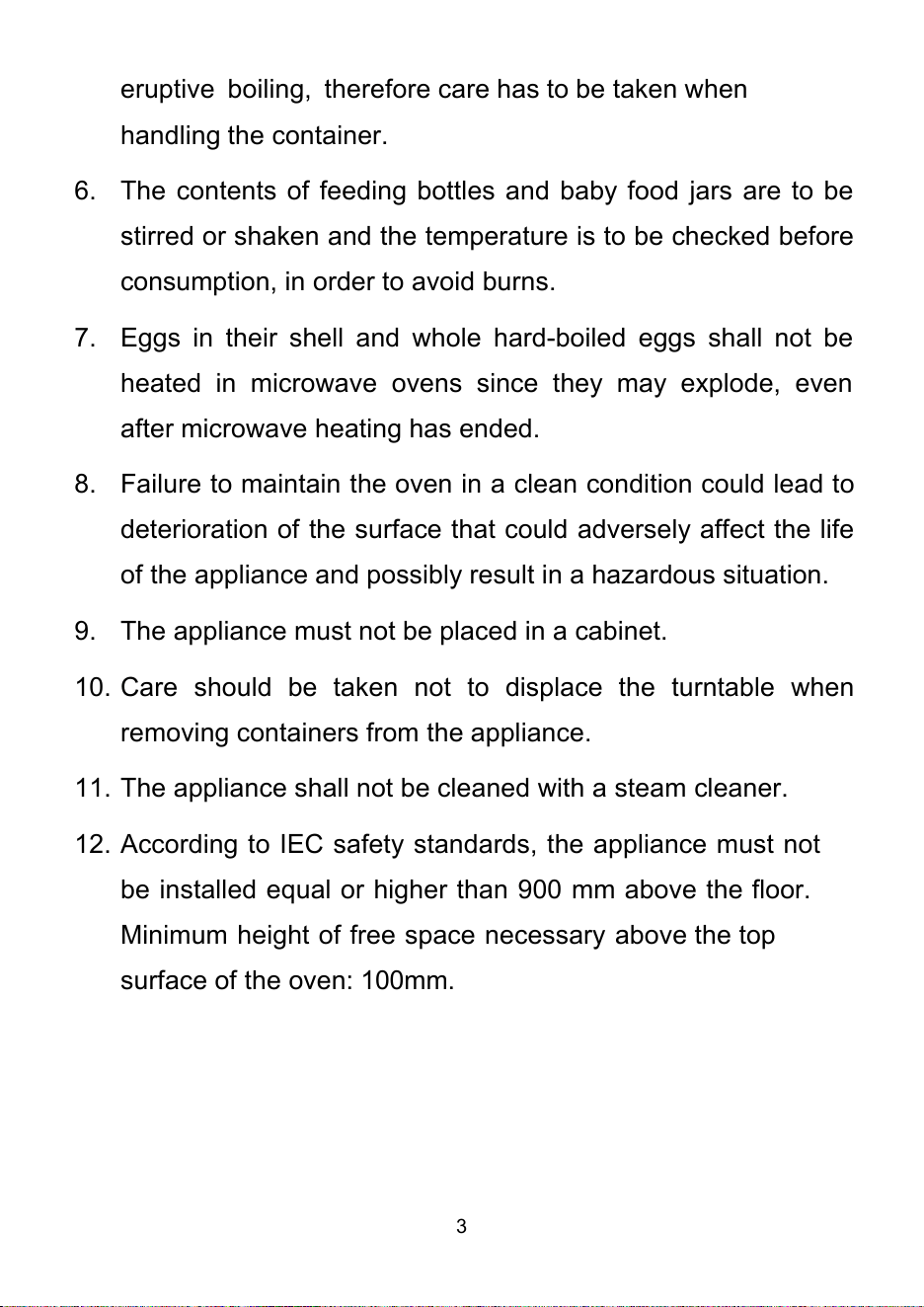

eruptive boiling, therefore care has to be taken when
handling the container.
6. The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be
heated in microwave ovens since they may explode, even
after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable when
removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.
12. According to IEC safety standards, the appliance must not
be installed equal or higher than 900 mm above the floor.
Minimum height of free space necessary above the top
surface of the oven: 100mm.
More information https://www.caravansplus.com.au
4

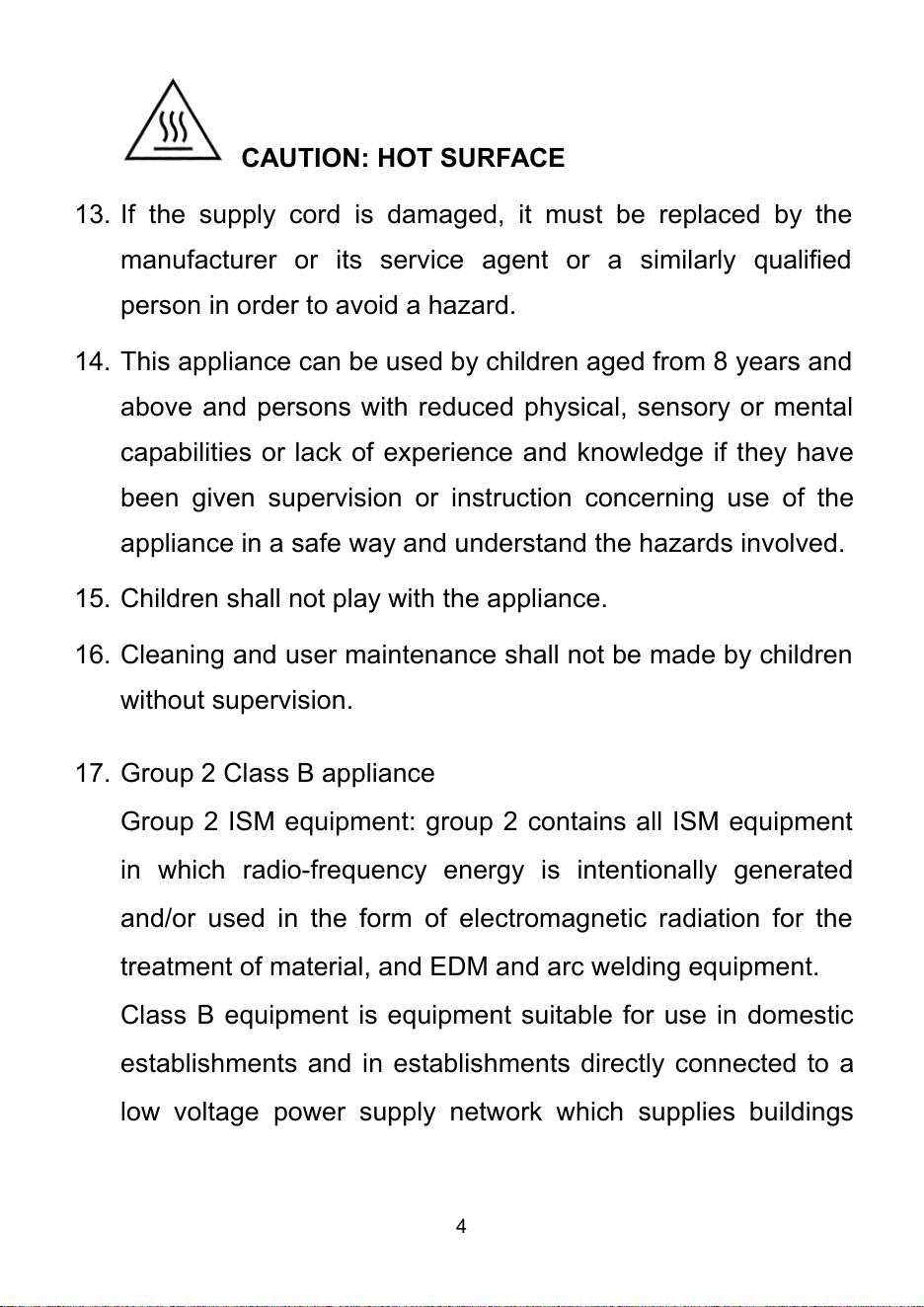

CAUTION: HOT SURFACE
13. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
14. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
15. Children shall not play with the appliance.
16. Cleaning and user maintenance shall not be made by children
without supervision.
17. Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM equipment
in which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation for the
treatment of material, and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in domestic
establishments and in establishments directly connected to a
low voltage power supply network which supplies buildings
More information https://www.caravansplus.com.au
5

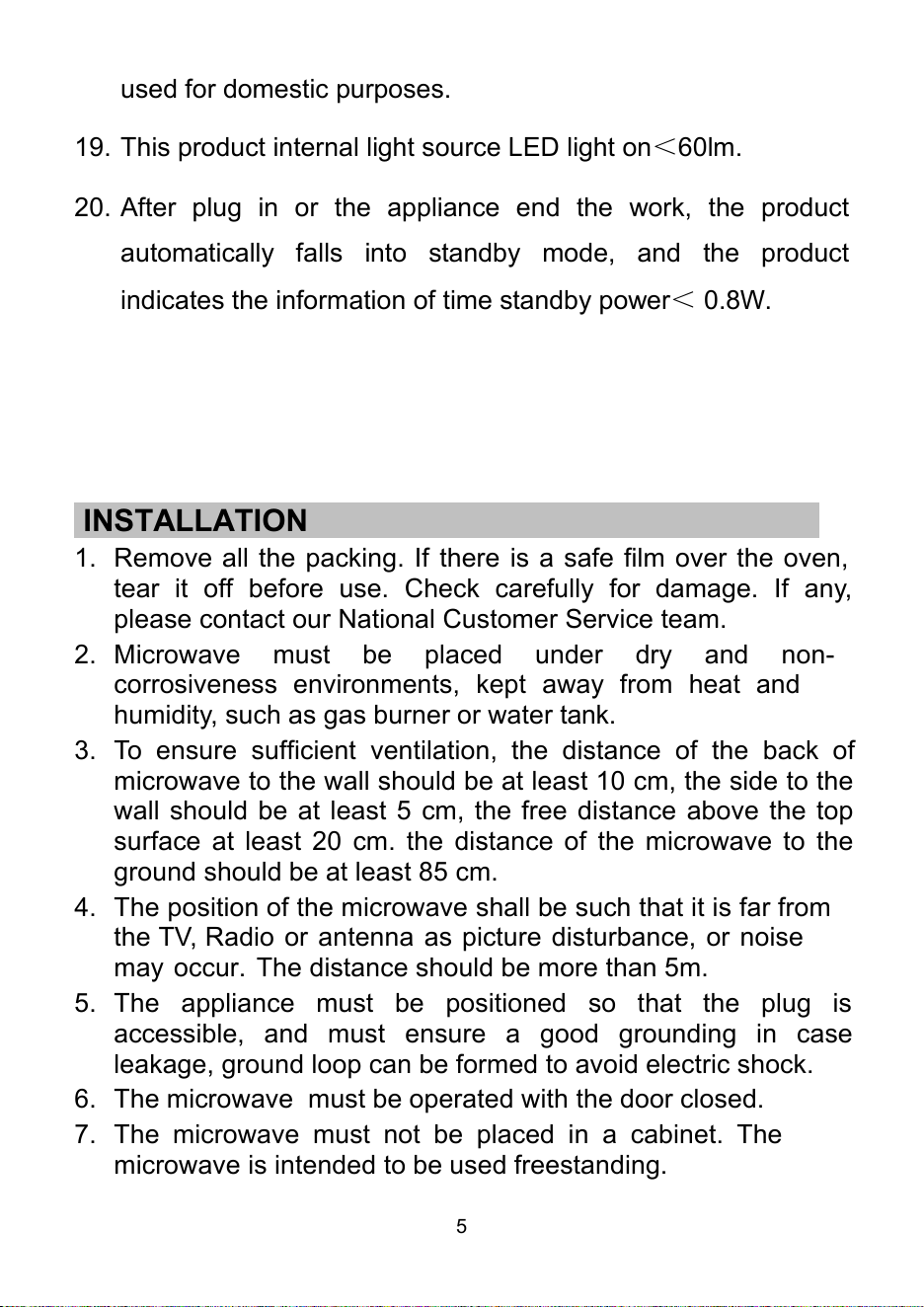

used for domestic purposes.
19. This product internal light source LED light on＜60lm.
20. After plug in or the appliance end the work, the product
automatically falls into standby mode, and the product
indicates the information of time standby power＜ 0.8W.
.INSTALLATION…………… …… ……………………… ……..……
1. Remove all the packing. If there is a safe film over the oven,
tear it off before use. Check carefully for damage. If any,
please contact our National Customer Service team.
2. Microwave must be placed under dry and non-
corrosiveness environments, kept away from heat and
humidity, such as gas burner or water tank.
3. To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 10 cm, the side to the
wall should be at least 5 cm, the free distance above the top
surface at least 20 cm. the distance of the microwave to the
ground should be at least 85 cm.
4. The position of the microwave shall be such that it is far from
the TV, Radio or antenna as picture disturbance, or noise
may occur. The distance should be more than 5m.
5. The appliance must be positioned so that the plug is
accessible, and must ensure a good grounding in case
leakage, ground loop can be formed to avoid electric shock.
6. The microwave must be operated with the door closed.
7. The microwave must not be placed in a cabinet. The
microwave is intended to be used freestanding.
More information https://www.caravansplus.com.au
6

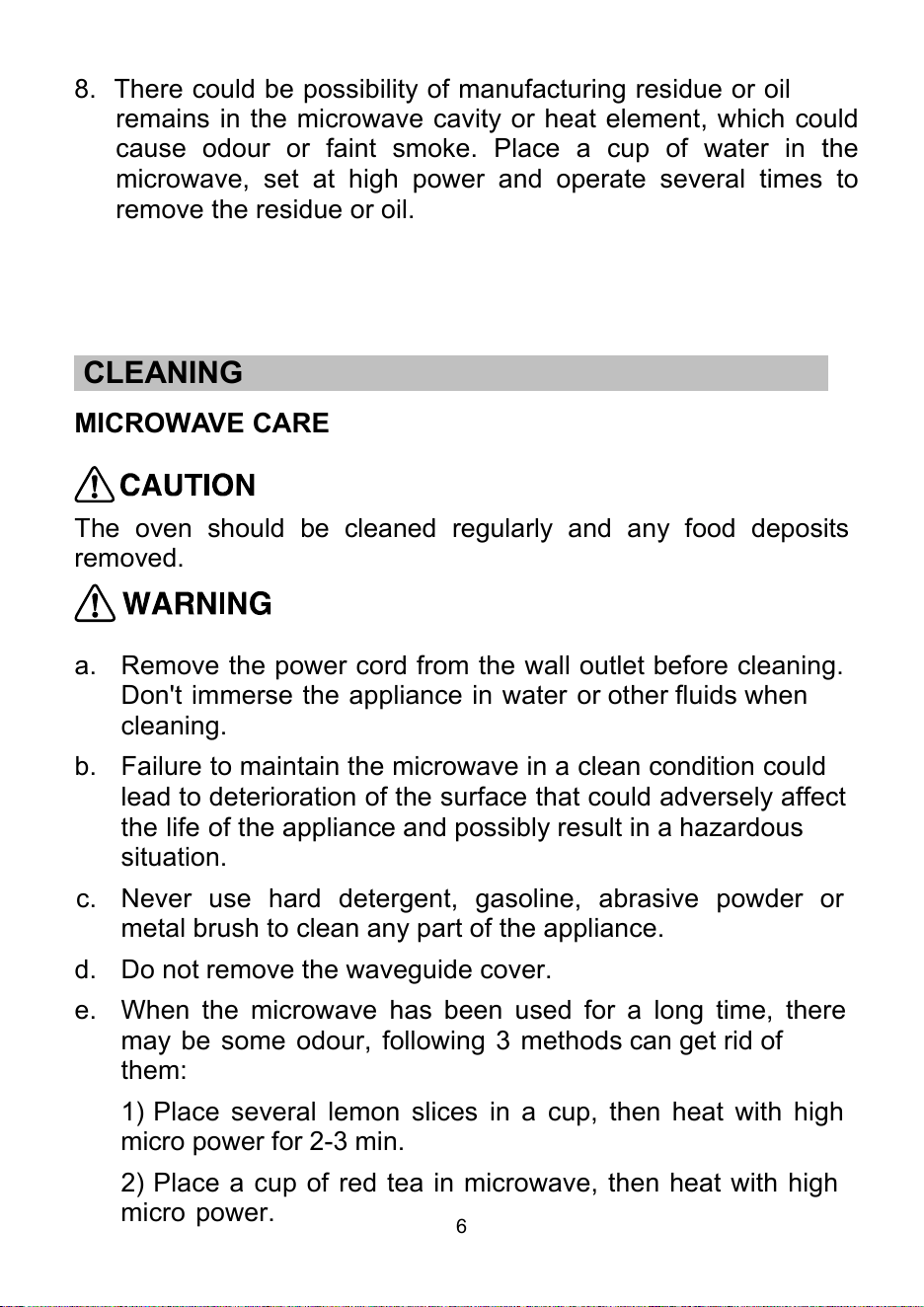

8. There could be possibility of manufacturing residue or oil
remains in the microwave cavity or heat element, which could
cause odour or faint smoke. Place a cup of water in the
microwave, set at high power and operate several times to
remove the residue or oil.
.CLEANING …………………… … ………
MICROWAVE CARE
The oven should be cleaned regularly and any food deposits
removed.
a. Remove the power cord from the wall outlet before cleaning.
Don't immerse the appliance in water or other fluids when
cleaning.
b. Failure to maintain the microwave in a clean condition could
lead to deterioration of the surface that could adversely affect
the life of the appliance and possibly result in a hazardous
situation.
c. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave has been used for a long time, there
may be some odour, following 3 methods can get rid of
them:
1) Place several lemon slices in a cup, then heat with high
micro power for 2-3 min.
2) Place a cup of red tea in microwave, then heat with high
micro power.
More information https://www.caravansplus.com.au
7

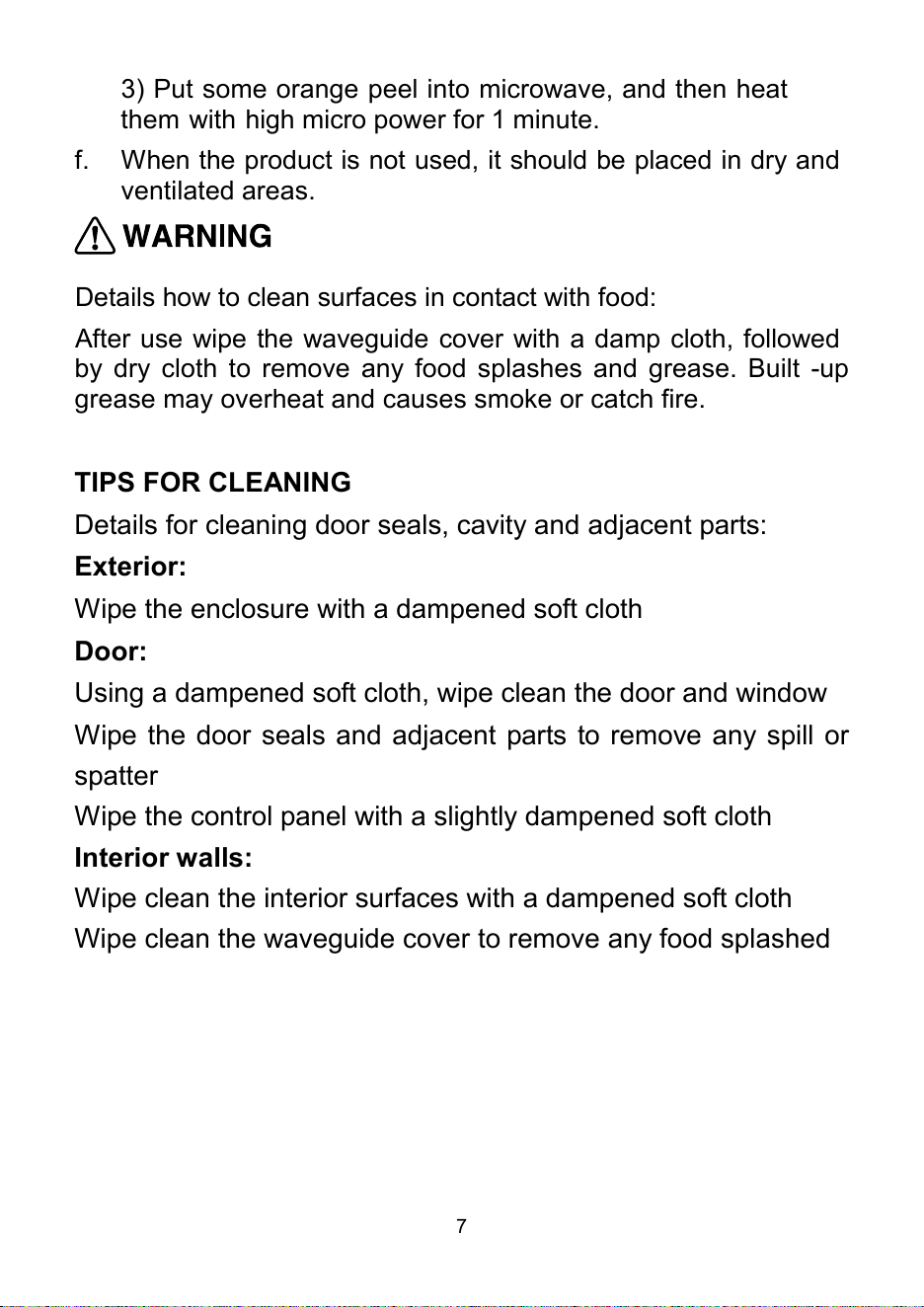

3) Put some orange peel into microwave, and then heat
them with high micro power for 1 minute.
f. When the product is not used, it should be placed in dry and
ventilated areas.
Details how to clean surfaces in contact with food:
After use wipe the waveguide cover with a damp cloth, followed
by dry cloth to remove any food splashes and grease. Built -up
grease may overheat and causes smoke or catch fire.
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
Using a dampened soft cloth, wipe clean the door and window
Wipe the door seals and adjacent parts to remove any spill or
spatter
Wipe the control panel with a slightly dampened soft cloth
Interior walls:
Wipe clean the interior surfaces with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed
More information https://www.caravansplus.com.au
8

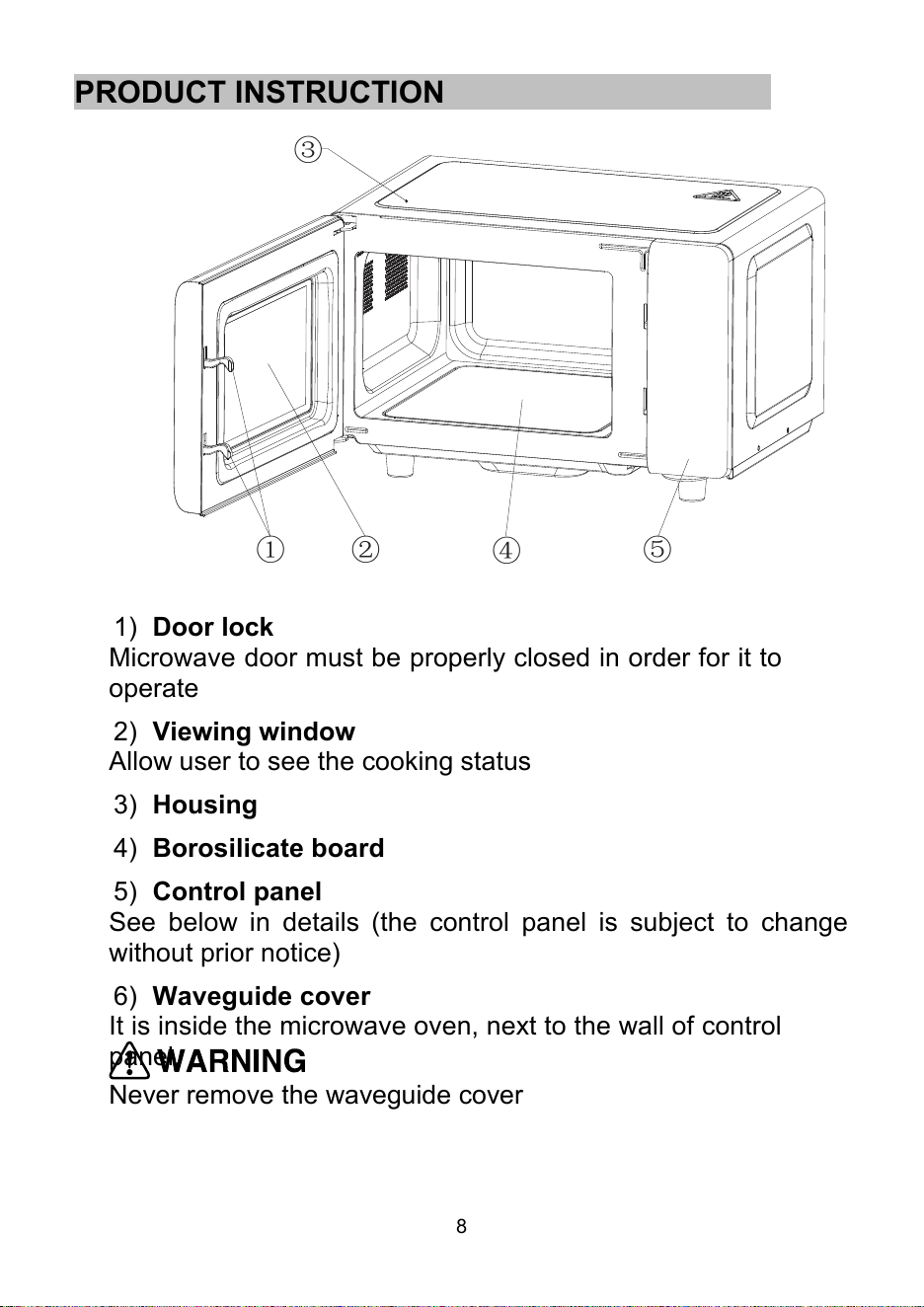

PRODUCT INSTRUCTION…………………………........... .......
③
①
②
④
⑤
1) Door lock
Microwave door must be properly closed in order for it to
operate
2) Viewing window
Allow user to see the cooking status
3) Housing
4) Borosilicate board
5) Control panel
See below in details (the control panel is subject to change
without prior notice)
6) Waveguide cover
It is inside the microwave oven, next to the wall of control
panel.
Never remove the waveguide cover
More information https://www.caravansplus.com.au
9

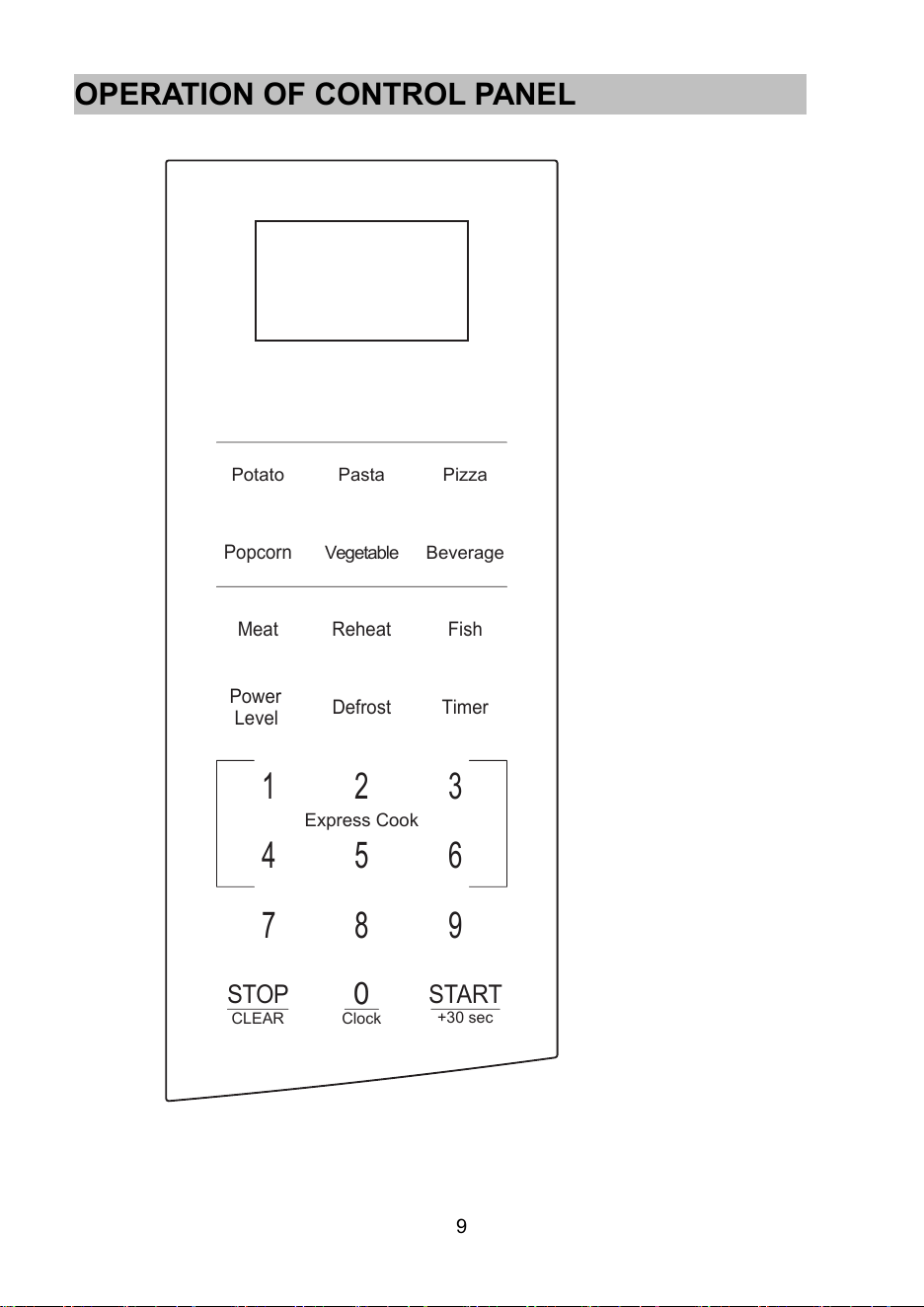

OPERATION OF CONTROL PANEL…。。。。。。。 。。
Potato Pasta Pizza
Popcorn
Vegetable Beverage
Meat Reheat Fish
Power
Level
Defrost Timer
1 2 3
Express Cook
4 5 6
7 8 9
STOP
0
START
CLEAR Clock
+30 sec
More information https://www.caravansplus.com.au
10

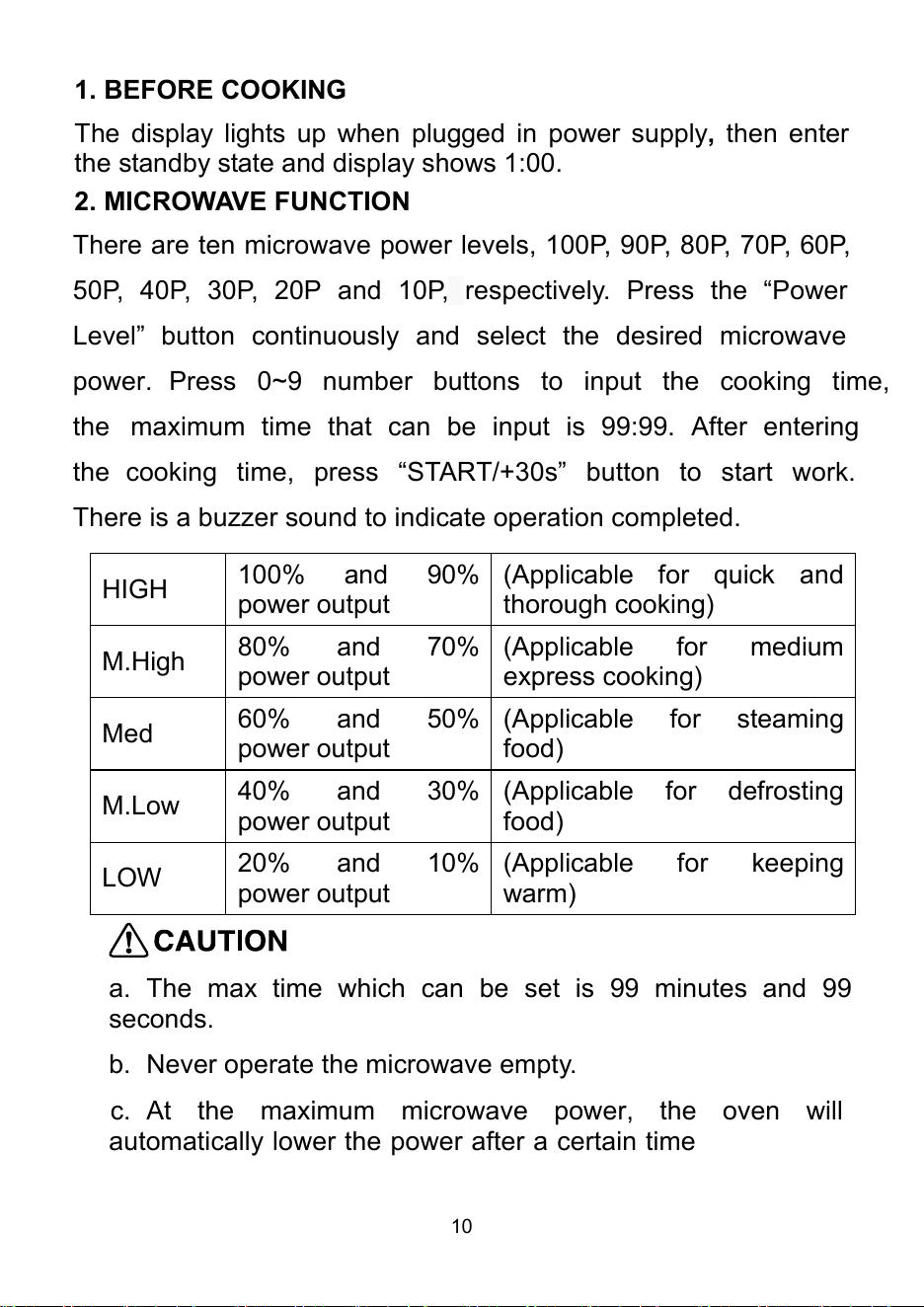

1. BEFORE COOKING
The display lights up when plugged in power supply, then enter
the standby state and display shows 1:00.
2. MICROWAVE FUNCTION
There are ten microwave power levels, 100P, 90P, 80P, 70P, 60P,
50P, 40P, 30P, 20P and 10P, respectively. Press the “Power
Level” button continuously and select the desired microwave
power. Press 0~9 number buttons to input the cooking time,
the maximum time that can be input is 99:99. After entering
the cooking time, press “START/+30s” button to start work.
There is a buzzer sound to indicate operation completed.
HIGH
100% and 90%
power output
(
Applicable for quick and
thorough cooking)
M.High
80% and 70%
power output
(
Applicable for medium
express cooking)
Med
60%
and 50%
power output
(
Applicable for steaming
food)
M.Low
40% and 30%
power output
(
Applicable for defrosting
food)
LOW
20% and 10%
power output
(
Applicable for keeping
warm)
a. The max time which can be set is 99 minutes and 99
seconds.
b. Never operate the microwave empty.
c. At the maximum microwave power, the oven will
automatically lower the power after a certain time
More information https://www.caravansplus.com.au
11

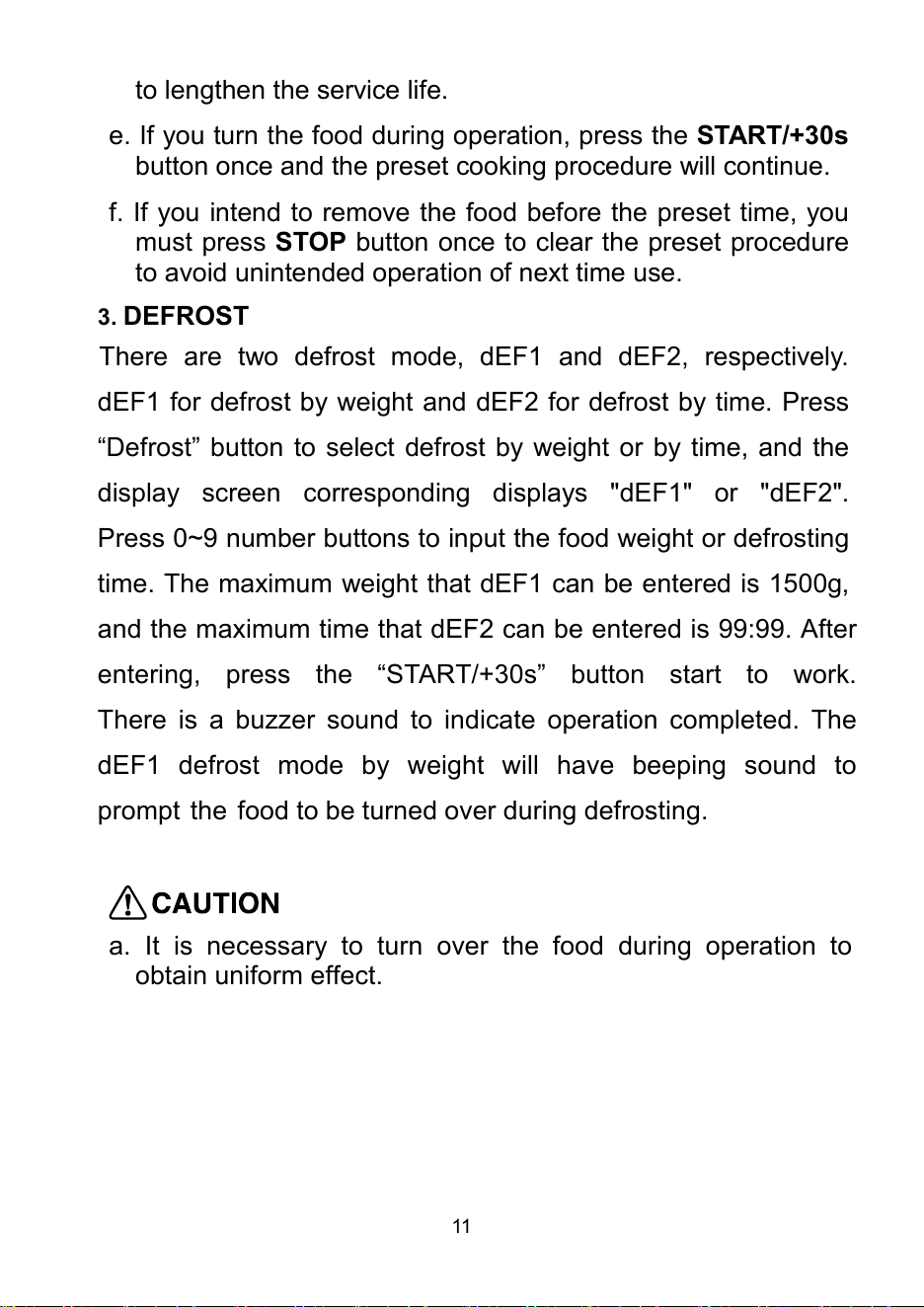

to lengthen the service life.
e. If you turn the food during operation, press the START/+30s
button once and the preset cooking procedure will continue.
f. If you intend to remove the food before the preset time, you
must press STOP button once to clear the preset procedure
to avoid unintended operation of next time use.
3. DEFROST
There are two defrost mode, dEF1 and dEF2, respectively.
dEF1 for defrost by weight and dEF2 for defrost by time. Press
“Defrost” button to select defrost by weight or by time, and the
display screen corresponding displays "dEF1" or "dEF2".
Press 0~9 number buttons to input the food weight or defrosting
time. The maximum weight that dEF1 can be entered is 1500g,
and the maximum time that dEF2 can be entered is 99:99. After
entering, press the “START/+30s” button start to work.
There is a buzzer sound to indicate operation completed. The
dEF1 defrost mode by weight will have beeping sound to
prompt the food to be turned over during defrosting.
a. It is necessary to turn over the food during operation to
obtain uniform effect.
More information https://www.caravansplus.com.au
12

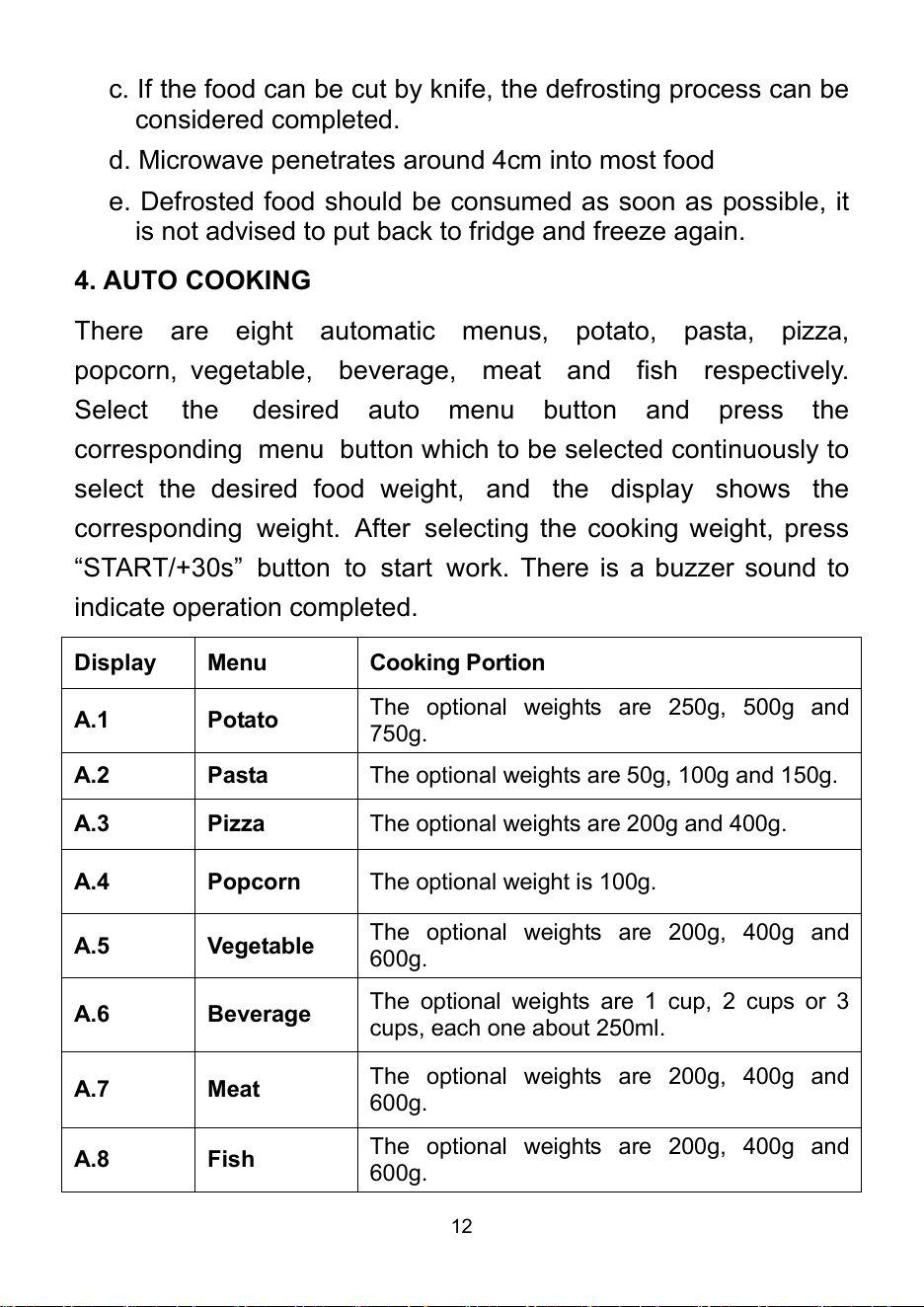

c. If the food can be cut by knife, the defrosting process can be
considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it
is not advised to put back to fridge and freeze again.
4. AUTO COOKING
There are eight automatic menus, potato, pasta, pizza,
popcorn, vegetable, beverage, meat and fish respectively.
Select the desired auto menu button and press the
corresponding menu button which to be selected continuously to
select the desired food weight, and the display shows the
corresponding weight. After selecting the cooking weight, press
“START/+30s” button to start work. There is a buzzer sound to
indicate operation completed.
Display Menu Cooking Portion
A.1 Potato
The optional weights are 250g, 500g and
750g.
A.2 Pasta The optional weights are 50g, 100g and 150g.
A.3 Pizza The optional weights are 200g and 400g.
A.4 Popcorn The optional weight is 100g.
A.5 Vegetable
The optional weights are 200g, 400g and
600g.
A.6 Beverage
The optional weights are
1 cup, 2 cups or 3
cups, each one about 250ml.
A.7 Meat
The optional weights are 200g, 400g and
600g.
A.8 Fish
The optional weights are 200g, 400g and
600g.
More information https://www.caravansplus.com.au
13

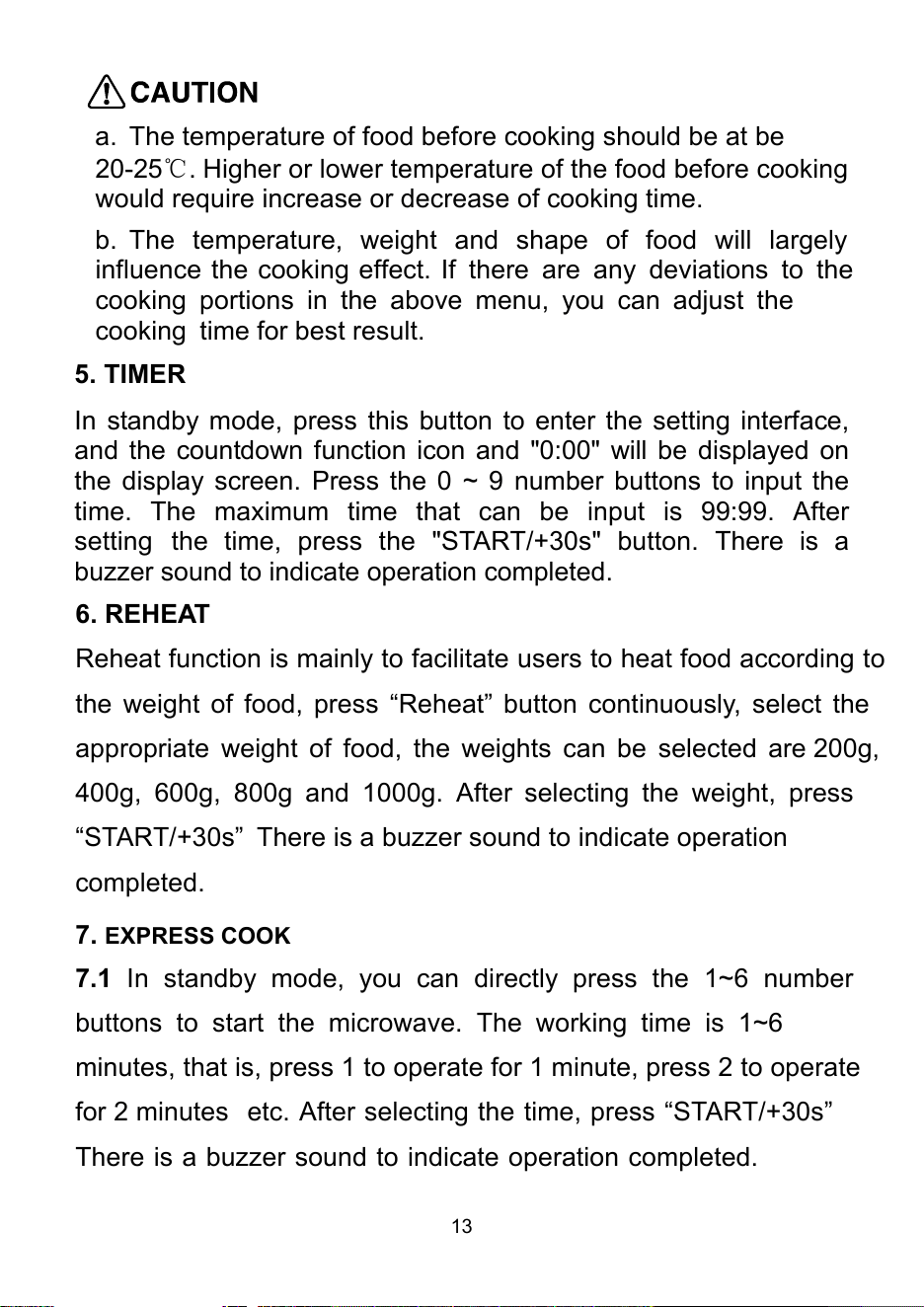

a. The temperature of food before cooking should be at be
20-25℃. Higher or lower temperature of the food before cooking
would require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely
influence the cooking effect. If there are any deviations to the
cooking portions in the above menu, you can adjust the
cooking time for best result.
5. TIMER
In standby mode, press this button to enter the setting interface,
and the countdown function icon and "0:00" will be displayed on
the display screen. Press the 0 ~ 9 number buttons to input the
time. The maximum time that can be input is 99:99. After
setting the time, press the "START/+30s" button. There is a
buzzer sound to indicate operation completed.
6. REHEAT
Reheat function is mainly to facilitate users to heat food according to
the weight of food, press “Reheat” button continuously, select the
appropriate weight of food, the weights can be selected are 200g,
400g, 600g, 800g and 1000g. After selecting the weight, press
“START/+30s” There is a buzzer sound to indicate operation
completed.
7. EXPRESS COOK
7.1 In standby mode, you can directly press the 1~6 number
buttons to start the microwave. The working time is 1~6
minutes, that is, press 1 to operate for 1 minute, press 2 to operate
for 2 minutes etc. After selecting the time, press “START/+30s”
There is a buzzer sound to indicate operation completed.
More information https://www.caravansplus.com.au
14

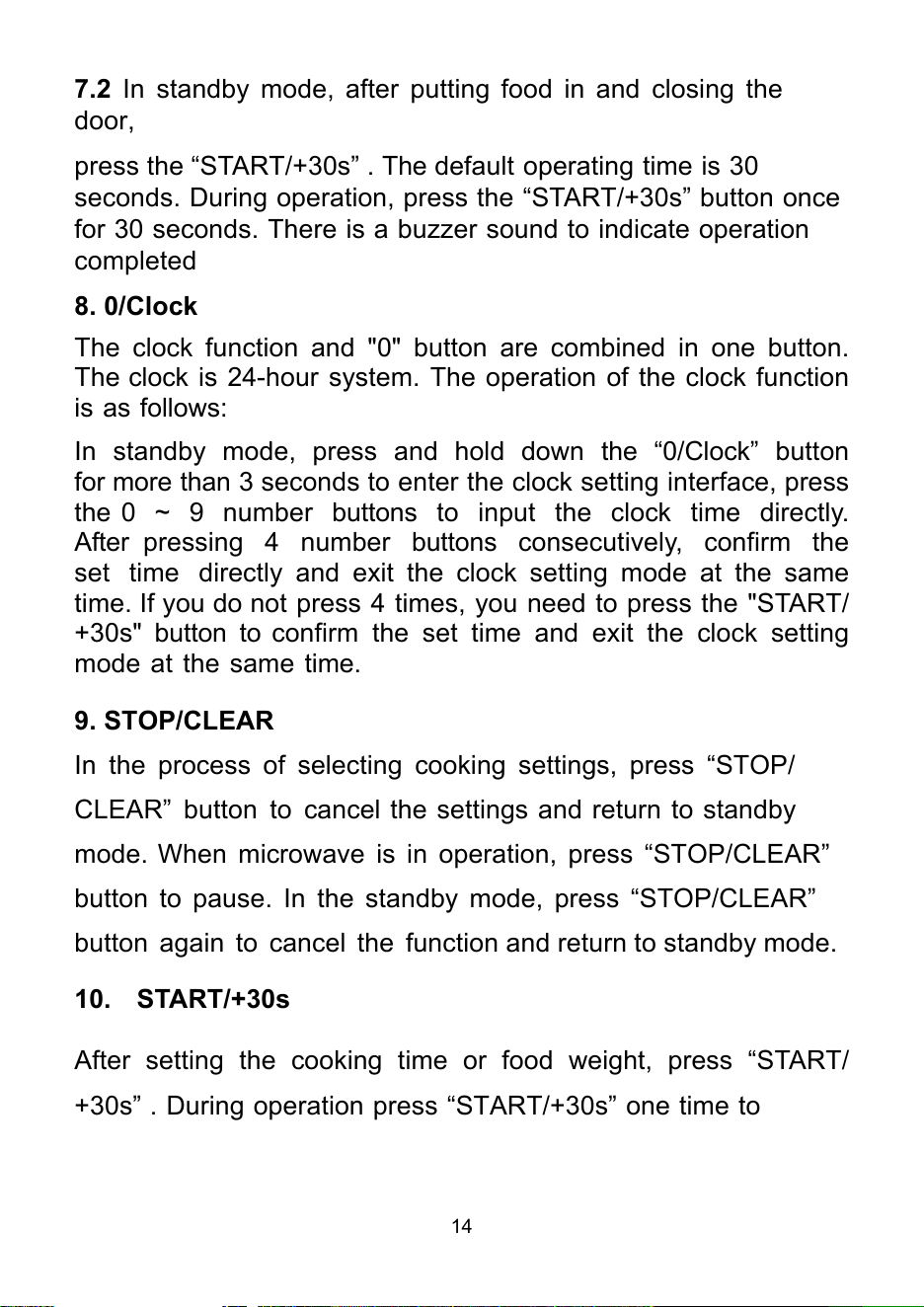

7.2 In standby mode, after putting food in and closing the
door,
press the “START/+30s” . The default operating time is 30
seconds. During operation, press the “START/+30s” button once
for 30 seconds. There is a buzzer sound to indicate operation
completed
8. 0/Clock
The clock function and "0" button are combined in one button.
The clock is 24-hour system. The operation of the clock function
is as follows:
In standby mode, press and hold down the “0/Clock” button
for more than 3 seconds to enter the clock setting interface, press
the 0 ~ 9 number buttons to input the clock time directly.
After pressing 4 number buttons consecutively, confirm the
set time directly and exit the clock setting mode at the same
time. If you do not press 4 times, you need to press the "START/
+30s" button to confirm the set time and exit the clock setting
mode at the same time.
9. STOP/CLEAR
In the process of selecting cooking settings, press “STOP/
CLEAR” button to cancel the settings and return to standby
mode. When microwave is in operation, press “STOP/CLEAR”
button to pause. In the standby mode, press “STOP/CLEAR”
button again to cancel the function and return to standby mode.
10. START/+30s
After setting the cooking time or food weight, press “START/
+30s”
. During operation press “START/+30s” one time to
More information https://www.caravansplus.com.au
15

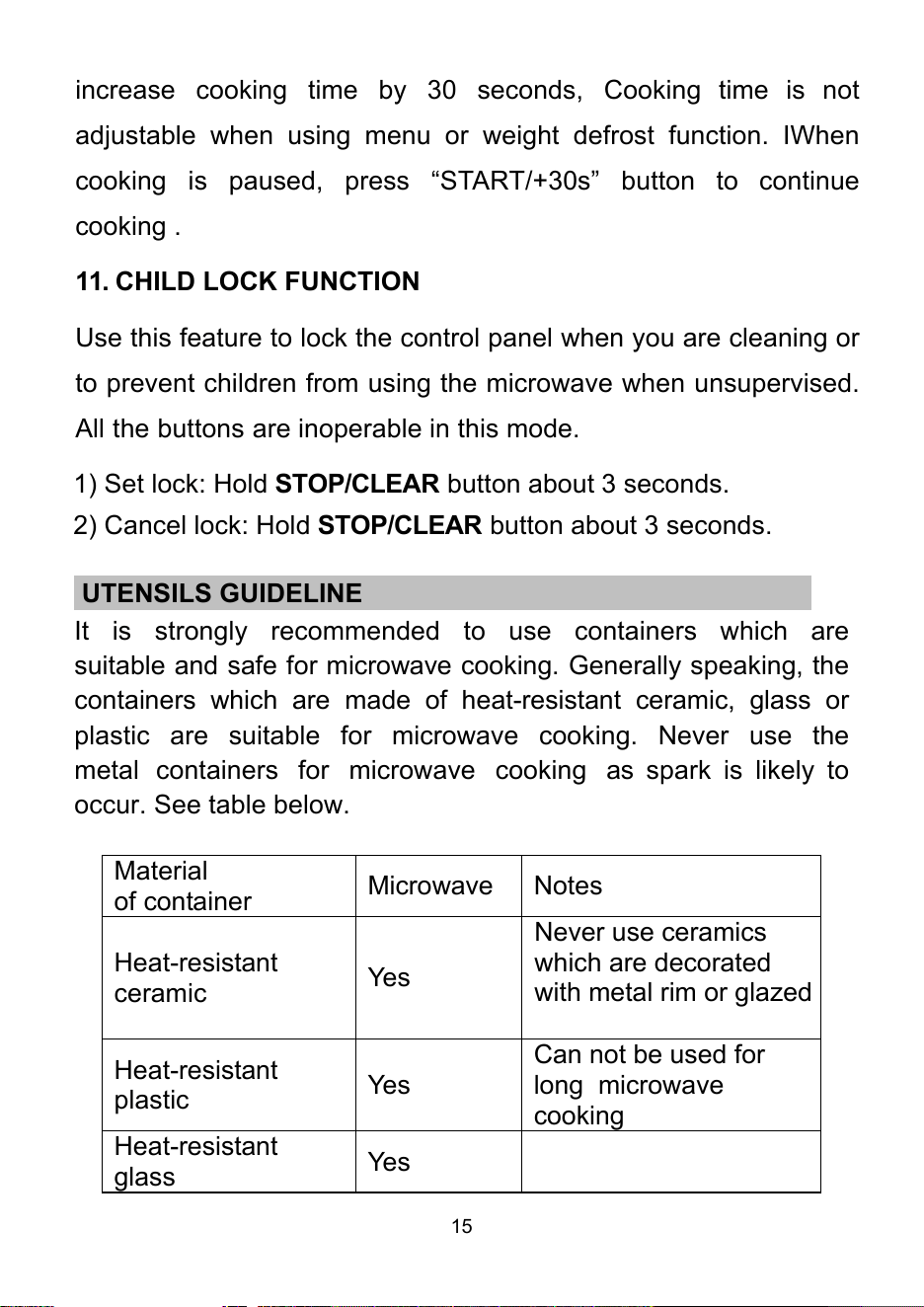

increase cooking time by 30 seconds, Cooking time is not
adjustable when using menu or weight defrost function. IWhen
cooking is paused, press “START/+30s” button to continue
cooking .
11. CHILD LOCK FUNCTION
Use this feature to lock the control panel when you are cleaning or
to prevent children from using the microwave when unsupervised.
All the buttons are inoperable in this mode.
1) Set lock: Hold STOP/CLEAR button about 3 seconds.
2) Cancel lock: Hold STOP/CLEAR button about 3 seconds.
.UTENSILS GUIDELINE…。………………………… …..
It is strongly recommended to use containers which are
suitable and safe for microwave cooking. Generally speaking, the
containers which are made of heat-resistant ceramic, glass or
plastic are suitable for microwave cooking. Never use the
metal containers for microwave cooking as spark is likely to
occur. See table below.
Material
of container
Microwave Notes
Heat-resistant
ceramic
Yes
Never use ceramics
which are decorated
with metal rim or glazed
Heat-resistant
plastic
Yes
Can not be used for
long microwave
cooking
Heat-resistant
glass
Yes
More information https://www.caravansplus.com.au
16

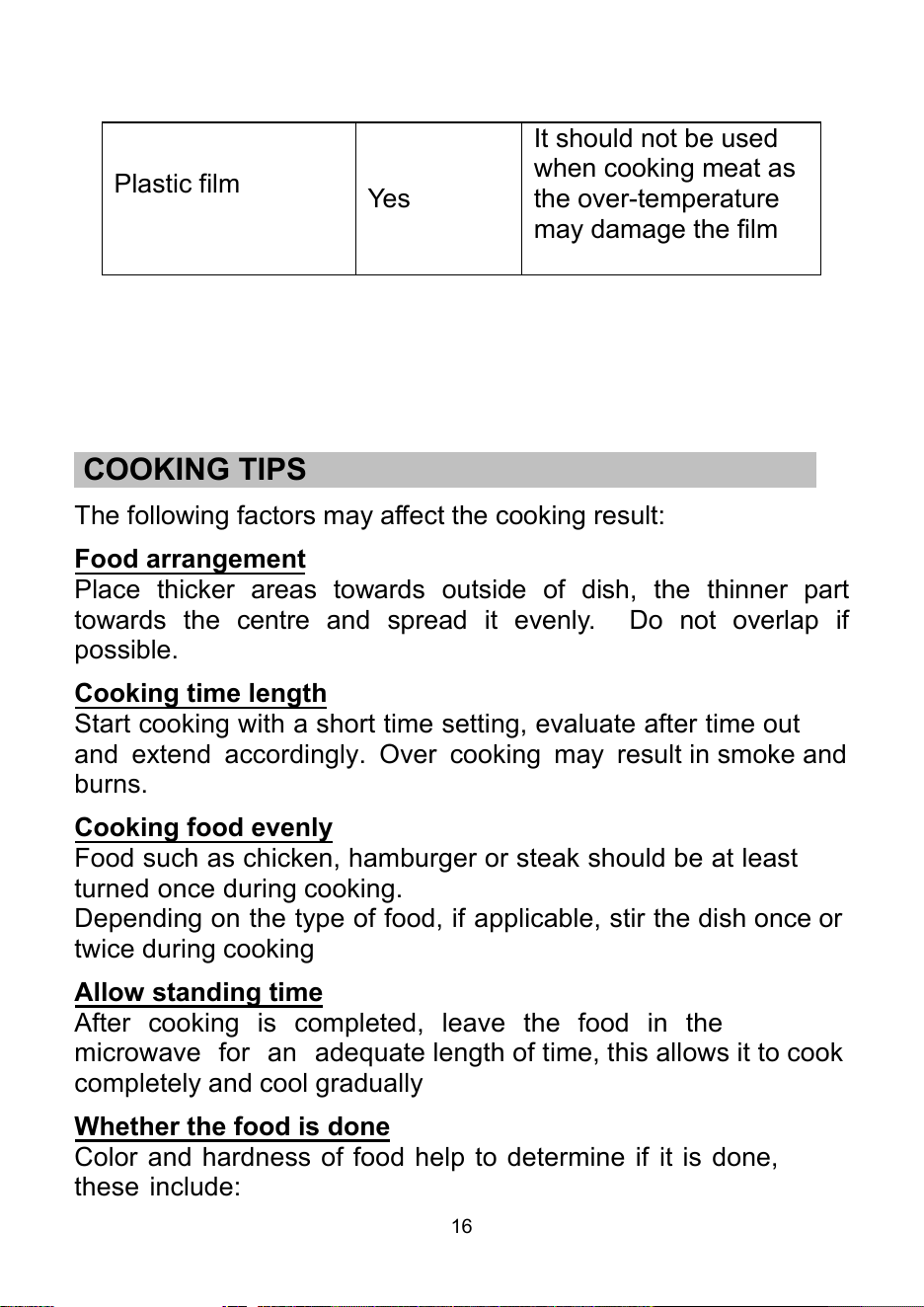

Plastic film
Yes
It should not be used
when cooking meat as
the over-temperature
may damage the film
.COOKING TIPS…… …………… … ..
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part
towards the centre and spread it evenly. Do not overlap if
possible.
Cooking time length
Start cooking with a short time setting, evaluate after time out
and extend accordingly. Over cooking may result in smoke and
burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be at least
turned once during cooking.
Depending on the type of food, if applicable, stir the dish once or
twice during cooking
Allow standing time
After cooking is completed, leave the food in the
microwave for an adequate length of time, this allows it to cook
completely and cool gradually
Whether the food is done
Color and hardness of food help to determine if it is done,
these include:
More information https://www.caravansplus.com.au
17

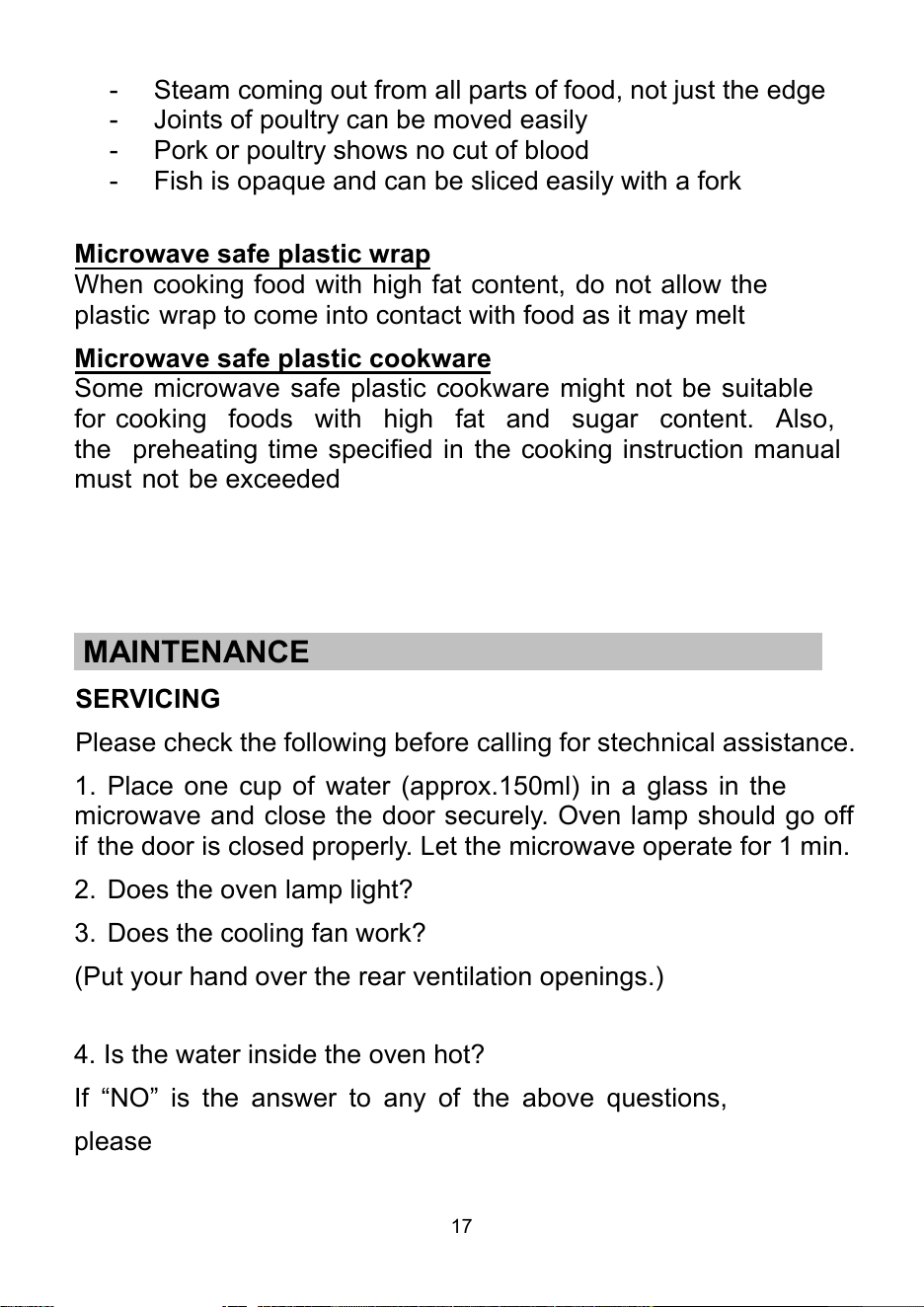

- Steam coming out from all parts of food, not just the edge
- Joints of poultry can be moved easily
- Pork or poultry shows no cut of blood
- Fish is opaque and can be sliced easily with a fork
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the
plastic wrap to come into contact with food as it may melt
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable
for cooking foods with high fat and sugar content. Also,
the preheating time specified in the cooking instruction manual
must not be exceeded
.MAINTENANCE… 。………………… …… ………
SERVICING
Please check the following before calling for stechnical assistance.
1. Place one cup of water (approx.150ml) in a glass in the
microwave and close the door securely. Oven lamp should go off
if the door is closed properly. Let the microwave operate for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
4. Is the water inside the oven hot?
If “NO” is the answer to any of the above questions,
please
More information https://www.caravansplus.com.au
18
c

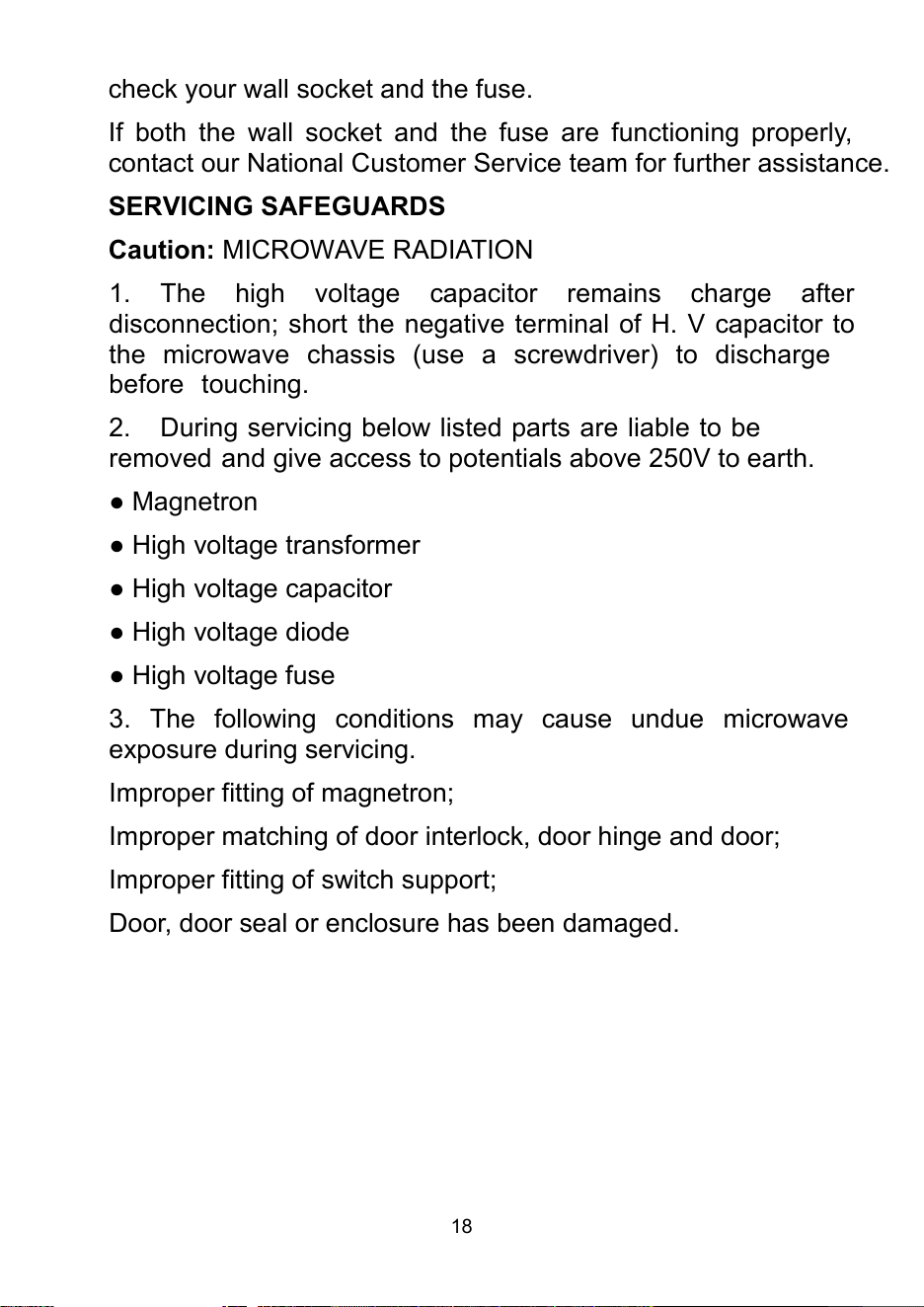

heck your wall socket and the fuse.
If both the wall socket and the fuse are functioning properly,
contact our National Customer Service team for further assistance.
SERVICING SAFEGUARDS
Caution: MICROWAVE RADIATION
1. The high voltage capacitor remains charge after
disconnection; short the negative terminal of H. V capacitor to
the microwave chassis (use a screwdriver) to discharge
before touching.
2. During servicing below listed parts are liable to be
removed and give access to potentials above 250V to earth.
● Magnetron
● High voltage transformer
● High voltage capacitor
● High voltage diode
● High voltage fuse
3. The following conditions may cause undue microwave
exposure during servicing.
Improper fitting of magnetron;
Improper matching of door interlock, door hinge and door;
Improper fitting of switch support;
Door, door seal or enclosure has been damaged.
More information https://www.caravansplus.com.au
19

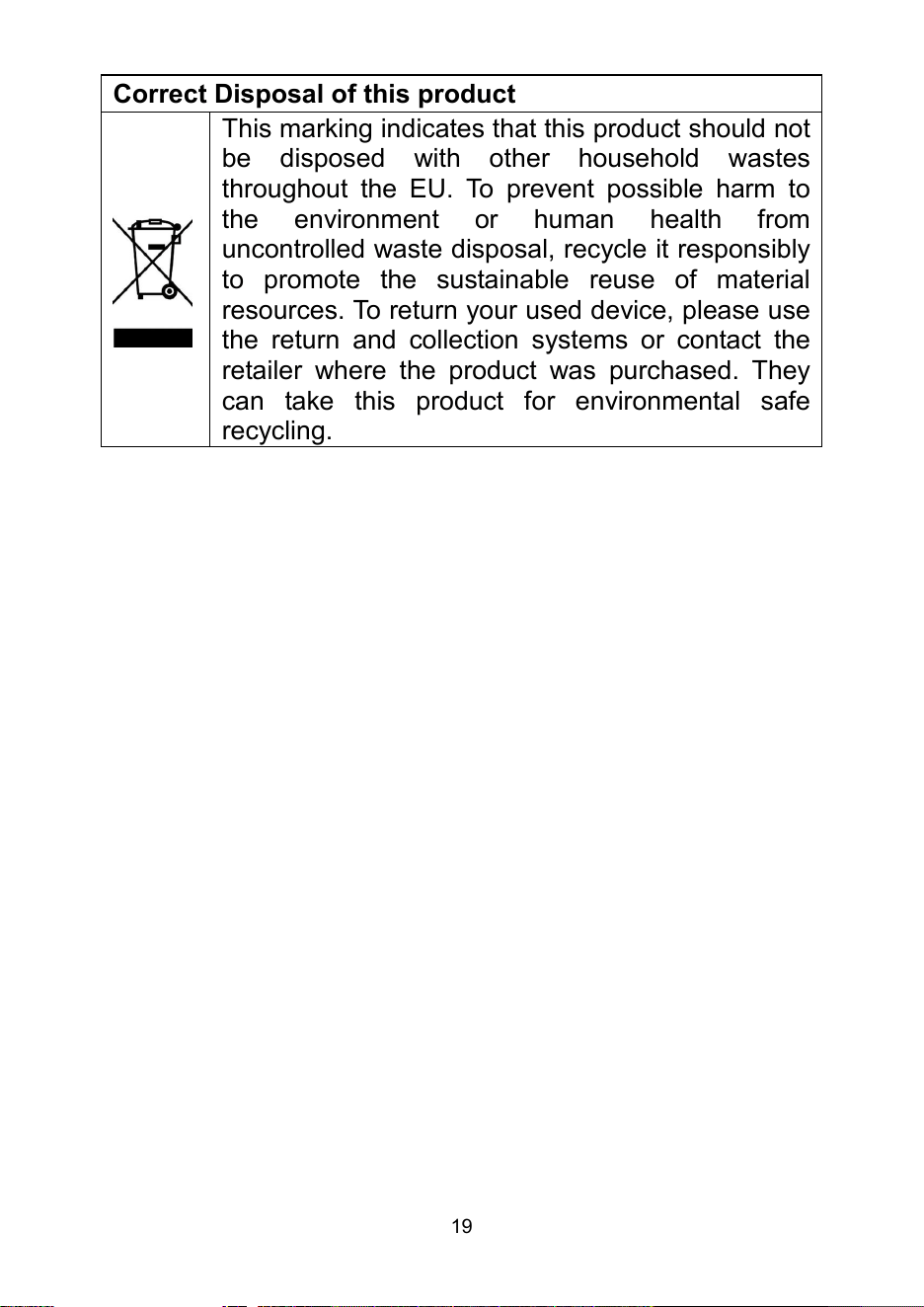

Correct Disposal of this product
This marking indicates that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or hum
an health from
uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material
resources. To return your used device, please use
the return and collection systems or contact the
retailer where the product was purchased. They
can take this product for environmental safe
recycling.
More information https://www.caravansplus.com.au

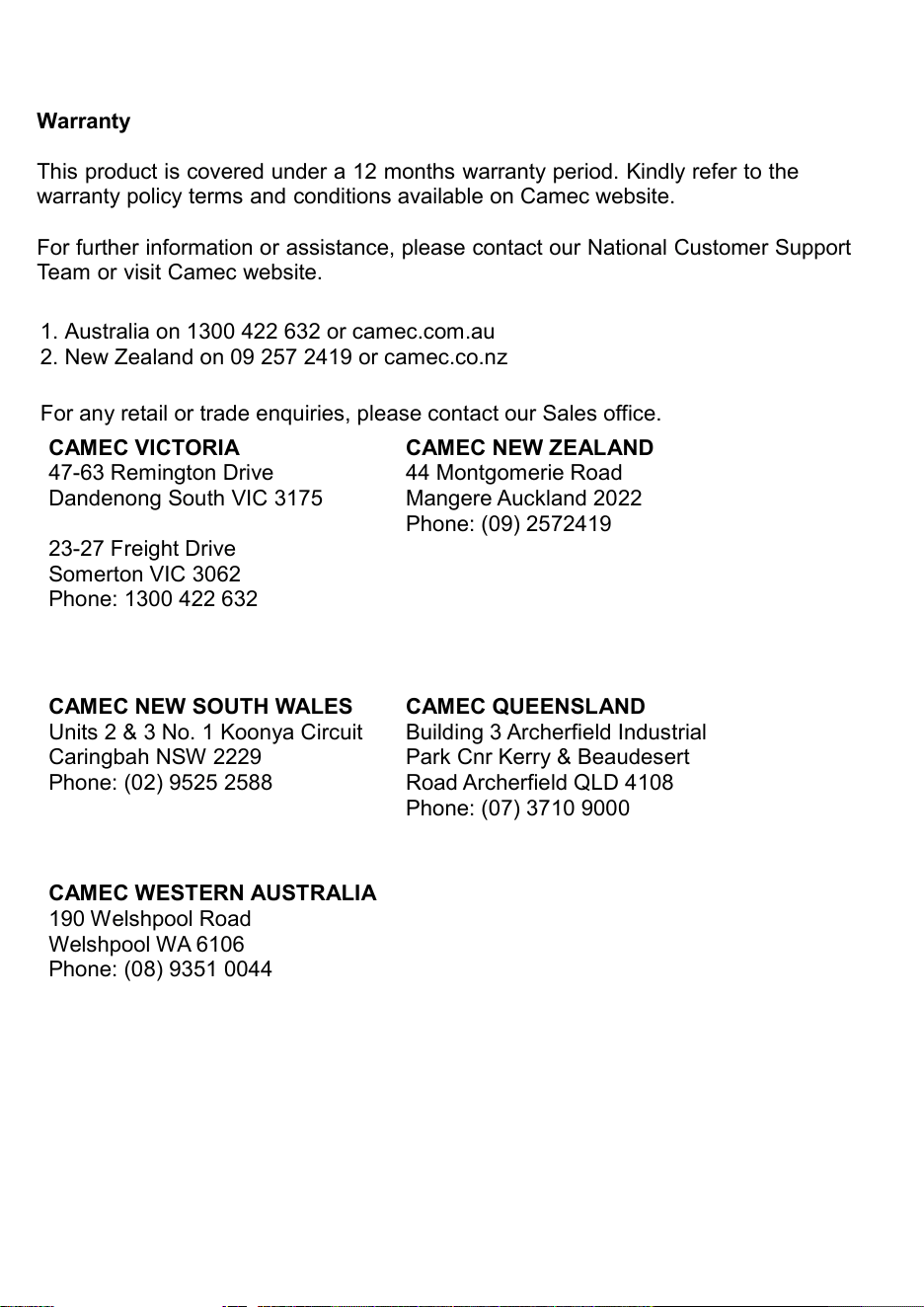

Warranty
This product is covered under a 12 months warranty period. Kindly refer to the
warranty policy terms and conditions available on Camec website.
For further information or assistance, please contact our National Customer Support
Team or visit Camec website.
1. Australia on 1300 422 632 or camec.com.au
2. New Zealand on 09 257 2419 or camec.co.nz
For any retail or trade enquiries, please contact our Sales office.
CAMEC NEW ZEALAND
44 Montgomerie Road
Mangere Auckland 2022
Phone: (09) 2572419
CAMEC QUEENSLAND
Building 3 Archerfield Industrial
Park Cnr Kerry & Beaudesert
Road Archerfield QLD 4108
Phone: (07) 3710 9000
CAMEC VICTORIA
47-63 Remington Drive
Dandenong South VIC 3175
23-27 Freight Drive
Somerton VIC 3062
Phone: 1300 422 632
CAMEC NEW SOUTH WALES
Units 2 & 3 No. 1 Koonya Circuit
Caringbah NSW 2229
Phone: (02) 9525 2588
CAMEC WESTERN AUSTRALIA
190 Welshpool Road
Welshpool WA 6106
Phone: (08) 9351 0044
More information https://www.caravansplus.com.au
