User and Installation Manua l
Microwave Oven
Before installing or using the appliance, please read
the manual carefully, and keep it for future reference.
Model: HMBS3010PFG
HMBS3010BMFG
HMBS3010SSFG
HMBS3010DSFG
2
Table of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
................................................................................
4
IMPORTANT SAFETY INSTRUCTIONS
.......................................................
5
CLEANING INSTRUCTIONS
.........................................................................
8
SETTING UP YOUR OVEN
...........................................................................
10
CONTROL PANEL
.........................................................................................
12
OPERATION INSTRUCTIONS
......................................................................
13
UTENSILS GUIDELINE
................................................................................
22
COOKING TIPS
.............................................................................................
23
MAINTENANCE INSTRUCTIONS
.................................................................
24
INSTALLATION
..............................................................................................
7
3
Product Specification
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open sinc e
open door operation can result in harmful exposure to
microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the
door or allows soil or cleaner residue to accumulate on sealing
surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door cl ose properly and that there is no
damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjust ed or repaired by anyone except
properly qualified service personnel.
4
Model Number
HMBS3010PFG HMBS3010BMFG
HMBS3010SSFG HMBS3010DSFG
Rate Voltage
220-220-240~ 50Hz
Power Consumption (Microwave)
1500W
Rated Microwave Power Output
1000W
Grill Output Power
1200W
Operating Frequency
2450MHz
Oven Capacity
30L
WARNING: If the door or door seals are damaged, the oven must
not be operated until it has been repaired by a trained person.
WARNING: It is hazardous for anyone other than a trained person
to carry out any service or repair operation, which involves the
removal of any cover, which gives protection against exposure to
microwave energy. WARNING: Liquids or other food must not be
heated in sealed containers since they are liable to explode.
1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed
during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of warming
pads, slippers, sponges, damp cloth and similar may lead to
risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames microwave
heating of beverages can result in delayed eruptive boiling,
therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be
heated in microwave ovens since they may explode, even
after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable when
removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.
IMPORTANT SAFETY INSTRUCTIONS
5
Warning: When the appliance is operated in the combination
mode, children should only use the oven under adult supervision
due to the temperatures generated.
12. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
13. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
14. Children shall not play with the appliance.
15. Cleaning and user maintenance shall not be made by children
without supervision.
16. Do not directly put the glass plate into cold water after use. It
needs to place the glass plate for at least 20 minutes, and
then put it into the water to avoid cracking.
17. This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and others working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments. The appliances are
not intended to be operated by means of an external timer or
separate remote-control system.
18. Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM equipment
in which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation for the
treatment of material, and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in domestic
CAUTION: HOT SURFACE
6
establishments and in establishments directly connected to a
low voltage power supply network which supplies buildings
used for domestic purposes.
19. This product internal light source LED light on < 60lm.
20. After plug in or the appliance end the work, the
produc t automatically falls into standby mode, and the product
indicates t he information of time standby power＜0.8W.
1. Take out all the packing. If there is a safe film over the oven,
tear it off before use. Check carefully for damage. If any,
immediately notify dealer or send to the manufacturer’s service
center.
Microwave ovens must be placed under dry and non-
corrosiveness environments, kept away from heat and humidity,
such as gas burner or water tank.
2.
3. To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 20 cm, the side to the
wall should be at least 5 cm, the free distance above the top
surface at least 20 cm. the distance of the microwave to the
ground should be at least 85 cm.
4. The position of the oven shall be such that it is far from the TV,
Radio or antenna as picture disturbance, or noise may occur.
The distance should be more than 5m.
The appliance must be positioned so that the plug is accessible,
and must ensure a good grounding in case leakage, ground loop
can be formed to avoid electric shock.appliance must
5.
6. The microwave oven must be operated with the door closed.
7. The microwave oven must not be placed in a cabinet. The
microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven
cavity or heat element, it usually would smell the odor, even a
slight smoke, It is normal case and would not occur after
several times use, keep the door or window open to ensure
INSTALLATION
7
good ventilation. So it is strongly recommended to place a cup
of water in the cavity, setting at high power and operate for
several times.
MICROWAVE OVEN CARE
The oven should be cleaned regularly and any food deposits
removed.
a. Remove the power cord from the wall outlet before cleaning.
After cooling products. Don't immerse the appliance in water
or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or
metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time,
there may be some strange odors exist in oven, following 3
methods can get rid of them:
1) Place several lemon slices in a cup, then heat with high
micro power for 2-3 min.
2) Place a cup of red tea in oven, then heat with high micro
power.
3) Put some orange peel into oven, and then heat them with
high micro power for 1 minute.
f. When the product is not used, it should be placed in dry and
ventilated areas as well as possible.
CLEANING INSTRUCTIONS
8
Details how to clean surfaces in contact with food:
After use wipe the waveguide cover with a damp cloth, followed
by dry cloth to remove any food splashes and grease. Built -up
grease may overheat and begin to cause smoke or catch fire.
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened soft cloth.
Door:
Using a dampened soft cloth, wipe clean the door and window.
Wipe the door seals and adjacent parts to remove any spill or
spatter.
Wipe the control panel with a slightly dampened soft cloth.
Interior walls:
Wipe clean the interior surfaces with a dampened soft cloth.
Wipe clean the waveguide cover to remove any food splashed.
Turntable / Rotation ring / Rotation axis:
Wash with mild soap water.
Rinse with clean water and allow drying thoroughly.
9
SETTING UP YOUR OVEN
10

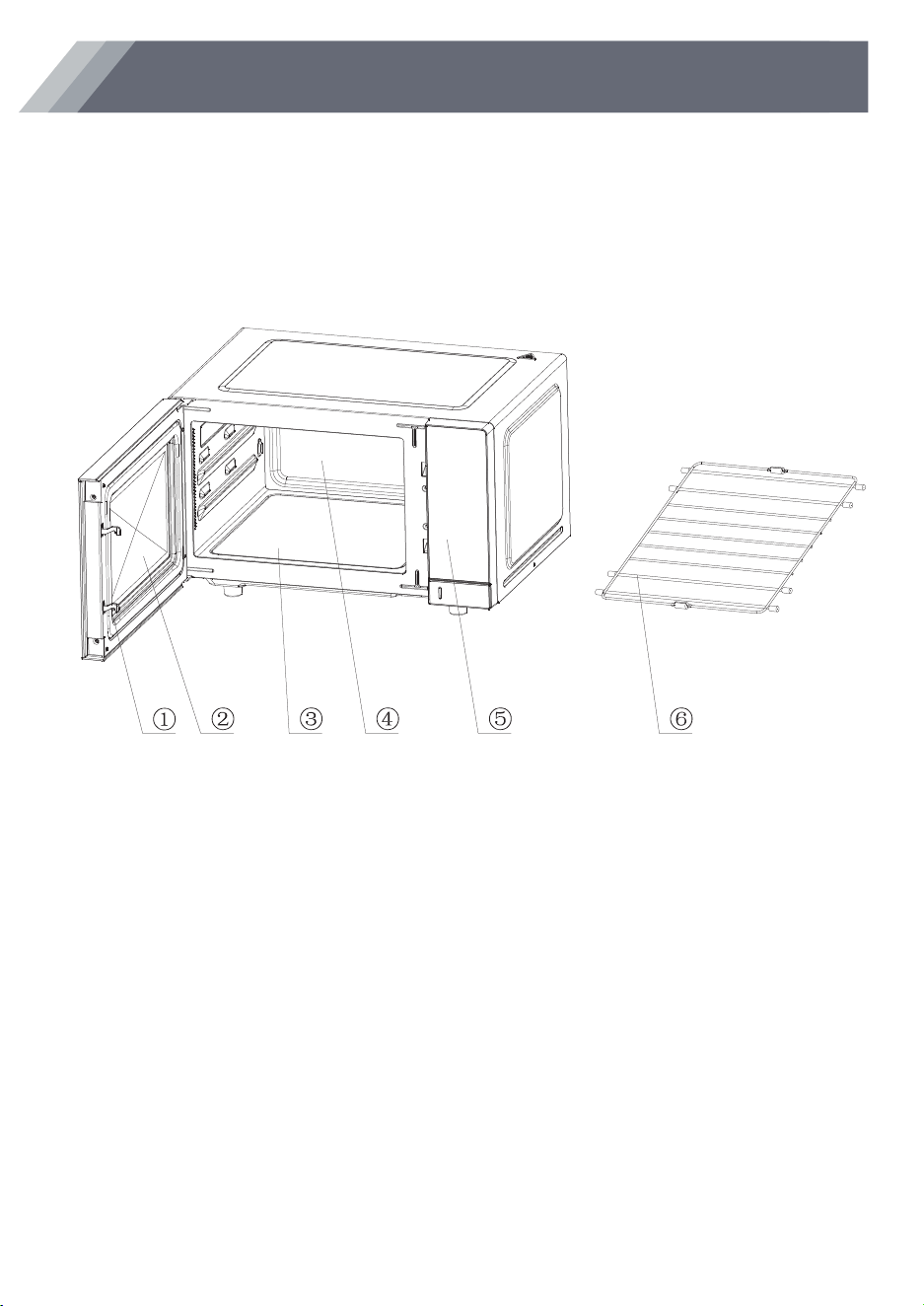

Names of Oven Parts a nd Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
1) Door lock
2) Plastic door decorate piece
3) Flatbed plate
4) Cavity
5) Control panel
6) Grill Rack
Installation
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Countertop Installation
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
11
Control Panel
12
Auto
Defrost
Auto
Cook
Time/Weight
Reheat
Popcorn
Beverage Potato
Melt
Pasta
Soften
Grill
Power
Level
1 2 3
ULTRA EXPRESS START
4 5 6
7 8 9
STOP
0
START
CLEAR
Hold Lock
+ 10 Sec
1. BEFORE COOKING
The display lights up when plugged in power supply, then enter
the standby state and display shows 1:00.
2. MICROWAVE FUNCTION
There are ten microwave power levels, 100P, 90P
, 80P, 70P, 60P,
50P, 40P, 30P, 20P and 10P, respectively. Press the “Power
Level” button to enter the microwave power mode selection, then
press the number buttons to set the microwave power. Press the
"START/+10S" button to confirm the microwave power and enter
the cooking time setting, press the number buttons to set the
cooking time, the maximum time that can be input is 99:99. After
entering the cooking time, press the "START/+10S" button to start
work. An buzzing sound to notify completion of the operation.
HIGH
100% and 90%
power output
(Applicable for quick and
thorough cooking)
M.High
80% and 70% power
output
(Applicable for medium
express cooking)
Med
60% and 50% power
output
(Applicable for steaming
food)
M.Low
40% and 30% power
output
(Applicable for defrosting
food)
LOW
20% and 10% power
output
(Applicable for keeping
warm)
a. The max time which can be set is 99 minutes and 99
seconds.
b. Never use the grill rack during microwave cooking.
OPERATION INSTRUCTIONS
13
Never operate the oven empty.
At the maximum microwave power, the oven will automatically
lower the power after a certain time of cooking to lengthen
the service life.
d.
e. If you turn the food during operation, press the START/+ S
button once and the preset cooking procedure will continue.
If you intend to remove the food before the preset time, y ou
must press STOP/CLEAR button once to clear t he preset
procedure to avoid unintended operation of next time use.
3. DEFROST
There are four defrost modes, time defrost, dEF-1, dEF-2 an d
dEF-3, respectively. Press this button to select desired defrost
mode, after selecting to defrost by time, press the number
buttons to set the defrosting time. The maximum time that can
be entered is 99:99. Alternatively, after selecting dEF1, dEF2, or
dEF3 for defrosting, press the "START/+10S"button to confirm ,
then press the number buttons to set the defrosting weight within
the range of 100-1500g. After selecting the cooking weight or time,
press the "START/+10S" button start to work. An buzzing sound to
notify completion of the operation. The dEF1, dEF-2 and dEF-3
defrost mode by weight will have beeping sound to prompt the food
to be turned over during defrosting.
Below is some food defrosting time advice:
dEF1
dEF2
dEF3
For defrosting, the weight range from 100 to 1500g.
14
Time
defrost
For defrosting, the maximum time is 99:99.
a. It is necessary to turn over the food during operation to
obtain uniform effect.
b. Usually defrosting will need longer time than that of cooking
the food.
c. If the food can be cut by knife, the defrosting process can be
considered completed.
d. Microwave penetrates around 4cm into most food
e. Defrosted food should be consumed as soon as possible, it
is not advised to put back to fridge and freeze again.
4. MENU
There are four menu buttons, popcorn, beverage, potato, and
pasta respectively, press the desired menu button, and press the
corresponding menu button continuously or number buttons to
select the portion size of the food, and the display screen will show
the corresponding portion size. After selecting the cooking weight,
press "START/+10S" button to start work. An buzzing sound to
notify completion of the operation.
15
Display Kind Method
A.1 Popcorn The optional weight is 100g.
A.2 Beverage
The optional portion sizes---1cup, 2
cups or 3cups, each one about 250ml.
A.3 Potato
The optional weights are 250g, 500g and
750g.
A.4 Pasta
The optional weights are 50g, 100g and
150g.
a. The temperature of food before cooking would be 20-25℃.
Higher or lower temperature of the food before cooking would
require increase or decrease of cooking time.
b. The temperature, weight and shape of food will largely
influence the cooking effect. If any deviation has been found to
the factor noted on above menu, you can adjust the cooking
time for best result.
5. Grill FUNCTION
There are three modes of Grill: G., C-1 and C-2. They are grill,
combination 1 of grill and microwave cooking and combination 2
of grill and microwave cooking. Press the "Grill" button
continuously, select the desired mode and the display screen
corresponding displays "G.", "C-1" or "C-2". Press the number
buttons to input the cooking time, the maximum time that can be
entered is 99:99. After entering the cooking time, press the
“START/+10S” button to start the work. An buzzing sound to
notify completion of the operation.
G.
Grill, the heat element will be energized during operation
time. Which is applicable for rolling thin meats or pork,
sausage, chicken wing as good brown color can be
obtained
C-1
Combination of grill and microwave cooking. 30%
microwave and 70% grill.
C-2
Combination of grill and microwave cooking. 55%
microwave and 45% grill.
16
In the mode of grill, all of the oven parts, as well as the rack and
cooking containers, may become very hot. Use caution when
removing any item from the oven. Use heavy potholders or oven
mitts to PREVENT BURNS.
6. CLOCK/TIMER
6.1 CLOCK
The clock is 24-hour system. The operation of the clock function is
as follows:
In standby mode, press and hold down this button for 3 seconds
to enter the clock setting interface, press this button to select the
24-hour or 12-hour system, Pressing 0~9 number buttons to
input cooking time directly, and press the "START/+10S"
button to confirm the specified time and exit the clock setting
mode.
6.2 TIMER
In standby mode, press this button to enter the setting interface,
and the countdown function icon and "0:00" will be displayed on
the display screen. Press the number buttons to input the time.
The maximum time that can be input is 99:99. After setting the
time, press the "START/+10S" button to begins the countdown.
An buzzing sound to notify completion of the countdown.
7. AUTO REHEAT
There are six automatic reheat menus, press this button to select
17
the desired menu, and the display screen will show the
corresponding menu number. Press the "START/+10S" button to
confirm the menu and proceed to the next step of portion selection.
Press the number buttons to select the portion size of the food,
and the display screen will show the corresponding portion size.
After selecting the cooking weight, press "START/+10S" button to
start work. An buzzing sound to notify completion of the operation.
Display Kind Method
AH-1 Bread
The optional weights are 50g, 100g, 150g
and 200g.
AH-2 Pizza
The optional weights are 200g, 300g, 400g
and 500g.
AH-3 Rice
The optional weights are 1bowl, 2 bowls or
3bowls.
AH-4 Currires
The optional weights are 200g, 300g, 400g
and 500g.
AH-5 Soup
The optional weights are 1bowl, 2 bowls or
3bowls.
AH-6 Casserole
The optional weights are 1bowl, 2 bowls or
3bowls.
8. AUTO COOKING
There are ten automatic menus, press this button to select the
desired menu, and the display screen will show the corresponding
menu number. Press the "START/+10S" button to confirm the
menu and proceed to the next step of portion selection. Press the
number buttons to select the portion size of the food, and the
18
display screen will show the corresponding portion size. After
selecting the cooking weight, press "START/+10S" button to start
work. An buzzing sound to notify completion of the operation.
Display Kind Method
AC-1 Meat Pie
The optional weights are 1pcs, 2pcs and
3pcs.
AC-2
Frozen
Entr
é
e
The optional weights are 200g, 300g, 400g
and 500g.
AC-3 Risotto
The optional weights are 100g, 200g, 300g
and 400g.
AC-4
Instant
Noodle
The optional weights are 1pcs and 2pcs.
AC-5 Porridge
The optional weights are 50g, 100g and
150g.
AC-6 legumes
The optional weights are 100g, 200g, 300g
and 400g.
AC-7
Beef
Lasagne
The optional weight is one portion.
AC-8 Fish Filet
The optional weights are 200g, 300g, 400g
and 500g.
AC-9 QUINOA
The optional weights are 50g, 100g, 150g
and 200g.
AC10
Frozen
Veggies
The optional weights are 200g, 400g and
600g.
9. MELT/SOFTEN
Press this button to select the desired menu, and the display
screen will show the corresponding menu number. Press the
"START/+10S" button to confirm the menu and proceed to the
next step of portion selection.
19
Press the number buttons to select the portion size of the food,
and the display screen will show the corresponding portion size.
After selecting the cooking weight, press "START/+10S" button to
start work. An buzzing sound to notify completion of the operation.
Display Kind Method
So-1 Chocolate
The optional weights are 100g, 200g, 300g
and 400g.
So-2 Butter
The optional weights are 100g, 200g, 300g
and 400g.
So-3
Cream
Cheese
The optional weights are 100g, 200g, 300g
and 400g.
So-4 Ice cream
The optional weights are 100g, 200g, 300g
and 400g.
10. MUTE/ECO
10.1 MUTE
In standby mode, press this button to enter the sound on/off
selection and the display screen will show the corresponding
ON/OFF information. After selecting the state of turning on or off
the sound, it will automatically exit the selection after 3 seconds,
and the buzzer sound will be turned on or off according to the
corresponding settings.
10.2 ECO
In standby mode, press and hold down the button to start ECO
20
mode, and the display screen will turn off. When the display
screen is turned off, press any button to turn on the display screen.
If there is no operation for 30 seconds in standby mode, the
display screen will automatically turn off. In standby mode, after
starting ECO mode, press and hold down the button to turn off
ECO mode, and the screen will display normally.
11. EXPRESS COOK
11.1 In standby mode, you can directly press the 1~9 number
buttons to start the microwave oven. The working time is 1~9
minutes, that is, press 1 to work for 1 minute, press 2 to work for 2
minutes, and so on.
11.2 In standby mode, after putting food in and closing the door,
press the “START/+10S” button to start the microwave quickly. The
default working time is 10 seconds. In the working process, press
the “START/+10S” button once for 10 seconds. An buzzing sound
to notify completion of the operation.
12. STOP
In the process of cooking settings, can press “STOP” button to
cancel the settings and return to standby state. In the process of
microwave oven working, can press “STOP” button to pause. In
the paused state, can press “STOP” button again to cancel the
function and return to standby state.
13. CHILD LOCK FUNCTION
21
Use this feature to lock the control panel when you are cleaning or
so that children cannot use the oven unsupervised. All the buttons
are rendered inoperable in this mode.
1) Set lock: In standby mode, press and hold down the "0" button
for more than 3 seconds, the child lock function is activated, and
all buttons of the microwave oven can not be operated.
Cancel lock: In the child lock state, press and hold down the "0"
button for more than 3 seconds to cancel the child lock function.
2)
It is strongly recommended to use the containers which are
suitable and safe for microwave cooking. Generally speaking, the
containers which are made of heat-resistant ceramic, glass or
plastic are suitable for microwave cooking. Never use the metal
containers for microwave cooking and combination cooking as
spark is likely to occur. You can take the reference of below table.
Material of
container
Microwave Grill Combi Notes
Heat-resistant
ceramic
Yes Yes Yes
Never use the
ceramics which are
decorated with metal
rim or glazed
Heat-resistant
plastic
Yes No No
Can not be used for
long time microwave
cooking
Heat-resistant
glass
Yes Yes Yes
Plastic film Yes No No
It should not be used
when cooking meat or
chops as the
over-temperature may
do damage to the film
Grill rack No Yes Yes
The grill rack can be
used in grill and
combination mode.
UTENSILS GUIDELINE
22
Metal container No No No
It should not be used
in microwave oven.
Microwave can not
penetrate through
metal.
lacquer No No No
Poor heat-resistant.
Can n
ot be used for
High-temperature
cooking
Bamboo wood
and paper
No No No
Poor heat-resistant.
Can not be used for
High-temperature
cooking
The following factors may affect the cooking result:
Food arrangement
Place thicker areas towards outside of dish, the thinner part
towards the centre and spread it evenly. Do not overlap if
possible.
Cooking time length
Start cooking with a short time setting, evaluate it after it times out
and extend it according to the actual need. Over cooking may
result in smoke and burns.
Cooking food evenly
Food such as chicken, hamburger or steak should be turned once
during cooking.
Depending on the type of food, if applicable, stir it from outside to
centre of dish once or twice during cooking.
Allow standing time
After cooking times out, leave the food in the oven for an
adequate length of time, this allows it to complete its cooking cycle
and cooling it down in a gradual manner.
Whether the food is done
Color and hardness of food help to determine if it is done, these
include:
COOKING TIPS
23
- Steam coming out from all parts of food, not just the edge.
- Joints of poultry can be moved easily.
- Pork or poultry shows no signs of blood.
- Fish is opaque and can be sliced easily with a fork.
Browning dish
When using a browning dish or self-heating container, always
place a heat-resistant insulator such as a porcelain plate under it
to prevent damage to the turntable and rotating ring.
Microwave safe plastic wrap
When cooking food with high fat content, do not allow the plastic
wrap come into contact with food as it may melt.
Microwave safe plastic cookware
Some microwave safe plastic cookware might not be suitable for
cooking foods with high fat and sugar content. Also, the
preheating time specified in the dish instruction manual must not
be exceeded.
SERVICING
Please check the following before calling for services.
1. Place one cup of water (approx.150ml) in a glass measure in
the oven and close the door securely. Oven lamp should go off if
the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?
(Put your hand over the rear ventilation openings.)
4. Does the turntable rotate?
(The turntable can rotate clockwise or counter clockwise. This
is quite normal.)
5. Is the water inside the oven hot?
MAINTENANCE INSTRUCTIONS
24
If “NO” is the answer to any of the above questions, please
check your wall socket and the fuse in your meter box.
If both the wall socket and the fuse are functioning properly,
CONTACT YOUR NEAREST SERVICE CENTER APPROVED.
SERVICING SAFEGUARDS
Caution: MICROWAVE RADIATION
1. The high voltage capacitor remains charge after
disconnection; short the negative terminal of H. V capacitor to
the oven chassis (use a screwdriver) to discharge before
touching.
2. During servicing below listed parts are liable to be removed
and give access to potentials above 250V to earth.
● Magnetron
3. The following conditions may cause undue microwave
exposure during servicing.
● Improper fitting of magnetron;
● Improper matching of door interlock, door hinge and door;
● Improper fitting of switch support;
● Door, door seal or enclosure has been damaged.
25
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
Correct Disposal of this product
26
27
28
