USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
HRBM503E
English
Safety and warning information .....................................................................................................................
Installing your new appliance...........................................................................................................................
Description of the appliance..............................................................................................................................
Display controls.............................................................................................................................................................
Using your appliance..............................................................................................................................................
Cleaning and care....................................................................................................................................................
Helpful hints and tips...............................................................................................................................................
Troubleshooting..........................................................................................................................................................
Disposal of the appliance...................................................................................................................................
Suggestion of using the appliance...............................................................................................................
01
13
20
21
25
27
29
30
34
35
Contents
Thank you for choosing Hisense. We are sure you will find your new refrigerator a
pleasure to use. However, before you use the appliance, we recommend that you
carefully read the instructions, which provide details about installing and using
the product. Please keep this manual for future reference.
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved or
sold, so that anyone using it throughout its life, will be
properly informed on its usage and safety notices. For the
safety of life and property, keep the precautions of these
user's instructions as the manufacturer is not responsible for
damages caused by omission.
01
Safety and warning information
According to EN standard
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Safety for children and others who are vulnerable people
Safety and warning information
02
According to IEC standard
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.
Keep all packaging away from children as there is risk
of suffocation.
If you are discarding the appliance, pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
children playing from suffering an electric shock or
from closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch)
on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.
Safety for children and others who are vulnerable people
03
Safety and warning information
WARNING
This appliance is intended to be used in household and
similar applications such as 1.staff kitchen areas in
shops, offices and other working environments; 2.farm
houses and by clients in hotels, motels and other
residential type environments;
1. bed and breakfast type environments;
2. catering and similar non-retail applications.
WARNING
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
WARNING
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
General safety
Warning: Risk of fire / flammable materials
WARNING
Do not use mechanical devices or other means to
accelerate the defrosting process,other than those
recommended by the manufacturer.
WARNING
Do not damage the refrigerant circuit.
WARNING
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING
The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so
only at an authorized waste disposal centre. Do not
expose to flame.
WARNING
The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so
only at an authorized waste disposal centre. Do not
expose to flame.
WARNING
When positioning the appliance, ensure the supply
cord is not trapped or damaged.
General safety
04
Safety and warning information
WARNING
The illuminating lamps must not be replaced by the
user! If the illuminating lamps is damaged, contact the
customer helpline for assistance. This warning is only
for refrigerators that contain illuminating lamps.
Replacing the illuminating lamps
WARNING
Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
05
Safety and warning information
General safety
The refrigerant isobutene (R600a) is contained within
the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable. During transportation and
installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes
damaged. The refrigerant (R600a) is flammable.
Refrigerant
WARNING
Refrigerators contain refrigerant and gases in the
insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or
ignition. Ensure that tubing of the refrigerant circuit is
not damage prior to proper disposal.
WARNING
Risk of fire / flammable materials If the refrigerant
circuit should be damaged:
1. Avoid opening flames and sources of ignition.
2. Thoroughly ventilate the room in which the appliance
is situated.
It is dangerous to alter the specifications or modify
this product in any way. Any damage to the cord may
cause a short circuit, fire, and/or electric shock.
Refrigerant
06
Safety and warning information
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or
damaged. A crushed or damaged power plug may
overheat and cause a fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the
interior lighting lamp cover.
7. The fridge is only applied with power supply of single
phase alternating current of 220~240V/50Hz. If
fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety
sake, be sure to apply A.C. Automatic voltage regulator
of more than 350W to the fridge. The fridge must
employ a special power socket instead of common
one with other electric appliances. Its plug must
match the socket with ground wire.
Electrical safety
07
Safety and warning information
08
Safety and warning information
Do not store flammable gases or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Do not place hot items near the plastic components of
this appliance.
This refrigerating appliance is not intended to be used as
a built-in appliance.
Do not place food products directly against the air outlet
on the rear wall.
Store pre-packed frozen food in accordance with the
frozen food manufacturers’ instructions.
The appliances manufacturers’ storage
recommendations should be strictly adhered to. Refer to
relevant instructions for storage.
Do not place carbonated or fizzy drinks in the freezer
compartment as it creates
pressure on the container, which may cause it to explode,
resulting in damage to the appliance.
Daily use
09
Safety and warning information
Frozen food can cause frost burns if consumed straight
from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet. The appliance is heavy. Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could
cause skin abrasions or frost/freezer burns.
Never use the base, drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips. ,
To avoid items falling and causing injury or damage to the
appliance, do not overload the door racks or put too much
food in the crisper drawers.
10
Safety and warning information
Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.
Caution! Care and cleaning
For electrical connection carefully, follow the instructions
given in this manual. Unpack the appliance and check if
there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it.
In this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the
compressor.
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be
too close to a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent the risk of fire,
follow the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Installation Important
11
Safety and warning information
12
Safety and warning information
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used:
1. If the appliance is Frost Free.
2. If the appliance contains freezer compartment.
Queensland service notes: In Queensland, the Authorized
Service Person Must hold a Gas Work Authorization for
hydrocarbon refrigerants to carry out servicing or repairs
which involve removal of covers.
Service
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. (This clause applies
only to the EU region.)
Note
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the
appliance for the dissipation of
heat. For this reason, sufficient
clear space should be available
around the refrigerator.
Suggest:
It is advisable for there to be at
least 50mm of space from the
back to the wall, at least 100mm
from its top, at least 50mm from its
side to the wall and a clear space
upfront to allow the door to open
130°. See in follow diagrams. Please
refer to the diagrams below.
Ventilation of appliance
Relevant information (mm)
794
W
520
W1
698
D1
1439
D2
Ambient temperature
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
Climateclass
SN
N
ST
T
Stand your appliance in a dry place to
avoid high moisture damage. Keep the
appliance out of direct sunlight, rain or
frost. Stand the appliance away from
heat sources such as stoves, fires or
heaters.
This appliance performs well in the
climate class from SN to T. It may
not work properly if being left at a
temperature above or below the
indicated range for a long period.
Note
13
W
W1
D
D2
130
°
D1
D
622
100mm
50mm
50mm
50mm
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. You can adjust
them manually by hand or by using a
suitable spanner.
To allow the doors to self-close, tilt
back the top backwards at about
15mm by turning the adjustable
feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can
roll freely. Reinstall the appliance
when relocating.

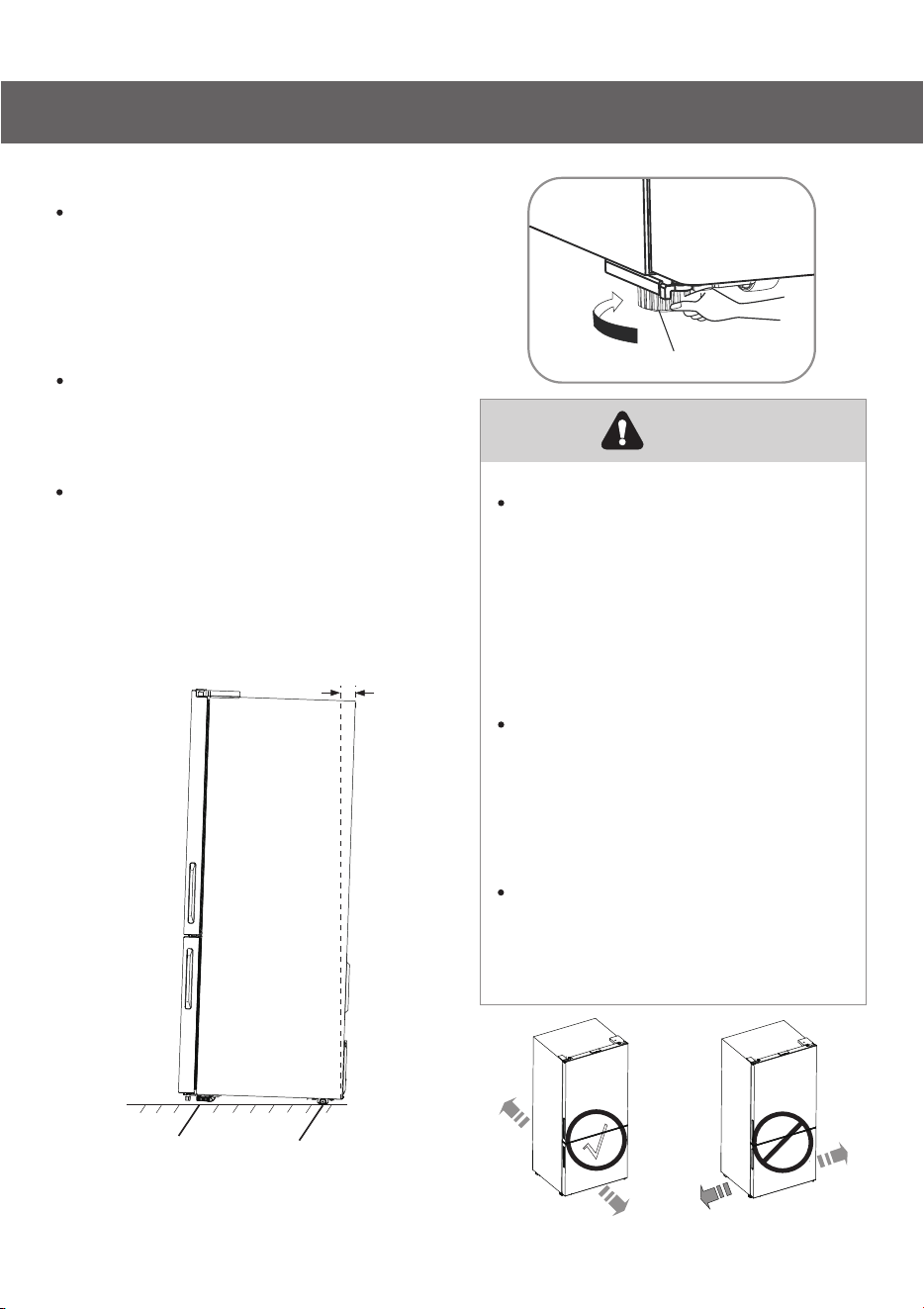

Leveling of appliance
For proper installation, this
refrigerator must be placed on a
level surface of hard material
that is the same height as the
rest of the flooring. This surface
should be strong enough to
support a fully loaded
refrigerator.
The rollers, which are not castors,
should be only used for forward
or backward movement. Moving
the refrigerator sideways may
damage your floor and the
rollers.
It is advisable to adjust both the
bottom feets until they touch the
ground after placing the
refrigerator.
Warning
14
Installing your new appliance
Rear roller
Front roller
10-15mm
√
Adjustable bottom feet
The side at which the door opens can
be changed, from the right side (as
supplied) to the left side if required.
Reversing the door
15
Installing your new appliance
Not provided
Wrench/8mm
Monkey wrench
Upper Hinge-Left
Thin-blade
screwdriver
Cross screwdriver
Allen Wrench/4mm
Upper Hinge
Cover-left
Screw Hole Cover
right
Middle Hinge-left
Left stop Block for
fridge door
Left Door Stopper
for fridge door

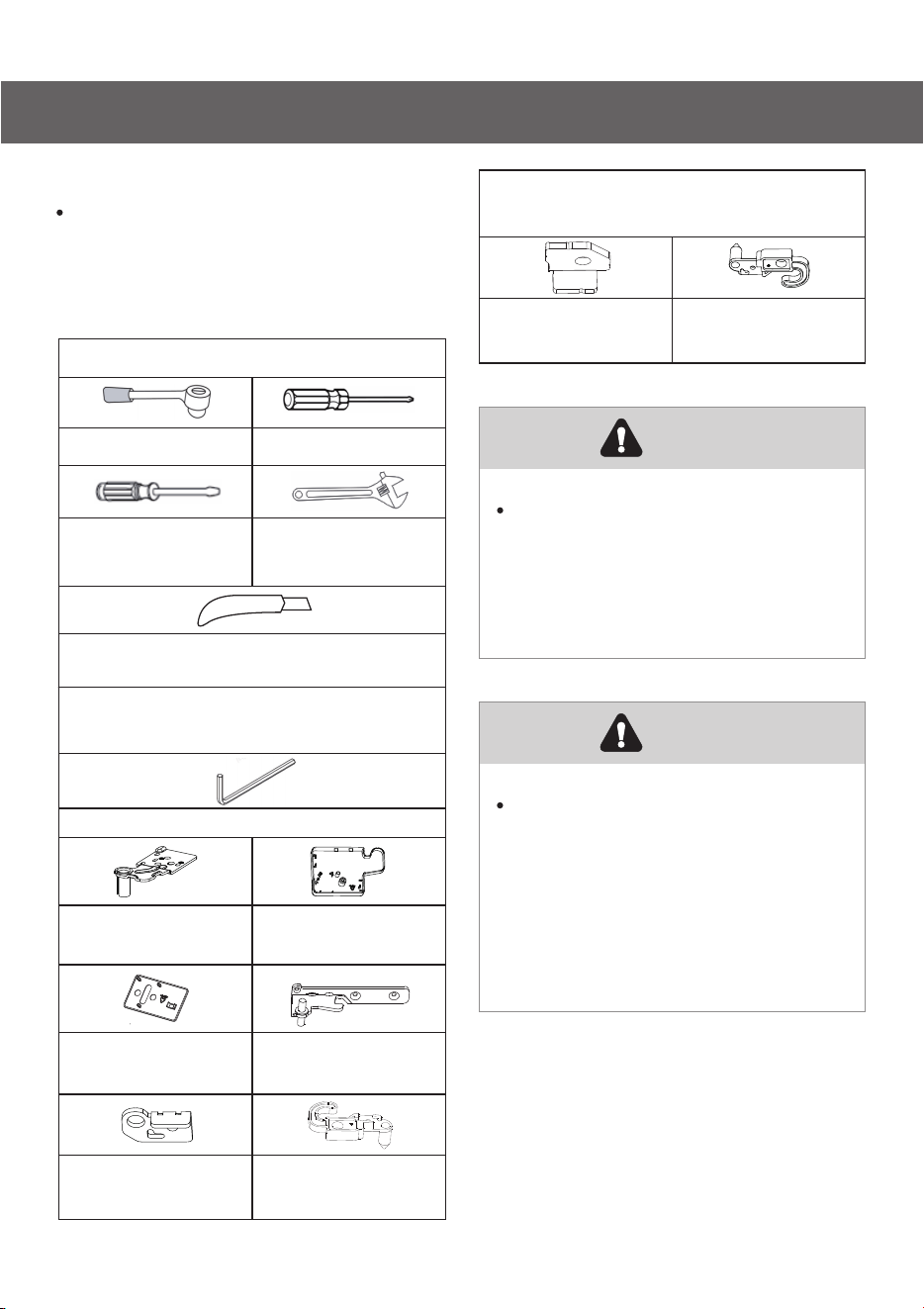

Tools you will need:
When reversing the door, the
appliance must not be
connected to the Power, Ensure
that the plug is removed from the
power socket.
Warning
If required, you may lay the
refrigerator on its back in order to
gain access to the base, you
should rest it on soft foam
packaging or similar material to
avoid damaging the backboard
of the refrigerator.
Note
To reverse the door, the following steps
generally recommended.

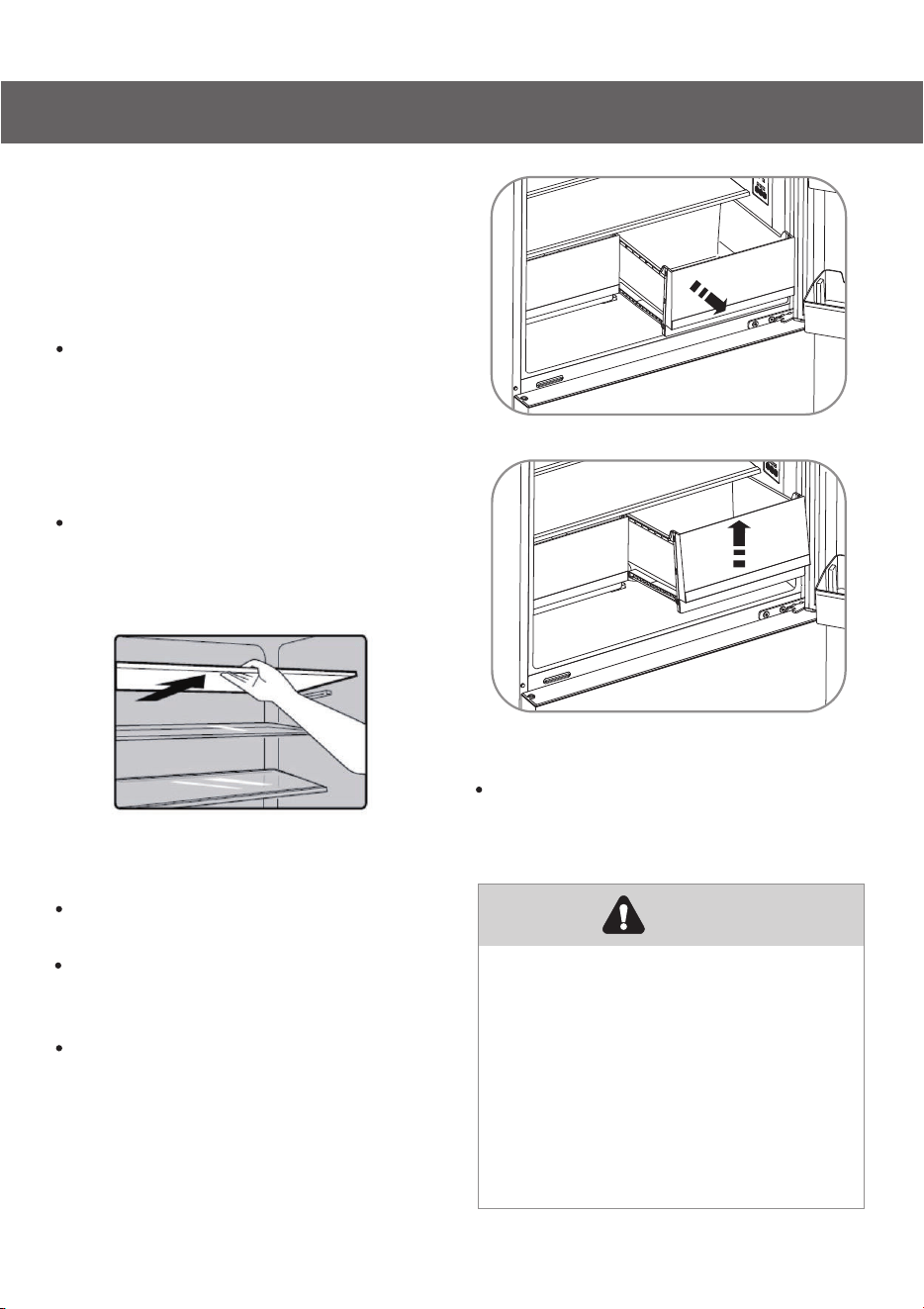

1. Stand the refrigerator upright. Open
the door to take out all door racks (to
avoid damage) and then close the
door.
Additional parts
(in the plastic bag)
Left door Stopper
for freezer door
Left stop Block for
freezer door
Thin blade(utility knife e.g. )
Additional parts
(in the plastic bag)
16
Installing your new appliance
Please slightly squeeze the door
rack from two sides toward
center and inside of door rack,
and then move it upward when
taking out the upper rack and
lower rack.
Caution

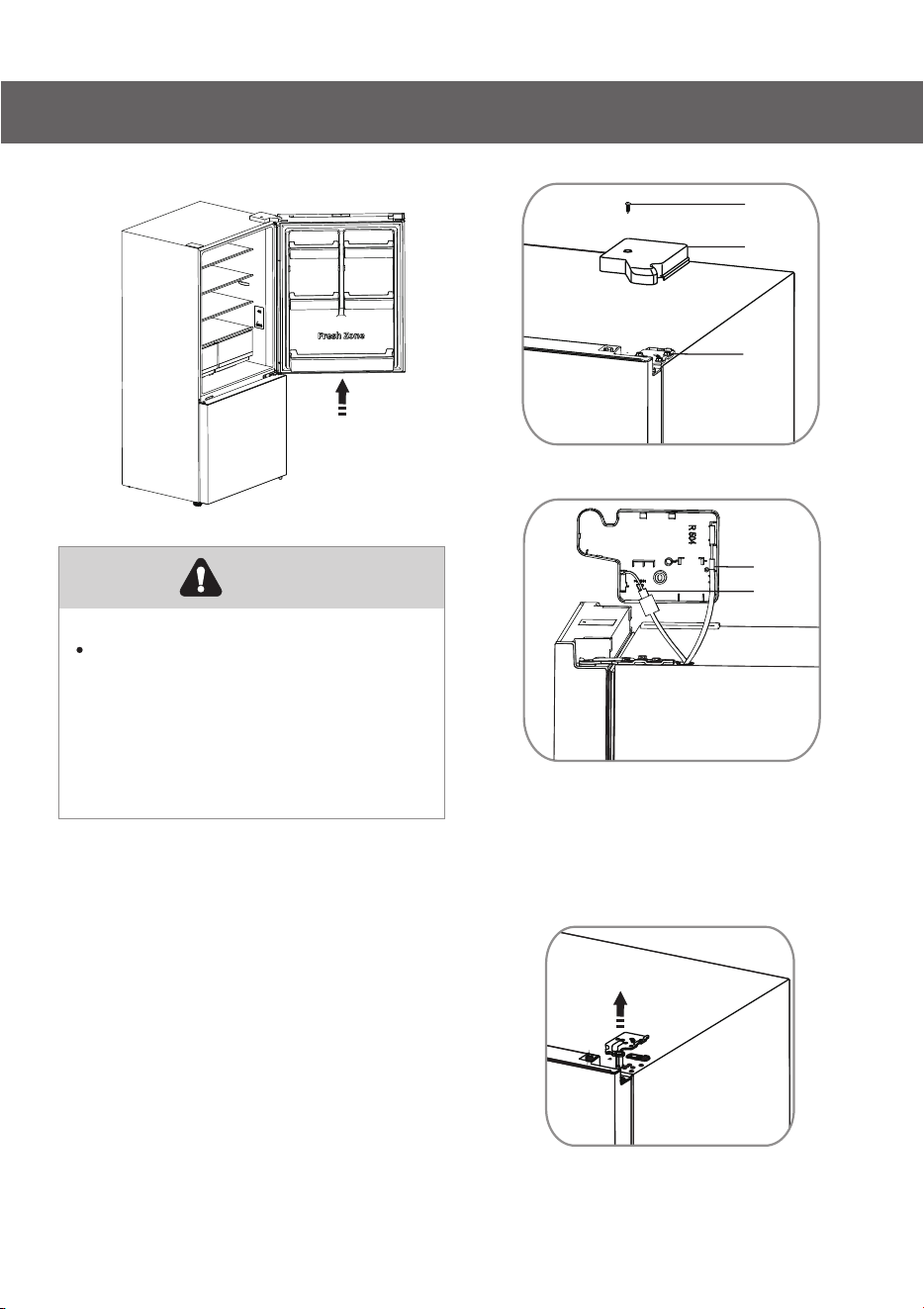

2. With the door closed, unscrew 1 and
remove upper hinge cover-right 2 from
the right-top corner of cabinet. Remove
the reed switch 4 and the humidity
sensor unit 5 from the cabinet and
upper hinge cover-right 2, Install them
on the upper hinge cover-left (provided
in the plastic accessory bag). Unscrew
the three screws 3 which are used for
fixing the upper hinge-right (see the
picture below).
1
2
3
3. Remove the upper hinge-right
(please hold upper door by hand when
installing.
4
5
17
Installing your new appliance

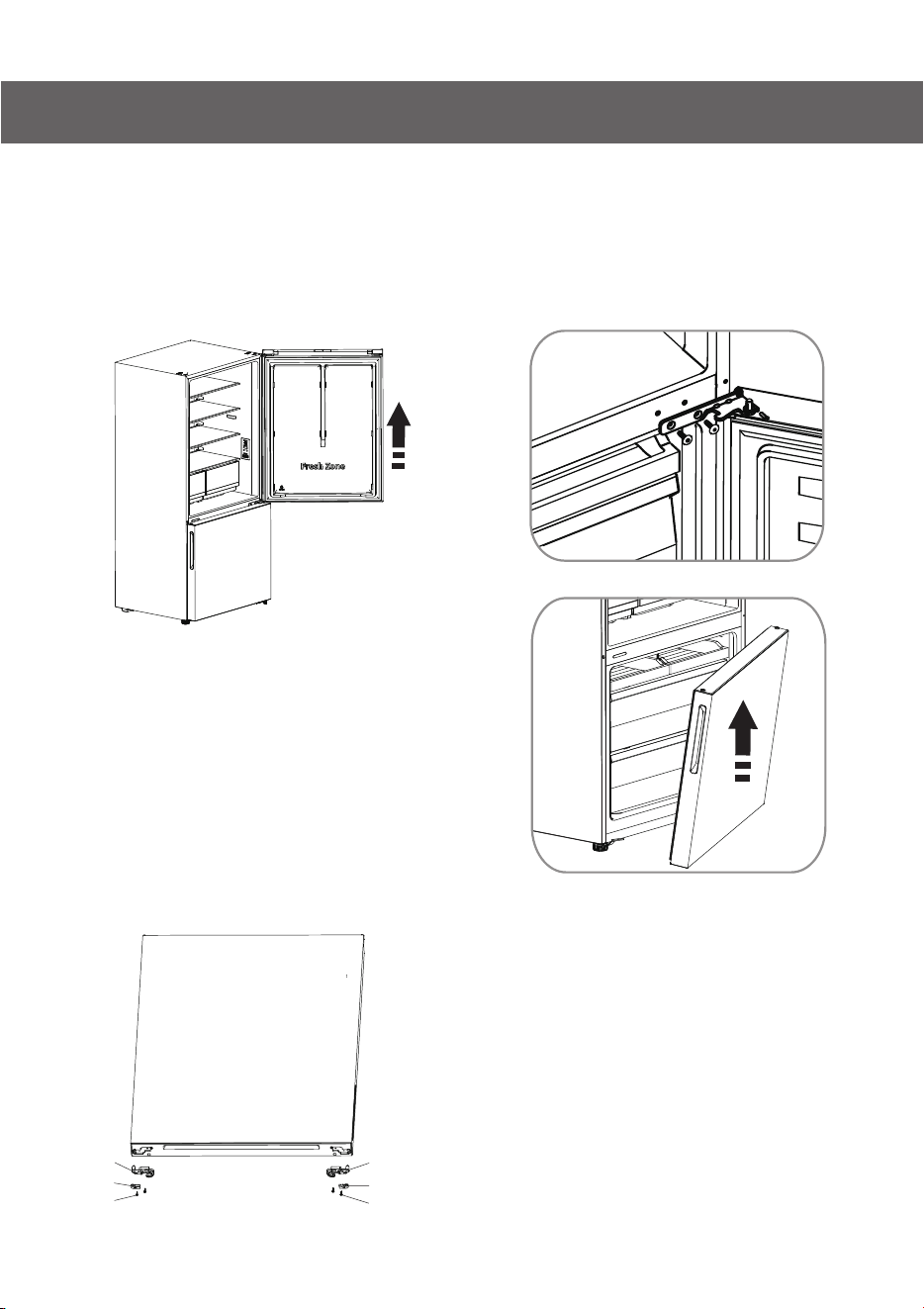

4. Remove the upper door from the
middle hinge by carefully lifting the
door straight up. Then place the upper
door on a smooth surface with its panel
upwards.
5. Unscrew the two screws 6, then take
out the right door stopper for fridge
door 7 and the right stopper block for
fridge door 8, Install the replacement
left door stopper 9 and left stopper
block 10 (provided in the plastic
accessory bag) to the left side with
screws 6. Keep 7 and 8 with the
appliance for future reference.
10
8
7
6
6
9
6. Use the Allen wrench (provided in the
plastic accessory bag) to unscrew the
screws used to fix the middle hinge-
right and remove middle hinge -right.
Then remove the lower door.
7. Place the lower door on a smooth
surface with its panel upwards.
Unscrew the two screws 6, then take
out the right door stopper for freezer
door 11 and the right stopper block for
freezer door 12, Install replacement left
door stopper 13 and left stopper block
14 (provided in the plastic accessory
bag) to the left side with screws 6. Keep
11 and 12 with the appliance for future
reference.
14
6
13
12
11
Installing your new appliance
8. Install the screw hole cover-right 15
(provided in the plastic accessory bag)
to the right-top corner of cabinet.
Remove screw hole cover-left 16 from
the left-top corner of cabinet with the
thin-blade screwdriver and Put the
screw hole cover-left and upper hinge-
right into the plastic accessory bag for
future reference.
16
15
9. Change screw hole covers and screw
on middle cover plate from left to right
(as shown in figure below).
18

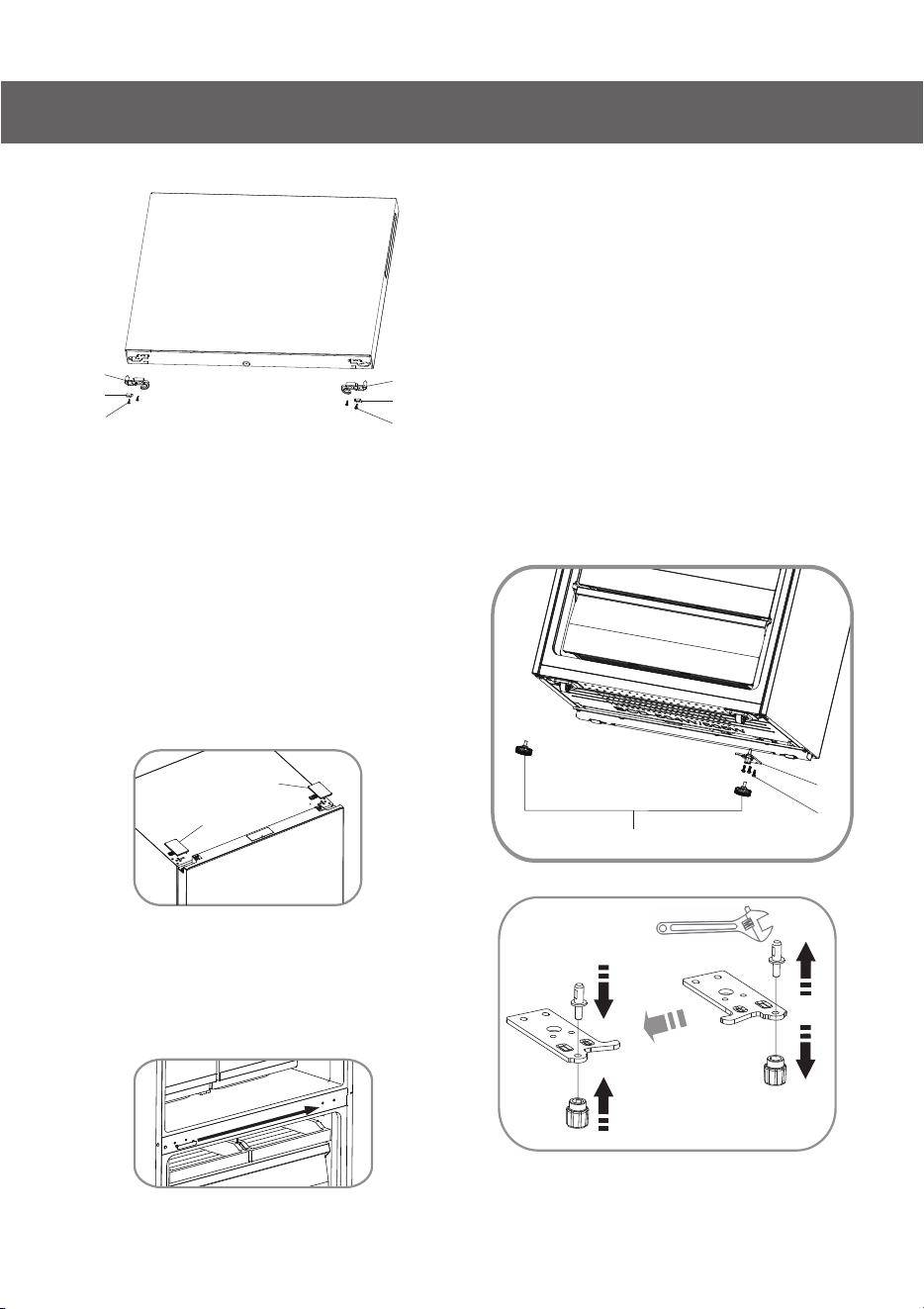

10. Lie the refrigerator backwards,
Remove adjustable bottom feet part 17,
remove 3 self-tapping screws 18 from
the lower hinge –right 19. Unscrew the
lower hinge-right axis then install it on
the reverse hole site, and tighten into
position (change it into lower hinge-
left) . Install the lower hinge-left to the
left-bottom corner of cabinet, Then fix it
with 3 screws, finally install adjustable
bottom feet part 17 on the left-bottom
corner and right-bottom corner of
cabinet.
17
18
19
6
Installing your new appliance
11. Stand the refrigerator upright and
carefully slot the lower door onto the
lower hinge-left pin and hold it in
position. Install middle hinge-left
(provided in the plastic accessory bag)
and ensure the lower door in place.
19

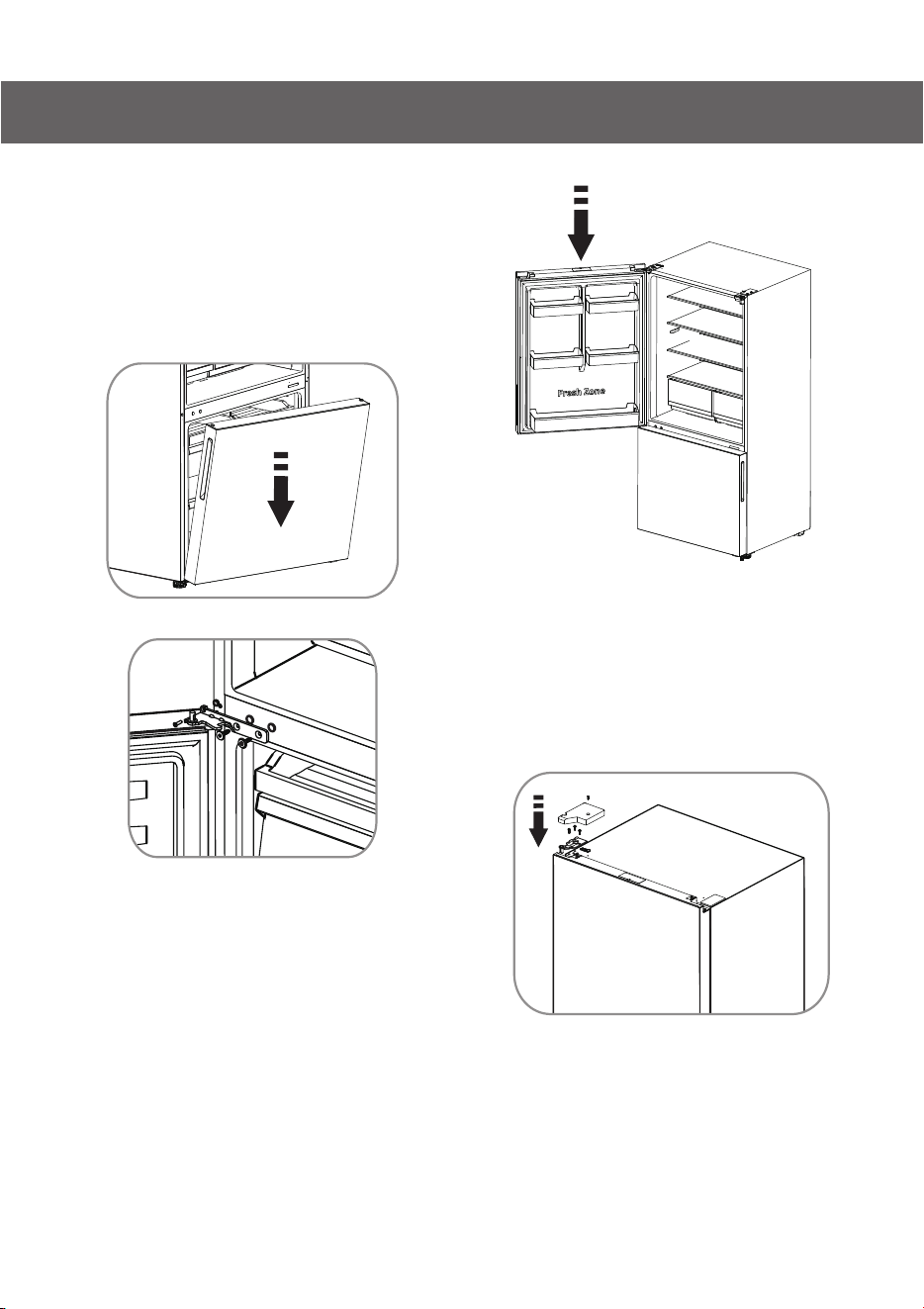

12. Carefully slot the upper door onto
the middle hinge pin and hold in
position. Move the upper door to an
appropriate position, adjust the upper
hinge-left (provided in the plastic
accessory bag) and upper door, then
fit the hinge pin into the hinge hole at
the top of the upper door to secure it in
place. Then fix the upper hinge part
with screws (Please carefully hold the
upper door by hand when installing)
13. Assemble the upper hinge cover-left
to match the hinge. Install the door
racks to original position. Keep the
upper hinge cover-right with the
appliance for future reference.
Description of the appliance
14
15
16
01
03
04
06
07
08
09
10
11
05
02

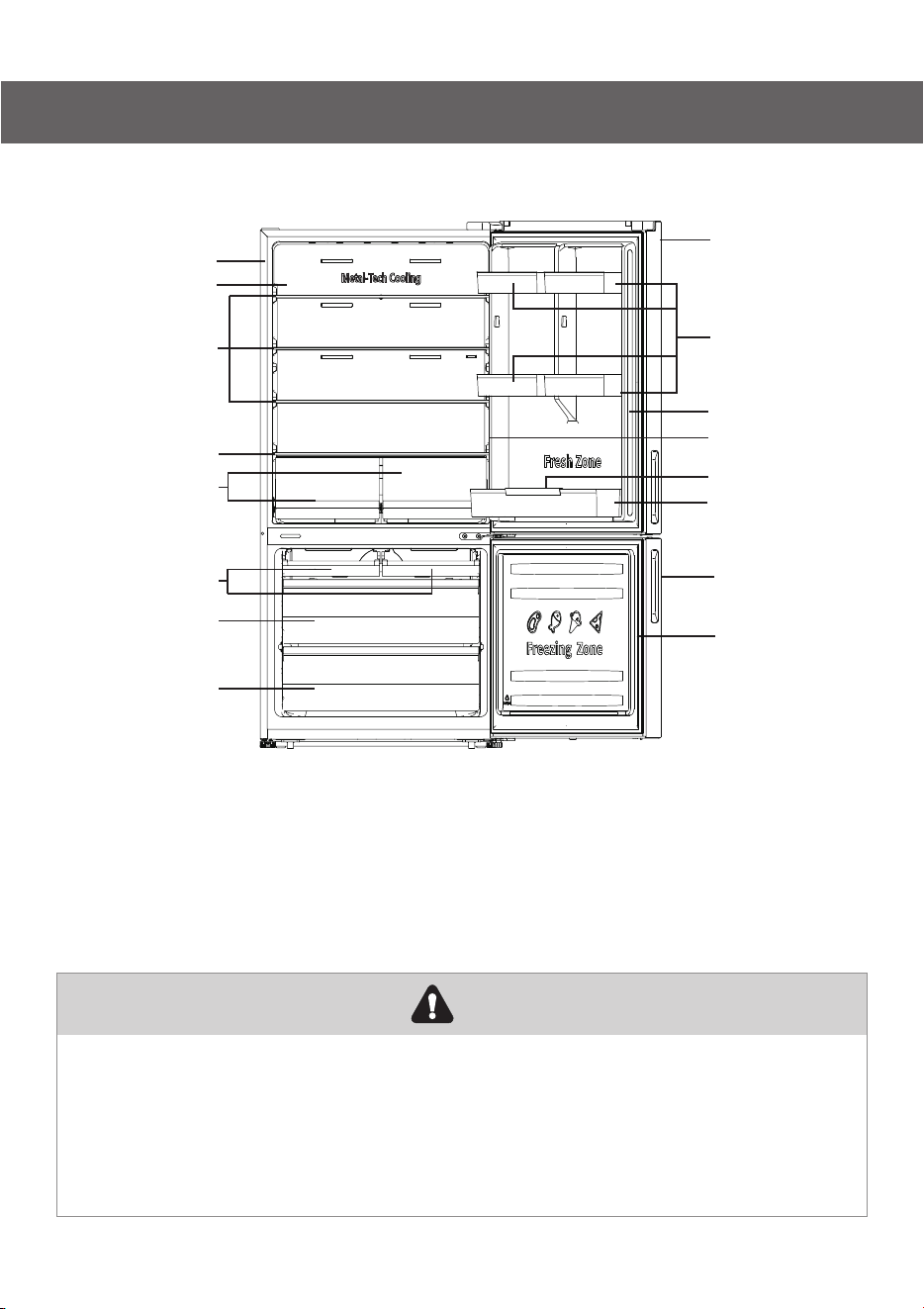

01. Cabinet
02. Wind channel
03. Glass shelf
04. Crisper cover
05. Fruit Vegetable Crisper＆
06. Upper freezer drawer
07. Middle freezer drawer
08. Lower freezer drawer
09. Fridge door
10. Small rack
11. Fridge gasket
12. Control panel
13. Bottle holder
14. Lower rack
15. Freezer door
16. Freezer gasket
View of the appliance
Due to constant development of our products, your refrigerator may be
slightly different from this instruction manual, but its functions and usage
remain the same.
To get the best energy efficiency of this product, please place all shelves,
drawers on their original position as the illustration above.
Note
20
13
12
Display controls
Use your appliance according to the following control regulations, your
appliance has the corresponding functions and modes as the display
panels showed in the pictures below.
21
08
10
11
01
03
04
06
07
09
05
02
01. Temperature Area
02. Celsius/Fahrenheit Indicator
03. Fridge Compartment Icon
04. Freezer Compartment Icon
05. Super Cool Icon
06. Super Freeze Icon
07. Eco Icon
08. Alarm Icon
09. Confirm Control
10. Function selector Control :
Left Control
11. Function selector Control :
Right Control
Display controls
22
"Switching Celsius and
Fahrenheit"
1. Press" " or " " repeatedly until the
Celsius/Fahrenheit Indicator " " or" "
blinks.
2.Press the Confirm Control " " for the
first time, and " " or " " be alwayswill
on. After
that, each time you press the
Confirm Control " ", the temperature
will be switched between °C and °F, and
the temperature setting value of the
corresponding unit will be displayed in
the temperature area.
"Fridge temperature control"
1.Press" " or " " repeatedly until the
Fridge icon " " blinks.
2.
Press the Confirm Control "
" for
the first time, and the Fridge icon " "
will be always on .After that, press the
Confirm Control " " repeatedly to
cycle through the available
temperature settings, from 8°C to 2°C
if you have set temperature type to
Celsius.
Note:
Once the appliance is powered on, all icons on the display panel will be lit for
3 seconds with a buzzer sound.
All the icons will go off on the condition of all keys untouched and all doors
closed for one minute.
The control panel will light up when the door is open or you touch any button.
Setting the refrigerator running at high temperature will accelerate food
decomposition. For optimum food preservation, we recommend that when
starting the refrigerator for the first time, the temperature of fridge is set to 4°C
(39°F), and that of the freezer to -18°C (0°F).
Caution!
The temperature only means the average temperature of the whole
refrigerator cabinet. Temperatures inside each compartment may vary from
those displayed on the panel, depending on how much food stored and
where the refrigerator is placed. In addition, the actual temperature from
higher room and lower room will be different.
Note
2°C-3°C-4°C
°C- °C- ° - °8 7 6 C 5 C
Display controls
Ifyou have set temperature type to
Fahrenheit, the temperature settings
cycle from 46°F to 36°F.will be
"Super Freeze"
This Super Freeze feature helps to keep
the food stored in the freezer as the
se
tting t
emper
atur
e during periods o
f
high usage, large grocery loads, or
temporarily warm room temperatures.
The Super Cool feature helps to keep
food stored in the refrigerator at the
setting temperature during periods of
high usage, large grocery loads, or
temporarily warm room temperatures,
The Super Cool feature lowers the
temperature in the fridge
compartment to 2°C(36°F) to cool food.
1. Press" " or " " repeatedly until the
Super Cool icon " " blinks.
2. Press the Confirm Control " " to
turn the Super Cool function on or off.
When the Super Cool function is turned
on, the " " icon lights.
3. When setting fridge temperature, the
Super Cool function will turn off and the
temperature setting will revert back to
the previous setting.
NOTE: Super Cool will automatically
turn off after 6 hours.
23
46°F- 45°F-44°F-43°F -42°F-41°F
36°F- 37°F-38°F -39°F-40°F
Note: Each press of the button, the
temperature drops one degree.
"Freezer temperature control"
If you have set temperature type to
Fahrenheit, the temperature
settings cycle from 7°F to -11°F.will be
1.Press" " or " " repeatedly until the
Freezer icon " " blinks.
2. Press the Confirm Control " " for
the first time, and the Freezer icon " "
will be always on . After that, press the
Confirm Control " " repeatedly to
cycle through the available
temperature settings, from -14°C to
-24°C if you have set temperature
type to Celsius.
-14°C--15°C--16°C--17°C--18°C -19°C-
-24°C --23°C --22°C --21°C --20°C
7°F- 6°F-5°F- · · ·
-11°F
--10°F--9°F
Note: Each press of the button, the
temperature drops one degree.
"Super Cool"
Display controls
The Super Freeze feature lowers the
temperature in the freezer
compartment to -24°C(-11°F) to freeze
the food faster.
1.Press" " or " " repeatedly until the
Super Freeze icon " " blinks.
2. Press the Confirm Control " " to turn
the Super Freeze function on or off.
When the Super Freeze function is
turned on, the " " icon lights.
3. When setting freezer temperature, the
Super Freeze function will turn off and
the temperature setting will revert back
to the previous setting.
NOTE: Super Freeze will automatically
turn off after 52 hours.
When you selecting the Super Freeze
function, ensure there are no bottled or
canned drinks (especially carbonated
drinks) in the freezer compartment.
Bottles and cans may explode.
The Eco feature makes the refrigerator
worked in an energy saving mode
which is useful for reducing energy
consumption when you are away.
1. Press" " or " " repeatedly until the
Eco icon " " blinks.
2. Press the Confirm Control " " to turn
the Eco function on or off. When the Eco
function is turned on,the "
" icon lights.
3. When setting fridge or freezer
temperature, the Eco function will turn
off and the temperature setting will
revert back to the previous setting.
NOTE: When the Eco function is on, the
temperature of fridge is automatically
switched to 6°C (43°F) and the
temperature of freezer is automatically
switched to -17°C (1°F).
"Door Open Alarm"
If the fridge door is opened for longer
than 2 minutes, the control panel will
display "dr", the " " icon will blink and
the buzzer will sound 3 times every
minute for 8 minutes.
Pressing and holding " " and " "
buttons at the same time for three
seconds during door alarm, the " "
icon will be on and buzzing will stop.
Closing the fridge door, the " " icon
will go off and buzzing will stop.
24
"Eco
"
"Demo
Mode"
Demo mode is for store display, and
it prevents the refrigerator from
generating cool air. In this of Cooling
Off Mode, the refrigerator may seem
like it is working but it will not make
cool air.
If you enter the Demo mode, the
temperature area will show “OF”. To
switch off Demo mode, press and
hold and buttons at the" " " "
same time for 5 seconds and the
buzzer gave a long sound.
Using your appliance
This section tells you how to use most
of the useful features. We recommend
that you read through them carefully
before using the appliance.
25
There are shelves in refrigerator
chamber, and they can be taken out
to be cleaned.
Shelf in Refrigerator chamber
The crisper is suitable for storage of
vegetables and fruit, etc.
Firstly Pull the crisper out in level,
Secondly tip up it then you can take
out the crisper.
According to the opposite sequence
you can position the crisper rightly.
Crisper in Refrigerator chamber
It is suitable for the storage of
canned liquid, bottled drinks and
packed food, etc. Do not place too
many heavy things in the racks.
Door rack
Never close the freezer door while
the drawers, installation bracket
are extended. It may damage the
unit.
Ensure that drink bottles are not
left in the freezer for a longer time
than needed as freezing liquid
may cause the bottle to break.
Caution
The freezer chamber is suitable for
storage of foods required to be
frozen, such as meat, ice.
Freezer chamber
Using your appliance

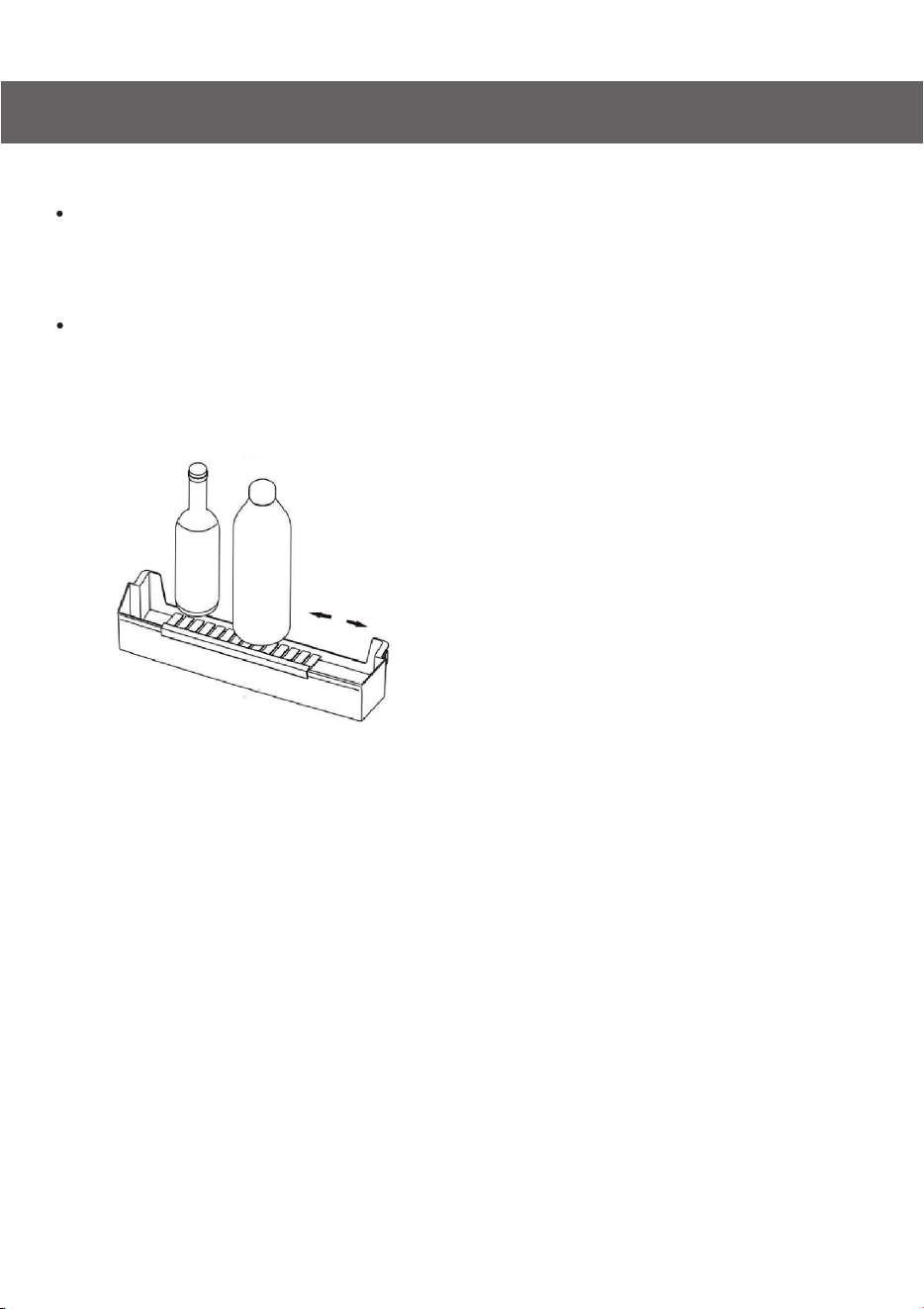

The bottle holder can be used to fix
the bottle. You can place it on the
small or lower door rack and slide to
left or right as you prefer.
It is advisable to put the tall bottles
or glass bottles in rack with bottle
holder.
Bottle holder
26
For hygienic reasons the appliance
(including exterior and interior
accessories) should be cleaned
regularly (at least every two months).
Do not use sharp objects as they
are likely to scratch the surface.
Do not use Thinner, Car detergent
Clorox, ethereal oil, abrasive
cleansers or organic solvent such
as Benzene for cleaning. They
may damage the surface of the
appliance and may cause fire.
Warning
The appliance must not be
connected to the mains during
cleaning. Dange of electrical
shock! Before cleaning switch the
appliance off and remove the
plug from the mains socket.
Warning
To maintain good appearance of
your appliance, you should clean it
regularly.
Wipe the digital panel and display
panel with a clean, soft cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of
moisture to the surface.
Clean the doors, handles and
cabinet surfaces with a mild
detergent and then wiped dry with a
soft cloth.
Exterior cleaning
You should clean the appliance
interior regularly. It will be easier to
clean when food stocks are low. You
can remove the drawers and
shelves for a more thorough clean.
Wipe the inside of the freezer with a
weak solution of bicarbonate of
soda, and then rinse with warm
water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and
removable parts before putting
them back into place.
Interior cleaning
Cleaning and care
27
Cleaning and care
Do not use sharp objects to
remove frost from the freezer
compartment.
Only after the interior is
completely dry should the
appliance be switched back on
and plugged back into the mains
socket.
Warning
Take care to keep door seals clean.
Sticky food and drinks can cause
seals to stick to the cabinet and tear
when you open the door. Wash the
seals with a mild detergent and
warm water. Rinse and dry them
thoroughly after cleaning.
Door seals cleaning
Although this appliance
automatically defrosts, a layer of
frost may occur on the freezer
compartment's interior walls if the
freezer door is opened frequently or
kept open too long.
If the frost is too thick, choose a time
when the freezer is nearly empty and
proceed as follow:
1. Remove existing food and
accessories baskets, unplug the
appliance from the mains power
and leave the doors open.
Ventilate the room thoroughly to
accelerate the process.
2. When defrosting is completed,
clean your freezer as described
above.
To replace the LED light, the below
steps can be followed:
1 Unplug your appliance. .
2. Hold a thin blade, insert it into the
gap at either end of the lampshade,
and tilt one end of the lampshade.
3. Move the blade insertion position
to the other end and tilt the
lampshade section by section until
the lampshade falls off.
4. Press the elastic snap of the light
box with a thin-blade screwdriver,
and pull one end of the elastic snap
of the LED light until the LED light is
detached and then pull out the
connecting terminal of the LED light.
5. the install andReplace LED light, it
lampshade correctly in place.
Replacing the LED light
The LED light should be replaced
by a professional. If the LED light is
damaged, contact the customer
helpline for assistance.
Warning
28
Helpful hints and tips
29
We recommend that you follow the
tips to save energy.
Try to avoid keeping the door open
for long periods in order to conserve
energy.
Ensure the appliance is away from
any sources of heat (Direct sunlight,
electric oven or cooker etc.)
Don't set the temperature colder
than necessary.
Don't store warm food or
evaporating liquid in the appliance.
Place the appliance in a well
ventilated, humidity free room.
Please refer to the installing your
new appliance chapter.
The description of appliance
diagram shows the correct
combination for the drawers, crisper
and shelves, do not adjust the
combination as this is designed to
be the most energy efficient
configuration.
Energy saving tips
Do not place hot food directly into
the refrigerator or freezer, the
internal temperature will increase
resulting in the compressor having
to work harder and will consume
more energy.
Do cover or wrap the food,
particularly if it has a strong flavor.
Place food properly so that air can
circulate freely around it.
Hints for fresh food refrigeration
Meat (AIl Types) Wrap in polythene
food: wrap and place on the glass
shelf above the vegetable drawer.
Always follow food storage times
and use by dates suggested by
manufacturers.
Cooked food, cold dishes, etc:
They should be covered and may be
placed on any shelf.
Fruit and vegetables:
They should be stored in the special
drawer provided.
Butter and cheese:
Should be wrapped in airtight foil or
plastic film wrap.
Milk bottles:
Should have a lid and be stored in
the door racks.
Hints for refrigeration
When first starting-up or after a
period out of use, let the appliance
run at least 2 hours on the higher
settings before putting food in the
compartment.
Prepare food in small portions to
enable it to be rapidly and
completely frozen and make it
possible to subsequently thaw only
the quantity required.
Wrap up the food in aluminum foil or
polyethylene food wraps which are
airtight.
Do not allow fresh, unfrozen food to
touch the food which is already
frozen to avoid patrial defrosting.
Hints for freezing
30
Helpful hints and tips
If you experience a problem with your appliance or are concerned that the
appliance is not functioning correctly, you can carry out some easy checks before
calling for service, please see below.
Troubleshooting
Don't try to repair the appliance yourself. If the problem persists after you have
made the checks mentioned below, contact a qualified electrician, authorized
service engineer or the shop where you purchased the product.
Warning
Problem
Possible cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power
outlet properly.
Check the fuse or circuit of your power supply, replace if
necessary.
It is recommended to label and date
each frozen package in order to
keep track of the storage time.
Ensure that frozen food has been
stored correctly by the food retailer .
Once defrosted, food will deteriorate
rapidly and should not be re-frozen.
Do not exceed the storage period
indicated by the food manufacturer.
Hints for fresh food refrigeration
If the appliance needs to be
switched off for an extended period,
the following steps should be taken
to prevent mould on the appliance.
1. Remove all food.
2. Remove the power plug from the
mains socket.
3. Clean and dry the interior
thoroughly.
4. Ensure that all the doors are
wedged open slightly to allow air to
circulate.
Switching off your appliance
31
Troubleshooting
Problem
Possible cause & Solution
Appliance is not
working correctly
Odours from the
compartments
The ambient temperature is too low. Try setting the
chamber temperature to a colder level to solve this
problem.
It is normal that the refrigerator is not operating during the
automatic defrost cycle, or for a short time after the
appliance is switched on to protect the compressor.
The interior may need to be cleaned.
Some food, containers or wrapping cause odours.
Noise from the
appliance
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the
freezer compartment or other compartments.
Gurgling sound similar to water boiling. Popping noise
during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and
may need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers knocking against each other.
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
Temperature setting is set colder than necessary.
Large quantity of warm food has recently been stored
within the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.
After your installing the appliance or it has been switched
off for a long time.
Troubleshooting
A layer of frost
occurs in the
compartment
Temperature
inside is too
warm
Check that the air outlets are not blocked by food and
ensure food is placed within the appliance to allow
sufficient ventilation.
Ensure the door can be fully closed . To remove the frost,
please refer to the cleaning and care chapter.
You may have left the doors open too long or too
frequently;
Or the doors are kept open by some obstacle;
Or the appliance is located with insufficient clearance at
the sides, back and top.
Temperature
inside is too cold
Increase the temperature by following the “Display controls”
chapter.
Check whether the top of the refrigerator is tilted back by
10-15mm to allow the doors to self close, or if something
inside is preventing the doors from closing.
Water drips
on the floor
The light is not
working
the LED light may be damaged. Refer to replace LED lights
in cleaning and care chapter.
the control system has disabled the lights due to the door
being kept open too long, close and reopen the door to
reactivate the lights.
Doors can’t be
closed easily
The water pan (located at the rear bottom of the cabinet)
may not be properly leveled, or the draining spout
underneath the top of the compressor depot may not be
properly positioned to direct water into this pan, or the
water spout is blocked , or the water is not fully inserted into
the connector.
You may need to pull the refrigerator away from the wall
to check the pan, spout and connector.
Check if the refrigerator is power-off for a long time, this
may cause the ice in the bucket to melt into water, and
flow to the floor.
Problem
Possible cause & Solution
32
Troubleshooting
You can hear
water bubbling in
the refrigerator
This is normal. The bubbling comes from the refrigerant
coolant liquid circulating through the refrigerator.
Problem
Possible cause & Solution
33
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug
Disposal of the appliance
Refrigerators contain refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Correct Disposal of this product
This marking indicates that this product should no be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collection systems or contact the retailer where
the product was purchased. They can take this product for
environmental safe recycling.
Warning
34
To avoid contamination of food, please respect the following instructions
Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not
in contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the feezing of fresh
food.
Appropriate food
Eggs, cooked food, packaged food,
fruits and vegetables, dairy products,
cakes, drinks and other foods which
are not suitable for freezing.
Compartments
type
Order Target storage
temp.[°C]
1
Fridge
+2~+8
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 3
months ,the longer the storage time,
the worse the taste and nutrition),
suitable for frozen fresh food.
2
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 3
months, the longer the storage time,
the worse the taste and nutrition),are
not suitable for frozen fresh food.
3
***-Freezer
≤-18
Red wine,white wine,sparkling wine
etc.
4 Wine +5~+20
35
Suggestion of using the appliance
Appropriate foodCompartments
type
Order Target storage
temp.[°C]
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 2
months, the longer the storage time,
the worse the taste and nutrition), are
not suitable for frozen fresh food.
5
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 1
month, the longer the storage time,
the worse the taste and nutrition), are
not suitable for frozen fresh food.
6
*-Freezer
≤-6
Fresh/frozen pork, beef, chicken,
freshwater aquatic products, etc.(7
days below 0 °C and above 0 °C is
recommended for consumption
within that day, preferably no more
than 2 days). Seafood (less than 0°C
for 15 days, it is not recommended to
store above 0°C).
8
chill
-2~+3
7 0-star -6~0
Fresh pork, beef, fish, chicken, some
packaged processed foods, etc.
(Recommended to eat within the
same day, preferably not later than 3
days). Partially packed/wrapped up
encapsulated processed foods (non-
freezable foods).
Fresh pork, beef, fish, chicken, cooked
food, etc. (Recommended to eat
within the same day, preferably no
more than 3 days).
9
Fresh Food
0~+4
Suggestion of using the appliance
36
37
Suggestion of using the appliance
please store different foods according to the compartments or target storage
temperature of your purchased products.
If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
Note
Food needs to be packed in bags before putting into the refrigerator, and
liquids need to be packed in bottles or capped containers to avoid the problem
that the product design structure is not easy to clean.
Warning
