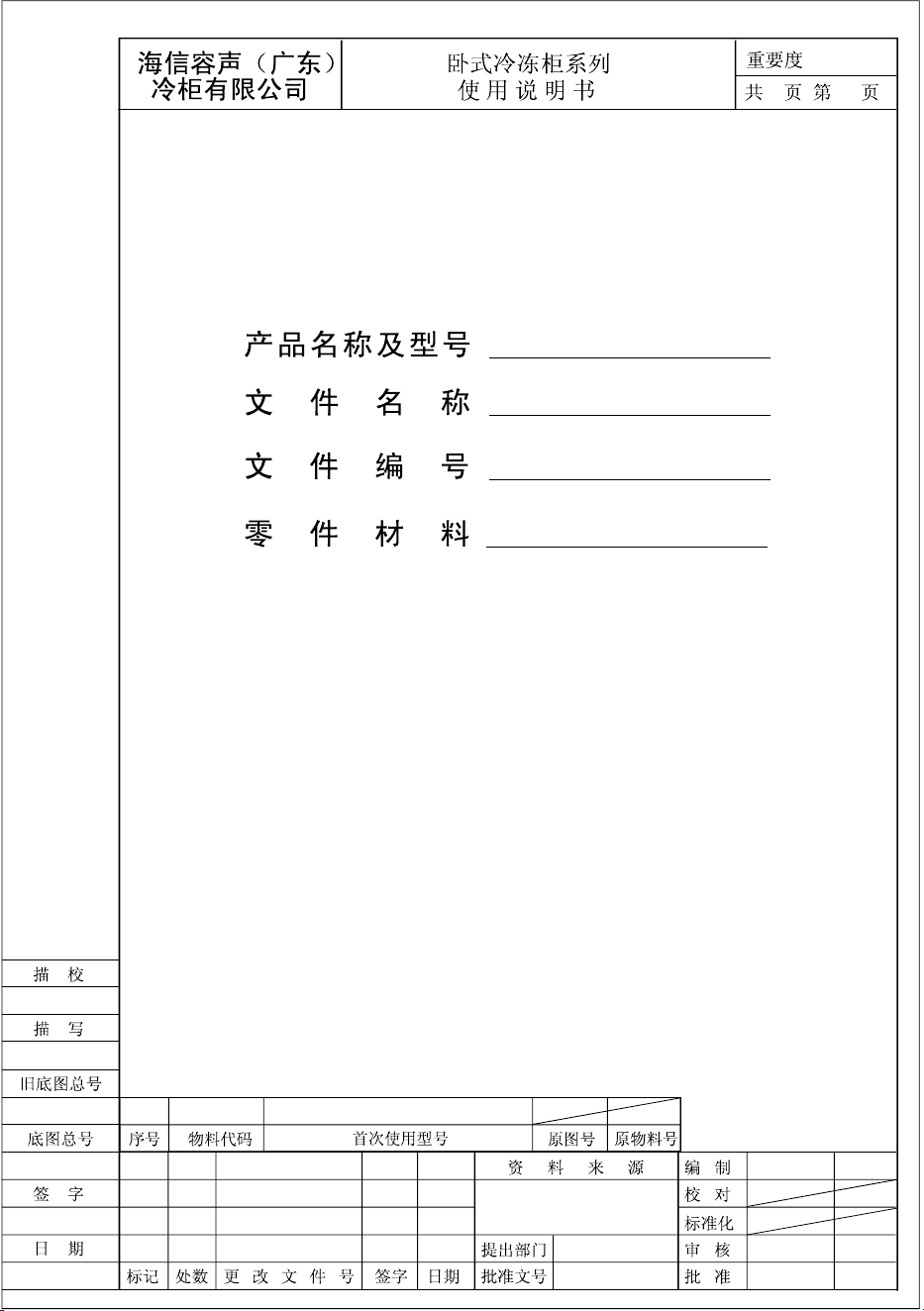

G5
L08062614
[B]
2423746
BD-96/AHC(E)-05HIS.GIN01
2、首样经技术人员确认方可批量生产。
2024-07-12
1、有害物质含量满足冰箱公司企业标准Q/HKB J16001《零、部件及原材料中
技术要求：
有害化学物质含量的规定》的要求。
3、 15 。防火标签高度至少为 mm高
4、每种语言的第1-11页正文内容字体大写字母高度至少3mm。
70g双胶纸(黑白)(148*210±2mm)
卧式冷冻柜系列
使用说明书
黄晓琼
USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
HRCF702
HRCF439
English
EN
Contents
Thank you for choosing the appliance. We are sure you will find your new
refrigerator a pleasure to use. However, before you use the appliance, we
recommend that you carefully read the instructions, which provide details about
installing and using the product. Please keep this manual for future reference.
Safety and warning information ...............................................01
Installing your new appliance ..................................................12
Description of the appliance ...................................................14
Temperature adjustment ......................................................16
How to install the handle and hook ............................................17
How to install the wheel .......................................................18
Cleaning and care ............................................................19
Helpful hints and tips ..........................................................21
Troubleshooting ...............................................................22
Disposal of the appliance .....................................................26
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully,
including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to make sure that all
people using the appliance are thoroughly familiar with it
operation and safety features. Save these instructions and
be sure that they remain with the appliance if it is moved or
sold, so that anyone using it throughout its life, will be
properly informed on its usage and safety notices. For the
safety of life and property, keep the precautions of these
user's instructions as the manufacturer is not responsible for
damages caused by omission.
01
Safety and warning information
According to standardEN
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
Safety for children and others who are vulnerable people
According to IEC standard
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
Keep all packaging away from children as there is risk
of suffocation.
If you are discarding the appliance, pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to prevent
children playing from suffering an electric shock or from
closing themselves inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch)
on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will
prevent it from becoming a death trap for a child.
Safety for children and others who are vulnerable people
02
Safety and warning information
General safety
Safety and warning information
03
WARNING
This appliance is intended to be used in household and
similar applications such as
1.staff kitchen areas in shops, offices and other working
environments;
2.farm houses and by clients in hotels, motels and other
residential type environments;
1) bed and breakfast type environments;
2) catering and similar non-retail applications.
WARNING
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
WARNING
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
General safety
Safety and warning information
04
WARNING
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING
Do not damage the refrigerant circuit.
WARNING
Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING
The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only
at an authorized waste disposal center. Do not expose to
flame.
WARNING
When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING
Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Safety and warning information
05
WARNING
The illuminating lamps must not be replaced by the
user! If the illuminating lamps is damaged, contact the
customer helpline for assistance. This warning is only
for freezer that contain illuminating lamps.
Replacing the illuminating lamps
The refrigerant isobutene (R600a) R290 or R a is or 134
contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental
compatibility, which is nevertheless R600a and R290
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged. The refrigerant
R600a is flammable.and R290
Refrigerant
Refrigerant
Safety and warning information
06
WARNING
Refrigerators contain refrigerant and gases in the
insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not
damage prior to proper disposal.
WARNING
Risk of fire / flammable materials If the refrigerant circuit
should be damaged:
1. Avoid opening flames and sources of ignition.
2. Thoroughly ventilate the room in which the appliance
is situated.
It is dangerous to alter the specifications or modify this
product in any way. Any damage to the cord may
cause a short circuit, fire, and/or electric shock.
Electrical safety
Safety and warning information
07
The power cord must not be lengthened.
Make sure that the power plug is not crushed or
damaged. A crushed or damaged power plug may
overheat and cause a fire.
Make sure that you can access the main plug of the
appliance.
Do not pull the main cable.
If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
You must not operate the appliance without the
interior lighting lamp cover.
The freezer is only applied with power supply of single
phase alternating current of . If 220-240V/50Hz
fluctuation of voltage in the district of user is so large
that the voltage exceeds the above scope, for safety
sake, be sure to apply A.C. Automatic voltage regulator
of more than 350W to the fridge. The fridge must
employ a special power socket instead of common
one with other electric appliances. Its plug must
match the socket with ground wire.
1.
2.
3.
4.
5.
6.
7.
Safety and warning information
Do not store flammable gas or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g. electric ice cream makers, mixers etc.).
When unplugging always pull the plug from the mains
socket, do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
This refrigerating appliance is not intended to be used as a
built-in appliance.
Do not place food products directly against the air outlet
on the rear wall.
Store pre-packed frozen food in accordance with the
frozen food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to. Refer to relevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freezer
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight
from the freezer compartment.
Do not place the appliance in direct sunlight.
Keep burning candles, lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
Daily use
08
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet. The appliance is heavy. Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could
cause skin abrasions or frost/freezer burns.
Never use the base, drawers, doors etc. to stand on or
as supports.
Frozen food must not be refrozen once it has been
thawed out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to the
appliance, do not overload the door racks or put too much
food in the crisper drawers.
Safety and warning information
09
Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.
Caution! Care and cleaning
10
For electrical connection carefully, follow the instructions
given in this manual. Unpack the appliance and check if
there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it.
In this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the
compressor.
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be
too close to a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent the risk of fire,
follow the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Installation Important
Safety and warning information
11
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1. If the appliance is Frost Free.
2. If the appliance contains freezer compartment.
Relevant information for ordering spare parts, directly or
through other channels provided by the manufacturer,
importer or authorised representative.
If your refrigerator is damaged, our after-sales service
team will provide you with relevant spare parts for repair
within a few days.
Instruction on how to find the model information in the
product database, as defined in Regulation (EU) 2019/2016
by means of a weblink that links to the model information
as stored in the product database or a link.
Queensland service notes: In Queensland, the Authorized
Service Person Must hold a Gas Work Authorization for
hydrocarbon refrigerants to carry out servicing or repairs
which involve removal of covers.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. (This clause applies only
to the EU region.)
Note
Safety and warning information
12
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the
appliance for the dissipation of
heat. For this reason, sufficient
clear space should be available
around the .freezer
Ventilation of appliance
Ambient temperature
+10°C to +32°C
+16°C to +32°C
+16°C to +38°C
+16°C to +43°C
Climate class
SN
N
ST
T
Lay your appliance in a dry place to
avoid high moisture damage. Keep the
appliance out of direct sunlight, rain or
frost. Stand the appliance away from
heat sources such as stoves, fires or
heaters.
This appliance performs well in the
climate class from SN to T or ST(Please
refer to the climate type marked on
the parameter nameplate on the
appliance). It may not work properly if
being left at a temperature above or
below the indicated range for a long
period.
Note
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. Please use a
suitable spanner.
Leveling of appliance
Suggest:
It is advisable for there to be
75mm of space from the back to
the wall, at least 100mm from its
side to the wall .
13
Installing your new appliance
For proper installation, this
refrigerator must be placed on a
level surface of hard material
that is the same height as the
rest of the flooring, This surface
should be strong enough to
support a fully loaded .
Warning
This section tells you how to use most of
the useful features. We recommend
that you read through them carefully
before using the appliance.
Compartment is suitable for storage
of foods required to be frozen, such
as meat, fish, ice cream and other
perishable items.
Caution! Ensure that bottles are not
left in the freezer for longer than
needed as freezing may cause the
bottle break. Bottled or canned liquid
are at risk of exploding caused by
volume expansion and so should not
be stored in the freezer
compartment.
Using your freezer compartment
Remove shipping package, tape, etc,
and leave doors open for a while in
order to ventilate the appliance.
The unit is cleaned before shipment.
However, it is recommended to
clean the compartment interior
once after delivery.
Please insert power supply plug into
the wall outlet, type “grounded
single-phase 220-240 V”.
Allow the unit to operate for about 1
hour to cool the compartment
before placing items in the
appliance.
Before use
Restarting the unit immediately after
it has been turned off may cause
fuses to blow and activate the
circuit-breaker, the compressor may
become overloaded, and/or other
damage may occur.
Wait 5 minutes or more before
re-starting
Do not use the unit to store water
or food that requires water as a
storage medium.
Never place fresh seafood
containing water into the unit
directly.
Warning
14
Description of the appliance
View of the appliance
Model no. : HRCF702
06. Power lamp
07. Temperature control knob
08. Drain
09. Foot/Wheel
10. Basket
Specification and information (mm)
Product Name
W×D×H
Product No.
Outer Dimensions
(mm)
2145×758×826
Chest freezer
HRCF702
01. Door knob
02. Door
03. Hinge
04. Power supply cord with plug
05. Side cover
02
03
04
05
06
07
08
09
10
01
15
Description of the appliance
View of the appliance
Model no. : HRCF439
06. Power lamp
07. Temperature control knob
08. Drain
09. Foot/Wheel
10. Basket
Specification and information (mm)
Product Name
W×D×H
Product No.
Outer Dimensions
(mm)
1429×746×858
Chest freezer
HRCF439
01. Door knob
02. Door
03. Hinge
04. Power supply cord with plug
05. Side cover
02
03
04
05
06
07
08
09
10
01
16
Temperature adjustment
Description of the appliance
Due to constant development of our products, your refrigerator may be
slightly different from this instruction manual, but its functions and usage
remain the same.
To get the best energy efficiency of this product, please place all shelves,
drawers on their original position as the illustration above.
Never touch the interior of the freezer chamber or frozen foods in the
compartment with wet hands as this could result in frostbite.
If the appliance has key, keep the key out of reach of children and not in the
vicintity of the freezer.
The specifications may change, please refer to the circuit name plate on the
freezer.
Note
Temperature adjustment
Thermostat was adjusted using
temperature at factory. So, please do
not touch it. Excessive refrigeration will
increase electricity consumption
unnecessarily.
If need to adjust the temperature,
please turn the temperature control
dial in the direction of . MAX/8
If too cold, turn dial in the direction of
MIN/2.
When you need the unit to stop running
temporally, please turn the
temperature control dial in the
direction of .OFF/put off the plug
In order to quickly freeze fresh food in
the freezer, it is recommended to run at
the maximum range for 24 hours
before returning to the middle range.
NOTE: High temperature setting will
accelerate food waste.
17
How to install the handle and hook
If the appliance has handle and hook, Perform the following steps to install.
Make sure the door is always kept locked when not in use to prevent children
Note
from playing with the unit.
The door keys should be kept out of reach of children.
1.
2.
3.
handle
handle cover
screw
1
2
4
3
5
18
How to install the wheel
STEPS
1.
2.
3.
4.
A
B
C
If the wheels of the freezer need to be installed, Perform the following steps to install.
Take out the wheels and screws from the inner basket of the freezer .
Tilt the box (as shown in the picture below), because the box is heavy, 2-3
people must cooperate to carry it together, in order to prevent the freezer from
suddenly dropping and injuring the body.
Place the wheels in position A, B and C as shown in the following Picture, and fix
the screws on the mounting hole of the wheels with a screwdriver.
After the installation, place the freezer gently.
If the bottom roller of your freezer is 2 directional wheels +2 universal wheels, then
the directional wheel should be installed on the left mounting plate.
If the bottom roller of your freezer is 2 brake wheels +4 universal wheels,
then the brake wheel should be installed on the left mounting plate.
CAUTION:
1.
2.
19
For hygienic reasons the appliance
(including exterior and interior
accessories) should be cleaned
regularly (at least every two months).
Do not use sharp objects as they
are likely to scratch the surface.
Do not use Thinner, Car detergent
Clorox, ethereal oil, abrasive
cleansers or organic solvent such
as Benzene for cleaning. They
may damage the surface of the
appliance and may cause fire.
Warning
The appliance must not be
connected to the mains during
cleaning. Danger of electrical
shock!
Before cleaning switch the
appliance off and remove the plug
from the mains socket.
Warning
To maintain good appearance of
your appliance, you should clean it
regularly.
Wipe the digital panel and display
panel with a clean, soft cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of
moisture to the surface.
Clean the doors, handles and
cabinet surfaces with a mild
detergent and then wiped dry with a
soft cloth.
Exterior cleaning
You should clean the appliance
interior regularly. It will be easier to
clean when food stocks are low. You
can remove the basket or shelves
for a more thorough clean.
Wipe the inside of the freezer with a
weak solution of bicarbonate of
soda, and then rinse with warm
water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the basket or shelves.
Thoroughly dry all surfaces and
removable parts before putting
them back into place.
Interior cleaning
Cleaning and care
20
Cleaning and care
Take care to keep door seals clean.
Sticky food and drinks can cause
seals to stick to the cabinet and tear
when you open the door. Wash the
seals with a mild detergent and
warm water. Rinse and dry them
thoroughly after cleaning.
Door seals cleaning
You should defrost the freezer
compartment two or three times a
year when the ice is about 4 mm thick.
To defrost, follow these steps:
Set the thermostat to Maximum gear
at least 12 hours before defrosting.
After this period has elapsed, switch
of the freezer compartment by
removing the plug from the mains
supply.
Remove all food from the freezer and
wrap them in newspaper and store in
a cold place and leave the
door open.
When the defrosting is finished must
the compartment be cleaned and
wiped dry.
Switch the appliance back on using
the thermostat set to Maximum
gear, wait at least one hour before
replacing the foodstuff.
After some hours the thermostat can
be set back to original position.
Warning
Defrosting
To ensure the safety, perform the
following checks after cleaning the
unit:
Is the power cord plug firmly
inserted into a dedicated wall
outlet? Confirm that the plug is not
abnormally hot.
Check the power cord for cracks and
damage. Should the slightest
irregularity be observed, contact the
dealer from whom you purchased
this unit or our customer's service
department.
Checks
Before using the appliance for the
first time, wash the interior and all
internal accessories with lukewarm
water and some neutral soap so as
to remove the typical smell of a
brand new product, then dry
thoroughly.
Cleaning before use
Do not use mechanical devices or
other artificial means to
accelerate the defrosting process,
other than those recommended
by the manufacturer.
Do not use electrical appliance
inside de food storage of the
appliances, unless they are of the
type recommended by the
manufacturer.
21
Helpful hints and tips
Energy saving tips
Do not place hot food directly into
the refrigerator or freezer, the
internal temperature will increase
resulting in the compressor having
to work harder and will consume
more energy.
Do cover or wrap the food,
particularly if it has a strong flavor.
Place food properly so that air can
circulate freely around it.
Hints for fresh food refrigeration
Do not put the
freezer upside down.
less than 45°
Unplug the power plug and cut off the
power.
Remove all food from the freezer.
Use tape to fix moving parts such as
refrigerator shelves, fruit and
vegetable boxes and drawers.
Close the freezer door tightly and
secure it with tape to prevent it from
being opened when moving.
When handling, the maximum
inclination angle should not exceed
45°, so as to avoid the failure of the
refrigeration system.
In order to avoid scratching the floor,
the feet or wheel of the freezer should
be wrapped in advance, and it is
forbidden to forcibly move the freezer.
Do not hold the freezer door, top cover
and various pipes when moving.
the freezer upside down.
Moving the Chest Freezer
Hints for fresh food refrigeration
Ensure that frozen food has been
stored correctly by the food retailer .
Once defrosted, food will deteriorate
rapidly and should not be re-frozen.
Do not exceed the storage period
indicated by the food manufacturer.
We recommend that you follow the
tips to save energy.
Try to avoid keeping the door open
for long periods in order to
conserve energy.
Ensure the appliance is away from
any sources of heat (Direct sunlight,
electric oven or cooker etc.)
Don't set the temperature colder
than necessary.
Don't store warm food or
evaporating liquid in the appliance.
Place the appliance in a well
ventilated, humidity free room.
Please refer to the installing your
new appliance chapter.
The description of appliance
diagram shows the correct
combination for the drawers, crisper
basket and shelves, do not adjust the
combination as this is designed to
be the most energy efficient
configuration.
22
Helpful hints and tips
If you experience a problem with your appliance or are concerned that ine
appliance is not functioning correctly, you can carry out some easy checks before
calling for service, please see below. You can carry out some easy checks according
to this section before calling for service.
Troubleshooting
Warning
Problem
Possible cause & Solution
Appliance is not
working correctly
Check whether the power cord is plugged into the power outlet
properly, or the temperature control turn to OFF、Off or 0.
Check the fuse or circuit of your power supply, replace if
necessary.
If the appliance needs to be switched off for an extended period, the following
steps should be taken to prevent mould on the appliance.
1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.
Switching off your appliance
The ambient temperature is too low. Try setting the
chamber temperature to a colder level to solve this
problem.
the recommended setting of temperatures in each compartment for optimum
food preservation. These settings shall not contradict the storage conditions set out
in Annex IIl, Table 3.
Don't try to repair the appliance yourself. If the problem persists after you have
made the checks mentioned below, contact a qualified electrician, authorized
service engineer or the shop where you purchased the product.
23
Troubleshooting
Problem
Possible cause & Solution
Odours from the
compartments
The interior may need to be cleaned.
Some food, containers or wrapping cause odours.
Noise from the
appliance
Inadequate
refrigeration
Is the place of installation ventilated?
Is the freezer exposed to direct sunlight, placed near a
heater or stove?
Are the lids opened and closed frequently?
Are items stocked beyond the load line?
Is a lot of frost forms in the freezer?
Condensation on
cooler exterior
The circumference
of freezer feels hot
Pipe
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the freezer
compartment or other compartments.
Gurgling sound similar to water boiling.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may
need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers knocking against each other.
Condensation may condense on the exterior and door
during hot and humid days or depending on the place of
installation. This occurs when the humidity is high and
water particles in the cold surfaces. This is normal. Wipe
away condensation with a dry cloth.
Especially in summer or in starting running, the
circumference of freezer feels hot. Because freezer inside
has a pipe for radiating and preventing condensation.
The heat do not affect inside goods.
24
Troubleshooting
Problem
Possible cause & Solution
Power failure
Power cord
problems
Keep the opening and closing of the door for a minimum to
prevent cold air from escaping.
If the supply cord is damaged. It must be replace by a
special cord or assembly available from the manufacturer
or the service agent.
The freezer must be positioned so that the plug is
accessible.
When not used
for along period
Remove all items from the compartment and disconnect
the power cord plug from the wall outlet.
Transportation
Disconnect the power cord plug from the wall outlet.
Avoid placing new items in the cooler as this will raise the
temperature inside the compartment.
In case of a long power suspension, place dry ice in the
freezer.
Clean the compartment interior and wipe away all water.
To prevent mold formation and foul odors, leave the door
open to dry the compartment completely.
When moving the appliance, make sure that the feet do not
damage the power cord.
Do not let the feet hit against floor steps, thresholds, etc.
Temporary
storage
Put piece of wood or other similar item between the door
and main unit to prevent complete closing of the door.
Be sure not to store the unused freezer in a location where
children play.
Should a child enter the compartment and the door is
closed, the child may not be able to open the door from
the inside.
25
Troubleshooting
You can hear
water bubbling in
the freezer
Problem
Possible cause & Solution
The light is not
working
The LED light may be damaged. Refer to replace LED
lights in cleaning and care chapter.
The control system has disabled the lights due to the
door being kept open too long, close and reopen the
door to reactivate the lights.
This is normal. The bubbling comes from the refrigerant
coolant liquid circulating through the freezer.
26
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the
packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.
Disposal of the appliance
Freezer contains refrigerant and gases in the insulation.
Refrigerant and gases must be disposed of professionally as they may cause
eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Correct Disposal of this product
This marking indicates that this product should no be
disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collection systems or contact the retailer where
the product was purchased. They can take this product for
environmental safe recycling.
Warning
27
To avoid contamination of food, please respect the fol wing instructionslo
When refrigerating food, please be careful not to contact the surface of the inner
box directly.
When frozen food, in order to prevent moisture loss, prevent the odor, should
separate the different food sealed storage, and can only use non-toxic, tasteless,
impermeable, waterproof sealing material.
Hot food should be cooled to room temperature first, then put into the freezer,
otherwise it will affect the storage status of other foods and increase the power
consumption.
Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not
in contact with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making ice cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of
fresh food.
Disposal of the appliance
28
Disposal of the appliance
Appropriate foodCompartments
type
Order Target storage
temp.[°C]
Eggs, cooked food, packaged food,
fruits and vegetables, dairy products,
cakes, drinks and other foods which
are not suitable for freezing.
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 3
months ,the longer the storage time,
the worse the taste and nutrition),
suitable for frozen fresh food.
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 3
months, the longer the storage time,
the worse the taste and nutrition),are
not suitable for frozen fresh food.
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 2
months, the longer the storage time,
the worse the taste and nutrition), are
not suitable for frozen fresh food.
Seafood (fish, shrimp, shellfish),
freshwater aquatic products and
meat products (recommended for 1
month, the longer the storage time,
the worse the taste and nutrition), are
not suitable for frozen fresh food.
1
Fridge
+2~+6
2
(***)*-Freezer
≤-18
3
***-Freezer
≤-18
4
**-Freezer
≤-12
5
*-Freezer
≤-6
29
Disposal of the appliance
please store different foods according to the compartments or target storage
temperature of your purchased products.
Note
Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
Water dispenser cleaning (special for water dispenser products):
Food needs to be packed in bags before putting into the , and liquids freezer
need to be packed in bottles or capped containers to avoid the problem that
the product design structure is not easy to clean.
Warning
If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
30
31
32 XXXXXX
