20V Cordless Reciprocating Pruning Saw
239-1550
TOLL-FREE HELPLINE: 1-888-497-7273
Read this operator manual before using this product. Failure to do so can result in serious injury. SAVE THIS
MANUAL
OPERATOR’S MANUAL
02
TABLE OF CONTENTS
READ ALL INSTRUCTIONS!
WARNING:
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause cancer, birth defects or other repro-
ductive harm. Some examples of these chemicals are:
Lead from lead-based paints,
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically - treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to lter out microscopic particles.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible danger. The safety symbols and the
explanations with them deserve your careful attention and understanding. The symbol warnings do not,
by themselves, eliminate any danger. The instruction and warnings they give are no substitutes for proper
accident prevention measures.
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
NOTICE
WARNING
SYMBOL SIGNAL
Indicates a hazardous situation, which, if not avoided, could result in death
or serious injury.
(Without Safety Alert Symbol) Indicates information considered important,
but not related to a potential injury (e.g. messages relating to property
MEANING
.....................................................................................................................2
..................................................................................................4
....................................................................................................................8
..........................................................................................................11
............................................................................................................................12
............................................................................................................................14
.......................................................................................................................16
...............................................................................................................................17
................................................................................................................18
...........................................................................................................................19
Safety symbols
Important safety instrucions
Know your tools
Charging your battery
Assembly
Operation
Maintenance
Storage
Trouble shooting
Warranty

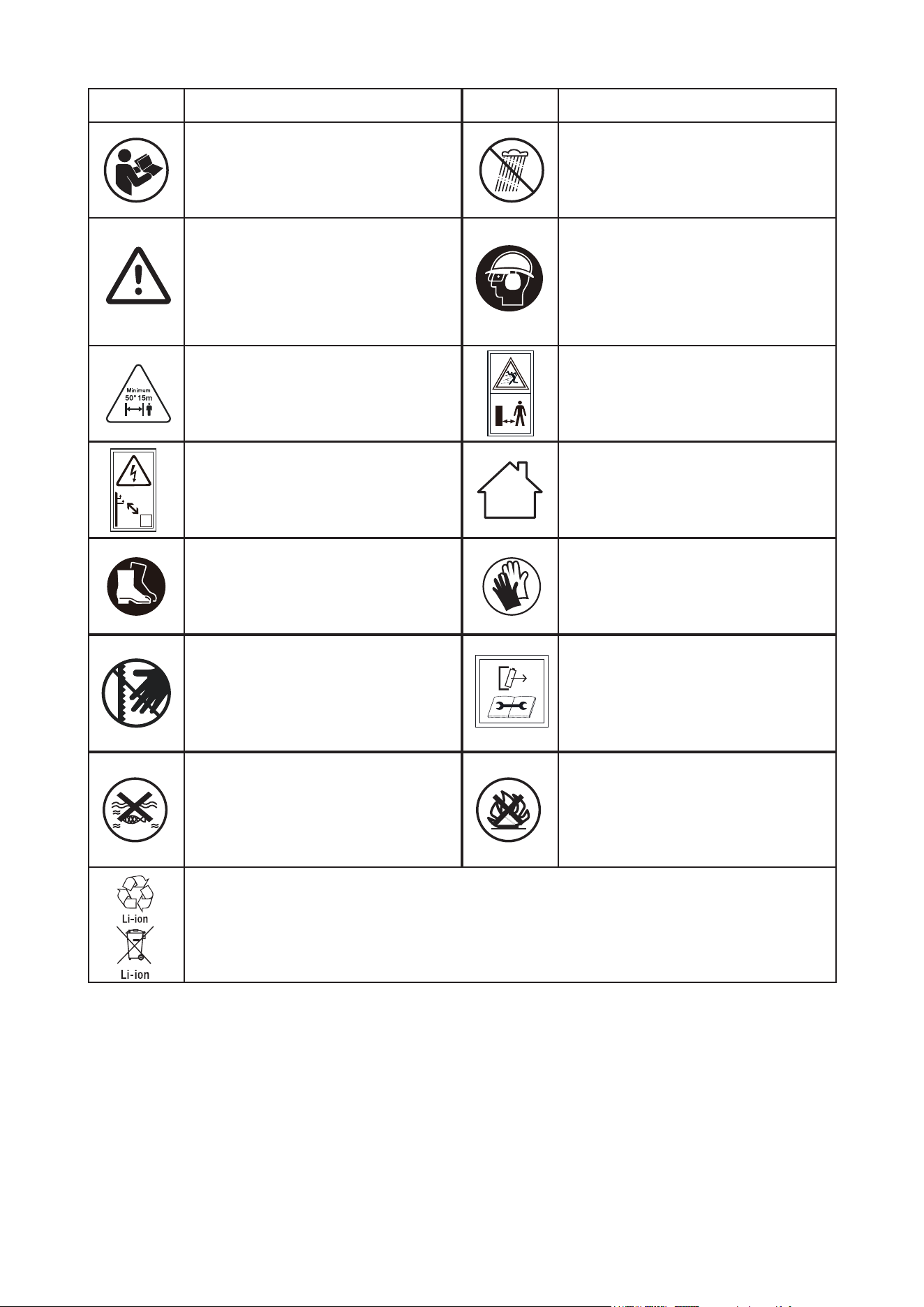

Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
03
To reduce the risk of injury, the user
must read the instruction manual.
SAFETY ALERT – indicate a precau-
tion, a warning or a danger.
Wear hearing and eye protection.
DANGER - Keep sucient distance Only use the battery and charger in-
doors.
Keep bystanders away.
CAUTION! Beware of stones or other
foreign objects that could be thrown
Wear safety footwear.
Wear protective gloves. Protect your
hands with gloves when handling
the saw and saw blade. Heavy-duty,
nonslip gloves improve your grip and
protect your hand.
Failure to keep your hands away from
the blade will result in serious person-
al injury.
WARNING – Disconnect the battery
before maintenance.
Batteries may enter the water cycle if
disposed of improperly, which can be
hazardous to the ecosystem. Do not
dispose of old batteries as unsorted
municipal waste.
Li-ion battery. This product has been marked with a symbol relating to a ‘separate collection’
for all battery packs. It will then be recycled or dismantled to reduce the impact on the en-
vironment. Battery packs can be hazardous to the environment and to human health since
they contain hazardous substances.
Do not be exposed to rain.
SYMBOL SYMBOLDESCRIPTION DESCRIPTION
Do not burn the battery pack.
04
IMPORTANT SAFETY INSTRUCIONS
WARNING:
Only use the accessories that are provided with this product or the accessories approved by Yard-
works. Using other accessories might increase the risk of injury. Follow the instructions in this man-
ual to properly use the accessories.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING:
This product can expose you to chemicals including lead and Di(2-ethylhexyl) phthalate (DEHP)
which are known to the State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
WARNING:
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result
in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1.WORK AREA SAFETY
a. Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gas-
es or dust. Power tools create sparks that may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose con-
trol.
2.PERSONAL SAFETY
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a
power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inat-
tention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
masks, non-skid safety shoes, hard hats, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the trigger is in the o-position before connecting to the power
source, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing
power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power
tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. The use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from the frequent use of tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe injury within a fraction of a second.
3.POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b. Do not use the power tool if it cannot be turned on/o by the switch. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
05
WARNING:
WARNING - Do not operate near electrical power lines. The unit has not been designed to provide
protection from electric shock in the event of contact with overhead electric lines. Consult local reg-
ulations for safe distances from overhead electric power lines and ensure that the operating position
is safe and secure before operating the Reciprocating Pruning saw.
SAFETY WARNINGS FOR RECIPROCATING PRUNING SAW
c. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained
users.
d. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
e. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
f. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into ac-
count the working conditions and the work to be performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
g. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasp-
ing surfaces do not allow for safe handling and control of the tool in unexpected situations.
4.BATTERY TOOL USE AND CARE (BATTERY TOOLS)
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs may cre-
ate a risk of injury and re.
c. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts the eyes, additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhib-
it unpredictable behavior resulting in re, explosion or risk of injury.
f. Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature
above 265°F may cause an explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range
specied in the instructions. Charging improperly or at temperatures outside the specied range may
damage the battery and increase the risk of re.
5.SERVICE
a. Have your power tool serviced by a qualied repair person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by the manu-
facturer or authorized service providers.
a) Keep all parts of the body away from the saw blade when the reciprocating Pruning saw is operating.
Before you start the reciprocating Pruning saw, make sure the saw blade is not contacting anything. A
moment of inattention while operating the reciprocating Pruning saw may result in injury to yourself or
others.
b) Always use two hands when operating the reciprocating Pruning saw. Hold the reciprocating Pruning saw
with both hands to avoid loss of control.
c) To reduce the risk of electrocution, never use the reciprocating Pruning saw near any electrical power
lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.
d) Hold the reciprocating Pruning saw by insulated gripping surfaces only, because the or saw blade may
06
of the reciprocating Pruning saw “live” and could give the operator an electric shock.
e) Wear eye and ear protection. Further protective equipment for hands and slip-resistant footwear are rec-
ommended. Adequate protective equipment will reduce the risk of personal injury.
f) Always use head protection when operating the reciprocating Pruning saw overhead. Falling debris can
result in serious personal injury.
g) Always keep proper footing and operate the reciprocating Pruning saw only when standing on the
ground. Slippery or unstable surfaces may cause a loss of balance or control of the machine.
h) Do not operate a reciprocating Pruning saw in a tree, on a ladder, or any unstable support. Operation of
a reciprocating Pruning saw in this manner may result in loss of balance, loss of control and personal
injury.
i) Keep all power cords and cables away from the cutting area. Power cords or cables may be hidden in
trees and can be accidentally cut by the saw blade.
j) Do not use the reciprocating Pruning saw in bad weather conditions, especially when there is a risk of
lightning. This decreases the risk of being struck by lightning.
k) When cutting a limb that is under tension, be alert for spring back. When the tension in the wood bers is
released, the spring-loaded limb may strike the operator and/or throw the reciprocating Pruning saw out
of control.
l) Use extreme caution when cutting brush and saplings. The slender material may catch the saw blade
and be whipped toward you or pull you o balance
m) When carrying the reciprocating Pruning saw with the machine switched o, take care not to operate any
power switch and keep the saw blade away from your body. Proper carrying of the reciprocating Pruning
saw will reduce the likelihood of accidental contact with the saw blade
n) When transporting or storing the reciprocating Pruning saw, always t the guide bar or saw blade cover.
Proper handling of the reciprocating Pruning saw will reduce the likelihood of accidental contact with the
moving saw blade.
p) This saw is equipped with a ‘Pruning Saw Blade’, specically designed for pruning wood. Never use the
provided woodcutting blade for cutting other material. Failure to do so could result in serious personal
injury
1. Do not modify or attempt to repair the battery pack. Do not dismantle, open or shred the battery pack.
2. Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or tempera-
ture above 265°F may cause an explosion.
3. Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they
may short-circuit each other or be short-circuited by other metal objects. When the battery pack is not
in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or re.
4. Do not subject the battery pack to mechanical shock.
5. Observe the plus (+) and minus (–) marks on the battery back and equipment and ensure correct use.
6. Keep the battery pack out of the reach of children.
7. Always purchase the battery pack recommended by the device manufacturer for the equipment.
8. Keep battery pack clean and dry.
9. Wipe the battery pack terminals with a clean dry cloth if they become dirty.
10. The battery pack needs to be charged before use. Always use the correct charger and refer to the manu-
facturer’s instructions or equipment manual for proper charging instructions.
11. Do not leave the battery pack on prolonged charge when not in use.
12. After extended periods of storage, it may be necessary to charge and discharge the battery pack several
times to obtain maximum performance.
13. The battery pack gives its best performance when it is operated at normal room temperature (68°F ± 9°F).
14. Use only the battery pack in the application for which it was intended. Do not use a battery pack or ap-
pliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior
resulting in re, explosion or risk of injury.
15. Remove the battery pack from the equipment when not in use.
16. Dispose of Battery Pack properly.
17. Do not handle the charger, including the charger plug, or charger terminals with wet hands.
18. Do not charge the battery pack outdoors, in rain, or in wet locations.
SAFETY WARNINGS FOR BATTERY PACK
07
19. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with another battery pack.
20. Use power tools only with specically designated battery packs. Use of any other battery packs may cre-
ate a risk of injury and re.
21. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts the eyes, additionally seek medical help. Liquid ejected from
the battery may cause irritation or burns.
Save these instructions. Refer to them frequently and use them to instruct others who may use this
tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of
the product and possible injury.
08

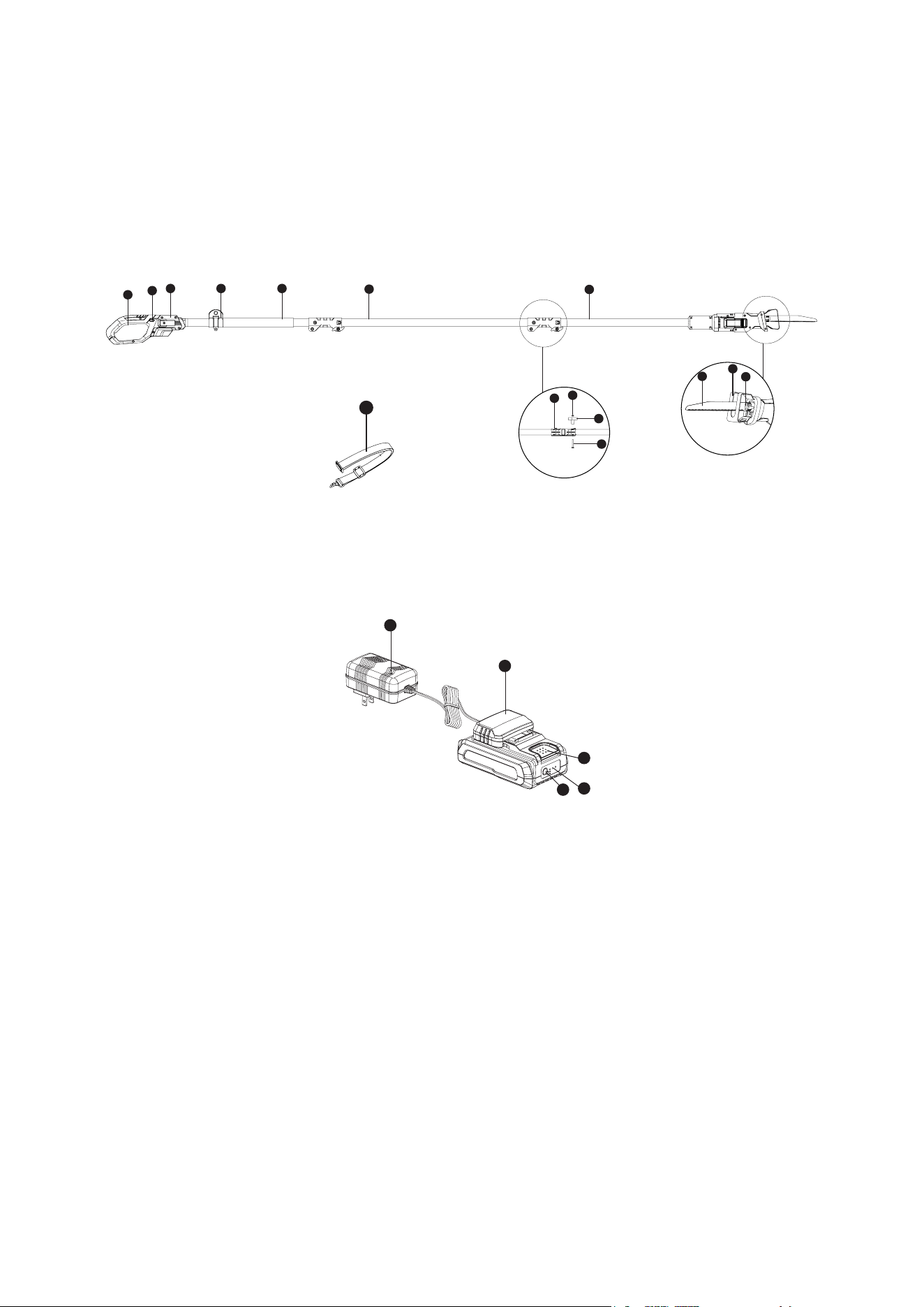

KNOW YOUR TOOLS
1. Saw Blade
2. Fixed Plate
3. Blade Holder
4. Upper Pole
5. Bolt
6. Nut
7. Locking Knob
8. Coupling
9. Extension Pole
10. Rear Pole
11. Rear Handle
12. Shoulder Strap Hook
13. Lock-o Button
14. Trigger Switch
15. Charging Indicator Light
16. Battery Pack Release Button
17. Battery Power Indicator Light
18. Battery Power Button
19. Charger
20. Shoulder Strap
101211
13
14
9
4
1
2
3
8
6
7
5
20
15
19
16
17
18
Rotated View
09
SKU No.
Model No.
Voltage
No Load Speed
Stroke Length
Blade Material
Blade Size
Max. Sawing Capacity
Extension Length
Dimensions (Without Extension Pole)
MAX Dimension
Weight (Battery Excluded)
Battery
Charger
Charger Rating
Charger Time
2.0 Ah Battery (D01104300 )
1.5 A Charger (D02204100 )
Saw Blade
Bolt
Nut
Locking Knob
Shoulder Strap
239-1550
EGT050091
20V
3000RPM
0.86 inch
High Carbon steel
8 inch
6.7 inch
36.7 inch
83.1*4.7*3 inch
119.8*4.7*3 inch
7 lbs
2.0 Ah (D01104300 )
1.5 A (D02204100 )
Input: 120 V~60 Hz Output: 20 V, 1.5 A
120mins
1pc
1pc
1pc
2pc
2pc
2pc
1pc
TECHNICAL DATA
ACCESSORIES
10
LED Indicator
3 lights on
2 lights on
1 light on
1 light ashing
Battery Charge Level/Working Conditions
70%<Charge Level≤100%
40%<Charge Level≤70%
10%<Charge Level≤40%
Charge Level ≤10%
CHARGING YOUR BATTERY
BATTERY INDICATOR
The battery pack is equipped with a push button for checking the charge level. Simply press the push button
to read o the battery charge level from the LEDs of the battery indicator.
WARNING:
Do not use the charger outdoors or expose it to wet or damp conditions. Water entering the charger
will increase the risk of electric shock.
CHARGING YOUR BATTERY
NOTICE:
Lithium-Ion battery packs are shipped partially charged. Before using it the rst time, fully charge
the battery pack.
NOTICE:
You can only charge one battery at a time with the charger provided.

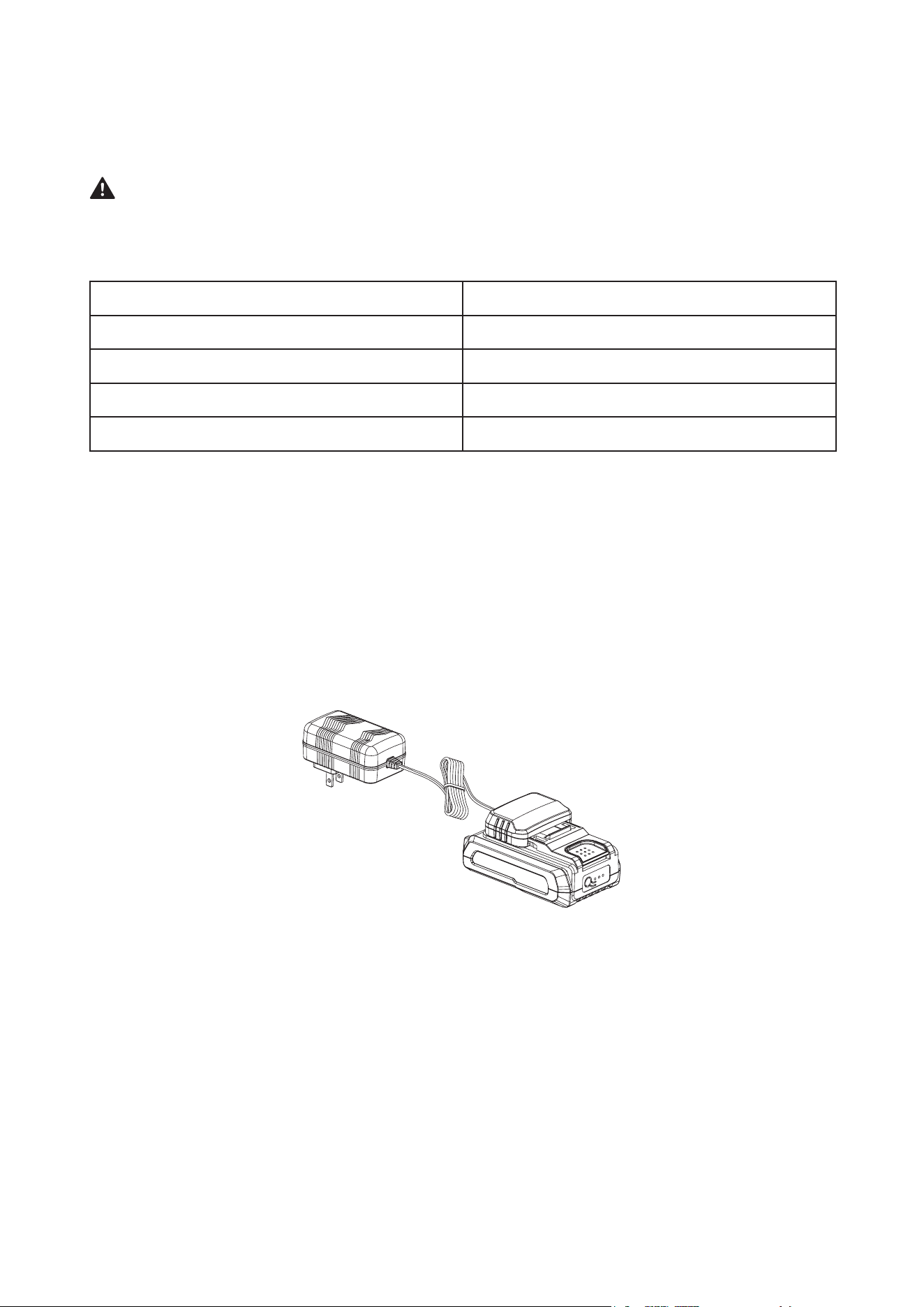

a. Connect the charger to the power supply (120V~60Hz). The green charging indication LED will turn on
indicating that the charger is working correctly.
b. Align the raised ribs of the battery pack with the battery-mounting slots in the charger; slide the battery
pack down onto the charger.The red charging LED will turn on.
c. When the battery is inserted properly,the green light will quickly ash to indicate that the battery is
charging.The red light on the charger will in turn on status.
d. When the green light (both in charger and battery)stays on,the battery is fully charged.
NOTICE:
●
The battery pack will fully charge if left on the charger, but it will not overcharge. If the battery
pack remains on the charger for one month or more, it will drop to lower charge capacity. If this
occurs, re-install the battery pack on the charger to recharge it fully.
● A signicantly reduced run time after fully charging the battery pack indicates that the batteries
are near the end of their usable life and must be replaced.
● The charger may warm during charging. This is part of the normal operation of the charger.
Charge in a well-ventilated area.
● If the LED ashes when the battery pack button is pressed without charging, it indicates that the
battery pack is malfunctioning or defective. In this case, do not attempt to charge the battery pack.
● If the battery pack is completely discharged and no LEDs flash when it is connected to the
charger, this also indicates a malfunctioning battery pack. In this case, do not attempt to charge
the battery pack.pack.
11
CHARGER LED INDICATOR TABLE
Possible Reason
•No load charging –There’s no battery inserted in the charger.
•Normal charging – The battery is being charged.
•Fully charged – The battery is fully charged and the charging process is nished.
Indication
•Red Light – O
•Green Light – On
•Red Light – On
•Green Light – O
•Red Light – O
•Green Light – On
Use the table below to determine charger light patterns and possible causes. For all other issues, please ask
the helpline for help.
ASSEMBLY
CONNECTING THE POLES (Fig. 1-3)
WARNING:
To prevent accidental starting
that could cause serious personal injury, always
remove the battery pack from the tool when as-
sembling parts.
WARNING:
Do not attempt to modify this
tool or create accessories not recommended for
use with this tool. Any such alteration or modi-
cation is misused and could result in a hazard-
ous condition leading to serious injury.
WARNING:
Do not attempt to start the tool
before it has been completely assembled.
WARNING:
Always wear heavy-duty work
gloves when handling the saw blade.
UNPACKING
a. This product requires assembly.
b. Remove all the items from the carton. Make sure
that all items listed in the parts list are included.
c. Inspect the product carefully to make sure that
no breakage or damage occurred during ship-
ping.
d. Do not discard the packing material until you
have carefully inspected and satisfactorily oper-
ated the tool.
e. Do not discard the packing material until you
have carefully inspected and satisfactorily oper-
ated the tool.
f. If any parts are damaged or missing, please
return the tool to the place of purchase.
Attaching Without the Extension Pole (Fig. 1-2)
1. Remove the battery pack.
2. Align the rib on the Upper Pole with the arrow
slot on the Rear Pole and push the Upper Pole
into the Rear Pole.
3. Place the Nut into the Locking Knob, then insert
the Bolt through the holes in the poles and Cou-
pling.
4. Tighten securely with the Locking Knob.
5. Pull on the Upper Pole to verify that it is securely
locked in place.
Step 1
Step 2
1
2
12
BLADE ASSEMBLY (Fig. 4)
WARNING:
Ensure that the Locking Knobs are fully tightened before operating the tool.
WARNING:
Always lock the tool o and remove the battery pack before making any adjust-
ments or assembling parts.
WARNING:
Use protective gloves when removing the saw blade from the tool, or rst allow the
saw blade to cool down. The saw blade may be hot after prolonged use.

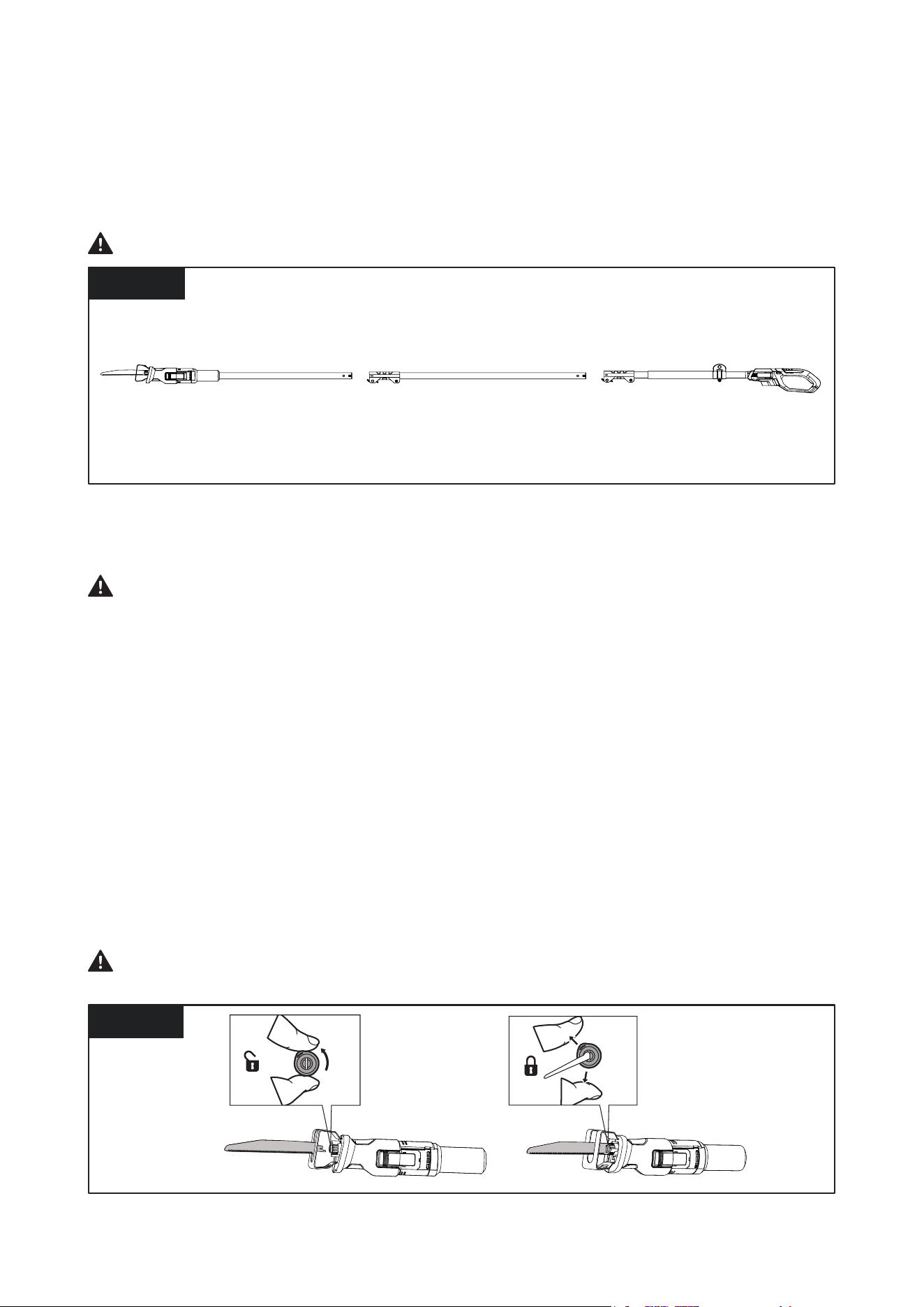

Attaching the Extension Pole (Fig. 3)
a. Use one hand to rotate the blade holder and then hold it in place.
b. Use the other hand to insert the saw blade into the blade holder as far as possible.
c. Release the blade holder, and the blade will be locked in place automatically.
d. Try to push in and pull out the blade to check whether it is locked correctly.
a.Use one hand to rotate the blade holder and then hold it in place.
b.Remove the saw blade from the blade holder.
c. Release the blade holder.
The Extension Pole extends the cutting range. It should be connected between the Upper Pole and the Rear
Pole.
1. Follow the previous instructions to connect the Upper Pole to one end of the Extension Pole.
2. Connect the Rear Pole to the other end of the Extension Pole using the same method.
Check periodically for tightness during use to avoid serious personal injury.
To install the saw blade
To remove the saw blade
Step 3
Upper Pole Extension Pole Rear Pole
NOTICE: The blade may be installed with the teeth pointing up or down, according to the needs of the
cutting operation.
Step 4
4A 4B
13
WARNING:
Do not allow familiarity with this
product to make you careless. Remember that a
careless fraction of a second is sucient to inict
serious injury.
WARNING:
Do not use any attachments or
accessories not recommended by the manufactur-
er of this product. The use of attachments or ac-
cessories not recommended can result in serious
personal injury.
WARNING:
Wear necessary personal protective equipment
(PPE) such as ANSI-approved safety goggles,
head protection and steel-toed boots during
use.

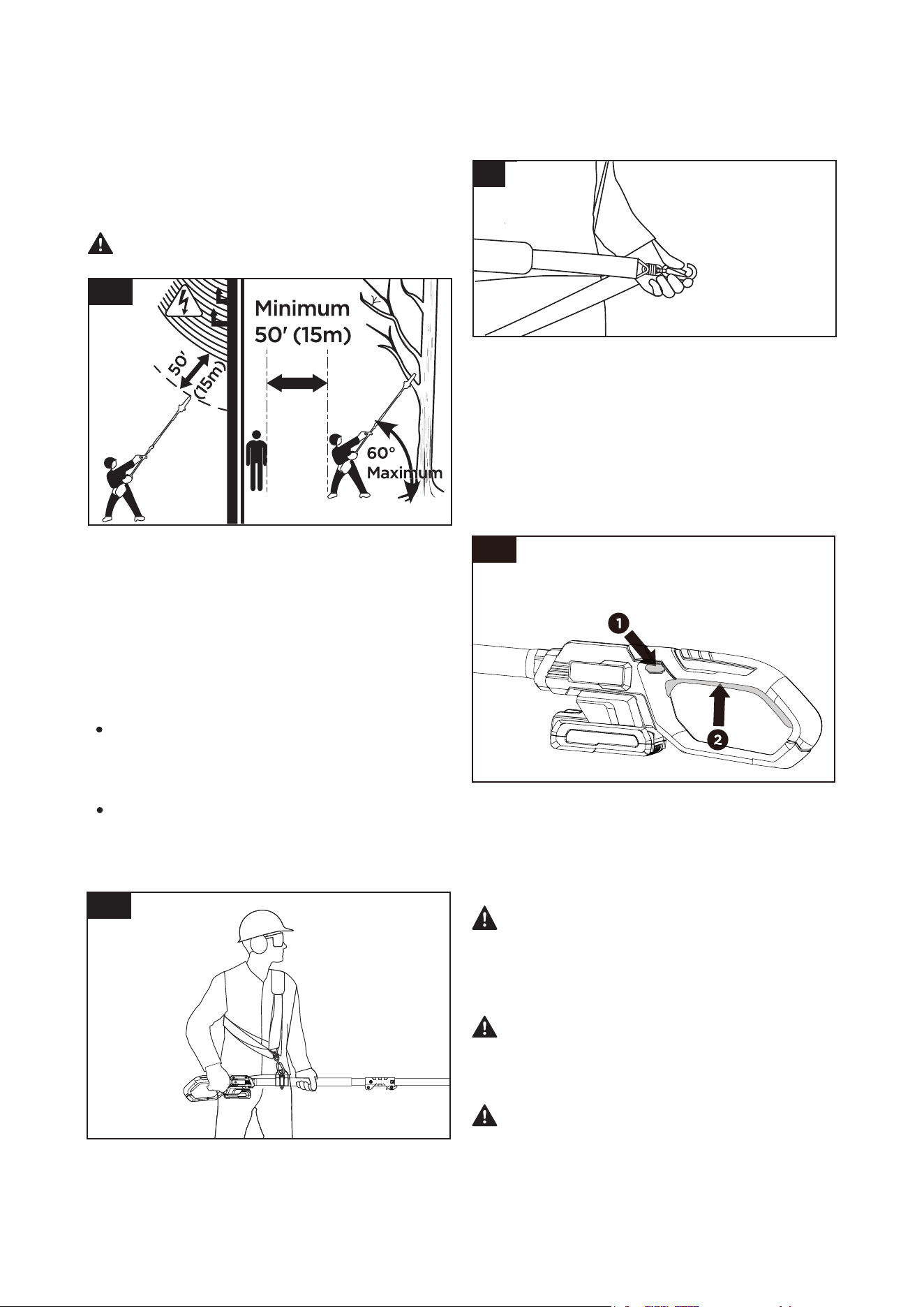

NEVER operate the saw with one hand. AL-
WAYS hold the saw with both hands. Do not
stand directly under the branch being cut.
Only stand on xed, secure and level surfaces.
Do not stand on a ladder or other support.
Do not operate within 50 feet of electrical lines.
WARNING:
Battery tools are always in op-
erating condition. Therefore, the lock-o button
should always be depressed and in the locked po-
sition when the tool is not in use or being carried
at your side.
NOTICE: When placing the battery pack on the
tool, be sure that the raised rib on the battery
pack aligns with the groove in the tool and that
the latches snap into place properly. Improper
attachment of the battery pack can cause dam-
age to internal components.
For ecient, comfortable and safe work, the shoul-
der strap is necessary to be attached to the recipro-
cating Pruning saw.

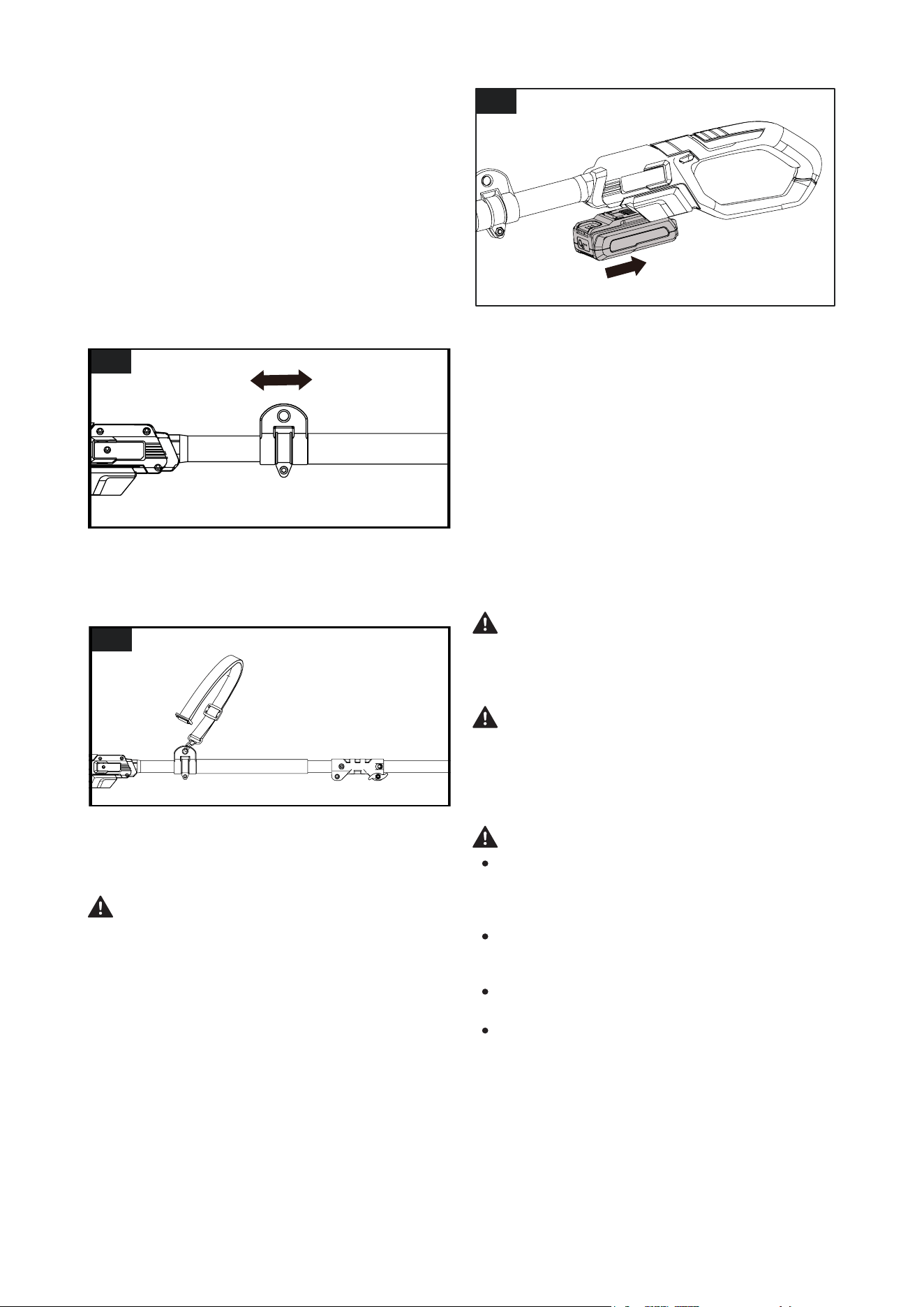

1. Change the location of the shoulder strap hook
if required. Loosen the hex bolt and move the
shoulder strap hook to a suitable position.
Re-tighten the hex bolt. (Fig. 5)
2. Clip the shoulder strap onto the hole of the
shoulder strap hook. (Fig. 6)
Align the raised rib on the battery pack with the
grooves on the tool, and then slide the battery pack
onto the tool (Fig. 7).
Depress the battery-release button to release the
battery pack, then pull the battery pack out (Fig. 7).
OPERATION
ATTACHING THE SHOULDER STRAP
(Fig. 5-6)
TO INSTALL/REMOVE BATTERY PACK
(Fig. 7)
HOLDING THE RECIPROCATING Pruning
SAW (Fig. 8)
5
6
To install the battery pack
To remove the battery pack
7
14
WARNING:
Do not overreach.
WARNING:
This saw is equipped with a
‘Pruning Saw Blade’, specically designed for
pruning wood. Never use the provided woodcut-
ting blade for cutting other material. Failure to do
so could result in serious personal injury.
WARNING:
Before attaching the battery pack
to the tool, always check to determine that the
switch performs properly and returns to the “OFF”
position when released.
WARNING:
Hold the tool only by the plastic
handle and the insulated grip area to help prevent
electrical shock. When sawing into walls or oors
you may encounter electrical wiring. Sawing into a
“live” wire will conduct electricity into the tool.
Balance your weight with both feet on solid ground.
Your body should always be to the left of the cutting
line. Firmly grip the saw with both hands at all times
during operation, with one hand gripping the rear
handle tightly and the other hand gripping the soft
grip area on the lower pole. Always hold the saw at
an angle of max. 60° from the horizontal level. (Fig. 8)
The shoulder strap helps to balance the saw and
distribute the weight of the saw across the body,
increasing comfort for extended use.
Attach the shoulder strap correctly before
starting the saw.
Wear the shoulder strap over the head
and the shoulder opposite the hand
holding the on/o switch.
Adjust the shoulder strap length so that
the clip is about the same height as the
hip (Fig. 9).
This shoulder strap is equipped with a quick-release
mechanism that can be operated with one hand. (Fig.
10)
Depress the lock-o button, then fully press the on/
o switch and hold it in this position. With the recip-
rocating Pruning saw running, the lock-o button can
be released. (Fig. 11)
For switching o, release the on/o switch.
USING THE SHOULDER STRAP (Fig.
9-10)
STARTING/STOPPING THE
RECIPROCATING Pruning SAW (Fig. 11)
STARTING Cutting (Fig. 12)
To start the reciprocating Pruning saw:
To stop the reciprocating Pruning saw:
8
9
10
11
15
1. Install the battery pack. Use both hands to rmly
grip the saw and divide your weight evenly with
both feet on solid ground.
2. Start the saw. Make sure the saw is running at
full speed before starting a cut.
3. Cut lower branches rst to allow the top branch-
es more room to fall.
4. When starting a cut, place the moving blade
against the wood. Hold the saw rmly in place
to avoid possible bouncing or skating (sideway
movement) of the saw.
5. Guide the saw using light pressure. Do not force
the saw. The motor will overload and can burn
out. It will do the job better and safer at the rate
for which it was intended.
6. Use caution when reaching the end of a cut. The
saw’s weight may shift unexpectedly as it cuts
free from the wood. Remove the saw from the
cut while it is still running at full speed. Stop the
saw by releasing the on/o switch, and ensure
the blade has completely stopped before setting
the saw down.
7. Keep practicing on scrap logs in a secure work-
ing area until you are comfortable, using a uid
motion and a steady cutting rate.

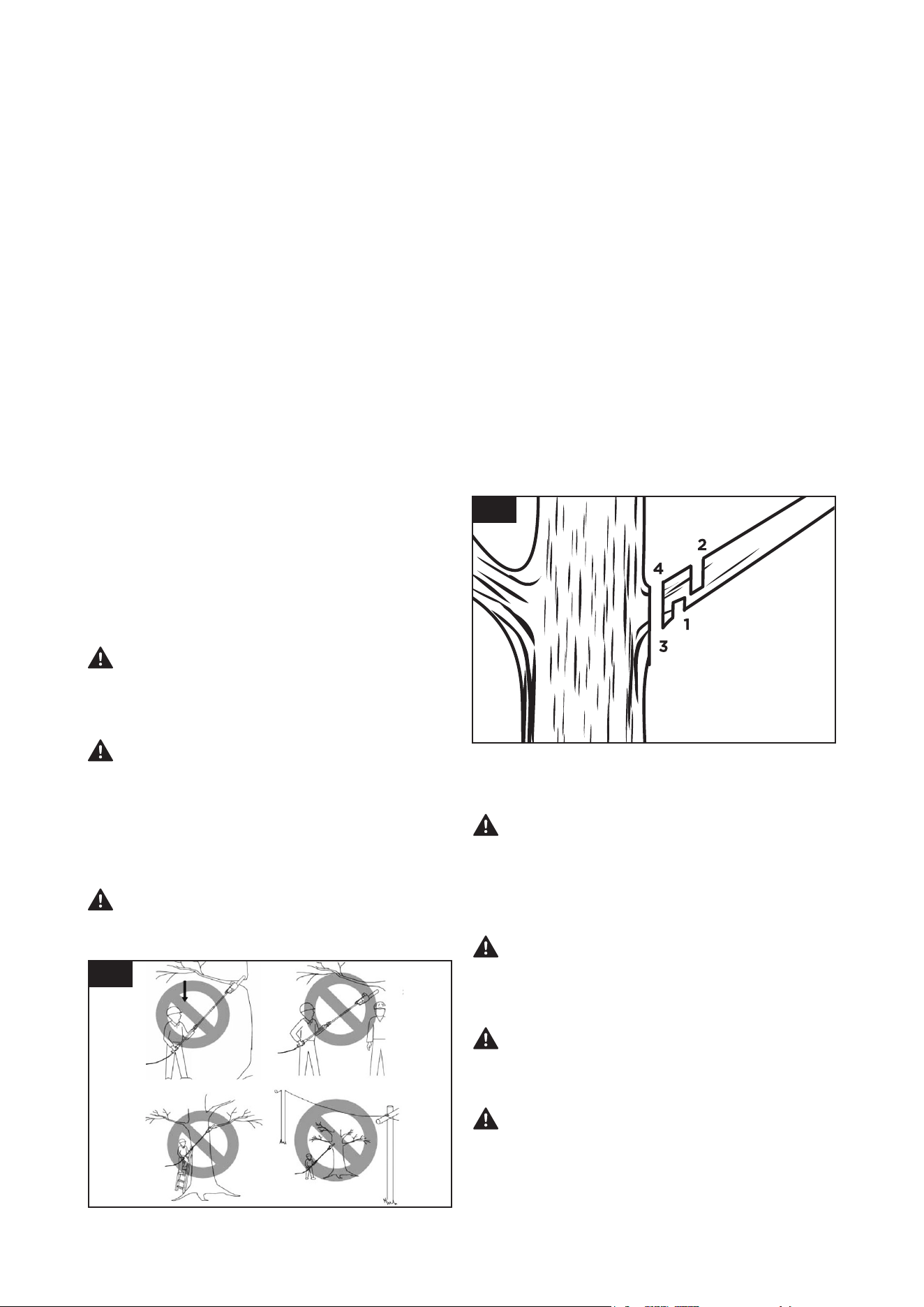

1. Make Cut 1 six inches from the tree trunk on the
underside of the limb. Use the top of the guide
bar to make this cut. Cut 1/3 through the diame-
ter of a branch.
2. Move two to four inches away from Cut 1. Make
Cut 2 from the top. Continue to cut until you cut
the branch o.
3. Make Cut 3 as close to the tree trunk as possible
on the underside of the limb stub. Use the top of
the guide bar to make this cut. Cut 1/3 through
the diameter of a stub.
4. Make Cut 4 directly above the third cut. Cut
down to meet the third cut. This will remove the
limb stub.
While cutting thick branches, make sure your footing
is rm. Keep feet apart. Divide your weight evenly on
both feet. Follow the directions below. (Fig. 13)
WARNING:
To prevent serious injury, if the
branch starts to fall, causing the saw to bind, leave
the saw and get away from where the saw and
branch are likely to fall immediately.
WARNING:
Do not stand directly below a
branch being cut. Keep bystanders far away, espe-
cially children. Do not stand on a ladder or other
type of unstable support while using the tool. Do
not use the tool near cable, electrical power or tele-
phone lines. Keep 50ft (15m) away from all power
lines. (Fig. 12)
WARNING:
When servicing, use only iden-
tical replacement parts. Use of any other parts
may create a hazard or cause product damage. To
ensure safety and reliability, all repairs should be
performed by a qualied service technician.
WARNING:
To prevent serious personal
injury, remove the battery pack from the tool before
servicing, cleaning, changing add-on attachments
or removing material from the unit.
WARNING:
For the user’s safety, worn or
damaged parts must be replaced. Replace with
original replacement parts only.
WARNING:
To prevent serious injury from
appliance failure, do not use damaged equipment.
Have the problem corrected before further use if
abnormal noise or vibration occurs.
WARNING:
Do not operate with arms fully
extended or attempt to saw in areas that are di-
cult to reach.
12
CUTTING THICK BRANCHES (Fig. 13)
13
MAINTENANCE
16
a. Protect the battery against moisture and water.
b. Store the battery only within a temperature range
from 40°F to 104°F. As an example, do not leave
the battery in a vehicle or in the trimmer in direct
sunlight.
c. Clean the ventilation slots of the battery occasion
ally with a soft, clean and dry brush. A consider-
ably shortened operating time after charging is
an indication that the battery is exhausted and
must be replaced.
d. If you do not use the product for a long time,
please charge and discharge the battery park
once every 6 months.
SERVICE
GENERAL MAINTENANCE
CLEANING THE RECIPROCATING
STORING THE RECIPROCATING Pruning
STORING THE BATTERY PACK
STORAGE
WARNING:
Preventive maintenance per-
formed by unauthorized personnel may result in
the misplacing of internal wires and components
which could cause serious hazards.
We recommend
that all tool services be performed by the Yardworks
Customer Service Center.
WARNING:
When servicing, use only identi-
cal replacement parts. The use of any other parts
could create a hazard or cause product damage.
WARNING:
The tool may be cleaned most
eectively with compressed dry air. Always wear
safety goggles when cleaning tools with com-
pressed air. Ventilation openings and switch levers
must be kept clean and free of foreign matter. Do
not attempt to clean by inserting pointed objects
through openings.
WARNING:
Certain cleaning agents and
solvents damage plastic parts. Some of these are
gasoline, carbon tetrachloride, chlorinated clean-
ing solvents, ammonia and household detergents
that contain ammonia.
Periodically inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts,
caps, etc. Securely tighten all fasteners and caps
and do not operate this product until all missing or
damaged parts are replaced. Please contact Yard-
works Customer Service for assistance.
Store the tool indoors in a place that is inaccessible
to children. Keep away from corrosive agents.
17
TROUBLE SHOOTING
SolutionPossible CauseProblem
Battery pack is depleted.
Battery pack is not installed
properly.
Burned-out switch.
The machine is overheating.
Applying too much pressure
while cutting.
Connection is loose.
The blade is dull.
The blade is damaged.
Saw dust in the blade holder
slot.
Internal wiring is defective.
An improper blade is being
used.
The blade is loose.
On/O switch is defective.
The blade is warped.
Charge the battery pack.
Conrm battery is locked and secured to the tool.
Contact Yardworks Customer Service.
Place the machine in a cool, ventilated place to cool it
down.
Applying relatively less pressure while cutting.
Contact Yardworks Customer Service.
Replace the blade.
Replace the blade.
Clean the clamp slot with a brush.
Contact Yardworks Customer Service.
Choose the right blade for your operation.
Remove the blade and reinstall it.
Contact Yardworks Customer Service.
Replace the blade.
Tool will not
start.
The blade binds,
jams, or bums
the wood.
The saw vibrates
or shakes.
Blade cannot be
removed.
Reciprocating
Pruning saw
operates
intermittently.
The following table gives checks and actions that you can perform if your machine does not operate correct-
ly. If these do not identify/remedy the problem, contact your service agent.
WARNING:
Switch o the machine and remove the battery packs prior to any troubleshooting.
or
18
OWNER’S MANUAL
With (1) 20-Volt 2.0Ah Lithium-ion Battery
Copyright All Rights Reserved
SKU# 239-1550
YARDWORKS WARRANTY POLICY
Two (2) year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for
personal, household, or family use.
Two (2) year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase
when used for personal, household, or family use.
Warranty voided if used for commercial or industrial purposes or any other improper use as determined by
Yardworks.
Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the
product beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product
according to the instructions in the owner’s manual.
This warranty does not cover
Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains,
mulching blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure
hoses, wheels, handles, augers, worn bags, power cables, and other items subject to wear over time.
Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme
temperature swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and
misuse or abuse of the battery.
This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental
extremes.
including, but not limited to scratches, cracks, dents, or damage caused by outside chemicals.
This warranty is not transferable and only applies to new products sold directly from an authorized retailer.
This
warranty does not apply to any product, new or used, purchased through unauthorized third-party channels. For
information on authorized dealers, contact our customer support hotline at 1-888-497-7273 (Mon-Fri 8am-5pm Est)
Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction
of the products is not covered by the warranty.
The warranty does not include installation, assembly or normal adjustments explained in the owner’s manual. The
expense of de- livering the product to the vendor and the expense of returning the product or replacement parts to
the owner is not covered by the warranty.
Additional Warranty Limitations
Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may
warranty.
Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring,
recommended is not covered by this warranty.
Proof of purchase, original dated sales receipt, must accompany all warranty claims. For claims go to M e n a r
d s or call our customer support hotline from 8am-5pm EST,
Mon-Fri at 1-888-497-7273
In a continued commitment to improve quality, the Manufacturer reserves the right to
make component changes or design changes when necessary.
20-Volt Lithium-ion Cordless Reciprocating Pruning Saw
19
20
