239-1573
TOLL-FREE HELPLINE: 1-888-497-7273
Read this operator manual before using this product. Failure to do so can result in serious injury. SAVE THIS
MANUAL
02
TABLE OF CONTENTS
READ ALL INSTRUCTIONS!
WARNING:
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to the state of California to cause cancer, birth defects or other repro-
ductive harm. Some examples of these chemicals are:
Lead from lead-based paints,
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically - treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment,
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible danger. The safety symbols and the
explanations with them deserve your careful attention and understanding. The symbol warnings do not,
by themselves, eliminate any danger. The instruction and warnings they give are no substitutes for proper
accident prevention measures.
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
WARNING
CAUTION
WARNING
DANGER
SYMBOL SYMBOL
Indicates a hazardous situation, which, if not avoided, could result in injury.
Indicates a hazardous situation, which, if not avoided, could result in injury.
Indicates a hazardous situation, which, if not avoided, could result in injury.
(Without Safety Alert Symbol) Indicates information considered important.
MEANING
.....................................................................................................................2
..................................................................................................4
....................................................................................................................9
..........................................................................................................11
............................................................................................................................12
............................................................................................................................14
.......................................................................................................................21
.................................................................................................................26
.............................................................................................................................27
Safety symbols
Important safety instrucions

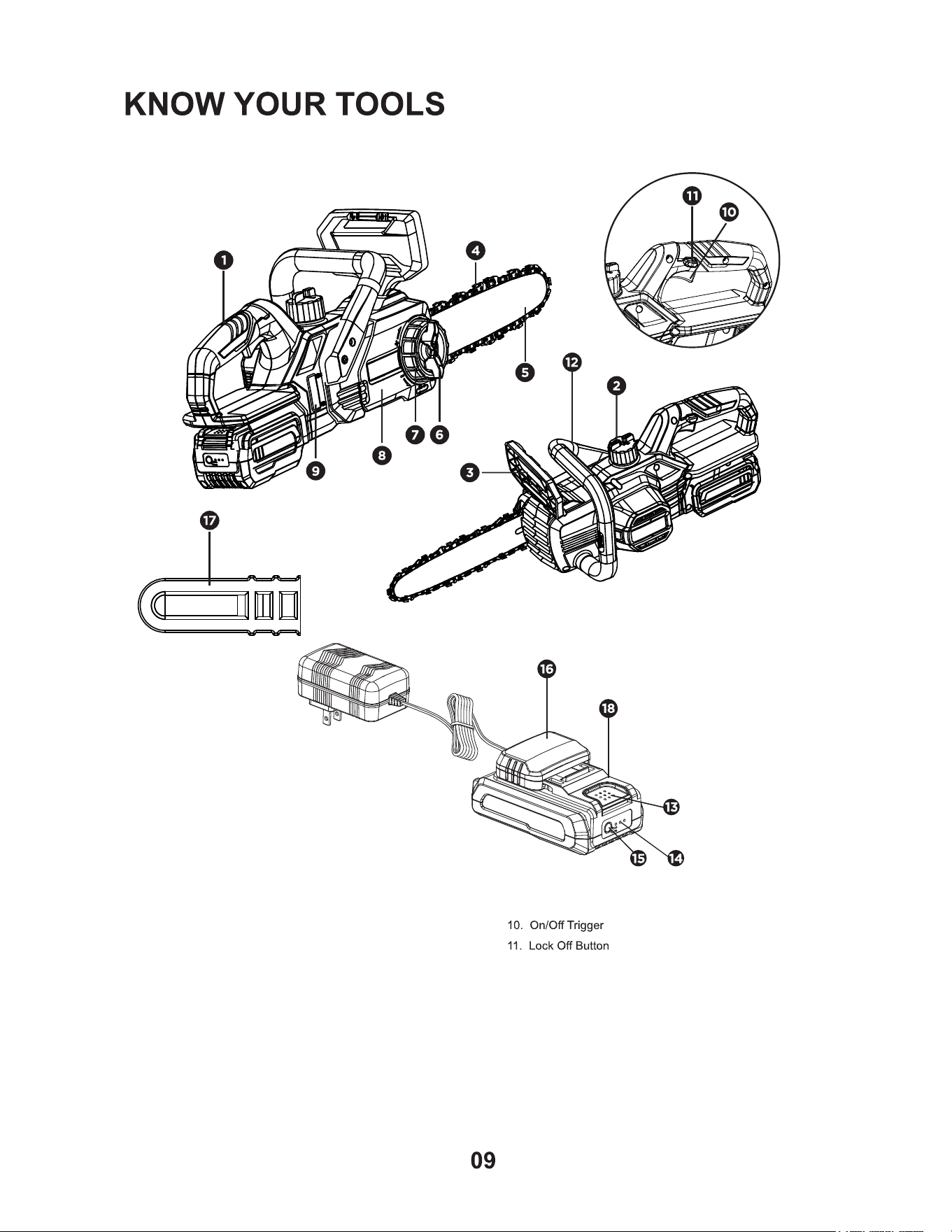

Know your tools

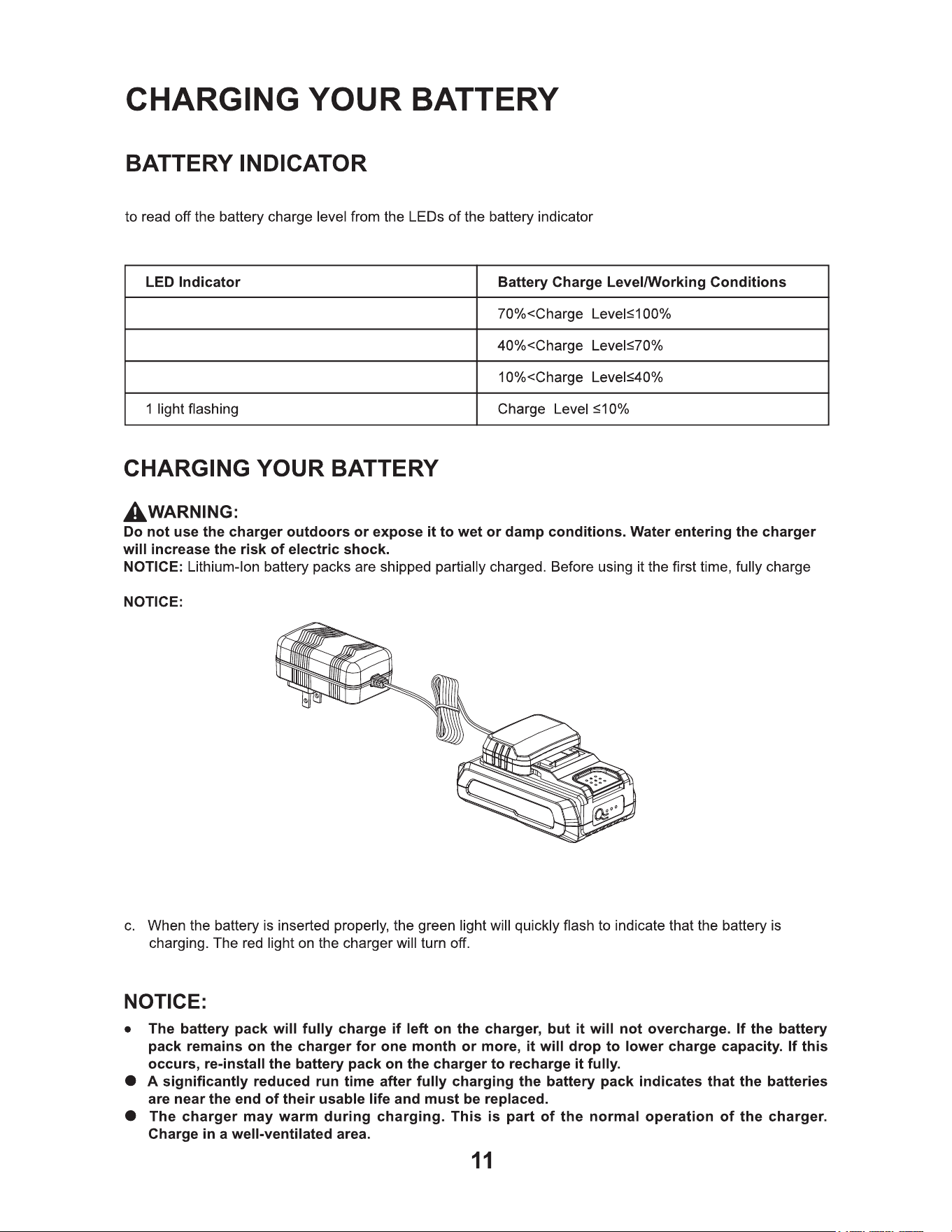

Charging your battery

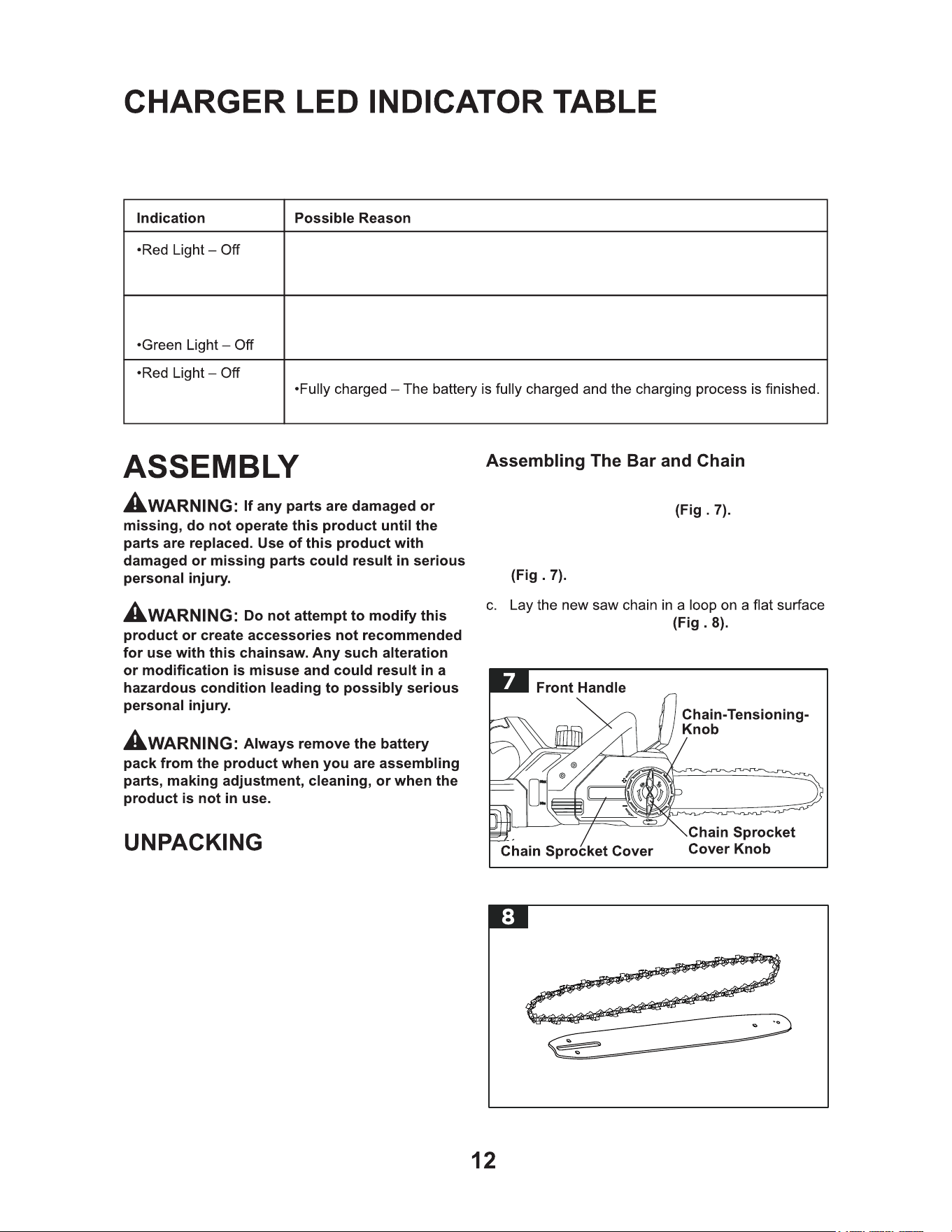

Assembly
Operation

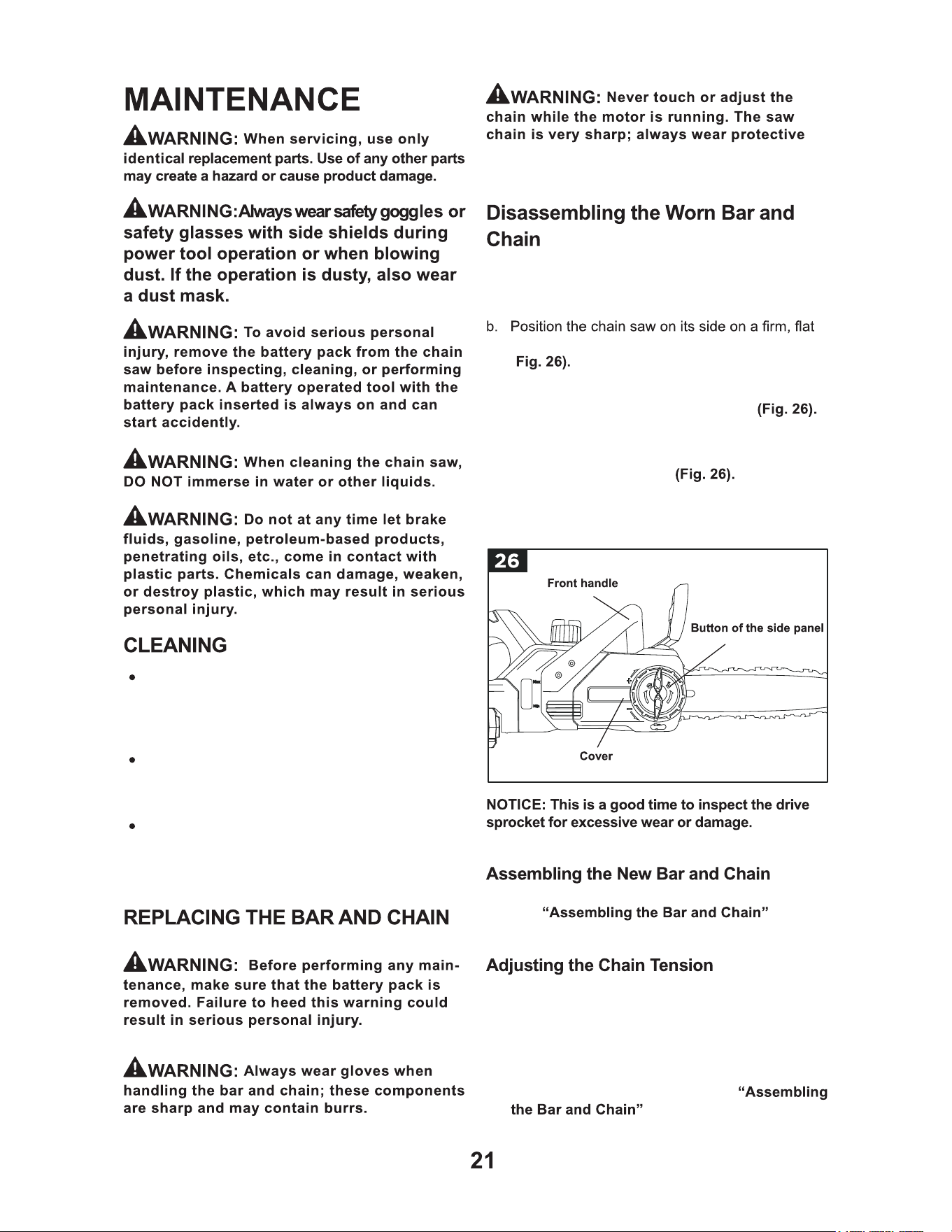

Maintenance
Trouble shooting
Warranty

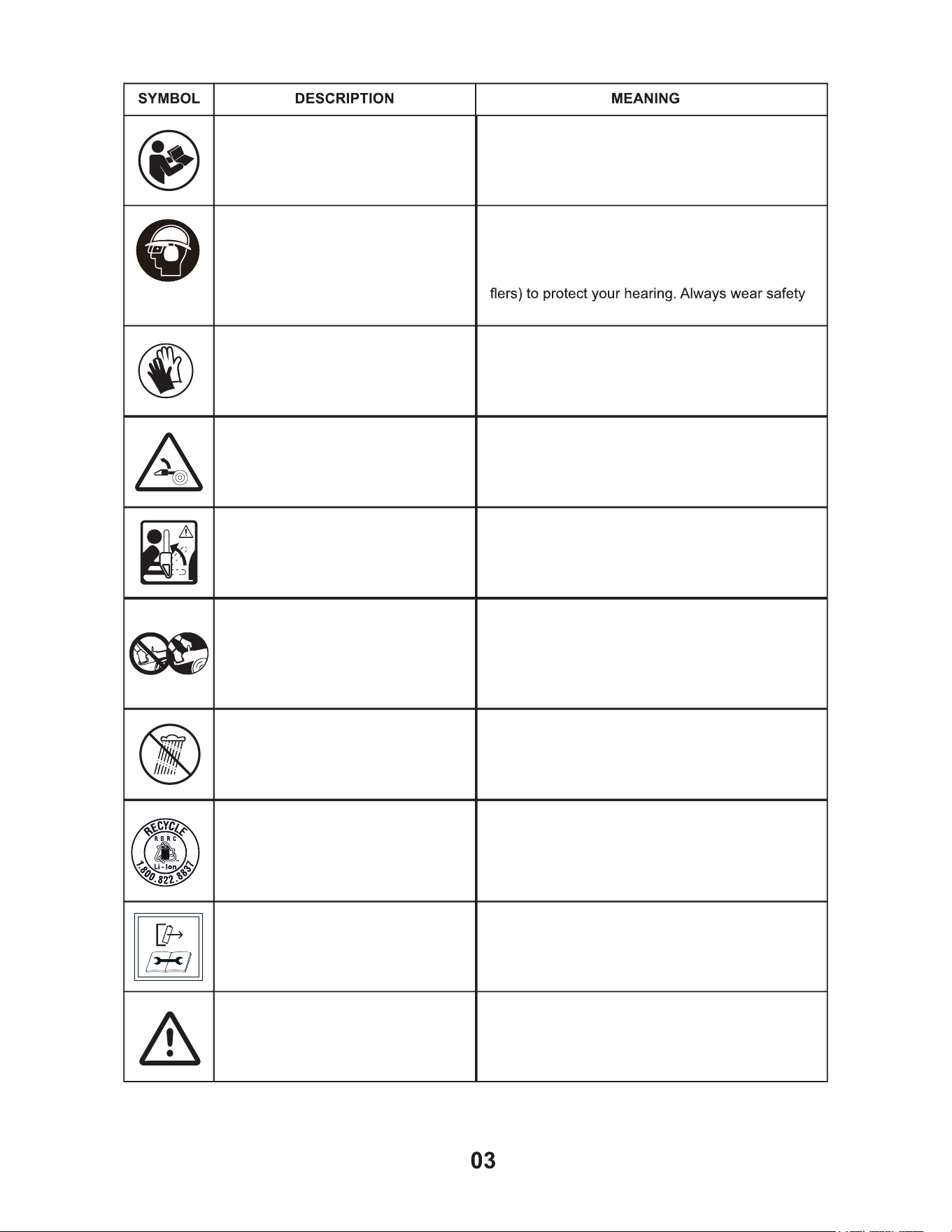

This page depicts and describes safety symbols that may appear on this product. Read, understand, and
follow all instructions on the machine before attempting to assemble and operate it.
Read the operator’s manual
Wear ear protection/Cap protection/
Eye Protection
Be Aware of Kickback
Wear Protective Gloves
Guide Bar Tip Kickback
Two Handed Hold
Wet Conditions Alert
Recycle Symbol
To reduce the risk of injury, user must read and
understand operator’s manual before using this
product.
Always wear safety goggles or safety glasses with
side shields and a full face shield when operating
this product. Noise may damage your hearing.
Always hearing protection (ear plugs or ear muf -
helmet.
Contact of the guide bar tip with any object should
be avoided.
Protect your hands with gloves when handling
saw and saw chain. Heavy-duty, nonslip gloves
improve your grip and protect your hands.
Tip contact can cause the guide bar to move
suddenly upward and backward, which can cause
serious injury.
Always use two hands when operating the chain
saw.
WARNING! Do not expose the unit to rain or wet
conditions.
This product uses lithium-ion(Li-ion) batteries.
Local, state, or federal laws may prohibit disposal
of batteries in ordinary trash. Consult your local
waste authority or information regarding available
recycling and/or disposal options.
WARNING
WARNING
Disconnect battery before maintenance.
Warning symbols with information on damage
and injury prevention.

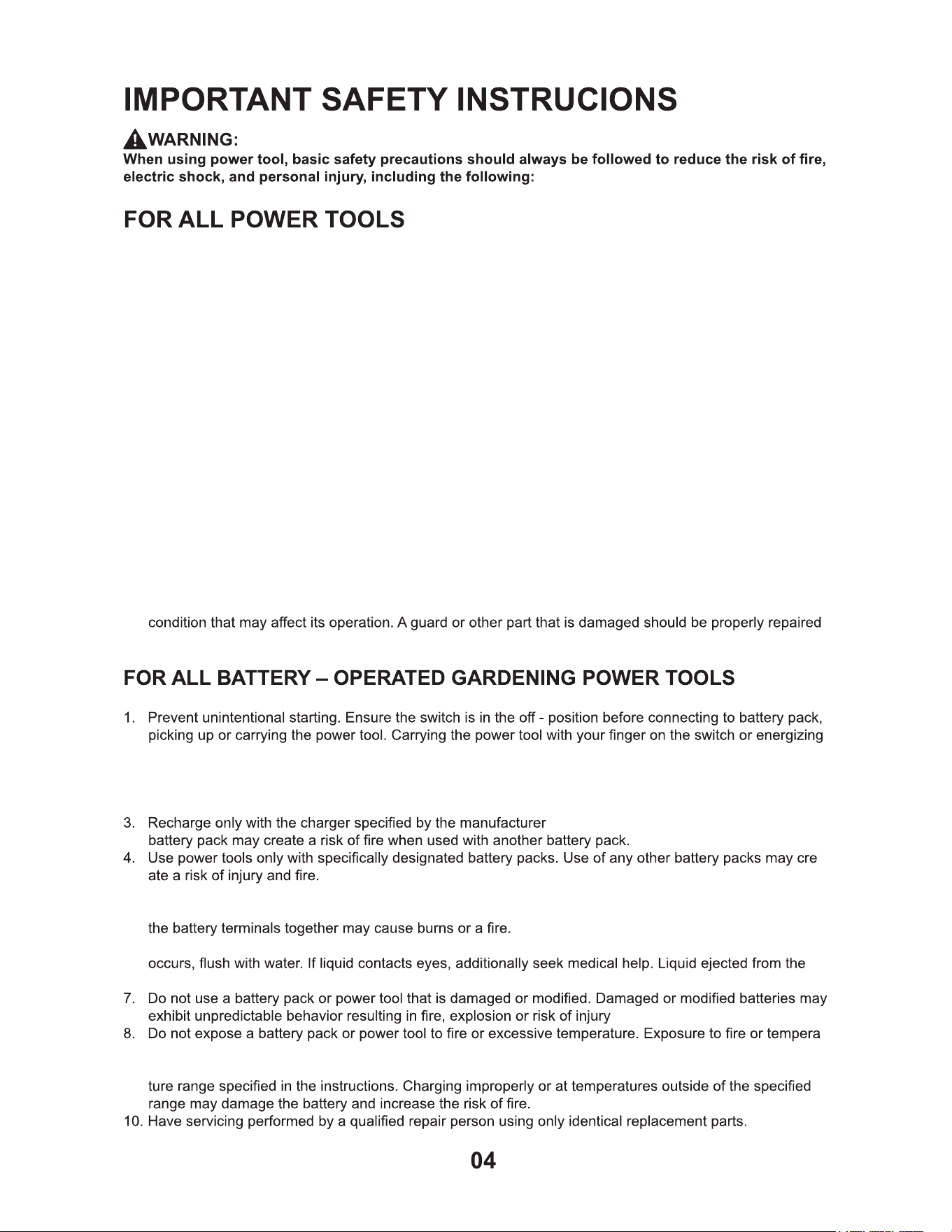

1) Avoid Dangerous Environment – Do not use power tools in damp or wet locations.
2) Do not Use in Rain.
3) Keep Children Away - All visitors should be kept at a distance from work area.
4) Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of heavy
duty nonslip gloves and substantial footwear is recommended when working outdoors. Wear protective
hair covering to contain long hair.
5) Use Safety Glasses.
6) Always use face or dust mask if operation is dusty.
7) Use Right Tool - Do not use tool for any job except that for which it is intended.
8) Do not Force Power tool - It will do the job better and with less likelihood of a risk of injury at the rate for
which it was designed.
9) Do not Overreach – Keep proper footing and balance at all times.
10) Stay Alert - Watch what you are doing. Use common sense. Do not operate power tool when you are tired.
11) Store Idle Power tools Indoors - When not in use, power tools should be stored indoors in dry, and high
or locked-up place - out of reach of children.
12) Maintain Power tool with Care - Keep cutting edge sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean,
and free from oil and grease.
13) Check Damaged Parts - Before further use of the power tool, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other
or replaced by an authorized service center unless indicated elsewhere in this manual.
power tool that have the switch on invites accidents.
2. Disconnect the battery pack from the power tool before making any adjustments, changing accessories,
or storing power tool. Such preventive safety measures reduce the risk of starting the power tool acciden-
tally.
. A charger that is suitable for one type of
-
5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a connection from one terminal to another. Shorting
6. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
battery may cause irritation or burns.
.
-
ture above 266°F may cause explosion.
9. Follow all charging instructions and do not charge the battery pack or power tool outside of the tempera-
This will
ensure that the safety of the product is maintained.
05
CHAIN SAW SAFETY WARNINGS
11. Do not modify or attempt to repair the power tool or the battery pack (as applicable) except as indicated
in the instructions for use and care.
1. Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the
chain saw, make sure that the saw chain is not contacting anything. A moment of inattention while oper-
ating chain saws may cause entanglement of your clothing or body with the chain.
2. Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle.
never be done.
3. Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring.
4. Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet
contact with the saw chain.
5. Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal
injury.
-
face. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain
saw.
released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
8. Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and
reduce the likelihood of accidental contact with the moving saw chain.
10. Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or
lubricated chain may either break or increase the chance for kickback.
11. Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery and cause loss
of control.
12. Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for
than intended could result in a hazardous situation.
13. A chain saw is intended for two-handed use. Serious injury to the operator, helpers, and/or bystanders
can result from one-handed operation.
14. Avoid unintentional contact with the stationary saw chain or guide bar rails. These can be very sharp.
Always wear gloves and long pants or chaps when handling the chain saw, saw chain, or guide bar.
15. Never operate a chain saw that is damaged or improperly adjusted or that is not completely and securely
assembled. Be sure that the saw chain stops moving when the trigger switch is released.
16. Inspect the work piece for nails, wire, or other foreign objects prior to cutting.
17. When bucking, secure the work piece prior to cutting. When felling or pruning, identify and secure haz-
ardous branches.
18. Aggressive or abusive cutting or misuse of the chain saw can cause premature bar, chain, and/or sprocket
wear, as well as a broken chain or bar, leading to kickback, chain throw or the ejection of material.
19. Never use the guide bar as a lever. A bent guide bar can cause premature bar, chain, and/or sprocket
wear, as well as a broken chain or bar, leading to kickback, chain throw or the ejection of material.
20. Cut only one work piece at a time.
21. Plan the work, ensuring an obstacle-free work area and, in the case of felling, at least one escape path
from the falling tree.
22. When felling, keep bystanders at least two tree lengths away.
23. If situations occur that are not covered in this manual, use care and good judgment. Contact the Customer
Service Center.
06

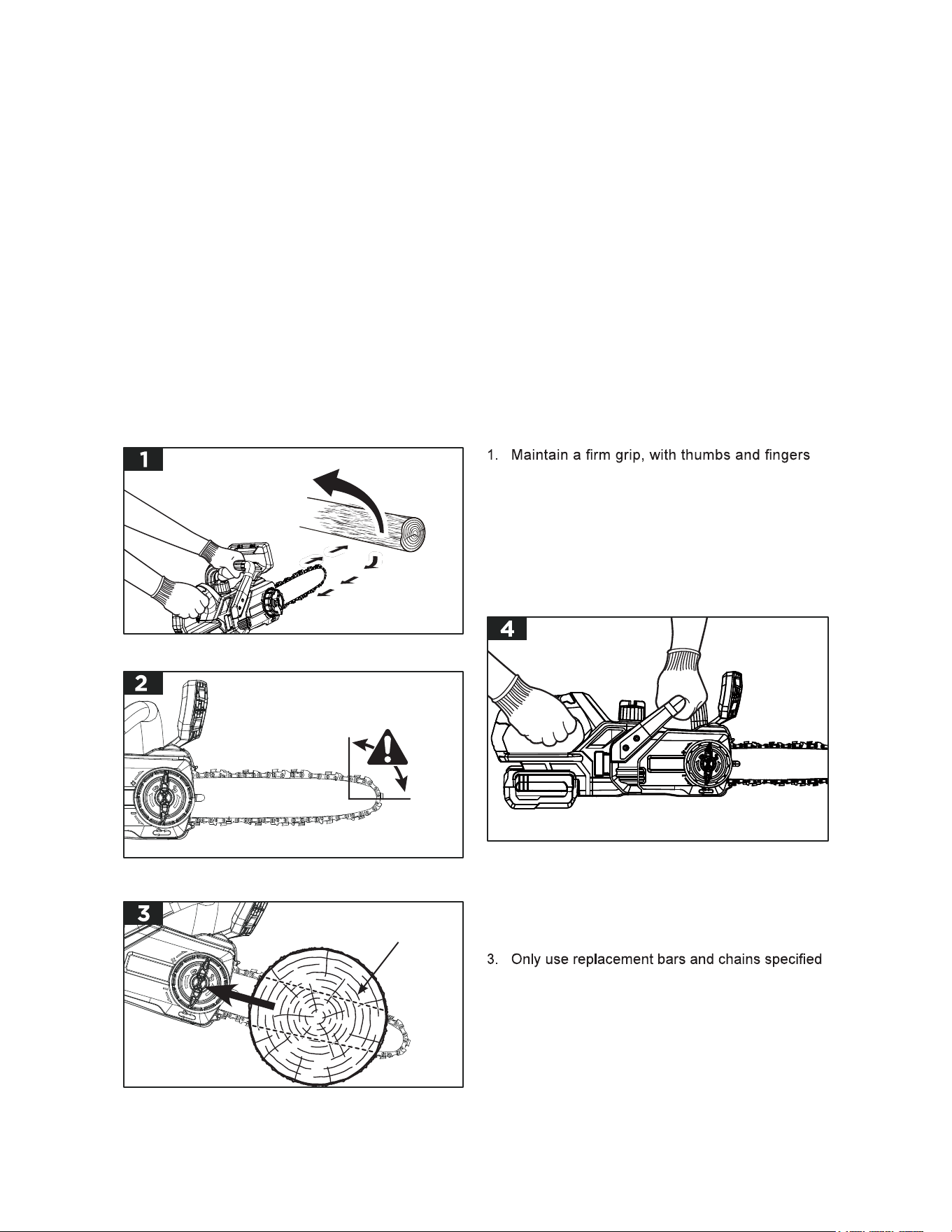

CAUSES AND OPERATOR PREVENTION OF KICKBACK
Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes
in and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back
towards the operator.
Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards
the operator.
Either of these reactions may cause you to lose control of the saw, which could result in serious
personal injury. Do not rely exclusively upon the safety devices built into your saw.
As a chain saw user, you should take several steps to keep your cutting jobs free from accident or
injury.
Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below:
Rotational
kickback
Kickback
danger zone
Linear Kickback
K
i
c
k
b
a
c
k
Pinch
encircling the chain saw handles, with both
hands on the saw and position your body and
arm to allow you to resist kickback forces (Fig. 4).
Kickback forces can be controlled by the opera-
tor, if proper precautions are taken. Do not let go
of the chain saw.
2. Do not overreach and do not cut above shoulder
height. This helps prevent unintended tip contact
and enables better control of the chain saw in
unexpected situations.
by the manufacturer. Incorrect replacement bars
and chains may cause chain breakage and/or
kickback.
4. Follow the manufacturer’s sharpening and main-
tenance instructions for the saw chain. Decreas-
ing the depth gauge height can lead to increased
kickback.
5. Make sure that the area in which you are cutting
is free from obstructions. Do not let the nose of
the guide bar contact a log, branch, fence, or any
other obstruction that could be hit while you are
operating the saw.
6. Always cut with the unit running at full speed.
Fully squeeze the switch trigger and maintain
cutting speed do not force.
7. With a basic understanding of kickback, you can
reduce or eliminate the element of surprise. Sudden
surprise contributes to accidents.
8. Keep proper footing and balance at all times.

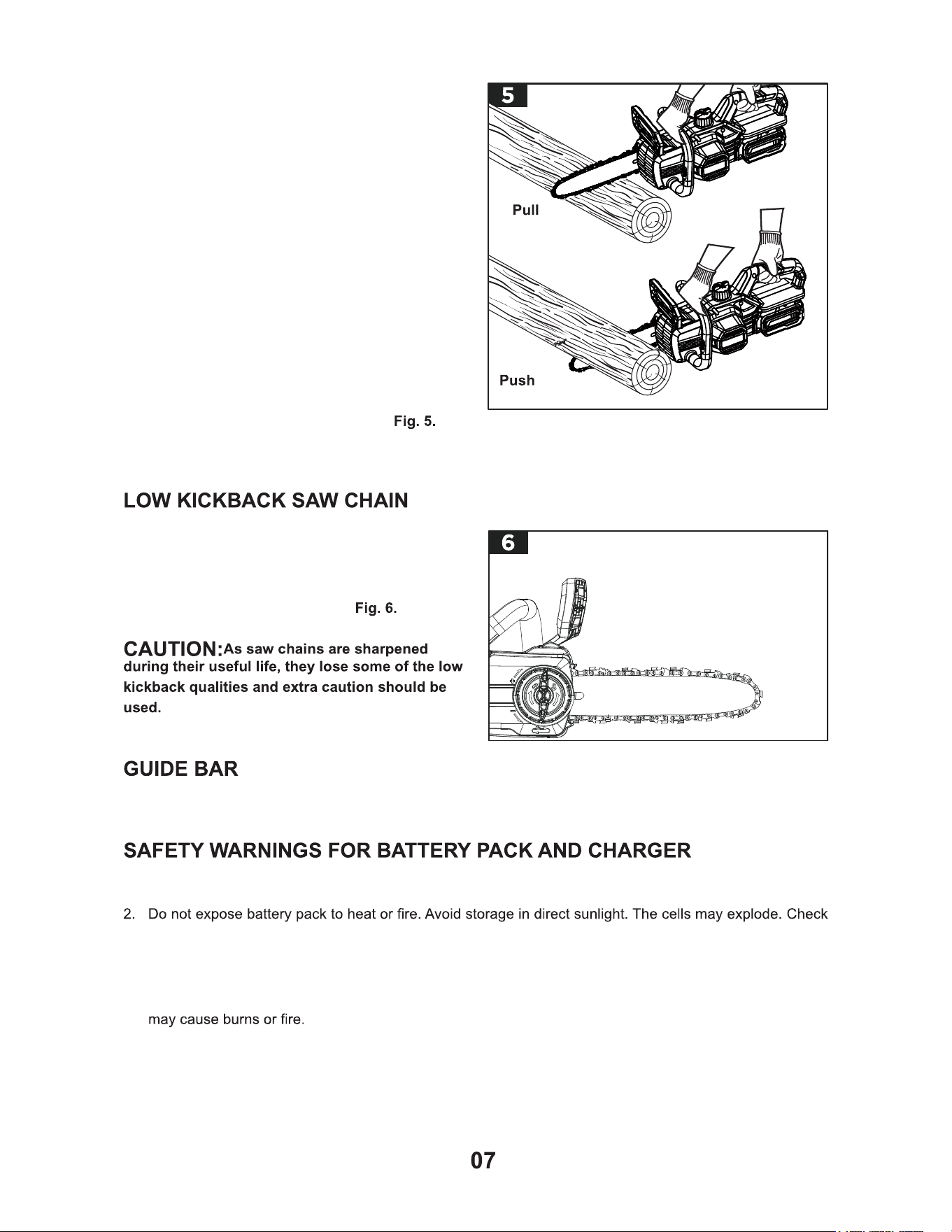

9. Push and Pull – The reaction force is always
opposite to the direction the chain is moving
where wood contact is made. Thus, the operator
must be ready to control the PULL when cutting
on the bottom edge of the bar, and the PUSH
when cutting along the top edge. See

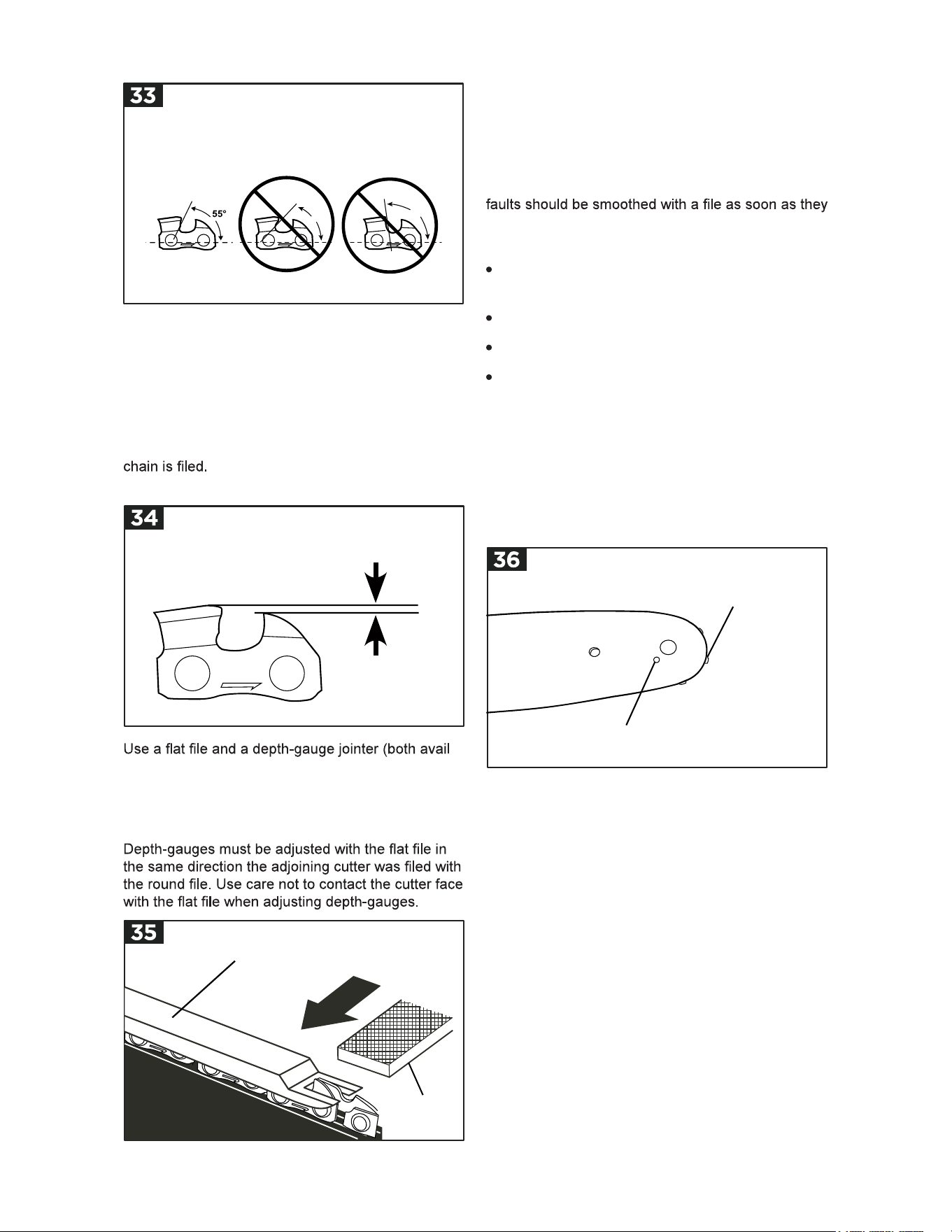

The rakers (depth gauges) ahead of each cutter can
minimize the force of a kickback reaction by pre-
venting the cutters from digging in too deeply at the
kickback zone. Only use a replacement chain that is
equivalent to the original chain.See
This saw comes equipped with a guide bar that has a small radius nose. Small radius noses generally have
less potential for kickback. When replacing the guide bar, be sure to order the bar listed in this manual.
1. Do not dismantle, open or shred battery pack.
with local codes for possible special disposal instructions.
3. Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they
may short-circuit each other or be short-circuited by other metal objects. When battery pack is not in use,
keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal
objects, that can make a connection from one terminal to another. Shorting the battery terminals together
4. Do not subject battery pack to mechanical shock.
5. Observe the plus (+) and minus (–) marks on the battery back and equipment and ensure correct use.
6. Keep battery pack out of the reach of children.
7. Always purchase the battery pack recommended by the device manufacturer for the equipment.
8. Keep battery pack clean and dry.
9. Wipe the battery pack terminals with a clean dry cloth if they become dirty.
08
Save these instructions. Refer to them frequently and use them to instruct others who may use this
tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of
the product and possible injury.
Save these instructions. Refer to them frequently and use them to instruct others who may use this
tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of
the product and possible injury.
ensure that the safety of the power tool is maintained.
SERVICE
10. Battery pack need to be charged before use. Always use the correct charger and refer to the manufactur-
er’s instructions or equipment manual for proper charging instructions.
11. Do not leave battery pack on prolonged charge when not in use.
12. After extended periods of storage, it may be necessary to charge and discharge the battery pack several
times to obtain maximum performance.
13. Battery pack gives its best performance when it is operated at normal room temperature 68 °F ± 41°F
14. Use only the battery pack in the application for which it was intended.
15. Remove the battery pack from the equipment when not in use.
16. Dispose of properly.
17. Do not handle the charger, including charger plug, or charger terminals with wet hands.
18. Do not charge the battery pack outdoors, in rain, or in wet locations.
1. Rear Handle
2. Oiler Cap
3. Front Guard
4. 10” Chain
5. 10” Guide Bar
6. Chain Tensioning Knob
7. Chain Sprocket Cover Knob
8. Chain Sprocket Cover
9. Oiler Gauge Window
12. Front Handle
13. Battery Pack Release Button
14. Battery LED Indicators
15. Power Indicator Button
16. Charger
17. Guide Bar Cover
18. Battery Pack
Chain Saw
Voltage
Guidebar Length
Chain Pitch
Chain Gauge
Number of chain drive links
Chain Type
Guidebar Type
Chain Speed
Cutting
Battery
Charger
Charger Rating
Charging Time(Approx.)
Chain Saw
10” Chain
10” Guide Bar
Guide Bar Cover
2.0 Ah Battery(D01104300 / D01102700)
1.5 A Charger(D02204100/ECA000137-001)
Operator’s ManualOperator’s Manual
EGT050035
20V
10”
3/8”
0.050”
40
ES100SDEA041
3/8.LP.050.40E 91X
16.4f/s
Up to 28 Cuts Per Charger (Full 2.0AH to cut Dia 3.9” Wood)
2.0 Ah (D01104300/D01102700/SKU: 2673206)
1.5 A (D02204100/ECA000137-001/SKU:2673205)
Input: 120V~60Hz
Output: 20V, 1.5A
1
1
1
1
1
1
1
3 lights on
2 lights on
1 light on
The battery pack is equipped with a push button for checking the charge level. Simply press the push button
.
the battery pack.
You can only charge one battery at a time with the charger provided.
a. Connect the charger to the power supply (120V~60Hz). The green charging indication LED will turn on
indicating that the charger is working correctly.
b. Align the raised ribs of the battery pack with the battery-mounting slots in the charger; slide the battery
pack down onto the charger.The red charging LED will turn on.
d. When the green light stays on, the battery is fully charged.
•No load charging –There’s no battery inserted in the charger.
•Normal charging – The battery is being charged.
•Green Light – On
•Red Light – On
•Green Light – On
Use the table below to determine charger light patterns and possible causes. For all other issues, please ask
the helpline for help.
a. This product requires assembly.
b. Carefully remove the product and any accesso-
ries from the box. Make sure that all items listed
in the packing list are included.
c. Inspect the tool carefully to make sure that no
breakage or damage occurred during shipping.
d. Do not discard the packing material until you
have carefully inspected and satisfactorily oper-
ated the tool.
e. If any parts are damaged or missing, please
return the product to the place of purchase.
a. Turn the chain tensioning knob towards the front
handle as far as it will go
b. Remove the chain sprocket cover by turning the
chain sprocket cover knob counterclockwise
and straighten any kinks

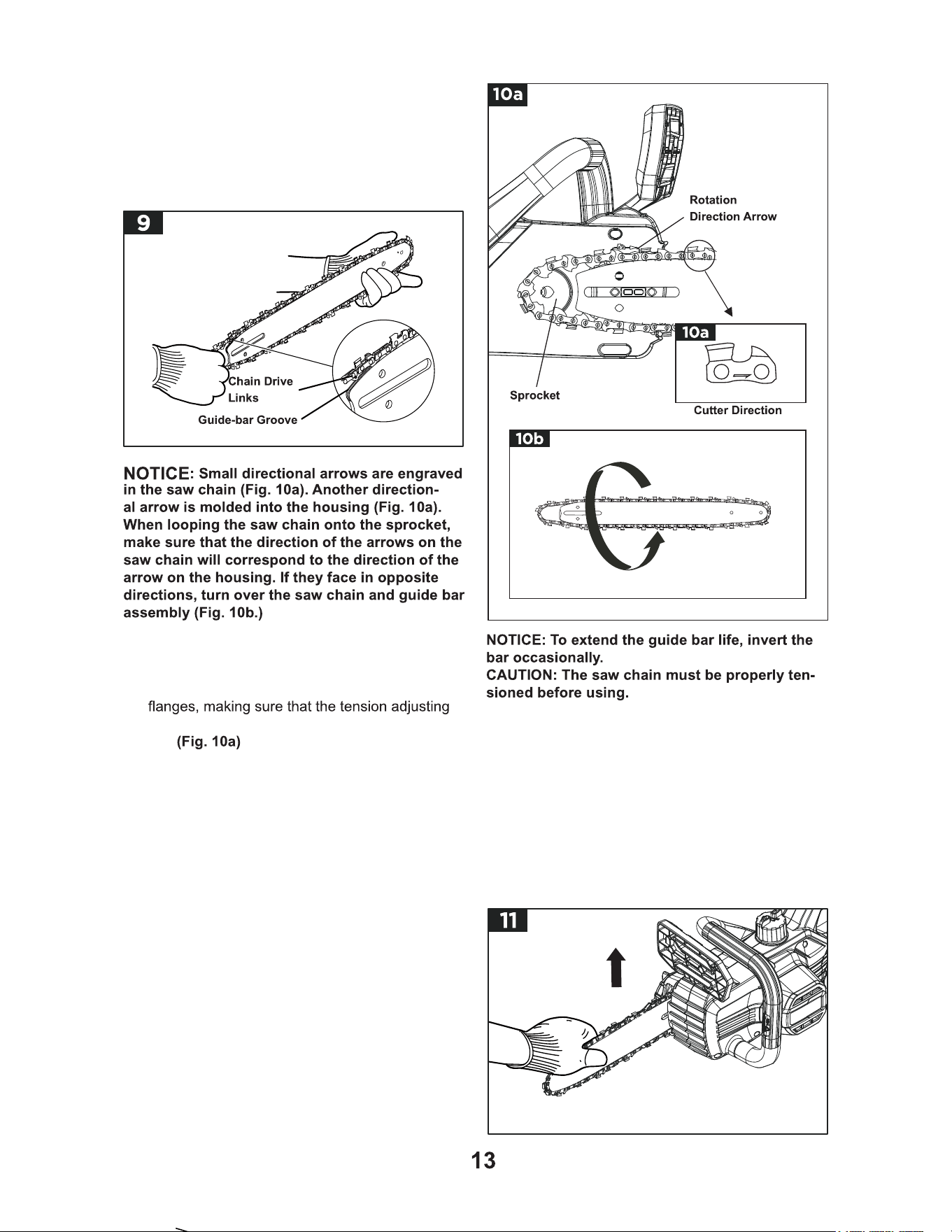

d. Place the chain drive links into the guide bar
groove. Position the chain so there is a loop at
the back of the guide bar.
e. Hold Chain in position on the guide bar and
place the loop around the sprocket of the power
head.
f. Place the guide bar on the mounting surface
by sliding the guide bar slot over the alignment
pin is inserted in the lower hole in the tail of the
bar.
g. Replace the side cover and lightly tighten the
side cover knob by turning it clockwise. The bar
must be free to move for tension adjustment.
h. Remove all the slack from the chain by turning
the chain-tensioning knob clockwise until the
chain seats snugly against the guide bar with the
drive links in the guide bar groove.
i. Lift the tip of the guide bar up to check for sag
(Fig. 11). Release the tip of the guide bar and
turn the chain-tensioning knob once clockwise.
Repeat this process until the sag is eliminated.
14
WARNING:
Do not allow familiarity with this
product to make you careless. Remember that a
serious injury.
WARNING:
Always wear eye protection with
side shields marked to comply with ANSI Z87.1,
along with hearing protection. Failure to do so
could result in objects being thrown into your eyes
and other possible serious injuries.
WARNING:
Do not use any attachments or
accessories not recommended by the manufactur-
er of this product. The use of attachments or ac-
cessories not recommended can result in serious
personal injury.
WARNING:
To prevent accidental starting
that could cause serious personal injury, always
the tank with oil.
WARNING:
NOTICE: If chain is too tight, it will not rotate.
Loosen the side cover knob slightly and turn
the tensioning knob once from right to left. Lift
the tip of the guide bar up and retighten the side
cover knob securely. Assure that the chain will
rotate without binding.
NOTICE:
designed for use on the bar and chain. This
can lead to a clogged oil system, which may
cause premature wear of the bar and chain.
oil level falls below the minimum line. Never
operate the chain saw if the oil is not visible.
Do not use dirty, used or otherwise contam-
inated oils. Damage may occur to the bar or
chain.
It is normal for oil to seep from the saw when
it is not in use. To prevent seepage, empty the
oil tank after each use, and then run the saw
with oil before use. Operating the chain saw with-
out chain oil or when the oil level is below the
minimum mark will result in damage to the chain
saw. Chain life and cutting capacity depend on
optimum lubrication. The chain is automatically
lubricated with chain oil during operation.
Before each use, inspect the entire product for dam-
aged, missing, or loose parts, such as screws, nuts,
bolts, caps, etc. Tighten securely all fasteners and
caps and do not operate this product until all missing
or damaged parts are replaced.
j. Hold the tip of the guide bar up and tighten the
side cover knob securely. The chain is correctly
tensioned when there is no sag on the underside
of the guide bar and the chain is snug, but it can
be turned by hand without binding.

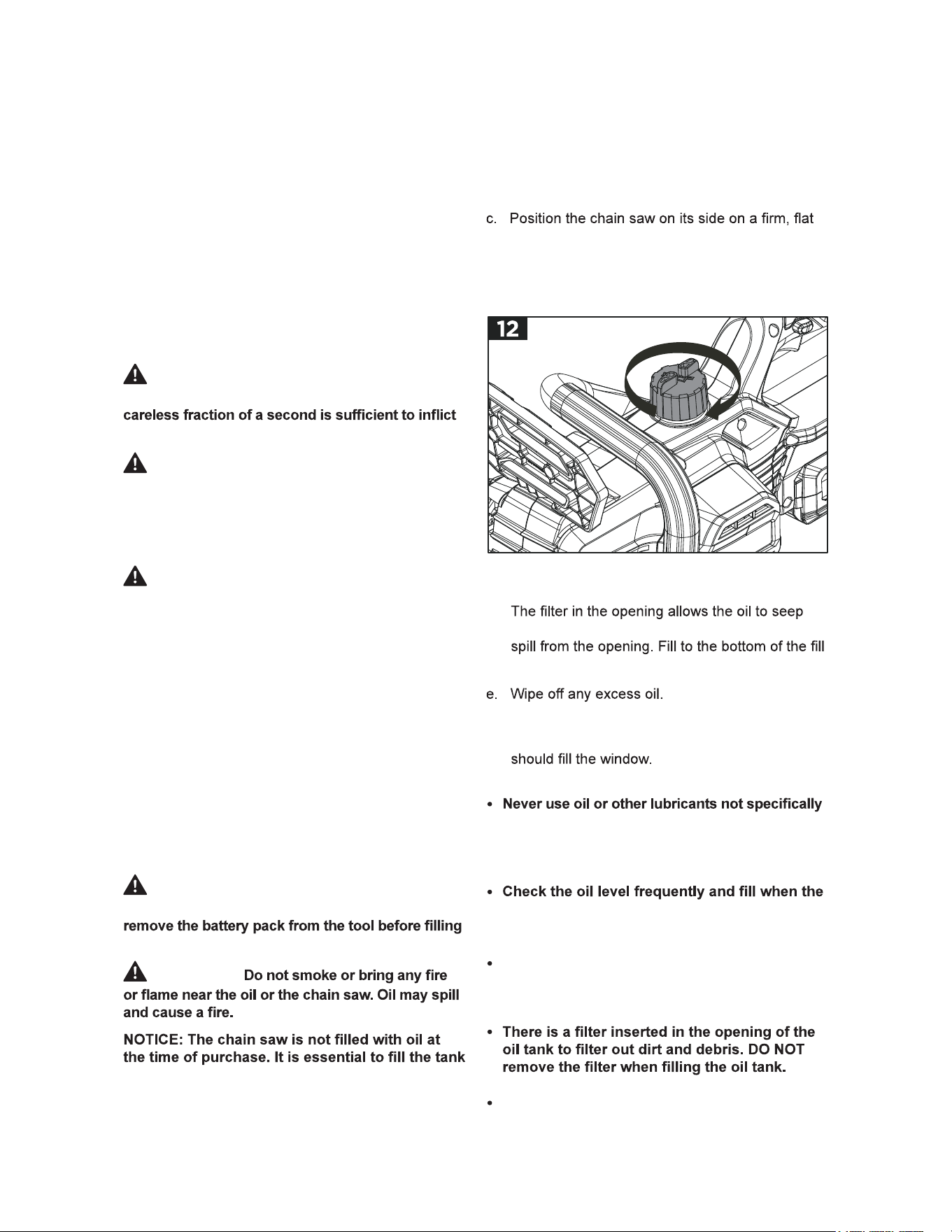

FILLING OILER WITH BAR
AND CHAIN LUBRICANT(Fig.
12)
a. Remove the battery pack from the chain saw.
b. Clean the oil tank cap and the area around it to
ensure that no dirt falls into the oil tank.
surface, so that the tank cap is facing upwards.
Rotate the oil tank cap counterclockwise to re-
move it.
d. Carefully pour the bar and chain oil into the tank.
slowly into the tank; be careful not to let the oil
neck.
f. Replace the cap, place the saw upright, and view
the level through the oil inspection window. Oil
OPERATION
a. Remove the battery pack.
b. Make sure that the chain is properly mounted
and correctly tensioned.
c. Lift the tip of the guide bar up to check for any
sagging in the chain. The chain is correctly ten-
sioned when there is no sag on the underside of
the guide bar and the chain is snug, but it can
be turned by hand without binding. If the tension
requires adjustment, refer to the section: “RE-
PLACING THE BAR AND CHAIN” (Page#12) in
the Main-tenance section of this manual for
adjustment instructions.
d. Check the tension of the side-cover knob before
use. If it is loose, securely tighten the side-cover
knob by turning it clockwise.
f. Check the cutting teeth sharpness of the saw
e. Check the bar and chain oil level and fill the tank
as needed.
chain.
g. Make sure the chain is well lubricated.
h. Stand upright and hold the chain saw in a re-
laxed position.
i. Make sure the saw chain is not touching the
ground or any other objects.
j. Hold the chain saw with both hands: with the
right hand on the rear handle and the left hand
on the front handle.
k. Make sure that you have a secure and balanced
footing. Watch out for obstacles such as tree
stumps, roots and ditches, which could cause
you to trip or stumble.

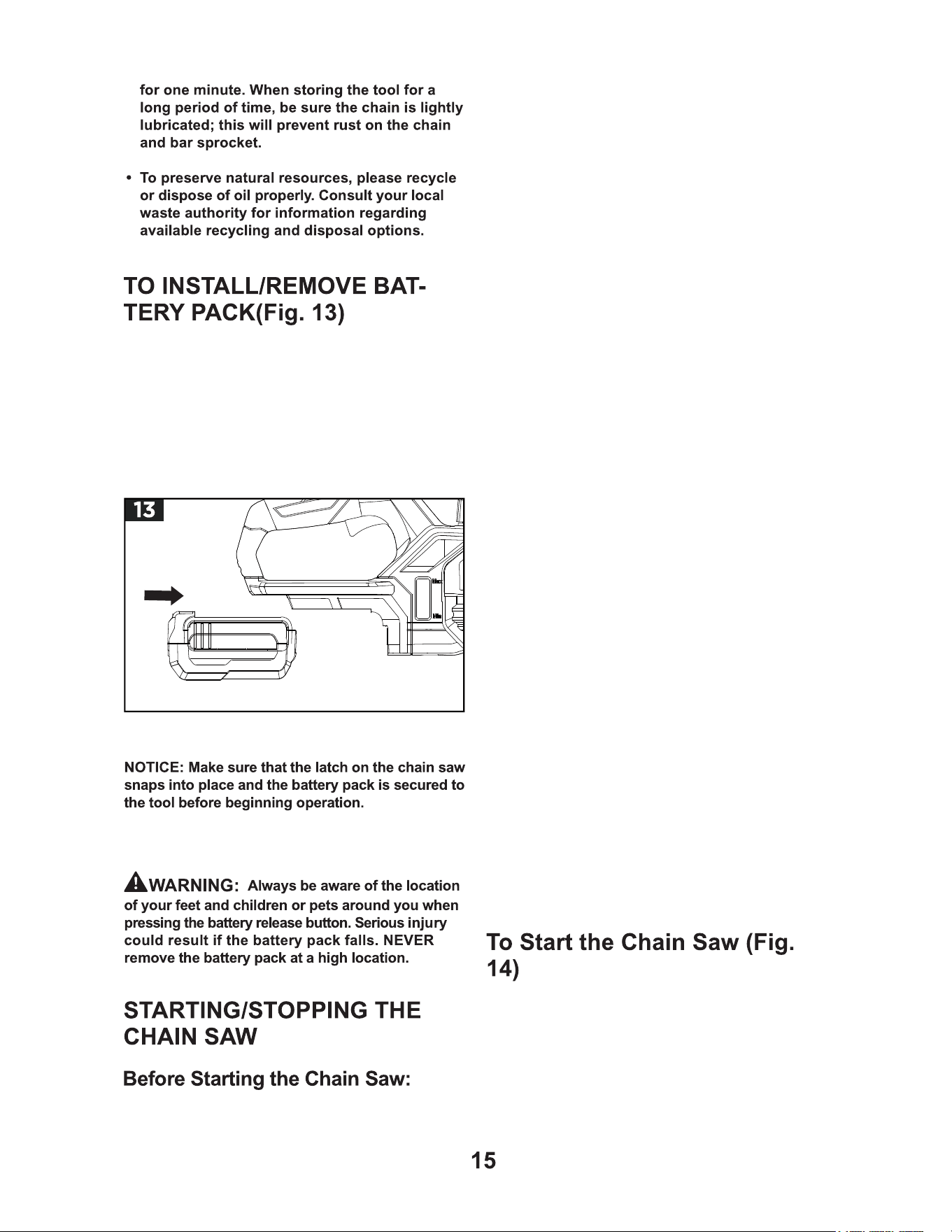

a. Align the ribs of the battery pack with the mount-
ing slots in the chainsaw battery port.
b. Press the battery pack towards the chainsaw
head until it snaps into position.
a. Install the battery pack.
b. Make sure no objects or obstructions are in the
immediate vicinity which could come in contact
with the bar and chain.
c. Press the release button and remove battery from
the chainsaw.

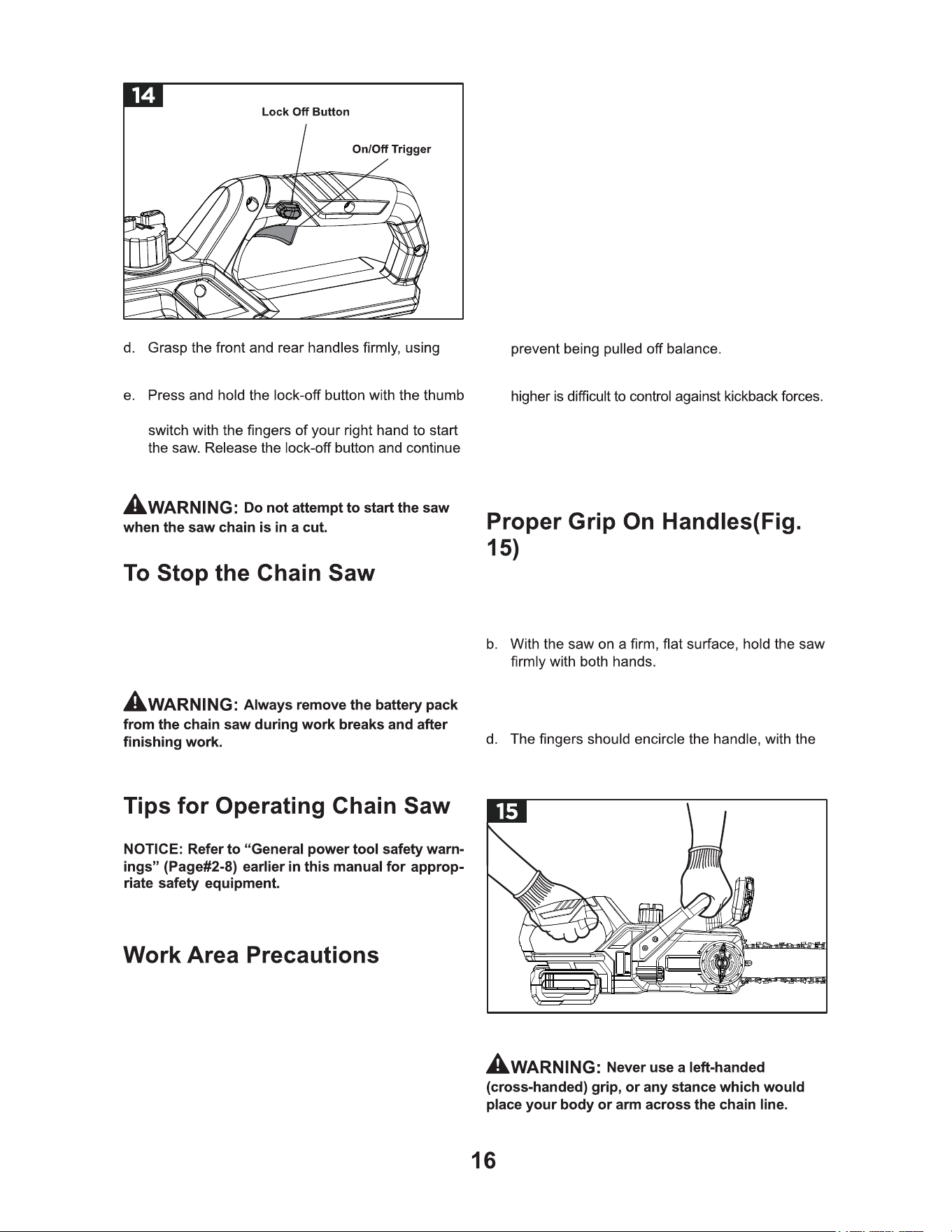

both hands.
of your right hand, then squeeze the trigger
to squeeze the trigger for continued operation.
a. Move the chain saw away from cutting area, and
then release the trigger switch to stop the chain
saw.
a. Cut only wood or materials made from wood; do
not cut sheet metal, plastics, masonry, or non-
wood building materials.
b. Never allow children to operate the chain saw.
c. Allow no person to use this chain saw who has
not read this Operator’s Manual or received ade-
quate instructions for the safe and proper use of
this chain saw.

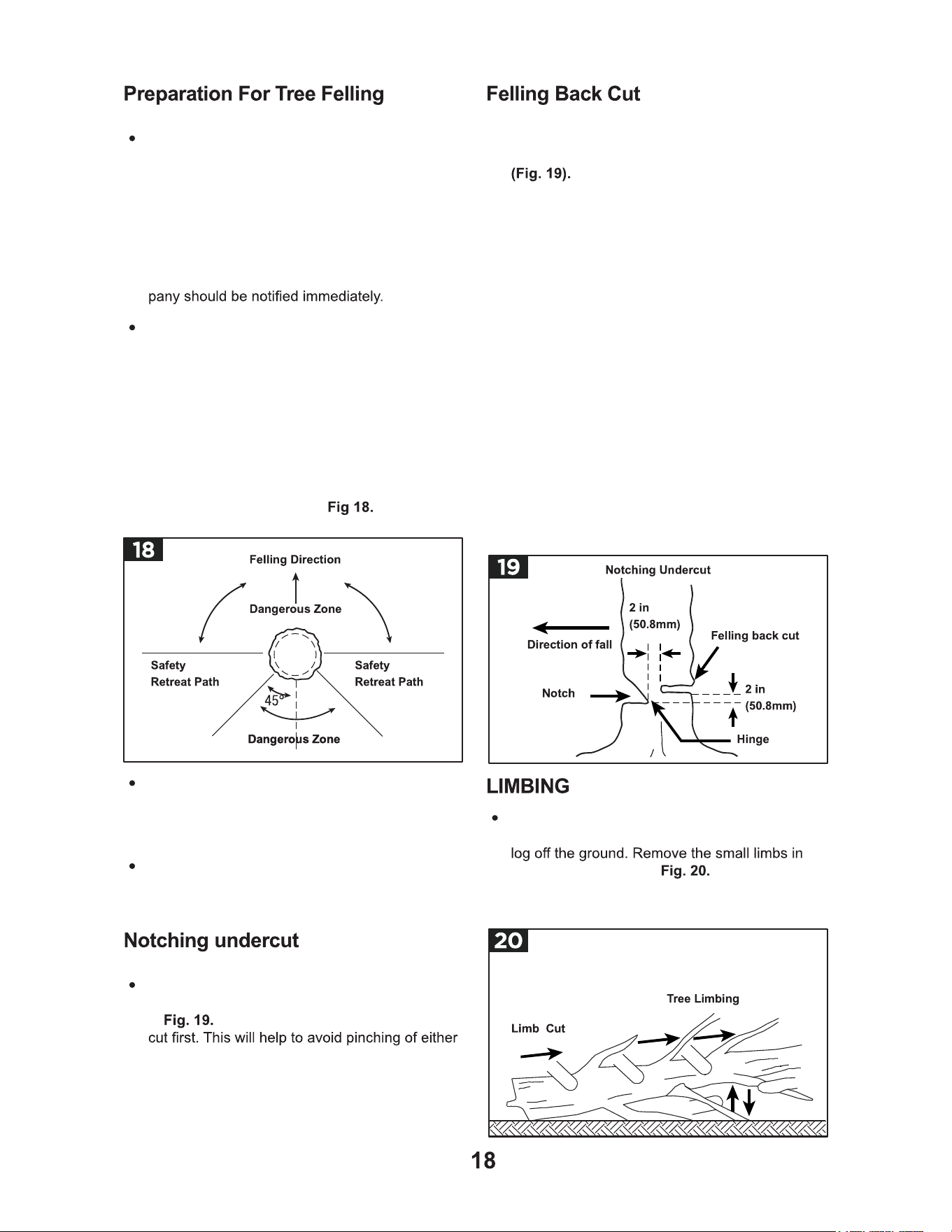

d. When felling a tree, keep everyone - helpers,
bystanders, children, and animals - a safe
distance from the cutting area. During felling
operations, the safe distance should be a least
twice the height of the largest trees in the felling
area. During bucking operations, keep a mini-
mum distance of 15 feet (4.5 m) between work-
ers. Trees should not be felled in a manner that
would endanger any person, strike any utility line
or cause any property damage. If a tree does
make contact with any utility line, stay clear of
the tree and the line and notify the utility company
immediately.
e. Always cut with both feet on solid ground to
f. Do not cut above chest height, as a saw held
g. Do not fell trees near electrical wires or buildings.
h. Cut only when visibility and light are adequate for
you to see clearly.

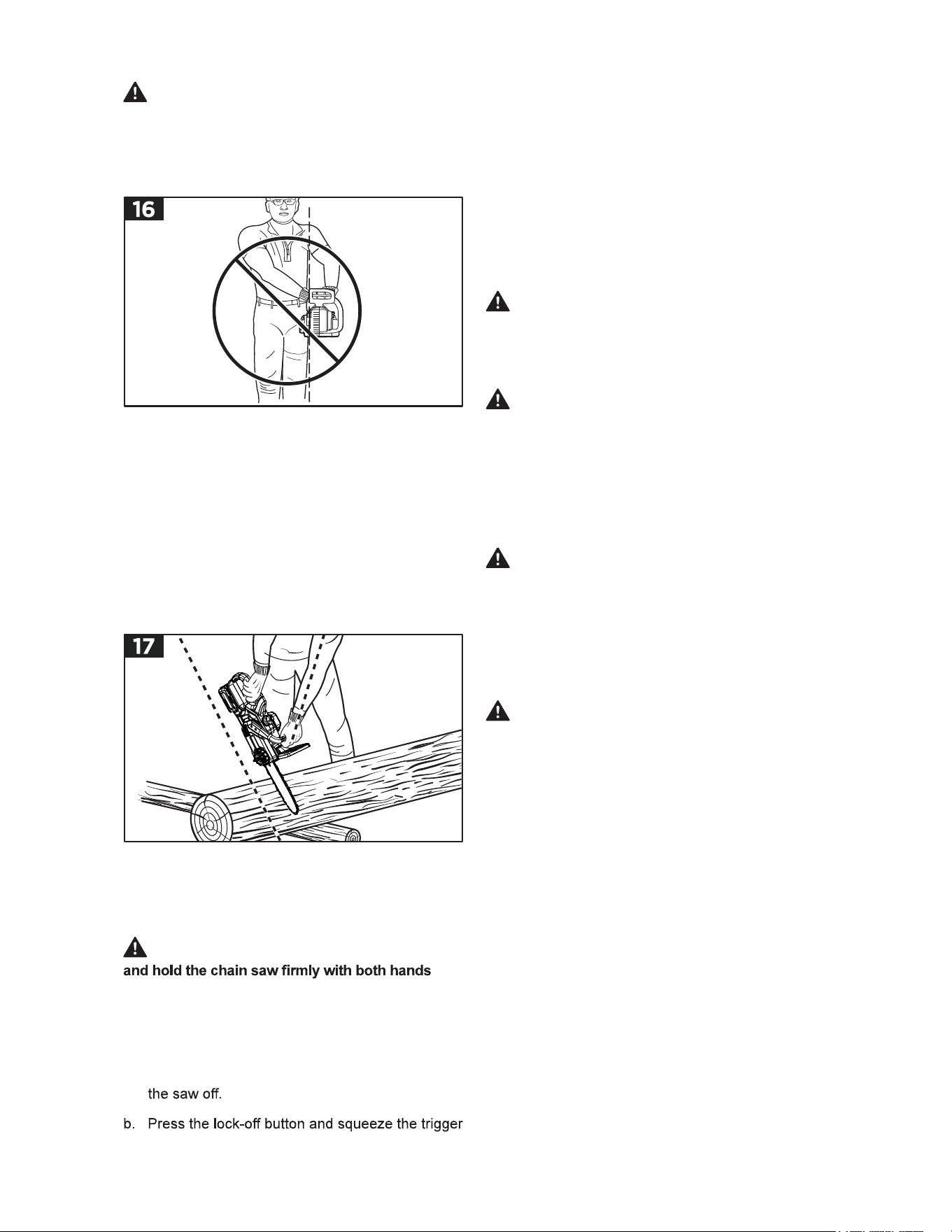

a. Wear heavy duty non-slip gloves for maximum
grip and protection.
c. Always grasp the front handle with the left hand
and the rear handle with the right hand.
thumb wrapped under the front handle.
17
a. Both feet should be on solid ground, with weight
evenly spread between them.
b. The left arm should be straight, with the elbow
locked. This helps to withstand the forces gener-
ated by kickback.
c. Your body should always be to the left of the
chain line.
a. Take the proper stance in front of the wood with
to start the chain saw. Let the chain reach the full
speed before beginning the cut.
c. Begin cutting by lightly pressing the guide bar
against the wood. Use only light pressure, letting
the saw do the work.
d. Maintain a steady speed throughout the cut,
releasing pressure just before the end of the cut.
e. Release the trigger as soon as the cut is com-
pleted, allowing the chain to stop.
a. Do not fell trees during periods of high wind or
heavy precipitation. Wait until the hazardous
weather has ended.
b. Do not fell trees that lean at extreme angles or
large trees with rotten limbs, loose bark, or hollow
trunks. Instead, have these trees pushed or
dragged down with heavy equipment and then
cut them up.
c. Do not fell trees near electrical wires or buildings.
d. Check the tree for damaged or dead branches
that could fall and hit you during felling.
e. Periodically glance at the top of the tree during
the back cut to assure the tree is going to fall in
the desired direction.
f. If the tree starts to fall in the wrong direction, or
if the saw gets caught or hung up during the fall,
leave the saw and save yourself!
Chain line
Straight Arm
Position
Chain line
WARNING:
Do not operate the trigger switch
with your left hand and hold the front handle with
your right hand. Never allow any part of your body
to be in the chain line while operating a chain saw
(Fig. 16).
WARNING:
When the saw chain is stopped
due to pinching during cutting, release the trigger
switch; remove the saw chain and guide bar from
the wood, then restart the chain saw.
WARNING:
Do not pull the saw chain with
your hand when it is bound by the sawdust.
Serious injury could result if the chain saw starts
accidentally. Press the saw chain against the wood,
move the chain saw back and forth to discharge
the debris. Always remove the battery pack before
cleaning. Wear heavy protective gloves when han-
dling the saw chain.
WARNING:
Never start the chain saw when it
is in contact with the wood. Always allow the chain
saw reach full speed before applying the saw to the
wood.
WARNING:
When felling a tree, it is important
that you heed the following warnings to prevent
possible serious injury.
WARNING:
Always be sure of your footing
while the motor is running.
Proper Cutting Stance (Fig. 17)
CUTTING
FELLING A TREE
Practice cutting a few small logs using the following
technique to get the “feel” of using your saw before you
begin a major sawing operation.
Basic Cutting
Hazardous Conditions
When bucking and felling operations are being
performed by two or more persons at the same
time, the felling operation should be separated
from the bucking operation by a distance of at
least twice the height of the tree being felled.
Trees should not be felled in a manner that
would endanger any person, strike any utility line
or cause any property damage. If the tree does
make contact with any utility line, the utility com-
The chain saw operator should stand on the uphill
side of the terrain, as the tree is likely to roll or
slide downhill after it is felled.
Before felling is started, consider the natural lean
of the tree, the location of larger branches and
the wind direction to judge which way the tree
will fall.
Remove dirt, stones, loose bark, nails, staples,
and wire from the tree where felling cuts are to
be made.
Make the notch 1/3 the diameter of the tree,
perpendicular to the direction of fall, as illustrated
in Make the lower horizontal notching
the saw chain or the guide bar when the second
notch is being made.
Limbing is removing branches from a fallen tree.
When limbing, leave larger limbs to support the
one cut as illustrated in Branches under
tension should be cut from the bottom up to
avoid binding the chain saw.
Before any cuts are started, pick your escape route
(or routes, in case the intended route is blocked).
Clear the immediate area around the tree and make
sure that there are no obstructions in you planned
paths of retreat. Clear a path of safe retreat approxi-
mately 135° from the planned line of fall. The retreat
path should extend back and diagonally to the rear
of the expected line of fall. See
a. Make the felling back cut at least 2 inches (50.8
mm) higher than the horizontal notching cut
Keep the felling back cut parallel to the
horizontal notching cut. Make the felling back
cut so that enough wood is left to act as a hinge.
The hinge wood keeps the tree from twisting and
falling in the wrong direction.
b. Do not cut through the hinge.
c. As the felling cut gets close to the hinge, the tree
should begin to fall. If there is any chance that
the tree may not fall in the desired direction or
it may rock back and bind the saw chain, stop
cutting before the felling back cut is complete
and use wedges of wood, plastic or aluminum to
open the cut and drop the tree along the desired
line of fall.
d. When the tree begins to fall, remove the chain
saw from the cut, stop the motor, put the chain
saw down, then use the retreat path planned. Be
alert for overhead limbs falling and watch your
footing.

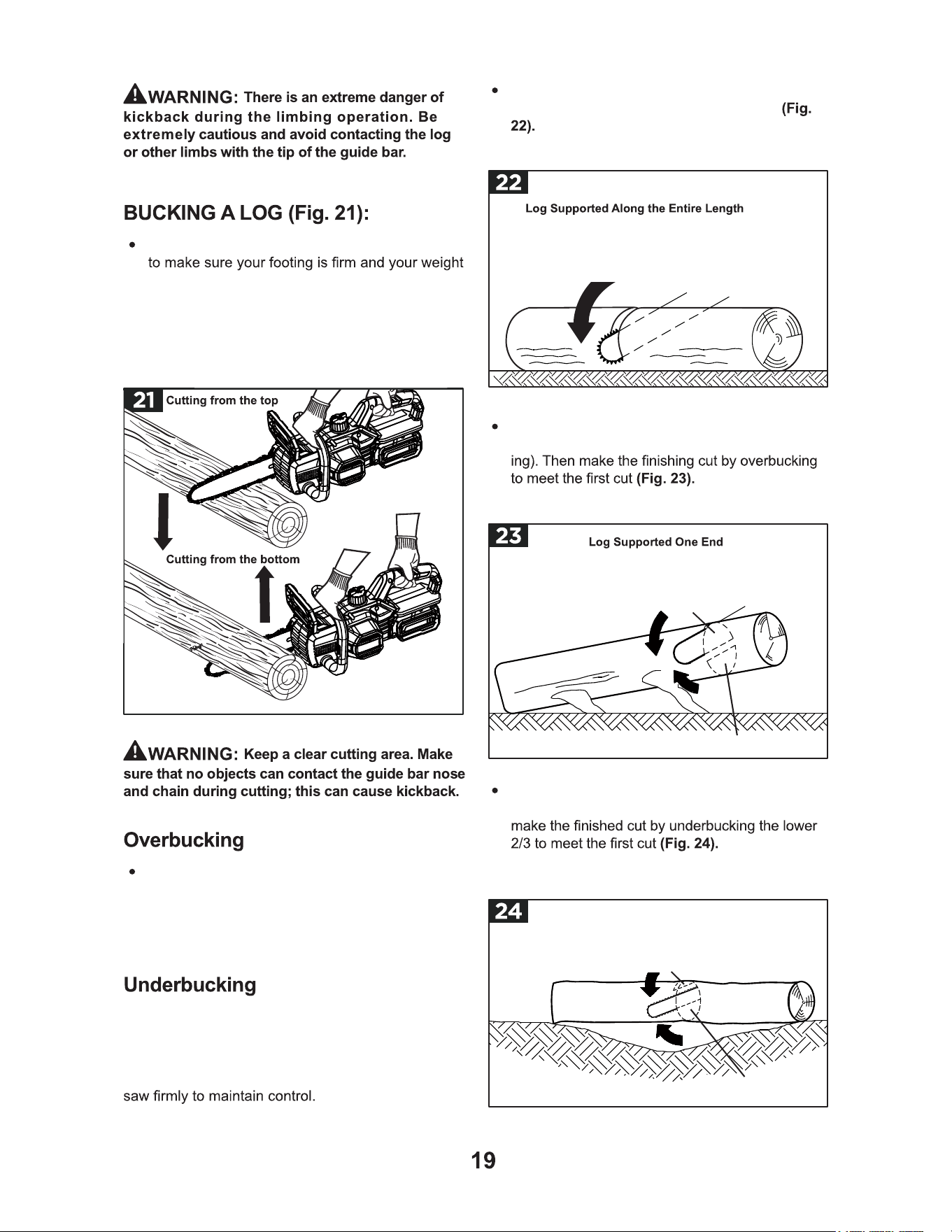

Bucking is cutting a log into lengths. It is important
is evenly distributed on both feet. When possible,
the log should be raised and supported by the
use of limbs, logs or chocks. Follow the simple
directions for easy cutting.
Begin on the top side of the log with the bottom of
the saw against the log; exert light pressure down-
ward. Note that the saw will tend to pull away from
you.
When the log is supported along its entire length,
it should be cut from the top (overbucking)
When the log is supported on only one end, cut
1/3 the diameter from the underside (underbuck-
When the log is supported on both ends, cut 1/3
of that diameter from the top overbuck. Then
Begin on the underside of the log with the top of the
saw against the log; exert light pressure upward.
During underbucking, the saw will tend to push back
at you. Be prepared for this reaction and hold the
2nd Cut Overbuck (2/3 Diameter) to Meet 1st
Cut (To Avoid Pinching)
1st Cut Overbuck (1/3 Diameter) to
Aviod Splintering
2nd Cut Underbuck (2/3 Diameter) to Meet 1st
Cut (To Aviod Pinching)
1st Cut Underbuck (1/3 Diameter) to Avoid Splintering
Cut From Top (Overbuck)
Avoid Cutting Earth
20

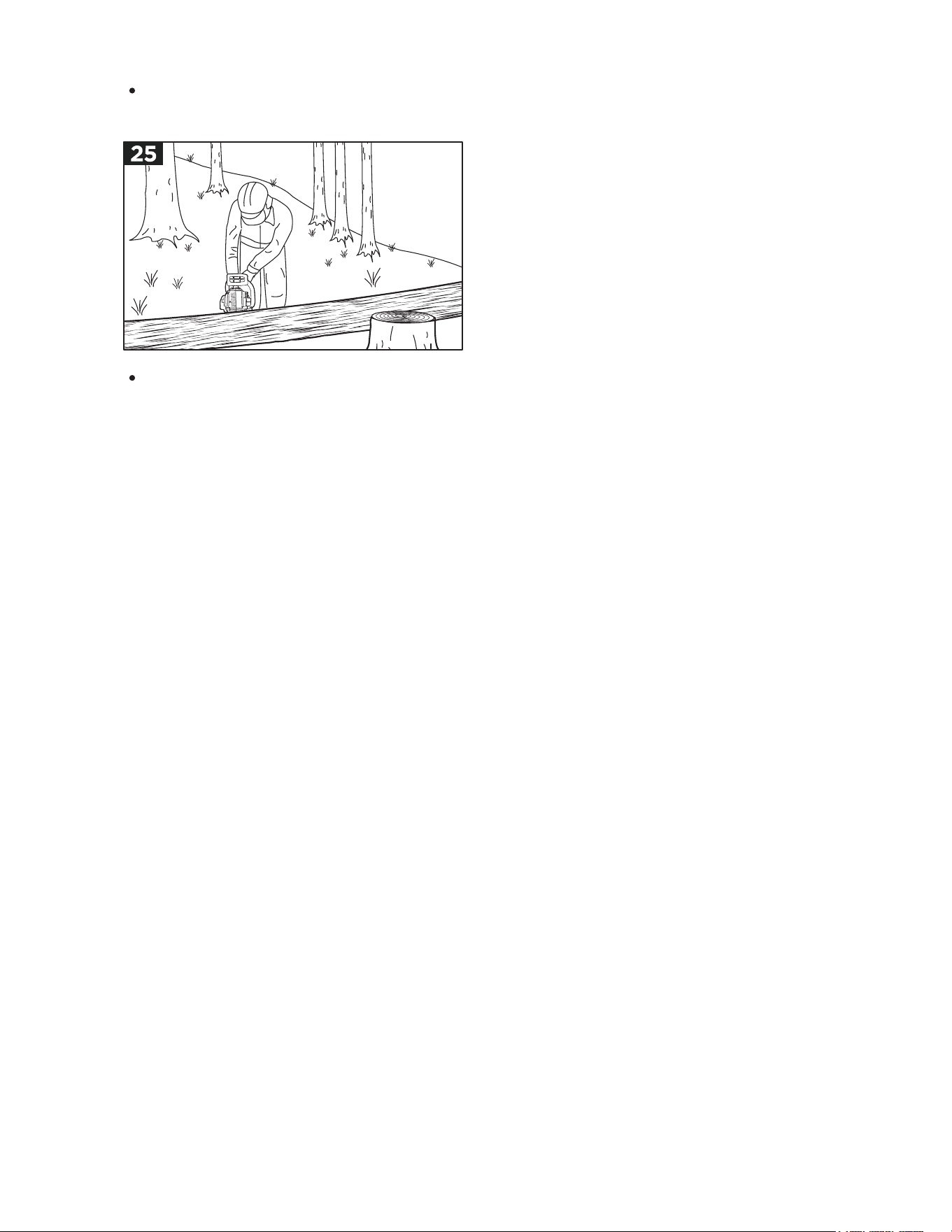

When bucking on a slope, always stand on the
uphill side of the log (Fig. 25).
To maintain complete control when cutting
through, release the cutting pressure near the
end of the cut without relaxing the grip on the
chain saw handles. Don’t allow the chain to
contact the ground. After completing the cut, wait
for the saw chain to stop before you move the
chain saw. Always stop the motor before moving
from tree to tree.
After each use, clean debris from the chain and
guide bar with a soft brush. Wipe the chain saw
surface with a clean cloth moistened with a mild
soap solution.
Remove the side cover, and then use a soft
brush to remove debris from the guide bar, saw
chain, sprocket and side cover.
Always clean out wood chips, saw dust, and dirt
from the guide bar groove when replacing the
saw chain
a. Remove the battery, allow the saw to cool and
tighten the oil tank cap.
surface, so that the side cover is facing upwards
(
c. Wear gloves. Remove the side cover by turning
the side cover knob counterclockwise
Clean the side cover with a dry cloth.
d. Turn the chain-tensioning knob towards the front
handle as far as it will go Remove
the bar and chain from the mounting surface.
Remove the worn chain from the bar.
a. Stop the motor and remove the battery pack
before adjusting the chain tension.
b. Loosen the side cover knob.
c. Turn the chain-tensioning knob clockwise to
tension the chain. See the section:
in this manual for additional
information.
Refer to earlier
in this manual for assembly.

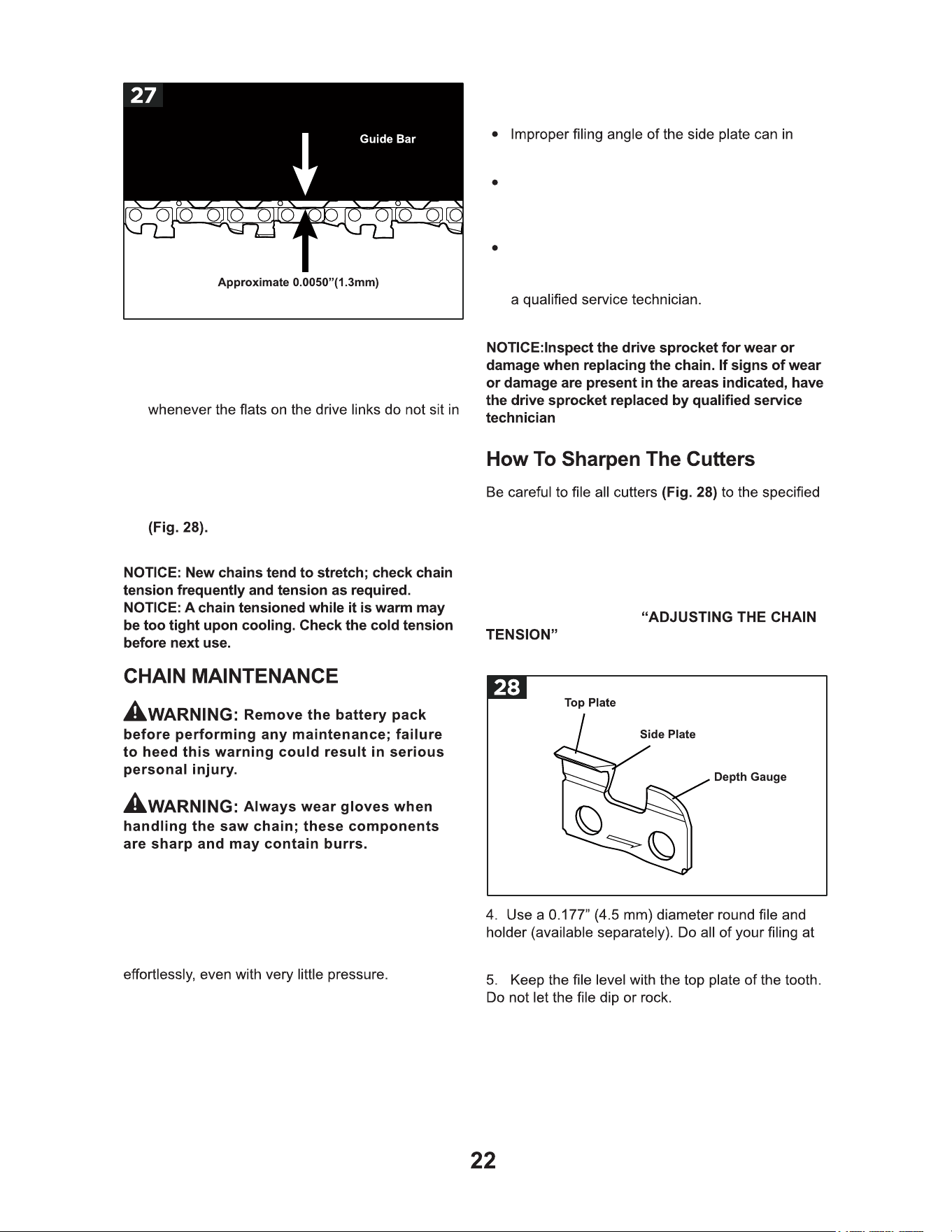

a. A cold chain is correctly tensioned when there is
no slack on the underside of the guide bar and
the chain is snug, but it can be turned by hand
without binding. The chain must be re-tensioned
the bar groove.
b. During normal saw operation, the temperature
of the chain will increase. The drive links of a
correctly tensioned warm chain will hang approx-
imately 0.050 in. (1.3 mm) out of the bar groove
Use only low-kickback chains on this saw. This fast
cutting chain will provide kickback reduction when
properly maintained.
A properly sharpened saw chain cuts through wood
Never use a dull or damaged saw chain. A dull saw
chain cutter leads to increased physical strain, in-
creased vibration load, unsatisfactory cutting results
and increased wear.
For smooth and fast cutting, the chain needs to be
maintained properly. The chain requires sharpen-
ing when the wood chips are small and powdery,
the chain must be forced through the wood during
angles and to the same length, as fast cutting can be
obtained only when all cutters are uniform.
1. Remove the battery pack. Wear gloves for protection.
2. Properly tension the chain prior to sharpening.
3. Refer to the section:
(Page#21) earlier in this manual.
the middle position of the guide bar.
cutting, or the chain cuts to one side. During mainte-
nance of your chain, consider the following:
-
crease the risk of a severe kickback.
Raker (depth gauge) clearance. Too low increases
the potential for kickback. Not low enough de-
creases cutting ability.
If cutter teeth have hit hard objects, such as nails
and stones, or have been abraded by mud or
sand on the wood, have the chain sharpened by
23
0.177” (4.5mm)
Round File
Filing Direction
Sharpening
Angle:30°
Left Hand
Cutters
Right Hand
Cutters
LESS THAN 30° MORE THAN 30°
CORRECT INCORRECT INCORRECT
TOP PLATE SHARPENING ANGLES
Cutter tooth
WARNING:A dull or improperly sharp-
ened chain can cause excessive motor
speed during cutting, which may result
in severe motor damage.
WARNING: Improper chain sharpening
increases the potential of kickback.
WARNING: Failure to replace or repair
a damaged chain can cause serious injury.

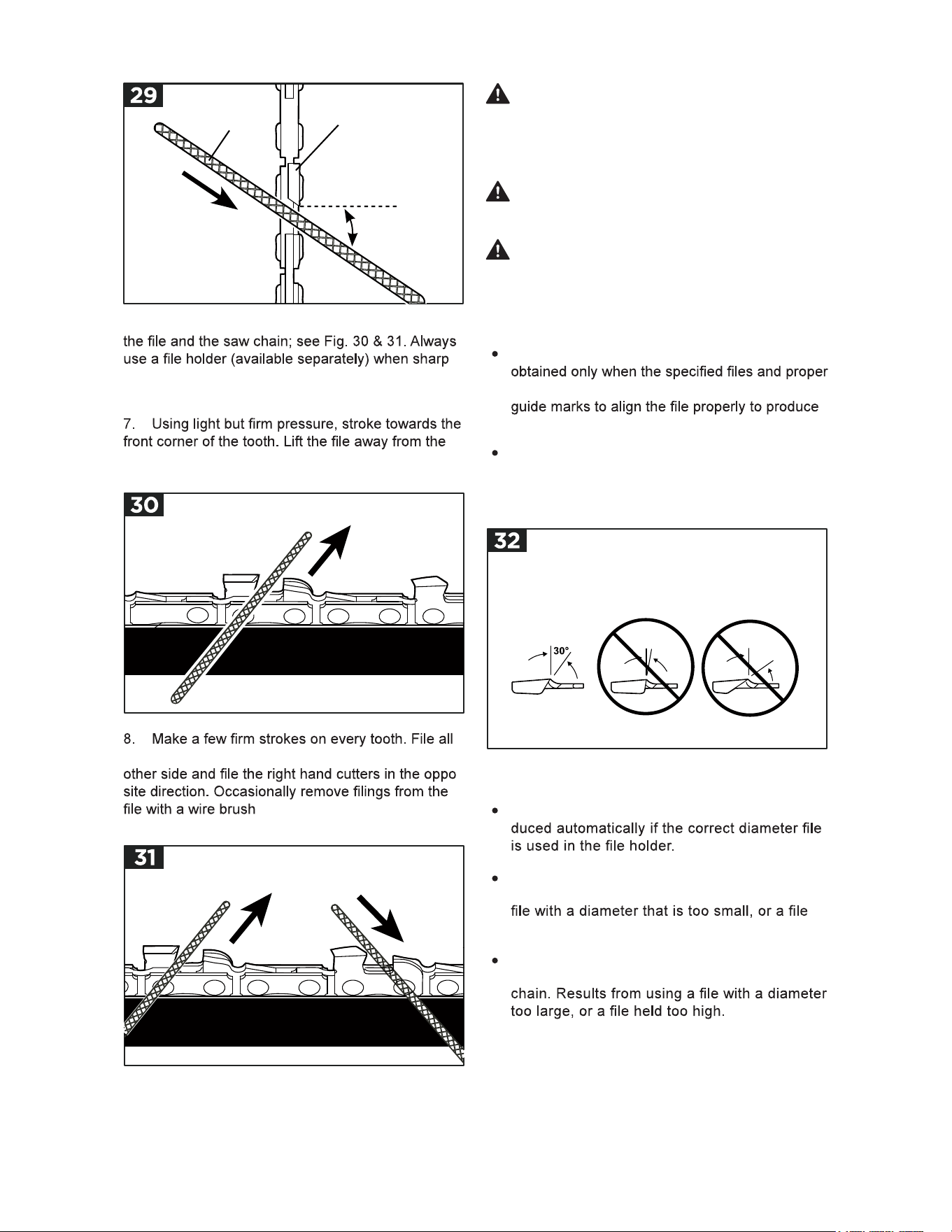

6. Keep a correct sharpening angle of 30° between
-
ening saw chains by hand. File holders have mark-
ings for the sharpening angle.
steel on each return stroke.
left hand cutters in one direction. Then move to the
-
(Fig. 31).
Top Plate Sharpening Angles
Side Plate Angle (Fig. 33)
CORRECT 30°- This optimal angle can be
setting are used. File holders are marked with
the correct top plate angle.
LESS THAN 30°- The tooth is too dull for cutting.
MORE THAN 30°- The edge of the cutting tooth
is feathered and dulls quickly.
CORRECT 55°- The optimal angle can be pro-
HOOK- “Grabs” and dulls quickly. Increases
potential of KICKBACK. Results from using a
held too low.
BACKWARD SLOPE- Needs too much feed
pressure, causes excessive wear to bar and
24
Hook Backward Slope
CORRECT INCORRECT INCORRECT
SIDE PLATE ANGLE
DEPTH-GAUGE CLEARANCE
Depth-gauge Jointer
Sprocket in
Guide-bar Tip
Lubricating Hole
Flat File
0.025”(0.6mm)
Depth Gauge Clearance
GUIDE BAR MAINTENANCE
Reversing The Guide Bar
1. The depth gauge should be maintained at a
clearance of 0.025 in. (0.6 mm), as shown in Fig.
34. Use a depth gauge tool (available separately) to
check the depth gauge clearances.
2. Check the depth gauge clearance every time the
1. Remove the guide bar and chain from the chain
saw, following the section: “REPLACING THE BAR
AND CHAIN”.
2. Remove the chain from the guide bar and turn the
guide bar over (Fig. 37). The bottom of the bar will
be on the top.
3. Replace the chain on the bar.
4. Reassemble the guide bar and chain on the
chain saw and adjust the chain tension, following the
section: “REPLACING THE BAR AND CHAIN” and
“ADJUSTING THE CHAIN TENSION”.
-
able separately) to lower all gauges uniformly (Fig.
36). Depth-gauge jointers are available in 0.020 in.
to 0.035 in. (0.5 mm to 0.9 mm). Use a 0.025 in. (0.6
mm) depth-gauge jointer.
When the guide bar shows signs of wear, reverse it
on the saw to distribute the wear for maximum bar
life. The bar should be cleaned every day of use and
checked for wear and damage. Feathering or burring
of the bar rails is a normal process of bar wear. Such
occur. A bar with any of the following faults should be
replaced.
Wear inside the bar rails which permits the chain
to lay over sideways.
Bent guide bar.
Cracked or broken rails.
Spread rails.
In addition, the guide bar has a sprocket at its
tip. The sprocket must be lubricated weekly with
a grease syringe to extend the guide bar life. Use
a grease syringe to lubricate weekly with chain oil
by means of the lubricating hole (Fig. 36). Turn the
guide bar and check that the lubrication holes and
chain groove are free from impurities.
25
TRANSPORTING AND STORING
STORING THE BATTERY
Do not store or transport the chain saw when
it is running. Always remove the battery pack
before storing or transporting.
Always place the guide bar sheath on the
guide bar and chain before storing or trans-
porting the chain saw. Use caution to avoid the
sharp teeth of the chain.
Clean the chain saw thoroughly before storing.
Store the chain saw indoors, in a dry place that
is locked and/or inaccessible to children.
Keep away from corrosive agents such as gar-
den chemicals and de-icing salts.
Protect the battery against moisture and water.
Store the battery only within a temperature
range from 40°F to 104°F. As an example,
do not leave the battery in a vehicle or in the
chainsaw in direct sunlight.
Clean the ventilation slots of the battery oc-
casion ally with a soft, clean and dry brush. A
considerably shortened operating time after
charging is an indication that the battery is
exhausted and must be replaced.
If you do not use the product for a long time,
please charge and discharge the battery park
once every 6 months.
Attach the battery pack to the chainsaw.
The battery pack is not
attached to the chainsaw.
Remove battery, check contacts and reinstall the
battery pack.
No electrical contact between
the chainsaw and battery.
Charge the battery pack.
Release the trigger switch; remove the saw chain and
guide bar from the wood, then restart the chain saw.
Press the saw chain against the wood, move the chain
saw back and forth to discharge the debris.
Remove battery pack, then remove side cover and
clean out debris.
The battery pack is depleted.
Saw chain is bound in the
wood.
Cool the battery pack and chain saw until the
temperature drops below 152°F (67°C).
The battery pack or chain saw
is too hot.
Debris in bar groove.
Debris in side cover.
Dull chain.
Chain installed backwards.
Worn chain.
Check chain tension for over
Dry or excessively stretched
chain.
Chain oil tank is empty.
Chain not in bar groove.
Debris in guide bar groove.
Chain does not engage drive
sprocket.
Readjust the chain tension, following the section:
“ADJUSTING THE CHAIN TENSION”.
Sharpen the chain cutters, following the section: “HOW
TO SHARPEN THE CUTTERS”.
Reinstall the saw chain, following the section:
“REPLACING THE BAR AND CHAIN”.
Replace the chain, following the section: “REPLACING
THE BAR AND CHAIN”.
Re-tension the saw chain; see the section:
“ADJUSTING THE CHAIN TENSION”.
Filling bar and chain lubricant.
Reinstall the saw chain, following the section:
“REPLACING THE BAR AND CHAIN”.
Clear the debris in the groove.
Reinstall the chain, making sure that the drive links on
the chain are fully seated on the sprocket.
Copyright All Rights Reserved
20-Volt Lithium-ion Cordless Chainsaw
With (1) 20-Volt 2.0Ah Lithium-ion Battery
.
Two (2) year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for personal,
household, or family use.
Two (2) year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase when used for
personal, household, or family use.
Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond
capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in
the owner’s manual
Warranty voided if used for commercial or industrial purposes or any other improper use as determined by Yardworks.
.
This warranty does not cover
Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching
blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles,
augers, worn bags, power cables, and other items subject to wear over time.
Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature
swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery.
This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.
This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but not
limited to scratches, cracks, dents, or damage caused by outside chemicals.
This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does not
apply to any product, new or used, purchased through unauthorized third-party channels. For information on authorized dealers,
contact our customer support hotline at 1-888-497-7273 Mon-Fri 8am-5pm Est)
Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is
not covered by the warranty.
The warranty does not include installation, assembly or normal adjustments explained in the owner’s manual. The expense of de-
livering the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the
warranty.
Additional Warranty Limitations
Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. Products sold damaged or incomplete, sold as is, or sold as reconditioned are not covered under the warranty.
Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper mainte-
nance, improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this
warranty.
Proof of purchase, original dated sales receipt, must accompany all warranty claims.
Mon-Fri at 1-888-497-7273
For claims go to M e n a r d s or call our customer support hotline from 8am-5pm EST,
In a continued commitment to improve quality, the Manufacturer reserves the right to
make component changes or design changes when necessary.
28
