Your lawn mower has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before using
this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OWNER’S MANUAL
19 in. ELECTRIC LAWN MOWER
Copyright. All Rights Reserved.
Model 51319-1 | SKU# 270-1160
Thank you for your purchase.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING,
ASSEMBLY, PARTS, SERVICE QUESTIONS? GO TO
WWW.AMERICANLAWNMOWER.COM OR CALL (844) 531-3064
BETWEEN 8:00 AM - 5:00 PM EST FOR ASSISTANCE.
801137
2
Model 51319-1
Introduction…………………………………..…………………………………………...2
Important Safety Instructions.………………………...……………………………...3-5
Symbols……………………………………..…………………………………………... 5
Features………………………………………………………………………………. 6-7
Assembly…………………………………………………………………...………….7-9
Operation…………………………………...……………………………...…………9-11
Maintenance………………………………..………………………………...…….11-13
Troubleshooting…………………………….………………………………………….14
Parts and Service.………………………….………………………………………….15
Warranty………………………………………..………………………...……Back Page
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable. Safety, performance,
and dependability have been given top priority in the design of this product making it easy to maintain
and operate.
TABLE OF CONTENTS
SERVICE:
Servicing requires extreme care and knowledge
and should be performed only by a qualified
service technician. For service we suggest you
return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing,
use only identical replacement parts.
WARNING:
To avoid serious injury, do not attempt to use this
product until you read thoroughly and understand
completely the owner’s manual. If you do not
understand the warnings and instructions in the
owner’s manual, do not use this product. Call
Yardworks customer service for assistance.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always wear
safety goggles or safety glasses with side shields and, when needed, a full face shield. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
CALL US FIRST
For any questions about operating or maintaining your product, call the
Yardworks
TM
Help Line! (844) 531-3064. Your product has been fully tested prior
to shipment to ensure your complete satisfaction.
WARNING:
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below and on the machine
may result in electric shock, fire, and/or serious personal injury.
Stop the motor, wait until the blade comes to a complete stop, and
disconnect from power supply before cleaning the lawn mower,
removing the grass catcher, or removing the mulching plug. Never
use a hose, water, or any liquids to clean the lawn mower, as water
can damage electronic components. Remove any buildup of grass
and leaves on or around the motor cover. Wipe the mower clean with
a dry cloth occasionally.
Replace blade if it is bent or cracked. An unbalanced blade causes
vibration that could damage the motor drive unit or cause personal
injury. Sharpen a dull blade equally at each end to maintain the
balance. Clean the blade thoroughly and check its balance by
supporting it horizontally on a thin nail through its center hole. The
nail should be in a horizontal position. If either end of the blade
rotates downward, remove some metal from the heavy or lower end
until the blade is balanced. It is balanced when neither end drops.
When not in use, mower should be stored indoors in a dry, locked up
place—out of reach of children. The extension cord should also be
removed and stored in a separate location out of the reach of
children.
Always use safety protective devices. Do not operate the mower
without the entire grass catcher discharge guard, rear guard, or other
safety protective devices in place and working properly.
Follow manufacturer’s instructions for proper operation and
installation of accessories. Only use accessories approved by the
manufacturer.
To reduce the risk of electric shock, this appliance has a polarized
plug (one blade is wider than the other) and will require the use of a
polarized extension cord. The appliance plug will fit into a polarized
extension cord only one way. If the plug does not fit fully into the
extension cord, reverse the plug. If the plug still does not fit, obtain a
correct polarized extension cord. A polarized extension cord will
require the use of a polarized wall outlet. This plug will fit into the
polarized wall outlet only one way. If the plug does not fit fully into the
wall outlet, reverse the plug. If the plug still does not fit, contact a
qualified electrician to install the proper wall outlet. Do not change the
equipment plug, extension cord receptacle, or extension cord plug in
any way.
Ground Fault Circuit Interrupter (GFCI) protection should be provided
on the circuit(s) or outlet(s) to be used for the lawn mower.
Receptacles are available having built-in GFCI protection and may be
used for this measure of safety.
Inspect lawn mower cord periodically and if damaged, have it
repaired by an authorized service facility. Inspect extension cords
periodically and replace if damaged. Keep handles dry, clean, and
free from oil and grease.
Warning — To prevent electric shock use only with an extension cord
suitable for outdoor use, such as SW, SOW, STW, STOW, SJW,
SJOW, SJTW, or SJTOW.

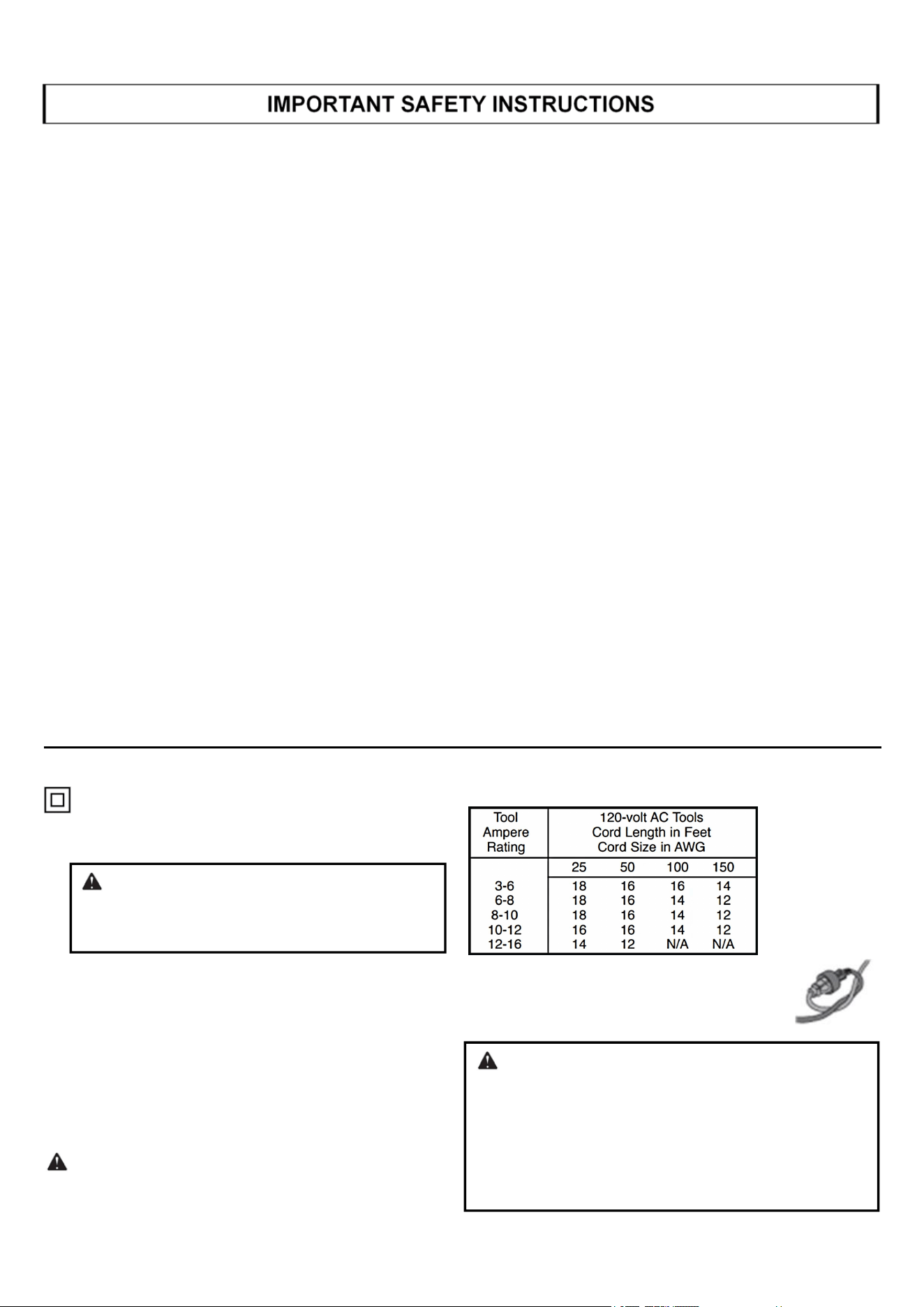

Extension Cord - Make sure your extension cord set is in good
condition. When using an extension cord, be sure to use one heavy
enough to carry the current your product will draw. For lengths less
than 50 feet, No. 14 AWG extension cord should be used. An
undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. To reduce the likelihood of disconnection of
lawn mower cord from the cord set during operating use the cord
retainer described in this manual.
Under normal usage the catcher assembly is subject to deterioration
and wear and should, therefore, be frequently checked for
replacement. Only use identical replacement catcher assemblies.
Don’t Abuse Cord — Never pull lawn mower by cord or yank it to
disconnect from receptacle. Keep cord from heat, oil, and sharp
edges.
Risk of death or serious personal injury if power lines or electric cords
are contacted. Never operate mower over electrical sources, cords,
or wires.
Clear the work area before each use. Remove all objects such as
rocks, tree nuts, sticks, metal, wire, bones, toys, or other objects
which can be thrown by the blade. Stay behind the handle when the
motor is running.
This lawn mower is capable of amputating hands and feet and
throwing objects. Failure to observe all safety instructions could
result in serious injury or death.
Avoid Dangerous Environment - Do not use the lawn mower in
damp or wet conditions or operate in the rain.
Only allow responsible adults, who are familiar with the
instructions, to operate this machine.
Keep the area clear of all bystanders, children, and pets while
mowing. Stop machine if anyone enters the area.
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the machine
and the mowing activity. Never assume that children will remain
where you last saw them.
Keep children out of the mowing area and under the
watchful care of a responsible adult other than the operator.
Be alert and turn mower off if a child enters the area.
Never allow children to operate the lawn mower.
Use extra care when approaching blind corners, shrubs,
trees, or other objects that may block your view of a child.
Dress properly - Do not wear loose clothing or jewelry. They can
be caught in moving parts. Use of rubber gloves and footwear is
recommended when working outdoors.
Don’t over reach - Keep firm footing and balance. Do not
overreach. Over-reaching can result in loss of balance.
Do not operate the equipment with barefoot or when wearing
sandals or similar lightweight footwear. Wear protective
footwear that will protect your feet and improve your footing on
slippery surfaces.
Do not leave the mower unattended while running.
Keep hands and feet away from cutting area. Keep clear of the
discharge opening at all times.
Operate the lawn mower only in daylight or good artificial light.
Use safety glasses - Always wear safety glasses with side
shields. Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will reduce the
risk of eye injury. Use face mask if environment is dusty.
Wear safety glasses or goggles that are marked to comply with
ANSI Z87.1 standard when operating this product.
Use the right appliance - Do not use the lawn mower for any job
except that for which it is intended.
Do not force the lawn mower - It will do the job better and safer
at the rate for which it was designed.
Stay alert - Watch what you are doing, and use common sense
when operating the lawn mower. Do not operate the mower
while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating the lawn
mower may result in serious personal injury.
Maintain lawn mower with care - Keep machine in good working
condition. Keep blades sharp and guards in place and in
working order.
Check all nuts, bolts, and screws at frequent intervals for proper
tightness to be sure the equipment is in safe working condition.
IMPORTANT SAFETY INSTRUCTIONS
3
Model 51319-1
READ ALL INSTRUCTIONS
Avoid holes, ruts, bumps, rocks, property stakes, or other hidden
objects. Uneven terrain could cause a slip and fall accident.
Do not mow near drop-offs, ditches, or embankments.
Mow across the face of slopes, never up and down. Exercise
extrem
e caution when changing di
rection on slopes.
Plan your mowing pattern to avoid discharge of material toward
roads, sidewalks, bystanders and the like. Also, avoid discharging
material against a wall or obstruction, which may cause the material
to ricochet back toward the operator.
Do not mow on wet grass or excessively steep slopes. Poor footing
could cause a slip and fall accident. Walk, never run.
Use extra care when approaching blind corners, shrubs, trees, or
other objects that may block your view.
Do not pull the mower backward unless absolutely necessary if you
must back the mower away from a wall or obstruction first look down
and behind to avoid tripping.
Never direct discharged material toward anyone, Avoid discharging
material towards a wall or obstruction, Material may ricochet back
toward the operator. Stop the blade when crossing gravel surfaces.
Objects struck by the lawn mower blade can cause severe injuries to
persons. The lawn should always be carefully examined and cleared
of all objects prior to each mowing.
If the lawn mower strikes a foreign object, follow these steps:
Stop the lawn mower by releasing the blade control lever, wait
until the blade comes to a c
omplete stop, and disconnect
extension cord from power supply.
Thoroughly inspect the mower for any damage.
Replace the blade if it is damaged in any way. Repair any damage
before restarting and continuing to operate the mower.
If the mower should start to vibrate abnormally, stop the motor and
check immediately for the cause. Vibration is generally a warning of
trouble.
IMPORTANT SAFETY INSTRUCTIONS
4
Model 51319-1
Service on the product must be performed by qualified repair
personnel only. Service or maintenance performed by unqualified
personnel could result in injury to the user or damage to the product.
Use only authorized replacement parts when servicing the product.
Use identical replacement blades only. Use of unauthorized parts may
create a risk of serious injury to the user or damage to the product.
Maintain or replace safety instructions labels, as necessary.
Disconnect from power supply — Disconnect extension cord from
power supply before storing, servicing, or changing accessories such
as blades. Such preventive safety measures reduce the risk of
starting the tool accidentally.
Stop the unit and disconnect the extension cord from power supply
when not in use. Carry or push the unit with the motor stopped and the
extension cord disconnected from the power supply.
Store idle lawn mower indoors — When not in use, mower should be
stored indoors in a dry, locked place out of the reach of children. The
extension cord should also be removed and stored in a separate
location out of the reach of children.
Follow instructions for lubricating and changing accessories.
Keep guards in place and in working order.
Keep blades sharp.
Keep hands and feet away from cutting area.
Only allow responsible adults, who are familiar with the instructions, to
operate this machine.
Never operate machine in a closed area.
Never tamper with safety devices. Check for proper operation
regularly.
Save these instructions. Refer to them frequently and use them to
instruct others who may use this product. If you loan someone this tool,
loan them these instructions also.
GENERAL SAFETY
DOUBLE INSULATION – The mower has double insulation. This
means that all external metal parts are insulated from the electrical
supply. This is achieved by introducing an insulation layer between
electrical and mechanical parts. The double insulation guarantees
you the greatest possible safety.
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection
should be provided on the circuit or outlet to be used for the
mower. Receptacles are available having built-in GFCI protection
and may be used.
EXTENSION CORD. Make sure your extension cord is in good
condition. When using an extension cord be sure it is heavy
enough to carry the current your product will draw. An undersized
extension cord will cause a drop in line voltage resulting in loss of
power and overheating. The following table shows the correct size
to use depending on cord length and nameplate ampere rating. If
in doubt, use the next heavier gage. The smaller the gage number,
the heavier the cord.
WARNING: Use outdoor extension cords marked SW-A, SOW-A,
STW-A, STOW-A, SJW-A, SJTW-A, or SJTOWA. These cords are
rated for outdoor use and reduce the risk of electric shock.
WARNING:
The double insulated system is intended to protect the user from
shock resulting from a break in the tool’s internal insulation.
Observe all normal safety precautions to avoid electrical shock.
It is possible to tie the extension cord and power cord in a
knot to prevent them from becoming disconnected during
use. Make the knot as shown, then connect the plug end
of the power cord into the receptacle end of the extension
cord. This method can also be used to tie two extension
cords together.
WARNING:
Keep the extension cord clear of the working area. Position the cord so
that it will not get caught on lumber, tools, or other obstructions while you
are working with a power tool. Failure to do so can result in serious
personal injury.
Check extension cords before each use. If damaged replace
immediately. Never use product with a damaged cord since touching
the damaged area could cause electrical shock resulting in serious
injury.
RECOMMENDED SIZES OF EXTENSION CORDS
Your risk from exposure to these chemicals varies, depending on how
often you do this type of work. To reduce your exposure, work in a
well-ventilated area and with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic particles.
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov.
5
Model 51319-1
WARNING: California Proposition 65:
This product contains chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
WARNING: Some dust and debris created by the use of this tool
could contain chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm Some
examples of these chemicals are:
Chemicals in fertilizers
Compounds in insecticides, herbicides and pesticides
Arsenic and chromium from chemically treated lumber
GENERAL SAFETY

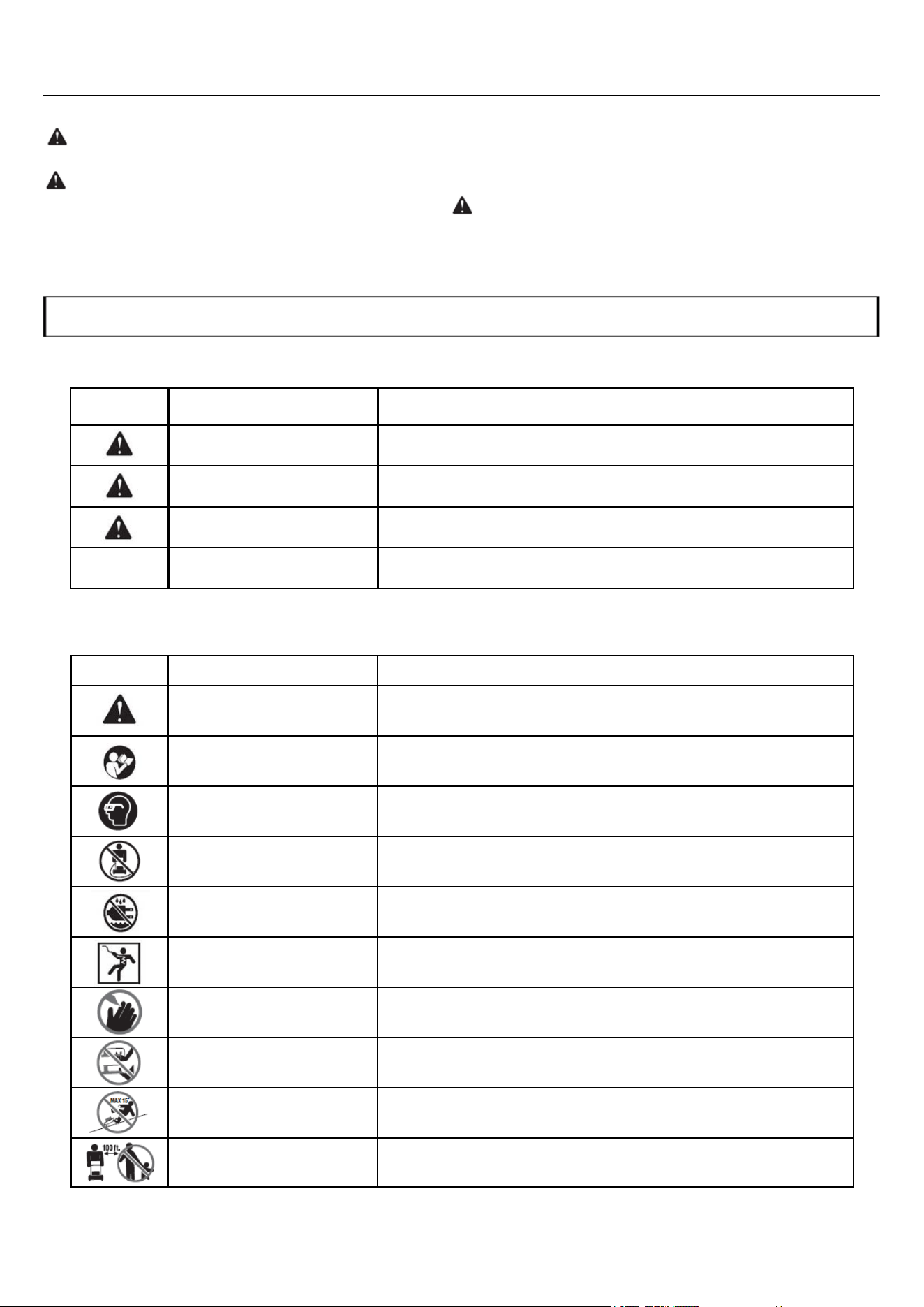

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the product better and safer.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SYMBOL NAME DESGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Owner’s Manual
To reduce the risk of injury, user must read and understand owner’s
manual before using this product.
Eye Protection
Always wear eye protection with side shields marked to comply with ANSI
Z87.1
Do Not Mow Over Electric
Cords
Risk of death or serious personal injury if power lines or electric cords are
contacted. Never operate mower over electrical sources, cords, or wires.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Electric Shock
Failure to use in dry conditions and to observe safe practices can result in
electric shock
Keep Hands and Feet Away Keep hands and feet away from blade and cutting area.
No Reach Do not reach hands or feet under mower deck.
No Slope
Do not operate on inclines greater than 15°. Mow across the face of
slopes, never up and down.
Keep Children and
Bystanders Away
Keep all children and bystanders at least 100 ft. away.
6
Model 51319-1
SYMBOL NAME DESGNATION/EXPLANATION
Ricochet
Th
rown objects can ricochet and result in personal injury or property
damage.
V
Volts Voltage
A
Amperes Current
Hz
Hertz Frequency (cycles per second)
W
Watt Power
hrs
Hours Time
Alternating Current Ty
pe of Current
No Touch
Wait until all machine components have completely stopped before
touching them
Class II Tool Doub
le-insulated construction
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the product better and safer.
FEATURES
PRODUCT SPECIFICATIONS
Model 51319-1
Motor………………………120V, AC only, 60Hz, 13 Amps
Cutting Path………..17 in. Mower Deck Width.……..19 in.
Height Adjustment - 6 Positions:
1) 1-inch 2) 1.5-inch 3) 1.75-inch 4) 2-inch 5) 2.5-inch 6) 3-inch
Wheel Size…………………...……….6.3 in. front, 7.8 in. rear

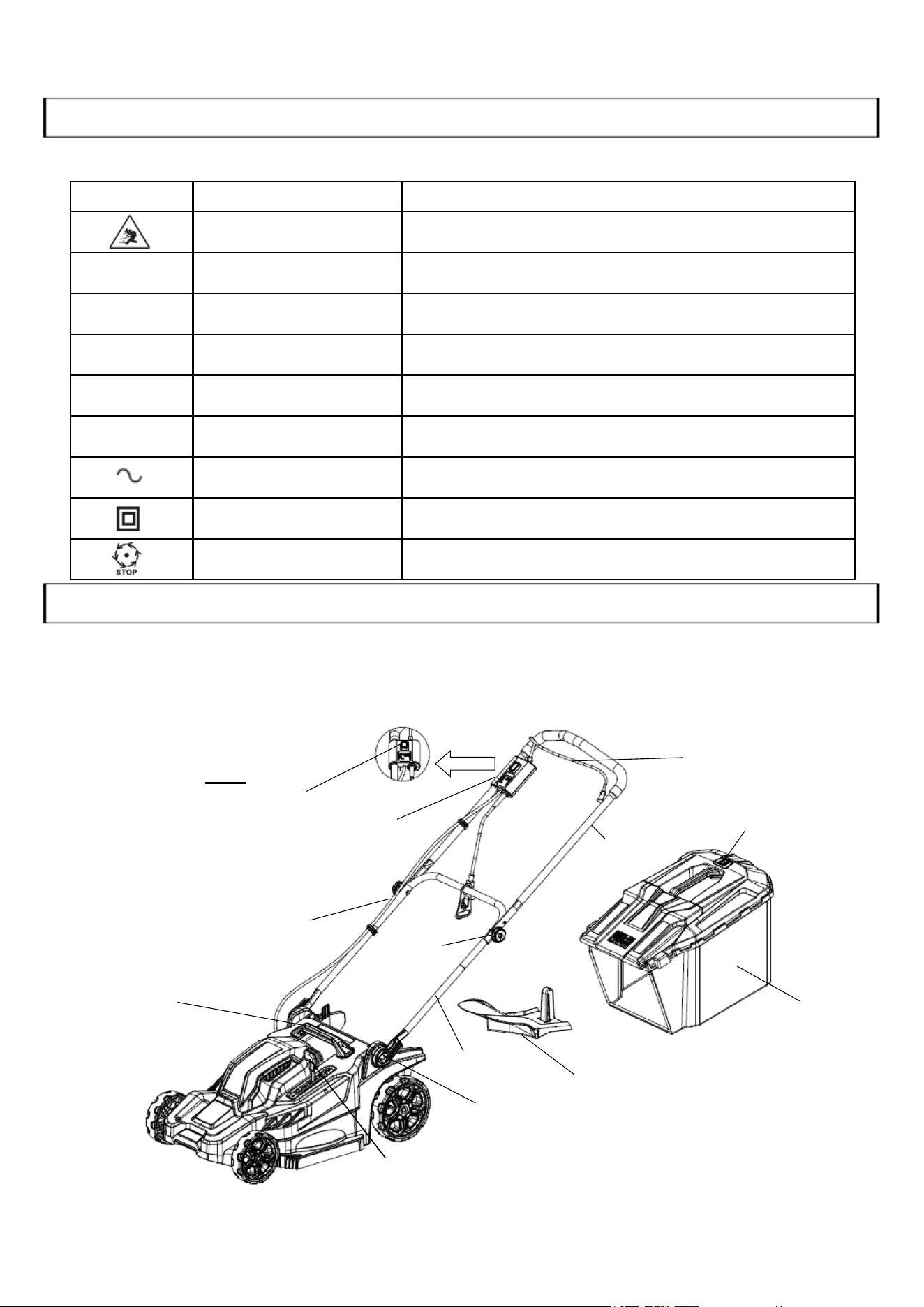

Fig.1
Fig. 1
Blade Control
Lever
Motor/
Blade
Control
Assembly
Start
Button
Upper
Handle
Power Cord
Grass Catcher
Mulching Plug
Height
Adjustment
Lever
Lower Handle
Carrying Handle
Lower Handle Lock
Upper
Handle
Lock Knob
Grass Collector
Full Indicator
7
Model 51319-1
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from the
box. Make sure that all items listed in the packing list are
included.
Inspect the product carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
(844) 531-3064 for assistance.
GRASS CATCHER
The grass catcher prevents grass clippings from being strewn
across your lawn as you mow.
HEIGHT ADJUSTMENT LEVER
The height adjustment lever provides cutting height
adjustments.
MOTOR/BLADE CONTROL ASSEMBLY
The motor/blade control, located on the upper handle of the
mower, engages and disengages the motor and blade.
MULCHING PLUG
Your mower is equipped with a mulching plug that covers the
rear discharge opening, which allows the mower blade to cut
and re-cut for finer clippings.
GRASS COLLECTOR FULL INDICATOR
Grass level indicator shows the volume of mowed grass.
KNOW YOUR LAWN MOWER
See figure 1
The safe use of this product requires an understanding of the
information on the product and in this owner’s manual as well as
a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety
rules.
ADJUSTABLE HANDLE HEIGHT
The handle features two different height adjustments.
CARRYING HANDLE
The lawn mower has a carrying handle for easy transport.
CORD RETAINER
A convenient cord retainer helps keep the extension cord
connection secure during AC operation.
WARNING:
Do not attempt to modify this product or create accessories not
recommended for use with this product. Any such alteration or
modification is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
If any parts are damaged or missing do not operate this product
until the parts are replaced. Failure to heed this warning could
result in serious personal injury.
FEATURES
ASSEMBLY
WARNING:
Do not use this product if any parts on the Packing List are
already assembled to your product when you unpack it. Parts
on this list are not assembled to the product by the
manufacturer and require customer installation. Use of a
product that may have been improperly assembled could
result in serious personal injury.
PACKING LIST
WARNING:
Do not connect to power supply until assembly is complete
and you are ready to mow. Failure to comply could result in
accidental starting and possible serious injury.
WARNING:
To prevent accidental starting, do not make any adjustments
or installations with the power supply connected. Accidental
starting of the mower during assembly could result in serious
personal injury.
WARNING:
Never operate the mower without the proper safety devices in
place and working. Never operate the mower with damaged
safety devices. Operating the mower with missing or
damaged parts can result in serious personal injury.
Description Quantity
Lawn Mower 1
Upper Handle Assembly 1
Lower Handle 1
Grass Catcher 1
Mulching Plug 1
Lower Handle Locking Bolts 2
Upper Handle Lock Knob 2
Upper Handle Lock Knob Bolts 2
Owner’s Manual 1
Cord Retainer 2
8
Model 51319-1

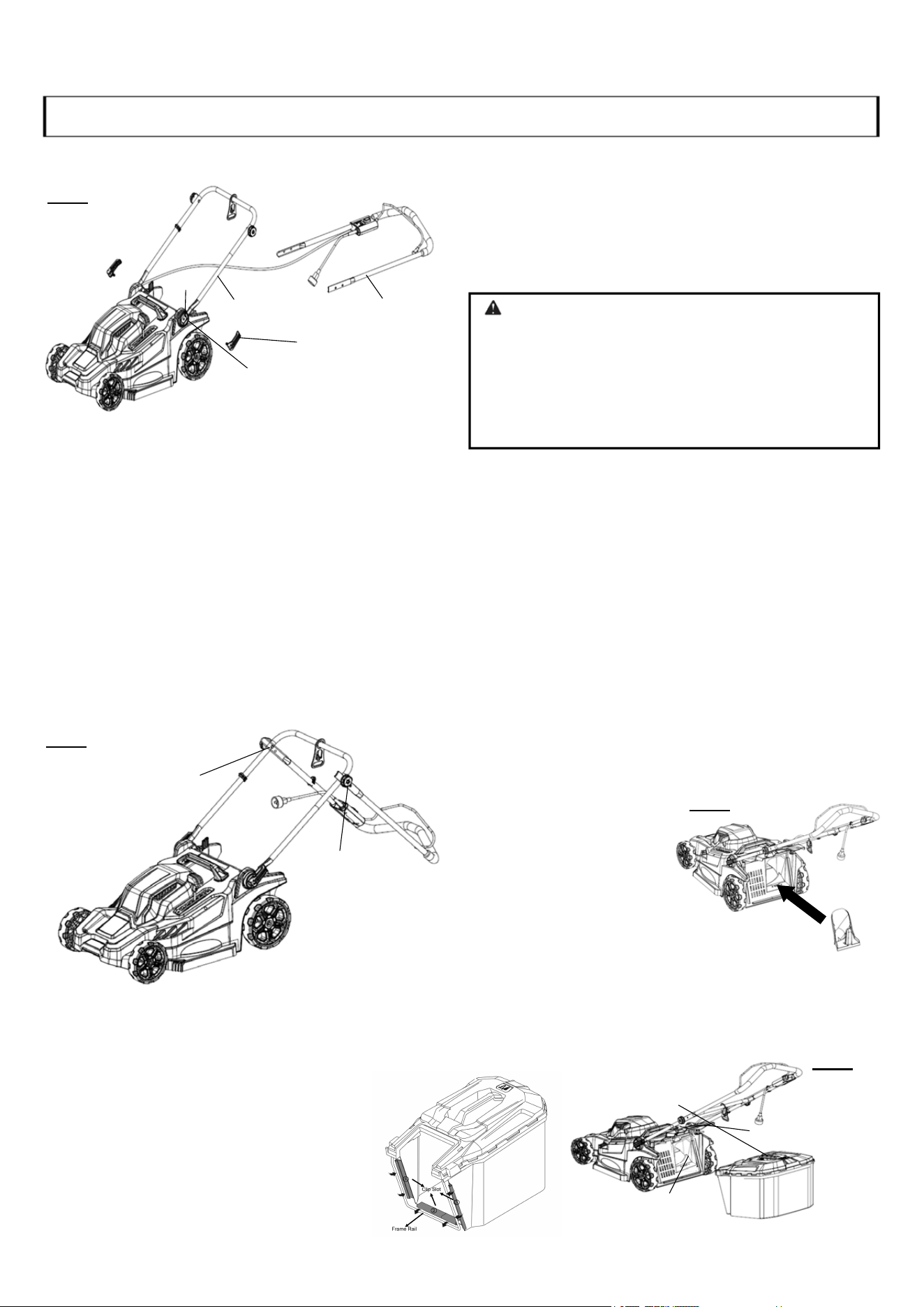

INSTALLING AND ADJUSTING HANDLE ASSEMBLY
See Figures 2 - 3
To install lower handle:
Locate the lower handle locks and handle lock bolts.
P
lace the upper handle assembly behind the mower as shown.
• A
lign the lower handle with the slot on the motor housing.
NOTE: Make sure the power cord is located inside and on top of
the handle.
Insert the lower handle lock bolt through the lower handle
lock and thread into the mower housing until the lower
handle lock is approximately 1/4 in. from the mower housing.
Rotate the lower handle loc
k bolt clockwise, and leave
enough space to allow the lock bolt to clamp against the
lower handle assembly. Continue to rotate the lock bolt
after clamped for further tightening if needed.
Repeat for the other side.
To install upper handle assembly:
Position the upper handle assembly over the lower handle as
shown in Fig.3, then insert the upper handle lock bolt from
inside and through the holes in both handles.
NOTE: The upper handle has two hole settings for
height adjustment. Make sure you use the same
height setting for each side.
Thr
ead the upper handle lock knob
from outside onto the lock bolt.
Repeat for other side.
ASSEMBLY
Pull up on the upper handle to raise it into operating
position. Make sure that the upper handle is seated in the
grooves at the top of the lower handle.
To secure the upper handle in place, tighten the upper
handle knobs. Avoid pinching or trapping any power cords.
NOTE: If the upper handle is loose or separated from the lower
handle, tighten the knobs on the upper handle locks by turning
them clockwise.
To fold the handle assembly:
Loosen the upper handle lock knobs.
NOTE: Loosen the knobs on the upper handle by
turning them counterclockwise.
Lower the upper handle. Avoid pinching or trapping any
power cords.
Release the lower handle lock.
Push outward on each side of the lower handle until it
is free from the slot.Then,fold the handle to the front
of the unit. Avoid pinching or trapping any power
cords.
INSTALLING THE MULCHING PLUG (Fig.4)
(For Mulching Operation)
NOTE: When using the mulching plug，do not install the
grass catcher.
Disconnect power supply.
Lift and hold the rear
discharge door.
Grasp the mulching plug
by its handle and insert
it at a slight angle, as
shown.
Push the mulching plug
securely into place.
Lower rear discharge
door.
Connect to power supply when you are ready to mow.
INSTALLING THE GRASS CATCHER
(For Rear Bagging Operation)
S
ee figure 5-6
DANGER:
Do not allow any part of the power cord on the mower or
extension cord to become pinched or trapped when
assembling or raising the handles. A pinched live power cord
can cause the handles to become electrically energized.
Contact with electrically live conductive parts will result in
death by electrocution, electric shock, and/or serious personal
injury.
Fig. 3
Upper Handle
Lock Bolt
Upper Handle
Lock Knob
Fig. 4
Fig. 5
Grass Catcher
Handle
Rear Discharge
Opening
Rear Discharge Door
Fig. 2
Upper Handle
Assembly
Lower Handle
Assembly
Lower Handle
Lock Bolt
Lower Handle
Lock
Slot
9
Model 51319-1
ASSEMBLY

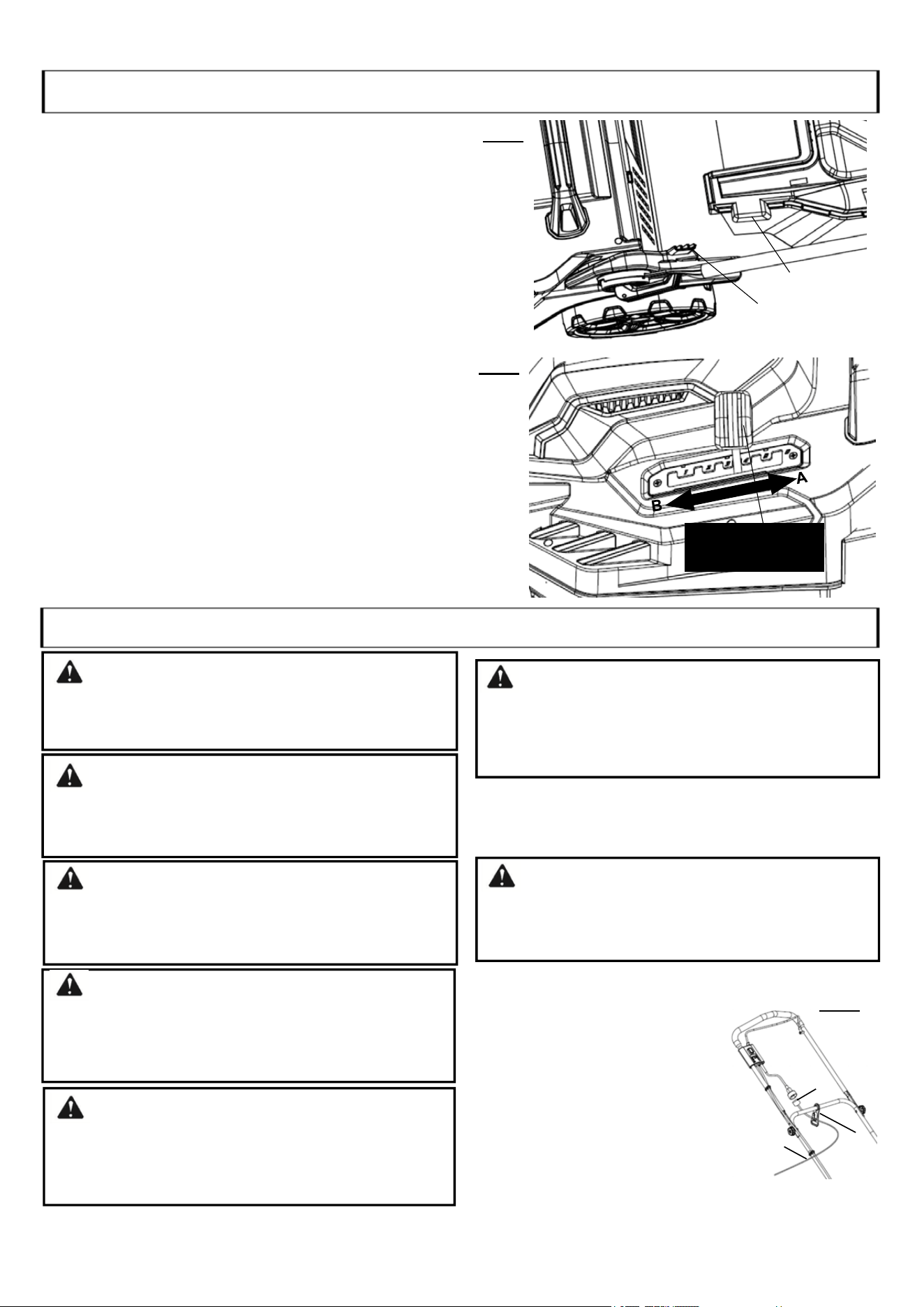

SETTING BLADE HEIGHT
See Figure 7
When shipped, the wheels
on the mower are set to a low-cutting
position (6 positions; 1) 1-inch 2) 1.5-inch 3) 1.75-inch 4) 2-inch
5) 2.5-inch 6) 3-inch). Before using the mower for the first time,
raise the cutting position to the height best suited for your lawn.The
average height setting for a healthy lawn should be between 1.5in
and 2in during cool months and 2in or higher during hot months.
To adjust the blade height:
Disconnect power supply.
To raise the blade height, press inward on the height
adjustment lever and move it toward the back of the mower.
A is the highest blade setting.
To lower the blade height, press inward on the height
adjustment lever and move it toward the front of the mower.
B is the lowest blade setting.
Connect to power supply when you are ready to mow.
OPERATION
DANGER:
Risk of death by electrocution
or electric shock or serious
personal injury if power lines or electric cords are contacted.
Never operate mower over electrical sources, cords or wires.
WARNING:
Do not allow familiar
ity with this type of product to make you
careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to comply
with ANSI Z87.1. Failure to do so could result in objects being
thrown into your eyes, resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not recommended
by the manufacturer of this product. The use of attachments or
accessories not recommended can result in serious personal
injury.
WARNING:
Always inspect mower for missing or damaged parts and blade
for damage, uneven, or excessive wear prior to use. Use of the
mower with damaged or missing parts can result in serious
personal injury.
WARNING:
Always disconnect from power supply when you are
assembling parts, making adjustments, cleaning, or when not
in use. Following these instructions will prevent accidental
starting that could cause serious personal injury.
APPLICATIONS:
You may use this product for the purpose listed below:
Mowing your lawn.
WARNING:
To avoid accidental starting that could result in serious
personal injury, always disconnect from power supply
when moving or transporting the mower.
INSTALLING / REMOVING EXTENSION CORD
See Figure 8
Insert the female end (C) of
the extension cord (A) into the
product as shown.
Connect the male end of the
extension cord to the power
source.
Make sure the extension cord
threads through the cord
retaining hook (B) before
beginning operation.
Fig. 7
NOTE:
When using the grass catcher,do not install the mulching plug.
Disconnect power supply.
Lift the rear discharge door.
Lift the grass catcher by its handle and place under the rear
discharge door so that the pins on the mower housing are
inserted into the plugs on the grass catcher.
Release the rear discharge door.
Connect to power supply when you are ready to mow.
Fig. 6
Plug
Pin
Height Adjustment
Lever
B
A
C
Fig. 8
Snap 1, 2 and 3 clip slots over the frame rail to secure the
grass catcher in place.
10
Model 51319-1
OPERATION

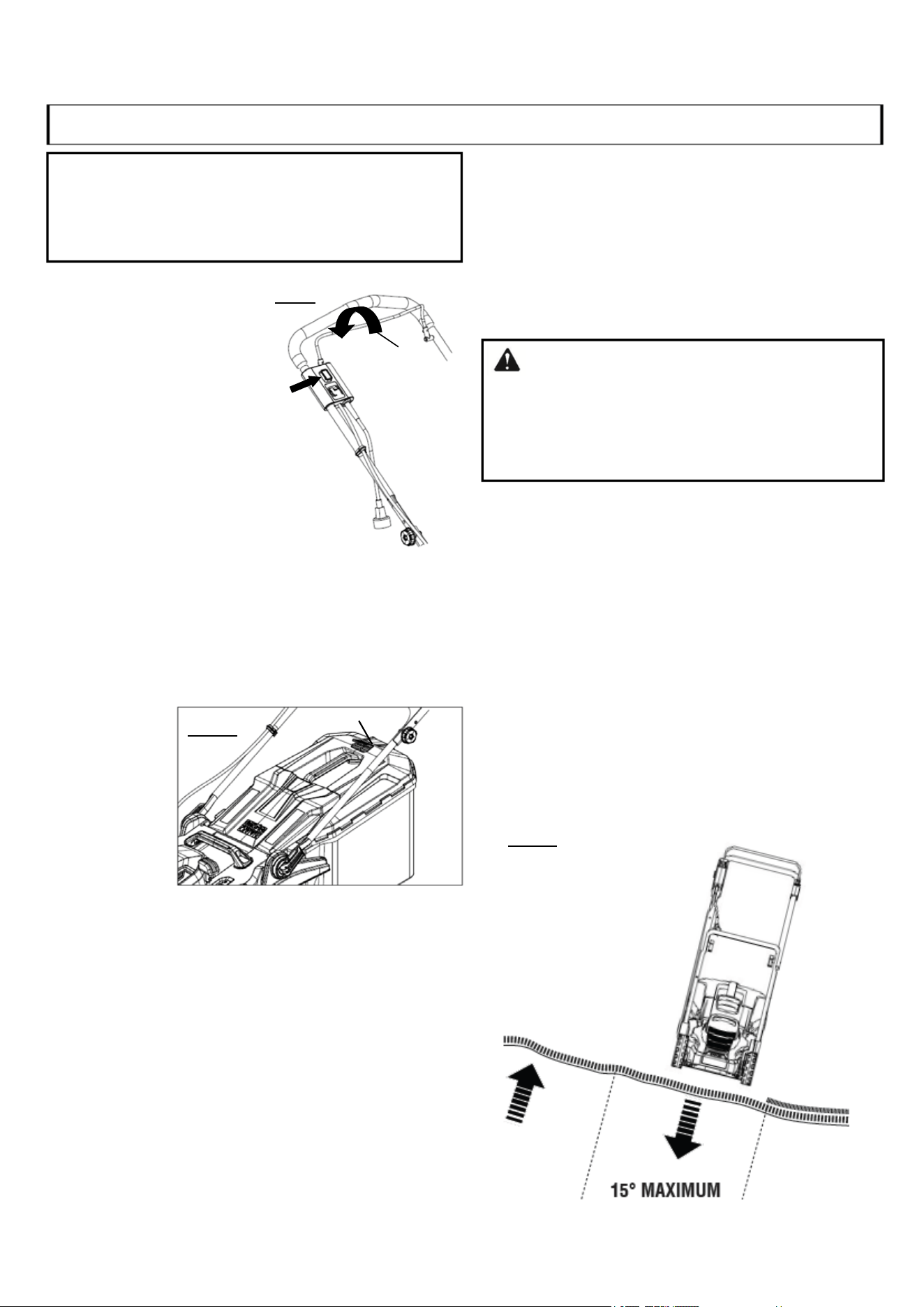

STARTING/STOPPING THE
MOWER
See figure 9
•
Connect to power supply.
(see figure 8)
Press and hold the start
button (A). Pull the blade
control lever (B) toward the
handle and release the
button to start the mower.
To stop the mower, release
the blade control lever (B).
NOTICE:
Always use cord retainer to properly attach extension
cord to lawn mower. Failure to use cord retainer may
result in damage to lawn mower and/or extension cord.
SLOPE OPERATION
See figure 11
Mow across the face of slopes, not up and down.
Exerci
se extreme caution when changing dire
ction
o
n slopes
.
Watch for holes, ruts, rocks, hidden objects, or
bump
s which can cause you to slip or trip. Tall grass
can hide obstacles. Remove all objects such as
rocks, tree limbs, etc., which
could be tripped over or
thrown by the blade.
Always be sure of your footing. A slip and fall can
c
ause serious personal injury. If you feel
you are
losin
g your balance, releas
e the switch control bail
wire imm
ediat
ely.
Do not mow near drop-offs, ditches, or
embank
ments; you could lose
your footing or
balan
ce.
WARNING:
Slopes are a major factor related to slip and fall
accidents that can result in severe injury. Operation on
slopes requires extra caution. If you feel uneasy on a
slope, do not mow it. For your safety, do not attempt to
mow slopes greater than 15 degrees.
MOWING TIPS
Make sure the lawn is clear of stones, sticks, wires and
other obj
ects that could damage the lawn mower
blades or motor. Such objects could be acciden
tally
thrown by the mower in any direc
tion and cause
serious personal injury to the operator a
nd others.
For a healthy lawn, always cut off one-third or less of
the total length of the grass.
When cutting heavy grass, reduce walking speed to
allow for m
ore effective cutting and a proper discharge
of the clipping
s.
Do not cut wet grass. It will stick to the underside of the
deck an
d prevent proper mulching of grass clipping
s.
New or thick grass may require a narrower cut.
Fig. 11
Fig. 9
A
B
GRASS COLLECTOR FULL INDICATOR
See figure 10
Grass level indicator shows the volume of mowed grass.
When the grass catcher is not full, the indicator floats
during mowing.
When the grass catcher is full, the indicator doesn’t
float during mowing. In this case, stop mowing
immediately
and empty
the collector.
After
emptying the
grass
catcher,
clean it so
that its
meshwork
vents the air.
Clean the underside of the mower deck after each
use to remove grass clippings, leaves
, dirt and any
other a
ccumulated deb
ris.
NOTE: Alway
s stop mower, allow blades to completely
stop, and disconnect power supply before cleani
ng
un
derneath the mower.
Fig. 10
Indicator
11
Model 51319-1
OPERATION
MOWING TIPS
NOTE: Inspect the area where the mower is to be used,
and remove all stones, sticks, wire, bones, and other
debris that might be thrown by the rotating blade.
Release the blade control lever to turn the mower
OFF when crossing any graveled area (stones can be
thrown by the blade).
Set mower to the highest cutting height when mowing
on uneven ground or in tall weeds.
Walk at a steady pace. Overlap the cutting rows. Do
not let the grass get too tall. If the grass gets too long,
start at the highest cutting position and work down to
the desired cutting height.

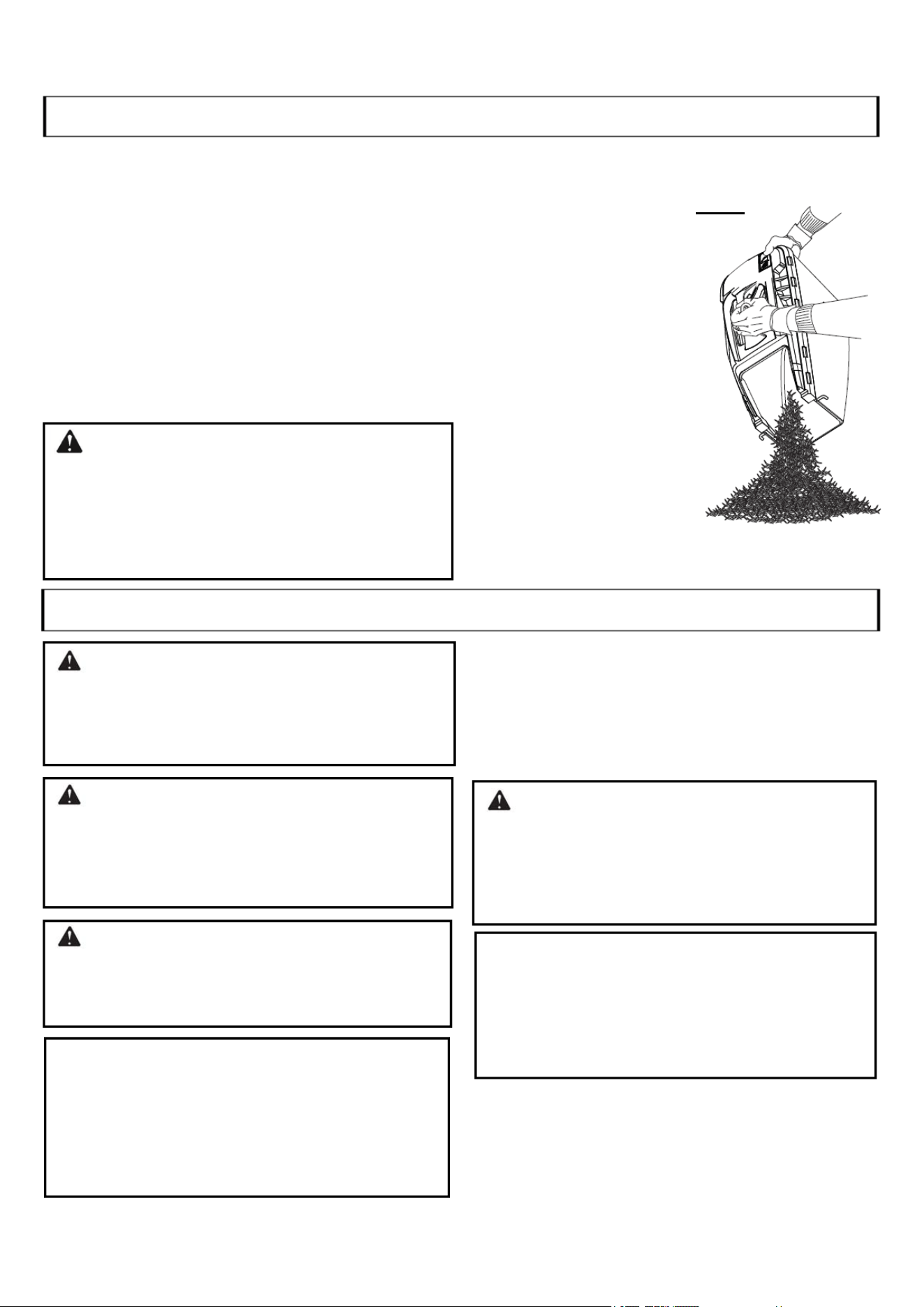

EMPTYING THE GRASS CATCHER
See figure 12
WARNING:
If you strike a foreign object, stop the motor. Thoroughly
inspect the mower for any damage. Repair any damage
before operating the mower. Excessive vibration of the
mower during operation is an indication of damage.
Thoroughly inspect the mower and repair any damage
before operating the mower.
MAINTENANCE
WARNING:
Before performing any mai
ntenance, make sure the
power supply is disconnected to avoid accidental
starting and possible serious personal injury.
WARNING:
Always wear eye protec
tion with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING:
When se
rvicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
NOTICE:
Periodically inspect the entire product for damaged,
missing,
or loose parts such as screws, nuts, bolts,
caps, etc. Tighten securely all fasteners and caps and
do not operate this product until all missing or damaged
parts are replaced. Please contact customer service or
an authorized service center for assistance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, ga
soline, petroleum
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken, or
destroy plastic which may result in serious personal
injury.
NOTICE:
Never use a hose, water, or any liquids to clean the
lawn mower, as water can damage electronic
components. Remove any buildup of grass and leaves
on or around the motor cover. Wipe the mower clean
with a dry cloth occasionally.
Periodically check all nuts and bolts for proper tightness
to ensure safe operation of the mower.
Fig. 12
• Stop mower and allow
blades to completely stop.
• Disconnect power s
upply.
• Lift the rear discharge door.
• Lift the grass catcher by its
handle to remove from mower.
• Empty grass clippings.
• Lift the rear discharge door and
reinstall the grass catcher (see
figure 5) as described earlier in
this manual.
• Connect to the power supply
when you are ready to mow.
12
Model 51319-1
WARNING:
Always p
rotect hands by wearing heavy gloves and/or
wrapping the cutting edges of the blade with rags and
other material when performing blade maintenance.
Failure to heed this warning could result in serious
personal injury.
LUBRICATION
All of the bearings in this product are lubricated with a
sufficient amount of high grade lubricant for the life of the
unit under normal operating conditions. Therefore, no
further bearing lubrication is required.
MAINTENANCE
REPLACING THE CUTTING BLADE

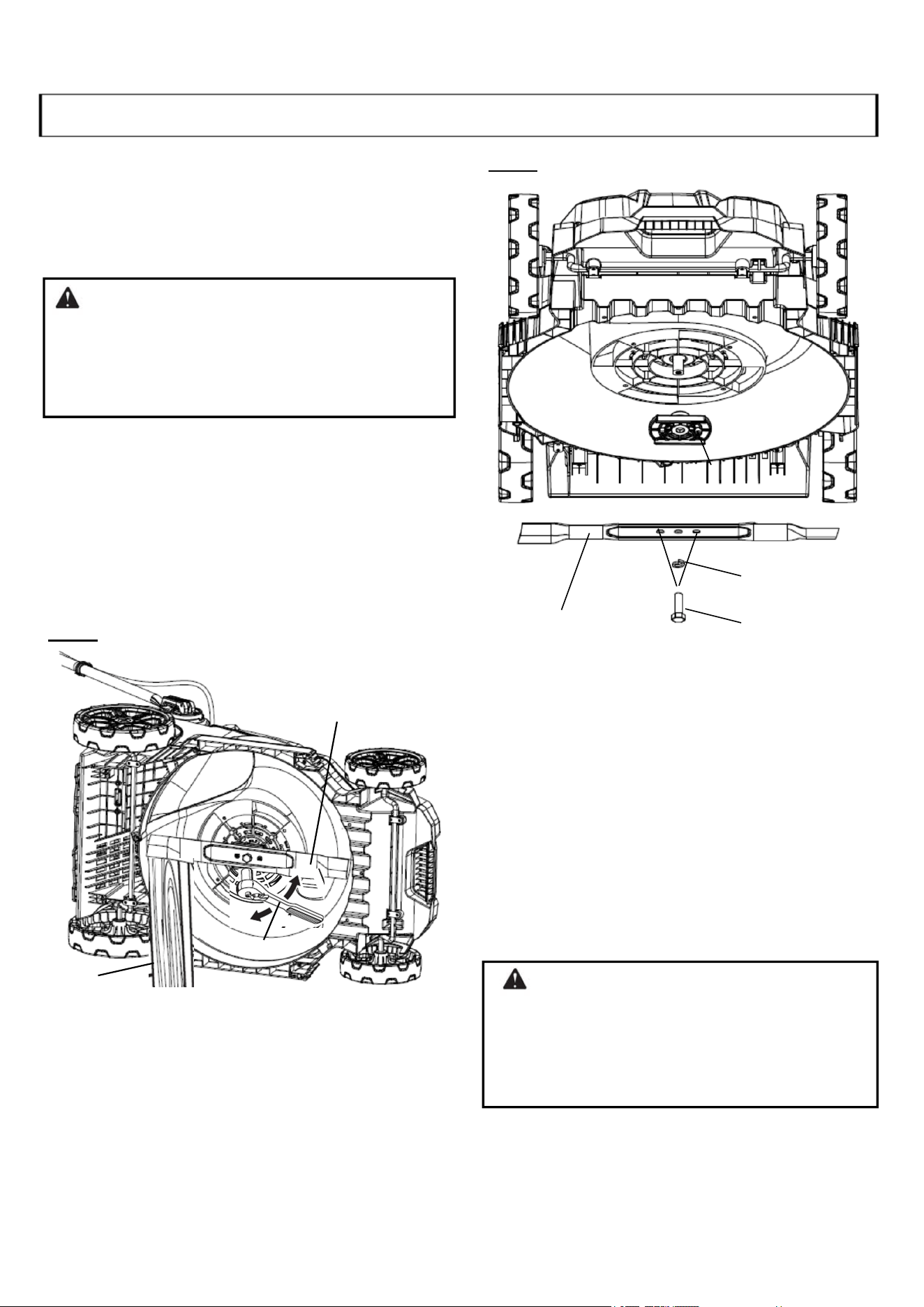

See figures 13-14
NOTES: Only use identical replacement blades.
• Stop the motor. Allow the blade to come
to a complete stop.
• Disconnect the power supply.
• Turn the mower on its side.
Install the new blade (B). Ensure blade is properly
seated with the two blade posts (A) inserted into the
holes (C) on the blade. Make sure it is installed with
the curved ends pointing up toward the mower deck
and not down toward the ground. When seated
properly, the blade should be flat.
Reinstall the washer (E) and blade bolt (D) and fin-
ger tighten.
NOTE: Make certain all parts are replaced in the exact
order in which they were removed.
Torque the blade bolt down CLOCKWISE using a
torque wrench (not provided) to ensure the bolt is
properly tightened. The recommended torque for
the blade nut is 350-400 in. lbs.
WARNING:
Ensu
re blade is properly seated and the blade blot is
tightened to the torque specifications above. Failure to
properly attach the blade could cause it to come loose
or detach and result in possible serious personal
injury.
Fig. 14
Wedge a block of wood (C) between the blade (A) and
mower deck to prevent the blade from
turning.
Loosen the blade bolt by turning it COUNTERCLOCK
WISE (as vie
wed from bottom of the mower) u
sing a
wrench or
socket (B) (not provided).
Remove the blade bolt and blade.
Fig. 13
A
C
B
B
D
C
A
E
13
Model 51319-1
SHARPENING THE BLADE

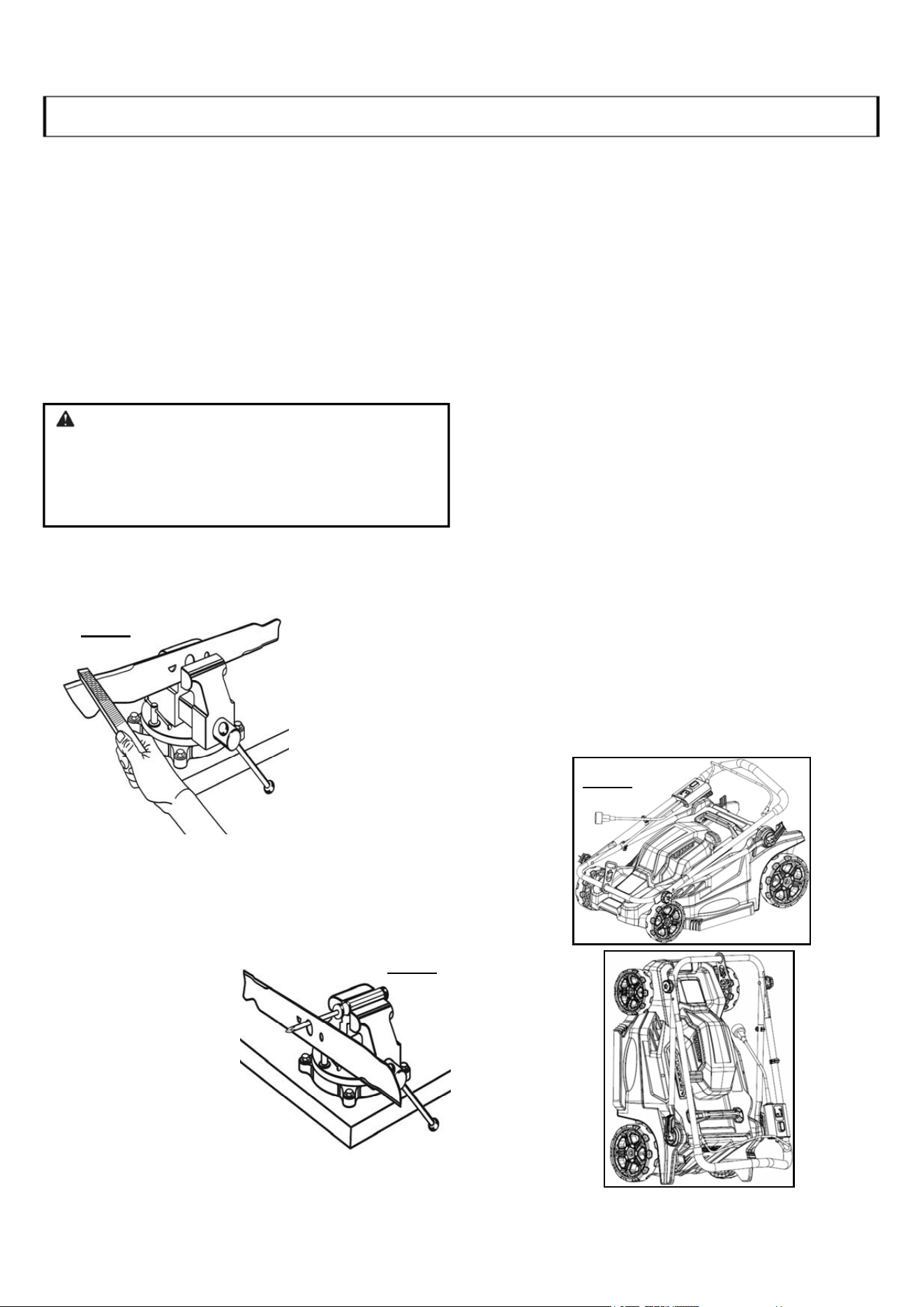

See Figure 15
For best mowing performance, the mower blade must be
kept sharp. A dull blade does not cut grass evenly and
overloads the motor. Under normal circumstances,
sharpening the blade twice during the mowing season is
usually sufficient. However, if your lawn has sandy soil,
more frequent sharpening's may be required.
Following the instructions in the Replacing the
Cutting Blade section, remove the mower blade. DO
NOT attempt to sharpen the blade while it is attached
to the mower.
Using a fine tooth file or stone, sharpen cutting edges
on both ends of the blade, removing equal amounts of
material from both ends.
BALANCING THE BLADE
See Figure 16
When sharpening, care should be taken to keep the blade
balanced. An unbalanced blade will cause excessive
vibration when the mower is running. This vibration will
eventually cause damage
to the mower, especially
the motor.
To check blade balance:
Clamp a screwdriver
horizontally in a vise as
shown.
NOTE: If a vise is not
available, a straight nail
can also be used.
WARNING:
When removing, inspect the blade carefully. If blade is
bent or damaged, replace immediately with a new blade.
Failure to replace a bent or damaged blade could cause
an accident resulting in possible serious injury.
MAINTENANCE
Place the center hole of blade on the screwdriver
(or nail) shank.
If blade is balanced, it will remain in a horizontal
position. If either end of the blade drops downward,
sharpen the heavy side until the blade is balanced.
Fig. 15
STORING THE MOWER (both Vertically and
Horizontally)
See Figure 17
Disconnect power supply, and store in a secure
location out of the reach of children.
Before storage, wipe any dirt or debris.
Turn mower on its side and clean grass clippings
that have accumulated on the underside of the
mower deck.
Wipe the mower clean with a dry cloth.
Check all nuts, bolts, knobs, screws, fasteners, etc.,
for tightness.
Inspect moving parts for damage, breakage and
wear. Have repairs made on any damaged or
missing parts. Check blade for damage, uneven or
excessive wear and replace blade if these
conditions exist.
Lower the handle assembly as described earlier in
this manual.
Store mower indoors in a clean, dry place out of the
reach of children.
Do not store near corrosive materials such as
fertilizer or rock salt.
Fig. 16
Fig. 17
Horizontally
Vertically
14
Model 51319-1
Problem Possible cause Solution
Handle not in position Carriage bolts not seated properly.
Handle knobs not tightened.
Adjust the height of the handle and make
sure the carriage bolts are seated properly.
Tighten handle knobs.
Mower not starting. Power supply not connected. Connect to power supply.
Mower cutting grass
unevenly.
Lawn is rough or uneven.
Cutting height is not set properly.
Check mowing area.
Move the wheels to a higher setting.
Mower hard to push. High grass, rear of mower housing and
blade dragging in heavy grass, or cutting
height too low.
The rear of the grass catcher is dragging
in thick grass.
Raise cutting height.
Empty grass clippings from the grass catcher.
Mower vibrating at higher
speed.
Blade is unbalanced.
Bent motor shaft.
Balance the blade by grinding each cutting
edge equally.
Stop the motor, remove battery, and inspect
for damage. Have repaired by an authorized
service center before restarting.
Motor stops while cutting. Cutting height set too low. Raise the cutting height.
TROUBLESHOOTING
CALL US FIRST !!
Call us first with questions about operating or maintaining this product at (844) 531-3064
between 8:00 a.m. – 5:00 p.m. Easter
n Standard Time, or get assistance on
mytoolsupport.com/yardworks
15
Model 51319-1
PARTS AND SERVICE
For parts or service, please call (844) 531-3064 or visit us online at mytoolsupport.com/yardworks
Be sure to provide all relevant information when you call or visit.
REPAIR PARTS (KITS/ ITEMS)
The model/ serial number of this tool is found on a plate or label attached to the housing. Please
record the serial number in the space provided below.
MODEL NUMBER 51319-1_______
SERIAL NUMBER________________
Always mention the model number when ordering kits/items for this tool.
CALL US FIRST !!
Call us first with questions about operating or maintaining this product at (844) 531-3064
between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on
mytoolsupport.com/yardworks
No. Kit/Item Number Description
1 EM1319-HHK-1 Handle Hardware Kit
2 EM1319-HKL-1 Lower Handle Kit
4 EM1319-FWK Front Wheel Kit
3 EM1319-RWK Rear Wheel Kit
5 EM1319-RB Blade
6 EM1319-MP Mulch Plug
7 EM1319-GC Grass Catcher
OWNER’S MANUAL
19 in. ELECTRIC LAWN MOWER
Copyright. All Rights Reserved.
Model 51319-1 | SKU# 270-1160
Rev. 12/2/2024
YARDWORKS WARRANTY POLICY
The Great States Corp. (GSC) warrants to the original owner that this Yardwork product and service part is free from defects in
materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.
American Lawn M
ower Company
The Great States Corporation
7444 Shadeland Station Way
Indianapolis, IN 46256, USA
Phone (844) 531-3064
mytoolsupport.com/yardworks
2 YEAR LIMITED WARRANTY on all Yardworks power tools. From the original date of purchase when used for personal,
household, or family use.
In a continued commitment to improve quality, the Manufacturer reserves the right to
make component changes or design changes when necessary.
Warranty vo
ided if used for commercial or industrial purposes or any other improper use as determined by GSC.
Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product beyond capacity or
immersion in water), or the failure to assemble, operate, maintain or store the product according to the instructions in the owner’s manual.
This warranty does not cover
Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains, mulching blades,
blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure hoses, wheels, handles, augers, worn
bags, power cables, and other items subject to wear over time.
Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme temperature swings (hot
or cold), battery left on charger too long, battery left uncharged for too long, and misuse or abuse of the battery.
This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.
This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products including, but not limited
to scratches, cracks, dents, or damage caused by outside chemicals.
This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This warranty does not apply
to any product, new or used, purchased through unauthorized third-party channels. For information on authorized dealers, contact our
customer support hotline at 1-844-531-3064 (Mon-Fri 8am-5pm Est)
Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of the products is not
covered by the warranty.
The warranty does not include installation, assembly or normal adjustments explained in the owner’s manual. The expense of delivering
the product to the vendor and the expense of returning the product or replacement parts to the owner is not covered by the warranty.
Additional Warranty Limitations
Some states do not allow the ex
clusion or limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
Products sold damaged or incomplete, sold ―as is, or sold as reconditioned are not covered under the warranty.
Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring, improper maintenance,
improper modification or the use of accessories and/or attachments not specifically recommended is not covered by this warranty.
Pro
o
f of purchase, original dated sales receipt, must accompany all warranty claims.
For claims go to mytoolsupport.com/yardworks or call our customer support hotline
from 8am-5pm EST, Mon-Fri at (844) 531-3064
