Technical Support and E-Warranty Certificate www.vevor.com/support
CORDLESS PRESSURE WASHER
MODEL:XS-002
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:XS-002
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CORDLESS PRESSURE
WASHER
- 2 -
PRODUCT PAREMETERS
PRODUCT INTRODUCTION
Based on the principle of user experience first, quality first, the pursuit of
convenience, fast, portable, energy-saving and other superior characteristics, for
the majority of car-loving people and home cleaning and washing and customized
development of a product, At the same time, the product is not limited by power
supply, with strong and stable battery.Product can be carried with you, multi-scene
application, anytime, anywhere for you to save time, save cleaning costs, high
efficiency to bring DIY washing fun and quality experience.
Model
XS-002
MAX Working Pressure
580PSI
MAX Flow Rate
4L/min
Rated Power
220W
Usable Laundry Detergent
Neutral Detergent
Battery
Battery Type
Lithium Battery
Voltage
DC21V
Capacity
4000mAh
Charger
Input Voltage
AC 100-240V 50/60 Hz
Output Voltage
DC21V 0.75A
Charging Time
5 hours
Min.Suction Height
3M
FCC statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1)This device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that
may cause undesired operation.
- 3 -
PACKING LIST
XS-002
1. Fuselage Shell
2. Universal Sprinkler Head
3. Nylon Extension Rod
4. Charger
5. 4.0Ah Battery
6. Coke Bottle Connector
7. Filter Screen
8. Multi-Functional Six-In-One Sprinkler Head
9. Foam Pot
10. 6M Water Inlet Pipe
11. Mesh Storage Bag
SAFETY & WARNING
When using electrical appliances, base safety precautions should always be
followed including the following:
READ ALL INSTRUCTIONS
- 4 -
1．Use shall not direct water flow to the crowd and live components.
2．Ensure that children are not exposed to the range area when the battery pack
is charged.
3．Battery pack and charger are hit by drop collision or wet visible state should be
stopped immediately!
4．Must charge the battery pack in the presence of someone!
5．Chargers must choose the original factory (without authorization or the original
factory's proposal to prohibit the use of other charging accessories or charging
methods.
6
．
Charging environment is prohibited in high temperature or unattended or
accessible locations for children.
7
．
Unscheduled product inspection, charger, battery pack, car washing machine
mainframe, if abnormal or damaged or malfunction do not modify or disassemble.
8
．
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Safety precautions for battery pack:
1．Do not disassemble, open or shred battery sets.
2．It is forbidden to expose battery pack to heat source or high temperature
sunlight.
3．Do not short circuit the battery pack (positive and negative connection), do not
put the battery pack in the box drawer to avoid short circuit between them or by
other metal items.
4．Do not remove the battery or battery pack from the original package before use
5．Prohibit battery packs from falling or mechanical impact.
6．Once the battery leaks, do not touch the leaking liquid directly into the eyes or
skin. In case of accidental contact, rinse the contact area immediately with plenty
of water and consult a doctor in time.
- 5 -
7．Shall not use non-original charger and battery pack. (Causes machine
malfunction or accidental personal injury)
8
．
Pay attention to the positive and negative signs on the battery pack to ensure
proper connection.
9
．
Keep the machine and battery pack group away from children.
10．Ensure clean and dry battery pack. (If dust or residual water should be
immediately wiped with clean cloth or natural air drying, do not use hair dryer or
hot air gun drying)
11
．
The battery pack must be charged before use, using the correct charger and
referring to the manufacturer's operating instructions or the original equipment
instructions
12
．
Not using the machine, do not charge the battery pack for a long time, pay
attention to the green light is full of electricity, red light is in charge.
13
．
In case of long-term storage of unused machines, battery packs should be
subjected to several charge/discharge cycles to achieve optimal performance.
14
．
The use of battery pack groups at room temperature (20
°
C +5
°
C) performs
best.
15
．
This product is only suitable for home doors and windows, courtyard, vehicles,
garden cleaning operations, not for commercial operations or main frequency flow
operations, not higher than the battery group use time or high frequency forced
use.
16
．
Remove the battery pack whenever possible when not using the machine,
disconnect from the mainframe and place it in a dry place not accessible to
children.
17．Battery pack group due to other human damage or collision, high temperature
damage, reasonable treatment and recovery, do not discard the contaminated
environment.
SAVE THESE INSTRUCTIONS
- 6 -
INSTALLATION GUIDELINE
Open the box to check whether the machine is in good condition and whether it is
the corresponding model for purchase. Then take out the attachment one by one
and place it in the plane. Install and use according to the operation procedure!
Note：If there is water in the machine, please don't get upset. The product is
not second-hand. In order to ensure that you receive a product that is in
perfect condition, each of our products undergoes a pumping test before
leaving the factory.
Step 1: Install/Remove the battery.
(After receiving the product, please charge the battery pack first. The red light
is the charging state, and the green light is the full state. Charging time is about
6-7 hours. please do not overcharge)
(1) Install the battery. As shown in the picture, snap the battery onto the body.
(2) Remove the battery. Press the blue button to push out the battery.
- 7 -

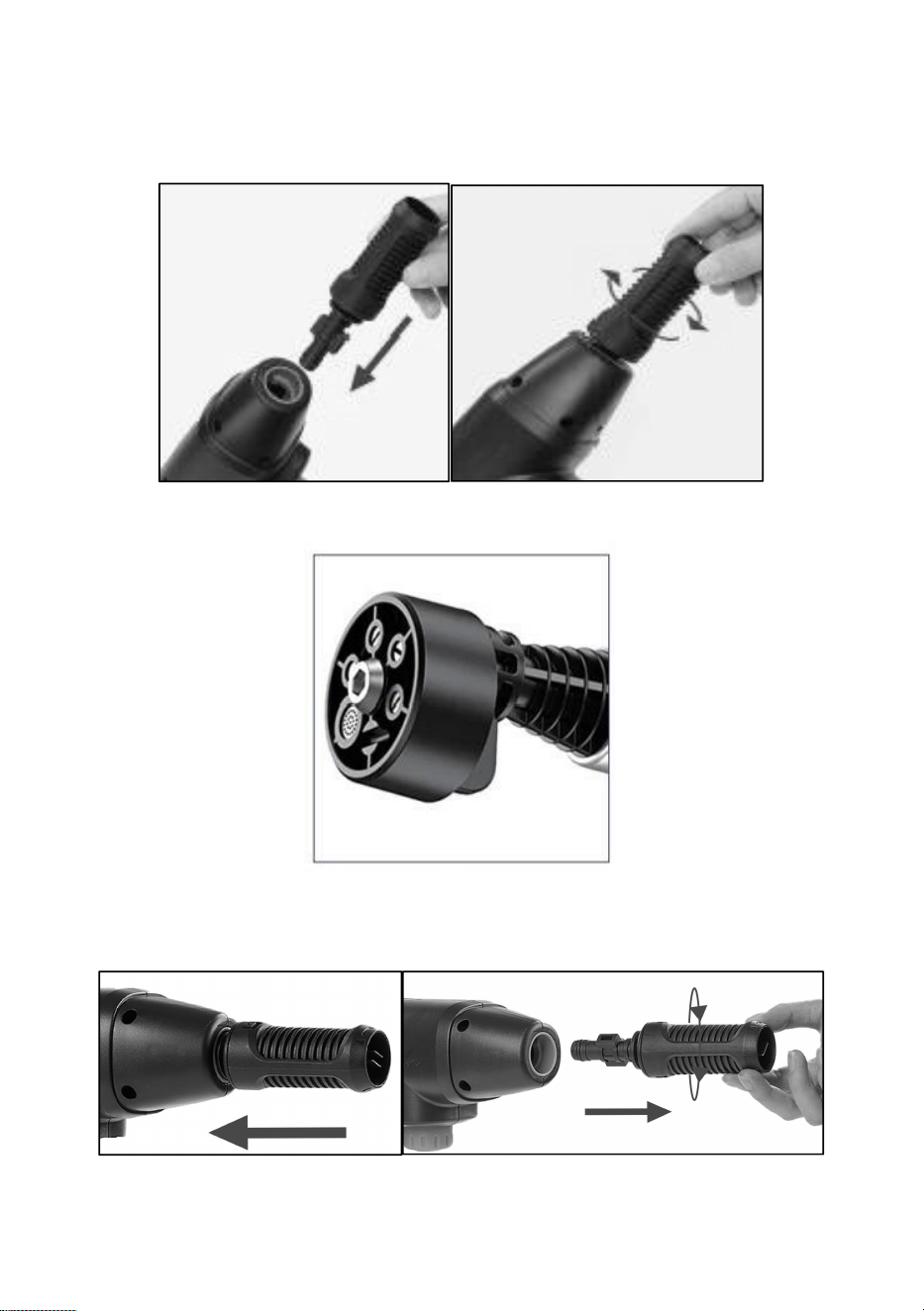

Step 2: Installation/Disassembly of Nozzles.
(1) Attach nozzles directly to the body without using extension pole and rotate it
firmly.
Tips: 6-in-1 nozzle is the same installation operation.
(2) Disassembly of Nozzle.
Turn the nozzle 180° counterclockwise and force the
nozzle
out.
- 8 -

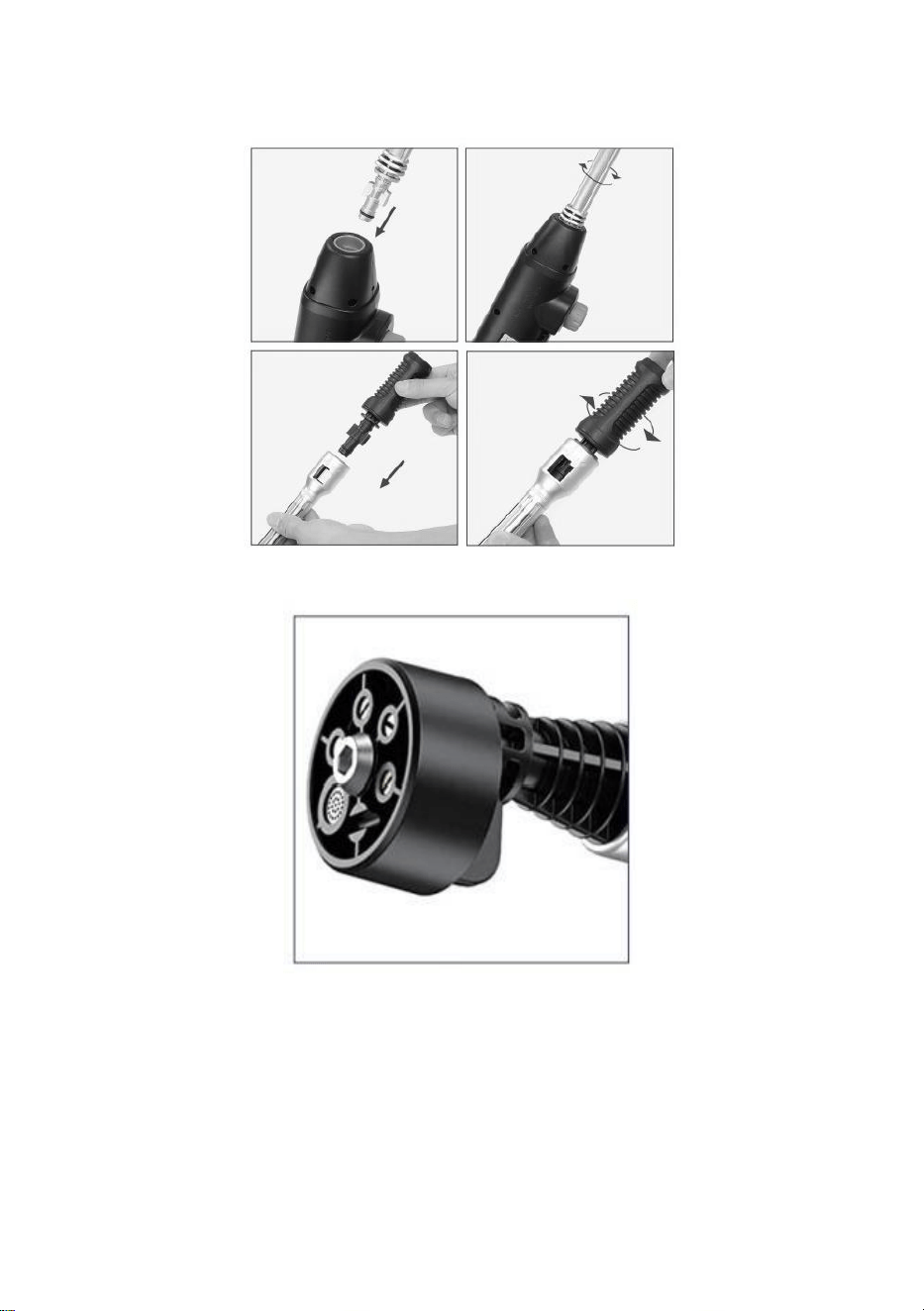

(3) Nozzle installation with extension pole and rotate it firmly. First install the
extension pole on the body, and then turn the nozzle on the extension pole.
Tips: 6-in-1 nozzle is the same installation operation.

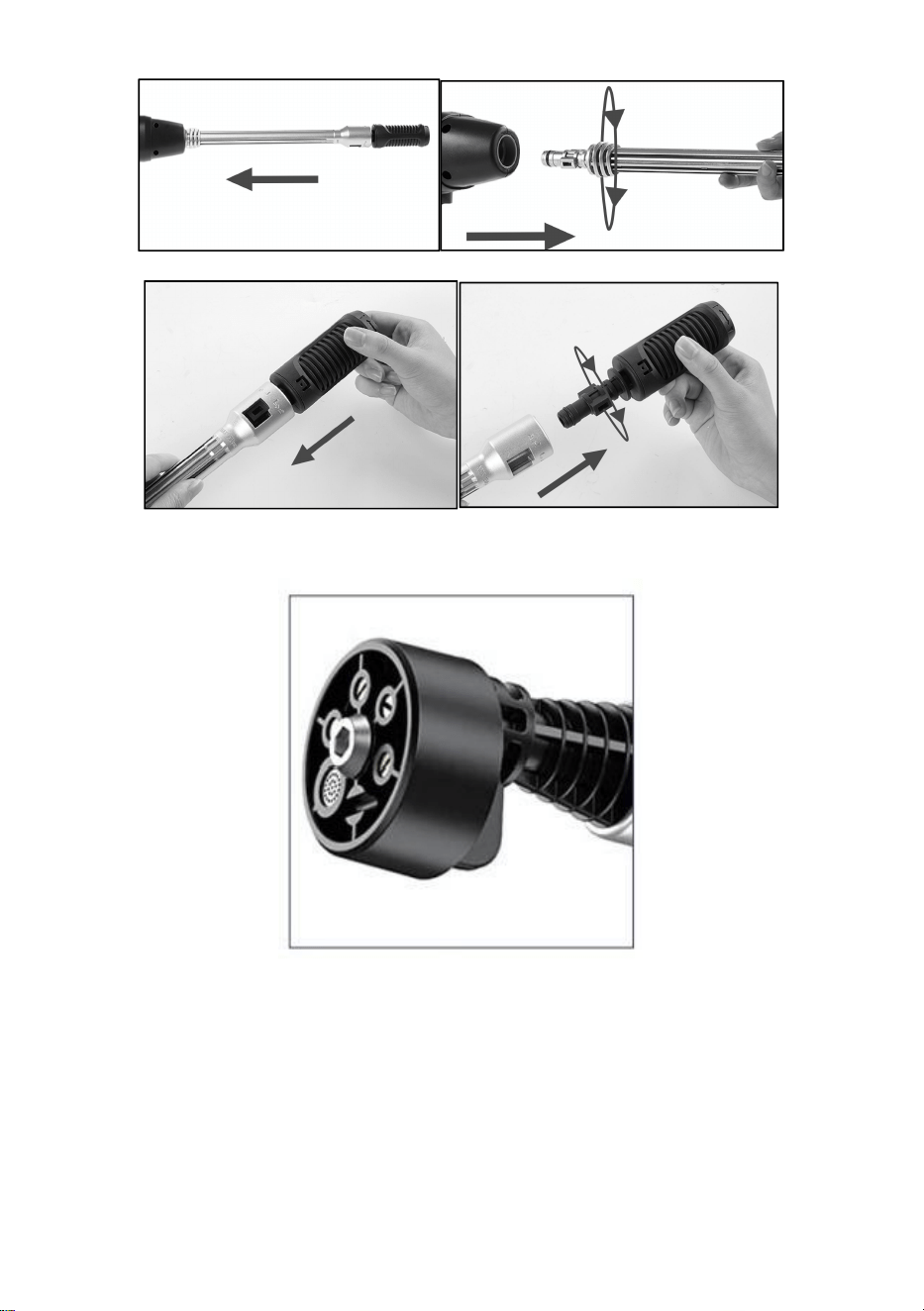

(4) Disassembly of the Nozzle with Extension Pole.Turn the extension pole
counterclockwise, pull the extension lever out of the body with force, and then
remove the nozzle from the extension pole.
Tips: There should be a pressing action when removing, then rotate the nozzle
and extension lever simultaneously.
- 9 -
Tips: 6-in-1 nozzle is the same installation operation.

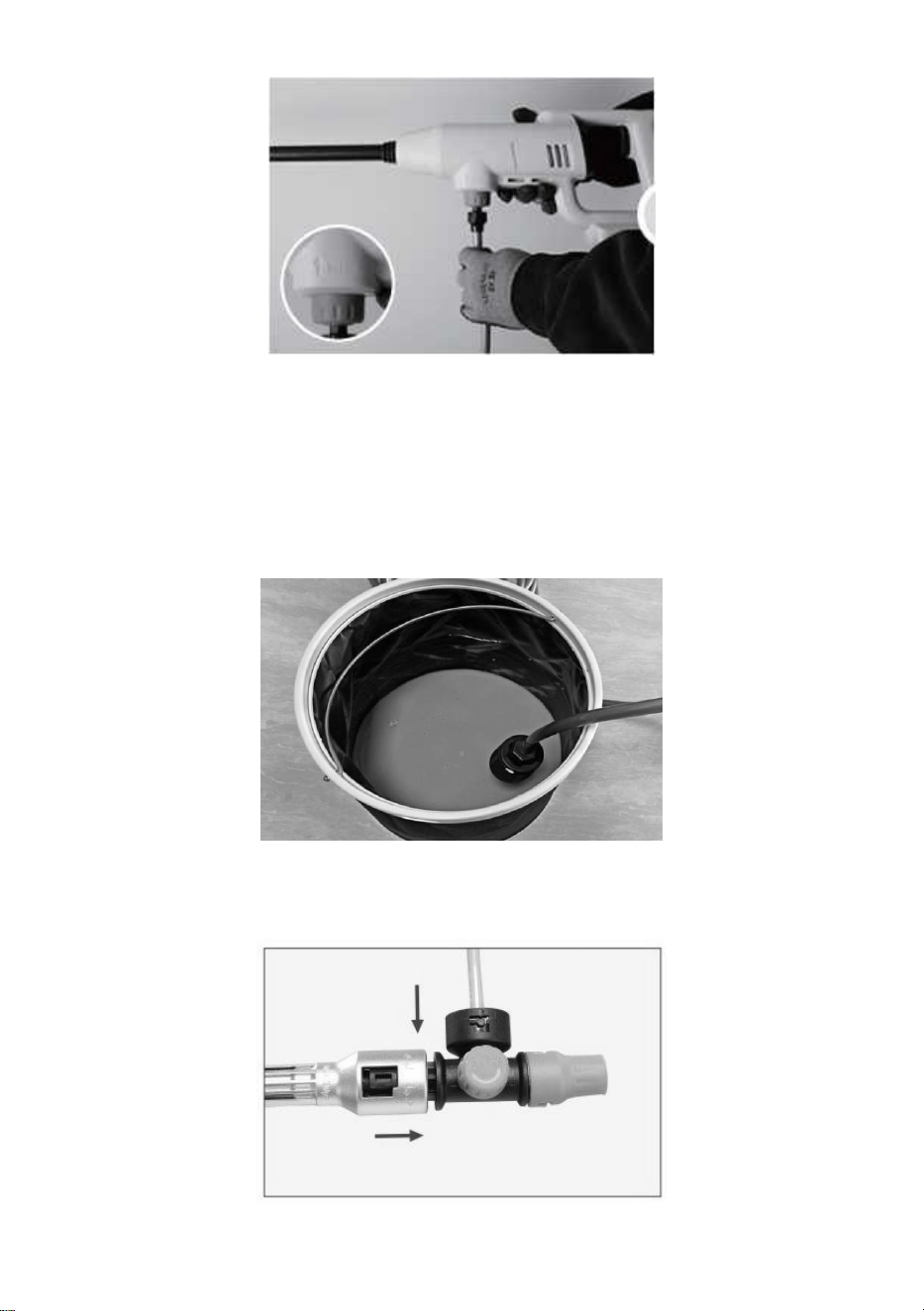

Step 3: Insetthe inlet hose connectorinto the bodyas shown.
(The connector contains a sealing ring to check if it is in good condition.)
Note: If it is not installed in place, the pressure washer will not absorb water.
- 10 -
Step 4: Put thefilternet on the otherend of the inlethoseinto watersource.
The filter must be completely immersed in water. If the filter floats on the water
surface, air will enter the water pipe and the machine cannot be used normally.
Note: Shaking the filter continuously in the water will rem- ove the air from the water
pipe.
Step 5: Install the foam pot: Insert the foam pot into the barrel and rotate the clamp as
shown.
- 11 -
Step 6: After using the product and cleaning, please remove battery pack and other
accessoriesin storagebox and placeit in cool and dryplace.
Note: The installation tutorial video of the pressure washer can be found on the
Amazon.com. If you have any questions, please feel free to contact us.
TROUBLE-SHOOTING
Frequently Asked
Questions
Cause analysis
Solutions
Normal operation of
machine without water
suction
1. Machine is too high
above water
Down to below 1.5 m
ground
2. Filter screen foreign
body clogging
Remove filter and clean
Failure of connection of
3. Intake pipe to machine
or rupture of intake pipe
Check and replace water
pipes,please contact
customer service
4. Intake pipe bending
clamp
Straighten out intake
pipes and reconnect
5. The pump froze
because of the cold
weather
Restart after thawing
Sudden increase in
effluent pressure or
abnormal water type
The head of the water
gun was blocked by a
foreign body
Use a needle to clear the
nozzle or replace the new
gun head
Machine does not start
1. Battery pack not
Installed
reinstallation
2. Battery pack Is dead
Charge or replace new
battery pack
3. Battery pack is broken
Replacement of battery
pack
Battery pack not
charged
Charger mismatch or
broken
Replacement of matching
charger
- 12 -
Machine pressure
discontinuity
Air in 1.pump
Check that joints and
pipes are in good
condition
2. Machine in low voltage
mode
Normal at low pressure,
no treatment required
Machine automatic
stop
1. Battery pack is dead
Charge or replace battery
pack
2. Gun head blocked,
current protection
To clear or replace the
head
Leakage Inside
machine
Chemical acid source or
assembly cause
Avoid using chemical
sources
·
REPAIR AND MAINTENANCE
1．Each time before use, please check if the machine and parts are damaged, if
there is damage stop using the machine, contact the supplier or manufacturer to
replace the parts.
2．Intake pipes and filters must be cleaned after each use and bags should be
kept to avoid oxidation for easy use in the future.
3．After the use of the mainframe, the empty machine should run for a few
seconds to drain the residual water from the machine, avoid oxidation dirt and
weather ice, and store in a dry cool place.
4．Waste disposal: for damaged accessories and packaging materials must be
classified and recovered, do a good job of marking.
5．Do not store in the trunk of the car high temperature weather to avoid fire
caused by high temperature. Warning: do not use chemical acid and muddy water,
must use clean, impurity-free clear water.
- 13 -
CORRECT DISPOSAL
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed through
indicates that the product requires separate refuse collection in the
European Union. This applies to the product and all accessories marked with this
symbol. Products marked as such may not be discarded with normal domestic
waste, but must be taken to a collection point for recycling electrical and electronic
devices
BATTERY DISPOSAL
Li-Ion battery This product has been marked with a symbol relating to
‘separate collection’ for all battery packs and battery pack. It will then be
recycled or dismantled in order to reduce the impact on the environment.
Battery packs can be hazardous for the environment and for human
health since they contain hazardous substances
- 14 -
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 91730
REP
EC
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Main.
REP
UK
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion
House, London Road, Staines-upon-Thames, Surrey,
TW18 4AX
