Technical Support and E-Warranty Certificate www.vevor.com/support
PRESSURE WASHER TRIGGER SPRAY GUN
MODEL: TSG4000
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:TSG4000
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
PRESSURE WASHER
TRIGGER SPRAY GUN
- 2 -
★Important Safety Instructions:
WARNING: Read carefully and understand all ASSEMBLY AND
OPERATION INSTRUCTIONS before operating. Failure to follow the
safety rules and other basic safety precautions may result in serious
personal injury. Various dangers may occur if the hand lever grease gun
is improperly handled during installation, commissioning and daily
operation. Risk of injury and damage to material property because of
improper handling. Hold the manual at the operational staff's disposal at
the unit's usage site.
1. Country-specific safety measures and accident prevention regulations
must be observed.
2. Only qualified and authorized persons are allowed to operate the trigger
spray gun.
3. Persons are qualified if they are, due to their training, experience,
instruction and knowledge of the relevant standards, able to assess
assigned tasks and to identify potentially hazardous situations.
4. All persons charged with installation, operation, maintenance and repair
must have read and understood these operating instructions.
5. Any use beyond these parameters can lead to serious risks and is
regarded as use that is contrary to the intended purpose. The operator is
responsible for damages resulting from use other than the intended use.
CAUTION:
1. Comply with the machine manufacturer‘s maintenance and service
instructions.
2. Defective accessories can lead to personal injury and material damage.
3. During their period of use, accessories must be checked for wear,cracks,
and other damage.
4. Defective accessories should be replaced immediately.
5. Do not open the trigger spray gun when it is under pressure!
6. When using the trigger spray gun, use suitable equipment such as
protective gloves and eye protection.
SAVE THESE INSTRUCTIONS.
- 3 -
Maximum Pressure
4000 psi
Maximum Water Temperature
60°C/140°F
★
Pressure Washer Gun Kit Includes:
1 x Pressure Washer Gun 5 x Different Nozzle Tips
1 x Nozzle Holder 2 x Adapters
2 x O-rings
★
Feature
Nozzles fitting: 1/4’’quick connector
Fitting: pressure washer hose with 3/8” or M22 14mm or M22 15mm
connector
5 Spray Nozzles Have Different Spray Angle (0°
、
15°
、
25°
、
40°
、
65°)
1.Red: 0 degree straight line of water
2.Yellow: 15 degree fan-shaped water
3.Green: 25 degree fan-shaped water
4.White: 40 degree fan-shaped water
5.Black: 65 degree, large fan foam nozzle
★The gun body is made of engineering plastic.
★The internal structure is brass and stainless steel working pressure
4000PSI Maximum.
★ Safety Locking Trigger – Gun features a safety locking trigger to prevent
unwanted trigger pulls.
- 4 -
★Ergonomic and comfortable grip to fit your hands makes pressure
washing job very easy. Thus, its compact design and size makes it easy to
hold and use.
★ATTENTION: Do not directly fit the garden hose, water hose, or faucet.If
pressure washer hose has 3/8”
connector
, please connect to hose directly.

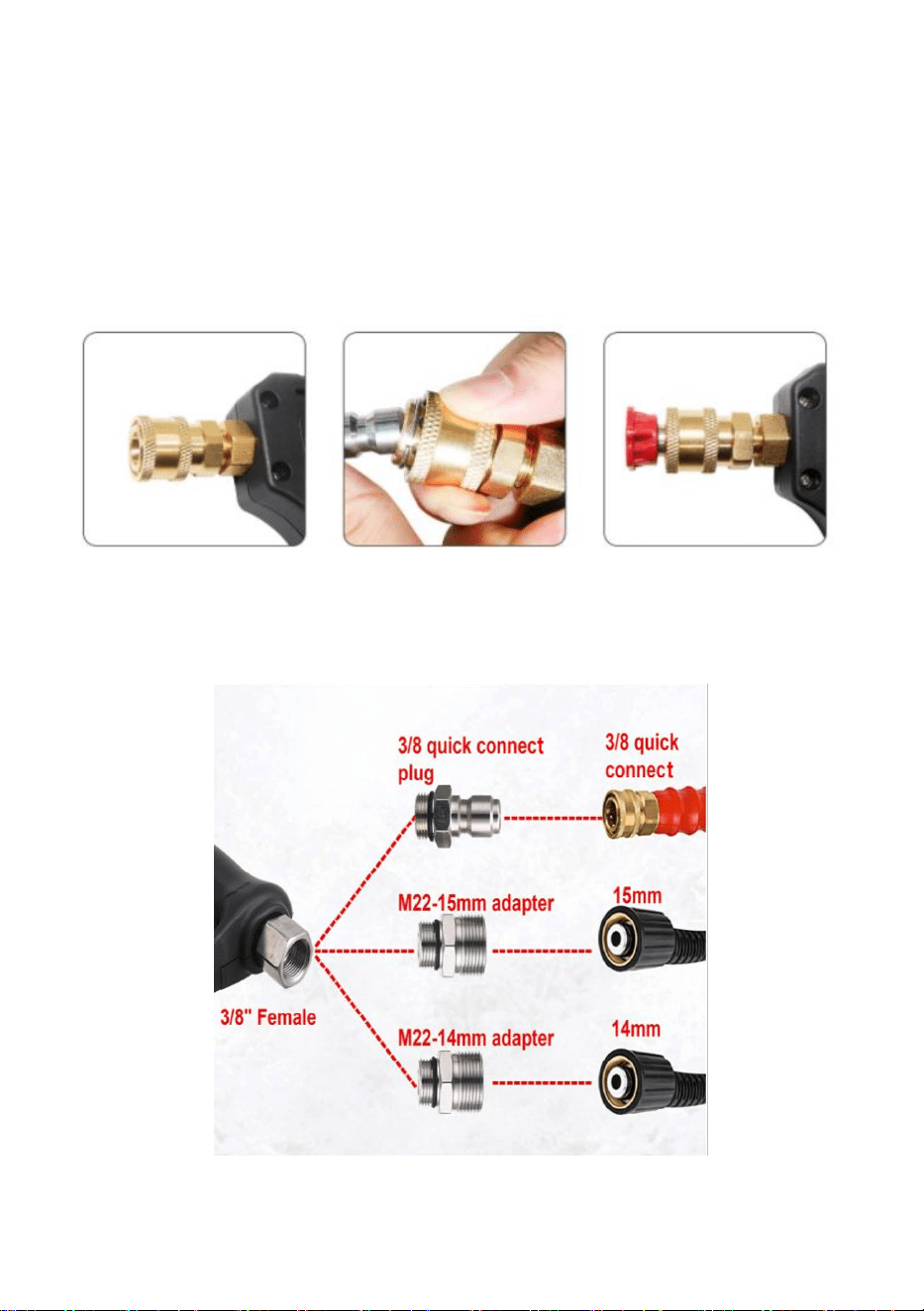

★Connecting nozzles
★Connect the hose connector
- 5 -
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW
2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,
Rancho Cucamonga, CA 9173
REP
UK
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions
Preston, United Kingdom
REP
EC
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Linkenheim-Hochstetten, Germany
Made In China
